A rare variation of hydranencephaly: case report [v2; ref status: indexed, http://f1000r.es/y4]
Buddhika TB Wijerathne1, Geetha K Rathnayake2, Sisira K Ranaraja1
Author affiliations
Grant information: The author(s) declared that no grants were involved in supporting this work.
Views 3224

Abstract

Hydranencephaly is a rare congenital abnormality characterized by the absence and replacement of the cerebral hemispheres with cerebrospinal fluid. Here, we present an ultrasonographic diagnosis of a case of a rare variant of fetal hydranencephaly at 38 weeks of gestation. Obstetric sonography revealed the absence of the cerebral cortex, thalami and basal ganglia with a disrupted falx and preserved posterior fossa structures. This is the first reported case of hydranencephaly with the absence of the thalami and basal ganglia, which was diagnosed prenatally. The diagnosis was confirmed with postnatal computed tomography. The early prenatal diagnosis allowed for prompt obstetric attention at a tertiary care hospital which had specialized pediatric facilities including prenatal counseling and support.

Updated
Changes from Version 1

Firstly, we have corrected the grammar mistakes as much as possible. In this version of the article we also explain in more detail the etiology of hydranencephaly with evidence from the literature. We have also discussed some other syndromes that present hydranencephaly and provided evidence supporting their inclusion. We performed a thorough literature search and review, and found that this article is indeed the first case of hydranencephaly diagnosed prenatally with the absence of both the thalamus and basal ganglia. Finally, we added a discussion on the social aspects and the social stress that may occur for families with hydranencephalic children.

See referee responses

Introduction

Hydranencephaly is a rare congenital abnormality characterized by the absence and replacement of the cerebral hemispheres with cerebrospinal fluid. It was first described by Cruveilher (1892) as "Anencephalie hydrocephalique" or "Hydroanencephalie"1. Crome and Sylvester then reviewed the disease and defined it as a congenital condition2. It is an extremely rare and unique abnormality occurring in less than 1 per 10,000 births worldwide3. It is also said to be present in 0.2% of infant autopsies, and approximately 1% of babies diagnosed clinically as hydrocephalus4. It is critical to differentiate between hydranencephaly and extreme hydrocephalus as the latter carries a significantly higher prognosis5. Here, we report a rare case of hydranencephaly, which was diagnosed in the late third trimester, followed by successful obstetric care and management.

Case presentation

A 28-year-old women (Gravida 2 and para 1) at 38 weeks of gestation was presented to our obstetrics and gynecology unit with lower abdominal pain. She and her husband were Sinhalese and unrelated, with no family history of genetic or congenital anomalies. The patient didn’t smoke, and there was no history that suggested congenital infections or exposure to toxins. In her first pregnancy she delivered a normal healthy male child by an uncomplicated vaginal delivery. In her most recent pregnancy, she didn’t attend the local antenatal clinic regularly, and thus was recognized as a noncompliant patient. She had not had a routine dating scan, anomaly scan or growth scan of the fetus during her pregnancy. The clinical obstetric examination at presentation was unremarkable, and the cardiotocography of the fetus was normal.

Upon inspection, the obstetric ultrasound scan showed fluid filled cranial cavity with an absent cerebral cortex, thalami and basal ganglia. The third ventricle appeared to be dilated and the remnants of midbrain structures were present (see Figure 1). The cerebellum and other posterior fossa structures appeared to be normal. We noticed that the falx cerebri looked like it had been disrupted (see Figure 2). There was no polyhydramnios present and the umbilical artery doppler studies were normal. Sonographically, it was suggestive of hydranencephaly. The patient’s blood group was B positive and an infectious disease antibody test showed negative titers for rubella, HIV, Hepatitis B and toxoplasmosis. We chose to perform a caesarian section to avoid any obstetric complications that may arise from a possible cephalopelvic disproportion. The Pediatric team was informed about the situation and the parents were given advice and counseled with regards to the poor prognosis of the child’s abnormality. At week 39 of gestation, an emergency caesarian section was performed due to fetal distress. The newborn was a 2,980g female who had a normal physical appearance. The head of the newborn was of normal size (head circumference = 33.5 cm) but the head itself was particularly transilluminated.

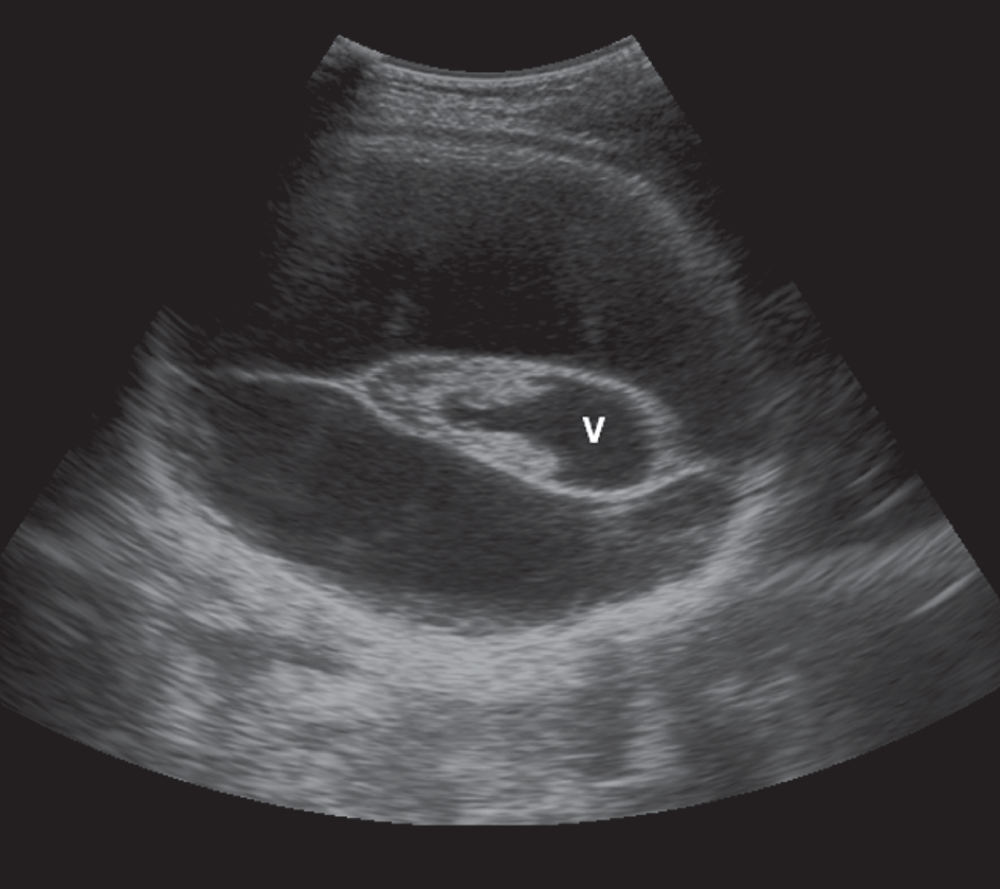

Figure 1. Prenatal ultrasound scans image of the fetus.

Transabdominal transverse section of the fetal head at 38 weeks of gestation shows dilated third ventricle (V) with absent thalami and basal ganglia and cerebral cortex.

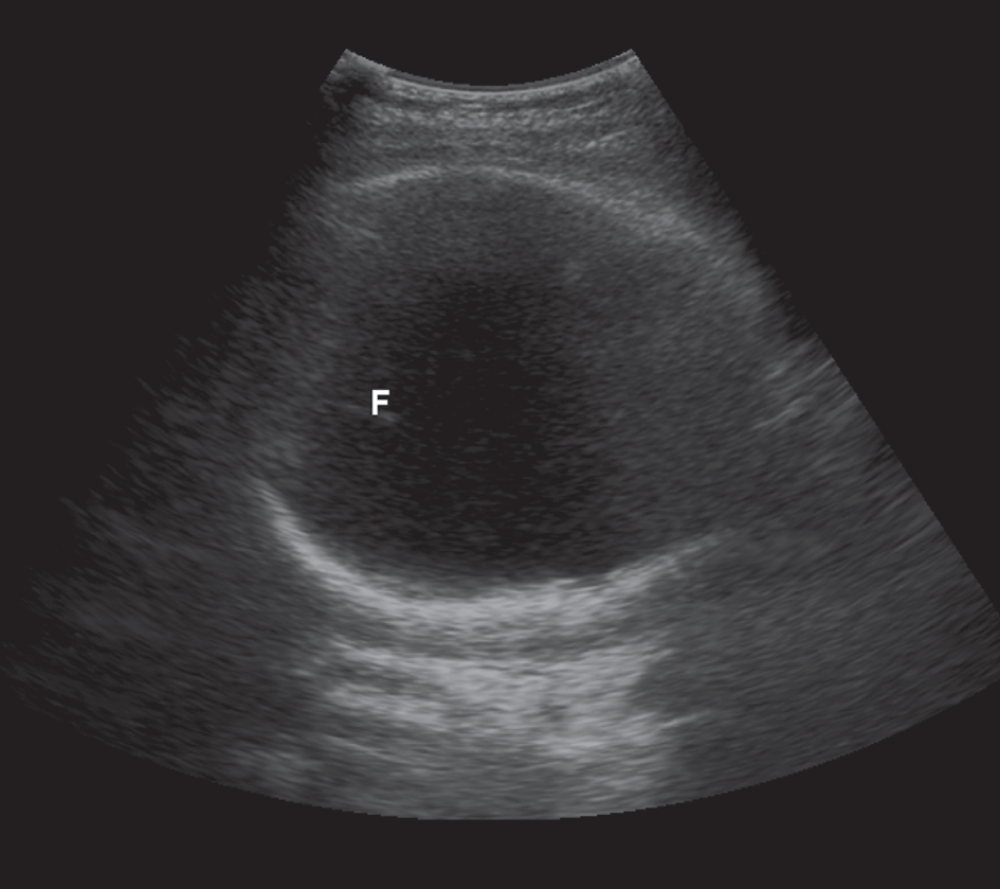

Figure 2. Prenatal ultrasound scans image of the fetus.

Transabdominal transverse section of the fetal head shows disrupted falx (F).

The newborn was immediately transferred to the neonatal intensive care unit because of respiratory distress. A non-contrast computed tomography (CT) of the newborn’s head was performed two days after the delivery. The CT scan revealed that there was no cerebral cortex, thalami or basal ganglia. The third ventricle looked dilated and remnants of midbrain structures could be seen (see Figure 3). The cerebellum and other posterior fossa structures were preserved with disrupted falx cerebri (see Figure 4a, 4b). The CT scan therefore confirmed the prenatal diagnosis hydranencephaly. The baby died two weeks after birth due to cardiac arrest. The parents declined a postmortem examination.

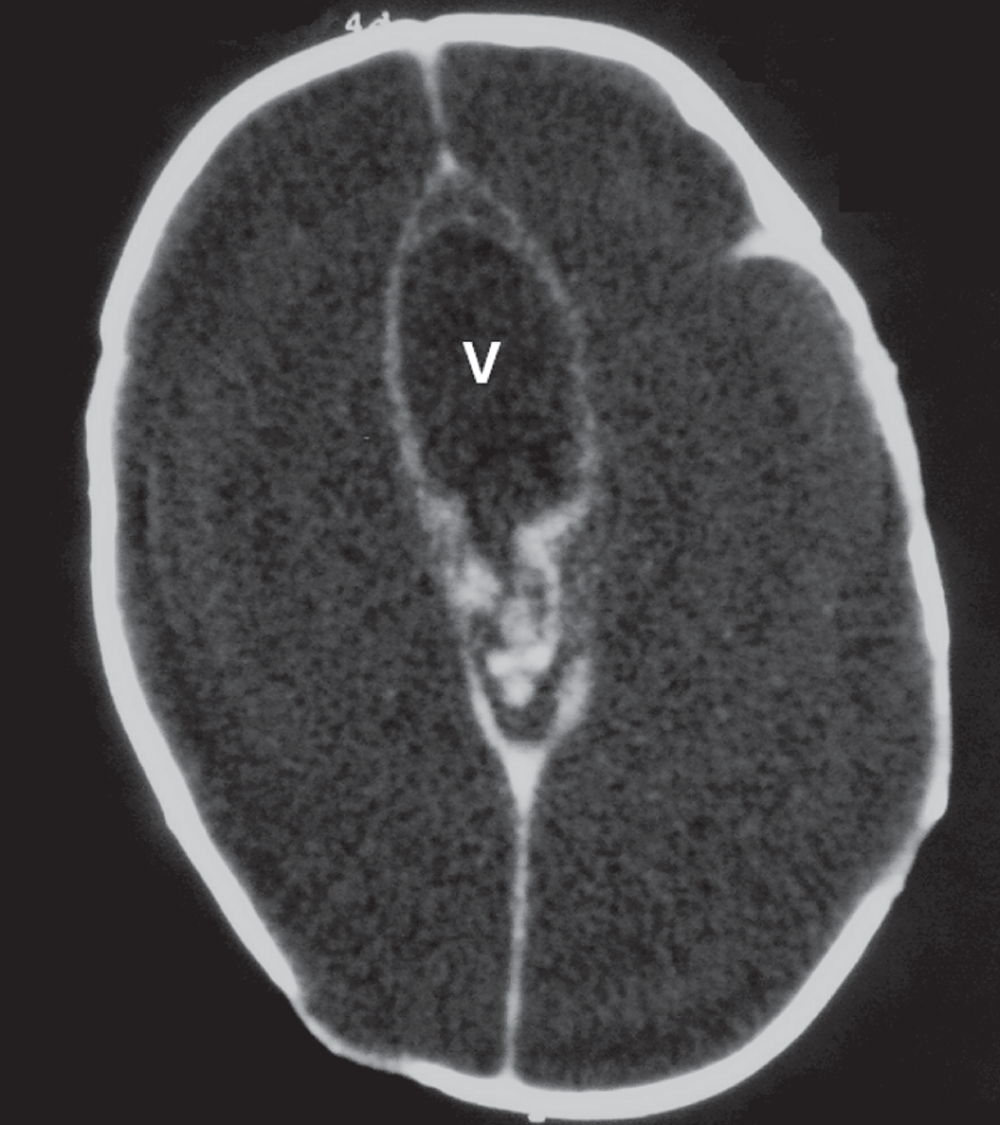

Figure 3. CT image of 2 days old newborns brain.

Dilated third ventricle (V) with absent thalami and basal ganglia and cerebral cortex.

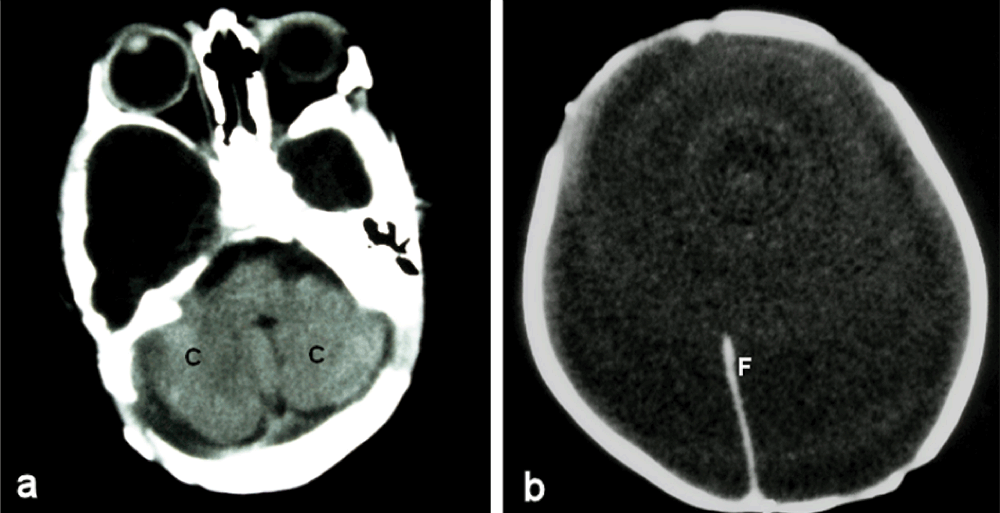

Figure 4. CT images of 2 days old newborns brain.

(a) Intact Cerebellum (C) and other posterior fossa structures. (b) Shows disrupted falx cerebri (F).

Discussion

Hydranencephaly is an encephaloclastic abnormality characterized by the absence and replacement of the cerebral hemispheres with cerebrospinal fluid and necrotic debris, covered by leptomeninges. Usually, there is no cerebral cortex but there may be partial preservation of a portion from the occipital lobe6. The midbrain, thalamus, basal ganglia, choroids plexus, cerebellum and brain stem are usually preserved and contained within the skull. The falx cerebri is usually present but may be partially or entirely absent and the septum pellucidum may also be absent.

The etiopathogenesis of hydranencephaly is heterogeneous, and so several theories have been postulated for its occurrence. The most common etiology described is the occlusion of the supra-clinoid segment of the bilateral internal carotid arteries causing ischemic degeneration of structures supplied by them7. Myers described the etiology of hydranencephaly by experimenting on laboratory monkeys. In his study, monkey fetuses were subjected to ligation of the bilateral carotid arteries and jugular veins in the neck at different gestational ages. These fetuses were then restored to the uterus, brought to term and subsequently delivered. Examination of the baby monkey brains revealed hydranencephaly, which resulted from a vascular shutdown predominantly when carried out during earlier gestational age8.

Some case reports suggest the occlusion of the internal carotid arteries due to a temporary spasm rather that direct occlusion leading to ischemic destruction of certain brain structures9. Other etiologies of hydranencephaly include intrauterine infections, which leads to the local destruction of brain tissue e.g. congenital toxoplasmosis10 or other viral infections (adenovirus, cytomegalovirus, enterovirus, Epstein-Barr virus, herpes simplex virus, parvovirus, and respiratory syncytial viruses)3,6,11. Another etiology that has arisen is the maternal exposure to carbon monoxide or butane gas, which can result in fetal hypoxia which in turn leads to massive tissue necrosis with cavitations, resorption of necrotized tissue and necrotizing vasculitis3,12.

Monozygotic twinning has also been associated with congenital hydranencephaly13. It has been revealed that vascular interchanges between monozygotic twinning can result in the transfer of intravascular coagulation materials from the deceased co-twin to the surviving twin causing thromboembolism14,15. Hydranencephaly has also been associated with various congenital anomalies, including Fowler syndrome, arthrogryposis, renal aplastic dysplasia, poly-valvular heart defect, and trisomy17,18.

The cranial ultrasonographic imaging of hydranencephaly shows a large cystic mass filling the entire intracranial cavity with the absence or discontinuity of the cerebral cortex19. The appearance of the thalami and brainstem protruding into the cystic cavity was characteristic, together with a midline echo from the remnants of the falx, the tentorium cerebelli and cerebellum19,20. The third ventricle and choroids plexus were often visible and the absence of the septum pellucidum may give rise to a single ventricle in the midline21. There is a main difference in the diagnosis of extreme hydrocephaly, alobar holoprosencephaly and porencephaly22,23. In these conditions, the above-mentioned structures will still be surrounded by a rim of cortex; as they carry a better prognosis, it is essential to try and differentiate them in the ultrasonographic imaging of hydranencephaly. In extreme cases of hydrocephalus, the thin cortical layer may be difficult to recognize sonographically, and thus Magnetic resonance imaging (MRI) or intrauterine CT scans can be used to support the diagnosis24.

The majority of cases of hydranencephaly are detected in the second half of a pregnancy18; however there have been some cases of sonographic diagnosis of fetal hydranencephaly in the first trimester25. Hydranencephaly has a really poor prognosis, as the majority of brainstem functions are missing. Affected newborns can die at birth, but most infants die within the first year of their life26. If a child does survive they will inevitably be severely handicapped.

The social and emotional problems that occur after a delivery of a child suffering from hydranencephaly can be terribly depressing for the family27. Counseling the parents regarding the poor prognosis and the potential management options is advised to help them prepare for the potential outcome. Education of the prognosis is a necessary step that allows the family time to prepare and come to terms with the eventualities and can help provide immediate support when required27. Because of the poor prognosis, termination of pregnancy is recommended once a definitive diagnosis has been established24. If macrocrania is identified in late pregnancy then cephalocentesis may be suggested as an option to aid the delivery24.

Conclusion

The ultrasonographic findings that we described, led to the diagnosis of hydranencephaly being the most likely outcome and this was confirmed by postnatal CT of the fetal head. Remnant or preserved midbrain structures were observed in the most reported cases of hydranencephaly28,29 with the thalamus or basal ganglia (or both) structures preserved in the majority of cases. This is the first published case of prenatal diagnosed hydranencephaly with the absence of the thalami and basal ganglia along with ruminants of the midbrain in the same patient. Sonographic assessment is sufficient for the prenatal diagnosis of hydranencephaly in most cases, and MRI or an intrauterine CT should be used to support the sonographcic asssment and shouldn’t be considered as a first-line diagnostic tool.

Timely diagnosis is crucial in hydranencephaly cases as early treatment options can avoid obstetrics complications, and early diagnosis is particularly useful for anticipating the need to give appropriate counseling to the parents during the pregnancy. An early diagnosis is also fundamental for preparing the optimal conditions of delivery and allowing for a specialized pediatric delivery unit to be on hand for the delivery.

Consent

Written informed consent obtained from the patient for publication of this case report and any accompanying images. A copy of the written consent is available for review by the Editors.
