Research Article
Reversion of the Arabidopsis rpn12a-1 exon-trap mutation by an intragenic suppressor that weakens the chimeric 5’ splice site [version 1; referees: 2 approved]
Jasmina Kurepa, Jan Smalle
PUBLISHED 25 Feb 2013
Author affiliations Author Affiliations
Grant information Grant Information
Article Versions (2)
Export To
how to cite this article
Kurepa J and Smalle J. Reversion of the Arabidopsis rpn12a-1 exon-trap mutation by an intragenic suppressor that weakens the chimeric 5’ splice site [version 1; referees: 2 approved] F1000Research 2013, 2:60 (doi: 10.12688/f1000research.2-60.v1)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
receive updates on this article
Track an article to receive email alerts on any updates to this article.


Background: In the Arabidopsis 26S proteasome mutant rpn12a-1, an exon-trap T-DNA is inserted 531 base pairs downstream of the RPN12a STOP codon. We have previously shown that this insertion activates a STOP codon-associated latent 5' splice site that competes with the polyadenylation signal during processing of the pre-mRNA. As a result of this dual input from splicing and polyadenylation in the rpn12a-1 mutant, two RPN12a transcripts are produced and they encode the wild-type RPN12a and a chimeric RPN12a-NPTII protein. Both proteins form complexes with other proteasome subunits leading to the formation of wild-type and mutant proteasome versions. The net result of this heterogeneity of proteasome particles is a reduction of total cellular proteasome activity. One of the consequences of reduced proteasomal activity is decreased sensitivity to the major plant hormone cytokinin.
Methods: We performed ethyl methanesulfonate mutagenesis of rpn12a-1 and isolated revertants with wild-type cytokinin sensitivity.
Results: We describe the isolation and analyses of suppressor of rpn12a-1 (sor1). The sor1 mutation is intragenic and located at the fifth position of the chimeric intron. This mutation weakens the activated 5' splice site associated with the STOP codon and tilts the processing of the RPN12a mRNA back towards polyadenylation.
Conclusions: These results validate our earlier interpretation of the unusual nature of the rpn12a-1 mutation. Furthermore, the data show that optimal 26S proteasome activity requires RPN12a accumulation beyond a critical threshold. Finally, this finding reinforces our previous conclusion that proteasome function is critical for the cytokinin regulation of plant growth.

Background: In the Arabidopsis 26S proteasome mutant rpn12a-1, an exon-trap T-DNA is inserted 531 base pairs downstream of the RPN12a STOP codon. We have previously ...


The 26S proteasome (26SP) is a multisubunit protease responsible for the degradation of proteins that are covalently labeled with a polyubiquitin (Ub) chain via the combined action of Ub activating enzymes, Ub conjugating enzymes and Ub ligases1. The 26SP is localized in the cytosol and the nucleus, and it degrades proteins involved in many signaling and metabolic pathways1,2. The 26SP is also essential for the destruction of misfolded proteins that are generated by mistranslations and during stress24.

Studies with proteasome mutants in Arabidopsis have revealed that the 26SP is required for both male and female gametogenesis, confirming its essential role in cellular viability2,5,6. Partial loss-of-function mutants, on the other hand, have been indispensable for uncovering pathways in which key components are regulated by proteasome-dependent degradation713.

The rpn12a-1 mutant, which carries an insertion in the RPN12a gene (At1g64520) encoding regulatory particle non-ATPase subunit (RPN) 12a, was isolated from a collection of exon-trap lines14,15. These lines were generated by transforming Arabidopsis plants (C24 accession) with a T-DNA construct that contains a promoterless neomycin phosphotransferase (NPTII) without a starting methionine which is preceded by a 3´ splice site of the first intron of the apurinic endonuclease (APR)14. Kanamycin-resistant exon-trap lines are therefore predicted to have the APR-NPTII construct inserted downstream of an active promoter either in frame with the coding region or in a position that allows the formation of a novel, chimeric intron. The rpn12a-1 mutation is unusual because the T-DNA is inserted downstream of the RPN12a gene, and both the full-length RPN12a cDNA and a chimeric RPN12a-NPTII cDNA are produced15. This suggested that two types of cis signals involved in the pre-mRNA processing of RPN12a are competing. Because the wild-type transcript is produced in the mutant and is stable enough to be detected using routine RNA analytic procedures, the poly(A) signal of the RPN12a gene must be intact and active. On the other hand, since a chimeric RPN12a-NPTII transcript is produced, the 3´ splice site of the inserted T-DNA must have recruited a latent 5´ splice site in the RPN12a gene. We have previously shown that this predicted latent 5´ splice site is STOP codon-associated, and that the pre-mRNA splicing of the chimeric intron leads to the production of the fusion mRNA15. As a result of the action of these two opposing pre-mRNA processing mechanisms, a fraction of the mRNA species transcribed from the mutant RPN12a gene are translated into a functional RPN12a protein, and the rest encodes a chimeric RPN12a-NPTII fusion protein. Because both RPN12a forms are incorporated into the 26SP, the total proteasome activity in these mutant seedlings is reduced, but not abolished15.

The reduction of 26SP activity in rpn12a-1 caused a pleiotropic phenotype, which included altered responses to cytokinins15. Cytokinins are plant hormones that are essential for every aspect of growth and development1619. For example, cytokinins control the development of meristems and vasculature, and play an important role in senescence and nutrient allocation19,20. To gain better insight into the cytokinin insensitivity of rpn12a-1 seedlings, we screened for suppressor mutants that have a wild-type cytokinin growth response. Here we describe the intragenic suppressor of rpn12a-1 (sor1) that disrupts the latent 5´ STOP-associated splice site. Sor1 reduced the expression of the RPN12a-NPTII fusion mRNA with a concomitant increase in RPN12a transcript level. As a result, RPN12a accumulation in sor1 seedlings was identical to the wild-type and was accompanied by wild-type cytokinin sensitivity. These results validate our transcript processing interpretation of the rpn12a-1 exon-trap effect and accentuate the importance of optimal RPN12a expression for cytokinin signaling.

Materials and methods

Plant material and growth conditions

The Arabidopsis thaliana rpn12a-1 mutant in the C24 background was described by us previously15. To grow plants on soil and in axenic cultures, seeds were surface-sterilized in 70% ethanol followed by 50% bleach and plated on MS/2 medium that contained half-strength MS salts (pH 5.7, Sigma, St. Louis, MO) and 1% (w/v) sucrose. The seeds were kept for 4 days in darkness at 4°C, and either plated on MS/2 or on soil (Miracle-Gro potting mix:Perlite at 1:1 ratio). Plants were grown in continuous light at 22°C.

EMS mutagenesis and screening for rpn12a-1 suppressors

The rpn12a-1 seeds were pre-incubated in 1.0% KCl for 12 hours, and then mutagenized for 5 hours in 100 mM sodium phosphate buffer (pH 5) containing 5% DMSO and 80 mM ethyl methanesulfonate (EMS; Sigma-Aldrich, St. Louis, MO). Seeds were washed twice in 100 mM sodium thiosulphate and then twice in distilled water. Seeds were incubated and chilled in 0.1% agar and sown directly to soil. All the seeds in the M2 generation were pooled upon harvest, surface-sterilized and plated on the MS/2 medium containing 0.1 µM kinetin (6-furfurylaminopurine; obtained from Duchefa Biochemie (Gold Biotechnology, St. Louis, MO, USA). The putative suppressor mutants were transferred from the selection medium onto MS/2 medium to allow recovery, and were then transferred to soil.

Phenotypic analyses of sor1

Cytokinin treatments were as previously described15. For fresh weight analyses, seedlings were germinated and grown on kanamycin-containing media, and their weight was measured in pools of 5 seedlings after 24 days of growth. Kanamycin monosulfate was obtained from Gold Biotechnology.

Expression analyses

For the RT-PCR experiments, total RNA was extracted using TRIzol reagent (Invitrogen. Carlsbad, CA, USA). The reverse transcription was performed using 1 µg of TURBO DNAse (Ambion, Austin, TX, USA), pre-treated total RNA and iScript kit (BioRad, Hercules, CA, USA). The primers used for the amplification of wild-type cDNA fragment (306 bp in length) were F1: 5´-GGGTGCCTATAACCGTGTGTTGAGTGCTAG-3´ and R1: 5´-ATACGCTCCAGCTCTCTGGCGTAGCTTAGA-3´. The RPN12A-NPTII fusion transcript fragment was amplified with F1 and NPTII primer R2: 5´-CCCCTGCGCTGACAGCCCGGAACA-3´. PBA1 (At4g31300) was amplified using forward and reverse primers that contained the first and last 25 bp of the cDNA. The primer set used to amplify the Arabidopsis elongation factor 1-α (EF-1-α; At5g60390) was previously described9.

For immunoblotting analyses, total proteins were isolated, separated and transferred to nitrocellulose membranes as described15. Rabbit polyclonal anti-RPN12a and anti-PBA1 antibodies (used at 1:1000 dilution) were purchased from Enzo Life Sciences (Plymouth Meeting, PA, USA). The anti-NPTII antibodies (rabbit, polyclonal) were obtained from Abcam (Cambridge, MA, USA).

Analyses of the sor1 mutation

Genomic DNA fragments from rpn12a-1 and sor1 were amplified using F1 and R2 primers and sequenced using dye-termination chemistry (Perkin-Elmer, Foster City, CA, USA) at Advanced Genetic Technologies Center (AGTC, KY, USA). Sequences were analyzed using Vector NTI Suite (Invitrogen, Carlsbad, CA).

Results and discussion

Isolation of an intragenic rpn12a-1 suppressor

To obtain rpn12a-1 suppressors, we mutagenized seeds with EMS and plated ~50,000 M2 seeds on a medium with 0.1 µM of the cytokinin kinetin. Wild-type plants grown on 0.1 µM kinetin are chlorotic and smaller compared to rpn12a-115, and thus we selected chlorotic and smaller M2 seedlings after 14 days of growth. The putative suppressors were first transferred to cytokinin-free media to recover, and subsequently to soil for self-pollination.

Analyses of the M3 generation showed that in suppressor of rpn12a-1 1 (sor1), all visible phenotypes of rpn12a-1 were reverted back to the wild-type (Figure 1). For example, the rpn12a-1 mutant has a smaller rosette than the wild-type and a reduced leaf initiation rate15. The sor1 plants had a leaf number and rosette size similar to the C24 wild-type plants (Figure 1). The sor1 mutant plants also displayed wild-type sensitivity to cytokinin. After three weeks of growth on a medium with 0.2 µM kinetin, both wild-type and sor1 seedlings were chlorotic and their growth was severely inhibited, while the rpn12a-1 seedlings were green and larger (Figure 1).


Figure 1. Decreased sensitivity of rpn12-1 to cytokinins is restored by the sor1 mutation.

Plants were grown for three weeks on MS/2 media (control) or MS/2 media containing 0.2 µM kinetin in continuous light. Representative seedlings are shown.

Next, we analyzed the kanamycin (Km) resistance of the sor1 mutant line. The Km resistance of the rpn12a-1 mutant is completely linked to the proteasome-related phenotypes and thus, all the progeny of a plant homozygous for the rpn12a-1 mutation should be Km resistant. All sor1 seedlings were indeed resistant to Km, but the levels of resistance were significantly lower compared to rpn12a-1 (Figure 2). While Km did not affect the growth of rpn12a-1 seedlings, both root and shoot growth of sor1 were partially inhibited (Figure 2). We did not observe any attenuation of Km resistance over several generations, a phenomenon that has been documented for a number of T-DNA insertion mutant collections21 (see also the Salk Institute Genomic Analysis Laboratory Arabidopsis sequence indexed T-DNA insertion Project FAQ). An explanation for the change in Km tolerance in sor1 is that the mutation affects the expression of the NPTII gene which is an integral part of the exon-trap (Figure 3a and Babiychuk et al. 199714). When the sor1 mutant was outcrossed to the C24 wild type, none of the plants of the F2 population displayed an rpn12a-1 phenotype, indicating that sor1 is intragenic and tightly linked with the rpn12a-1 mutation.


Figure 2. The sor1 mutation leads to a partial loss of kanamycin resistance.

(a) Wild-type (C24), rpn12a-1 and sor1 seeds were sown and grown on MS/2 media containing 35 µg/ml kanamycin (Km). Representative plants were photographed after two weeks of growth. (b) Fresh weight (FW) of seedlings grown on Km media was measured after two weeks of growth. FW of the wild-type plants grown on control MS/2 media was calculated as 100%. Seedlings were measured in pools of five, and mean ± SD is presented (n≥7).

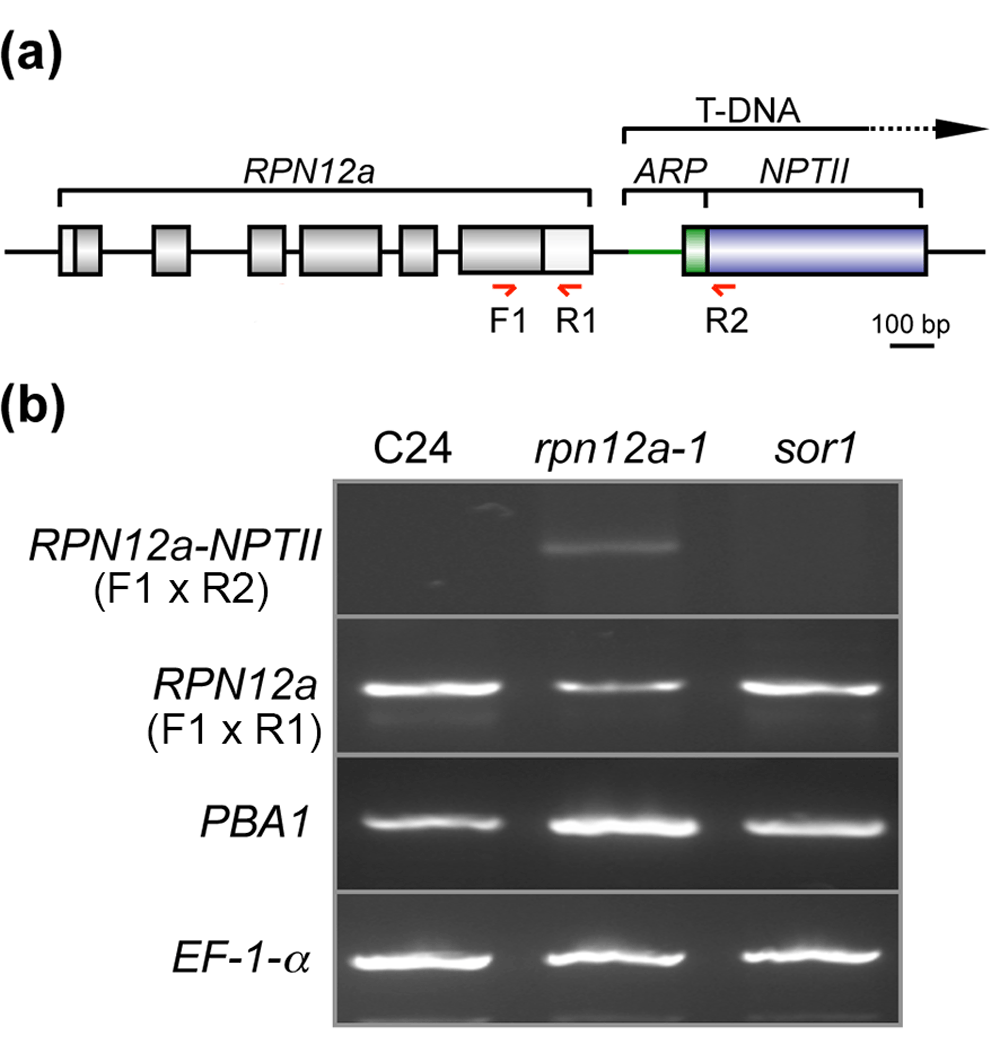

Figure 3. The sor1 mutation reduces the expression of the RPN12a-NPTII fusion transcript.

(a) Simplified schematic representation of the RPN12a gene and the inserted T-DNA in the rpn12a-1 mutant15. The T-DNA contains the first intron and second exon of the apurinic endonuclease gene (ARP) fused in frame to the neomycin phosphotransferase II (NPTII) coding region. Exons are represented by gray boxes and introns as lines. Positions of the forward (F1) and reverse (R1 and R2) primers used for the RT-PCR are indicated. (b) Total RNA was extracted, reverse transcribed and used to amplify the RPN12a-NPTII (42 cycles) and wild-type RPN12a transcripts (35 cycles). The primers used for the reaction are indicated. Amplification of proteasome β subunit 1 (PBA1) and ACTIN2 serve as controls.

sor1 suppresses the accumulation of the RPN12a-NPTII fusion transcript

To obtain further insight into the nature of the sor1 mutation, we analyzed the expression of the RPN12a gene and the accumulation of the RPN12a protein. RT-PCR analyses showed that the RPN12a-NPTII fusion transcript was not detectable in sor1 seedlings (Figure 3b). The abundance of the RPN12a cDNA, which was lower in the rpn12a-1 mutants, was restored back to the wild-type level.

Reductions in proteasome activity typically lead to the activation of a feedback mechanism that induces the transcription of proteasome subunit genes. This mechanism is operational in all eukaryotes, including yeasts, Drosophila, mammals and plants7,2226. Due to this global feedback up-regulation of 26SP subunit genes, the 20S proteasome subunit β1 transcript (PBA1) is more abundant in rpn12a-1 compared to the wild-type (Figure 3b). As expected, the PBA1 level in the sor1 mutant was similar to that in the wild type.

Immunoblotting analyses using anti-RPN12a antibodies showed that the sor1 mutant does not accumulate the RPN12a-NPTII fusion protein (Figure 4). The RPN12a abundance in sor1 was increased compared to rpn12a-1 and similar to the wild-type. We were also unable to detect the RPN12a-NPTII fusion in sor1 by using anti-NPTII antisera (Figure 4). In the rpn12a-1 mutant, a fraction of the assembled 26SP contains the fusion protein leading to a decrease in total cellular 26SP activity and a compensatory increase in the expression of proteasome subunit genes15,26. In the sor1 mutant, with no or little fusion protein, 26SP function is expected to be restored back to the wild-type level. Indeed, immunoblotting analyses with the anti-PBA1 antibodies showed that the abundance of the 20S proteasome subunit PBA1 in sor1 seedlings was comparable to that of the wild-type, indicating that proteasome activity was restored to optimal levels and that feedback up-regulation of proteasome subunit genes was halted (Figure 4).

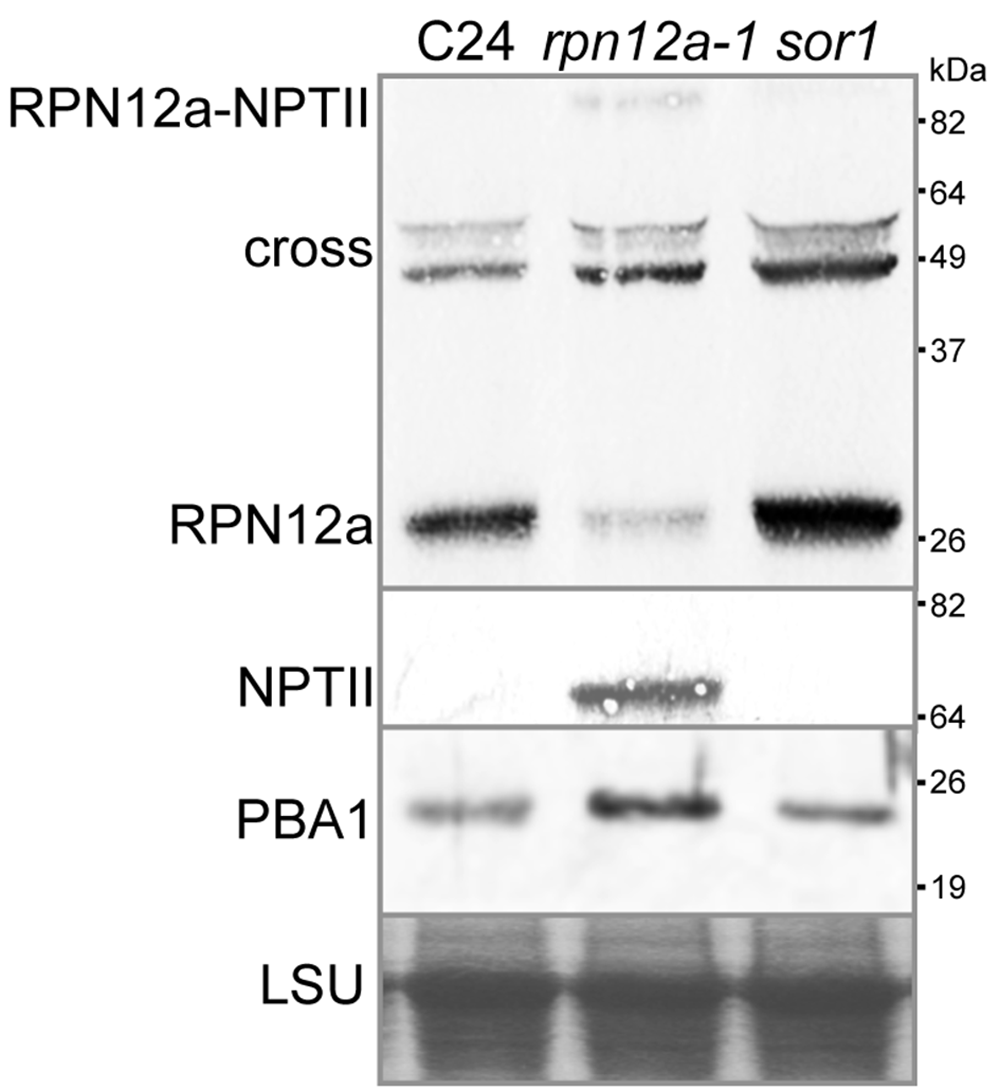

Figure 4. The RPN12a-NPTII fusion protein is absent in the sor1 mutant.

Total protein was isolated from two-week-old wild-type (C24), rpn12a-1 and sor1 seedlings and used for immunoblotting analyses with anti-RPN12, anti-NPT and PBA1 antisera. In addition to the RPN12a and RPN12a-NPTII fusion proteins, the anti-RPN12 antisera also recognized two proteins (cross) that are not related to RPN12a. Ponceau S-stained membrane showing the large RuBisCO subunit (LSU) is presented as a loading control. The size of the proteins used as molecular mass standards is shown on the right-hand side.

Taking into account both the result of the Km resistance tests (Figure 2) and the expression data (Figure 3 and Figure 4), we concluded that the sor1 mutation suppresses the formation of the RPN12a-NPTII fusion transcript which was sufficient to restore 26SP function back to the wild-type level.

sor1 weakens the STOP codon-associated 5´ splice site in rpn12a-1

To find the mutation that causes the sor1 phenotype, we amplified and compared the sequences of the RPN12a-NPTII chimeric gene from sor1 and rpn12a-1. No mutations were found in NPTII, indicating that the loss of Km resistance and NPTII abundance was not caused by any disruption of the NPTII coding region. We also did not detect any changes in the RPN12a coding region, but did find a single nucleotide change immediately downstream of the RPN12a STOP codon (Figure 5). Sequencing of the entire region between RPN12a and NPTII did not reveal any additional mutations, confirming that the RPN12a STOP codon-associated G to A mutation was indeed sor1.

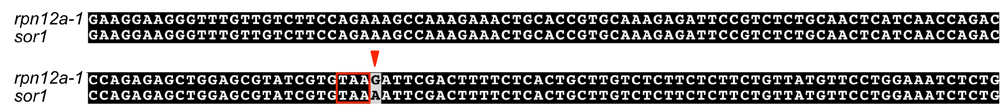

Figure 5. Sequence alignment of the RPN12a gene (At1g64520) in rpn12a-1 and sor1.

Genomic DNA fragment was amplified using F1 and R2 primers (presented in Figure 3), sequenced and the sequence was aligned using Vector NTI suite. Alignment of the region starting with base pair 1615 and ending with base pare 1804 of the annotated RPN12a gene is presented using BoxShade 3.2. The red arrowhead points to the sor1 mutation and the RPN12a STOP codon is boxed in red.

To analyze how this G-to-A substitution leads to reversion of the rpn12a-1 phenotype, we manually compared the consensus sequence for 5´ splice sites in Arabidopsis27 with the sequence of the exon/intron junction that precedes the RPN12a STOP codon in rpn12a-1 and sor1 (Figure 6a). The alignment revealed that both the intron and exon residues adjoining the splice junction of the mutants match the consensus well. Interestingly, the sor1 mutation changes a consensus G at the fifth position of the intron into an A, thus weakening the 5´ splice site of the chimeric intron. The G at the position +5 is thought to be required for efficient binding of U1snRPN27. Reduced splicing of the chimeric intron between the RPN12a and NPTII coding regions is predicted to lead to a reduced accumulation of the RPN12a-NPTII transcript and protein (Figure 6b and 6c). The combination of reduced intron splicing and unaffected 3´ end processing is therefore predicted to lead to a dramatic shift in favor of the formation of the wild-type RPN12a transcript, and thus to the accumulation of the RPN12a protein back to the wild-type level, which is what we observed in sor1 seedlings.

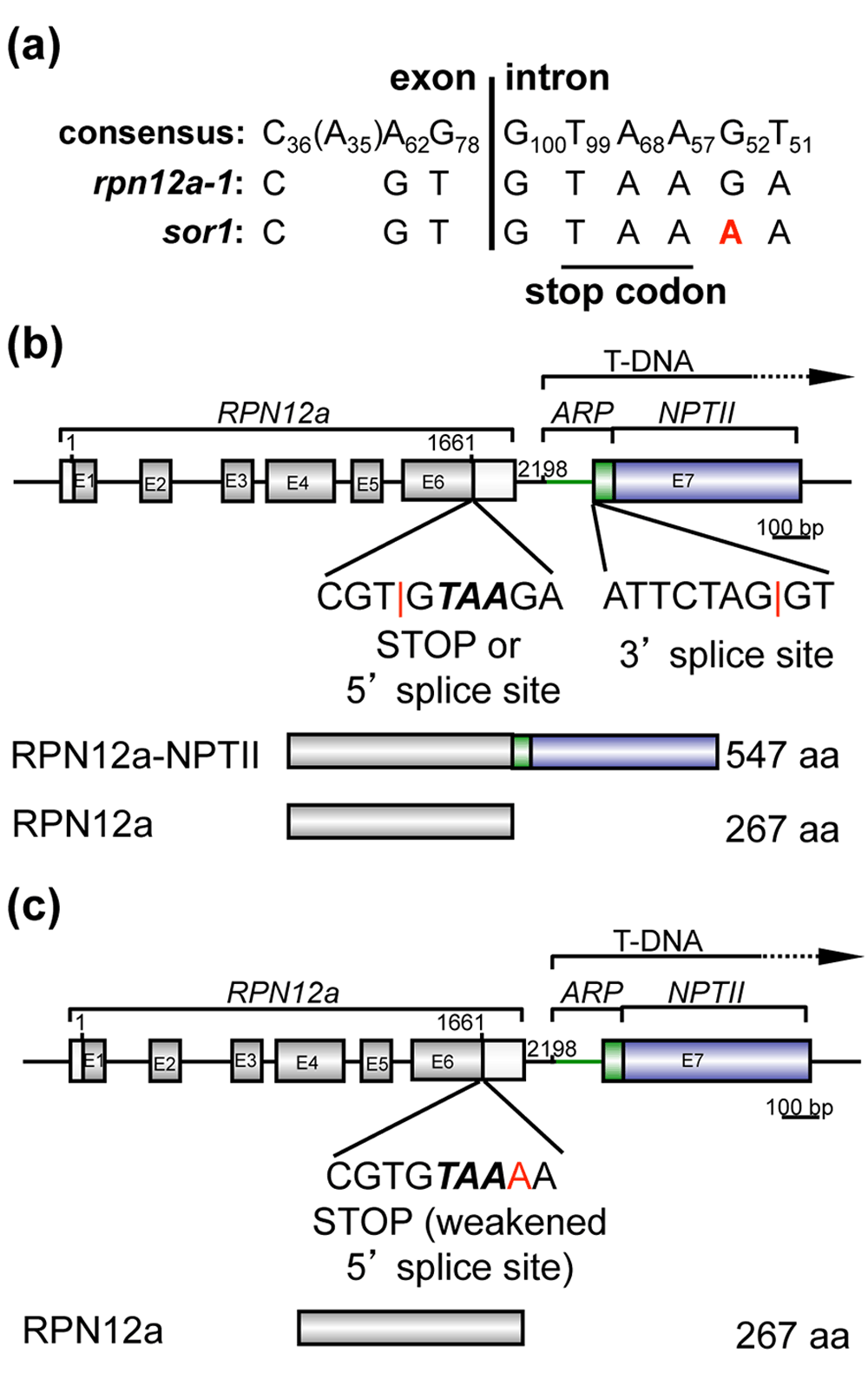

Figure 6. The sor1 mutation weakens the cryptic 5´ splice site that includes the STOP codon of the RPN12a gene.

(a) Sequence alignment of the terminal exonic tetranucleotides and proximal intronic hexanucleotides of the Arabidopsis consensus sequence27, and rpn12a-1 and sor1 sequences surrounding the STOP codon. Numbers next to the nucleotides of the consensus sequence refer to the frequency (%) for the noted nucleotide to be found at a given position. (b), (c) Schematic representations of splicing types in rpn12a-1 (c) and sor1 (d). aa, amino acids.


Collectively, the results shown here validate our earlier interpretation of the effects of the rpn12a-1 mutation on RPN12a expression and 26SP function14. In the original study, we proposed that the partial loss of 26SP function in rpn12a-1 seedlings is caused by the competition between RPN12a and RPN12a-NPTII transcript processing that leads to a decrease of RPN12a protein levels and thus, to a decrease in the abundance of wild-type 26SP particles14. Our finding that suppression of RPN12a-NPTII accumulation was sufficient to restore RPN12a accumulation and reverse the plant development and cytokinin sensitivity back to the wild-type level validates the proposed interpretation and accentuates the importance of optimal 26SP abundance for Arabidopsis growth and cytokinin regulation1,2,15,28,29.

Open Peer Review

Current Referee Status: ?
Key to Referee Statuses VIEW
ApprovedThe paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservationsKey revisions are required to address specific details and make the paper fully scientifically sound
Not approvedFundamental flaws in the paper seriously undermine the findings and conclusions
Read more about the unique F1000Research publication and peer review model here.

Version 1
Referee Report 06 Mar 2013
Patrick Masson, Department of Genetics, University of Wisconsin-Madison, USA
This manuscript nicely documents the molecular basis for an intragenic suppressor of the rpn12a-1 exon-trap mutation of Arabidopsis, which weakens a chimeric 5’ splice site that fuses the RPN12 open reading frame to the NPTII coding region in the original ... Continue reading
Masson P. Referee Report For: Reversion of the Arabidopsis rpn12a-1 exon-trap mutation by an intragenic suppressor that weakens the chimeric 5’ splice site [version 1; referees: 2 approved]. F1000Research 2013, 2:60 (doi: 10.5256/f1000research.1151.r812)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
Referee Report 27 Feb 2013
Vitaly Citovsky, Department of Biochemistry and Cell Biology, State University of New York at Stony Brook, USA
This is a very nicely executed and clearly written work. The results are clear, and they support the authors’ conclusions and previously published hypotheses of proteasome involvement in cytokinin response.

One potential enhancement would be to use qPCR to quantify ... Continue reading
Citovsky V. Referee Report For: Reversion of the Arabidopsis rpn12a-1 exon-trap mutation by an intragenic suppressor that weakens the chimeric 5’ splice site [version 1; referees: 2 approved]. F1000Research 2013, 2:60 (doi: 10.5256/f1000research.1151.r801)
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
