Revised Validation of predicted mRNA splicing mutations using high-throughput transcriptome data [version 2; referees: 4 approved]

Coby Viner¹, Stephanie N. Dorman², Ben C. Shirley³, Peter K. Rogan ^1-3

PUBLISHED 07 Apr 2014

Revised

Author details Author details

¹ Department of Computer Science, University of Western Ontario, London, Ontario, N6A 5B7, Canada
² Department of Biochemistry, University of Western Ontario, London, Ontario, N6A 5C1, Canada
³ Cytognomix, Inc., London, Ontario, N6G 4X8, Canada

Grant information Grant Information

PKR is supported by the Canadian Breast Cancer Foundation, Canadian Foundation for Innovation, Canada Research Chairs Secretariat and the Natural Sciences and Engineering Research Council of Canada (NSERC Discovery Grant 371758-2009). SND received fellowships from the Ontario Graduate Scholarship Program, the Pamela Greenaway-Kohlmeier Translational Breast Cancer Research Unit, and the CIHR Strategic Training Program in Cancer Research and Technology Transfer, and the University of Western Ontario.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

OPEN PEER REVIEW

REFEREE STATUS

Abstract

Interpretation of variants present in complete genomes or exomes reveals numerous sequence changes, only a fraction of which are likely to be pathogenic. Mutations have been traditionally inferred from allele frequencies and inheritance patterns in such data. Variants predicted to alter mRNA splicing can be validated by manual inspection of transcriptome sequencing data, however this approach is intractable for large datasets. These abnormal mRNA splicing patterns are characterized by reads demonstrating either exon skipping, cryptic splice site use, and high levels of intron inclusion, or combinations of these properties. We present, Veridical, an in silico method for the automatic validation of DNA sequencing variants that alter mRNA splicing. Veridical performs statistically valid comparisons of the normalized read counts of abnormal RNA species in mutant versus non-mutant tissues. This leverages large numbers of control samples to corroborate the consequences of predicted splicing variants in complete genomes and exomes.

Corresponding author: Peter K. Rogan

How to cite: . F1000Research 2014, 3:8 (doi: 10.12688/f1000research.3-8.v2) Copyright: © 2014 Viner C et al. This is an open access article distributed under the terms of the Creative Commons Attribution Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. Data associated with the article are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).

Competing interests:

PKR is the inventor of US Patent 5,867,402 and other patents pending, which underlie the prediction and validation of mutations. He is one of the founders of Cytognomix, Inc. which is developing software based on this technology for complete genome or exome splicing mutation analysis. BCS is an employee of Cytognomix, Inc. PKR, CV, and SND have filed a provisional patent application covering Veridical. This software has been commercially licensed and both trial and licensed versions of Veridical are fully functional, however the length of the trial period is limited.

First published: 13 Jan 2014, 3:8 (doi: 10.12688/f1000research.3-8.v1) Latest published: 07 Apr 2014, 3:8 (doi: 10.12688/f1000research.3-8.v2)

Revised Amendments from Version 1

We appreciate the feedback received from the reviewers and we feel that the manuscript has been improved as a result. The following major revisions have been incorporated:

Figure 1 has been abbreviated according to the advice of the reviewers.
Figure 2 is new. It illustrates the details of the data used to infer different types of splicing events.
We have re-formulated the equations in the methods section pertaining to the definitions of the various validating reads, as requested by reviewers, and we reference each formal definition in the text.
We have clearly demarcated the performance information and have added sub-headings to improve the readability of our results section.
We have coloured all mutant reads in the IGV images to more clearly depict every validating read and its type.
We have added paragraphs to the Discussion pertaining to:
- Achieving sample size sufficiency via power analysis
- Clarifying that Veridical does not attempt to predict alternative splicing events
- Clarifying our usage of the term “validation”

We have also updated the Veridical software, as follows:

It now outputs p-values to four (instead of two) decimal places.
- This allows for more precise post-hoc filtering and can allow one to apply more stringent thresholds, as recently advocated (Johnson Proc. Natl. Acad. Sci. 110:19313-7, 2013).
The correct behavior of allowing a variant to be present in the filtered set is to check if there are any strongly corroborating, statistically significant, results. Previously, the filtered output file would only consider the p-value of the splicing consequence of highest frequency. This has been fixed.
- Strongly corroborating reads are defined as: any junction-spanning-based evidence or read-abundance-based intron inclusion (refer to the manuscript for more details).
We noticed that variants with a statistically significant number of intron inclusion with mutation reads were erroneously placed into the filtered set, despite the overall number of intron inclusion reads not having achieved statistical significance. We have resolved this regression.

None of the changes to Veridical, nor the aforementioned regressions, affected any of the results presented in our manuscript. For a more detailed explanation of the revisions made please refer to the referees’ comments and our respective replies.

We appreciate the feedback received from the reviewers and we feel that the manuscript has been improved as a result. The following major revisions have been incorporated:

Figure 1 has been abbreviated according to the advice of the reviewers.
Figure 2 is new. It illustrates the details of the data used to infer different types of splicing events.
We have re-formulated the equations in the methods section pertaining to the definitions of the various validating reads, as requested by reviewers, and we reference each formal definition in the text.
We have clearly demarcated the performance information and have added sub-headings to improve the readability of our results section.
We have coloured all mutant reads in the IGV images to more clearly depict every validating read and its type.
We have added paragraphs to the Discussion pertaining to:
- Achieving sample size sufficiency via power analysis
- Clarifying that Veridical does not attempt to predict alternative splicing events
- Clarifying our usage of the term “validation”

We have also updated the Veridical software, as follows:

It now outputs p-values to four (instead of two) decimal places.
- This allows for more precise post-hoc filtering and can allow one to apply more stringent thresholds, as recently advocated (Johnson Proc. Natl. Acad. Sci. 110:19313-7, 2013).
The correct behavior of allowing a variant to be present in the filtered set is to check if there are any strongly corroborating, statistically significant, results. Previously, the filtered output file would only consider the p-value of the splicing consequence of highest frequency. This has been fixed.
- Strongly corroborating reads are defined as: any junction-spanning-based evidence or read-abundance-based intron inclusion (refer to the manuscript for more details).
We noticed that variants with a statistically significant number of intron inclusion with mutation reads were erroneously placed into the filtered set, despite the overall number of intron inclusion reads not having achieved statistical significance. We have resolved this regression.

See referee responses

Introduction

DNA variant analysis of complete genome or exome data has typically relied on filtering of alleles according to population frequency and alterations in coding of amino acids. Numerous variants of unknown significance (VUS) in both coding and non-coding gene regions cannot be categorized with these approaches. To address these limitations, in silico methods that predict biological impact of individual sequence variants on protein coding and gene expression have been developed, which exhibit varying degrees of sensitivity and specificity¹. These approaches have generally not been capable of objective, efficient variant analysis on a genome-scale.

Splicing variants, in particular, are known to be a significant cause of human disease^2–5 and indeed have even been hypothesized to be the most frequent cause of hereditary disease⁶. Computational identification of mRNA splicing mutations within DNA sequencing (DNA-Seq) data has been implemented to varying degrees of sensitivity, with most software only evaluating conservation solely at the intronic dinucleotides adjacent to the junction (i.e.⁷). Other approaches are capable of detecting significant mutations at other positions with constitutive, and in certain instances, cryptic, splice sites^5,8,9 which can result in aberrations in mRNA splicing. Presently, only information theory-based mRNA splicing mutation analysis has been implemented on a genome scale¹⁰. Splicing mutations can abrogate recognition of natural, constitutive splice sites (inactivating mutation), weaken their binding affinity (leaky mutation), or alter splicing regulatory protein binding sites that participate in exon definition. The abnormal molecular phenotypes of these mutations comprise: (a) complete exon skipping, (b) reduced efficiency of splicing, (c) failure to remove introns (also termed intron retention or intron inclusion), or (d) cryptic splice site activation, which may define abnormal exon boundaries in transcripts using non-constitutive, proximate sequences, extending or truncating the exon. Some mutations may result in combinations of these molecular phenotypes. Nevertheless, novel or strengthened cryptic sites can be activated independently of any direct effect on the corresponding natural splice site. The prevalence of these splicing events has been determined by ourselves and others^5,11–13. The diversity of possible molecular phenotypes makes such aberrant splicing challenging to corroborate at the scale required for complete genome (or exome) analyses. This has motivated the development of statistically robust algorithms and software to comprehensively validate the predicted outcomes of splicing mutation analysis.

Putative splicing variants require empirical confirmation based on expression studies from appropriate tissues carrying the mutation, compared with control samples lacking the mutation. In mutations identified from complete genome or exome sequences, corresponding transcriptome analysis based on RNA sequencing (RNA-Seq) is performed to corroborate variants predicted to alter splicing. Manually inspecting a large set of splicing variants of interest with reference to the experimental samples’ RNA-Seq data in a program like the Integrative Genomics Viewer (IGV)¹⁴, or simply performing database searches to find existing evidence would be time-consuming for large-scale analyses. Checking control samples would be required to ensure that the variant is not a result of alternative splicing, but is actually causally linked to the variant of interest. Manual inspection of the number of control samples required for statistical power to verify that each displays normal splicing would be laborious and does not easily lend itself to statistical analyses. This may lead to either missing contradictory evidence or to discarding a variant due to the perceived observation of statistically insignificant altered splicing within control samples. In addition, a list of putative splicing variants returned by variant prediction software can often be extremely large. The validation of such a significant quantity of variants may not be feasible, for example, in certain types of cancer, in instances where the genomic mutational load is high and only manual annotation is performed. We have therefore developed Veridical, a software program that automatically searches all given experimental and control RNA-Seq data to validate DNA-derived splicing variants. When adequate expression data are available at the locus carrying the mutation, this approach reveals a comprehensive set of genes exhibiting mRNA splicing defects in complete genomes and exomes. Veridical and its associated software programs are available at: www.veridical.org.

Methods

The program Veridical was developed to allow high-throughput validation of predicted splicing mutations using RNA sequencing data. Veridical requires at least three files to operate: a DNA variant file containing putative mRNA splicing mutations, a file listing of corresponding transcriptome (RNA-Seq) BAM files, and a file annotating exome structure. A separate file listing RNA-Seq BAM files for control samples (i.e. normal tissue) can also be provided. Here, we demonstrate the capabilities of the software for mutations predicted in a set of breast tumours. Veridical compares RNA-Seq data from the same tumours with RNA-Seq data from control samples lacking the predicted mutation. However, in principle, potential splicing mutations for any disease state with available RNA-Seq data can be investigated. In each tumour, every variant is analyzed by checking the informative sequencing reads from the corresponding RNA-Seq experiment for non-constitutive splice isoforms, and comparing these results with the same type of data from all other tumour and normal samples that do not carry the variant in their exomes.

Veridical concomitantly evaluates control samples, providing for an unbiased assessment of splicing variants of potentially diverse phenotypic consequences. Note that control samples include all non-variant containing files (i.e. RNA-Seq files for those tumours without the variant of interest), as well any normal samples provided. Increasing the number of the set of control samples, while computationally more expensive, increases the statistical robustness of the results obtained.

For each variant, Veridical directly analyzes sequence reads aligned to the exons and introns that are predicted to be affected by the genomic variant. We elected to avoid indirect measures of exon skipping, such as loss of heterozygosity in the transcript, because of the possibility of confusion with other molecular etiologies (i.e. deletion or gene conversion), unrelated to the splicing mutations. The nearest natural site is found using the exome annotation file provided, based upon the directionality of the variant, as defined within Table 1. The genomic coordinates of the neighboring exon boundaries are then found and the program proceeds, iterating over all known transcript variants for the given gene. A diagram of this procedure is provided in Figure 1. The variant location, C, is specifically referring to the variant itself. J_C refers to the variant-induced location of the predicted mRNA splice site, which is often proximate to, but distinct from the coordinate of the actual genomic mutation itself.

Table 1. Definitions used within Veridical to determine the direction in which reads are checked.

A and B represent natural site positions, defined in Figure 1(B).

Pertinent Splice Site
A	B	Strand	Direction
Exonic	Donor^α	+	→
Exonic	Donor^α	-	←
Intronic	Acceptor^β	+	←
Intronic	Acceptor^β	-	→

^α – 5′ splice site ^β – 3′ splice site

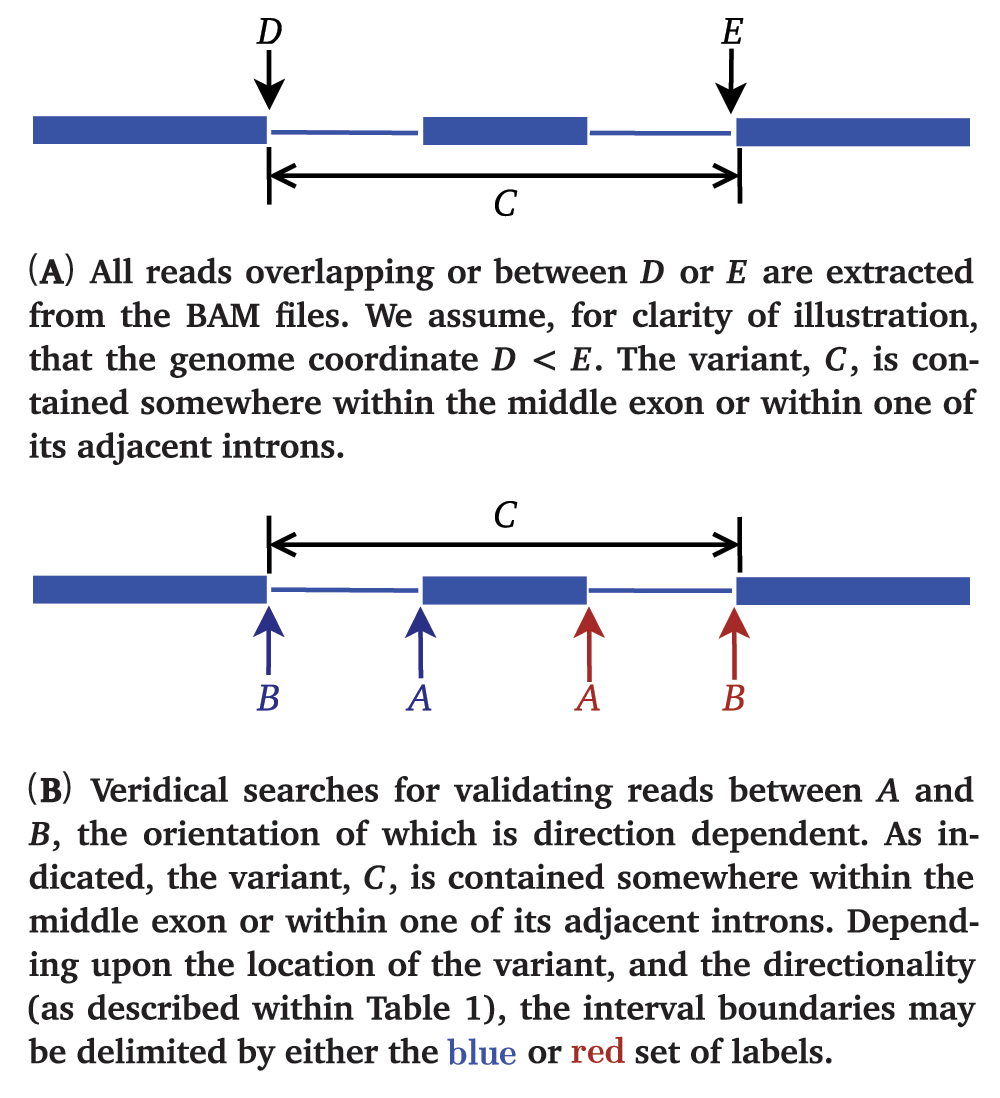

Figure 1.

Diagram portraying the definitions used within Veridical to specify genic variant position and read coordinates. We employ the same conventions as IGV¹⁴. Blue lines denote genes, wherein thick lines represent exons and thin lines represent introns.

The program uses the BamTools API¹⁵ to iterate over all of the reads within a given genomic region across experimental and control samples. Individual reads are then assessed for their corroborating value towards the analysis of the variant being processed, as outlined in the flowchart in Figure 3. Validating reads are based on whether they alter either the location of the splice junction (i.e. junction-spanning) or the abundance of the transcript, particularly in intronic regions (i.e. read-abundance). Junction-spanning reads contain DNA sequences from two adjacent exons or are reads that extend into the intron (Equation 1(e)). These reads directly show whether the intronic sequence is removed or retained by the spliceosome, respectively. Read-abundance validated reads are based upon sequences predicted to be found in the mutated transcript in comparison with sequences that are expected to be excised from the mature transcript in the absence of a mutation (Equation 1(f)). Both types of reads can be used to validate cryptic splicing, exon skipping, or intron inclusion. A read is said to corroborate cryptic splicing if and only if the variant under consideration is expected to activate cryptic splicing. Junction-spanning, cryptic splicing reads are those in which a read is exactly split from the cryptic splice site to the adjacent exon junction (Equation 1(a)). For read-abundance cryptic splicing, we define the concept of a read fraction, which is the ratio of the number of reads corroborating the cryptically spliced isoform and the number of reads that do not support the use of the cryptic splice site (i.e. non-cryptic corroborating) in the same genomic region of a sample. Cryptic corroborating reads are those which occur within the expected region where cryptic splicing occurs (i.e. spliced-in regions). This region is bounded by the variant splice site location and the adjacent (direction dependent) splice junction (Equation 1(a)). Non-cryptic corroborating reads, which we also term “anti-cryptic” reads, are those that do not lie within this region, but would still be retained within the portion that would be excised, had cryptic splicing occurred (Equation 1(b)). To identify instances of exon skipping, Veridical only employs junction-spanning reads. A read is considered to corroborate exon skipping if the connecting read segments are split such that it connects two exon boundaries, skipping an exon in between (Equation 1(c)). A read is considered to corroborate intron inclusion when the read is continuous and either overlaps with the intron-exon boundary (and is then said to be junction-spanning) or if the read is within an intron (and is then said to be based upon read-abundance). We only consider an intron inclusion read to be junction spanning if it spans the relevant splice junction, A. Equation 1(d) formalizes this concept. We occasionally use the term “total intron inclusion” to denote that any such count of intron inclusion reads includes both those containing and not containing the mutation itself. Graphical examples of some of these validation events, with a defined variant location, are provided in Figure 2.

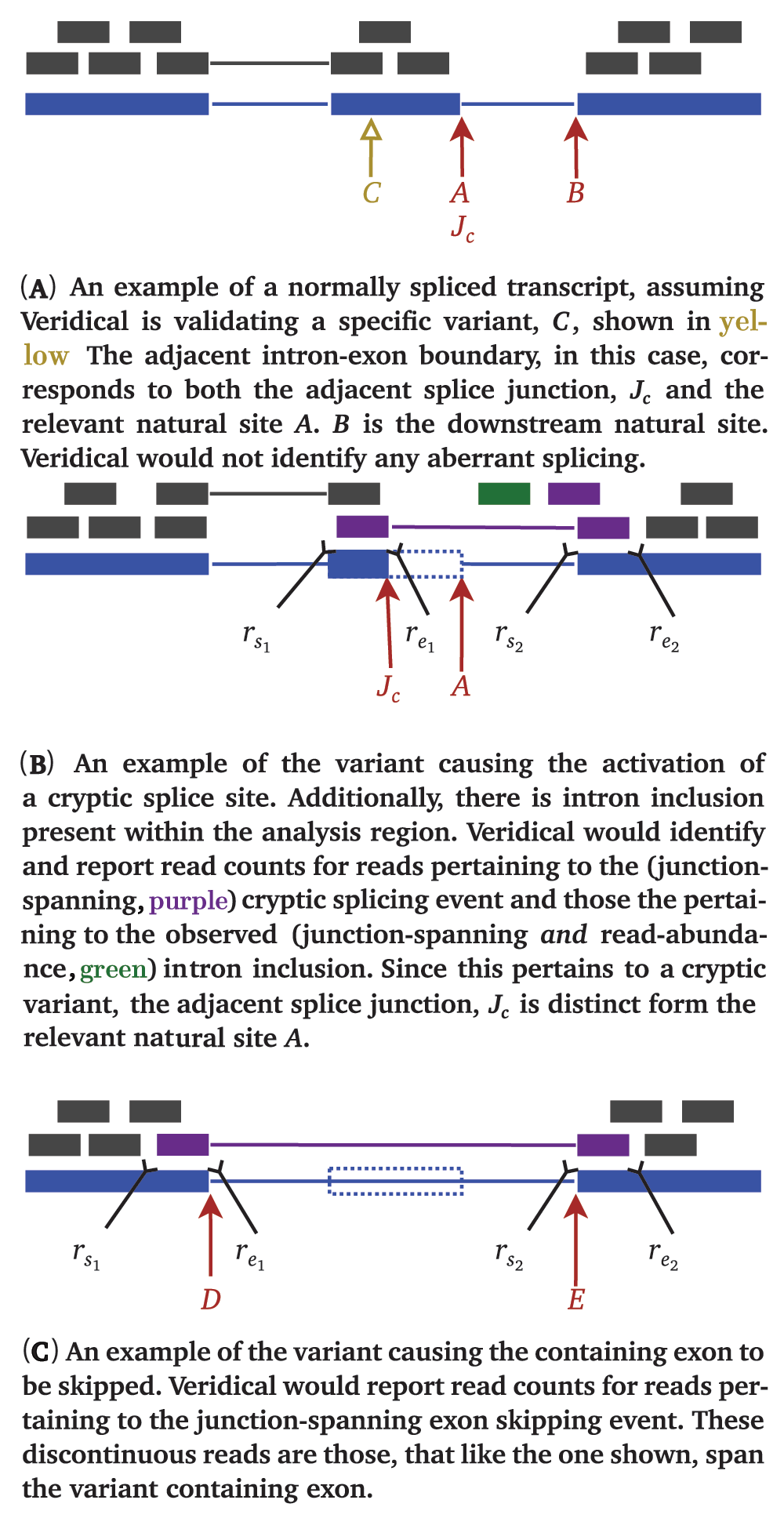

Figure 2.

Illustrative examples of aberrant splicing detection. Grey lines denote reads, wherein thick lines denote a read mapping to genomic sequence and thin lines represent connecting segments of reads split across spliced-in regions (i.e. exons or included introns). Dotted blue rectangles denote portions of genes which are spliced out in a mutant transcript, but are otherwise present in a normal transcript. Mutant reads are purple if they are junction-spanning and green if they are read-abundance based. Start and end coordinates of reads with two portions are denoted by (r_s₁, r_e₁) and (r_s₂, r_e₂), while coordinates of those with only a single portion are denoted by (r_s, r_e). Refer to the caption of Figure 1 for additional graphical element descriptions.

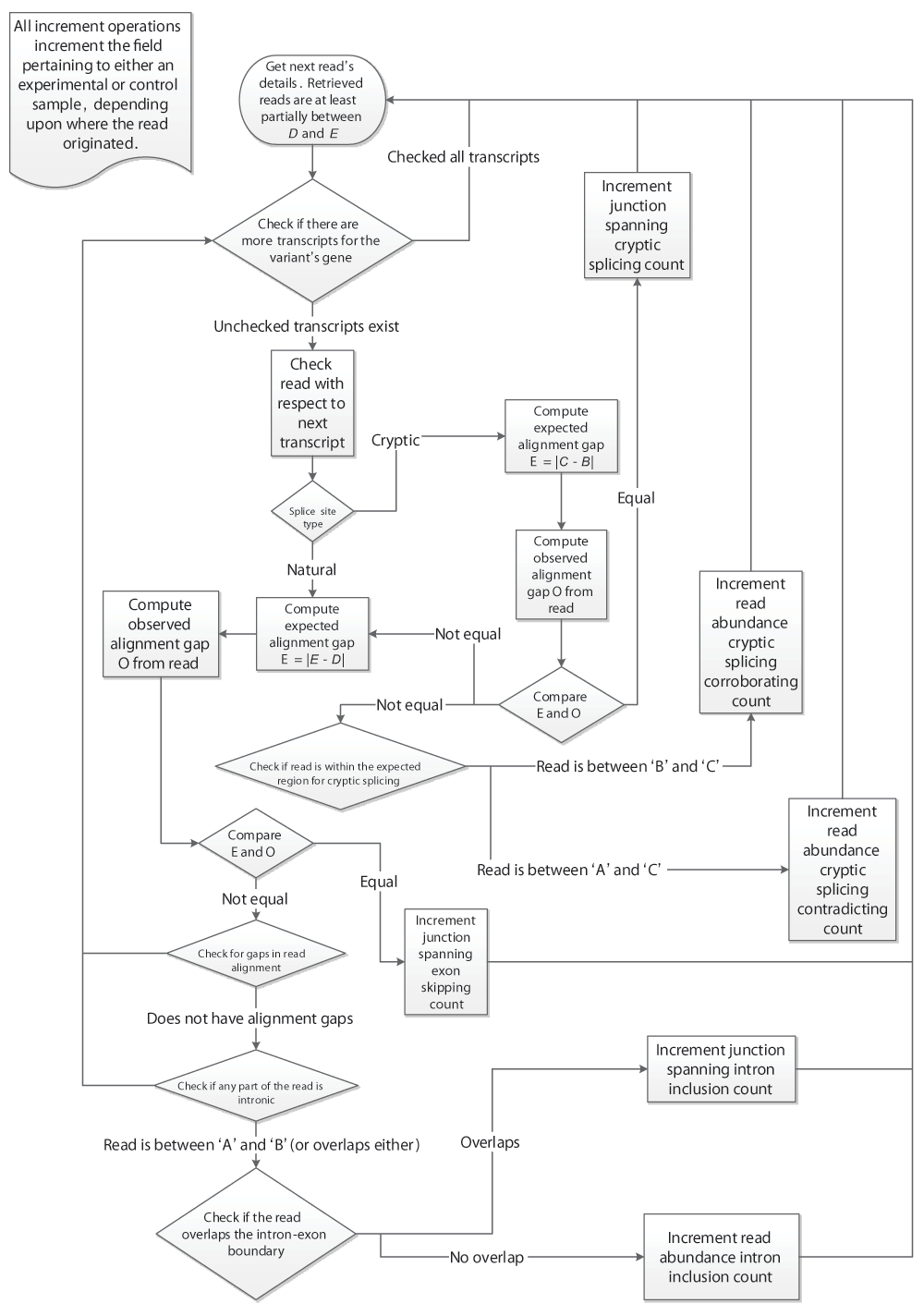

Figure 3.

The algorithm employed by Veridical to validate variants. Refer to Table 1 for definitions concerning direction and Figure 1 for variable depictions. B is defined as follows: B (B site left (←) of A ⇒ B := D. B site right (→) of A ⇒ B := E.

We proceed to formalize the above descriptions as follows. A given read is denoted by r, with start and end coordinates (r_s, r_e), if the read is continuous, or otherwise, with start and end coordinate pairs, (r_s₁, r_e₁) and (r_s₂, r_e₂) as diagrammed within Figure 2. Let ℓ be the length of the read. The set ζ denotes the totality of validating reads. The criterion for r ∈ ζ is detailed below. It is important to note that validating reads are necessary but not sufficient to validate a variant. Sufficiency is achieved only if the number of validating reads is statistically significant relative to those present in control samples. ζ itself is partitioned into three sets: ζ_c, ζ_e, and ζ_i for evidence of cryptic splicing, exon skipping, and intron inclusion, respectively. We allow partitions to be empty. Let J_C denote the adjacent splice junction, and let B denote the downstream natural site, as defined by Figure 2 and Table 1. Without loss of generality, we consider only the red (i.e. direction is right) set of labels within Figure 1(B), as further typified by Figure 2. Then the (splice consequence) partitions of ζ are given by:

r ∈ ζ_c ⇔ variant is cryptic ∧ $(r_{s_{2}} - r_{e_{1}}$ = B – J_C ∨ (r_s > J_C ∧ r_e < A)) (1a)

r ∉ ζ_c ∧ variant is cryptic ∧ ¬ ( $r_{s_{2}} - r_{e_{1}}$ = B – J_C) ⇒ r ∈ anti-cryptic (1b)

r ∈ ζ_e ⇔ $(r_{e_{1}} = D \land r_{s_{2}} = E)$ (1c)

r ∈ ζ_i ⇔ (A∈ [r_s, r_e]) ∨ ((A ∉ [r_s, r_e]) ∧ r_s > A – ℓ ∧ r_e < B ∧ ¬ (A ∈ [r_s, r_e])) (1d)

We separately partition ζ by its evidence type, the set of junction-spanning reads, δ and read-abundance reads, α:

r ∈ δ ⇔ (A ∈ [r_s, r_e]) ∨ (r ∈ ζ_c ∧ $r_{s_{2}} - r_{e_{1}}$ = B – J_C) (1e)

r ∈ α ⇔ r ∉ δ (1f)

Once all validating reads are tallied for both the experimental and control samples, a p-value is computed. This is determined by computing a z-score upon Yeo-Johnson (YJ)¹⁶ transformed data. This transformation, shown in Equation 2, ensures that the data is sufficiently normally distributed to be amenable to parametric testing.

ψ (x, λ) = {\begin{cases} \frac{{(x + 1)}^{λ} - 1}{λ} if x \geq 0 \land λ \neq 0 \\ \log (x + 1) if x \geq 0 \land λ = 0 \\ - \frac{{(- x + 1)}^{2 - λ} - 1}{2 - λ} if x < 0 \land λ \neq 2 \\ - \log (- x + 1) if x < 0 \land λ = 2 \end{cases} (2)

The transform is similar to the Box-Cox power transformation, but obviates the requirement of inputting strictly positive values and has more desirable statistical properties. Furthermore, this transformation allowed us to avoid the use of non-parametric testing, which has its own pitfalls regarding assumptions of the underlying data distribution¹⁷. We selected λ = $\frac{1}{2}$ , because Veridical’s untransformed output is skewed left, due to their being, in general, less validating reads in control samples and the fact that there are, by design, vastly more control samples than experimental samples. We found that this value for λ generally made the distribution much more normal. A comparison of the distributions of untransformed and transformed data is provided in Figure S1. We were not concerned about small departures from normality as a z-test with a large number of samples is robust to such deviations¹⁸.

Thus, we can compute the p-value of the pairwise unions of the two sets of partitions of ζ, except the irrelevant ζ_e ∪ α = Ø. We only provide p-values for these pairwise unions and do not attempt to provide p-values for the partitions for the different consequences of the mutations on splicing. While such values would be useful, we do not currently have a robust means to compute them. Our previous work provides guidance on interpretation of splicing mutation outcomes^3–5,10. Thus for ζ_x ∈ {ζ_c, ζ_e, ζ_i}, let Φ_Z (z) represent the cumulative distribution function of the one-sided (right-tailed — i.e. P[X > x]) standard normal distribution. Let N represent the total number of samples and let V represent the set of all ζ_x validations, across all samples. Then:

\begin{array}{l} μ = \frac{\sum_{j = 1}^{N} V_{j}}{N} σ = \sqrt{\frac{1}{N} \sum_{j = 1}^{N} (V_{j} - \bar{V})_{}^{2}} \\ z = \frac{| ζ_{x} | - μ}{σ} p = Φ (ψ (z, \frac{1}{2})) \end{array}

The program outputs two tables, along with summaries thereof. The first table lists all validated read counts across all categories for experimental samples, while the second table does the same for the control samples. P-values are shown in parentheses within the experimental table, which refer to the column-dependent (i.e. the read type is given in the column header) p-value for that read type with respect to that same read type in control samples. The program produces three files: a log file containing all details regarding validated variants, an output file with the programs progress reports and summaries, and a filtered validated variant file. The filtered file contains all validated variants of statistical significance (set as p < 0.05, by default), defined as variants with one or more validating reads achieving statistical significance in a strongly corroborating read type. These categories are limited to all junction-spanning based splicing consequences and read-abundance total intron inclusion. For example, a cryptic variant for which p = 0.04 in the junction-spanning cryptic column would meet this criteria, assuming the default significance threshold.

The p-values given by Veridical are more robust when the program is provided with a large number of samples. The minimum sample size is dependent upon the desired power, α value, and the effect size (ES). The minimum samples size could be computed as follows: $N = ⌈ \frac{σ^{2} z^{2}}{E S^{2}} ⌉$ . For α = 0.05 and β = 0.2 (for a power of 0.8): z = 2.4865 for the one-tailed test. Then, $N = ⌈ \frac{σ^{2} {2.4865}^{2}}{E S^{2}} ⌉$ . Ideally, Veridical could be run with a trial number of samples.

Then, one would compute effect sizes from Veridical’s output. The standard deviation in the above formula could also be estimated from one’s data, although it should be transformed using Yeo-Johnson (such as via an appropriate R package) before computing this estimation.

We elected to use RefSeq¹⁹ genes for the exome annotation, as opposed to, the more permissive exome annotation sets, UCSC Known Genes²⁰ or Ensembl²¹. The large number of transcript variants within Ensembl, in particular, caused many spurious intron inclusion validation events. This occurred because reads were found to be intronic in many cases, when in actuality they were exonic with respect to the more common transcript variant. In addition, the inclusion of the large number of rare transcripts in Ensembl significantly increased program run-time and made validation events much more challenging to interpret unequivocally. The use of RefSeq, which is a conservative annotation of the human exome, resolves these issues. It is possible that some subset of unknown or Ensemble annotated intronic transcripts could be sufficiently prevalent to merit inclusion in our analysis. We do not attempt to perform the difficult task of deciding which of these transcripts would be worth using. Indeed, the task of confirming and annotating of such transcripts is already done by the more conservative annotation we employ.

We also provide an R program²² which produces publication quality histograms displaying embedded Q-Q plots and p-values, to evaluate for normality of the read distribution and statistical significance, respectively. The R program performs the YJ transformation as implemented in the car package²³. The histograms generated by the program use the Freedman-Draconis²⁴ rule for break determination, and the Q-Q plots use algorithm Type 8 for their quantile function, as recommended by Hyndman and Fan²⁵. This program is embedded within a Perl script, for better integration into our workflow. Lastly, a Perl program was implemented to automatically retrieve and correctly format an exome annotation file from the UCSC database²⁰ for use in Veridical. All data use hg19/GRCh37, however when new versions of the genome become available, this program can be used to update the annotation file.

Results

Veridical validates predicted mRNA splicing mutations using high-throughput RNA sequencing data. We demonstrate how Veridical and its associated R program are used to validate predicted splicing mutations in somatic breast cancer. Each example depicts a particular variant-induced splicing consequence, analyzed by Veridical, with its corresponding significance level. The relevant primary RNA-Seq data are displayed in IGV, along with histograms and Q-Q plots showing the read distributions for each example. The source data are obtained from controlled-access breast carcinoma data from The Cancer Genome Atlas (TCGA)²⁶. Tumour-normal matched DNA sequencing data from the TCGA consortium was used to predict a set of splicing mutations, and a subset of corresponding RNA sequencing data was analyzed to confirm these predictions with Veridical. Overall, 442 tumour samples and 106 normal samples were analyzed. Briefly, all variants used as examples in this manuscript came from running the matched TCGA exome files (to which the RNA-Seq data corresponds) through SomaticSniper²⁷ and Strelka²⁸ to call somatic mutations, followed by the Shannon Human Splicing Pipeline¹⁰ to find splicing mutations, which served as the input to Veridical. Details of the RNA-Seq data can be found within the supplementary methods of the TCGA paper²⁶. Accordingly, the following examples demonstrate the utility of Veridical to identify potentially pathogenic mutations from a much larger subset of predicted variants.

Leaky Mutations

Mutations that reduce, but not abolish, the spliceosome’s ability to recognize the intron/exon boundary are termed leaky³. This can lead to the mis-splicing (intron inclusion and/or exon skipping) of many but not all transcripts. An example, provided in Figure 4, displays a predicted leaky mutation (chr5:162905690G>T) in the HMMR gene in which both junction-spanning exon skipping (p < 0.01) and read-abundance-based intron inclusion (p = 0.04) are observed. We predict this mutation to be leaky because its final R_i exceeds 1.6 bits — the minimal individual information required to recognize a splice site and produce correctly spliced mRNA⁴. Indeed, the natural site, while weakened by 2.16 bits, remains strong — 10.67 bits. This prediction is validated by the variant-containing sample’s RNA-Seq data (Figure 4), in which both exon skipping (5 reads) and intron inclusion (14 reads, 12 of which are shown, versus an average of 4.051 such reads per control sample) are observed, along with 70 reads portraying wild-type splicing. Only a single normally spliced read contains the G→T mutation. These results are consistent with an imbalance of expression of the two alleles, as expected for a leaky variant. Figure 5 shows that for the distribution of read-abundance-based intron inclusion is marginally statistically significant (p = 0.04).

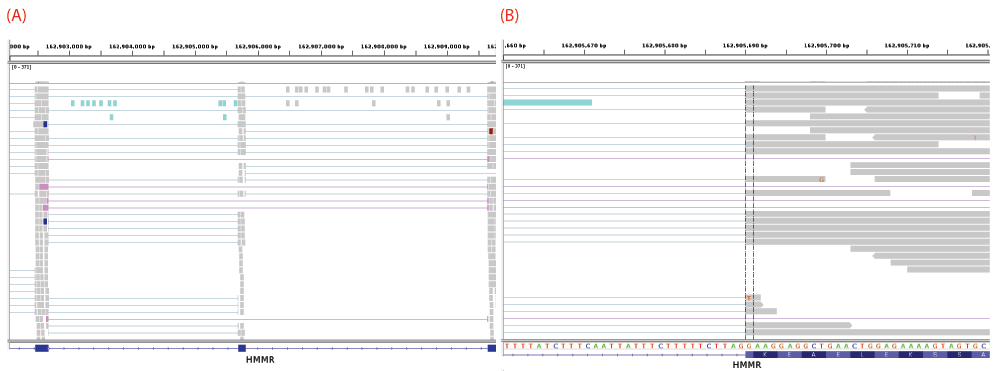

Figure 4.

IGV images depicting a predicted leaky mutation (chr5:162905690G>T) within the natural acceptor site of exon 12 (162905689–162905806) of HMMR. This gene has four transcript variants and the given exon number pertains to isoforms a and b (reference sequences NM_001142556 and NM_012484). RNA-Seq reads are shown in the centre panel. The bottom blue track depicts RefSeq genes, wherein each blue rectangle denotes an exon and blue connecting lines denote introns. In the middle panel, each rectangle (grey by default) denotes an aligned read, while thin lines are segments of reads split across exons. Red and blue coloured rectangles in the middle panel denote aligned reads of inserts that are larger or smaller than expected, respectively. Reads are highlighted by their splicing consequence, as follows: cryptic splicing (green), exon skipping (purple), junction-spanning intron inclusion (dark green), and read-abundance intron inclusion (cyan). (A) depicts a genomic region of chromosome 5: 162902054–162909787. The variant occurs in the middle exon. Intron inclusion can be seen in this image, represented by the reads between the first and middle exon (since the direction is left, as described within Table 1). These 14 reads are read-abundance-based, since they do not span the intron-exon junction. (B) depicts a closer view of the region shown in (A) — 162905660–162905719. The dotted vertical black lines are centred upon the first base of the variant-containing exon. The thin lines in the middle panel that span the entire exon fragment are evidence of exon skipping. These 5 reads are split across the exon before and after the variant-containing exon, as seen in (A).

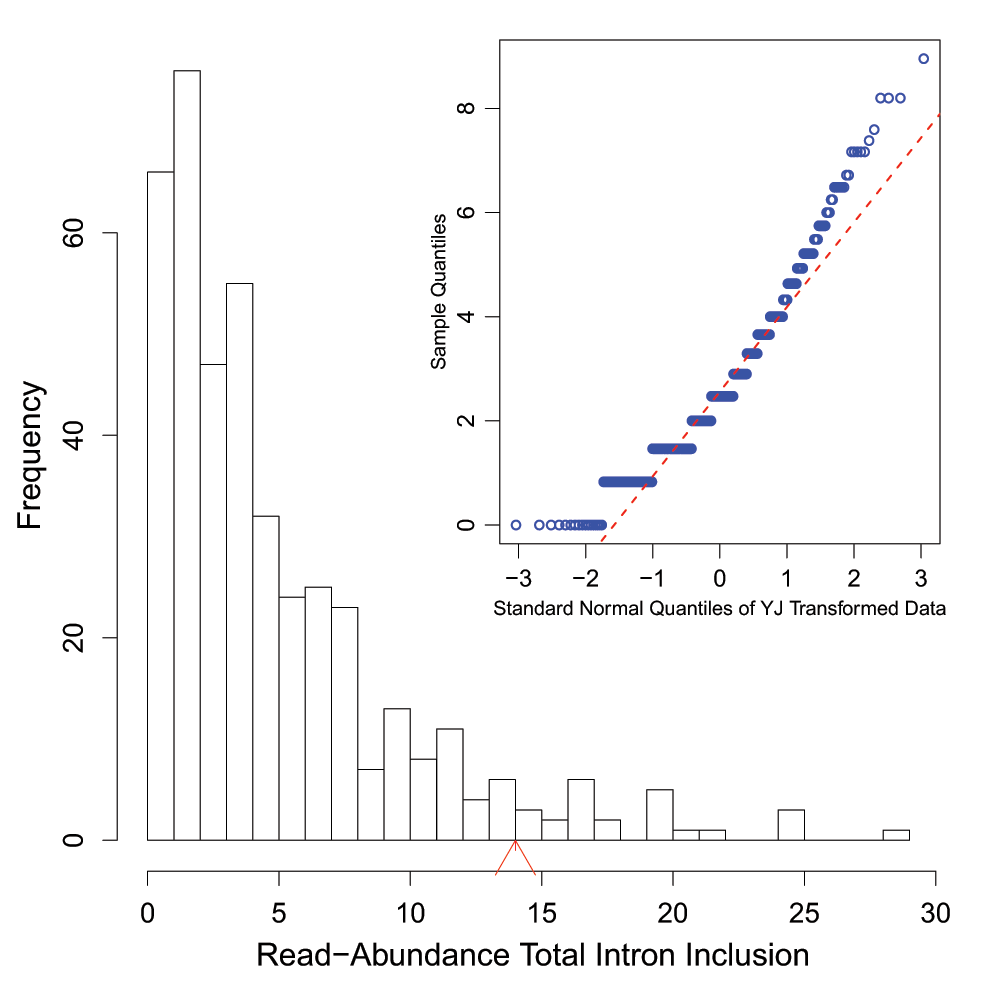

Figure 5.

Histogram of read-abundance-based intron inclusion with embedded Q-Q plots of the predicted leaky mutation (chr5:162905690G>T) within HMMR, as shown in Figure 4. The arrowhead denotes the number of reads (14 in this case) in the variant-containing file, which is more than observed in the control samples (p = 0.04).

Inactivating Mutations

Variants that inactivate splice sites have negative final Ri values³ with only rare exceptions⁴, indicating that splice site recognition is essentially abolished in these cases. We present the analysis of two inactivating mutations within the PTEN and TMTC2 genes from different tumour exomes, namely: chr10:89711873A>G and chr12:83359523G>A, respectively. The PTEN variant displays junction-spanning exon skipping events (p < 0.01), while the TMTC2 gene portrays both junction-spanning and read-abundance-based intron inclusion (both splicing consequences with p < 0.01). In addition, all intron inclusion reads in the experimental sample contain the mutation itself, while only one such read exists across all control samples analyzed (p < 0.01). The PTEN variant contains numerous exon skipping reads (32 versus an average of 2.466 such reads per control sample). The TMTC2 variant contains many junction-spanning intron inclusion reads with the G→A mutation (all of its junction-spanning intron inclusion reads: 22 versus an average of 0.002 such reads per control sample). IGV screenshots for these variants are provided within Figure 6. This figure also shows an example of junction-spanning cryptic splice site activated by the mutation (chr1:985377C>T) within the AGRN gene. The concordance between the splicing outcomes generated by these mutations and the Veridical results indicates that the proposed method detects both mutations that inactivate splice sites and cryptic splice site activation.

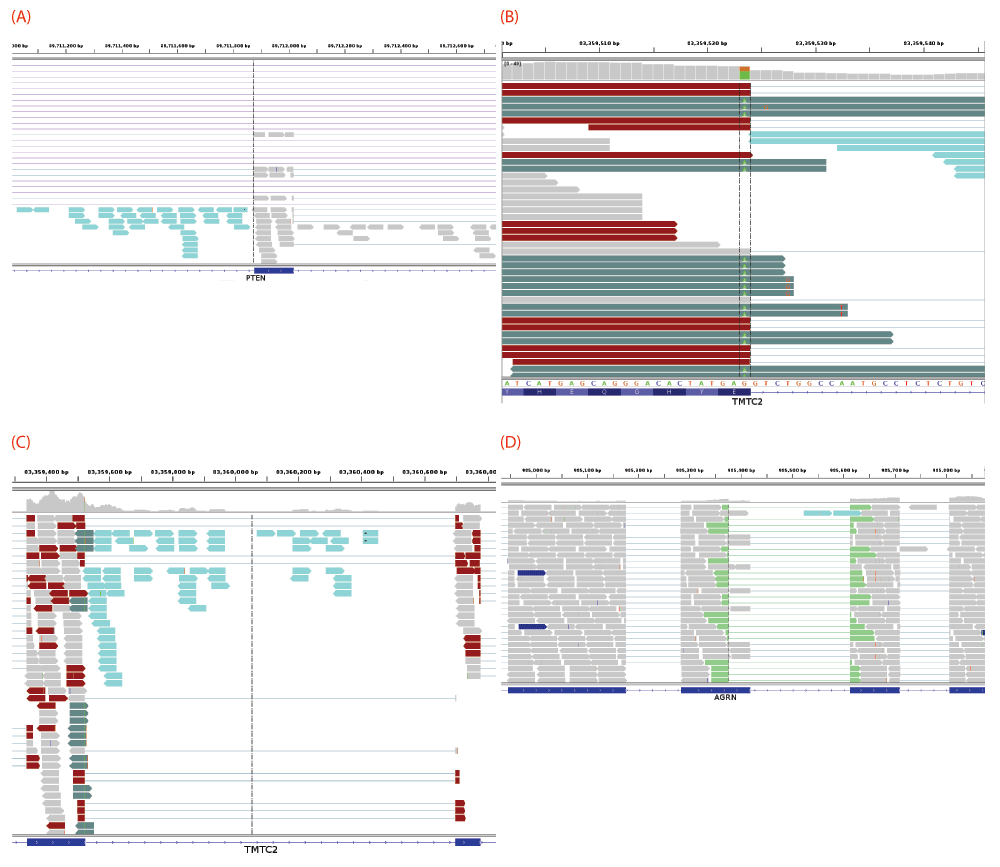

Figure 6.

(A) depicts an inactivating mutation (chr10:89711873A>G) within the natural acceptor site of exon 6 (89711874–89712016) of PTEN. The dotted vertical black line denotes the location of the relevant splice site. The region displayed is 89711004–89712744 on chromosome 10. Many of the 32 exon skipping reads are evident, typified by the thin lines in the middle panel that span the entire exon. There is also a substantial amount of read-abundance-based intron inclusion, shown by the reads to the left of the dotted vertical line. Exon skipping was statistically significant (p < 0.01), while read-abundance-based intron inclusion was not (p = 0.53). Panels (B) and (C) depict an inactivating mutation (chr12:83359523G>A) within the natural donor site of exon 6 (83359338–83359523) of TMTC2. (B) depicts a closer view (83359501–83359544) of the region shown in (C) and only shows exon 6. Some of the 22 junction-spanning intron inclusion reads can be seen. In this case, all of these reads contain the mutation, shown by the green adenine base in each read, between the two vertical dotted lines. (C) depicts a genomic region of chromosome 12: 83359221–83360885, TMTC2 exons 6–7. The variant occurs in the left exon. 65 read-abundance-based intron inclusion can be seen in this image, represented by the reads between the two exons. Panel (D) depicts a mutation (chr1:985377C>T) causing a cryptic donor to be activated within exon 27 (the second from left, 985282–985417) of AGRN. The region displayed is 984876–985876 on chromosome 1 (exons 26–29 are visible). Some of the 34 cryptic (junction-spanning) reads are portrayed. The dotted black vertical line denotes the cryptic splice site, at which cryptic reads end. The read-abundance-based intron inclusion, of which two reads are visible, was not statistically significant (p = 0.68). Refer to the caption of Figure 4 for IGV graphical element descriptions.

Cryptic Mutations

Recurrent genetic mutations in some oncogenes have been reported among tumours within the same, or different, tissues of origin. Common recurrent mutations present in multiple abnormal samples are recognized by Veridical. This avoids including a variant-containing sample among the control group, and outputs the results of all of the variant-containing samples. A relevant example is shown in Figure 7. The mutation (chr1:46726876G>T) causes activation of a cryptic splice site within RAD54L in multiple tumours. Upon computation of the p-values for each of the variant-containing tumours, relative to all non-variant containing tumours and normal controls, not all variant-containing tumours displayed splicing abnormalities at statistically significant levels. Of the six variant-containing tumours, two had significant levels of junction-spanning intron inclusion, and one showed statistically significant read-abundance-based intron inclusion. Details for all of the aforementioned variants, including a summary of read counts pertaining to each relevant splicing consequence, for experimental versus control samples, are provided in Table 2.

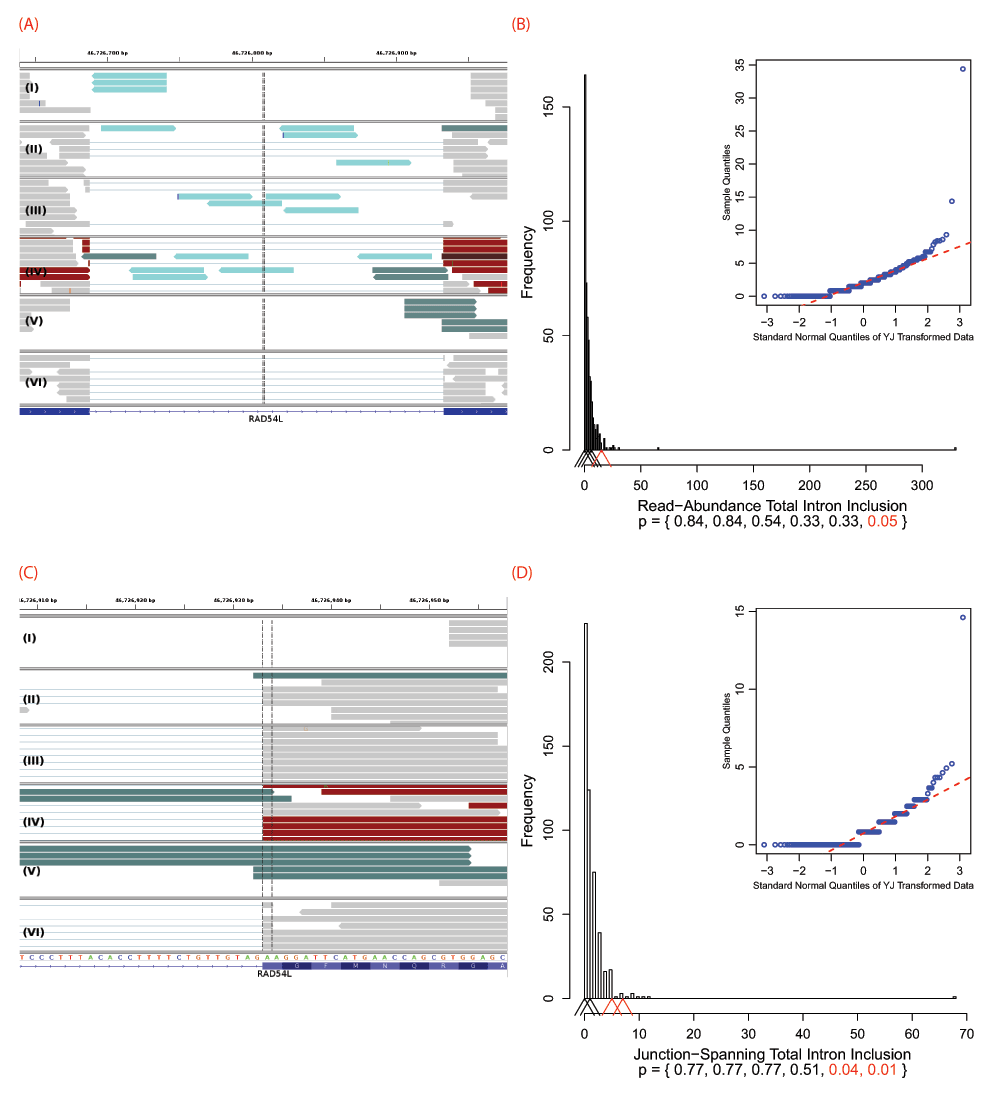

Figure 7.

IGV images and their corresponding histograms with embedded Q-Q plots depicting all six variant-containing files with a mutation (chr1:46726876G>T) which, in some cases, causes a cryptic donor to be activated within the intron between exons 7 and 8 of RAD54L. This results in the extension of the downstream natural donor (the 5′ end of exon 8). This gene has two transcript variants and the given exon numbers pertain to isoform a (reference sequence NM_003579). Only samples IV and V have statistically significant intron inclusion relative to controls. read-abundance-based intron inclusion can be seen in (A), between the two exons. The region displayed is on chromosome 1: 46726639–46726976. (B) depicts the corresponding histogram for the 15 read-abundance-based intron inclusion reads (p = 0.05) that are present in sample IV. The intron-exon boundary on the right is the downstream natural donor. (C) typifies some of the 13 junction-spanning intron inclusion reads that are a direct result of the intronic cryptic site’s activation. In these instances, reads extending past the intron-exon boundary are being spliced at the cryptic site, instead of the natural donor. In particular, samples IV and V both have a statistically significant numbers of such reads, 7 (p = 0.01) and 5 (p = 0.04), respectively. This is further typified by the corresponding histogram in (D). (C) focuses upon exon 8 from (A) and displays the genomic positions 46726908–46726957. Refer to the caption of Figure 4 for IGV graphical element descriptions. In the histograms, arrowheads denote numbers of reads in the variant-containing files. The bottom of the plots provide p-values for each respective arrowhead. Statistically significant p-values and their corresponding arrowheads are denoted in red.

Table 2. Examples of variants validated by Veridical and their selected read types.

Header abbreviations Chr, C_v, C_s, #, SC, and ET, denote chromosome, variant coordinate, splice site coordinate, sample number (where applicable), splicing consequence, and evidence type, respectively. Headers containing R with some subscript denote numbers of validated reads for the specified variant’s splicing consequence(s) and evidence type(s). R_E denotes reads within variant-containing tumour samples. R_T and R_N denote control samples, for tumours and normal cells, respectively. R_μ is the per sample mean of R_T and R_N. Splicing consequences: CS denotes cryptic splicing, ES denotes exon skipping, and II denotes intron inclusion. Evidence types: JS denotes junction-spanning and RA denotes read-abundance.

Gene	Chr	C_v	C_s	Variant	Type	Initial R_i	Final R_i	ΔR_i	#	SC	ET	p-value	R_E	R_T	R_N	R_μ	Figure
HMMR	chr5	162905690	162905689	G/T	Leaky	12.83	10.67	-2.16		ES	JS	< 0.01	5	11	0	0.020	4, 5
										II	RA	0.04	14	2133	103	4.051
PTEN	chr10	89711873	89711874	A/G	Inactivating	12.09	-2.62	-14.71		ES	JS	< 0.01	32	975	386	2.466	6(A)
TMTC2	chr12	83359523	83359524	G/A	Inactivating	1.74	-1.27	-3.01		II	JS	< 0.01	22	2241	383	4.754	6(B)
										II	JSwM	< 0.01	22	0	1	0.002
										II	RA	< 0.01	65	7293	1395	15.739	6(C)
AGRN	chr1	985377	985376	C/T	Cryptic	-2.24	4.79	7.03		CS	JS	< 0.01	34	97	23	0.217	6(D)
RAD54L	chr1	46726876	46726895	G/T	Cryptic	13.4	14.84	1.44	I	II	JS	N/A	0	645	58	1.274	7
										II	RA	0.54	3	2171	290	4.458
									II	II	JS	0.51	1	645	58	1.274
										II	RA	0.33	6	2171	290	4.458
									III	II	JS	N/A	0	645	58	1.274
										II	RA	0.33	6	2171	290	4.458
									IV	II	JS	0.01	7	645	58	1.274
										II	RA	0.05	15	2171	290	4.458
									V	II	JS	0.04	5	645	58	1.274
										II	RA	N/A	0	2171	290	4.458
									VI	II	JS	N/A	0	645	58	1.274
										II	RA	N/A	0	2171	290	4.458

Performance

The performance of the software is affected by the number of predicted splicing mutations, the number of abnormal samples containing mutations and control samples and the corresponding RNA-Seq data for each type of sample. Veridical has the ability to analyze approximately 3000 variants in approximately 4 hours, assuming an input of 100 BAM files of RNA-Seq data. The relationship between time and numbers of BAM files and variants are plotted in Figure 8 for a 2.27 GHz processor. Veridical uses memory in linear proportion to the number and size of the input BAM files. In our tests, using RNA-Seq BAM files with an average size of approximately 6 GB, Veridical used approximately 0.7 GB for ten files to 1 GB for 100 files.

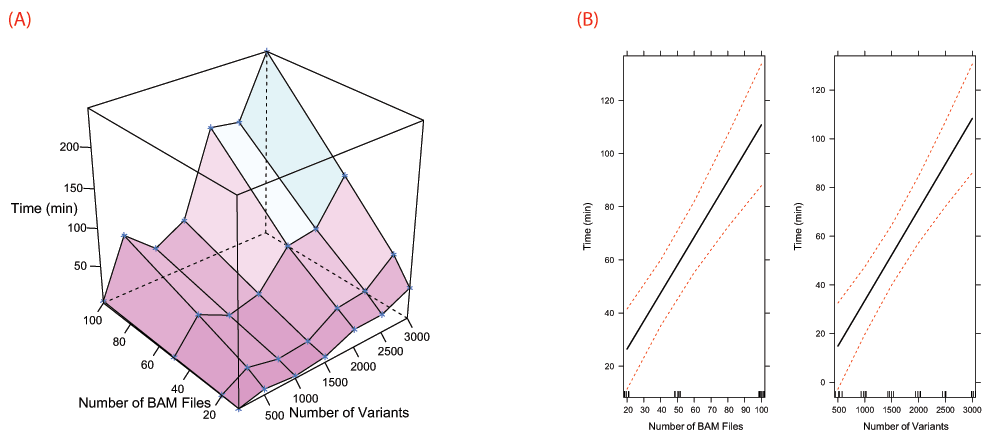

Figure 8.

Profiling data for Veridical runtime. Tests were conducted upon an Intel Xeon @ 2.27 GHz. Visualizations were generated with R²² using Lattice³⁰ and Effects³¹. A surface plot of time vs. numbers of BAM files and variants is provided in (A). Effect plots are given in (B) and demonstrate the effects of the numbers of BAM files and variants upon runtime. The effect plots were generated using a linear regression model (R² = 0.7525).

Discussion

We have implemented Veridical, a software program that automates confirmation of mRNA splicing mutations by comparing sequence read-mapped expression data from samples containing variants that are predicted to cause defective splicing with control samples lacking these mutations. The program objectively evaluates each mutation with statistical tests that determine the likelihood of and exclude normal splicing. To our knowledge, no other software currently validates splicing mutations with RNA-Seq data on a genome-wide scale, although many applications can accurately detect conventional alternative splice isoforms (i.e.²⁹). Veridical is intended for use with large data sets derived from many samples, each containing several hundred variants that have been previously prioritized as likely splicing mutations, regardless of how the candidate mutations are selected. It is not practical to analyze all variants present in an exome or genome, rather only a filtered subset, due to the extensive computations required for statistical validation. As such, Veridical is a key component of an end-to-end, hypothesis-based, splicing mutation analysis framework that also includes the Shannon splicing mutation pipeline¹⁰ and the Automated Splice Site Analysis and Exon Definition server⁵. There is a trade-off between lengthy run-times and statistical robustness of Veridical, especially when there are either a large number of variants or a large number of RNA-Seq files. As with most statistical methods, those employed here are not amenable to small sample sets, but become quite powerful when a large number of controls are employed. In order to ensure that mutations can be validated, we recommend an excess of control transcriptome data relative to those from samples containing mutations (> 5 : 1), guided by the power analysis described in Methods. We do not recommend the use of a single nor a few control samples to corroborate a putative mutation. Not surprisingly, we have found that junction-spanning reads have the greatest value for corroborating cryptic splicing and exon skipping. Even a single such read is almost always sufficient to merit the validation of a variant, provided that sufficient control samples are used. For intron inclusion, both junction-spanning and read-abundance-based reads are useful and a variant can readily be validated with either, provided that the variant-containing experimental sample(s) show a statistically significant increase in the presence of either form of intron inclusion corroborating reads.

Veridical is able to automatically process variants from multiple different experimental samples, and can group the variant information if any given mutation is present in more than one sample. The use of a large sample size allows for robust statistical analyses to be performed, which aid significantly in the interpretation of results. The main utility of Veridical is to filter through large data sets of predicted splicing mutations to prioritize the variants. This helps to predict which variants will have a deleterious effect upon the protein product. Veridical is able to avoid reporting splicing changes that are naturally occurring through checking all variant-containing and non-containing control samples for the predicted splicing consequence. In addition, running multiple tumour samples at once allows for manual inspection to discover samples that contained the alternative splicing pattern, and consequently, permits the identification of DNA mutations in the same location which went undetected during genome sequencing.

The statistical power of Veridical is dependent upon the quality of the RNA-Seq data used to validate putative variants. In particular, a lack of sufficient coverage at a particular locus will cause Veridical to be unable to report any significant results. A coverage of at least 20 reads should be sufficient. This estimate is based upon alternative splicing analyses in which this threshold was found to imply concordance with microarray and RT-PCR measurements^32–35. There are many potential legitimate reasons why a mutation may not be validated: (a) A lack of gene expression in the variant containing tumour sample, (b) nonsense-mediated decay may result in a loss of expression of the entire transcript, (c) the gene itself may have multiple paralogs and reads may not be unambiguously mapped, (d) other non-splicing mutations could account for a loss of expression, and (e) confounding natural alternative splicing isoforms may result in a loss of statistical significance during read mapping of the control samples. The prevalence of loci with insufficient data is dependent upon the coverage of the sequencing technology used. As sequencing technologies improve, the proportion of validated mutations is expected to increase. Such an increase would mirror that observed for the prevalence of alternative splicing events³⁶. In addition, mutated splicing factors can disrupt splicing fidelity and exon definition³⁷. This effect could decrease Veridical’s ability to validate splicing mutations affected by a disruption of the definition of the pertinent exon. Veridical does not currently form any equivalence between distinct variants affecting the same splice site. Such variants will be analyzed independently. Veridical is intended to be used with RNA-Seq data that not only corresponds to matched DNA-Seq data, but also only for sets of samples with comparable sequencing protocols, since the non-normalized comparisons performed rely upon the evening out of batch effects, due to a substantial number of control samples. It is important to note that acceptance of the null hypothesis, due to an absence of evidence required to disprove it, does not imply that the underlying prediction of a mutation at a particular locus is incorrect, but merely that the current empirical methods employed were insufficient to corroborate it.

“Validate,” in the present context, refers to the condition where sufficient statistical evidence has been marshaled in support of a variant. However, the threshold for significance can vary so these analyses can also be thought of as strongly corroborating variants. Recent studies in Bayesian statistics have suggested that a p-value threshold of 0.05 does not correspond to strong support of the alternative hypothesis. Accordingly, Johnson³⁸ recommends the use of tests at the 0.005 or 0.001 level of significance.

We consider alternative splicing to be a different problem. Veridical does not aim to identify putatively pathogenic variants, but rather, to confirm existing in silico predictions thereof. We do infer exon skipping events (i.e. alternative splicing) de novo, but only to catalog dysregulated splicing “phenotypes” due to genomic sequence variants. This is not the first study to use a large control dataset. Indeed the Variant Annotation, Analysis & Search Tool (VAAST)³⁹ does this to search for disease-causing (non-splicing) variants and the Multivariate Analysis of Transcript Splicing (MATS)²⁹ tool (among others) can be used for the discovery of alternative splicing events. However, in our case, in most instances the distribution of reads in a single sample is compared to the distributions of reads in the control set, as opposed to a likelihood framework-based approach. We are suggesting that our approach be coupled to existing approaches to act as an a posteriori, hypothesis-driven, check on the veridicality of specific variants.

While there is considerable prior evidence for splicing mutations that alter natural and cryptic splice site recognition, we were somewhat surprised at the apparent high frequency of statistically significant intron inclusion revealed by Veridical. In fact, evidence indicates that a significant portion of the genome is transcribed³⁶, and it is estimated that 95% of known genes are alternatively spliced³². Defective mRNA splicing can lead to multiple alternative transcripts including those with retained introns, cassette exons, alternate promoters/terminators, extended or truncated exons, and reduced exons⁴⁰. In breast cancer, exon skipping and intron retention were observed to be the most common form of alternative splicing in triple negative, non-triple negative, and HER2 positive breast cancer⁴¹. In normal tissue, intron retention and exon skipping has been predicted to affect 2572 exons in 2127 genes and 50 633 exons in 12 797 genes, respectively⁴². In addition, previous studies suggest that the order of intron removal can influence the final mRNA transcript composition of exons and introns⁴³. Intron inclusion observed in normal tissue may result from those introns that are removed from the transcript at the end of mRNA splicing. Given that these splicing events are relatively common in normal tissues, it becomes all the more important to distinguish expression patterns that are clearly due to the effects of splicing mutations — one of the guiding principles of the Veridical method.

Veridical is an important analytical resource for unsupervised, thorough validation of splicing mutations through the use of companion RNA-Seq data from the same samples. The approach will be broadly applicable for many types of genetic abnormalities, and should reveal numerous, previously unrecognized, mRNA splicing mutations in exome and complete genome sequences.

Data availability

figshare: Input, output, and explanatory files for Veridical, http://dx.doi.org/10.6084/m9.figshare.894971⁴⁴.

Author contributions

PKR elaborated the problem and conceived of the analytic solution. CV implemented the algorithm, wrote, and tested the Veridical software and its accompanying Perl and R scripts. CV and SND designed the methods used, generated, and interpreted mutation results. BCS wrote and tested the Shannon pipeline, which provided the predictions evaluated by Veridical. BCS and CV implemented procedures and code for software distribution. CV, SND, and PKR wrote the manuscript, which has been approved by all of the authors.

Competing interests

Grant information

PKR is supported by the Canadian Breast Cancer Foundation, Canadian Foundation for Innovation, Canada Research Chairs Secretariat and the Natural Sciences and Engineering Research Council of Canada (NSERC Discovery Grant 371758-2009). SND received fellowships from the Ontario Graduate Scholarship Program, the Pamela Greenaway-Kohlmeier Translational Breast Cancer Research Unit, the CIHR Strategic Training Program in Cancer Research and Technology Transfer, and the University of Western Ontario.

Acknowledgments

We acknowledge the TCGA consortium for providing the data used in this article. The data used in this article is part of TCGA project #988: “Predicting common genetic variants that alter the splicing of human gene transcripts”. This work was made possible by the facilities of the Shared Hierarchical Academic Research Computing Network (SHARCNET) and Compute/Calcul Canada.

Supplementary materials

Veridical variant input format

This input format most easily accepts formatted output from the Shannon Pipeline. In particular, all variants of interest should be concatenated into a single file. Once a, tab-delimited, concatenated file has been generated, it can easily be formatted correctly by using FilterShannonPipelineResults.pl. All file headers must precisely match their outlined schema. One can also manually ensure the following: the header line has no quotation marks or special characters, empty columns have been replaced by a period (.) and each variant line contains only a single gene (comma-delimited gene lists must be split such that there is only one gene per line). If one wishes Veridical to consider variants pertaining to more than one experimental sample, a comma-delimited list of experimental samples, in the form of BAM file names, must be provided as the key column. The key column must always contain at least one file name that is present as the base name of one of the files listed in the BAM file list that must be passed to Veridical.

Alternatively, one can prepare the input format as follows. The header must contain at least the following, case-insensitive, values to which the file’s columns must adhere to: chromosome, splice&coordinate, strand, type, gene, location, location_type, heterozygosity, variant, input, key. The column headers need only contain the given text (i.e. a column labeled gene_name would be sufficient to satisfy the above requirement for a “gene” column). Column headers with ampersands (&) denote that all words joined by this symbol must be present for that column (i.e. Splice_site_coordinate satisfies the “splice&coordinate” requirement). The order of the columns is immaterial. The input column can contain any identifier for the variant and need not be unique. The location column specifies if the site is natural or cryptic. For Veridical, all that matters is that cryptic variants contain the word “cryptic” as part of their value in this column and that non-cryptic variants do not. The location_type column is only used for cryptic variants and specifies if the variant is intronic or exonic. It is not currently used by the program. This column must be present but can always be set to null (i.e).

A few rows from a sample variant file is provided below (text wrapped for readability):

Chromosome     Splice_site_coordinate      Strand
Ri-initial Ri-final ∆Ri Type  Gene_Name  Location
Location_Type Loc._Rel._to_exon
Dist._from_nearest_nat._site
Loc._of_nearest_nat._site       Ri_of_nearest_nat
Cryptic_Ri_rel._nat. rsID  Average_heterozygosity
Variant_coordinate    Input_variant      Input_ID
RNASeqDirectory_ID RNA_Seq_BAM_ID_KEY
chr10 89711874 + 12.09 -2.62 -14.71 ACCEPTOR PTEN
NATURALSITE . . . . . . . . 89711873 A/G ID1  dir
file
chr10 89712017 + 5.18   -1.85  -7.03  DONOR  PTEN
NATURALSITE . . . . . . . . 89712018 T/C ID1  dir
file
chrX   9621719 + -4.78  2.25  7.03   DONOR  TBL1X
CRYPTICSITE EXONIC . 11  9621730  2.24  GREATER .
. 9621720 C/T ID1 dir file

Veridical exome annotation input format

This input format can be generated via ConvertToExomeAnnotation.pl. The file must be tab-delimited, excepting its header, which must be comma-delimited. It must have the following, case-insensitive, header columns, to which its data must adhere: transcript, chromosome, exon chr start, exon chr end, exon rank, gene. The column headers need only contain the given text (i.e. a column labeled gene_name would be sufficient to satisfy the above requirement for a “gene” column). The order of the columns is immaterial.

A few rows from a sample exome annotation file is provided below (text wrapped for readability):

Transcript ID,ID,ID,Chromosome Name,Strand,
Exon Chr Start,Exon Chr End,
Exon Rank in Transcript,Transcript Start,
Transcript End, Associated Gene Name
NM_213590 NM_213590   NM_213590 chr13  +  50571142
50571899 1 50571142   50592603 TRIM13
NM_213590 NM_213590   NM_213590 chr13  +  50586070
50592603 2 50571142   50592603 TRIM13
NM_198318 NM_198318   NM_198318 chr19  +  50180408
50180573 1 50180408   50191707 PRMT1

Veridical output

If a variant contains any validating reads, Veridical outputs the variant in question, along with some summary information and a table specifying the numbers of each validating read type detected for both the experimental and control samples. Within the output of Veridical, the phrase: “Validated (x) variant n times” means that the variant was validated mainly for splicing consequence x and has n validating reads. The variant will only appear within the *.filtered output file if the p-value for either junction-spanning or read-abundance-based reads for splicing consequence x was statistically significant (defined, by default, as: p < 0.05). After the variant being validated is provided, along with its primary predicted splicing consequence, the output is divided into two sections with identical contents: one for the experimental sample(s) and another for control samples. The summary enumerates the number of reads of each splicing consequence, partitioned by evidence type (junction-spanning or read-abundance-based), and by sample type (tumour or normal for control samples, and only tumour for experimental samples). A table describing the number of each read type for every file follows this summary. An example of this output, for the variant within RAD54L, as shown by Figure 7 and the last portion of Table 2, is provided. While Veridical outputs this as plain text, with the table in a tab-delimited format, we provide this output as an Excel document with descriptions of the meaning of each table heading, to clarify the presentation of the data. All input and output files for the five variants presented are provided. VeridicalOutExample.xls contains the output for the variant within RAD54L, along with descriptions of the terms used and the output format. all.vin contains the input variant file. allTumoursBAMFileList.txt and allNormalsBAMFileList.txt are the BAM file lists for tumour and normal samples, respectively. all.vout contains the Veridical output. The exome file can be retrieved using ConvertToExomeAnnotation.pl, available with the other programs at: www.veridical.org. The BAM file lists contain the TCGA file UUID, followed by a slash, followed by the file name. The RNA-Seq data itself can be downloaded from TCGA at: https://tcga-data.nci.nih.gov/tcga/.

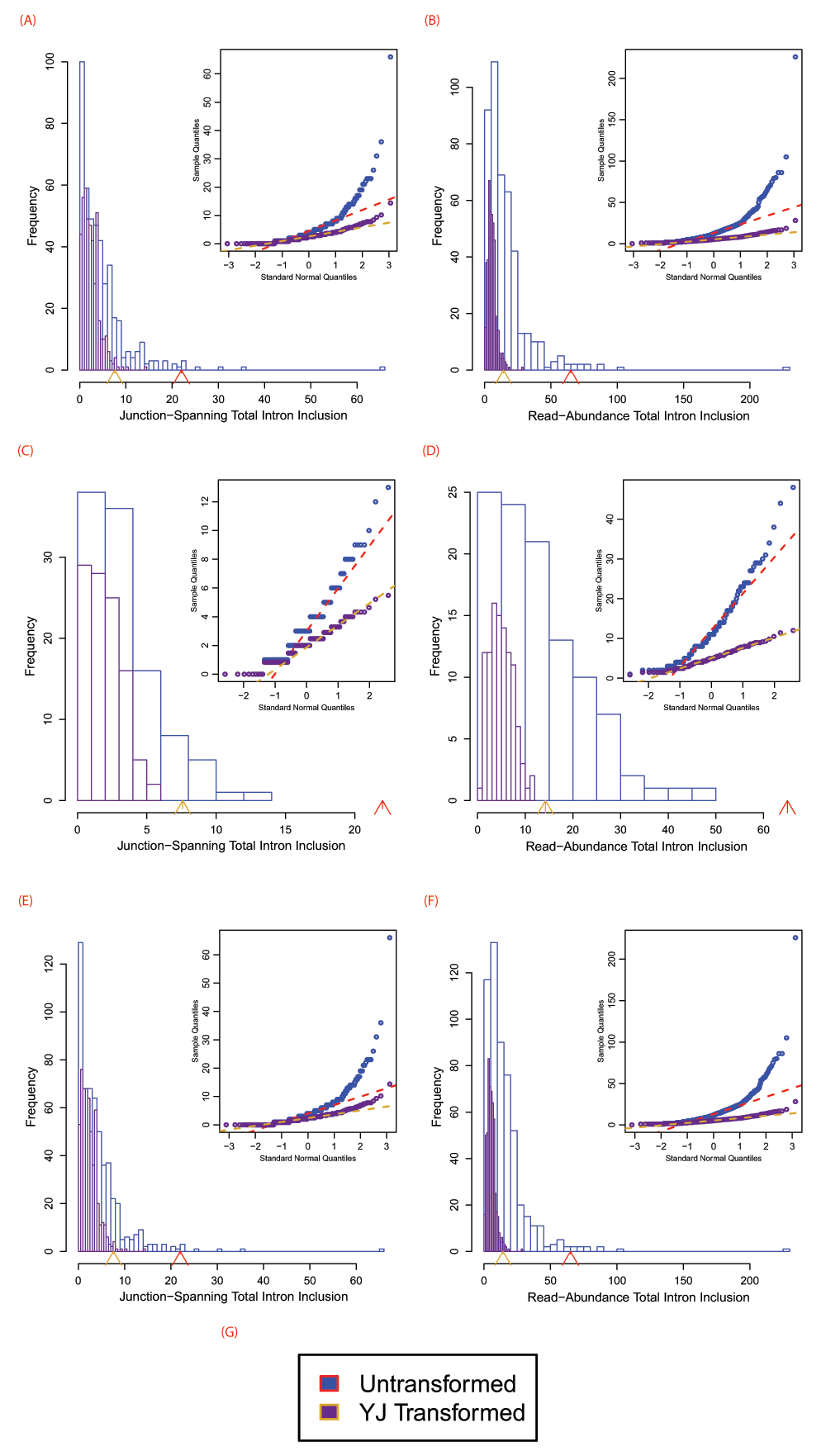

Figure S1.

Histogram and embedded Q-Q plots portraying the difference between untransformed and Yeo-Johnson (YJ) transformed data. The plots depict intron inclusion for the inactivating mutation (chr12:83359523G>A) within TMTC2, as shown in Figures 6(B) and 6(C). The arrowheads denote the number of reads in the variant-containing file, which is, in all cases, more than observed in the control samples (p < 0.01). The figure legend for all panels is provided in (G), which shows that blue and red plot elements correspond to untransformed data, while yellow and purple correspond to YJ transformed elements. Dotted lines in the Q-Q plots are lines passing through the first and third quantiles for a normal reference distribution. (A), (C), and (E) show junction-spanning based reads, while (B), (D), and (F) show read-abundance-based reads. (A)–(B) depict tumour sample distributions, (B)–(C) depict normal sample distributions, and (E)–(F) depict combined tumour and normal sample distributions. This figure is demonstrative of the general trend we have observed. Only data from normal samples resemble a Gaussian distribution and the YJ transformation greatly improves the Gaussian nature of all distributions.

F1000 recommended

References

1. Rogan PK, Zou GY: Best practices for evaluating mutation prediction methods. Hum Mutat. 2013; 34(11): 1581–1582. PubMed Abstract | Publisher Full Text
2. Krawczak M, Reiss J, Cooper DN: The mutational spectrum of single base-pair substitutions in mRNA splice junctions of human genes: Causes and consequences. Hum Genet. 1992; 90(1–2): 41–54. PubMed Abstract | Publisher Full Text
3. Rogan PK, Faux BM, Schneider TD: Information analysis of human splice site mutations. Hum Mutat. 1998; 12(3): 153–171. PubMed Abstract | Publisher Full Text
4. Rogan PK, Svojanovsky S, Leeder JS: Information theory-based analysis of CYP2C19, CYP2D6 and CYP3A5 splicing mutations. Pharmacogenetics. 2003; 13(4): 207–218. PubMed Abstract | Publisher Full Text
5. Mucaki EJ, Shirley BC, Rogan PK: Prediction of mutant mRNA splice isoforms by information theory-based exon definition. Hum Mutat. 2013; 34(4): 557–565. PubMed Abstract | Publisher Full Text
6. López-Bigas N, Audit B, Ouzounis C, et al.: Are splicing mutations the most frequent cause of hereditary disease? FEBS Lett. 2005; 579(9): 1900–1903. PubMed Abstract | Publisher Full Text
7. Wang K, Li M, Hakonarson H: ANNOVAR: Functional annotation of genetic variants from high-throughput sequencing data. Nucleic Acids Res. 2010; 38(16): e164. PubMed Abstract | Publisher Full Text | Free Full Text
8. Churbanov A, Vorechovský I, Hicks C: A method of predicting changes in human gene splicing induced by genetic variants in context of cis-acting elements. BMC Bioinformatics. 2010; 11(1): 22. PubMed Abstract | Publisher Full Text | Free Full Text
9. Pertea M, Lin X, Salzberg SL: GeneSplicer: A new computational method for splice site prediction. Nucleic Acids Res. 2001; 29(5): 1185–1190. PubMed Abstract | Publisher Full Text | Free Full Text
10. Shirley BC, Mucaki EJ, Whitehead T, et al.: Interpretation, stratification and evidence for sequence variants affecting mRNA splicing in complete human genome sequences. Genomics Proteomics Bioinformatics. 2013; 11(2): 77–85. PubMed Abstract | Publisher Full Text
11. Eswaran J, Cyanam D, Mudvari P, et al.: Transcriptomic landscape of breast cancers through mRNA sequencing. Sci Rep. 2012; 2: 264. PubMed Abstract | Publisher Full Text | Free Full Text
12. Eswaran J, Horvath A, Godbole S, et al.: RNA sequencing of cancer reveals novel splicing alterations. Sci Rep. 2013; 3: 1689. PubMed Abstract | Publisher Full Text | Free Full Text
13. Kwan T, Benovoy D, Dias C, et al.: Genome-wide analysis of transcript isoform variation in humans. Nat Genet. 2008; 40(2): 225–231. PubMed Abstract | Publisher Full Text
14. Thorvaldsdóttir H, Robinson JT, Mesirov JP: Integrative genomics viewer (IGV): High-performance genomics data visualization and exploration. Brief Bioinform. 2013; 14(2): 178–192. PubMed Abstract | Publisher Full Text | Free Full Text
15. Barnett DW, Garrison EK, Quinlan AR, et al.: BamTools: A C++ API and toolkit for analyzing and managing BAM files. Bioinformatics. 2011; 27(12): 1691–1692. PubMed Abstract | Publisher Full Text | Free Full Text
16. Yeo IK, Johnson RA: A new family of power transformations to improve normality or symmetry. Biometrika. 2000; 87(4): 954–959. Publisher Full Text
17. Johnson DH: Statistical sirens: the allure of nonparametrics. Ecology. 1995; 76: 1998–2000. Reference Source
18. Hubbard R: The probable consequences of violating the normality assumption in parametric statistical analysis. Area. 1978; 10(5): 393–398. Reference Source
19. Pruitt KD, Tatusova T, Maglott DR: NCBI reference sequence (RefSeq): A curated non-redundant sequence database of genomes, transcripts and proteins. Nucleic Acids Res. 2005; 33(Database Issue): D501–D504. PubMed Abstract | Publisher Full Text | Free Full Text
20. Hsu F, Kent JW, Clawson H, et al.: The UCSC known genes. Bioinformatics. 2006; 22(9): 1036–1046. PubMed Abstract | Publisher Full Text
21. Hubbard T, Barker D, Birney E, et al.: The Ensembl genome database project. Nucleic Acids Res. 2002; 30(1): 38–41. PubMed Abstract | Publisher Full Text | Free Full Text
22. RDC Team R: A Language and Environment for Statistical Computing . Vienna, Austria: R Foundation for Statistical Computing, 2008. Reference Source
23. Fox J, Weisberg S: An R Companion to Applied Regression, 2nd ed. Thousand Oaks CA: Sage, 2011. Reference Source
24. Freedman D, Diaconis P: On the histogram as a density estimator: L₂ theory. Zeitschrift für Wahrscheinlichkeitstheorie und Verwandte Gebiete. 1981; 57(4): 453–476. Publisher Full Text
25. Hyndman RJ, Fan Y: Sample quantiles in statistical packages. American Statistician. 1996; 50(4): 361–365. Publisher Full Text
26. Koboldt DC, Fulton RS, McLellan MD, et al.: Comprehensive molecular portraits of human breast tumours. Nature. 2012; 490(7418): 61–70. PubMed Abstract | Publisher Full Text | Free Full Text
27. Larson DE, Harris CC, Chen K, et al.: SomaticSniper: Identification of somatic point mutations in whole genome sequencing data. Bioinformatics. 2012; 28(3): 311–317. PubMed Abstract | Publisher Full Text | Free Full Text
28. Saunders CT, Wong WSW, Swamy S, et al.: Strelka: Accurate somatic small-variant calling from sequenced tumor-normal sample pairs. Bioinformatics. 2012; 28(14): 1811–1817. PubMed Abstract | Publisher Full Text
29. Shen S, Park JW, Huang J, et al.: MATS: A bayesian framework for flexible detection of differential alternative splicing from RNA-Seq data. Nucleic Acids Res. 2012; 40(8): e61. PubMed Abstract | Publisher Full Text | Free Full Text
30. Sarkar D: Lattice: Multivariate Data Visualization with R. New York: Springer, 2008. Reference Source
31. Fox J: Effect displays in R for generalised linear models. J Stat Softw. 2003; 8(15): 1–27. Reference Source
32. Pan Q, Shai O, Lee LJ, et al.: Deep surveying of alternative splicing complexity in the human transcriptome by high-throughput sequencing. Nat Genet. 2008; 40(12): 1413–1415. PubMed Abstract | Publisher Full Text
33. Griffith M, Griffith OL, Mwenifumbo J, et al.: Alternative expression analysis by RNA sequencing. Nat Methods. 2010; 7(10): 843–847. PubMed Abstract | Publisher Full Text
34. Katz Y, Wang ET, Airoldi EM, et al.: Analysis and design of RNA sequencing experiments for identifying isoform regulation. Nat Methods. 2010; 7(12): 1009–1015. PubMed Abstract | Publisher Full Text | Free Full Text
35. Shen S, Lin L, Cai JJ, et al.: Widespread establishment and regulatory impact of Alu exons in human genes. Proc Natl Acad Sci U S A. 2011; 108(7): 2837–2842. PubMed Abstract | Publisher Full Text | Free Full Text
36. Kapranov P, Willingham AT, Gingeras TR: Genome-wide transcription and the implications for genomic organization. Nat Rev Genet. 2007; 8(6): 413–423. PubMed Abstract | Publisher Full Text
37. Singh RK, Cooper TA: Pre-mRNA splicing in disease and therapeutics. Trends Mol Med. 2012; 18(8): 472–482. PubMed Abstract | Publisher Full Text | Free Full Text
38. Johnson VE: Revised standards for statistical evidence. Proc Natl Acad Sci U S A. 2013; 110(48): 19313–19317. PubMed Abstract | Publisher Full Text | Free Full Text
39. Yandell M, Huff C, Hu H, et al.: A probabilistic disease-gene finder for personal genomes. Genome Res. 2011; 21(9): 1529–1542. PubMed Abstract | Publisher Full Text | Free Full Text
40. Feng H, Qin Z, Zhang X: Opportunities and methods for studying alternative splicing in cancer with RNA-Seq. Cancer Lett. 2013; 340(2): 179–191. PubMed Abstract | Publisher Full Text
41. Eswaran J, Horvath A, Godbole S, et al.: RNA sequencing of cancer reveals novel splicing alterations. Sci Rep. 2013; 3: 1689. PubMed Abstract | Publisher Full Text | Free Full Text
42. Pal S, Gupta R, Davuluri RV: Alternative transcription and alternative splicing in cancer. Pharmacol Ther. 2012; 136(3): 283–294. PubMed Abstract | Publisher Full Text
43. Takahara K, Schwarze U, Imamura Y, et al.: Order of intron removal influences multiple splice outcomes, including a two-exon skip, in a COL5A1 acceptor-site mutation that results in abnormal pro-a1 (V) N-propeptides and Ehlers-Danlos syndrome type I. Am J Hum Genet. 2002; 71(3): 451–465. PubMed Abstract | Publisher Full Text | Free Full Text
44. Viner C, Dorman SN, Shirley BC, et al.: Input, output, and explanatory files for Veridical. figshare, 2013. Data Source

Author details Author details

Article Versions (2)

version 2

Revised

Published: 07 Apr 2014, 3:8

doi: 10.12688/f1000research.3-8.v2

version 1

Published: 13 Jan 2014, 3:8

doi: 10.12688/f1000research.3-8.v1

© 2014 Viner C et al. This is an open access article distributed under the terms of the Creative Commons Attribution Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. Data associated with the article are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).

Download

Export To

metrics

VIEWS

3663

downloads

904

Citations

SEE MORE DETAILS

CITE

how to cite this article

Viner C, Dorman SN, Shirley BC and Rogan PK. Validation of predicted mRNA splicing mutations using high-throughput transcriptome data [version 2; referees: 4 approved] F1000Research 2014, 3:8 (doi: 10.12688/f1000research.3-8.v2)

NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.

track

receive updates on this article

Track an article to receive email alerts on any updates to this article.

Open Peer Review

Current Referee Status: ?

Key to Referee Statuses VIEW HIDE

ApprovedThe paper is scientifically sound in its current form and only minor, if any, improvements are suggested

Approved with reservationsKey revisions are required to address specific details and make the paper fully scientifically sound

Not approvedFundamental flaws in the paper seriously undermine the findings and conclusions

Version 2

VERSION 2

PUBLISHED 07 Apr 2014

Revised

Views

Referee Report 19 May 2014

Francesc Xavier Roca, Division of Molecular Genetics and Cell Biology, Nanyang Technological University, Singapore, Singapore

Approved

DOI: 10.5256/f1000research.4148.r4404

All ... Continue reading

CITE

Report a concern

Respond or Comment

Views

Referee Report 09 May 2014

Liliana D. Florea, McKusick-Nathans Institute of Human Genetics, Johns Hopkins University, Baltimore, MD, USA

Approved

DOI: 10.5256/f1000research.4148.r4407

My comments have been adequately addressed, either ... Continue reading

CITE

Report a concern

Respond or Comment

Views

Referee Report 08 Apr 2014

Stefania Bortoluzzi, Department of Biology, University of Padova, Padova, Italy

Approved

DOI: 10.5256/f1000research.4148.r4405

The revised version of the manuscript is improved, ... Continue reading

CITE

Report a concern

Respond or Comment

Version 1

VERSION 1

PUBLISHED 13 Jan 2014

Views

Referee Report 18 Mar 2014

Peter N. Robinson, Institute for Medical Genetics, Universitätsklinikum Charité, Berlin, Germany

Approved

DOI: 10.5256/f1000research.3444.r3121

This paper from the Rogan group presents a methodology for validation of DNA sequencing variants that alter mRNA splicing. While variants of the most conserved splice site nucleotides at the intron-exon boundary can be predicted to cause splice defects with high reliability, it remains difficult to predict whether variants deeper in the intron or those that potentially affect exonic splicing enhancers actually cause splice defects. RNA-seq data, when coupled with variant data, potentially provide a means of correlating variation data with observations of (mis-)splicing patterns.

The program fulfils an important need in the community, the results appear promising and will be of special interest to groups performing RNA-seq analysis in medical settings. I have only some minor suggestions that the authors may like to consider.

Suggestions:

The explanation of the methodology is relatively difficult to follow, and I wonder if it might not be better to simplify Figures 1 and 2 for didactic sake. For instance, in Figure 1A, it is unclear where the location of variant C is. Does the curved line mean that it could be anywhere in the middle exon? Also, I assume that exons are being shown in blue and reads shown in gray?

Also, the legend text is overly complicated: D > E swap D and E. While aficionados of first order logic will follow without problems, I would suggest that it would be better for didactic purposes to delete this and to implicitly assume that D<E for the sake of this figure. Figure 1B is confusing at this point in the manuscript because the motivation for switching the variable A,B, D, and E is not yet clear. On the other hand, panel C and panel D are trivial and do not add anything. I would suggest using Figure 1 to provide one concrete example one a simple level, and stating in the text that the variables are to be switched if the candidate mutation is located on the other side of the exon.

Also, the explanations of the method that are couched in first order logic-like notation are difficult to follow, because it is not stated whether the variant C can precede the start of the read (in which case C-S would be negative). The subscripts for r in turn have the subscript s1 but the variable S in the formula does not.

Although in the end, I think I follow the overall method, the reader is forced to make arbitrary assumptions in order to interpret the formulae being used to explain the method. A similar comment pertains to the flow chart in Figure 2.

Therefore, I would suggest the authors take some pains to improve the clarity of the explanation of the method. I would suggest that they show one of two concrete examples and provide English language specifications of the FOL-like formulae that describe the partitioning of reads.
I am a little unclear on the use of control samples vs experimental samples. Assuming the experimental samples come from different individuals, what is the reason to assume that they will have the same distribution of splice mutations? And given that one finds dozens of splice variants in normal individuals, what exactly is meant by a control sample? Will control samples not also have lots of splice mutations? How does the method deal with this? And if we are dealing with cancer samples, why not user a paired control to detect cancer-specific mutations? In light of this, the statement "Maximizing the set of control samples, while computationally more expensive, increases the statistical robustness of the results obtained.", does not appear to be supported by evidence presented in the manuscript.
It would be interesting to see a comparison of the distribution of Ri values and results of Veridical analysis?
How does Veridical decide which sequence variant is causative if there are multiple variations located in the vicinity of a given mis-spliced exon?
The mutation nomenclature chr1:985377 C>T should not have a space between the position and the nucleotides.
It is unclear to me why a linear regression model was used to show the performance of the method. The authors could provide timings from real runs.
It would be interesting to see a plot on the relationship of the p-values called by Veridical and the sequencing depth covered. The authors state "In particular, a lack of sufficient coverage at a particular locus will cause Veridical to be unable to report any significant results. A coverage of at least 20 reads should be sufficient.", but they do not provide evidence for this assertion. This is an important question given that low-expressed genes are thus likely to be systematically under-represented in the results of Veridcal, and this should be commented on somewhere in the paper.
It would be good if the authors provided Sanger validation of at least some of the mis-splicing events reported in the paper.
The input format for Veridical is described as "This input format most easily accepts formatted output from the Shannon Pipeline." Why not allow VCF files and filter them for potential splice variants informatically prior to Veridcal analysis? It was unclear to me how the variants are to be selected and whether Veridical can be easily used outside of the Shannon pipeline?

Competing Interests: No competing interests were disclosed.

I have read this submission. I believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

CITE

Report a concern

Author Response 27 Mar 2014

Peter K Rogan, Dept of Biochemistry Siebens-Drake, Room 201A, Schulich School of Medicine and Dentistry, University of Western Ontario, Canada

27 Mar 2014

Author Response
We really appreciate your constructive comments. In particular, we have revised figure 1 as you suggested. Furthermore, we have endeavored to clarify the methods by referencing every corresponding equation pertaining ... Continue reading
We really appreciate your constructive comments. In particular, we have revised figure 1 as you suggested. Furthermore, we have endeavored to clarify the methods by referencing every corresponding equation pertaining to each informal description of a methodological principle. All references to figures pertain to the first version of the manuscript.

"It is unclear to me why a linear regression model was used to show the performance of the method. The authors could provide timings from real runs."

All data points in Figure 3 (a) consist of data from actual runs. We did not conduct a sufficient number of large-scale runs to accurately determine performance and believe that the regression model provides information for users who wish to use the software in that context.

"The input format for veridical is described as “This input format most easily accepts formatted output from the Shannon Pipeline.” Why not allow VCF files and filter them for potential splice variants informatically prior to veridcal analysis? It was unclear to me how the variants are to be selected and whether veridical can be easily used outside of the Shannon pipeline?"

It would be prohibitively difficult for a user and cumbersome to attempt to add such support. The Shannon Pipeline and most other splicing analysis software accept variant call format (VCF) input and outputs their own custom format. VCF is very poorly suited for the annotation of detailed splicing information. The position of the variant is not necessarily the same as the affect splice junction coordinate. While it is possible to label the junction using custom fields in the VCF “INFO” column, the format is not standardized; it would be specific to the particular software used, and thus provides no real advantage over the Shannon pipeline output.

This would become feasible if the community were to agree upon a standard definition of custom fields; this concept could be generalized to other scenarios in which both a variant and one (or more) other associated coordinates (in this case, a splice site, but elsewhere, perhaps the site of some specific interaction). This process would ultimately require an explicit definition of the content and schema for such additional fields, and would need to solicit views from the community to ensure widespread adoption. We would be interested in contributing to this endeavor.

"It would be interesting to see a plot on the relationship of the p-values called by Veridical and the sequencing depth covered."

We have conducted a preliminary comparison of p-values for specific evidence types and splicing consequences vs. coverage per exonic base (the coverage of the gene divided by the length of the pertinent exon) and found that the results were quite difficult to interpret. We suspect that this could be explained by the fact that, due to significant intron inclusion, normalizing by exonic length is not really appropriate. Cryptic sites and alternative splicing make direct comparison of these values difficult to compute.

"How does Veridical decide which sequence variant is causative if there are multiple variations located in the vicinity of a given mis-spliced exon?"

Veridical does not currently address cases in which multiple independent variants pertain to the same splice site. In such a case, each variant is analyzed independently. Based on Mendelian disorders, we have rarely observed multiple independent variants alter the strength of the same splice site, and in any case, the phase of these variants is unknown, so they could reside on different chromosomes.

"I am a little unclear on the use of control samples vs experimental samples. Assuming the experimental samples come from different individuals, what is the reason to assume that they will have the same distribution of splice mutations? And given that one finds dozens of splice variants in normal individuals, what exactly is meant by a control sample? Will not control samples also have lots of splice mutations? How does the method deal with this? And if we are dealing with cancer samples, why not user a paired control to detect cancer-specific mutations? In light of this, the statement “Maximizing the set of control samples, while computationally more expensive, increases the statistical robustness of the results obtained.“ Does not appear to be supported by evidence presented in the manuscript."

Control samples consist of all non-variant containing (NVC) tumour samples (relative to the variant being analyzed) and normal samples. In the examples shown in the paper, we maximized the number control samples used (106 normal samples and, in general, over 400 NVC samples). Control samples do indeed contain splicing mutations and this is a strength of our statistical paradigm. We term them control samples, because we consider their read distribution to correspond to that expected from the null hypothesis, as they do not contain the specific variant in question. The “noise” introduced by these splicing variants in control samples ensures that we are testing the variant containing samples against samples with many, distinct, splicing mutations. Thus, the greater the number of samples, the smaller the batch effects, which makes the method more reliable. While the normal and tumor DNA sequencing data was paired to call somatic variants, we do not require paired controls for the RNA-Seq data. In fact, TCGA does not provide such data. Since we initially designed the software for the task of analyzing their dataset, we did not wish to assume that paired RNA-Seq data was available.

"It would be good if the authors provided Sanger validation of at least some of the mis-splicing events reported in the paper."

We do not have access to the TCGA tumour samples used. While TCGA performed Sanger validation of a small subset of their variants, none of the variants validated by Veridical had any associated Sanger sequencing data.

"It would be interesting to see a comparison of the distribution of Ri values and results of Veridical analysis?"

The variants predicted by the Shannon splicing mutation analysis pipeline exhibit changes in information content (ΔR_i). The change in information content of a splice site is directly related to the thermodynamics of the binding event (Schneider, 1997) and therefore the strength of the splice site (Rogan et al., 1998; Rogan et al., 2003). Therefore, one would expect ΔR_i to be highly predictive of valid splicing variants, where cryptic sites are expected to result in increased splice site strength, and natural sites would be expected to be weakened.

The median ΔR_ifor cryptic variants in the set of pre-Veridical variants (those variants called as somatic mutations and predicted by the Shannon Pipeline to affect mRNA splicing) was 2.6 bits, while the median for validated variants was 2.38 bits. For non-cryptic variants the pre- and post-validation median ΔR_i values were -2.52 and -3.18 bits, respectively.

The information content of cryptic variants actually decreased slightly in the validated set. This likely is related to other factors, such as the initial strength of the natural site and the exon length, which are not accounted for by this analysis. However, the average information content of natural sites did decrease, as expected. The reason for the decrease not being more substantial, again, is likely due to the involvement of other factors, such as the distance of the variant to the natural site – which impacts its R_i value. We have refrained from including this discussion in the manuscript, since there is no requirement per se for Veridical to be used with the Shannon Pipeline. An explicit definition of the required input format is provided in the paper.
We really appreciate your constructive comments. In particular, we have revised figure 1 as you suggested. Furthermore, we have endeavored to clarify the methods by referencing every corresponding equation pertaining to each informal description of a methodological principle. All references to figures pertain to the first version of the manuscript.

"It is unclear to me why a linear regression model was used to show the performance of the method. The authors could provide timings from real runs."

All data points in Figure 3 (a) consist of data from actual runs. We did not conduct a sufficient number of large-scale runs to accurately determine performance and believe that the regression model provides information for users who wish to use the software in that context.

"The input format for veridical is described as “This input format most easily accepts formatted output from the Shannon Pipeline.” Why not allow VCF files and filter them for potential splice variants informatically prior to veridcal analysis? It was unclear to me how the variants are to be selected and whether veridical can be easily used outside of the Shannon pipeline?"

It would be prohibitively difficult for a user and cumbersome to attempt to add such support. The Shannon Pipeline and most other splicing analysis software accept variant call format (VCF) input and outputs their own custom format. VCF is very poorly suited for the annotation of detailed splicing information. The position of the variant is not necessarily the same as the affect splice junction coordinate. While it is possible to label the junction using custom fields in the VCF “INFO” column, the format is not standardized; it would be specific to the particular software used, and thus provides no real advantage over the Shannon pipeline output.

This would become feasible if the community were to agree upon a standard definition of custom fields; this concept could be generalized to other scenarios in which both a variant and one (or more) other associated coordinates (in this case, a splice site, but elsewhere, perhaps the site of some specific interaction). This process would ultimately require an explicit definition of the content and schema for such additional fields, and would need to solicit views from the community to ensure widespread adoption. We would be interested in contributing to this endeavor.

"It would be interesting to see a plot on the relationship of the p-values called by Veridical and the sequencing depth covered."

We have conducted a preliminary comparison of p-values for specific evidence types and splicing consequences vs. coverage per exonic base (the coverage of the gene divided by the length of the pertinent exon) and found that the results were quite difficult to interpret. We suspect that this could be explained by the fact that, due to significant intron inclusion, normalizing by exonic length is not really appropriate. Cryptic sites and alternative splicing make direct comparison of these values difficult to compute.

"How does Veridical decide which sequence variant is causative if there are multiple variations located in the vicinity of a given mis-spliced exon?"

Veridical does not currently address cases in which multiple independent variants pertain to the same splice site. In such a case, each variant is analyzed independently. Based on Mendelian disorders, we have rarely observed multiple independent variants alter the strength of the same splice site, and in any case, the phase of these variants is unknown, so they could reside on different chromosomes.

"I am a little unclear on the use of control samples vs experimental samples. Assuming the experimental samples come from different individuals, what is the reason to assume that they will have the same distribution of splice mutations? And given that one finds dozens of splice variants in normal individuals, what exactly is meant by a control sample? Will not control samples also have lots of splice mutations? How does the method deal with this? And if we are dealing with cancer samples, why not user a paired control to detect cancer-specific mutations? In light of this, the statement “Maximizing the set of control samples, while computationally more expensive, increases the statistical robustness of the results obtained.“ Does not appear to be supported by evidence presented in the manuscript."

Control samples consist of all non-variant containing (NVC) tumour samples (relative to the variant being analyzed) and normal samples. In the examples shown in the paper, we maximized the number control samples used (106 normal samples and, in general, over 400 NVC samples). Control samples do indeed contain splicing mutations and this is a strength of our statistical paradigm. We term them control samples, because we consider their read distribution to correspond to that expected from the null hypothesis, as they do not contain the specific variant in question. The “noise” introduced by these splicing variants in control samples ensures that we are testing the variant containing samples against samples with many, distinct, splicing mutations. Thus, the greater the number of samples, the smaller the batch effects, which makes the method more reliable. While the normal and tumor DNA sequencing data was paired to call somatic variants, we do not require paired controls for the RNA-Seq data. In fact, TCGA does not provide such data. Since we initially designed the software for the task of analyzing their dataset, we did not wish to assume that paired RNA-Seq data was available.

"It would be good if the authors provided Sanger validation of at least some of the mis-splicing events reported in the paper."

We do not have access to the TCGA tumour samples used. While TCGA performed Sanger validation of a small subset of their variants, none of the variants validated by Veridical had any associated Sanger sequencing data.

"It would be interesting to see a comparison of the distribution of Ri values and results of Veridical analysis?"

The variants predicted by the Shannon splicing mutation analysis pipeline exhibit changes in information content (ΔR_i). The change in information content of a splice site is directly related to the thermodynamics of the binding event (Schneider, 1997) and therefore the strength of the splice site (Rogan et al., 1998; Rogan et al., 2003). Therefore, one would expect ΔR_i to be highly predictive of valid splicing variants, where cryptic sites are expected to result in increased splice site strength, and natural sites would be expected to be weakened.

The median ΔR_ifor cryptic variants in the set of pre-Veridical variants (those variants called as somatic mutations and predicted by the Shannon Pipeline to affect mRNA splicing) was 2.6 bits, while the median for validated variants was 2.38 bits. For non-cryptic variants the pre- and post-validation median ΔR_i values were -2.52 and -3.18 bits, respectively.

The information content of cryptic variants actually decreased slightly in the validated set. This likely is related to other factors, such as the initial strength of the natural site and the exon length, which are not accounted for by this analysis. However, the average information content of natural sites did decrease, as expected. The reason for the decrease not being more substantial, again, is likely due to the involvement of other factors, such as the distance of the variant to the natural site – which impacts its R_i value. We have refrained from including this discussion in the manuscript, since there is no requirement per se for Veridical to be used with the Shannon Pipeline. An explicit definition of the required input format is provided in the paper.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Referee Response (Member of the F1000 Faculty and F1000Research Advisory Board Member) 14 Aug 2015

Peter Robinson, The Jackson Laboratory for Genomic Medicine, USA

14 Aug 2015

Referee Response Member of the F1000 Faculty F1000Research Advisory Board Member

Thanks for the detailed response to my comments.
Competing Interests: No competing interests were disclosed.
Thanks for the detailed response to my comments.
Thanks for the detailed response to my comments.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 27 Mar 2014

Peter K Rogan, Dept of Biochemistry Siebens-Drake, Room 201A, Schulich School of Medicine and Dentistry, University of Western Ontario, Canada

27 Mar 2014

Author Response
We really appreciate your constructive comments. In particular, we have revised figure 1 as you suggested. Furthermore, we have endeavored to clarify the methods by referencing every corresponding equation pertaining ... Continue reading
We really appreciate your constructive comments. In particular, we have revised figure 1 as you suggested. Furthermore, we have endeavored to clarify the methods by referencing every corresponding equation pertaining to each informal description of a methodological principle. All references to figures pertain to the first version of the manuscript.

"It is unclear to me why a linear regression model was used to show the performance of the method. The authors could provide timings from real runs."

All data points in Figure 3 (a) consist of data from actual runs. We did not conduct a sufficient number of large-scale runs to accurately determine performance and believe that the regression model provides information for users who wish to use the software in that context.

"The input format for veridical is described as “This input format most easily accepts formatted output from the Shannon Pipeline.” Why not allow VCF files and filter them for potential splice variants informatically prior to veridcal analysis? It was unclear to me how the variants are to be selected and whether veridical can be easily used outside of the Shannon pipeline?"

It would be prohibitively difficult for a user and cumbersome to attempt to add such support. The Shannon Pipeline and most other splicing analysis software accept variant call format (VCF) input and outputs their own custom format. VCF is very poorly suited for the annotation of detailed splicing information. The position of the variant is not necessarily the same as the affect splice junction coordinate. While it is possible to label the junction using custom fields in the VCF “INFO” column, the format is not standardized; it would be specific to the particular software used, and thus provides no real advantage over the Shannon pipeline output.

This would become feasible if the community were to agree upon a standard definition of custom fields; this concept could be generalized to other scenarios in which both a variant and one (or more) other associated coordinates (in this case, a splice site, but elsewhere, perhaps the site of some specific interaction). This process would ultimately require an explicit definition of the content and schema for such additional fields, and would need to solicit views from the community to ensure widespread adoption. We would be interested in contributing to this endeavor.

"It would be interesting to see a plot on the relationship of the p-values called by Veridical and the sequencing depth covered."

We have conducted a preliminary comparison of p-values for specific evidence types and splicing consequences vs. coverage per exonic base (the coverage of the gene divided by the length of the pertinent exon) and found that the results were quite difficult to interpret. We suspect that this could be explained by the fact that, due to significant intron inclusion, normalizing by exonic length is not really appropriate. Cryptic sites and alternative splicing make direct comparison of these values difficult to compute.

"How does Veridical decide which sequence variant is causative if there are multiple variations located in the vicinity of a given mis-spliced exon?"

Veridical does not currently address cases in which multiple independent variants pertain to the same splice site. In such a case, each variant is analyzed independently. Based on Mendelian disorders, we have rarely observed multiple independent variants alter the strength of the same splice site, and in any case, the phase of these variants is unknown, so they could reside on different chromosomes.

"I am a little unclear on the use of control samples vs experimental samples. Assuming the experimental samples come from different individuals, what is the reason to assume that they will have the same distribution of splice mutations? And given that one finds dozens of splice variants in normal individuals, what exactly is meant by a control sample? Will not control samples also have lots of splice mutations? How does the method deal with this? And if we are dealing with cancer samples, why not user a paired control to detect cancer-specific mutations? In light of this, the statement “Maximizing the set of control samples, while computationally more expensive, increases the statistical robustness of the results obtained.“ Does not appear to be supported by evidence presented in the manuscript."

Control samples consist of all non-variant containing (NVC) tumour samples (relative to the variant being analyzed) and normal samples. In the examples shown in the paper, we maximized the number control samples used (106 normal samples and, in general, over 400 NVC samples). Control samples do indeed contain splicing mutations and this is a strength of our statistical paradigm. We term them control samples, because we consider their read distribution to correspond to that expected from the null hypothesis, as they do not contain the specific variant in question. The “noise” introduced by these splicing variants in control samples ensures that we are testing the variant containing samples against samples with many, distinct, splicing mutations. Thus, the greater the number of samples, the smaller the batch effects, which makes the method more reliable. While the normal and tumor DNA sequencing data was paired to call somatic variants, we do not require paired controls for the RNA-Seq data. In fact, TCGA does not provide such data. Since we initially designed the software for the task of analyzing their dataset, we did not wish to assume that paired RNA-Seq data was available.

"It would be good if the authors provided Sanger validation of at least some of the mis-splicing events reported in the paper."

We do not have access to the TCGA tumour samples used. While TCGA performed Sanger validation of a small subset of their variants, none of the variants validated by Veridical had any associated Sanger sequencing data.

"It would be interesting to see a comparison of the distribution of Ri values and results of Veridical analysis?"

The variants predicted by the Shannon splicing mutation analysis pipeline exhibit changes in information content (ΔR_i). The change in information content of a splice site is directly related to the thermodynamics of the binding event (Schneider, 1997) and therefore the strength of the splice site (Rogan et al., 1998; Rogan et al., 2003). Therefore, one would expect ΔR_i to be highly predictive of valid splicing variants, where cryptic sites are expected to result in increased splice site strength, and natural sites would be expected to be weakened.

The median ΔR_ifor cryptic variants in the set of pre-Veridical variants (those variants called as somatic mutations and predicted by the Shannon Pipeline to affect mRNA splicing) was 2.6 bits, while the median for validated variants was 2.38 bits. For non-cryptic variants the pre- and post-validation median ΔR_i values were -2.52 and -3.18 bits, respectively.

The information content of cryptic variants actually decreased slightly in the validated set. This likely is related to other factors, such as the initial strength of the natural site and the exon length, which are not accounted for by this analysis. However, the average information content of natural sites did decrease, as expected. The reason for the decrease not being more substantial, again, is likely due to the involvement of other factors, such as the distance of the variant to the natural site – which impacts its R_i value. We have refrained from including this discussion in the manuscript, since there is no requirement per se for Veridical to be used with the Shannon Pipeline. An explicit definition of the required input format is provided in the paper.
We really appreciate your constructive comments. In particular, we have revised figure 1 as you suggested. Furthermore, we have endeavored to clarify the methods by referencing every corresponding equation pertaining to each informal description of a methodological principle. All references to figures pertain to the first version of the manuscript.

"It is unclear to me why a linear regression model was used to show the performance of the method. The authors could provide timings from real runs."

All data points in Figure 3 (a) consist of data from actual runs. We did not conduct a sufficient number of large-scale runs to accurately determine performance and believe that the regression model provides information for users who wish to use the software in that context.

"The input format for veridical is described as “This input format most easily accepts formatted output from the Shannon Pipeline.” Why not allow VCF files and filter them for potential splice variants informatically prior to veridcal analysis? It was unclear to me how the variants are to be selected and whether veridical can be easily used outside of the Shannon pipeline?"

It would be prohibitively difficult for a user and cumbersome to attempt to add such support. The Shannon Pipeline and most other splicing analysis software accept variant call format (VCF) input and outputs their own custom format. VCF is very poorly suited for the annotation of detailed splicing information. The position of the variant is not necessarily the same as the affect splice junction coordinate. While it is possible to label the junction using custom fields in the VCF “INFO” column, the format is not standardized; it would be specific to the particular software used, and thus provides no real advantage over the Shannon pipeline output.

This would become feasible if the community were to agree upon a standard definition of custom fields; this concept could be generalized to other scenarios in which both a variant and one (or more) other associated coordinates (in this case, a splice site, but elsewhere, perhaps the site of some specific interaction). This process would ultimately require an explicit definition of the content and schema for such additional fields, and would need to solicit views from the community to ensure widespread adoption. We would be interested in contributing to this endeavor.

"It would be interesting to see a plot on the relationship of the p-values called by Veridical and the sequencing depth covered."

We have conducted a preliminary comparison of p-values for specific evidence types and splicing consequences vs. coverage per exonic base (the coverage of the gene divided by the length of the pertinent exon) and found that the results were quite difficult to interpret. We suspect that this could be explained by the fact that, due to significant intron inclusion, normalizing by exonic length is not really appropriate. Cryptic sites and alternative splicing make direct comparison of these values difficult to compute.

"How does Veridical decide which sequence variant is causative if there are multiple variations located in the vicinity of a given mis-spliced exon?"

Veridical does not currently address cases in which multiple independent variants pertain to the same splice site. In such a case, each variant is analyzed independently. Based on Mendelian disorders, we have rarely observed multiple independent variants alter the strength of the same splice site, and in any case, the phase of these variants is unknown, so they could reside on different chromosomes.

"I am a little unclear on the use of control samples vs experimental samples. Assuming the experimental samples come from different individuals, what is the reason to assume that they will have the same distribution of splice mutations? And given that one finds dozens of splice variants in normal individuals, what exactly is meant by a control sample? Will not control samples also have lots of splice mutations? How does the method deal with this? And if we are dealing with cancer samples, why not user a paired control to detect cancer-specific mutations? In light of this, the statement “Maximizing the set of control samples, while computationally more expensive, increases the statistical robustness of the results obtained.“ Does not appear to be supported by evidence presented in the manuscript."

Control samples consist of all non-variant containing (NVC) tumour samples (relative to the variant being analyzed) and normal samples. In the examples shown in the paper, we maximized the number control samples used (106 normal samples and, in general, over 400 NVC samples). Control samples do indeed contain splicing mutations and this is a strength of our statistical paradigm. We term them control samples, because we consider their read distribution to correspond to that expected from the null hypothesis, as they do not contain the specific variant in question. The “noise” introduced by these splicing variants in control samples ensures that we are testing the variant containing samples against samples with many, distinct, splicing mutations. Thus, the greater the number of samples, the smaller the batch effects, which makes the method more reliable. While the normal and tumor DNA sequencing data was paired to call somatic variants, we do not require paired controls for the RNA-Seq data. In fact, TCGA does not provide such data. Since we initially designed the software for the task of analyzing their dataset, we did not wish to assume that paired RNA-Seq data was available.

"It would be good if the authors provided Sanger validation of at least some of the mis-splicing events reported in the paper."

We do not have access to the TCGA tumour samples used. While TCGA performed Sanger validation of a small subset of their variants, none of the variants validated by Veridical had any associated Sanger sequencing data.

"It would be interesting to see a comparison of the distribution of Ri values and results of Veridical analysis?"

The variants predicted by the Shannon splicing mutation analysis pipeline exhibit changes in information content (ΔR_i). The change in information content of a splice site is directly related to the thermodynamics of the binding event (Schneider, 1997) and therefore the strength of the splice site (Rogan et al., 1998; Rogan et al., 2003). Therefore, one would expect ΔR_i to be highly predictive of valid splicing variants, where cryptic sites are expected to result in increased splice site strength, and natural sites would be expected to be weakened.

The median ΔR_ifor cryptic variants in the set of pre-Veridical variants (those variants called as somatic mutations and predicted by the Shannon Pipeline to affect mRNA splicing) was 2.6 bits, while the median for validated variants was 2.38 bits. For non-cryptic variants the pre- and post-validation median ΔR_i values were -2.52 and -3.18 bits, respectively.

The information content of cryptic variants actually decreased slightly in the validated set. This likely is related to other factors, such as the initial strength of the natural site and the exon length, which are not accounted for by this analysis. However, the average information content of natural sites did decrease, as expected. The reason for the decrease not being more substantial, again, is likely due to the involvement of other factors, such as the distance of the variant to the natural site – which impacts its R_i value. We have refrained from including this discussion in the manuscript, since there is no requirement per se for Veridical to be used with the Shannon Pipeline. An explicit definition of the required input format is provided in the paper.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Referee Response (Member of the F1000 Faculty and F1000Research Advisory Board Member) 14 Aug 2015

Peter Robinson, The Jackson Laboratory for Genomic Medicine, USA

14 Aug 2015

Referee Response Member of the F1000 Faculty F1000Research Advisory Board Member

Thanks for the detailed response to my comments.
Competing Interests: No competing interests were disclosed.
Thanks for the detailed response to my comments.
Thanks for the detailed response to my comments.
Competing Interests: No competing interests were disclosed. Close
Report a concern

Views

Referee Report 07 Mar 2014

Liliana D. Florea, McKusick-Nathans Institute of Human Genetics, Johns Hopkins University, Baltimore, MD, USA

Approved with Reservations

DOI: 10.5256/f1000research.3444.r3524

The authors describe a method and the associated software, Veridical, for assessing the effects on pre-mRNA splicing of predicted splicing-affecting mutations. To do so the program compares splicing effects, measured by the supporting read counts, in variant-containing (disease) samples against a distribution derived from very large numbers of 'normals', either normal tissue from the same individual or samples from healthy individuals.

The idea is ingenious and novel as applied to mutations affecting splicing, although not in general (see VAAST [Yandell et al. 2011], which exploits the availability of large numbers of samples to identify likely deleterious variants; it is also the premise for the HapMap and 1000 Genomes projects). The software is fast and practical, being able to test thousands of variants in hundreds of samples within hours. This is the first software of its kind, and if accurate it will be a very valuable resource for clinical genomics.

That being said, while the article provides proof-of-concept and clearly demonstrates the potential of the tool with specific examples, there are several missing pieces that are needed to provide the readers with a view of its overall performance and limitations and to help them use it effectively.

Major comments:

The article shows numerous positive examples, however there is no indication of the tool's performance in general. The authors should include the results from running the tool on a full data set, to give potential users an idea of the expected outcome.

Also, several other tools (e.g., MATS, Miso, SpliceTrap) have been developed for the related problem of discovering alternative splicing events and comparing them among samples. MATS in particular, allows differential splicing analyses with multiple replicates. Ideally the paper would include a comparison with MATS on the data set analyzed; this comparison is informative even if MATS is used with only a subset of the samples.
The method uses the YJ-transformed distribution of supporting read counts across the 'normals' to determine a p-value for the variant, and thus judge its significance and impact on splicing. This is an interesting concept that assumes that with large numbers of 'normals' sample and batch effects will even out; hence, large numbers of samples are required to ensure accuracy. Since these are absolute (non-normalized) counts, however, the method may not work if the variant sample is obtained with a different method, e.g. by rRNA depletion of total RNA whereas most normal samples would come from polyA+ libraries. The authors should clearly discuss this and other possible limitations of their approach.
Related to the above, the authors mention on several occasions the difficulty in identifying intron inclusion (II) events, in particular the large number of false positives. Indeed, IIs are generally difficult to predict due to the presence of intronic reads ('noise') from unspliced RNA. The levels can vary from sample to sample and across the genome, depending on the sample preparation, gene expression level, splicing efficiency, etc. By comparing read counts exclusively among samples and without taking into account the gene- or genome-level background, Veridical is likely to produce many false positives.

In particular, the 14 supporting reads in the left intron on Figure 4 seem hardly sufficient to indicate an II event, all the more as there is a larger number of reads in the neighboring intron (not predicted to be II). The authors should provide other type of evidence for this event.
The mathematical formulas for the various classes of supporting reads and their locations (page 4, continued on page 6) are hard to understand. It would greatly help the readers to include a figure showing schematically the event and read location with respect to the introns and exons.

Minor comments:

As another reviewer pointed out, the software requires a registration to obtain a temporary license for 30 days, after which the availability and terms of use are unclear. This mode of distribution is not a problem, but the terms should be clearly stated in the manuscript. Also, this is a stand-alone software and not a web tool as implied by the article.
The authors use the term 'cryptic' splice sites throughout the manuscript (I assume meaning 'aberrantly activated'), but some of the events discovered could be alternative exon ends. It would be helpful to clarify in the context.

This is a potentially very powerful and useful tool. I gave the article an 'Approved with reservation' because it is critical to include results in the aggregate to complement the showcased examples, as well as to discuss its limitations. I will gladly change once these few issues are addressed.

Competing Interests: No competing interests were disclosed.

I have read this submission. I believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.

CITE

Report a concern

Author Response 27 Mar 2014

Peter K Rogan, Dept of Biochemistry Siebens-Drake, Room 201A, Schulich School of Medicine and Dentistry, University of Western Ontario, Canada

27 Mar 2014

Author Response

We greatly appreciate your remarks and useful suggestions. All references to figures pertain to the first version of the manuscript.

First, we address your comments regarding VAAST and de novo exome ... Continue reading We greatly appreciate your remarks and useful suggestions. All references to figures pertain to the first version of the manuscript.

First, we address your comments regarding VAAST and de novo exome annotation software packages. VAAST uses a feature-based, maximal likelihood, approach to identify variants suspected to be pathogenic. While Yandell et al. present a general, and indeed very useful method, it is very different from Veridical in two key respects. Most importantly, Veridical does not aim to identify putatively pathogenic variants, but rather, to confirm existing in silico predictions thereof. Although it is not designed for this purpose, one could envision using the likelihood approach used by VAAST to extract solely splicing variants, annotating them, and then confirming these variants using Veridical with corresponding RNA-Seq data (assuming such data exists). Veridical is the only software available for statistical validation of splicing mutations. While both programs prioritize variants, their goals are rather dichotomous. Similarly, Veridical depends upon the use of an (ideally conservative) exome annotation. We do infer exon skipping events (i.e. alternative splicing) de novo, but only to catalog dysregulated splicing “phenotypes” due to genomic sequence variants. Since we rely upon existing annotations, improvements in this area will serve to benefit Veridical and complement it well. In many ways, our parsimonious approach was possible precisely because the problem we address is quite a lot easier to address than de novo alternative splicing inference. We are not suggesting that Veridical be used to analyze all variants, resulting from exome or whole-genome sequencing experiments. The Shannon Pipeline, which predicts candidate variants, contains several default or modifiable filters which can limit the number of candidates input to Veridical. We are suggesting that our approach be coupled to existing approaches to act as an a posteriori, hypothesis-driven, check on the veridicality of specific variants.

We consider alternative splicing to be a different problem, for the following reasons. The authors state: “MATS calculates a P-value for each exon isoform by comparing the observed posterior probability with a set of simulated posterior probabilities from the null hypothesis.” We do not simulate posterior probabilities; we calculate them directly from the distribution of control samples, which represent the null hypothesis. Further, MATS requires the user to set uniform thresholds for all alternative splicing events, which in our case, may vary between variants (i.e. inactivating versus leaky mutations). Finally, neither MATS, nor Miso or SpliceTrap provide any means of analyzing novel isoforms created by the activation of cryptic splice sites.

We appreciate your insightful summary of our underlying statistical methodology and appreciate the limitations of our statistical inference method. It is certainly the case that the use of different RNA-Seq protocols could prove problematic. Veridical is intended to be used with RNA-Seq data from the same individual as matched DNA-Seq data. We assume that the control RNA-Seq data are generated with comparable sequencing protocols. This has been articulated in the Discussion.

We agree that levels of intron inclusion and alternative splicing can be highly variable across samples, due to factors extrinsic to the mutation itself. Such variability is a significant contributory factor to the production of transcriptomic “noise”. Given that statistically significant levels of intron inclusion were observed across all control samples, the prevalence of adjacent intron inclusions (which is not uncommon, per se), does not weaken the inference that the predicted splicing mutation increases the levels of intron inclusion. However, in such cases, the statistical threshold to achieve significance would be higher. A recent analysis indicates that p-value thresholds of 0.005 to 0.001 are appropriate (Johnson, 2013). Our statistical approach tacitly accounts for this and indeed greater levels of such “noise” could actually increase the statistical utility of our computation. Because of a wide degree of variation of intron inclusion in both normal and tumor transcriptomes, we deliberately elected against normalizing gene level expression in the program.

Regarding the specific example cited, the 14 intronic reads in the sample containing the variant in the read-abundance category (Figure 4 (A)) are contrasted with the per sample mean of 4.051 reads across all non-variant-containing tumours and normal samples in this intron (i.e. the totality of control samples, which results in a p-value of 0.04. We agree that this is not a strong result, and would not permit us to reject the null hypothesis had the threshold significance level been reduced to ≤ 0.01 (which the user is free to stipulate).In this particular case, the variant is still strongly validated, due to the presence of junction-spanning, exon skipping reads (that are absent from all of the control samples). We do not stipulate that the predicted mutation have only one abnormal read type, but rather, that the test assesses each consequence separately. We suggest that the corroborating evidence be taken together in support of variant-induced missplicing. Furthermore, junction-spanning exon skipping is, in general, rarer than intron inclusion in these data. Nevertheless, we do show examples of read-abundance tests for intron inclusion that achieve a significance level of < 0.01, such as within TMTC2 in Figure 6(C). As you point out, intron inclusion patterns also vary by intron and there are a large number of such intron inclusion reads in the downstream intron in Figure 4(A). However, in our entire set of predicted splicing mutations, we did not find any pertaining to the intron between exons 12 and 13. The observed increased intron inclusion between exons 12 and 13 may be related to the weak (5.2 bit) donor (5’) splice site in exon 12. In fact, substantial intron inclusion was expected in intron 11, due to the minimal strength of the exon 11 donor of 2.1 bits.

Regarding the comment concerning cryptic sites, we always mean non-canonical splice sites activated by sequence-level variation, which are distinctly different from tissue-related alternatively spliced isoforms lacking one or more constitutive exons. We and others have reported numerous examples of common SNPs inducing cryptic splice site activation, which could result in the annotation of accordingly altered transcripts.

It is unfortunate that Veridical had to be categorized as a “web tool”. We would have preferred to indicate that the program is a standalone-tool. F1000Research does not provide this category, even though other standalone programs have been published by the journal with the Web Tool designation. In the Web Tools category, the journal guidelines require that we provide a set of examples (complete with input and output files) representing the range of results that are obtained with the software. Therefore, providing a full analysis of the complete TCGA breast cancer dataset is beyond the scope of this paper. It will be presented elsewhere.

We believe that the statements in the manuscript's conflict of interests section are sufficient to describe the terms of use. We have added the requested details on Veridical.org, both indicating its duration and instructions for obtaining longer-term access to this software.
We greatly appreciate your remarks and useful suggestions. All references to figures pertain to the first version of the manuscript.

First, we address your comments regarding VAAST and de novo exome annotation software packages. VAAST uses a feature-based, maximal likelihood, approach to identify variants suspected to be pathogenic. While Yandell et al. present a general, and indeed very useful method, it is very different from Veridical in two key respects. Most importantly, Veridical does not aim to identify putatively pathogenic variants, but rather, to confirm existing in silico predictions thereof. Although it is not designed for this purpose, one could envision using the likelihood approach used by VAAST to extract solely splicing variants, annotating them, and then confirming these variants using Veridical with corresponding RNA-Seq data (assuming such data exists). Veridical is the only software available for statistical validation of splicing mutations. While both programs prioritize variants, their goals are rather dichotomous. Similarly, Veridical depends upon the use of an (ideally conservative) exome annotation. We do infer exon skipping events (i.e. alternative splicing) de novo, but only to catalog dysregulated splicing “phenotypes” due to genomic sequence variants. Since we rely upon existing annotations, improvements in this area will serve to benefit Veridical and complement it well. In many ways, our parsimonious approach was possible precisely because the problem we address is quite a lot easier to address than de novo alternative splicing inference. We are not suggesting that Veridical be used to analyze all variants, resulting from exome or whole-genome sequencing experiments. The Shannon Pipeline, which predicts candidate variants, contains several default or modifiable filters which can limit the number of candidates input to Veridical. We are suggesting that our approach be coupled to existing approaches to act as an a posteriori, hypothesis-driven, check on the veridicality of specific variants.

We consider alternative splicing to be a different problem, for the following reasons. The authors state: “MATS calculates a P-value for each exon isoform by comparing the observed posterior probability with a set of simulated posterior probabilities from the null hypothesis.” We do not simulate posterior probabilities; we calculate them directly from the distribution of control samples, which represent the null hypothesis. Further, MATS requires the user to set uniform thresholds for all alternative splicing events, which in our case, may vary between variants (i.e. inactivating versus leaky mutations). Finally, neither MATS, nor Miso or SpliceTrap provide any means of analyzing novel isoforms created by the activation of cryptic splice sites.

We appreciate your insightful summary of our underlying statistical methodology and appreciate the limitations of our statistical inference method. It is certainly the case that the use of different RNA-Seq protocols could prove problematic. Veridical is intended to be used with RNA-Seq data from the same individual as matched DNA-Seq data. We assume that the control RNA-Seq data are generated with comparable sequencing protocols. This has been articulated in the Discussion.

We agree that levels of intron inclusion and alternative splicing can be highly variable across samples, due to factors extrinsic to the mutation itself. Such variability is a significant contributory factor to the production of transcriptomic “noise”. Given that statistically significant levels of intron inclusion were observed across all control samples, the prevalence of adjacent intron inclusions (which is not uncommon, per se), does not weaken the inference that the predicted splicing mutation increases the levels of intron inclusion. However, in such cases, the statistical threshold to achieve significance would be higher. A recent analysis indicates that p-value thresholds of 0.005 to 0.001 are appropriate (Johnson, 2013). Our statistical approach tacitly accounts for this and indeed greater levels of such “noise” could actually increase the statistical utility of our computation. Because of a wide degree of variation of intron inclusion in both normal and tumor transcriptomes, we deliberately elected against normalizing gene level expression in the program.

Regarding the specific example cited, the 14 intronic reads in the sample containing the variant in the read-abundance category (Figure 4 (A)) are contrasted with the per sample mean of 4.051 reads across all non-variant-containing tumours and normal samples in this intron (i.e. the totality of control samples, which results in a p-value of 0.04. We agree that this is not a strong result, and would not permit us to reject the null hypothesis had the threshold significance level been reduced to ≤ 0.01 (which the user is free to stipulate).In this particular case, the variant is still strongly validated, due to the presence of junction-spanning, exon skipping reads (that are absent from all of the control samples). We do not stipulate that the predicted mutation have only one abnormal read type, but rather, that the test assesses each consequence separately. We suggest that the corroborating evidence be taken together in support of variant-induced missplicing. Furthermore, junction-spanning exon skipping is, in general, rarer than intron inclusion in these data. Nevertheless, we do show examples of read-abundance tests for intron inclusion that achieve a significance level of < 0.01, such as within TMTC2 in Figure 6(C). As you point out, intron inclusion patterns also vary by intron and there are a large number of such intron inclusion reads in the downstream intron in Figure 4(A). However, in our entire set of predicted splicing mutations, we did not find any pertaining to the intron between exons 12 and 13. The observed increased intron inclusion between exons 12 and 13 may be related to the weak (5.2 bit) donor (5’) splice site in exon 12. In fact, substantial intron inclusion was expected in intron 11, due to the minimal strength of the exon 11 donor of 2.1 bits.

Regarding the comment concerning cryptic sites, we always mean non-canonical splice sites activated by sequence-level variation, which are distinctly different from tissue-related alternatively spliced isoforms lacking one or more constitutive exons. We and others have reported numerous examples of common SNPs inducing cryptic splice site activation, which could result in the annotation of accordingly altered transcripts.

It is unfortunate that Veridical had to be categorized as a “web tool”. We would have preferred to indicate that the program is a standalone-tool. F1000Research does not provide this category, even though other standalone programs have been published by the journal with the Web Tool designation. In the Web Tools category, the journal guidelines require that we provide a set of examples (complete with input and output files) representing the range of results that are obtained with the software. Therefore, providing a full analysis of the complete TCGA breast cancer dataset is beyond the scope of this paper. It will be presented elsewhere.

We believe that the statements in the manuscript's conflict of interests section are sufficient to describe the terms of use. We have added the requested details on Veridical.org, both indicating its duration and instructions for obtaining longer-term access to this software.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 27 Mar 2014

Peter K Rogan, Dept of Biochemistry Siebens-Drake, Room 201A, Schulich School of Medicine and Dentistry, University of Western Ontario, Canada

27 Mar 2014

Author Response

We greatly appreciate your remarks and useful suggestions. All references to figures pertain to the first version of the manuscript.

First, we address your comments regarding VAAST and de novo exome ... Continue reading We greatly appreciate your remarks and useful suggestions. All references to figures pertain to the first version of the manuscript.

First, we address your comments regarding VAAST and de novo exome annotation software packages. VAAST uses a feature-based, maximal likelihood, approach to identify variants suspected to be pathogenic. While Yandell et al. present a general, and indeed very useful method, it is very different from Veridical in two key respects. Most importantly, Veridical does not aim to identify putatively pathogenic variants, but rather, to confirm existing in silico predictions thereof. Although it is not designed for this purpose, one could envision using the likelihood approach used by VAAST to extract solely splicing variants, annotating them, and then confirming these variants using Veridical with corresponding RNA-Seq data (assuming such data exists). Veridical is the only software available for statistical validation of splicing mutations. While both programs prioritize variants, their goals are rather dichotomous. Similarly, Veridical depends upon the use of an (ideally conservative) exome annotation. We do infer exon skipping events (i.e. alternative splicing) de novo, but only to catalog dysregulated splicing “phenotypes” due to genomic sequence variants. Since we rely upon existing annotations, improvements in this area will serve to benefit Veridical and complement it well. In many ways, our parsimonious approach was possible precisely because the problem we address is quite a lot easier to address than de novo alternative splicing inference. We are not suggesting that Veridical be used to analyze all variants, resulting from exome or whole-genome sequencing experiments. The Shannon Pipeline, which predicts candidate variants, contains several default or modifiable filters which can limit the number of candidates input to Veridical. We are suggesting that our approach be coupled to existing approaches to act as an a posteriori, hypothesis-driven, check on the veridicality of specific variants.

We consider alternative splicing to be a different problem, for the following reasons. The authors state: “MATS calculates a P-value for each exon isoform by comparing the observed posterior probability with a set of simulated posterior probabilities from the null hypothesis.” We do not simulate posterior probabilities; we calculate them directly from the distribution of control samples, which represent the null hypothesis. Further, MATS requires the user to set uniform thresholds for all alternative splicing events, which in our case, may vary between variants (i.e. inactivating versus leaky mutations). Finally, neither MATS, nor Miso or SpliceTrap provide any means of analyzing novel isoforms created by the activation of cryptic splice sites.

We appreciate your insightful summary of our underlying statistical methodology and appreciate the limitations of our statistical inference method. It is certainly the case that the use of different RNA-Seq protocols could prove problematic. Veridical is intended to be used with RNA-Seq data from the same individual as matched DNA-Seq data. We assume that the control RNA-Seq data are generated with comparable sequencing protocols. This has been articulated in the Discussion.

We agree that levels of intron inclusion and alternative splicing can be highly variable across samples, due to factors extrinsic to the mutation itself. Such variability is a significant contributory factor to the production of transcriptomic “noise”. Given that statistically significant levels of intron inclusion were observed across all control samples, the prevalence of adjacent intron inclusions (which is not uncommon, per se), does not weaken the inference that the predicted splicing mutation increases the levels of intron inclusion. However, in such cases, the statistical threshold to achieve significance would be higher. A recent analysis indicates that p-value thresholds of 0.005 to 0.001 are appropriate (Johnson, 2013). Our statistical approach tacitly accounts for this and indeed greater levels of such “noise” could actually increase the statistical utility of our computation. Because of a wide degree of variation of intron inclusion in both normal and tumor transcriptomes, we deliberately elected against normalizing gene level expression in the program.

Regarding the specific example cited, the 14 intronic reads in the sample containing the variant in the read-abundance category (Figure 4 (A)) are contrasted with the per sample mean of 4.051 reads across all non-variant-containing tumours and normal samples in this intron (i.e. the totality of control samples, which results in a p-value of 0.04. We agree that this is not a strong result, and would not permit us to reject the null hypothesis had the threshold significance level been reduced to ≤ 0.01 (which the user is free to stipulate).In this particular case, the variant is still strongly validated, due to the presence of junction-spanning, exon skipping reads (that are absent from all of the control samples). We do not stipulate that the predicted mutation have only one abnormal read type, but rather, that the test assesses each consequence separately. We suggest that the corroborating evidence be taken together in support of variant-induced missplicing. Furthermore, junction-spanning exon skipping is, in general, rarer than intron inclusion in these data. Nevertheless, we do show examples of read-abundance tests for intron inclusion that achieve a significance level of < 0.01, such as within TMTC2 in Figure 6(C). As you point out, intron inclusion patterns also vary by intron and there are a large number of such intron inclusion reads in the downstream intron in Figure 4(A). However, in our entire set of predicted splicing mutations, we did not find any pertaining to the intron between exons 12 and 13. The observed increased intron inclusion between exons 12 and 13 may be related to the weak (5.2 bit) donor (5’) splice site in exon 12. In fact, substantial intron inclusion was expected in intron 11, due to the minimal strength of the exon 11 donor of 2.1 bits.

Regarding the comment concerning cryptic sites, we always mean non-canonical splice sites activated by sequence-level variation, which are distinctly different from tissue-related alternatively spliced isoforms lacking one or more constitutive exons. We and others have reported numerous examples of common SNPs inducing cryptic splice site activation, which could result in the annotation of accordingly altered transcripts.

It is unfortunate that Veridical had to be categorized as a “web tool”. We would have preferred to indicate that the program is a standalone-tool. F1000Research does not provide this category, even though other standalone programs have been published by the journal with the Web Tool designation. In the Web Tools category, the journal guidelines require that we provide a set of examples (complete with input and output files) representing the range of results that are obtained with the software. Therefore, providing a full analysis of the complete TCGA breast cancer dataset is beyond the scope of this paper. It will be presented elsewhere.

We believe that the statements in the manuscript's conflict of interests section are sufficient to describe the terms of use. We have added the requested details on Veridical.org, both indicating its duration and instructions for obtaining longer-term access to this software.
We greatly appreciate your remarks and useful suggestions. All references to figures pertain to the first version of the manuscript.

First, we address your comments regarding VAAST and de novo exome annotation software packages. VAAST uses a feature-based, maximal likelihood, approach to identify variants suspected to be pathogenic. While Yandell et al. present a general, and indeed very useful method, it is very different from Veridical in two key respects. Most importantly, Veridical does not aim to identify putatively pathogenic variants, but rather, to confirm existing in silico predictions thereof. Although it is not designed for this purpose, one could envision using the likelihood approach used by VAAST to extract solely splicing variants, annotating them, and then confirming these variants using Veridical with corresponding RNA-Seq data (assuming such data exists). Veridical is the only software available for statistical validation of splicing mutations. While both programs prioritize variants, their goals are rather dichotomous. Similarly, Veridical depends upon the use of an (ideally conservative) exome annotation. We do infer exon skipping events (i.e. alternative splicing) de novo, but only to catalog dysregulated splicing “phenotypes” due to genomic sequence variants. Since we rely upon existing annotations, improvements in this area will serve to benefit Veridical and complement it well. In many ways, our parsimonious approach was possible precisely because the problem we address is quite a lot easier to address than de novo alternative splicing inference. We are not suggesting that Veridical be used to analyze all variants, resulting from exome or whole-genome sequencing experiments. The Shannon Pipeline, which predicts candidate variants, contains several default or modifiable filters which can limit the number of candidates input to Veridical. We are suggesting that our approach be coupled to existing approaches to act as an a posteriori, hypothesis-driven, check on the veridicality of specific variants.

We consider alternative splicing to be a different problem, for the following reasons. The authors state: “MATS calculates a P-value for each exon isoform by comparing the observed posterior probability with a set of simulated posterior probabilities from the null hypothesis.” We do not simulate posterior probabilities; we calculate them directly from the distribution of control samples, which represent the null hypothesis. Further, MATS requires the user to set uniform thresholds for all alternative splicing events, which in our case, may vary between variants (i.e. inactivating versus leaky mutations). Finally, neither MATS, nor Miso or SpliceTrap provide any means of analyzing novel isoforms created by the activation of cryptic splice sites.

We appreciate your insightful summary of our underlying statistical methodology and appreciate the limitations of our statistical inference method. It is certainly the case that the use of different RNA-Seq protocols could prove problematic. Veridical is intended to be used with RNA-Seq data from the same individual as matched DNA-Seq data. We assume that the control RNA-Seq data are generated with comparable sequencing protocols. This has been articulated in the Discussion.

We agree that levels of intron inclusion and alternative splicing can be highly variable across samples, due to factors extrinsic to the mutation itself. Such variability is a significant contributory factor to the production of transcriptomic “noise”. Given that statistically significant levels of intron inclusion were observed across all control samples, the prevalence of adjacent intron inclusions (which is not uncommon, per se), does not weaken the inference that the predicted splicing mutation increases the levels of intron inclusion. However, in such cases, the statistical threshold to achieve significance would be higher. A recent analysis indicates that p-value thresholds of 0.005 to 0.001 are appropriate (Johnson, 2013). Our statistical approach tacitly accounts for this and indeed greater levels of such “noise” could actually increase the statistical utility of our computation. Because of a wide degree of variation of intron inclusion in both normal and tumor transcriptomes, we deliberately elected against normalizing gene level expression in the program.

Regarding the specific example cited, the 14 intronic reads in the sample containing the variant in the read-abundance category (Figure 4 (A)) are contrasted with the per sample mean of 4.051 reads across all non-variant-containing tumours and normal samples in this intron (i.e. the totality of control samples, which results in a p-value of 0.04. We agree that this is not a strong result, and would not permit us to reject the null hypothesis had the threshold significance level been reduced to ≤ 0.01 (which the user is free to stipulate).In this particular case, the variant is still strongly validated, due to the presence of junction-spanning, exon skipping reads (that are absent from all of the control samples). We do not stipulate that the predicted mutation have only one abnormal read type, but rather, that the test assesses each consequence separately. We suggest that the corroborating evidence be taken together in support of variant-induced missplicing. Furthermore, junction-spanning exon skipping is, in general, rarer than intron inclusion in these data. Nevertheless, we do show examples of read-abundance tests for intron inclusion that achieve a significance level of < 0.01, such as within TMTC2 in Figure 6(C). As you point out, intron inclusion patterns also vary by intron and there are a large number of such intron inclusion reads in the downstream intron in Figure 4(A). However, in our entire set of predicted splicing mutations, we did not find any pertaining to the intron between exons 12 and 13. The observed increased intron inclusion between exons 12 and 13 may be related to the weak (5.2 bit) donor (5’) splice site in exon 12. In fact, substantial intron inclusion was expected in intron 11, due to the minimal strength of the exon 11 donor of 2.1 bits.

Regarding the comment concerning cryptic sites, we always mean non-canonical splice sites activated by sequence-level variation, which are distinctly different from tissue-related alternatively spliced isoforms lacking one or more constitutive exons. We and others have reported numerous examples of common SNPs inducing cryptic splice site activation, which could result in the annotation of accordingly altered transcripts.

It is unfortunate that Veridical had to be categorized as a “web tool”. We would have preferred to indicate that the program is a standalone-tool. F1000Research does not provide this category, even though other standalone programs have been published by the journal with the Web Tool designation. In the Web Tools category, the journal guidelines require that we provide a set of examples (complete with input and output files) representing the range of results that are obtained with the software. Therefore, providing a full analysis of the complete TCGA breast cancer dataset is beyond the scope of this paper. It will be presented elsewhere.

We believe that the statements in the manuscript's conflict of interests section are sufficient to describe the terms of use. We have added the requested details on Veridical.org, both indicating its duration and instructions for obtaining longer-term access to this software.
Competing Interests: No competing interests were disclosed. Close
Report a concern

Views

Referee Report 28 Jan 2014

Francesc Xavier Roca, Division of Molecular Genetics and Cell Biology, Nanyang Technological University, Singapore, Singapore

Approved

DOI: 10.5256/f1000research.3444.r3119

This manuscript describes a new computational tool named Veridical, which detects mutant-allele specific splicing changes from large RNAseq datasets. This outstanding tool appears very useful to screen the wealth of transcriptomic data for effects in splicing due to mutations in disease samples, and I think that it will potentially be of interest for many if not all such RNAseq-based studies. In addition, this could spur further efforts to derive similar tools with improved efficiencies. Use of this method should help establish the importance of aberrant splicing in disease as well as the effects of genomic mutations at the RNA level. I only have two comments, that do not diminish my overall rating of this work as of high value:

I personally disagree with the widespread use of the word “validation” in the title, abstract and text. Authors describe Veridical as a tool to “validate” DNA sequence variants that alter splicing. Indeed, I think that this tool provides an “association” between the variants and splicing, but not a formal proof of their connection. As the genomic and RNA samples usually come from different individuals with many confounding variables, the possibility that the splicing changes arise from factors other than the individual DNA mutations cannot be ruled out. In other words, changes in the levels of trans-acting splicing factors could account in part or totally for the splicing changes across samples. The statistical tests properly conducted in Veridical are designed to minimize such possibility but do not rule it out. In addition, the inherent noisy nature of RNAseq datasets also prompts for caution in the conclusions. To me, the direct proof that a DNA mutation changes splicing of its pre-mRNA can only be provided using minigenes and cell transfection (or in vitro splicing), in which the substrate sequences and cellular context are under almost absolute control. Indeed, the Veridical method is reminiscent of GWAS (Genome-Wide Association Studies), in which the genotype in the DNA, wild-type or mutant, is associated to its phenotype, such as normal versus disease (or other traits) in GWAS, or normal versus aberrant splicing in this study. Thus, for me Veridical provides strong associations – but not validations – between DNA mutations and their effects on splicing.
As mentioned briefly at the beginning of Discussion, Veridical has built-in prediction tools to prioritize the mutations that are more likely to affect splicing, such as those mapping to splice sites. Even if other sources and tools are cited, a more extensive explanation of these components of Veridical would help the reader/user.

Competing Interests: No competing interests were disclosed.

I have read this submission. I believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

CITE

Report a concern

Author Response 27 Mar 2014

Peter K Rogan, Dept of Biochemistry Siebens-Drake, Room 201A, Schulich School of Medicine and Dentistry, University of Western Ontario, Canada

27 Mar 2014

Author Response

We greatly appreciate your review of this paper.

Regarding our use of the term “validation”, we understand that in silico validation is not comparable to in vitro or in vivo validation ... Continue reading We greatly appreciate your review of this paper.

Regarding our use of the term “validation”, we understand that in silico validation is not comparable to in vitro or in vivo validation assays. That said, we would like to elaborate. The DNA and RNA samples were matched from the same individual, which is not the case for many in vitro assays, i.e. mini-gene expression analysis by reverse transcription followed by PCR. The very large set of controls used in our analysis is also atypical in experimental validation of proposed mutations. When results are obtained that are statistically significant, it is conventional to refer to them as “validating”. Even if DNA-Seq and RNA-Seq data were not matched from the same individual, Veridical would still determine if known splicing mutations were expressed in a known subset of tumors, however we would instead refer to this as "corroborating".

The comparison with GWAS is inappropriate: we are not comparing means of distinct case and control distributions; rather we are computing the read distribution from the control samples and determining the probability that the mutation bearing sample falls within that distribution. Additionally, the initial hypothesis in a GWAS is quite vague. Thus, the resultant associations are not of the same category as those provided by Veridical. While Veridical does indeed validate the splicing consequence observed, when we say that it validates the mutation we do only mean that it strongly corroborates the mutation as a causative agent of the splicing consequence. The responsibility to decide if the p-value reported by the program is sufficient is left up to the user, who should avoid incorrect post hoc ergo propter hoc arguments.

Our reference to prioritization of variants for subsequent verification is based upon the result of Veridical's statistical tests. We explicitly mention that the software is not well suited for the analysis of raw output from genome-scale analyses, and that filtering should be performed a priori, as we conducted, with a separate Perl script, which is available with Veridical.
We greatly appreciate your review of this paper.

Regarding our use of the term “validation”, we understand that in silico validation is not comparable to in vitro or in vivo validation assays. That said, we would like to elaborate. The DNA and RNA samples were matched from the same individual, which is not the case for many in vitro assays, i.e. mini-gene expression analysis by reverse transcription followed by PCR. The very large set of controls used in our analysis is also atypical in experimental validation of proposed mutations. When results are obtained that are statistically significant, it is conventional to refer to them as “validating”. Even if DNA-Seq and RNA-Seq data were not matched from the same individual, Veridical would still determine if known splicing mutations were expressed in a known subset of tumors, however we would instead refer to this as "corroborating".

The comparison with GWAS is inappropriate: we are not comparing means of distinct case and control distributions; rather we are computing the read distribution from the control samples and determining the probability that the mutation bearing sample falls within that distribution. Additionally, the initial hypothesis in a GWAS is quite vague. Thus, the resultant associations are not of the same category as those provided by Veridical. While Veridical does indeed validate the splicing consequence observed, when we say that it validates the mutation we do only mean that it strongly corroborates the mutation as a causative agent of the splicing consequence. The responsibility to decide if the p-value reported by the program is sufficient is left up to the user, who should avoid incorrect post hoc ergo propter hoc arguments.

Our reference to prioritization of variants for subsequent verification is based upon the result of Veridical's statistical tests. We explicitly mention that the software is not well suited for the analysis of raw output from genome-scale analyses, and that filtering should be performed a priori, as we conducted, with a separate Perl script, which is available with Veridical.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 27 Mar 2014

Peter K Rogan, Dept of Biochemistry Siebens-Drake, Room 201A, Schulich School of Medicine and Dentistry, University of Western Ontario, Canada

27 Mar 2014

Author Response

We greatly appreciate your review of this paper.

Regarding our use of the term “validation”, we understand that in silico validation is not comparable to in vitro or in vivo validation ... Continue reading We greatly appreciate your review of this paper.

Regarding our use of the term “validation”, we understand that in silico validation is not comparable to in vitro or in vivo validation assays. That said, we would like to elaborate. The DNA and RNA samples were matched from the same individual, which is not the case for many in vitro assays, i.e. mini-gene expression analysis by reverse transcription followed by PCR. The very large set of controls used in our analysis is also atypical in experimental validation of proposed mutations. When results are obtained that are statistically significant, it is conventional to refer to them as “validating”. Even if DNA-Seq and RNA-Seq data were not matched from the same individual, Veridical would still determine if known splicing mutations were expressed in a known subset of tumors, however we would instead refer to this as "corroborating".

The comparison with GWAS is inappropriate: we are not comparing means of distinct case and control distributions; rather we are computing the read distribution from the control samples and determining the probability that the mutation bearing sample falls within that distribution. Additionally, the initial hypothesis in a GWAS is quite vague. Thus, the resultant associations are not of the same category as those provided by Veridical. While Veridical does indeed validate the splicing consequence observed, when we say that it validates the mutation we do only mean that it strongly corroborates the mutation as a causative agent of the splicing consequence. The responsibility to decide if the p-value reported by the program is sufficient is left up to the user, who should avoid incorrect post hoc ergo propter hoc arguments.

Our reference to prioritization of variants for subsequent verification is based upon the result of Veridical's statistical tests. We explicitly mention that the software is not well suited for the analysis of raw output from genome-scale analyses, and that filtering should be performed a priori, as we conducted, with a separate Perl script, which is available with Veridical.
We greatly appreciate your review of this paper.

Regarding our use of the term “validation”, we understand that in silico validation is not comparable to in vitro or in vivo validation assays. That said, we would like to elaborate. The DNA and RNA samples were matched from the same individual, which is not the case for many in vitro assays, i.e. mini-gene expression analysis by reverse transcription followed by PCR. The very large set of controls used in our analysis is also atypical in experimental validation of proposed mutations. When results are obtained that are statistically significant, it is conventional to refer to them as “validating”. Even if DNA-Seq and RNA-Seq data were not matched from the same individual, Veridical would still determine if known splicing mutations were expressed in a known subset of tumors, however we would instead refer to this as "corroborating".

The comparison with GWAS is inappropriate: we are not comparing means of distinct case and control distributions; rather we are computing the read distribution from the control samples and determining the probability that the mutation bearing sample falls within that distribution. Additionally, the initial hypothesis in a GWAS is quite vague. Thus, the resultant associations are not of the same category as those provided by Veridical. While Veridical does indeed validate the splicing consequence observed, when we say that it validates the mutation we do only mean that it strongly corroborates the mutation as a causative agent of the splicing consequence. The responsibility to decide if the p-value reported by the program is sufficient is left up to the user, who should avoid incorrect post hoc ergo propter hoc arguments.

Our reference to prioritization of variants for subsequent verification is based upon the result of Veridical's statistical tests. We explicitly mention that the software is not well suited for the analysis of raw output from genome-scale analyses, and that filtering should be performed a priori, as we conducted, with a separate Perl script, which is available with Veridical.
Competing Interests: No competing interests were disclosed. Close
Report a concern

Views

Referee Report 27 Jan 2014

Stefania Bortoluzzi, Department of Biology, University of Padova, Padova, Italy

Approved with Reservations

DOI: 10.5256/f1000research.3444.r3120

The paper “Validation of predicted mRNA splicing mutations using high-throughput transcriptome data” by Viner et al. presents Veridical, a new software for the interpretation and validation of genetic variants identified by DNA sequencing that alter mRNA splicing, leveraging RNA-seq data. The method is based on statistical comparisons of the normalized read counts of abnormally-spliced RNA species in mutant versus non-mutant tissues.

Actually, the interpretation of genetic variants is a difficult and key issue in current research.
The integration of genomic and transcriptomic data, namely the use of RNA-seq-based transcriptome characterization as a “molecular phenotype” of cells is useful and meaningful.

The software is standalone (not a web-tool) and it is completed by perl scripts, facilitating data management.
The manuscript declare that “Veridical and its associated software programs are available at: www.veridical.org”.

Actually, Veridical is commercially available to the scientific community. A trial version lasting 30 days can be downloaded by the website, but in order to obtain binaries, the website requests a registration with an institutional email address - they reserve the right to deny access to users who register with third-party mail servers (Gmail, Yahoo, Hotmail, etc.).

No pricing information is included in the manuscript and, more importantly, in the webpages accessible to download the software, either before or after registration.

After downloading the software, I was not able to find R scripts that can be useful to generate some plots, as indicated in the manuscript.

Saying that, the paper is written in a clear language and it is quite complete.

I propose a few revisions that in my opinion can improve the manuscript readability and clarity.

Introduction

Line 13 (minor): indicate which hereditary disease (colon cancer?).

Methods

2^nd Par, Line 5 (minor): “Maximising” is used, but probably the meaning is “increasing” (the number of).
Figure 1 (major): I feel that the info provided by points C and D is trivial, whilst point A's images, sentences and legends can be improved. Figure 1 C and D shows simply examples of reads that are mapped continuously and discontinuously to the reference genome. I think that every potential user of this type of software known well this concept. On the other hand, regarding A and B (upper part of the figure) there is not clear correspondence between the text in the legend and the image, and between the image and the text below (the arch overlap the point A in the figure B, whereas the text says "reads between A and B").
In general, in many cases in the manuscript, the correspondence between legend and figure can be improved, by indicating more clearly the points specific sentences in the legend refer to. Regarding this issue, for instance in Figure 4 I can see indicated neither the “exon 12” nor the “14 reads” mentioned in the legend. Please indicate (using colors, boxes, arrows or overlapping text) key elements in the figure, and revise all figures using the same criterion.
Page 5 (minor): Consider revising the sentence “Furthermore, this transformation allowed us to avoid the use of non-parametric testing, which has its own pitfalls regarding assumptions of the underlying data distribution”, since normally it is assumed that parametric tests ground on assumptions on data distributions, but non-parametric tests by definition can be used without information about data distribution.
End of the next paragraph (major): “It is important to realize, therefore, that the p-values given by Veridical are much more robust when the program is provided with a large number of samples.” This is a pretty clear concept. Please, indicate a general rule to the user/reader: How many samples are required? Setting a reasonable minimum can be more useful for experimental design than saying the larger the sample size the most robust the result.

Results

I have two important criticisms about the Results section:

The section is not organized in paragraphs, and mixes performance info (run time using different number of samples and variants) with example results.
Not clearly saying how these results were obtained. This is important to guarantee repeatability.

(Major) I propose to reorganize the results (considering skipping less important examples; retain surely Fig. 4 and 6) and insert a first paragraph providing information about the dataset used for variants validation (how many samples, how many controls) and about the variant calling (BAM files can be obtained with different settings and criteria and the same apply to calling and filtering of variants). Moreover, please explain how RNA-seq data are treated, and particularly how they are normalized to guarantee cross-samples comparability.
(Major) Also, a brief discussion about the impact of disease samples not carrying the given mutation can be useful, as well as regarding the possibility that a tumour sample not carrying the considered variant can present altered transcriptome since other variants (or factors) impact on the “molecular phenotype”.
Figure 4 (minor): Please comment about the possible existence of intronic transcripts (totally unknown or also annotated in Ensemble, but not displayed in the more conservative RefSeq annotations).
Figure 5 (minor): Please define better the measure “Read−Abundance Total Intron Inclusion”.

Competing Interests: No competing interests were disclosed.

CITE

Report a concern

Author Response 27 Mar 2014

Peter K Rogan, Dept of Biochemistry Siebens-Drake, Room 201A, Schulich School of Medicine and Dentistry, University of Western Ontario, Canada

27 Mar 2014

Author Response
Thank you for your constructive comments. Regarding the R program, it is embedded within a Perl script to facilitate expeditious parameter and data parsing. All of our figures were generated ... Continue reading
Thank you for your constructive comments. Regarding the R program, it is embedded within a Perl script to facilitate expeditious parameter and data parsing. All of our figures were generated using the Perl script, which, in-turn, invokes the R script. The program used to generate the histograms is called: VeridicalHist.pl. The invocations of this program are provided in the Perl program documentation on www.veridical.org. We have clarified this in the revision of the manuscript. We will update this web page to include pricing information and details about trial access to the software.

The requirement to provide an institutional email address is quite ubiquitous across a number of academic disciplines, including many fields of informatics. In bioinformatics, for example, ANNOVAR requires non-profit users to register an address and HGMD does as well. ChemAxon, software for cheminformatics requires this. In astroinformatics, Sloan Digital Sky Survey III (SDSSIII) also requires an institutional email. These examples are represent a fraction of the numerous scientific websites that request such emails. We consider it a professional courtesy to provide legitimate email information, and reserve the right to disapprove addresses of individuals who seek to mask their identity, which may enable them to avoid acknowledging the provenance of the software.

We specifically address each of your other comments below. All references to figures pertain to the first version of the manuscript.

"Line 13 (minor): indicate which hereditary disease (colon cancer?)."

López-Bigas et al. (2005) conducted a general analysis using the complete sets of SwissProt genes and OMIM known disease genes. Their mathematical model does not depend upon any specific hereditary disease. Nevertheless, certain genes have been demonstrated to exhibit very high frequencies of splicing mutations (ATM, NF1).

"2^nd Par, Line 5 (minor): “Maximising” is used, but probably the meaning is “increasing” (the number of)."

This has been corrected.

"Figure 1 (major): I feel that the info provided by points C and D is trivial, whilst point A's images, sentences and legends can be improved. Figure 1 C and D shows simply examples of reads that are mapped continuously and discontinuously to the reference genome. I think that every potential user of this type of software known well this concept. On the other hand, regarding A and B (upper part of the figure) there is not clear correspondence between the text in the legend and the image, and between the image and the text below (the arch overlap the point A in the figure B, whereas the text says "reads between A and B")."

This has been revised accordingly.

"In general, in many cases in the manuscript, the correspondence between legend and figure can be improved, by indicating more clearly the points specific sentences in the legend refer to. Regarding this issue, for instance in Figure 4 I can see indicated neither the “exon 12” nor the “14 reads” mentioned in the legend. Please indicate (using colors, boxes, arrows or overlapping text) key elements in the figure, and revise all figures using the same criterion."

In general, we provide exon numbers for reference and to allow for future exon identification. While we specifically describe in the captions which exon contains the variant and relate this to the exon number, we agree that graphical indications of key figure elements within IGV screenshots could improve the clarity. These figures have been revised accordingly.

"Page 5 (minor): Consider revising the sentence “Furthermore, this transformation allowed us to avoid the use of non-parametric testing, which has its own pitfalls regarding assumptions of the underlying data distribution”, since normally it is assumed that parametric tests ground on assumptions on data distributions, but non-parametric tests by definition can be used without information about data distribution."

In this sentence, we are not referring to the ubiquitous assumption of an underlying normal distribution, which is indeed not required for non-parametric tests. Instead, the reference is to, other, lesser known, assumptions that are tacit in most non-parametric methods. The citation we provide (Johnson, 1995) refutes the commonly-held notion that non-parametric tests make no assumptions about the underlying data distribution, and describes numerous pitfalls that can occur when using non-parametric methods. For example, the author articulates a particular assumption implicit in a comparison of means via the Mann-Whitney test which actually requires that, “the two distributions are identical, in shape and scale, differing only in their means. This assumption can be harder to justify than the asymptotic normality demanded by the t test, and is rarely evaluated.”

"End of the next paragraph (major): “It is important to realize, therefore, that the p-values given by Veridical are much more robust when the program is provided with a large number of samples.” This is a pretty clear concept. Please, indicate a general rule to the user/reader: How many samples are required? Setting a reasonable minimum can be more useful for experimental design than saying the larger the sample size the most robust the result."

The revised manuscript describes the procedure and criteria for determining the number of control samples needed.

"The section is not organized in paragraphs, and mixes performance info (run time using different number of samples and variants) with example results."

The profiling information and example results are more clearly demarcated in the revision.

"(Major) I propose to reorganize the results (considering skipping less important examples; retain surely Fig. 4 and 6) and insert a first paragraph providing information about the dataset used for variants validation (how many samples, how many controls) and about the variant calling (BAM files can be obtained with different settings and criteria and the same apply to calling and filtering of variants). Moreover, please explain how RNA-seq data are treated, and particularly how they are normalized to guarantee cross-samples comparability."

We now elaborate upon experimental protocols, processing, and data providence. The details of the RNA-Seq data and BAM file generation can obtained from the TCGA consortia, which generated them, specifically in the supplementary methods of Koboldt et al. (2012). All of our data input directly into Veridical are available, and even the program used to generate the histograms is provided. This ensures that all of our results are reproducible.

The input data were obtained by analyzing the original TCGA dataset with the Shannon pipeline, as the paper describes. The pipeline has been published in a peer-reviewed context and is also available on a trial basis. The details of the TCGA analytical results obtained with the Shannon pipeline are considerable in length, putting them beyond the scope of this paper and will be described elsewhere.

The journal guidelines concerning “web tools” state: “The article should provide examples of suitable input data sets and include an example of the output that can be expected from the tool and how this output should be interpreted.” The examples shown are representative of the splicing analysis outcomes present in the full TCGA analysis. The examples provided in this paper were designed to illustrate the capabilities of Veridical and are not an attempt to forge biological conclusions of this large dataset.

"(Major) Also, a brief discussion about the impact of disease samples not carrying the given mutation can be useful, as well as regarding the possibility that a tumour sample not carrying the considered variant can present altered transcriptome since other variants (or factors) impact on the “molecular phenotype”."

We provide in Table 2 the read counts for non-variant containing tumour samples, and for the variant containing samples. We acknowledge that cancer gene expression results in a gross dysregulation of mRNA splicing thereby causing the presentation of the altered transcriptome. This was a motivating factor behind our choice of statistical method.

"Figure 4 (minor): Please comment about the possible existence of intronic transcripts (totally unknown or also annotated in Ensemble, but not displayed in the more conservative RefSeq annotations)."

If such exons exist, which are annotated as introns by RefSeq, and are actively transcribed in normal or breast cancer tissues, the large number of control samples will reflect this and such events will accordingly not trigger statistically significant intron inclusion events. We have added a comment to the Discussion reflecting this.

"Figure 5 (minor): Please define better the measure “Read−Abundance Total Intron Inclusion”."

This has been addressed in the revision.
Thank you for your constructive comments. Regarding the R program, it is embedded within a Perl script to facilitate expeditious parameter and data parsing. All of our figures were generated using the Perl script, which, in-turn, invokes the R script. The program used to generate the histograms is called: VeridicalHist.pl. The invocations of this program are provided in the Perl program documentation on www.veridical.org. We have clarified this in the revision of the manuscript. We will update this web page to include pricing information and details about trial access to the software.

The requirement to provide an institutional email address is quite ubiquitous across a number of academic disciplines, including many fields of informatics. In bioinformatics, for example, ANNOVAR requires non-profit users to register an address and HGMD does as well. ChemAxon, software for cheminformatics requires this. In astroinformatics, Sloan Digital Sky Survey III (SDSSIII) also requires an institutional email. These examples are represent a fraction of the numerous scientific websites that request such emails. We consider it a professional courtesy to provide legitimate email information, and reserve the right to disapprove addresses of individuals who seek to mask their identity, which may enable them to avoid acknowledging the provenance of the software.

We specifically address each of your other comments below. All references to figures pertain to the first version of the manuscript.

"Line 13 (minor): indicate which hereditary disease (colon cancer?)."

López-Bigas et al. (2005) conducted a general analysis using the complete sets of SwissProt genes and OMIM known disease genes. Their mathematical model does not depend upon any specific hereditary disease. Nevertheless, certain genes have been demonstrated to exhibit very high frequencies of splicing mutations (ATM, NF1).

"2^nd Par, Line 5 (minor): “Maximising” is used, but probably the meaning is “increasing” (the number of)."

This has been corrected.

"Figure 1 (major): I feel that the info provided by points C and D is trivial, whilst point A's images, sentences and legends can be improved. Figure 1 C and D shows simply examples of reads that are mapped continuously and discontinuously to the reference genome. I think that every potential user of this type of software known well this concept. On the other hand, regarding A and B (upper part of the figure) there is not clear correspondence between the text in the legend and the image, and between the image and the text below (the arch overlap the point A in the figure B, whereas the text says "reads between A and B")."

This has been revised accordingly.

"In general, in many cases in the manuscript, the correspondence between legend and figure can be improved, by indicating more clearly the points specific sentences in the legend refer to. Regarding this issue, for instance in Figure 4 I can see indicated neither the “exon 12” nor the “14 reads” mentioned in the legend. Please indicate (using colors, boxes, arrows or overlapping text) key elements in the figure, and revise all figures using the same criterion."

In general, we provide exon numbers for reference and to allow for future exon identification. While we specifically describe in the captions which exon contains the variant and relate this to the exon number, we agree that graphical indications of key figure elements within IGV screenshots could improve the clarity. These figures have been revised accordingly.

"Page 5 (minor): Consider revising the sentence “Furthermore, this transformation allowed us to avoid the use of non-parametric testing, which has its own pitfalls regarding assumptions of the underlying data distribution”, since normally it is assumed that parametric tests ground on assumptions on data distributions, but non-parametric tests by definition can be used without information about data distribution."

In this sentence, we are not referring to the ubiquitous assumption of an underlying normal distribution, which is indeed not required for non-parametric tests. Instead, the reference is to, other, lesser known, assumptions that are tacit in most non-parametric methods. The citation we provide (Johnson, 1995) refutes the commonly-held notion that non-parametric tests make no assumptions about the underlying data distribution, and describes numerous pitfalls that can occur when using non-parametric methods. For example, the author articulates a particular assumption implicit in a comparison of means via the Mann-Whitney test which actually requires that, “the two distributions are identical, in shape and scale, differing only in their means. This assumption can be harder to justify than the asymptotic normality demanded by the t test, and is rarely evaluated.”

"End of the next paragraph (major): “It is important to realize, therefore, that the p-values given by Veridical are much more robust when the program is provided with a large number of samples.” This is a pretty clear concept. Please, indicate a general rule to the user/reader: How many samples are required? Setting a reasonable minimum can be more useful for experimental design than saying the larger the sample size the most robust the result."

The revised manuscript describes the procedure and criteria for determining the number of control samples needed.

"The section is not organized in paragraphs, and mixes performance info (run time using different number of samples and variants) with example results."

The profiling information and example results are more clearly demarcated in the revision.

"(Major) I propose to reorganize the results (considering skipping less important examples; retain surely Fig. 4 and 6) and insert a first paragraph providing information about the dataset used for variants validation (how many samples, how many controls) and about the variant calling (BAM files can be obtained with different settings and criteria and the same apply to calling and filtering of variants). Moreover, please explain how RNA-seq data are treated, and particularly how they are normalized to guarantee cross-samples comparability."

We now elaborate upon experimental protocols, processing, and data providence. The details of the RNA-Seq data and BAM file generation can obtained from the TCGA consortia, which generated them, specifically in the supplementary methods of Koboldt et al. (2012). All of our data input directly into Veridical are available, and even the program used to generate the histograms is provided. This ensures that all of our results are reproducible.

The input data were obtained by analyzing the original TCGA dataset with the Shannon pipeline, as the paper describes. The pipeline has been published in a peer-reviewed context and is also available on a trial basis. The details of the TCGA analytical results obtained with the Shannon pipeline are considerable in length, putting them beyond the scope of this paper and will be described elsewhere.

The journal guidelines concerning “web tools” state: “The article should provide examples of suitable input data sets and include an example of the output that can be expected from the tool and how this output should be interpreted.” The examples shown are representative of the splicing analysis outcomes present in the full TCGA analysis. The examples provided in this paper were designed to illustrate the capabilities of Veridical and are not an attempt to forge biological conclusions of this large dataset.

"(Major) Also, a brief discussion about the impact of disease samples not carrying the given mutation can be useful, as well as regarding the possibility that a tumour sample not carrying the considered variant can present altered transcriptome since other variants (or factors) impact on the “molecular phenotype”."

We provide in Table 2 the read counts for non-variant containing tumour samples, and for the variant containing samples. We acknowledge that cancer gene expression results in a gross dysregulation of mRNA splicing thereby causing the presentation of the altered transcriptome. This was a motivating factor behind our choice of statistical method.

"Figure 4 (minor): Please comment about the possible existence of intronic transcripts (totally unknown or also annotated in Ensemble, but not displayed in the more conservative RefSeq annotations)."

If such exons exist, which are annotated as introns by RefSeq, and are actively transcribed in normal or breast cancer tissues, the large number of control samples will reflect this and such events will accordingly not trigger statistically significant intron inclusion events. We have added a comment to the Discussion reflecting this.

"Figure 5 (minor): Please define better the measure “Read−Abundance Total Intron Inclusion”."

This has been addressed in the revision.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 27 Mar 2014

Peter K Rogan, Dept of Biochemistry Siebens-Drake, Room 201A, Schulich School of Medicine and Dentistry, University of Western Ontario, Canada

27 Mar 2014

Author Response
Thank you for your constructive comments. Regarding the R program, it is embedded within a Perl script to facilitate expeditious parameter and data parsing. All of our figures were generated ... Continue reading
Thank you for your constructive comments. Regarding the R program, it is embedded within a Perl script to facilitate expeditious parameter and data parsing. All of our figures were generated using the Perl script, which, in-turn, invokes the R script. The program used to generate the histograms is called: VeridicalHist.pl. The invocations of this program are provided in the Perl program documentation on www.veridical.org. We have clarified this in the revision of the manuscript. We will update this web page to include pricing information and details about trial access to the software.

The requirement to provide an institutional email address is quite ubiquitous across a number of academic disciplines, including many fields of informatics. In bioinformatics, for example, ANNOVAR requires non-profit users to register an address and HGMD does as well. ChemAxon, software for cheminformatics requires this. In astroinformatics, Sloan Digital Sky Survey III (SDSSIII) also requires an institutional email. These examples are represent a fraction of the numerous scientific websites that request such emails. We consider it a professional courtesy to provide legitimate email information, and reserve the right to disapprove addresses of individuals who seek to mask their identity, which may enable them to avoid acknowledging the provenance of the software.

We specifically address each of your other comments below. All references to figures pertain to the first version of the manuscript.

"Line 13 (minor): indicate which hereditary disease (colon cancer?)."

López-Bigas et al. (2005) conducted a general analysis using the complete sets of SwissProt genes and OMIM known disease genes. Their mathematical model does not depend upon any specific hereditary disease. Nevertheless, certain genes have been demonstrated to exhibit very high frequencies of splicing mutations (ATM, NF1).

"2^nd Par, Line 5 (minor): “Maximising” is used, but probably the meaning is “increasing” (the number of)."

This has been corrected.

"Figure 1 (major): I feel that the info provided by points C and D is trivial, whilst point A's images, sentences and legends can be improved. Figure 1 C and D shows simply examples of reads that are mapped continuously and discontinuously to the reference genome. I think that every potential user of this type of software known well this concept. On the other hand, regarding A and B (upper part of the figure) there is not clear correspondence between the text in the legend and the image, and between the image and the text below (the arch overlap the point A in the figure B, whereas the text says "reads between A and B")."

This has been revised accordingly.

"In general, in many cases in the manuscript, the correspondence between legend and figure can be improved, by indicating more clearly the points specific sentences in the legend refer to. Regarding this issue, for instance in Figure 4 I can see indicated neither the “exon 12” nor the “14 reads” mentioned in the legend. Please indicate (using colors, boxes, arrows or overlapping text) key elements in the figure, and revise all figures using the same criterion."

In general, we provide exon numbers for reference and to allow for future exon identification. While we specifically describe in the captions which exon contains the variant and relate this to the exon number, we agree that graphical indications of key figure elements within IGV screenshots could improve the clarity. These figures have been revised accordingly.

"Page 5 (minor): Consider revising the sentence “Furthermore, this transformation allowed us to avoid the use of non-parametric testing, which has its own pitfalls regarding assumptions of the underlying data distribution”, since normally it is assumed that parametric tests ground on assumptions on data distributions, but non-parametric tests by definition can be used without information about data distribution."

In this sentence, we are not referring to the ubiquitous assumption of an underlying normal distribution, which is indeed not required for non-parametric tests. Instead, the reference is to, other, lesser known, assumptions that are tacit in most non-parametric methods. The citation we provide (Johnson, 1995) refutes the commonly-held notion that non-parametric tests make no assumptions about the underlying data distribution, and describes numerous pitfalls that can occur when using non-parametric methods. For example, the author articulates a particular assumption implicit in a comparison of means via the Mann-Whitney test which actually requires that, “the two distributions are identical, in shape and scale, differing only in their means. This assumption can be harder to justify than the asymptotic normality demanded by the t test, and is rarely evaluated.”

"End of the next paragraph (major): “It is important to realize, therefore, that the p-values given by Veridical are much more robust when the program is provided with a large number of samples.” This is a pretty clear concept. Please, indicate a general rule to the user/reader: How many samples are required? Setting a reasonable minimum can be more useful for experimental design than saying the larger the sample size the most robust the result."

The revised manuscript describes the procedure and criteria for determining the number of control samples needed.

"The section is not organized in paragraphs, and mixes performance info (run time using different number of samples and variants) with example results."

The profiling information and example results are more clearly demarcated in the revision.

"(Major) I propose to reorganize the results (considering skipping less important examples; retain surely Fig. 4 and 6) and insert a first paragraph providing information about the dataset used for variants validation (how many samples, how many controls) and about the variant calling (BAM files can be obtained with different settings and criteria and the same apply to calling and filtering of variants). Moreover, please explain how RNA-seq data are treated, and particularly how they are normalized to guarantee cross-samples comparability."

We now elaborate upon experimental protocols, processing, and data providence. The details of the RNA-Seq data and BAM file generation can obtained from the TCGA consortia, which generated them, specifically in the supplementary methods of Koboldt et al. (2012). All of our data input directly into Veridical are available, and even the program used to generate the histograms is provided. This ensures that all of our results are reproducible.

The input data were obtained by analyzing the original TCGA dataset with the Shannon pipeline, as the paper describes. The pipeline has been published in a peer-reviewed context and is also available on a trial basis. The details of the TCGA analytical results obtained with the Shannon pipeline are considerable in length, putting them beyond the scope of this paper and will be described elsewhere.

The journal guidelines concerning “web tools” state: “The article should provide examples of suitable input data sets and include an example of the output that can be expected from the tool and how this output should be interpreted.” The examples shown are representative of the splicing analysis outcomes present in the full TCGA analysis. The examples provided in this paper were designed to illustrate the capabilities of Veridical and are not an attempt to forge biological conclusions of this large dataset.

"(Major) Also, a brief discussion about the impact of disease samples not carrying the given mutation can be useful, as well as regarding the possibility that a tumour sample not carrying the considered variant can present altered transcriptome since other variants (or factors) impact on the “molecular phenotype”."

We provide in Table 2 the read counts for non-variant containing tumour samples, and for the variant containing samples. We acknowledge that cancer gene expression results in a gross dysregulation of mRNA splicing thereby causing the presentation of the altered transcriptome. This was a motivating factor behind our choice of statistical method.

"Figure 4 (minor): Please comment about the possible existence of intronic transcripts (totally unknown or also annotated in Ensemble, but not displayed in the more conservative RefSeq annotations)."

If such exons exist, which are annotated as introns by RefSeq, and are actively transcribed in normal or breast cancer tissues, the large number of control samples will reflect this and such events will accordingly not trigger statistically significant intron inclusion events. We have added a comment to the Discussion reflecting this.

"Figure 5 (minor): Please define better the measure “Read−Abundance Total Intron Inclusion”."

This has been addressed in the revision.
Thank you for your constructive comments. Regarding the R program, it is embedded within a Perl script to facilitate expeditious parameter and data parsing. All of our figures were generated using the Perl script, which, in-turn, invokes the R script. The program used to generate the histograms is called: VeridicalHist.pl. The invocations of this program are provided in the Perl program documentation on www.veridical.org. We have clarified this in the revision of the manuscript. We will update this web page to include pricing information and details about trial access to the software.

The requirement to provide an institutional email address is quite ubiquitous across a number of academic disciplines, including many fields of informatics. In bioinformatics, for example, ANNOVAR requires non-profit users to register an address and HGMD does as well. ChemAxon, software for cheminformatics requires this. In astroinformatics, Sloan Digital Sky Survey III (SDSSIII) also requires an institutional email. These examples are represent a fraction of the numerous scientific websites that request such emails. We consider it a professional courtesy to provide legitimate email information, and reserve the right to disapprove addresses of individuals who seek to mask their identity, which may enable them to avoid acknowledging the provenance of the software.

We specifically address each of your other comments below. All references to figures pertain to the first version of the manuscript.

"Line 13 (minor): indicate which hereditary disease (colon cancer?)."

López-Bigas et al. (2005) conducted a general analysis using the complete sets of SwissProt genes and OMIM known disease genes. Their mathematical model does not depend upon any specific hereditary disease. Nevertheless, certain genes have been demonstrated to exhibit very high frequencies of splicing mutations (ATM, NF1).

"2^nd Par, Line 5 (minor): “Maximising” is used, but probably the meaning is “increasing” (the number of)."

This has been corrected.

"Figure 1 (major): I feel that the info provided by points C and D is trivial, whilst point A's images, sentences and legends can be improved. Figure 1 C and D shows simply examples of reads that are mapped continuously and discontinuously to the reference genome. I think that every potential user of this type of software known well this concept. On the other hand, regarding A and B (upper part of the figure) there is not clear correspondence between the text in the legend and the image, and between the image and the text below (the arch overlap the point A in the figure B, whereas the text says "reads between A and B")."

This has been revised accordingly.

"In general, in many cases in the manuscript, the correspondence between legend and figure can be improved, by indicating more clearly the points specific sentences in the legend refer to. Regarding this issue, for instance in Figure 4 I can see indicated neither the “exon 12” nor the “14 reads” mentioned in the legend. Please indicate (using colors, boxes, arrows or overlapping text) key elements in the figure, and revise all figures using the same criterion."

In general, we provide exon numbers for reference and to allow for future exon identification. While we specifically describe in the captions which exon contains the variant and relate this to the exon number, we agree that graphical indications of key figure elements within IGV screenshots could improve the clarity. These figures have been revised accordingly.

"Page 5 (minor): Consider revising the sentence “Furthermore, this transformation allowed us to avoid the use of non-parametric testing, which has its own pitfalls regarding assumptions of the underlying data distribution”, since normally it is assumed that parametric tests ground on assumptions on data distributions, but non-parametric tests by definition can be used without information about data distribution."

In this sentence, we are not referring to the ubiquitous assumption of an underlying normal distribution, which is indeed not required for non-parametric tests. Instead, the reference is to, other, lesser known, assumptions that are tacit in most non-parametric methods. The citation we provide (Johnson, 1995) refutes the commonly-held notion that non-parametric tests make no assumptions about the underlying data distribution, and describes numerous pitfalls that can occur when using non-parametric methods. For example, the author articulates a particular assumption implicit in a comparison of means via the Mann-Whitney test which actually requires that, “the two distributions are identical, in shape and scale, differing only in their means. This assumption can be harder to justify than the asymptotic normality demanded by the t test, and is rarely evaluated.”

"End of the next paragraph (major): “It is important to realize, therefore, that the p-values given by Veridical are much more robust when the program is provided with a large number of samples.” This is a pretty clear concept. Please, indicate a general rule to the user/reader: How many samples are required? Setting a reasonable minimum can be more useful for experimental design than saying the larger the sample size the most robust the result."

The revised manuscript describes the procedure and criteria for determining the number of control samples needed.

"The section is not organized in paragraphs, and mixes performance info (run time using different number of samples and variants) with example results."

The profiling information and example results are more clearly demarcated in the revision.

"(Major) I propose to reorganize the results (considering skipping less important examples; retain surely Fig. 4 and 6) and insert a first paragraph providing information about the dataset used for variants validation (how many samples, how many controls) and about the variant calling (BAM files can be obtained with different settings and criteria and the same apply to calling and filtering of variants). Moreover, please explain how RNA-seq data are treated, and particularly how they are normalized to guarantee cross-samples comparability."

We now elaborate upon experimental protocols, processing, and data providence. The details of the RNA-Seq data and BAM file generation can obtained from the TCGA consortia, which generated them, specifically in the supplementary methods of Koboldt et al. (2012). All of our data input directly into Veridical are available, and even the program used to generate the histograms is provided. This ensures that all of our results are reproducible.

The input data were obtained by analyzing the original TCGA dataset with the Shannon pipeline, as the paper describes. The pipeline has been published in a peer-reviewed context and is also available on a trial basis. The details of the TCGA analytical results obtained with the Shannon pipeline are considerable in length, putting them beyond the scope of this paper and will be described elsewhere.

The journal guidelines concerning “web tools” state: “The article should provide examples of suitable input data sets and include an example of the output that can be expected from the tool and how this output should be interpreted.” The examples shown are representative of the splicing analysis outcomes present in the full TCGA analysis. The examples provided in this paper were designed to illustrate the capabilities of Veridical and are not an attempt to forge biological conclusions of this large dataset.

"(Major) Also, a brief discussion about the impact of disease samples not carrying the given mutation can be useful, as well as regarding the possibility that a tumour sample not carrying the considered variant can present altered transcriptome since other variants (or factors) impact on the “molecular phenotype”."

We provide in Table 2 the read counts for non-variant containing tumour samples, and for the variant containing samples. We acknowledge that cancer gene expression results in a gross dysregulation of mRNA splicing thereby causing the presentation of the altered transcriptome. This was a motivating factor behind our choice of statistical method.

"Figure 4 (minor): Please comment about the possible existence of intronic transcripts (totally unknown or also annotated in Ensemble, but not displayed in the more conservative RefSeq annotations)."

If such exons exist, which are annotated as introns by RefSeq, and are actively transcribed in normal or breast cancer tissues, the large number of control samples will reflect this and such events will accordingly not trigger statistically significant intron inclusion events. We have added a comment to the Discussion reflecting this.

"Figure 5 (minor): Please define better the measure “Read−Abundance Total Intron Inclusion”."

This has been addressed in the revision.
Competing Interests: No competing interests were disclosed. Close
Report a concern

Comments on this article Comments (0)

Version 2

VERSION 2 PUBLISHED 13 Jan 2014

Open Peer Review

Referee Status:

Invited Referees

Version(s)

Version 2

published
07 Apr 2014

Version 1

published
13 Jan 2014

read report

Stefania Bortoluzzi, University of Padova, Italy
Francesc Xavier Roca, Nanyang Technological University, Singapore
Liliana D. Florea, Johns Hopkins University, USA
Peter N. Robinson, Universitätsklinikum Charité, Germany

All reports (7), Responses and comments (5)

Comments on this article

All comments (0)

Add a Comment

Articles that may interest you

Browse by related topics

Alongside their report, referees assign a status to the article:

Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested

Approved with reservations - key revisions are required to address specific details and make the paper fully scientifically sound

Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions

Edit comment

Competing Interests

The comment has been saved.

An error has occurred. Please try again.

Your must enter a comment.

References error.

[1] 1. Rogan PK, Zou GY: Best practices for evaluating mutation prediction methods. Hum Mutat. 2013; 34(11): 1581–1582. PubMed Abstract | Publisher Full Text

[2] 2. Krawczak M, Reiss J, Cooper DN: The mutational spectrum of single base-pair substitutions in mRNA splice junctions of human genes: Causes and consequences. Hum Genet. 1992; 90(1–2): 41–54. PubMed Abstract | Publisher Full Text

[3] 3. Rogan PK, Faux BM, Schneider TD: Information analysis of human splice site mutations. Hum Mutat. 1998; 12(3): 153–171. PubMed Abstract | Publisher Full Text

[4] 4. Rogan PK, Svojanovsky S, Leeder JS: Information theory-based analysis of CYP2C19, CYP2D6 and CYP3A5 splicing mutations. Pharmacogenetics. 2003; 13(4): 207–218. PubMed Abstract | Publisher Full Text

[5] 5. Mucaki EJ, Shirley BC, Rogan PK: Prediction of mutant mRNA splice isoforms by information theory-based exon definition. Hum Mutat. 2013; 34(4): 557–565. PubMed Abstract | Publisher Full Text

[6] 6. López-Bigas N, Audit B, Ouzounis C, et al.: Are splicing mutations the most frequent cause of hereditary disease? FEBS Lett. 2005; 579(9): 1900–1903. PubMed Abstract | Publisher Full Text

[7] 7. Wang K, Li M, Hakonarson H: ANNOVAR: Functional annotation of genetic variants from high-throughput sequencing data. Nucleic Acids Res. 2010; 38(16): e164. PubMed Abstract | Publisher Full Text | Free Full Text

[8] 8. Churbanov A, Vorechovský I, Hicks C: A method of predicting changes in human gene splicing induced by genetic variants in context of cis-acting elements. BMC Bioinformatics. 2010; 11(1): 22. PubMed Abstract | Publisher Full Text | Free Full Text

[9] 9. Pertea M, Lin X, Salzberg SL: GeneSplicer: A new computational method for splice site prediction. Nucleic Acids Res. 2001; 29(5): 1185–1190. PubMed Abstract | Publisher Full Text | Free Full Text

[10] 10. Shirley BC, Mucaki EJ, Whitehead T, et al.: Interpretation, stratification and evidence for sequence variants affecting mRNA splicing in complete human genome sequences. Genomics Proteomics Bioinformatics. 2013; 11(2): 77–85. PubMed Abstract | Publisher Full Text

[11] 11. Eswaran J, Cyanam D, Mudvari P, et al.: Transcriptomic landscape of breast cancers through mRNA sequencing. Sci Rep. 2012; 2: 264. PubMed Abstract | Publisher Full Text | Free Full Text

[12] 12. Eswaran J, Horvath A, Godbole S, et al.: RNA sequencing of cancer reveals novel splicing alterations. Sci Rep. 2013; 3: 1689. PubMed Abstract | Publisher Full Text | Free Full Text

[13] 13. Kwan T, Benovoy D, Dias C, et al.: Genome-wide analysis of transcript isoform variation in humans. Nat Genet. 2008; 40(2): 225–231. PubMed Abstract | Publisher Full Text

[14] 14. Thorvaldsdóttir H, Robinson JT, Mesirov JP: Integrative genomics viewer (IGV): High-performance genomics data visualization and exploration. Brief Bioinform. 2013; 14(2): 178–192. PubMed Abstract | Publisher Full Text | Free Full Text

[15] 15. Barnett DW, Garrison EK, Quinlan AR, et al.: BamTools: A C++ API and toolkit for analyzing and managing BAM files. Bioinformatics. 2011; 27(12): 1691–1692. PubMed Abstract | Publisher Full Text | Free Full Text

[16] 16. Yeo IK, Johnson RA: A new family of power transformations to improve normality or symmetry. Biometrika. 2000; 87(4): 954–959. Publisher Full Text

[17] 17. Johnson DH: Statistical sirens: the allure of nonparametrics. Ecology. 1995; 76: 1998–2000. Reference Source

[18] 18. Hubbard R: The probable consequences of violating the normality assumption in parametric statistical analysis. Area. 1978; 10(5): 393–398. Reference Source

[19] 19. Pruitt KD, Tatusova T, Maglott DR: NCBI reference sequence (RefSeq): A curated non-redundant sequence database of genomes, transcripts and proteins. Nucleic Acids Res. 2005; 33(Database Issue): D501–D504. PubMed Abstract | Publisher Full Text | Free Full Text

[20] 20. Hsu F, Kent JW, Clawson H, et al.: The UCSC known genes. Bioinformatics. 2006; 22(9): 1036–1046. PubMed Abstract | Publisher Full Text

[21] 21. Hubbard T, Barker D, Birney E, et al.: The Ensembl genome database project. Nucleic Acids Res. 2002; 30(1): 38–41. PubMed Abstract | Publisher Full Text | Free Full Text

[22] 22. RDC Team R: A Language and Environment for Statistical Computing . Vienna, Austria: R Foundation for Statistical Computing, 2008. Reference Source

[23] 23. Fox J, Weisberg S: An R Companion to Applied Regression, 2nd ed. Thousand Oaks CA: Sage, 2011. Reference Source

[24] 24. Freedman D, Diaconis P: On the histogram as a density estimator: L₂ theory. Zeitschrift für Wahrscheinlichkeitstheorie und Verwandte Gebiete. 1981; 57(4): 453–476. Publisher Full Text

[25] 25. Hyndman RJ, Fan Y: Sample quantiles in statistical packages. American Statistician. 1996; 50(4): 361–365. Publisher Full Text

[26] 26. Koboldt DC, Fulton RS, McLellan MD, et al.: Comprehensive molecular portraits of human breast tumours. Nature. 2012; 490(7418): 61–70. PubMed Abstract | Publisher Full Text | Free Full Text

[27] 27. Larson DE, Harris CC, Chen K, et al.: SomaticSniper: Identification of somatic point mutations in whole genome sequencing data. Bioinformatics. 2012; 28(3): 311–317. PubMed Abstract | Publisher Full Text | Free Full Text

[28] 28. Saunders CT, Wong WSW, Swamy S, et al.: Strelka: Accurate somatic small-variant calling from sequenced tumor-normal sample pairs. Bioinformatics. 2012; 28(14): 1811–1817. PubMed Abstract | Publisher Full Text

[29] 29. Shen S, Park JW, Huang J, et al.: MATS: A bayesian framework for flexible detection of differential alternative splicing from RNA-Seq data. Nucleic Acids Res. 2012; 40(8): e61. PubMed Abstract | Publisher Full Text | Free Full Text

[30] 30. Sarkar D: Lattice: Multivariate Data Visualization with R. New York: Springer, 2008. Reference Source

[31] 31. Fox J: Effect displays in R for generalised linear models. J Stat Softw. 2003; 8(15): 1–27. Reference Source

[32] 32. Pan Q, Shai O, Lee LJ, et al.: Deep surveying of alternative splicing complexity in the human transcriptome by high-throughput sequencing. Nat Genet. 2008; 40(12): 1413–1415. PubMed Abstract | Publisher Full Text

[33] 33. Griffith M, Griffith OL, Mwenifumbo J, et al.: Alternative expression analysis by RNA sequencing. Nat Methods. 2010; 7(10): 843–847. PubMed Abstract | Publisher Full Text

[34] 34. Katz Y, Wang ET, Airoldi EM, et al.: Analysis and design of RNA sequencing experiments for identifying isoform regulation. Nat Methods. 2010; 7(12): 1009–1015. PubMed Abstract | Publisher Full Text | Free Full Text

[35] 35. Shen S, Lin L, Cai JJ, et al.: Widespread establishment and regulatory impact of Alu exons in human genes. Proc Natl Acad Sci U S A. 2011; 108(7): 2837–2842. PubMed Abstract | Publisher Full Text | Free Full Text

[36] 36. Kapranov P, Willingham AT, Gingeras TR: Genome-wide transcription and the implications for genomic organization. Nat Rev Genet. 2007; 8(6): 413–423. PubMed Abstract | Publisher Full Text

[37] 37. Singh RK, Cooper TA: Pre-mRNA splicing in disease and therapeutics. Trends Mol Med. 2012; 18(8): 472–482. PubMed Abstract | Publisher Full Text | Free Full Text

[38] 38. Johnson VE: Revised standards for statistical evidence. Proc Natl Acad Sci U S A. 2013; 110(48): 19313–19317. PubMed Abstract | Publisher Full Text | Free Full Text

[39] 39. Yandell M, Huff C, Hu H, et al.: A probabilistic disease-gene finder for personal genomes. Genome Res. 2011; 21(9): 1529–1542. PubMed Abstract | Publisher Full Text | Free Full Text

[40] 40. Feng H, Qin Z, Zhang X: Opportunities and methods for studying alternative splicing in cancer with RNA-Seq. Cancer Lett. 2013; 340(2): 179–191. PubMed Abstract | Publisher Full Text

[41] 41. Eswaran J, Horvath A, Godbole S, et al.: RNA sequencing of cancer reveals novel splicing alterations. Sci Rep. 2013; 3: 1689. PubMed Abstract | Publisher Full Text | Free Full Text

[42] 42. Pal S, Gupta R, Davuluri RV: Alternative transcription and alternative splicing in cancer. Pharmacol Ther. 2012; 136(3): 283–294. PubMed Abstract | Publisher Full Text

[43] 43. Takahara K, Schwarze U, Imamura Y, et al.: Order of intron removal influences multiple splice outcomes, including a two-exon skip, in a COL5A1 acceptor-site mutation that results in abnormal pro-a1 (V) N-propeptides and Ehlers-Danlos syndrome type I. Am J Hum Genet. 2002; 71(3): 451–465. PubMed Abstract | Publisher Full Text | Free Full Text

[44] 44. Viner C, Dorman SN, Shirley BC, et al.: Input, output, and explanatory files for Veridical. figshare, 2013. Data Source

Abstract

Revised Amendments from Version 1

Introduction

Methods

Table 1. Definitions used within Veridical to determine the direction in which reads are checked.

Figure 1.

Figure 2.

Figure 3.

Results

Leaky Mutations

Figure 4.

Figure 5.

Inactivating Mutations

Figure 6.

Cryptic Mutations

Figure 7.

Table 2. Examples of variants validated by Veridical and their selected read types.

Performance

Figure 8.

Discussion

Data availability

Author contributions

Competing interests

Grant information

Acknowledgments

Supplementary materials

Veridical variant input format

Veridical exome annotation input format

Veridical output

Figure S1.

References

Open Peer Review

Comments on this article Comments (0)

Comments on this article

Competing Interests Policy
