Deep supervised hashing for gait retrieval

Related work

Similarity searching can be efficiently implemented with compact binary codes generated with hashing methods. The current hashing methods can be divided into unsupervised and supervised hashing. Unsupervised hashing methods use unlabelled data and only training data to learn the hash function and perform neighbourhood relation clustering in a Hamming space. For example, kernelized locality-sensitive hashing⁸ uses the random projection of the hash function and constructs the kernel function to perform the similarity search. Liu et al.⁹ proposed anchor graph hashing to build a neighbourhood graph that learns binary hash codes to map similarities in a Hamming space. Neighbourhood discriminant hashing (NDH)¹⁰ utilizes the local discriminant information from the neighbourhood structure so that the data labels can be predicted in a Hamming space.

To reduce the complexity and perform efficient semantic similarity searching, supervised hashing approaches are practised. Supervised hashing takes advantage of label information, pairwise similarity information, or data point similarity. Liu et al.¹¹ proposed supervised hashing with kernels by using image pairs and converted them into binary code to map the data in Hamming distance. The kernel formulation minimizes the distance between similar pairs and maximizes the distance on dissimilar pairs. Shen et al.¹² also introduced supervised discrete hashing, which combines linear classification with the generation of hash codes into a model and addresses supervised hashing problems. Then, Lin et al.¹³ proposed supervised hashing with a two-step model: binary code learning in the first step and hash function learning in the second step.

The above papers used manual feature learning, which has limitations on the diversity of the dataset and the performance. Therefore, current researchers utilize the advantages of deep networks, which can extract visual features from raw data with minimal pre-processing. Xia et al.¹⁴ introduced a two-step paradigm for supervised hash learning with a convolutional neural network. They pre-processed the input images with a pairwise similarity matrix to give the approximated hash codes for training images and then used a convolutional neural network (AlexNet) for the feature learning of input images as well as for learning the hash codes. However, a CNN has limitations for improving hash code learning, and the one-stage method became the norm of later deep supervised hashing methods. Other researchers proposed deep supervised hashing techniques for different kinds of inputs, such as single data, paired data, and triplet pairs of data. Lai et al.¹⁵ proposed a deep hashing architecture with triplet pair images as the input and convolutional layers to extract effective image features. They used the divide and encode module to extract the image features into branches that correspond to each hash code, and then the triplet ranking loss function was used to perceive the similarities. Thereafter, Zhang et al.¹⁶ were inspired to use this approach for their person re-identification problem because the optimization of triplet ranking is able to capture the variation differences between the intra-class and inter-class rankings. The supervised hashing of semantic similarity based on data pairs has also received attention because of improvements in the quality of hash coding. The deep hashing network (DNH) proposed by¹⁷ uses paired data for image representation and a convolutional neural network for feature extraction. The last layer of the deep network, a fully connected layer, is used to generate binary hash codes. To preserve the similarity between the pairs of images, the pairwise cross-entropy loss is adopted, and the pairwise quantization loss is adopted to control the quality of the hash code. The improved version of pairwise deep hashing is presented in DCH (deep Cauchy hashing), which uses the Cauchy distribution to design the pairwise cross-entropy loss.¹⁸ The Cauchy cross-entropy loss is adapted from the Bayesian framework and well designed for the Hamming space retrieval.

To address the gait retrieval problem, Zhou et al.⁶ presented the kernel-based semantic hashing method and used the Gaussian kernel function to map the gait data into the hashing function. The learned hashing function is later optimized by the triplet ranking loss, and the binary codes of gait data are stored in a database. To retrieve the given query data, the semantic ranking list is obtained based on the Hamming distance between the query data and the gait database. Rauf et al.¹⁹ also proposed deep supervised hashing for gait retrieval using triplet pair gait data. They designed the hash model with a three-channel convolutional neural network sharing the same parameter. The hash layer is added after fully connected layers to generate the hash code. The triplet ranking loss is used for optimization, and the associated ranking list is based on labels. Their method outperformed other traditional methods because of the robustness of the CNN in visual feature learning.

Proposed method

Gait representation

As shown in Figure 1, we use the gait energy image (GEI). The gait energy image is a spatiotemporal gait representation that represents gait features in a single image. GEIs convert a sequence of gait silhouettes into a two-dimensional image that preserves the human motion. GEIs were first introduced by²⁰ to reduce the burden of limited gait training templates. Since the GEI can capture both temporal and spatial information, it has become the most popular gait representation. In addition, GEIs also include information on both the silhouette shape and the dynamic walking motion. GEIs can be obtained by extracting the silhouette of the human and averaging the sequence of silhouettes. The details of computing the gait energy image can be found in.²⁰

Figure 1. Sample gait energy image from the OUISIR-Large Population dataset.

Proposed deep gait retrieval hashing (DGRH) model

The idea of similarity preservation in a hashing method is that similar codes are generated from semantically similar data. Therefore, mathematically, the goal of the hash function is to learn the image space $X$ to the mapping with $H\to :X{\left\{-1,1\right\}}^K$ into the Hamming space. Here, $K$ is the k-bit binary hash code generated from the input image $X$.

Suppose N training GEI images are given, denoted by ${\left\{x_i\right\}}_{i=i}^N$, and each $x_i$ is represented by the dimension feature vector D so that $x_i$ $\in {\mathrm{ℝ}}^D$. Therefore, X = [$x_1,x_2,x_3,\dots ,x_N]$ $\in {\mathrm{ℝ}}^{D\times N}$. The label matrix Y in N training GEIs is denoted as Y=[$y_1,y_2,y_3,\dots ,y_N]$ $\in {\mathrm{ℝ}}^{C\times N}$, and the number of classes is denoted as C. If the $i$th GEI belongs to the $j$th class, $y_{\mathit{ij}}$ = 1, and if not, $y_{\mathit{ij}}$ = 0. Therefore, our proposed hashing method will learn the hash codes $h_i\in {\left\{-1,1\right\}}^K$ from each input GEI, where K is the length of the binary codes.

As shown in Figure 2, our proposed model takes the gait energy image (GEI) as the input gait data and extracts the features using the deep convolutional neural network (CNN) presented by.²¹ The architecture of the CNN is composed of convolutional and pooling layers, a fully connected layer, and a hashing layer; the last layer of the CNN network generates the binary hash code. There are four convolutional layers with different numbers of filters for each layer (16, 32, 64, 128), and the filter size for all layers is 3*3. After each convolutional layer, there is a max-pooling layer with a stride of 2. The first fully connected layer also takes the number of hidden neurons (1024) as the parameter, and the last fully connected layer serves as the fully connected hash (FCH) layer for hash function learning. The detailed architecture of the CNN proposed by²¹ is shown in Table 1. We used the leaky rectified linear unit (LeakyReLU) activation function for all the layers except the hash layer. To learn the hash function, we used a hyperbolic tangent (tanh) activation function to compress the output of the last fully connected layers to the range of [−1,1]. The tanh function is defined as:

Figure 2. The architecture for the proposed deep gait retrieval hashing (DGRH) model.

The tanh activation function maps the data into the range of [−1,1], and the number of neurons (K) for the fully connected layer is the desired length of binary hash codes (such as 16 bits, 32 bits, 64 bits, and so on). The learned hash function from the deep convolutional network is $h_i\in {\left\{-1,1\right\}}^{K\times N}$ with N GEI images. To calculate the binary hash code ($b_i)$ from the output of the hash layer, we utilize the sign(.) function; $b_i=\mathit{sign}\left(h_i\right)$. Here, the sign(.) function on a vector and a matrix is expressed as

Supervised loss function and optimization

We introduced the loss function to learn the ability of the hash codes. The designed loss functions measure the similarity-preserving ability of the hash codes. Since the well-learned hash codes have a solid classification ability, we expected that the supervised hash function can generate similar hash codes for the gait inputs with the same label. To preserve the similarity of the hash codes, we used the softmax function, which is a multinomial logistic regression function and suitable for predicting the class labels. The formulation for the softmax function is

Here, we denote $W_h$ as the linear weight vectors that connect the output from the last hash layers, so $W_h\in {\mathrm{ℝ}}^{k\times N}$. The softmax linear function for the learned representation $h_i$ can be rewritten as

To minimize the loss across the training sample to further reduce the classification error, we used the cross-entropy loss function. The function of the cross-entropy loss measures the dissimilarity of the predicted label distribution with the true label probability distribution. Therefore, ${\widehat{Y}}_{\mathit{ij}}$ is the vector of the predicted label that sample i belongs to class j. The ground truth vector $Y_{\mathit{ij}}$ is 1 if i belongs to class j and 0 otherwise. Therefore, the cross-entropy loss for ${\widehat{Y}}_{\mathit{ij}}$ and $Y_{\mathit{ij}}$ is

To reduce overfitting and the variance of the network, we introduced $L_2$ regularization terms to generalize the training of the deep network. Here, the regularization term is

where $\lambda$ is the regularization parameter and ${‖.‖}_F^2$ indicates the Forbenious norm defined as ${‖W^l‖}_F^2={\sum }_i{\sum }_i{\left(W_{\mathit{ij}}^L\right)}^2=W^{T}W$. Therefore, the final classification loss for our proposed model is as follows:

Quantization loss

The real-value features ($h_i$) from the hash layer need to be converted into binary codes to perform the retrieval in the Hamming space. To control the learned hash codes’ quality, we introduced the quantization loss. Discrete optimization of the classification loss function $L_C$ is very challenging because of the binary constraints $h_i\in {\left\{-1,1\right\}}^{K\times N}$. To reduce the quantization errors, existing hashing methods apply discrete optimization to the similarity-preserving loss (classification loss) and continuous optimization to the quantization loss. The quantization error ($Q={‖h_i-\mathit{sgn}\left(h_i\right)‖}_2$) is optimized by applying continuous relaxation to the binary constraint. The optimization of the quantization error is very difficult due to the computation intensity and lack of compatibility with the training of the deep network with back-propagation because of the non-differentiable $\mathit{sgn}$ function. Therefore, we employed the quantization loss function proposed by,²² which is suitable to control the quantization error. The quantization loss is defined as follows:

$\left|.\right|$ is an elementwise vector, and we applied the smooth surrogate function to the $L_1$ norm.

${‖\left(.\right)‖}_1\approx logcosh\left(.\right)$ to ease the differentiation during back-propagation. The optimized quantization loss can be derived as

Therefore, by taking equations (7) and (9), we achieve the DGRH optimization loss:

By optimizing the classification loss ($L_C$), we can learn similarity-preserving quality hash codes and control the learned hash codes with the joint optimization function quantization loss ($L_Q)$. The k-bit binary codes are achieved using the $\mathit{sgn}$ function, and the final DGRH optimization loss function is able to reduce the quantization error and increase the retrieval performance. Our proposed DGRH model is trained using adaptive moment estimation (Adam) via back-propagation. In the testing stage, the new query image is converted into hash codes by the trained network. The k-bit binary codes can be obtained using the $\mathit{sgn}$ function. Once we obtain the k-bit binary codes from the gallery and query sets, we can compute the Hamming distance between them to obtain the result.

Implementation of proposed method

The proposed model is developed using the Python programming language. For the data-pre-processing, the Pandas library was used to create and analyse the training and testing gait dataset, and Pickle library was used to import and load the data. The proposed model uses the deep learning approach i.e. the convolutional neural network. To build the convolutional neural network, the deep learning framework known as Keras library with the TensorFlow backend was used. The Keras library allows to construct the neural network easily, and can perform the training and testing of the proposed model. The other important libraries that were used in the development of the model are Numpy and Math libraries for array data manipulation and mathematical formula construction. Finally, the Matpoltlib and Seaborn libraries were used for the data visualization of the performance. The source code used for the analysis can be found at Zenodo.²⁶

Datasets and experimental setting

We evaluated our proposed deep gait retrieval with public benchmark datasets (CASIA-B, OUISIR-LP, and OUISIR-MVLP). Since we are dealing with the retrieval problem, we considered both short-term and long-term retrieval. For short-term retrieval, we divided the datasets into the same conditions (being in view, wearing clothes, carrying a bag) since gait is captured from the camera in a short amount of time. In real-world gait applications, people are captured at different times and views from different cameras. Therefore, we considered the prepared dataset for both same and mixed conditions to further evaluate our proposed gait retrieval framework.

CASIA-B dataset

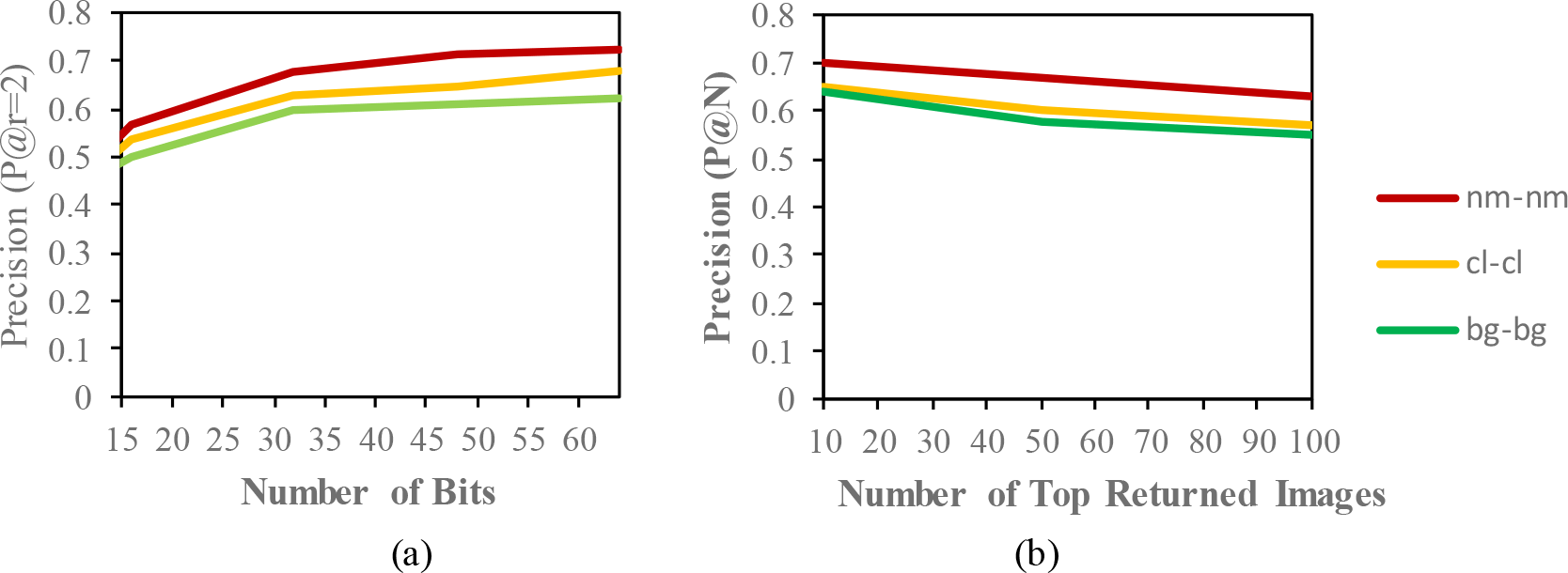

The CASIA-B gait dataset contains 124 subjects with 11 views and three walking conditions (normal walking, wearing a coat and carrying a bag).²³ We evaluated only the same view (90$°$) with the same walking condition for this setting. For the normal walking condition, four walking sequences (nm1- nm4) are used for the training set, and the remaining sequences (nm5 and nm6) are used for the testing set. There are only two walking sequences for both wearing a coat (cl1, cl2) and carrying the bag (bg1, bg). Therefore, we prepared cl1 as the training set and cl2 as the testing set. Likewise, bg1 was used for training and bg2 was used for testing in the condition of carrying a bag. To evaluate the long-term retrieval problem, we mixed three conditions (NM, CL, BG) and prepared the datasets. The training sets (nm1, nm2, nm3, nm4, cl1, bg1) are included, and for the testing set, we used nm5, nm6, cl2, and bg2.

OUISIR Large Population (LP) dataset

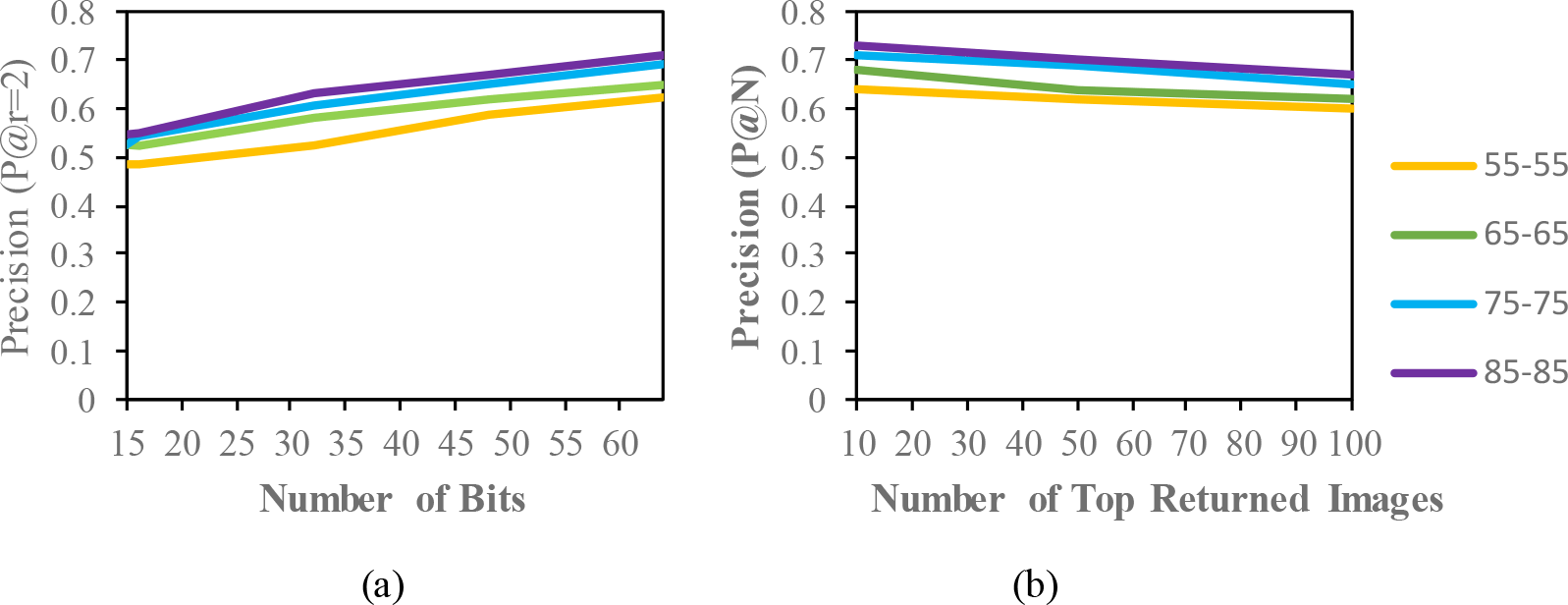

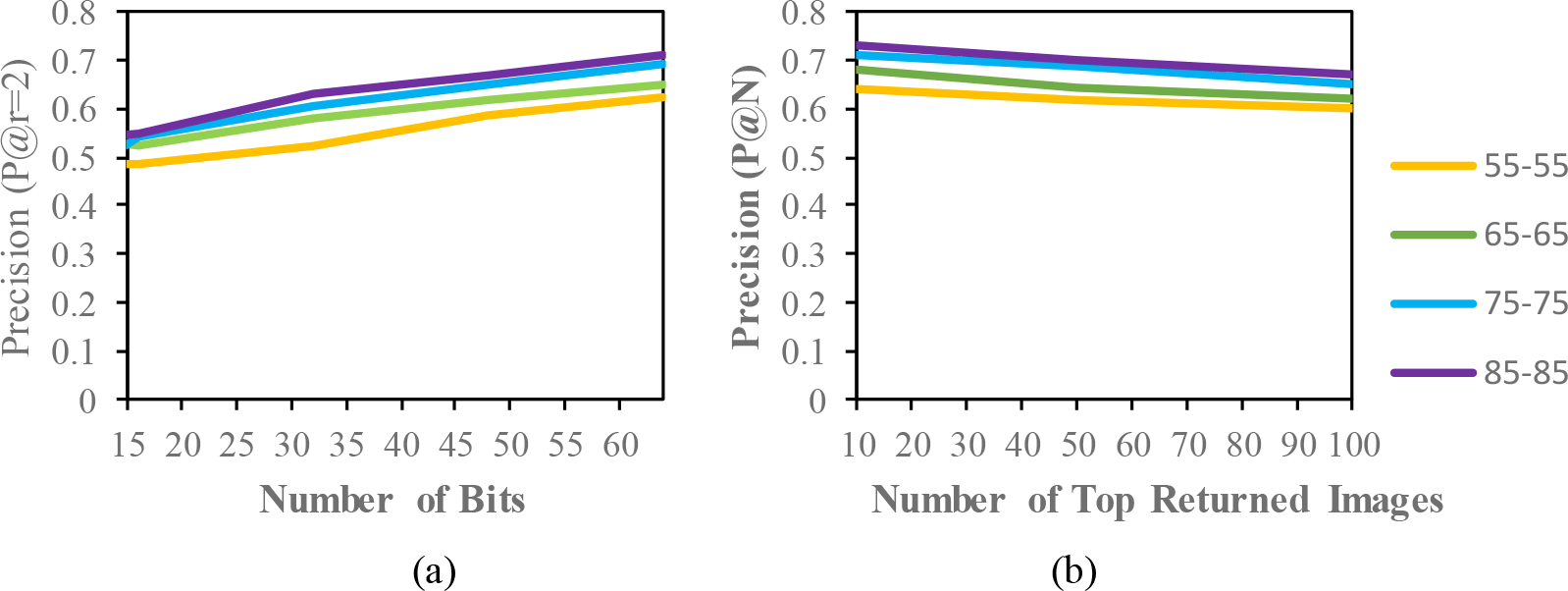

To evaluate the proposed framework, we used a subset of the OULP datasets with 1912 subjects and 4 different views ($55°,65°,75°,\mathit{\text{and}}85°$) following the protocol in.²⁴ The training and testing dataset is divided equally with 956 subjects each. Therefore, each subject also has eight GEIs with 4 views and 2 sequences. For the evaluation under the same condition, we prepared the datasets with only the same views ($55°-55°,65°-65°,75°-75°,\mathit{\text{and}}85°-85°$). Under mixed conditions, each subject with 4 different views is combined for evaluation. Therefore, each subject has eight GEIs (2 walking sequences * 4 views) to perform long-term gait retrieval.

OUISIR-Multiview Large Population (MVLP) dataset

OUISIR-MVLP includes 10307 subjects; 5114 subjects are males, and 5193 are females. For the experiments in the OU-MVLP dataset, we followed the protocol setting of²⁵ which divided the dataset into nearly equal groups with 5153 subjects for the training set and 5154 subjects for the testing set. As we pre-processed the gait sequences into gait energy images with normalized dimensions ($128\times 88)$, we obtained 28 GEIs with 14 different views and 2 walking sequences for each. To evaluate our proposed method, we used only four views (0$°$, 30$°$, 60$°$, and 90$°$) for both the same-condition and mixed-condition settings since the GEIs with 180$°$ view differences are flipped versions of the images and are considered same-view pairs based on the perspective of the projection. Only the same view was used to perform the short-term gait retrieval. Under mixed conditions, we created datasets with all four views for each subject. Therefore, the number of subjects was still the same, and each subject had eight sequences (2 walking sequences * 4 views).

Evaluation criteria

We adopted the Hamming space retrieval approach to evaluate the performance of our proposed model. In hashing, similarity-preserving hash codes are represented instead of data points to increase the speed of retrieval and reduce the storage space. The common methods for searching hash-based codes are the Hash lookup table and the Hamming ranking. The Hamming ranking uses the Hamming distance between the query image and the images from the database. The Hamming distance is computed using a bitwise operation, and the ranked list is generated according to the distance. The returned ranked list is in ascending order with the nearest neighbour in the database with the query. For the hash lookup table approach, lookup tables are constructed with the data points in the database within the Hamming radius ($r$) of the query. Hash lookup, also known as bucket searching, tries to retrieve all r-neighbours for each query.

The k-bit hash code lengths for the proposed model are 16 bits, 32 bits, 48 bits and 64 bits. The retrieval results are evaluated in three different matrices: precision curves with respect to the Hamming radius, precision curves based on different returned images and the mean average precision (MAP). The precision of r (P@r) is calculated, and the accuracy of the returned images based on the Hamming distance of the query and database images is less than or equal to r ($\le r).$ Here, we set $r=2$for the hash lookup and constructed the precision curves within the Hamming radius ($\mathrm{P}@\mathrm{r}=2)$with respect to different bit lengths. In Hamming ranking, the precision is calculated by the given top returned image. Therefore, we analysed the precision curves with different numbers of top returned images (P@N).

The MAP (mean average precision) is the most important metric to evaluate the hashing algorithms. The ranked list achieved by the Hamming distance between the database and each query is evaluated against the given top returned images. First, we compute the average precision for each query with

where N represents the top returned images in Hamming ranking and $P\left(n\right)$ is the precision of the top-N retrieved results. Then,$\delta \left(n\right)$ is 1 if the n-th retrieved result is in the list and $\delta \left(n\right)$ = 0 otherwise. Then, we can calculate the mean AP for all the testing queries to obtain the mean average precision (MAP). The larger the number of MAPs is, the better the quality of retrieval performance.

Comparison with other existing methods

The performance of the DGRH (deep gait retrieval hashing) method is compared against the current gait retrieval works with the same datasets. There are only two papers that address the gait retrieval problem.^6,19 Therefore, the first method to be evaluated is the kernel-based semantic hashing method (KSH) proposed by Zhou et al.⁶ The KSH uses the handcrafted feature learning approach with the Gaussian kernel function to generate the hashing function, and a semantic ranking list is used to retrieve the gait data. Another gait retrieval method that is compared is the deep hashing method presented by Rauf et al.,¹⁹ who used deep supervised hashing methods with triplet deep learning channels. This method takes the triplet pairs of gait data into the shared triplet channel to calculate the hash function, and the triplet ranking loss is used to retrieve the query from the ranking list.

The proposed framework is compared with the existing methods in Figure 7. The mean average precision (MAP) of the top-100 returned images is used as the evaluation criterion for the retrieval performance.

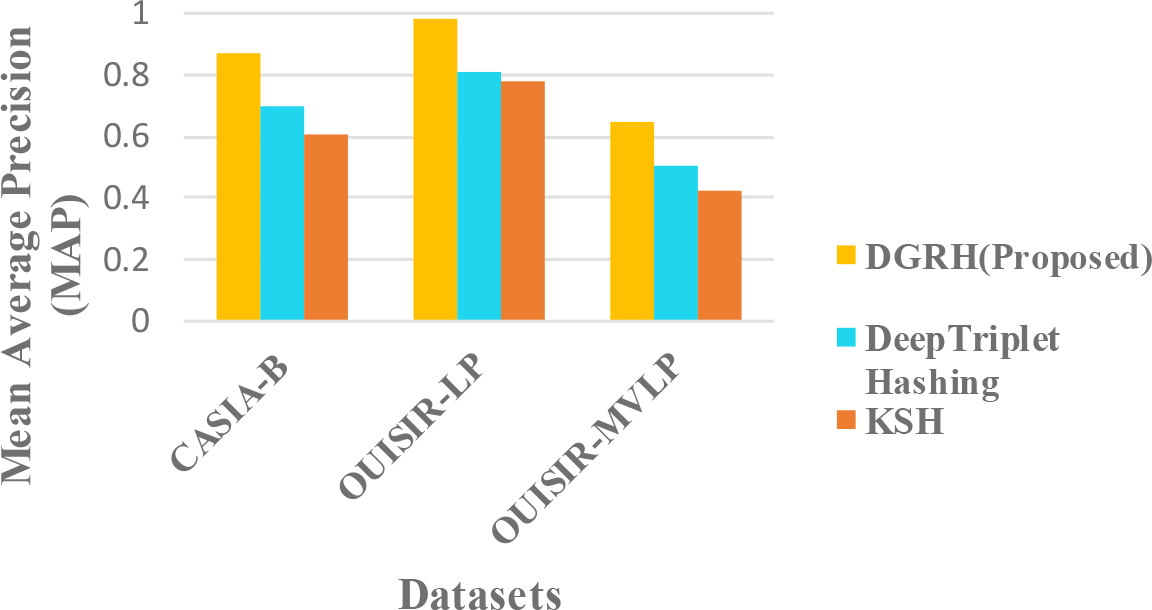

Figure 7. Comparison of the mean average precision MAP in different methods.

The mixed condition in different datasets is analysed since gait retrieval is mostly a long-term retrieval problem. According to the results, our proposed method outperforms the other two methods. The retrieval performance of our proposed method is better because of the deep representation of the gait features, and the strength of the CNN can learn better information about the gait motion. The pairwise-based or triplet-based loss in hashing might cause a data imbalance problem because of its complex data preparation for suitable data pairs. In addition, this approach can also suffer from optimization problems. The combination of the classification loss and quantization loss in the proposed method can effectively predict gait labels and control the quality of the hash codes.
