Reducing the Complexity of Casual Representation in Bayesian Belief Network

Introduction

Knowledge representation in a graphical model eases the knowledge organization and information understanding process. Causal frameworks such as Cognitive Map (CM),¹ Fuzzy Cognitive Map (FCM),² and Bayesian Belief Network (BBN),³ use graphical models to represent domain knowledge and have been widely adopted in various domains in the past few decades.⁴ BBN is a graphical model that used nodes to represent domain variables and links to represent the causal relationship among the nodes. However, the causal strengths of the causal relationship are represented in a tabular format. The complexity of the representation is increased with the growth of the size of conditional probability tables in BBN. The size of the CPT in BBN is growth in exponential proportion to the number of variables and the number of discrete states for each variable. Although high precision of inference outcome can be provided in BBN, such precision is often not needed or not necessary to the purpose of application. Moreover, elicitation of conditional probabilities from domain experts during the BBN modelling process is an unnatural and tedious job. BBN lacks intuitiveness in terms of representation and suffers from complexity problems in inference.⁵

This paper introduces a simplified BBN, namely the Bayesian causal model. A Bayesian causal model improves the representation of BBN by replacing the CPT with a single numeric value that is attached to the causal link. Moreover, a new inferential algorithm is proposed to propagate the influence in the Bayesian causal model. The proposed causal framework shows its advantages in modelling and representation, especially from the knowledge engineering perspective. Incremental updates in the model can be done easily because no reconstruction of the causal model is needed when a component is added/removed. To show the validity of the Bayesian causal model, a procedure to represent a Bayesian causal model as a BBN and comparison of the inference outcome in the Bayesian causal model corresponds to a specific probability in the Bayesian network are carried out in this study.

Methods

The Bayesian causal model is formally defined in this section. Figure 1 shows the representation of the causal influence between nodes in the Bayesian causal mode.

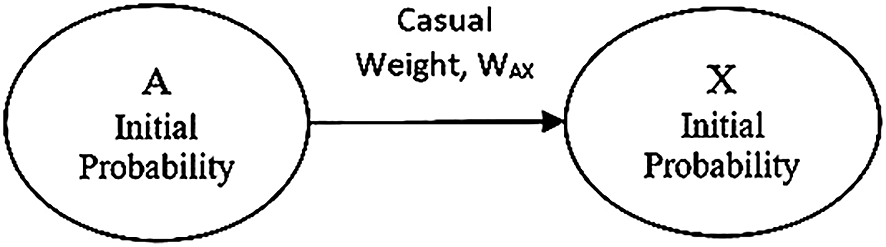

Figure 1. Representation of causal influence in Bayesian causal model.

Instead of CPT, causal strength between the nodes is represented as a single value in the range of [−1, +1]. −1 represents the decrease of 100% of the probability value and +1 denotes the increase of 100% of the probability value. The initial probability of each node is pre-determined as 0.5.

The propagation steps of the newly available evidence in the Bayesian causal model are as follows.

The proposed inference algorithm for Bayesian causal model is implemented using C++ programming language and Code::Blocks 20.03.

Results

An example of a sprinkler is used to demonstrate and validate the inference method in the Bayesian causal model. Table 1 illustrates the description of nodes in the causal model. There are a total of five nodes and five links in the causal model. The Bayesian causal model of sprinkler example is constructed as shown in Figure 2. Then, the Bayesian causal model is encoded into a BBN as shown in Figure 3. To validate the inference algorithm in Bayesian causal model, reasoning processes are performed in the Bayesian causal model and the BBN that are constructed earlier. The probabilities of any two nodes in the causal models are increased to 1 to observe the changes of probability in other nodes. The reasoning outcomes of both casual models are then recorded and compared as shown in Table 2.

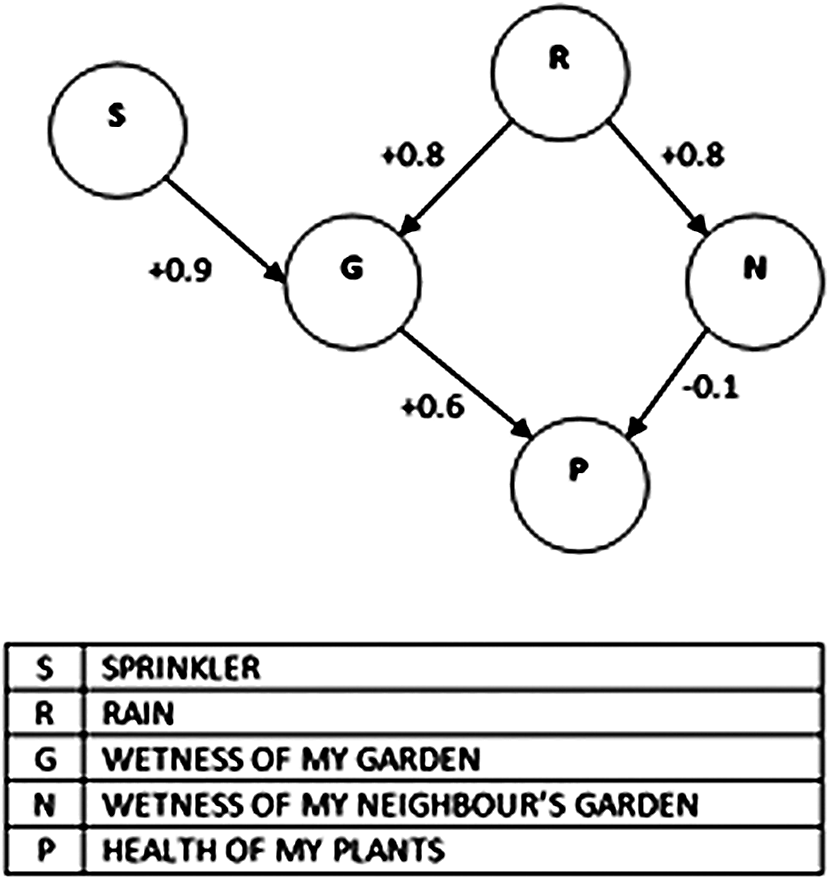

Figure 2. Bayesian causal model of a sprinkler.

Figure 3. BBN of a sprinkler.

According to the inference results shown in Table 2, the Bayesian causal model has shown its ability to predict and diagnose as in BBN because the reasoning outcome of both causal models are not differed too much.

Conclusions

In this paper, a new causal model ─ the Bayesian causal model is introduced and defined. The causal strength in the Bayesian causal model is represented by a numeric value from −1 to +1. Whereas the value in each node is interpreted as probabilities. The semantics of the variables and influences are defined in this study. Moreover, the computation of the propagated influence from a node to another one in the causal model is proposed. The Bayesian causal model has provided an intuitive and simple graphical representation of causal knowledge. The representation of the causal strength with a single value in the Bayesian causal model has overcome the complexity of representation in BBN. Moreover, the construction of a Bayesian causal model from domain experts is less laborious and the user could easily understand the causal knowledge from the Bayesian causal model.

Data availibility

All data underlying the results are available as part of the article and no additional source data are required.

Competing interests

No competing interests were disclosed.

Grant information

The author(s) declared that no grants were involved in supporting this work.
