Validity and reliability of method used to analyse hair cortisol concentration

Introduction

Cortisol is a hormone secreted by the zona fasciculata of the adrenal cortex which binds to the glucocorticoid receptor (GR) found in almost every vertebrate cell. The ubiquity of the GR means that cortisol’s effects across the body are diverse and include metabolic (increased blood sugar production), immunological (such as reduced resistance to certain infections), circulatory (acute elevation of blood pressure), renal and central nervous system (such as altered mood and reduced libido) effects (Becker, 2001). Cortisol secretion follows a now well-defined circadian rhythm (Clow et al., 2004; Hucklebridge et al., 2005) and cortisol secretion can also be substantially increased in response to psychological or physiological stress (Dickerson & Kemeny, 2004). Cortisol’s wide influence over cellular function means that stress induced changes in cortisol have the potential for substantial changes in physiology, behaviour and health.

Research exploring psychosocial variables in relation to cortisol secretion have predominantly measured cortisol in saliva, blood or urine samples, which allow for the measurement of near-current levels of cortisol secretion (saliva and blood) and recent levels (urine). Whilst such research has proved hugely useful, not all research questions seek to explore near-current or recent cortisol output. Researchers who want to explore how personality, traumatic events, or mental health conditions, for example, impact on cortisol secretion and subsequent health may well find a measure of longer-term cortisol secretion to be very useful. The assessment of average cortisol activity over weeks and months is challenging, with the traditional measures from serum, saliva or urine as it requires sampling over many days with multiple samples a day to capture the full complexity of the circadian variation. In addition, the traditional measures of cortisol can only be used prospectively, whilst analysis of hair for cortisol offers the tantalising possibility of retrospective cortisol measurement. For researchers wanting to understand cortisol secretion over longer time periods, with the potential to measure cortisol secretion that occurred before the research had even started, the analysis of hair samples may well provide the solution.

Analysis of hair samples for measuring cortisol levels was first reported in the behavioural literature in 2004 (Raul et al., 2004) and since then there has been a rapid increase of research using measures of hair cortisol to explore stress and or the reaction of the body to challenge in some form. A recent meta-analysis (Stalder et al., 2017) identified 72 papers exploring some aspect of chronic stress with hair cortisol. There is a wide variety of research being undertaken. For example, higher hair cortisol in comparison to control groups has been found in unemployed individuals (Dettenborn et al., 2010) shift workers (Manenschijn et al., 2011), endurance athletes (Skoluda et al., 2012), chronic pain patients (Van Uum et al., 2008), alcoholics in withdrawal (Stalder et al., 2010), undergraduates students during term time (Stetler & Guinn, 2020), dementia caregivers (Stalder et al., 2014), people with post-traumatic stress disorder (Steudte et al., 2011) and in children with early life adversity (Aas et al., 2019; Bhopal et al., 2019).

Underpinning the burgeoning use of hair cortisol in psychological research is the methodology used to determine the concentration of hair cortisol found in the hair sample. There is no single standardised approach at present for the measurement of hair cortisol but laboratories largely use a similar sequence of steps: the hair is washed to remove contaminants from the surface of the hair, the washed hair is dried, the sample is then cut or ground to increase the surface area of the hair available to extract cortisol from, the cortisol is extracted into a solvent (usually methanol over a period of time), the methanol and hair are separated, and the methanol is evaporated to dryness and analysed for cortisol concentration. The choice of assay method varies considerably but the commonest methods used are liquid chromatography with tandem mass spectrometry (LC-MS/MS) or an antibody-based assay, commonly enzyme-linked immunosorbent assay (ELISA).

The methodology developed by our laboratory was intended to be a scalable method of hair analysis that could be undertaken for large numbers of hair samples and had the minimum number of steps to reduce the chance of error and reduce costs. Our method reduces the number of steps by not transferring the sample to another container; it is kept in the same tube from initial weighing through to the end of the methanol incubation. The procedure is also very scalable. The ‘rate-limiting’ step for our hair analysis procedure is the grinding of the hair and this has been partially automated and is highly scalable. Final quantification of cortisol is performed via an ELISA assay, an assay which is rapid and cost effective.

In this paper we describe the methodology developed by the Anglia Ruskin university (ARU) Biomarker Laboratory and two studies that evaluate how reproducible our method is and the extent to which our assay results relate to LC-MS/MS analysis performed at another laboratory.

Aims

Methods

Statistical analysis

Analysis was conducted using Jamovi 1.63 (The Jamovi Project, 2020) and IBM SPSS version 26 (IBM SPSS, 2019) with p < .05 considered as a significant difference. Power Analysis used G*Power 3 (Faul et al., 2007). For all HCC variables in study 1 there were three extreme outliers (see Figure 1A) that were more than three times higher than the interquartile range from Tukey’s hinge at the 75th centile, and a further two points that were outliers for most variables. (Figure 1B shows the relationship between replicates with the five outliers removed.) In addition, the hair cortisol variables show a significant positive skew and kurtosis. The HCC data in Study 2 also contained a number of outliers with a positive skew and significant deviation from normal distribution. Table 1 shows descriptive statistics for the full datasets of both study one and two.

Many researchers working with hair cortisol use log transformations to reduce the skew seen with hair cortisol and to reduce the impact of high outlying values that are often found. We have not used log transformations in our analysis, partly because of theoretical objections that researchers have raised to log transformations (Feng et al., 2014) and on a practical level because log transformations did not remove the distribution problems observed in our data. We opted instead to use non-parametric analysis and to provide supplemental parametric analysis where it may be helpful to compare with previous research. Where parametric analysis is used it is noted along with the outliers removed.

In both studies Bland-Altman plots (Bland & Altman, 1986) were used to analyse the agreement between the methods rather than the association (assessed via correlation). When Miller, Plessow, Rauh, Gröschl, & Kirschbaum (2013) compared the ELISA and LC-MS/MS results with salivary analysis, they reported high correlations between the two methods but that all ELISA results were higher than the LC-MS/MS method (ranging between 27.9% and 259.3% higher depending on the ELISA assay used). It is therefore not our expectation that the LC-MS/MS and ELISA will agree in absolute terms but rather than the difference between the two methods will be consistent over the range measured.

Spearman’s Rho non-parametric correlation was used to measure the association between the HCC replicates A and B (Study 1) and ELISA and LC-MS/MS HCC from the same hair cortisol extract (Study 2) and Friedman’s non-parametric test for repeated measures used to test for a difference between the hair cortisol replicates A & B in study 1 and between ELISA and LC-MS/MS analysis in study 2. Pearson’s Product Moment correlation and Student’s t-test have been used to provide a parametric version of the above analysis to allow comparison with other research. Friedman’s repeated measures non-parametric test was used to test whether the HCC different across the five different incubation times for hair and between samples ground with 3 ceramic balls or 5 ceramic balls. Where there were more than two levels Durbin-Conover pairwise tests used to identify the location of any differences.

Figure 1A. Hair cortisol concentration concentrations from two samples of hair from the same individuals (all participants included).

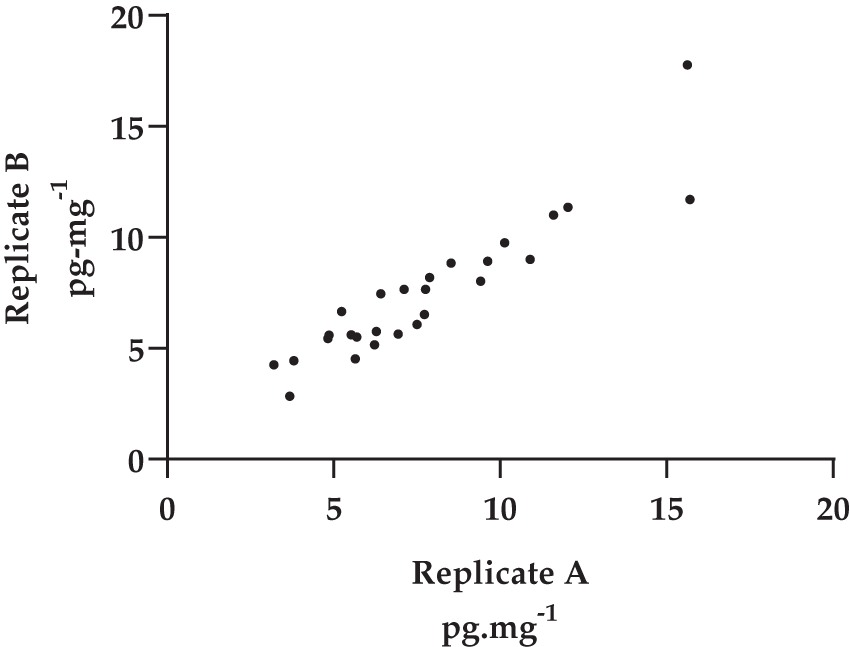

Figure 1B. Hair cortisol concentration concentrations from two samples of hair from the same individuals (Five outlying samples removed).

Results

Study 1: Assay reproducibility

There was a very significant correlation between the two replicates of hair cortisol using the full dataset (r_s = .967, N = 32, p < .001; r = .995, N = 32, p < .001, see Figure 1A) (Reid, Parker & Bristow, 2020). Friedman’s test revealed no significant difference between the two replicates (χ² = .50, df = 1, p = ns). As noted above, parametric analysis on this dataset is unreliable given the distribution of the data but to allow a better comparison with other published work we have included some parametric analysis. With the five outliers the Shapiro-Wilk test for normality of data remains significant indicating that the data is not normally distributed. The Pearson’s product moment correlation between the replicates remains highly significant (r = .926, N = 27, p < .001; r_s = .945, N = 27, p < .001) and there was no significant difference in the means for replicate A (7.78 mg.pg^-1; SD = 3.27) and replicate B (7.46 pg.mg^-1, SD = 3.06)(t = 1.35, df = 26, p < .190). The Bland-Altman plot (see Figure 2 below) suggests a good agreement across the range of HCC means though two points fall on or outside the ± 1.96 lines of agreement.

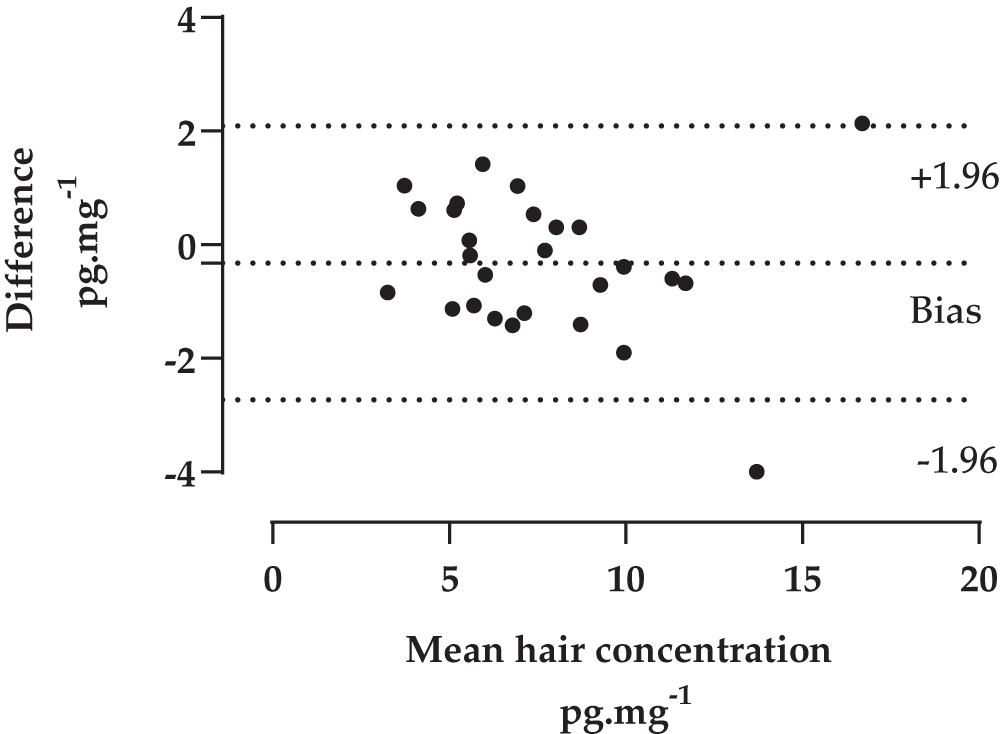

Figure 2. Bland-Altman plot reporting the differences between hair cortisol replicates (Replicate B – Replicate A) plotted against the mean replicate concentration.

Five outliers have been removed from the data. The top and bottom lines indicate + or – 1.96 standard deviations from the replicate differences.

Table 1. Descriptive statistics for the hair cortisol concentrations for the complete data sets in study one and study two.

	N	Mean pg.mg−1	Median pg.mg−1	SD pg.mg−1		Minimum pg.mg−1	Maximum pg.mg−1	Skewness	Kurtosis	Shapiro-Wilk p
Study One
Replicates
Replicate A	32	28.07	7.75	65.14		3.21	299.97	3.52	12.07	< .001
Replicate B	32	27.04	7.66	63.24		2.84	307.85	3.68	13.86	< .001
Incubation test
3 hrs	25	29.38	7.84	57.82		4.69	245.62	2.97	8.61	< .001
21 hrs	25	29.08	8.56	56.03		4.72	207.42	2.73	6.40	< .001
24 hrs	25	28.78	7.56	57.88		4.85	225.28	2.89	7.49	< .001
28 hrs	25	30.47	8.36	65.28		3.80	299.73	3.48	12.77	< .001
48 hrs	25	31.86	8.38	65.55		5.26	283.23	3.13	9.73	< .001
Ceramic ball test
3 balls (24 hours)	26	29.42	8.06	60.5		4.03	225.89	2.85	7.15	< .001
Study Two
ELISA	53	7.73	6.41	6.28		0.98	41.11	3.27	14.84	< .001
LC-MS/MS	53	5.96	3.84	5.7		1.30	36.70	3.47	16.07	< .001

The Friedman non-parametric repeated measures test indicated a significant difference between five incubation times (3, 21, 24 and 48 hours; χ² = 10.9, df = 4, p = .027. Durbin-Conover pairwise comparisons showed that the 24 h HCC were significantly lower than the other levels but there were no other significant differences. The Friedman n test revealed no significant difference between using three or five ceramic balls (χ² = 1.00, df = 1, p = ns) to grind the hair samples.

Study 2: Assay validity

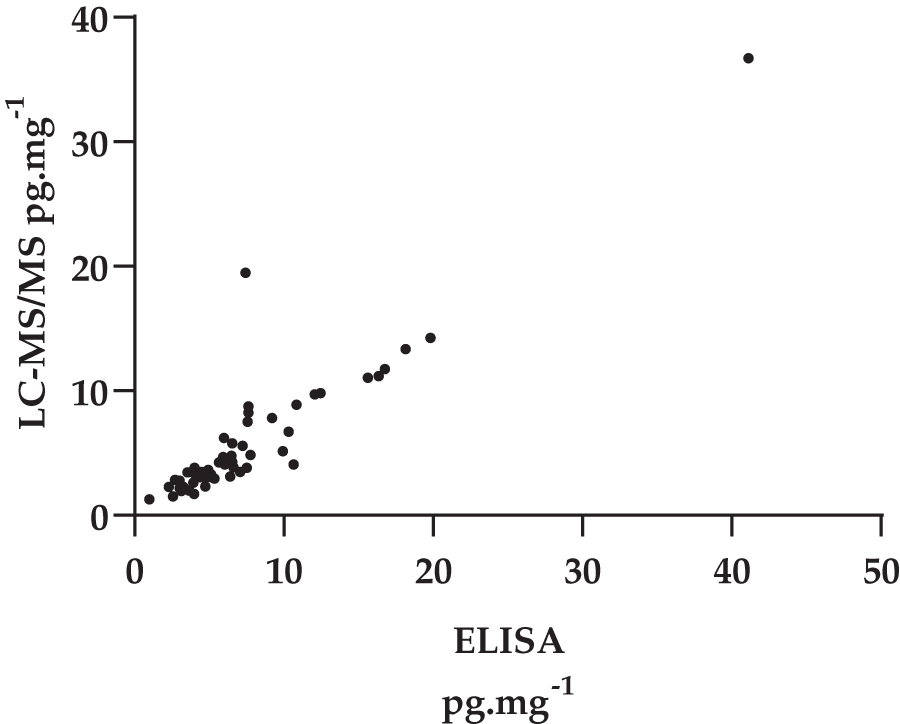

Figure 3. Scatterplot of the analysis of hair cortisol extract analyzed by ELISA and LC-MS/MS.

The LC-MS/MS hair cortisol concentrations were significantly lower than the ELISA concentration (χ² = 32.7, df = 1, p < .001; see Table 1) but there was a very strong correlation between the LC-MS/MS and ELISA hair concentrations (r_s = .905, n = 53, p < .001; r = .911, n = 53, p < .001) (Bristow, Clemens & Parker, 2020). The scatterplot showed a strong linear relationship with one discrepant value (see Figure 3). The Bland-Altman plot (see Figure 4) also clearly indicated one value with a highly anomalous result but otherwise the values fell within the boundaries.

Figure 4. Bland-Altman plot reporting the differences between hair cortisol replicates in study 2 (LC-MS/MS – ELISA) plotted against the mean replicate concentration.

The top and bottom lines indicate + or – 1.96 standard deviations from the replicate differences.

Discussion

Our initial experiment in Study 1 examined how well two aliquots of hair from the same person yielded the same hair cortisol concentration. This experiment tested two interlinked research questions: 1) were the aliquots of hair that had been created very similar for hair cortisol levels? And 2) were our assay results reproducible? We found a very high correlation between the two aliquots of hair and this supports both questions with no evidence of difference between hair cortisol levels found in the two aliquots. In addition, the average coefficient of variance for the HCC of the two replicates was 8.51% (SD: 6.2%), which again shows a close agreement between the replicates. Correlations are not the ideal way to measure agreement between two laboratory measures, and the Bland-Altman plot can be of more use (Grouven et al., 2007). The Bland-Altman plot (see Figure 2) shows that all bar two of the datapoints were within the ± 1.96 limits of agreement and there is no pattern in the plotted data that would suggest any systematic bias. There are two points that lie outside the limits of agreement, one high and one low, and these both came from samples towards the top of the range of concentrations reported.

Our results showed that the error was being kept to a low level and the results were reproducible. This supports both our research questions. We can be confident that the aliquots of hair created have similar cortisol levels in each aliquot and that our assay is providing a reproducible result with the current protocol.

Having established that the aliquots were very similar in hair cortisol levels and that our assay showed high reproducibility, we wanted to explore whether the incubation times we are currently using are optimal and whether the grind quality could be reduced without impacting performance.

The incubation test was intended to be the first of a series of tests to understand the time of peak extraction of cortisol and understand the variability of extraction around the peak extraction point. We might have expected that incubating for three hours would have extracted less cortisol because of the relatively short extraction time and the timings we chose for this first test were aimed at giving us more information around the 24-hour time, as this is the time that we currently use. It is of interest for us at what point the cortisol extraction into methanol peaks and plateaus. Though 24 hours provides a highly reproducible result, it may be that we can optimise the assay further with a longer incubation or that we can reduce the incubation times, which may allow for faster analysis of samples. Unexpectedly, we found that hair cortisol levels were stable over the incubation times except that the 24-hour incubation was slightly, but significantly, lower than the other incubation times. It is of interest that HCC shows no sign of increasing with incubation and then plateauing. Instead we have – save for a very small dip at 24 hours – the same level of extraction over the time. This means that the 24-hour incubation period is not necessary for maximal extraction and we could likely achieve the same results in three hours, or even shorter. It also likely means that the hair grind level could be reduced. We currently grind to a very fine grind which exposes a substantial surface area for methanol to extract cortisol from and appears to allow for a fast extraction time. Reducing the number of ceramic balls from five to three does visually reduce the fineness of the grind (unpublished observations from our laboratory) but we see no impact on the HCC extracted at 24 hours. Aside from reducing laboratory testing costs this suggests that research should look at reducing the degree of grinding and how this impacts on extraction of HCC. Grinding clearly damages the hair and it may be that we can achieve the same or better extraction of hair cortisol with less grinding.

We can find no reason for this slight fall in HCC at 24 hours. The samples were all assayed at the same period and the samples were randomly distributed over the ELISA plates used. There is always a minor variation between ELISA plates: had we had allocated all of the 24-hour incubation samples to one plate alone and the other conditions to different ELISA plates, this might have accounted for this difference, however this did not happen and the 24-hour samples were randomly allocated over plates. There was no difference in the hair weights for the various levels of incubation (F4,96 = 2.30, p = ns). Indeed, the hair weights were consistent with a range of 24.5 mg to 25 mg across all the conditions. There is no reason the samples would extract slightly less at 24 hours than they would at 21 hours or 28 hours (or indeed three hours or 48 hours) other than random chance or a small systematic error in the laboratory work on the 24-hour samples which may have been processed separately to the other incubation times. For example, the 24-hour aliquots of hair may be the ones that had, by chance, the slightly lower levels of hair cortisol in for that participant or that the researcher chose a different pipette to aspirate off the supernatant than selected for the other conditions, and whilst both pipettes are calibrated one may pipette slightly less than the other. In normal laboratory work, the small differences would not be observed, but given the nature of this experiment and the high reproducibility of the assay, an effect may be observed. The incubation test needs to be repeated in conjunction with varying grinds of hair to further optimise the assay but the slight drop at 24-hours does not create any issue for our standard assay protocol as all of our analysis is currently carried out with a 24-hour methanol incubation.

Study 1 supports the view that the hair cortisol assay provides highly reproducible results, something that is essential for any well-functioning assay. The other key aspect of any assay is whether the results obtained measure what they claim to measure.

The results from study 2 showed that ELISA method significantly over reported HCC with the median average for ELISA 2.57 pg.mg⁻¹ (66.9%) higher than the median for LC-MS/MS. This inflation of the cortisol results is not trivial but is also not unexpected based on the previously mentioned finding from Miller et al. (2013) that LC-MS/MS measures of salivary cortisol where significantly lower than those found by ELISA. There was very good correlation between the LC-MS/MS and ELISA measurement of cortisol extracted from the hair samples in study 2 and is comparable to correlations reported between saliva and LC-MS/MS by Miller et al.

The Bland-Altman plot (see Figure 3) showed no clear systematic pattern in the differences with the caveat that as in study 1 the distribution was substantially positively skewed with most values falling at the lower end but with a tail of large values.

There is one very discrepant value in the results where LC-MS/MS recorded 19.48 pg.mg⁻¹ compared with 7.44 pg.mg⁻¹ from the ELISA method, odd since ELISA tended to over report hair cortisol in this study. Analysis via LC-MS/MS or ELISA is not perfect and there is always a small chance of an undetected technical issue, operator error or accidental contamination. This discrepant value may also, of course, reveal a potential confound which is causing one of the two assays types to give a false reading. We recorded a wide range of information about how people treated their hair, and it is perhaps noteworthy that the participant whose hair showed the discrepant values had dyed their hair the night before it was cut. Only one other participant in our study had dyed their hair so close to having their hair sample taken. This participant had accidentally been allowed to enrol in the study twice and had given a hair sample a week before they dyed their hair and then a second time on the day their hair was dyed. We had excluded this second sample from analysis as we could not have two samples from the same person. However, there is no indication from this excluded sample of any additional discrepancy between the ELISA measure (7.73 pg.mg⁻¹) or the LC-MS/MS measure (4.39 pg.mg⁻¹). This is a 75.9% inflation by the ELISA, which is not far from the average median inflation found in by the ELISA method in the study of 66.9%.

By splitting the extracted methanol between ELISA and LC-MS/MS we are explicitly testing the measurement of HCC in the extract rather than testing whether given samples of the same hair, both laboratories would arrive at the same result. Our results do show that with ELISA analysis of the extract our methodology produces a good correlation with LC-MS/MS analysis of the same extract. Testing the relationship between two different hair analysis methods from grinding through to analysis by ELISA or LC-MS/MS would be useful but any differences in the results could be due to the hair extraction methodology used in the other laboratory rather than the end assay used (ELISA vs LC-MS/MS).

In this article we report the methodology used by the ARU Biomarker Laboratory to analyse hair cortisol levels via ELISA and two studies used to test the reproducibility and validity of the assay. The assays show high reproducibility and high validity, and the data suggest the methodology is fit for purpose. The methods used in study 1 to create a series of aliquots of the same participant’s hair was successful in allowing us to have access to multiple samples of each person’s hair. This allows for a range of validation testing to be carried out on the same hair samples.

There is considerable scope for further optimisation work for the assay. The incubation times can be usefully analysed along with different degrees of grind from uncut hair through rough cut to fine powder to explore the lowest degree of grind that can produce reproducible results. Our initial development work (unpublished observations) suggested that 25 mg of hair provided reproducible results but that a range of around 10 mg to 100 mg of hair could be used to produce reproducible results. Outside these values there were concerns about the reproducibility. A more systematic evaluation of this could help researchers better understand the amount of hair required for reliable testing and the reliability of analyses conducted on samples outside of this range.

The research presented here confirms the hair analysis methodology developed at ARU Biomarker laboratory is both a reproducible and valid measure of hair cortisol. This allows for a scalable method for analysing cortisol levels from hair that can be undertaken for large numbers of hair samples while minimising the number of steps to reduce chance of error and costs. The findings evidence the reproducibility and validity of hair cortisol analysis as a measure of psychological and physiological stress. This type of work is essential in underpinning the application of hair cortisol measurement to increase our understanding of longer-term impacts of psychological stress on the human body.
