Wireless power transfer with transmit diversity

[version 1; peer review: 1 approved, 1 not approved]

Yee-Loo Foo

PUBLISHED 13 Sep 2021

Author details Author details

Faculty of Engineering, Multimedia University, Cyberjaya, Selangor, 63100, Malaysia

Yee-Loo Foo
Roles: Conceptualization, Data Curation, Formal Analysis, Funding Acquisition, Investigation, Methodology, Project Administration, Resources, Software, Validation, Visualization, Writing – Original Draft Preparation, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Research Synergy Foundation gateway.

Abstract

Background: Wireless power transfer is important for energizing and recharging the Internet-of-Things (IoT) cordlessly. Harnessing energy effectively from radio waves has become a crucial task. It is known that diversities at the transmitting antenna and waves (i.e. simultaneous continuous waves with center frequencies separated apart) can enhance the radio frequency (RF) to direct current (DC) energy conversion. What remains unknown is the extent of which the wave diversity enhances the conversion gain. This study attempts to examine the RF-to-DC conversion gain of applying wave diversity. This paper investigates the effects of wave diversity on the energy conversion efficiency, and contributes the analytical expression that relate the conversion efficiency to the diversity count, i.e. the number of simultaneously transmitted sinewaves.
Methods: We adopted a theoretical approach to the problem. First, we derived and presented a theoretical model that incorporated different forms of transmit diversity, i.e. antenna and wave diversities. This model then connected a RF-to-DC energy conversion model resulting from polynomial fitting on circuit simulation results. With the availability of these two models, we determined the theoretical energy conversion gain of simultaneously transmitting multiple sinewaves.
Results: The results showed that transmitting multiple sinewaves simultaneously yields diversity gain and higher energy conversion efficiency. Most importantly, the gain and conversion efficiency can now be theoretically quantified. For example, at certain RF power measured at the receiver circuit, the diversity gain of transmitting four sinewaves is 2.6 (as compared to transmitting single sinewave). In fact, both the diversity gain and conversion efficiency increased with the number of simultaneously transmitted sinewaves. In another example, the conversion efficiency of transmitting four sinewaves is 0.1 as compared to 0.075 of two sinewaves.
Conclusions: In summary, this paper presents a novel analytical expression for wave diversity in the context of wireless power transfer.

Keywords

wireless power transfer, energy harvesting, RF-to-DC energy conversion, transmit diversity, antenna diversity, Internet-of-Things (IoT)

Corresponding author: Yee-Loo Foo

Competing interests: No competing interests were disclosed.

Grant information: Multimedia University IR Fund 2020/16310, Project "Reliable and Resilient Internet-of-Things (IoT) Networks", Principal Investigator: Yee-Loo Foo.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Copyright: © 2021 Foo YL. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Foo YL. Wireless power transfer with transmit diversity [version 1; peer review: 1 approved, 1 not approved]. F1000Research 2021, 10:916 (https://doi.org/10.12688/f1000research.72986.1) First published: 13 Sep 2021, 10:916 (https://doi.org/10.12688/f1000research.72986.1) Latest published: 13 Sep 2021, 10:916 (https://doi.org/10.12688/f1000research.72986.1)

Introduction

The Internet-of-Things (IoT) have become omnipresent nowadays, bringing to us some new challenges. To build a robust and resilient IoT network is one of the main challenges. The IoT communication infrastructure must be reliable and trustable. The IoT networks must be resilient against broken links and power outages. Nevertheless, replacing and recharging the device batteries are not only troublesome and impractical, but also nearly impossible in some cases. Wireless power transfer is a solution to this problem.^1–3 It can energize and recharge the IoT devices cordlessly. Hence, harnessing energy effectively from radio waves becomes a very important task.² Figure 1 depicts the concept of wireless power transfer. Wireless energy harvesting is possible even over fading and shadowing channels.^4,5 Chen et al.⁴ have formulated the cumulative distribution function (CDF) and outage probability of the harvested power under these circumstances. On the other hand, Clerckx and Kim⁵ have assessed the effect of fading on the radio frequency-to-direct current (RF-to-DC) energy conversion, and revealed that fading actually enhanced the conversion efficiency. There are numerous ways of enhancing radio wave energy harvesting, e.g. via transmission over multiple antennas, transmitting multiple sinewaves of different frequencies simultaneously, transmitting specially designed waveforms, etc.^5-7 Khan et al.⁶ have expressed the efficiency of wireless power transfer in terms of the number of transmit antennas. Clerckx and Bayguzina⁷ have studied the design of energy waveforms that enhanced wireless power transfer to a rectenna, which comprised of an antenna and a diode rectifier. The design involved specifying the amplitudes and phases of the multi-sinewaves in response to the channel condition. The fluctuation in the waveform excited the rectenna circuit. The maximum load current in the circuit was expressed as a function of the numbers of transmit antennas and sinewaves.⁷ Clerckx and Kim⁵ have furthered the study based on the similar diode rectenna model, and in addition, a curve-fitting model. Constructed from the data collected from simulations, the curve-fitting model is simpler, resulting in simpler and more tractable analyses. Clerckx and Kim⁵ evaluated the antenna and phase diversities that resulted in channel fluctuations, similar effect as of fading. They proved that even without using carefully designed energy waveform, which required channel state information (CSI), simple antenna diversity or phase diversity of multi-sinewaves were effective for wireless power transfer. Their findings were supported by the results of experimenting with prototypes. Based on the curve-fitting model, transmitting multi-sinewaves with center frequencies that were equally spaced out did enhance the RF-to-DC conversion efficiency,⁵ but an analytical quantification on the attained gain remains absent. This study aims to examine the RF-to-DC conversion gain with respect to the wave diversity, and contributes the relevant analysis that expresses the energy conversion efficiency as a function of the antenna diversity and ‘wave diversity’, i.e. the number of transmitted sinewaves.

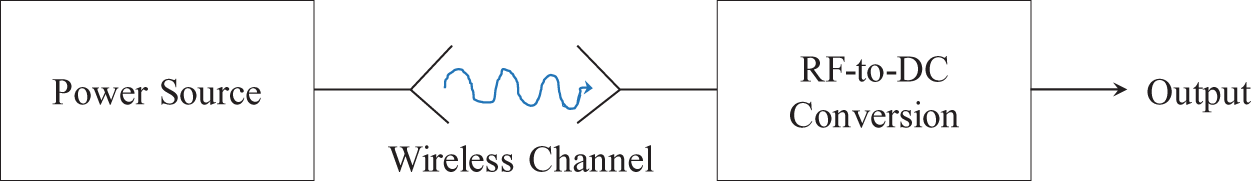

Figure 1. Wireless power transfer.

In the next section, we describe the communication system model that incorporates transmit diversity. This is followed by the RF-to-DC energy conversion model. Based on the models of transmit diversity and energy conversion, we produce the relevant results and show them in the Results section. This is followed by a Discussion section. Finally, we present the conclusions in the last section.

Methods

Ethical approval

This work has met the research ethics requirement and received the university Research Ethics Committee’s approval, with the number EA1772021.

Section 1: Transmit diversity model

A sender transmits signal x(t), a continuous wave (CW) that has been modulated by symbol s(t), on M antennas at time t. The transmit signal on antenna m is varied by phase φ_m(t), i.e.

(1)

x_{m} (t) = \sqrt{\frac{2 P}{M}} ℜ {s (t) e^{j [ω_{0} t + φ_{m} (t)]}}

$ω_{0}$ is the carrier frequency. $Ε [| s (t) |^{2}] = 1$ . After propagating over the wireless channel, the signal picked up at single receive antenna is

y (t) = \sqrt{\frac{2 P}{M Λ}} ℜ {h (t) s (t) e^{j ω_{0} t}}

Λ is the path loss, h(t) represents the overall time-varying channel gain.

(2)

h (t) = \sum_{m = 1}^{M} h_{m} e^{j φ_{m} (t)}

h_m is the amplitude gain from antenna m due to channel fading. Let r(t) = h(t)s(t).

(3)

y (t) = \sqrt{\frac{2 P}{M Λ}} ℜ {r (t) e^{j ω_{0} t}}

The effective RF power level at the input of an energy harvester is

(4)

P_{RF} = Ε [y^{2} (t)]

Assume that ${φ_{m} (t)}_{\forall m}$ are uniformly distributed over 2π and are independent, and $h_{m} = 1 \forall m$ . It can be shown that

(5)

P_{RF} = {\bar{P}}_{RF} \frac{{| r (t) |}^{2}}{M}

|r(t)|² is the received signal envelope.

(6)

{\bar{P}}_{RF} = Ε [P_{RF}] = \frac{P}{Λ}

Given certain expression for s(t), we can determine|r(t)|and thus P_RF. In the following, we consider a combination of multiple sinewaves of which the center frequencies are constantly separated apart. Suppose the multisine waveforms are given by

(7)

s (t) = \sum_{n = 0}^{N - 1} \frac{1}{\sqrt{N}} \exp (j n Δ_{w} t), Δ_{w} = 2 π Δ_{f}

Δ_w is the inter-carrier frequency spacing. Assume that ${φ_{m} (t)}_{\forall m}$ are uniformly distributed over 2π and are independent, and $h_{m} = 1 \forall m$ .

(8)

r (t) = \sum_{m = 1}^{M} \sum_{n = 0}^{N - 1} \frac{1}{\sqrt{N}} e^{j n Δ_{w} t} e^{j φ_{m} (t)}

Consider a special case of M = 1.

(9)

r (t) = \frac{1}{\sqrt{N}} \sum_{n = 0}^{N - 1} e^{j [n Δ_{w} t + φ (t)]}

To calculate |r(t)|, let us first consider a simple case of N = 2 sinewaves where n = 1, 2.

(10)

r (t) = \frac{1}{\sqrt{2}} (e^{j [Δ_{1} t + φ (t)]} + e^{j [Δ_{2} t + φ (t)]}), Δ_{2} = 2 Δ_{1}

It can be shown that

(11)

| r (t) |^{2} = 1 + \cos θ

where

(12)

θ = θ (t) = Δ_{1} t, 0 \leq θ < 2 π

When M = 1 and N = 3, we find that

(13)

{| r (t) |}^{2} = 1 + \frac{2}{3} (2 \cos θ + \cos 2 θ)

By induction, it can be shown that for M = 1,

(14)

{| r (t) |}^{2} = 1 + \frac{2}{N} [(N - 1) \cos θ + (N - 2) \cos 2 θ + ... + 2 \cos (N - 2) θ + \cos (N - 1) θ]

To the best of our knowledge, (14) is a novel expression.

Section 2: RF-to-DC energy conversion

Based on a simulation study on a rectenna circuit and curve fitting on the collected data, Clerckx and Kim⁵ have shown that the RF-to-DC energy conversion can be represented by a polynomial as follows:

(15)

\ln P_{DC} = u {(\ln P_{RF})}^{2} + v \ln P_{RF} + w

Based on the results from the circuit simulations conducted by Clerckx and Kim,⁵ when the input was a CW, the coefficients u, v, and w of the polynomial took the following values:

(16)

\begin{array}{l} u = - 0.0669, v = - 0.1317, w = - 6.3801 \\ for - 40 dBm \leq P_{RF} \leq - 5 dBm \end{array}

Since $P_{RF} = {\bar{P}}_{RF} \frac{{| r (t) |}^{2}}{M}$ ,

\ln P_{DC} = u {[\ln ({\bar{P}}_{RF} \frac{{| r (t) |}^{2}}{M})]}^{2} + v \ln ({\bar{P}}_{RF} \frac{{| r (t) |}^{2}}{M}) + w

After some workings, we have the following expression:

(17)

\ln P_{DC} = \ln P_{DC, 0} + (\ln \frac{{| r (t) |}^{2}}{M}) [u (\ln \frac{{| r (t) |}^{2}}{M} + 2 \ln {\bar{P}}_{RF}) + v]

where

(18)

\ln P_{DC, 0} = u {(\ln {\bar{P}}_{RF})}^{2} + v \ln {\bar{P}}_{RF} + w

P_{DC, 0} is the DC power harvested from ${\bar{P}}_{RF}$ . Eq. (17) can also be expressed in the following form:

(19)

P_{DC} = P_{DC, 0} \cdot e_{td}

e_td is the gain from transmit diversity,

(20)

e_{td} = {(\frac{{| r (t) |}^{2}}{M})}^{u (\ln \frac{{| r (t) |}^{2}}{M} + 2 \ln {\bar{P}}_{RF}) + v}

The average harvested DC power,

(21)

{\bar{P}}_{DC} = Ε [P_{DC}] = P_{DC, 0} \cdot {\bar{e}}_{td}

where

(22)

{\bar{e}}_{td} = Ε [e_{td}] = Ε [{(\frac{{| r (t) |}^{2}}{M})}^{u (\ln \frac{{| r (t) |}^{2}}{M} + 2 \ln {\bar{P}}_{RF}) + v}]

The resultant RF-to-DC conversion efficiency is given by

(23)

ε_{0} = \frac{P_{DC, 0}}{{\bar{P}}_{RF}}

Substituting (23) into (21),

(24)

{\bar{P}}_{DC} = {\bar{P}}_{RF} ε_{0} {\bar{e}}_{td}

The average RF-to-DC conversion efficiency is thus given by

(25)

ε_{avg} = \frac{{\bar{P}}_{DC}}{{\bar{P}}_{RF}} = ε_{0} {\bar{e}}_{td}

Results

The following Figures 2 and 3 present the novel results.

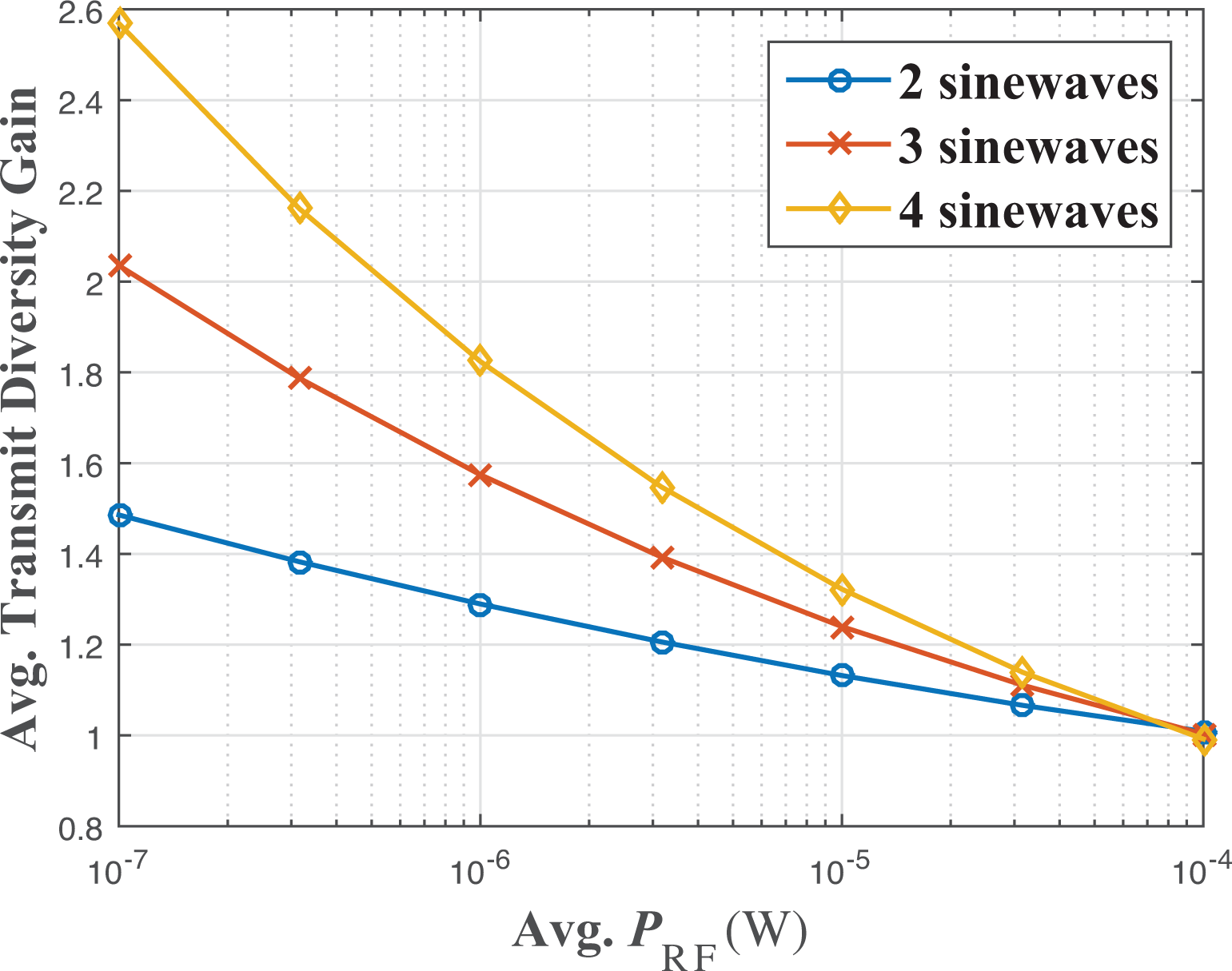

Figure 2.

${\bar{e}}_{td}$ vs. ${\bar{P}}_{RF}$ for multiple sinewaves.

Figure 3.

$ε_{avg}$ vs. ${\bar{P}}_{RF}$ for multiple sinewaves.

The positive result⁸ of using multiple sinewaves is demonstrated in the transmit diversity gain (Figure 2) and the actual resultant energy conversion efficiency (Figure 3). From Figures 2 and 3, we see that larger number of sinewaves, with center frequencies being equally spaced out, results in higher RF-to-DC energy conversion, despite using only single transmit antenna (M = 1). This is especially true at low RF input power to the rectenna circuit. For example, at ${\bar{P}}_{RF} = 10^{- 7}$ W, the transmit diversity gain is 2.6 (of 4 sinewaves) as compared to 1.5 (of 2 sinewaves). Nevertheless, the gain starts to diminish as the RF input power becomes higher, as revealed in Figure 2.

Figure 3 shows similar trend of which higher number of sinewaves results in higher conversion efficiency. For example, at ${\bar{P}}_{RF} = 3.2 \times 10^{- 6}$ W, the conversion efficiency is 0.1 (of 4 sinewaves) as compared to 0.075 (of 2 sinewaves).

Discussion

In this section, we discuss the impacts of the results. By experimenting with prototypes, Clerckx and Kim⁵ had proven that transmitting multi-sinewaves with center frequencies that were equally spaced out could enhance the RF-to-DC conversion efficiency. Nevertheless, an analytical expression that relates the attained gain to the wave diversity remains absent. The analysis presented in this paper not only fills this gap, but may also benefit the experiments of wireless power transfer that are based on hardware, e.g. using a microwave transmitter to wirelessly power up a LED.³ They can experiment with the antenna diversity and wave diversity that have been theoretically proven effective.

Nevertheless, the analysis presented here has not considered the separation distance between the M transmitting antennas. Taking into account of this factor could provide a more comprehensive analysis on the effects of beamforming.^1,2 This is especially important in the context of massive wireless power transfer,¹ where a large number of IoT devices are targeted.

Conclusions

Wireless power transfer benefits from transmit diversity, be it antenna diversity or wave diversity. The objective of this paper is to express the RF-to-DC energy conversion efficiency as a function of the transmit diversity. Such a mathematical expression was not available previously. This paper contributes an analytical expression that relates the diversity gain and conversion efficiency to the number of simultaneous sinewaves with center frequencies that are equally spaced. Our next step is to investigate the wave diversity gain of beamforming antennas.

Author contributions

Y.-L. Foo designs the research, constructs the computer program, conducts the experiment, reports and discusses the findings.

Data availability

https://doi.org/10.17605/OSF.IO/K9ZNU

Open Science Framework: Wireless Power Transfer, https://doi.org/10.17605/OSF.IO/39SJV.⁸

The project contains the following underlying data:

- Data.txt

Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).
