Research Article

Mixed confine fusion experiment, evidence of feasibility of confinement

[version 1; peer review: 2 approved with reservations]
PUBLISHED 25 Aug 2023
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

Abstract

Background: In 2022 3rd International Conference on Materials, Physics and Computers (MPC 2022), a promising fusion theory called Mixed confine fusion (MCF) was proposed. The limitation of that work was that no experiment was carried out to prove the feasibility.
Methods: In order to provide more powerful evidence of feasibility of MCF, in this work, an experiment comparing properties of plasma under and without a MCF confinement provided by two groups of electrical magnets generating 30mT magnetic field is presented.
Results: The result shows that the product of ion density and temperature under Lawson criterion increased 46 times, from 2.3081*1014m-3 and 39.3496eV to 3.9803*1015m-3 and 105.1625eV.
Conclusions: The results suggest that hotter and dense plasma exists in the center of the chamber, which means all particles received a force towards the center of the chamber. This result provides confirming evidence that MCF can provide a confinement to plasma.

Keywords

nuclear fusion, plasma physics, mixed confine fusion

Introduction

Nuclear fusion occurs with a huge amount of energy released. In order to use fusion energy as an energy supplier, thermonuclear fusion is used, which requires devices confining hot plasma. It seems that limitations exist in all kinds of fusion devices. For example, pressure produced on the coils is observed in almost all kinds of fusion devices using magnetic field as a driver, such as Tokamak, which was proposed by USSR scientist G.G.Dolgov-Saveliev.1,2 A much higher standard of material for the wall exists in other devices using inertia as the driver in inertial confinement fusion (ICF), which uses the method of very rapidly heating and compressing small pellets of suitable fuel.3 Lasers are used as drivers in ICF. This method causes the first wall to be exposed to more X-ray and debris meaning the wall must be made using a higher standard of material.4 Other fusion device using both magnetic field and inertia as the drivers of confinement like Magneto-internal fusion (MIF), have been designed using magnetic field to confine a low density plasma and then lasers are used, compressing the hot plasma until fusion occurs.5 Laser is used as the main driver to achieve fusion. Magnetized laser fusion, a liner which is a tube magnetically imploded is contained and used to heat and compress to achieve the condition of fusion,6 suffer both of the limitations mentioned in tokamak and ICF.

Mixed confine fusion (MCF), is a promising method of confining plasma proposed in the 2022 3rd International Conference on Materials, Physics and Computers (MPC 2022), is mainly about confining fusion plasma with a high speed change of three perpendicular magnetic field, using both magnetic field and inertia as drivers, in which some limitations might be avoided. Different from MIF, MCF uses magnetic field in the final stage to achieve fusion. As a consequence of this method not only does no extra laser need to be used, but in addition, the magnets are all used periodically, which causes a lower average pressure per time of the magnets as an interval of rest is produced. This allows for a much lower standard of electric magnet is required. Different from other devices using both magnetic field and inertia as drivers, in MCF, these two drivers are used equally, while in MIF magnetized laser fusion laser is the main driver to achieve fusion and magnetic field is used for initial confinement.5 MCF is considered as having some advantages comparing with Tokamak. It is shown with a simulated model (used in a previous study by the author) that there is no force exist in the center of the model, leading to a suitable distribution of energy for plasma confinement.7 At the same time, the limitation of the MCF method is that the ability of confinement of plasma is much weaker when compared with Tokamak is shown as the overall energy difference between the edge of the model and the center, which is considered as the cause of force of confinement, is much smaller than Tokamak in similar conditions.7

However, in my last work,7 the feasibility of MCF was only proved with a simulation. No experiment was conducted. In this work, an experiment using a device based on the MCF theory is going to be introduced with the relationship between confinement ability and two variables, frequency of changing field and magnetic field strength.

Methods

An experiment was conducted to determine the correlations between magnetic field intensity, frequency, and confinement ability. As depicted in Figure 1, the device may be broken down into three basic components: a plasma generator, a MCF confinement system, and a single Langmuir probe.


Figure 1. Image of the design of the device.

Plasma generator

A hand-made circle-shaped tungsten cathode using 0.3 mm diameter tungsten stick with 6mm diameter is connected to a 100 kV high-power voltage supply brought from e-commerce platform Taobao which produced a 100 kV potential difference between the cathode and annular brass anode with a 6mm nuzzle. The current in this circuit can be ignored since it is smaller than 1mA, maximal power of the voltage supplier is 16W. Ambient air is used in the experiment, so it is expected that the plasma is mainly made by nitrogen. The experiment’s gas pressure is 13.3 ± 0.2 pa, measured by MKS 901P, with the usage of Edwards Rv3 vacuum pump. The pressure is controlled by adjusting a valve so that the rate of air entering the chamber is equal to the rate of air pumped out of the chamber.

MCF confinement system

Water-cooling coils are used to generate magnetic field needed in this experiment. Every coil has about 2000 turns and is powered by a 30 V laboratory power supply, MP6020D from MAISHENG, with the usage of a hall probe, approximately 30mT magnetic field is measured to be generated. The current in coil is about 10A as supplied by the power supply.

The Langmuir probe

The 4mm of the Langmuir probe’s tungsten stick that is exposed to the plasma has a radius of 0.125 mm and is coated in a shell made of 3D-printed photosensitive resin, which is used to ensure the area the probe exposed to the plasma is constant all the time, this shell can be replaced by any insulated shell, the replacement would not be considered as an influential factor of the result measured, since the shell is so thin that its influence can be ignored. The accuracy of the ammeter brought from e-commerce platform Taobao used to measure current in the probe circuit is 10 nA. Every reading that is recorded. The voltage supplied across the probe and chamber are at a range of 0-60 V by MS-602DS from MAISHENG.

Camera

A camera brought from e-commerce platform Taobao was used to find out the external physical characters of the plasma. A pancratic lens with the focal length changing between 12 mm to 120 mm is used. The photo was taken only when a 60 V potential difference is provided across the Langmuir probe, as plasma would be in that state of electron saturation, when plasma would be brighter so that it is much easier to distinguish the edge of the plasma.

Methodology

The gas pressure is adjusted by adjusting the valve controlling rate of gas entering into the chamber, after that, high voltage supplier is turned on so that plasma is generated by the plasma source. The voltage across Langmuir probe and chamber is adjusted with different values between 0 V and 60 V. Current readings with a voltage interval of 2.5 V were recorded when the voltage is between 0 V and 10 V, voltage intervals were about 5 V when voltage was between 10 V and 60 V. The interval is not strictly equal to 5 V as a result of that the probe voltage output by the supplier is adjusted by human, considering the method of analysis using, this is not considered to cause an influence of the results. This process is repeated measuring the properties of plasma with no MCF confinement and under a MCF confinement. Pressure is kept constant so that the plasma generated by the source has its property constant all the time. Reading of accurate ampere meter is recorded.

Result and discussion

Readings of Langmuir is record and a graph of probe current and voltage is plotted, shown as Figure 2A and Figure 2B.10

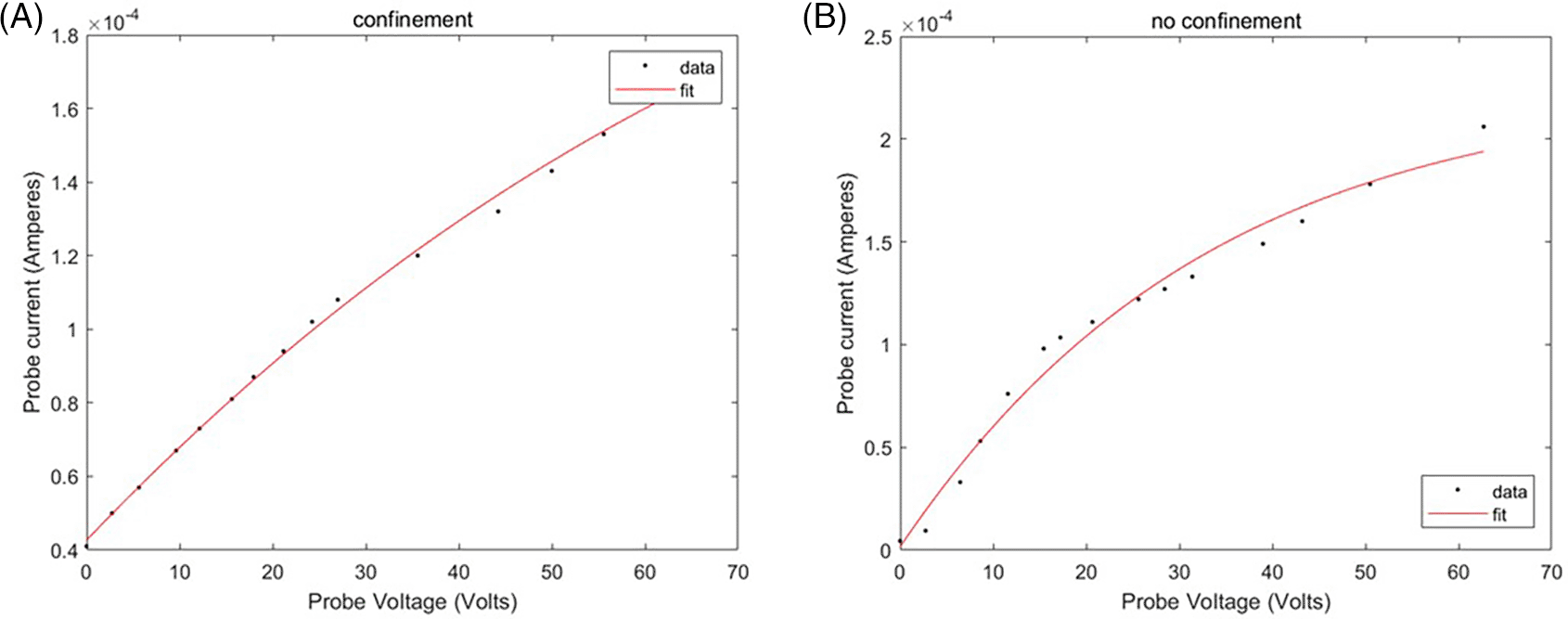

Figure 2. (A) Probe current against probe voltage of plasma under a mixed confine fusion (MCF) confinement. (B) Probe current against probe voltage of plasma with no MCF confinement.

Second derivative of probe current against probe voltage is shown as Figure 3A and Figure 3B.10

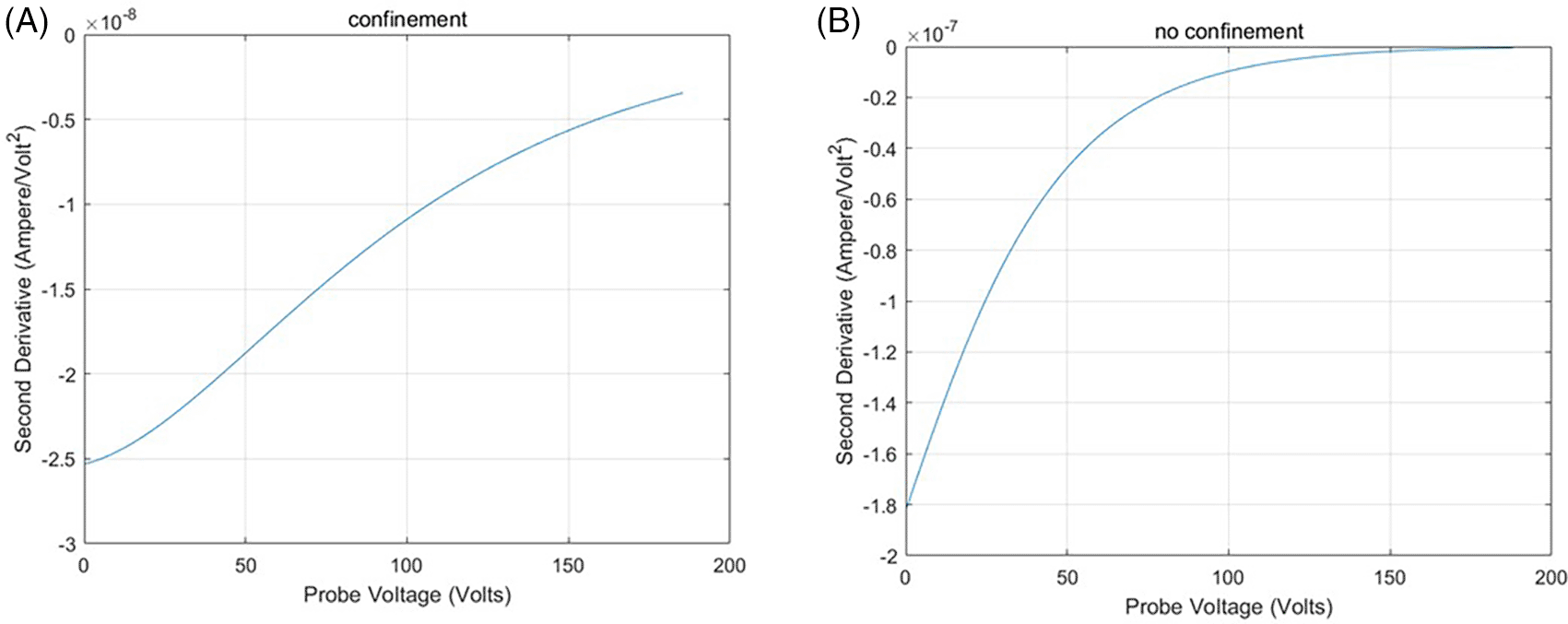

Figure 3. (A) Second derivative of probe current against probe voltage under a mixed confine fusion (MCF) confinement. (B) Second derivative of probe current against probe voltage with no MCF confinement.

Prof. Azooz’s MATLAB program8 is used to analysis the data collected authors may be able to reproduce this analysis using open-source alternatives like Python or GNU Octave. With the usage of Prof. Azooz’s MATLAB program,8 with the output of ion density and electron temperature generated, the property of plasma in two situations is shown, it is found that plasma with no MCF confinement has ion density and electron temperature of 2.3081*1014 m-3 and 39.3496 eV respectively. When plasma is under an MCF confinement, its ion density and electron temperature increased to 3.9803*1015 m-3 and 105.1625 eV. This software is chosen because the input it requires, i.e. current and voltage readings across the Langmuir probe is identical to what is recorded in this experiment. After the data is inputted into the program, it would find out the best parameters from a1 to a4, that make the equation, equation 1.8 fit the data.

(1)
I=expa1tanhV+a2/a3+a4

Then the result is generated within the usage of this fitted equation.

The ion saturation current is calculated with equation 2.8

(2)
Iion=H×expa1tanhVmin+a2/a3+a4

Where H is the maxima number of I in the data inputted, V min is the minima number of V inputted.

Plasma potential can be calculated with equation 3.8

(3)
Vp=a3×atanh1+a1^2^0.51/a1a2

Vector VV in increments of 3 is created with equation 4.8

(4)
VV=2×Vmin:0.1:3×Vmax

where Vmax is the maxima number of voltage input.

Vector t in increments of 3 is created with equation 5.8

(5)
t=Vp:0.1:3×maxVV

Electron temperature T can be calculated with equation 6.8

(6)
T=23×trapzEE.×f÷trapztf

Where trapz(X,Y) integrates Y with respect to the coordinates or scalar spacing specified by X, E =t-Vp.

Ion density can be calculated with equation 7.8

(7)
Ni=Iion÷0.52×Area×e1.5×MiT0.5

Where Mi is the mass of ions in kg, in this work, it is assumed only Nitrogen ion is considered, so Mi is chosen as 2.32489449*10-26 kg.

In order to find out the properties of plasma under a MCF confinement, Lawson’s criterion of product of ion density, ion temperature and energy confinement time is considered in this work.9 In order to find out the promotion, some assumptions are made. First, it is assumed the energy confinement time of plasma in all conditions are the same, as a consequence of usage of same plasma generator. Influence on energy confinement time caused by magnetic field confinement is ignored as it is too small and hard to measure. Second, it is also assumed that the plasma is under thermionic mode, i.e. ion has same temperature electrons, this assumption is made as a result of only electron temperature can be measured with Prof. Azooz’s program. After making these assumptions, the property of promotion of fusion efficiency can be written as equation 8.

(8)
p=nicTecnincTenc

Where nic and Tec are ion density and electron temperature under MCF confinement, ninc and Tenc are ion density and electron temperature with no MCF confinement.

In this work, it is found that p = 46.0880. Lawson’s criterion is used to evaluate fusion rate in fusion devices, p >1 means with the MCF magnetic field, a higher fusion rate existed, which provides evidence that MCF magnetic field provides a positive influence on fusion rate, i.e. evidence that the feasibility of using MCF as a fusion device. More dense and hotter plasma is found in the center of the chamber, as a consequence of that all particles in the plasma experienced a force towards the center of the chamber, due to MCF confinement. This is considered evidence of feasibility of confinement of MCF theory.

More evidence is found through the image shot with the camera, shown as Figure 4.


Figure 4. Image of plasma under a mixed confine fusion (MCF) confinement.

In Figure 4, it can be seen that a plasma sphere is confined by magnetic field. The sphere-shaped plasma fits the simulation of magnetic field in my previous work, i.e. the magnetic field energy is expected to be independent to direction,7 which produces a centripetal force on the particles, so that the plasma is expected to have a spheroidal shape.

Conclusions

In this work, an experiment it made to prove the feasibility of plasma confinement of MCF theory. It is found that the property of plasma under Lawson’s criterion is increased 46 times. This produces compelling evidence that MCF magnetic field can provide a confinement to plasma. Drawbacks of this study included the limited magnetic field and chamber size existed. It is suggested in further study, a larger chamber and a greater magnetic field should be used.
