Butterfly eyespots exhibit unique patterns of open chromatin

Open chromatin varies between eyespot and non-eyespot regions

To identify region-specific open chromatin, we first identified ATAC-Seq peaks that were consistently present across biological replicates of each wing region, and then added them across wing regions. A total of 166,062 peaks were identified across the three wing regions. Differentially open (DO) peaks between eyespot and control regions were identified by pairwise comparisons, as described in Murugesan et al. (2022). A comparison of eyespots with a non-eyespot sector region (NES1) in a more proximal part of the wing identified 562 peaks (397 + 165) that were DO in NES1, and these 562 peaks mapped to the vicinity of 506 genes (Figure 1B, Data S1). Similarly, a comparison of eyespots with a second non-eyespot sector region (NES2), in a more anterior part of the wing, identified 785 peaks (619 + 1 + 165) that were DO in NES2, and these peaks mapped to 647 genes (Figure 1B, Data S1). A comparison of eyespots with the two non-eyespot sector regions (NES1 and NES2) identified 82 eyespot-specific DO peaks that mapped to 80 genes (Figure 1B, 1C, Figure S1: Murugesan and Monteiro, 2023, Data S1). These data indicate that multiple distinct patterns of open chromatin are present across B. anynana 3 h old pupal forewings. Furthermore, only some of these patterns resemble the pattern of peaks obtained from ATAC-Seq performed on whole-wings of the same age (Figure 1C, Data S1).

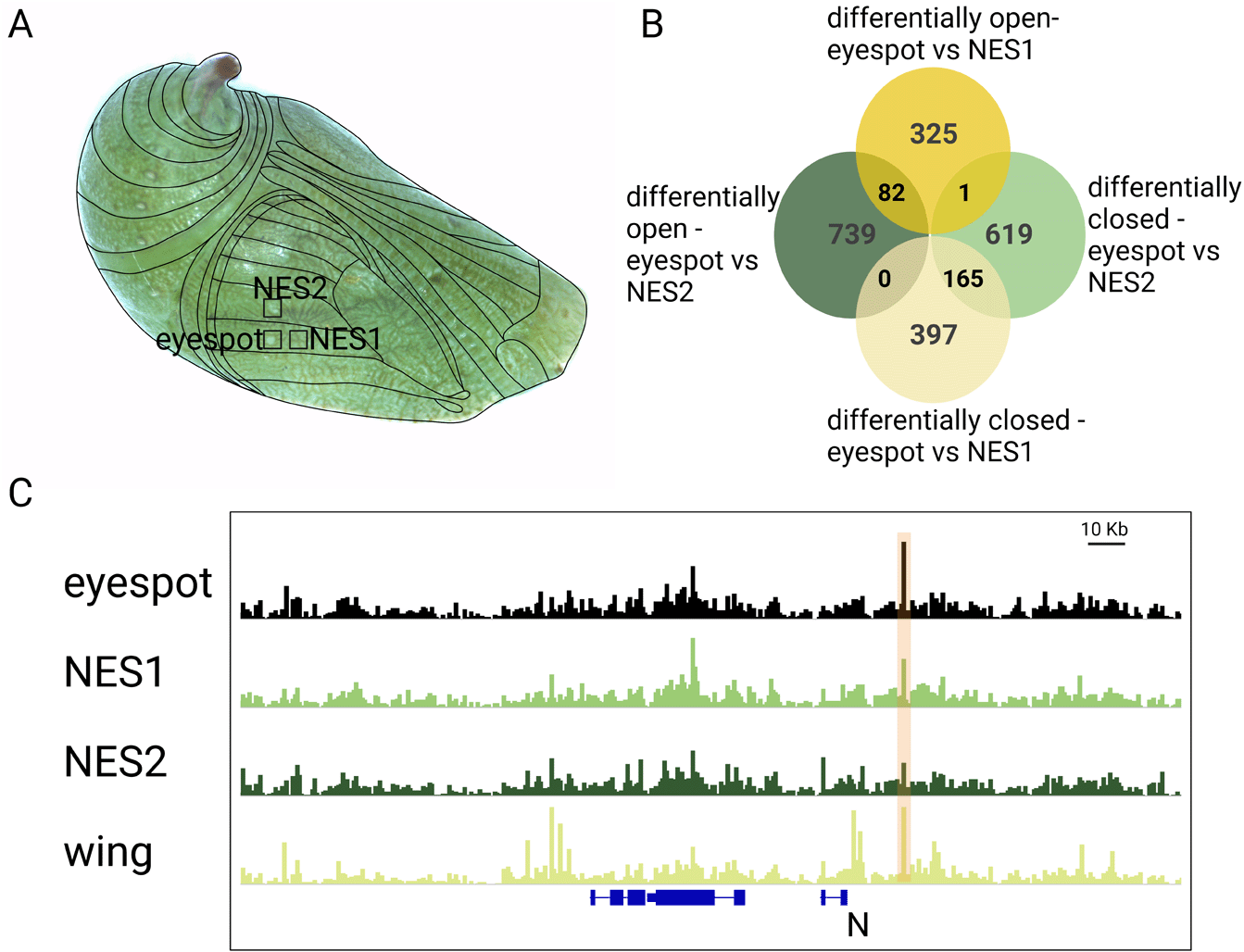

Figure 1. Differential chromatin accessibility between eyespots, control tissues, and whole wing.

(A) Tissues chosen for the study were the eyespot region and two flanking control tissues (NES1 and NES2). (B) Number of peaks differentially open between different comparisons (differentially open- peaks are open in eyespot compared to NES1 or NES2 sector. Differentially closed – closed in eyespot and open in NES1 or NES2). (C) Example of an ATAC-peak next to the gene Notch that was DO in the eyespot region. Note how this peak was shown as open across the whole wing as well.

Motif enrichment in open chromatin

Open areas of chromatin often have specific genomic signatures/binding sites for pioneer TFs and for secondary TFs that have bound or will bind these regions in the future (Galupa et al. 2023). To examine whether specific DNA motifs were enriched in DO peaks we performed motif enrichment analysis. We identified nine motifs that were enriched in the 82 eyespot-specific ATAC-Seq peaks. Binding site motifs for the transcriptional regulator for the Notch signalling pathway Su(H) (present in 14.63% of the motifs identified), Adh transcription factor 1 (Adf1) (3.66%), pair-rule gene Runt (Run) (23.17%), Nubbin (Nub) (6.10%), gap genes Giant (Gt) (34.15%), Buttonhead (Btd) (19.51%), and Krüppel (Kr) (3.66%), Smad TF Medea (Med) (14.63%) and POL009.1_DCE_S_II (2.44%) were among the top enriched motifs (p-value < 0.01) in eyespot-specific peaks (Figure 2, Figure S2: Murugesan and Monteiro, 2023). In the more proximal NES1 wing region, we found 22 motifs that were enriched in the 562 DO peaks of this wing region (Figure S3: Murugesan and Monteiro, 2023). These motifs included binding sites for Pioneer factor Grainy-head (Grh), and TFs involved in the ecdysone signalling pathways such as Ultraspiracle (Usp), Broad (Br), and Hormone receptor-like in 46 (Hr46) (Figure S3: Murugesan and Monteiro, 2023). Similarly, 24 TF binding motifs were enriched in the 785 DO peaks of the more anterior NES2 wing region, with motifs for Hr46, Nubbin (Nub), Odd-skipped (odd), paired (Prd), Toll (Tll) being the most enriched (Figure S4: Murugesan and Monteiro, 2023). 10 TFs motifs were enriched in both NES1 and NES2 DO peaks, relative to eyespots, including Br, Hr46, Pangolin (Pan), and Dorsal (Dl) (Figures S3, S4: Murugesan and Monteiro, 2023).

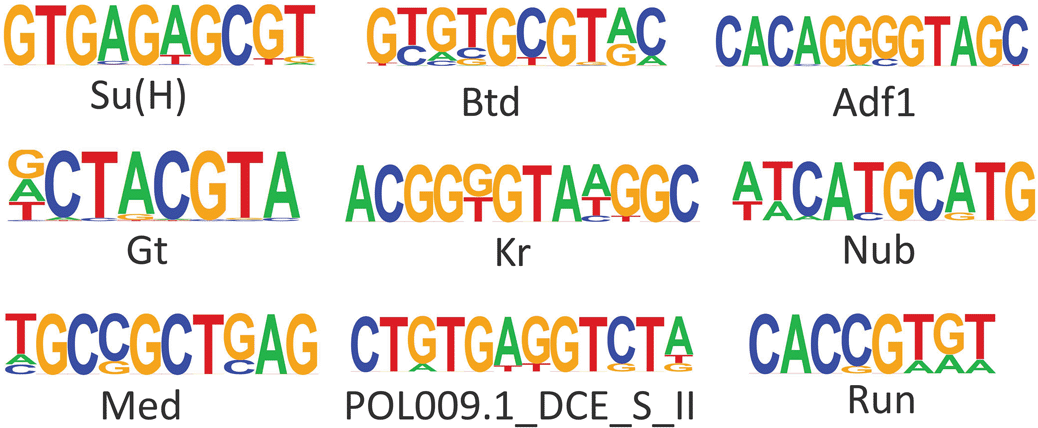

Figure 2. TF Motifs enriched for the eyespot-specific DO peaks.

Suppressor of Hairless (Su(H)), Buttonhead (Btd), Adh transcription factor 1 (Adf1), Giant (Gt), Krüppel (Kr), Nubbin (Nub), Medea (Med), DCE_S_II predicted from JASPAR database, Runt (Run).

Annotation and gene ontology for ATAC peaks

In order to identify a potential functional role for the genes in the vicinity of all the identified open chromatin regions, we performed an ontology analysis with those genes. The 166,062 peaks were first annotated for their position in the genome as part of promoters, distal intergenic sequences, or UTRs to nearby genes. More than 50% of the peaks were in distal intergenic regions and around 25% of the regions fell in promoter regions (Figure S5: Murugesan and Monteiro, 2023). Molecular pathways involved in wound-healing, cell differentiation, cell-cell signalling, and SMAD signal transduction were over-represented in the 80 genes found in the vicinity of the 82 eyespot-specific DO peaks (Figure 3B).

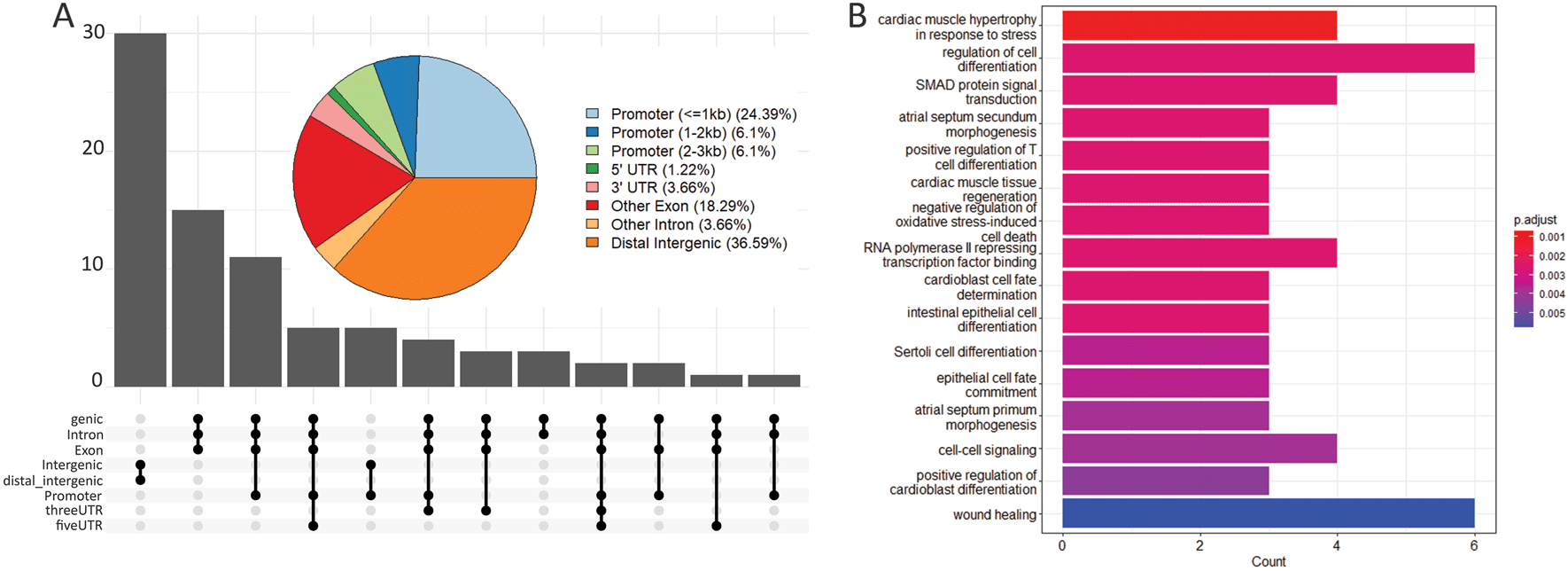

Figure 3. Annotation and GO enrichment for eyespot-specific DO peaks in B. anynana.

(A) Pie chart and upset plot showing the percentage of the 82 eyespot-specific DO peaks that fall in distinct regions of the genome relative to nearby genes. This includes promoters, distal intergenic regions and UTRs. The maximum number of peaks falls in distal-intergenic and intergenic regions (36.59%). (B) Gene ontology for the 80 genes in the vicinity of the 82 eyespot-specific DO peaks.

Motifs of Notch signalling TF-enriched in eyespot peaks

Eyespots DO peaks were enriched for Su(H) motifs. Su(H) is a transcription cofactor of the Notch signalling pathway (Baonza and Garcia-Bellido 2000; Bray and Furriols 2001), which can act as a repressor in the absence of Notch signalling (Bray and Furriols 2001; Larson et al. 2021). Notch signalling is activated by the presence of the ligand (Notch) (Baonza and Garcia-Bellido 2000; Bray and Furriols 2001). This pathway is likely active in eyespots as N shows an eyespot-specific DO peak (Figure 1C, Data S1) and is expressed in the eyespot centers of B. anynana as well as other nymphalid butterfly species (Oliver et al. 2012; Reed and Serfas 2004). N is also one of the four genes whose novel expression in the eyespot centers coincides with the origin of butterfly eyespots at the base of the nymphalids (Oliver et al. 2012; Monteiro 2015). The relative temporal expression of N and Distal-less (Dll) proteins in larval wings, indicated that Notch signalling precedes Dll expression in the eyespot centers (Reed and Serfas 2004). Dll is an essential gene in eyespot development (Connahs et al. 2019), but the role of N in eyespot development is not yet known. We propose that eyespot origins might be connected with a region-specific modification of chromatin accessibilities involving Su(H), essential for Notch signalling, in the eyespot regions of the wing.

Eyespot DO peaks enriched for gap genes motifs

Motifs for the gap gene Btd, which belongs to the family of Sp genes, were also enriched in the eyespot-specific open peaks. Ectopic expression of btd in dorsal imaginal discs of Drosophila (wings, haltere and eyes) led to the formation of ventral structures (antenna and legs) through local activation of segment polarity genes engrailed (en) and wingless (wg) as well as decapentaplegic (dpp) (Estella et al. 2003). Eyespots may be reusing this ancestral limb network, because they also express en, wg and dpp at their centers (Keys et al. 1999; Monteiro et al. 2006; Özsu et al. 2017; Banerjee et al. 2022). As we haven’t observed any differential expression of btd in eyespots compared to NSE1 and NSE2 wing tissues (Murugesan et al. 2022; Özsu and Monteiro 2017), further expression analysis with in situ probes is required to test the expression of this gene in eyespots at earlier stages of development. Functional analysis should also test its potential role in eyespot development.

Two other gap genes, Kr and Gt, showed enrichment for eyespot-specific open chromatin regions. Kr acts as a downstream target gene in Notch-mediated cell differentiation in Malpighian tubules (MT) in Drosophila (Hoch and Jäckle 1998). Homologs of Kr in humans are called Krüppel-like factors (KLFs), and are involved in various cellular mechanisms along with Sp1-like proteins. KLF4 in humans is one of the pioneer factors that regulates cellular division, proliferation and differentiation (Borisova et al. 2022; Farrugia et al. 2016; Kaczynski, Cook, and Urrutia 2003). KLF4 along with Sox2, Oct4 and Nanog are essential for maintaining stem cell properties and their activation in somatic cells enables induced pluripotency (Liu et al. 2020). The enrichment of Kr in eyespot-specific peaks suggests that Kr could likely act as a potential pioneer factor under the influence of Notch signalling to open the eyespot peaks.

Gt is a gap gene that when disrupted shows broad regions of the body missing as well as segmentation defects (Bucher and Klingler 2004; Brent et al. 2007). Gt and Kr are expressed in a complementary non-overlapping manner in early Drosophila embryos, mutually repressing each other (Kraut and Levine 1991). It would be interesting to investigate the expression pattern of both genes in and around the eyespots in future.

In addition, TFs Nub and Med motifs were also enriched in eyespot-specific open peaks. Nub belongs to a POU-family of TFs. It is expressed in early wing primordium and is required for proximal-distal patterning of wings in Drosophila (Ng, Diaz-benjumea, and Cohen 1995; Zirin and Mann 2007). Med is a genetic modifier of Dpp signalling. It regulates wing patterning along the anterior-posterior axis through binding with the selector gene scalloped (sd) in Drosophila (Guss et al. 2001). The function of these TFs in eyespot development should be investigated in future.

Given the importance of ecdysone signalling and the presence of its receptor Ecdysone receptor (EcR) in eyespot centers, we looked for enrichment of EcR and other ecdysone signalling transcription factors that may play important roles in shaping the chromatin dynamics in the eyespot centers, compared to control tissues. However, we didn’t see any motif enrichment for EcR or other ecdysone TFs. For a long time, EcR has been thought to be a pioneer factor responding to ecdysone signalling and changing chromatin architecture (Uyehara and McKay 2019). Recent research in Drosophila wings and salivary glands, however, showed that EcR binds opportunistically to chromatin previously opened by tissue-specific pioneer factors, in particular Forkhead and Grainyhead (Uyehara et al. 2022). Also, in Junonia coenia butterflies, Spineless binding sites were enriched in chromatin peaks that were dynamically opening during wing metamorphosis, whereas EcR binding sites were only enriched in persistently open sites throughout development (van der Burg et al. 2019). These data point to EcR not being a pioneer factor for wing development. However, this needs to be further tested, as here we picked a single developmental stage, 3 h after pupation, before a large surge in 20E titers. Analysis of chromatin peaks right after this surge, not examined here, could have distinct motif enrichments, including those for EcR.

Ecdysone signalling gene showing eyespot specific DO peaks

Hormone receptor-like 39 (Hr39) also showed eyespot-specific chromatin accessibilities (Figure S1: Murugesan and Monteiro, 2023). Hr39 is an orphan nuclear hormone receptor considered as a master regulator with a conserved role in female reproductive glands and secretive tissues in animals (Cattenoz et al. 2016; Praggastis et al. 2021). Hr39 is also a downstream canonical ecdysone response gene likely regulated through the EcR in wings (Uyehara and McKay 2019). Many butterfly eyespots express EcR at their center, and in B. anynana the expression of EcR in eyespot centers is tightly controlled by the ecdysone signalling pulse (Monteiro et al. 2015). The evolution of eyespots in nymphalid butterflies is also coincident with the novel expression of EcR in the eyespot centers (Bhardwaj et al. 2020). The enrichment of Hr39 binding sites in the open chromatin peaks specific to eyespot tissue could have facilitated ecdysone signalling in the eyespot centers and eyespot origins.

In summary, eyespot regions of the wing had areas of open chromatin that had an enrichment of DNA motifs recognized by a potential pioneer factor like Kr, as well as several other TFs. Some of these TFs have previously been suggested to be involved in eyespot development. Others should be examined in the future, including Kr.

Eyespot-specific peaks map to genes involved in wound healing

To test if the genes next to the eyespot-specific open peaks were involved in any of the previously proposed signalling or molecular pathways involved in eyespot development, we performed gene ontology analysis. We found that wound healing is one of the significantly enriched gene ontologies along with SMAD signal transduction, cell-cell signalling and cell differentiation (Figure 3).

Previous work on eyespot DE genes using RNA-Seq highlighted many genes involved in wound-healing mechanisms (Özsu and Monteiro 2017), including Notch signalling (Vizcaya-Molina et al. 2018). Piercing pupal wings produces ectopic eyespots and activates genes involved in eyespot development in the wounded region (Monteiro et al. 2006), suggesting that eyespot and wound healing GRNs share common genes and regulatory elements. In our previous work, we identified two ATAC-Seq peaks next to Distal-less and spalt that were open in eyespots, whole wings, as well as wounded wings (Murugesan et al. 2022). The extent that additional genes and regulatory elements are shared between eyespots and wound healing needs to be further explored to understand how these two GRNs are related.

SMAD signal transduction was also enriched in our gene ontology analysis. SMAD proteins are the intracellular mediators of both Dpp and Wnt signalling (Wrana and Attisano 2000), and both Smad2 and Smad6 are differentially expressed in the eyespot centers (Murugesan et al. 2022). Furthermore, both Dpp and Wingless are potential morphogens involved in eyespot development, and CRISPR knockout of both genes led to the loss of eyespots (Banerjee et al. 2022).

We propose that co-option of pre-existing GRNs, such as the limb GRN (Murugesan et al. 2022) and/or the wound healing GRN (Özsu and Monteiro 2017) to the novel location where eyespots develop was potentially mediated via the generation of a novel eyespot-specific open chromatin region next to a top-regulator of the network. This would allow that top regulator to have a novel activity in a novel domain of the body of the butterfly. Any of the eighty genes with DO chromatin identified in this study might be such a top regulator. Furthermore, we propose that Kr, the only confirmed pioneer factor whose binding sites were enriched in the eyespot-specific open chromatin, is a good candidate for mediating these eyespot-specific patterns of open chromatin.

Overall, our study shows that eyespots show differential chromatin accessibility compared to two other nearby wing regions. Eyespot-specific accessibility peaks are enriched for motifs and gene ontology corresponding to many of the genes and pathways previously proposed to be involved in eyespot development. This clearly demonstrates that chromatin accessibility varies across the wing, and with specific wing patterns in B. anynana butterflies.

Limitations of the study

The main limitation of this study lies in the tissue collection method adopted to distinguish eyespot from non-eyespot cells. Though we were able to capture differences in chromatin accessibilities between the different sections of the wings, dissections of eyespot tissues contain non-eyespot cells which might hinder the precision in identifying the ATAC peaks corresponding to eyespot cells alone. One way to overcome this limitation in future is to use single-cell sequencing approaches, and eyespot-specific marker genes, to study ATAC-peaks only on those marker-expressing candidate cells.

ATAC-Seq Library preparation

ATAC-Seq was performed for the tissues as described in Murugesan et al. (2022). Two replicates were made for the eyespot-specific sector and three replicates for each control sector. Eyespot dataset was taken from Murugesan et al. (2022). The control tissues NES1 and NES2 were from the same forewings as eyespot tissues dissected around 3 h to 6 h after pupation. We dissected as many tissues as possible within 15 minutes, and then snap-froze them using liquid nitrogen. Tissues were stored at -80°C before nuclei extraction. We pooled 50 wing bits from the same wing area to produce a single biological replicate, which contained approximately 80,000 nuclei. Prepared libraries were sequenced using Novoseq 6000, with an average read depth of 30 million reads per library and 2×50 bp paired-end at Novogene, Singapore. We also used 3 h pupal whole wing data from Murugesan et al. (2022) as a control dataset for the peaks identified from micro dissections.

ATAC-Seq analysis

ATAC-Seq analysis was carried out as described in Murugesan et al. (2022) with few modifications. Reads obtained from the sequencing were processed using bbduk scripts from bbmap tools (Bushnell 2014) to remove any adapters. Reads were mapped to Bicyclus anynana genome, version BaGv2 (Murugesan et al. 2022) using bowtie. Reads mapped to the mitochondrial genome and marked for duplicates were removed using samtools idxstats and GATK MarkDuplicates respectively. Peak calling was done using Fseq (Boyle et al. 2008). Consensus peaks for all samples were obtained using bedtools intersect, followed by bedtools merge with peaks within 50 bp distance from each other resulting in a total of 166,062 peaks. The consensus peaks were used for all downstream analyses. FRiP score was used to measure the fraction of reads mapped to the genome falling into peaks. Our ATAC-Seq data showed a median FRiP score of 0.41 which is greater than the ENCODE standard (>0.3) (Table 1). Deeptools (Ramírez et al. 2014) were used to measure the correlation between replicates and quality of the ATAC-Seq data. A read count matrix was produced corresponding to the consensus peaks for the libraries using Featurecount from Subread tools (Liao, Smyth, and Shi 2014). Differential peak analysis was performed using DESeq2 (Love, Huber, and Anders 2014) and the peaks were considered differentially accessible with a p-value < 0.05. Peaks were called differentially open (DO) if their logFC > 0 and p-value ≤ 0.05. Quality check for the ATAC data was done using Deeptools (Figure S6: Murugesan and Monteiro, 2023).

ATAC-peaks annotation

Consensus ATAC peaks and subset of peaks obtained from the differential peaks were all annotated using the R package ChiPseeker (Bushnell 2014). The gene annotation gff file for BaGv2 genome version was loaded into the pipeline using GenomicFeatures (Lawrence et al. 2013) library and was used to locate the position of peaks in the genome with respect to the gene structures. Promoters were defined as peaks 3000 bp upstream and downstream of the gene’s transcription start site. The distal-intergenic peaks are mapped to genes which are within 300 Kb from the transcription start site (Data S1)

Gene ontology for differential ATAC peaks

Genes corresponding to the differential peaks were obtained from the ChiPseeker annotation. Gene ontology was carried out as described in Murugesan et al. (2022). Gene ontology for the BaGv2 genome was obtained from Interproscan (Jones et al. 2014). ClusterProfiler package (Wu et al. 2021) in R was used to identify the enriched gene ontology for the given gene lists.

Motif enrichment analysis

Homer findMotifsGenome.pl (Heinz et al. 2010) was used to identify enriched motifs in differentially accessible regions identified from DESEq2. Bed files for the peaks of interest were produced. BaGv2 genome was incorporated into Homer to run locally. Transcription factor binding motifs were searched just within the peaks’ exact sizes, with GC normalization for the background sequences and in insect databases in Homer.
