Evaluation of marginal and internal fit of metal crowns made from wax patterns made by conventional technique and CAD CAM milling technique: An in vivo study

Background/rationale

Lost wax casting technique is used widely in dentistry for production of restoration. The technique involves the production of a wax pattern for required extra coronal restoration over the master cast, which is then invested in a heat-proof investment material. The invested pattern is subjected to a high temperature in a furnace. This eliminates the wax pattern and a mould cavity is created within the investment material. This mould cavity is later filled with liquid molten metal (alloy) which takes up the shape of the required restoration. The accuracy of the wax pattern completely depends on the technician’s skill in manual method. It is a laborious process, and the quality of wax pattern depends on the person performing it. Because the wax is glossy, it can be challenging to spot small flaws during the manual production process when the wax pattern is being removed from the die. Dental crowns can be successful or unsuccessful depending on a variety of factors, including how precisely the crown is fitted and seated.¹

Clinical acceptability and the success of dental restorations depend heavily on the dental crown prosthesis’s internal fit and small marginal gaps. A dental crown with flawed margins can cause a series of issues, including food build up, gingival inflammation, dental caries and ultimately failure of the crown and tooth.²

According to some studies, the marginal gap must be less than 120 μm, while 150 μm is clinically accepted.³ Marginal fit is made up of two components: absolute marginal discrepancy⁴ and marginal discrepancy, where absolute marginal discrepancy is the misfit between the restoration and the prepared tooth in both the vertical and horizontal directions. Absolute marginal discrepancy is the difference between the axial wall of the prepared tooth and the internal surface of the casting at the margin. The axial and occlusal cement thickness make up the internal fit,^5,6 and the luting cement’s internal distribution determines the dental restoration’s stability and retention.⁷

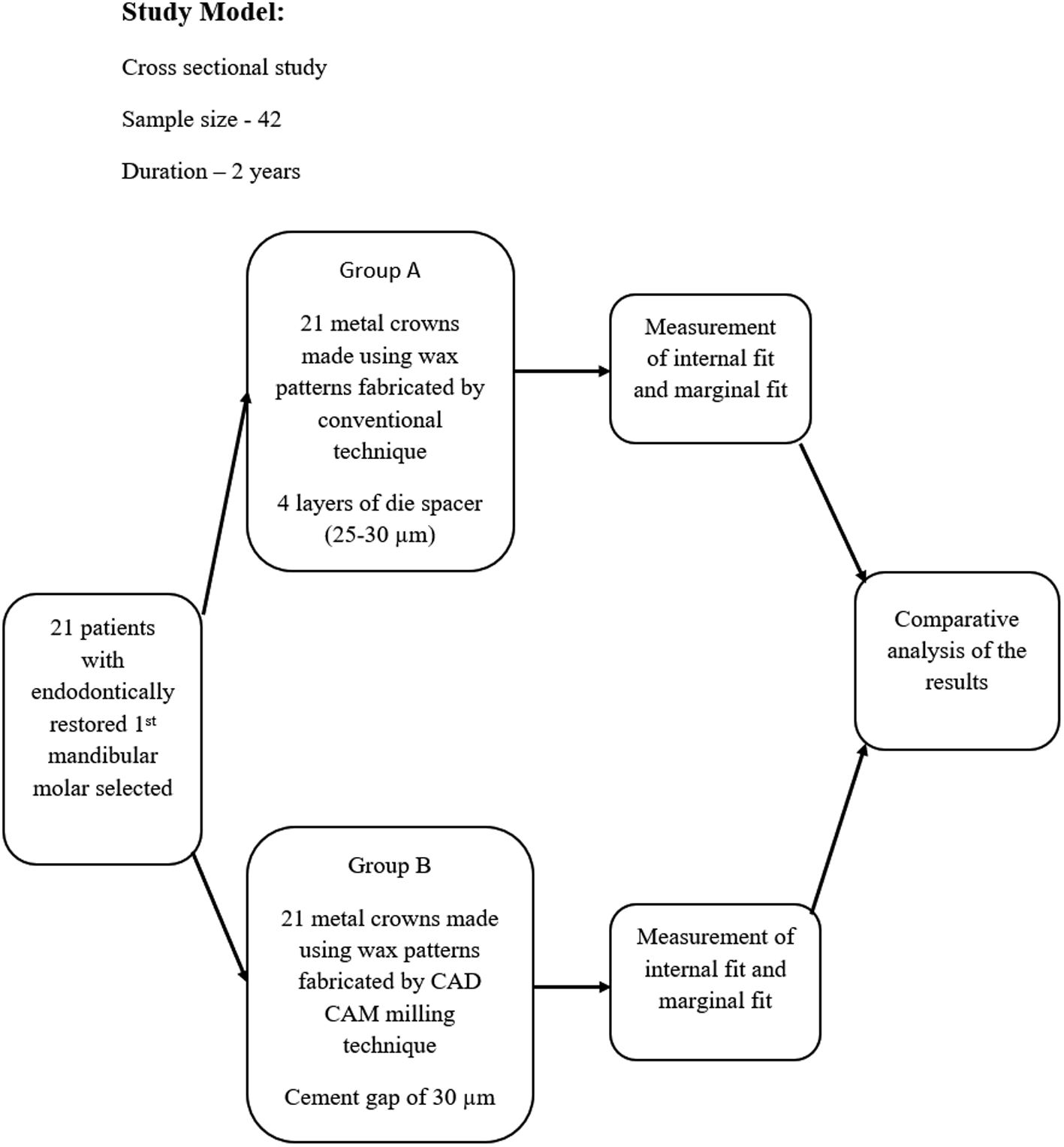

The purpose of this study is to evaluate the fit of metal crowns produced from wax patterns that were formed by two different wax pattern fabrication procedures: conventional wax pattern fabrication and wax pattern milled by computer-aided design and manufacture (CAD CAM) method. This study was motivated by the importance of marginal and internal fits and the need for research into the accuracy of new digital technologies in wax pattern production.^7,8

Aim

To evaluate the marginal fit and internal fit of metal crowns over a prepared tooth made from wax patterns fabricated by conventional technique and CAD CAM technique.

Objectives

Wax pattern production

Conventional (hand-formed) production

The 21 master dies are made from the 21 Group I master casts. To prevent layer overlap and make it simpler to distinguish between them, the die spacer will be applied 1 mm from the margin and in two different colours. According to some articles, four layers of “True Fit” die spacer should be used to create a 25–30 mm gap.⁹

After applying a separator and gently blowing away any excess wax, the dies will be dipped once in molten wax and then covered in medium-hard inlay wax to create the wax patterns.¹

Computer-aided design and manufacture (milled)

The 21 master dies will be obtained from 21 master casts for Group II, which will be scanned using Exoscan scanning software version 3. A cement gap of 30 μm will be set to be 1 mm away from the margin. The crown will be designed over this scanned design of die using Exocad. This final designed file in .stl format will be transferred to a milling machine (inLab MCX5) and the wax pattern will be milled out from Ruthinium CAD CAM Wax Disc (98 mm×14 mm).⁹

Investing, casting the wax patterns and finishing the metal crowns

The wax patterns will be identically sprued using sprue wax (diameter 2.5 mm). The wax pattern will be sprayed with Debubblizers to lower the surface tension, and the casting rings will be lined with ring liner for investments casting and will be mixed according to the manufacturer’s instructions and with the aid of a vibrator, the investment will be poured into the investment rings and all around the wax pattern, then bench-set for 45 to 60 minutes. The mould will then be placed in an oven that has been preheated to about 480°C, held at that temperature for 20 minutes, and then slowly increased to 700°C and held for 30 minutes. The casting machine will be heated in a melting crucible to a temperature of 1050°C. After that, alloy ingots will be heated in a preheated crucible until they are molten. The casting ring will then be taken out of the furnace and seated onto the induction casting machine where crucible and casting ring will be aligned and the induction casting machine will be started. The casting rings will be removed from the casting apparatus after the casting is finished and set aside to bench-cool to room temperature. On cooling, castings will be retrieved from casting ring. The cast crowns will then be finished and polished using standard burs, stones, rubber wheels, and polishing wheels after being de-vested and separated from their sprue. These procedures of casting will remain the same for each participant’s crown.¹

Measurements of the internal marginal gap

Measurement using silicone replica technique

The inner surface of the crown will be coated with light-body PVS and positioned onto the prepared tooth with finger pressure for 20 s, and then fixed with cotton roll while the patient close their mouth. Excess silicon material will be removed. After 4.30 min, i.e., after setting the silicon layer, the crown will be removed from the prepared tooth. With a regular set putty material of a different colour, the silicon material that adhered to the internal surface of the crown will be stabilised. Both silicon materials will be removed from each crown in one piece after setting. The resulting impression silicon replicas will then be sectioned into six pieces; one mesio-distal cut and two bucco-lingual cuts using a sharp scalpel. The pieces will be examined under the stereomicroscope to measure four points on each piece: occlusal, upper axial, lower axial, and marginal gap to make the measurements under 10× magnification.¹⁰

Materials

Inclusion criteria

Exclusion criteria

Sample size

Sample size was calculated using the mean difference formula:

Primary variable (Marginal fit)

Mean ± SD (manual technique) = 160 ± 24

Mean ± SD (milling technique) = 110 ± 11

Difference =160-110 = 50

Standard deviation = 24

As per reference articles.¹

Minimum samples size required = 5 per Group.¹

Statistical analysis

The mean and standard error of the mean will be calculated for each group using Microsoft Excel (Office 2021). The statistical package SPSS will be used and student’s unpaired t-test will be employed in the calculation of statistical significance of marginal and internal fit differences between Groups I and II.

Scope of the study

Study implications

Small marginal gaps and good internal fit of dental prosthesis are crucial properties of clinical acceptability and success of dental crown.

Limitations

Expected outcome

It is expected that metal crowns made by CAD CAM milled wax pattern fabrication method will have better marginal and internal fit than those made with conventional method.

Dissemination

The results will be published in indexed journal.

Study status

The study has not started yet.

Ethical considerations

Ethical approval was received from Datta Meghe Institute of Higher Education and Research, Sawangi, Wardha (IEC reference number DMIHER (DU)/IEC/2023/854).
