Case Report: The importance of initial assessment in acute pulmonary embolism

[version 1; peer review: 1 approved with reservations]
PUBLISHED 03 Jan 2024
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

This article is included in the Global Public Health gateway.

Abstract

Background: Pulmonary embolism (PE) remains the third most frequent cardiovascular disease worldwide and is associated with high mortality rates. We presented a case of PE with a history of tibial surgery and showed the role of Computed Tomography Pulmonary Angiography (CTPA) in early diagnosis and management of PE.
Case presentation: A 23-year-old man was referred to our hospital with sudden dyspnea followed by sharp chest pain, haemoptysis, pre-syncope, diaphoresis, and weaknesses. He had a history of tibial surgery and immobilization one month before admission. His vital sign was unstable, with blood pressure of 110/60 mmHg (supported by Norepinefrin 0.5 mcg/kg/minutes), heart rate of 120 beats/minute, respiratory rate of 24 times/minute, and oxygen saturation of 99% (oxygen mask 6 lpm). An electrocardiogram showed sinus tachycardia with McGinn-White sign. A chest X-ray showed Palla sign. An echocardiogram showed reduced right ventricular systolic function with McConneal sign. CTPA was performed due to the moderate-high risk PE with the presence of hyperattenuating and partial filling defect. Streptokinase was then administered, followed by adequate anticoagulation using rivaroxaban for three months. The clinical and CTPA evaluation showed a good result.
Conclusions: Initial assessment using PE’s scoring system will help clinicians determine the needs of CTPA. CTPA has a sensitivity of 53-100% and a specificity of 83-100% for the diagnosis of PE. This makes CTPA mandatory in high-risk PE, thus speeding up the initial treatment, which correlates with clinical outcomes.

Keywords

Pulmonary embolism, PE, high-risk pulmonary embolism, VTE, Case Report

Background

Pulmonary Embolism (PE), as a part of Venous Thromboembolism (VTE), remains the third most frequent cardiovascular disease worldwide.1 An annual incidence rate for PE ranges from 39-115 per 100,000 populations. The incidence rate per year is 1.5 per 1000 persons.2,3 PE is associated with more than 370,000 deaths in European countries, in which 34% died suddenly or within a few hours of the acute events.3 PE commonly occurs as a fatal event with or without hemodynamic instability in the acute cardiac unit. The mortality rate of PE is around 50-58% in hemodynamic instability patients and 8-15% in hemodynamics stable patients.2 As it is a life-threatening condition, rapid and specific diagnostic tools are needed.13

Computed Tomography Pulmonary Angiography (CTPA) has been proposed as a standard imaging modality to diagnose PE. CTPA has the advantages of availability, excellent accuracy, strong validation in prospective management outcomes, low rates of inconclusive results, short acquisition time, and allowing more comprehensive assessment of the clot burden in Pulmonary Arteries (PAs). These make CTPA the suitable diagnostic tool in the Acute Cardiac Care Setting.2,3 We presented a case of pulmonary embolism with a history of tibial surgery and showed the role of CTPA in early diagnosis and management of pulmonary embolism.

Case presentation

A 23-year-old Javanese man, working as a content editor, was referred to our emergency room (ER) with a suspected pulmonary embolism. His chief complaint was sudden shortness of breath one hour before hospital admission. The symptoms were accompanied by sharp chest pain in the lower right posterior area and blood coughing. He also had a history of pre-syncope, diaphoresis, and weaknesses for the past week. The medical history revealed right tibial surgery with plate implantation one-month prior to his admission. He injured himself during mountain climbing and suffered an open tibial fracture. He had been taking full bed rest ever since. Based on the clinical feature, we used PE’s risk assessment to better diagnose the involvement of PE. The Geneva score of 9 and Wells’ score of 7 showed a moderate-high risk for PE (Tables 1 and 2). Thus CTPA was planned.

Table 1. The Geneva score applied in this case.

DVT, Deep Vein Thrombosis; PE, Pulmonary Embolism.

Geneva score (revised)
Age > 65No (0)Yes (+1)
Previous DVT or PENo (0)Yes (+3)
Surgery or lower limb fracture in past monthNo (0)Yes (+2)
Active malignant conditionNo (0)Yes (+2)
Unilateral lower limb painNo (0)Yes (+3)
HemoptysisNo (0)Yes (+2)
Heart rate<75 (0)75-94 (+3)≥ 95 (+5)
Pain on lower limb palpation and unilateral edemaNo (0)Yes (+4)
0-3 points indicate low probability
4-10 points indicate intermediate probability
≥11 points indicate high probability

Table 2. The Wells’ score applied in this case.

DVT, Deep Vein Thrombosis; PE, Pulmonary Embolism.

Wells’ Score for PE
Clinical sign and symptoms of DVTNo (0)Yes (+3)
PE is #1 diagnosis OR equally likeNo (0)Yes (+3)
Heart rate > 100No (0)Yes (+1.5)
Immobilization at least 3 days OR surgery in the previous 4 weeksNo (0)Yes (+1.5)
Previous, objectively diagnosed PE or DVTNo (0)Yes (+1.5)
HemoptysisNo (0)Yes (+1)
Malignancy with treatment within 6 months or palliativeNo (0)Yes (+1)
Low Risk < 2 pointsIntermediate Risk 2-6 ptsHigh Risk >6 points
PE unlikely 0-4PE likely > 4 points (pts)

Upon admission in the referrer hospital, his vital signs showed blood pressure 80/60 mmHg, heart rate 140 beats/minute, respiration rate 28 times/minute, and oxygen saturation of 90% (free air). He was alert but seemed weak and cyanotic. Adequate oxygenation support, fluid administration, and inotropes were administered to stabilize him before referred to our hospital. It took 12 hours from first medical contact until he came to our hospital.

The vital sign in our hospital showed unstable hemodynamics supported by Norepinefrin 0.5 mcg/kg/minutes with a blood pressure of 110/60 mmHg, heart rate 120 beats/minute, respiratory rate 24 times/minute, and oxygen saturation of 99% (oxygen mask 6 lpm). Physical examination showed loud P2, tachycardia, and cold-wet perfusion.

The electrocardiogram revealed sinus tachycardia with normal frontal and horizontal axis, S waves in the lead I, deep Q waves in lead III, and T inversion in the lead III (McGinn-White sign), as shown in Figure 1(A).


Figure 1. Supportive evaluation including (A) electrocardiogram and (B) chest X-ray showing Palla sign.

We performed laboratory examination, which resulted in increased D-dimer (20.770 ng/mL) with both troponin (50 ng/mL) and creatinine serum (1.0 mg/dL) within normal limit. The chest X-ray (CXR) examination showed enlarged right descending pulmonary artery (Palla sign), as shown in Figure 1(B).

Echocardiography examination at the previous hospital revealed decreased Right Ventricular (RV) function with preserved left ventricular function (Figure 2A). There was an akinetic segment at the basal–mid-right ventricle, whereas other segments were normokinetic (McConnel Sign), as shown in Video 1 and Figure 2B. Upon arrival at our ER, a CT Angiography examination was performed. It showed an hyperattenuating and partial filling defect, which supported a typical pulmonary embolism finding (Figure 3; Video 2).


Figure 2. The echocardiogram examination showed (A) reduced right ventricular systolic function (TAPSE 1.5 cm) and (B) the presence of McConneal sign. An akinetic segment was at the basal–mid-right ventricle, whereas other segments were normokinetic (red arrow).

RV, Right Ventricle; RA, Right Atrium; LV, Left Ventricle; LA, Left Atrium.

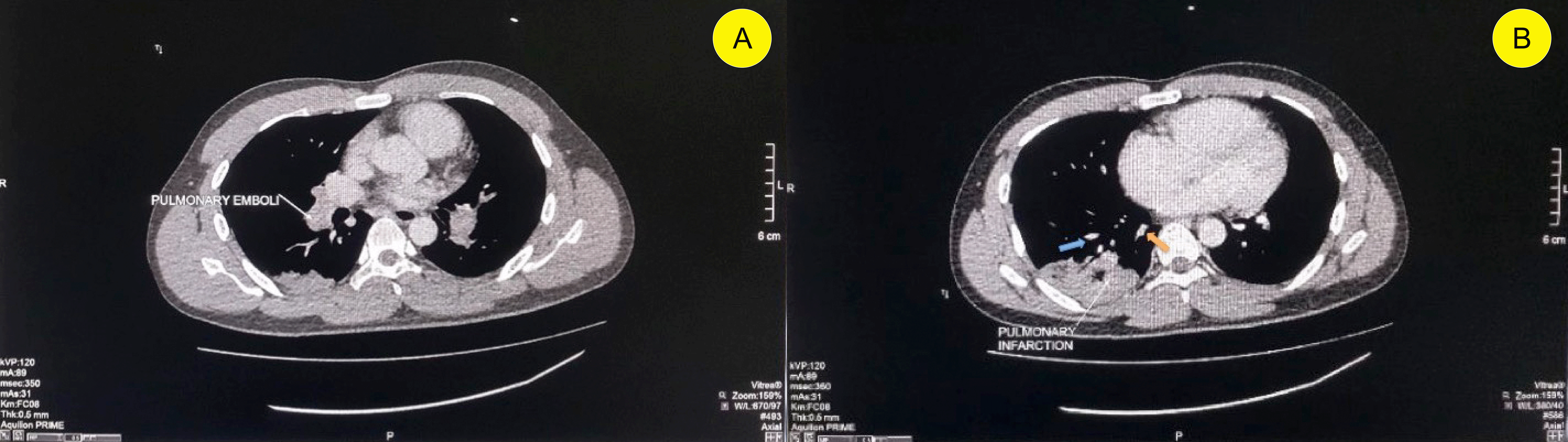

Figure 3. The Computed Tomography Pulmonary Angiography (CTPA) findings supporting the acute pulmonary embolism (A) unenhanced CT-scan demonstrated subtle region of hyperattenuating (white arrow); (B) the presence of partial filling defect pulmonary artery in long-axis view (polo mint sign as shown by blue arrow) and longitudinal view (railway track sign as shown by orange arrow).

Based on CTPA findings, supported by clinical and other examinations, Pulmonary Embolism was assessed with Pulmonary Embolism Severity Index (PESI) Score of 83 points (Class II, low risk 1.7-3.5% 30-days mortality rate) (Table 3). He then received thrombolytic therapy with intravenous streptokinase 250,000 IU loading dose for 30 minutes, followed by streptokinase 100,000 IU for 24 hours. Afterwards, the patient was given anticoagulation with rivaroxaban 15 mg twice a day for 21 days and other supportive therapy. His symptoms were improved with reduction of chest pain and shortness of breath after 14 days admission. Follow-up therapy was given at discharge with rivaroxaban 15 mg once a day for three months.

Table 3. The Pulmonary Embolism Severity Index (PESI) score applied in this case.

BP, Blood Pressure.

PESI score
Age23 years old
SexFemale (0)Male (+10)
History of cancerNo (0)Yes (+30)
History of heart failureNo (0)Yes (+10)
History of chronic lung diseaseNo (0)Yes (+10)
Heart rate ≥ 110No (0)Yes (+20)
Systolic BP < 100 mmHgNo (0)Yes (+30)
Respiratory rate ≥ 30No (0)Yes (+20)
Temperature < 36°CNo (0)Yes (+20)
Altered mental statusNo (0)Yes (+60)
O2 saturation < 90%No (0)Yes (+20)
Low risk (≤65 Class I; 66-85 Class II) Mortality 1.9%
Intermediate risk (86-105 Class III; 106-125 Class IV) Mortality 18.4%
High risk (>125 Class V) Mortality 25%

The patient was monitored in the outpatient clinic. The patient had no complaints with normal physical examination results. After three months of anticoagulation treatment, CTPA was evaluated to assess the treatment efficacy. No residual pulmonary embolism or infarction was found (Video 3).

Discussion

Pulmonary embolism is associated with a high mortality rate in the acute phase. Most patients die within the first few hours of the events, so early diagnosis helps provide better outcomes.3 However, clinical features and baseline findings often cannot unequivocally rule out PE, whereas follow-up examination (CTPA) is not cost-effective. This causes a follow-up examination to be carried out only in intermediate-high risk PE.2,3

PE is suspected in patients with shortness of breath, sharp chest pain, pre-syncope or syncope, and haemoptysis. Syncope may occur as a feature of hemodynamic instability and RV dysfunction. Assessment of risk factors such as history of injury and surgery is also necessary to support the suspicion of PE since orthopaedic procedures have the highest incidence of developing a PE (0,7-30% chance). A tibial fracture is associated as a strong risk factor for PE (OR >10) with an incidence of 0.21%. These are related to positioning during surgery and immobility that contributes to an increase in venous stasis. The Electrocardiogram (ECG) and CXR are often nonspecific, but tachycardia is followed by S1Q3T3 pattern (McGinn-White sign; Prominent S wave in the lead I, Q wave in the lead III, and T inversion in the lead III) is a strong predictor of PE. These patterns appear in 15-25% PE. We found patients with clinical, ECG, and CXR supporting moderate-high risk PE with hemodynamic instability (Wells’ score 7 and Geneva score 9).25

Most patients will not survive within the first hours of the event. The consequences of a false-positive or false-negative diagnosis can be rapidly fatal in terms of PE; therefore, a prompt diagnosis leads to a better treatment and outcome.6 The use of scoring systems guides the need for additional modalities. CT examination has good sensitivity and specificity in diagnosing PE. A meta-analysis showed that CTPA has a sensitivity of 53-100% and specificity of 83%-100%.7 Unfortunately, it is often not yet available in some regional hospitals. As in this case, the patient was then referred to our hospital on a supportive clinical basis. However, fast and accurate results through a CTPA examination can help diagnose patients and determine the next management step.

Following an acute embolic event, the patient is at risk for fatal circulatory collapse due to right-sided heart failure and subsequent embolism. Assessment of hemodynamics, RV failure, and increased Pulmonary Arteries (PA) pressure as part of acute pulmonary hypertension (PHT) needs to be done carefully. Early recognition of acute right ventricular failure is an important sign that requires immediate treatment. The presence of acute embolic obstruction that significantly affects the pulmonary circulation could increases pulmonary vascular resistance (PVR), resulting in acute PHT. The clinical impact of an embolism depends not only on the size of the embolus but also on its cardiopulmonary status. The RV compensates for the obstruction of RV outflow by increasing RV contraction. This resulted in increased myocardial oxygen demand and decreased RV efficiency. Pericardial constraint and RV dilatation lead to bowing the intraventricular septum into the Left Ventricle (LV), causing a decrease in LV preload. This is the underlying cause of circulatory collapse and cardiogenic shock. Echocardiography is a diagnostic modality that can monitor right ventricular strain or right ventricular failure. Echo provides visualization of RV clots, RV dilatation and hypokinesis, straightening, leftward bowing, paradoxical motion of the interventricular septum, decreased LV volume, tricuspid regurgitation, McConneal, and PA dilatation. The presence of RV hypertrophy (wall thickening > 5-6 mm) helps in differentiating acute, subacute, and chronic massive PE.1,2,6

CTPA is mandatory in cases of high-risk PE. CTPA also has the ability to assess morphological abnormalities that indicate RV failure when it is found1 RV dilatation (RV cavity size is larger than the LV) with or without contrast reflux into the hepatic veins2; pulmonary embolism index more than 60%3; Deviation of the intraventricular septum to the LV. CTPA has a sensitivity of 53-100% and a specificity of 83-100%. Acute PE conditions can be in the form of partial or total obstruction, which causes the appearance of1 widening of the affected arteries due to impaired filling of the arterial lumen by total obstruction2; The picture of a partial filling defect surrounded by contrast material due to a central partial occlusion, among which can be “polo mint sign” (long-axis view) and “railway track” (longitudinal view)3; Peripheral intraluminal filling defect that forms acute angles to the arterial wall due to eccentric partial obstruction.1,2,6

The echocardiogram findings of McConneal signs and decreased RV systolic function showed right heart failure. The CTPA findings of hyperattenuating and partial filling defect, as shown in Figure 3, supported the involvement of PE as a cause of hemodynamic instability in this patient. Pulmonary embolism blocks pulmonary blood flow, resulting in right heart failure. Acute right heart failure due to lack of systemic output is the leading cause of death in high-risk PE. Initial therapy for pulmonary embolism focuses on restoring circulation through the pulmonary vessels and subsequently preventing the pulmonary embolism recurrence. Experimental studies indicate that aggressive volume expansion is not beneficial and worsens right ventricular function because of mechanical overstretch or reflex mechanisms that decrease contractility. However, light fluid administration (500 ml) can increase the cardiac index in PE patients, lower cardiac index, and normal blood pressure.3,8

Thrombolytic therapy in acute PE aims to restore pulmonary perfusion more rapidly to reduce pulmonary arterial pressure and resistance, resulting in improved right ventricular function. The administration of fibrinolytic shows good outcome if performed within onset of 6-14 hours. As the patient came with hemodynamic instability, we administered streptokinase 250,000 IU intravenous loading dose within 2 hours, followed by 100,000 IU intravenously for 24 hours. Approximately >90% of patients respond to thrombolytics within 36 hours. Maximum profit will appear within 48 hours.3

In patients with acute PE, anticoagulation is recommended to prevent death and symptom recurrence. The duration of anticoagulation is at least three months. The anticoagulation options lie between parenteral and oral therapies. Newer oral anticoagulants (NOACs) such as dabigatran, edoxaban, rivaroxaban, or apixaban could be an alternative therapy. The use of NOACs is non-inferior and safer than vitamin K-antagonists. Rivaroxaban can be started 1-2 days after administration of UFH, LMWH, or fondaparinux. Rivaroxaban is given 15 mg twice daily for three weeks, then 20 mg once for the following months.3,9

Conclusions

The patient presented with moderate-high risk PE and was supported by clinical, ECG, Chest X-Ray, and echocardiography suggestive of PE. The use of PE’s risk assessment will help determine the needs of CTPA. CTPA has the advantages of availability, excellent accuracy, strong validation in prospective management outcomes, low rates of inconclusive results, short acquisition time, and allowing more comprehensive assessment of the clot burden in PAs. These make CTPA the suitable diagnostic tool in the Acute Cardiac Care Setting. Utilization of CTPA for the immediate diagnosis of pulmonary embolism patients helps determine the patient management accurately. Adequate therapy can reduce the risk of mortality and morbidity from pulmonary embolism.

Data availability

All data underlying the results are available as part of the article and no additional source data are required.

Consent

Written informed consent for publication of their clinical details and clinical images and videos was obtained from the patient.
