Impact of hemB mutations on 5-aminolevulinic acid production in Escherichia coli

Bacterial strains and culture conditions

E. coli strain W3110 hemB (mutant with hemB deletion, kanamycin resistance) was obtained from National BioResource Project (National Institute of Genetics (NIG), Shizuoka, Japan). Molecular cloning was performed using E. coli strain JM109. E. coli was cultured at 37°C in the lysogeny broth (LB) medium containing appropriate combinations of 50 μg/mL kanamycin sulphate (FUJIFILM Wako Pure Chemical Co., Catalogue number: 113-00343), 50 μg/mL chloramphenicol (FUJIFILM Wako Pure Chemical Co., Catalogue number: 034-10572), 100 μg/mL spectinomycin dihydrochloride pentahydrate (FUJIFILM Wako Pure Chemical Co., Catalogue number: 152067) or 150 μg/mL ampicillin sodium (FUJIFILM Wako Pure Chemical Co., Catalogue number: 012-23303) for selection. Isopropyl-β-D-thiogalactopyranoside (IPTG, final concentration: 0.1 mM, TaKaRa Bio Inc., Catalogue number: 9030) was added to induce the expression of the genes under the control of the lac promoter.

Alignment of proteins structures

Protein structures of ALAD derived from Homo sapience (PDB 1E51) and E. coli (PDB 1B4E) were obtained from the Protein Data Bank (PDB). Alignment of the protein structures was carried out using PyMoL (RRID:SCR_000305) (The PyMOL Molecular Graphics System, Version 2.0 Schrödinger, LLC.).

Plasmid construction

Primers, plasmids, and E. coli strains used in this study are listed in Tables 1, 2, and 3, respectively. pACYCDuet-1 (carrying the P15A replicon origin, ~10 copies/cell) was purchased from Sigma-Aldrich Co. (Catalogue number: 71147, St. Louis, MO, USA). A partial fragment of pACYCDuet-1 without lac-promoter was amplified by PCR using primers of pACYCDuet_F and pACYCDuet_R and PrimeSTAR Max DNA polymerase (TaKaRa Bio Inc., Shiga, Japan, Catalogue number: R045A). PCR amplification experiments were performed using the PCR machines (Takara Bio Inc., model TP350 and Blue-Ray Biotech Co., TurboCycler, model TCST-9612) with the thermal cycling condition unless otherwise noted; after the initial denaturation step at 98°C for 1 min, 30 cycles of the denaturation step at 98°C for 10 sec, annealing step at 50~68°C for 5 or 15 sec, and extension step at 72°C for 1 min/kbp, followed by an additional extension step at 72°C for 4 min. The hemB along with native hemB promoter was amplified by PCR using primers of hemB promoter+hemB_F and hemB promoter+hemB_R with the extracted E. coli genome as a template. DNA concentrations were measured using NanoDrop 1000 (Thermo Fisher Scientific, Waltham, MA, USA). These fragments were assembled by In-Fusion HD Cloning Kit (TaKaRa Bio Inc., Catalogue number: 639634) at 50°C for 15 min. The assembled samples were introduced into E. coli strain JM109 by heat shock method (42°C, 45 sec). The colonies were cultivated in LB agar (1.5%) medium containing 50 μg/mL chloramphenicol. The assembly of the plasmid was confirmed by restriction enzyme treatment, followed by Sanger sequencing. The resulting plasmid were designed as pACYC-hemB. Additionally, five types of plasmids containing mutated hemB (namely hemB’[K13L], hemB’[E87K], hemB’[G131R], hemB’[G268T], hemB’[A269M]) were constructed by inverse PCR using pACYC-hemB as a template and one of the following primer sets, hemB_K13L_F and hemB_K13L_R, hemB_E87K_F and hemB_E87K_R, hemB_G131R_F and hemB_G131R_R, hemB_G268T_F and hemB_G268T_R, and hemB_A269M_F and hemB_A269M_R. The amplified fragments were assembled as described above. The resulting plasmids were designed as pACYC-hemB’[K13L], pACYC-hemB’[E87K], pACYC-hemB’[G131R], pACYC-hemB’[G268T], and pACYC-hemB’[A269M], respectively.

pCL1920 (carrying the pSC101 replicon origin, ~5 copies/cell) was purchased from National BioResource Project (NIG). A partial fragment of pCL1920 by PCR using a primer sent of pCL1920_F and pCL1920_R. The rhtA was amplified by PCR using primers of rhtA_In_pCL1920_F and rhtA_In_pCL1920_R with the extracted E. coli genomic DNA as a template. The amplified fragments were assembled as described above. The colonies were cultivated in LB agar medium containing 100 μg/mL spectinomycin. The resulting plasmid was designed as pCLS-rhtA.

pMD19 (derived from pUC19 with ~500 copies/cell) was purchased from TaKaRa Bio (Catalogue number: 3271). A partial fragment of pMD19 was amplified by PCR using primers of pMD19_In_hemL_F and pMD19_In_hemL_R. The hemA and hemL, both derived from E. coli, were amplified using primers of hemA_In_pMD19_F and hemA_In_hemL_R, and hemL_In_hemA_F and hemL_In_pMD19_R, respectively. Subsequently, the amplified fragments of hemA and hemL were together assembled with the partial fragment of pMD19 by the method described above using LB agar medium containing 150 μg/mL ampicillin. The resulting plasmid was designed as pMD-hemA-hemL.

Partial fragments of pCLS-rhtA and pMD-hemA-hemL were amplified by PCR using primer sets of pCLS-rhtA_F and pCLS-rhtA_R, and hemA-hemL_F and hemA-hemL_R, respectively. These fragments were assembled by the method described above. The resulting plasmid was designed as pCLS-rhtA-hemA-hemL containing rhtA, hemA and hemL.

Quantification of 5-aminolevulinic acid

The amount of ALA production was measured by colorimetric quantification using a modified Ehrlich’s reagent prepared by mixing 1 g of dimethylaminobenzaldehyde (DMAB, FUJIFILM Wako Pure Chemical Co., Catalogue number: 047-18042), 30 mL of acetic acid (FUJIFILM Wako Pure Chemical Co., Catalogue number: 017-00256), 8 ml of 60% (v/v) perchloric acid (Kanto Chemical Co. Inc., Catalogue number: 32059-1B), followed by addition of acetic acid to make the total volume 50 mL.¹⁴ The supernatant of culture (100 μL) was added to 100 μL of the mixture (1:99 vol. ratio) of acetylacetone and acetate buffer (prepared by mixing 91 mL of 0.1 M acetic acid and 109 mL of 0.1 M sodium acetate solution, pH 4.7), and incubated at 100°C for 15 min. The mixture was then cooled down on ice. The modified Ehrlich’s reagent (200 μL) was added to the mixtures and incubated at room temperature for 15 min. Ultrapure water (600 μL) was added, and absorbance at 553 nm was measured using a spectrophotometer UV-1900 (Shimadzu Co., Kyoto, Japan).

Design of mutated ALAD

Figure 2 illustrates both the structures of the E. coli ALAD (in orange) and human ALAD (in blue) resemble each other. Figure 2 also demonstrates that the K13, E87, G131, G268 and A269 residues on the E. coli ALAD occupy the positions corresponding to the F12, E89, G133, A274 and V275 residues on the human ALAD. The conformational characteristics of these residues guided us to design mutations of the K13L, E87K, G131R, G268T and A269M variants in the E. coli ALAD following the inactive F12L, E89K, G133R, A274T and V275M variants in the human ALAD.¹³ The authors applied an inverse PCR method to introduce mutations to hemB on the pACYC-based plasmids (pACYC-hemB’[K13L], pACYC-hemB’[E87K], pACYC-hemB’[G131R], pACYC-hemB’[G268T] and pACYC-hemB’[A269M] listed in Table 2) to express these mutated E. coli ALAD. Successful mutations of hemB were confirmed by Sanger sequencing (Figure 3).

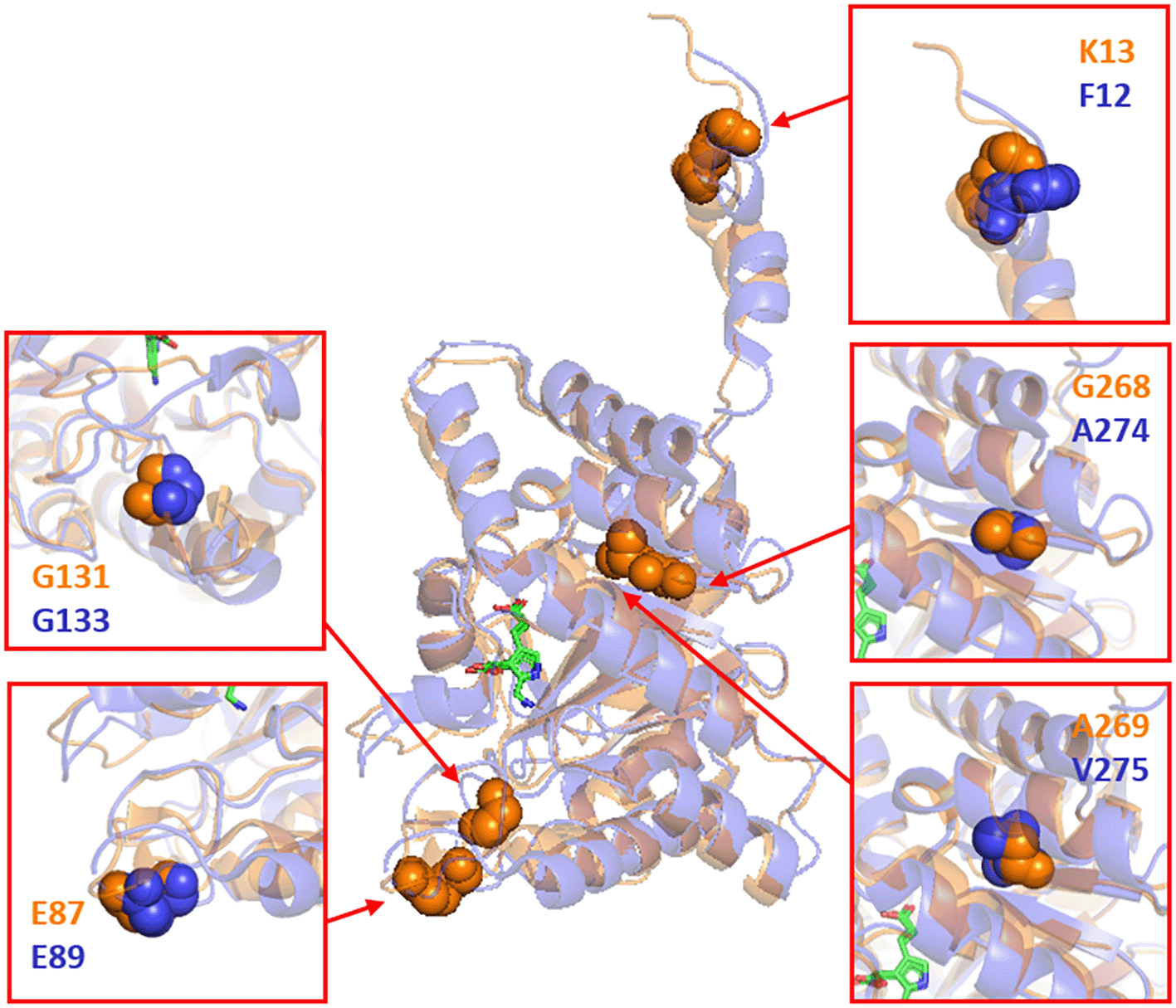

Figure 2. Conformational structures of 5-aminolevlinic acid dehydratase (ALAD) derived from Homo sapience (in blue, PDB 1E51) and Escherichia coli (in orange, PDB 1B4E).

K13, E87, G131, G268, and A269 on the E. coli ALAD structurally correspond to F12, E89, G133, A274, and AV275 on the H. sapience ALAD, respectively. Porphobilinogen (PGB) products are shown in green wire forms. The figure was prepared using PyMoL (The PyMOL Molecular Graphics System, Version 2.0 Schrödinger, LLC.).

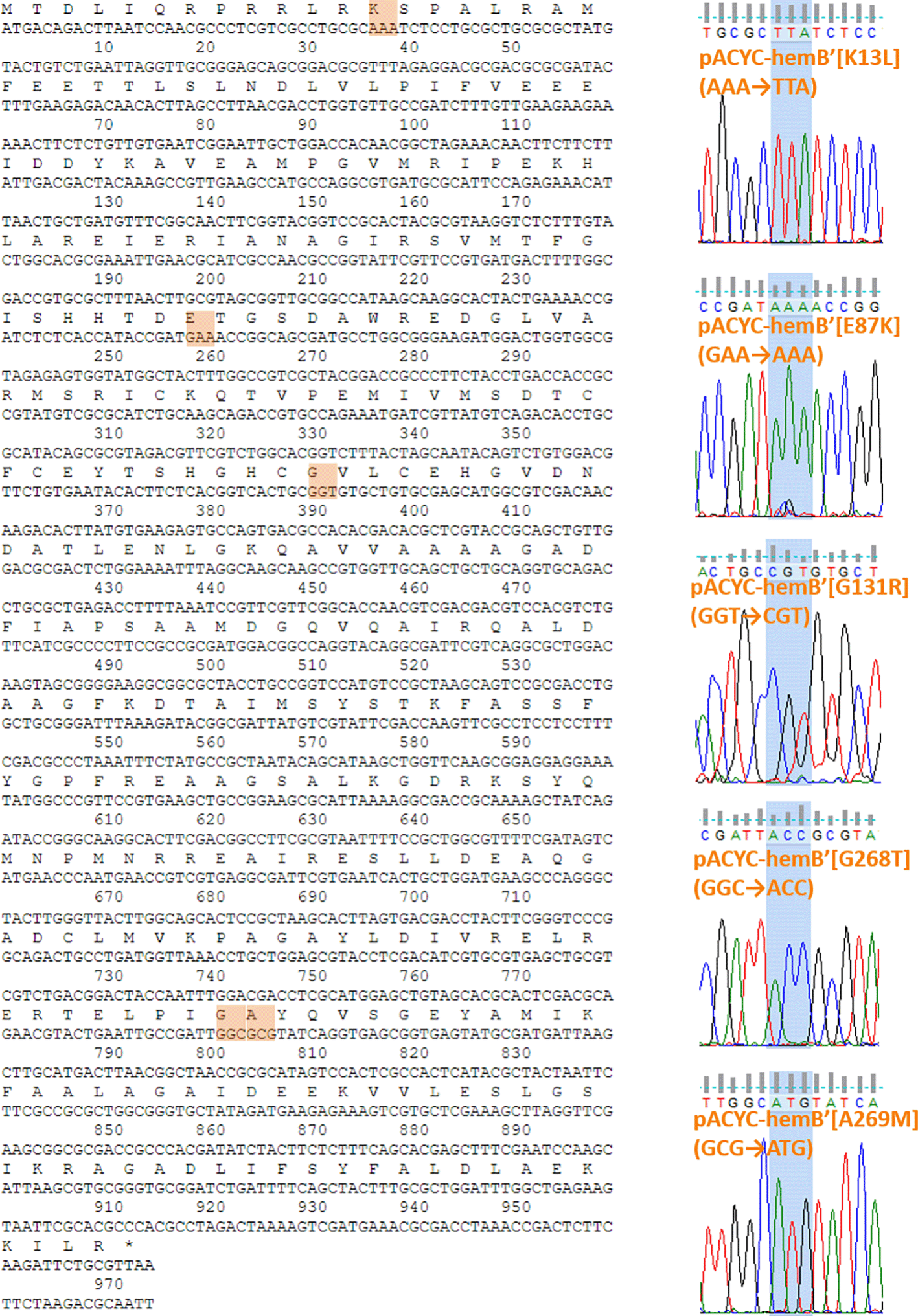

Figure 3. Sanger sequencing to confirm the introduction of mutations (highlighted in light blue) on pACYC-hemB’[K13L], pACYC-hemB’[E87K], pACYC-hemB’[G131R], pACYC-hemB’[G268T], and pACYC-hemB’[A269M] at the positions highlighted in orange in the 5-aminolevlinic acid dehydratase (ALAD)-encoding hemB sequence.

Preparation of E. coli strains harbouring the mutated hemB

In the present study, the mutant E. coli strain W3110 hemB with hemB deletion (hereinafter referred to as strain ∆B, Table 3) was used as a basic strain to assess the impacts of ALAD mutations. The strain ∆B with a lack of ALAD activity can grow only in the LB medium containing supplementation of 0.2% glucose as well (Figure 4A).¹⁵ The strain ∆B_B was established by introducing the intrinsic hemB in the strain ∆B and can grow without supplementation of 0.2% glucose (Figure 4), suggesting that ALAD activity was essential to support the E. coli growth in the absence of glucose. When one of the five types of mutated hemB was introduced to the strain ∆B, every strain (namely, the strains ∆B_B’[K13L], ∆B_B’[E87K], ∆B_B’[G131R], ∆B_B’[G268T], or ∆B_B’[A269M], Table 3) showed steady growth even in the LB medium without supplementation of glucose (Figure 4). This result indicates that the above-mentioned five types of the mutated hemB expressed the enzymatically active ALAD in E. coli. Figure 4B showed the comparison of the growth of these strains. The mutant strain harbouring pACYC-hemB’[G131R] exhibited an obviously low growth rate, while the molecular mechanism underlying the growth inhibition remains unclear.

Figure 4. Growth of Escherichia coli strains used in this study.

(A) Culture of E. coli strains ∆B, ∆B_B, and ∆B_B’[K13L] in the lysogeny broth (LB) medium after overnight incubation. (B) Growth curves of E. coli strains ∆B_B, ∆B_B’[K13L], ∆B_B’[E87K], ∆B_B’[G131R], ∆B_B’[G268T], and ∆B_B’[A269M] (inset: specific growth rates of each strain).

Further engineering of the strains expressing mutated ALAD was performed by introducing the ALA-exporter gene rhtA. We successfully obtained the transformant strains designated as ∆B_B’[K13L]&R, ∆B_B’[E87K]&R, ∆B_B’[G131R]&R, ∆B_B’[G268T]&R and ∆B_B’[A269M]&R (Table 3). The restriction enzyme assay confirmed that the transformed pACYC-based plasmid with mutated hemB and pCLS-rhtA plasmid were maintained in the transformant strains (Figure 5). Moreover, along with the pACYC-based plasmid with mutated hemB and pCLS-rhtA plasmid, the pMD-hemA-hemL plasmid with an ability of highly copying was also introduced to overexpress GluTR and GSA-AT. However, unfortunately, mature colonies did not grow on the LB-agar plates containing antibiotics for selection. Although tiny colonies were observed on the plates (Figure 6A), the cells forming tiny colonies did not grow in the liquid LB medium containing the antibiotics. The introduction of the empty vector pMD19 leaded to the results of the formation of mature colonies (Figure 6B), indicating that the backbone vector pMD19 did not cause the formation of tiny colonies. These results suggest that excess GluTR and GSA-AT expressed from a high copy number of plasmid pMD-hemA-hemL might negatively affect the E. coli growth. To avoid the problem, we replaced the backbone vector pMD19 with pCL1920 having an ability to copy a relatively low number of plasmids for expressing GluTR and GSA-AT. The hemA and hemL encoding GluTR and GSA-AT, respectively, were inserted to the expression cassette of rhtA in pCLS-rhtA. Resultantly, the mature colony of E. coli transformed with the pCLS-rhtA-hemA-hemL plasmid was successfully obtained. The results indicates that the transformant of E. coli was able to harbour mutated hemB (∆B_B’[K13L]&R-A-L, ∆B_B’[E87K]&R-A-L, ∆B_B’[G131R]&R-A-L, ∆B_B’[G268T]&R-A-L and ∆B_B’[A269M]&R-A-L, Table 3). Maintenance of both the pCLS-rhtA-hemA-hemL and pACYC-based plasmid carrying mutated hemB in each transformant clone was confirmed with the restriction enzyme assay (Figure 7). We should emphasize that overexpression of GluTR and GSA-AT in E. coli is a technical challenge involving a risk of their toxic effects on the host cells. As far as we found out, the present study has first achieved to solve the problem by fine-tuning their expression levels with reducing the number of plasmid copies.

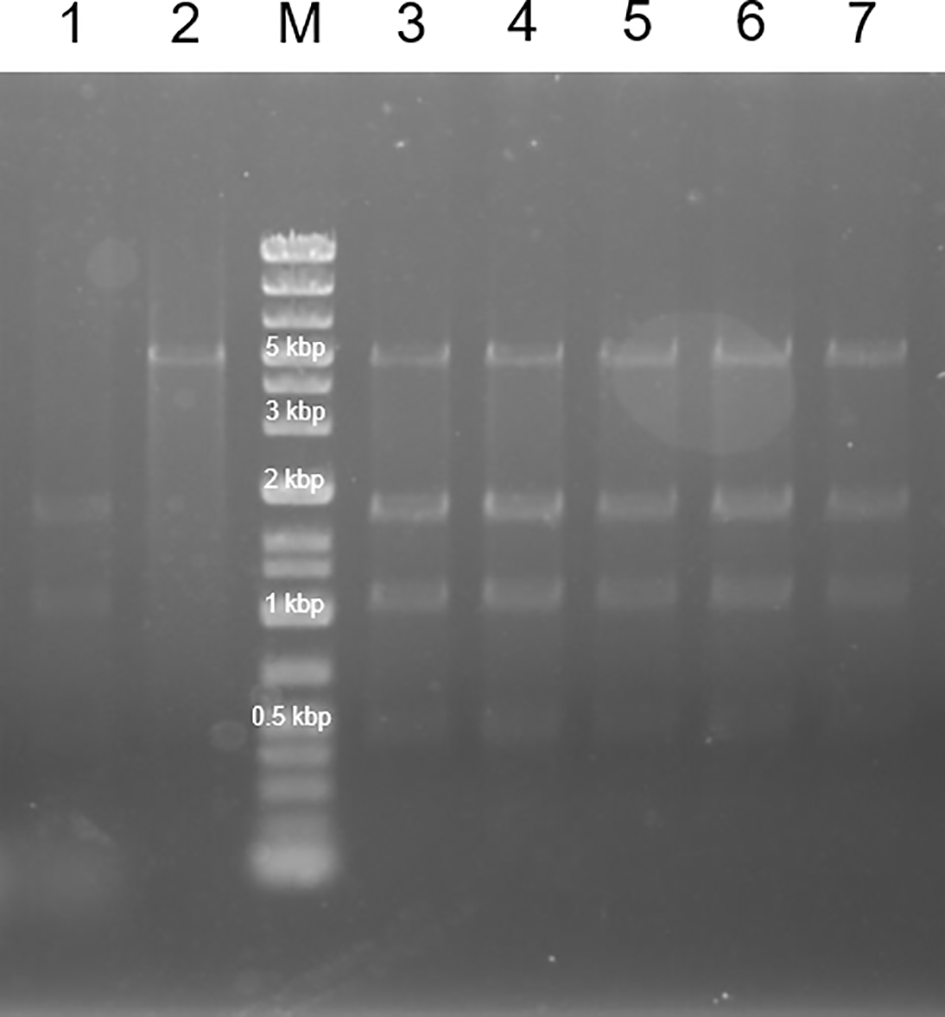

Figure 5. Agarose gel electrophoresis of the DNA fragments generated by the restriction enzyme (AccI) treatment of pACYC-hemB’ (Lane 1), pCLS-rhtA (Lane 2), plasmids extracted from E. coli strain ∆B_B’[K13L]&R (Lane 3), ∆B_B’[E87K]&R (Lane 4), ∆B_B’[G131R]&R (Lane 5), ∆B_B’[G268T]&R (Lane 6), and ∆B_B’[A269M]&R (Lane 7).

Lane M represents the DNA ladder.

Figure 6. Colony formation results of the transformation experiments in which (A) pMD-hemA-hemL or (B) pMD19 were introduced to E. coli strain ∆B_B’[E87K]&R.

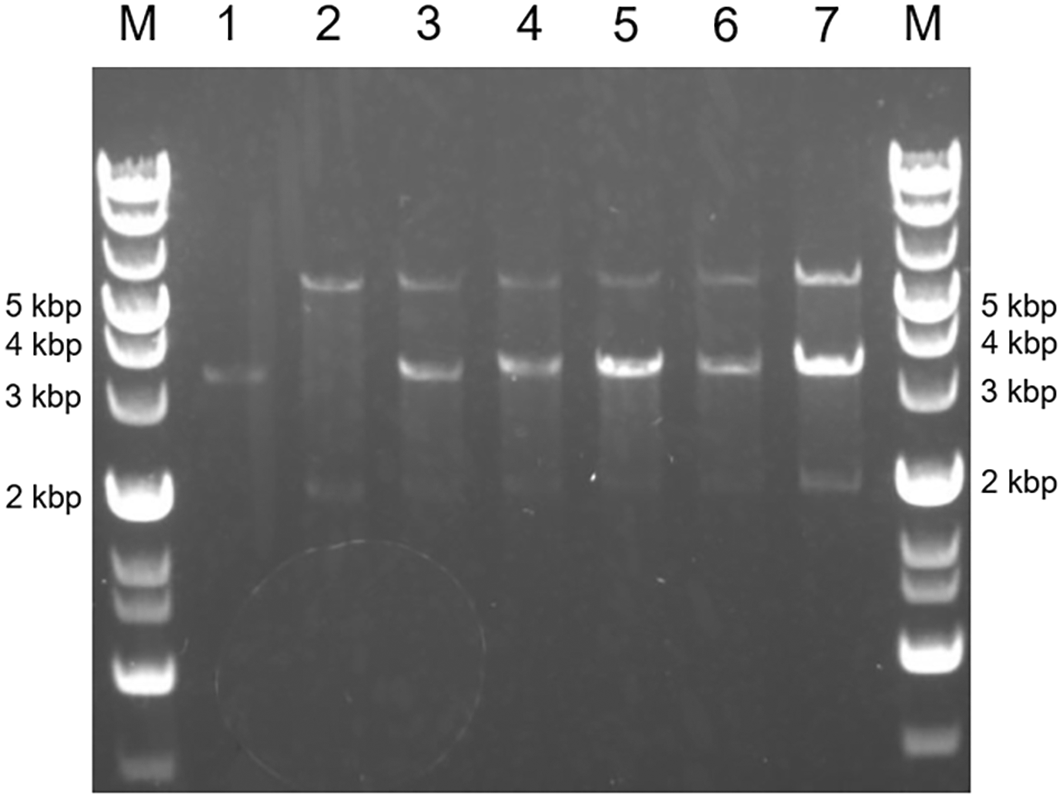

Figure 7. Agarose gel electrophoresis of the DNA fragments generated by the restriction enzyme (PstI and PvuI) treatment of pACYC-hemB’ (Lane 1), pCLS-rhtA-hemA-hemL (Lane 2), plasmids extracted from E. coli strain ∆B_B’[K13L]&R-A-L (Lane 3), ∆B_B’[E87K]&R-A-L (Lane 4), ∆B_B’[G131R]&R-A-L (Lane 5), ∆B_B’[G268T]&R-A-L (Lane 6), and ∆B_B’[A269M]&R-A-L (Lane 7).

Lane M represent the DNA ladder.

Production of 5-ALA using the E. coli transformants

Taking the results mentioned above, the authors constructed three kinds of the series of E. coli transformant strains harbouring the mutated hemB; namely (1) the primary hemB mutation (strains ∆B_B’[mutation]) that simply express the mutated hemB alone, (2) the intermediate hemB mutation (strains ∆B_B’[mutation]&R) that express the mutated hemB along with recombinant rhtA, (3) the triplet hemB mutation (strains ∆B_B’[mutation]&R-A-L) that express the mutated hemB along with recombinant rhtA, hemA and hemL. The ALA production of these transformants were evaluated by the colorimetric measurement. The ALA production of the primary hemB mutation strains was almost uniform under the mutational variation, even though the values were slightly lower than that of the wild type hemB strains (Figure 8A and Table 4). The primary mutation strains did not show any improvement in ALA production of E. coli, suggesting that the primary hemB mutations only slightly decreased the enzymatic activity of ALAD in E. coli, and those impacts on ALA accumulation were hindered by the effects of multiplication of the mutated hemB genes on pACYC-based plasmids (~10 copies/cell). The intermediate hemB mutation strains with overexpression of RhtA from low copy number plasmid marginally improved the ALA production by actively exporting ALA to the supernatant of the culture (Figure 8B and Table 4).

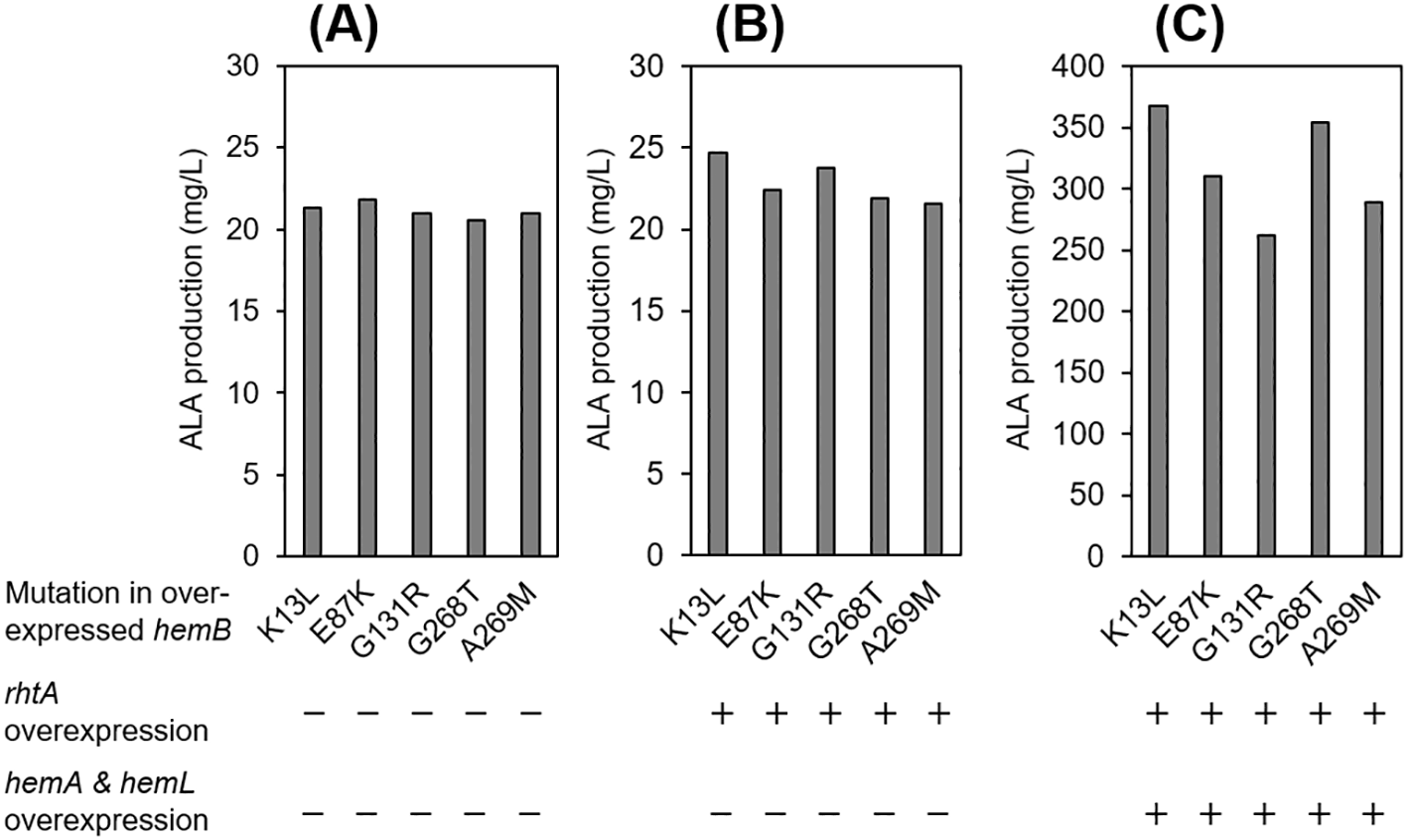

Figure 8. Production of 5-aminolevulinic acid (ALA) by the genetically modified E. coli with the primary hemB mutation (strains ∆B_B’[mutation]) that simply express the mutated hemB alone (A), the intermediate hemB mutation (strains ∆B_B’[mutation]&R) that express the mutated hemB along with recombinant rhtA (B), and the triplet hemB mutation (strains ∆B_B’[mutation]&R-A-L) express the mutated hemB along with recombinant rhtA, hemA and hemL (C). K13L, E87K, G131R, G268T, and A269M represent the mutation of 5-aminolevlinic acid dehydratase (ALAD) encoded by hemB.

Numeric data of Figure 8 is shown in the Table 4.

The triplet hemB mutation strains with further overexpression of GluTR and GSA-AT from low copy number of plasmid carrying hemA and hemL drastically increased the ALA production (Figure 8C and Table 4). The overexpression of GluTR could be expected to lead an enhancement in ALA production because the reaction catalysed by GluTR encoded by hemA is a rate-limiting step for ALA production in the C5-pathway⁸ and GSA-AT encoded by hemL tightly forms a complex with GluTR.^8,16 Clear difference also appeared in ALA production of the transformants with the aid of overexpression of GluTR and GSA-AT depending on the five types of mutated hemB variation. The transformant strains with hemB’[K13L] showed the highest ALA production of 368.1 mg/L, followed those with hemB’[G268T] (354.6 mg/L), hemB’[E87K] (309.7 mg/L), hemB’[A269M] (288.7 mg/L) and hemB’[G131R] (262.4 mg/L). However, we have not been able to attribute the difference appeared in ALA production rigorously to the declining variation in the levels of the ALAD activity caused by the individual mutation because the ALA production depends on both the ALA contents in a unit cell and the biomass production (in other word, growth of cells) of E. coli. The ALA production order of the transformants (hemB’[K13L] was highest, followed by hemB’[G268T], hemB’[E87K], hemB’[A269M] and hemB’[G131R] in Figure 8C and Table 4) is the exact same as the order in the specific growth rates of the corresponding platform strains with mutated hemB (inset figure of Figure 4B). Given these two results; (1) the authors have not discriminated any significant difference of ALA production in the five types of hemB in the platform strains without overexpression of RhtA, GluTR and GSA-AT, (2) the difference of ALA production of the transformant strains with overexpression of RhtA, GluTR and GSA-AT was consistent with the growth behaviour of the platform strains, difference of ALA production shown in Figure 8C could be most likely attributed to not the declining variation of ALAD activity encoded by the mutated hemB, but the different growth of E. coli strains.
