Research Article

Comparison of Antifungal Activity of Thymus Vulgaris Essential Oil and Triple Antibiotic Paste Against Candida Albicans Isolated from Root Canal (In Vitro Study)

[version 1; peer review: 2 approved with reservations]
PUBLISHED 25 Apr 2024
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

Abstract

Background

The main objective of chemomechanical endodontic therapy is to reduce or eliminate microorganisms from the root canal system, and intracanal medications are used to accelerate the disinfection process.

The aim of this study

this study was to assess the antifungal activity of thymus vulgaris essential oil against C. albicans compared to that of triple antibiotic paste.

Materials and methods

C. albicans was isolated from patients who required endodontic treatment. Using the agar well diffusion method, the efficacy of Thymus vulgaris essential oil against C. albicans was determined at 25 mg/ml, 10 mg/ml, 8 mg/ml, 6 mg/ml, 4 mg/ml, and 2 mg/ml and compared to the triple antibiotic paste. The minimum inhibitory and fungicidal concentrations against Candida albicans were determined using the microbroth dilution method. The constituents were identified using a gas chromatography–mass spectrometer.

Results

Thymus vulgaris essential oil demonstrated antifungal activity against C. albicans, which appeared to increase as the extract concentration increased, and the difference between all concentrations and triple antibiotic paste was significant (p ≤ 0.01). The MIC and MFC for Thymus vulgaris essential oil were 0.015 mg/ml and 0.031 mg/ml, respectively. 53 compounds were identified by (GC-MS) analysis, which represented more than 95% of the oil composition. The main component was thymol (35.48%).

Conclusion

Thymus vulgaris essential oil is effective against C. albicans, suggesting that it has the potential to be applied as an intracanal medication.

Keywords

Candida albicans, Essential oil, Regenerative endodontic, Thymus Vulgaris, Triple antibiotic paste

Introduction

Revascularization, a new treatment method for managing an immature permanent tooth, was made available in endodontics.1 The American Association of Endodontists approved the term “regenerative endodontics” in 2007.2 Regenerative endodontic therapy (RET) aims to rebuild the pulp-dentine complex of immature necrotic permanent teeth that had been damaged by trauma, infection, or developmental abnormalities.3 A total of 65% of bacteria, 30% of fungi, and 5% of other organisms form heterogeneous microflora. Remarkably, these microbes can survive challenging root canal environments.4 Candida albicans is the most commonly identified root canal fungus and significantly contributes to the failure of root canal therapy.5 An important step in (RET) is the use of intracanal medications to clean the necrotic root canal. The most common intracanal medication used in endodontic regeneration is the triple antibiotic paste (TAP), which includes a combination of metronidazole, ciprofloxacin, and minocycline. It has been employed in more than half of published instances of endodontic regeneration.6 It has been reported that 40% of the teeth treated with TAP have discolored crowns.7 This large percentage indicated a significant clinical problem.8 Jain et al. (2014) reported that herbal remedies could be viable alternatives to traditional pharmaceuticals.9 Thymus vulgaris oil is composed of a blend of monoterpenes, which possess a variety of beneficial properties including antioxidative, antimicrobial, antispasmodic, and antibacterial effects.10 The purpose of this study was to assess the effectiveness of Thymus Vulgaris essential oil (TVEO) in comparison with TAP as a root canal medicament against C. albicans.

Methods

The Research Ethics Committee of the College of Dentistry, University of Baghdad approved this study (Reference number/839) at date 30/8/2023.

The raw material used during the experiment was acquired from a local market in Baghdad, Iraq, and was classified at the herbarium of the Department of Biology/College of Science/University of Baghdad, it consists from the aerial parts of Thyme Vulgaris. After washing and cleaning, the samples were dried. Drying was performed in a well-ventilated area at room temperature, without exposure to light. After drying, the leaves were collected and chopped in a household blender. The obtained powder was stored in an airtight container until extraction.4

Essential oil extract preparation

Dried thyme leaves (50 g) were hydrodistilled in a Clevenger-type apparatus for 3-4 h. The oils were maintained at 4 °C in sealed vials after drying over anhydrous sodium sulfate.11

Patient selection and sample collection

Ten patients (their age ranged 25-45 years) who had pulpal necrosis, periapical lesions and needed endodontic treatment, were included in this study after signing an informed consent. All the selected teeth had one root. The teeth were symptomatic, and radiographic examination performed in the diagnostic department of a specialized dental clinic (Maysan) verified the diagnosis.

The selected teeth were isolated using a rubber dam. The working area was cleaned with 10% povidone-iodine solution. All coronal restorations and carious lesions were removed using a sterile carbide fissure bur, followed by field disinfection. Subsequently, an access opening to the root canal was created with a sterile diamond fissure bur, taking care not to go too deep inside the pulp chamber to preserve the microbiota. For the initial instrumentation, new and sterile K files of (15, 20) size were used, and a size #20 rotary file was used with no irrigants. Subsequently, normal saline was used to fill the canal, and the final file was agitated vertically to generate a microbiological suspension. After leaving the paper points inside the canal for one minute, they were transferred to the Brain Heart Infusion Broth to the laboratory for isolation and identification.12

Identification of candida albicans

  • 1- Gram’s stain: According to Gram’s method of Naser and his colleagues 2023.13

  • 2- colony morphology: Colonies of C. albicans were examined according to their morphological characteristics on Sabouraud dextrose agar plates as described by Webb et al. (1998).14

  • 3- Germ tube formation: Human serum (0.5 ml of human serum was suspended in tubes containing a small inoculum from an isolated colony. The inoculated tubes were incubated for three hours at 37 °C. Subsequently, on a clean slide, a drop of the suspension was spread to search for germ tubes using a low-power light microscope.15

GC-MS analysis of TVEO

Thyme Vulgaris essential oils chemical compounds analysis was analyzed using a gas chromatograph mass spectrometer (model 5973N, Agilent USA) equipped with a capillary column type HP-5ms (30 m length, 0.25 μm thickness, 0.25 mm diameter) and helium, which was the carrier gas at a flow rate of 1 ml/min. The injector was operated at 280 °C. The oven temperature was programmed as follows: the starting temperature was 60 °C and held for 2 min. The temperature was increased at a rate of 10 °C/min to 300 °C and held for 5 min.16 This procedure was performed by the Ministry of Science and Technology, Department of Water and Environment/Environment Research Centre.

Test the sensitivity of Candida albicans to Thymus Vulgaris essential oil (TVEO) by Agar diffusion method

Dimethyl sulfoxide (DMSO) (LOBA Chemie, India) was used to dilute (TVEO) to various concentrations (25, 10, 8, 6, 4, and 2 mg/ml). The procedure involved the addition of 10% DMSO to the oil.

The Sabouraud dextrose agar (SDA) (OXOID, India) plates were inoculated with Candida albicans suspension that was produced as 0.5 McFarland using sterilized cotton swap. Six mm-diameter wells were created on the plate, and 100 μl of TVEO at the previously determined concentrations were placed in each well. Metronidazole (Gulphar, U.A.E.), ciprofloxacine (Pharma International, Jordan), and minocycline (Vulga XR, Jordan) each of these powders was made separately by grinding it into a fine powder by using a clean mortar and pestle. To achieve the desired 1:1:1 proportion, the three antibiotic powders were individually weighed using a digital scale, and then, to make a paste, one gram of powder was combined with one milliliter of sterile water.14 10% DMSO and TAP, on the other hand, served as the negative and positive controls, respectively. The plates were then kept in an incubator for approximately 24 h at 37°C, after which a ruler was used to measure in millimeters the fungal growth inhibition zones around the wells (involving six mm of each well).17

Determination of MIC and MBC of (TVEO)

Minimum inhibitory concentration was measured by broth microdilution. μL each of the ten wells, numbered W1 to W10, received 100 μL of SDA broth in a 96-well microtiter plate (NUNC™ Brand products), 100 μL of TVEO at an 8 mg/ml concentration was added to W1, and W1 through W10 received a two-fold serial dilution. W11, which was the positive control, contained the inoculated media. In contrast, W12 contained uninoculated medium and acted as a negative control. 0.5 McFarland, a fungal suspension (20 μl), was used to inoculate all wells and incubated overnight at 37 °C. Following incubation, 30 μl of resazurin was added to each well (30 μl/well) and incubated for 2–4 h18 for the observation of color changes. After completion of incubation, rows with no color change (blue resazurin color remained unchanged) were scored as MFC, whereas the last blue well in the row was recorded as the MIC and the next pink well was recorded as the sub-MIC. The MFC was detected by sub-culturing 100 μl from the MIC well and the well before it on SDA plates. Results were obtained after 24 h of incubation at 37°C. After culturing, the concentration was considered to be MFC if it was equal to or higher than the MIC and there was no fungal growth on SDA.19

Statistical analysis

SPSS (Statistical Package for social Science) (version -22, Chicago, Illionis, USA) was used. Minimum, maximum, standard error, mean, and standard deviation, as well as the Levene test, Shapiro-Wilk test, and Tukey HSD with one-way analysis of variance (ANOVA) were used for data description, analysis, and presentation.

Level of significance when p value is less than 0.05.

Results

Chemical composition of the essential oil

The essential oil yield was 1%. Freshly isolated essential oil is a golden liquid with a hot-burning taste. The thyme essential oil was analyzed using GC-MS, and 53 components were identified, representing 95.95% of the total detected constituents. The major constituents of the oil are thymol (35.48%), o-cymene (13.82%), γ-terpinene (13.55%), carvacrol (4.04), α-terpinene (3.11%), caryophyllene (2.99%), linalool (2.57%),3-Thujene (2%). Other ingredients were present in less than 2% of the samples (Table 1).

Table 1. GC-MS analysis of Thymus vulgaris essential oil.

NoCompoundsArea%R.T
13-Thujene212.900
22-Pinene1.1913.272
32,2-dimethyl-3-methylene-bicyclo0.7414.032
44(10)-Thujene0.0914.992
51 OCTEN 3 OL1.3715.369
63-Octanone0.0815.506
7Beta.-Myrcene1.8215.689
83-Octanol0.1416.112
91-PHELLANDRENE0.3916.575
103-Carene0.1816.689
11α-Terpinene3.1117.130
12o-Cymene13.8217.724
132 -Oxabicyclo[2.2.2]octane1.0217.975
14Beta. -Ocimene0.1418.404
15γ-Terpinene13.5519.358
164-Thujanol1.3519.850
17Linalool2.5721.199
18Bicyclo[3.1.0]hexan-2-ol,2-methyl-5-(1-methylethyl)0.3123.554
19Camphor0.1623.554
20(+)-2-Bornanone0.4624.234
21endo-Borneol1.3624.862
22Terpinen-4-ol1.3925.171
233-Cyclohexene-1-methanol0.2726.463
248,9-Dehydrothymol0.1026.463
25THYMYL METHYL ETHER1.2027.274
26CARVACROL METHYL ETHER0.9127.726
272,6-Octadienal, 3,7-dimethyl0.1228.852
28Geraniol0.2829.383
29Thymol35.4831.161
30Carvacrol4.0431.366
31Phenol,5-methyl-2-(1-methylethyl)-acetate0.1132.787
32Eugenol0.1133.184
33Copaene0.2234.150
34BETA. BOURBONENE0.1734.567
35Caryophyllene2.9936.236
36p-Cymene-2,5-diol0.1137.493
37alpha.-Humulene0.1837.670
382,6-octadien-1-ol,3,7-dimethyl-,propanoate0.2337.808
39gamma.-Muurolene0.2338.362
40Germacrene0.2138.705
416.alpha.-Cadina-4,9-diene0.1339.088
42alpha.-Muurolene0.2539.322
43beta.-Bisabolene0.1039.591
44delta.-Cadinene0.8640.117
45trans-Calamenene0.1040.282
46Spathulenol0.1242.900
47Epicubenol0.1844.106
482-Naphthalenemethanol0.2544.449
49tau.-Cadinol0.5845.112
50alpha.-Cadinol0.2145.632
51VULGAROL B0.1046.238
52Cyclohexanol, 3-ethenyl-3-methyl0.1147.122
533-Methyl-4-isopropylphenol0.1258.360

Identification of Candida albicans

Under a microscope, the tested isolate showed gram-positive, oval-shaped, or budding yeast cells. Candida colonies on the SDA appeared smooth, creamy, white, and had a yeasty smell. The results of the germ tube test were positive, suggestive of C. albicans.

Antifungal activity of TVEO against C. albicans

TVEO was effective against C. albicans at all concentrations and regions around the wells with no fungal growth, termed growth inhibition zones. The lack of an inhibitory zone suggests that the fungi were resistant to the drug under evaluation. Triple antibiotic paste, in contrast to DMSO, demonstrated antifungal activity against Candida albicans and created an inhibitory zone.

As TVEO concentration increased, the diameter of the growth-inhibitory zone also increased. The results of the ANOVA test showed that there was a highly significant difference between the concentrations of TVEO and TAP (p ≤ 0.01) (Table 2, Figure 1, and Figure 2).

Table 2. Comparison among the antifungal activity (inhibition zone diameter in mm) of Thymus vulgaris essential oil and triple antibiotic paste (control) against Candida albicans.

GroupsMinimumMaximumMean±SD±SEFP value
TAP32.00037.00035.0001.6330.51652.0310.000 Sig.
2 mg/ml38.00042.00040.0001.3330.422
4 mg/ml40.00044.00042.0001.4140.447
6 mg/ml42.00048.00045.0002.0000.632
8 mg/ml42.00048.00045.0002.0000.632
10 mg/ml41.00049.00046.0002.3090.730
25 mg/ml45.00055.00049.0002.9440.931

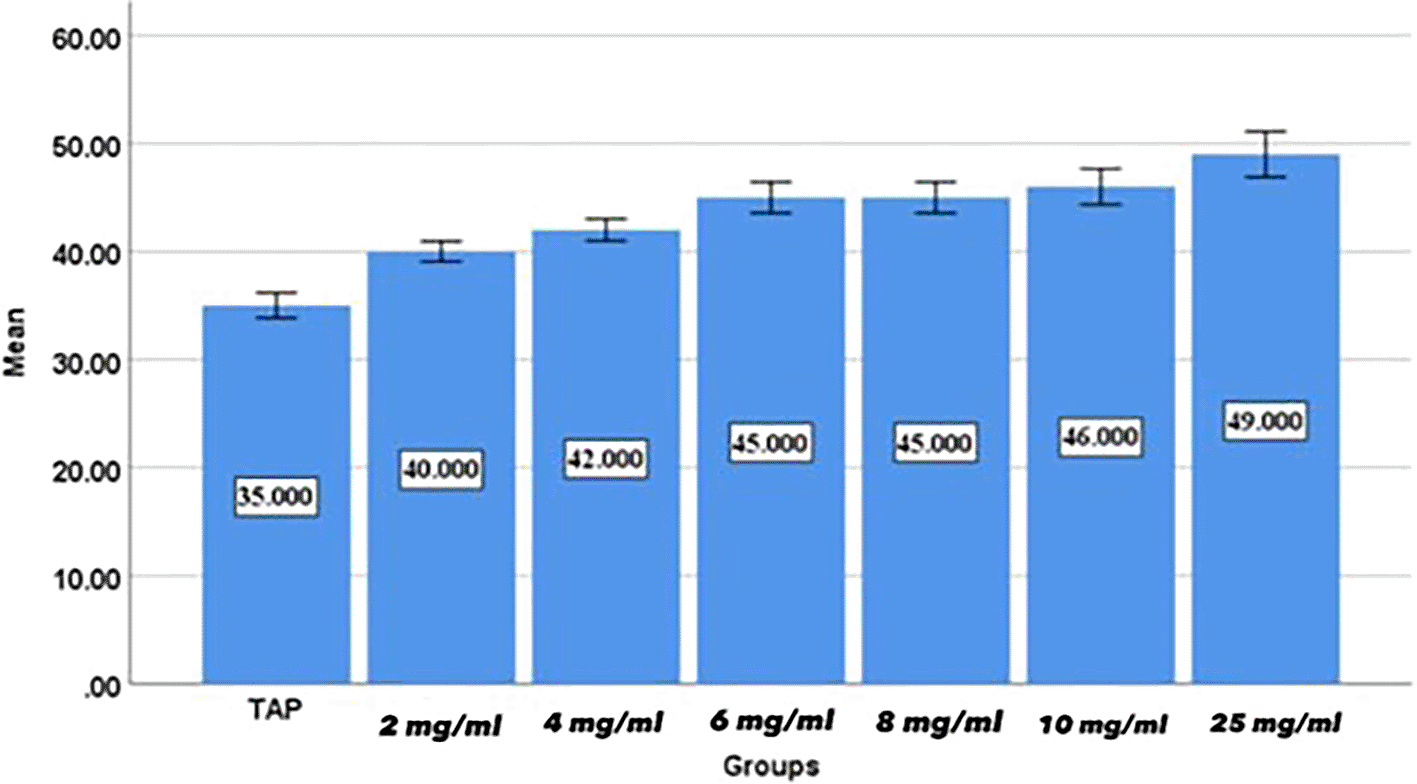

Figure 1. Activity of Thymus vulgaris essential oil and Triple Antibiotic Paste (control) against Candida albicans.


Figure 2. Inhibition zone of TVEO in different concentrations.

A - 25 mg/ml, B - 10 mg/ml, C - 8 mg/ml, D - 6 mg/ml, E - 4 mg/ml, F - 2 mg/ml, T - triple antibiotic paste (positive control), N - dimethyl sulfoxide (negative control).

Since there was a significant difference between the extract concentrations and the control, each pair of TVEO concentrations was statistically compared using Tukey’s HSD test, and the results revealed a significant difference between them (p ≤ 0.05), while between 2 mg/ml and 4 mg/ml, 6 mg/ml and 8 mg/ml, and 8 mg/ml and 10 mg/ml was not significant (p > 0.05) (Table 3).

Table 3. Comparison among the antifungal activity (inhibition zone diameter in mm) of each two concentrations of Thymus Vulgaris essential oil against Candida albicans and triple antibiotic paste (control).

GroupsMDP value
2 mg/ml4 mg/ml-2.0000.301
6 mg/ml-5.0000.000
8 mg/ml-5.0000.000
10 mg/ml-6.0000.000
25 mg/ml-9.0000.000
TAP5.0000.000
4 mg/ml6 mg/ml-3.0000.023
8 mg/ml-3.0000.023
10 mg/ml-4.0000.001
25 mg/ml-7.0000.000
TAP7.0000.000
6 mg/ml8 mg/ml.0000.999
10 mg//ml-1.0000.923
25 mg/ml-4.0000.001
TAP10.0000.000
8 mg/ml10 mg/ml-1.0000.923
25 mg/ml-4.0000.001
TAP10.0000.000
10 mg/ml25 mg/ml-3.0000.023
TAP11.0000.000
25 mg/mlTAP14.0000.000

Determination of MIC and MFC of TVEO

MIC of TVEO was 0.015 mg/ml and MFC was 0.031 mg/ml.

Discussion

Different chemotypes can be identified in plants, and consequently, in the essential oils of T. vulgaris. Chemical composition analysis confirmed that the essential oil belongs to the thymol chemotype. These results were similar to those obtained by Al-Asmari et al.20 and Micucci et al.,21 who studied the oil composition of thyme of the same species sample, in which thymol was the main component.

Many studies have documented the use of plant extracts in dentistry owing to their antimicrobial properties. The successful treatment of several oral diseases has been reported. Moreover, Herbs are better choices for disinfecting root canals because of their anti-inflammatory, antioxidant, sedative, and antibacterial properties.4

This study demonstrated the activity of TVEO against C. albicans in comparison with TAP, which had greater inhibition zones than TAP, and this activity increased as the concentration increased.

This result may be due to the EOs having an antifungal component such as phenol (especially thymol, which is the main component of the essential oil used), alcohols, aldehydes, ketones, ethers, and hydrocarbons, which have the potential to disrupt plasma membrane integrity and produce reversible changes in cellular management that would influence the chemical structure of the cells and their activity.22

Our outcome is consistent with a previous study that found a direct relationship between concentration and antimicrobial activity.19 Mith et al. (2014) used the agar diffusion method to examine the antimicrobial effects of TVEO on several microorganisms and found that TVEO has antimicrobial properties that result in greater suppression of bacterial growth as TVEO concentration increases.23 This result shows considerable promise for using TVEO as a replacement for TAP.

Conclusion

Compared with the synthetic antimicrobials that are currently available and applied for root canal therapy, TVEO showed noteworthy antifungal activity and could potentially be a potent herbal substitute.

Ethics and consent

The Research Ethics Committee of the College of Dentistry, University of Baghdad approved this study (Reference number/839) at date 30/8/2023.

Patients were included in this study after signing an informed consent.
