Systematic Review

The potential role of Vascular Endothelial Growth Factor for hepatocellular carcinoma screening: a systematic review

[version 1; peer review: awaiting peer review]
PUBLISHED 05 Jul 2024
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS AWAITING PEER REVIEW

Abstract

Background

Hepatocellular Carcinoma (HCC) stands as the third most fatal malignancy worldwide, accounting for over 830,000 fatalities annually. This pressing concern has spurred extensive research into potential early diagnostic biomarkers, with a particular focus on the role of vascular endothelial growth factor (VEGF) in recognizing angiogenesis within HCC. VEGF offers an intricate insight into the angiogenic processes, among its multifaceted advantages.

Methods

We systematically curated articles from PubMed and Epistemonikos, concentrating on the determination of VEGF’s diagnostic cutoff value, sensitivity, and specificity for HCC. Employing the PRISMA 2020 flowchart, we meticulously delineated the process of article selection.

Results

In total, our review encompasses nine studies, encompassing 576 HCC patients, subject to qualitative analysis. The collective findings indicate that the specificity of VEGF outweighs its sensitivity, indicating its aptitude in distinguishing HCC from both a healthy population and other high-risk conditions, most notably in comparison with these high-risk conditions. Specificity holds pivotal significance as a preferred parameter for a screening test, endorsing the prospective utility of VEGF in HCC screening.

Conclusions

For individuals, especially those within the normal alpha-fetoprotein range, VEGF may serve as a viable alternative for HCC screening, facilitating the differentiation of this condition from other high-risk conditions.

Keywords

Hepatocellular carcinoma, liver cancer, screening, systematic review, vascular endothelial growth factor.

Introduction

By 2040, the World Health Organization (WHO) predicts that nearly 30 million people will be affected by cancer, with liver cancer being one of the most lethal types of the disease globally. The increased prevalence of liver cancer around the world is concerning for global health. Hepatocellular carcinoma (HCC), the most prevalent form of liver cancer worldwide, is predicted to result in more than one million fatalities annually by 2025. Between 2020 and 2040, there is expected to be a 55.0% increase in the annual number of new cases of liver cancer, with 1.4 million potential cases. In 2040, there will be 1.3 million liver cancer-related mortality, up 56.4% from 2020. HCC is a crucial societal issue for the ensuing 20 years.1

HCC is the sixth most often diagnosed cancer, according to Global Cancer Incidence, Mortality, and Prevalence (GLOBOCAN) 2020. With a relative 5-year survival rate of about 18%, HCC is the third most frequent cause of cancer-related mortality globally. HCC causes 830,000 deaths yearly.2

HCC is a cancerous tumor that develops from hepatocytes, the primary parenchyma cells in the liver.3 Only a few of the numerous biomolecular failures implicated in the complex pathophysiology of HCC include immunomodulation, epithelial-to-mesenchymal transition, increased HCC stem cell dysregulation, DNA methylation alteration, chromosomal instability, cell cycle dysregulation, and microRNAs. Among the etiologies that have been connected to the development of HCC include viral infections, particularly those brought on by the hepatitis B and hepatitis C viruses, chronic alcohol use-related liver disease, non-alcoholic fatty liver disease, and aflatoxin exposure.3

The genetic region located on the fourth chromosome, believed to contain the coding sequence for 3’-phosphoadenosine 5’-phosphosulfate synthase 1 (PAPSS1), has the capacity to regulate the susceptibility to HCC in individuals with hepatitis B virus (HBV) infection. This susceptibility is influenced by various other genetic factors and syndromes that also exert a substantial influence.4

The principal pathogenic mechanism contributing to oncogenesis in HBV infection involves the integration of the viral genome into the host genome. Approximately 60% of HCC cases can be attributed to viral genome insertion within the telomerase reverse transcriptase (TERT) promoter regions of the human genome.5 In contrast, chronic inflammation resulting from long-term hepatitis C virus (HCV) infection, accompanied by fibrosis, necrosis, and regeneration, is a key factor contributing to HCC development in patients with hepatitis C. Molecular indicators of liver carcinogenesis include the detection of viral structural and non-structural proteins (such as NS3, NS4A, NS4B, NS5A, and NS5B).

Non-alcoholic fatty liver disease (NAFLD) is characterized by an excess accumulation of fat in hepatocytes without a history of alcohol consumption. NAFLD frequently manifests in individuals with metabolic syndrome, which is characterized by abdominal obesity, hypertension, hypertriglyceridemia, and insulin resistance. Notably, NAFLD has emerged as a common cause of HCC worldwide, particularly in western countries.6

The prognosis for HCC indicates the expected survival period for a patient following diagnosis. Several critical factors are pivotal, including the liver’s functioning, the tumor’s size and stage, and the chosen treatment approach. The poor prognosis primarily stems from the fact that early-stage HCC often lacks symptoms, leading to delayed detection, and it exhibits significant resistance to conventional chemotherapy and radiotherapy.7 Research has established that the use of targeted chemotherapeutic drugs marginally enhances patient survival8 by only about 7-10 months.9 Understanding the likelihood of HCC development in high-risk individuals enables close monitoring, which, in turn, is linked to early detection, reduced mortality, fewer comorbidities, and extended life expectancy among this high-risk population.10

Elevated serum alpha-fetoprotein (AFP) levels, which are indicative of VEGF pathway activity, serve as a biological marker associated with a bleak prognosis in all stages of HCC. Studies have demonstrated that fluctuations in AFP levels are closely linked to clinical outcomes in systemic therapy, with higher levels being associated with tumor progression and lower levels with slower disease advancement. This impacts both overall survival and progression-free survival.11 Proof-of-concept investigations in HCC, utilizing experimental biomarker enrichment, have yielded diverse results. Both tissue and circulating VEGF levels offer valuable predictive insights into the prognosis of HCC because they exhibit a positive correlation with AFP and possess strong predictive value for estimating overall survival.12

The majority of HCC exhibit hypervascularity, which is evident through characteristics like intrahepatic metastases, frequent portal vein invasion, and the supply of blood from the hepatic artery to the tumor. The formation of new blood vessels from pre-existing ones, known as angiogenesis, represents a crucial step in the growth, progression, and metastasis of HCC. Unlike healthy blood vessels, the arteries supplying tumors have a porous vascular structure and rapidly dividing endothelial cells. This creates challenges for the tumor in obtaining sufficient oxygen and nutrients, resulting in abnormal tumor microenvironments. One of the key factors contributing to tumor angiogenesis is the presence of vascular endothelial growth factor (VEGF).13

Protein molecules like VEGFA, VEGFB, VEGFC, VEGFD, and placental growth factor (PlGF) are part of the VEGF family, which consists of members sharing similar structural and functional characteristics. These substances become physiologically active in their homodimer or heterodimer forms, binding to cell surface-expressed tyrosine kinase (TK) receptors such as VEGFR1, VEGFR2, and VEGFR. VEGFs play a role in promoting cancer metastasis through several mechanisms. These mechanisms include the stimulation of tumor angiogenesis, the formation of leaky and disorganized blood vessels within tumors, the induction of tumor inflammation, alteration of tumor hypoxia, promotion of interactions between cancer cells and vascular endothelial cells by remodeling tumor vessels, and modification of the host microenvironment for metastatic spread. As a result, VEGF-induced cancer metastasis is implicated in various stages of the complex metastatic process.14

Research efforts have been directed towards exploring the potential prognostic significance of novel biomarkers associated with the carcinogenic processes in HCC patients. In this study, we undertook a systematic analysis to evaluate the prognostic significance of elevated levels of VEGF in both serum and tissue samples for assessing overall survival and disease-free survival (DFS) in individuals with HCC. As a secondary objective, we aimed to assess the methodological rigor employed in studies examining VEGF measurements from tissue and serum sources.

Methods

Literature searching

For initial searching, we searched the PubMed and Epistemonikos from February to April 2023. We included studies only limited to original research in human, published in the last 10 years. The search for studies in this systematic review used the search term “vascular endothelial growth factor” AND “hepatocellular carcinoma” AND “diagnosis” which resulted in total a 4115 studies. Subsequently, we identified duplications and screened titles and abstracts by using Rayyan – Intelligence Systematic Review tool (https://www.rayyan.ai). Study flowchart using the PRISMA 2020 guideline is presented in Figure 1.


Figure 1. PRISMA flow chart of study selection.

Modified from: Page MJ, McKenzie JE, Bossuyt PM, Boutron I, Hoffmann TC, Mulrow CD, et al. The PRISMA 2020 statement: an updated guideline for reporting systematic reviews. BMJ 2021;372:n71. doi: 10.1136/bmj.n71.

For more information, visit: http://www.prisma-statement.org/.

Eligibility criteria

Studies are eligible for inclusion if they meet the following criteria: 1) publications from the last 10 years; 2) written in English; 3) the study subjects consist of HCC patients; 4) serum VEGF levels are employed as a biomarker; and 5) the study assesses the accuracy of VEGF in diagnosing HCC. We excluded articles if the full text was unavailable or if the descriptions of VEGF cutoff, sensitivity, or specificity were unclear.

Study quality assessment

We assessed the risk of bias using the QUADAS-2 and QUADAS-C tools (available on https://www.bristol.ac.uk/population-health-sciences/projects/quadas/quadas-c/) designed to assess potential biases in comparative studies related to diagnostic accuracy. These tools address concerns regarding applicability through four key indicators: patient selection, index test, reference standard, flow, and timing. The outcomes were categorized as either unclear, indicating an uncertain risk of bias, low risk, or high risk of bias and was reported using graphic summary and check-list table.

Data collection

Studies were collected by three independent reviewers (R.M., R.H., M.A., and A.N.) and adjustments were made between reviewers through discussion. Any disagreements that emerged during the screening were resolved through mutual consensus. Data obtained from each included study were entered into tables. The first table contains study characteristics which include: 1) Study design; 2) Characteristics of the study population (number of samples and age of sample); and 3) Clinical setting. The data in the second table contains the VEGF accuracy which includes: 1) VEGF cut-off value; 2) Sensitivity; 3) Specificity; 4) Accuracy; and 5) The area under the curve. The collected data underwent thorough cross-verification and was presented in a tabular format.

Results and Discussion

A preliminary search in May 2023 using two electronic databases, PubMed and Epistemonikos, retrieved 4,115 articles. After removing 127 duplicate articles, we proceeded to review the titles and abstracts of the remaining 3,988 articles for preliminary screening. This process yielded 41 eligible articles for further analysis. An additional 32 articles were subsequently excluded because the required study outcome was not available. In total, nine studies were included in this systematic review for qualitative analysis. The search flowchart and selection methods for this systematic review were summarized in Figure 1 of the PRISMA 2020 flow diagram for systematic reviews.

Study characteristics

The nine selected studies spanned the period from 2013 to 2023 and encompassed a total of 576 patients diagnosed with HCC. The mean reported age among the patients ranged from 55 to 64 years. Further details about the characteristics of each study can be found in Table 1. All of these studies were required to provide essential information, including the mean serum VEGF level, the Cut-off value, VEGF level (mean or median), sensitivity (%), and specificity (%), either with or without accuracy parameters, as summarized in Table 2. In all nine studies, the clinical context for the patients included HCC (100%), and liver cirrhosis served as a control group in every study (100%), while a healthy population was included as a control group in five of the studies (55%). In the selected studies, VEGF was compared to other established biomarkers, such as DCP in two studies,15,16 KAI 1 in one study,17 GPC3 in one study,16 and AFP in all the remaining seven studies.

Table 1. Characteristic of Included Studies.

Study (Author, Year)Study designMean age (years)Sample size (HCC Group)MarkerBiomarkers comparisonDiagnosis tool (Reference standard)Patient settings
Mukozu et al., 2013Cohort retrospective65.4 ± 6.011Serum VEGF (ELISA)AFP, AFP-L3, DCPUSG, CT, and MRIHCC vs Chronic Liver Cirrhosis vs Chronic Hepatitic C
Lukito et al., 2014Cross-sectional60.3 ± 10.150Serum VEGF (ELISA)AFPUSG, CT, and MRIHCC vs Liver Cirrhosis HCV and HBV
Zhang W et al., 2014ObservationalNR86Serum VEGF (ELISA)KAI 1surgery and pathologyHCC vs LC vs Hepatitis vs Healthy
Yvamoto et al., 2015ObservationalNR68Serum VEGF (ELISA)AFPCT &/MRI, AFP, biopsyHCC vs LC vs Healthy
Sadik et al., 2019Case control58.6 ± 8.130Serum VEGF (ELISA)AFPtriphasic abdominal CTHCC vs HCV LC vs healthy
Hamdy MN et al., 2020Observational55.0 ± 12.4136Serum VEGF (ELISA)AFPtriphasic spiral abdominal CTHCC dan LC vs healthy
Alzamzamy et al., 2021Case control58.6 ± 8.130Serum VEGF (ELISA)AFPUSG, CT, and MRIHCC vs HCV LC
Zhu et al., 2022Observational55.0 ± 12.4136Serum VEGF (ELISA)GPC3 and DCPbiopsyHCC vs LC
Dala et al., 2023Cross-sectional59.1 ± 7.040Serum VEGF (ELISA)AFPUSG & CTCirrhotic patients with HCC vs without HCC vs Healthy

* Values are mean ± SD or median (Q1-Q3).

Table 2. Summary of diagnostic accuracy of selected studies.

Serum VEGF
Study (Author, Year)Cut-off valueVEGF level* (pg/ml)Sensitivity (%)Specificity (%)Accuracy (%)AUC (95% CI)
Mukozu et al., 2013≤108 pg/ml206.65 ± 109.2386.496.289.40.988
Lukito et al., 2014199.99 pg/mL852.29 ± 977.627476NR0.771
Zhang W et al., 2014>302.7 pg/mL276.894 ± 73.54745.488.461.30.779
Yvamoto et al., 2015≥220 pg/mL588.0 ± 501.194096NR0.709
Sadik et al., 2019≥ 64.2 pg/mL418 (198-1480)100100NR1.000
Hamdy MN et al., 2020>482 pg/mL626.44 ± 71.63100100670.807
Alzamzamy et al., 2021250 pg/mL1409 ± 917.4080.081.780.80.859
Zhu et al., 2022<112 pg/mL772.8 ± 738.2508683.30.817
Dala et al., 2023872.5 pg/ml1572.13 ± 292.7483.381.7NR0.840

* Values are mean ± SD or median (Q1-Q3).

Methodological quality

The quality of the included studies was evaluated using the Cochrane QUADAS Tool, which includes both QUADAS-2 and QUADAS-C assessments. Notably, more than half of the research was categorized as high risk in the domains of patient selection, index test, and flow and timing. However, in the domain of the reference standard, the studies generally exhibited a low risk of bias. Table 3 and Figure 2 provides detailed overview of the total risk of bias of all selected studies.

Table 3. Risk of bias assessments using QUADAS-2 method.

StudyTestRisk of biasApplicability concerns
PIRFTPIR
Mukozu et al., 2013VEGF?
Lukito et al., 2014VEGF??
Zhang W et al., 2014VEGF?
Yvamoto et al., 2015VEGF?
Sadik et al., 2019VEGF????
Hamdy MN et al., 2020VEGF???
Alzamzamy et al., 2021VEGF??
Zhu et al., 2022VEGF??
Dala et al., 2023VEGF??
Mukozu et al., 2013AFP?
Lukito et al., 2014AFP??
Zhang W et al., 2014KAI 1?
Yvamoto et al., 2015AFP?
Sadik et al., 2019AFP????
Hamdy MN et al., 2020AFP???
Alzamzamy et al., 2021AFP??
Zhu et al., 2022GPC3 and DCP??
Dala et al., 2023AFP??
Mukozu et al., 2013VEGF vs AFP
Lukito et al., 2014VEGF vs AFP
Zhang W et al., 2014VEGF vs KAI 1
Yvamoto et al., 2015VEGF vs AFP
Sadik et al., 2019VEGF vs AFP
Hamdy MN et al., 2020VEGF vs AFP
Alzamzamy et al., 2021VEGF vs AFP
Zhu et al., 2022VEGF vs AFP
Dala et al., 2023VEGF vs AFP

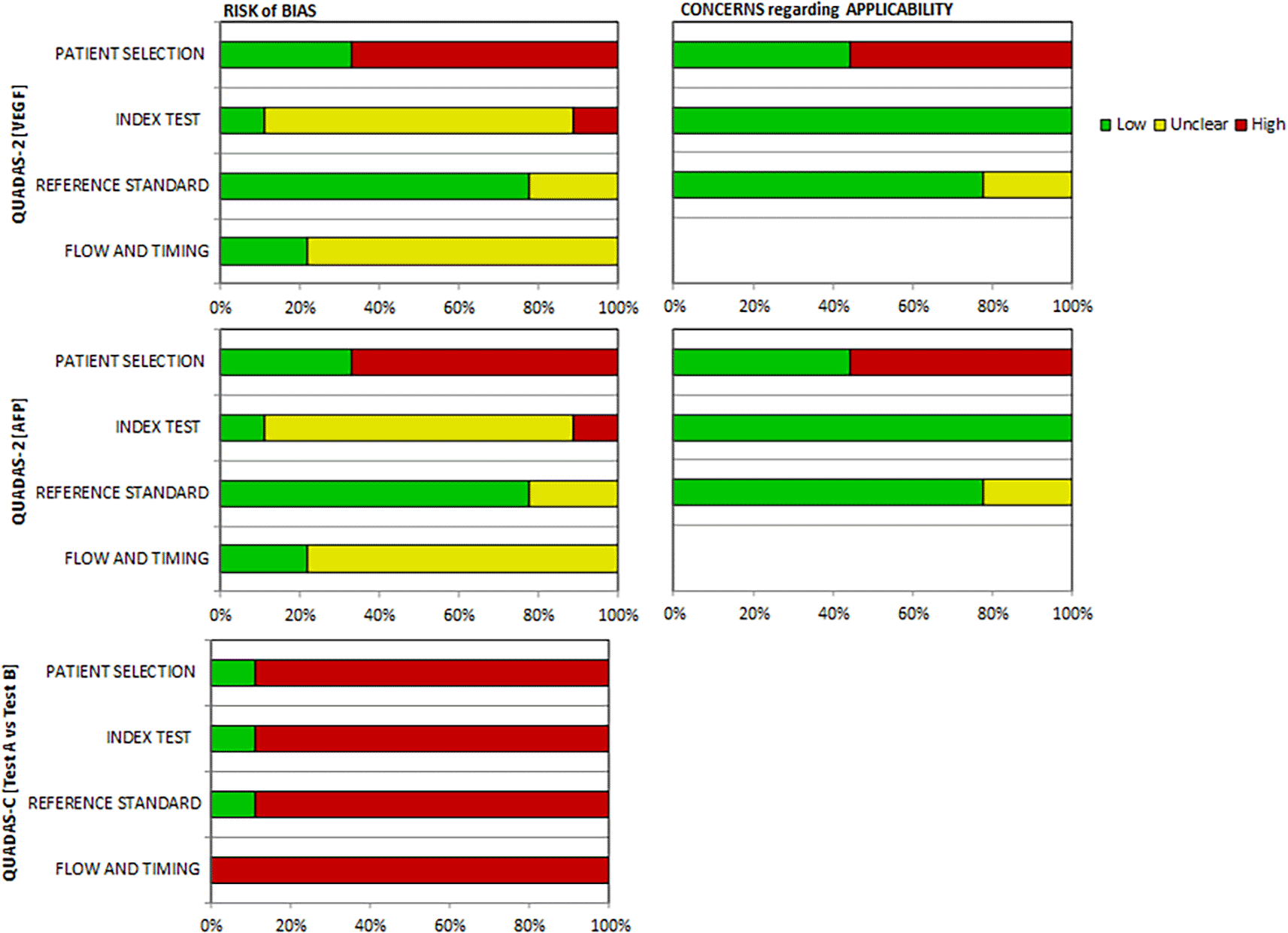

Figure 2. Summary of overall risk of bias (ROB) of selected studies.

Diagnostic accuracy

Sensitivity and specificity

In two studies,17,18 a low diagnostic sensitivity of less than 50% was observed, while three studies12,16,19 showed a moderate diagnostic sensitivity ranging from 50% to 80%, and four studies15,2022 reported high diagnostic sensitivity ranging from above 80% to 100%. Notably, none of the studies reported low diagnostic specificity of less than 50, with one study,12 demonstrating moderate diagnostic specificity between 50% and 80%. The remaining eight studies indicated high diagnostic specificity ranging from above 80% to 100%.

Overall, the specificity of VEGF surpasses its sensitivity, suggesting its ability to differentiate HCC from both a healthy population and other high-risk conditions such as liver cirrhosis, HCV, or HBV infection. Most of the studies compared VEGF to these high-risk conditions. Specificity is a crucial and preferred parameter for a screening test,23 implying VEGF’s potential utility in HCC screening. Furthermore, since the majority of studies compare VEGF to AFP, VEGF’s high specificity can serve as an alternative support for diagnosing HCC in cases where the patient’s AFP level is within the normal range. This is especially important as AFP levels can increase in cases of cirrhosis or hepatitis, and not all HCC cases secrete AFP. A systematic review using the common positive cutoff value for AFP (20 ng/mL for HCC) revealed a sensitivity of 41–65% and a specificity of 80–94%.24

VEGF cut-off point

In all of our studies, the Receiver Operating Characteristic (ROC) and the area under the curve (AUC) were employed to establish the cut-off value for VEGF and subsequently calculate its sensitivity and specificity. However, one study18 deviated from this approach by using reference or threshold values provided in the manufacturer’s instructions for the tests. It’s worth noting that relying on a test’s predefined thresholds to maximize sensitivity and/or specificity can lead to overly optimistic assessments of the test’s performance.25 Among the nine studies included, the range of cut-off values for diagnosing HCC using VEGF varied significantly, with the lowest being ≥64.2 pg/mL20 and the highest at 872.5 pg/ml.20

The considerable variance in cut-off values could be attributed, at least in part, to the use of different ELISA kits in each study. However, it’s important to emphasize that there is currently no established guideline specifying a particular cut-off value for VEGF in the diagnosis of HCC or other cancers.

VEGF accuracy

Out of the included studies, only five of them computed the accuracy of VEGF.1517,19,22 These studies employed Receiver Operating Characteristics (ROC) to assess and compare the accuracy of each tumor marker with that of VEGF. Among these studies, the lowest accuracy recorded was 61.3,17 while the highest accuracy achieved was 89.4.15

Strength & limitation

The heterogeneity and wide range of cut-off values observed across the included studies should be carefully considered, given that these values are crucial for determining sensitivity and specificity. Furthermore, it is important to note that two of the studies20,22 reported 100% sensitivity and specificity in their tests. However, it should be acknowledged that these studies included a “healthy” control group, which can potentially lead to an exaggeration of the accuracy test results.

Conclusions

For individuals without elevated AFP levels, particularly those considered normal, VEGF can serve as an alternative screening test for HCC, enabling the differentiation of this condition from other high-risk conditions like liver cirrhosis.

Ethics approval and consent to participate

Not applicable

Authors’ contributions

RM conceived the idea and formulated the research questions. RM, RH, MA, AN, and FM performed the literature searching, prepared the initial manuscript, and performed data analyses. AQ and RAY made critical revisions. AQ provided the submitted manuscript. RM and AQ reviewed and advised further revisions. All authors read and approved the final manuscript.

Consent for publication

Not applicable.
