Assessing the severity of thermal discomfort in a building in the course of hot and humid climate

1. Introduction

Douala is a coastal city located 35km from the Gulf of Guinea in Cameroon. The city is characterized by a hot and humid weather regularly crossed by light winds of 3 to 7 km/h. Demographically and according to the National Institute of Statistics (INS) in 2019, Douala has more than 3 million inhabitants. The most urbanized area of the city is 210 km² with 70 km², 70% of which is built according to the Douala Urban Community (CUD). The demographic boom and the rural exodus have favoured an increase in demand for housing, leading to anarchic occupation of land and non-compliance with architectural rules adapted to the climate. This situation has led to an increase in heat islands in the city.^1,2 Cinder block constructions abound due to the availability of this material on the market. The first concrete houses in the region met certain provisions and criteria such as the orientation of doors and windows in relation to the prevailing wind, ventilation holes, shutters, and prefabricated screens on the upper parts of the bays. This fosters regular home ventilation even when the bays are closed. Nowadays, these criteria are largely neglected. The trend towards glass doors and windows predominates. We regretfully note that the habits of the occupants of modern houses are among the causes of discomfort since the openings are sometimes not used properly. Doors and windows remain constantly closed, which does not favour wind circulation and air renewal. Studies related to indoor air quality show that poor air renewal can cause many illnesses, such as allergies, asthma, lung infections, headaches, as well as nose, throat and eyes irritation. Furthermore, better thermal comfort can be obtained with a good design of habitats that are adapted to the climate of the city of Douala.³ In 2012, some studies on thermal comfort conditions in the city resulted in the temperature range of 24°C to 28°C and for an interval of 60% to 69% relative humidity.^4,5

However, thermal discomfort in buildings has become a major nuisance in Douala,¹ especially for modern housing made from unconditioned cinder block. The intensity of this problem which has so far been little assessed is observed at different degrees in the rooms of the same building. These differences are mainly related to the behavior of the inhabitants, wind circulation, air temperature and humidity. Oluwafemi et al in 2010⁶ carried a study in houses in Bauchi in Nigeria, and showed that thermal comfort depends on the adaptation of the occupants in their residence. It has been demonstrated that despite the existence of several factors acting on the interior environment, the occupant seems to be the most impactful element. In fact, the action of the occupant on the window and the shutter modifies air renewal as well as the management of solar gain. The works of Alison and Chungyoon in 2003⁷ demonstrated that occupants of well-ventilated rooms have a good thermal sensation.

To assess thermal comfort, certain studies have particularly used the PMV (Predicted Mean Vote) method.^4,5,7 Which aims to predict the mean value of a group of occupants on a seven point thermal sensation scale.ai Her evaluation being subjective. In addition, when it is necessary to express the severity of discomfort by period, methods such as PMV, PPD (Predicted Percentage of Dissatisfied) fail to meet this objective, and this limits their usefulness in many cases.⁸ On the other hand, the DH method offers the possibility of assessing the severity of discomfort by temporal stages in an inhabited or uninhabited building, which justifies its choice for the purpose of this study.

Several studies carried in recent decades have used the DH as an index for assessing discomfort. In 2010, studies revealed the influence of exterior shading systems for a substantial reduction in DH at the level of intermediate floors during cooling periods.⁹ In 2013, a study carried out in a well-insulated commercial building, located in a temperate climate, showed the benefit of natural night-time ventilation provided by opening the skylights as a passive cooling strategy, which contributes to a significant reduction in DH by approximately 19% for the entire building in summer.¹⁰ In 2018, studies carried in four Moroccan climatic areas revealed that the thermal comfort of occupants increases in rooms with cantilevered beams, and the DH decreases by approximately 2.1% compared to rooms without cantilevered beams.¹¹ Nisrine et al in 2021 studied DH in a public building whose envelope consists of four facades, the ceiling and a roof.¹² They showed that the number of occupants strongly affects the DH whose intensity varies in the same direction as the number of occupants. Other studies have shown the importance of the DH index in building design since it can be used to evaluate thermal comfort objectively in buildings in inhabited or uninhabited mode.^8,12 A study carried in 2021 using data obtained from the active weather station in the Bandırma district of Turkey has allowed to analyse outdoor temperature data measured every hour between 2000 and 2020 and over 21 years. Results of the analysis showed that the number of DHs varied between 31,357 and 53,037.¹³ Recent climate trends at two nearby Sydney stations were examined in 2021 in terms of hourly ambient air temperature and wind direction data from 1999 to 2019. A baseline was set for the monthly number of overheating degree hours (HDH) where temperatures exceeded 24°C. The observations made show that the degree-hours were linked to the synoptic dominance and local phenomena: sea breezes and inland winds. Results show that both regions had an average monthly number of HDH (980-1421). Results also showed a higher average monthly number of HDH (40-320).¹⁴ The heat-related risks to nursing home residents in England, in the context of the uncertainties associated with the loss of life expectancy in the event of heat-related death, was examined in 2021. This study showed that high heat has a strong influence on mortality rates in retirement homes.¹⁵ The DH was used in 2024 in France as an indicator to measure the effects of overheating on human health in the life cycle of buildings in order to provide design assistance combining mitigation and adaptation. The study revealed an optimal insulation thickness of 15 cm minimising the human health indicator in DALY. (DALY = (Reference Age - Average Age At Death) × Excess Death). This highlights the potential of active cooling to reduce impacts on human health, especially if it consumes electricity generated by a photovoltaic system integrated into the building.¹⁶ The RE2020 environmental regulation in France defines two DH thresholds: A 350°H threshold below which the building is comfortable, and a 1250°H threshold above which the building shows an unacceptable discomfort. Between these two thresholds we talk about “tolerable discomfort”.¹⁷ Thus, DH studies in the South Sahelian African area should be promoted within the framework of local regulations.

From the literature review, it appears that the level of thermal discomfort is a primary factor in assessing building performance. Also, the DH index is one of the evaluation methods often used for a specific occupancy scenario in a building. The originality of this work lies in the fact that thermal discomfort is assessed in the same building according to three simultaneous occupancy scenarios representing the real situations of a habitat. We wonder about the intensity of DH in a room depending on whether it is inhabited, closed uninhabited or open uninhabited.

The purpose of this work is to assess the intensity of thermal discomfort based on experimental data and using the DH index in a hollow agglomerate block room located in a hot and humid area, following three simultaneous scenarios with data previously collected over a12 month period.

The methodology adopted in this work begins with the construction of an experimental building of R+1 with three test rooms of the same measurements upstairs. The data acquisition system which consists of thermohygrometers and a computer is installed in the experimental premises. Three occupancy scenarios are then defined for the three test premises: the first premises is open and not occupied during the experimentation phase; the second is closed and not occupied and the third is occupied in real conditions according to the behaviour of people in the region. The collection, processing and storage of air temperature and relative humidity data from the different rooms is carried out. Moreover, the thermal discomfort index is determined by the method of the degree of discomfort hours of the premises and the thermal discomfort rate.

2. Methods

2.1 Geographical location and specific climate conditions of the area of study

The experiment was carried out in Douala which is a city located in the Littoral region of Cameroon, a country in central Africa. Cameroon stretches from the Gulf of Guinea to Lake Chad. It extends in length from the 2nd to 13th degree of North latitude and in width from 6th to 16th degree of East longitude. The opening to the sea and its stretch give the country a wide variety of climates.^18,19 The Littoral region is positioned from the 3°57’30”N to 4°7’30”N and from the 9°37’30”E to 9°50’0”E ( Figure 1). The place is an area with a hot and humid climate.^5,20 Humidity in this area varies between 65% to 98% and temperatures between 19°C and 32°C with an average of 25°C.²¹ Douala records high rainfall due to the proximity of the city to the Atlantic Ocean, that is 175 to 200 rainy days per year, with a water depth of 4500mm.²² The most urbanized area is 210 km² and according to INS, littoral statistical yearbook 2019, Douala had 3,049,034 inhabitants in 2018 with an average annual population growth rate estimated at 5% per year over the last 30 years.²³

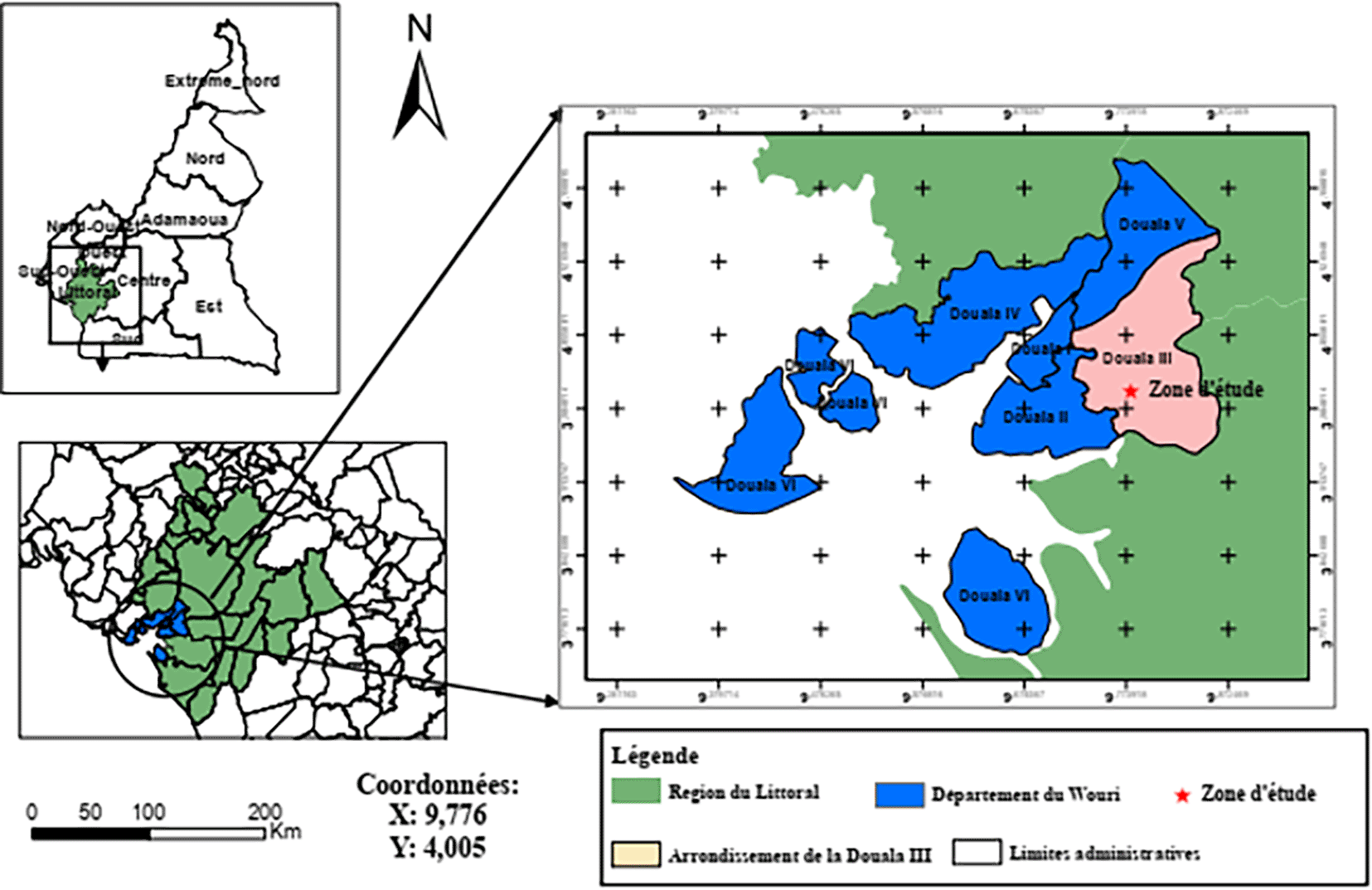

Figure 1. Study region.

This figure was reproduced with permission from the autors.²⁴

2.2 Description of the experimental building

The experimental building is a modern R+1 building with cement blocks as an envelope. The building has three rooms of the same size, built upstairs. The three (03) experimental rooms have equivalent surfaces of 9.30m2. The walls are built from 15x20x40cm cinder block. The thickness of the cement mortar coating is 2cm. The interior and exterior surfaces of the walls are painted white. The floor is a 16x20x50cm hollow body floor covered with a 6cm thick screed and 0.5cm thick ceramic tiles. The roof is made of 0.5mm aluminum sheets, with a 4mm thick plywood ceiling. There are wooden doors measuring 3x80x210cm. We also have glazed windows of 0.4x80x100cm. The ceiling is 2.80m high ( Figure 2). There is data acquisition equipment in the experimental rooms and in the outdoor environment.

Figure 2. Building plan and cross section.

For this purpose, three occupancy scenarios were carried out

• - Scenario 1 (C1): open uninhabited room with the door and windows open;

• - Scenario 2 (C2): closed uninhabited room with the door and window closed;

• - Scenario 3 (C3): inhabited room.

3. Results and Discussions

Data collected outside and in the experimental premises are analyzed, and the thermal comfort in the premises is assessed by season and over the entire year.

3.2 Analysis of data from indoor environments of premises

The temperature data are analysed in comparison with the comfortable temperature range from 24°C to 28°C

3.2.1 Analysis during the hot season

• a) The hottest day

  Figure 3 below shows the TC1, TC2, TC3 and TExt graphs of the hottest day in February over 24 hours.

  The maximum outdoor temperature was reached on February 10 at 3 p.m. with 40.93°C (RH=43.8%).

  Looking at Figure 3, it is observed that this day was particularly marked by high temperatures above the upper threshold temperature for thermal comfort in the three occupancy scenarios.

  For the open room C1, the heat peak was reached at 4 p.m. with 32.93°C, while the peak was observed at 6 p.m. in the closed room C2 with 32°C. Finally, the peak is reached at 5 p.m. in the occupied room C3 with 32.27°C.

  The curves of rooms C2 and C3 are almost identical over certain time intervals. This can be explained by the absence of the occupant in the room at these times.

• b) The hottest month

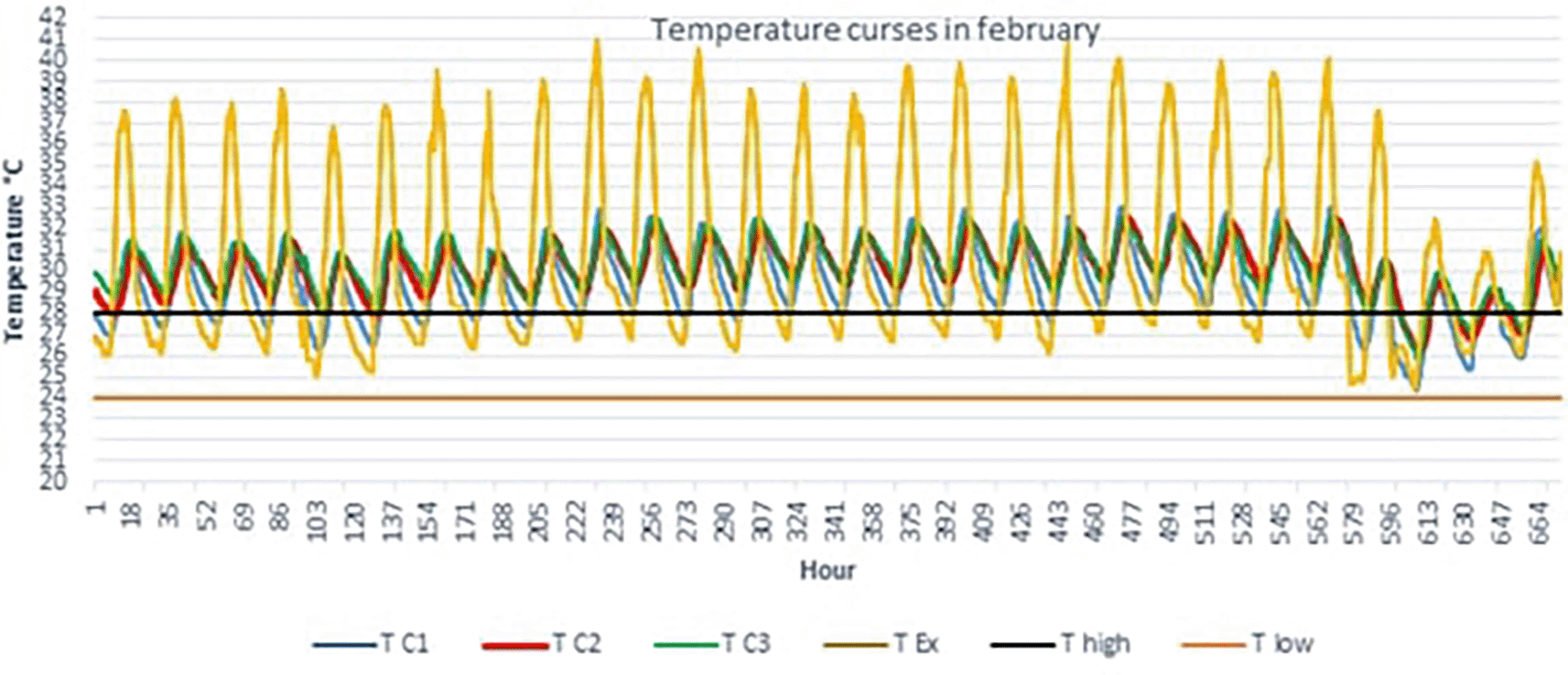

  Figure 4 below shows the TC1, TC2, TC3 and TEx graphs over 28 days for the month of February.

  Outdoor temperatures (TEx) vary from 25 to 41°C, the peak of outdoor temperatures is generally reached at 3 p.m. The temperature peak in rooms C2 and C3 is observed around 6 p.m., i.e. a peak phase shift of 3 hours compared to the outside. This can be explained by the inertia of the building envelope. We see that the temperature curves TC2 and TC3 of scenarios C2 and C3 are above the maximum threshold temperature (T high) from February 1 to 25. For scenario C1, we observe small, comfortable periods of 2 to 3 hours early in the morning.

Figure 3. Temperature curves on the hottest day compared with the upper and lower comfort limit temperatures (24°C-28°C).

Figure 4. Temperature curves in the hottest month compared with the upper and lower comfort limit temperatures (24°C-28°C).

3.2.2 Analysis during the cold season

• a) The coldest day

  Figure 5 below shows the TC1, TC2, TC3 and TEx graphs over 24 hours of the coldest day of the month of August.

  The minimum outdoor temperature was obtained on August 29 at 4 p.m. with 32.04°C (Rh = 69.6%).

  Figure 5 shows the temperature progress in the rooms and outside compared to the hot comfort threshold. It is noted that the heat peak was reached at 6 p.m. for the three occupancy scenarios with 29.17°C for C1, 28.08°C for C2 and 28.61°C for C3.

  It is a particularly comfortable day in the three rooms with a period of discomfort ranging from 3 p.m. to 9 p.m. for room C1, from 4 p.m. to 10 p.m. for room C2 and from 6 p.m. to 9 p.m. for room C3.

• b) The coldest month

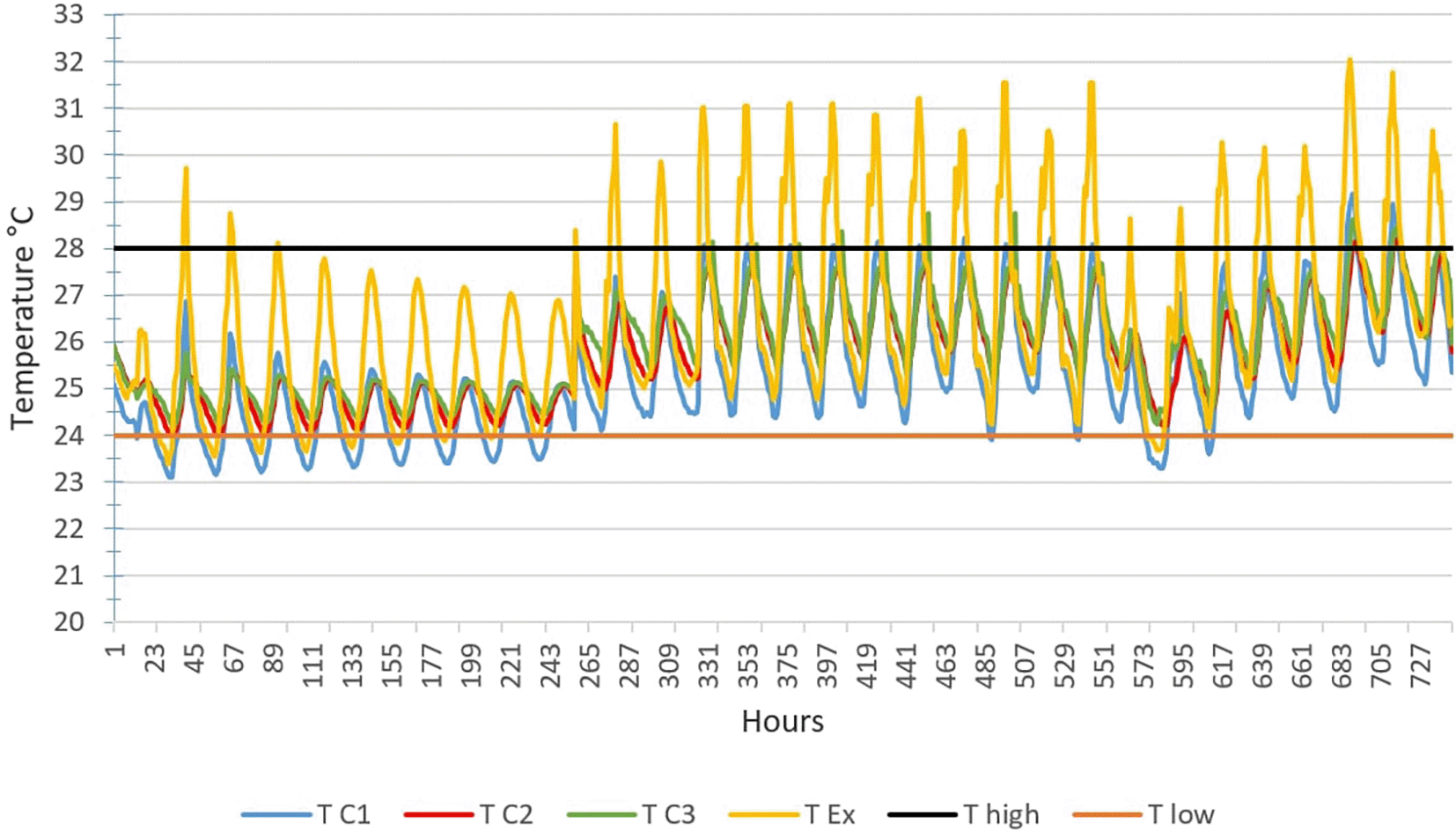

  Figure 6 below shows the TC1, TC2, TC3 and TEx graphs over 31 days for the month of August.

  Outdoor temperatures (TEx) vary from 23°C to 32°C, the peak of outdoor temperatures is generally reached at 3 p.m. The temperature peak in rooms C2 and C3 is observed around 6 p.m. It is observed that the temperature curves TC2 and TC3 remain between the two high and low thresholds from August 1 to 28. For scenario C1, it is found that the periods of exceeding the lower limit of thermal comfort of 2 to 7 hours during the first 10 days of the month. This can be explained by the light rains that fall daily during this period.

Figure 5. Temperature curves on the coldest day compared with the upper and lower comfort limit temperatures (24°C-28°C).

Figure 6. Temperature curves for the coldest month compared with the upper and lower comfort limit temperatures (24°C-28°C).

3.2.3 Analysis during the entire year

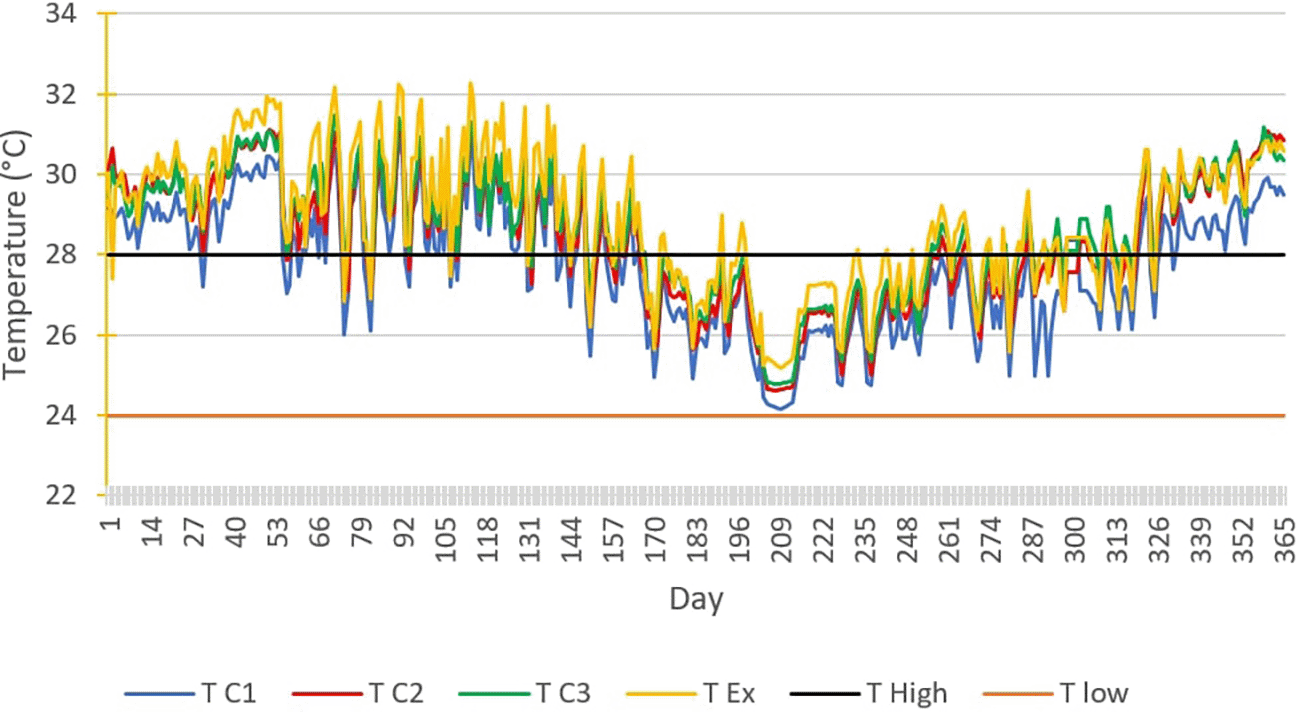

Figure 7 below shows the TC1, TC2, TC3 and TEx graphs over the 365 days of 2019.

Figure 7. Temperature curves for 365 days of the year, compared with the upper and lower comfort limit temperatures (24°C-28°C).

Thermal discomfort is noted in closed rooms C2 and inhabited rooms C3 on one hand, extending over a large number of days, except between the 200th and 260th day of the year when acceptable thermal comfort can be observed. On the other hand, in the uninhabited open room, a long period of acceptable comfort is observed between the 179th and 325th day. These periods of acceptable thermal comfort correspond to the main rainy season.

3.3 Indicators of thermal discomfort

The degrees of discomfort hours and the thermal discomfort rate in the test rooms for the three scenarios are shown in the figures below over the year.

3.3.1 The number Degree hours of thermal discomfort

Figure 8 below shows the number of summer discomfort hours per month for scenarios C1, C2 and C3

Figure 8. The number of hours of summer discomfort in rooms.

It is observed a peak in hours of discomfort in the month of December for scenarios C2 and C3 with respectively 739 hours and 724 hours, on one hand. ON the other hand, for scenario C1 the peak is reached in February with 536 hours this can be explained by the drop humidity in February. Furthermore, there was a considerable drop in the number of hours of discomfort in July and August. This period corresponds to the rainy season with fine drops falling throughout the day making the air humidity very high. The greatest number of hours of discomfort occurs in December in rooms C2 and C3. This may be due to fog despite the high temperatures.

3.3.2 Degree hour of thermal discomfort

• a) Degree hour of monthly summer discomfort

  Figure 9 shows the degree hours of monthly discomfort for scenarios C1, C2 and C3.

  A decrease in the DH is observed during the rainy season which extends from July to October as well as a period of tolerable discomfort in July and August with less than 100°H/month.

• b) The Degree hour of the annual discomfort

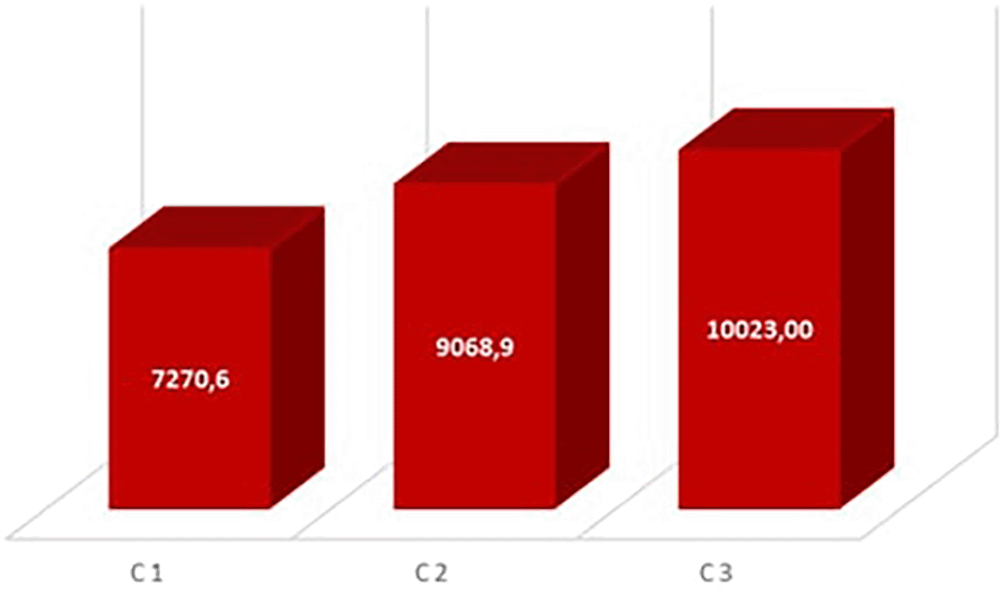

  Figure 10 shows the degree hours of annual discomfort for the occupancy scenarios. Room C3 has the highest discomfort degree hour with 10023°H, followed by room C2 with 9063.9°H, while room C1 has 7270.6°H. This corroborates the results of other research works such as that of Nisrine Laghmich et al. in 2021¹⁹ according to which the DH increases in the same direction as the number of occupants. Results also reveal that the renewal of air linked to the opening of the bays leads to an annual reduction in DH.

Figure 9. Monthly hours of rooms.

Figure 10. The Degree hours of the annual discomfort in the rooms.

3.3.3 The Degree hours of summer thermal discomfort of the three scenarios compared to RE2020

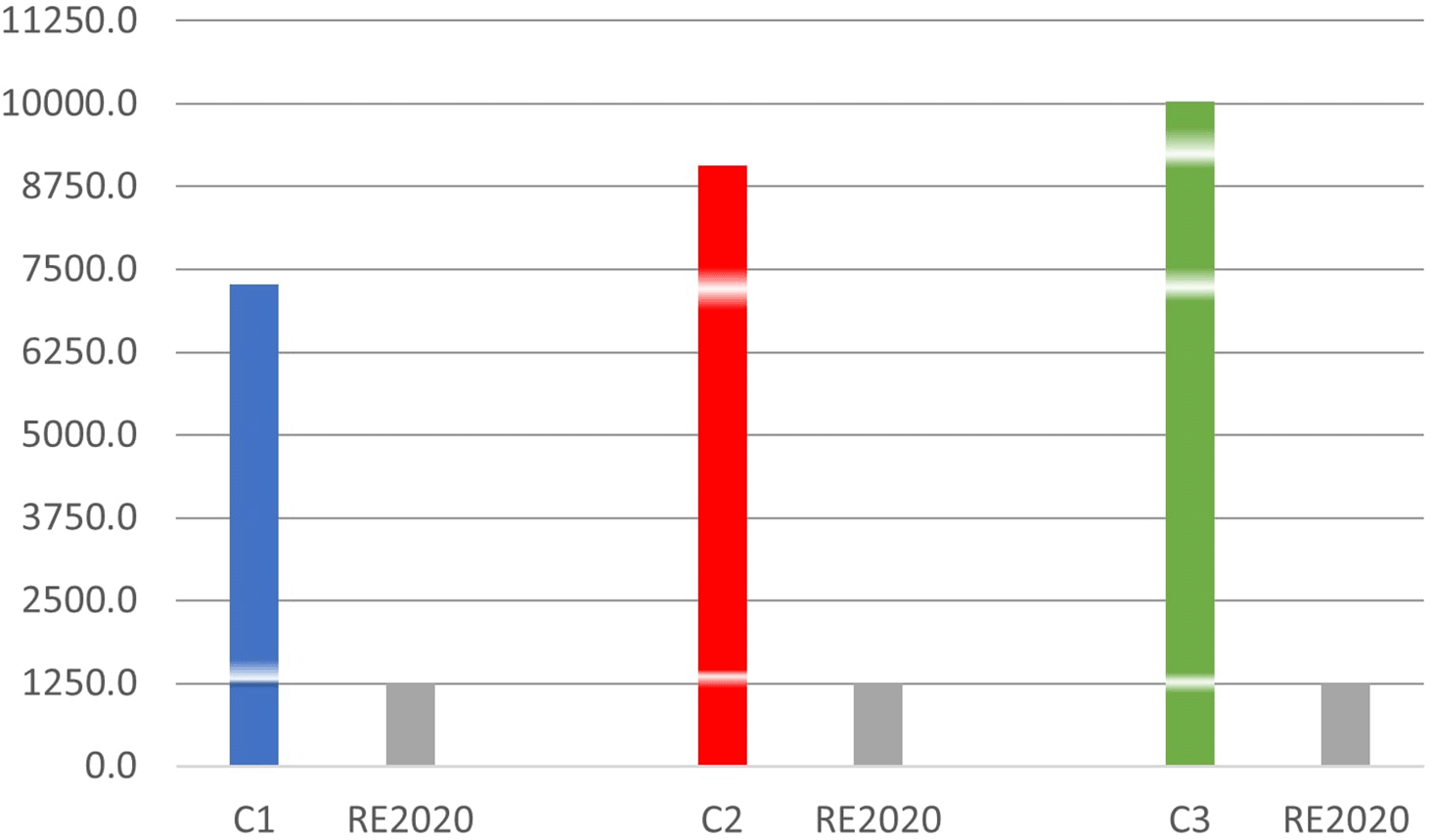

Compared to RE2020 which sets the maximum DH at 1250°H,²¹ Figure 11 above shows that:

Figure 11. Degree hours of rooms compared to RE2020.

The DH is 5.8 times higher in room C1, 7.2 times higher in room C2 and 8 times higher in room C3. It is observed that the discomfort in a premises made of concrete blocks in a hot humid climate is far above the tolerable limit value provided for by RE2020. Although these are unlivable conditions in other countries, the inhabitants of the city of Douala seem to adapt well.⁴

4. Conclusion

This work allowed to assess the severity of summer discomfort in a residential building made of cinder block in the city of Douala, in Cameroon. The experimental data were used to assess and quantify thermal discomfort in a hot and humid environment following various scenarios in three rooms with the same measurements. Scenario 1 (C1) with an open uninhabited room with the doors and windows open, Scenario 2 (C2) with a closed uninhabited room with doors and windows closed, and Scenario 3 (C3) with an inhabited room. The DH method was used to quantify thermal discomfort.

The results obtained show for this case that the DH in a room with a hollow agglomerate block envelope in a hot and humid climate exceeds more than five times the tolerable limit of 1250°H set by RE2020. Opening doors and windows allows a reduction in DH of 19.8% compared to a closed room. Occupants have a strong impact on the increase in DH due to the fact that they are a source of heat and also due to their action on the bays. Nevertheless, opening doors and windows does not seem to be enough to make the building comfortable in this region. The open uninhabited room C1 is the least warm with 7270.6 °H or 44.9% of hot time annually, the closed uninhabited room C2 obtains 9063.9 °H or 58.1% of hot time for the year and the inhabited room C3 obtains 10023 °H or 60% of hot time annually. Thermal discomfort can be alleviated by solutions applicable to buildings in this type of climate. Namely, a better choice of site in relation to exposure to winds, a good orientation of the building and openings to maximize air renewal and minimize heat diffusion, a good organization of spaces to allow air circulation, good protection of the building against solar rays, good natural ventilation and a reasonable choice of building materials that are less heat-conducting, innovative solutions such as smart paints that can absorb or reflect radiation depending on the case, roofs with plants and even mechanical cooling devices (fans, air conditioners, etc.). To this end, the study proves useful in the energy efficiency of buildings, for designers and real estate developers in order to make an optimal choice regarding the building envelope, its protection against solar radiation and its natural ventilation. The study can also be useful for occupants as it allows them to participate in the renewing air and reducing solar radiation in their premises. Cameroon does not yet have an energy performance standard for buildings, but this work could help public authorities to develop or improve regulations in the real estate sector in order to reduce thermal discomfort in residential buildings in the course of hot and humid climates.
