Systematic Review
Inspiratory Muscle Training plus Pulmonary Rehabilitation versus Rehabilitation alone in COPD A Systematic Review of Randomized Controlled Trials
[version 1; peer review: awaiting peer review]
PUBLISHED 07 Jan 2026
OPEN PEER REVIEW
REVIEWER STATUS
Abstract
Corresponding author:
Fahad Algharbi
Competing interests:
No competing interests were disclosed.
Grant information:
The author(s) declared that no grants were involved in supporting this work.
Copyright:
© 2026 Algharbi F et al.
This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
How to cite: Algharbi F, Nuhmani S, Asiri M et al. Inspiratory Muscle Training plus Pulmonary Rehabilitation versus Rehabilitation alone in COPD A Systematic Review of Randomized Controlled Trials [version 1; peer review: awaiting peer review]. F1000Research 2026, 15:19 (https://doi.org/10.12688/f1000research.175598.1)
First published: 07 Jan 2026, 15:19 (https://doi.org/10.12688/f1000research.175598.1)
Latest published: 07 Jan 2026, 15:19 (https://doi.org/10.12688/f1000research.175598.1)
Introduction
Chronic obstructive pulmonary disease (COPD) is a slowly progressive disorder characterized by persistent, largely irreversible airflow limitation resulting from a combination of small airway disease and parenchymal destruction (emphysema). COPD is a leading cause of morbidity and mortality worldwide, by 2030, it is projected to rank as the fifth leading cause of global disease burden (up from 12th in 1990) and the third leading cause of death (up from sixth in 1990), with an estimated three million deaths annually (Mathers & Loncar, 2006). People with COPD typically present with chronic cough, sputum production, breathlessness, and wheezing, along with reduced exercise capacity and physical activity levels (GBD, 2017). Dyspnea and fatigue are particularly prominent, and deconditioning frequently leads to further reductions in physical activity and exercise tolerance, thereby exacerbating functional limitations and disability. Multiple pathophysiological factors contribute to these impairments, including dynamic hyperinflation, gas exchange abnormalities, cardiovascular comorbidities, and respiratory muscle dysfunction.
Pulmonary rehabilitation (PR) is an evidence-based, multidisciplinary intervention that includes structured exercise training, education, psychosocial support, and nutritional counseling, and is recommended as a cornerstone of COPD management. PR has been shown to improve dyspnea, exercise capacity, physical fitness, and health-related quality of life, and to reduce hospital admissions and mortality, particularly in patients with frequent exacerbations (Puhan et al., 2011). Inspiratory muscle training (IMT) has attracted particular interest as a potential adjunct to PR. The American Thoracic Society and European Respiratory Society recommend that IMT may be considered within PR programs for selected patients with COPD (Spruit et al., 2013). IMT can be delivered using three main modalities (flow-resistive loading, volume-based devices, and pressure-threshold loading) with the primary aim of increasing inspiratory muscle strength and endurance, thereby improving overall functional capacity (Geddes et al., 2005). The rationale for IMT in COPD is based on two main points: maximal inspiratory pressure (PImax) is frequently decreased, indicating weakened inspiratory muscles, and exercise capacity may be partly restricted due to fatigue of the respiratory muscles (Charususin et al., 2013).
Core outcome measures of PR include respiratory muscle strength, six-minute walk distance (6MWD), pulmonary function indices, and dyspnea scales. IMT has been proposed as an adjunct to PR to further enhance these outcomes, yet its role remains controversial. Since its introduction in the 1980s, IMT has generated considerable debate owing to inconsistent findings regarding its clinical benefits in COPD. While the efficacy of IMT has been more clearly demonstrated in other populations including healthy individuals (Illi et al., 2012), patients with neuromuscular disease (Human and Morrow, 2021), chronic heart failure (Wu et al., 2018), and asthma (Lista-Paz et al., 2022) the largest body of evidence is associated with COPD. Within this population, IMT has been investigated both as a stand-alone intervention and in combination with other exercise modalities and/or comprehensive PR.
Numerous trials and meta-analyses have shown that IMT as a stand-alone therapy can improve inspiratory muscle strength, inspiratory endurance, functional exercise capacity, quality of life, and dyspnea. A systematic review and meta-analysis of 32 randomized controlled trials evaluating IMT alone in COPD demonstrated significant benefits over control for PImax (+13 cmH2O), inspiratory endurance time (+261 s), 6MWD (+32 m), quality of life (+3.8 points on the Chronic Respiratory Questionnaire), and dyspnea (−2.8 points on the Transitional Dyspnea Index) (Gosselink et al., 2011). However, when IMT is integrated into a structured PR program, its additional contribution becomes less clear. Beaumont et al. (2018) synthesized 43 studies (642 patients) and reported that, although IMT improved inspiratory muscle strength, it did not confer additional benefits in dyspnea, quality of life, or exercise capacity when combined with PR. Similarly, the 2023 Cochrane review by Ammous et al. concluded that adding IMT to PR increased PImax by approximately 11.46 cmH2O but did not significantly enhance dyspnea or functional exercise performance compared with PR alone.
In contrast, individual high-quality randomized controlled trials have reported clinically important additive effects of IMT when combined with PR in carefully selected patients. Charususin et al. (2018), in a large multicenter trial (n = 219) of COPD patients with inspiratory muscle weakness (defined as PImax <60 cmH2O or <50% predicted), found that adding IMT to PR produced significantly greater improvements in endurance cycling time (+225 s vs. +163 s), endurance breathing time (+353 s vs. +162 s), and PImax (+22 cmH2O vs. +9 cmH2O) than PR alone. These findings suggest that patient phenotyping, particularly the presence of inspiratory muscle weakness, may be critical in determining the additive value of IMT within PR. Overall, the available literature presents a heterogeneous and sometimes conflicting picture: meta-analytic evidence indicates that IMT is clearly efficacious as a stand-alone intervention, whereas its incremental benefit when layered onto PR appears conditional and context dependet.
The benefits of including IMT in a standard PR training program are still unclear and debatable. This systematic review addresses two core questions: (1) In adults with moderate-to-severe COPD, does adding IMT to PR improve PImax, dyspnea, HRQoL, 6MWT performance, and pulmonary function compared with PR alone? (2) Are the effects of IMT as an adjunct to PR consistent across these outcome domains, or do patient phenotypes and protocol parameters explain heterogeneity?
Methods
This systematic review followed recommendations proposed by the Cochrane Collaboration (Higgins and Green, 2011) and the PRISMA Statement (Moher et al., 2010). Although this review was not prospectively registered in PROSPERO, all methods adhered strictly to Cochrane Collaboration standards and PRISMA 2020 guidelines to ensure methodological rigor and reproducibility. The research question used the PICOS strategy (P: subjects diagnosed with chronic obstructive pulmonary diseases; I: inspiratory muscle training; C: pulmonary rehabilitation program; O: inspiratory muscle strength, dyspnea, quality of life, exercise capacity, and PFT; S: RCT, CT, and cohort studies). The review addressed two core questions. First, in adults with COPD, does adding IMT to PR improve PImax, dyspnea scores, HRQoL, 6MWT or ISWT performance, and PFT outcomes compared with PR alone. Second, across eligible RCTs and CTs, are the effects of IMT as an adjunct to PR consistent across these outcome domains.
Eligibility criteria
Randomized controlled trials (RCT), non-randomized controlled trials (CT), and cohort studies that investigate the effect of IMT with pulmonary rehabilitation in comparison with pulmonary rehabilitation alone were included in this systematic review. Subjects’ criteria include COPD patients diagnosed by spirometry and the stage moderate or above as per GOLD criteria in most participants (GOLD, 2020). The following outcomes were considered: inspiratory muscle strength, dyspnea, quality of life, exercise capacity, and PFT. Studies with insufficient or incomplete data were excluded.
Search strategy
Two independent reviewers (FG, MA) searched the following electronic databases: PubMed, ScienceDirect, Cochrane Library, and Web of Science, from their inception to January 2023. The title and abstracts were reviewed by the two reviewers. Further searches were done for the cited references in the article reference list. Any disagreement was resolved by consensus and discussed with the third investigator (SN). Search terms combined subject headings (MeSH/Emtree) and keywords: (“inspiratory muscle training” OR “respiratory muscle training” OR “IMT”) AND (“chronic obstructive pulmonary disease” OR “COPD” OR “chronic obstructive airway disease”) AND (“pulmonary rehabilitation” OR “respiratory rehabilitation” OR “exercise training”). The full electronic search strategies for all databases are provided in the extended data (Search strategy). No restriction was placed on the publication year. Only full-text RCT, CT, and cohort studies in the English language conducted on human subjects and published in peer-reviewed journals were included in this systematic review. Review papers, grey literature, conference proceedings, case studies, and studies using animal subjects or non-COPD participants were excluded.
Interventions
IMT protocol description: Inspiratory muscle training was delivered using pressure-threshold or flow-resistive devices as an adjunct to the pulmonary rehabilitation program. Protocols typically involved once- or twice-daily sessions of 15–30 minutes, at least five days per week for 6–12 weeks, with intensities around 30–50 percent of baseline maximal inspiratory pressure, progressed according to regular reassessment and patient tolerance. Training was usually initiated under supervision in the rehabilitation center and then continued at home, supported by periodic follow-up to reinforce technique and adjust the training load.
The PR description: Pulmonary rehabilitation in the included trials was delivered as a supervised outpatient program combining aerobic endurance training, upper- and lower-limb resistance exercises, breathing training, and education in self-management. Sessions were typically held two to three times per week for 6–12 weeks, lasted about 60–90 minutes, and included warm-up, lower-limb endurance training on a treadmill or cycle ergometer, upper-limb strengthening, and cool-down. Educational components usually addressed inhaler technique, airway clearance strategies, energy conservation, smoking cessation, and psychosocial support.
Data collection process
Data collection were performed by the primary investigator following the standards format. Data included: (1) general characteristics: author’s first name, year of publication, study type; (2) sample: case numbers, intervention/control group, male/female, mean age; (3) program duration: session/week, duration; (4) intervention; (5) PR method; (6) outcome measures: primary (inspiratory muscle strength, “maximal inspiratory pressure PImax”) and secondary (dyspnea “Borg scale,” quality of life, exercise capacity “6MWT, ISWT” and PFT “FEV1/FVC, FEV1, FVC”); (7) Results; (8) Conclusion.
Risk of bias assessment
The Cochrane collaboration tool to assess the risk of bias for randomization control studies (Rob 2.0) was used for risk bias assessment. Two independent reviewers performed the assessment. The tool has five domains measuring: (1) bias arising from the randomization process, (2) bias due to deviation from intended interventions, (3) bias due to missing outcome data, (4) bias in the measurement of the outcome, and (5) bias in the selection of the reported results. Answers leadS to judgments of “low risk of bias” “some concerns,” or “high risk of bias.”
Results
Selection of studies
The initial search identified 1034 abstracts, 72 considered potentially relevant. Only nine RCT’s studies (Abedi et al., 2019; Bavarsad et al., 2015; Beaumont et al., 2015; Chuang et al., 2017; Leelarungrayub et al., 2017; Petrovic et al., 2012; Tounsi et al., 2021; Tout et al., 2013; Wang et al., 2017) met the eligibility criteria and were included in this systematic review. Non-randomized studies were also eligible, but none met the final inclusion criteria. The studies selected and the flow chart are shown in Figure 1.
Figure 1. PRISMA flow diagram.
Study characteristics
The characteristics of the included studies are available as Table 1 in the extended data. All of the research that was selected was published between 2012 and 2021. These nine studies included a total of 295 individuals. The pressure threshold loading IMT device was the most prevalent type (n = 5). The investigations also used volume-based devices (n = 1) and flow resistive loading devices (n = 2), and in one study, the type of device was not reported (n = 1). The majority of the studies met the PR program’s recommended minimum duration of eight weeks (n = 7). In most studies, either the participants’ genders were not given (n = 3), or the number of male participants was substantially greater (n = 3). In two studies, the participants’ mean ages were in the 50s; for the other studies, the mean age was above 60.
Methodological quality
The Rob 2.0 scale was used to evaluate the risk of bias in the chosen studies. All of the studies included were described as randomized, and the baseline between the two randomization arms appears to be balanced. Three studies (Abedi et al., 2019; Leelarungrayub et al., 2017; Wang et al., 2017) were rated as high risk of bias due to lack of blinded outcome assessment for patient-reported outcomes (dyspnea, quality of life), which may have inflated treatment effects ( Figure 2). Overall, 4 studies had low risk, 2 had some concerns, and 3 had high risk across all RoB 2.0 domains.

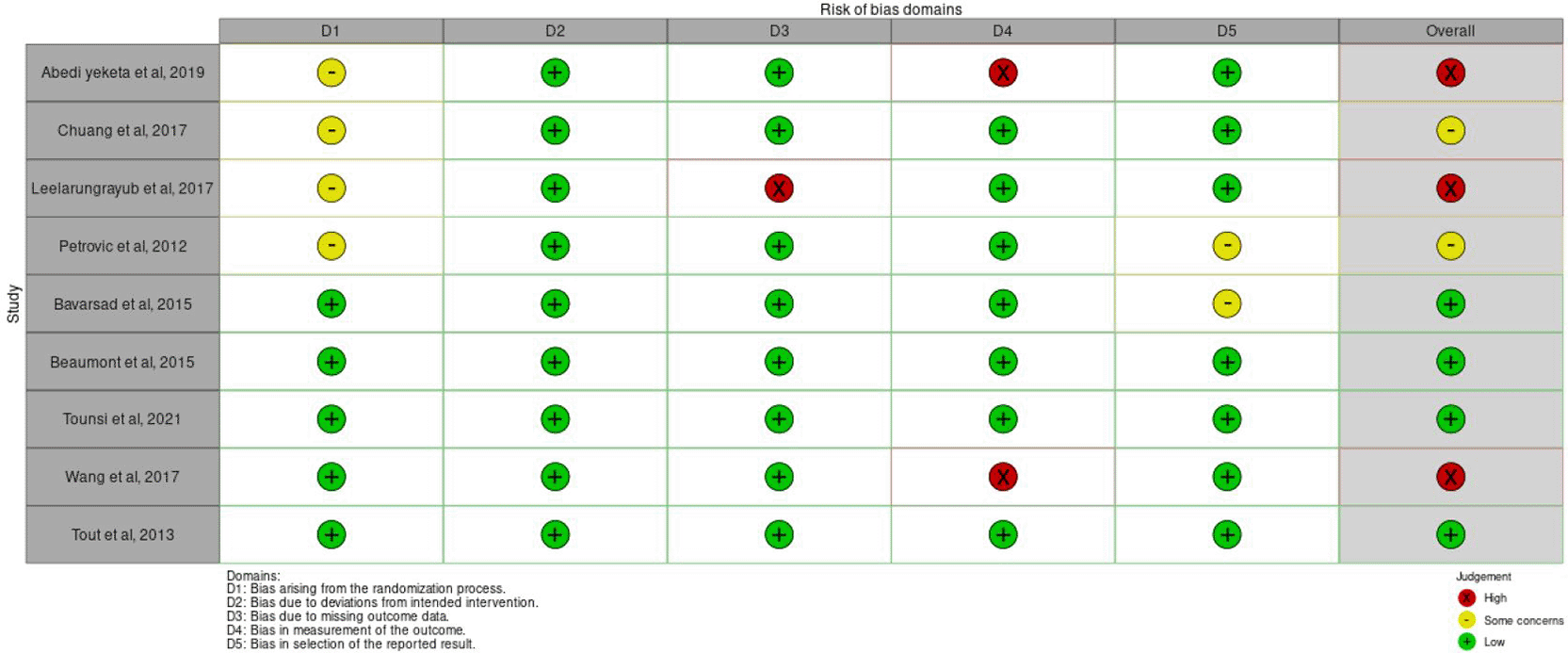

Figure 2. Risk of bias.
IMT effects on the outcome measures
A detailed summary of outcome effects across included studies is provided in Table 2 in the extended data.
Inspiratory muscle strength (PImax)
Inspiratory muscle strength was reported in seven studies: Beaumont et al. (2015), Chuang et al. (2017), Leelarungrayub et al. (2017), Petrovic et al. (2012), Tout et al. (2013), Wang et al. (2017), and Tounsi et al. (2021). Six studies (85.7%) demonstrated statistically significant PImax improvements following IMT. Petrovic et al. (2012) reported an increase of 14.0 cmH2O (77.5 ± 4.7 to 91.5 ± 5.2 cmH2O; p < 0.001), while Tounsi et al. (2021) documented an increase of 22.9 ± 5.8 cmH2O (61.9 ± 21.8 to 84.8 ± 20.9 cmH2O; p < 0.001). Chuang et al. (2017) observed an improvement of 17.6 ± 0.18 cmH2O (p < 0.001) compared to a small change of 2.21 ± 0.4 cmH2O in controls after 8 weeks of threshold IMT. Wang et al. (2017) reported a modest but significant increase of 5.20 ± 0.89 cmH2O (p < 0.001) in participants receiving combined cycle ergometer training and IMT. Leelarungrayub et al. (2017) demonstrated significant PImax increases in both the standard threshold group (54.0 ± 5.16 to 84.0 ± 7.07 cmH2O; p = 0.007) and prototype device group (53.50 ± 5.20 to 83.6 ± 4.40 cmH2O; p < 0.001), with no change in the control group. The IMT group in Tout et al. (2013) also reported significant PImax increases (p = 0.008).
Two studies reported no significant PImax changes. Bavarsad et al. (2015) showed no improvement despite gains in exercise capacity and dyspnea, suggesting that mechanisms beyond inspiratory muscle strengthening contribute to clinical outcomes. Beaumont et al. (2015) enrolled patients with preserved baseline PImax (80 ± 7 cmH2O, 95% predicted), indicating a ceiling effect, patients with baseline inspiratory muscle weakness derive greater benefit from IMT than those with preserved function.
The magnitude of PImax improvements ranged from 5.2 to 22.9 cmH2O, with most exceeding established MCID thresholds. Heterogeneity in responses appears influenced by baseline strength, device characteristics, intervention duration, and training intensity. Studies employing higher-intensity protocols (Tounsi et al., 2021: 50% to 80% PImax; Petrovic et al., 2012: ≥80%) achieved larger absolute gains.
Expiratory muscle strength (PEmax)
Expiratory muscle strength was assessed in only three studies. Leelarungrayub et al. (2017) reported that PEmax improved significantly in both the standard and prototype device groups, while the control group showed no significant change. Wang et al. (2017) presented ΔPEmax values of −5.29 ± 1.97 cmH2O in the control group, 5.42 ± 1.92 cmH2O in the CET group, and 2.37 ± 1.88 cmH2O in the combined CET+IMT group (p = 0.001), indicating both intervention groups were superior to control. However, Tout et al. (2013) found no significant change in PEmax in any group.
These findings suggest that standard IMT protocols predominantly target inspiratory musculature and do not substantially enhance expiratory muscle function.
Dyspnea
Dyspnea was assessed in seven studies using validated instruments including the mMRC scale, Borg category-ratio scale, BDI/TDI, and MDP questionnaires. six studies reported within-group dyspnea improvement in at least one active group; however, between-group superiority for IMT was not consistently demonstrated. Bavarsad et al. (2015) showed Borg scale improvement from 3.76 ± 2.49 to 1.13 ± 1.39 (p < 0.0001), a reduction of approximately 2.63 points, exceeding the established MCID of 1.0 point. Petrovic et al. (2012) reported Borg CR10 reduction from 5.0 ± 1.0 to 4.0 ± 1.1 (p < 0.01), and during constant-load testing from 7.0 ± 0.7 to 5.0 ± 0.9 (p < 0.001). Chuang et al. (2017) demonstrated BDI/TDI improvement from 4.48 ± 2.12 to 9.0 ± 2.27 (p < 0.001), indicating substantial clinical change.
Tout et al. (2013) showed that all four groups (IMT, PEP, IMT+PEP, and control) improved significantly on the Sadoul scale, with no between-group differentiation. Wang et al. (2017) reported greater improvements in mMRC and CAT scores in both intervention groups compared to control.
Leelarungrayub et al. (2017) revealed a nuanced pattern: while peak dyspnea during maximal exercise increased slightly, resting dyspnea and dyspnea at standardized workloads decreased significantly (p < 0.006). This suggests improved ventilatory efficiency, where patients may perceive greater respiratory sensation at maximum effort but experience reduced dyspnea during submaximal activities. Beaumont et al. (2015) reported modest improvement, possibly due to the short intervention duration (3 weeks) and preserved baseline inspiratory function.
The mechanisms underlying dyspnea reduction appear multifactorial, including improvements in inspiratory muscle strength and endurance, reductions in dynamic hyperinflation, and enhanced self-efficacy. The consistency across diverse populations, protocols, and instruments suggests dyspnea reduction represents a robust IMT outcome.
Exercise capacity (6-minute walk test)
Seven studies evaluated exercise capacity using 6MWT. Four studies demonstrated statistically significant within-group improvements. Bavarsad et al. (2015) increased 6MWT distance by 45.46 meters (445.6 ± 89.05 to 491.06 ± 93.8 meters; p < 0.0001), exceeding the established MCID of 25-30 meters. Chuang et al. (2017) reported improvement of 47.8 ± 1.46 meters (p < 0.001).
Between-group comparisons revealed heterogeneous patterns. Beaumont et al. (2015) found no significant between-group differences in 6MWT improvements, with both IMT and control groups showing modest gains (p = 0.7). Wang et al. (2017) reported significant between-group differences Δ6MWD was -1.64 ± 4.64 m in controls, 32.55 ± 4.59 m in the CET group, and 21.68 ± 4.51 m in the combined group; between-group comparison was significant (p < 0.001). Tounsi et al. (2021) provided evidence for time-dependent effects: at 4-week assessment, no significant between-group differences emerged (p = 0.92), but by 8 weeks, the IMT+endurance training group demonstrated substantially greater improvement (42.6 ± 9.8 versus 29.8 ± 7.4 meters), suggesting IMT benefits for exercise capacity may require adequate duration to manifest.
Overall, four studies demonstrated within-group improvements meeting the MCID threshold (≥25 meters). However, the inconsistent between-group superiority of PR+IMT over PR alone suggests that while IMT produces meaningful absolute improvements, these often occur similarly in standard PR, indicating that additional IMT benefit may be modest or time-dependent.
Quality of life
Health-related quality of life (HRQoL) was assessed in five studies using SGRQ, SF-36, CCQ, ABC, and BBS instruments. All five studies (100%) reported statistically significant HRQoL improvements following IMT. Abedi et al. (2019) showed SGRQ total score improvement after 8 weeks in all groups, with the greatest change in the combined IMT+aerobic group (Δ5.5 ± 3.54; p < 0.001). Chuang et al. (2017) reported substantial improvement in SF-36 physical component score (24.58 ± 20.54; p < 0.001) and mental component score (26.14 ± 22.24; p < 0.001), both exceeding established MCID thresholds (5–10 points). Leelarungrayub et al. (2017) demonstrated significant improvements across all CCQ domains in both device groups (p < 0.05). Tout et al. (2013) found significant SGRQ improvements in all groups (IMT, PEP, IMT+PEP, and control), with no clear superiority of any active modality. Wang et al. (2017) reported greater SGRQ improvements in CET (−3.51 ± 0.54) and combined groups (−3.32 ± 0.54) compared to control (0.95 ± 0.56), with significant between-group differences (p < 0.001).
The universal HRQoL improvement across all studies contrasts with the more variable exercise capacity findings, suggesting that patient-perceived benefits may surpass objective functional gains measured by performance-based tests.
Pulmonary function tests (FEV1 and FVC)
Spirometric parameters were assessed in four studies. Bavarsad et al. (2015) and Wang et al. (2017) reported no changes in any pulmonary function measures (FEV1, FVC, FEV1/FVC, FEF25–75) in either group. Similarly, Tout et al. (2013) observed statistically significant improvements only in the IMT-only group, where FEV1 increased from 0.93 ± 0.39 to 1.44 ± 0.57 L (p = 0.03) and PEFR from 0.57 ± 0.14 to 0.76 ± 0.16 L (p = 0.01); all other groups and PFT measures were non-significant. Leelarungrayub et al. (2017) reported increases in FVC and FEV1/FVC ratio in both standard and prototype device groups, suggesting potential improvements in ventilatory mechanics without absolute FEV1 changes, possibly reflecting reduced dynamic hyperinflation.
The consistent absence of substantial spirometric improvement has important mechanistic implications. Structural airway resistance from fibrosis and alveolar destruction cannot be reversed by IMT, which targets respiratory muscle performance rather than fixed airway obstruction. This dissociation confirms that IMT primarily operates at the neuromuscular level, serving as a symptomatic rather than disease-modifying intervention.
Dynamic hyperinflation and exercise endurance
Petrovic et al. (2012) provided mechanistic insight by evaluating dynamic hyperinflation parameters. During the constant-load test at 75% peak work rate, exercise time increased from 597.1 ± 80.8 to 733.6 ± 74.3 seconds (22.9% increase; p < 0.001). Inspiratory muscle endurance (tlim) increased from 348 ± 54 to 467 ± 58 seconds (34% increase; p < 0.001). Inspiratory fraction (IF) increased significantly in both incremental (0.41 ± 0.05 to 0.45 ± 0.05; p < 0.001) and constant-load tests (0.43 ± 0.03 to 0.44 ± 0.03; p < 0.001), indicating meaningful reduction in dynamic hyperinflation.
Wang et al. (2017) reported improvement in inspiratory capacity (IC) in both intervention groups relative to control: 0.06 ± 0.02 L in the CET group, and 0.10 ± 0.02 L in the combined group (p < 0.001). These findings demonstrate that IMT benefits extend beyond static assessments to functional exercise performance and mechanistic parameters of respiratory limitation.
Summary of outcome patterns
A clear pattern emerges across nine studies and multiple outcome domains. PImax improved significantly in 85.7% of studies, with non-responders generally demonstrating ceiling effects from preserved baseline function. Dyspnea reduction represented one of the most responsive patient-centered outcomes, with all studies showing within-group improvement, although between-group superiority was inconsistent. Exercise capacity improvements were less consistently significant in between-group comparisons, though 71.4% of studies reported within-group improvements that met MCID thresholds. HRQoL demonstrated uniform improvement (100%), suggesting robust patient-perceived benefits despite variable objective measures. Spirometric indices remained largely unchanged, with only isolated improvement in selected parameters, confirming that IMT does not modify underlying fixed airflow obstruction.
Heterogeneity appears attributable to: (1) baseline inspiratory muscle strength, with weaker patients showing greater improvement potential; (2) device characteristics; (3) patient selection criteria, particularly confirmed inspiratory muscle weakness versus unselected cohorts; (4) intervention duration and training intensity; (5) integration with standard pulmonary rehabilitation; and (6) methodological rigor. Understanding these sources of heterogeneity is essential for clinicians designing future IMT protocols and for interpreting findings within individual patient contexts.
Discussion
The principal finding of this systematic review is that adding IMT to pulmonary rehabilitation for moderate-to-severe COPD consistently improves inspiratory muscle strength and health-related quality of life, while effects on dyspnea and exercise capacity are clinically meaningful but more variable in between-group comparisons. These findings establish IMT as a patient-centered adjunct that primarily addresses symptomatic burden and quality of life, even in the absence of consistent improvements in walk distance or spirometry beyond standard rehabilitation.
Our systematic review aligns with the conclusions of the contemporaneous Cochrane review (Ammous et al., 2023). Using different search strategies, both reviews converge on the same pattern: adding IMT to PR significantly improves PImax (ranging from 5.2 to ~30 cmH2O in our review) but does not consistently improve dyspnea or exercise capacity significantly beyond PR alone. This agreement strengthens the evidence that while routine addition of IMT to all PR programs may not be necessary, it provides distinct benefits for specific outcomes. Our review extends these findings by demonstrating that 100% of the six included studies measuring quality of life reported statistically significant improvements, indicating a strong patient-centered signal that appears more consistent than functional exercise outcomes.
Prior systematic reviews, such as Beaumont et al. (2018), which found no added effect of IMT on dyspnea during PR, noted conflicting evidence for combined interventions. In this review, the inclusion of recent RCTs with diverse protocols reveals a detailed picture: IMT confers the greatest benefit when targeted to patients with specific deficits or when using sufficiently intensive protocols (Tounsi et al., 2021, using 50–80% intensity). Importantly, while exercise capacity improved within groups in the majority of studies (57.1%), the inconsistent superiority of PR+IMT over PR alone suggests that the additional functional gain from IMT may be limited when a comprehensive rehabilitation program is already in place.
The physiological rationale for these improvements centers on neuromuscular adaptations. IMT enhances inspiratory muscle strength (PImax) and endurance, as evidenced by significant gains in all seven studies reporting this outcome. Mechanistically, studies documenting improvements in inspiratory capacity (Wang et al., 2017) and reductions in dynamic hyperinflation (Petrovic et al., 2012) support the role of IMT in enhancing operational lung volumes, potentially reducing the sense of breathlessness for a given workload. These adaptations likely underlie the uniform benefits seen for quality of life, even in the absence of changes in spirometric indices (FEV1 or FVC), which remained unchanged in nearly all studies. This dissociation confirms that IMT operates as a symptomatic intervention targeting respiratory muscle performance rather than modifying fixed airway obstruction.
Heterogeneity in clinical outcomes appears attributable to several factors identified in our analysis. Intervention characteristics varied widely, with protocols ranging from 3 to 8 weeks and utilizing different device types (pressure-threshold vs. flow-volumetric). Patient selection was a key source of variability; for instance, Beaumont et al. (2015) enrolled patients with preserved baseline inspiratory strength and found no significant benefit, whereas studies including weaker patients (e.g., Chuang et al., 2017) demonstrated larger effects. Methodological differences, including the choice of dyspnea instrument (Borg vs. mMRC vs. BDI/TDI) and the intensity of the control intervention, further contributed to outcome variability.
The overall strength of this evidence is moderate. While inspiratory muscle strength and quality of life showed consistent positive signals, precision was limited by generally small sample sizes and short intervention durations (typically 8 weeks or less). Risk of bias was significant in approximately one-third of studies, primarily due to lack of assessor blinding for patient-reported outcomes. However, the coherence of findings across diverse settings, especially the universal improvement in quality of life, supports the reliability of the main conclusions.
Clinically, these findings argue for the selective inclusion of IMT in pulmonary rehabilitation. It is most strongly indicated for patients with confirmed inspiratory muscle weakness, or those who remain highly symptomatic with poor quality of life despite standard therapy. Programmatic implications include the need for baseline PImax assessment to identify responders and the use of progressive, high-intensity protocols to maximize strength gains. From a clinical implementation perspective, the data support IMT as a high-value adjunct for targeted populations rather than a mandatory component for all COPD patients.
Limitations
This systematic review has several limitations. First, the small sample sizes of individual studies limited statistical power to consistently detect between-group differences. Second, substantial methodological heterogeneity prevented formal meta-analysis: protocols varied across device type, training intensity, and duration. Third, the lack of long-term follow-up restricts conclusions about the durability of IMT benefits. Fourth, measurement inconsistency, with diverse tools used for dyspnea and quality of life, complicated cross-study comparison. Finally, the exclusion of non-English studies and potential publication bias inherent in small trials may influence the generalizability of findings. Despite these limitations, the consistent signal for patient-centered benefit supports the clinical utility of IMT in appropriate contexts.
Conclusions
This systematic review provides moderate-quality evidence that inspiratory muscle training, when incorporated into pulmonary rehabilitation programs, yields consistent improvements in patient-centered outcomes for individuals with moderate-to-severe COPD. Inspiratory muscle strength and dyspnea demonstrate significant improvements in six of seven (85.7%) and all seven (100%) reporting studies respectively, while health-related quality of life shows universal enhancement across all assessing studies. Exercise capacity benefits, though more variable in between-group comparisons, frequently meet clinically meaningful thresholds within intervention groups. Spirometric indices remain largely unaffected, confirming IMT’s targeted mechanism on respiratory muscle function rather than fixed airflow obstruction. The evidence indicates that IMT provides greatest benefit when targeted to patients with confirmed inspiratory muscle weakness, escalated to progressive intensity (starting 30–50% PImax, advancing to 60–80%), and sustained for adequate duration (≥8 weeks). While methodological heterogeneity limits definitive protocol optimization, the cumulative evidence supports selective IMT integration into pulmonary rehabilitation for appropriately phenotyped patients. Future research priorities include adequately powered, multicenter trials with standardized protocols, extended follow-up to assess durability, comparative evaluations of different device types and intensity regimens, mechanistic studies linking dynamic hyperinflation reduction to symptom benefits, and cost-effectiveness analyses to inform implementation strategies. Clinicians should consider baseline inspiratory muscle assessment, individualized IMT prescription, and monitoring of adherence when incorporating IMT into comprehensive COPD rehabilitation programs.
