Software Tools for Passive Acoustic Monitoring in Aquatic and Terrestrial Bio- and Ecoacoustics: A Living Systematic Review

2.1 Literature search

We performed a systematic review of peer-reviewed literature, following the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) 2020 guidelines (Page et al., 2021, Figure 1). We used the Web of Science (WoS) Core Collection for our literature search, as it provides consistent indexing across relevant disciplines. We limited the search to studies published between 2014-01-01 and 2024-01-01 to exclude discontinued software tools. The search strategy was developed iteratively by testing and refining keyword combinations to improve the specificity and relevance of the results. We included the terms bioacoustics and ecoacoustics in our search strategy because both are commonly associated with PAM and often overlap in scope and terminology (Sueur & Farina, 2015; Penar et al., 2020; Pijanowski et al., 2024). Since studies from each field frequently reference PAM software and analytical workflows, including both terms ensured a comprehensive representation of relevant literature across ecological realms and research domains. The final search string was as follows:

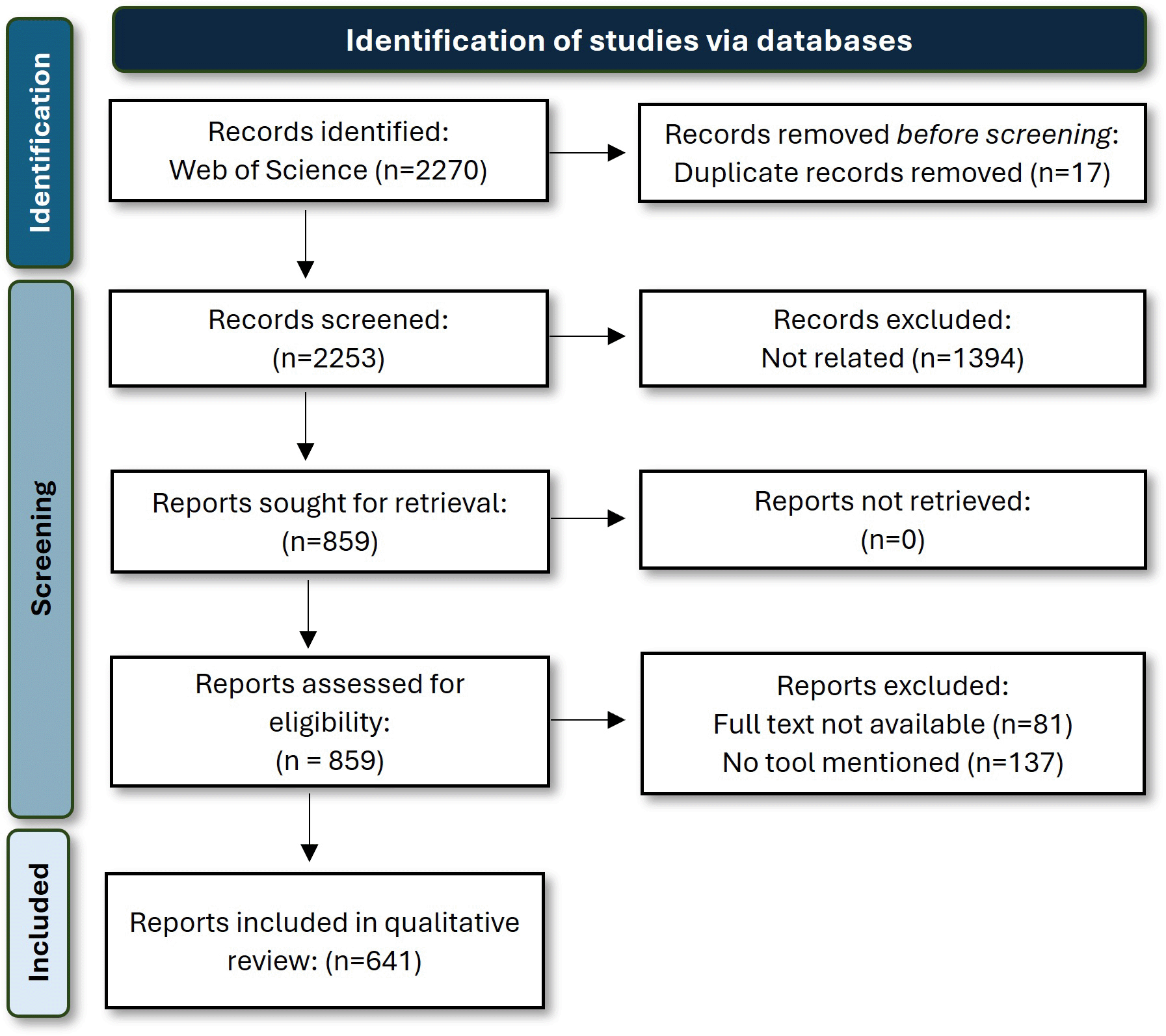

Figure 1. PRISMA flow diagram summarizing the literature screening and selection process (Page et al., 2021).

The diagram illustrates the number of records identified, screened, and included in the review, as well as reasons for exclusion at each stage. A total of 2270 records were initially identified through database searches, of which 1394 were excluded after title and abstract screening. After full-text assessment, 641 studies were retained for inclusion. Only studies explicitly reporting the use of software tools in bioacoustic or ecoacoustic research were included.

The final query returned 2,270 records from the Web of Science database. After removing 17 duplicate entries, 2,253 records were screened by title and abstract by all co-authors to assess their relevance to ecoacoustic and bioacoustic research. Studies employing PAM in disciplines outside the scope of bio- or ecoacoustics were excluded, even if similar recording techniques were used. Specifically, we excluded studies in the field of medicine (e.g., biomedical acoustic signal analysis), physics (e.g., acoustic wave propagation), indoor acoustics, urban soundscape design, and human sound perception, as these have non-ecological contexts and apply different methodological frameworks. Following this screening, 859 studies were retained for full-text assessment ( Figure 1). We included all studies within the fields of bioacoustics and ecoacoustics, defined broadly to encompass applications of PAM for the investigation of ecological patterns, biodiversity, species presence, and soundscape dynamics across multiple taxa as well as aquatic (marine and freshwater) and terrestrial realms. We identified the reported use of software tools in relevant studies and excluded those that did not mention any. Because the search did not include full-text keyword screening, our inventory likely underrepresents the total number of software tools, as those mentioned exclusively within the main text would not have been captured. This limitation reflects a common challenge in literature-based software reviews and should be considered when interpreting coverage completeness. We further classified the relevant studies into aquatic or terrestrial realms to identify their contexts of application.

2.2 Data extraction and functional characterization of software tools

We define software as a computer program or application designed for direct interaction by end users, excluding operating systems and system-level utilities (Fair et al., 2005). In this review, this definition includes any digital application supporting one or more components of the PAM workflow (data management; signal pre-processing; visualisation and navigation; acoustic analysis), encompassing stand-alone tools, online platforms, and packages integrated into programming environments such as R, MATLAB, or Python. Publicly accessible AI models (e.g., trained neural networks, automated classifiers) and researcher-developed scripts were also included and treated as software tools when they implemented specific analytical functions such as detection, classification, or feature extraction within PAM workflows. We deliberately adopt a broad definition to capture both widely distributed tools and accessible researcher-developed solutions, as both play a central role in the current ecoacoustic research landscape. Unavailable or undocumented custom scripts that were project-specific or written for internal use were grouped into a single category and excluded from subsequent analyses of software functionalities. These scripts were written in various programming environments (e.g., R, MATLAB, Python) but lacked standardized documentation.

For each available software tool, we systematically extracted information from peer-reviewed publications, official software documentation, user manuals, and publicly available developer resources. We extracted general software metadata including: software availability (yes/no), access type (free, free to try, or commercial), deployment form (local installation, web-based, or package within another software environment), execution (the higher-level software or programming environment in which the tool operates), PAM-dedication (tool developed exclusively for PAM or not), geographical realm (aquatic, terrestrial, or general), and taxa (targeted taxonomic groups, or general) ( Table 1).

Based on previous reviews, we defined four principal components of PAM data workflows (e.g., Pijanowski et al., 2024; Priyadarshani et al., 2018; Stowell 2022) (see Figure 2): (1) data management (including functionalities such as data storage, recording checks, spatial and temporal metadata, public collections, etc.), (2) signal pre-processing (e.g., amplification, segment extraction, noise reduction or resampling of acoustic data), (3) spectrogram visualisation and navigation (e.g., spectrogram, waveform, audio navigation, playback), (4) acoustic analysis (e.g., annotation, classification, calculation of acoustic indices or statistics). These are not necessarily sequential workflow stages in a PAM data processing as they can be applied independently or in combination. In this initial version of the living systematic review, we provide a broad overview of principal workflow components covered by each software tool. Their definitions are mainly determined by the (sub-)functionalities that they contain; future versions of this review will expand on this by detailing specific functions within each functionality component. To maintain the living and community-driven nature of this review, we encourage researchers to contact the authors with new software tools, projects, or updates that could be incorporated in subsequent versions.

Figure 2. Overview of four common PAM data workflow components in acoustic data processing, with examples for each.

These categories form the basis for assessing the functional coverage of different software tools in ecoacoustic research. The listed functionalities are non-exhaustive and serve as examples. Icons by Flaticon, 2025.

In addition to the literature screening, we incorporated software tools identified through an internal review by the co-author team, which includes terrestrial and marine ecologists as well as specialists of soniferous taxa (birds, bats, and mammals). To ensure broad coverage, the resulting tool list was cross-checked against publicly available resources, including the Bioacoustics Software Database (Rhinehart et al., 2024) and Wikipedia (“List of bioacoustics software”, 2024).

2.3 Data analysis

We performed all statistical analyses in R v4.4.0 (R Core Team, 2024). We first harmonised naming conventions by merging duplicate entries, consolidating alternative spellings and excluded unavailable tools (e.g., no longer accessible, or lacking documentation at the time of analysis). The number of software tools was analysed according to available metadata and workflow components. Visualizations were produced using ggplot2 (Wickham, 2016) for graphing and other tidyverse packages (Wickham et al., 2019) for data handling and preparation. To assess the overlap of core functionalities across software tools, we conducted a cross-feature analysis using the UpSetR package (Conway et al., 2017). This approach allowed us to visualize the intersections between tools offering functionalities in data management, signal pre-processing, visualization & navigation, and acoustic analysis. In addition, we created an interactive dendrogram using the collapsibleTree package (Khan et al., 2023), enabling users to identify and compare software tools according to their functional attributes and analytical scope. The complete script and dendrogram can be accessed here: https://doi.org/10.17605/OSF.IO/V72CE (Hanf-Dressler et al., 2025).

3.1 Diversity and fragmentation across software tools

Our systematic literature screening identified 189 distinct software tools used in ecoacoustic and bioacoustic studies. We further complemented the list with 66 additional tools (identified through expert input and database cross-checking), including 38 retrieved from the Bioacoustics Software Database (Rhinehart et al., 2024). This resulted in a list of 251 tools, of which 221 were available at the time of analysis (excluding custom scripts). Among these, 178 tools were specifically designed for PAM ( Figure 3A), illustrating both the rapid technological expansion and methodological maturity of ecoacoustic research. Most software was open-source (free; PAM-dedicated software = 151; non-dedicated software = 34), with only a few commercial (PAM-dedicated = 21; non-dedicated = 6) or free-to-try tools (PAM-dedicated = 6; non-dedicated = 3), indicating a strong open-access orientation within the community. The full inventory, including key metadata and functional workflow components, is provided in Table 2, alongside an interactive dendrogram visualising the software landscape by functionality and general characteristics available here: https://doi.org/10.17605/OSF.IO/V72CE (Hanf-Dressler et al., 2025).

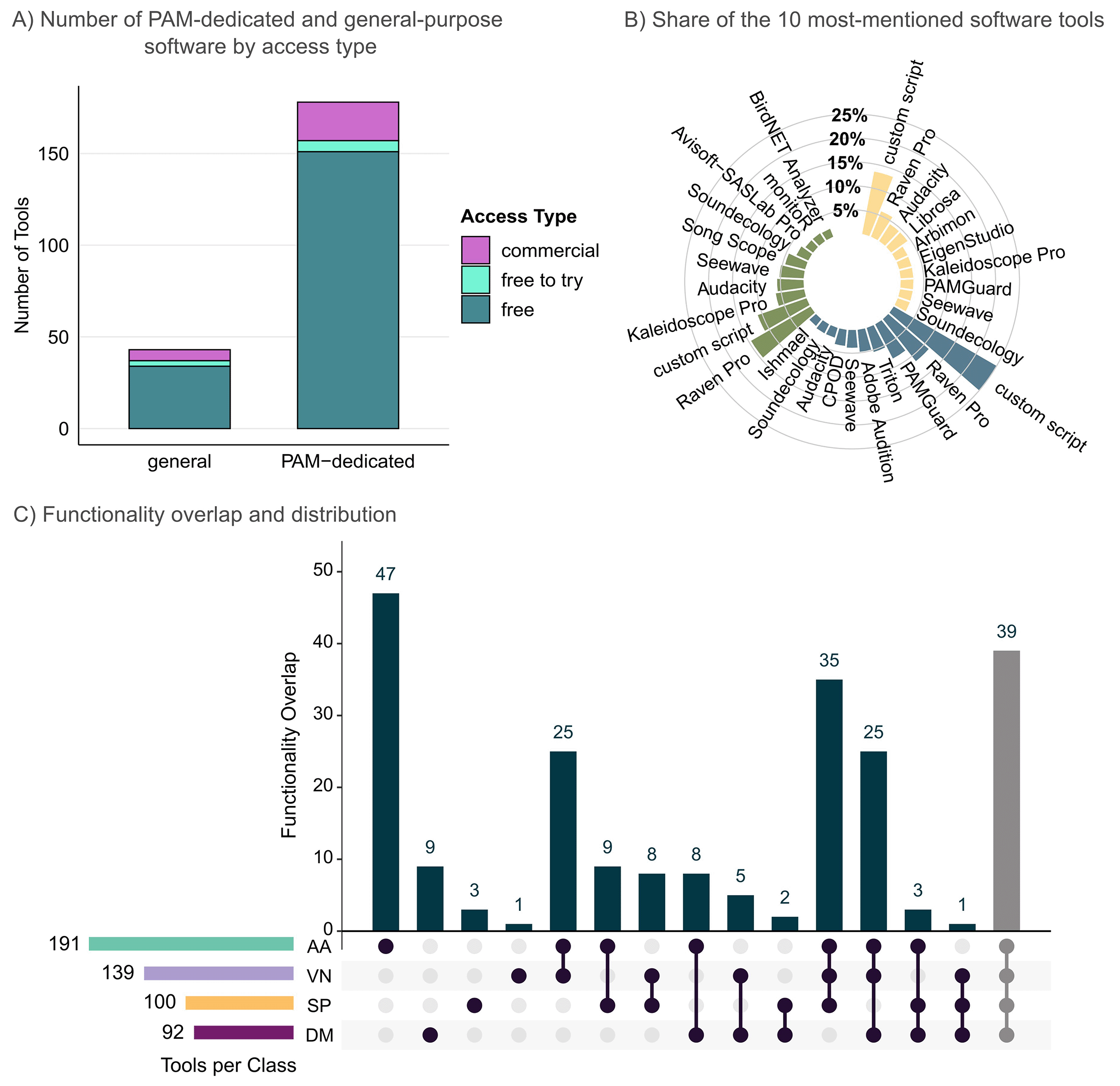

Figure 3. Reviewed software tools across the PAM workflow:

(A) Number of PAM-dedicated and general-purpose software, categorized by access type (commercial, free to try, free). (B) Percentages of top 10 most frequently mentioned software within terrestrial (n = 647), aquatic (n = 321) or general (cross-realm) studies (n = 66). Percentages are based on the total number of explicit software mentions in peer-reviewed publications for each ecological realm. (C) Functionality overlap among software tools: DM = Data management, SP = Signal pre-processing, VN = Visualisation & navigation, AA = Acoustic analysis (colour coding follows Figure 2). Tools implementing all four workflow components are highlighted in grey. Custom scripts were excluded from panels B–C.

Software preferences diverged notably between realms ( Figure 3B). We found that terrestrial PAM research dominated the literature, comprising 476 studies. In those studies, Raven Pro was most frequently mentioned (95 of 647 total software mentions; 14.7%), followed by custom scripts (e.g., R, Matlab, Python; 72/647; 11.1%) and Kaleidoscope Pro (41/647; 6.3%). Tools like Kaleidoscope and BirdNET Analyzer are particularly relevant to automated species identification and tailored to land-based species, including birds and bats. Other recurrent tools included Audacity, Soundecology, and Avisoft SASLab Pro, which are frequently used for visualization, manual annotation, and basic acoustic analysis.

In contrast, aquatic studies were represented by 319 studies, where custom scripts dominated the software landscape (81/321; 25.2%), followed by Raven Pro (37/321; 11.5%) and PAMGuard (27/321; 8.4%). PAMGuard and other frequently mentioned software such as Triton, Ishmael, and C-POD illustrate a clear functional specialization within the PAM landscape: these tools were primarily developed for underwater applications, focusing on the detection and localization of aquatic, especially marine taxa. Across 64 general or cross-realm studies, software mentions were more heterogeneous and showed no dominant preference. Custom scripts (9/66; 13.6%), Raven Pro (4/66; 6.1%), and Audacity (3/66; 4.5%) were mentioned most frequently. Some multi-purpose tools, including Seewave, Audacity, and Soundecology, appeared across multiple realms, illustrating their adaptability for general ecoacoustic analyses. Notably, Arbimon has recently gained traction, particularly for terrestrial datasets, showing an increasing presence in peer-reviewed studies between 2018 and 2024.

Taken together, these patterns underscore both the breadth and fragmentation of the ecoacoustic software landscape. The proliferation of tools illustrates the vibrant and rapidly evolving nature of ecoacoustics but also reveals a critical challenge: workflow atomisation (Royaux et al., 2025). Many tools are highly specialized, designed for narrow analytical purposes rather than integrated, and generalized, making them easily reusable into different workflows. While specialization enables tailored solutions to specific research questions, it can also limit interoperability, knowledge transfer, and reproducibility across projects and ecological realms. Such fragmentation has been identified as a recurring obstacle in recent ecoacoustic reviews (e.g., Ross et al., 2023), where the duplication of effort and lack of common standards hinder methodological convergence.

Raven Pro’s prominence across realms highlights its cross-domain adaptability and widespread acceptance in different research fields. Even though most tools are open-source or free to use, commercial software remain more frequently employed in published research, largely due to their intuitive graphical user interfaces (GUI), stability, and dedicated user support (Browning et al., 2017). Such tools, particularly Raven Pro and Kaleidoscope Pro, enable researchers with limited programming experience to engage in acoustic analyses efficiently. In contrast, many open-source alternatives require higher computational literacy and lack centralized documentation or maintenance, which can discourage use despite their accessibility. This pattern is also evident in the widespread use of self-written custom scripts, especially in marine sciences. It reflects a broader community preference for flexible, researcher-driven workflows when existing tools fail to meet specialized analytical needs. While this flexibility fosters innovation, it also exacerbates reproducibility gaps when those scripts are undocumented, project-specific, and not publicly shared. The coexistence of highly specialized commercial software and bespoke scripting approaches thus mirrors a field that is simultaneously technically advanced yet methodologically disjointed. Addressing this tension by promoting interoperable frameworks, transparent documentation, and open development practices that enable seamless data exchange between different stages of PAM workflows, will be central to advancing ecoacoustic research.

In terms of the deployment form of the software (whether it is running on local machines, on web-servers or integrated within other, usually local software, see Table 1), the majority of tools (n = 100) were developed as package-based frameworks within established programming environments such as R, Python, and MATLAB (e.g., seewave, soundecology, librosa, Triton). The prevalence of packages reflects their flexibility, modularity, and adaptability to diverse analytical needs. Such frameworks allow researchers to combine functions, customize workflows, and integrate acoustic analysis with statistical and visualization routines in a reproducible coding environment, thereby addressing multiple functional components of the PAM data workflow. In comparison, 84 tools operated as local desktop applications, providing graphical user interfaces (GUIs) that facilitate data exploration and analysis without the need for programming expertise. These tools, such as Raven Pro or Kaleidoscope Pro remain widely used because they offer intuitive interfaces, built-in visualization capabilities, and stable offline performance. However, local installations frequently involve manual data handling, with users generally importing, organizing, and processing recordings independently rather than relying on automated or centralized systems. This can constrain scalability for long-term or distributed monitoring efforts, as such tools are less suited for handling large datasets (e.g., multi-terabyte PAM archives) or supporting collaborative, multi-user projects (Roch et al., 2016; Sugai et al., 2019; Gibb et al., 2019).

A smaller number of tools (n = 37) were available as web-based platforms like Arbimon, or BirdNET Analyzer. Although other platforms like APLOSE (Dubus et al., 2025) for aquatic acoustic data exist, they were underrepresented - likely because many marine workflows still rely on locally installed, custom pipelines, reflecting large file sizes and limited bandwidth at sea. These online systems support remote access, collaborative annotation, and centralized data storage, representing an important step toward integrative ecoacoustic infrastructures. Yet, their long-term sustainability depends on reliable server maintenance, stable internet connections, and predictable funding: a particular challenge for tools developed within academic projects, where financial and technical support often ends once project funding ends. However, the diversity of deployment modes illustrates a continuum between flexibility and usability: packages maximize analytical control and reproducibility, whereas GUI-based and web-based systems prioritize accessibility and user-friendliness. Moving forward, the development of open, modular, and platform-independent architectures, capable of operating both locally and in the cloud, will be essential to meet the growing analytical and collaborative demands of the ecoacoustic community.

3.2 PAM workflow components and their coverage by existing software tools

To better understand user needs and development priorities, we examined how existing software tools are distributed across the four workflow components used in PAM: Data Management (DM), Signal Pre-processing (SP), Visualisation and Navigation (VN), and Acoustic Analysis (AA) ( Figure 3C). These classes capture the principal components of the ecoacoustic workflow, from raw data handling to interpretation of biological and ecological patterns. Our results show that functional coverage across the 221 available software tools was highly uneven, with 39 tools offering all four functionality components ( Figure 3C). Among the most comprehensive and frequently mentioned in PAM studies were Arbimon, Kaleidoscope Pro, and PAMGuard. Each provides the full suite of the PAM workflow categories from data management to acoustic analysis and thereby providing end-to-end analytical capacity. Most other tools, however, focused on one or two workflow components, underscoring fragmented and specialized solutions within the current software landscape available for ecoacoustic research. In the following subsections (3.2.1–3.2.4) we assess the extent to which each workflow component is covered by existing tools, along with current limitations and future development needs.

3.2.1 Data management

Software tools with functionalities designed for data management were the least represented across all tools ( Figure 3C). Only 92 software tools out of 221 were offering dedicated data handling capabilities. Data management commonly co-occurred together with visualisation and navigation and acoustic analysis (25 tools), excluding signal pre-processing. This is striking given that passive acoustic monitoring produces vast numbers of audio files (often amounting to several terabytes per project), and while technically simple, require extensive organization, metadata management, and processing infrastructure to remain usable (Sugai et al., 2019; Pijanowski et al., 2024).

Data management in ecoacoustics typically includes structured file organisation, metadata standardisation, automated backup, storage, and the maintenance of public collections: essential processes for ensuring long-term usability and reproducibility (Roch et al., 2016; Ross et al., 2023). Several factors may explain this limited representation. First, many research institutes and projects have developed their own data management workflows, often tailored to specific infrastructures or institutional requirements, which may have evolved independently of general-purpose PAM software. Second, data management is frequently undervalued compared to analytical components of a workflow, sometimes regarded as a “necessary administrative task” rather than an integral part of scientific analysis. Nonetheless, this perception is beginning to shift as data volumes grow, and reproducibility becomes a central concern. The current lack of integrated solutions forces researchers to rely on ad hoc file structures or external repositories, increasing the risk of data loss and inconsistency. In other ecological monitoring disciplines, adherence to FAIR (Findable, Accessible, Interoperable, Reusable) data principles has already improved transparency and collaboration (Bayer et al., 2023; Inau et al., 2023; Wilkinson et al., 2016) - similar advances are urgently needed in bio- and ecoacoustics. Achieving such FAIRness begins with consistent metadata standardisation, which forms the foundation for data discoverability and interoperability across systems. Future tool development should therefore prioritise modular data management components: independent yet compatible elements that can be flexibly combined within different workflows, supported by interoperable database interfaces capable of linking seamlessly with analytical and visualisation software (e.g., through standardised APIs or FAIR-compliant data formats). Pioneering initiatives such as Tethys (Roch et al., 2022) and recent efforts presented at Living Data 2025 (a conference and broader initiative focused on data management, interoperability, and open science in biodiversity and environmental research) exemplify progress toward shared metadata frameworks and harmonised data infrastructures in marine PAM. In contrast, most terrestrial infrastructures remain more taxon-focused, particularly around birds, with community-driven resources such as xeno-canto and BirdNET leading development (Vellinga and Planqué, 2015; Wood et al., 2022), but dedicated, cross-project metadata systems for ecoacoustics remain rare.

3.2.2 Signal pre-processing

Signal pre-processing functionality was offered in 100 software tools and commonly co-occurred with visualisation and navigation and acoustic analysis functions (35 tools; Figure 3C). Pre-processing functions typically include amplification, extraction and segmentation, filtering, denoising, and temporal or spectral normalization: essential operations for improving signal quality before analysis. Despite its importance, pre-processing was often implemented as an auxiliary module rather than an integrated workflow component, with limited options for automation or batch handling.

The strong representation of pre-processing functionalities reflects the technical maturity of ecoacoustic workflows at the signal-cleaning component but also highlights methodological inconsistencies: different tools apply distinct filtering algorithms, frequency thresholds, and normalization schemes, often without standardized documentation. Notably, signal preprocessing tends to be more intensive in aquatic studies, where propagation effects (e.g. frequency-dependent attenuation, reverberation), high ambient noise, and corrections for hydrophone sensitivity and deployment depth require more sophisticated filtering, calibration, and noise-reduction steps (e.g. Bittle and Duncan, 2013; Merchant et al., 2015). In contrast, terrestrial frameworks primarily emphasise calibration for estimating detection ranges (e.g. Darras et al., 2016). Such variability complicates cross-study comparability and the creation of shared reference datasets. Future development efforts should therefore emphasize transparent algorithm reporting, parameter standardization through consistent units, and reporting formats, and interoperability between pre-processing and downstream analytical modules to ensure reproducible data pipelines.

3.2.3 Visualisation and navigation

Visualisation and navigation functions were present in a substantial subset of 139 tools, most frequently coupled with core functionalities excluding data management (35 tools, Figure 3C). These tools typically provide spectrogram and waveform displays, temporal and frequency navigation, as well as playback interfaces.

The prevalence of visualisation and navigation capabilities reflects the central role of spectrogram-based inspection in ecoacoustic workflows, both for human interpretation and because most deep-learning classifiers (models) for sound classification operate on spectrogram representations. Despite advances in automated pipelines, manual spectrogram review remains essential for quality control, for creating and verifying the labelled examples used to train and validate models, and for interpreting complex or context-dependent acoustic events (e.g., Gibb et al., 2019; Kitzes et al., 2025; Priyadarshani et al., 2018). However, most visualization tools remain desktop-based and optimized for relatively small datasets, limiting their scalability for long-term or networked monitoring efforts. Cloud-based visualisation environments and integrated dashboards could help overcome these constraints, enabling collaborative annotation and real-time data exploration (Darras et al., 2024).

3.2.4 Acoustic analysis

Acoustic analysis, covered by 191 tools, was by far the most common functionality component among all tools and dominated the PAM software landscape. While 47 tools were dedicated exclusively to acoustic analysis, many others combined it with one or more additional workflow components ( Figure 3C). Many analytical tools incorporate automated detection, pattern recognition, or machine learning algorithms, such as BirdNET Analyzer, Arbimon, PAMGuard, and Kaleidoscope Pro - providing pre-trained models for specific taxa.

This dominance illustrates the field’s strong emphasis on species identification, and sound classification or acoustic index-based interpretation (Bradfer-Lawrence et al., 2023), reflecting the central role of analysis in translating acoustic signals into ecological information. While this focus demonstrates technical sophistication and innovation, it also reveals a developmental bias: analytical capacities have advanced faster than supporting processes like data management or visualization. The rapid adoption of AI-based (deep-learning) classifiers is transforming ecoacoustic research, enabling large-scale analyses with increasing accuracy (e.g., Kahl et al., 2021; Lauha et al., 2022; Priyadarshani et al., 2018). However, these approaches rely heavily on curated training datasets and transparent model validation, both still limited in scope and accessibility. Future progress will depend on open benchmark datasets, cross-taxa model sharing, and standards for performance reporting to ensure comparability and ecological interpretability of analytical results.
