Following specific podocyte injury captopril protects against progressive long term renal damage

Generation of Podo-DTR mice

The HB-EGF receptor was expressed as a transgene under the control of the murine nephrin promoter. A murine 1.25kb nephrin gene fragment¹⁹ was generated from murine genomic DNA. Oligonucleotide PCR primers (MWG Oligo synthesis) for the mouse nephrin gene with added NotI and BamHI restriction sites (primer sequences: 5'-ATGGCCCAGGGATTCAGGTGC-3' and 5'-GCTTGGACCCAGTGTGAACTC-3') were used to clone the gene fragment. The thermal cycling protocol of the PCR machine (Thermal Cycler Apollo ATC201) comprised an initial denaturation step at 75ºC for 10 minutes followed by 30 cycles of 95ºC for 1minute (denaturation), 60ºC for 1 minute (annealing) and 72ºC for 1.5 minute (elongation). The final cycle consisted of a re-annealing at 72ºC for 10 minutes.

This nephrin fragment was used to replace the albumin promoter in the pMS7 plasmid, which was kindly donated by Dr. Saito²⁰. The resulting plasmid consisted of the murine nephrin promoter-fragment and the human HB-EGF cDNA¹⁹. Expression driven by this nephrin promoter fragment was shown by Moeller et al. (2002) to achieve podocyte specific expression in kidneys without detectable expression outside the kidney by chemiluminescence assay.

Transgenic mice were generated by male pronuclear microinjection of murine fertilized ova derived from B6CBAF1 mice with the linearised pIN plasmid (Figure 1). These mice originated from Harlan UK, and were offspring of a cross between the C57BL/6JolaHsd inbred female and the CBA/CaOlaHsd inbred male.

Figure 1.

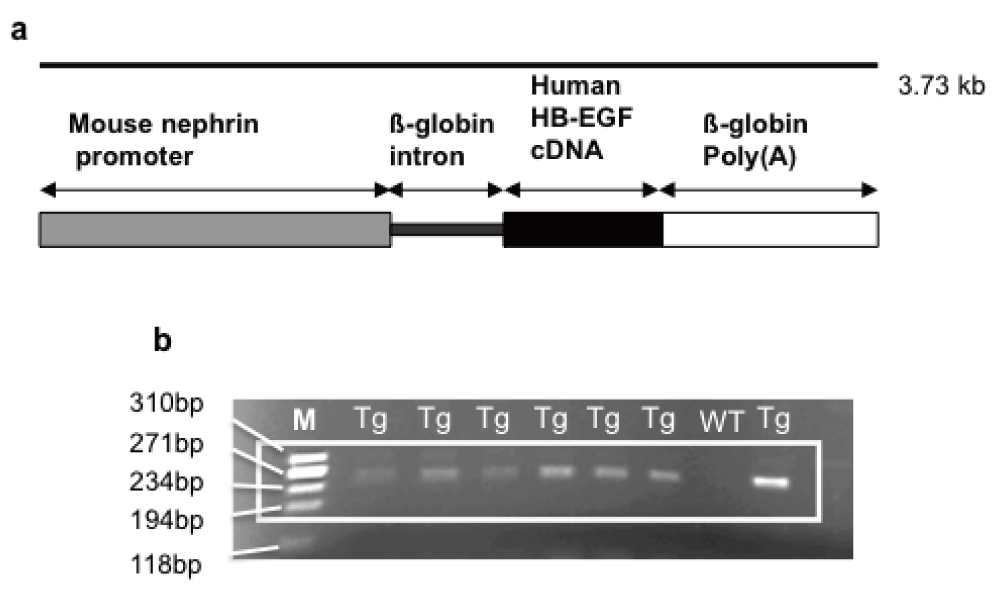

(a) Schematic representation of the transgene. Human diphtheria toxin receptor (DTR), or human heparin binding-epidermal growth factor (HB-EGF) receptor, is expressed as a transgene under the control of the murine nephrin promoter. (b) Agarose gel showing positive bands for the PCR products of a 243bp fragment from podocyte nephrin promoter and rabbit-ß-globin intron of transgenic Podo-DTR mice. M, marker Hae ladder; Tg, trasgenic; WT, wild type.

Transgenic offspring were identified by PCR analysis of ear notch DNA using the following primers: 5'-GGA AGA GAG AAG GGC GAG TT-3' and 5'-GGG TCC ATG GTG ATA CAA GG-3' for a 243bp nephrin gene/intron product; and 5'-GGT GGT GCT GAA GCT CTT TC-3' and 5'-GCT TGT GGC TTG GAG GAT AA-3' for a human HB-EGF gene product. Thermal Cycler Apollo ATC201 PCR machine was used with the same thermal cycling protocol as described above except for the annealing temperature (set to 50ºC for 1 minute per cycle).

All animal studies conformed to local ethical guidelines and the Home Office (UK) Animals Scientific Procedures Act (1986) and were approved by the University of Edinburgh Ethical Review Committee (Ethical Review Number PL23-07). Mice were housed in laboratory cages (n=1–6) in a room with 12:12 hour light-dark cycle and allowed free access to standard dry pellet diet and water (unless otherwise specified) in accordance with the institutional guidelines.

Characterisation of the model

Podo-DTR mice and wild-type littermates as controls were injected with a single dose of diphtheria toxin (DT) (Product no. 150, Lot 15023A1; List Biological Laboratories Inc., California, USA) ranging from 0.1–166ng/g body weight (bw). At various time points, urine and blood samples were collected for albuminuria and creatinine, and urea measurement respectively. Animals were sacrificed (aged 7 to 11 months) by intraperitoneal injection of terminal anaesthesia (1mg/ml medetomidine (Dormitor) (Ref. VD DOM02, made by Orion Pharma, supplied by Henry Schein Medical) and 100mg/ml ketamine (Vetalar) (Ref. PD VET10, made by Pfizer, supplied by Henry Schein Medical) at approximately 0.1ml/10g of body weight and their kidneys analysed histologically.

ACEi protection experiment

Groups of 16 transgenic (Tg) mice and eight wild-type (WT) littermates were given captopril (200mg/L) (Product no. C4042, Sigma Aldrich, UK) in their drinking water or placebo (water alone) 24h after a single intraperitoneal (i.p.) injection of diphtheria toxin at 5ng/g bw (Product no. 150, Lot 15023A1; List Biological Laboratories Inc., California, USA). The size of the experimental group was based on a power calculation in order to have 80% power to detect a histological score difference of 1 on a 5 point scale with p≤0.05, assuming SD for score is 1.

Animals of both sexes (1:3 female to male ratio) aged 3 to 12 months (mean: 7.4, median: 8 months) were allocated to three groups:

Urine samples were collected over 24h in metabolic cages at days 0, 14, 42, 49 and 56 and analysed for albumin:creatinine ratio (ACR). Systolic blood pressures were measured by tail cuff plethysmography on trained conscious animals during week 7 after toxin injection, and the mean of 3–4 measurements was recorded for each animal. Untreated Podo-DTR mice (n=5) (transgenic not given diphtheria toxin or captopril) were also included to assess baseline blood pressure.

Terminal blood samples were collected at week 8 from intraperitoneally anaesthetised animals (injected with medetomidine and ketamine).

Kidneys from each animal were bisected sagitally and fixed as required by overnight incubation at 4ºC in fixative (10% neutral formalin (VWR Brand P/L-Chemicals), Methyl-Carnoy fixative (60% absolute methanol, 30% chloroform, 10% glacial acetic acid (Fisher Scientific UK Ltd), or Karnovsky’s glutaraldehyde (700mOsm) (Ref. G5882-100ml, Sigma Aldrich) or snap frozen in liquid nitrogen. For light microscopy, formalin-fixed samples were embedded in paraffin-wax and 2µm sections cut and stained with haematoxylin and eosin (H&E) or periodic acid-Schiff (PAS) (Fisher Scientific UK Ltd).

Urine and blood analysis

Urine and serum creatinine concentrations were measured using the creatinase reaction, with the exception of the first cohort of the model evaluation studies where Jaffe reaction was used (for the Podo-DTR line 47 given 1ng/g DT). Serum urea was measured using the urease reaction (Alpha Laboratory Ltd, Poole, UK). An immunoturbidimetric assay was developed to measure urinary mouse albumin concentration using a commercial diagnostic Microalbumin Kit (Olympus Diagnostic Ltd, Watford, UK) standardised against purified mouse albumin (Sigma Chemical Co. Poole, UK). All the assays were adapted for use on a Cobas Fara centrifugal analyser (Roche diagnostics Ltd, Welwyn Garden City, UK) according to manufacturer’s instructions.

Glomerulosclerosis score

Sclerosis was defined as collapse and/or obliteration of glomerular capillary tuft accompanied by presence of hyaline material and/or an increase in matrix¹². Glomerulosclerosis was graded on 2µm thick PAS-stained sections, adopting the semi-quantitative scoring system proposed by El Nahas et al.²⁶. The severity of glomerulosclerosis was expressed on a scale of 0 to 2. The scoring system used was as follows: 0: normal glomerulus or no lesion; 1: <50% sclerosis; 2: 50–100% sclerosis of glomerular tuft area. Using light microscopy at a magnification of x40 (Olympus CX40), 100 glomeruli per animal were scored for glomerulosclerosis by an observer blinded to experimental group.

Immunohistochemistry

Paraffin-embedded, formalin-fixed kidneys were cut at 3µm thickness. After deparaffinising and hydrating, the sections were treated with the antigen retrieval solution Borg Decloaker RTU (Ref. BD1000MM Biocare Medical) for 2 minutes after reaching pressure according to manufacturer’s instructions. The sections were incubated with rabbit polyclonal anti-Wilm’s tumour 1 (WT1) sc-192 IgG antibody (1:50; Santa Cruz Biotechnology, Inc) for 1h at room temperature. Immunoperoxidase staining was performed according to the Vectastain ABC kit (Vector Laboratories). Diaminobenzidine (DAB) (Vector Laboratories, Inc Burlingame, CA) was used as the immunoperoxidase detection system.

Podocyte quantification and glomerular area measurement

WT-1 is a marker that specifically stains podocyte nuclei. Podocytes were counted in 50 consecutive glomerular cross-sections per animal viewed at x40 magnification (Olympus CX40), and the mean podocyte per glomerulus count calculated for each animal, n=16 (transgenic), n=8 (wild-type).

To investigate for any change in glomerular size following treatment (with diphtheria toxin and/or ACEi treatment), 50 consecutive glomerular cross section (GCS) per animal were measured using ImageJ 1.4r software on pictures taken at x10 magnification using QCapturePro (QImaging Micropublisher 3.3 RTV, Zeiss Axioskop, Germany).

Statistical analysis

Results are expressed as mean ± standard error of the mean (SEM) or median where specifically stated. Statistical differences between groups were tested by the Student t-test or Wilcoxon Rank Sum as appropriate (Graphpad Prism 4 version 1.0 or R www.r-project.org version 2.1). A p-value of <0.05 was considered to be significant.

Derivation

Three transgenic lines with positive PCR results for the transgene (Figure 1b) were established (Podo-DTR 47, 57 and 21). Earlier studies in total of 10, 17 and 24 mice of Podo-DTR line 47, 57 and 21 respectively (male and female) aged 6.5 to 9 months showed that two of the lines (47 and 57) were susceptible to diphtheria toxin. All three lines were entirely healthy and had normal glomerular morphology. Non-transgenic animals and also animals from line 21 had normal glomerular morphology regardless of the dose of toxin received. Mice from lines 47 and 57 developed renal injury in response to low doses of toxin but no pathology outside the kidneys was detected.

Podo-DTR mice develop podocyte injury after diphtheria toxin injection

In dose-ranging studies, animals were injected intraperitoneally with diphtheria toxin at 0.1–166ng/g bw. Mice from line 47 were most susceptible and developed fatal acute renal injury in response to doses of 2.5ng/g or greater (n=3–6/group, aged 2–10 months), and a dose-dependent, slowly progressive (over 6 months) glomerulosclerosis in response to lower doses (n=3–6/group, aged 2–6 months). Mice from line 57 developed only proteinuria even at doses as high as 20ng/g bw (n=6/group, aged 2–10 months). Mice from line 21 were unaffected by administration of toxin despite carrying the transgene (n=3–6/group at 1ng and 50ng/g bw, aged 6–9 months).

Albuminuria and serum urea peak at week 2

The time course of sub-lethal toxin treatment in line 47 was: development of proteinuria (6mg/mmol at 48h vs 2mg/mmol baseline, p=0.031) within days which increased in severity over 2 weeks (2048mg/mmol) then declined (57.6mg/mmol at 5 weeks) but never to baseline (12.4mg/mmol at 26 weeks (n=3–6) (Figure 2a). No significant albuminuria was seen in transgenic animals not given toxin or wild-type animals treated with diphtheria toxin (0.9–6.3mg/mmol) (Supplementary Table 1).

Figure 2.

(a) Albumin:creatinine ratio (ACR) measured in urine of Podo-DTR line 47 at intervals after injection with 1ng/g bw. Acute proteinuria was highest at week 2 (mean value 2047.9mg/mmol) falling to much lower levels by 5 weeks (57.6mg/mmol) and remaining low at 26 weeks (12.4mg/mmol). No substantial change was seen in control groups (0.9–6.3mg/mmol) (data not visualized). (b) Glomerulosclerosis score of Podo-DTR line 47 mice at 6 and 26 weeks post DT injection at 1ng/g bw. 100 glomeruli were scored per animal (Uncropped gel image in Supplementary Figure 1).

Serum urea showed a similar acute profile to ACR (Supplementary Table 2). Although the number of experimental animals was small (n=3–7), it appeared that there was an acute rise in blood urea at day 14 (10.9mmol/L vs 5.4mmol/L at d0), followed by temporary recovery at week 5 (5.1mmol/L) and then by slow deterioration (7.9, 8.1, 9.2mmol/L at week 6, 8 and 26 respectively).

Morphological glomerular damage is progressive

Toxin treated transgenic (Podo-DTR) mice showed a progressive reduction in the number of normal glomeruli with time (74% at 6 weeks, 53% at 26 weeks, Figure 2b). At 1 month, early focal segmental glomerulosclerosis (FSGS) and chronic renal damage was observed (Figure 3C–D). Importantly, additional glomeruli became morphologically abnormal even after 6 weeks post-toxin-treatment. In contrast, almost all of sampled glomeruli in control group animals (wild-type toxin-treated and transgenic untreated animals) were morphologically normal (96%) (Figure 2b).

Figure 3. Glomerular histology of DT treated and untreated mice.

(A) Normal glomerulus in untreated transgenic mouse. (B) Damaged glomerulus with abnormal morphology and vacuolated cytoplasm (*) from treated Podo-DTR line 47 (25ng/g bw DT) at D7. (C–D) Sclerosed glomeruli from treated Podo-DTR line 57 (1ng/g bw DT) at D28 with (C) partially damaged glomerulus with normal morphology at 4 o’clock, with tuft/capsular adhesion in the area of segmental scar at 9 o’clock, and (D) almost completely sclerosed glomerulus. PAS staining, 40x magnification. * p=0.002; ** p<0.0001; DT, diphtheria toxin; bw, body weight; D, day; NS, non significant; PAS, Periodic Acid Schiff.

Podocyte number falls and remains low

The number of podocytes per glomerular cross section (GCS) was reduced in toxin-treated susceptible animals compared to the controls in Podo-DTR line 47 (6.2 at 2 weeks, 5.3 at 26 weeks vs 10.0 podocyte per GCS in controls, p<0.02) (Figure 4). The reduction in podocyte count was dose-dependent in line 57 animals. At higher toxin dose (20ng/g bw DT) at 14 days, the mean podocyte number dropped to 6.1 podocyte/GCS compared with 7.2 podocyte/GCS in mice treated with lower dose at 5ng/g bw toxin at week 8 versus 8.5 podocyte/GCS of Tg saline treated controls (p<0.04). (Supplementary Table 3).

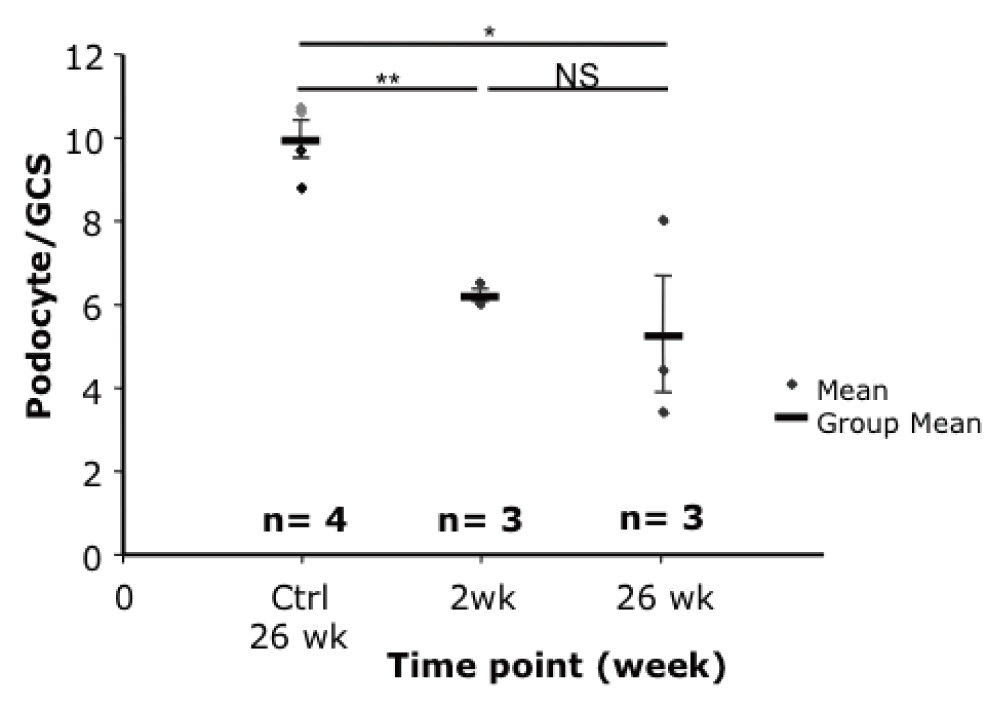

Figure 4. Podocyte quantification of Podo-DTR line 47 mice at 2 and 26 weeks after diphtheria toxin (DT) injection at 1ng/g bw.

Podocyte numbers were significantly reduced at 2 and 26 weeks after toxin injection compared to the controls (6.2 and 5.3 versus 10.0 podocyte/GCS respectively, p<0.02). bw, body weight; GCS, glomerular cross section; * p=0.015; ** p=0.001; ♦, wild-type control mice injected with DT; ♦, transgenic mice injected with saline.

ACEi-treatment lowered blood pressure and proteinuria

ACEi-treatment lowered systolic blood pressure in toxin-treated line 57 and wild-type mice from a mean of 114 to 84±1.7 and from 114 to 73±1.9 mmHg respectively (Figure 5a).

Figure 5.

(a) Tail cuff blood pressure (BP) of Podo-DTR line 57 mice. At 7 weeks post DT injection (1ng/g bw), the BP of ACEi treated mice, whether Tg or WT (84 and 73mmHg respectively) were significantly lower (p<0.001) than the untreated groups (114mmHg). (b) Urine albumin:creatinine ratio (ACR) of Podo-DTR line 57 mice. At day 0, prior to DT injection, mice from all 3 groups had baseline level of urine ACR (range: 0.0–6.8mg/mmol). The DT+H₂O treated group peaked at week 2 (271.5±128mg/mmol), the DT+ACEi treated group had the urinary ACR level blunted substantially (39.1±9mg/mmol). The long-term albuminuria was lowered in both DT+ACEi treated and DT+ H₂O groups. The WT controls had baseline level of urine ACR throughout the experiment (mean range value: 3.0–4.6mg/mmol). DT, diphtheria toxin; ACEi, angiotensin converting enzyme inhibitor; Tg, transgenic; WT, wild type; bw, body weight; vs, versus; *, p<0.0001 vs Tg DT+H₂O; #, p≤0.0001 vs Tg DT+ACEi; +, p=0.002 vs WT DT+ACEi.

ACEi-treatment also substantially reduced proteinuria in toxin-treated line 57 mice, although not to the levels observed prior to toxin treatment, or in wild type mice (range: 0.0–6.8mg/mmol) (Figure 5b). The peak level of proteinuria (at week 2) was reduced from 272±128mg/mmol in ACEi-treated mice compared to 39.1±9mg/mmol in mice treated with the diphtheria toxin only, and was substantial at all measurement times (Figure 5b).

ACEi-treatment reduced histological damage

The proportion of glomeruli showing scarring and matrix accumulation in toxin-treated line 57 mice was substantially reduced in ACEi-treated mice (10% vs 17%, 10%, p<0.04), almost to the levels observed in wild-type control mice (7%) (Figure 6 & Figure 7).

Figure 6. Glomerulosclerosis score of Podo-DTR line 57 mice at 8 weeks post DT injection at 5ng/g bw +/- captopril (200mg/L).

Glomerular scarring was reduced almost to baseline level by ACEi captopril (Tg DT+H₂O: 17%, Tg DT+ACEi: 10%, p<0.04; wild-type control: 7%).

Figure 7. Kidney histology of ACEi treated and untreated Podo-DTR line 57 mice.

(A) Cluster of 4 glomeruli with varying degree of scar from a Tg DT+ H₂O treated mouse injected with 5ng/g bw DT; (B) Improved glomerular histology of a Tg DT+ACEi treated mouse injected with 5ng/g bw DT. PAS staining, 20x magnification. DT, diphtheria toxin, ACEi: angiotensin converting enzyme inhibitor, bw: body weight; Tg, transgenic; *, p<0.02; **, p≤0.001; NS, non significant (p=0.33); PAS, Periodic Acid Schiff.

ACEi-treatment did not protect from podocyte loss

Podocyte counts at week 8 were lower in toxin-treated susceptible mice than wild-type controls (median podocytes per GCS was 7.1 for Tg DT+H₂O, and 8.2 for wild-type mice, p<0.05 by Wilcoxon Rank Sum). However, the counts in ACEi-treated, toxin-treated line 57 mice were not significantly higher (7.3 for Tg DT+ACEi) than in toxin-treated line 57 mice, and were significantly lower than in wild type controls (10% Wilcoxon Rank Sum) (Figure 8a). These results suggest that ACEi-treatment was not advantageous for podocyte preservation in this model (Figure 8b).

Figure 8.

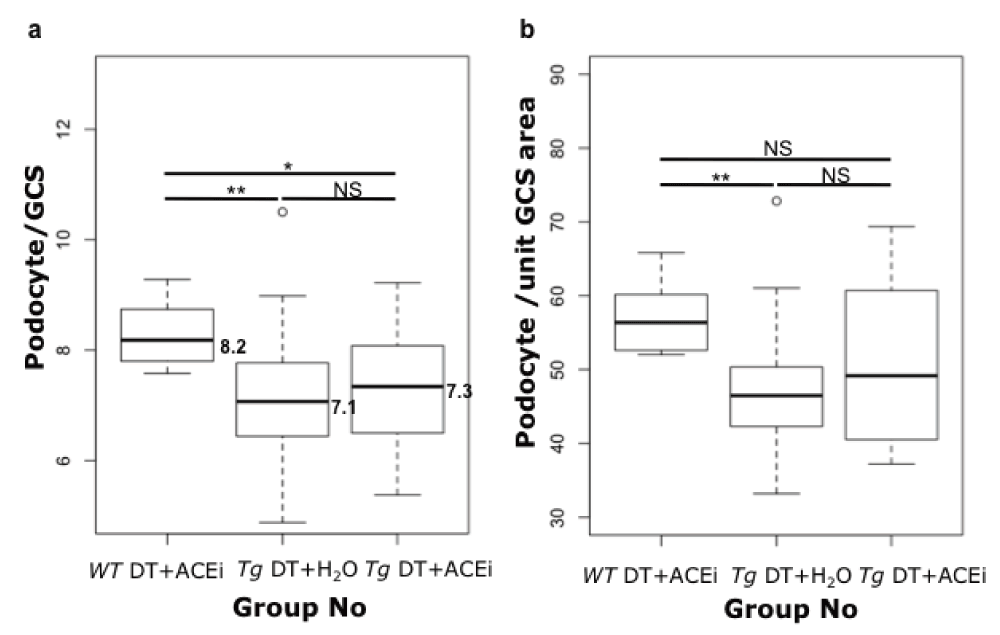

Box plots of the podocyte count. (a) or podocyte count per unit glomerular cross section area (b) for Podo-DTR mice treated with toxin with or without ACEi compared with wild-type (toxin + ACEi treated) mice at week 8. Significance was assessed using the 10% Wilcoxon Rank Sum test. Tg, transgenic; WT, wild-type; ACEi, angiotensin converting enzyme inhibitor; GCS, glomerular cross section; DT, diphtheria toxin; NS, non significant; *, p=0.03; **, p≤0.003.

A lack of benefit of ACEi treatment for podocyte preservation continued to be apparent when podocyte counts were expressed as counts per unit in glomerular cross sectional area, in order to compensate for any change in glomerular size. Indeed, mean glomerular size measured in 50 consecutive glomerular cross-sections using ImageJ 1.4r software was similar in the experimental groups irrespective of toxin-treatments at 9676, 10708, and 9693µm² in WT DT+ACEi, Tg DT+H₂O and Tg DT+ACEi respectively, p>0.08 (Supplementary Table 4).
