GPR21 KO mice demonstrate no resistance to high fat diet induced obesity or improved glucose tolerance

Animals and Gpr21 (Gpr21 TAL 29bp) KO mice generation

All animal experiments were approved by the Institutional Animal Care and Use Committee of Amgen. Mice were housed in a pathogen-free facility with a 12 h light-dark cycle at 22°C. Mice were allowed ad libitum access to water and food. Single housed male Gpr21 KO (Gpr21 TAL 29bp) and their male littermate mice were used in this study. Mice were fed a normal chow (Harlan 2920) until they were 11 weeks old and then a high fat diet (Research Diets D12451,45 kcal % fat) for the next 15 weeks.

GPR21 KO mice were created using a pair of transcription activator-like effector nucleases (TALENs) from Life Technologies targeting exon 2 of mouse GPR21. TALEN binding sites are underlined below with a 15 base pair spacer between the 2 sites.

5 ’- TGAACTCCACCTGGGATGG TAATCAGAGCAGCCA TCCTTTCTGTCTTCTGGCA

ACTTGAGGTGGACCCTACC ATTAGTCTCGTCGGT AGGAAAGACAGAAGACCGT – 5’

Design, cloning and validation of the TALENs were performed by Life Technologies. Messenger RNA (provided from Life Tech) for each of the TALENs were diluted in RNAse free microinjection buffer to a final concentration of 4.0 ng/µl for each TALEN (8.0 ng/µl total concentration). The TALENs were microinjected into the pronucleus of fertilized one-cell embryos (0.5 days post coitus) obtained from the mating of C57BL/6 (Taconic) males to superovulated C57BL/6 (Taconic) female mice. Microinjected eggs were transferred to pseudopregnant Swiss Webster recipients. Founder pups were screened for TALEN induced mutations in GPR21 by sequencing across exon 2. Two founders, one with a 5 bp deletion and the other with a 29 bp deletion were expanded for further analysis.

Genomic DNA preparation and PCR genotyping

Genomic DNA was prepared from liver, BAT and spleen using DNeasy blood and tissue kit (Qiagen, Valencia, CA) following manufacturer’s instruction. PCR were carried out using the primers 5’-CAGCATGAAGTGAGAGCCAG-3’ and 5’-CAAGTAGCCCAGTGCCAGAAG-3’.

Microarray and data analysis

Tissue samples from the Deltagen Gpr21 knockout mice were used for microarray analysis. These samples were collected by Gardner et al. during the course of their Gpr21 knockout mice study. mRNA was isolated from 6 animals for each group using Qiagen RNeasy Mini Kit (Qiagen, Valencia, CA) and processed following the protocols described in section 2 (Eukaryotic Sample and Array Processing; 701024 rev 1) of the Affymetrix Technical manual. Briefly, 5 µg total RNA was used to synthesize cDNA (10 pmol of T7-(dT)24 primer, and Superscript II (Invitrogen, Carlsbad, CA). Purified double-stranded cDNA (MinElute Reaction Cleanup Kit, Qiagen, Valencia, CA) was used to generate biotinylated cRNA using Bioarray HighYield RNA Transcript labeling Kit (Enzo Diagnostics, Farmingdale, NY) followed by purification with Qiagen RNeasy Mini kit and hybridization to the Affymetrix HT MG 430 PM array. Arrays were washed on a GeneChip Fluidic Station 450 (EukGE_WS2v4_450 protocol) and scanned using the Affymetrix GeneChip Scanner 3000 (Affymetrix, Santa Clara, CA). Data analysis was conducted with R (version 2.15, http://r-project.org) with Bioconductor (version 2.10, http://bioconductor.org/) and ArrayStudio (Omicsoft, version 8.0). Briefly, Affymetrix CEL files were normalized in Bioconductor using the GCRMA method. Differentially regulated genes were identified using a moderated t-test. False discovery rate adjusted P-values were calculated using the method of Benjamini and Hochberg.

RNA isolation and expression assays

Total RNA was isolated using Qiagen midi RNA preparation kit (Qiagen, Valencia, CA). The total RNA concentration was determined with a Nanodrop (ThermoFisher Scientific, Wilmington, DE). QPCR was performed using 10 ng RNA per well, Taqman master mix (Applied Biosystems, Foster City, CA). Rabgap1 gene expression was assessed using Taqman Probes from Applied Biosystems (Mm01327207_m1 and Mm01327199_m1). Gpr21 mRNA level was measured using the forward primer 5’-CACCTGGGATGGTAATCAGAG-3’, reverse primer 5’- TCACAATGATGTTGCCAGAAAT-3’ and probe 5’

FAM/TTCTGGCAC/Zen/TGGGCTACTTGGAAA/IABkFQ-3’ from Integrated DNA Technologies (Coralville, IA). Results were evaluated using the ΔΔC_T method and normalized relative to the expression of glyceraldehyde-3-phosphate dehydrogenase (Gapdh).

Oral glucose (OGTT) tolerance test

17 Gpr21 TAL 29bp knockout and 17 wildtype littermate mice were used in this experiment. Glucose, body weight and OGTT were measured on 11 week old mice fed a normal chow diet. Then, mice were switched to high fat diet (HFD) feeding. Two more glucose, body weight and OGTT measurements were performed on 15 and 26 week-old mice (fed HFD for 4 and 15 weeks, respectively). At 6 am, mice were fasted for 4 hr. Glucose levels were measured and blood samples were taken from the tail vein before oral glucose tolerance test (OGTT) was initiated. GTT was performed by oral administration of a bolus glucose (2g/kg body weight). Glucose levels were measured at 20, 40 and 60 min after glucose administration by using AlphaTrak blood glucose meter (Abbott, Chicago, IL).

Serum insulin measurement

Blood samples collected before OGTT, were centrifuged at 10000rpm. Serum insulin levels were determined by using Insulin (mouse) ultra-sensitive EIA kit 80-INSMSU-E10 or mouse high range insulin ELISA 80-INSMSH-E01 (ALPCO Diagnostics, Salem, NH).

Statistical analyses

Two-way ANOVA followed by Bonferroni was used to compare more than two groups. For comparison between two groups, unpaired two-tailed t test was performed. All tests used the software GraphPAD Prism (GraphPad, San Diego, CA). Significance was defined as *: P < 0.05; **: P < 0.01; ***: P < 0.001.

Rabgap1 expression was changed in Deltagen Gpr21 KO mice

We isolated RNA from spleen, liver, perirenal fat (WAT) and brown fat (BAT) from Deltagen Gpr21 KO mice and their wildtype littermate control mice. Microarray results identified that Rabgap1 was the only gene that was changed in all the tissues analyzed. Rabgap1 mRNA levels were increased by 1–4 fold when using two independent Rabgap1 probes (Figure 1A, Figure 1B, Table 1) located upstream of Gpr21 gene and were down regulated by 5–15 fold when using one Rabgap1 probe located downstream of Gpr21 gene. This result indicated that the genetic modifications in the original KO line modified Rapgap1 mRNA expression levels (Figure 1B). Strbp mRNA expression levels were not changed when using multiple probes that were located downstream of the GPR21 gene (Figure 1A and data not shown). Also, Rabgap1 mRNA expression levels were assessed using 2 Taqman probes (Table 1) that amplified different regions of Rabgap1 in liver and BAT of KO and their wildtype littermate mice. One primer/probe set spanned Rabgap1 exon 3 and 4 (Table 1), which is located upstream of the Gpr21 gene. Another primer/probe set spanned Rabgap1 exon 17 and 18, which is located downstream of the Gpr21 gene (Table 1). Rabgap1 mRNA expression levels in liver and BAT of Gpr21 KO mice were not changed compared to their wildtype littermate mice with the upstream primer/probe set (Figure 1C), however it was dramatically decreased in liver and BAT of Gpr21 KO mice compared to their wildtype littermate mice with the downstream primer/probe set (Figure 1C).

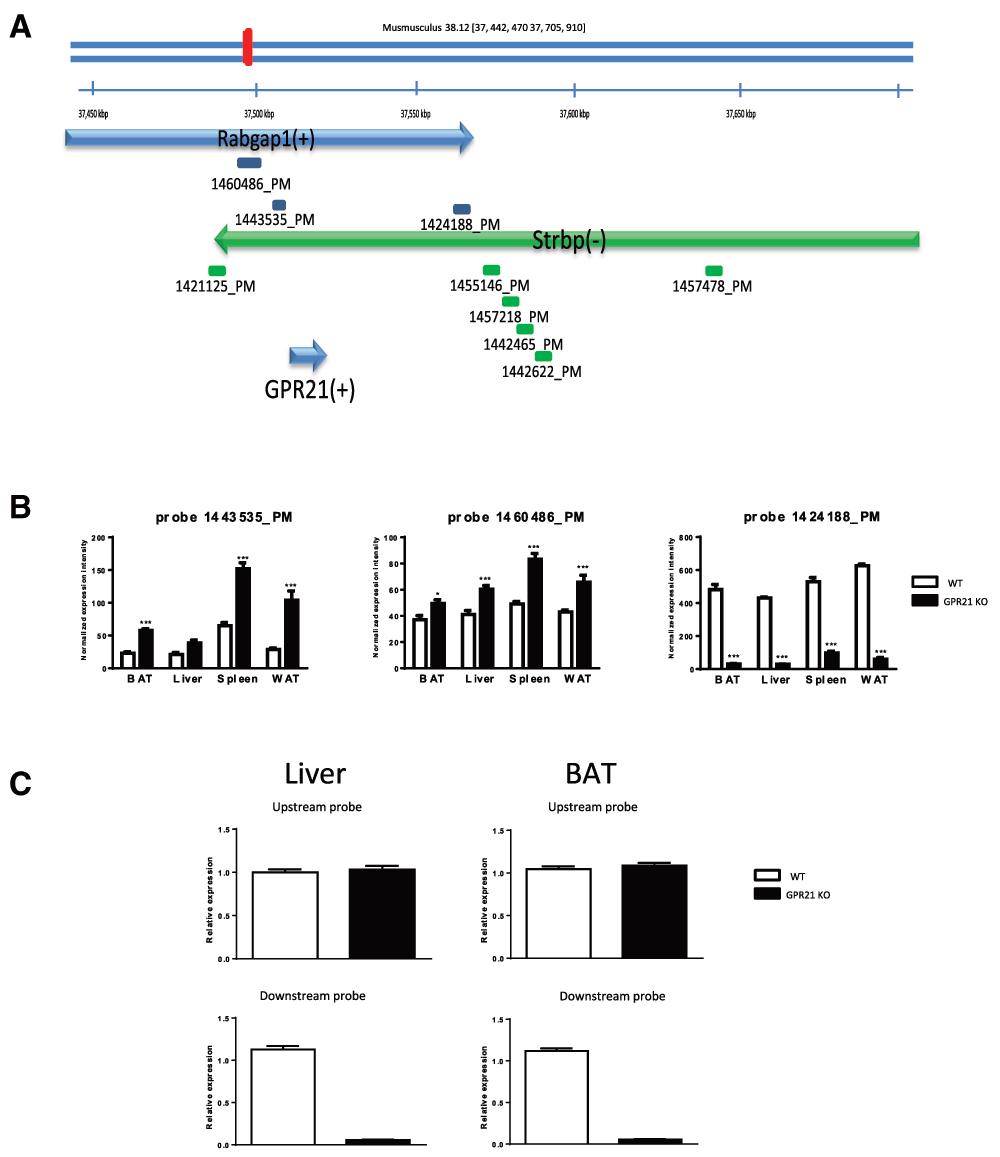

Figure 1.

(A) Mouse Gpr21 is located on Chromosome 2 within the intron of Rabgap1 gene between exon 13 and 14 on the positive strand according to UCSC GRCm38/mm10 assembly. Strpb gene is on the opposite strand in the same region. The blue arrow represents the positive strand while the green one the negative strand. The bars under the genes represent microarray probe sets from Affymetrix mouse array HT MG-430PM platform. There is no probe set covering Gpr21 gene. The closest probe set 1421125_PM is located at 2,866 bases upstream of Gpr21. (B) The level of Rabgap1 transcript was shown as normalized expression intensity. RNA was prepared from BAT, liver, spleen and WAT of Deltagen Gpr21 KO mice and their WT littermate controls. Probe 1443535_PM, 1460486_PM and 1424188_PM allow detection of Rabgap1 mRNA expression levels. (C) Rabgap1 mRNA expression levels were assessed using 2 Taqman probes in liver (left panel) and BAT (right panel) of GPR21 KO and their wildtype littermate mice.

Generation of Gpr21 specific KO (Gpr21 TAL 29bp) mice

A new line of Gpr21 KO mice (Gpr21 TAL 29bp) was created by deleting a 29 bp within the coding exon of Gpr21 gene. Using the TALENS technology, a 29 bp very close to the ATG codon was deleted, thus causing an out of frame mutation and early termination of Gpr21 gene (Figure 2A). Homozygous Gpr21 KO mice genotype was confirmed by PCR using primers located upstream and downstream of the 29bp deletion from genomic DNA of several tissues (Figure 2B). As predicted, a 100 bp band was identified for the wildtype mice and a 71 bp band for the Gpr21 TAL 29bp homozygous KO mice (Figure 2C). The PCR fragment was sequenced and a 29 bp deletion was confirmed. From RNA isolated out of BAT and liver, no detectable Gpr21 mRNA levels were identified in Gpr21 TAL 29bp KO mice using qPCR and Gpr21 probes that are located around the 29 bp deletion region (Figure 2D). Similar mRNA levels were detected using primer/probe that were located downstream of 29bp deletion in exon 2 (data not shown). The result confirmed that Gpr21 transcripts in Gpr21 TAL 29bp KO mice had the 29bp deletion.

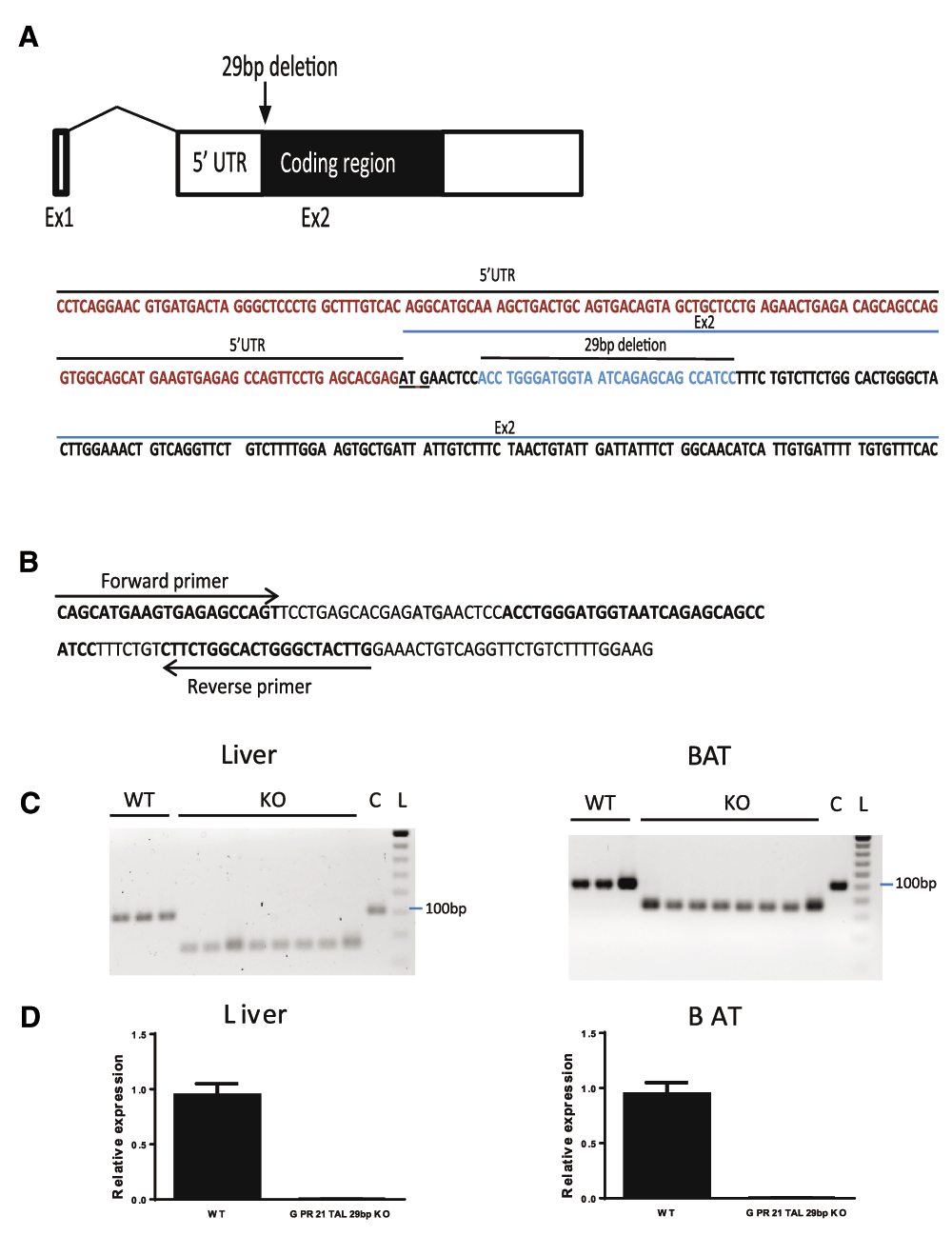

Figure 2.

(A). Sequence and location of the 29 bp deletion in Gpr21 TAL 29bp KO mice. (B). sequence and location of genotyping primers. (C). Genotyping of Gpr21 TAL 29bp KO mice. Genomic DNA was generated from liver and BAT. PCR with genotyping primers amplified a 100 bp fragment from the genome of WT littermate mice and a 71 bp fragment from homozygous Gpr21 TAL 29bp KO mice. C: commercial mouse genomic DNA. L: 20 bp DNA ladder. (D). No wildtype Gpr21 transcript were detected. qPCR analysis of Gpr21 gene in liver and BAT using primer/probe set that located in the 29 bp region and only detect wildtype Gpr21 transcript.

Rabgap1 and Strbp expression levels are not affected in Gpr21 TAL 29bp KO mice

Rabgap1 mRNA expression levels were assessed using 2 Taqman probes (Table 1) that amplified different regions of Rabgap1 in liver and BAT of KO and their wildtype littermate mice. One primer/probe set spanned Rabgap1 exon 3 and 4 (Table 1), which is located upstream of the Gpr21 gene. Another primer/probe set spanned Rabgap1 exon 17 and 18, which is located downstream of the Gpr21 gene (Table 1). Rabgap1 mRNA expression levels in Gpr21 TAL 29bp KO mice were not changed compared with their wildtype littermate mice with both primer/probe sets (Figure 3A). Liver and BAT Strbp mRNA expression levels were also not changed between Gpr21 TAL 29bp KO mice and their wildtype littermate mice (Figure 3B). One of the limitations of our study is that we have not measured GPR21 protein levels.

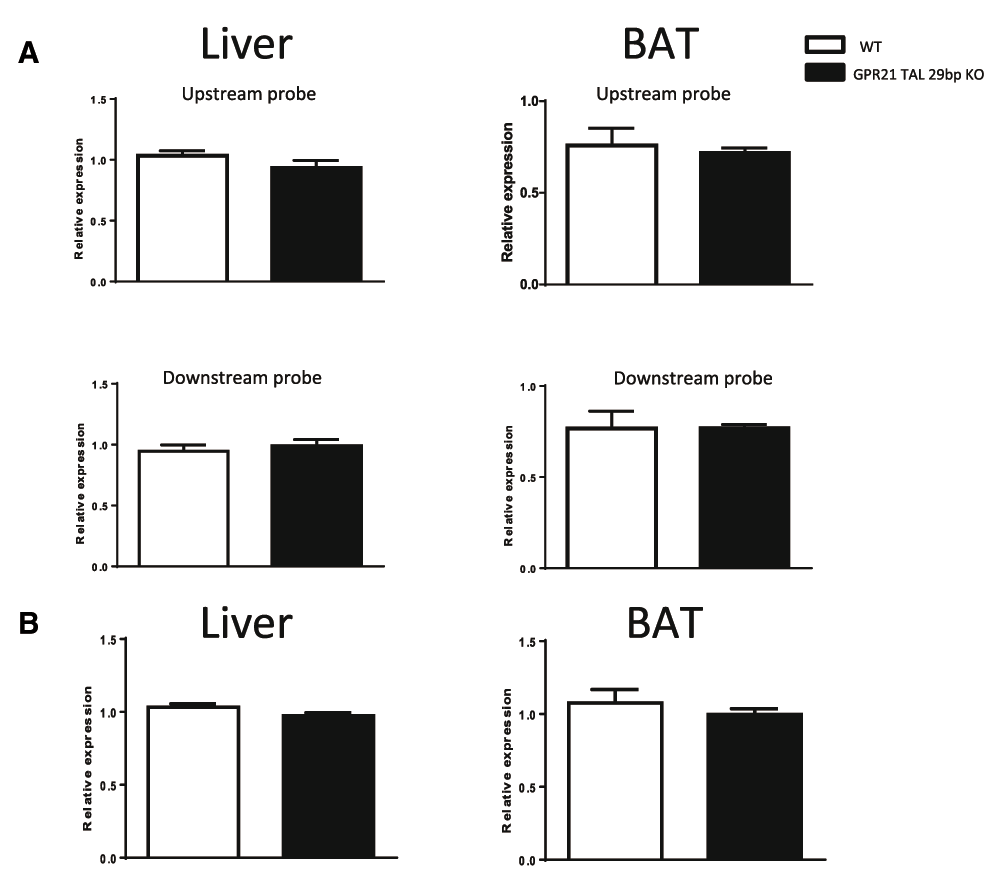

Figure 3.

(A) Rabgap1 mRNA expression levels were assessed using 2 Taqman probes in liver (top left panel) and BAT (top right panel) of GPR21 TAL 29 bp KO and their wildtype littermate mice. (B) Liver (bottom left panel) and BAT (bottom right panel) strbp mRNA expression levels were assessed in wildtype and Gpr21 TAL 29bp KO mice.

Gpr21 TAL 29bp did not show improvements in glucose and insulin metabolism

The body weight, OGTT and insulin levels of Gpr21 TAL 29bp KO mice fed a normal chow were not different from the ones of their wildtype littermates (Figure 4 A–C). Mice were then fed with a 45% high fat diet to induce obesity and insulin resistance. After 4 weeks and 15 weeks of high-fat feeding, Gpr21 TAL 29bp KO mice gained similar body weight to that of their wildtype littermates, showed no difference on glucose tolerance and fasting blood glucose and insulin levels were not different from their wildtype littermates, Figures 4 D–I, respectively.

Figure 4.

At 11 weeks of age, body weight (Figure 4A), OGTT (Figure 4B) and insulin levels (Figure 4C) were measured in wildtype (open bar and open circle) and Gpr21 TAL 29bp KO Mice (filled bar and open triangle) fed a normal chow diet. At 15 weeks of age and at 26 weeks of age body weight (Figure 4D & 4G), OGTT (Figure 4E and 4H) and insulin levels (Figure 4F & 4I) were measured in wildtype (open bar and open circle) and Gpr21 TAL 29bp KO Mice (filled bar and open triangle) fed a high fat diet for 4 weeks and 15 weeks, respectively.

Next Steps

The results of Osborn and Gardner suggest that GPR21 may play an important role in regulating body weight and glucose metabolism. However, in our attempts presented here to confirm their findings we didn’t see the same effect. We would therefore like to encourage an open discussion and collaborate with Osborn and Gardner as well as others in the wider community to further elucidate the potential effectiveness of pharmacologically inhibiting GPR21. In any work using genetically manipulated animal models, it is critical to demonstrate that the targeted manipulation behind the biological differences is being explored. While this should be obvious and generally assessed, this study illustrates one of the numerous ways in which scientists may be misled – changes in expression or function of other genes near the targeted gene. An analysis of the expression or function of nearby genes may be a general recommendation that could be made for all KO studies.
