A review of perioperative anesthesia and analgesia for infants: updates and trends to watch

Introduction

This article begins by highlighting the features of neonatal and infant physiology that differ from those of adults and impact drug handling. Definitions of pharmacokinetic terms and a brief introduction to models for drug metabolism will be presented. Morphine and remifentanil will be used as examples of older versus recently developed opiates to compare and contrast pharmacokinetics in infants. The pharmacodynamics of these agents is important to consider in this vulnerable group. Opioid-related side effects include respiratory depression, tolerance, ileus, urinary retention and pruritus. Genetics affecting both pharmacokinetics and pharmacodynamics of opiates has begun to be explored. The growth in regional anesthesia for peri-operative analgesia in infants can fill an important role, minimizing intra-operative anesthetic exposure and transitioning to post-operative care. Use of multi-modal techniques to decrease opiate-related side effects in vulnerable infants is also desirable. The kinetics of acetaminophen and of ketorolac (as examples of parenteral non-steroidal analgesics) in infants will be reviewed. Investigation of a new class of mu-opiate-binding agents, which seem selective for analgesic pathways while having less activity in pathways linked to side effects is a new area with clinical studies beginning in adults; this constitutes an important area to follow.

Clearly, the information to be presented will be our selection from the literature and cannot be a comprehensive review of all literature of these drugs or drug classes. References to some of the authors’ own work is used for convenience and knowledge of study performance details, not to suggest that other work is not equally important.

Physiology

The physiology of the neonate and infant differs in many aspects from that of the adult; some of these differences are important factors for drug handling. Total body water is a higher percentage of body weight in infants, reaching adult values by the age of 8 to 10 years¹. Liver and kidney function is not fully developed at birth, affecting handling of many drugs. The maturation of organ function occurs over several months during the first year of life. Drug development in the past 10 to 20 years has focused on agents whose metabolism is less dependent on normal renal or liver function (or both) since aging adults often have compromise in the function of these organs. This is beneficial for infants who also have immature function. Remifentanil is one obvious example of such a drug.

Hepatic enzymes, including both the P450 system and the glucuronidation pathways, are immature at birth. Maturation occurs over the first few months of postnatal life, at different rates for different P450 variants. The kidney is important for eliminating drugs or their metabolites. Drugs that are metabolized by glucuronidation (to increase solubility for excretion) will have delayed removal in the first months of life. Sulfation then becomes more important as a solubility pathway for urinary excretion. In infants, glomerular filtration rates start at approximately 10% of adult normal values, reaching these by 12 months of age. Renal tubular function also matures over the first 6 months. This immature function can result in the accumulation of metabolites and is particularly problematic when those metabolites have active effects.

Pharmacokinetics

Pharmacokinetics, clearance (Cl), volume of distribution (Vd), and elimination half-life (t ½) are common pharmacologic terms, and familiarity can be helpful when reviewing this literature. Pharmacokinetics is defined as the study of drug disposition by patients; it is affected by absorption (important for non-intravenous [non-IV] routes of administration), distribution, metabolism, and elimination. Familiarity with common pharmacologic terms can be helpful when reviewing this literature² and are briefly defined below since most readers are familiar with them.

Cl describes the removal of drug from a volume of plasma per unit of time (mL/min, L/hour or normalized as mL/min per kg, L/hour per 70 kg).

Vd, another volume term, describes the apparent volume necessary to account for all drug if it were present at the same concentration as measured in plasma or serum (L/70 kg or mL/kg). Importantly, Vd is a theoretical, rather than physiologic, volume. Its usefulness is to show how widely distributed a drug is in the body.

The t ½ is the time needed to change blood concentration by 50% (minutes, hours). In 4 to 5 half-lives, 94% to 97% of drug is removed, respectively. Half-life is affected by both Cl and Vd. Drugs with a higher Cl and smaller Vd have a shorter duration of action and are more titratable, often desirable in anesthesia practice. As novel anesthetic drugs with these features have been developed, the term context-sensitive half-time has come into use. This term refers to the time to change drug concentration by 50% (that is, half-life) in the context of the duration of administration. Context-sensitive half-time pharmacokinetic models for IV anesthetic drugs have been described^2,3. Many newer agents have been developed to achieve small context-sensitive half-times which are unchanged regardless of the duration of drug infusion.

Limitations on blood sampling volumes for pediatric patients, particularly significant in infants, have encouraged the development of computer-generated pharmacokinetic mathematical modeling schemes which use sparse blood concentration data from pediatric patients. Population-based models exist which use factors such as age and weight as regular covariates and introduce additional elements to improve the fit of the model in concentration versus time graphs. Weight-based allometric models incorporate weight by using exponential factors (0.75 for Cl and 1 for Vd) based on enzyme function characteristics. These models consider age-appropriate factors such as creatinine or bilirubin to improve fit. Both models have been used to study morphine and remifentanil handling in infants^4–8.

Morphine

Studies of morphine pharmacokinetics have been reported by several groups^17,18. The focus here will be on the author’s work (AL), which is known in detail. In 1987, a small study in 10 infants showed that they had pharmacokinetic parameters different from those reported in adults, and a lower Cl and large Vd resulted in a prolonged t ½¹⁹. Study of a larger cohort of 49 infants and toddlers, all receiving morphine by IV infusion after cardiac surgery, showed the same pattern; adult values for Cl were reached by the age of 6 months²⁰. A subsequent study of 26 infants who received morphine by IV infusion after non-cardiac surgeries found Cl in non-cardiac infants to be significantly greater than in infants after cardiac surgery, and non-cardiac surgical infants reached adult morphine Cl values by 1 to 3 months of age²¹. In all of these studies, inter-patient morphine Cl variability was high, giving values two- to three-fold different for same-aged infants, a problem seen with most “older” opiates^17,22,23 (Figure 1). This variability makes it difficult to predict the duration of both desired and undesired morphine effects in any individual infant.

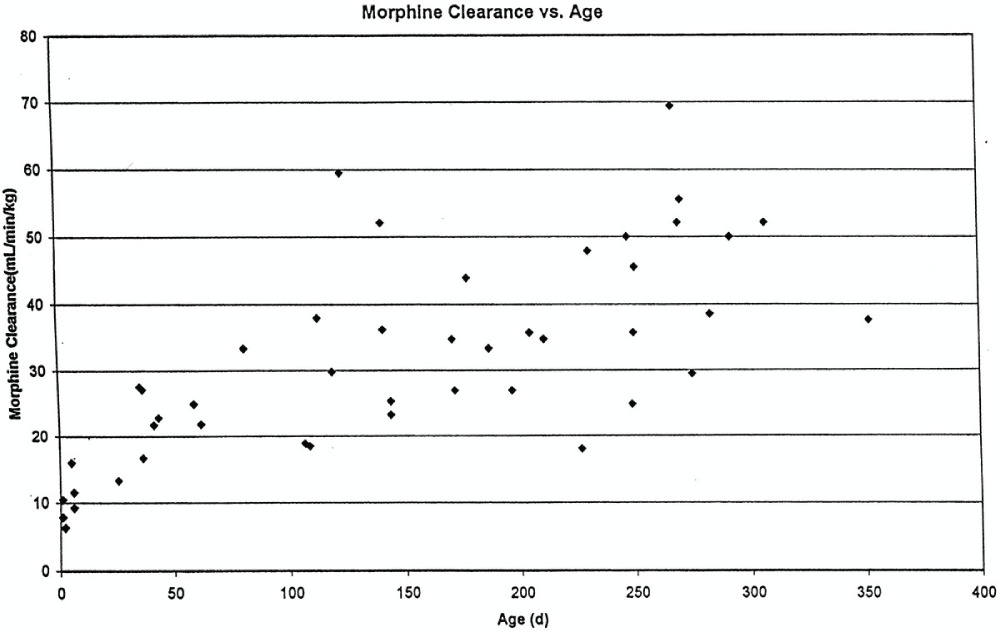

Figure 1. Morphine clearance (mL/min per kg) versus age in infants receiving morphine.

Reprinted with permission from Wolters Kluwer Health²³.

Klimas and Mikus recently suggested that active morphine metabolite morphine-6-glucuronide (M-6-G) was responsible for 85% to 96% of morphine analgesia based upon a literature review of published studies reporting these concentrations in adults²⁴. Bouwmeester et al. have reported M-6-G concentrations in infants in several reports but linking these concentrations or M-6-G/morphine ratios specifically to analgesia has not been analyzed^17,25. Neonates and young infants have immature glucuronidation enzymes, and the amount of M-6-G that is produced in this population is unclear. The role of genetic polymorphisms in UDT-transferase glucuronidation also plays a role in inter-individual variability and is incompletely studied.

Pharmacodynamics

Pharmacodynamics refers to the effects of the drug on the patient; these may be therapeutic or undesired (adverse)². For most clinicians, pharmacodynamics drives our administration of drugs. Pharmacodynamics are affected by many factors; for opiates, these include differences in receptor morphology (OPRM gene variant SNP 118 A/G), differences in target site concentrations of drug (ABCB 1/MDR 1 transporter), or effects downstream from drug reaching receptors and binding, such as differences in catechol-O-methyltransferase (COMT) metabolism of catechols (472 G>A SNP). Studies of these genetic differences in opiate effects in different populations have been increasing and should continue to be an active area of research^26–29. Genetic influences on pain perception also affect the pharmacodynamics of pain medications^30,31.

Respiratory effects of opiates have been one of the factors limiting their use in infants. Studies linking drug concentrations to effects are few. In 1993, a study of morphine concentrations at steady state in 30 infants receiving IV morphine infusions after cardiac surgery found that a plasma morphine concentration of less than 20 ng/mL was associated with hypercarbia in 15% versus 67% in those with morphine concentrations over 20 ng/mL, independent of age. This suggested that morphine infusions set to target a plasma concentration of 20 ng/mL could minimize the risk of respiratory depression in infants³². Unfortunately, the inter-patient variability in morphine pharmacokinetics makes predicting morphine concentration for an individual infant more difficult (see above discussion, Figure 1).

In 2000, a study of 83 infants demonstrated superior analgesia with morphine infusions compared with intermittent bolus dosing (high pain scores in 13% versus 32%)²³. No difference in continuous oximetry readings of less than 90% in room air or time to oral intake was found. However, carbon dioxide (CO₂) response curve slopes did show evidence of ventilatory depression in 4 (7%) out of 57 infusion-group infants.

A suggested course to facilitate extubation at surgery end is to use 0.05 mg/kg morphine as a loading dose, then infusion at 5 to 10 μg/kg per hour in neonates, and 10 to 20 μg/kg per hour in infants, adjusting to each individual infant’s response.

Regional anesthesia in infants

Potential deleterious effects of anesthetic toxicity in the developing brain, as well as heightened awareness of negative long-term sequelae of exposure to painful stimuli early in life, have been recently highlighted^37–40. Regional anesthesia techniques, including local anesthetic infiltration, neuraxial blockade, and selective peripheral nerve blocks, have the potential benefit of decreasing anesthetic exposure during surgery as well as optimizing pain management in the post-operative period^41,42. Decreasing opioid use while maintaining analgesia is particularly desirable in neonates and infants.

Regional techniques are technically challenging in newborns and infants and may require additional expertise. Assessment of risks versus benefits of regional anesthesia in infants is ongoing. Several large prospective multi-center studies, including the UK epidural audit⁴³ and the Pediatric Regional Anesthesia Network (PRAN) multi-center report⁴⁴, demonstrate that regional anesthesia in children is safe, although neonates and infants are a small subset of the reported populations⁴⁵. Despite the extremely low reported serious complication rates in all of these studies, case reports of permanent neurologic injury, including paralysis, exist in the literature⁴⁶. Careful risk/benefit analysis, meticulous technique, and experience are recommended, especially prior to placing high lumbar or thoracic epidurals, where damage to the spinal cord can lead to devastating complications.

Over the past 15 years, improved equipment designed specifically for infants and neonates, increased utilization and quality of ultrasound technology, and emerging studies investigating the pharmacokinetics of local anesthetics in neonates have improved the safety and feasibility of regional anesthesia in this age group. Neonates and young infants are at a higher risk of local anesthetic toxicity because of immature enzyme systems and lower plasma protein levels⁴⁵, which develop unpredictably with gestational age as well as vary from individual to individual⁴⁷. Recent pharmacokinetic studies of epidural and peripheral local anesthetic in this age group contribute to the development of safe dosing guidelines. In 2012, Calder et al. studied 31 infants age 40 to 63 weeks post-menstrual age (post-menstrual age is the time between the first day of last menstrual period and birth [gestational age] plus the time elapsed after birth [chronological age]) having single-injection or continuous epidural for hernia repairs and demonstrated safe plasma ropivacaine and bupivacaine levels without accumulation after doses of 1.5 mg/kg followed 2 hours later by 0.2 mg/kg per hour infusions⁴⁸. Similarly, for single-injection peripheral nerve blocks, Suresh et al. demonstrated low plasma bupivacaine levels after single-shot transversus abdominis plane (TAP) blocks with 0.125% bupivacaine 1 mL/kg in neonates⁴⁹.

Neuraxial

Caudal block, which is most commonly employed for urologic, orthopedic, and general pediatric surgical procedures, provides post-operative pain relief; duration of the block depends on the local anesthetic type, volume, and adjuvants that are used^50–52. Concern has been raised about neuraxial epinephrine and risk of spinal cord ischemia⁵³. Epinephrine use should be reserved for initial test dosing with single-dose caudal or epidural neuraxial catheters and should be avoided as an additive in infusions. Opioids prolong the duration and may improve the quality of the block⁵⁴, but the use as an adjuvant has been controversial because of associated side effects, including respiratory depression, nausea, pruritus, and urinary retention^54,55. Whether the benefits of caudal epidural opioids outweigh the risks is actively debated^56,57. Minimizing opioid-related side effects post-operatively in infants and neonates may be best achieved by starting with opioid-free epidural infusions and supplementing with intermittent IV opioids if needed.

Clonidine has been shown to prolong the duration of epidural blocks^58,59, although young infants seem particularly sensitive to sedating side effects and apnea may occur. For this reason, clonidine is not used as an adjuvant in infants of less than 10 kg at our institution. Safety data for neuraxial use of ketamine, midazolam, and neostigmine remain insufficient to support their use as epidural adjuvants⁵⁶.

Use of spinal block in pediatric patients remains limited and is used mainly as an awake technique for ex-premature infants at risk for post-operative apnea⁶⁰. The duration of spinal anesthesia in children is less than 60 to 75 minutes and this requires close coordination between anesthesia and surgery as well as short surgical times⁶¹. However, spinal anesthesia provides a reliable, dense block and is useful for surgeries on the lower body in select patients.

Peripheral nerve blocks

Most well-described peripheral nerve blocks can be performed on neonates and infants. Precision is mandatory and meticulous attention must be given to the weight-based dosing limitation of local anesthetics. Axillary or femoral blocks can be used to facilitate peripherally inserted central catheter (PICC) line placement or treat limb ischemia^62,63, illioinguinal or TAP blocks can be performed for trunk surgery⁴⁹, and paravertebral blocks for thoracotomy⁶⁴. Infants and neonates tend to have superficial, well-defined anatomy and tissue planes which can be visualized with high-frequency ultrasound. Excellent needle visualization is required to safely perform ultrasound-guided peripheral nerve blocks in this population.

Interesting new trends in opiate development

Another area of active research is the development of “biased ligands” of the mu-opioid receptor (MOR). Biased ligands are molecules that can discriminatively engage signaling pathways of a receptor⁶⁵, offering the advantage of separating desirable (analgesic) from undesirable (respiratory depression, constipation, nausea) opiate effects. Research suggests that, for the MOR, opioid-induced analgesia is due to signaling of G protein-coupling inhibition of nociception but that side effects are modulated by signaling of beta-arrestin^66,67. Novel biased ligands have been developed based on the concept of selective signaling. TRV130, a novel MOR G protein-biased ligand, has shown potent analgesic effect with minimal gastrointestinal dysfunction and respiratory suppression compared with morphine in rodents⁶⁸. In humans, a phase III clinical trial in adult male volunteers reported that low doses of TRV130 (1.5 and 3 mg) were well tolerated, demonstrating a better analgesic response with less reduction of respiratory drive and nausea when compared with 10 mg of morphine⁶⁹. Higher doses of TRV130 (4 mg) also produced less respiratory depression than morphine but were associated with increased reports of nausea and headache. Another molecule recently identified, PZM21, also shows selective activation of the G-protein pathway with a better side effect profile compared with TRV130 in rodents⁷⁰. However, human studies are not yet available. Development of opioid-biased ligands is an exciting area of new drug development that has not reached the point of pediatric investigation but that suggests a theoretical alternative for opioid analgesic treatment for infants with a better analgesic-to-adverse effect ratio.

Much recent attention in adults and adolescents has concerned the problem of long-term use of opiates and best practices to minimize this risk⁷¹. We believe this is an important issue but needs to be balanced by concerns of long-term effects of undertreating pain in infants.

Non-opiate analgesics

Depending on the patient and procedure, other categories of analgesics may be considered to complement or replace opioids. Table 1 summarizes the analgesics described in this article. Description of the pharmacokinetics/dynamics in infants of acetaminophen (focusing on IV route) and of ketorolac (the only widely available parenteral non-steroidal anti-inflammatory drug [NSAID] in the US) may be of particular benefit in infants as they do not work via opiate receptors and do not have effects on respiration or consciousness.

Conclusions

The clinical application of pharmacokinetic/pharmacodynamics of opiates (morphine or remifentanil) or NSAIDs (ketorolac or IV acetaminophen) to our care of infants who require surgery has room for much further study. Further investigation of biased ligand compounds which may be able to separate analgesia (G-protein activation) from side effects (beta-arrestin recruitment) may offer distinct advantages in infant peri-operative care. Until then, it seems reasonable to consider multi-modal therapy to minimize undesirable opiate side effects. Variability of Cl of older opiates such as morphine supports using small doses (0.05 mg/kg morphine) and titrating for effect. Remifentanil avoids the variability issue but requires infusion to maintain effect, and analgesia is gone quickly (<30 minutes) once it is discontinued, which may not be appropriate for the post-operative infant. Regional analgesic techniques can help bridge intra-operative to post-operative analgesia but require practitioners skilled in its use in these smallest patients.

Ketorolac in a single-dose study did not show adverse effects on hepatic, gastrointestinal, or renal function but raises the concern of accumulation of the R-isomer with repeated doses and its unknown relation to toxicity. Small retrospective studies suggest caution in ketorolac use in prematures (born at <37 weeks) or in young neonates (<3 weeks). For infants, acetaminophen does have IV kinetic information available to guide dosing and therefore can be a part of a multi-modal analgesic regime in most infants. Non-pharmacologic adjuncts which we have not presented in this forum, including use of oral glucose, non-nutritive sucking, and swaddling, should also be considered.
