Accurate cytogenetic biodosimetry through automated dicentric chromosome curation and metaphase cell selection

1) ADCI settings and metaphase image data

ADCI software (V1.0)¹¹ was used for DC detection and dose prediction, setting the tuning parameter, σ, for the MC-DC SVM to 1.5. Software libraries were initially developed as available MATLAB scripts to test segmentation filters that detected FP DCs; once validated, C++ versions of these libraries were integrated into ADCI. For validation, two low dose and one high dose dataset were used (Table 1; the combination from HC comprise the HC-mixed image set).

2) Filtering out false positive objects

Quantitative morphological filters to delineate FP DCs were created and tested (i-viii, below). Each filter is designed to detect one or more of 6 FP morphological subclasses of FPs (described in Supplementary File 1). The FPs result from either I) excessive sister chromatid separation (SCS), II) fragmented or III) overlapping chromosomes, IV) chromosomes with highly variable boundaries or contours, V) non-chromosomal cellular debris, or VI) errors in the machine learning algorithms that detect centromere candidates and distinguish MCs from DCs.

The set of N chromosomes in any metaphase image is denoted by {c₁,…,c_N} and c* denotes the predicted DC of interest. Each filter (designated i – viii, below) classifies c* as either a TP or FP by comparing its filter score against a heuristically-defined threshold that is independent of laboratory source. Quantitative thresholds were established for each filter to eliminate the maximum number of FPs, without compromising detection of TP. Due to the relatively low frequency of DCs in the samples, maximal detection of TPs is essential for accurate dose estimation. Since FPs generally produce lower filter scores than TPs (i.e. lower area, lower width, less oblong footprint, more asymmetrical), FPs were selected by eliminating candidate DCs with scores below each threshold. The corresponding FP filter scores were calculated for all DCs in the HC-mixed image set (Table 1), and a heuristic threshold (to 2 significant digits; see below) was set to the minimum value observed in TPs for each filter. Thresholds for filters vi, vii and viii were calculated by repeating the same procedure on a set of 244 TP chromosomes from the MC-DC SVM training set⁶, and the final thresholds were set to the lower of each pair of values.

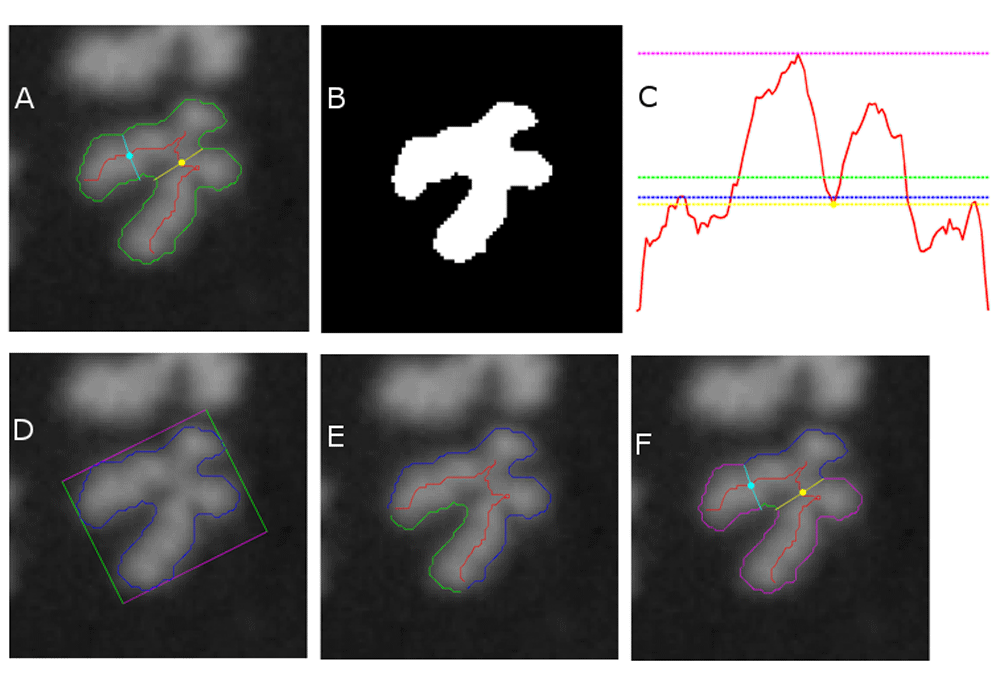

Figure 2. A visualization of DC filter scores for a particular false positive (FP).

DC filters are defined in Methods. (A) A processed FP (chromosome with SCS), with contour in green, centerline in red, top-ranked centromere candidate and its width traceline in yellow, 2^nd-ranked centromere candidate and its width traceline in cyan. (B) Filter i: Thresholded binary image of the chromosome is used to calculate pixel area (in white). (C) Filters ii–v: Width profile along centerline is shown in red (horizontal axis plots centerline location, vertical axis plots width), with mean width in green (filter ii), median width in blue (filter iii), max width in magenta (filter iv), and width of top centromere candidate in yellow (filter v). (D) Filter vi: Contour in blue and its minimum bounding rectangle in magenta and green. (E) Filter vii: Partitioning of contour at centerline endpoints (intersection of red line with contour) into two segments, green and blue. (F) Filter VIII: Traceline endpoints of top 2 centromere candidates (intersection of yellow and cyan lines with contour) are used to partition contour into 4 segments (1 blue, 1 green, 2 magenta); relative arc lengths of blue and green segments are taken into consideration.

Determination of optimal filter subset: The same chromosome segmentation features were present in different segmentation filters, usually in combination with other elements (i.e. width for filters ii–v, contour symmetry for vi–viii) and/or targeted the same morphological subclass (notably, SCS). Thus, the “optimal” filter subset (termed “FP filters”) was defined as the subset of filters that maximized reclassification of the maximum number of FPs, while minimizing redundant detection of the same FPs. The performance for a given set of filters was the cumulative percentage of FPs removed by any of its filters, based on the HC-mixed set of images (Table 1). Using a forward selection approach, individual filters were added iteratively to identify those that produced the largest improvement in performance.

Modifications to ADCI: After chromosome processing and MC-DC SVM classification¹¹ but prior to dose determination, all DC chromosomes inferred by ADCI were analyzed with the FP filters. DCs classified as FPs by any of the filters were reclassified and the remaining TP DCs were used for dose determination. The contours of DCs that were reclassified as MCs are outlined in yellow in the ADCI metaphase image viewer¹¹ (Figure 3; top centre).

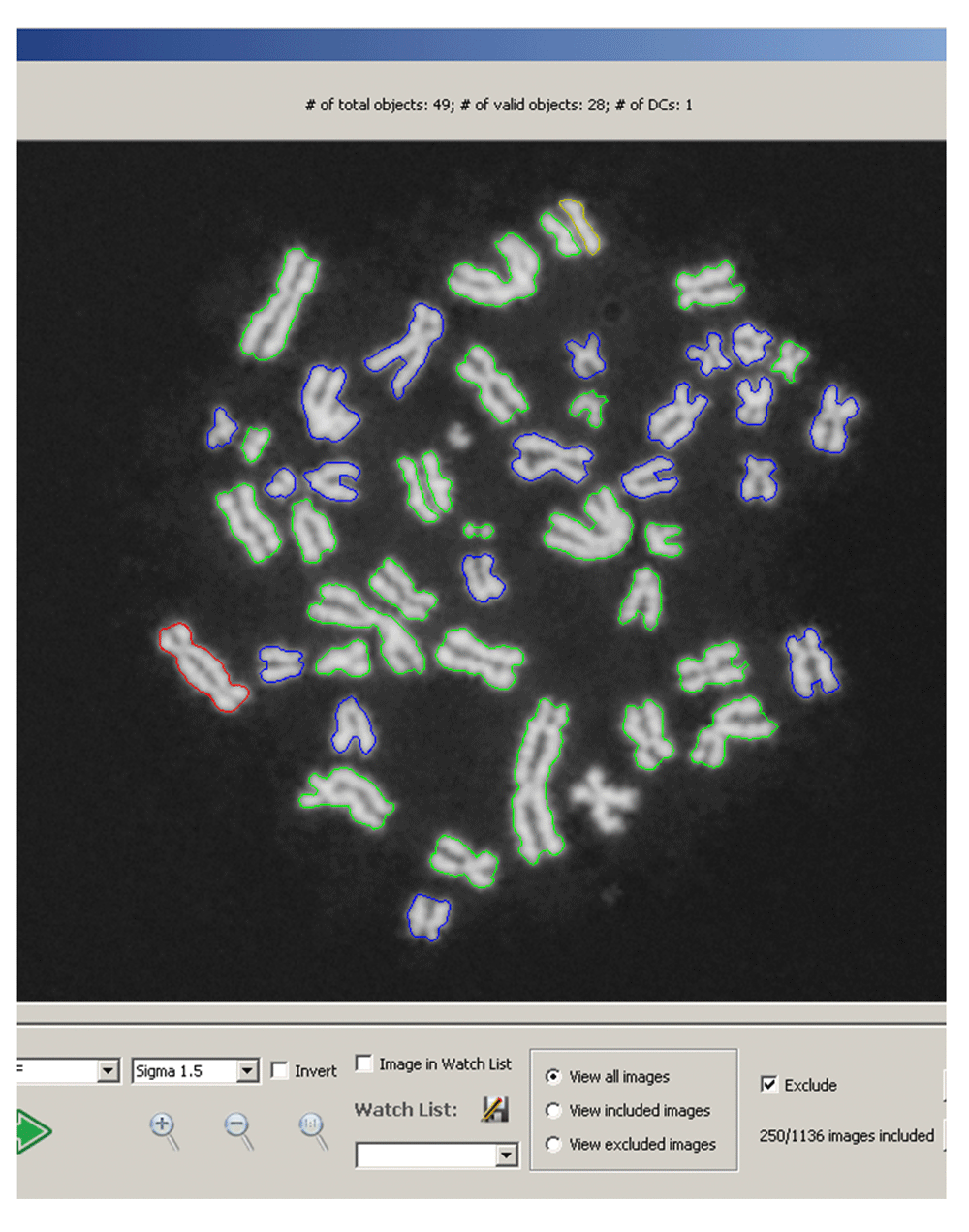

Figure 3. Cell image viewer in ADCI demonstrating example of a corrected false positive (FP) DC.

Graphical User Interface for viewing cell images within a sample processed by ADCI¹¹. Valid segmented objects (generally chromosomes, but occasionally nuclei or debris) are shown with coloured contours. Red contours indicate predicted DCs, yellow contours indicate chromosomes that were initially classified as DC and then reclassified by the FP filters (example at 12 o’clock), green contours indicate predicted MCs, and blue contours indicate objects that could not be further processed after image segmentation. Below the cell image, options were added to allow manual inclusion or exclusion of images within a sample from dose determination.

3) Dose estimation analysis

In ADCI, a pre-computed dose-response calibration curve is also used to estimate radiation absorbed in samples with unknown whole body exposures¹¹. For a given sample, the radiation response is the ratio of the number of DCs detected to the number of selected metaphase cells. Calibration curves can be generated either from a set of samples of known exposures either by determining the response for each sample automatically with ADCI, or by entering the corresponding response from manually scored samples, and fitting the dose-response paired data to a linear-quadratic curve by regression. Because sample preparation protocols can vary and affect results, dose estimation of test samples (of unknown exposures) were performed with calibration curves generated with data from the same laboratory¹¹.

The impact of segmentation filters to remove FPs on calibration curves was determined for the 0, 0.5, 1, 2, 3 and 4 Gy calibration samples. Radiation doses were estimated for CNL and HC test samples using the HC calibration curve after applying the same FP filters (Table 6).

4) Effect of filtering on manually image selected HC data

We compared HC calibration curves derived from manually curated samples with the FP filters either enabled or disabled to assess the impact of image selection on dose accuracy (Table 2). The criteria for manually curated HC samples were similar to the manual image selection performed by CNL. These images required: A) a complete complement of approximately 46 chromosomes, >40 segmented objects, <5 segmented objects from different nuclei if multiple nuclei present; B) exclusion of metaphase cells with “harlequin” hemi-stained chromosomes (indicative of multiple rounds of division after radiation exposure) that distort true DC frequencies¹⁰; C) images with <5 incorrectly-segmented chromosomes (chromosome overlaps indicating poor spreading), fragments (indicating sister chromatid separation) and overly-noisy contours (indicating poor image contrast); and D) an adequate degree of chromosome condensation. Depending on the stage of metaphase arrest, the degree of chromosome condensation can differ^1,13. Prometaphase cells have longer chromosomes, are less rigid, exhibit greater overlap and less well-defined centromere constrictions, all of which pose significant challenges for automated chromosome classifiers^1,14. Metaphase images with longer, thinner chromosomes (roughly corresponding to >550-band level¹⁴) were also excluded.

A minimum sample size of 500 cells per dose was adopted from IAEA recommendations¹². Cell images selected from HC samples with automatic morphology filtering (see Methods section #5) were compared with a high quality set of images that were manually identified using the ADCI microscope viewer. For each sample, consecutive images meeting all criteria were evaluated manually until a sufficient number of cells were accrued. DC classifications were hidden during image selection to minimize bias. After generation of the curated HC calibration curves, the radiation doses of the three HC test samples (Table 3) were re-estimated on the new curves, with and without the FP filters enabled.

5) Automated removal of suboptimal images by morphology filtering

Manual selection of images assures consistency and reliability of metaphase data, which increases accuracy in DC analysis. Exclusion of lower quality images was automated in ADCI, since it was expected to reduce the number of FP DCs, thereby more accurately estimating radiation exposures.

We derived a set of image selection filters, implemented as available Python scripts, by segmenting features (I-VI, below) that eliminate metaphase cells in a sample with characteristics that increased the number of FPs:

Filters I and II detect cells in prometaphase (having relatively long and thin chromosomes), with prominent sister chromosome separation, and with highly bent and twisted chromosomes. Filter III detects overly-smooth contours characterized by images containing intact nuclei and otherwise incomplete chromosome sets. The total object count (IV) and segmented object count filters V enrich for nearly normal metaphase images of approximately 46 chromosomes. These filters are then used to exclude images with extreme object counts. Filter VI selects images based on effectiveness of chromosome recognition by ADCI.

Image level filters I-III are based on the z-scores of different properties and comprise all objects in an image. For metaphase image I* in a sample containing M images, {I₁,...,I_M}, {c₁,…,c_N} denotes the set of N chromosomes within image I*. This SD value was determined to be 1.5 by varying T and applying these filters to the HC 2Gy calibration sample (Table 2). The corresponding thresholds for filters IV-VI were also derived from testing multiple samples.

Image ranking by combining image selection filters: Applying these filters sequentially to the same image distinguished the metaphase images used for dose estimation from lower quality images. Features consisting of counts, ratios and Z-scores for image filters I-VI were linearly combined to globally assess image quality. The combined score is one representation of the degree to which a particular image deviates from the population in a sample:

Combined Z Score =w(LW)×z(LW)+w(CD)×z(CD) – w(FD) ×z(FD)+w(ObjCount)×|z(ObjCount) | +w(SegObjCount)×|z(SegObjCount) |- w(ClassifiedRatio)×z(ClassifiedRatio)

Smaller Combined Z Scores represent higher quality images. Longer and thinner chromosomes in the image will increase the LW score, whereas bent and twisted chromosomes increase the CD term. Decreased chromosome concavity results in a higher FD score. The object and segmented object counts and their respective Z scores are related to chromosome distribution, and the level of sister chromatid separation in an image. These terms contribute to higher Combined Z Scores for images exhibiting either incomplete cells, multiple cells or severe sister chromatid separation. The Classified Ratio terms produce high scores for images that the algorithm does not process accurately. Each feature has a positive free parameter, weight, to adjust its contribution to the total score. Weights are determined by evaluating many possible weights using a grid search technique, and selecting those that minimize the error in curve calibration. The optimal weights for calibration samples are expected to perform similarly on test samples exposed to unknown radiation levels, assuming that the calibration and test samples have comparable chromosome morphologies. The Combined Z Score, however, cannot be used to compare the overall qualities of different samples, as Z-scores are normalized within each sample.

Image comparisons based on chromosome length distributions: The previously described tests use image morphology as the primary consideration in assessing metaphase image quality. The most common problems in lower quality metaphase cells are severe sister chromatid separation, excessive chromosome overlap, fragments of chromosomes in image segmentation, and multiple cells or incomplete cells in the same image. These often result in changes in either the number or the sizes of segmented objects. These tests do not account for the known relationships between the chromosomes in a cell with a nearly normal karyotype.

We derived a novel quality measure based on the observation that lengths and areas of chromosome images (in pixels) are approximately proportional to the well-known base-pair counts for each human chromosome. By comparing the distribution of observed chromosome object lengths with this “gold standard” inferred from the lengths of chromosomes in the reference human genome sequence, the overall quality of chromosome segmentation can be assessed in each cell image. Excluding chromosome abnormalities, which result from radiation exposure and are randomly distributed among cells, individual chromosome lengths are approximated by their corresponding chromosome areas (in pixels), since the actual chromosome lengths are difficult to measure accurately. Once noisy non-chromosomal objects, nuclei and large overlapped chromosome clusters have been removed, the areas of each remaining object are then determined relative to the total area of all chromosomes. The chromosomes in a metaphase cell are binned into three groups corresponding to the ISCN cytogenetic classification system¹⁶: The (AB) set comprises the A and B chromosome groups, (C) contains all of group C, and (DG) includes the D, E, F, and G groups. A single chromosome in group AB contains > 2.9% of nucleotides in the complete genome (determined by the shortest B group chromosome). A chromosome in category C has < 2.9% (determined by the longest C group chromosome), but > 2% (determined by the shortest C group chromosome) of nucleotides in the complete genome. Any chromosome in category DG contains < 2% of the complete genome (determined by the longest D group chromosome). These thresholds, 2.9% and 2% of the genome length, are respectively considered to be the maximum lengths of X and Y chromosomes. These thresholds are then applied to the areas of each chromosome object to count the number of chromosomes in each category in a metaphase image. An ideal metaphase image will have 10 AB chromosomes, 16 C chromosomes and 20 DG chromosomes in a female, and 10 AB chromosomes, 15 C chromosomes and 21 DG chromosomes in a male. We find that images with many overlapping chromosomes will have increased AB chromosome counts, while images with excessive sister chromatid separation generally have elevated DG chromosome counts. The quality of a metaphase image is determined by comparing the observed quantities of chromosomes in each group to the female or male standard. In practice, the result for an image is treated as a 3-element vector (AB, C, DG) and the Euclidean distance between the observed vector and the ideal standard is determined. Larger group bin distances correspond to less satisfactory images. We find that this measure appears to be universally applicable to metaphase images from different samples.

Sorting all images in a sample by either their Combined Z Score or by chromosome area Group Bin distance ranks cells according to metaphase quality for subsequent DC analyses. Image selection models can also be created in multiple stages by first qualifying images with chromosome morphology filters and then by selecting the top scoring images according to their Combined Z Scores or Group Bin distances.

6) Sample quality confidence measurement

Cytogenetic artifacts, such as sister chromatid separation and chromosome fragmentation, interfere with correct identification of DCs, thereby compromising reliability of dose estimates. This motivated the development of criteria to evaluate how well automated cell and FP curation improves sample quality. Samples exposed to low energy transfer, whole-body irradiation exhibit DC distributions that follow a Poisson distribution¹⁷ in all cells. The number of DC occurrences in a cell is constructed as a probability model of a sample. Each DC is assumed to be independent of other DCs in the first cell division and the rate at which DCs occur is constant for a single sample at a given radiation dose. The DC distribution detected either manually or by ADCI can be approximated by the Poisson statistic, with the λ parameter corresponding to the average number of DCs per cell in a sample.

Deviation from the Poisson distribution can occur when either some TPs are not accounted for or when FP DCs have not been reclassified. We evaluated post-processing sample quality by comparing the observed distribution of DCs in each sample (manual and automated) to its corresponding Poisson distribution. Observed and Poisson DC distributions were analyzed with the Pearson chi-squared goodness-of-fit test, which indicates the likelihood of rejecting the null hypothesis that the DCs were Poisson distributed. Only samples with ≥ 1 DC were analyzed. Very low p-values at or below α = 0.005 (99.5% confidence level) reject the null hypothesis and indicate lower quality samples.

Application of chromosome morphology filters to remove FPs

False positive DCs (n=98) from a set of metaphase cells exposed to low dose radiation were classified into morphological subclasses to identify and ultimately eliminate these objects (described in Supplementary File 1). FP subclasses (Figure S1; subclasses A–F) included those exhibiting high levels of sister chromatid separation (A, n=51), chromosome fragmentation (B, n=10), overlap (C, n=17), noisy contour (D, n=5), cellular debris (E, n=4), as well as inaccurate recognition by either the centromere candidate¹⁰ or MC/DC⁶ machine learning algorithms (F, n=11).

Segmentation filters i–viii were applied to reclassify FPs in these images. Scale-invariant filters were tested to determine thresholds that selectively removed subclasses I-III without eliminating any TPs. Of the 51 SCS cases, 35 involved short, acrocentric chromosomes. FPs were distinguished from TPs based on either their lower relative pixel area or width (filters i–v), substantially non-oblong footprint (filter vi), or substantial contour asymmetry across the centerline (filters vii and viii). For filters i-v, normalization to median scores of other objects in the same image was performed, as well as normalization to other measures of central tendency (e.g. z-score, mean, and mode after binning scores). FPs could be eliminated for each morphological subclass (Table S1), with most of the segmentation filters acting on their targeted subclass. However, the effects of each filter were not exclusive to those subclasses.

To evaluate individual filter performance, the percentage of FPs removed by each filter was calculated for the HC-mixed image set (Table 4). A two-sample Kolmogorov–Smirnov test (K–S) was also performed for each filter (α=0.05) on the same data, where one group consisted of the filter scores of all TPs (n=183) and the other group consisted of the scores of all FPs (n=158). All 8 filters rejected the null hypothesis (Table 4), suggesting that these groups are distinguishable by thresholded segmentation filters. Applying the intercandidate contour symmetry filter (filter viii) achieved the largest overall reduction of FPs (44.9%), and eliminated the most SCS-induced FPs (43 of 51) in the low dose exposure set of metaphase images (Table S1). The max width filter (filter iv) yielded the next largest reduction in FPs (27.8%) and was the most efficient filter for detecting the fragmented chromosome class of FPs (8 of 10).

FPs were eliminated cumulatively by combining multiple segmentation filters. Since individual filters were separately thresholded to avoid removal of TPs, the inclusive disjunction (logical “or” operation) of multiple filters produced a stronger FP discriminator, but was not expected to reduce the TP count. Different combinations of filters were tested using forward selection (Table S2). The best performing filter set removed 58.9% of FPs and consisted of 5 FP filters (i + iv + v + vi + viii). Of these, iv and viii accounted for 54.4% of the FPs, with the others identifying the remaining FPs. Performance was evaluated with independent sets of metaphase images (Table 5), consisting of two HC image sets at low and high dose exposures (HC-low and HC-high) and one CNL image set exposed to low dose radiation (CNL-low). On average, 55 ± 9.6% of FPs were removed among all sets; individually, the filters eliminated 52% FPs from CNL-low, 66% from HC-low, and 48% FPs from HC-high. All TPs were retained in each of the sets after FP filtering (i.e. 100% specificity).

Dose calibration curves for HC and CNL data were generated in ADCI to investigate the impact of the FP filters on dose estimation accuracy (Figure 4). Dose estimation errors, the absolute difference between dose estimate by ADCI and the known physical dose, were determined for three CNL and three HC test samples from HC; then, results for uncorrected vs. FP-filtered images were compared (Table 6). In manually curated samples from CNL, accuracy was also improved >2-fold by applying the FP filters (average error decreased from 0.43 Gy to 0.18 Gy).

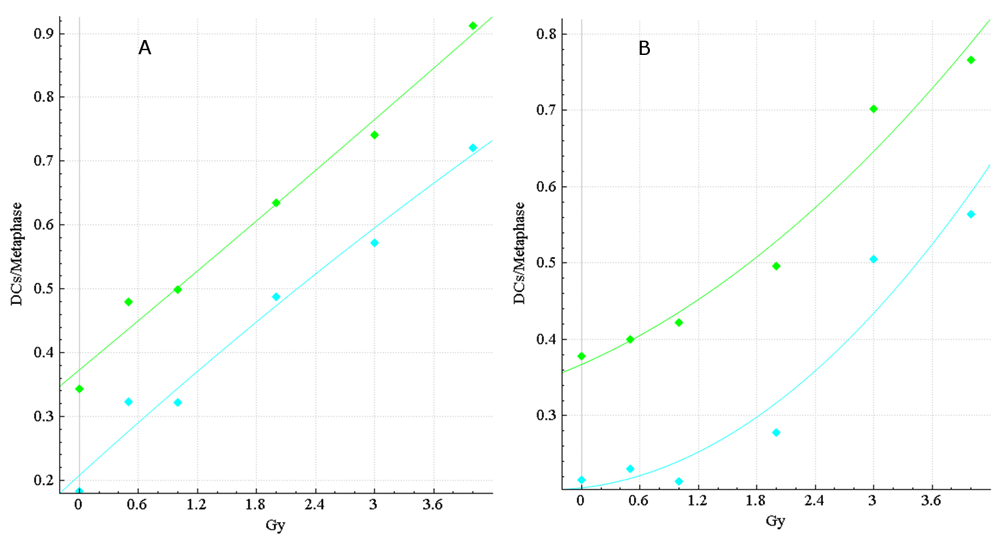

Figure 4. Calibration curves for HC and CNL samples.

The dose-response calibration curves for (A) HC and (B) CNL metaphase cell image sample data. Response (mean DC frequency/cell) is on the vertical axis, corresponding radiation dose (Gy) on the horizontal axis. Green curves are based on unfiltered images, cyan curves were derived by recomputing DC frequencies after applying false positive (FP) filters (filters i + iv + v + vi + viii). HC and CNL curves were constructed by fitting a linear-quadratic curve through their respective HC and CNL calibration samples (refer to Table 2). The CNL curves consistently showed a more pronounced quadratic component than the HC curves, which exhibited a nearly linear response. The curves before (green) and after applying FP filters (cyan) are shown. After application of the filters, the HC and CNL curves showed diminished response at different Gy levels, due to elimination of some FP DCs.

Surprisingly, the dose accuracy of the HC samples did not improve after application of the FP filters (mean absolute error increased from 0.85 Gy to 1.03 Gy). All objects eliminated with these filters in the three HC test samples were reviewed and manually classified as either TP or FP, and the FP specificity across the samples was determined (Table 7), where FP specificity was defined as the ratio of FPs to all filtered objects. Similar to our earlier findings, the FP filters exhibited very high specificity for FPs (97.7–100%), indicating that the filters retained high specificity for TPs in the HC samples.

We hypothesized that a difference in image selection protocols between the two laboratories was responsible for the discrepancies seen in classification performance and dose estimation accuracy. CNL manually selected for images deemed suitable for DCA analysis, and HC image selection was done with an automated metaphase classifier that effectively eliminates only images that lack metaphase cells. Manual review of images in these HC and CNL samples suggested differences in input image quality due to these image selection protocols. In concordance with findings from our previous study¹, CNL data contained more images with well-spread, minimally-overlapping chromosomes, and fewer images with extreme SCS and chromosome fragments. The HC data contained a greater percentage of high-band-level (less condensed) chromosomes, characteristic of prometaphase/early-metaphase cell images. These chromosomes were the source of many unfiltered FPs, due to the lack of a strong primary constriction at the centromere which affects automated chromosome classification¹⁵.

A new set of HC calibration curves were then generated from manually curated, selected images from calibration samples (Figure 5). Images were excluded based on IAEA criteria¹⁷, along with cells exhibiting long chromosomes in early prometaphase¹⁶. Dose estimation accuracy of the HC test samples was significantly improved by enabling the FP segmentation filters (mean absolute error on unfiltered, curated images was 0.37 Gy prior to and 0.15 Gy after filtering; Table 8). Application of FP filters to both CNL and curated HC data led to >2-fold reduction in the mean absolute error of the estimated dose (p = 0.024, paired two tailed t-test). These results motivated the development of approaches to automatically select higher quality metaphase cell images.

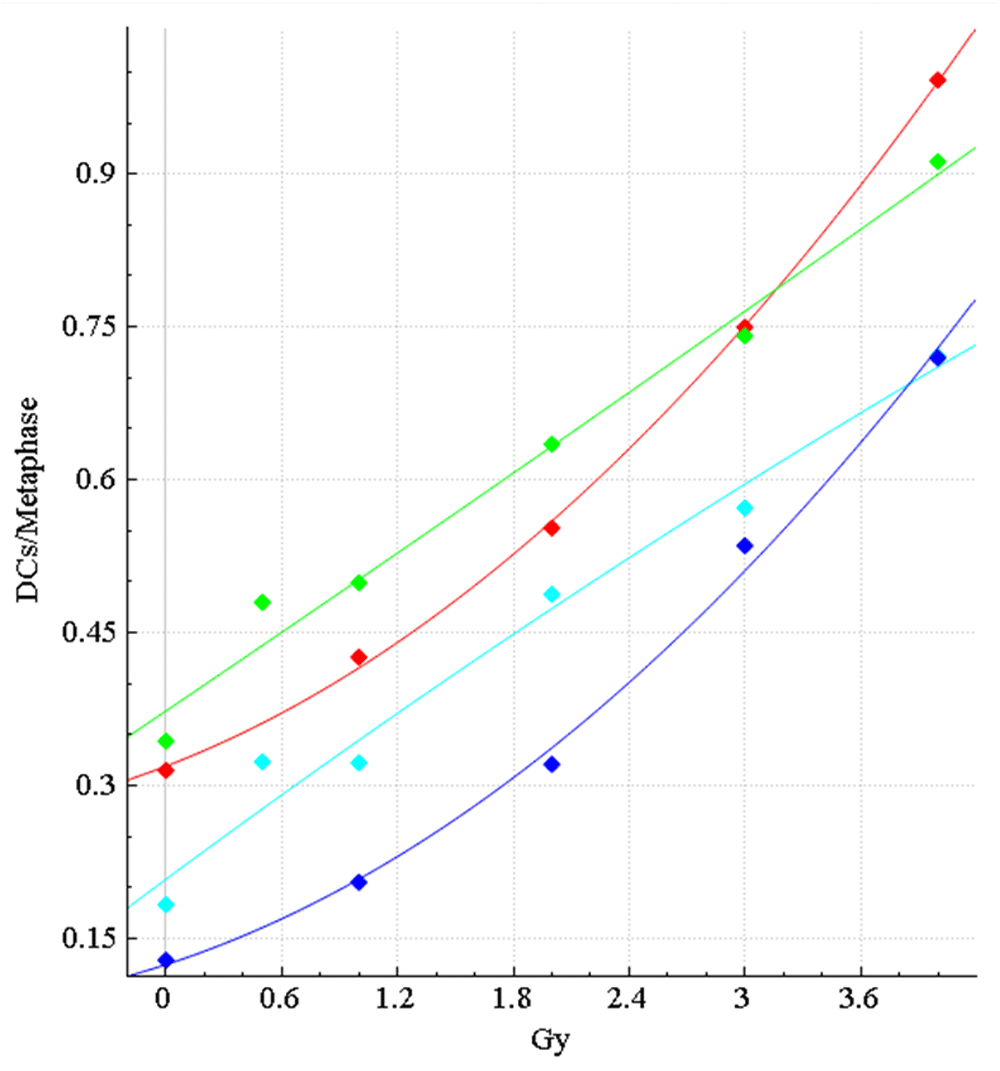

Figure 5. Original vs. manually curated calibration curves for HC samples.

The dose-response calibration curves for HC sample data, with and without false positive (FP) filters applied, before and after curation. Response (mean DC frequency/cell) on vertical axis, corresponding radiation dose (Gy) on horizontal axis. Green curve is not curated and includes all images, cyan curve is not curated and applies FP DC filters, red curve is curated, but unfiltered, and dark blue curve is curated and FP filters have been applied. Uncurated curves were generated from 0, 0.5, 1, 2, 3 and 4Gy calibration image data (Table 2). Curated curves were generated from the same data (except 0.5Gy was excluded) after lower quality images were manually removed (Methods section 4). After manual curation, the HC curves show a stronger quadratic component, similar to the original manually curated CNL curves (Figure 4).

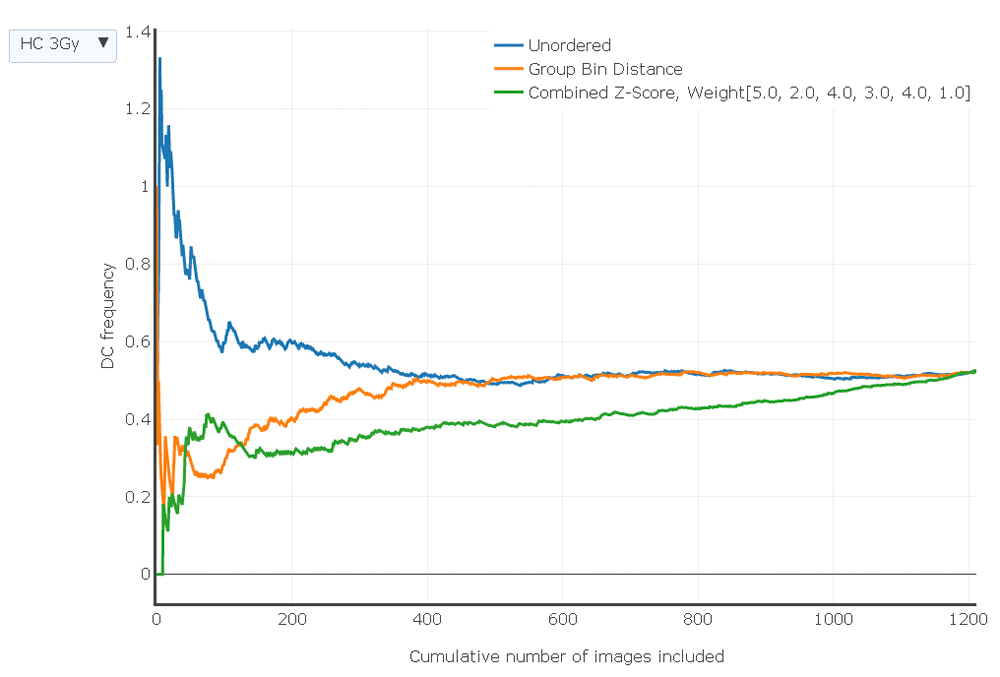

Figure 6.Relationship between DC frequency (y-axis) and number of images used (x-axis) to calculate frequency.

Samples exposed to different radiation levels and generated by each laboratory can be toggled and compared using the drop down menu (top left). The static image in the portable document format displays this relationship for the HC sample exposed at 3 Gy. Images were ranked by different scoring methods (see key). DC frequencies based on unordered, unselected images (order corresponds to the alphabetized file names, which is random with respect to image quality) are indicated with a blue line, images ranked by Group Bin Distance are shown in orange, and those ranked according to Combined Z Score are shown in green. Lowest count numbers in the ranked images correspond to the highest quality and lower quality images are progressively introduced as the count increases. Graphs were generated with Plotly (https://plot.ly/).

Application of image selection models

To the best of our knowledge, assessment of metaphase cell image quality for DC analysis has not been objectively and quantitatively standardized between laboratories. Cell selection by cytogenetic experts is based on their knowledge of metaphase chromosome conformation, sensitivity, and even individual preferences in interpreting images that can sometimes be inconsistent. Therefore, image selection methods were evaluated through dose estimation of filtered test samples and comparisons with known physical exposures. Images in all calibration and test samples from the same laboratory were processed by the same image selection model. Dose estimates of test samples were calculated using a curve fit to the dose-response of calibration samples. Dose estimation errors indicate the accuracy of dicentric chromosome detection, and therefore provide a means of assessing the accuracy based on the image selection model used.

Each image in a sample was ranked based on its Combined Z Score, which is the sum of the products of the Z score for each of the filters (I – VI) and their corresponding weights. Weights were assigned integer values from 1 to 5. The optimal weights were obtained by searching all possible integer values among the set of calibration samples to determine those exhibiting smallest residual differences with the physical dose after fitting these estimated doses to the curve. This approach, while limiting the search space and reducing the computational complexity, ensured that a diverse combination of weights were used to evaluate each sample. The three optimal weight vectors resulting from this analysis, [5, 2, 4, 3, 4, 1], [4, 3, 4, 5, 2, 1], and [1, 2, 1, 5, 1, 5], were used to independently estimate doses of test samples of unknown exposure.

After images from a sample were assigned either Combined Z Scores or Group Bin Scores and sorted by rank, the 250 top ranked images were selected to determine dicentric aberration frequency for that sample. An adequate number of top ranked images are selected to provide sufficient images to generate a reproducible DC frequency for that sample. In the absence of a predicate filtering step, the ranking procedure has to effectively remove poor quality images that could distort the DC frequency. IAEA recommends >100 DCs be counted for samples with physical doses < 1 Gy¹⁷. In practice, laboratories usually score >250 images, but at least 500 cells may be required to achieve this level of DC detection and often more are required for samples with low radiation exposures. Selecting at least the 250–300 top scoring images resulted in stable dicentric frequencies for samples from both laboratories over a range of exposures (Figure 6: the interactive version allows viewing of individual calibration samples from 0 to 4 Gy exposure and three blinded samples from both the CNL and HC laboratories; the HC3Gy sample is shown in the static PDF version). Compared to the unselected, unordered images, the image selection models show a monotonic increase of DC frequency with radiation dose for image counts with stable frequencies for most samples (eg. HC2Gy, HC3Gy, HC-INTC03S10, CNL2Gy, CNL INTC03S05, CNL-INTC03S07). However, DC frequencies can differ by image selection method. For higher ranking images, the Combined Z Score more consistently eliminated cells with DCs than the Group Bin Distance Scoring method, resulting slightly lower overall DC frequencies, which may be due to more stringent selection of cells possessing fewer FPs. Dose responses for the image selection methods are generally lower for samples with large numbers of top ranked, high quality images, which gradually increase with lower image quality due to the presence of increasing numbers of unfiltered FP DCs. By contrast, unfiltered randomly sampled images from the same sample exhibit higher overall DC frequencies due to increased numbers of FP DCs. As expected, all of the DC frequencies converge to the same value when none of the images are excluded by the ranking methods.

Deviations of the estimated doses of the HC and CNL test samples from their corresponding physical exposures were determined for various image selection models (Table 8 and Table 9, respectively). For comparison, the dose estimation results of unselected, comprehensive sets of images for each sample are also shown. Deviations of ≤ 0.5 Gy from their calibrated physical dose are considered acceptable in triage biodosimetry^5,12,17. For the unfiltered HC samples, the average absolute error was 0.8 Gy, and only a single sample, INTC03S01, fulfilled the triage criteria. The image selection model comprising filters I-III sorted by Chromosome Group Bin rank was the most accurate, with dose estimates for 4 HC samples (INTC03S01, INTC03S08, INTC03S10 and INTC03S05) exhibiting acceptable error tolerances (± 0.5 Gy). The Combined Z Score ranking with weights: [1, 2, 1, 5, 1, 5] had the lowest dose estimation accuracy for the HC samples (average error is ~1 Gy), with only INTC03S05 having an acceptable dose estimate. Of the 5 unfiltered, manually curated CNL samples, only INTC03S08 had an acceptable dose estimate. However, an image selection model consisting of all Z Score filters I-VI was the most accurate for CNL samples (mean absolute error of ~0.3 Gy), with 4 of 5 samples (INTC03S08, INTC03S04, INTC03S05 and INTC03S07) having acceptable estimated doses.

While automated image selection rejects poor images and reduces FP DCs, dose estimates can only be considered reliable if sufficient numbers of images remain after filtering. Application of image filters can result in fewer than the recommended images for accurate dose estimation. Samples CNL-INTC03S08 and HC-INTC03S07, had 195 and 109 metaphase cells, respectively, after filtering and image selection. HC-INTC03S07 was of relatively lower quality, and the unfiltered set of 477 metaphase images contained fewer than the recommended minimum number after filtering (Table 10).

Sample quality assessment after image selection

To determine if image selection improved sample quality, a Chi-squared goodness of fit test on Poisson distributed DCs was performed, both before and after automated and manual image selection (Table 10). Manual image selection for CNL samples was performed by CNL during sample preparation, while image selection for HC samples was performed on unselected datasets (samples HC-INTC03S01, HC-INTC03S08, HC-INTC03S10 were analyzed, despite <500 available images). The optimal image selection models were used for FP and image filtering for each laboratory (Table 8 and Table 9). The HC samples were selected with filters I-III and the chromosome group bin method, whereas the CNL samples were processed with filters I-VI. At the 1% significance level (i.e. Chi-square goodness-of-fit, p ≤ 0.01), 86% (19 of 22) of unfiltered samples were significantly different from the Poisson distribution, and 76% (13 of 17) of manually- and 77% (17 of 22) of automatically-selected samples did not differ. Manually curated and uncurated sample groups also significantly differed from each other (p = 0.0021; one-tailed Wilcoxon Signed-Rank Test, α=0.05, n=17). Therefore, the Poisson goodness of fit measures improvements in overall sample quality from image model selection. While the overall goodness of fit is improved for all of the automatically selected datasets, the Poisson distributions of DCs in the lowest quality samples (CNL1Gy, CNL05Gy, CNL-INTC03S01, HC-INTC03S05, HC-INTC03S07) were still rejected at a 0.5% significance threshold after filtering.
