A short review on the potential of coffee husk gasification for sustainable energy in Uganda

Energy demand in an African context

Energy demand is rising rapidly, mainly due to population increase and increasing industrial activities. This demand has led to an increase in prices of major energy sources, for instance fossil fuels^1–4. Use of fossil fuels causes air pollution, which, over time, escalates climate change effects as emissions of greenhouse gases and other pollutants increases^5–8. Due to the increase in energy demand and prices of fossil fuels, researchers are motivated to discover additional viable energy sources. A case of interest is Fernandes and Costa⁹, who noted that biomass, including wood agro residue, in Portugal has an annual energy potential of 160 Tera joules (TJ). In Mozambique, Vasco and Costa¹⁰ pointed out that agricultural biomass can cater for 32% of the country’s energy demand.

Many sub-Saharan African (SSA) countries use agricultural biomass to cover most of their energy needs⁵, but the efficincies are low, and thus the raw material usage is high¹¹. In Uganda, for example, woody biomass is used as wood fuel to provide for over 93% of the country’s energy needs¹². This reliance on wood fuel significantly increases the rate at which the country’s forest cover is shrinking, and is associated with the adverse change in weather patterns and consequent climate variability experienced in the country¹³. With Uganda’s population growing at a rate of 3.2% per annum¹⁴, the pressure on the country’s forests is bound to increase if the country’s dependence on wood fuel continues. On the other hand, alternative biomass sources, like agricultural and saw mill waste, and technologies, like pyrolysis and gasification, remain unexplored. Coffee, which is Uganda’s top-earning export crop, is widely grown throughout the country, and yielded 233 mega tons (MT) in 2014¹⁵. During the processing of the coffee, a substantial bulk of coffee husks are generated. In total, 46.6 MT of coffee husks were generated from the 233 MT of coffee produced, based on a 0.2 waste factor for coffee¹⁶. These husks are currently being used as beddings in poultry units, farmers also use coffee husks to replenish nutrients in pineapple and banana gardens across the country and to a smaller extent for use in briquetting. However, the current uses amount to underutilization of the coffee husks in monetary and energy terms, and there is thus a need to improve coffee waste handling alternatives that encompass maximum utilization of the energy component of the waste, while also addressing the challenges associated with the use of woody biomass for energy reliance. This won’t only address the energy crisis in the country, but also increase the economic value of the husks¹⁷.

Direct use of coffee husks as an energy source is hindered by the low efficiency of the energy recovery systems used. It is essential to transform the husks to a form that improves energy recovery. One process that can be considered is gasification, which involves alteration of compact carbonaceous fuel, in this case being the husks, into ignitable gas by partial incineration at elevated temperatures and moderate heating rates^11,18. Through this process, coffee husks can be thermally converted to producer gas. Producer gas is a blend of carbon monoxide, hydrogen, methane, carbon dioxide and nitrogen. Producer gas is multipurpose in its use, as opposed to the solid biomass, from which it is derived¹⁹. This article reviews the potential for coffee husks, as an alternative to wood as feedstock, for gas fuel production through gasification in Uganda.

Electricity grid

According to Karekezi and Kithyoma²⁰, Africa is the least electrified continent in the world, and, in East Africa, Uganda is amongst the least electrified countries (Table 1). Uganda presently has one of the lowest electricity consumption per capita in the world at 215 kWh per annum²¹. The typical value for SSA is 552 kWh per capita, while that for the world is 2,975 kWh per capita²². This low electricity coverage is attributed to electric tariffs and the fact that the electricity grid is concentrated in urban areas. Hence, people have continued to use wood fuel for their energy needs.

An examination of the power grid in East Africa indicates that the spread of electricity is mainly limited to main town areas, while rural regions have no access²³ (Figure 1). In addition, some homesteads that are close to the network lines cannot afford electricity connections and user fees. Indeed access to electricity at a national level in Uganda is about 15%, which is lower than other SSA²⁴, with a rural coverage of 1%⁵. As a result, many Ugandans depend on firewood and charcoal as their main energy source for lighting and cooking^25–27. According to the Rural Electrification Agency, the total woody biomass consumption in Uganda in 2013 was 31.7 million tons. The total energy consumption per year in Uganda is approximately 45.1 million tonnes of wood, 1.2 million m³ of oil products, with a hydropower installed capacity of about 691.5 MW and 100 MW of thermal power²⁸.

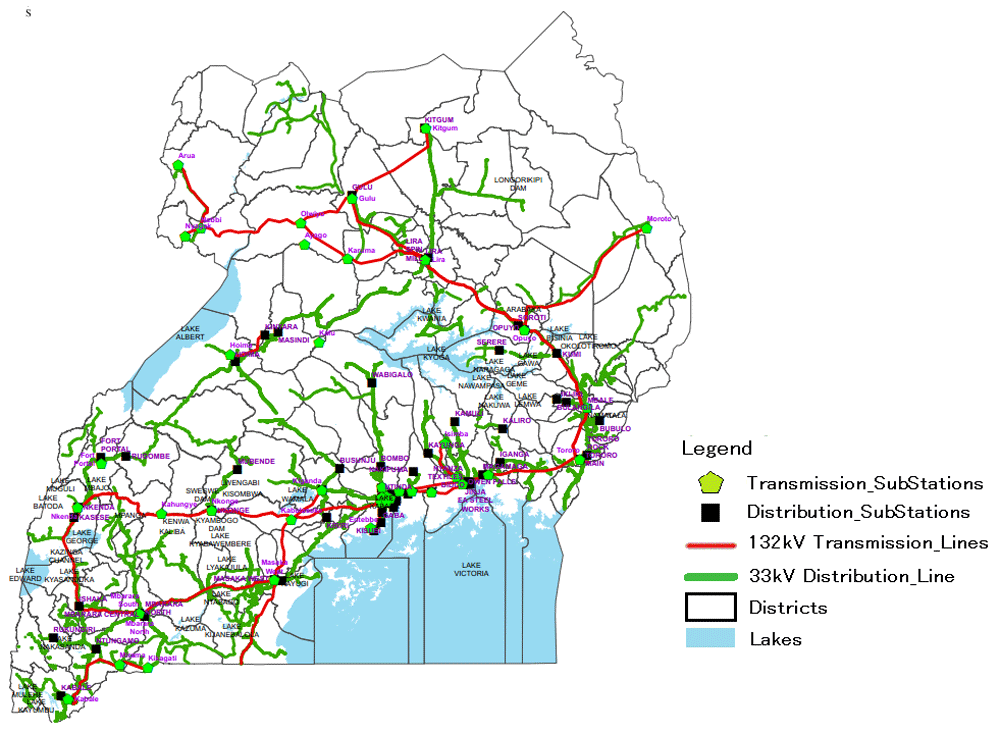

Figure 1. Uganda electric grid and sub stations.

Adapted from 32.

Fossil fuel

A small portion (7%) of the energy demand in Uganda is met by fossil fuel²⁹, which is primarily used for automobiles and generators, and, to a smaller extent, in form of natural gas. Although fossil fuels contribute a small portion of the energy demand, data shows that there is increase in the volume of petroleum products imported into the country. In 2013, there was an increase of 4.6 and 4.3% in the import volume of kerosene and diesel, respectively (Figure 2)¹⁵. This increment implies an increased reliance on an energy source that is unsustainable. From Figure 2, it is also observable that there was a greater increase in the amounts of kerosene imported compared with other energy sources. This is highly attributed to the higher demand for kerosene, which the majority of the rural population uses for lighting³⁰.

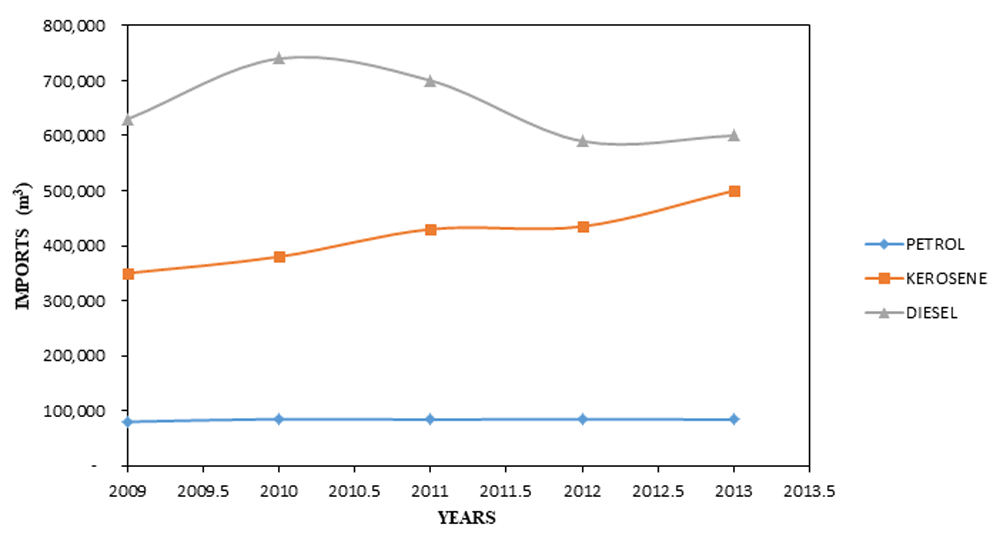

Figure 2. Petroleum product importation in Uganda¹⁵.

Biomass energy

Uganda is an energy deprived nation with restricted access to electricity and heavy dependence on wood fuel to cater for the energy requirements. There has been a general increase in the wood consumption for fuel in the country (Figure 3)³³. This heavy consumption of wood fuel has contributed to high rates of deforestation, further leading to unreliable rainfall and rampant soil erosion³⁴.

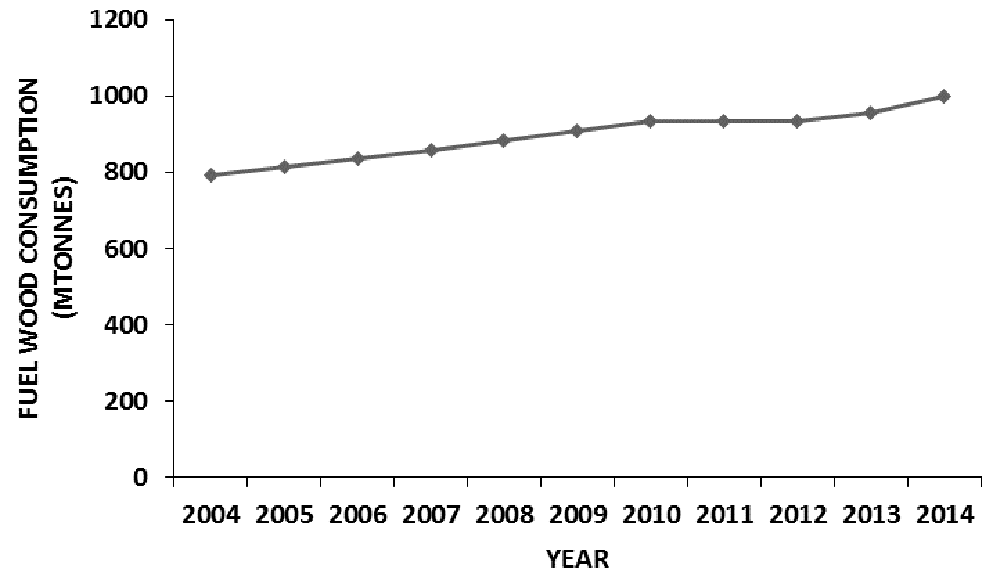

Figure 3. Trend of fuel wood consumption in Uganda³³.

Charcoal is largely used in metropolitan areas, whereas firewood, agricultural biomass and wood chippings are commonly utilized in rural areas³⁵. The sugar industry is the sole industry in Uganda that exploits agricultural biomass in the form of bagasse for cogeneration, but the technology should be adopted even for energy production in homesteads.

Renewable energy

The promotion of renewable energy has been recognized as a potential method of addressing power shortages in the East African region²⁰. The renewable energy policy of Uganda states that the increasing cost of fossil-based fuels makes them costly for developing countries, and fossil fuels have an unreliable future. Uganda has extensive renewable energy resources for production of energy and the delivery of energy services, such as biomass, geothermal, large scale hydro, hydro, wind and solar energy, yet these remain un-tapped, primarily due to the apparent technical and financial incapacitations. With the exclusion of biomass, whose energy contribution is significant, the other sources contribute ~5% of the country’s total energy consumption. This hinders the scope and productivity of economic activities that can be undertaken in any part of the country. Biomass is an extremely available resource, and agricultural waste, such as coffee husks, is a large quota of the biomass yield. Therefore, it is advisable that the use of these readily abundant resources should be increased.

Status of gasification in Uganda

Gasification technology is not extensively used nor known in Uganda¹¹, but in Kenya, a neighboring country of Uganda, gasification of sawmill dust has been implemented with a power output of 76 GWh³⁶. Although previous investigations showed that small-scale wood gasifiers could be economically and socially feasible energy systems to generate electricity in rural areas³⁷, it is not a widely implemented technology in SSA. Obua et al.³⁸ noted that gasification is not widely applied in Uganda and reported only two established gasification units: one at Muziizi Tea Estate for electricity generation using wood feedstock and the other at Paramount Cheese Diaries for industrial heat production, which uses papyrus reeds. The gasification unit at Muziizi Tea Estate was stated to be 87 kW average power output, although rated at 200 kW³⁹, indicating a low operating efficiency. Buckholz et al.³⁷ described the economics of a 10 kW wood gasification unit in Mukono, Uganda, and concluded that the technology is proven, efficient and economically viable. The existing gasification units in Uganda rely on firewood, which is a factor in deforestation, and yet the literature supports use of coffee husks. Previous studies in Sweden⁴⁰ and Portugal^41,42 have reported successful gasification of coffee husks for various applications, including fuel, electrical generation and soil conditioning, but the possibility of the technologies in less developed countries is still abstract.
