Methodological advances in imaging intravital axonal transport

In vivo techniques are poised to provide novel insight into live axonal transport

Neurons are highly polarised, excitable cells with long, thin axons whose integrity requires specialised mechanisms to transport cargoes such as organelles (e.g. mitochondria) and molecules (e.g. proteins and RNA) in anterograde (from soma to axonal tips) and retrograde (from axonal tips to soma) directions¹. This bi-directional axonal transport is governed by the kinesin and cytoplasmic dynein motor proteins, respectively, and is essential for neuronal survival and function². Given the large distances over which these processes must occur, it is perhaps unsurprising that disturbances in axonal transport have been linked to both ageing and many severe nervous system diseases, including Alzheimer’s disease (AD) and amyotrophic lateral sclerosis (ALS)^3–5. Emphasising the importance of efficient axonal transport to nervous system health, mutations in a number of motor proteins have been identified as causative in neuronal disorders^1,6,7.

Individual cargoes have long been tracked in real-time in primary neuron and ex vivo tissue axons^8–10; however, there is evidence to suggest that these artificial environments do not consistently reflect the in vivo situation^11–14. Differences in transport dynamics, such as average speeds and pause frequencies¹¹, could be attributed to limitations inherent to these in vitro and ex vivo platforms. Cultured primary neurons lack the array of cells with which neurons normally physically and chemically interact in situ; for example, cultured motor neurons are not myelinated, do not contact target muscle cells, and lack a network of regulated excitatory and inhibitory input onto their cell bodies. Myelination^15–17, target-derived signals^18,19, and activity^20–23 are all known to impact axonal transport, whereas non-cell autonomous and age-dependent disease mechanisms are difficult to accurately model in vitro. Mouse primary cultures are often derived from embryonic animals^24,25 not currently analysed in vivo, which may also cause discrepancies, as could the current intrinsic variability of human induced pluripotent stem cell (hiPSC)-derived neuronal cultures²⁶. Furthermore, the artificially controlled in vitro environment could affect subcellular energy demands and transport kinetics²⁷, as might stress caused by axotomy and the continual growth of primary cultures. Intravital analysis of axonal transport of individual cargoes (Figure 1) is therefore likely to provide more physiologically relevant insights into this dynamic process, albeit with its own pitfalls (Table 1)^28–30.

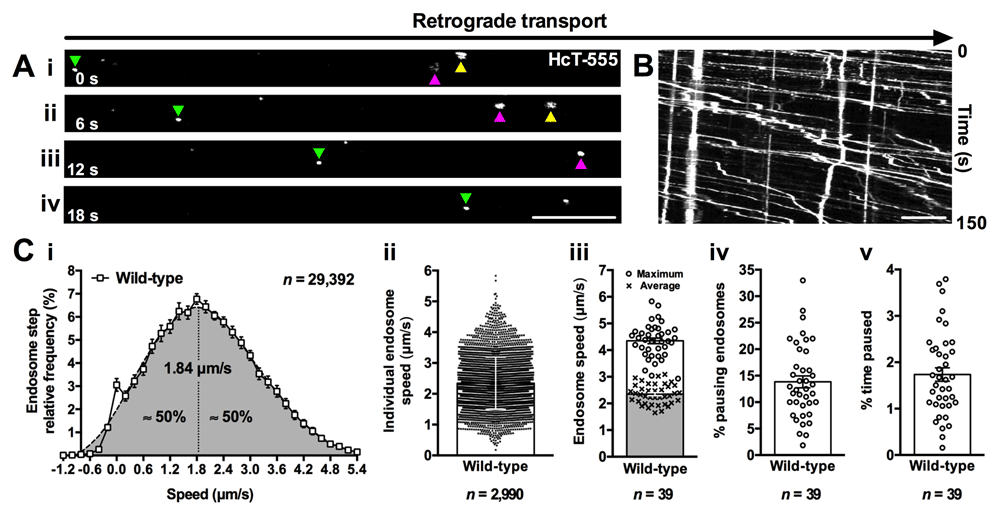

Figure 1. Imaging intravital axonal transport dynamics.

(A) The transport of individual fluorescent cargoes along axons can be assessed in vivo. This series of time-lapse confocal microscopy images (i-iv) depicts the retrograde movement (left to right) of the tetanus toxin binding domain (HcT-555) in sciatic nerve axons, as detailed in Gibbs et al.¹¹. Distinct signalling endosomes (e.g. coloured triangles) loaded with HcT-555 can be tracked across multiple images and transport assessed. (B) Representative kymograph generated from fluorescently labelled signalling endosomes being transported in sciatic nerve axons. (C) Numerous features of axonal transport kinetics can be assessed and plotted (see Box 3 also); for example, speed distribution curves of individual endosome steps (i), average endosome speeds (ii), mean endosome speeds per animal (iii), the percentage of endosomes that remain stationary for at least two consecutive frames (iv), and the percentage of time spent pausing (v). The data reported here were generated from 39 wild-type (C57BL/6) animals aged from 1 to over 13 months, which is a period when transport dynamics are known to remain stable⁷¹. Scale bars (A–B) = 10 μm.

In this short review, we will highlight recent methodological advances and adaptations enabling the in vivo imaging of axonal transport across model organisms, specifically focusing on techniques that track the fast axonal transport of individual cargoes in real-time rather than transport en masse. We will outline strengths and weaknesses of the methods along with findings they have generated (Box 1), highlight major outstanding questions (Box 2), and discuss possible improvements and future directions for in vivo analysis.

Transport of diverse cargoes can be assessed in Drosophila wing sensory neurons over the lifespan of the animal

The sophisticated genetic toolboxes of Caenorhabditis elegans and Drosophila melanogaster allow the specific targeting of fluorescent proteins to vesicles and organelles such as mitochondria. When coupled with the ever-expanding repertoire of neurological disease-relevant worm and fly models^31–34, these reporter lines provide a powerful system for analysing the axonal transport of assorted cargoes in both ageing and disease^35–40. Transport studies in Drosophila have largely been performed in filleted larval preparations rather than adult flies, limiting the time period over which analyses can be performed and the developmental stage of the neurons under investigation. Third instar larvae are typically dissected for imaging of fluorescent cargoes predominantly in motor axons^41,42. Alternatively, microfluidic devices that physically immobilise intact Drosophila larvae afford a non-invasive approach to image axonal transport^43,44.

A novel technique to analyse transport dynamics in sensory axons of the Drosophila wing has been developed (Figure 2A), which permits the assessment of axonal trafficking throughout the lifespan of adult flies^45,46. The marginal nerve found on the anterior edge of fly wings consists of chemosensory and mechanosensory neurons^47,48, the cell bodies of which are connected by short dendrites to wing bristles, while their axons bundle together and project to the central nervous system (CNS)⁴⁵. Given the translucency of the wing and the accessibility of the marginal nerve, rapid and non-invasive light microscopy can be performed on different wing regions of flies expressing fluorescently tagged proteins specifically in neurons. Motivated by previous work in which the same nerve was used to evaluate in vivo responses to neuronal injury^49,50, the GAL4-UAS system was implemented to visualise mitochondria and dense core vesicle (DCV) transport dynamics in flies up to 30 days old (their natural lifespan being ≈50 days in the laboratory)⁴⁵. Flies showed an early peak in the number of bi-directional moving mitochondria during early adulthood and subsequent decline with age linked to misfolded axonal protein accumulations; however, the dynamic properties of the moving mitochondria did not change with time. Intriguingly, reduced levels of the dynein co-factor Lissencephaly-1 (Lis1) caused a doubling in the number of motile mitochondria across time-points (without increasing their number) and reduced the age-associated build-up of protein in the axon⁴⁵. Contrasting with mitochondria, the percentage of motile DCVs remained steady across ages in wild-type flies and was unaffected by reduced Lis1 levels, which is indicative of an organelle-specific perturbation rather than a global transport defect. Although the Drosophila marginal nerve cannot be used for whole-mount staining or large-scale biochemistry and has no direct counterpart in humans, its simple preparation permits quick and non-invasive analysis of anterograde and retrograde axonal transport in sensory nerves of adult flies. Without constraints on fly age, extended experimental time-points can be incorporated, facilitating the study of ageing and neurodegeneration in Drosophila.

Figure 2. Developments in intravital imaging of axonal transport.

(A–C) Recent technical advances have permitted the assessment of axonal cargo dynamics in a range of neuron types across different live model organisms. In the past few years, organelles have been tracked for the first time in sensory neurons of the adult Drosophila wing (orange, A)^45,46 and larval zebrafish retinal ganglion cells⁵⁸, central nervous system (CNS) dopaminergic neurons (red, B), and middle primary (MiP) motor neurons (blue, B)^59,60. In the mouse, a more experimentally challenging animal model because of its non-translucency, in vivo transport was assessed in (i) motor and sensory sciatic nerves^11,68,71,72, axons of the spinal cord and dorsal roots⁷⁷, (ii) retinal ganglion cells¹², and (iii) distal layer 1–3 cortical pyramidal neurons^13,14 (C). The purple, dashed-line boxes indicate approximate imaging regions.

Assessment of cargo motility in axons from an array of zebrafish neuronal subtypes

As a genetic model, the zebrafish (Danio rerio) possesses many of the advantages of the invertebrate species, such as short generation time and lower maintenance costs, with the added benefit of being a vertebrate with myelinated axon tracts⁵¹. Also, like worms and flies, zebrafish are highly genetically tractable, with an array of reporter lines expressing fluorescently tagged proteins in specified organelles in subsets of cells. Zebrafish larvae are translucent, which obviates the need for invasive imaging techniques and allows repeated, longitudinal in vivo measurements throughout development. Several studies have probed cargo movement in the axons of anaesthetised zebrafish, the first of which assessed mitochondrial dynamics in sensory nerves called Rohon-Beard (RB) neurons found in the tail tip⁵². These transgenic “MitoFish” were created using the GAL4-UAS system to specifically express fluorescent proteins in the mitochondria of single RB neurons. A number of other groups have created similar fluorescent fish to assess the dynamics of RB mitochondria⁵³ and endosomes^54,55, as well as lysosomes in mechanosensory axons^56,57.

Until recently, the bulk of in vivo zebrafish transport analysis was conducted in sensory nerves; however, a number of groups have capitalised on the translucency and genetics of the fish and expanded the arsenal of neuronal types amenable to imaging. To assess the visual system, transgenic fish expressing fluorescent protein in either the synaptic vesicles or the mitochondria of retinal ganglion cells (RGCs) were created⁵⁸. Disruption of the neuron-specific anterograde motor Kif5A increased the number of small motile synaptophysin-containing vesicles at early developmental stages without altering the ratio of anterograde to retrograde transport. In contrast, the percentage of mobile mitochondria was unaffected in Kif5^–/– animals, but mitochondria were transported more frequently in the retrograde direction, which likely causes the observed depletion of axonal mitochondria. Similar to the above Drosophila study⁴⁵, these experiments once again highlight that transport of distinct organelles can be differentially impacted depending on the type and stoichiometry of the motor proteins driving their movement. The results also emphasise the importance of measuring multiple transport parameters (Box 3), as different conclusions would have been reported if just the percentage of motile mitochondria was assessed. In addition to RGCs, new transgenic lines have been generated to assess mitochondrial dynamics in middle primary (MiP) motor neurons of the spinal cord⁵⁹ and CNS dopaminergic neurons⁶⁰ (Figure 2B). These fish were used to show that models of Charcot-Marie-Tooth disease type 2A (CMT2A)⁵⁹ and Parkinson’s disease (PD)⁶⁰ display perturbations in mitochondrial motility in disease-relevant neuronal subtypes; CMT2A motor nerves had a reduced percentage of motile mitochondria with unchanged speeds, while PD dopaminergic neurons displayed multiple transport defects dependent on the dose of toxin (MPP⁺) used to model the disease. The percentage of motile mitochondria and the ratio of anterograde to retrograde movements decreased during larval development (2–5 days post-fertilisation) in wild-type dopaminergic neurons, while speeds remained stable and run lengths increased⁶⁰. Given the assortment of neurons now available for imaging, zebrafish provide an exciting platform for the in vivo analysis of axonal transport during development, with the caveat that once zebrafish reach adulthood, they become opaque, abrogating their utility for post-larval analyses.

Peripheral and central nerve transport dynamics can both be assessed in mice

Intravital imaging techniques have been developed in mice to study a range of biological processes in vivo, including the response to spinal cord injury⁶¹, retinal degeneration⁶², and cortical function and development^63,64. Similar to the animal models mentioned above, experimentalists working with mice can use an extended library of transgenic fluorescent reporter strains facilitating live imaging^28,65. Consequently, there has been a recent flurry of publications adapting these in vivo techniques for the analysis of axonal transport in live mice.

Among these, transgenic mice selectively expressing fluorescent proteins in neuronal mitochondria called “MitoMice” were generated by the Lichtman laboratory in 2007⁶⁶. Mitochondria are labelled throughout most of the “MitoMouse” nervous system, permitting in vivo analysis across a broad spectrum of neuronal subtypes provided they can be accessed in live animals. In this publication, in vivo axonal transport of individual organelles was imaged for the first time in a live mammal⁶⁶. Mitochondrial kinetics were analysed in single motor and sensory axons of surgically exposed sciatic nerves using time-lapse confocal microscopy (Figure 2Ci).

Adaptations of this technique have since been developed and expounded upon by a number of different laboratories. The Schiavo group crossed the “MitoMouse” with the SOD1^G93A mouse model of ALS and showed that mitochondrial transport speeds are pre-symptomatically impaired in sciatic nerve axons, which is one of the first observable deficiencies in this disease model⁶⁷. Another laboratory confirmed this result and expanded it to the TDP-43^A315T mouse model of ALS⁶⁸. Using a fluorescently tagged atoxic binding fragment of tetanus neurotoxin (H_CT), the dynamics of a second type of organelle, the signalling endosome, were assessed in the sciatic nerve of SOD1^G93A mice (Figure 1)⁶⁷. Fluorescent H_CT was injected under anaesthesia into the gastrocnemius and tibialis anterior muscles of the lower leg, where it binds to nidogen receptor proteins of the basement membrane before internalisation at the neuromuscular junction⁶⁹. Once in the nerve terminal, the toxin hijacks the retrogradely transported signalling endosomes, which can be tracked in sciatic nerve axons in vivo¹¹. Signalling endosome movement was also shown to be impaired⁶⁷, suggestive of a generalised transport defect in SOD mutant mice. This is most likely caused by global changes in general transport machinery, e.g. the microtubule network, as opposed to disruption of multiple cargo-specific pathways. Confirming that defective retrograde transport of signalling endosomes is not a general read out of an impaired or aged nervous system, in separate studies spinal and bulbar muscular atrophy mice⁷⁰ and wild-type animals aged to over 13 months⁷¹ were both shown to have normal endosome transport dynamics. A minor drawback of these studies is that the identity of sciatic nerve motor and sensory axons cannot be readily differentiated. Nonetheless, there is the possibility of injecting H_CT into the footpad to target nociceptive sensory neurons or injecting a fluorescently labelled p75^NTR neurotrophin antibody into muscle, which is mainly taken up by sensory nerves^11,67. Moreover, crossing of disease models with transgenic mice selectively expressing fluorescent proteins in motor axons (e.g. using the Hb9/Mnx1 promoter) could also help to overcome this issue. Alternatively, the mainly motor femoral nerve⁷² or primarily sensory sural⁷² or saphenous nerves²⁰ could be imaged either in fluorescent reporter strains or by altering the H_CT injection site to ensure fluorescent signalling endosome transport in the appropriate nerve. However, these alternative peripheral nerves are more technically challenging to image on an inverted microscope because of their anatomical distribution and size. Indeed, the sciatic nerve is a large, superficial collection of peripheral nerve axons, in which the dynamics of various cargoes can be imaged, with the useful possibility for longitudinal analysis in the same animal^66,72.

In contrast, the mouse CNS is inherently more difficult than the relatively accessible peripheral nervous system to image directly; nevertheless, axonal transport has now been successfully tracked in a number of CNS neurons. Axons within the spinal cord can be surgically exposed by dorsal laminectomy and imaged across time and several spinal segments in vivo^61,73–75, permitting longitudinal and location-specific comparisons. Mice expressing fluorescent proteins in only a small percentage of sensory neurons have been used to assess axonal degeneration caused by spinal cord lesion in individual large, myelinated sensory axons found in the dorsal aspect of the spinal cord⁶¹. Numerous synthetic vital dyes that label structures such as myelin and microglia can also be used to aid in vivo analysis of the spinal cord⁷⁶. This technique was recently implemented to assess axonal transport in acute and chronic mouse models of multiple sclerosis (MS)⁷⁷. Crossing these strains with “MitoMice” and specifically generated “Thy1-PeroxiYFP” mice, both mitochondria and peroxisomes, respectively, were imaged in spinal cord and dorsal root axons. Pervasive defects in anterograde and retrograde transport of both cargo types were observed in MS mouse spinal cord axons before the onset of additional deficiencies, suggesting that axonal transport defects represent an early and important pathological sign in this disease⁷⁷. These defects were not seen in dorsal root axons (sensory nerves), suggesting that subcellular location (i.e. proximity to the soma) has a bearing on axonal transport defects. However, the sensory identity of the axons imaged in the spinal cord was only presumed (owing to their dorsal location) and not experimentally confirmed, so the potential site-specific transport issue could instead be a product of neuron subtype (e.g. motor versus sensory).

Multi-photon microscopy has also been used to assess mitochondrial transport dynamics in the axons of RGCs of anaesthetised “MitoMice” (Figure 2Cii)¹². RGC axons extend into the nerve fibre layer of the eye, parallel to the ocular surface of the sclera, permitting the visualisation of organelles after subtle opening of the surrounding skin and conjunctiva. The number of moving mitochondria, but not their run length, was diminished before RGC death in a model of glaucoma, whereas in aged mice (23–25 months), the duration and distance of mitochondrial movement were both diminished¹². Interestingly, counter to results from retinal explants in the same study, this method showed that mitochondrial transport is highly dynamic in the mouse CNS in vivo¹². Unfortunately, as fluorescence microscopy could impact the activity of light-sensitive retinal neurons, this observation may be confounded by artefactual alterations in mitochondrial dynamics (i.e. caused by increased activity²⁰). Furthermore, this technique is restricted to albino strains because uveal pigmentation prevents imaging, and is more technically challenging with gaseous anaesthetics because of face access requirement. Nonetheless, in vivo comparisons of organelle transport in proximal and distal regions of RGC axons allow for repeated, longitudinal analyses.

Finally, a technique developed to image distal layer 1–3 pyramidal neurons of the cortex has been independently adapted by two groups to assess axonal transport through a surgically fitted cranial window in both anaesthetised and awake mice (Figure 2Ciii)^13,14. Rather than using transgenic fluorescent strains, plasmids were unilaterally electroporated into embryos in utero to target the expression of fluorescent proteins to both the mitochondria and the cytoplasm¹³ or membranes¹⁴ of cortical progenitor cells (the latter to aid the identification of successfully transfected neurons). The process of electroporation restricts the fluorescence to a small proportion of axons, facilitating the assessment of individual collaterals. Similar to previous in vivo reports from zebrafish RB sensory⁵² and CNS dopaminergic⁶⁰ neurons and mouse sciatic nerve axons⁶⁶, the percentage of immobile mitochondria in cortical axons was very high over short time periods: >99% in 2 minutes in both pups (P10–13) and adults (P70–120)¹⁴ and ≈90% at P10–12 over 10–20 minutes¹³. The discrepancy between these two studies could reflect the different but overlapping cortical layers that were imaged; however, it is more likely caused by the 5- to 10-fold difference in imaging periods. Indeed, over 95% of mitochondria were reported as stationary in mature cortical neurons in culture when imaged for 30 minutes, which drops to ≈75% using a 12-hour imaging window¹³. This highlights a key problem in the study of axonal transport: to track individual cargo movements, rapid frame rates are required, but biologically relevant transport events may occur separated by much longer periods (minutes to hours), which is particularly challenging for in vivo imaging (Box 3). Thus, although surgically intensive and technically demanding, this method of imaging cortical collaterals allows repeated, longitudinal analyses of CNS neurons of the brain in live, non-anaesthetised mice.

Concluding remarks

The active transport of organelles and molecules along axons is critical to neuronal health, function, and survival. Deficiencies in this process appear to be intricately linked to ageing and neurodegeneration, but whether they play a causal role or are simply a consequence of a pathologically affected tissue remains to be fully elucidated in each setting (Box 2). There are numerous possibly conflicting data reported on the dynamics of axonal cargoes. These differences could be due to several reasons, including experimental setting and parameters, neuronal subtype, cargo type, time-point, axonal location (i.e. distal versus proximal⁷⁸), and neuronal morphology (e.g. proximity to axonal arbor branches⁵²). With recent developments discussed here, we are beginning to acquire a diverse and very powerful arsenal of in vivo experimental systems across model organisms that will greatly enrich our understanding of transport. It is now vital to implement these intravital methods to tackle the questions of when (age), where (neuron category and subcellular location), what (cargo type), and how axonal transport deficiencies manifest in neuronal dysfunction.

Progress in imaging axonal transport in vivo has challenges in common with all in vivo imaging experiments (e.g. limited transparency of tissue, restricted imaging depth, and phototoxicity) as well as formidable problems unique to the phenomena being studied: namely, relevant scales of measurement that span several orders of magnitude, both in time and distance. The difficulty in labelling cargoes specifically and with a labelling density allowing a sufficient signal-to-noise ratio for transport analysis is highlighted by the small number of axonal cargoes currently being studied, which are almost exclusively membranous organelles. Using bright, photoactivatable fluorophores is a particularly helpful strategy for studying transport, as it allows the tracking of subpopulations of cargo otherwise too dense to study individually or sparse cargoes over long time periods¹³. However, there is an urgent need to adopt new labelling strategies and fluorescent reporters to understand the behaviour of non-membrane-bound organelles, particularly in the field of RNA transport. Much of what has been learnt about organelle transport is garnered from experiments on mitochondria³⁰; however, their movement within axons, which is characteristically interspersed by long pauses and thus perhaps more characteristic of slow axonal transport, is not reflective of all cargo types. This is perhaps because they have distinct axonal roles, rely on specific subsets of adaptor and motor proteins², and are unique, highly dynamic, network-forming organelles. To have a thorough and informed understanding of axonal transport in health and disease, it is therefore of paramount importance that multiple cargo types are analysed.

Most of the methods discussed here are adaptations of intravital techniques initially developed to study other biological processes. It is therefore likely that imaging of additional neuronal subtypes or subcellular locations^79–86 could be incorporated into these analyses in order to provide a more global assessment of in vivo axonal transport in health and disease. Moreover, as imaging techniques become more sophisticated, allowing high-speed, multi-channel acquisition at greater tissue depths^87,88, we will be able to simultaneously monitor the dynamics of different organelles in their native environment and reliably assess the transport of organelles, such as RNA granules, for which similar robust protocols are currently lacking.
