Advances in risk stratification of bladder cancer to guide personalized medicine

Introduction

Bladder cancer ranks among the most common non-cutaneous malignancies in the United States (4^th for men and 11^th for women) and worldwide (6^th for men and 16^th for women)^1–3. Though it is commonly referred to by the generic term “bladder cancer”, urothelial neoplasms represent a broad spectrum of disease with vastly different treatment pathways from routine bladder surveillance to intravesical therapy to radical surgery with chemotherapy. Staging is broadly divided into two major categories—non-muscle-invasive bladder cancer (NMIBC) and muscle-invasive bladder cancer (MIBC)—which is perhaps the most important determining factor when choosing an initial therapy. Tumor stage is classified according to the Tumor-Node-Metastasis staging system developed by a collaboration of the American Joint Commission on Cancer and Union for International Cancer Control, now in its 8^th edition which went into effect in January 2018⁴. Tumors categorized as NMIBC include carcinoma in situ (CIS), papillary (Ta), or invasive into or beyond the lamina propria (T1). Once the tumor invades the muscularis propria (T2) or beyond (T3 and T4), it is considered MIBC. Somewhat confusingly, these have been referred to as “superficial” and “invasive” disease, respectively, though that practice has been abandoned more recently for the sake of clarity. The tumor grade, describing the aggressiveness of tumor cells based on microscopic appearance, is also very important for the prognosis of bladder cancer. The 2016 World Health Organization classification system for urothelial carcinoma is divided into a binary system of high and low grade, though this is mainly applicable to Ta tumors, since nearly all (≥95%) disease ≥T1 is high grade and CIS is high grade by definition⁵.

Diagnosis

A complete clinical assessment for bladder cancer includes history, physical exam, imaging of the upper urinary tracts, and cystoscopy. Cystoscopy is the cornerstone in the diagnosis and treatment of bladder cancer, being used in virtually all patients at some point throughout the course of their disease. Traditionally, this is carried out using a standard light source (“white light”) to illuminate an endoscopic lens with the subsequent image transmitted via a camera head to a monitor. Directly visualized tumors are then biopsied, fulgurated, and/or resected to provide staging information that forms the basis for widely different treatments (i.e. surveillance versus radical cystectomy). Low-grade, papillary tumors not invading into the lamina propria (Ta) are reliably eradicated in a single setting; however, more advanced disease (high-grade and/or T1) is often incompletely resected. Studies have found residual disease to be present in 40–78% of re-transurethral resection (TUR) specimens after original diagnosis of high-grade Ta or any T1, with an upgrading rate to muscle invasion of 2% and 14%, respectively^6–9. This fact has led to the recommendation by leading urologic organizations that all patients with T1 tumors should undergo a repeat resection within 6 weeks of the original procedure to confirm tumor stage and ensure maximal removal of any residual disease, as this improves response to intravesical therapy^10,11. Recent technological advances, referred to as photodynamic aids (i.e. Blue Light® cystoscopy and narrow band imaging), promise improved detection over traditional white light cystoscopy alone, theoretically allowing for a more complete endoscopic tumor removal and more accurate risk assessment^12–19.

The urothelium is not limited to the bladder and urethra; it also extends into the ureters and renal collecting system. The main purpose of imaging in the diagnostic evaluation of bladder cancer is to assess the upper urinary tracts for malignancy and for staging local and distant extent of disease. Computed tomographic urography, which uses intravenous contrast with delayed image acquisition (10–15 minutes) to allow for urinary excretion, has the highest diagnostic value for the detection of upper tract malignancy with a sensitivity of 67–100% and a specificity of 93–99%^20–23. Magnetic resonance imaging is a viable alternative in patients with iodinated contrast allergy with a diagnostic accuracy of 84–92%, though it is more time intensive and still requires a contrast agent (gadolinium) and, therefore, is a poor choice in patients with significantly impaired renal function²⁴. Ultrasonography plus retrograde pyelography at the time of cystoscopy can be used if cross-sectional imaging is otherwise contraindicated, but this is suboptimal for assessing disease extent and upper tract involvement, so it is reserved for special circumstances. Upper tract evaluation is recommended as part of initial diagnostic work-up by the American Urological Association (AUA) and European Association of Urology (EAU) despite the very low likelihood of finding synchronous upper tract tumor at the time of NMIBC diagnosis (1.5%); however, certain features like multifocality, trigonal location, and CIS increase the risk (7.5%)^10,11,25,26. A more nuanced approach to long-term surveillance is favored over repeat imaging, being applied only to patients with high-risk tumors, and is our first example of a risk-adapted approach to bladder cancer.

Risk stratification in bladder cancer

Not all bladder cancers are created equal and, therefore, risk stratification is an important tool for achieving optimal patient outcomes while avoiding overtreatment. Formal classification systems exist for NMIBC given the wide variability in possible treatment options (surveillance to radical cystectomy), but a one-size-fits-all approach to MIBC is no longer appropriate either.

Non-muscle-invasive bladder cancer

The risk tables from the European Organization for Research and Treatment of Cancer (EORTC) and scoring system from the Spanish Urological Club for Oncological Treatment (CUETO) for NMIBC classify patients into low, intermediate, or high risk for recurrence and progression to muscle invasion based on factors including grade, stage, tumor size, multifocality, variant histology, lymphovascular invasion, and prior therapy^10,11,27,28. Validation studies based on these tools have shown consistent overestimation of recurrence and progression rates among the high-risk group, likely owing to the suboptimal administration of intravesical therapy seen in the developmental cohorts^29–32. Though there is now widespread acceptance of induction intravesical immunotherapy (bacillus Calmette-Guérin [BCG]) plus maintenance therapy for 1 to 3 years based on the results of the randomized Southwest Oncology Group (SWOG) protocol, patients from EORTC and CUETO were largely treated with intravesical chemotherapies (mitomycin C, epirubicin, thiotepa, etc.) or a lack of appropriate maintenance BCG³³. Despite the limitations of both aforementioned studies, they form the foundation for the risk stratification systems used by the EAU and AUA to help guide treatment decisions (Table 1)^10,11,34.

Table 1. Risk stratification of non-muscle-invasive bladder cancer^10,11.

Risk category	EAU definition9	EAU recommendations	AUA definition10	AUA recommendations
Low	•  Primary, •  Solitary (<3 cm), •  Low-grade/G1, and •  Ta	•  Single immediate post-TUR instillation of chemotherapy	•  Solitary <3 cm, •  Low-grade, and •  Ta	•  Single immediate post-TUR instillation of chemotherapy
Intermediate	•  Any disease not fitting low- or high-risk criteria	•  Single immediate post-TUR instillation of chemotherapy, and either •  Induction chemotherapy for 1 year, or •  Induction BCG with 1 year of maintenance therapy	•  Low-grade Ta recurrence <1 year •  Solitary low-grade Ta >3 cm, •  Multifocal low-grade Ta, •  High-grade Ta ≤3 cm, or •  Low-grade T1	•  Single immediate post-TUR instillation of chemotherapy, and either •  Induction chemotherapy with or without maintenance, or •  Induction BCG with maintenance
High	•  Any T1, or •  High-grade/G3, or •  CIS present, or •  Multiple, recurrent, large (>3 cm), papillary (Ta), low-grade/G1 or G2 tumors	•  Single immediate post-TUR instillation of chemotherapy, and either •  Induction BCG with 1–3 years of maintenance therapy, or •  Immediate radical cystectomy	•  High-grade T1 •  Recurrent high-grade Ta •  High-grade Ta >3 cm •  CIS •  Any high-grade failing BCG •  Variant histology •  LVI •  High-grade prostatic urethral involvement	•  Induction BCG with maintenance therapy, or •  Immediate radical cystectomy for highest risk features (with LVI, variant histology, T1 with CIS, persistent T1 on re-TUR)

AUA, American Urological Association; BCG, bacillus Calmette-Guérin; CIS, carcinoma in situ; EAU, European Association of Urology; LVI, lymphovascular invasion; TUR, transurethral resection

There is general agreement among urological organizations that a more-conservative approach to treatment (cystoscopic resection and single-dose intravesical chemotherapy) is warranted for low-risk tumors (solitary, low-grade, papillary), while the high-risk group (multifocal high-grade, CIS, or any T1) should be managed aggressively through the use of intravesical immunotherapy, and even radical cystectomy in some cases^10,11. This leaves a broad middle ground for intermediate-risk disease, representing a spectrum ranging from a small, recurrent low-grade papillary tumor to large treatment-resistant low-grade tumors to small high-grade lesions. In order to more effectively tailor an appropriate treatment regimen for these patients, further substratification of intermediate-risk bladder cancer has been proposed by an international consortium of bladder cancer experts using a simple scoring system based on four main tumor features (Figure 1)³⁵.

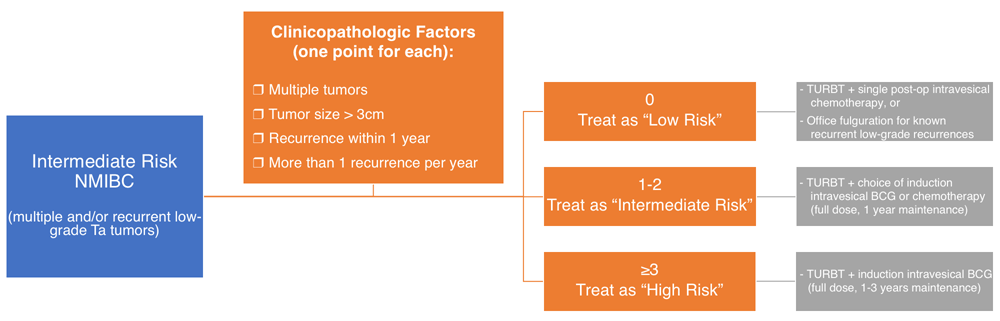

Figure 1. Proposed substratification of intermediate-risk non-muscle-invasive bladder cancer (NMIBC) based on the recommendations of the International Bladder Cancer Group³⁵.

BCG, bacillus Calmette-Guérin; TURBT, transurethral resection of bladder tumor.

Pathologic subtypes

The most common histology of bladder cancer is urothelial carcinoma (~90%) followed by squamous, adenocarcinoma, micropapillary, small cell, and other rare tumors³⁸. Not all urothelial carcinoma exists in pure form; instead divergent differentiation may occur within the tumor exhibiting different morphology and labeled as “variant histology”⁵. Of these variants, several are worth noting, as certain subtypes are known to be associated with a more aggressive clinical course. When taken as a group, variant histology is associated with more advanced stage at diagnosis and may not be amenable to standard treatment algorithms, even when adjusting for stage. For instance, plasmacytoid is particularly aggressive with up to 90% diagnosed with extension outside of the bladder (≥T3) and poor responsiveness to cisplatinum-based adjuvant chemotherapy following radical cystectomy^39–41. Early cystectomy appears to offer survival advantage for micropapillary disease, even for clinical stage T1, because of a high rate of pathologic upstaging and node positivity^42–46. Squamous differentiation, the most recognized subtype, and glandular are often reported on pathology reports; however, clinical outcomes are no different than those for conventional urothelial carcinoma^47,48. These should also be recognized as very different to pure squamous cell carcinoma and adenocarcinoma of the bladder, which are distinct histologic entities lacking urothelial components^49,50. Other less-common variants worth mentioning include nested, lymphoepithelioma-like, and small cell, the latter being morphologically similar to the lung cancer version and sharing the same aggressive clinical course^51,52.

Molecular subtyping

MIBC ranks among the most highly mutated cancers, with frequencies similar to non-small cell lung cancers and head and neck squamous cell carcinoma, resulting in a heterogeneous mutational profile involving numerous cellular pathways^53–56. Investigators from around the world have taken on the task of genetically characterizing MIBC samples, resulting in the publication of several major molecular classification systems (the Cancer Genome Atlas [TCGA], Lund, University of North Carolina, MD Anderson, etc.)^55,57–59. Each analysis yielded groups of tumors enriched with certain mutations that shared common features with other carcinomas, specifically the breast cancer “basal” and “luminal” subtypes, which led to similarities in the naming schemes. Broadly speaking, basal tumors tend to exhibit a more aggressive phenotype than do luminal tumors and are more prone to metastasis at the time of diagnosis^55–60. The major publications on this topic have each included a classification system with more-or-less overlap in the mutational profile—i.e. basal-like (UNC), UroB (Lund), Cluster III (TCGA), etc.—that correlates with clinical outcomes. An effort to achieve consensus definitions for all subtypes is underway, thus far producing the Basal-Squamous-like group (BASQ) with elevated KRT5/6 and KRT14 expression but low FOXA1 and GATA3 expression⁶¹. By using the information from cohorts like TCGA, several researchers have sought to define the prognostic significance of these genetic mutations through the creation of molecular subtypes with correlation with clinical outcomes^{56–58,62,63}.

The association of molecular subtypes with response to bladder cancer therapy is certain to help guide treatment in the near future: for instance, which patients are most likely to benefit from neoadjuvant chemotherapy prior to surgery or response to immunotherapy over conventional chemotherapy^56,57,64. Systemic therapy for bladder cancer can then be more carefully tailored to the individual patient using information obtained from genetic sequencing to select the best candidates for a given treatment regimen (Figure 2). For example, tumors exhibiting mutations in genes associated with DNA damage repair (i.e. ERCC2, ERBB2, ATM, and RB1) or those grouped into the basal/squamous subtype display a greater degree of cisplatinum sensitivity as demonstrated by more favorable clinical outcomes among these patients^{56,57,65–68}. The luminal-papillary and luminal-infiltrated subtypes, on the other hand, show poor response to neoadjuvant chemotherapy; however, tumors with upregulation of the immune checkpoint markers (luminal-infiltrated and basal/squamous) may benefit from treatment with anti-PD-L1, PD-1, and/or CTLA-4 immunotherapy^56,69.

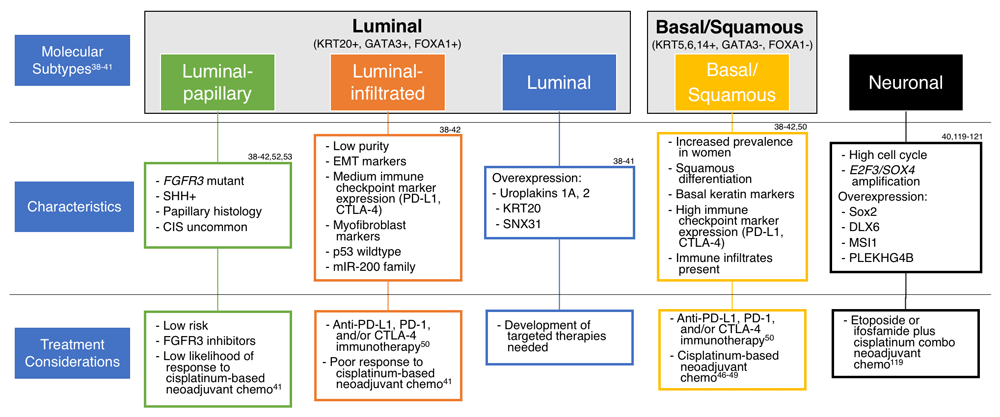

Figure 2. Molecular subtypes of muscle-invasive bladder cancer with associated clinicopathologic and genomic characteristics.

Proposed treatment considerations are listed for each subtype based on available clinical data^{53–57,63,64,66–69}. CIS, carcinoma in situ; CTLA-4, cytotoxic T-lymphocyte-associated antigen 4; DLX6, distal-less homeobox 6; E2F3, E2F transcription factor 3; EMT, epithelial to mesenchymal transition; FGFR3, fibroblast growth factor receptor 3; FOX, forkhead box; GATA, GATA-binding protein; KRT, keratin; miR-200, microRNA 200; msi1, Musashi homolog 1; PD-1, programmed death-1; PD-L1, programmed death-ligand 1; PLEKHG4B, pleckstrin homology and RhoGEF domain containing G4B; SHH, sonic hedgehog; SNX31, sorting nexin 31; SOX, SRY-box.

The clinical impact of NMIBC is just as significant as that of MIBC, though maybe not as immediate a threat to survival, especially when taking into account rates of progression reaching as high as 50–60%. A considerable amount of information is available on molecular subtyping for NMIBC that is helping researchers hone in on the most important mutations in the evolution of bladder cancer^59,70,71. Low-grade bladder tumors would appear to be genetically distinct from high-grade and MIBC, demonstrating highly conserved genetic mutations of FGFR3, PIK3CA, STAG2, and/or the RTK/RAS/RAF pathway^72–75. High-grade NMIBC, on the other hand, is more like muscle-invasive disease, exhibiting alteration of DNA damage repair genes (ERBB2), cell cycle regulators (p53, RB1, MDM2, and CDKN2A), and chromatin-modifying genes (KDM6A and ARID1A)⁷⁵. Molecular subtyping based on transcriptome analysis of 460 NMIBC and 16 MIBC samples by Hedegaard et al. identified three predominant classes of NMIBC, of which class two showed clustering of high-grade and CIS pathology with an increased risk of clinical progression, indicating that this may be a signature warranting more aggressive, definitive therapy upfront⁷¹. The TERT promoter is worth specific attention owing to similar frequency throughout all tumor stages and grades, regardless of tumor aggressiveness or molecular subtype, and likely represents an early event in the development of urothelial neoplasms^76–78.

Personalized approach to bladder cancer therapy

Early cystectomy for non-muscle-invasive bladder cancer

Immediate radical cystectomy may be the best treatment option for selected patients with certain adverse “very high-risk” factors found at the time of diagnosis of NMIBC (Figure 3). High-volume T1, persistent high-grade T1 on re-TUR, lymphovascular invasion, certain variant histologies (i.e. micropapillary, plasmacytoid, nested), or concomitant CIS have all been associated with increased risk of progression and are best managed with surgery^108–113. A group from the United Kingdom has designed a prospective, randomized controlled trial, with end of accrual set for March 2018, comparing immediate cystectomy against BCG induction with maintenance therapy for a “very high-risk” population of NMIBC patients¹¹⁴. Notably excluded from their cohort are any patients with variant histology.

Figure 3. Proposed decision model for immediate radical cystectomy in patients with “very high-risk” non-muscle-invasive bladder cancer (NMIBC)^11,125–129.

AUA, American Urological Association; BCG, bacillus Calmette-Guérin; CIS, carcinoma in situ; LVI, lymphovascular invasion; TURBT, transurethral resection of bladder tumor.

Timing of chemotherapy for muscle-invasive bladder cancer

Muscle invasion at diagnosis of bladder cancer is a poor prognostic indicator best treated with neoadjuvant cisplatinum-based multi-agent chemotherapy followed by radical cystectomy according to evidence from several phase III clinical trials^118–121. Disease status on final pathology is strongly correlated with oncologic outcomes, and neoadjuvant therapy leads to significant downstaging, including rates of complete response in the range of 30–40% compared to only 15% with surgery alone¹¹⁹. However, this still leaves a large portion of patients who will not derive benefit, instead undergoing unnecessary toxic therapy while at the same time delaying surgery. Risk stratification can be useful in this setting by selecting those patients with the highest risk (pre-operative T3b–T4, hydroureteronephrosis, lymphovascular invasion, and specific histologic variants) for poor outcomes after cystectomy and only administering neoadjuvant chemotherapy to this subgroup (Figure 4)^122,123. Likewise, post-operative chemotherapy (i.e. adjuvant) can be administered in patients with proven pathologic predictors of developing metastasis, though evidence to support its use is lacking. One study (EORTC 30994) was able to show an improvement in progression-free survival; however, there was no statistically significant impact on overall survival¹²⁴.

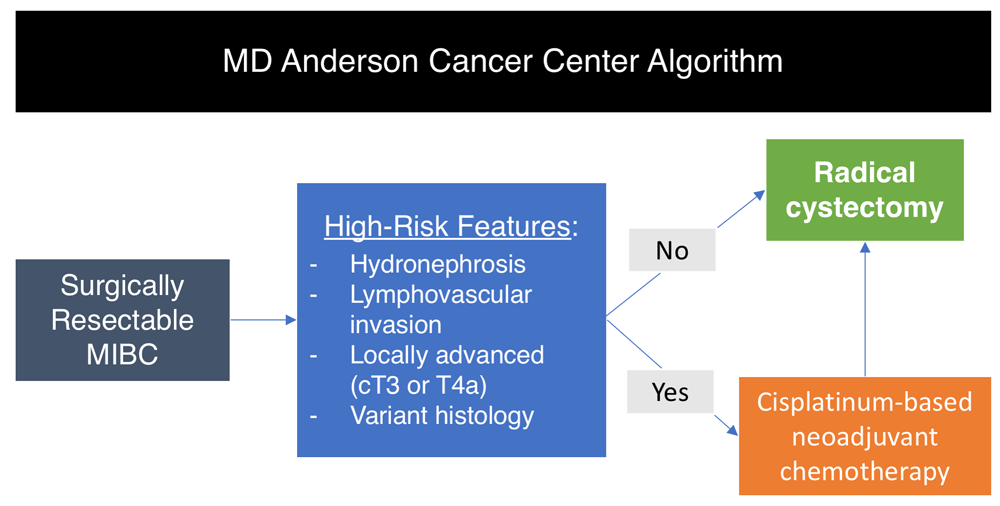

Figure 4. Current MD Anderson Cancer Center algorithm for determining which patients should receive neoadjuvant chemotherapy versus immediate radical cystectomy.

Inclusion of molecular markers for further risk stratification is pending clinical validation³⁷. MIBC, muscle-invasive bladder cancer.

Conclusions

The appropriate management of bladder cancer patients relies heavily upon risk stratification to personalize the therapy for the patient. Currently, clinicopathologic features are the cornerstone of the most widely used risk assessment tools with ample room for improvement. Advances in genetic sequencing of tumors has led to classification systems based on the mutational profile of each individual, offering prognostic information. As these data expand, it is feasible that in the near future this could be integrated to provide guidance that is truly “next generation”.

Abbreviations

AUA, American Urological Association; BCG, bacillus Calmette-Guérin; CIS, carcinoma in situ; CUETO, Spanish Urological Club for Oncological Treatment; EAU, European Association of Urology; EORTC, European Organization for Research and Treatment of Cancer; MIBC, muscle-invasive bladder cancer; NMIBC, non-muscle-invasive bladder cancer; SWOG, Southwest Oncology Group; TCGA, the Cancer Genome Atlas; TUR, transurethral resection
