To select relevant features for longitudinal gene expression data by extending a pathway analysis method

Experimental data

Data for the injury experiment were downloaded from the Gene Expression Omnibus repository. The accession number is GSE36809. This experiment was hybridized on Affymetrix HGU133 plus2 chips.

In this study, only patients with uncomplicated recoveries and patients with complicated recoveries were considered. According to Xia et al.⁸, uncomplicated recovery represents a recovery within 5 days while complicated recovery includes a recovery after 14 days, no recovery by 28 days, or death. If the recovery duration is longer than 14 days, the patient experienced complicated recovery for sure. Therefore, the possible time points for an uncomplicated recovery include days 1/2, 1, 4, 7 and 14, whereas those for a complicated recovery are days 1/2, 1, 4, 7,14, 21, and 28. Furthermore, we restricted our focus to the patients that had the full compliment of measurements (i.e., complicated patients with 7 measures and uncomplicated patients with 5 measures). The 25 uncomplicated patients and 18 complicated patients who met this request were put together and used as the training set. Since there were no measures for uncomplicated patients after 14 days, the data for patients with complications were truncated at 14 days.

The rest of patients including 50 uncomplicated patients and 23 complicated patients were used as a test set to validate the proposed method. In the test set, the time points considered were days 1/2, 1, 4, and 7. Of note, the characteristics of patients in the training set and the test set may be different since the test set includes patients who had been discharged early from the hospitals.

Pre-processing procedures

Since different pre-processing procedures may impact the data analysis, we decided to download the summary expression values of the experimental data directly from the GEO database.

Pathway information

The gene sets were downloaded from the Molecular Signatures Database (MSigDB) (http://software.broadinstitute.org/gsea/msigdb). In this study, we considered the C2 category in this knowledgebase, which includes gene sets from curated pathways databases such as KEGG⁹ and those manually curated from the literature on gene expression.

Statistical methods

Here, we present a brief introduction to the SAMGSR algorithm⁷, and then discuss our extension for the purpose of feature selection for longitudinal gene expression data in detail.

SAMGSR. The SAMGSR algorithm is an extension of the SAMGS method¹⁰ and provides additional reduction of significant gene sets into respective core subsets. According to Dinu et al.⁷, the SAMGSR method may result in an approximately 90% of reduction in the size of selected genes, in an effort to improve predictive performance and allow biological patterns to become more obvious.

The SAMGSR method consists of two major steps: the SAMGS process to identify important gene sets and the reduction step to refine those significant gene sets into their respective core subsets. In the SAMGS step¹⁰, an SAMGS statistic, the L₂ norm of the SAM statistics¹¹ for all genes within that gene set, is calculated. A p-value of the SAMGS statistic is computed using a permutation test by permuting phenotype labels of samples. Based on the p-value, the statistical significance of a gene set is determined. Second, focusing on those significant gene sets, the reduction step orders genes within a significant gene set j based on the magnitude of its SAM statistic and then gradually partitions the entire gene set into two subsets: the reduced subset R_k which includes the first k genes with largest SAM statistics, and the residual subset ${\overline{R}}_k$ being the complement of R_k for k=1,…, |S-1|. Here S is the size of gene set j. Let c_k be the SAMGS p-value of the residual subset ${\overline{R}}_k$. The optimal size of reduced set R_k is the smallest k such that c_k is larger than a pre-specified cut-off for the first time.

SAMGSR extension for longitudinal feature selection. In our modification to the SAMGSR method for the purpose of longitudinal feature selection, a gene set has two different meanings. First, it refers to a set of genes in a curated biological pathway. Second, it refers to a gene’s expression profiles across time. Correspondingly, the reduction step of SAMGSR is applied in an ordered manner at two levels: a lower level on gene sets and an upper level on the time points. First, the reduction procedure of SAMGSR is applied to identify the reduced core subsets within the selected/reduced gene sets obtained by the SAMGS step. Then upon the union of genes involved in those core subsets, the reduction procedure is applied again to determine exact time points where the expression values of those genes differ significantly between phenotypes. In the two-level SAMGSR algorithm, the SAMGS statistic is modified to as,

where d_ij is the SAM statistic¹¹ of gene i (i=1,…, |GS_k|) at time point j (j=1,…, t_i) and |GS_k| is the size of gene set GS_k (k=1,…,K, and K is the total number of gene sets). ${\overline{x}}_d(ij)$ and ${\overline{x}}_c(ij)$ are the sample averages of gene i at time point j for the diseased group and the control group, respectively. Parameter s(ij) is a pooled standard deviation that estimated by pooling all samples together, while s_0j is a small positive constant used to offset the small variability in microarray expression measurements. Of note, both s(ij) and s_0j are time-point specific because the variability of expression measurements differs at different time points. In the reduction step, SAMGS is calculated sequentially first to a series of subsets (for the size of 1,…, |GS_k|-1) of a significant gene set, aiming to identify a core subset that makes an essential contribution to the statistical significance of this gene set. Then the algorithm moves to the level of time points, with the objective of determining which combination of time points contributes substantially to the importance of the specific gene. At this level, each gene’s expression profiles over time were viewed as a gene set. Our rational is that a gene’s expression values for the same individual over time are highly correlated, mimicking a gene set. Figure 1 elucidates the two-level SAMGSR algorithm.

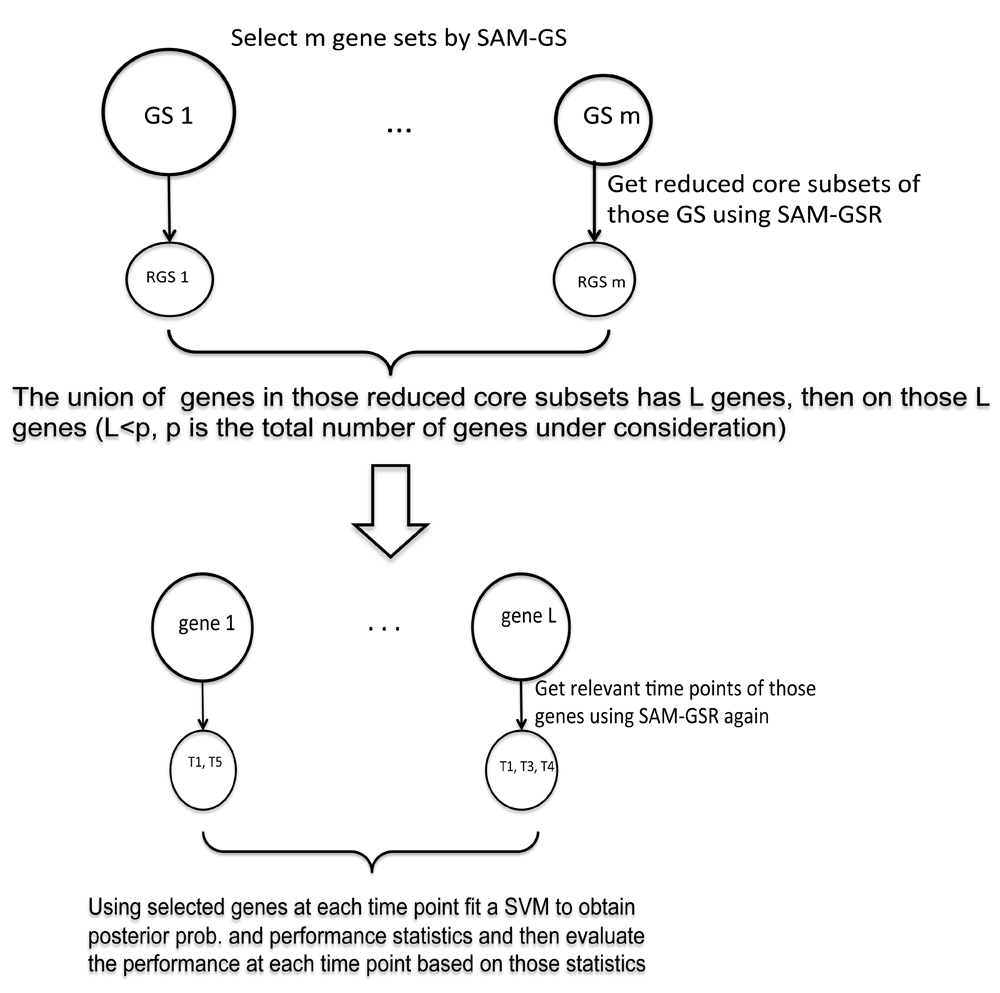

Figure 1. Flowchart illustrates the two-level SAMGSR algorithm.

In a separate study (unpublished study; Suyan Tian, Chi Wang, Howard H. Chang), we proposed another extension to the SAMGSR method for the purpose of longitudinal feature selection, which is referred to as the longitudinal SAMGSR method. The longitudinal SAMGSR method first applies the SAMGS step to select the relevant genes and then determines exact time point(s) that the expression values for a gene differ between two phenotypes. A potential disadvantage of this SAMGSR extension is it does not incorporate valuable biological information contained in pathways, which provides knowledge on how genes function in unison to impact on biology processes.

In both SAMGSR extensions, c_k is regarded as a tuning parameter. Using the sequence of 0.05, 0.1, …, 0.5, the optimal value of c_k corresponds to the one associated with the minimum 5-fold cross-validation (CV) error. In a 5-fold CV, a dataset was randomly divided into 5 roughly equal-sized folds, and 4 of these folds were used to train a classifier and the misclassification error rate was calculated upon the held-out fold. This step was repeated for each of the 5 folds as the held-out fold, and the error rates were averaged. Given the fact the SAMGSR extensions cannot estimate the coefficients of selected genes, support vector machine (SVM) models were fitted to estimate those coefficients. Then the posterior probability for a sample can be calculated for each time point.

Performance metrics

In this study, we use four metrics - Belief Confusion Metric (BCM), Area Under the Precision-Recall Curve (AUPR), Generalized Brier Score (GBS), and the misclassified error – to evaluate the performance of a classifier. Our previous study¹ provided detailed descriptions on those metrics. In summary, all these metrics have a range in between 0 and 1. For the first two, the closer to 1 the better a classifier is. In contrast, a value of 0 is optimal for the last two metrics. Given the SAMGSR extensions tend to identify those genes that are insignificant at isolated time points but significant jointly over time, an evaluation on individual time points using these statistical metrics might be unfair for the SAMGSR extensions, we also averaged the resulting posterior probabilities at each time point and then calculate the performance metrics using those averages.

Statistical language and packages

Statistical analysis was conducted in the R language version 3.1.2 (www.r-project.org). The Venn-diagram plot was made with the aid of an online bioinformatics tool. R codes of the two-level SAMGSR algorithm are given in the Supplementary File 1.

Real world application

Traumatic injury with subsequent infection was a common cause of death in ancient times. Even today massive injury such as combat wounds remains life threatening^12,13. A large clinical study that examined the genome-wide expression patterns of blood leukocytes in the immediate post-injury period was carried out several years ago⁸. A primary objective of that study was to explore if different patterns of gene expression existed for the two extremes of clinical recovery: the uncomplicated recovery and the complicated recovery. We used the longitudinal gene expression data collected specifically for this objective to evaluate our proposed method.

First, the comparison between the two SAMGSR extensions and the SAMGSR separately at each time point was made. The two-level SAMGSR extension incorporates both the interaction information among genes inside a pathway and the correlations among the expression values of one specific gene over time. In contrast, the longitudinal SAMGSR extension only accounts for the correlations among the expression values of one specific gene over time, while the application of SAMGSR at individual time points only considers the interactions among genes inside a pathway. This comparison allows us to identify which factor - the interactions among genes inside pathways or the correlations among the same gene over time have significant impact on the performance of resulting signatures. The results were given in Table 1, from which we found the two-level SAMGSR method performs the best at the second and third time points while the longitudinal SAMGSR method does so at the first and fourth time points. Overall, the implementation of SAMGSR at separate time points has the worst performance.

As we mentioned in the previous section, a separate evaluation on an algorithm at single time points might be unfair for both SAMGSR extensions, and an integrated evaluation that takes all time points into account is necessary. Therefore, we did such analysis. When taken all time points together, the superiority of the longitudinal SAMGSR method over the two-level SAMGSR method and the original SAMGSR method at separate time points has been established. The respective performance statistics are provided in Table 2.

In summary, incorporation of the pathway information inside gene sets, the clusters of genes that might be potentially co-expressed/co-regulated together, did not result in the two-level SAMGSR having substantially superior performance. One possible explanation relates to the information quality of the pathway database itself. The canonically curated databases on pathways/gene sets are biased toward the well-studied diseases such as cancers, and with substantial less works investigating traumatic injury using gene expression profiles, the pathway knowledge contained inside those curated pathways may be uninformative for this specific disease.

In Figure 2, Venn-diagrams illustrate how the selected genes by the two-level SAMGSR method at different time points overlap. We observed that these two SAMGSR extensions perform comparably in term of overall model parsimony. Namely, the two-level SAMGSR algorithm identifies 94 unique genes while the longitudinal SAMGSR algorithm identifies 97 unique genes. Moreover, we observed that in the 94-gene signature identified by two-level SAMGSR, there is a substantial proportion of overlaps at all time points (24/94; 25.53%), while the number of genes being significant only at one specific time point is one half of this number. Again, this highlights the ability of our SAMGSR extensions (both the longitudinal SAMGSR method and the two-level SAMGSR method) to identify genes that present mild but concordant change across time points between two different phenotypes.

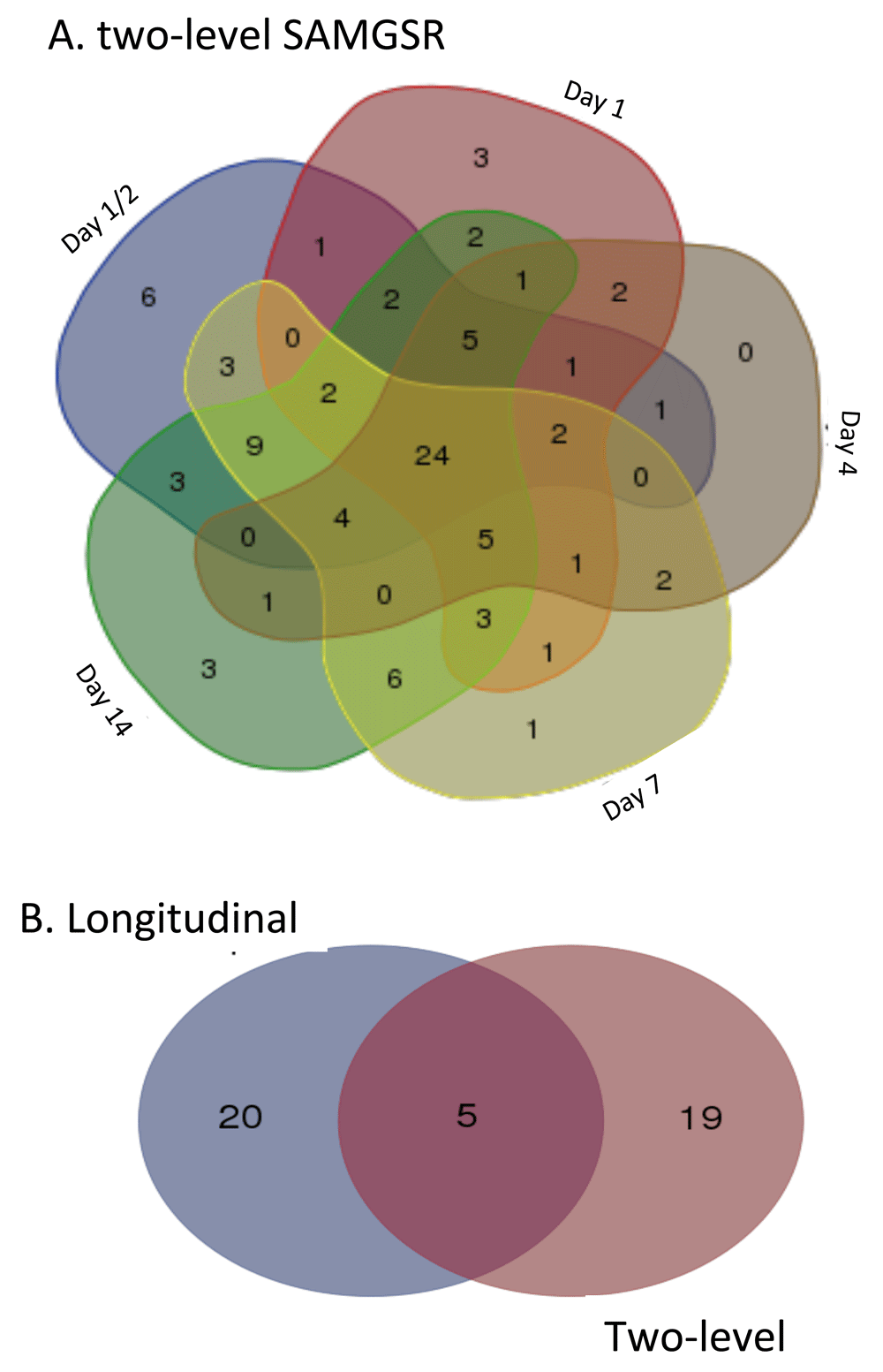

Figure 2. Selected genes by the two-level SAMGSR algorithm in the traumatic injury application.

(A) Venn-diagram illustrates the overlap of selected genes by the two-level SAMGSR method at different time points. (B) Venn-diagram illustrates the overlap of concordantly differentially expressed genes across all time points by the two-level SAMGSR algorithm and the longitudinal SAMGSR algorithm.

Upon the overlapped 5 genes by both SAMGSR extensions, a plot (Figure 3) was made to compare the expression patterns over time between the complicated injury and the uncomplicated injury. It is observed that the pattern of change across time points for complicated patients versus uncomplicated ones is not quite unique or simple. Thus the results of our analysis provide no evidence on either the paradigm that complicated outcomes are associated with second hits or multiple inflammatory events which thus subsequently cause a secondary genomic response^14,15, or its counterpart stating complication results from simultaneous and rapid induction of innate and suppression of adaptive immunity genes⁸. Further investigation is in demand.

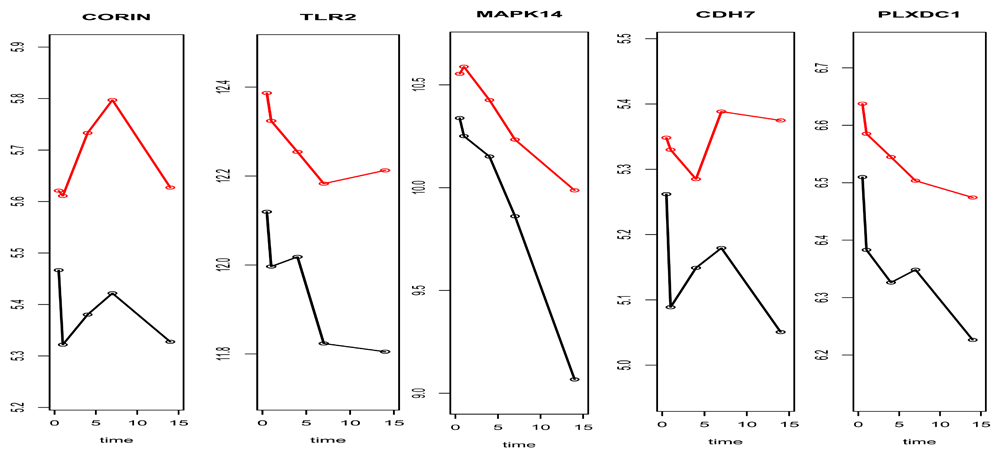

Figure 3. Characteristics of 5 common significant expressed genes across all time points by both two-level SAMGSR method and the longitudinal SAMGSR in the traumatic injury application.

Subgroup sample means versus time plot for the 5 common genes that were identified as to be significant at all 5- time points between uncomplicated and complicated patients. Red line represents the complicated group while black line represents the uncomplicated group.

Simulated data

In order to investigate the properties of both SAMGSR extensions, we used observed expression values from the injury application to design two sets of simulations as in our previous study. Briefly, we chose two causal genes – F13A1 and GSTM1 – and then randomly selected 998 genes from the data serving as noise in the first simulation setting. Denote the expression value of gene i (F13A1 or GSTM1) at time j (j=1,…, 5) as X_i.j, the logit function of a complicated injury versus an uncomplicated injury is as following,

            logit_clu = 0.18X_F13A1.1 + 0.57X_F13A1.2 + 0.29X_F13A1.3 + 0.41X_F13A1.4 + 1.02X_GSTM1.3

Here, we considered one gene whose significance arises from its moderate joint contribution over time and the other whose association with the outcome is large at one specific time point. The aim of this simulation was to illustrate the inferred advantage possessed by the two SAMGSR extensions, namely, both of them incorporate the accumulated effect of genes over time, recognizing genes with mild or moderate change at each time point but with a coordinated change over time.

In the second simulation, we chose two genes – COX4I2 and RP9 as the relevant genes. The logit function was,

                    logit_clu = 0.56X_COX4I2.1 − 0.91X_RP9.5

For both simulation settings, 50 replicates were created. The results for these two simulations are given in Table 3 and Table 4, respectively. Unexpectedly, the longitudinal SAMGSR showed no inferiority to the two-level SAMGSR in both correctly selecting relevant genes and achieving a better model parsimony. Regarding model parsimony, the inferiority of two-level SAMGSR may stem from the pathway level; a relevant gene would be involved in many gene sets. Consequently, the number of highly correlated genes with the relevant ones might increase and since these genes are included in the final model, the parsimony of two-level SAMGSR naturally suffers. Regarding correct selection of causal genes, since two simulations are based on the injury data in which the biological knowledge might add no extra value to feature selection, as shown in the real-world application, it is unsurprising to have both algorithms correctly identify the causal genes.

Although in the second simulation the number of relevant time points was less than that in the first one, the number of selected genes by both algorithms was dramatically larger in the second simulation. This might be because the relevant genes in the second simulation were highly correlated with other genes compared to the first simulation. The highly correlated structure between relevant features and irrelevant ones produced a large number of redundant features that both SAMGSR extensions, especially the two-level SAMGSR, cannot exclude. To our best knowledge, however, many feature selection algorithms, especially those based on filtering, may suffer from this drawback. As illustrated in our previous work^16,17, an additional filtering using a relevant algorithm such as bagging¹⁸ may provide a solution to alleviate or eliminate this problem.
