Two parallel reporting systems for malaria surveillance in Pakistan, 2013–17: is exact burden reflected?

Introduction

Malaria ranks sixth amongst the top ten causes of deaths in low income countries of the world¹. In 2016, 91 countries reported an increase in malaria cases (216 million) as compared to 2015 (211 million). Around 0.4 million deaths have also been reported during the same year. Most cases were reported by the World Health Organization (WHO) African Region (90%), followed by the South-East Asia Region (7%), and the Eastern Mediterranean Region (2%)². The incidence of malaria cases varies from low to high in different countries. Countries with low malaria incidence are progressing towards malaria elimination, while others having a high disease burden, including Pakistan, have implemented malaria control programs³.

The World Health Organization (WHO) has emphasized the critical need for transforming malaria surveillance as a core intervention in the Global Technical Strategy for Malaria. WHO has further stressed on the importance of prioritizing investments in malaria surveillance system to ensure that reliable data is available for decision making⁴. Effective surveillance of malaria is essential for identifying and prioritizing the most affected areas or population groups⁵. Moreover, uniformity of the surveillance tools and timeliness of reporting is important in countries with low disease burden at the malaria control phase⁶. It has been observed that despite all the efforts and investments, malaria surveillance system has many challenges related to the timeliness, representativeness, data quality and reliability in high and low burden countries from the WHO African and Eastern Mediterranean regions^7,8.

Pakistan is among seven countries of the WHO Eastern Mediterranean Region sharing 95% of the regional malaria burden⁹. An estimated 98% of Pakistan population (205 million) is at varying risk, while around 60% population (123 million) at high risk for malaria². In Pakistan, Malaria due to Plasmodium vivax is most common (88%), followed by Plasmodium falciparum (12%)¹⁰. Epidemiologically, Pakistan is classified as a moderate malaria endemic country with the national annual parasite incidence (API) averaging at 1.16, with a high variation within different provinces of Pakistan¹¹. The districts and agencies in the Five provinces and Federally Administered Tribal Areas (FATA) region of Pakistan were stratified into three strata (I, II and III) based on the malaria annual parasite incidence (API), and slide positivity rate (SPR) of 2011–13 under the country’s National Strategic Plan. Based on this stratification, 72 districts are placed in stratum-I (having API >5), ten in stratum-II (API 1–5) and 63 in stratum-III (API <1) for prioritizing the highest endemic districts for resource allocation¹².

The malaria surveillance in the country has many issues. Major challenges include lack of coordination between different reporting systems, fragmented information systems and relying on parallel reporting for malaria cases in the highest burden sharing districts through a paper based malaria information system (MIS) and district health information system (DHIS)¹³. The diverse epidemiology of malaria disease in Pakistan stratifying the country into high and low burden sharing areas has further contributed to the difficulties in proper disease surveillance¹². It is estimated that due to such challenges, only around 23% of malaria cases have been captured in Pakistan through various surveillance systems during 2016².

Limited evidence has been found regarding the comparison of various malaria surveillance systems in Pakistan. This study aims to compare the malaria coverage, screening, cases, outcome and impact as reported through the MIS and DHIS in high burden sharing districts of Pakistan.

Methods

Study design and setting

This was a cross sectional retrospective record review of malaria routine surveillance data for the period 2013–17 reported through the DHIS and MIS from donor supported districts of Pakistan. The study was conducted from July to September 2018 at the Directorate of Malaria Control (DOMC), Islamabad which is an attached department of the Ministry of National Health Services, Regulations and Coordination. DOMC is primarily responsible for malaria surveillance in Pakistan in collaboration with the provincial malaria control programs. The Global Fund (donor) is supporting the malaria control interventions in the highest burden sharing stratum-I districts located mainly in the provinces of Balochistan, Sindh, Khyber Pakhtunkhwa (KP) and FATA¹².

Malaria surveillance data from the public health facilities is reported through two parallel systems, namely the DHIS (introduced in 2008 for all districts) and MIS (only for the Global Fund supported districts). DHIS reports on all morbidity at health facility level while MIS is used in only the donor supported districts for malaria surveillance¹³. Fever cases with signs and symptoms of malaria are screened as suspected cases, confirmed through the microscopy or rapid diagnostic test (RDT) kits, and then reported in the DHIS and MIS according to the identified species, i.e. P. falciparum, P. vivax or mix cases on monthly basis (Figure 1). Data of five years as reported by the districts having both DHIS and MIS simultaneously from 2013 to 2017 was used for comparing the annual blood examination rate (ABER), test positivity rate (TPR) and annual parasite incidence (API).

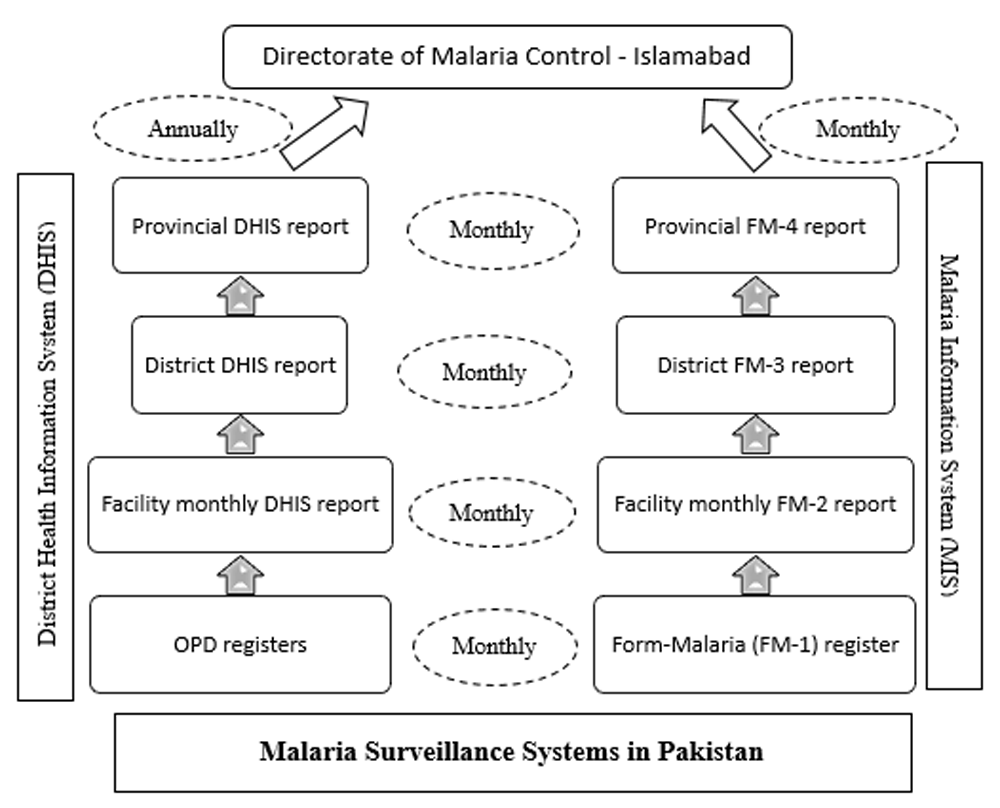

Figure 1. Malaria Surveillance Systems in Pakistan (information flow).

Results

During 2013–17, all districts (n=145, 100%) across Pakistan reported on DHIS. Reporting on the MIS increased gradually from 21 (14.5%) districts in 2013 to 72 (49.7%) districts in 2017. (Figure 2) For this study, data of only those districts was analyzed which had reported simultaneously on the DHIS and MIS during these five years. (Table 1)

Figure 2. Trends in number of districts reporting on DHIS and MIS for malaria in Pakistan, 2013–2017.

DHIS=District Health Information System, MIS=Malaria Information System, API=Annual Parasite incidence, TGF= The Global Fund, *MIS-reported API= The cases include cumulative figures for only the Global Fund supported districts for 2013–2017, *DHIS-reported API= The cases include cumulative figures for only the Global Fund supported districts for 2013–2017.

For screening the suspected malaria cases, DHIS reported a total of 4,260,610 suspected cases screened for malaria. During the same period, MIS reported a total of 8,540,702 suspected cases screened for malaria, which was 4,280,092 (100.5%) more than the DHIS from the same districts. The reported number of total confirmed malaria cases in the DHIS was 436,273. Out of these, P. vivax was the highest reported cause of malaria with 350,892 (80.4%), followed by P. falciparum (80,230, 18.4%) and mixed infection with 4,697 (1.1%). MIS reported 979,192 confirmed malaria cases during the same period for the same districts. P. vivax was the most reported cause of malaria (769,016, 78.5%), followed by P. falciparum (150,398, 15.4%) and mixed infection with 59,778 (6.1%). MIS reported 542,919 (124.4%) confirmed malaria cases more than the DHIS. (Table 2)

DHIS reported an average annual blood examination rate (ABER) of 3.3, test positivity rate (TPR) of 13.6, and annual parasite incidence (API) of 4.4 for the five years. MIS reported an average ABER of 7.1, TPR of 12.7 and API of 9.3. The difference in the reported ABER was 3.8 (115.2%), TPR was -0.9 (6.6%) and API was 4.9 (111.4%). (Table 2)

Discussion

Pakistan like other low and middle-income countries (LMICs) has substantial reliance on external funding¹⁴. The Global Fund providing 50 percent of all international financing for malaria, has been supporting the Government of Pakistan for the control of TB, AIDS and malaria since 2003³. This support has been mainly targeted for decreasing the burden of disease in the highest endemic districts of the country through the provision of prompt diagnostic, treatment, and preventive services for malaria¹³. Keeping in view the importance of surveillance, the Ministry of Health in Pakistan has taken strengthening the Health Information Systems as a major thematic pillar under the 10 years National Health Vision¹⁵. However, studies in Pakistan have highlighted issues related to the data reliability, and concrete data analysis in various health programs¹⁶.

Disease reporting in Pakistan across all provinces and at the federal level is carried out through the DHIS and several other parallel surveillance systems for the diseases according to the specific needs of the programs. Some of these parallel systems include Malaria, Dengue, TB, EPI, and HIV/AIDS. DHIS is the nation-wide health information system which is being used for reporting of the district level aggregated data from all the public health facilities¹⁷.

Our study shows that reporting coverage through the MIS, which is mainly used for reporting malaria in high burden districts of the country, has been increasing gradually from 21 to 72 districts from 2013–17. Balochistan and FATA provinces have the highest average number of districts reporting on both DHIS and MIS, which may be due to the highest annual parasite incidence in these provinces; hence they are supported by donor funds by the national program, and prioritized for malaria control interventions¹⁸.

This study reveals major differences in the numbers of suspected screening for malaria and confirmed malaria cases reported between the two surveillance systems. A consistent under-reporting of suspected and confirmed malaria cases was seen in the DHIS as compared to MIS. This is contradictory to the findings of another recent study conducted in Swaziland comparing three reporting systems in malaria elimination settings where the national reporting system was found to be over-reporting malaria cases¹⁹. Although both the DHIS and MIS are paper based surveillance systems, the difference in reported number of suspected cases screened and malaria confirmed cases observed from this study is very high. The reported confirmed malaria cases in MIS are 121.9% more as compared to the DHIS. Another study conducted in Malawi on data quality has shown discrepancy of 12–24% between paper-based and electronic data systems²⁰. Ideally, there should be no variance between the two surveillance systems as the reported data is from same health facilities within the same districts.

The huge difference and under-reporting of malaria figures from DHIS may be due to several reasons. First, the start of donor support for malaria control interventions in the country has brought with it an additional reporting system to the DHIS, i.e., the MIS which is more comprehensive, and has many additional indicators as per the donor requirement. The MIS has its own data recording and reporting tools at the health facility level in parallel to already existing tools for DHIS. When there are parallel reporting systems with different recording and reporting tools in the same health facilities, the data quality is usually compromised as entering the data into separate platforms results in more errors¹⁹.

The second important factor to be explored will be that of who is responsible for data entry and reporting into DHIS and MIS at the very basic level, i.e. the health facility and district levels. Thirdly, there was considerable under-reporting of confirmed malaria cases in the DHIS. A possible reason may be that the tools in the DHIS are more specific for screening of malaria suspects with microscopy, which is the gold standard for confirmed diagnosis of malaria cases. However, DOMC with the support of the Global Fund grant, introduced RDT kits in health facilities without microscopy diagnosis facilities in the high burden districts, mostly in Basic Health Units (BHUs). This may have resulted in screening of more suspects using RDT at these health facilities and reporting of more confirmed cases. The cases screened and confirmed through RDTs may not have been reported into the DHIS by many of these centers as RDT is a relatively new diagnostic method²¹.

The study strengths are that the national surveillance data reported to routine program settings was used for analysis which is likely to reflect the reality on the ground. All districts reporting simultaneously on DHIS and MIS over the span of five years were included in the study across all provinces of Pakistan. The data reported in the MIS has been used as the benchmark as this database is carefully supervised and validated at the district level on a quarterly basis. The Global Fund grant has comprehensive data validation and quality assurance mechanisms in place hence we believe that the MIS data is more reliable²².

The current study is limited by the fact we did not have facility level data for analysis and we did not explore the exact reasons for observed discrepancies between the two surveillance systems. In-depth interviews of the district level supervisors and data entry operators for the DHIS and MIS along with the health facility staff actively involved in reporting on the two systems may help in better understanding of the dynamics and reasons for these discrepancies.

Despite of these limitations, the findings have a number of policy and practice implications. In the context of devolution in Pakistan, DHIS has utmost importance for timely surveillance of communicable diseases at the provincial level. MIS, being donor driven, is present in only around half of the country. The major concern in regards of the under-reporting seen in the DHIS is that the true malaria burden may be under-estimated. This under-reporting of the confirmed malaria cases can delay the early detection of malaria outbreaks predisposing the population to malaria epidemic. Moreover, the data from DHIS is used for decision making, disease prioritization and resource allocation according to the reported disease burden in the provinces. Under-reporting from DHIS will result in reporting of false burden of malaria cases, i.e. fewer cases than actual. This may result in lesser disease prioritization due to false reporting of low disease burden and hence less resource allocation.

Further research is required at the health facility, district and provincial levels to assess whether there is any mechanism for data validation, combined reporting, comparison and coherence for the DHIS and MIS data before being finalized for reporting into the two parallel systems. This is important as continuous validation of the health facility data is important before reporting into various systems²³. The DHIS-2 being a free and open source, web based software may be the potential option for improving the completeness and quality of surveillance data being reported for malaria surveillance^24,25.
