Brief Report

Cryopreservation of orchid seeds through rapid and step freezing methods

[version 1; peer review: 1 approved, 2 approved with reservations]

Marco Cerna¹, Paulina Valdivieso², Rino Cella³, Bence Mátyás ⁴, Cristina Aucapiña¹

Marco Cerna¹, Paulina Valdivieso², [...] Rino Cella³, Bence Mátyás ⁴, Cristina Aucapiña¹

PUBLISHED 20 Feb 2018

Author details Author details

¹ Carrera de Biotecnología de los Recursos Naturales, Universidad Politécnica Salesiana, Quito, Ecuador
² Jardín Botanico “Orquídeas de Sarina”, Quito, Ecuador
³ Laboratorio de biologia molecular vegetal, University of Pavia, Pavia, Italy
⁴ Grupo de Investigación Mentoria y Gestión del Cambio, Universidad Politécnica Salesiana, Cuenca, Ecuador

Marco Cerna
Roles: Conceptualization, Investigation, Methodology, Writing – Original Draft Preparation

Paulina Valdivieso
Roles: Investigation, Methodology

Rino Cella
Roles: Investigation, Methodology, Writing – Original Draft Preparation

Bence Mátyás
Roles: Project Administration, Writing – Original Draft Preparation, Writing – Review & Editing

Cristina Aucapiña
Roles: Investigation, Methodology, Writing – Original Draft Preparation

OPEN PEER REVIEW

REVIEWER STATUS

Abstract

Ecuador has a great variety of climatic regions that potentiate biodiversity. The family Orchidaceae constitutes one of the most important of the country, having identified about 4032 species with a high degree of endemism, therefore the development and research of alternative methods of storage and conservation of species is a strategy of primary interest for researchers and for society in general. In cryopreservation, temperatures reach below -190°C in order to paralyze the chemical reactions and keep the plant material viable for long periods. The present research focuses on the development of protocols for cryopreservation of seeds, aimed at the preservation of biodiversity, focusing on the family Orchidaceae, for the subsequent generation of a seed bank. The assays were performed on seeds of Epidendrum quitensium, Sobralia rosea, and Epidendrum anderssonii. Two freezing rates were tested: rapid freezing at -196°C; and step freezing at -22°C, -60°C to 196°C, further analyzed four combinations from Dimethylsulfoxide DMSO, glycerol and sucrose (DMSO 1M; DMSO 1M + glycerol 1M; DMSO 1M + sucrose 1M; DMSO 1M + glycerol 0,5M + sucrose 0,5M). The best results were obtained both in rapid and stepped freezing without the use of cryo-protective substances, by introducing the seeds directly into liquid nitrogen. Species of the genus Epidendrum presented a more efficient response in comparison to Sobralia. The viability of the seeds was evaluated by the tetrazolium test.

Keywords

Orchidaceae, Epidendrum, Sobralia, seeds, cryoconservation, liquid nitrogen, Tetrazolium.

Corresponding author: Bence Mátyás

Competing interests: No competing interests were disclosed.

Grant information: The author(s) declared that no grants were involved in supporting this work.

Copyright: © 2018 Cerna M et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. Data associated with the article are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).

How to cite: Cerna M, Valdivieso P, Cella R et al. Cryopreservation of orchid seeds through rapid and step freezing methods [version 1; peer review: 1 approved, 2 approved with reservations]. F1000Research 2018, 7:209 (https://doi.org/10.12688/f1000research.13622.1) First published: 20 Feb 2018, 7:209 (https://doi.org/10.12688/f1000research.13622.1) Latest published: 20 Feb 2018, 7:209 (https://doi.org/10.12688/f1000research.13622.1)

Introduction

The Republic of Ecuador is located on the South American continent. From north to south the country is crossed by the Andes mountain range and has four climatic regions: Coast, Andes, Amazon and the Insular region¹. Its position in the middle of the world, the luminous intensity, the ocean currents and the different altitudes produce 82 types of ecosystems (see Ministry of Environment document on ecosystems in Ecuador) There is a great variety of climatic regions that have an important effect in the diversification of plant formations². Concerning the Orchidaceae family, in Ecuador as of 2010, 4032 species of orchids have been identified, of which 1714 (42.5%) are endemic³; 4.5% of the orchids of the planet are found in Ecuador. Seed banks allow the conservation of the biodiversity ex situ and prioritize species used for food, medicine and those in danger of extinction. Orchidaceae is a large family with many endangered species and all of them are included in the Convention on International Trade in Endangered Species of Wild Fauna and Flora (CITES) I and II⁴. Cryopreservation is an efficient strategy to safeguard these species, but unfortunately, orchid seeds have short lifetimes⁵; the longevity depends on the moisture content and storage temperature, so it is necessary to experiment with efficient storage systems for each species⁵. The advantages of cryopreservation are: storage for an indefinite period, genetic stability of the individuals, reduced infrastructure, can have independent energy and the stored genetic material does not require manipulation⁶.

Therefore, the objective of this research was to define protocols for cryopreservation of orchid seeds, in order to install a seed bank that promotes the conservation of vulnerable species.

Methods

Collection of biological material

The collection of plant material was made through the authorization of the Ministry of Environment of Ecuador No. 17-2011- Investigación-B- DPMS/MAE,FloraX, N0. 08−2013−0869−I C_FAU−F LO−DAPI −UNO−MAE and the Botanical Garden "Orquídeas de Sarina" patent No. 006-2015- FLO-DPAP- MA.

The cryopreservation tests were developed with the seeds of 3 species: Epidendrum quitensium Rchb.f., Sobralia rosea Poepp. & Endl. and Epidendrum anderssonii Hágsater & Dodson (Figure 1). The cryopreservation tests were developed with 3 species:

• 2392 Epidendrum quitensium Rchb.f., (0° 17’52.1"N 78° 22’33.3"W 3200 msnm)
• 2420 Sobralia rosea Poepp.& Endl. (0° 52’11.8"N 78° 26’53.8"W 600 msnm)
• 2706 Epidendrum anderssonii Hágsater&Dodson (0° 50’36.2"N 78° 25’01.5"W 1200 msnm)

Figure 1. Orchids used for cryopreservation tests.

A) Epidendrum quitensium, B) Sobralia rosea, C) Epidendrum anderssonii.

The species pertain to three different altitudes and were selected from many sources and have capsules with viable seeds. The seeds collected from the forest were stored in an absorbant paper bag with respective codes for the plant, after they were stored in a Ziplock bag with rice of 12% humidity.

Freezing speed

Two types of freezing were tested, suggested according to Mroginski et al⁷. The sample units had 0.2 g of seeds stored in cryo tubes (091.11.102, ˙ISOLAB, Wertheim, Germany) of 2 ml. Steps of freezing: freezing was carried out in the following sequence, 0°C for 1 hour by placing the samples in an refrigerator (Electrolux, Stockholm, Sweden), -22°C for 1 hour placing the seeds in a freezer (Selecta Templow, Barcelona, Spain), - 60°C for 1 hour inserting the seeds in an ultra low temperature freezer (New Brunswick Scientific, Edision, NJ, USA), then the seeds were held at 196°C by submerging the samples in liquid nitrogen contained in a thermal container. Finally the samples were placed in racks and stored in a thermal tank (STATEBOURNE biorack 5400, Washington, UK). Rapid freezing: the samples were placed directly in liquid nitrogen at 196°C by immersion using a procedure similar to that used in steps of freezing. In addition, four combinations of cryo preservatives were analyzed: 1- DMSO 1M (Fisher Scientific, Hampton, NH, USA); 2- DMSO 1M (Fisher) – glycerol 1M; 3- DMSO 1M (Fisher) – sucrose 1M; 4-DMSO 1M (Fisher) – glycerol 0.5M – sucrose 0.5M (Fisher) (Table 1).

Table 1. System design and freezing seed symbology used for cryoprotective substances and their concentrations.

M: molar.

TYPE OF FREEZING
GRADUAL (P)		Rapid (F)
0° ___ -22° ___ -60° ___ -196		-196°
CRYOPRESERVANTES	SYMBOL	CONCENTRATION
NONE	N
DMSO	D	1M
GLYCEROL	G	1M	0,5M
SUCROSE	S	1M	0,5M
COMBINATION OF CRYOPRESERVANTES
NONE			N
DMSO 1M			D
DMSO 1M	GLYCEROL 1M		DG
DMSO 1M	SUCROSE 1M		DS
DMSO 1M	GLYCEROL 0,5M	SUCROSE 0,5M	DGS

Seed viability

Seed viability was tested after freezing. Briefly, 5mg of seeds was added to 1.5 ml of 10% sucrose solution and left at 25° C for 24 hours, the seeds were washed with water and 1ml of triphenyl tetrazolium chloride solution (TTC, 1%) (Sigma-Aldrich, St Louis, MI, USA) was added, and then incubated at 40° C for 24 hours. Finally, the seeds were washed with sterilised water and observed under the microscope with a 4x lens (MC100Led, MI-CROS, St. Veit/Glan, Austria). The process for calculating the TTC method was carried out as follows: -Observe the seeds in microscope using lense 4X. -Identify viable seeds and non viable seeds. -Use cross multiplication to determine the average of viability of all seeds.

Statistical analysis

The experimental design 2x5 with three repetitions was applied to analyse the freezing methods (Table 2). The results were analyzed by unidirectional ANOVA with 95% confidence. To determine the best treatments the Duncan test was used. This analysis was carried out with RStudio 3.1 (package: Agricolae).

Table 2. Experimental design, testing orchid seeds cryopreservation - design 2x5 with three repetitions, Symbols (N: none, D: DMSO, G: glycerol, S: sucrose, P: Freeze steps, R: Rapid).

	STEP (P)			FAST (R)
	P1	P2	P3	R1	R2	R3
N	PN1	PN2	PN3	RN1	RN2	RN3
D	PD1	PD2	PD3	RD1	RD2	RD3
DG	PDG1	PDG2	PDG3	RDG1	RDG2	RDG3
DS	PDS1	PDS2	PDS3	RDS1	RDS2	RDS3
DGS	PDGS1	PDGS2	PDGS3	RDGS1	RDGS2	RDGS3

Results

The seeds were considered viable when red coloration of the embryo was observed⁸ (Figure 2).

Figure 2. TTC-stained seeds subjected to the "stepped" cryopreservation process without any cryopreservation substances.

Viable seeds (dark red embryos) and non-viable (pale embryos). A) Epidendrum quitensium, B) Sobralia rosea, C) Epidendrum anderssonii.

According to the data obtained (Table 3, Figure 3), there is a significant difference in the results when comparing the data between the species and between the treatments. According to the Duncan test, the best treatments were rapid freezing and step freezing without the use of cryopreservatives. The least efficient treatment was step freezing with the use of DMSO as a cryopreservant (Table 4). The species Epidendrum quitensium and Epidendrum anderssonii showed better results (Figure 4).

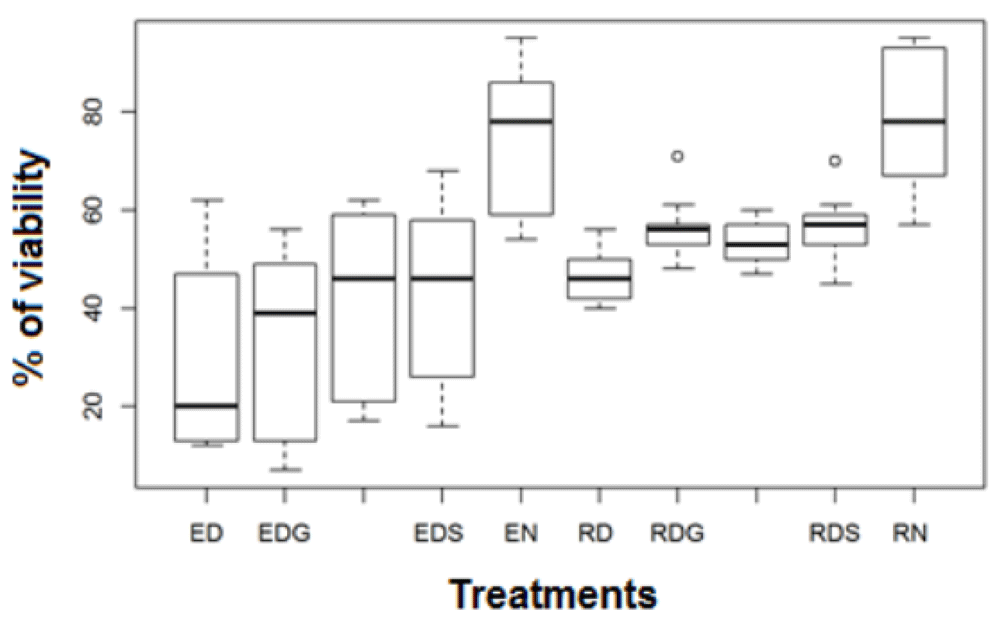

Figure 3. Seed cryopreservation: variability by treatment.

Results obtained using the Tukey test.

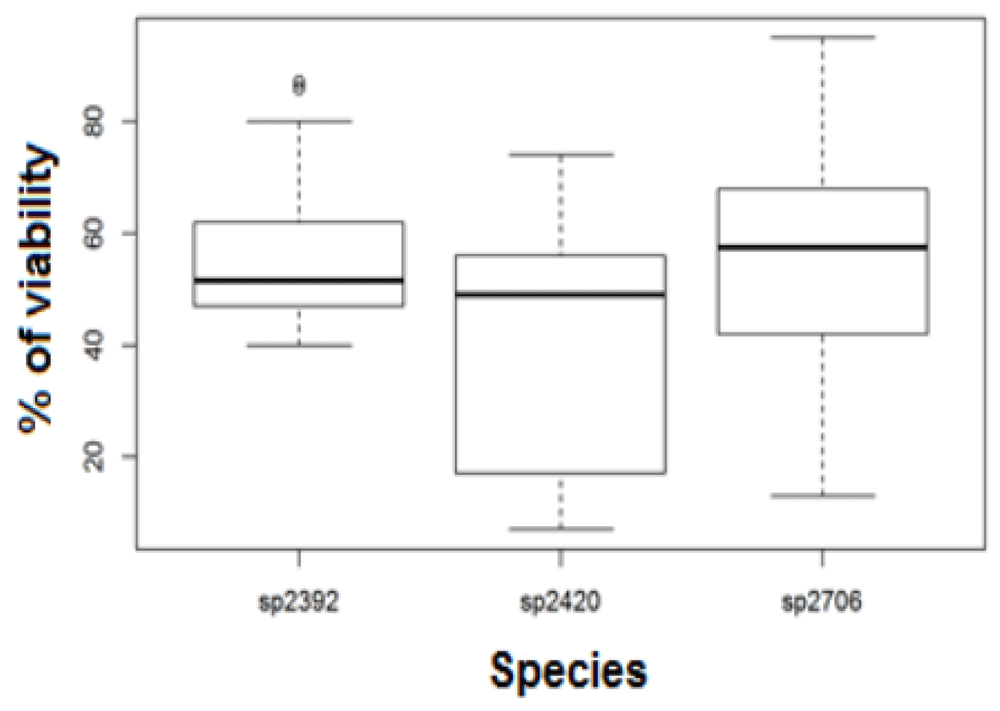

Figure 4. Cryopreservation of seeds: variability by species. Results obtained using the Duncan test, sp2706 (T57.2), sp2392 (T 57.03), sp2420(T39.37).

Table 3. Cryopreservation of orchid seeds.

Values represent percentage of viability assessed by the TTC method, N: cryo preservative; D: DMSO; S: sucrose; G: glycerol.

		Step
CI	Species	N	D	DG	DS	DGS
2392	Epidendrum quitensium	83.20	54.87	83.20	46.36	47.01
2420	Sobralia rosea	55.93	12.29	10.72	19.34	18.88
2706	Epidendrum anderssonii	93.50	40.88	51.81	62.84	55.94
		Rapid
2392	Epidendrum quitensium	74.79	48.29	62.87	52.79	51.73
2420	Sobralia rosea	65.60	50.15	55.04	52.72	52.52
2706	Epidendrum anderssonii	84.49	18.57	41.07	63.08	60.10

Table 4. Duncan test groups obtained after cryopreservation test.

Results are given as orchid seed viability percentage; a, b, c and d, indicate groups with statistical significance. Classification was made under an alpha of 0.01, and 78 degrees of freedom for error. Symbols (treatment): N: none, D: DMSO, G: glycerol, S: sucrose. Symbols (types of freezing) P: Freeze steps, R: Rapid.

#	Treatment	Mean
1	RN	78.00	a
2	PN	74.66	a
3	RDG	56.66		b
4	RDS	56.00		b
5	RDGS	53.33		b	c
6	RD	46.55		b	c
7	PDS	43.00			c	d
8	PDGS	41.88			c	d
9	PDG	33.33				d	e
10	PD	28.55					e

Dataset 1.Dataset 1. TTC-stained seeds subjected to the “Rapid” cryopreservation process: Epidendrum quitensium.

http://dx.doi.org/10.5256/f1000research.13622.d194233

Dataset 2.Dataset 2. TTC-stained seeds subjected to the “Rapid” cryopreservation process: Sobralia rosea.

http://dx.doi.org/10.5256/f1000research.13622.d194234

Dataset 3.Dataset 3. TTC-stained seeds subjected to the “Rapid” cryopreservation process: Epidendrum anderssonii.

http://dx.doi.org/10.5256/f1000research.13622.d194235

Dataset 4.Dataset 4. Percentage for seed viability calculations.

http://dx.doi.org/10.5256/f1000research.13622.d194236

Discussion

Currently, cryopreservation is a safe and cost-effective option for the conservation of endangered species⁹. In the present investigation, a protocol was developed for cryopreservation of orchid seeds that provides a high percentage of viability, is easy to apply and economical. The seeds of orchids frozen at -196°C can be kept alive with a moisture content of 12% and do not require cryo-protective substances, confirming what is described by Iriondo et al. and others^10,11. The use of cryopreservatives is recommended for seeds with a high moisture content, as stated by Reed and others^12–14. Furthermore, Harding¹⁵ states that it is necessary to demonstrate the genetic stability of plants regenerated from cryopreserved plant material to approve their release and reintroduction into the environment; but to date, there have been no reports showing changes at the phenotypic, biochemical, chromosomal or molecular levels attributed to storage systems by cryoconservation¹⁴. The cryoconservation method that gave the best results was the “Rapid” freezing without the addition of any cryopreservative substance.

Data availability

Dataset 1: TTC-stained seeds subjected to the “Rapid” cryopreservation process: Epidendrum quitensium 10.5256/f1000research.13622.d194233¹⁵

Dataset 2: TTC-stained seeds subjected to the “Rapid” cryopreservation process: Sobralia rosea 10.5256/f1000research.13622.d194234¹⁶

Dataset 3: TTC-stained seeds subjected to the “Rapid” cryopreservation process: Epidendrum anderssonii. 10.5256/f1000research.13622.d194235¹⁷

Dataset 4: Percentage for seed viability calculations 10.5256/f1000research.13622.d194236¹⁸

Competing interests

No competing interests were disclosed.

Grant information

The author(s) declared that no grants were involved in supporting this work.

Faculty Opinions recommended

References

1. Neill D: Geografía. En Jørgensen P, & P. & S.L.-Y. (Ed.), Catalogue of the vascular plants of Ecuador. Missouri Bot. Gard. 1999; 1181. Reference Source
2. Endara L, Jost L: Orchidaceae. En León-Yánez S, Valencia R, Pitman N, Endara L, Ulloa C, Navarrete H, El libro rojo de las especies endémicas del Ecuador. (Segunda edición ed.). Quito, Ecuador: Herbario QCA, Pontificia Universidad Católica del Ecuador. 2010.
3. Cerna M, Aucapiña C, López, P: Definición de protocolos para el uso de fitohormonas en el crecimiento de orquídeas a nivel in vitro. (Olmedo GF, Ed.) ESPE: Revista Congreso de Ciencia y Tecnología, 2016; 11. : 12–19. Reference Source
4. Wolfgang S: Orchid seeds– Nature’s tiny treasures. London: Kew Royal Botanical Garden. Recuperado el 12 de Enero de 2015, de, 2013. Reference Source
5. Hine A, Vargas P, Abdelnour A: Crioconservación de semillas de teca (Tectona grandis L.f). Agronomía Costarricence. 2013; 37(1): 51–60. Reference Source
6. Mroginski L, Roca W, Kartha K: Crioconservación del germoplansma. En Roca W & L M, Cultivos de tejidos en la agricultura: Fundamentos y aplicaciones. Cali, Colombia: CIAT. 1991; 715–730Reference Source
7. Machado-Neto N, Custódio C, Hosomi S, et al.: Orchid seed Stores for Sustainable Use: Fast protocol for Tetrazolium test in orchid seeds. OSSSU.ORG. 2009. Reference Source
8. Gonzáles M, Engelmann F: Crioconservación de plantas en América Latina y el Caribe. San José, Costa Rica: IICA. 2013. Reference Source
9. Iriondo J, Pérez C, Pérez-García F: Effect of seed storage in liquid nitrogen on germination of several crop and wild species. Seed Sci Technol. 1992; 20: 165–171. Reference Source
10. Abdelnour A, Alvarado C: Crioconservación de semillas y protocormos de especies de la familia Orchidaceae en peligro de extinción. Costa Rica: Instituto Tecnológico de Costa Rica. 2013. Reference Source
11. Reed BM: Implementing cryogenic storage of clonally propagated plants. Cryo Letters. 2001; 22(2): 97–104. PubMed Abstract
12. Gonzales MT, Engelmann F: Cryopreservation of plant germplasm using the encapsulation-dehydration technique: review and case study on sugarcane. Cryo Letters. 2006; 27(3): 155–168. PubMed Abstract
13. Engelmann F: Integration of cryopreservation in plant genetic resource conservation strategies in France. Cryo Letters. 2010; 31–82.
14. Harding K: Genetic integrity of cryopreserved plant cells: a review. Cryo Letters. 2004; 25(1): 3–22. PubMed Abstract
15. Cerna M, Valdiviezo P, Cella R, et al.: Dataset 1 in: Cryopreservation of orchid seeds through rapid and step freezing methods. F1000Research. 2018. Data Source
16. Cerna M, Valdiviezo P, Cella R, et al.: Dataset 2 in: Cryopreservation of orchid seeds through rapid and step freezing methods. F1000Research. 2018. Data Source
17. Cerna M, Valdiviezo P, Cella R, et al.: Dataset 3 in: Cryopreservation of orchid seeds through rapid and step freezing methods. F1000Research. 2018. Data Source
18. Cerna M, Valdiviezo P, Cella R, et al.: Dataset 4 in: Cryopreservation of orchid seeds through rapid and step freezing methods. F1000Research. 2018. Data Source
