A retrospective review on minimally invasive technique via endoscopic thoracic sympathectomy (ETS) in the treatment of severe primary hyperhidrosis: Experiences from the National Heart Institute, Malaysia

Introduction

Hyperhidrosis is a pathological condition of excessive sweating beyond the physiological needs for thermoregulation, which may severely disrupt a person’s quality of life and make their social interaction difficult^1,2. Primary hyperhidrosis results from the overactive sudomotor system which controls sweat output with no apparent cause². And it is important to differentiate this condition from secondary hyperhidrosis, which can be due to many conditions including endocrine disorders, infection, genetic, malignancy, neurologic and miscellaneous causes³.

Epidemiological studies in the United States^4,5 indicated that the prevalence of hyperhidrosis ranged from 0.6% to 9% in the particular populations studied; indicating this disease is not a rare event. It is interesting to note that the prevalence outside the United States are significantly higher and vary extensively. The observed prevalence of primary hyperhidrosis is 13.9% in Japan, 14.5% in China, 16.3% in Germany, 16.7% in Canada and 20.3% in Sweden^6–9. And over the past several decades, different researchers^10–13 have speculated positive family histories in patients with primary hyperhidrosis, widely ranging from 5% to 50%; however, there was no substantial data being offered until recently. Ro et al.¹⁴ also reported in 2002 that patients with hyperhidrosis had 65% genetic prevalence of autosomal dominance with variable penetrance and with no evidence of sex-linked transmission. This means that a child of a parent with hyperhidrosis has a 25% chance of developing hyperhidrosis due to the likelihood of phenotypic expression of 0.28. It is also important to note that there is potential genetic linkage to chromosome 14³.

There are important anatomic points that need to be understood as they relate to the main intervention discussed in this paper; however, it should be understood that the neuroanatomy of the sweating mechanism is complex beyond the scope of this paper. In relation to hyperhidrosis, the anatomy involves nerve fibers that originate from the hypothalamic preoptic sweat center to the spinal cord where they meet and synapse with the preganglionic fibers. These fibers then leave the spinal cord coursing along the ventral nerve roots and terminate in the sympathetic ganglia^15,16. In the sympathetic ganglion, pre- and postganglionic fibers synapse, which then track peripherally and end at their target organs, in this case, the sweat glands¹⁶ (Figure 1).

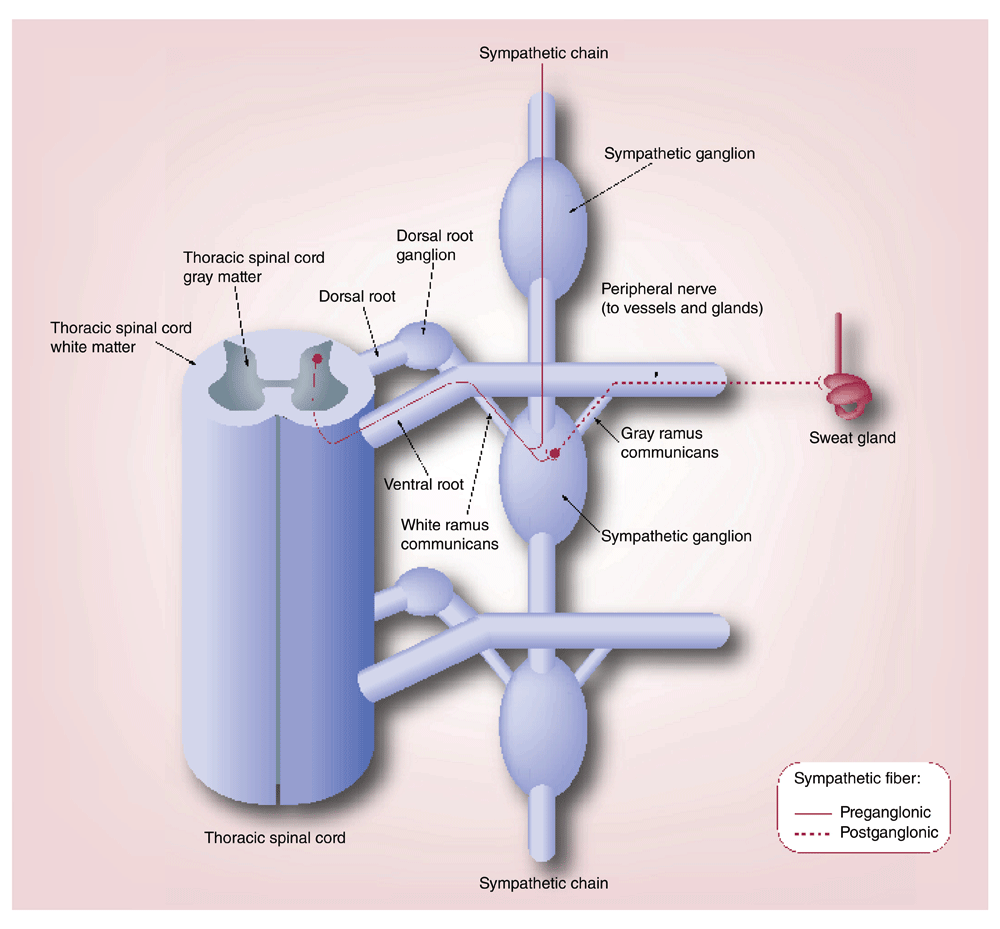

Figure 1. Anatomy of the sympathetic chain in relation to the spinal cord and sweat glands as the target organ¹⁶.

Reprinted from Thoracic Surgery Clinics, Volume 18, Issue 2, Shargall Y, Spratt E, Zeldin RA. Hyperhidrosis: What is it and why does it occur? Pages 125–132, Copyright (2008) with permission from Elsevier.

The pathophysiology of the underlying hyperhidrosis is intricate and not fully understood, although, it is commonly believed to stem from an exaggerated central response to normal emotional stress or environmental stimuli. In most cases, it occurs intermittently and spontaneously. And it should not be considered as a psychiatric disorder¹⁷. In primary palmar hyperhidrosis, there is a hyper-functioning emotional element of the central sudomotor nervous system, substantiated by the observation that excessive sweating does not transpire during sleep and is aggravated by emotional stimuli. The body undergoes a number of physiological changes during mental stress such as increased skin sympathetic nerve activity, excessive sweating, pronounced vasoconstriction and a concomitant increase in evaporation jointly termed as “cold and clammy” hands^18,19.

While the treatment of primary hyperhidrosis could be medical or surgical, this paper will focus on the surgical aspect of minimally invasive surgery known as endoscopic thoracic sympathectomy (ETS). Most ETS procedures are done bilaterally, with denervation of the sympathetic chain on both sides, and hence, the lungs have to be deflated in order to reach the sympathetic chain. Single lung anesthesia is accomplished by the placement of a suitable sized single or double lumen endotracheal tube. Most literatures^20–24 describe the use of a double lumen tube rather than single, which is what our center practiced, as it is easier to achieve a single lung separation. At our center, two incisions are made for thoracoscopic access and ports with lumens. The skin incisions, of about 15mm, are made around the mid-axillary line over roughly the fifth intercostal space. After the underlying lungs are collapsed on one side, the pleural space is entered by blunt dissection. A 5 or 10mm 0-degree thoracoscope is introduced into the cavity. Under endoscopic guidance, a second “stab” incision is made near the sub-mammary fold.

The upper thoracic sympathetic trunk is located underneath the pleura as it traverses over the neck of the ribs. It can be usually confirmed by passing a probe along the neck of the rib and feeling the string-like solid trunk. The cervicothoracic (stellate) ganglion is obscured as it lies beneath a distinctive fat pad on the neck of the first rib. The first and the second rib can be distinguished by the location of the supreme intercostal artery and by the curvature of the rib²⁵. There is some controversy in regards to reaching a consensus as to which level of the ganglion (T2–T4) should be resected to achieve best results. The sympathetic chain is then resected, transected or ablated with a cautery, or divided with a harmonic scalpel or a clip is used, depending on the center and surgeon performing the surgery, though we at the Institute practiced thermo-resection and stripping. It is vital to identify and divide the Nerve of Kuntz. But cauterizing the trunk above the T2 ganglion should be done with caution as there is a risk of causing Horner’s syndrome, characterized by miosis, partial ptosis, anhidrosis, and enophthalmus, which is a disastrous and avoidable complication²⁶. After completing the surgery, an apical chest drain is placed at the anterior wound and the lung is re-inflated. And the procedure is then repeated on the other side.

It is interesting to note, at this stage, based on an analysis of forty-two different ETS techniques by Kopelman and Hashmonai²⁷, there were no distinct differences shown by the different techniques; if the correct level of interruption is achieved, the results are excellent and reproducible. The most imperative notion about nerve disruption is that there is adequate separation between the ends of the chain so that regeneration is halted. Although resection yields better results in terms of lower recurrence rates, most ETS procedures prefer ganglionic thermo-ablation or thermo-transection of the chain due to the relative simplicity of the latter rather than endoscopic resection^28–30.

Although ETS is a minimally invasive procedure aimed at improving the quality of life, it is not without complications. The main side effects of ETS for hyperhidrosis are compensatory sweating (CS), bradycardia, and Horner’s syndrome. Chou et al. comments that generally, “the higher the level of interruption on the chain, the higher is the expected regret rate”³¹. Horner’s syndrome is an undesirable complication, with its occurrence following surgery ranging widely from 0% to 40%^32–34. The rate of this complication occurring is higher in patients who undergo ETS for facial hyperhidrosis, as injury by electrocautery, thermo-ablation, traction, or surrounding inflammation can occur due to improper identification of the second rib. Phantom sweating and gustatory sweating are two side effects of ETS and the etiology of which still remains obscure^35,36. The former is a sensation of sweating in the target area after sympathectomy without any physical evidence of sweating, whereas the latter is mainly sweating on the face triggered by spicy and some other foods. Bradycardia has also been noted in several studies^37,38 after ETS for hyperhidrosis.

CS is by far the most troublesome and disagreeable complication of ETS, producing subjective and objectively quantifiable increased sweating in body segments usually below the area of denervation such as the torso, groin, and lower extremities. However, the wide disparity of the occurrence of CS displayed in the literature clearly highlights the lack of standardization in reporting data. It is mindboggling that the exact same procedure would have such a huge difference of CS rates as it ranges from 3% to 98%^39,40. Due to this unpredictable factor, all patients should be told preemptively of this possible complication and that it is irreversible⁴¹. The pathophysiology of CS remains unknown and has not been fully described by the literature. Available data regarding the pathophysiology of CS is not fully verified, hence, the mechanism of CS is said to be multifactorial and, thus, difficult to quantify³¹.

Methods

Results

Location of primary hyperhidrosis

All 118 patients had more than two areas affected by primary hyperhidrosis, hence they are grouped into areas that affected them the most (Figure 2). Out of the 118 patients, 64 had primary hyperhidrosis affecting their hands and feet, which accounts for the majority of the sample (54.2%). Patients who had the disease affecting their axilla and on top of their hands and feet accounted for 39.8% of the sample. The most severe presentation of primary hyperhidrosis, which affects more than three regions (hands, feet, axilla and the face) only totaled seven patients (5.9%). It is also important to note that one patient had isolated primary hyperhidrosis on the hands, but was lost to follow up, hence not included in this study.

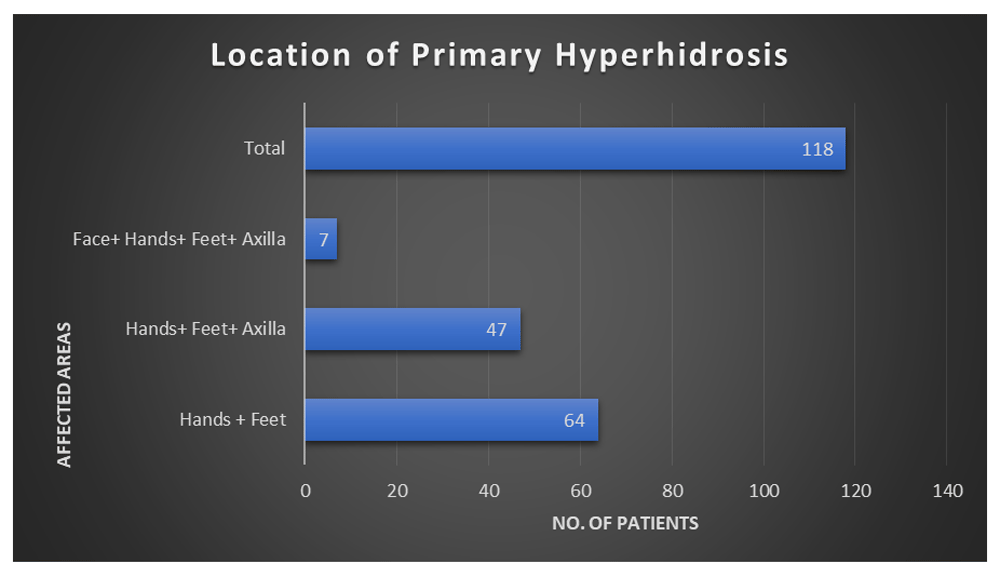

Figure 2. Distribution of primary hyperhidrosis by area affected.

Compensatory sweating

CS is a pertinent factor whenever ETS is performed for primary hyperhidrosis. It is one of the major factors that have always influenced the decision as to whether ETS should be done or not. In our study, the rate of CS was 58.5% (Figure 3).

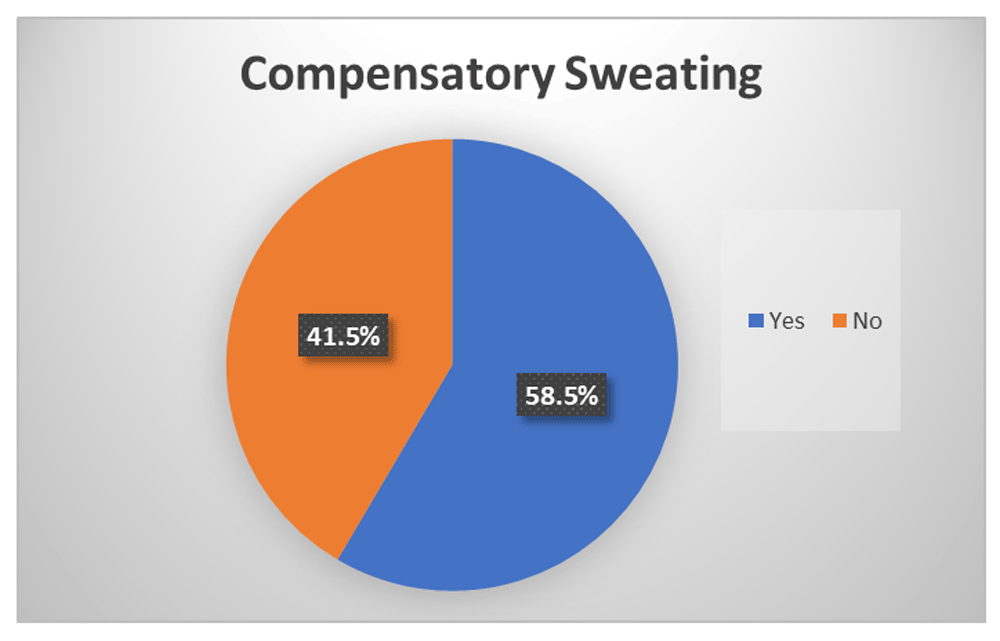

Figure 3. Distribution of patients reporting compensatory sweating.

Of those who developed CS, 52.2% reported the mild form of CS (Figure 4). It means that the majority of patients experienced a much more tolerable form of CS compared to their palmar hyperhidrosis. Only 15.9% of those who developed CS reported the severe form CS and described the severity and location of the sweating as worse than their initial condition. Some also regretted their decision to have the surgery.

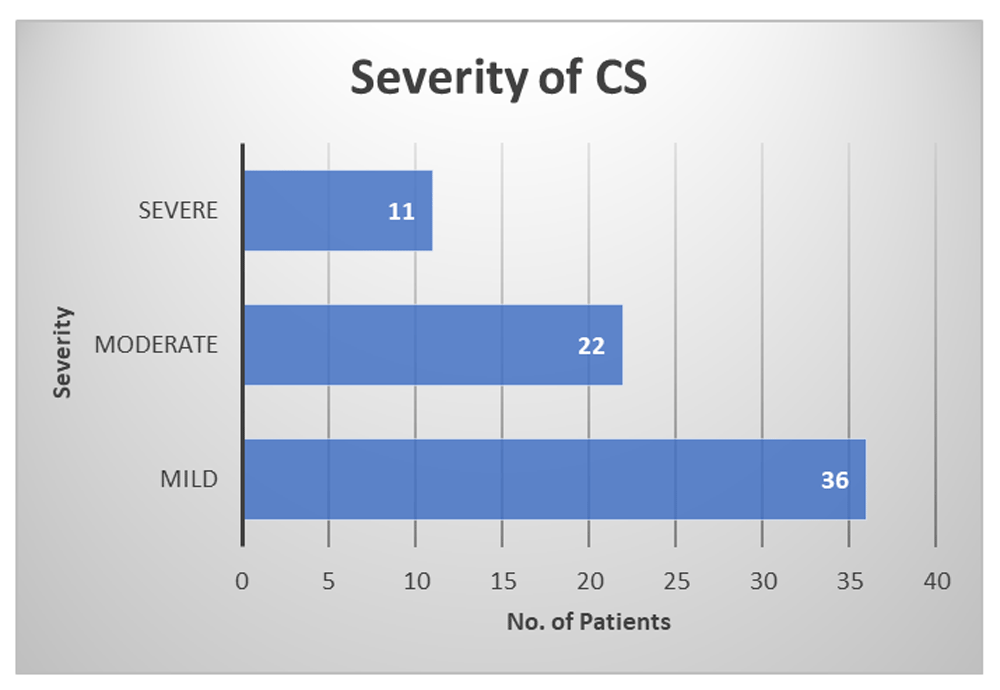

Figure 4. Distribution of patients affected by compensatory sweating (CS) according to severity.

There are many areas that may be affected by CS post-ETS. These areas have been grouped according to their frequency. The area that was most affected by CS was the back (29.0%) whilst the least being the chest and face (2.9%). There appears to be a certain predilection to the combination of areas where CS affected the most. CS occurring at the back and back of thighs was as high as 18.8% followed by 14.5% at the trunk and back of thighs. Other areas affected by CS post-ETS are shown in Table 5 below.

Table 5. Distribution of areas affected by compensatory sweating (CS) post-endoscopic thoracic sympathectomy.

Areas affected by CS	Number of patients	%
Back	20	29.0
Chest	2	2.9
Abdomen	9	13.0
Back of thighs	4	5.8
Face	2	2.9
Back of thighs + back	13	18.8
Chest + abdomen	9	13.0

Patients who had CS and who had at least two follow-ups were also asked regarding the progression of CS. They were grouped into three categories: reducing, increasing or status quo. Out of the 69 patients who reported CS, the majority (88.4%) reported that their CS remained the same in their later follow-ups post ETS. Four (5.8%) patients claimed that their CS worsened over time and four (5.8%) patients claimed that their CS improved over time.

Discussion

The success rate of ETS for primary hyperhidrosis and the rate of CS are often used to measure how effective ETS is for primary hyperhidrosis in a particular center. Having a high rate of success and also a high rate of CS decreases the overall satisfaction of the patients after surgery. That being said, CS which is severe in nature is the worse outcome we would expect post-ETS. Most patients reported to be happy with having mild CS compared to primary hyperhidrosis on their palm⁴².

The strength of our study focuses on the relatively large sample size with a good multiracial distribution among the major races in Malaysia compared to other studies internationally. It is also important to highlight that this is the first study of its kind in Malaysia that provides an excellent background of the success rate and occurrence rate of CS that could spearhead many future studies around primary hyperhidrosis and its treatment. But our study had slightly more males seeking ETS as a cure for primary hyperhidrosis compared to females (57% males versus 42% females). This differs from what many authors have reported as the majority of the papers^1,2,5,43,44 found that the incidence of primary hyperhidrosis in men and women are the same. Most of our patients who had ETS were Malays (79.7%) which tallies with our ethic predominance in Malaysia, as Malay race is the majority in Malaysia. Our analysis also shows that age, gender or BMI did not affect the rate of CS in these patients. A well-known study investigating factors affecting the outcome following ETS by Jaffer et al.⁴⁵ supports this notion as their findings also revealed that age, sex, and BMI did not affect the outcome of the surgery or the rate of CS.

In our study, the level of sympathectomy that was mainly used in this sample was T2-T3 that accounted for 55.9% of the surgeries followed by the T2, T3, and T4 level, which accounted for 41.5% of the surgeries. There were very little variations to the technique of sympathectomy between these two groups as both groups had their surgeries in a single center. Earlier in 1994, Herbst et al.⁴⁶ described the CS rate of 67.4% in T2-T4 resection at his center. However, Scognamillo et al.⁴⁷ reported that there were no differences between T2-T4 and T3-T4 sympathectomy in terms of efficacy and CS rates, the sample size for the T3-T4 group in our study was too small to be used as comparison for other two large groups. We had only three patients who underwent sympathectomy at levels T3-T4.

The mean duration of surgery in our center was 46.6 ±14.29 minutes. The duration of surgery varies in many studies but Ong et al.⁴⁸ from our neighboring country, have reported that their mean duration of surgery was 42 minutes. The duration of surgery has dramatically reduced from the time ETS was introduced in 1930s. Impressively, the mean duration of stay in the hospital in our sample was only 3.5 ± 1.05 days. The data was skewed slightly by nine patients who had long duration of hospital stay due to postoperative complications.

In our analysis, 98.3% of patients had complete relief of palmar hyperhidrosis post-ETS. The reported success rates for ETS in curing palmar hyperhidrosis around the world ranges between 94 to 100% with minimal recurrence rates^37,49–51. The degree of symptom resolution varied significantly according to regions affected by hyperhidrosis. The main indication for ETS in our group of patients was palmar hyperhidrosis. We noted that 42 out of 54 patients who also had axillary hyperhidrosis had partial reduction (60–90%) in their symptoms. Besides that, 74 out of 100 patients who also had plantar hyperhidrosis on top of their palmar hyperhidrosis had partial reduction (60–90%) in their symptoms as well. The success rates in treating axillary and plantar hyperhidrosis were reported to be lower, with higher failure rates compared to having ETS performed to treat palmar hyperhidrosis^46,52. We can conclude that ETS does not only cure palmar hyperhidrosis, but also reduces plantar and axillary hyperhidrosis. Although techniques and methods used to interrupt these chains vary between studies, if the correct level is interrupted, the results can be mimicked and this is indicated from the excellent success rate in our center.

The primary aim of this procedure was to improve the patients’ quality of life; hence, the complications should be minimal and essentially reduced. As expected, the most common post-operative complication in our study was CS. In our center, the CS rate is lower than average reported rate, 58.5%. Out of the 58.5% patient who had CS, the majority of them (30.5%) had mild form of CS. Most of our patients considered CS as a minor drawback, which is much more tolerable compared to their former condition. Only eleven patients (9.3%) who had the severe form CS regretted having the surgery. Twenty-two patients (18.6%) developed moderate CS in our study; but we were unable to assess how it affects them compared to their initial condition. It would be interesting to have longer follow-up to find out the progression of CS and also quality of life. Most of our patient had single follow-up, hence, we were unable to comment on the follow-up progression of CS. It is a common assumption that CS vanishes over time, but based on recent literature, this assertion is probably wrong. Herbst et al.⁴⁶ discovered that after 14 years of follow up, 67% of their patients still had CS. A 16-year follow-up in 2013 by Askari and colleagues⁵³ revealed that 97.6% of the patients from the study still had CS.

We would also like to believe our CS rates would be lower if not confounded by our tropical climate in Malaysia, where the temperature is high throughout the year. This would lead to greater sweating, exaggerating the incidence of CS in patients. A paper published by Li et al.⁵⁴ concluded that climate plays a significant role in incidences of CS. They looked at patients who are from a hotter climate such as Taiwan and the reported CS rates are as high as 98%. Gassot et al.²³ also quoted this phenomenon in their paper. Among the areas affected by CS, the back was affected the most in our sample size. CS occurring at the back totaled to 29% out of 58.5% patient who had CS in our center (29%, n= 20). Back of thighs and back involvement was the second highest reported site for CS in our patients (18.8%, n=13) followed by the abdomen (13%, n=9). In our study, we can conclude that the back and trunk were the most common regions being affected by CS. A few authors^34,52 have described that the most common affected region by CS was the posterior aspect of the trunk.

Apart from CS, 10.1% of patients from our center developed other post-operative complications. Seven patients or 5.9% of patients developed pneumothorax postoperatively in our study. Its incidences have been reported to be around 1% to 6% in most reports from the literature¹. Four patients (3.4%) had severe pain requiring additional analgesia post operatively. One patient developed post sympathetic neuralgia and is still on follow up regularly. One case had permanent bradycardia post ETS which is said to be a rare complication of ETS. Its occurrence has been reported in the literature^46,55 and certain patients may also need pacemakers if their resting heartbeat goes below 50 beats per minute.

Having said this, it has to be stressed again that it was still CS that has the greatest impact on the quality of life after ETS. Although the pathophysiology of CS remains unknown, surgeons have been trying to reduce the incidence by lowering the level of sympathectomy^31,56. Other surgeons have suggested that lowering the level of sympathectomy could reduce severe CS^57,58. A recent meta-analysis conducted by Cai SW et al.⁵⁹, who claimed to be the first group that conducted a meta-analysis of randomized controlled trials (RCT) on ETS to assess the effect of whether lowering the level of sympathectomy could really reduce CS, confirmed the fact that lowering the level of sympathectomy could reduce CS and severe CS after ETS.

Our study has also showed a similar finding that basically lowering the level of sympathectomy, T2-T4, reduces the incidence of CS significantly. This has been the main predictor in our study. We also noticed that those who came for follow-up for more than once were the ones with CS. It is likely that the persistence of CS troubled the patients leading to the further follow-ups, though further study to look at the impact of ETS on the quality of life of the patients is required.

Conclusion

We conclude that ETS is a safe, effective and aesthetically remarkable procedure for the treatment of primary hyperhidrosis considering the high success rate with only half of the patients developing CS. Our results compare favourably with or exceed those other studies in terms of success rates and incidences of CS. The clinical implication of this study provides solid evidence to patients or healthcare practitioners by showing excellent safety profile, high success rate and low rates of CS occurrence in patients who had ETS done for primary hyperhidrosis. Taking into account the multiracial population and our climate, we provided answers to patients who were hesitant to undergo ETS at our local setting. We also hope that we managed to inspire researchers to look into this subject of primary hyperhidrosis and ETS as this condition has often been neglected in our society despite the profound impact it has on the daily lives of patients. This study, we believe, has provided the groundwork for higher quality studies in this field especially in this country.

Data availability

Dataset 1: Endoscopic thoracic sympathectomy data 10.5256/f1000research.14777.d203598⁶⁰

Dataset 2: Endoscopic thoracic sympathectomy statistical analysis output file 10.5256/f1000research.14777.d203599⁶¹
