Systematic Review

Therapeutic interventions for acute complete ruptures of the ulnar collateral ligament of the thumb: a systematic review

[version 1; peer review: 2 approved]
PUBLISHED 08 Jun 2018
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

Abstract

Background: The aim of this study was to evaluate the effectiveness of interventions for acute complete rupture of the ulnar collateral ligament (UCL) of the thumb in adults.
Methods: The following databases were searched: MEDLINE and EMBASE via OVID, CINAHL and SPORTDiscus via EBSCO, from database inception to 31st January 2018. Inclusion criteria were: (i) randomised controlled clinical trials (RCTs) or study of intervention with a comparator; (ii) participants with diagnosis of acute complete rupture of the UCL of the thumb; (iii) participants aged 18 years of age or older at enrolment; and (iv) published in a peer-reviewed English-language journal.
Results: In total, six studies were identified for inclusion after screening. All studies had a high risk of bias. Three studies were retrospective comparative case series which compared two different surgical techniques (bone anchor versus pull out suture, suture versus pull out suture, suture versus steel wire). Of these studies, three were RCTs, two of which compared different rehabilitation regimes in patients managed surgically (plaster versus early mobilization, new spica versus standard spica). The remaining RCT compared two different rehabilitation regimes in a mixed group of surgically/non-surgically treated patients. The RCT comparing a standard spica with a new spica demonstrated a statistically significant improvement in outcomes with the new spica at all time points (range of motion, Dreiser index and VAS); this was also the only study to provide sufficient outcome data for further analysis.
Conclusion: There is no prospective evidence comparing surgery to non-operative treatment for acute complete ruptures of the ulnar collateral ligament of the thumb. There is weak evidence to suggest that early mobilisation may be beneficial following surgical repair. Further research is necessary to better define which patients benefit from which specific interventions.

Keywords

ulnar collateral ligament; thumb; rupture; surgery

Introduction

Acute complete ruptures of the ulnar collateral ligament (UCL) of the thumb are common injuries, accounting for around 50 in 100,000 presentations to Accident and Emergency departments. There is controversy as how to manage complete ruptures of the UCL best, although there is a degree of consensus regarding the broader treatment algorithm and general agreement that ‘true’ Stener lesions should be managed operatively1,2. The rate of the Stener lesion varies widely in the literature, perhaps reflecting the lack of reliability and accuracy of the various methods of diagnosis3,4.

Patients should be assessed clinically to determine the degree of instability of the metacarpophalangeal joint (MCPJ) in both extension and 30° of flexion to test both proper and accessory collateral ligaments5. There is some evidence to suggest that the greater the instability the higher the chances are that a Stener lesion is present6,7. While there is evidence to support both the use of ultrasound and MRI, the latter appears slightly superior in terms of sensitivity and specificity810. A recent study by Stoop et al. investigated which factors predict the chances of surgery in UCL injuries11. It was found that not only did patient characteristics influence the chances of surgery, but that the individual surgeon’s preference was also predictive.

Our aim was to perform a systematic review of the effectiveness of available interventions for acute complete rupture of the ulnar collateral ligament of the thumb in terms of patient-reported outcome measures and to assess the rates of adverse outcomes associated with these interventions.

Methods

The systematic review was developed in accordance with the PRISMA statement (Supplementary File 1 contains a completed PRISMA checklist), using methodology decribed in the Cochrane Handbook for Systematic Reviews of Interventions. The protocol was developed prospectively and peer reviewed locally before registration on the PROSPERO database (CRD42018087656).

Data sources and searches

A comprehensive search strategy was created in collaboration with a research librarian (N.T.) and was designed to capture all relevant articles pertaining to inventions for acute complete ruptures of the ulnar collateral ligament of the thumb (Supplementary File 2). The full search strategy is detailed on the PROSPERO website. The search strategy was applied to the following bibliographic databases from database inception until 31st January 2018: MEDLINE and EMBASE via OVID, CINAHL and SPORTDiscus via EBSCO from database inception until 31st January 2018.

Inclusion/exclusion criteria

The inclusion and exclusion criteria were defined prospectively during the protocol stage. Any study relating to acute complete ruptures of the ulnar collateral ligament of the thumb MCPJ in adults was included. Studies had to contain an intervention and a comparator (i.e. both non-randomised controlled trials, and randomised controlled trials, including semi/quasi randomised, cluster randomised trials and comparative case series). Any therapeutic intervention or control treatments were included.

Selection of studies

Duplicates were removed and relevant studies identified from the search were imported into Covidence for screening. Studies were independently screened by title and abstract by two authors (B.J.F.D. and M.M.). This was followed by a full-text evaluation of the selected studies from the first selection step these authors. Disagreement between the two reviewers was solved by consensus involving a third author (J.C.R.W.).

Data extraction

Two reviewers (M.M. and B.J.F.D) independently extracted data. Data was extracted using a custom data extraction sheet in Covidence. Any inconsistencies between the two reviewers’ forms were resolved by consensus discussion. A third review (J.C.R.W.) was available for any disagreement that could not be resolved by this initial discussion.

If data was not available from full-text articles or trial registrations, authors were contacted to provide this information. If authors were not contactable as regards additional data, then this aspect of the study was excluded from the data synthesis. If contactable authors did not respond to initial requests, they were sent two subsequent reminders over a minimum of 6 weeks. If there was still no response for the additional data, then this aspect of the study was excluded from the data synthesis.

Risk of bias assessment

Included studies were assessed for risk of bias by two independent raters (B.J.F.D. and M.M.) using the Cochrane Collaboration’s tool for assessing risk of bias in randomised trials12. This followed the description in the Cochrane Handbook for Systematic Review of Interventions, version 5.1 (Part 2: 8.5.1)12. Any disagreements between ratings were resolved by discussion between the raters. A third party (J.C.R.W.) was available in any case where disagreements persisted after discussion.

Data analysis

Descriptive analysis was performed for all demographic, intervention and outcome data to facilitate narrative interpretation and comparison across studies. It was decided that a direct-comparison meta-analysis would only be performed if data was available for similar time-points, outcomes and interventions across two or more studies. As this was not possible with the identified studies, we conducted a narrative synthesis of the results based on the domains of interest.

Results

A total of 158 studies were identified by the search, after duplicates were removed. After screening by full-text, six studies were identified as eligible for inclusion (Figure 1). Of these, three were randomized controlled trials (RCTs), and three were retrospective comparative case series. The number of studies identified and excluded at each stage is detailed in Figure 1.


Figure 1. PRISMA flow diagram.

Study characteristics of the included trials including the interventions and comparators are provided in Table 1. Of the three randomised controlled trials, two assessed the outcomes of different rehabilitation regimes in patients who had been exclusively treated with surgery13,14. The remaining RCT assessed the outcome in patients managed both surgically and non-surgically, who were randomised to treatment with either a plaster cast or a functional splint15. All three retrospective comparative case series compared different surgical techniques in patients exclusively managed surgically1618. Table 2 details the basic demographics of the intervention and comparator groups, as well as the details about the outcome data provided. The full details of all included studies and the forest plots are included within the supplementary material (Supplementary File 3Supplementary File 15).

Table 1. Study characteristics.

AuthorYearJournalSettingPopulationType of studyInterventionComparatorPrimary
outcome
OutcomesTime
points
Crowley et al.132013Techniques in
Hand and Upper
Extremity Surgery
Hospital
plastic
surgery
department
Acute complete UCL
ruptures repaired
with Mitek anchors
Randomised
controlled trial
Early active
mobilisation
Plaster
immobilisation
None
specified
Range of motion,
return to work, normal
hand function,
complications
1 month,
3 months,
6 months
Katolik et al.162008Plastic and
Reconstructive
Surgery
Hand
Surgery Unit
Acute complete UCL
ruptures treated with
surgery
Retrospective
comparative
case series
Bone anchor
repair
Pull out suture
repair
None
specified
Range of motion,
Pinch strength,
patient satisfaction,
complication
Final follow
up
Lane171991American Journal
of Sports Medicine
Orthopaedic
Surgery
Department
Acute complete UCL
ruptures treated with
surgery
Retrospective
comparative
case series
Suture
repair (’new
method’)
Pull out suture
and K wire
stabilisation of
MCPJ
None
specified
Range of motion,
strength (full vs
partial), overall
outcome (excellent vs
good), complications
Final follow
up
Rocchi et al.142014European Journal
of Physical and
Rehabiliation
Medicine
Orthopaedic
Hand
Surgery
Department
Acute complete UCL
ruptures treated with
surgery
Randomised
Controlled
Trial
New spicaStandard
spica
None
specified
Range of motion,
Dreiser index, VAS,
Tip pinch strength,
Complications
1 month,
2 months,
6 months,
12 months
Saetta et al.181992Journal of Hand
Surgery – British
volume
Accident
and
Emergency
Department
Acute complete UCL
ruptures treated with
surgery
Retrospective
comparative
case series
Suture repairSteel wire
repair
None
specified
Key strength, Pinch
strength, Grasp
strength, Functional
result (excellent vs
not)
Final follow
up
Sollerman et al.151991Acta Orthopaedica
Scandinavica
Hand
Surgery
Department
Acute UCL ruptures
treated surgically/
non surgically
Randomised
Controlled
Trial
Functional
splint
Plaster castNone
specified
Range of motion,
Pinch grip strength,
Sick leave
Final follow
up

UCL, ulnar collateral ligament; MCPJ, metacarpophalangeal joint.

Table 2. Details of study participants demographics, inclusion/exclusion criteria and whether data was provided.

AuthorYearInclusion criteriaExclusion
criteria
Intervention
group age,
years
Comparator
group age,
years
Intervention
group sex
Comparator
group sex
Data comments
Crowley
et al.13
2013All patients
undergoing surgery
for UCL rupture
– diagnostic criteria
not specified
K wire used in
surgery
26 (range
20–43)
50 (range
37–72)
4 male,
2 female
4 male,
2 female
All data other
than complication
rate not available
according to
author response
Katolik
et al.16
2008<4 weeks old, laxity
>30° in 30° flexion
or >10 increased
laxity compared to
contralateral side
Avulsion
fractures
>10% of joint
surface
3232Not reportedNot reportedAll data other
than complication
rate not fully
reported and
author responded
to confirm not
available
Lane171991Grade 3 UCL
ruptures – >35°
laxity in 30° flexion
or >15° laxity
relative to
contralateral side
Not reportedNot reportedNot reportedNot reportedOutcome data
complete and
unable to contact
author for full
demographic
data
Rocchi
et al.14
2014>30° laxity or >20°
laxity relative to
contralateral side
Partial tears,
associated
tendon/
neurovascular
injury
Not reportedNot reportedNot reportedNot reportedOutcome data
complete
Saetta
et al.18
1992Unstable MCPJ
but specifics not
mentioned
Not reportedNot reportedNot reportedNot reportedOutcome data
incomplete
and author not
contactable
Sollerman
et al.15
1991Clinical and
radiographic
assessment but
specifics not
mentioned
Not reportedNot reportedNot reportedNot reportedOutcome data
incomplete
and author not
contactable

UCL, ulnar collateral ligament; MCPJ, metacarpophalangeal joint.

The study by Sollerman et al.15 compared a functional splint with plaster cast treatment in patients with complete UCL ruptures; patients were managed both surgically and non surgically. The authors reported no difference in MCPJ range of movement (ROM), grip strength and sick leave taken; however, the data provided were insufficient for any further analysis, such as a forest plot.

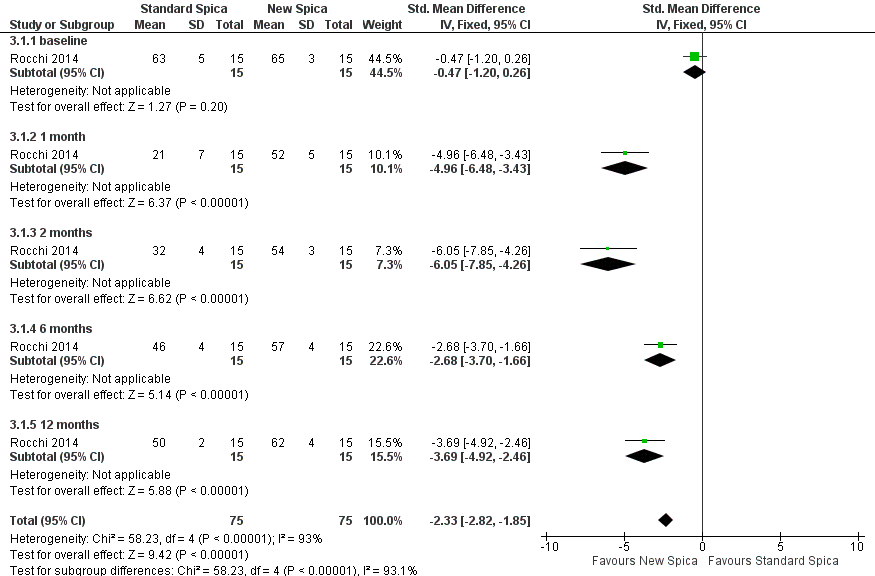

The RCT by Rocchi et al. compared the outcomes of operated patients treated with either a traditional standard thumb spica which immobilized the MCPJ or a new modified thumb spica which allowed early MCP motion14. At 12 months the new spica group had increased MCPJ ROM (standardized mean difference (SMD), −3.69; 95% confidence interval (CI), −2.46–−4.92, P<0.0001), a better Dreiser index (SMD, 1.65; 95%CI, 0.81–2.50; P=0.0001) and reduced pain VAS (SMD, 1.53; 95% CI, 0.70–2.35; P=0.0003). There was no statistically significant difference between groups in tip pinch strength at any time point. The RCT by Crowley et al. compared outcomes between patients treated with early active mobilization or plaster immobilization after being treated surgically with Mitek anchor repair13. The outcome data was not provided, meaning that any further analysis was not possible.

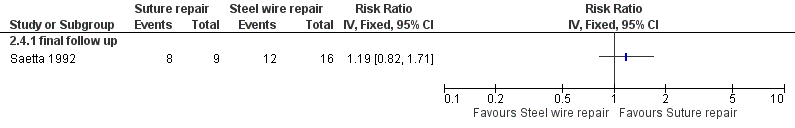

The retrospective comparative case series by Saetta et al. demonstrated a higher chance of an excellent functional result with suture repair versus steel wire, but this was not statistically significant (risk ratio, 1.19; 95% CI, 0.82–1.71); the other outcome data was incomplete and thus precluded further analysis. The retrospective case series by Lane demonstrated no statistically significant difference in the chances of a full versus partial recovery in ROM of the MCPJ, of a full versus partial recovery in strength and of a full versus partial functional recovery17. The study by Katolik et al. did not provide adequate data with which to conduct any further analysis16.

Adverse events

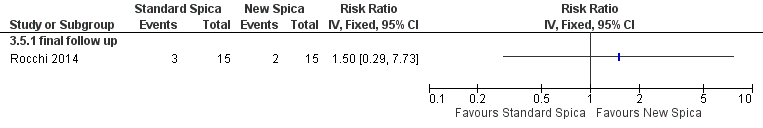

Rocchi et al14. demonstrated no statistically significant difference in complication rate between treatment with the standard spica and the new spica (risk ratio, 1.5; 95% CI, 0.29–7.73); the complications consisted of three cases of temporary dysaesthesia and two cases of inflammatory scars. The complication rate was identical in both the early active mobilization and plaster cast groups in the study by Crowley et al13. (Risk ratio: 1.0, 95% CI: 0.32, 3.10); all six complications in this study were that of scar tethering, with all resolving with ultrasound therapy and massage. The studies by Saetta et al.17 and Sollerman et al.18 did not make any mention of specific complications. Lane17 demonstrated no statistically significant difference in the complication rate between the older method of pull out suture plus K-wire fixation and the new method of suture repair (risk ratio, 3.57; 95% CI, 0.25–50.15); there was one complication with the traditional method (broken pull-out suture at 2 weeks) and one with the new method (re-rupture at 9 months) The study by Katolik et al16. demonstrated a higher complication rate with pull-out suture versus bone anchor repair, but this was not statistically significant (risk ratio, 4.00; 95% CI, 0.92–17.30); all the ten complications were soft-tissue-related (five were persistent wound erythema consistent with wound infection and five were paraesthesiae, which resolved over time).

Risk of bias

All criteria were judged as low, high or unclear risk of bias. Overall, all studies were deemed to be at a high risk of bias, particularly in terms of blinding of outcome assessment and selecting reporting. Full risk of bias assessment is available in Figure 2 and Figure 3.

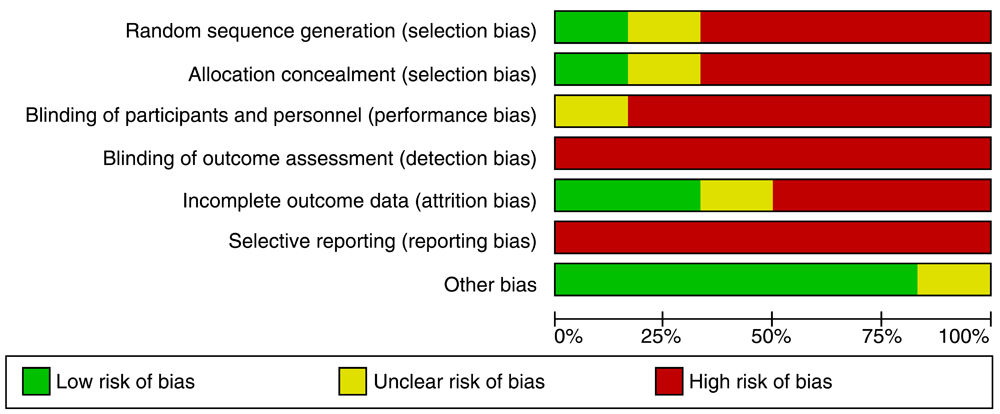

Figure 2. Risk of bias graph.

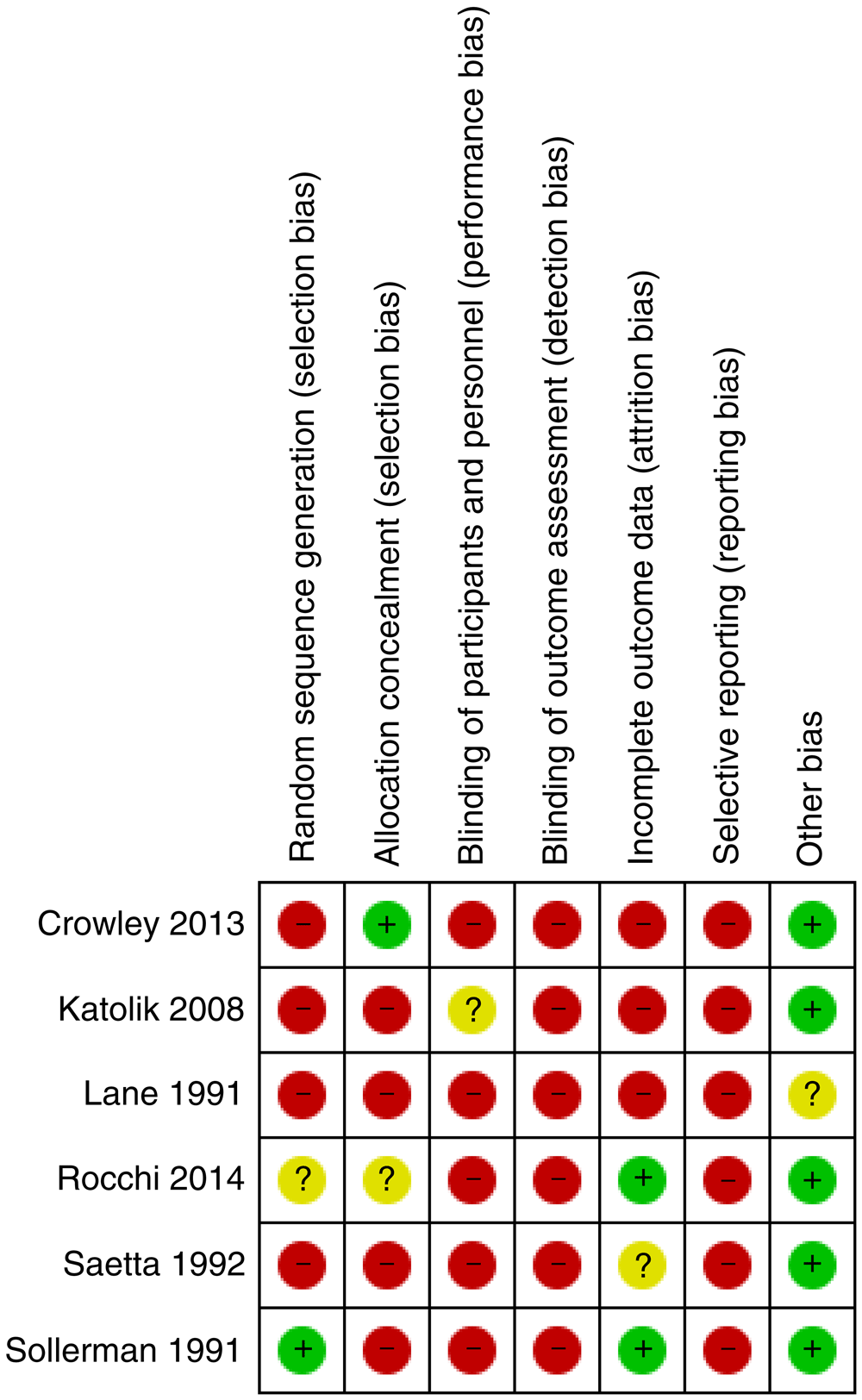

Figure 3. Risk of bias summary.

Meta analysis

As a result of the degree of heterogeneity in terms of study interventions and the incomplete outcome data, it was determined that a meta-analysis of the outcomes was not possible. We carried out a meta-analysis of the complications of pull-out suture versus bone anchor, as two studies had compared these different surgical techniques16,17. The complication rate of pull out suture fixation was higher than that of bone anchor repair (risk ratio, 3.92; 95% CI, 1.07–14.32; P=0.04). Although suggesting a higher rate of complication, this should be interpreted with caution due to the high risk of bias in the included studes, reducing the reliability of the data and subsequent meta-analysis.

Discussion

The key finding of this systematic review is that is that no study exists comparing non-operative to surgical intervention in the treatment of complete ruptures of the UCL of the thumb. The only studies which have compared interventions are at high risk of bias, particularly in the areas of blinding of outcome assessment and selective outcome reporting. There is weak evidence to suggest that early mobilisation of the thumb MCPJ may be beneficial following surgical repair. There is weak evidence that the pull out suture fixation has a higher rate of adverse events when compared to bone anchor repair.

A systematic review by Samora et al. summarised the outcomes after both non-operative and operative treatment of complete UCL ruptures19. They found that the vast majority of the evidence base was low quality retrospective case series and that only a small minority of patients were treated non-operatively. It was also shown that there was no significant difference in outcome between repair of acute injury and reconstruction after chronic injury.

Landsman et al. demonstrated generally good results when managing complete ruptures with splintage with only 15% failing this regime non operative treatment4; notably, 30% of the patients in this series had displaced fractures and all patients had more than 30° laxity in 30° of MCPJ flexion. A case series reported by Pichora et al. also demonstrated generally satisfactory functional results with functional bracing, even in the 5 patients who were judged to have sustained true Stener lesions20; notably, the three patients who failed functional bracing could not be predicted by the initial clinical tests. Case series purely relating to avulsion fractures of the UCL have shown contrasting results. For example Kuz et al.21 demonstrated satisfactory outcomes in all patients but a non union rate of 25%, this contrasts with the results of Dinowitz et al.22, which demonstrated poor functional results in patients treated non-operatively for minimally displaced fractures.

There is a widely varying rate of Stener lesions in the literature, it being as low as 12% in the series by Pichora et al.20 and as high as 70% in other series21. The reasons underlying the variability in the rate of the Stener lesion are likely multiple and complex. One aspect of this conundrum appears to be the clear problems with the reliability and accuracy of the radiological diagnosis of the Stener lesion, particularly relating to MRI3. Although there are some high quality studies describing the reliability of ultrasound, there are no high quality studies relating to MRI3. Mahajan et al. demonstrated excellent agreement between radiologists in determining whether the UCL had completely ruptured; however, the presence or absence of a Stener lesion was not assessed radiologically6. Milner et al. have recently argued that any displacement of greater than 3 mm (grade 3 by their system) should be treated operatively, owing to the observed high chance that these patients will fail with non operative treatment9.

The recent study by Stoop et al. assessed 383 UCL injuries treated at three different hospitals in a singe American city11. In total, 30% of cases were avulsion fractures and 11% of cases were investigated with an MRI scan. Certain patient characteristics were associated with a higher rate of operative intervention, for example greater age and more displaced fractures. However some factors which were unrelated to patient characteristics were predictive of operative intervention, such as having an MRI and being treated by certain surgeons. It was felt that because the preoperative diagnosis of a Stener lesion has limited reliability and accuracy, the rates of surgery may vary based on surgeon beliefs, preferences and values.They also stated that ”some surgeons believe some non-Stener injuries benefit from operative treatment”11.

This review has demonstrated that all six studies of an intervention with a comparator in UCL treatment are at high risk of bias. The blinding of participants would clearly not be possible in a trial of surgery versus non operative treatment; however, it is a recurrent theme that outcomes were assessed by non-blinded assessors (often the treating surgeon), which significantly increases the chance that detection bias will influence patient outcomes. None of the RCTs published a trial protocol with a specified primary outcome, while only the study by Rocchi et al.14 used validated patient-reported outcome measures (Dreiser index and VAS). There was also a failure to adequately report all outcomes, with only one study reporting adequate data for all outcomes to allow further analysis. None of the three RCTs included a power calculation. While the retrospective nature of the comparative case series introduces several potential sources of bias which may have influenced these results.

Conclusions

There is no prospective randomised or observational evidence to support operative intervention compared to non-operative treatment for acute complete ruptures of the ulnar collateral ligament of the thumb. There is weak evidence to suggest that early mobilisation may be beneficial following surgical repair. Further research is necessary in order to better define which patients benefit from which specific interventions.

Data availability

All data underlying the results are available as part of the article and no additional source data are required.
