A Sequence Distance Graph framework for genome assembly and analysis

Implementation

The C++ core library implements SDG’s data structures and methods for WorkSpaces, graphs, datastores and mappers. Its main goal is to provide a straightforward interface to project information from raw datasets onto graphs, and enable easy access and analysis of the graph-data combination. It uses OpenMP for parallel processing, and SWIG 4.0 to export a Python API to enable interactive data analysis.

The SequenceDistanceGraph class contains a vector of nodes defining DNA sequences, and a vector of links. Every node has a positive and a negative end, and links are defined between these node ends. Links with positive distances represent gaps between linked sequences and negative distances represent overlaps. This representation, shown in Figure 1, is similar to those presented in 2,11 but unifies the concept of overlap and gap. Paths can be defined as list of nodes, with the sign of the first end in the walk. Graphs can be read and written to GFA and GFA2 files.

Figure 1. A simple Sequence Distance Graph with 5 nodes, including links with d<0, representing overlaps, and a link representing a gap of 10bp.

Sequences appear in only one direction and their reverse complement can be obtained by traversing the node in opposite direction, from - to +. The two largest possible paths are [1, 2, 4, 5] and [1, -3, 4, 5], and their reverse complements [-5, -4, -2, -1] and [-5, -4, 3, -1] respectively.

The DistanceGraph class contains a set of links over the nodes of a SequenceDistanceGraph object. It is used to represent alternative sources of linkage information, such as longer range linkage produced by mapped reads for scaffolding.

The WorkSpace contains a single SequenceDistanceGraph, multiple DistanceGraphs, datastores and mappers, and its structure in memory represents the status of the SDG framework. It can be dumped and loaded from disk, providing persistence and checkpoints between different steps on SDG-based pipelines. Raw reads and k-mer counts are kept in separate files, pointed from the WorkSpace, to avoid duplication when using multiple WorkSpaces around the same dataset.

The DataStores and Mappers provide access and management to raw data and its mapping on the graph. Datastores do not load read data into memory, but rather provide random access to the on-disk data. The PairedRedMapper and LinkedReadMapper classes use a unique k-mer index to map reads to single nodes, with single reads mapping to multiple nodes not being mapped^3,12 The LongReadMapper class generates multiple mappings from each read to nodes, using a short non-unique k-mer index (k=15 by default)^13,14 Long read mapping filtering is left to later stages of the processing.

The KmerCounters creates an index with all the k-mers at a given k up to k=31 and counts occurrences of these k-mers on the graph, allowing then to count occurrences in datastores or fastq files. These counts, persisted in the KmerCounter with a name, can be then accessed to perform k-mer coverage analyses. Projections of raw k-mer coverage in the reads and the assembly over a particular sequence for a node or path, similar to those produce by the "sect" tool of K-mer Analysis Toolkit (KAT)¹⁵ are valuable for content analysis. Spectra analysis of these frequencies can provide further insight into genome composition and representation on the assembly.

Two processing classes, LinkageUntangler and LinkageMaker, work with alternative linkage configurations. The LinkageMaker is used to condense information via one of its make_linkage* methods, from evidence in the WorkSpace into links in a DistanceGraph. The LinkageUntangler class works on a DistanceGraph to simplify, condense and/or linearise its linkage. In the second use case below it can be seen how a combination of LinkageMaker and LinkageUntangler can be used for scaffolding with long reads.

Finally, the NodeView class, and its associated LinkViews, provide a single-entry point for node-centric analyses. A NodeView from either a DistanceGraph or SequenceDistanceGraph is a wrapper containing a pointer to the graph and a node id, and will provide access to its nodes’ previous and next linked nodes, mapped reads, or k-mer coverage. A user with good understanding of the NodeView class should be able to access most information in the WorkSpace through it, making it the default choice for analysing the graph.

Operation

Requirements and installation. SDG can be run on Linux and MacOS, and requires enough RAM to hold the WorkSpace completely in memory, which will depend on the dataset. Space to hold the uncompressed sequences on the datastores on disk will also be required.

SDG can be installed via pre-compiled binaries from https://github.com/bioinfologics/sdg/releases. The binaries have been built using Python3 and GCC version 6 from the Ubuntu package manager for the Linux version. The MacOS version dependencies were obtained using Homebrew (Python3, GCC-6 and SWIG). SDG can be compiled using CMake, Python3, SWIG version 4 and GCC version 6 onwards. Detailed instructions can be found at https://bioinfologics.github.io/sdg/sdg/README.html#installation.

Typical workflow. Working with SDG typically involves two different stages: creating a WorkSpace with the data and mappings, and analysing this WorkSpace. SDG includes command line tools to create DataStores, KmerCounts, and WorkSpaces, and map reads within a WorkSpace.

WorkSpaces can also be instantiated with an empty graph, and the graph populated through the add_node and add_link methods. The following example on a python session shows how the simple graph from Figure 1 can be created from scratch, navigated through a NodeView instance and sequence from its paths extracted.

>>> import pysdg as SDG
version 0.1
master b4d3f02
>>> ws=SDG.WorkSpace()
>>> ws.sdg.add_node("CTACGGA")
1
>>> ws.sdg.add_node("GACCTTA")
2
>>> ws.sdg.add_node("AATACGGTCC")
3
>>> ws.sdg.add_node("TTACGAA")
4
>>> ws.sdg.add_node("CTGATATGA")
5
>>> ws.sdg.add_link(-1, 2, -2)
>>> ws.sdg.add_link(-1, -3, -3)
>>> ws.sdg.add_link(-2, 4, -3)
>>> ws.sdg.add_link(3, 4, -2)
>>> ws.sdg.add_link(-4, 5, 10)
>>> nv=ws.sdg.get_nodeview(1)
>>> nv
<NodeView: Node 1 in SDG>
>>> nv.next()
<Vector: 2 LinkViews>
>>> print(nv.next())
[
<LinkView: -3bp to Node -3>,
<LinkView: -2bp to Node 2>
]
>>> nv = nv.next()[0].node()
>>> nv
<NodeView: Node -3 in SDG>
>>> print(nv.prev())
[
<LinkView: -3bp to Node 1>
]
>>> nv.sequence()
'GGACCGTATT'
>>> SDG.SequenceDistanceGraphPath(ws.sdg, [1, -3, 4, 5]).sequence()
'CTACGGACCGTATTACGAANNNNNNNNNNCTGATATGA'

Typically, as shown in Figure 2, the API is used to explore a larger WorkSpace, with the methods accessing both in-memory and on-disk data, and modifying the status of the WorkSpace.

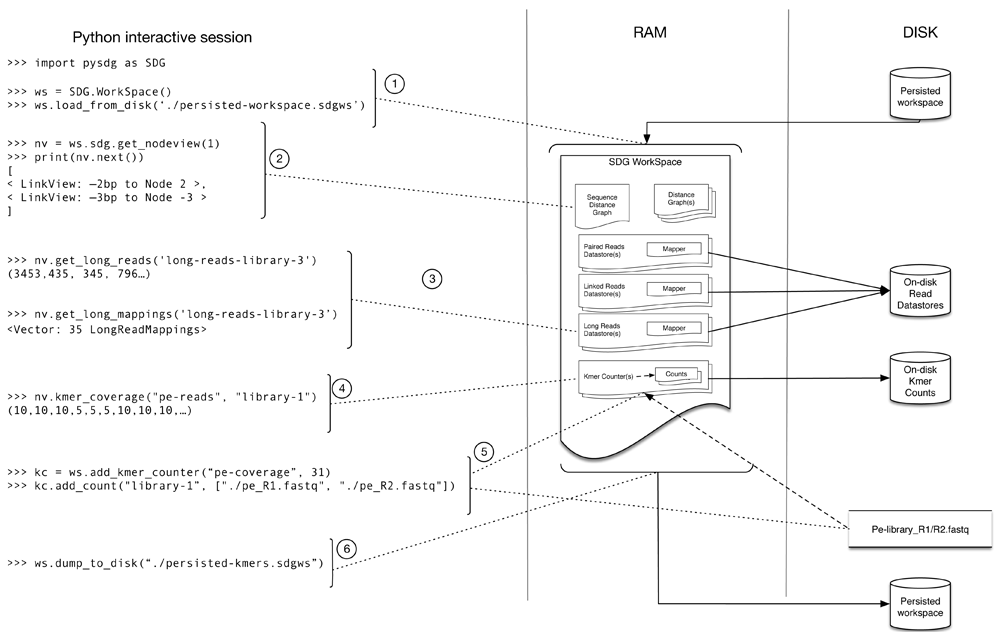

Figure 2. Structure of a WorkSpace and access via an Python interactive session.

The WorkSpace holds the information for a project and contains the graphs, the mappers and k-mer counts. From Python, a previously saved WorkSpace is loaded from disk (1). The NodeView object is centred on a specific node and can be used to access node characteristics (ie. size and sequence), graph topology from the perspective of the node you are on (i.e. neighbours in both directions (2)) and can also retrieve information projected onto the selected node (ie. mappings (3) and k-mer coverage (4)). Operations such as adding a KmerCounter to the WorkSpace and adding a count (5) can be performed, and the WorkSpace can be saved back to disk (6). Once loaded, the bulk of the WorkSpace is held in memory for fast access with the raw read data from the DataStores remaining on disk accessible through random access.

Hybrid assembly of short and long reads

This example is based on an E. coli dataset combining PacBio reads from 17 and Illumina Miseq 2x300bp reads subsampled from a test run. It uses the long reads to scaffold a short read based graph produced by sdg-dbg. Graphs are dumped to GFA files at different stages, and visualised using Bandage v0.8.1¹⁸

First, we use the command line tools to create datastores for both long and short reads and an initial WorkSpace containing a DBG assembly:

sdg-datastore make -t paired -o ecoli_pe ../ecoli_pe_r1.fastq.gz -2 ../ecoli_pe_r2.fastq.gz
sdg-datastore make -t long -o ecoli_pb -L ../ecoli_pb_all.fastq.gz
sdg-dbg -p ecoli_pe.prseq -o ecoli_assm

From this point on, we use the python SDG library. First, we load the workspace, add a long read datastore and map its reads using a k=11 index.

import pysdg as SDG
# Load sdg-dbg's workspace from disk, add the pacbio datastore
ws = SDG.WorkSpace('ecoli_assm.sdgws')
lords = ws.add_long_reads_datastore('ecoli_pb.loseq')
# Map long reads
lords.mapper.k = 11
lords.mapper.map_reads()

ws.sdg.write_to_gfa1('initial_graph.gfa')

The graph, as shown in Figure 3A contains multiple unresolved repeats.

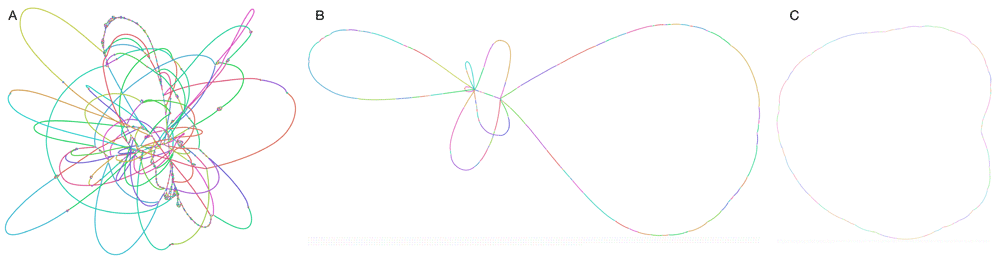

Figure 3.

Linkage at different stages of the long read scaffolding example, visualised using Bandage: A) SequenceDistanceGraph generated by sdg-dbg from short reads, B) DistanceGraph generated after using make_nextselected_linkage on the long read data, linking all nodes of 1100bp and more, C) DistanceGraph after eliminating all nodes with multiple connections (repeats).

We can use the LinkageMaker to create linkage using the long reads datastore. We do this by selecting the nodes between which to analyse possible linkage, in this case all nodes of 1100bp or more, and then calling the make_longreads_multilinkage method, with alignment filtering parameters of 1000bp and 10% id.

lm = SDG.LinkageMaker(ws.sdg)
lm.select_by_size(1100)
mldg = lm.make_longreads_multilinkage(ws.long_reads_datastores[0].mapper, 1000, 10)

This multi-linkage can be collapsed using the LinkageUntangler. The make_nextselected_linkage method links every selected node to its closest selected neighbours on each direction, aggregating the distances via a simple median calculation:

lu = SDG.LinkageUntangler(mldg)
lu.select_by_size(1100)
ns_dg = lu.make_nextselected_linkage()
ns_dg.write_to_gfa1('ns_collapsed.gfa')

The new graph we dumped, as shown in Figure 3B, has disconnected the repeats and introduced long read linkage which skips over them, but it is still not fully solved. We can improve this further by getting rid of repetitive nodes that will be connected to multiple neighbours, as each of them belongs in more than one place. We do that by just turning these nodes’ selection off in the LinkageUntangler, which will then skip them in the solution.

for nv in ns_dg.get_all_nodeviews():
    if len(nv.prev()) > 1 or len(nv.next()) > 1:
        lu.selected_nodes[nv.node_id()] = False
ns_nr_dg = lu.make_nextselected_linkage()

ns_nr_dg.write_to_gfa1('ns_nr_final.gfa')

The last graph is now a circle, with all the repeats disconnected from any linkage.

Analysing a simulation of heterozygous parent-child trio with short reads

We created a simulation of a trio dataset for this example using the synthetic genome creation and sequencing package Pseudoseq.jl v0.1.0¹⁹ Chromosomes 4 and 5 of the reference genome of the yeast strain S288C were used as templates to create a diploid, genome for each parent with 1% heterozygous sites. Each homologous pair of chromosomes was crossed over and recombined and the child inherited one chromosome from the first parent at random, and one chromosome from the second parent at random. Simulated paired end reads were generated for each genome, using an average fragment length of 700bp and a read length of 250bp, and an expected coverage of 70x with error rate was set to 0.1%.

First we used the command line tools to create a graph from the child reads using sdg-dbg, and add k-mer counts for both parents into the datastore.

sdg-datastore make -t paired -1 child/child-pe-reads_R1.fastq.gz -2 child/child-pe-reads_R2.fastq.gz -o child_pe
sdg-dbg sdg-dbg -p child_pe.prseq -o sdg_child
sdg-kmercounter add -c main.sdgkc -n p1 -f p1/p1-pe-reads_R1.fastq.gz -f p1/p1-pe-reads_R2.fastq.gz -o main
sdg-kmercounter add -c main.sdgkc -n p2 -f p2/p2-pe-reads_R1.fastq.gz -f p2/p2-pe-reads_R2.fastq.gz -o main

We now open the WorkSpace and use the NodeView::parallels method to look for the largest bubble structure in the graph, which should be formed by two parallel nodes with haplotypes coming from each parent.

import pysdg as SDG
ws = SDG.WorkSpace('sdg_child.sdgws')
#Largest node with one parallel node, and its parallel
maxbubble = 0
for nv in ws.sdg.get_all_nodeviews():
    if nv.size() > maxbubble and len(nv.parallels()) == 1:
        maxbubble=nv.size()
        bubble_nvs=(nv,nv.parallels()[0])

Since each side should be a haplotype from a different parent, we should see a loss of k-mer coverage on the parent that didn’t contribute that haplotype. To check this, we create a plotting function to plot the output from the NodeView::kmer_coverage method.

def plot_kcov(nv):
    '''Plot kmer coverage across the three read sets. Requires pylab.'''
    figure();suptitle("Coverage for "+str(nv));
    subplot(3,1,1);ylim((0,120))
    plot(nv.kmer_coverage("main","PE"), label="child"); legend(loc=1);
    subplot(3, 1, 2);ylim((0, 120))
    plot(nv.kmer_coverage("main","p1"), "red", label="parent 1"); legend(loc=1);
    subplot(3, 1, 3);ylim((0, 120))
    plot(nv.kmer_coverage("main","p2"),"blue", label="parent 2"); legend(loc=1);

plot_kcov(bubble_nvs[0])
plot_kcov(bubble_nvs[1])

The plots, shown in Figure 4, reflect how Node 4775 contains content inherited from parent 2 and its parallel node 11414 contains content inherited from parent 1. We can create a function to extend these parent-specific regions by walking forward and backward as long as only one link takes us to a node that is fully covered by the content of the parent we are following.

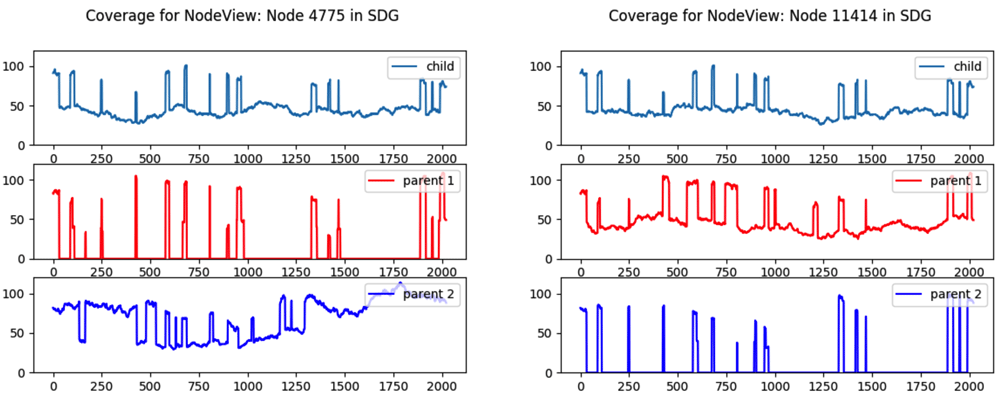

Figure 4. Trio analysis:k-mer coverage for each side of the largest bubble structure in the child’s assembly by each of the three read sets.

Coverage drops to 0 on the opposite parent for k-mers that are unique to a parent.

def extend_parent_covered_path(starting_node,target_parent):
    if ws.sdg.get_nodeview(starting_node).kmer_coverage("main", target_parent).count(0) != 0:
        return SDG.SequenceDistanceGraphPath(ws.sdg,[])
    p = SDG.SequenceDistanceGraphPath(ws.sdg,[starting_node])
    for x in [0,1]:
        nv = ws.sdg.get_nodeview(p.nodes[-1])
        while nv.next():
            next_node = 0
            for nl in nv.next():
                if nl.node().kmer_coverage("main", target_parent).count(0) == 0:
                    if next_node or nl.node().node_id() in p.nodes:
                        next_node = 0
                        break
                    else:
                        next_node = nl.node().node_id()
            if next_node == 0: break
            p.nodes.append(next_node)
            nv=ws.sdg.get_nodeview(next_node)
        p.reverse()
    return p

path1=extend_parent_covered_path(11414, "p1")
path2=extend_parent_covered_path(4775, "p2")

After using this function, path1 contains 49 nodes yielding 8672bp of sequence inherited from parent 1, and path2 contains 139 nodes yielding 26351bp of sequence inherited from parent 2. It is important to note that the difference in node count and sequence length arises because the extension function is haplotype-specific and its results depend in the topology of each haplotype graph.

Source data

The PacBio, E. coli reads are deposited on NCBI accession PRJNA194437 from Koren et al.¹⁷

E. coli K12 Re-sequencing with PacBio RS and 454: Accession number PRJNA194437, https://identifiers.org/ncbi/bioproject:PRJNA194437

Underlying data

The datasets used in the examples are available from: https://opendata.earlham.ac.uk/opendata/data/sdg_datasets/ and archived in Zenodo Zenodo: SDG Paper Datasets. http://doi.org/10.5281/zenodo.3363871¹⁶

Data are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).
