FaceSync: Open source framework for recording facial expressions with head-mounted cameras

Selecting a recording method

When choosing a framework for recording videos of facial behavior in lab settings, researchers must consider a variety of factors including affordability, adaptability to different experimental settings, integration with other devices, and recording reliability. In this section we survey and summarize the strengths and shortcomings of popular setups including webcams, tripod-mounted cameras, and PTZ cameras (Table 1).

The most readily available and easy-to-implement option is to record from computer webcams. External webcams with good image resolution can cost about $100 but most modern laptops and computers come with pre-installed webcams integrated on top of the screen providing a low profile setting less likely to capture the attention of participants. Webcams are effective for event based experiments in which facial expressions can be recorded using the same computer hosting the task. Webcams can be triggered and controlled via programming languages providing a scalable solution for recording social interactions through video call setups. Such interactions, however, may not provide the same experience as live face-to-face interactions (Sherman et al., 2013; Shin et al., 2017). Moreover, integrated webcams can be limited in temporal resolution as they rely on shared computing resources and use variable frame rates between 24 to 30 frames per second (fps) to optimize the use of computer resources. In addition, the fixed position of webcams and the distance between the camera and the face allow bodily movements touching the face, head rotations, or out-of-plane head motions to cause difficulties in capturing and extracting facial expressions from the videos. Therefore, it is difficult to consider webcams as a robust and reliable solution to recording facial expressions despite being easy to use and cost-effective.

Tripod-mounted cameras cost around $1,000 for production-quality camcorders and can provide high-resolution recordings at faster frame rates. Tripod-mounted cameras can be manually moved or adjusted by the experimenter to account for subject movements if the experimenter can be present during the experiment at the cost of increased conspicuousness. Tripod-mounted cameras can be easily installed and removed to accommodate different experimental settings allowing for flexibility in experimental setups. They can moved to different experimental environments and adjusted to different heights and angles to best capture facial behaviors. Scalability, however, is limited as adding additional cameras remains expensive and synchronizing across multiple cameras can be challenging as time-code or TTL (transistor-transistor-logic) pulse triggering capable camcorders are often more expensive.

The PTZ camera setup provides researchers centralized control over cameras that can be rotated or zoomed to account for subject movement. PTZ camera setups require a dedicated experiment room with cameras installed and an adjacent console room where experimenters can monitor incoming video feeds and control the camera. Central management of cameras can facilitate integration with other softwares or triggering the cameras to record simultaneously. The installation of cameras to corners of ceilings distant from the participant allows cameras to be less conspicuous. However, this forces participants to stand or sit in particular locations in the room and renders the setup particularly susceptible to head rotations or occlusions of the face from body gestures unless multiple cameras are installed. It is the least flexible option because changing camera locations or installing additional cameras would require additional construction. The PTZ camera setup can therefore be the best option to minimize participants’ attention to the camera but at the cost of increased possibility of artifacts and reduced adaptability to other experimental setups.

Overall, webcams, tripod-mounted cameras, and PTZ cameras do not provide an optimal solution for recording facial expressions. They commonly suffer data loss due to out-of-plane head motions and head rotations (Cohn & Sayette, 2010; Lucey et al., 2011; Werner et al., 2013), although developing algorithms robust to partial face occlusions is an active area of research (Zhang et al., 2018). Another common challenge pertains to the temporal precision in the alignment of simultaneous recordings between cameras and to the stimuli. In the next section, we propose head-mounted cameras as an affordable, scalable, and flexible solution that can provide reliable recordings and can be easily synchronized with experimental stimuli and across recordings from multiple cameras.

Synchronizing videos to stimuli using audio features

All video recording devices require a method to temporally align the video recordings to the experimental task. As mentioned earlier, some devices such as webcams or PTZ cameras can be controlled or triggered from the experiment computer to start and stop recording during the paradigm. Camera setups that are not directly connected to the experiment computer, including head-mounted devices, require an alternative method that is accurate and efficient for aligning the videos to experimental events.

The traditional ‘clap’ method used in the film industry uses a sharp, loud sound at the beginning of the clip that allows multiple videos to be aligned to the resulting spike in the audio waveform. This audio-based synchronization method usually requires opening each video for manual inspection of the sound waveform and incrementally shifting the audio until the echo, which indicates phase misalignment, is eliminated. Humans are highly accurate in detecting and distinguishing audio offsets down to several milliseconds (ms), but manually synchronizing each video is labor intensive and can introduce unsystematic noise in the alignment (Litovsky et al., 1999; Shrstha et al., 2007).

To facilitate the synchronization of videos, we developed FaceSync, an open-source Python toolbox, to automatically synchronize video recordings based on audio. In stimulus-based experiments, it requires a short audio segment to be played at the beginning of the experiment, which is recorded by the camera. Based on this shared audio, the toolbox can align the video to the beginning of the experiment finding the optimal alignment with the original audio segment. In unstructured social interaction experiments, multiple videos can also be aligned to a target video. The toolbox offers a sliding window search to find the offset that maximizes the correlation between two audio signals (Figure 2) and a fourier transform based cross-correlation method. The FaceSync toolbox supports both Python versions 2 and 3 can be downloaded from our github repository (https://github.com/cosanlab/facesync).

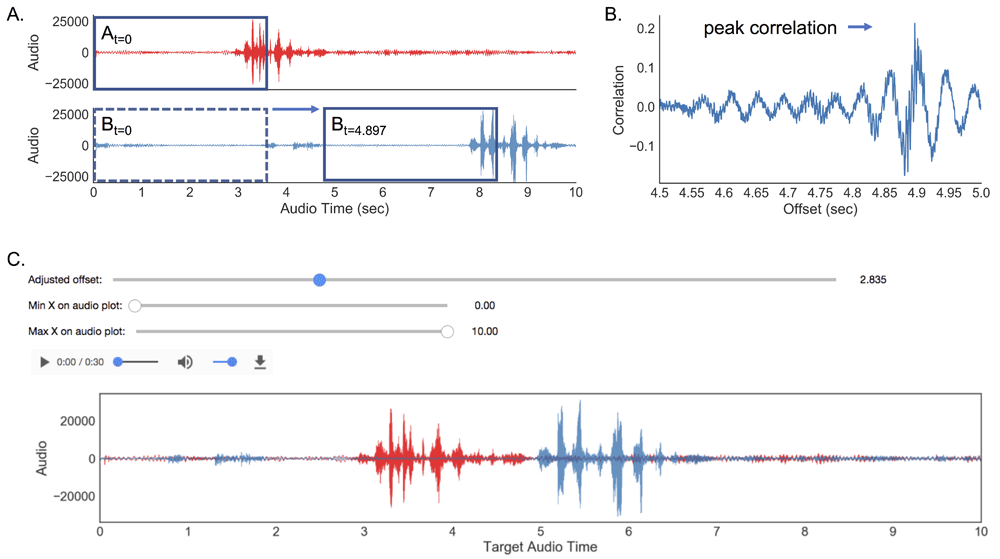

Figure 2. Schematic of automatic and manual audio alignment method.

(A, B) Portion of audio is selected from target audio (red waveform top panel) which is compared to a portion of the sample audio selected in a sliding temporal window (blue waveform bottom panel). Correlation similarity is calculated at each window and the offset is determined to be the temporal window that maximizes similarity between the two audios. (C). Graphical interface in FaceSync toolbox to manually align two audios. One audio file can be shifted in time using the sliders until the two waveforms are aligned. Alignment can be inspected visually by examining the waveform plots and by listening to the combined audio.

Reliability of face recordings using head-mounted cameras

Study 1: Face detection with head rotation.

Methods. To examine the impact of head rotation on face registration, we recorded the face of one male participant (author J.H.C.) using a webcam and our head-mounted camera. In each recording session, the participant rotated the head 90 degrees left, returned to center, 90 degrees to the right, then returned to center. The head-mounted camera used a GoPro Hero4 camera to record 1280 x 720 resolution videos at 30 frames per second (fps). The webcam recording used the integrated camera on a Macbook Pro Retina laptop at 1080 x 720 resolution at approximately 30fps. Facial expressions were extracted using the iMotions Emotient FACET engine (iMotions Biometric Research Platform 6.0, 2016)⁴, which provides face registration success, landmark positions, AU predictions, and emotion predictions.

Results. Face recording using the head-mounted camera retained a continuous view of the entire face without face detection failure regardless of face rotation (Figure 3A top row). In contrast, the webcam face recording resulted in face detection failure when the head was rotated (Figure 3B right panel) which subsequently resulted in failure to extract facial expression predictions.

Figure 3. Face detection reliability between a head-mounted camera and webcam setup.

(A, B) Top row images show the face recordings when facing forward and the right panel image shows the face when facing left. Graphs in the middle row show face detection success at each frame. Graphs in the bottom row shows neutral face expression predictions. In (A), facial expressions are predicted in all frames in contrast to (B) where face detection and facial expressions predictions fail when the head is rotated away from the camera.

Face detection success was 100% of the video duration in the head-mounted camera recording compared to 75% in the webcam recording due to face detection failure when the face was turned (Figure 3A, B middle row). Facial expression predictions (e.g., neutral face, Figure 3A, B bottom row) in the webcam recording also failed for 25% of the video during the head rotation while prediction from the head-mounted camera recording was unaffected.

Discussion. Comparing face recordings from a webcam and a head-mounted camera, we demonstrate that the head-mounted camera provides a more reliable and continuous recording of the face invariant to head rotation. This is important as face expression software is unable to make predictions about facial expressions when it is unable to register a face. Although the head-mounted camera is invariant to head rotations, the head position is currently not tracked. Future work might add additional sensors to monitor head position dynamics. Overall, we demonstrate that the head-mounted camera can prevent data loss due to body and head rotations that can readily occur in most experimental settings without strict restriction of participants’ natural movements.

Flexibility of head-mounted cameras across multiple experimental settings

Study 2: Recording facial expressions to event-based stimuli

This experiment demonstrates the use of head mounted cameras in recording facial expressions to time-locked stimulus presentations. Performance of automatic video alignment using FaceSync in comparison to manual adjustment is also provided.

Methods. One male participant (author J.H.C.) viewed 10 positive images (e.g., kittens, puppies) and 10 negative images (e.g., injured bodies and faces) presented in MATLAB using Psychtoolbox version 3.0.12 (Brainard, 1997; Pelli, 1997) and made deliberate facial expressions concordant with the valence of the image. Each image was presented for two seconds with jittered inter-trial intervals (ITI) of 4, 6, and 8 seconds (mean ITI = 5.4 seconds). The 20 images were selected from the IAPS picture database (Lang et al., 2008). Facial behavior was recorded using a head-mounted GoPro Hero4 camera in 1,280 × 720 resolution at 30fps.

Audio offset was determined both by manually synchronizing the recording using the FaceSync AudioAlign graphical interface and automatically using the FaceSync alignment function. The audio sample used for synchronization (synctune.wav) was a two-second harmonic tune constructed with sine waves at different frequencies. Four independent raters (including author J.H.C.) incrementally shifted the extracted audio in 1ms precision to the target audio using AudioAlign while listening to the shifted sound to minimize echo artifacts as well as visually checking the two waveforms for misalignment. For automatic alignment, we used the FaceSync sliding window correlation function (find_offset_corr) to detect the offset that maximizes the correlation similarity between the two audios. Alignment results from additional test videos that are not included in the face expression analysis were also tested for alignment and are reported as supplementary tests in Table 2. The video was trimmed according to the calculated offsets and facial expressions were extracted using the iMotions Emotient FACET engine (iMotions Biometric Research Platform 6.0, 2016).

Results. An independent-samples t-test was conducted to compare positive facial expressions while viewing positive and negative images. Evidence of positive facial expressions while viewing positive images (M = 8.55, SD = .52) was significantly greater than the evidence while viewing negative images (M = 0.59, SD =1.53; t(18) = 15.58, p < 0.001; Figure 4A). Evidence for disgust facial expression while viewing negative images (M = 3.02, SD = 1.41) was significantly greater than the evidence while viewing positive images (M = .25, SD = .77, t(18) = 5.45, p < 0.001, Figure 4B).

Figure 4. Different facial expressions for positive and negative images.

(A) Evidence of smiling to positive (blue) and negative (red) images. (B) Evidence of disgust facial expression to positive (blue) and negative (red) images. Shaded error bars indicate standard error of the mean.

Audio alignment results are reported in Table 2. The average difference between manual audio alignment by four different raters and the FaceSync automatic algorithmic alignment was -.002 seconds (SD = .004).

Discussion. In Study 2, we demonstrate the feasibility of using head-mounted cameras to record facial expressions in response to time-locked stimuli. The participant displayed positive facial expressions (i.e. smiling) to positive images and disgust facial expressions to negative images which was accurately retrieved from the analysis. Facial expressions were successfully linked to the stimuli that elicited the response by accurate alignment of the face recording to stimulus timing. Only a small difference was observed between the offsets determined automatically and manually. This study demonstrates the feasibility of using a head-mounted camera setup for standard computer-based experiments and that facial expressions can be linked with the stimuli that elicited the response with high temporal precision.

Study 3 and 4: Watching and discussing naturalistic stimuli together

To demonstrate the feasibility of using the head-mounted camera setup to simultaneously record facial expressions from several individuals, we recorded individual facial expressions of a group while they watched a video together in Study 3. Subsequently in Study 4, we recorded facial expressions of the group members while they discussed the contents of the video. We compare the facial expression behavior of each participant to one another with the expectation that participants would show synchronization of facial expressions in both conditions but to a greater extent in the movie watching experiment. Audio alignment offsets determined by manual and automatic alignment are compared.

Method. In Study 3, we measured the facial expressions of a group (N=5, 20% Female) watching a video, Big Buck Bunny (“Big Buck Bunny,” 2008). In Study 4, the group freely discussed the content of the video. Each person’s facial behavior was recorded by their head-mounted GoPro Hero4 camera at 120fps and at 1,920 x 1,080 resolution.

In the Study 3, each face recording was aligned to the audio of the movie. In Study 4, each face recording was aligned to the audio of a single participant whose recording began the latest. In both studies, all cameras recorded the audio in the environment simultaneously, which allowed them to be aligned based on the shared audio. Each recording was aligned manually by four independent raters (including author J.H.C.) using the FaceSync AudioAlign graphical interface and automatically using the sliding window correlation alignment function (find_offset_corr). Differences in offset measured by the two methods were submitted to a one sample t-test to assess whether there was any difference between the two methods. After alignment, videos were trimmed using the FaceSync trim function.

Facial expressions, including AU activations and emotion predictions, were extracted using the iMotions Emotient FACET engine (iMotions Biometric Research Platform 6.0, 2016) and subsequently downsampled to 1hz. To assess the similarity of the affective experience, we calculated intersubject synchrony (ISC). This technique has been used in fMRI analysis to identify signals that are common across participants when watching naturalistic stimuli such as movies and listening to stories (Hasson et al., 2004; Honey et al., 2012; Nummenmaa et al., 2012; Stephens et al., 2010). For each experiment, ISC for joy facial expressions was calculated using pairwise correlation similarity of participants’ predicted joy time-series. To determine whether the group was synchronizing in their smiling greater than chance, we calculated a one-sample t-test over all pairwise correlations to test whether the synchronization was significantly different from zero. In addition, we used a paired-sample t-test to assess whether the ISC was significantly different between the viewing (Study 3) and the discussion (Study 4). All t-tests were conducted on Fisher r-to-z transformed correlations.

Results. Overall, we found evidence that participants were having a similar affective experience while watching the video (Figure 5). Average ISC was r = .40 (SD=0.08), t(9) = 13.89, p < 0.001. Participants also displayed synchronized facial expressions while discussing the video, r = .20, (SD=.16), t(9) = 3.75, p = 0.004. However, there appeared to be greater ISC of the joy facial expression viewing the show compared to discussing it afterwards, t(18) = 3.53, p = 0.002. This is likely because the joy facial expression was noisier while participants were talking and participants were not always in agreement with each other.

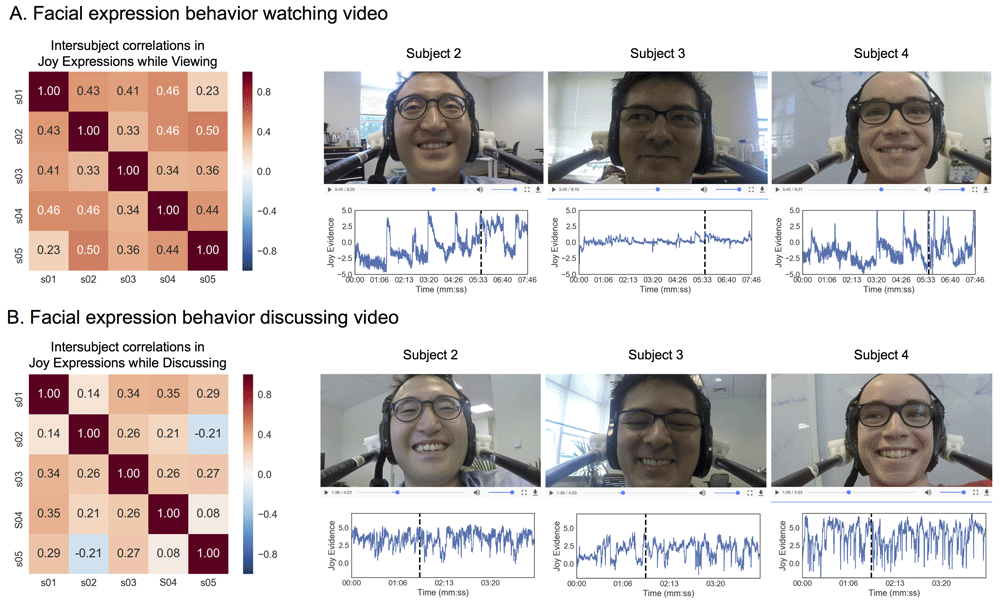

Figure 5. Facial expression behavior while watching and discussing video.

(A) Pairwise intersubject similarity matrix for joy while watching the video is shown on the left panel. Three subject videos are shown on the right with corresponding joy evidence predictions. (B) Pairwise intersubject similarity matrix for joy while discussing the video is shown on the left panel.

The average difference between the automated offset detection and the manual offset search was -.005 seconds (SD = .027; Table 2) for the movie watching videos and .011 seconds (SD = .024; Table 2) for the movie discussion session. Across all three studies and including additional supplementary videos that were similarly evaluated (see Table 2 footnote), overall differences in offsets calculated manually and automatically was .001 seconds (SD = .022) and was not significantly different (t(50) = .46, p = .65).

Discussion. In these two studies, we observed a relatively high level of synchronization in affective experiences across participants while viewing and subsequently discussing a video. Speaking appears to decrease the sensitivity of ISC, likely as a result of the added noise from the mouth movements while speaking. The FaceSync toolbox can accurately align videos together even when the audio recordings are non-uniform due to location of the camera position and multiple people talking at the same time. Overall, these studies demonstrate the flexibility of using head-mounted cameras to record facial behavior in naturalistic experimental paradigms such as watching a movie and also in social experiments, in which participants interact with each other.
