Systematic Review

Malaria vaccines targeting the pre-erythrocytic stage: a scoping review

[version 1; peer review: 2 not approved]
Teresa Ogeto1, Ferdinand Ndubi2, Mary Murithi
https://orcid.org/0000-0002-4586-684X
3, [...] Richard Kagia
https://orcid.org/0000-0002-0226-9754
4, Esbon Wambugu
https://orcid.org/0000-0002-6783-0370
4, Titus Suge
https://orcid.org/0000-0002-5031-0563
4, Carolyne Chepkirui
https://orcid.org/0000-0003-1159-5188
5, Josephat Tonui1, Fiona Maiyo1, Lydia Momanyi6, Michael Walekhwa
https://orcid.org/0000-0003-1337-1284
1
Teresa Ogeto1, Ferdinand Ndubi2, [...] Mary Murithi
https://orcid.org/0000-0002-4586-684X
3, Richard Kagia
https://orcid.org/0000-0002-0226-9754
4, Esbon Wambugu
https://orcid.org/0000-0002-6783-0370
4, Titus Suge
https://orcid.org/0000-0002-5031-0563
4, Carolyne Chepkirui
https://orcid.org/0000-0003-1159-5188
5, Josephat Tonui1, Fiona Maiyo1, Lydia Momanyi6, Michael Walekhwa
https://orcid.org/0000-0003-1337-1284
1
PUBLISHED 07 Jul 2020
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

Abstract

Malaria is a deadly infectious parasitic disease that causes devastating morbidity and mortality globally. Despite being a public health concern, an effective vaccine for prevention of the disease remains elusive. Global efforts are exploring possible ways of developing and improving vaccines to counteract the complex nature in which Plasmodium falciparum evades the immune system. A number of vaccines have been developed in the past targeting the various parasitic life cycle stages. Transmission blocker vaccines, such as PpPf S25, target the parasite stages in the mosquito vector. However, these herd vaccines only protect the immunized population. Vaccines targeting blood-stage forms, such as the AMA-1 and MSP-1 vaccines, are challenged by the complex metabolic pathways of erythrocytes and merozoites. Vaccines targeting the pre-erythrocytic sporozoite stage remain the most promising approach thus far. Here, we systematically review the literature on pre-erythrocytic stage vaccines and on-going work in the field. Furthermore, we highlight gaps in current knowledge and point to potential areas of future work. Articles on pre-erythrocytic malaria vaccines were obtained from Google scholar, PubMed and Cochrane starting from the year 2010. Ten papers were reviewed. A number of vaccines were reviewed highlighting; the vaccine type, clinical phase of trial, population demographics, vaccine immunogenicity, efficacy and safety. The RTS,S vaccine is reportedly the most advanced, having been rolled out for phase III clinical trials in a number of malaria-endemic African countries. The pre-erythrocytic vaccines discussed have made milestones in clinical trials. Some of the challenges elicited may be addressed via screening for novel antigens, exploring suitable vaccine administration vehicles,­ as well as using a combined multi-stage vaccine approach.

Keywords

Malaria, Pre-erythrocytic, Plasmodium falciparum, Vaccines, Sporozoites, efficacy

Corresponding author: Michael Walekhwa
Competing interests: No competing interests were disclosed.
Grant information: The author(s) declared that no grants were involved in supporting this work.
Copyright:  © 2020 Ogeto T et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
How to cite: Ogeto T, Ndubi F, Murithi M et al. Malaria vaccines targeting the pre-erythrocytic stage: a scoping review [version 1; peer review: 2 not approved]. F1000Research 2020, 9:680 (https://doi.org/10.12688/f1000research.24320.1) First published: 07 Jul 2020, 9:680 (https://doi.org/10.12688/f1000research.24320.1) Latest published: 07 Jul 2020, 9:680 (https://doi.org/10.12688/f1000research.24320.1)

Introduction

Malaria, a disease commonly found in the tropics and subtropics is caused by parasites of the genus Plasmodium whereby P. falciparum causes the greatest disease burden. In 2018, it was estimated to have caused 228 million cases globally, out of which 93% (213 million) occurred in Africa1. In Kenya, malaria is a major public health concern causing 6.7 million cases and 4000 mortalities in children annually2,3. Various community and facility interventional strategies, such as insecticide treated mosquito nets, indoor residual spraying, repellents and chemotherapy have significantly reduced the disease burden over the last decade4. However, these strategies are limited in their efficacy; hence elimination of the disease is unlikely without an effective vaccine5. Consequently, an effective vaccine conferring high protective efficacy is required to combat the disease.

To date, a number of vaccines have been developed and are at various stages of clinical trials. These vaccines target specific stage(s) of the parasite life cycle, such as pre-erythrocytic (liver-stage), erythrocytic (blood-stage) and gametocytes6. The pre-erythrocytic vaccines (RTS,S, PfSPZ, TRAP, PP) that target the sporozoites have proved to be the most efficacious of these7. Their superiority is founded primarily on the premise that the sporozoites harbour less antigens and are thus easily targeted by an appropriate vaccine. This results in reduced merozoite production thereby rendering the blood stage immune responses superior8. The pre-erythrocytic stage is however faced with the challenge of culturing sporozoites in vitro, making it difficult to explore novel antigens9.

The RTS,S vaccine, which has progressed to phase III clinical trials, has reportedly been found to be safe and immunogenic when tested in African children in malaria endemic regions such as Kenya and Tanzania10,11. However, trials of this vaccine done in Africa have revealed low efficacy levels. A study done by Olotu et al (2016), on children aged 5–17 months immunized with RTS,S/AS01A vaccine (cases) and rabies vaccine (controls), showed efficacy of 27% against first episode of clinical malaria11. Radiation-attenuated sporozoites (RAS) delivered through the bite of an infected mosquito was 100% protective in humans9. An irradiated P. falciparum sporozoites (PfSPZ) vaccine administered via intravenous injection also resulted in 100% protection in humans12. Other pre-erythrocytic vaccines that have so far been tested in humans include the thrombospondin related anonymous protein (TRAP), multi-epitope thrombospondin related adhesion protein (ME-TRAP) and polyprotein (PP) vaccines13,14.

Despite the numerous interventions towards eliminating malaria, the parasite remains elusive. Vaccines remain to be the only hope to combat the disease. Therefore, efforts to understand P. falciparum biology and cross-talk mechanisms repressing the host immune response to an active infection are continuously being sought. In this review, we focus on milestones made on the pre-erythrocytic malaria vaccines in the last decade. We further highlight the challenges, immunogenicity and efficacy of these vaccines. Studies included mainly the RTS,S vaccine whose clinical trials were carried out in Africa, a malaria endemic region.

Methods

This review was done according to Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA)15. Articles included were those that had the relevance of the subject of malaria vaccine.

Sources and search strategy

Google Scholar, Cochrane and PubMed were the sources of articles. The search terminologies used were ‘pre-erythrocytic malaria vaccines’ and ‘malaria vaccines’. An advanced search strategy in Google Scholar was done to return articles with all the words ‘pre-erythrocytic’ and ‘malaria vaccines’ in their titles. The exact phrases captured in the article titles were ‘pre-erythrocytic malaria vaccines’ or ‘malaria vaccines’. Article titles without the words ‘review’ or ‘meta-analysis’ or ‘expert opinion’ or ‘models’ dated between 2010–2020 were retrieved. The last search in the databases was done on 24th April 2020.

Eligibility criteria

Clinical trials were the only article type considered; reviews, meta-analysis, expert opinions, in vitro studies, mathematical and computer modeling studies were excluded. Articles published in English in the last ten years (2010–2020) were considered since promising milestones have been achieved in the last 10 years.

Selection of articles

To identify the suitability of the article to be included, the titles, abstracts, year of publication and type of study were considered. The papers were screened for eligibility by two reviewers and disagreements were resolved by consensus.

Data extraction

Relevant data was extracted from the included studies based on the type of the vaccine, study design, the clinical trial phase, the mode of vaccine administration, efficacy and safety profile, as well as related adverse events. Other important relevant information, such as the experimental procedures, were also evaluated for each study.

Results

In total, 17 articles were obtained from Google scholar, 7 from Cochrane and 231 from PubMed. After duplicate removal and screening, 10 articles were considered as meeting the criteria (Figure 1).

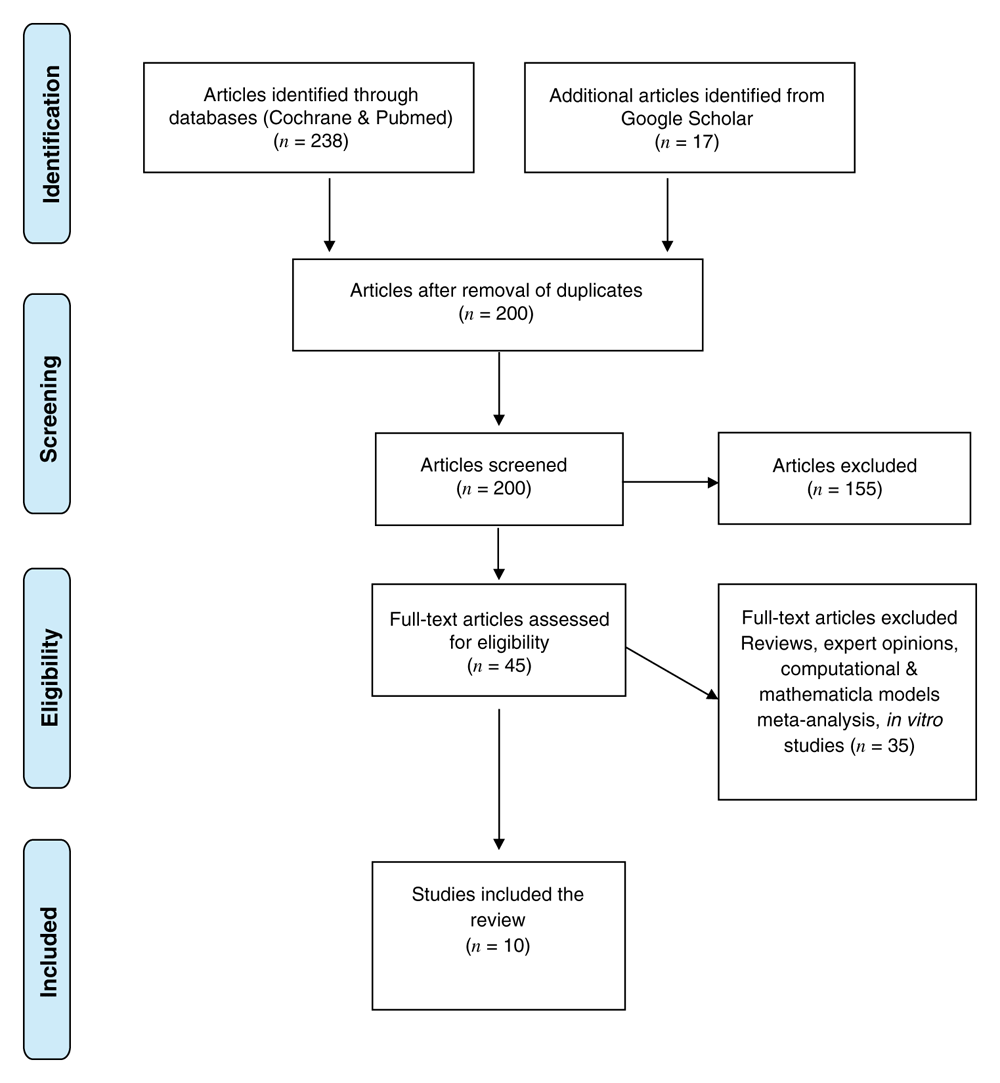

Figure 1. PRISMA flow diagram for screening inclusion and exclusion of studies.

Table 1 exhibits the characteristics of the 10 articles that were included.

Table 1. Articles (n=10) included in a scoping review of literature on the status of current malaria vaccines.

Vaccine typeStudy detailsFindings/ResultsReference
Radiation attenuated
sporozoite vaccine		•   The vaccine was administered by mosquito bites to true
immunized cohorts;

•   Peripheral blood mononuclear cells and plasma samples
collected from 10 subjects before and after immunization
were used;

•   Negative control group were subjects administered with
irradiated non-infected mosquito bites and true immunized
subjects were challenged after five, six and seven
immunizing doses from bites by non-irradiated mosquitoes
carrying infectious sporozoites.		•   A total of 151 recombinant proteins (RPs) were observed, 131 of which
were fully expressed;

•   Of the 151 RPs, 27 were reactive with Western Blots (WBs) when
probed with the radiation-attenuated sporozoites (RAS) plasma. The
27 RPs were selected for further profiling and characterization;

•   Protein Pf78 initially recognized by RAS plasma pool was
subsequently not reactive with WBs and was therefore excluded from
the initial 27 RPs;

•   Six of the 27 RPs (antigens) failed to induce production of the required
threshold of antibodies (Abs) while the remaining 21 were seropositive
with sporozoites;

•   15 of the 21 RPs were positive with 7 day liver stage infection while 13
were positive with blood stage infection and;

•   T-cell immune responses triggered by RAS immunization protected
5 subjects against controlled human malaria infection (CHMI) when
assayed by ELISPOT.		9
RTS,S/ASO: Sub-unit
vaccine		•   The vaccine confers pre-erythrocytic immunity and is based
on circumspozoite proteins;

•   A total of 894 children aged between 5–17 months
were randomized into 2 groups in the ratio of 1:1 to receive
3 doses of RTS, S/AS0E or rabies vaccine (CG) at intervals of
1 month.

•   Blood samples from study subjects were collected before
vaccination and at 1, 8 and 12 months after the 3rd dose of
vaccine;

•   Serum samples were tested on ELISA for presence of
human IgG Abs against P. falciparum antigens.		•   For AMA-1, EBA-175 and MSP-142, Ab levels were highest in youngest
subjects and older children;

•   Vaccination with RTS, S/AS0E was associated with declines in Ab
concentration;

•   Infection with clinical malaria episode during 3 months before
assaying for Ab levels was associated with 10 fold higher levels of Ab
concentration;

•   When adjusted for vaccination group, there was a positive association
between increasing Ab concentration and risk of clinical malaria for
AMA-1, MSP-142 and EBA-175;

•   Ab concentrations were higher in the higher transmission area and
a tenfold increase in Ab concentration was associated with a 13%
decrease in the risk of clinical malaria.		8
PFSPZ: Pf sporozoite
attenuated vaccine		•   Open label, to asses efficacy of PFSPZ administered by DVI
in 3 (weeks 0,8 and 16) and 5 (weeks 0, 4, 8, 12 and 20)
dose regimens;

•   Subjects were followed up after vaccine injection on days 2,
7 and 14 to assess occurrence of any adverse events;

•   Number of PFSPZ/dose, number of doses and intervals
between vaccines doses were altered;

•   Assessment of protection was done at week 3 and 24 after
administration of the last dose of the vaccine;

•   The assessment was against both homologous and
heterologous Pf parasites;

•   Efficiency and tolerability of direct venous inoculation (DVI)
of PFSPZ was also assessed.		•   Short period protection for both heterologous and homologous CHMI
was over 80%;

•   Three weeks after completion of the last dose of PFSPZ, 92% of
subjects vaccinated with 1.35 × 106 amount in a 5 dose plan and 87%
of the subjects vaccinated with 1.35 × 106 amount in a 3 dose plan
were protected against homologous CHMI;

•   The trial gave evidence that the vaccine gave short term protection
against heterologous CHMI;

•   24 weeks after completion of the last vaccine dose, 70% and 57%
of subjects immunized with the 3-dose and 5-dose of PFSPZ, were
protected against homologous CHMI;

•   10% of subjects administered with 5-dose plan of PFSPZ were
protected against heterologous CHMI;

•   PFSPZ vaccine was well tolerated and safe among the immunized
subjects;Administration by DVI was most tolerated as compared to
other traditional routes.		12
RTS,S/ASO: Sub-unit
vaccine		•   A total of 15,460 children aged 6–12 weeks and 5–17 months
were enrolled;

•   Children in each age category were further classified into
3 study groups: the first group received three doses of
the vaccine at intervals of 1 month plus a booster dose at
18 months; the 2nd group received 3 doses of the vaccine
at intervals of 1 month but were not given a booster dose
at 18 months and; the 3rd group received a non-malaria
comparator (control) vaccine;

•   The vaccine targets circumsporozoite proteins and is
administered with adjuvants (AS01 or ASO2);

•   Stage of vaccine: clinical trials;

•   Evaluated efficacy, safety, reactogenicity and
immunogenicity of the vaccine across seven countries in
Africa;

•   Presented vaccine efficacy against both clinical and severe
forms of malaria in the older age category after 12 months
of follow-up;

•   Antibody levels were assayed on ELISA;

•   Randomized controlled double blind trial design.		•   The vaccine’s side effect profile was acceptable;

•   It could be administered safely together with other childhood vaccines
starting at 6 weeks after birth;

•   The vaccine was immunogenic against both clinical and severe forms
of malaria in children who were at least six weeks or older;

•   Incidences of both severe and clinical forms of malaria meeting the
primary case definition after 12 months of follow-up among the older
age category was 0.44 per/person/year in the RTS, S/AS01 group
while: it was 0.83 per/person/year in the control group (CG);

•   Vaccine efficacy against both forms of malaria was 55.1% at 95%
confidence interval (CI);

•   Serious adverse events were observed in 17.6% at (95% CI, 16.7 to
18.6) among subjects in the older age category in the RTS, S/AS01
group while; 21.6% at (95% CI, 20.1 to 23.1);

•   About 0.9% (95% CI, 0.7 to 1.2) of the older category subjects who
received the RTS, S/AS01 vaccine died while; 0.9% (95% CI, 0.6 to
1.4) in the control group died;

•   Cases of meningitis and other adverse events were reported more in
the RTS, S/AS01 group than in the control group;

•   The geometric mean titer (GMT) of anti-circumsporozoite antibodies
were low at enrolment but escalated to 99.9% in the RTS, S/AS01
group 1 month after administration of the 3rd dose.		17
RTS, S and TRAP
with ASO2 adjuvants:
Sub-unit vaccine		•   Phase 1 trials was conducted in both male and female
subjects between the ages 18–50 years, while phase 2 trials
were conducted among male and female subjects between
ages 18–45 years and who had no history of malaria or
injection of an investigative malaria vaccine;

•   In both trials, subjects were to be sero-negative for HBsAg
and hepatitis C;

•   In phase I trial, subjects were randomized into three groups
as follows: RTS, S/AS02, TRAP/AS02 and RTS, S/AS02/TRAP/
AS02 in the ratio of 1:1:2. The vaccines were administered at
0, 1 and 6 months;

•   Phase II trial was a double blind. Subjects were classified
in to 2 cohorts: cohort 1 received sporozoite challenge after
2 doses while cohort 2 was to receive sporozoite challenge
after 3 doses. However, because of poor protective
exhibited in cohort 1, cohort 2 subjects were not enrolled;

•   Cohort 1 subjects were further randomized to receive: RTS,
S + TRAP/ASO2 or TRAP/ASO2 in the ratio of 2:5:1 at 0 and 1
months. The sporozoite challenge was then done at 7 to 30
days after completing the second dose.		•   The most reported undesirable events were a transient pain at the
site of injection, redness and swelling for all groups. No biochemical,
hematological and abnormalities associated with urine were reported
for during all trials;

•   There were no anti-circumsporozoite antibodies (anti-CS Abs)
pre-vaccination. After immunization, geometric mean titers (GMTs)
escalated at every time point especially for RTS, S + TRAP/AS02.

•   Anti-TRAP GMTs escalated after subsequent doses during the phase 1
trial and decreased 6 months after the 3rd dose;

•   During the 2nd phase, the highest GMT was reported after completion
of the 2nd dose for both RTS,S and TRAP/AS02;

•   Significant elevations in levels of IFN-ץ and IL-5 as well as IL-4
were observed after the 2nd doses for both vaccines. No significant
increases in the cytokine levels were reported after the 3rd dose and;

•   Patent parasitemia was detected in all vaccinees upon challenge with
sporozoites for all the vaccines.		18
RTS,S/AS01 vaccine:
a recombinant
protein based
vaccine		•   PCR-based next generation sequencing of DNA samples
obtained from 4,985 study participants was used to analyze
circumsporozoite protein polymorphisms;

•   Samples representing two protocol-specified end points
were sequenced only in participants who received all three
vaccinations at months 0, 1, and 2;

•   The two protocol endpoints included primary clinical malaria
and parasite positivity;

•   Samples extracted from study participants were obtained as
dried blood spots on Whatman FTA sample cards and;

•   The sequencing of circumsporozoite protein C-terminal and
SERA-2 amplicons was done on an Illumina MiSeq platform.
The sequencing of NANP–NVDP amplicon was done on a
PacBio platform since it was longer.		•   Most of the samples obtained from participants with primary clinical
malaria in the two age bracket, had complex infections;

•   Distribution of complex malaria infection was skewed towards fewer
parasite lineages in those who had received RTS,S/AS01;

•    Among those with high complex malaria, 3D7-matching haplotypes
were fewer in those who received RTS,S/AS01 vaccine compared to
those in the control group;

•   During the 1st year after vaccination, 139 clinical cases of malaria that
had a complete full-amplicon 3D7 match and 1951 cases that were
mismatched were detected;

•   Throughout this time in the category of children aged 7–17 months the
overall efficacy of the vaccine was 50.3% against clinical malaria that
had a complete full-amplicon 3D7 match compared to mismatched
malaria where the efficacy was 33.4% and;

•   In the older age, category the additive vaccine efficacy showed a
propensity to reduce as the count of mismatches with 3D7 at these
seven amino acid positions reduced.		16
RTS,S/AS01 vaccine:
Subunit vaccine		•   Seven year follow-up of participants who had been
randomized in two arms with one arm assigned to get
RTS,S/AS01 vaccine while the other arm received control
(rabies) vaccine;

•   The trial was carried out as part of Phase 2 trial of RTS,S/
AS01 vaccine which was conducted among children that
were 5–17 months of age;

•   Double blinded, randomized controlled trial;

•   A total of 447 healthy children of ages 5–17 months in 2007
were recruited and followed up for a cumulative duration of
seven years;

•   The participants were assigned to get either RTS,S/AS01
vaccine or control (rabies vaccine);

•   Each subject received a total of three doses; at baseline, 1
and 2 months. No other vaccine was administered during
the follow up;

•   In order to check for cases of asymptomatic parasitemia,
blood samples were acquired at 8, 12, 15, 25, 38, 65, 78,
and 91 months after vaccination;

•   The primary endpoint was presence of clinical malaria as
a result of infection with Pf and presence of Pf in blood at a
parasite density of more than 2500/mm3;

•   Vaccine efficacy was defined as 1 minus the hazard ratio or
the incidence-rate ratio multiplied by 100 in the RTS,S/AS01
group versus the control group.		•   The vaccine effectiveness in preventing the index case of clinical
malaria was 27.0% (95% CI, 8.5 to 41.8; P = 0.006). Per protocol
analysis yielded comparable results;

•   The approximated effectiveness of the vaccine was 4.4% ((95% CI,
−17.0 to 21.9; P = 0.66). Comparable results were obtained when per
protocol analysis was carried out;

•   The effectiveness of the trial vaccine appeared to diminish significantly
with time. This effect was more pronounced in those participants with
high exposure to malaria parasites. The waning effect was also more
rapid in the same cohort;

•   Conduction of intention to treat analysis yielded a vaccine efficacy of
35.9% in the 1st year which declined to 3.6% in the 7th year of follow
up;

•   Overall, the cases of clinical malaria that were avoided due to
vaccination with RTS,S/AS01 vaccine throughout the seven year period
was 317 cases per 1000 children who received the vaccine;

•   Cases averted in the lower exposure group kept on rising throughout
the follow up period to a total of 718 cases per 1000 children in the
intervention group;

•   Both arms had similar percentage of children reporting cases of
one or more serious adverse effects and so there was no significant
difference between the two;

•   15 cases of severe malaria were discovered on follow up (5 in the
intervention group and 10 in the control group).		11
FP9-PP and MVA-
PP: A recombinant
subunit vaccine.		•   Malaria naïve healthy adult volunteers of ages 18 to 50 years
from Oxford in UK were enrolled into the study;

•   A total of 34 adults were voluntarily included in the study out
of whom 15 were enrolled into the single dose escalation
cohorts (1–5) while 19 were included in the prime-boost
vaccination cohorts (6 and 7);

•   The participants in cohort 6 and 7 were challenged with
sporozoites of Plasmodium falciparum 2 weeks after the last
vaccine administration;

•   Six control participants without vaccination were voluntarily
enrolled and underwent malaria challenge with sporozoites
of plasmodium falciparum;

•   These participants started visiting the clinic on day 6 after
the malaria challenge. Specified symptoms associated with
malaria and in addition blood samples for thick blood smear
and PCR for Pf were drawn and;

•   Real-time PCR was carried out at the time of sporozoites
challenge and during all the subsequent clinic visits until
treatment was initiated.		•   The two vaccines were established to be fairly safe even after
escalation of the doses;

•   Immunogenicity elicited by single dose vaccines was low. For the
MVA-PP vaccine, higher doses appeared to yield lower responses at
the higher dose of 5×108 pfu;

•   In the IFN-γ ELISPOT assay, the immune response against the Pf
antigens was less than anticipated in comparison with other studies
involving different malaria antigens within the same poxvirus vectors;

•   All participants enrolled voluntarily and who completed the study
(n=21) developed clinical malaria evidenced by positive parasitemia
on thick smear and had a positive PCR test for plasmodium malaria;

•   The vaccines did not retard the onset of parasitemia in those who
received the vaccines compared to the control group;

•   Vaccination appeared to marginally slow down blood stage Pf growth
rate.		14
ChAd63 MVA
METRAP: Sub-unit
recombinant vaccine		•   A total of 700 subjects were enrolled. 351 were given 2
doses of ME-TRAP while 349 were given 2 doses of the
control vaccine;

•   Randomized double blind controlled trial;

•   Study subjects were aged between 5–17 months at the time
of vaccine vaccination;

•   Subjects were randomized in the ratio of 1:1, either to the
cohort receiving the ChAd63 ME-TRAP and MVA ME-TRAP
or the cohort that received the rabies control vaccine;

•   The ChAd63 ME-TRAP dose used for purposes of this study
was 5 × 1010 vp. The amount of MVA ME-TRAP used for
purposes of this trial was 1 × 108 pfu;

•   A rabies vaccine called Imovax and administered
intramuscularly as a single dose was used for control
purposes;

•   Assessing for occurrence of solicited adverse events (AE)
was done for 7 days after each round of vaccination while
unsolicited AEs were monitored up to a period of 1 month
after vaccination for both study and control subjects. Close
observation for serious adverse events happened through
the study period;

•   Existence of neutralizing Abs against ChAd63 was not a
basis of selection of subjects;

•   Existence of a blood related, renal or any chronic illness and
prior receipt of malaria investigative drugs of vaccine by the
target subjects served as a basis of exclusion from study;

•   Laboratory assays for T-cell responses to ME-TRAP was
performed on IFN-ץ ELISPOT while; assaying for TRAP
specific IgG Abs was performed on ELISA. 		•   There was notable higher local pain among the vaccine cohorts
(15.4%) as compared to the control cohort (0.3%). Other solicited
events include: drowsiness, low appetite and fever. The most severe
AEs included pneumonia, non-severe malaria, GIT irritation and
undernourishment especially to the vaccine cohort than the control
cohort;

•   There were four deaths during the trail, 1 from the ME-TRAP (80th day
after vaccination) cohort while 3 from rabies control vaccine cohort.
None of the cases was associated with the study vaccines;

•   IFN-ץ Ag specific T-cells escalated among subjects who were
vaccinated with ChAd63 MVA ME-TRAP;

•   At baseline, 2 out of 169 subjects had anti-TRAP IgG Abs; 122 of 169
had anti-TRAP IgG Abs after priming and 165 out of 169 had anti-
TRAP after boosting;

•   A total of 424 subjects had clinical malaria qualifying the primary case
definition during the study period.		13
RTS,S/AS01: A
subunit vaccine		•   The design was randomized, double blind phase III trial;

•   Healthy subjects aged between 5–17 months at the time of
1st vaccination were eligible for the study;

•   Vaccination with 3 doses of Hepatitis B vaccines was a
requirement for inclusion;

•   A total of 320 subjects were randomized in the ratio of
1:1:1:1 (80 subjects/group) in order to receive 1 of 3 lots
or the comparator lot of RTS,S/AS01 following a 0,1 and 2
months schedule;

•   Anti-circumsporozoite Abs (Anti-CS Abs) (IgG) were
measured on ELISA before administration of the 1st dose
and 1 month after completion of the 3rd dose;

•   Solicited local and general AEs (redness, swelling and pain
at injection site and; drowsiness, fever and loss of appetite),
unsolicited AEs and serious AEs were trailed for 7 days, 30
days and through the study period respectively.		•   Anti-CS IgG GMT ratio was between 0.5 to 2 one month after
completion of the 3rd dose;

•   The GMT for anti-CS was 271.7EU/ml and 285.8EU/ml for the pilot and
commercial lots respectively;

•   Anti-CS prevalence was 3% before vaccination and levels escalated to
seropositivity 1 month after completing the last dose of vaccine across
all cohorts;

•   Most subjects (≥91.8%) in each cohort had anti-HBs Abs before
vaccination;

•   Pain and fever were the most prevalent solicited local and general AEs
reported and; 13 unsolicited severe AEs were also reported.		19

Discussion

The RTS,S vaccine is by far the most advanced malaria vaccine in clinical development today. The vaccine confers its protective effect by targeting the circumsporozoite protein (CSP), a specific protein expressed by parasites in the pre-erythrocytic stage of the Plasmodium falciparum (Pf) human life cycle8. In specific field trials, RTS,S-containing vaccines have been administered with either the AS01 or AS02 adjuvant systems8. By virtue of their intrinsic properties and composition, therefore, vaccines containing the RTS,S formulation impart partial pre-erythrocytic immunity which is distinct from naturally-acquired immunity that mainly targets blood-stage parasites8,16. The latter type of immunity is hypothesized to be mediated mainly by T- and B-cell responses, as well as other possible mechanisms that are not presently well defined. An immuno-epidemiological study conducted by Bejon et al in 2011 concluded that vaccination of young children with the RTS,S/AS01E vaccine resulted in reduced exposure to blood-stage parasites, therefore reducing anti-merozoite antigen antibody concentrations. The antibodies were, however, not correlates of clinical immunity to malaria8. This is a serious concern associated with use of the RTS,S vaccine in the general population.

Several attempts have been made to improve the protective efficacy of the RTS,S vaccines. These include, but are not limited to, formulation with more potent adjuvant systems, use of boosted regimens with other CSP-expressing regimens and evaluation of other Pf antigens separately or in combination with RTS,S. An example of such a study was conducted using RTS,S combined with a recombinant form of thrombospondin related anonymous protein (TRAP) of Pf (PfTRAP)18. Measurement of antigen-specific antibody responses, lymphoproliferative responses and IFN production due to the combination vaccine were similar to those produced by each of the single component vaccines. However, both the phase 1 and 2 clinical studies conducted by the investigators indicated inferior protective efficacy with the RTS,S/TRAP combination compared to single RTS,S/AS02 vaccine18. This was attributed to possible immunological interference, a phenomenon whereby multiple antigens interfere with T-cell priming and restimulation expected with a single antigen. The study was also limited by its significantly small sample size. Future combinations should perform preliminary exclusion of possible immunological interference between component antigens to improve success rates of such ‘boosted’ regimens.

An important consideration about use of the RTS,S vaccines is their duration of protective effect in the general population. Field trials of the vaccine have been conducted on infants and young children, where the vaccine has demonstrated average protection rates of between 18–36% with 3–4 doses of the vaccine administered during a 48-month follow-up period11. These trials were conducted in different African sites with varying rates of malaria transmission. Follow-up studies spanning a period of seven years however produced disappointing results on the long-term protective efficacy of the RTS,S malaria vaccine. From the two clinical studies, it was concluded that a three-dose vaccination regimen with RTS,S/AS01 vaccine offered initial protection against clinical malaria. The result was however offset in subsequent years, especially in areas with higher-than-average exposure to the parasites. Also, anti-merozoite antibody levels in vaccinated individuals were poor correlates of clinical immunity11.

A recent study investigating the relationship between protective efficacy of the RTS,S/AS01 malaria vaccine and CSP polymorphisms in localized parasite population genotypes indicated that protective efficacy of the vaccine was higher in malaria parasites with matched CSP alleles than those with unmatched alleles16. This finding is important because CSP polymorphisms and differences in haplotypic regions of the protein exert an effect of vaccine efficacy16. Significant differences were observed in the cumulative vaccine efficiency rate between different age groups, based on the CSP polymorphisms. Therefore, it may be helpful to incorporate CSP polymorphisms in the local parasite population in future vaccine development efforts. Such an expensive venture would definitely impact on the cost of production, and availability, of these tailor-made malaria vaccines.

On the bright side, a study investigating the immunogenicity and safety of commercially produced RTS,S/AS01 malaria vaccine on a lot-to-lot basis yielded encouraging results. No significant variations were noted between the RTS,S/AS01 vaccine lots formulated from a commercial-scale purified antigen bulk batch compared to those formulated from a pilot-scale antigen bulk batch19. This is an encouraging prospect for future production of multiple batches of the RTS,S pre-erythrocytic vaccines especially in resource-limited settings which are also malaria endemic.

A different approach from the RTS,S vaccine adopted in the last decade has led to development of the Pf sporozoite (PfSPZ) vaccine12. This vaccine contains radiation-attenuated sporozoites of the parasite, and was assessed for tolerability, safety, immunogenicity and protective efficacy. The PfSPZ vaccine was administered by direct venous inoculation of 3–5 doses in non-immune individuals12. The PfSPZ vaccine, given in a three-dose regimen, protected against both 3- and 24-week homologous (similar strain as in vaccine) controlled malaria infections. No significantly alarming side effects were associated with the trialed regimens of this vaccine, and this is an encouraging outcome for future applications of the PfSPZ vaccine in mass malaria vaccination campaigns. Upcoming phase III trials of the vaccine will provide further insights on the protective efficacy and safety of the vaccine, especially against heterologous (different strain from vaccine) infections.

Furthermore, a polyprotein (PP) pre-erythrocytic malaria vaccine containing the entire sequence of six separate Pf proteins has been investigated. This vaccine was delivered using the combined viral vectors fowl pox virus strain FP9 and modified vaccinia virus Ankara (MVA)14. The design strategy of this ‘polyprotein’ vaccine was targeted at producing a broad antibody response against a broad range of plasmodial pre-erythrocytic antigens, as opposed to a strong but narrow response. No serious adverse effects were observed with both the FP9-PP and MVA-PP vaccines, but both failed to induce protection against sporozoite challenge or delay onset of parasitemia in vaccinated individuals14. The investigators attributed this outcome to possible limits in the size of immunogenic pre-erythrocytic proteins, at least when attached to viral vectors. Future work in the design of PP pre-erythrocytic malaria vaccines should therefore attempt to investigate the theory of size limits to immunogenicity, as well as effects of specific combinations and sizes to efficiency of the viral vectors employed. In addition, a separate phase IIa study utilizing the chimpanzee adenovirus 63 (ChAd63) and MVA vectors to express a TRAP-based vaccine yielded more promising results13. Both vaccines were demonstrated to be safe and adequately immunogenic, but induced only moderate T-cell response. This immunogenic response was not sufficient to provide protection against clinical malaria in the follow-up period. Despite these results, viral vectors have a role in malaria vaccine delivery and future work should further investigate novel viral vectors as well as increased applicability in design of pre-erythrocytic vaccines.

Although CSP has stood out over the last few years as an immuno-dominant pre-erythrocytic antigen, several other proteins can be utilized in the design of pre-erythrocytic malaria vaccines. A study of 27 different pre-erythrocytic antigens indicated that 21 out of those, all localized to different parts of the sporozoite, induced detectable antibody responses in animal models9. These antigens elicited adequate antibody and T-cell responses and are therefore possible vaccine candidates. In future development of pre-erythrocytic malaria vaccines, thorough investigation of these additional sporozoite proteins should be undertaken to explore their viability as starting points for vaccine development. It would be interesting to explore these additional proteins as vaccine candidates.

This review had some limitations. We only considered vaccine candidates in clinical trials in the past decade. Therefore, promising vaccine candidates which have not yet been approved for clinical trials were not considered. In addition, only the vaccine candidates affecting the pre-erythrocytic stage were evaluated yet it is possible for a molecule affecting the erythrocytic stage to be an effective malaria vaccine. Articles published in another language apart from English were not included leading to exemption of potentially promising vaccine candidates.

Conclusion

The search for a malaria vaccine targeting the pre-erythrocytic stage of the Pf has led to development of sub-unit vaccines, for example, RTS,S vaccine & ChAd63 MVA METRAP vaccine and inactivated vaccines like radiation attenuated Pf sporozoite vaccine. However, these vaccines have not been shown to induce sufficient immune responses required to provide adequate protection against malaria. The RTS,S vaccine currently undergoing clinical trials remains the most promising. However, its inability to confer long-term protection against clinical malaria and the varied antibody responses associated with the vaccine remain major drawbacks. The attenuated sporozoite vaccine is also a promising option, and ongoing clinical trials are vital in providing conclusions on the protective effect of this vaccine. Most importantly, ability of the PfSPZ vaccine to impart protection against heterologous malaria infections will be vital. Use of viral vectors for malaria vaccines has proven to be a viable mode of delivery. Further work is needed to identify optimal viral vectors for maximum protective efficacy. In addition, the possibility of using combined antigens in a single vaccine and further exploration of other plasmodial antigens as vaccine candidates are both routes that need to be pursued.

Data availability

Underlying data

All data underlying the results are available as part of the article and no additional source data are required.

Reporting guidelines

Harvard Dataverse: PRISMA-ScR checklist for ‘Malaria vaccines targeting the pre-erythrocytic stage: a systematic review’, https://doi.org/10.7910/DVN/ZK3ZZH20.

Acknowledgements

We acknowledge the technical input of Ms. Regina Njeru of the International Livestock Research Institute (ILRI). We are very grateful that she made time to give her valuable contribution.

References

  • 1.  World Health Organization World Malaria Report: World Health. WHO/HTM/GM, 2010; 238. Reference Source
  • 2.  Sultana M, Sheikh N, Mahumud RA, et al.: Prevalence and associated determinants of malaria parasites among Kenyan children. Trop Med Health. 2017; 45: 25. PubMed Abstract | Publisher Full Text | Free Full Text
  • 3.  Halliday KE, Okello G, Turner EL, et al.: Impact of Intermittent Screening and Treatment for Malaria among School Children in Kenya: A Cluster Randomised Trial. PLoS Med. 2014; 11(1): e1001594. PubMed Abstract | Publisher Full Text | Free Full Text
  • 4.  West PA, Protopopoff N, Wright A, et al.: Indoor Residual Spraying in Combination with Insecticide-Treated Nets Compared to Insecticide-Treated Nets Alone for Protection against Malaria: A Cluster Randomised Trial in Tanzania. PLoS Med. 2014; 11(4): e1001630. PubMed Abstract | Publisher Full Text | Free Full Text
  • 5.  Coelho CH, Doritchamou JYA, Zaidi I, et al.: Advances in malaria vaccine development: Report from the 2017 malaria vaccine symposium. npj Vaccines. 2017; 2: 34. PubMed Abstract | Publisher Full Text | Free Full Text
  • 6.  Crompton PD, Pierce SK, Miller LH: Advances and challenges in malaria vaccine development. J Clin Invest. 2010; 120(12): 4168–78. PubMed Abstract | Publisher Full Text | Free Full Text
  • 7.  Duffy PE, Sahu T, Akue A, et al.: Pre-erythrocytic malaria vaccines: identifying the targets. Expert Rev Vaccines. 2012; 11(10): 1261–80. PubMed Abstract | Publisher Full Text | Free Full Text
  • 8.  Bejon P, Cook J, Bergmann-Leitner E, et al.: Effect of the pre-erythrocytic candidate malaria vaccine RTS,S/AS01E on blood stage immunity in young children. J Infect Dis. 2011; 204(1): 9–18. PubMed Abstract | Publisher Full Text | Free Full Text
  • 9.  Aguiar JC, Bolton J, Wanga J, et al.: Discovery of novel plasmodium falciparum pre-erythrocytic antigens for vaccine development. PLoS One. 2015; 10(8): e0136109. PubMed Abstract | Publisher Full Text | Free Full Text
  • 10.  Ndungu FM, Mwacharo J, Wambua J, et al.: A seven-year study on the effect of the pre-erythrocytic malaria vaccine candidate RTS,S/AS01E on blood stage immunity in young kenyan children [version 1; peer review: 1 approved, 2 approved with reservations]. Wellcome Open Res. 2019; 4: 42. PubMed Abstract | Publisher Full Text | Free Full Text
  • 11.  Olotu A, Fegan G, Wambua J: Seven-Year Efficacy of RTS,S/AS01 Malaria Vaccine Among Young African Children N Engl J Med. 2016; 374(26): 2519–29. PubMed Abstract | Publisher Full Text | Free Full Text
  • 12.  Epstein JE, Paolino KM, Richie TL, et al.: Protection against Plasmodium falciparum malaria by PfSPZ Vaccine. JCI Insight. 2017; 2(1): 1–14. PubMed Abstract | Publisher Full Text | Free Full Text
  • 13.  Tiono AB, Nébié I, Anagnostou N, et al.: First field efficacy trial of the ChAd63 MVA ME-TRAP vectored malaria vaccine candidate in 5-17 months old infants and children. PLoS One. 2018; 13(12): e0208328. PubMed Abstract | Publisher Full Text | Free Full Text
  • 14.  Porter DW, Thompson FM, Berthoud TK, et al.: A human phase I/IIa malaria challenge trial of a polyprotein malaria vaccine. Vaccine. 2011; 29(43): 7514–22. PubMed Abstract | Publisher Full Text | Free Full Text
  • 15.  Shamseer L, Moher D, Clarke M, et al.: Preferred reporting items for systematic review and meta-analysis protocols (prisma-p) 2015: Elaboration and explanation. BMJ. 2015; 350: g7647. PubMed Abstract | Publisher Full Text
  • 16.  Neafsey DE, Juraska M, Bedford T, et al.: Genetic diversity and protective efficacy of the RTS,S/AS01 malaria vaccine. N Engl J Med. 2015; 373: 2025–2037. Publisher Full Text
  • 17.  Agnandji ST, Lell B, Soulanoudjingar SS, et al.: First results of phase 3 trial of RTS,S/AS01 malaria vaccine in African children. N Engl J Med. 2011; 365(20): 1863–1875. PubMed Abstract | Publisher Full Text
  • 18.  Kester KE, Gray Heppner D, Moris P, et al.: Sequential Phase 1 and Phase 2 randomized, controlled trials of the safety, immunogenicity and efficacy of combined pre-erythrocytic vaccine antigens RTS,S and TRAP formulated with AS02 Adjuvant System in healthy, malaria naïve adults. Vaccine. 2014; 32(49): 6683–6691. PubMed Abstract | Publisher Full Text
  • 19.  Umeh R, Oguche S, Oguonu T, et al.: Immunogenicity and safety of the candidate RTS,S/AS01 vaccine in young Nigerian children: A randomized, double-blind, lot-to-lot consistency trial. Vaccine. 2014; 32(48): 6556–6562. PubMed Abstract | |Publisher Full Text
  • 20.  Walekhwa M: Malaria vaccines targeting the pre-erythrocytic stage: a systematic review. Harvard Dataverse, V3.2020. Reference Source

Comments on this article Comments (0)

Version 1
VERSION 1 PUBLISHED 07 Jul 2020
Comment
Author details Author details
Competing interests
Grant information
Article Versions (1)
Copyright
Download

Export To
metrics
Views Downloads
F1000Research - -
PubMed Central
Data from PMC are received and updated monthly.
 - -
Citations
SEE MORE DETAILS
CITE
how to cite this article
Ogeto T, Ndubi F, Murithi M et al. Malaria vaccines targeting the pre-erythrocytic stage: a scoping review [version 1; peer review: 2 not approved]. F1000Research 2020, 9:680 (https://doi.org/10.12688/f1000research.24320.1)
NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.
track
receive updates on this article
Track an article to receive email alerts on any updates to this article.

Open Peer Review

Current Reviewer Status: ?
Key to Reviewer Statuses VIEW
ApprovedThe paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approvedFundamental flaws in the paper seriously undermine the findings and conclusions
Version 1
VERSION 1
PUBLISHED 07 Jul 2020
Views
4
Cite
Reviewer Report 07 Oct 2021
Miguel Prudêncio, Faculty of Medicina, Instituto de Medicina Molecular João Lobo Antunes, University of Lisboa, Lisboa, Portugal
Not Approved
VIEWS 4
https://doi.org/10.5256/f1000research.26833.r96331
The authors set out to write a “scoping review” of pre-erythrocytic malaria vaccines. However, this manuscript does not even remotely cover all relevant aspects of pre-erythrocytic vaccination against malaria. This is hardly surprising, when the authors themselves claim to have ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Prudêncio M. Reviewer Report For: Malaria vaccines targeting the pre-erythrocytic stage: a scoping review [version 1; peer review: 2 not approved]. F1000Research 2020, 9:680 (https://doi.org/10.5256/f1000research.26833.r96331)
The direct URL for this report is:
https://f1000research.com/articles/9-680/v1#referee-response-96331
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
Report a concern
Views
25
Cite
Reviewer Report 26 Oct 2020
James M Burns Jr, Department of Microbiology and Immunology, Center for Molecular Parasitology, Drexel University College of Medicine, Philadelphia, Pennsylvania, USA
Not Approved
VIEWS 25
https://doi.org/10.5256/f1000research.26833.r71931
In this manuscript, Ogeto et al attempt to provide a comprehensive review of malaria vaccines targeting pre-erythrocytic stages of Plasmodium falciparum. The review falls short of achieving that goal. Although the period from 2010-2020 was considered, only 10 publications were ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Burns Jr JM. Reviewer Report For: Malaria vaccines targeting the pre-erythrocytic stage: a scoping review [version 1; peer review: 2 not approved]. F1000Research 2020, 9:680 (https://doi.org/10.5256/f1000research.26833.r71931)
The direct URL for this report is:
https://f1000research.com/articles/9-680/v1#referee-response-71931
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
Report a concern

Comments on this article Comments (0)

Version 1
VERSION 1 PUBLISHED 07 Jul 2020
Comment

Open Peer Review

Reviewer Status

Alongside their report, reviewers assign a status to the article:

Approved
The paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations
A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approved
Fundamental flaws in the paper seriously undermine the findings and conclusions

Reviewer Reports

Invited Reviewers
1 2
Version 1
07 Jul 20 		read read
  1. James M Burns Jr, Center for Molecular Parasitology, Drexel University College of Medicine, Philadelphia, USA
  2. Miguel Prudêncio, University of Lisboa, Lisboa, Portugal

Comments on this article

All Comments(0)

Add a comment
Sign up for content alerts

Browse by related subjects

    keyboard_arrow_left Back to all reports
    keyboard_arrow_left Back to all reports
    Alongside their report, reviewers assign a status to the article:
    Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested
    Approved with reservations - A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
    Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions
    Sign In
    If you've forgotten your password, please enter your email address below and we'll send you instructions on how to reset your password.

    The email address should be the one you originally registered with F1000.
    Email address not valid, please try again

    You registered with F1000 via Google, so we cannot reset your password.

    To sign in, please click here.

    If you still need help with your Google account password, please click here.

    You registered with F1000 via Facebook, so we cannot reset your password.

    To sign in, please click here.

    If you still need help with your Facebook account password, please click here.

    Code not correct, please try again
    Email us for further assistance.
    Server error, please try again.
