Research Article

Global trends and current status in colistin resistance research: a bibliometric analysis (1973-2019)

[version 1; peer review: 2 approved]
PUBLISHED 31 Jul 2020
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

This article is included in the Pathogens gateway.

This article is included in the Antimicrobial Resistance collection.

Abstract

Background: Colistin resistance is a major breach in our last line of defense and without urgent action, we are heading for a post-antibiotic era, in which common infections and minor injuries can once again kill. To the best of our knowledge, the use of the bibliometric analytical technique for examining colistin resistance-related research does not exist in the literature.
Methods: Here, we analyze and present bibliometric indicators of the global literature in colistin resistance research. The Scopus database was searched for articles on colistin resistance. The articles retrieved were analyzed using the bibliometrix R-package.
Results: A total of 1105 publications were retrieved. There was a noticeable increase in the number of publications on colistin resistance research in the past decade. Six journals made up the core zone in colistin research and produced 35.83% of the published articles. The analysis across time-intervals revealed several keywords that had increased or decreased in usage when comparing the interval between 1973-2009 and 2010-2019. Authors’ keywords “Acinetobacter baumanii”, and “Pseudomonas aeruginosa” were the most frequent encountered during the period of 1973-2009, while “mcr-1”, “Enterobacteriaceae”, “Escherichia coli”, and “Klebsiella pneumoniae” emerged in the past decade.
Conclusions: There has been a significant growth in publications on colistin resistance in the past decade, suggesting an urgent need for action by different stakeholders to contain this threat of colistin resistance. Keyword analysis revealed temporal changes in the types of keywords used across time-intervals. These findings summarize a general vision on colistin resistance research and will serve as baseline data for future comparative purposes.

Keywords

colistin resistance, mcr-1, keywords, bibliometric analysis

Introduction

According to the World Health Organization (WHO), antibiotic resistance is one of today's greatest threats to global health, food security, and development1. The emergence and unprecedented spread of carbapenemases have led to a resurgence in the use of last-line antibiotic colistin as salvage therapy25.

Colistin or polymyxin E is a polypeptide antibiotic developed in the 1950s. Originally, the antibiotic was isolated from the soil bacterium Paenibacillus polymyxa subsp6. Though withdrawn from clinical use in the 1980s owing to its significant toxicity, it has been re-introduced for the treatment of multidrug resistant (MDR) bacteria, particularly carbapenem-resistant Gram-negative bacterial infections4,5,7,8. It acts by interfering with bacterial cell membranes and/or the inhibition of bacterial respiration9,10.

In 2016, the first plasmid-mediated colistin resistance gene, mcr-1, was detected in Escherichia coli and Klebsiella pneumoniae11. Since then, several variants of mcr-1 and novel families of mcr genes have been identified in a variety of samples1218. Colistin resistance is a major breach in our last line of defense and without urgent action, we are heading for a post-antibiotic era, in which common infections and minor injuries can once again kill.

Bibliometrics is the branch of library science that applies mathematical and statistical techniques to analyze articles, reviews, editorial letters, books, and other documents19. This is an important tool to assess new trends in scientific research. To the best of our knowledge, the use of the bibliometric analytical technique for examining colistin resistance-related research does not exist in the literature. Here, we analyze and present bibliometric indicators of the global literature in colistin resistance research.

Methods

Literature search

Articles on colistin resistance published in the literature were retrieved from the Scopus database on November 15, 2019. Keywords used for data extraction were obtained from published review articles on colistin resistance2022. The search query used for data extraction was: TITLE-ABS-KEY ("colistin resistance" OR "polymyxin E resistance").

Study selection

Two authors independently performed the literature search using EndNote X9 (Bld 12062) produced by Clarivate Analytics. Papers published between January 1, 1973 and 31 December 2019 were included. After removal of duplicate results, titles and abstracts were reviewed for relevance to the research question. Any disagreement was resolved by consensus of the two authors. Experimental studies and studies that reported colistin sensitive bacteria were not eligible for inclusion. Searches were restricted to studies published in the English language.

Analysis methods

According to similar previously published bibliometric studies, selected documents were analyzed by different standard indicators including total number of publications, document types, countries/territories, authors, sources, total number of citations, h-index, average number of citations per publication, international collaborations and Bradford division analysis using the bibliometrix R-package23,24. Furthermore, graphs were plotted for visualization of co-citation networks and keyword co-occurrence of the text corpus extracted from the title and the abstract fields of the articles25. Co-citation has been defined as any two items (authors) that have been jointly cited by another item (author). To determine temporal changes in the type of keywords in colistin resistance research, analysis was carried out for two-time intervals of the study period: period 1, representing 1973 to 2009, and period 2, from 2010 to 2019. All data analysis was performed using the open-source bibliometrix R-package 26 on RStudio version 1.2.1335 (Boston, MA). The bibliometrix R-package provides a set of functions for quantitative research in bibliometric, including: (1) data loading and conversion to R dataframe (readFiles(), convert2df()), (2) data analysis (summary() and plot(), citations(), local citations(), Hindex(), lotka(), keywordGrowth(), keywordAssociation()), and (3) data visualization (biblioNetwork(), histNetwork())26.

Results

Publications outputs and trends

A total of 1578 non duplicate publications indexed in Scopus were retrieved on November 15, 2019. Of the 1578 studies, 1105 met the inclusion criteria and were used for the bibliometric analysis (Figure 1)27. The result of distribution by time indicates that the literature in this field was first published in 1973. A significant increase occurred in the number of publications from 35 in the period 1973-2009 to 1070 in the past decade (P value <0.001). Most of the publications were original research studies (n = 862; 78.01%), followed by editorial letters (n = 124; 11.22%), and reviews (n = 65; 5.88%).


Figure 1. Flow diagram of the selection process of the included studies.

Sources analysis

The top 10 cited papers, their citation frequency and titles are listed in Table 1. The most-cited article (n = 1632) was written by Liu et al. (2016), followed by papers authored by Olaitan et al. (2014) (n = 412) and Moffatt et al. (2010) (n = 336). The top 10 preferred sources for publishing documents on colistin resistance are shown in Table 2. Bradford division analysis shows six sources in the core zone. These six sources are Antimicrobial Agents and Chemotherapy, Journal of Antimicrobial Chemotherapy, International Journal of Antimicrobial Agents, Frontiers in Microbiology, Journal of Global Antimicrobial Resistance, and The Lancet Infectious Diseases, which produced 35.83% of the published articles.

Table 1. The top 10 cited papers.

Top ten most cited original articles
AuthorsYearSourceTitleTCTCperYeara
1Liu et al.112016Lancet Infect DisEmergence of plasmid-mediated colistin resistance
mechanism MCR-1 in animals and human beings in China:
a microbiological and molecular biological study
1632544.00
2Moffatt et al.282010Antimicrob Agents
Chemother
Colistin resistance in Acinetobacter baumannii is mediated
by complete loss of lipopolysaccharide production
33637.30
3Adams et al.292009Antimicrob Agents
Chemother
Resistance to colistin in Acinetobacter baumannii
associated with mutations in the PmrAB two-component
system
24724.70
4Tumbarello et al.302015J Antimicrob
Chemother
Infections caused by KPC-producing Klebsiella
pneumoniae: differences in therapy and mortality in a
multicentre study
23258.00
5Yin et al.152017MBioNovel plasmid-mediated colistin resistance gene mcr-3 in
Escherichia coli
204102.00
6Hasman et al.312015EurosurveillanceDetection of mcr-1 encoding plasmid-mediated colistin-
resistant Escherichia coli isolates from human bloodstream
infection and imported chicken meat, Denmark 2015
19949.80
7Beceiro et al.322011Antimicrob Agents
Chemother
Phosphoethanolamine modification of lipid A in colistin-
resistant variants of Acinetobacter baumannii mediated by
the pmrAB two-component regulatory system
19524.40
8Carattoli et al.332017EurosurveillanceNovel plasmid-mediated colistin resistance mcr-4 gene
in Salmonella and Escherichia coli, Italy 2013, Spain and
Belgium, 2015 to 2016
16180.50
9Capone et al.342013Clin Microbiol InfectHigh rate of colistin resistance among patients with
carbapenem-resistant Klebsiella pneumoniae infection
accounts for an excess of mortality
16026.70
10Hussein et al.352009Infect Control Hosp
Epidemiol
Impact of carbapenem resistance on the outcome of
patients' hospital-acquired bacteraemia caused by
Klebsiella pneumoniae
16016.00
Top ten most cited review articles
1Olaitan et al.362014Frontiers in
Microbiology
Mechanisms of polymyxin resistance: Acquired and
intrinsic resistance in bacteria
41258.85
2Cai et al.372012J Antimicrob
Chemother
Colistin resistance of Acinetobacter baumannii: clinical
reports, mechanisms and antimicrobial strategies
28440.57
3Poirel et al.62017Clinical Microbiology
Reviews
Polymyxins: Antibacterial activity, susceptibility testing,
and resistance mechanisms encoded by plasmids or
chromosomes
24134.42
4Lim et al.382010PharmacotherapyResurgence of colistin: a review of resistance, toxicity,
pharmacodynamics, and dosing
18220.22
5Yahav et al.392012Clin Microbiol InfectColistin: new lessons on an old antibiotic13619.43
6Barbier et al.402013Curr Opin Pulm MedHospital-acquired pneumonia and ventilator-associated
pneumonia: recent advances in epidemiology and
management
11118.50
7Ruppe E et al.412015Ann Intensive CareMechanisms of antimicrobial resistance in Gram-negative
bacilli
10125.25
8Bialvaei et al.422015Curr Med Res OpinColistin, mechanisms and prevalence of resistance9122.75
9Catry et al.432015Int J Antimicrob
Agents
Use of colistin-containing products within the European
Union and European Economic Area (EU/EEA):
development of resistance in animals and possible impact
on human and animal health
6917.25
10Sun et al.442018Trends MicrobiolTowards understanding MCR-like colistin resistance6565.00

aBy the end of year 2018; TC, total citation.

Table 2. The top 10 sources that published articles in colistin resistance research.

RankSourcesArticles%
1Antimicrobial Agents And Chemotherapy12644.37%
2Journal Of Antimicrobial Chemotherapy7927.82%
3International Journal Of Antimicrobial Agents7325.70%
4Frontiers In Microbiology 4415.49%
5Journal Of Global Antimicrobial Resistance4014.08%
6Lancet Infectious Diseases3411.97%
7Microbial Drug Resistance2910.21%
8Infection And Drug Resistance 238.10%
9Eurosurveillance227.75%
10Clinical Microbiology And Infection207.04%

Countries/regions analysis

The top 10 most productive territories included two Asian countries, seven European countries and one country in North America. China dominated the literature in colistin resistance research with 212 items (19.18%), followed distantly by the USA (n = 166; 15.02%) and France (n = 120; 10.85%). China also had the highest citation frequency (Figure 2). International collaboration analysis for active countries is shown in Figure 3.

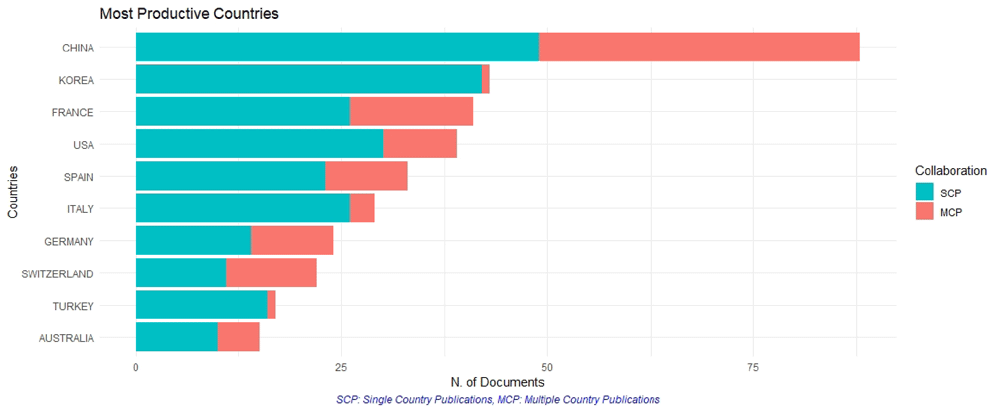

Figure 2. Top 10 countries with the most publications

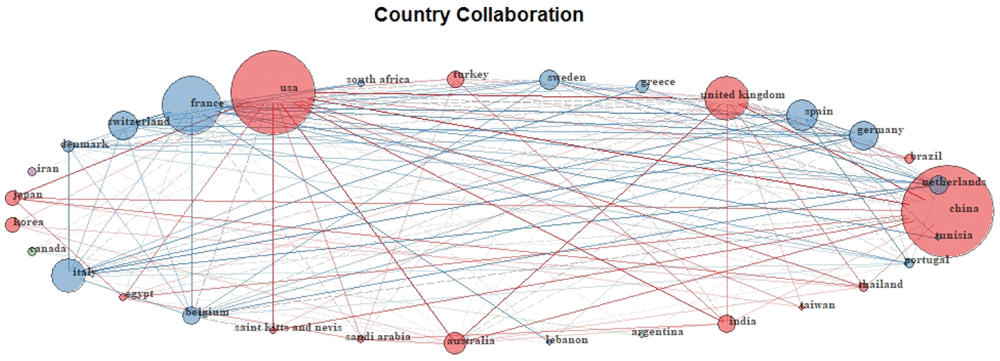

Figure 3. International collaboration analysis for top 30 active countries.

Each node in the figure symbolizes a different country’ collaboration with other countries. The node’s diameter corresponds to the strength of collaboration. Links represent international collaboration pathways between countries. Cluster of countries having similar cluster color most probably represents a closely related research group. Links represent the strength of collaboration.

Author analysis

The 1105 publications were written by 5141 authors working on this subject. Author analysis highlighted 0.215 documents per author, 4.65 authors per document, and 7.37 co-authors per document, with a collaboration index of 4.74. A co-citation network of authors showed four clusters: the blue cluster dominated by Liu 2016; the red cluster dominated by Olaitan 2014; the green cluster dominated by Falagas 2005 and the purple cluster dominated by Xavier 2016 (Figure 4).


Figure 4. The co-citation network map of references from publications in colistin resistance research

Each node in the network symbolizes a different author’ co-citation. The node’s diameter corresponds to the strength of co-citation. Links represent co-citation pathways between authors. Co-citation network of authors showed four clusters. Links diameter represent the strength of co-citation.

Keywords analysis

Temporal changes in the type of keywords were observed between the period 1 (1973 to 2009) and period 2 (2010 to 2019) (Table 3).

Table 3. Types of keywords observed in period 1 (1973-2009) and period 2 (2010-2019).

Period 2 (2010 – 2019)
Author keywords (DE)ArticlesKeywords-
Plus (ID)
Articles
1Colistin resistance232Colistin1834
2Colistin213Antibiotic resistance895
3mcr-1196Escherichia coli802
4Escherichia coli85Nonhuman769
5Klebsiella pneumoniae80Bacterial756
6Acinetobacter baumannii63Article689
7Antibiotic resistance59Klebsiella pneumoniae598
8Antimicrobial resistance52Human597
9Enterobacteriaceae51Drug resistance583
10Resistance45Anti bacterial agents527
Period 1 (1973 – 2009)
1Colistin12Colistin56
2Acinetobacter baumannii5Article28
3Cystic fibrosis4Antibiotic resistance26
4Resistance4Drug resistance26
5Colistin resistance3Acinetobacter baumannii24
6Polymyxin3Bacterial22
7Pseudomonas aeruginosa3Nonhuman21
8Acinetobacter2Anti bacterial agents19
9Antibiotic resistance2Pseudomonas aeruginosa18
10Etest2Humans16

Discussion

The aim of this study was to analyze the global scientific outputs of colistin resistance research and show the trends and current status in colistin resistance research. The publication trend showed a significant increase in the number of publications, particularly in the past decade, from 2010 to 2019, which corresponds with the peak clinical interest in its use as antibiotic of choice against MDR Gram-negative bacteria. This trend reflects the increasing attention paid by different stakeholders to concerns about colistin resistance worldwide and shows that research aiming to reduce the threat of colistin resistance is gaining attention in the scientific community.

Bradford division analysis showed a high concentration (35.83%) of publications in a few journals, namely Antimicrobial Agents and Chemotherapy, Journal of Antimicrobial Chemotherapy, International Journal of Antimicrobial Agents, Frontiers in Microbiology, Journal of Global Antimicrobial Resistance, and The Lancet Infectious Diseases. Four of these six sources are exclusively dedicated to antimicrobials, which is consistent with the global effort against antimicrobial resistance.

China was the leading country for publications related to colistin resistance, contributing 19.18% of all Scopus database articles published during the period of study. This may be due to the widespread use of colistin in animal feedstock and agriculture in China45. Moreover, the fact that China was the first country where a plasmid-mediated mechanism of colistin resistance, the mobilizable colistin resistance gene-1 (mcr-1), was reported, may be a contributing factor to China’s commitment11. The majority of publications on colistin resistance research were produced by high-income countries, with a negligible contribution from low- and middle-income countries, particularly Africa, no countries in which were on the list of the top ten most productive countries. Several previous bibliometric studies of the literature have also reported a similar distribution of research publications in different fields from high-income countries23,46,47. This poor research output from African countries could be due to the lack of funding and poor facilities.

With regards to keywords, the analysis across time-intervals revealed that several keywords have increased or decreased in usage when comparing the interval between 1973-2009 and 2010-2019. This shows a temporal change in the type of keywords. Keywords “mcr-1”, “Enterobacteriaceae”, “Escherichia coli”, and “Klebsiella pneumoniae”, which were absent from 1973 to 2009, have emerged in the past decade. This could be attributed to the fact that until the first report of mcr-1 gene, colistin resistance in Enterobacteriaceae was believed to be chromosomally mediated36. However, since 2016, the mcr-1 gene was reported in Enterobacteriaceae recovered from food, animals, and human specimens in China, and it has subsequently been reported worldwide11,4853. The wide spread of the mcr-1 dramatically challenges the newly renewed interest in colistin for clinical use and opens a new research topic on colistin. Currently, eight new mcr genotypes (mcr-2 to mcr-9) have been reported since the discovery of mcr-11418,33,54,55. Furthermore, colistin-resistant bacteria without prior colistin exposure, possibly due to cross-resistance between colistin and cationic antimicrobials such as LL-37 and lysozyme, have also been reported56,57.

Unsurprisingly, the article “Emergence of plasmid-mediated colistin resistance mechanism mcr-1 in animals and human beings in China: a microbiological and molecular biological study,” published by the Lancet 11 was the most cited article.

Country collaboration in colistin resistance research remains relatively weak. This raises the fundamental question of global collaboration to slow the development and spread of colistin resistance58. Country collaboration may be the most practical solution to this transmissible plasmid-mediated resistance in the era of globalization, with increased migration, trade and travel. Indeed, horizontal transfer of mcr-mediated colistin resistance is a rapid phenomenon, and can not only occur at a rather high frequency but can also disseminate across different bacterial species. Following its first description, plasmid-mcr has now been reported across all seven continents59.

Strengths and limitations of research

To the best of our knowledge, this study is the first to initiate baseline data on bibliometrics in colistin resistance research. The study was not limited by language and a large literature including original articles, reviews, editorial letters and meeting abstracts published over a long period was included. The Scopus database covers the vast majority of online research, particularly broader biomedical research, and it has been established that it is the most user-friendly and easiest tool to use for bibliometric analysis services60,61. Furthermore, comprehensive and relatively objective data analysis was performed, which clearly highlighted the past and current status of colistin resistance research and predicted the future research frontier.

However, this global study is characterized by a number of limitations that are inherent in bibliometric analysis62. The main limitation of the present data is the reliance solely upon the Scopus database, which did not represent all the literature. Despite the fact that the Scopus database is considered an excellent source for bibliometric analysis, there are some journals that contain publications on colistin resistance but are not indexed in Scopus and therefore were not counted. Furthermore, we included papers where colistin resistance or polymyxin E resistance was used in the title or abstract or keywords; that inclusion of search items gives a much lower sensitivity to the search.

Conclusions

There has been a significant growth of publications on colistin resistance in the past decade, suggesting an urgent need for action by different stakeholders to contain this threat of colistin resistance. Unsurprisingly, an article on mcr-1 gene research ranked first among the top ten most cited articles on colistin resistance. Keyword analysis revealed temporal changes in the types of keywords used across time-intervals. These findings summarize a general vision on colistin resistance research and will serve as baseline data for future comparative purposes.

Data availability

Underlying data

Figshare: Full list of included studies .bib. https://doi.org/10.6084/m9.figshare.12673151.v127.

Data are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).
