Diversion at the ER: How Plasmodium falciparum
exports proteins into host erythrocytes [v1; ref status: indexed, http://f1000r.es/SSCf6t]
Department of Microbiology, Faculty of Biology, Saarland University, Saarbruecken, Germany
This work was funded by research support from the Saarland University.
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
P. falciparum infects erythrocytes and causes malaria in humans. The parasite resides intracellularly in a parasitophorous vacuole (PV), and exports proteins into the erythrocyte that are important for parasite survival (Fig. 1)1,2. The identification of a host cell targeting signal in exported P. falciparum proteins was an important first step towards understanding the export mechanism, but left cell biologists puzzled: Marti et al (2004) and Hiller and colleagues (2004) identified a short sequence, RxLxE/Q, which is present in many proteins in the P. falciparum genome known to be exported from the parasite into the erythrocyte3,4. This P. falciparum protein export element (PEXEL) was found by both groups to be necessary and sufficient for protein export into the host cell3,4.

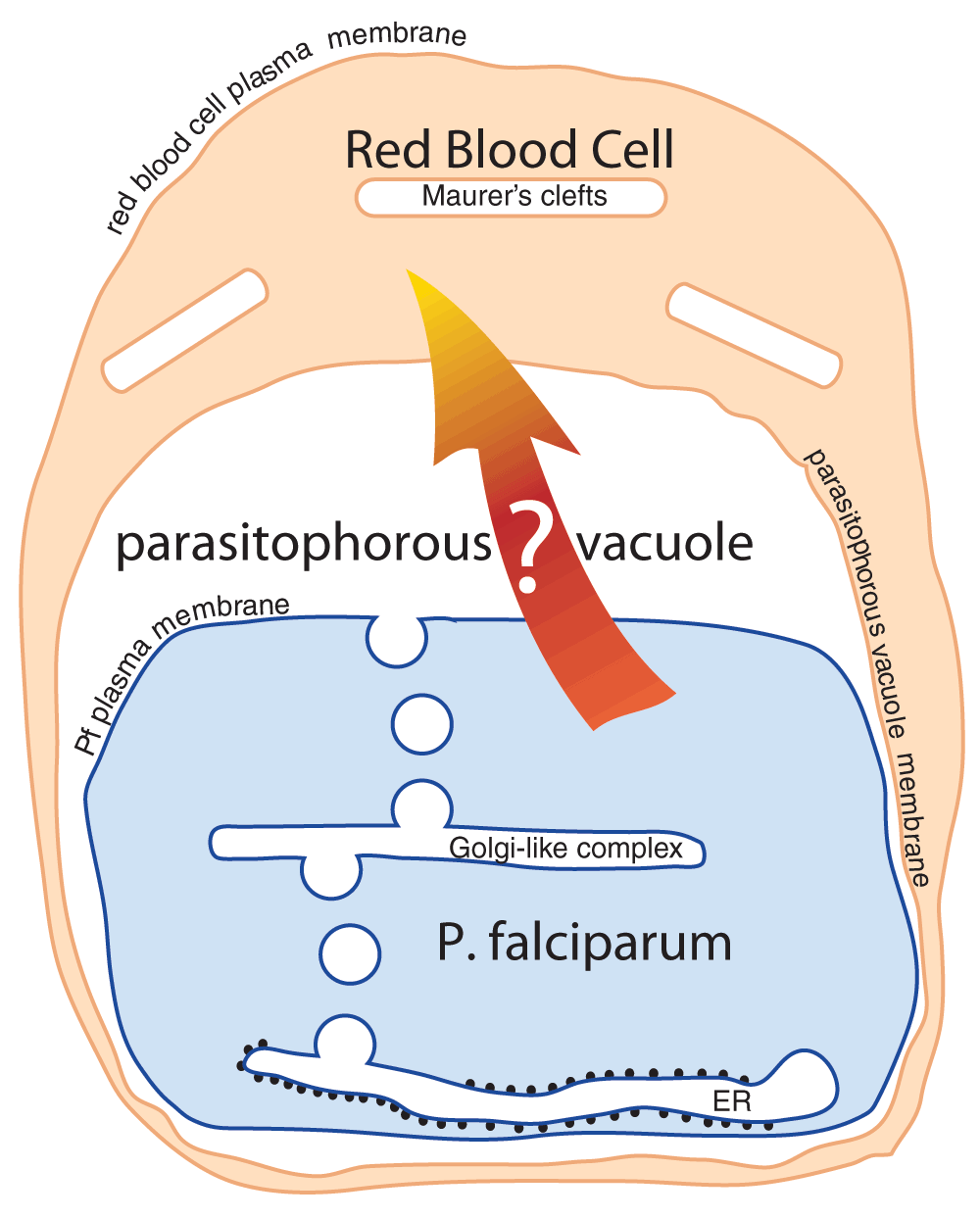

Figure 1. The problem.
P. falciparum (blue) resides in red blood cells (pale orange) inside a parasitophorous vacuole (white). In order to survive, P. falciparum needs to export numerous proteins into the red blood cell, which remodel the host cell to suit the purposes of the parasite. The mechanism by which these proteins are exported is still unclear (Fig. modified from Römisch, 2005)6.
What remains unclear to date is the mechanism by which an export signal present in both soluble and transmembrane proteins can mediate transport of both types of protein into the erythrocyte. This issue was debated hotly, but our ideas at the time were limited, because they were solely based on the classical secretory pathway in mammalian cells5–7.
Since then, a lot more data related to the PEXEL sequence have been generated, but rather than clarify they seem to confuse the issue further. Meanwhile it has been shown that:
The secretory signal peptides of the exported soluble proteins, which are located 20–40 amino acids upstream of the host cell targeting signals, are not cleaved upon endoplasmic reticulum (ER) targeting8,9.
The host cell targeting signal is cleaved and the new N-terminus is N-acetylated at the ER membrane9–11.
The protease responsible for the cleavage has been identified9,10,12.
Cleavage by this protease is a prerequisite for transport into the erythrocyte9,10; if you generate the cleaved N-terminus by modifying the gene and combine it with a cleavable signal peptide, the resulting protein is secreted into the PV and remains there9.
The uncleaved targeting signal binds phosphoinositol-3-phosphate (PI3P) at the ER membrane with the same specificity required for protease cleavage and host cell targeting; the cleaved signal no longer binds PI3P13.
A putative ‘translocator’ complex resides in the PV membrane (PVM); it consists of 5 proteins that coprecipitate some of the proteins bearing a host cell targeting signal, but a function of the complex has not been demonstrated in any way, nor has it been investigated whether the association of the complex and the PEXEL proteins is mediated by the PEXEL signal14,15.
The authors of the respective papers assume that proteolytic cleavage, N-acetylation, and PI3P binding take place in the ER lumen (Fig. 2A)9,10,13. This cannot be right: N-acetylation is a cytosolic modification, the active site of plasmepsin V is almost certainly on the cytoplasmic face of the ER membrane (based on the biochemical & sequence data characterizing the protease), and the only possible location for PI3P at the ER membrane is in the cytosolic leaflet and the only possible location for PI3P at the ER membrane is in the cytosolic leaflet. In detail:

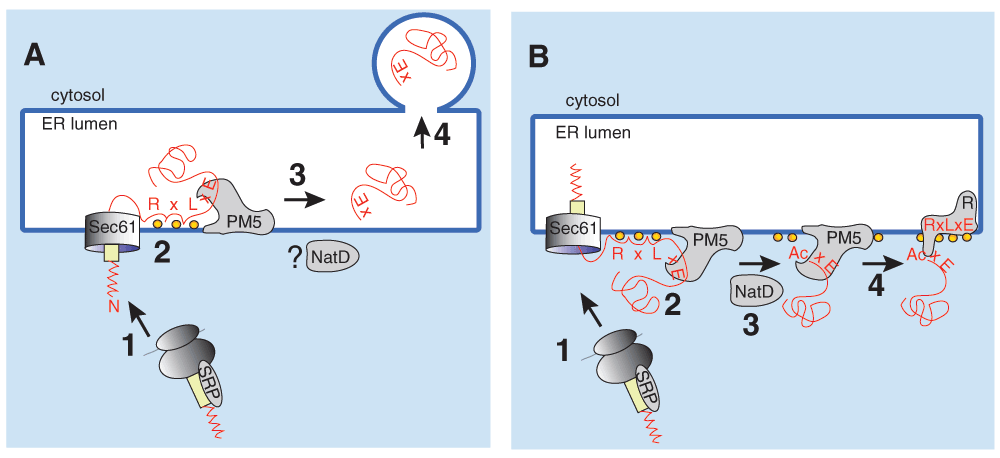

Figure 2. A) The hypothesis.
Most proteins targeted for export into the host cell have a signal sequence (yellow) or transmembrane domain, which leads to their SRP-mediated targeting to the protein translocation channel (Sec61) in the ER membrane of the parasite (1). Many but not all of the P. falciparum exported proteins have an N-terminal extension (red zigzag) whose function is unknown. In addition, host cell targeted proteins contain, in a distance of 20–40 amino acids from the signal peptide, a PEXEL sequence (RxLxE), which is also required for binding to phosphoinositol-3-phosphate (PI3P; orange balls) and for cleavage by the ER-membrane associated protease plasmepsin V (PM5). The current hypothesis in the field is that, after signal-peptide mediated translocation into the ER lumen, the PEXEL sequence binds to PI3P in the lumenal face of the ER membrane and is cleaved by PM5 (2). The cleaved protein is released from PM5 (3) and continues through the P. falciparum secretory pathway by vesicular transport (4). Note that this model cannot explain the NatD-mediated N-acetylation of the PM5-cleaved N-terminus, because NatD resides in the cytosplasm. B) The alternative. After SRP-mediated targeting of the protein destined for export to the parasite ER (1) and insertion into the Sec61 channel, the N-terminal extension of the signal peptide (red zigzag) delays signal cleavage, perhaps by preventing reorientation of the signal peptide in the Sec61 channel. This delay in completing translocation allows the RxLxE sequence to bind to PI3P (orange balls) on the cytoplasmic face of the ER membrane, which creates a recognition signal for PM5 and results in proteolytic cleavage (2). Cleavage releases the protein from the translocation machinery and allows N-acetylation by NatD (3). The mature protein is handed over to a PI3P-associated putative transmembrane receptor (R; 4), which may itself be a PEXEL protein.
All known enzyme complexes mediating N-acetylation including NatD, which is likely responsible for the N-acetylation of proteolytically cleaved PEXEL proteins, are located in the cytosol16. The presence of a secretory signal sequence indeed strongly reduces the likelihood of proteins being N-acetylated, confirming that N-acetylation does not take place inside compartments of the secretory pathway17.
In the initial characterization of plasmepsin V, Klemba & Goldberg (2005)12 found a hydrophobic region at the N-terminus, which they described as a putative signal sequence. There is no discernible signal peptidase cleavage site C-terminal of this hydrophobic region and indeed Klemba and Goldberg did not observe processing of the N-terminus of plasmepsin V in pulse-chase experiment. Russo and colleagues (2010)10 showed later that this region of plasmepsin V was not able to target the protein to the ER, which demonstrates that it is not a signal sequence. In the same paper Russo and colleagues demonstrated that the C-terminal hydrophobic region of plasmepsin V was required to anchor the protein to the ER membrane. Both Russo and colleagues and Klemba and Goldberg describe this region as a transmembrane domain, but Klemba & Goldberg show that 50% of plasmepsin V can be extracted from the membrane by carbonate, pH 11.012. A standard feature of a transmembrane protein, however, is that it is resistant to carbonate extraction at pH 11.518. Altogether these data suggest that plasmepsin V is a carboxy-terminally membrane-anchored or membrane-associated protein with its entire N-terminal domain including the active site in the cytoplasm.
Localization of PI3P has been investigated in yeast and mammalian cells where it is found on early and late endosomes and transiently at the plasma membrane19. PI3P is generated by PI3-kinases on the cytoplasmic leaflet of intracellular membranes and regulates membrane trafficking events20. The localization of the kinase determines the localization of the PI3P patch20. There are no PI3 kinases inside the secretory pathway. The only known example of PI3P occurring at the ER is during formation of autophagosomal membrane precursors, the so-called omegasomes21. Even in this case, PI3P is generated by the Vps34 PI3-kinase in the cytoplasmic leaflet of the ER membrane22.
An alternative explanation for most of the available data is that their secretory signal peptides target PEXEL proteins to the P. falciparum ER, but are inefficiently cleaved - perhaps due to their long N-terminal extensions (Fig. 2B, (1)). This is similar to the biogenesis of some autotransporters in pathogenic E. coli, where delayed signal peptide cleavage due to N-terminal signal peptide extension allows the passenger domain to remain unfolded in the periplasm while the porin domain assembles in the E. coli outer membrane23. Stuck in the protein translocation channel in the P. falciparum ER membrane, the PEXEL protein in transit is oriented such that the host cell targeting signal can bind PI3P at the cytoplasmic face of the ER membrane (Fig. 2B, (2)). Binding creates the cleavage site for the protease plasmepsin V (Fig. 2B, (2)). This possibility has also been mentioned, but not been pursued experimentally, in Bhattacharjee et al.13. After cleavage and N-acetylation (Fig. 2B, (3)) the new N-terminus is not released, but the protein remains membrane-tethered or associated with a transmembrane protein (Fig. 2B, (4)) until it reaches the cell surface from where it is transferred to the erythrocyte, perhaps by vesicular transport (Fig. 3).
Unusual biogenesis of a host cell targeted P. falciparum membrane protein has already been shown: the protein PfEMP-1 remains peripherally membrane-associated throughout the P. falciparum secretory pathway and only becomes transmembrane in the erythrocyte24. But conventional transmembrane proteins, i.e. proteins that become membrane-integrated in the parasite ER membrane, with PEXEL signals also exist25. The biogenesis of a soluble PEXEL protein has not been studied in similar detail to date.
The Key: PI3P in the ER
Recruitment of PEXEL proteins to specific locations within the ER membrane shows interesting parallels to autophagosomal membrane formation at the ER membrane21,22. As mentioned above, the only known example of PI3P occurring in ER membranes is during the induction of autophagosome formation22. Here the Atg14L protein recruits the Vps34 PI3-kinase to the cytosolic face of ER membranes; during amino acid starvation this leads to the formation of membrane patches or bulges, which seem to be attached to the ER and contain PI3P21,22. These patches recruit proteins with PI3P-binding domains, promoting formation of so-called omegasomes, which are invaginations into the ER that ultimately lead to pinching off of a crescent-shaped membrane structure21,22. The mechanism responsible for omegasome formation is not understood21,22,26. In order to be recruited to the right place, the proteins binding to PI3P at the cytosolic face of the ER membrane have to contain, in addition to their PI3P-binding domains, a not yet characterized ER-targeting signal21.
So maybe during erythrocyte invasion, which is controlled by IP3 signalling and calcium release from the ER27, a PI3-kinase is recruited to or activated at the P. falciparum ER. This PI3-kinase generates PI3P in patches localized in the cytoplasmic leaflet of the ER membrane in proximity to the protein translocation channel (Sec61 channel) or the SRP receptor (Fig. 2B). The signal peptide of soluble PEXEL proteins promotes their targeting to the ER membrane where the signal peptide inserts into the Sec61 channel (Fig. 2B). The as yet unexplained long N-terminal extensions of many of the PEXEL protein signal peptides may lead to their inefficient cleavage by signal peptidase in the ER lumen, similar to delayed signal sequence cleavage in bacterial autotransporters with long N-terminal extensions23. Delayed cleavage may be caused by the extension preventing reorientation to an N-cytoplasmic/C-lumenal topology in the protein translocation channel as shown in Fig. 2B28. Alternatively, the N-terminal signal peptide extension may interact with a cytoplasmic domain of the Sec61 channel, which in turn may interfere with signal peptidase access to the cleavage site in the ER lumen (topology shown in Fig. 2A). At least some of the N-terminal hydrophobic regions of PEXEL proteins also simply do not contain signal peptidase cleavage sites6. Delayed signal cleavage will lead to prolonged residence of the nascent PEXEL protein in the Sec61 channel, which in turn would allow interaction of the still cytosolic PEXEL signal with PI3P in the cytosolic leaflet of the ER membrane (Fig. 2B). This interaction keeps the protein from entering the ER and thus the conventional secretory pathway. It may also generate a protein conformation recognized by the cytosolically located active site of plasmepsin V and result in cleavage of the PEXEL signal, which liberates the protein from the Sec61 channel, and aborts translocation into the ER (Fig. 2B). Plasmepsin V might itself be a PI3P-binding protein, or interact with the Sec61 channel. After cleavage the cytosolic NatD complex would acetylate the new N-terminus (Fig. 2B). Importantly, the interaction of the PEXEL protein with plasmepsin V leads to a handing over of the cleaved protein to a receptor protein (or complex) in the PI3P-patch (Fig. 2B).
Transmembrane PEXEL proteins are similarly targeted to the Sec61 channel in the ER membrane, but released laterally into the lipid bilayer which allows their cytosolically exposed PEXEL sequence to bind to PI3P and be recruited into the patch (Fig. 2B). In this case the topology of the PEXEL/PI3P interaction may prevent cleavage by plasmepsin V. That transmembrane proteins can be recruited to PI3P in the ER membrane has also been shown during autophagosomal membrane formation at the ER21. One or more of the transmembrane PEXEL proteins may form the receptor in the PI3P patch for soluble plasmepsin V-cleaved PEXEL proteins (Fig. 2B).
The Way Out
One option is that the PI3P patches and their associated proteins are simply packaged into a specific subset of ER-to-Golgi transport vesicles, and are then transported through the secretory pathway by a series of vesicle budding and fusion events (Fig. 3, pathway A). After transport vesicle fusion at the plasma membrane, the plasma membrane then could either bud vesicles outwardly that subsequently fuse with the PVM (Fig. 3), or there might be a transient fusion of parasite plasma membrane and PVM to transmit the proteins perhaps by interaction of the PI3P patch with a receptor in the PVM (Fig. 3). Release of soluble proteins from the PI3P patch might be triggered by different (ion etc.) conditions in the erythrocyte cytosol. Membrane proteins would be transported by vesicular transport from the PVM to Maurer’s clefts where their release from the PI3P patches could be triggered by a PI3P-phosphatase.

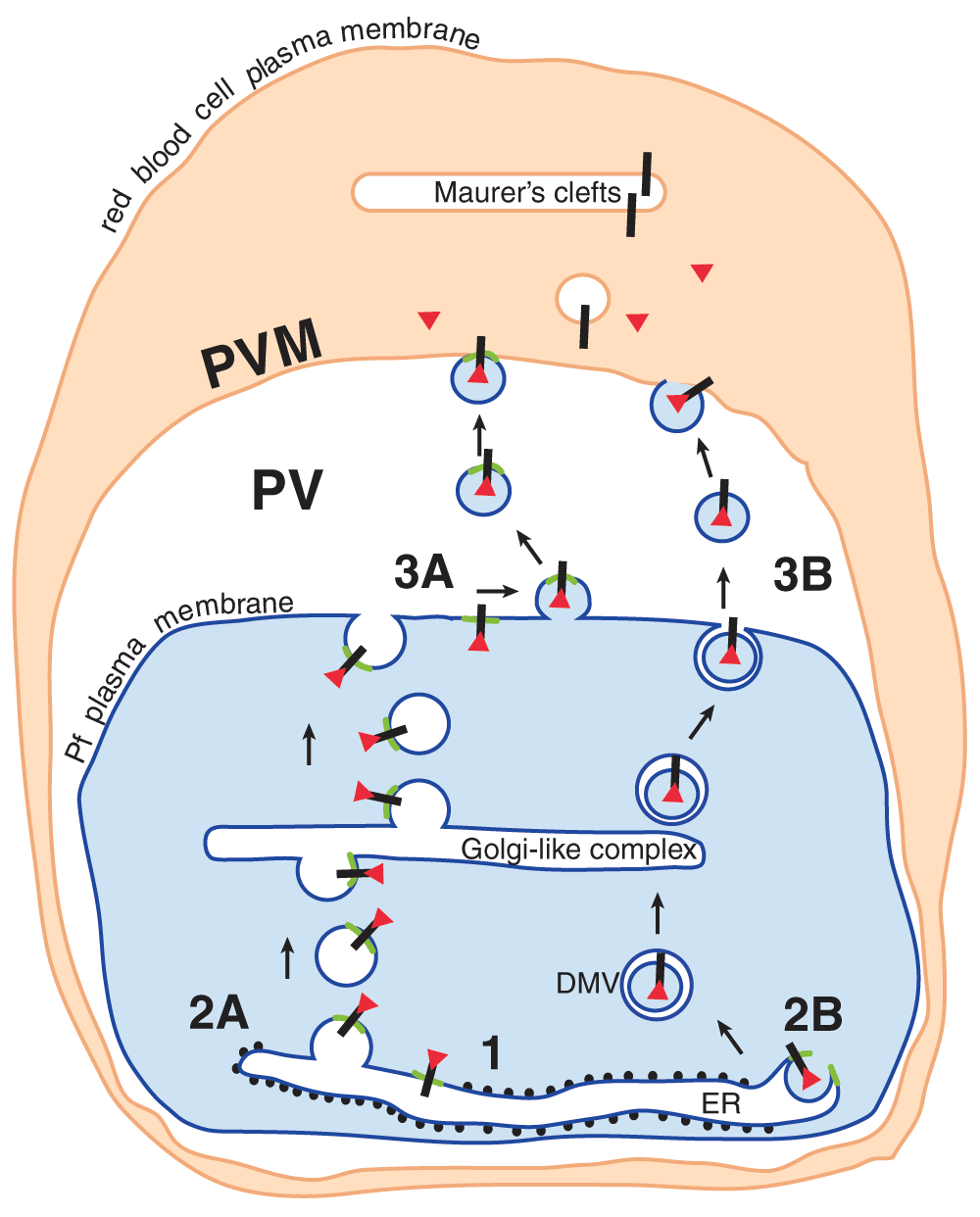

Figure 3. The way out.
Cleaved N-acetylated PEXEL proteins (red triangles) associated with their receptor (black bar) could be transported to the cell surface in a complex (1) in one of two ways. Either the receptor/soluble protein complex remains associated with the PI3P patch (green) in the ER membrane. The patch and associated proteins are transported by vesicle budding (2A) and fusion through the parasite secretory pathway to the cell surface, where a further budding event (3A) liberates vesicles containing the PI3P patch and the PEXEL proteins. These vesicles then fuse with the PVM (4A). Alternatively, similar to the formation of omegasomes during autophagy, the PI3P patch may trigger the budding of processed PEXEL protein-containing vesicles into the ER (2B). PEXEL proteins would then be transported through the secretory pathway in double membrane vesicles (DMV), and released into the PV by fusion of the outer membrane with the parasite plasma membrane (3B). The released vesicle may then fuse with the PVM (4B) (Fig. modified from Römisch, 2005)6.
Alternatively, similar to what has been observed during autophagosomal membrane formation at the ER, the recruitment of specific proteins to the PI3P patch may lead to an invagination of the ER membrane, resulting in vesicles inside the ER containing the PEXEL proteins (Fig. 3, pathway B). These proteins could then be transported through the secretory pathway as double membrane vesicles (DMVs) whose outer layer would ultimately fuse with the parasite plasma membrane (Fig. 3, 3B). DMVs have been detected in electron micrographs of P. falciparum, and fusion with the parasite plasma membrane and vesicle release into the PV have been reported5. The released vesicles might subsequently be able to fuse with the PVM (Fig. 3, 4B).
Either of the transport pathways depicted in Fig. 3 would satisfy the Brefeldin A sensitivity of (at least some) protein transport into the erythrocyte29,30. Either would explain how soluble and transmembrane proteins can be targeted into the host cell using the same signal3,4. Both scenarios could also explain how proteins without a PEXEL signal or proteins without a signal sequence or transmembrane domain could end up in the erythrocyte: these proteins could be packaged into the PEXEL-protein containing vesicles by interaction with these on the cytoplasmic face of the ER membrane6,31. Both hypotheses could also explain how the PEXEL signal leads to targeting to the erythrocyte even though the signal itself is cleaved already at the parasite ER13.
If the key decision - entry into the conventional secretory pathway or entry into a distinct export pathway that ultimately leads to arrival in the erythrocyte - is already made during PEXEL protein biogenesis at the parasite ER, this would explain why a protein that has been engineered to contain a conventional signal peptide and an N-terminus equivalent to the cleaved PEXEL signal ends up in the PV, not in the erythrocyte9. The construct with the conventional signal peptide is fully translocated into the secretory pathway, and hence separated from the PI3P patch-associated PEXEL proteins (Fig. 2B). It will therefore, like conventional secretory proteins, follow the classical secretory pathway and be secreted into the PV, from which there seems to be no direct access into the erythrocyte.
That this is true is also confirmed by a carefully done set of experiments by Gehde and colleagues (2008)32. The authors aimed to investigate whether protein folding has an effect on PEXEL protein access to the erythrocyte. They generated fusion proteins that contained the signal peptide and PEXEL region from either the transmembrane protein STEVOR or the soluble protein GBP130 fused to dihydrofolate reductase (DHFR), followed by green fluorescent protein (GFP) and expressed these fusion proteins in P. falciparum. They found that in the absence of folate analogues (which promote DHFR folding) these constructs were targeted to the erythrocyte. In the presence of folate analogues, the constructs were found in the PV. Strikingly, only newly synthesized proteins could be transported into the erythrocyte, i.e. it was impossible to chase pre-existing fusion proteins from the PV into the erythrocyte after washout of the folate analogue. The authors’ interpretation of the data was that proteins must be unfolded in order to be transported across the PVM into the erythrocyte, that the PVM therefore contained a protein-conducting channel with similar requirements for transport as the Sec61 channel in the ER membrane, and that the time window after synthesis during which proteins were transport-competent was limited.
The scenario depicted in Fig. 2B suggests a different interpretation of the data. Immediately after targeting of a PEXEL protein to the Sec61 channel in the ER membrane, there is a competition between full translocation of the fusion protein into the ER lumen and binding of the PEXEL region to PI3P on the cytoplasmic leaflet of the ER membrane, which ultimately leads to an abortion of translocation. At this stage the signal peptide and PEXEL regions of the fusion protein are already synthesized, but the ribosome is still associated with the nascent chain and protein synthesis is still going on (between step 1 and step 2 in Fig. 2B, not shown). When the DHFR part of the protein emerges from the ribosome, it is initially located in the ER lumen. In the absence of the folate analogue, the DHFR chain remains sufficiently flexible for the PEXEL signal to interact with PI3P, plasmepsin V cleavage occurs, and translocation is aborted; as a result the fusion protein remains in the cytosol associated with the PI3P patch as in Fig. 2B. In the presence of a folate analogue, DHFR will fold tightly in the ER lumen during its synthesis and this will interfere with or override the interaction of PEXEL with PI3P in the cytoplasm. As a result the fusion protein will be fully translocated and end up inside the secretory pathway. That folding accelerates translocation into the ER has been shown33. If protein folding in the ER lumen and PI3P-binding at the cytoplasmic leaflet of the ER membrane interfere with each other this might also explain why some of the PEXEL proteins contain large intrinsically unstructured regions34.
On the whole the model depicted in Fig. 2B and Fig. 3 makes sense of the vast majority of the available data on trafficking of proteins from P. falciparum into the host cell and suggests that the decision of where to go is made early during biogenesis of exported proteins at the parasite ER membrane. My hypothesis has a number of easily testable elements that might give the research in this field the appropriate direction for a full understanding of the mechanism of protein export from P. falciparum into the erythrocyte.
