Keywords
Mobile Interactive System, Virtual Classroom, TPACK, Educational Technology, COVID-19, Synchronous Display, Freehand Writing, Teaching Tool
This article is included in the Research Synergy Foundation gateway.
Mobile Interactive System, Virtual Classroom, TPACK, Educational Technology, COVID-19, Synchronous Display, Freehand Writing, Teaching Tool
The outbreak of COVID-19 in the year 2020 caused a significant impact on the education sector. Pedagogy has changed drastically to cope with the pandemic and has many cases shifted from conventional in-classroom learning to online teaching.1 The classical in-classroom teaching and learning is commonly practiced to promote social interactions among teachers and students.2 However, it is now unable to fit well into the current education environment due to the pandemic.3 Because of this, the rapid evolution of technology will alter pedagogy where emerging technologies are accessible in education.4
In the virtual classroom, teachers solely depend on the mouse and keyboard to conceptualize subject matter where the use of conventional tools is prohibited. Hence, emerging technologies are excellent for content presentations in the virtual classroom.5 From students’ perspective, attending lessons via synchronous learning video conferencing is preferred as it offers flexibility, and students are engaged in the virtual session as much as in the physical classroom.6 However, the effectiveness of the integration of technology in conducting online classes is questionable. The adoption of the TPACK model aims to help teachers contemplate their knowledge domains (technological, pedagogical, and content knowledge) and the intersections of these, so that they can teach and engage students effectively. According to Hossain, Ying and Saha, TPACK positively influences higher education by making the lessons more interesting through the observation of learners’ needs.7 From their studies, students have positive attitudes towards the TPACK model, in which their feedback can be addressed and used to construct lessons tailored to their needs. Moreover, teachers’ TPACK self-efficacy is enhanced in terms of lesson planning with technology.8
Since the students are prohibited from entering their physical classes, teachers are facing challenges and difficulties when conducting online classes via the virtual classroom.9 Additionally, teachers are requested to prepare teaching materials and determine ways to present them in the virtual classroom. Thus, research questions are drawn as follows:
• Research Question 1: Does the integration of MIS into the virtual classroom enhance teachers’ self-efficacy from students’ perspectives in TPACK?
• Research Question 2: Does the integration of MIS into the virtual classroom enhance teachers’ efficacy in presenting and conceptualising teaching materials?
Since the introduction of the virtual classroom, it has become evident that it is essential to have a simple-to-use, tailored tool for assisting teachers in conducting online classes according to the current educational trend. Consequently, a mobile interactive system is proposed and developed to cope with the current trend. Furthermore, the introduction of the MIS offers teachers the ability to utilise the features of synchronous display (SD) and whiteboard-like freehand writing (WFW) features. Thus, the objectives are as follows:
1. Determine if the introduction of MIS features assists in enhancing teachers’ proficiency in TPACK from students’ perspectives.
2. Determine teachers’ efficacy in presenting and conceptualising teaching materials by constructing a model based on the integration of MIS with the adoption of the TPACK framework in the virtual classroom.
In following the standard of procedures set by the government to reduce close contact, the transformation of the current education system is necessary. Thus, conducting classes through online platforms has become a new trend in education.10 In the virtual classroom, classes are taught online synchronously via video conference. However, acquiring new skills and knowledge relating to communication, pedagogy, content, and structure is required due to distinctive differences in the teaching environment.11
The combination of IWB with a virtual learning environment (VLE) does exist with limited studies on it. According to Heemskerk, Kuipert, and Meijer’s study, implementing IWB with VLE can boost students’ motivation towards the subject matter.12 However, the test given by teachers proves that it is ineffective to students’ learning outcomes even with the implementation of IWB and VLE. Furthermore, the IWB is an expensive and fragile device as it can be damaged easily, resulting in inconvenience when teaching with it, which does not justify long-term usage.13 Besides, teachers still retain complete autonomy in the classroom, creating a teacher-centered environment while teaching with IWB.14 In short, IWB is not practical to be integrated into the virtual classroom because the IWB is difficult to maintain and not friendly for teachers who conduct classes at their residence during the pandemic.
As a teacher, one must be aware of and adapt to any changes, honing skills and knowledge to guide and expose students to state-of-art technologies in the virtual classroom.15 However, insufficient teaching experience via virtual classrooms forces teachers to polish their skills and knowledge. Hence, they can cope with the current education phenomenon. As a result, the pedagogy and teaching materials presentation are elevated.16 Therefore, the TPACK framework is adopted. It consists of seven elements, the three main elements being technological knowledge (TK), pedagogical knowledge (PK), content knowledge (CK), which are derived into four sub-elements pedagogical content knowledge (PCK), technological pedagogical knowledge (TPK), technological content knowledge (TCK), and TPACK.17 Initially, the TPACK framework is teachers’ self-assessment about the thoroughness of their understanding of every element, including the teachers’ “know-how” in utilising the technology and integrating it into their pedagogy and teaching materials presentation.18 However, assessing it from the teacher’s or student’s perspective brings different meanings. For example, the teachers’ perspective is viewed from the educator’s perspective, whereas the students’ perspective is viewed from the virtual classroom experience created by their teachers.19 In short, the TPACK framework is vital because it helps assess the readiness of teachers’ knowledge and understanding in using technology integrated into their pedagogy and content presentation, both from the teachers’ and students’ perspectives.
Rickles et al. (2017) mapped their research elements (Learning Environment Context and Learning Activity Context) with the adoption of the TPACK framework.20 The Learning Activity influenced TK, PK, and CK, while the Learning Environment Context may affect all elements, including Learning Activity Context. Hence, the study proposes that the Learning Environment Context supports the relevancy of Learning Activity Context as complimentary learning. These two contexts are the keys of context-based learning (CBL), where the social aspect of learning and learning activity with solid context understanding in acquisition and processing knowledge are concerned. Moreover, CBL allows teachers to prepare early for teaching materials, making it easier to implement than problem-based learning, which is relatively time-consuming. Hence, the rapid change of teaching approach necessitated during the pandemic makes CBL more suitable for current phenomena in terms of content-oriented presentation. The overall flow in determining teachers’ self-efficacy in presenting and conceptualising teaching materials using MIS is illustrated in Figure 1.
Cluster sampling was implemented. Students who experienced online learning with the integration of the MIS features were chosen as the cluster because of its capability to reduce sample bias. This data collection method provides a better representation of populations.21 Online questionnaires were distributed to 45 Malaysian private university students enrolling in the subject “Knowledge Management”. The chosen group was taught with MIS integrated into their online classes.

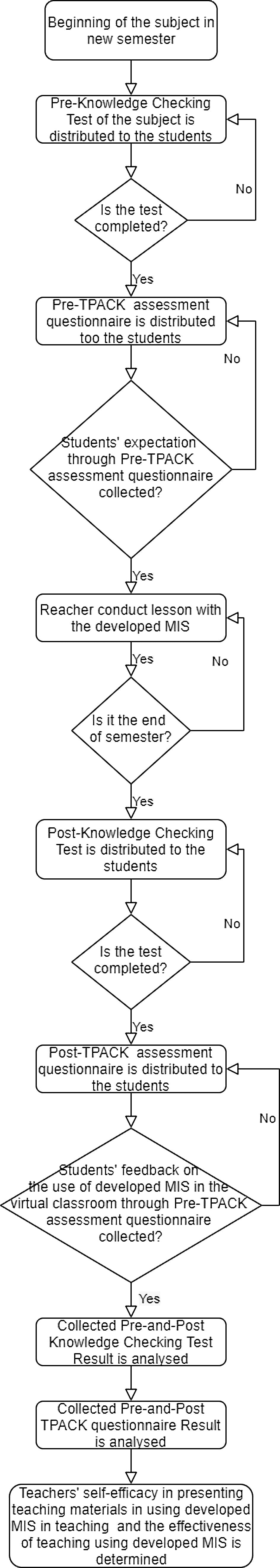

The experiment was conducted from the start till the end of the semester (3 months). This study is a quasi-experimental one-group with the pre-and-post-tests. The MIS is tailored for online classes with the introduction of two major features: SD and WFW. The questionnaires were created to adopt the TPACK framework and prepared in two different sets specifically for pre-test and post-test through Google Form. Besides, conducting TPACK self-assessment from teachers’ perspectives may lead to biases. The assessment can be inaccurate as assessing themselves is not convincing enough to reflect if their understanding is up to par.22 Thus, to reduce the bias from the teacher’s self-assessment, the student’s perspective on the TPACK should be taken into consideration instead.23 The collected data is trimmed and analysed using SmartPLS software v3.3.2. R is an open-source alternative (R Project for Statistical Computing, RRID:SCR_001905).

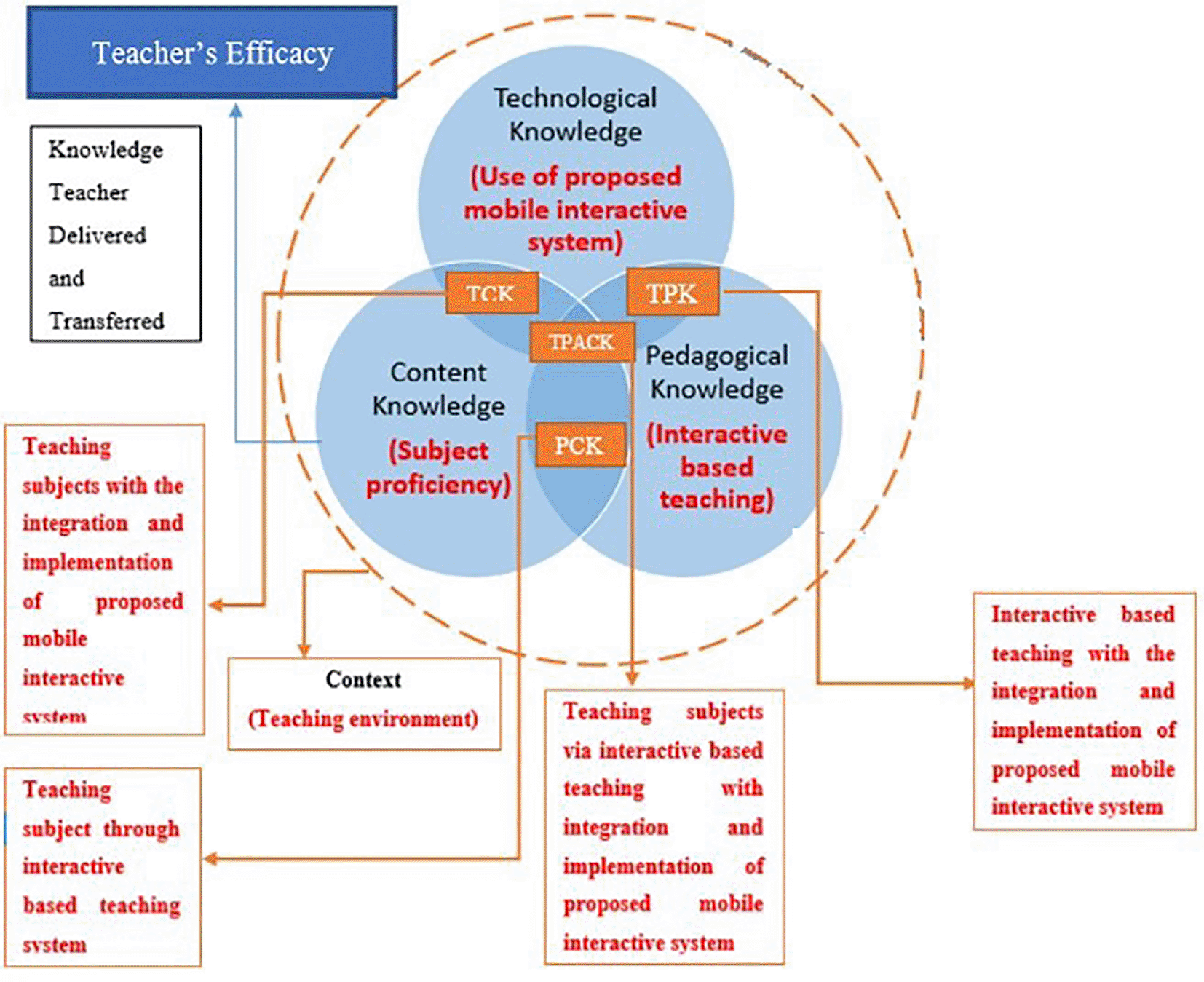

In this study, the adoption of the TPACK framework is proposed. The teacher’s efficacy mapped in conjunction with the integration of MIS in the virtual classroom is illustrated in Figure 2.
Through PLS-SEM, the proposed model is constructed in Figure 3 based on adopting the TPACK framework. Moreover, the proposed model is constructed as a reflective Measurement Model.
Firstly, after running Partial Least Squared Algorithm, the constructs’ outer loadings indicators are observed in Table 1. The loadings for the construct indicators are > 0.7.
CK | PK | TCK | TK | TPACK | TPK | |
---|---|---|---|---|---|---|
CK2 | 0.929 | |||||
CK4 | 0.888 | |||||
CK5 | 0.966 | |||||
CK6 | 0.950 | |||||
PK1 | 0.866 | |||||
PK2 | 0.894 | |||||
PK5 | 0.837 | |||||
PK6 | 0.820 | |||||
TCK1 | 0.920 | |||||
TCK3 | 0.941 | |||||
TCK4 | 0.948 | |||||
TK1 | 0.964 | |||||
TK2 | 0.935 | |||||
TK3 | 0.964 | |||||
TPACK1 | 0.941 | |||||
TPACK2 | 0.955 | |||||
TPACK6 | 0.984 | |||||
TPK4 | 0.961 | |||||
TPK5 | 0.951 | |||||
TPK6 | 0.983 |
Secondly, the construct reliability and validity are examined, as shown in Table 2. The threshold value for the composite reliability (CR) is > 0.70 while the threshold value for the average variance extracted (AVE) is > 0.5.24,25 In this study, the CR and AVE are fulfilling the threshold requirements as the values of CR are > 0.9, and the values of AVE are > 0.75. The CR values indicate good reliability, and AVE values indicate good validity.
Thirdly, the discriminant validity of the model is inspected. The Heterotrait-Monotrait Ratio (HTMT) is preferred because of its stringent measures with sensitivity rates of 97%-99%.26 On the other hand, the Fornell-Larcker Criterion is insensitive with a rate of 20.82%.26 Furthermore, the HTMT values of this study are above 0.85 and less than 0.90 (Table 3). Therefore, it satisfied the HTMT threshold. Hence, the discriminant validity between relative constructs is established. Next, the significance and relevance of the structural model in this study are assessed, as shown in Table 4. First, a One-Tailed test Bias-corrected and accelerated bootstrap (BCA) with bias and skewness adjusted are conducted. As research hypotheses are directional, the bootstrapping is with 5000 subsamples. Then, the path coefficients are obtained and further examined. The path coefficients values are closer to +1, representing strong positive relationships between latent constructs. Additionally, the path coefficient values should be at the level of at least 0.05 significant level.
CK | PK | TCK | TK | TPACK | TPK | |
---|---|---|---|---|---|---|
CK | ||||||
PK | 0.834 | |||||
TCK | 0.861 | 0.781 | ||||
TK | 0.790 | 0.850 | 0.795 | |||
TPACK | 0.846 | 0.813 | 0.900 | 0.756 | ||
TPK | 0.894 | 0.879 | 0.730 | 0.798 | 0.735 |
Original sample mean | Standard deviation (STDEV) | P-values | |
---|---|---|---|
CK -> TCK | 0.526 | 0.206 | 0.005*** |
PK -> TPK | 0.391 | 0.229 | 0.044*** |
TCK -> TPACK | 0.693 | 0.143 | 0.000*** |
TK -> TCK | 0.374 | 0.182 | 0.020*** |
TK -> TPK | 0.478 | 0.224 | 0.017*** |
TPK -> TPACK | 0.228 | 0.181 | 0.104 |
Next, the R2 and R2 adjusted values are shown in Table 5 are considered substantial.24
R square | R square adjusted | |
---|---|---|
TCK | 0.697 | 0.683 |
TPACK | 0.752 | 0.741 |
TPK | 0.659 | 0.643 |
The effect size is calculated using the formula below:
The results in Table 6 indicate that the TPK (0.109) has a negligible effect in producing the R2 for TPACK. However, the TCK (1.008) illustrates that it has a significant impact on producing the R2 for TPACK.
The results for the blindfolding are in the rightmost column, which is shown in Table 7. The predictive relevance Q2 of TCK has a value of 0.598, TPK has a value of 0.579, and TPACK has a value of 0.675. These values indicate that the model has predictive relevance based on the three endogenous constructs in which the values of Q2 are considerably above zero.
SSO | SSE | Q2 (= 1 − SSE/SSO) | |
---|---|---|---|
CK | 188.000 | 188.000 | |
PK | 188.000 | 188.000 | |
TCK | 141.000 | 56.685 | 0.598 |
TK | 141.000 | 141.000 | |
TPACK | 141.000 | 47.767 | 0.675 |
TPK | 141.000 | 59.319 | 0.579 |
A paired-samples T-test was performed, as shown in Table 8, to identify the students’ improvement on their understanding of the subject matter with the integration of developed MIS. The mean score difference of −3.289 shows students’ understanding of the subject matter is improved. The p-value of 0.00000003178 denotes that integrating the developed MIS in the virtual classroom positively affects the students’ academic performance. The improvement over the pre- and post-knowledge checking tests are substantially significant.
The involvement of technology in education acts as a catalyst in transforming the conventional classroom into the virtual classroom. The extensive involvement of technology in the current education trend prompted the adoption of the TPACK framework in this study. Moreover, the developed MIS is integrated into online teaching as a complementary pedagogy that assists the teachers in presenting teaching materials. Furthermore, the proposed model is constructed based on adopted TPACK framework elements. The consideration of students’ perspective TPACK is mainly a result of the potential bias and misconceptions raised by the teachers’ self-assessment on TPACK proficiency. These issues can be addressed and mitigated by gaining feedback and insights from the students’ perspective instead. From the result of the path coefficient, we can see that a teacher with great understanding in transforming the content delivering it to the students using developed MIS possess the ability to enhance classroom activities which reflects their proficiency in TPACK. From the result of the paired-samples T-test, the mean difference for the pre-score and post-score indicates that the students are improved academically from concept and knowledge acquisitions. The outcome also illustrates that the teachers’ proficiency in TPACK is closely related to the effectiveness of the integration of developed MIS in the virtual classroom.
Additionally, the developed MIS with SD and WFW is tailored to assist teachers in conducting online classes. Familiarised teaching experience is replicated especially teaching materials presentation. Students’ feedback plays a vital role in determining the proficiency and self-efficacy of the teachers. Therefore, it is essential to address more insights into integrating technology into the virtual classroom than teachers’ self-assessment. In this study, teachers’ integration of MIS into the virtual classroom affects the TCK and TPACK. It indicates that the thoroughness of teachers’ understanding of the technology in presenting their teaching materials determines their students’ learning experience in the virtual classroom.
This study demonstrates the proposed structural model with the adoption of the TPACK framework and the integration of the proposed MIS with SD and WFW, assisting teachers in improving the online class experience with alternative teaching materials. Furthermore, the proposed structural model as a reflective measurement is constructed by adopting the TPACK framework as the fundamental. Looking at the relative importance of the exogenous constructs in predicting the dependent construct (TCK), it is evident that CK is the most crucial predictor followed by TK. The factor of TCK has a strong effect on TPACK. As for R2, the value for TCK, TPK, and TPACK is considered substantial. The effect size for the TCK is considerably large. The student’s understanding of the subject matter is improved significantly with the integration of developed MIS by their teacher in the virtual classroom. In contrast with previous studies, the integration of developed MIS is more in accord with the virtual classroom, with significant enhancement for teaching materials. The integration of the developed MIS in the virtual classroom has a significant positive impact on the students’ academic performance relating to concept and knowledge acquisition of subject matter.
This article has obtained public disclosure approval from Multimedia University. The authors declare that there is no conflict of interest.
All the procedures performed in this study involving human participants were in adherence to the ethical policies of the Multimedia University as approved by the Technology Transfer Office of Multimedia University under ethical approval number: EA0732021.
Written consent was also obtained from all individual participants involved in the study.
This research is funded and supported by Multimedia University and Fundamental Research Grant Scheme (FRGS), Malaysia with Grant Reference Number: FRGS/1/2018/SSI09/MMU/02/3.
Zenodo: TPACK MIS Dataset. https://doi.org/10.5281/zenodo.5744892.27
This project contains the following underlying data:
• Dataset TPACK MIS 01122021.xlsx (The file contains two sheets. The first one contains the indicators of seven variables; TK, PK, CK, PCK, TPK, TCK and TPACK which were used for framework analysis. The second sheet includes the results of students' performance prior and after using the MIS as pre-test and post-test).
Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).
