eLabFTW as an Open Science tool to improve the quality and translation of preclinical research

Introduction

In the light of reports of non-replicable research results, new ways to strengthen an open science approach for better transparency, reproducibility and traceability are needed.¹ Reproducibility meaning, that following the proper formatted documentation, any other lab group with the necessary equipment and personnel should be able to obtain the same results of any experiment performed.² An easy way to increase the legibility, tidiness, and overall quality of documentation, can be the introduction of an electronic laboratory notebook (ELN) in a research unit. Publishing the ELN entries in an unaltered toegether with the manuscript enhances open science by creating transparency and will ultimately support reproducibilty.³ Here, ELNs will help in the context of research data management to make the entire life cycle of data transparent and better integrate it in the documentation process.⁴ The pros and cons of using ELNs have been discussed for a long time. The main fields of discussion are usability, accessibility, costs, time effort and data safety.^5,6 In our experience, the use of an ELN has many benefits towards traditional paper-based notebooks, but it is often a challenge to convince researchers of the advantages of using an ELN. We believe that the use of eLabFTW, and open source software, is a particularly good approach to overcome this hurdle and ensure high research data quality in small, preclinical research groups like ours.

eLabFTW is a lightweight general-purpose ELN. It consists of an Experiment and a Database section, whereas the Experiment section is designed to create and edit experimental documentation and link it to entries of the Database section. These can be set by the administrator to be any type of object (Chemicals, cell lines, equipment, etc.). These two sections are complemented by a Teams section, in which equipment can be booked in a scheduler and experiment templates can be shared. Finally, eLabFTW provides an extensive search tool.⁷

Advantages of ELN on experimental and lab management level

Although there are some disadvantages in using ELNs,^6,8 we believe that the advantages outweigh those by far. Especially in aspects regarding open science and reproducibility, data safety and availability, as well as transparency and as a tool for thorough standardization. Additionally, to those most important factors, there are other advantages in using ELNs: digital recording of research data makes it much easier for researchers to find their older data as well as data of other users. Also, the sharing of data is simplified, which makes discussing, cooperation and troubleshooting of experimental procedures much easier. ELNs contain time saving mechanisms, such as automatic import of data, the possibility of linking experiments and resources, and the usage of templates for standard experiments, which can additionally simplify the planning of experiments. Furthermore, most ELNs can also contribute to the simplification of lab management aspects as inventory management, sample tracking, communication, and digitalization of paperwork. Finally, in our experience data recording and documentation is done more carefully, when researchers have in mind, that their records are visible to others.

Hurdles of introducing ELN

Nowadays, most data in life science are digital data. Thorough recording, documentation and annotation of this data is difficult in a traditional paper laboratory notebook. Using ELNs will not only ensure the data to be recorded in an efficient and comprehensive way but will also facilitate findability and reusability. Additionally, the possibility to create templates, standard operating procedures (SOPs) and predefined workflows in ELNs is time saving in routine lab work and sharing of knowledge. In combination with the search function, an ELN can become a pool of knowledge for the lab group and even for people outside of it.⁴

However, as discussed in other sources, the overall adoption of ELNs is rather low in the academic field, as there are many perceived disadvantages in the use of ELN, as well as hurdles that must be overcome. These hurdles include the costs of obtaining the software and maintaining the necessary infrastructure, the time needed to implement the ELN and adapt the lab habits, as well as the fear of data being stored in a cloud on a foreign server.⁶ Another point that is important when working with primary samples of patient data is the protection of personal data (e.g., patient information) from unauthorized access.⁶ Other scientists fear that the software will be discontinued in the future, making it necessary to search for a new ELN, with the uncertainty whether the data from the previous system can still be accessed and imported to the new system.⁶

eLabFTW has a combination of features making it a powerful tool to overcome hurdles

The open-source ELN eLabFTW (https://www.elabftw.net/) was developed to provide lab groups with a free to use ELN. The developers of eLabFTW being researchers themselves, provided a general purpose ELN with limited features, but a powerful database and search function. Making it easy to learn and use, yet very suitable for all kinds of research fields. It consists of an Experiment section, used for documenting experiments with a simple built in text editor and a Database section, which can be used to create entries for all kinds of items like plasmids, enzymes, primers, etc. by using the same text editor. Furthermore, these items can be imported automatically via comma separated value (CSV) files by the admin. Subsequently, these items can be directly referenced from the experiment section. Experiments themselves also can be linked to other experiments, making it easy to keep a seamless documentation of projects and experiments. eLabFTW is built according to the open data principle, providing open-source code, as well as providing on board functions to easily share experiment and database entries with people in- and outside of eLabFTW via direct links, or export to PDF or ZIP files.

In our opinion, eLabFTW is well suited to overcome the aforementioned hurdles of ELN implementation in small preclinical labs, as well as in other environments and lead to an improvement of research data transparency and findability. Being an open-source software, there are no license or other costs to pay when acquiring eLabFTW. In addition, even if the development and support of the software is discontinued, the source code will always be available, preventing users to search for a new software solution. eLabFTW does not use any proprietary parts of code, so this property applies to the whole code of eLabFTW. Some other ELNs are open source but depend on pieces of proprietary third-party code. In addition, when needed, the code of eLabFTW can be adapted to individual needs, by trained IT-Staff in the organization. Providing the option to use Docker Containers, a kind of virtual machine, which contains all the necessary software to run eLabFTW. eLabFTW can be installed even by a person with only intermediate IT knowledge, when following the official documentation.⁹ The initial setup takes less than 30 minutes, on a Windows computer, as tested by us. The setup works on a server or even a simple computer running Linux, Windows or MacOS. That ability for local installation makes eLabFTW suitable for critical data and enables data storages independently from the availability of cloud services offered by other ELN companies. This ensures high data safety, as it prevents access to data from outsiders and protects from using services with uncompliant privacy policies. Backup of data can be set up using a simple script⁹ and the backup files can be stored on a second hard drive, or on other machines, like a Network Associated Storage. eLabFTW offers a full text search engine, meaning it searches for all elements of the database, as well as in the written text of entries, making it easy to find older research data from yourself, and others. Additionally, eLabFTW contains a powerful search tool, which allow users to search for entries with specific properties. All entries in the experiment section of eLabFTW can be timestamped after RFC 3161 standard, allowing for full audit trail documentation. In addition, all revisions in any entry are tracked, so that it can be proved that no data were altered. Every item in eLabFTW is identified by a unique identifier (eLabID), which is independent from the given title. Hence, all objects can be unambiguously identified. Finally, all entries in eLabFTW can be shared via a unique link with people inside or outside the lab group, if eLabFTW is running on a computer with internet connection.

The features mentioned above are the most outstanding differences between eLabFTW and a traditional paper-based lab notebook, or other ELNs. However, eLabFTW provides some more useful features, that can be beneficial for a lab. Firstly, it offers a simple interface with just a text editor and some additional features like file upload and the integration of image files into the text. Furthermore, items in eLabFTW are marked by tags, instead of being ordered in a folder structure. In our experience this works much better, because entries can be sorted with multiple tags, in contrast to just be in one single folder. Any item in the database can be exported to different formats (pdf, zip, json) to be shared or stored externally. The visibility for each item can be restricted to oneself, a specific group of people or set to public. This might be an important feature to secure rights of research. Lastly, eLabFTW provides an API that can be accessed with a specifically created python library. For example, this is useful for automatically upload raw data to eLabFTW.

Implementation of eLabFTW in our lab

The implementation of an ELN was supposed as the first step of a bigger project of increasing the research data quality in our lab, as described in a prior publication.¹⁰ For this, we tested different trials of commercially and freely available ELNs. Our focus was on the usability rather than on the features, as we wanted to make transition to electronic documentation as easy as possible and many features offered by more expensive ELNs are not needed by our group. After initial testing, two commercial ELNs and eLabFTW came into closer selection. We got the notice that two ELNs in this selection are already hosted by our university, this being Labfolder and eLabFTW. After a two-week period during which both lab books were tested in a small group, we decided to introduce eLabFTW to the whole lab. Although Labfolder has some features that eLabFTW does not have (support of including Excel and Word files, adaptable page layout), we decided to implement eLabFTW because of the much quicker processing times, open-source format and in our opinion a much easier usability. After introducing eLabFTW to every lab member, we decided about the most useful setup for our lab environment, to make it suitable for our QM-Project.

Specific setup of eLabFTW in our lab (Figure 1)

Before the setup of eLabFTW, we already started to introduce SOPs for our basic lab procedures. Using the database of eLabFTW proved to be a good way to distribute new versions of SOPs to every lab member effectively. As a first step, all existing SOPs were transferred into eLabFTW. The first new SOP described how to use eLabFTW. This SOP describes the form of documenting and time stamping of experiments, as well as linking database items. Secondly, we imported our complete database of vectors, primers, antibodies, enzymes, chemicals, consumables, and equipment, as well as cell lines into eLabFTW, together with the matching documentation as there are vector maps, material safety datasheets, primer sequences and melting temperature, antibody datasheets, restriction sites of restriction enzymes, cell line properties, handbooks of machinery, and so on. We also use the database to create project items, that all experiments belonging to that project can be linked to, to establish a timeline of experiments performed in that project. Lastly, we use eLabFTW to upload meeting minutes and documentation of other events.

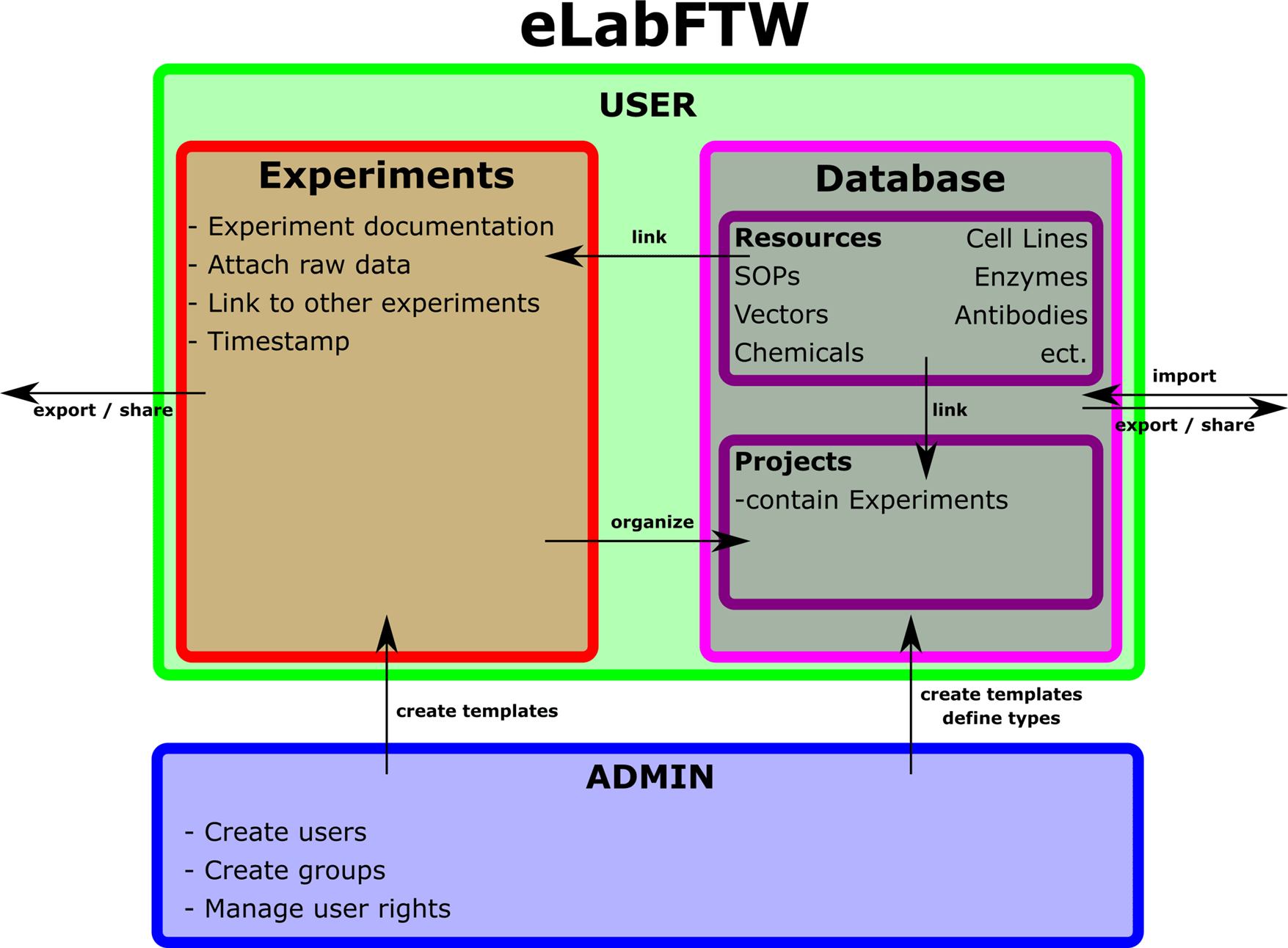

Figure 1. Configuration of eLabFTW as being used by our workgroup.

The visibility in our instance of eLabFTW can be set to the whole team, or subgroups working on specific projects, that we create as needed. In our lab we do not use the booking function of lab equipment, after we found it too inconvenient after a short test period.

As described in one of our previous publications,¹⁰ the ELN was also supposed to be used for one-on-one project communication in form of interactive weekly progress reports. This approach was ineffective, as it consumed too much time, lead to misunderstandings and was unsuitable for the discussion of some specific problems. Consequently, we switched back to personal, verbal meetings for project planning. In our experience, ELN-reporting is only suitable for one directional communication. Still this possibility of one-directional way of communication showed an unexpected advantage during the still ongoing COVID-19 pandemic. Due to electronic recording of research results and protocols, less face-to-face communication was necessary, which helped to keep the infection risk on a low level.

Our effort embeds well in current initiatives from leading biomedical institutions, as the RE-PLACE Project at the Berlin Institute of Health (BIH),¹¹ which is an institution-wide programme for adopting ELN software at Charité and BIH, by providing free licenses to the ELN Labfolder, as well as introductory courses and support. This whole project is combined with an evaluation study to see if ELN usage really is beneficial for fulfilling needs of researchers and to improve the quality and transparency of research documentation and data management.

Another project, that our lab is involved in, is the EQIPD quality system (QS).¹² Our efforts on eLabFTW fit very well with the requirements of this first quality system for preclinical research. Implementing and maintaining an ELN supports the implementation and maintenance of several Core Requirements set forth by the EQIPD QS, i.e. those on data documentation and transparency. In fact, our efforts to make our science open and sharable are a major contribution towards certification of our internal processes. Hence, an ELN should be considered as one of the pillars towards quality processes in a small research lab, especially when it integrates seamless in the daily lab routine as eLabFTW does.

There are also the more general ELN guides from the Harvard Medical School Information Technology department¹³ and the BIH.¹⁴

In a forthcoming visionary standpoint, we think that stringent ELN implementation in more working units is facilitating the reduction of hurdles for interaction across disciplines, such as the interaction of basic scientists and patient-treating clinical faculty. We hypothesize this due to the fact that data can be rapidly and remotely available at any given time, not restricted to often incompatible time schedule of the participating stakeholders. Moreover, a growing body of large datasets will be summarized and presented in a more comprehensive and convenient way as compared to local storage solutions on core faculty servers or hidden folders in a given server infrastructure. Thereby, further exchanging interaction to data scientists and wet lab scientists is possible. Laboratory automation, as a standard for many work processes in industry and routine diagnostic labs, is embracing its way in many academic labs¹⁵ such as in our lab occurred for a liquid handling robotics.¹⁶ Direct linking of ELN to machine output, without human operator data handling step in between, saving the data file in a time stamped and logged version will minimize error introduction in parallel to increase transparency of the project. Moreover, linking lab automation to ELN with a time scheduling algorithm may improve economic effectivity of the working unit.¹⁷ Those aspects are only a few cornerstones that shall be a focus of operations developments of a state-of-the-art translational research lab, currently underway in the lab of neurosurgery at the University Clinic Düsseldorf.

Data availability

No data is associated with this article.
