Fish are a source of protein, lipids, carbohydrates, vitamins and essential minerals1–3. Therefore, fisheries production is very important to increasing food security3,4 through capture fisheries and aquaculture sectors5. To increase the global production of aquaculture, freshwater can be provided in a variety of aquaculture systems, such as freshwater ponds, tanks and floating cages6–9.
Cage aquaculture is expanding in tropical lakes and has been ongoing for a long time9–11. Lake Maninjau in Indonesia has used cage aquaculture since 1992 (Nazarudin-Sepakat Aquaculture’s farm manager, pers. comm.). Some authors have reported that the dominant species being cultured in tropical lakes is tilapia, and commercial feed pellets are used9,11–15. In the past five years, fish farmers in Lake Maninjau have also conducted giant gourami fish farming activities in floating cages with commercial feed pellets because it is an economically important species for food security in Indonesia, and most of the giant gourami that have been consumed for decades have been produced by aquaculture in freshwater ponds7,16,17.
Environmental impacts of tilapia aquaculture operations that have been recorded in tropical lakes have also been reported in Lake Malawi11, Lake Taihu18, Lake Victoria11,15,19, and Lake Kariba9. In contrast, Syandri et al.20 reported that in a small lake, i.e., Lake Maninjau in Indonesia, tilapia aquaculture is approximately 17 km long by 8 km wide and has mean and maximum depths of approximately 112 and 178 m, respectively. Many studies have been carried out to evaluate nutrient loading, such as C, N and P loadings, and the growth performance of tilapia farms in lakes and reservoirs11,12,18. However, no data are available for nutrient waste loads from feed, juvenile fish, dead fish and harvested fish, including data on the characteristics of farming giant gourami in floating cages, such as stocking density, total stock weight, feed conversion ratio, production cycle, harvest size, feeding level and specific growth rate. To address these issues, the present study was conducted to evaluate the C, N and P nutrient loads of giant gourami fish in floating cages and the operational characteristics to determine the relationship between production and cultivation efficiency to provide basic knowledge about production performance for the future.
In the present study, no permits from the Government of the Republic of Indonesia were needed to record data on feed supply, initial weight, stocking density, fish production, fish mortality and production cycle of giant gourami in 20 floating cages in Lake Maninjau from 2019 to 2020. The study included collecting sediment and fish and killing as many as three giant gourami in each floating cage to analyse the chemical composition of carbon, nitrogen and phosphorus from the carcasses. This research was recommended by the Research and Community Service Universitas Bung Hatta with sponsorship from the Indonesian Education Management Institution, Ministry of Finance Republic of Indonesia, through a competitive grant called Productive Innovative Research 2019 with contract number PRJ-99/LPDP/2019. Ethical approval was granted by the Ethics Commission for Research and Community service at Universitas Bung Hatta (098/LPPM/Hatta/X-2019).
The research was conducted in Lake Maninjau, located in the Agam District, West Sumatera Province, Indonesia, at an altitude of 463 m above sea level with a surface area of 97.37 km2, a water volume of 10.4 km3, a water retention time of 24.5 years, and a catchment area of 13.26 km2. Since 1973, lake water has been used for electric power generation with a capacity of 64 MW, and starting in 1992, the lake has also been used floating-cage fish farming activities.
A total of 200 floating cages using for giant gourami aquaculture by fish farmers in Lake Maninjau (Nazaruddin-Sepakat Aquaculture farm manager, personal communication). A total of 20 floating cages for giant gourami culture were used as samples. The sample was determined by simple random sampling using an ordinal method21. The data recorded were stock size (g), stock number (fish), total stock weight (kg), mortality (fish), feed supply (kg), total harvest weight (kg) and production cycle (days). Death fish are noted every day, which fish farmers report. Each floating cage had a capacity of 75 m3 (5×5×3 m) and was constructed using a 10 mm mesh sieve. Each floating cage was combined with other resources, such as a buoy, a feeding lodge and cage pathways.
The chemical compositions carbon (C), nitrogen (N) and phosphorus (P) of the feed, fish and faeces were analysed. For the feed nutrient analysis, the feed samples were floating commercial feed (pelleted). The approximate composition of the feed was 12% moisture, 29% crude protein, 6% crude lipid, 12% crude fibre and 6% crude ash. The fish were sampled from 10 floating cages (3 fish/cage) that were cultured for 150 days, and the fish weighed between 235 and 250 g/fish. Carbon (C) and nitrogen (N) concentrations (as % of dry weight) of the feed and fish were determined by the standard methods of the Association of Official Analytical Chemists22. The phosphorus (P) concentrations were determined using a spectrophotometer (Shimadzu UV-160 UV160 UV-Vis-NIR Spectrophotometer in Hayward, CA, USA) and the molybdate–ascorbic acid method indicated by the Association of Official Analytical Chemists22 at the Chemistry Laboratory of Universitas Bung Hatta Padang. To complement the data, we also analysed the waste material of cultured giant gourami fish collected with traps under the floating cages. This study placed waste traps under floating net cages for four months of fish rearing or one production cycle. We analyze that aquaculture waste includes uneaten feed, metabolic waste, and feces. To collect the faeces, ten giant gourami were kept for 3 days in an aquarium with a capacity of 0.48 m3 (2×0.6×0.4 m), and then, the faeces were deposited on the bottom of the aquarium. Furthermore, the deposited faeces were sucked into a clean bowl and dried. Waste material and faeces were analysed by the AOAC method22.
The C, N and P loadings from feed, juvenile fish, dead fish and harvested fish were estimated according to the method described by 23. The following parameters with their corresponding equations were analysed:
C (loss, kg) = (F × CDF + J × CDJ) − (H × CDH + M × CDM)
N (loss, kg) = (F × NDF + J × NDJ) − (H × NDH + M × NDM)
P (loss, kg) = (F × PDF + J × PDJ) − (H × PDH + M × PDM)
where F, J, H and M are the dry weight (kg) of the supplied feed, stocked juvenile fish, harvested fish and total dead fish in floating cages, respectively. The data were recorded at the end of each production cycle from the 20 floating cages. CDF, CDJ, CDH and CDM are the carbon contents in dry feed (DF), dry juvenile (DJ), dry harvest (DH) and dry mortality (DM), respectively.
The farm characteristic parameters were analysed using the following formulas:
The relationships between feed supply and nutrient load, harvested fish, production cycle and net fish yield, feeding level, feed conversion efficiency, stocking density and net fish yield were estimated by the least square’s regression method24, and the figures were plotted using Microsoft Office Professional plus 2019.

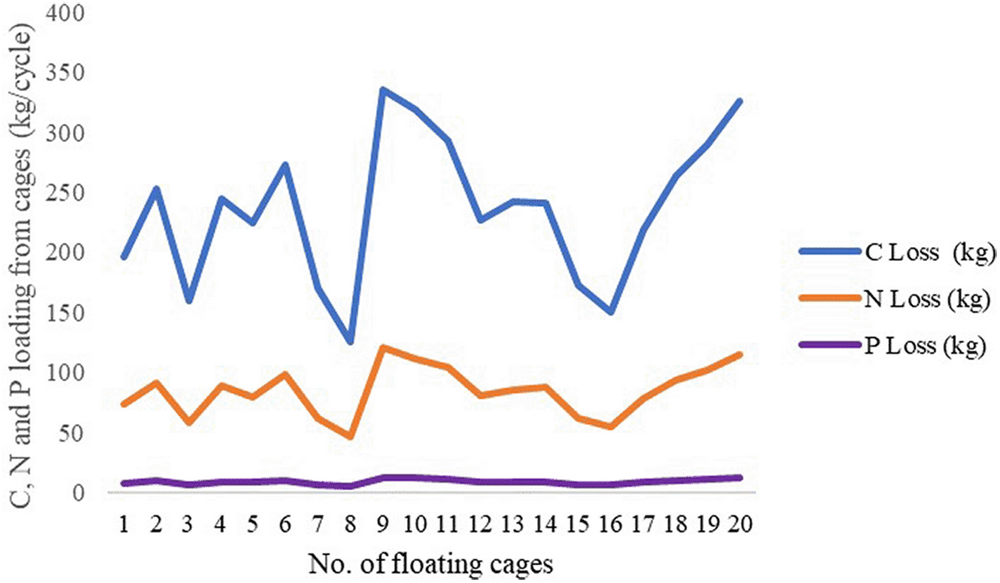

The C, N and P contents of the feed, fish and faeces of the giant gourami in this study are presented in Table 1. Furthermore, the estimated mass balances of C, N and P of the feed, juvenile fish, dead fish and harvested fish from the 20 floating cages are summarized in Table 2.
C | N | P | H2O | |
---|---|---|---|---|
Feed | 20.23±0.10 | 6.02±0.29 | 0.71±0.03 | 8.75±0.01 |
Fish | 16.56±0.13 | 3.01±0.07 | 0.40±0.03 | 68.90±0.77 |
Faeces | 14.21±1.65 | 1.20±0.05 | 0.95±0.02 | 72.29±0.40 |
Fish feed was the main factor accounting for the C, N and P nutrient loadings of the giant gourami reared in floating cages, while stocked juvenile fish and dead fish accounted for a minor amount (Table 2). The average C, N and P loadings estimated from the floating cages were 236.27 kg/cycle, 84.52 kg/cycle and 8.70 kg/cycle, respectively, while the C, N and P loadings from each floating cage of giant gourami fish are displayed in Figure 1. Feed supply and carbon, nitrogen, and phosphorus loadings had linear relationships for the giant gourami reared in floating cages as shown by C = 0.1339 × FS − 37.238 (with r2 = 0.988, Figure 2), N = 0.0455 × FS − 8.1604 (with r2 = 0.996, Figure 3), and P = 0.0048 × FS − 1.117 (with r2 = 0.991, Figure 4). The feed supply and net fish yield (kg/m3/cycle) relationship for the giant gourami reared in floating cages was shown by a net fish yield=0.0059×FS+0.7396 (with r2=0.9609, Figure 5).
In this study, a 75 m3 floating-cage capacity was used by fish farmers (5 × 5 × 3 m). The giant gourami fish stock number was between 40 individuals/m3 (3000 individuals/cage) and 106 individuals/m3 (8000 individuals/cage), with an average fish stock number of 75 individuals/m3. A mean weight of approximately 50 g for juveniles was stocked at the beginning of culture and reared from 160 to 175 days. To maximize the growth of giant gourami, all fish farmers used commercial, floating feed pellets (30% crude protein and 5% crude lipid). Based on recorded data by the fish farmers, the fish were fed daily at 09:00–10:00 h and 16:00–17.00 h. The amount of feed provided was adjusted according to temporal changes in biomass and the growth of the fish in the floating cages during the production cycle. The results of our analysis were that their feeding levels ranged from 1.24 to 3.47% of their body mass. Harvested fish weight ranged from 225 to 290 g/fish, and the gross yield of fish was 10.4 and 24.25 kg/m3/cycle, while the net fish yield was 8.17–18.92 kg/m3/cycle. The giant gourami were reared in the floating cages for each production cycle of 160 to 175 days, and the specific growth rate ranged from 0.87 to 1.04%/day. The net fish yield (kg/m3/cycle) in the floating cages was better predicted by the stocking rates (fish/m3) (r2 = 0.9246, Figure 6) than by the length of the production cycles (r2 = 0.1875, Figure 7). In addition, the supplied feed was not strongly related to the survival of the giant gourami (r2 = 0.6123). On the other hand, there was a strong linear correlation between feeding levels and the net fish yield (kg/m3/cycle) (r2 = 0.9611, Figure 8).
Many studies have reported that aquaculture has a negative impact on the aquatic environment12,25–28, that is generally caused by waste loads of C, N and P from supplied feed, faeces and dead fish29–31. In this study, the C, N and P loadings from the supplied feed were more predominant than those from the harvested fish, juvenile fish and dead fish because the content of C, N and P in the feed was higher than that in the harvested fish, juvenile fish and dead fish (Table 1). In addition, the average feed conversion ratio (FCR) of the cultured giant gourami cultured was 1.65, and the feed conversion efficiency (FCE) was 0.60 (1 kg of feed fish results in 0.60 kg of fish). This result suggests that the waste load was 0.40 kg (1 kg feed−0.60 kg of fish). These FCE values were lower than those of Nile tilapia and common carp cultured in floating cages in Lake Maninjau13. Increasing amounts of C, N and P released into waterbodies from intensive aquaculture activities can cause or accelerate eutrophication in natural water systems32–34. We recorded the value of water quality parameters near floating net cages, namely dissolved oxygen ranging from 5.42 and 5.59 mg/L, biochemical oxygen demand (BOD) ranged between 3.24 and 5.30 mg/L. Total phosphorous (TP) ranged from 490 to 540 μg/L; orthophosphate ranged from 500 to 900 μg/L, total nitrogen ranging from 710 and 1,050 μg /L. At the same time, conductivity was between 0.21 to 0.30 ms/cm, alkalinity went between 80.51 and 82.66 mg/L as CaCO3, hardness ranged between 61.64 and 64.59 mg/L as CaCO3, and pH ranges were between 7.62 and 7.69. Water quality (i.e., DO, BOD, TN, and TP) is higher in Lake Maninjau than in Lake Victoria11. The differences may be due to cages number, the depth of the lake, and the distance of cages from the shoreline. According to Aura et al.11, water quality is an element essential for developing cage culture towards "The Blue Economy" concept. Furthermore, in Lake Maninjau, no regulation regulates the location of floating net cages for aquaculture operation of giant gourami and Nile tilapia. However, most of them are within 300 m of the shoreline with a lake depth of 50 – 75 m and water transparency ranging between 1.6 and 2.1 m. Conversely, in Lake Victoria, most cages were located within ≥ 200 m from the shoreline with a lake depth of less than < 10 m; some such regions (≤200 m) are breeding areas for natural fish populations and demarcated for fishing11. Nevertheless, accelerated eutrophication also depends on diet composition, feed characteristics, feed intake and feed quality13,35–37. On the other hand, accelerated eutrophication in freshwater is largely determined by phosphorus. Therefore, efforts to control eutrophication in waterbodies focus mostly on phosphorus reduction. In the present study, the P load from giant gourami was 4.29 kg/tonne of feed and lower than the P load from common carp (11.45 kg/tonne of feed) and Nile tilapia (9.11 kg/tonne of feed)13. Therefore, giant gourami fish farming can be considered for long-term development based on the aquaculture carrying capacity in Lake Maninjau and other regions.
Trophic food habits of fish might also affect the C, N and P was retained in the fish body because these habits are correlated with digestibility coefficients. Under natural conditions, giant gourami is an herbivorous fish38. In comparison to other fish, herbivorous fishes have more efficient digestion of feed because their extralong intestines contain special enzymes and microbes, such as cellulose enzymes and Bacteroides and Cetobacterium39,40. In the present study, the types of enzymes and microbial communities that were dominant in the giant gourami intestines are poorly understood. Regardless, herbivorous fish such as giant gourami release less N and P nutrients into waterbodies than omnivorous fish and carnivorous fish such as Nile tilapia, Oreochromis niloticus38 and Crimson snapper, Lutjanus erythropterus41.
In the present study, in comparison with the harvested and juvenile fish, the dead fish released only a small amount of nutrients into the waterbodies during the production cycle. Conversely, the availability of N and P in the waterbodies was significantly high after the extensive tilapia deaths due to upwelling (local namely: tubo belerang) and had a negative effect on the water quality of Lake Maninjau33. In contrast, giant gourami did not experience extensive fish death because this species has a labyrinth organ. Many scientists have reported that the release of significant amounts of C, N and P waste loads into waterbodies from feed and extensive fish deaths has a negative environmental impact14,42–45. In fact, feed supply and C, N and P loadings had a strong relationship with giant gourami cultured in floating cages, except in terms of fish mortality.
The 20,608 units of floating cages used for rearing Nile tilapia and common carp have exceeded the estimated aquaculture carrying capacity in Lake Maninjau over the past several years33. This factor has had a negative impact on the water quality of Lake Maninjau, and the net yields of Nile tilapia and common carp were 14.42 and 14.11 kg/m3/cycle, respectively13,46. In contrast, poor water quality does not have a negative impact on the growth and mortality of giant gourami because this species is resistant to poor water quality. Hence, the survival of giant gourami in floating cages ranged from 86.33 to 95.27%/cycle, and the net fish yield was as high as 18.92 kg/m3/cycle. In addition, the survival of giant gourami also depended on feeding level during the rearing period. Our analysis of the feeding level of giant gourami by fish farmers varied between 1.24 and 3.47%/body weight/day, and the majority of the fish farmers (80%) provided pellet feed at less than 3%/body weight/day. For giant gourami, a feeding level of 4–6%/body weight/day has been recommended47. Similarly, Skov et al.48 concluded that biomass weight gain and the specific growth rate of Nile tilapia depend on feeding rate and the feed conversion ratio. In this study, the feeding rate and feed conversion ratio had a strong linear correlation with the net fish yield. Therefore, feeding levels played a significant role in increasing the net giant gourami yield. Many studies have reported that a lower feeding level might result in slow growth and inefficient aquaculture, whereas overfeeding may lead to feed waste, inefficiency and negative environmental impacts37,49–51.

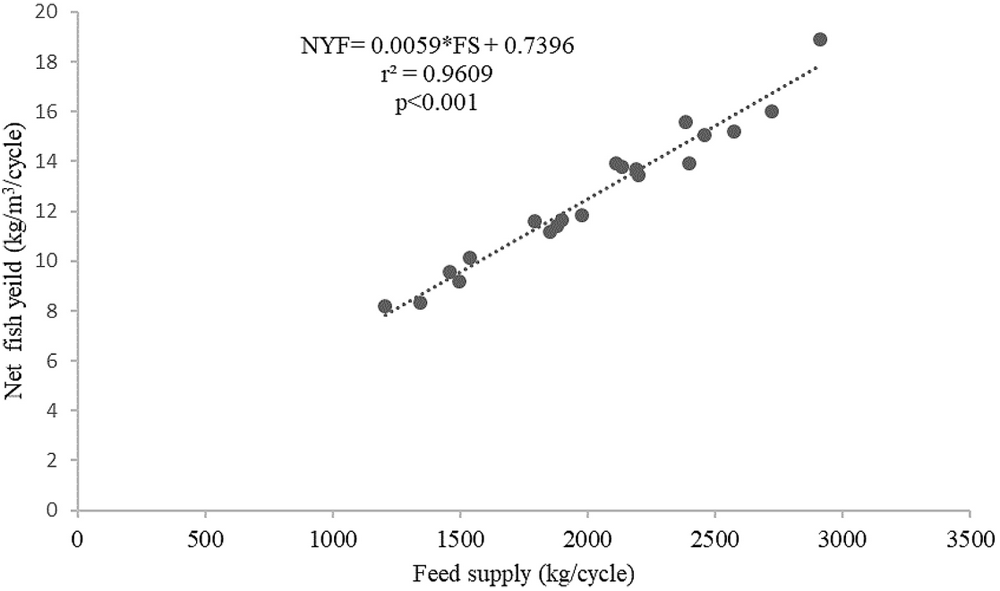

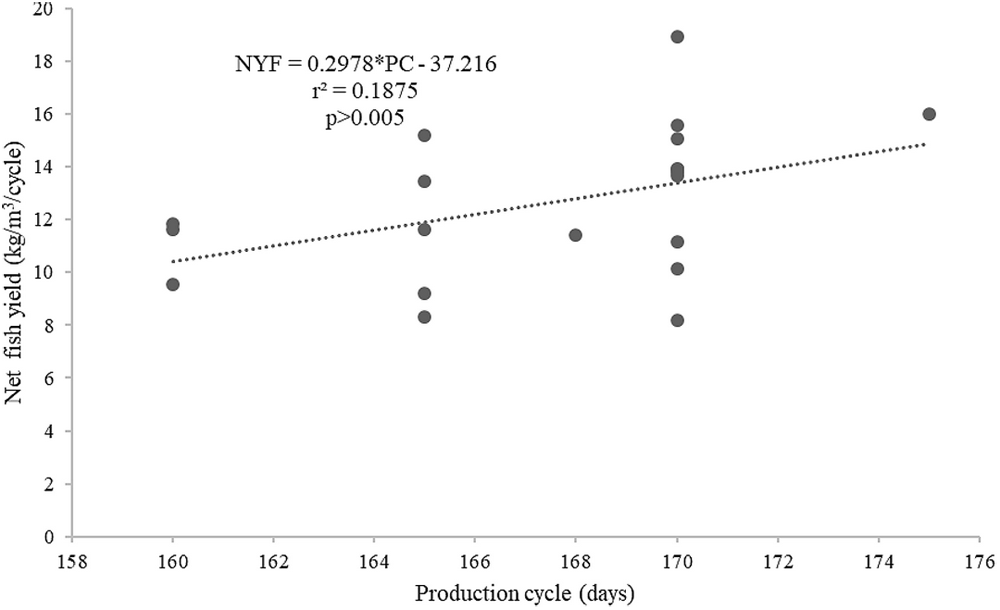

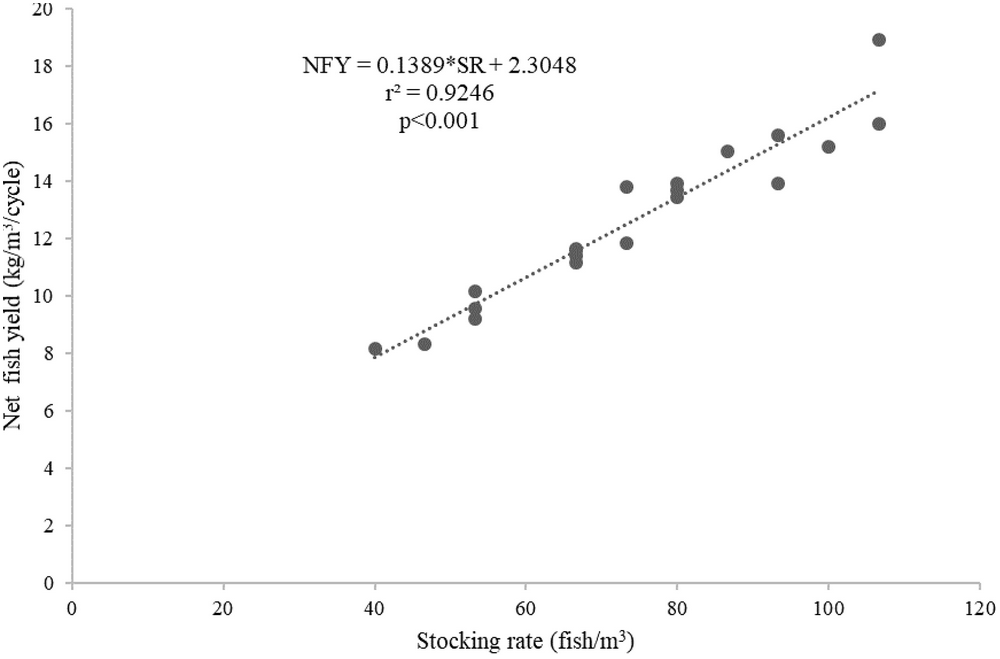

On the other hand, the length of the production cycle did not have a strong linear correlation with the net giant gourami yield (kg/m3/cycle). In contrast, the stocking rate had a strong correlation with the net fish yield. In this study, the stocking rate ranged from 40 to 107 fish/m3, and the majority (70%) ranged between 40 and 80 fish/m3. Therefore, we recommended achieving a market size of 300 g/fish and a net fish yield (18.92 kg/m3/cycle) using a stocking density of 107 fish/m3 for 170 days of culture. Conversely, if the equation by Schmittou23 was applied to meet the target mean weight of 300 g/fish and net fish yield at harvest of 30.93 kg/m3/cycle, then we recommend using a stocking density of 106 fish/m3, with a length production cycle of 170 days. Therefore, to increase production performance of giant gourami in floating cages the management strategy must be to control the optimal seed stock, fish health, feed quality, feeding level, feeding time and husbandry factors. Based on current scientific knowledge, scientists strongly advocate a combination of optimal stocking density, feeding practices, rearing techniques and eco-dam system to increase fish production performance and reduce the aquaculture waste released into waterbodies41,52,53.

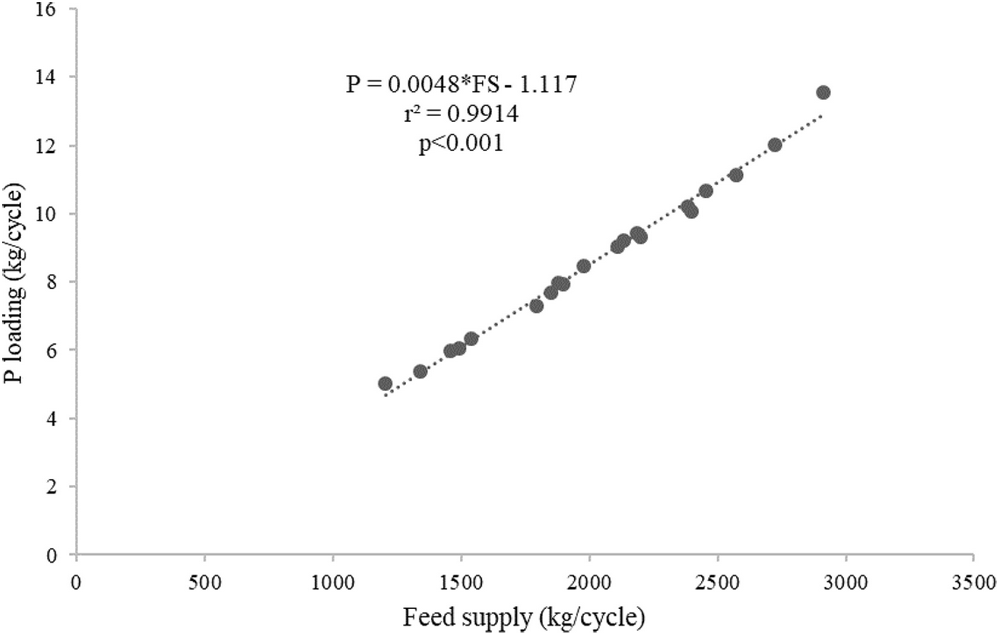

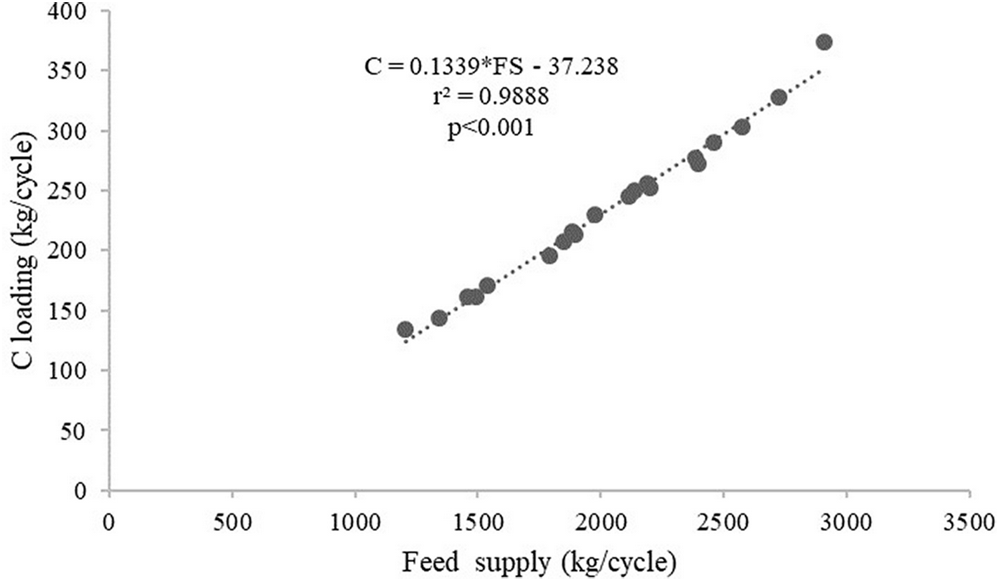

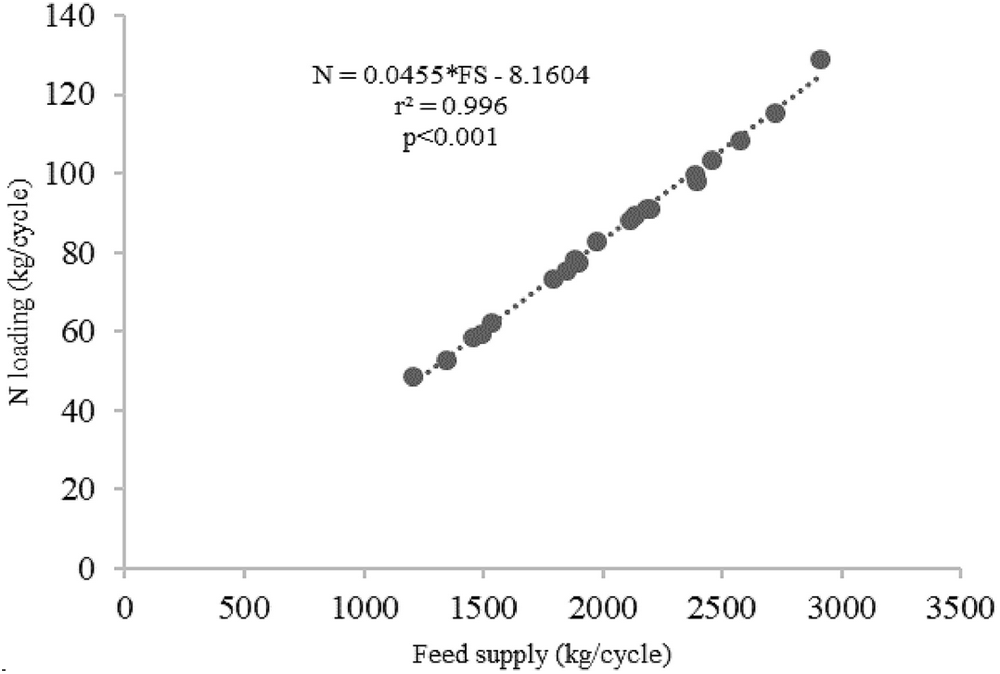

This research analysed the carbon, nitrogen and phosphorus loadings and the farm characteristics of giant gourami reared in floating cages in Lake Maninjau. There was a strong linear relationship between feed supply and nutrient loading for the reared giant gourami. Nutrient loading from feed supply was greater than that from juvenile fish, dead fish and harvested fish. Keys to increasing the net fish yield were stocking density and feeding level. The maximum target for the net fish yield and market size was achieved for 160 days. Therefore, giant gourami cultivation is an important practice to consider continuing in Lake Maninjau in accordance with the aquaculture carrying capacity because the phosphorus released into the waterbodies was very low, and this species also has a high survival rate in floating cages, thereby increasing production volumes and bringing more significant financial benefits.
Fig share: Underlying data for ‘Nutrient loading and farm characteristics of giant gourami fish aquaculture systems in Lake Maninjau, Indonesia: basic knowledge of production performance’. https://doi.org/10.6084/m9.figshare.14369999
The project contains the following underlying data:
Table 1. Carbon (C), nitrogen (N) and phosphorus (P) composition (%) of the dry weight of the feed, harvested fish and faeces
Table 2. Raw data carbon loss from 20 floating cages
Table 3. Raw data nitrogen loss from 20 floating cages
Table 4. Raw data phosphorus loss from 20 floating cages
Table 5. Raw data production performance of giant gourami fish from floating cages in Lake Maninjau
Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).
The authors thank for Rionald Silaban the Director of Indonesian Education Fund Management Institution, Ministry of Finance Republic of Indonesia, for supporting this study through the competitive grant for productive and innovative research (policy/governance) 2019. We appreciate all of the students (Puji Kurniawan and Muhammad Vajri Djauhari), fish farmers (Satria Aferi and Nazarudin) and partners (Ermanto) who helped the authors during data collection in the field.
