Reverse vaccinology approach towards the in-silico multiepitope vaccine development against SARS-CoV-2

Retrieval of structural polyproteins of the SARS-CoV-2

The complete sequence of all three structural polyproteins from SARS-CoV-2 reference sequence (NC045512.2) were retrieved from NCBI on the basis of their antigenicity. The spike (S) glycoprotein (YP_009724390.1), Membrane (M) glycoprotein (YP_009724393.1) and Nucleocapsid (N) phosphoprotein (YP_009724397.2) were retrieved in FASTA format. These three proteins together are referred to as SMN (Spike, Membrane, and Nucleocapsid) polyprotein in this study.

Cytotoxic T cell epitopes (CTL) prediction

First, the CTL epitopes for SMN polyproteins were predicted using Netctl 1.2 server³². Prediction of the epitopes depends on three major attributes: (1) binding affinity of MHC-1 class; (2) ability of the proteasome cleavage; and (3) TAP transport efficiency. The first two are predicted with the artificial neural network algorithm while third one using weight matrix. For the prediction of the epitopes threshold for epitopes, identification was chosen to be 0.75, weight on C terminal cleavage was set on 0.15, while the weight on TAP transport efficiency was set on 0.05. The predicted epitopes were ranked according to the combined score.

Helper T cell (HTL) epitope prediction

For the prediction of HTL epitopes, the IEDB MHC II server was used³³. The species/locus was selected as Human/HLA-DR, and a 7-allele HLA reference set was selected for the prediction. Further, 15 mer length of the epitopes were retrieved and ranked according to the percentile. The percentile rank is given after comparing the peptides score with five million 15 mers from the SWISSPROT database. The higher percentile value means a lower binding affinity of MHC-II. For further refinements of the HTL epitopes, these selected HTL epitopes were subjected to investigate whether they can induce IFN gamma immune response using the IFN epitope server³⁴. For IFN gamma inducing epitopes selection, the Motif/SVM hybrid approach was chosen, and the model was set to be IFN gamma versus non-IFN gamma. Finally, the epitopes whose results were positive for the IFN gamma response were chosen for the in-silico vaccine development.

B cell epitope prediction

B cell epitopes were predicted using the ABCpred server³⁵. This server predicts B cell epitopes using recurrent neural network algorithm. For the identification of the epitopes, the threshold was set on 0.51, while the window length for the prediction was chosen to be 16, keeping overlapping filter on. Top predicted epitopes having scored more than 0.9 was only chosen for the development of the candidate vaccine. Further, after the construction of the vaccine, linear as well as discontinuous conformational B cell epitopes were identified in the vaccine construct using ElliPro, an online server³⁶. Elipro predicts the antibody epitopes taking protein antigen tertiary structure as input.

Antigenicity, allergenicity, and toxicity prediction

The important attributes such as the antigenicity, allergenicity and toxicity were predicted for all the predicted epitopes individually as well as after construction of the vaccine. First of all, the antigenicity was investigated using the VaxiJen 2.0 server³⁷, and only probable antigen epitopes were chosen for the construction of the vaccine. Further, the allergenicity was predicted using the AlgPred server³⁸ and only non-allergenic epitopes were selected. Finally, all the epitopes were investigated for toxicity using the ToxinPred server³⁹ and non-toxic epitopes were selected. All the predicted epitopes had to cross all these barriers. The overall construct of the vaccine was also tested for these attributes.

Construction of multiepitope vaccine sequence

The vaccine sequence was constructed using the best identified CTL, HTL, and B cell epitopes. For the construction of the sequence at the N terminal and C terminal, an adjuvant was added using EAAAK linkers. While HTL epitopes were linked using GPGPG, linkers and CTL epitopes were linked using AAY linkers. In the C terminal, HHHHHH was added for the easy purification of the vaccine.

Physiochemical properties of the vaccine sequence

The physicochemical properties such as molecular weight, PI, half-life, aliphatic index, and hydropathicity were predicted using online tool ProtParam⁴⁰.

Secondary structure of the vaccine sequence

Protein secondary structure prediction gives further opportunity to predict the tertiary structure as well as gives information about the activity and function of the protein. The secondary structure of the final multiepitope vaccine sequence was predicted by the free online web tool CFSSP⁴¹.

Tertiary structure prediction

The tertiary structure of the constructed vaccine was predicted using the Rosetta web tool⁴². Rosetta tool applies a deep neural network algorithm to predict the inter-residue distances as well as orientations. Then these orientations are converted to smooth inter-residue constraints followed by gradient descent energy minimization. Further, the coarse-grained models are generated, and full atom refinement is done. The validation of the model has been done through Ramachandran plot analysis using VADAR web tool⁴³. Further, the modelled structure was validated through the ProSA web tool⁴⁴, which gives the quality Z score of the modelled protein based on the already known similar size of the proteins crystal structures.

Minimization and equilibration of the predicted structure

To achieve a more stable structure, the predicted structure was further taken for molecular dynamics (MD) simulations using Gromacs software⁴⁵. The structure was minimized using the steepest descent algorithm with 50000 steps, followed by NVT and NPT equilibration for 100 picoseconds, followed by MD simulations of 500 picoseconds. The last frame of the MD trajectory was taken for further analysis.

Molecular docking of constructed vaccine with TLR-3 receptor

For molecular docking, the last frame from the MD simulations of the constructed vaccine was taken, and the TLR-3 structure was retrieved from Protein Data Bank (PDB; ID 1ZIW). The downloaded structure was prepared and processed for docking using dock prep tool UCSF Chimera software. For the docking, the vaccine construct and TLR-3 was uploaded to patchDock server⁴⁶. Further, for refinement of the rigid body molecular docking solutions, FireDock server was used⁴⁷. It gave the best 10 docked confirmation based on global energy and Van der Waal’s interactions.

Reverse translation and codon optimization

Finally, for expressing the constructed multiepitope, the vaccine needs to be expressed in the suitable vector inside the prokaryotic system. Hence, reverse translation and codon optimization were analysed using the Java codon adaptation web tool (Jcat)⁴⁸. The codon optimization was performed for E. coli strain K12 as a host. Jcat gives the codon adaption index (CAI) and percentage GC content as output. The CAI gives the information of codon usage, generally score between 1 and 0.8, while GC contents should be between 40 % to 70%, values lying outside the given margin is suggested to be inefficient⁴⁹.

Retrieval of the polyproteins and antigenicity

The amino acid sequence of all three (SMN) structural proteins were retrieved from the NCBI database in fasta format. The proteins were investigated for antigenicity by Vaxijen web tool, and it was found that all the three chosen proteins could be good antigens. The default threshold of 0.4 was chosen as the criteria for the antigenicity in the Vaxijen tool. The spike protein showed a score of 0.46; membrane glycoprotein showed a score of 0.51; while nucleocapsid protein showed a score of 0.50. Hence, all three proteins were chosen for further predictions of B cell and T cell epitopes and the construction of the vaccine.

Prediction of CTL epitopes

CTL epitopes were predicted using Netctl 1.2 server for all the three selected proteins. A total of 38 epitopes was predicted from spike glycoprotein; 10 epitopes were predicted from membrane glycoprotein; while 9 were predicted from nucleocapsid protein. Out of all these predicted CTL epitopes, only 8 were selected for the construction of the vaccine, based on a high binding affinity towards MHC-I, antigenicity, non-allergenicity, and non-toxicity predictions, as shown in Table 1.

Prediction of HTL epitopes

HTL epitopes were predicted using the IEDB MHC II server for all the three SMN structural proteins. Finally, 4 HTL epitopes were selected on the basis of binding affinity, antigenicity, non-allergenicity, and non-toxicity, as shown in Table 2. Four human alleles and position of predicted epitopes are HLA-DRB1*07:01 (166-180), HLA-DRB4*01:01 (298-312), HLA-DRB5*01:01 (232-246), HLA-DRB5*01:01 (345-359).

B cell epitope prediction

For the prediction of B cell epitopes, ABCpred server was used. Based on the binding score (>0.9), non-allergenicity and non-toxicity, a total of four B cell epitopes were finally selected, as shown in Table 3.

Construction of multiepitope based vaccine

The four B cell epitopes, four HTL epitopes and 8 CTL epitopes were selected for vaccine construction, which fulfilled all the criteria of binding affinity, antigenicity, non-toxicity and non-allergenicity. Besides these epitopes, two adjuvants were also added at the N terminal (human beta defensin-3) and at C terminal (human beta defensin-2) of the vaccine to increase the antigenicity. Adjuvant were linked via EAAAK linkers to the epitopes, HTL epitopes were linked via GPGPG linkers, while CTL epitopes were linked with AAY linkers, as shown in Figure 1. The constructed vaccine sequence was again checked for antigenicity, non-allergenicity, non-toxicity and it fulfilled all the criteria.

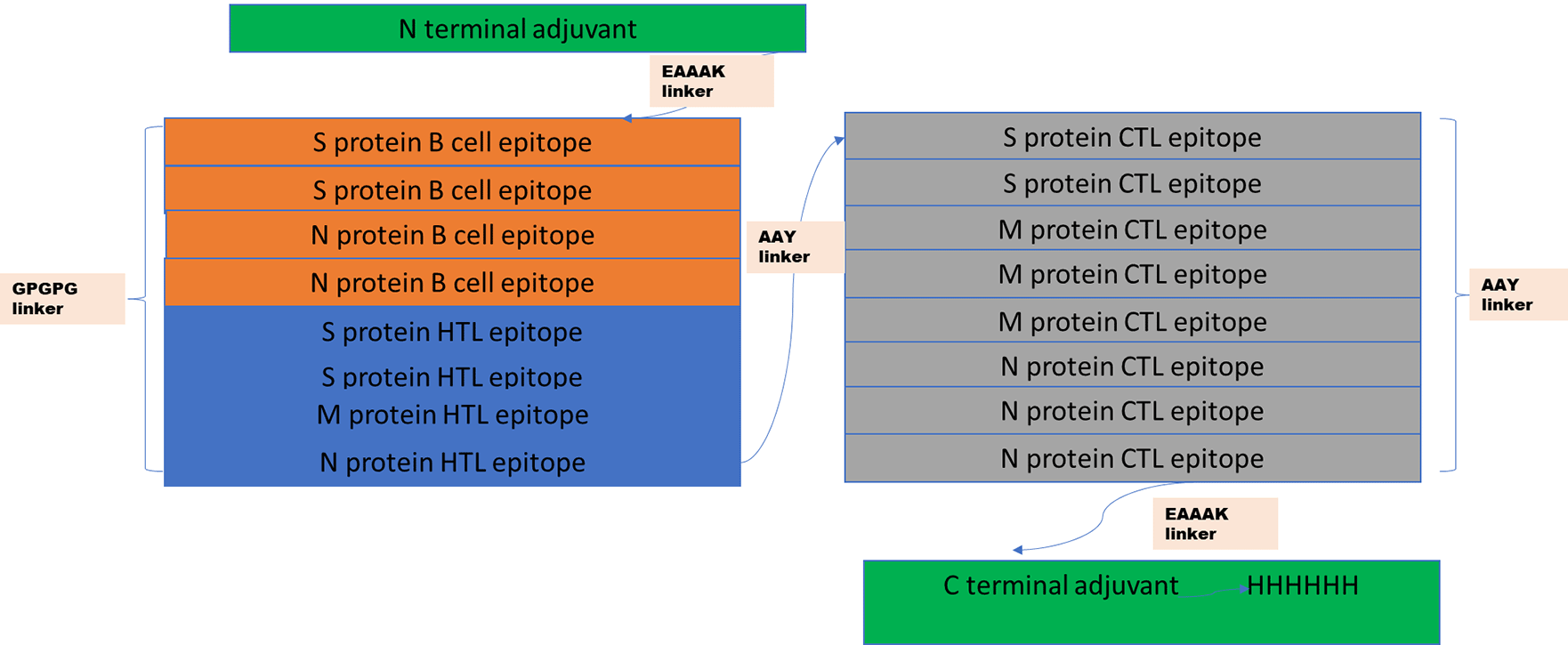

Figure 1. Structure of the final multiepitope based vaccine.

At the C terminal, an adjuvant human B defesin3 has been added, and then it is linked with B cell epitopes using EAAAK linkers. B cell epitopes are linked with HTL with GPGPG linkers, and HTL are linked with CTL with AYY linkers. At N terminal, another adjuvant human B defensin-2 has been linked with six histidine sequences.

Prediction of physicochemical parameters of the constructed vaccine sequence

The physiochemical parameters of the vaccine sequence were predicted by the ProtParam server. The molecular weight of the construct was predicted to be 38.8 KDa, and the theoretical PI value was 9.92. The predicted half-life in E. coli was more than 10 hours, and the instability index in the test tube was found to be stable. The aliphatic value of the vaccine sequence was 58.7 and the grand average of hydropathicity (GRAVY) was -0.348.

Secondary structure prediction of the vaccine sequence

Secondary structure prediction was made using the CFSSP web tool. The result showed the presence of helix at 44.5%, sheet at 35.6%, and turns at 14 %.

Tertiary structure prediction of the vaccine sequence

The 3D structure of the multiepitope predicted vaccine was predicted using the Rosetta web tool. It uses de-novo structure prediction using deep neural network algorithm to predict the inter-residue distances as well as orientations. Then these orientations are converted to smooth inter-residue constraints followed by gradient descent energy minimization. Further, coarse-grained models are generated, and full atom refinement is done. It gave five best-predicted models, and based on the TM score, one model was selected for further investigation, as shown in Figure 2A. Further to validate the predicted model, Ramachandran plot analysis was done, and results showed that 96.3% residues were in the favourable region, 2.5% were in the allowed region while ~ 1% were in the outlier region (Figure 3). Additionally, the PROSA web tool was used to predict the quality of the modelled vaccine, which predicted a Z score of -6.34. Ramachandran plot and Z score have suggested that the predicted model of protein was valid and could be taken for further analysis.

Figure 2.

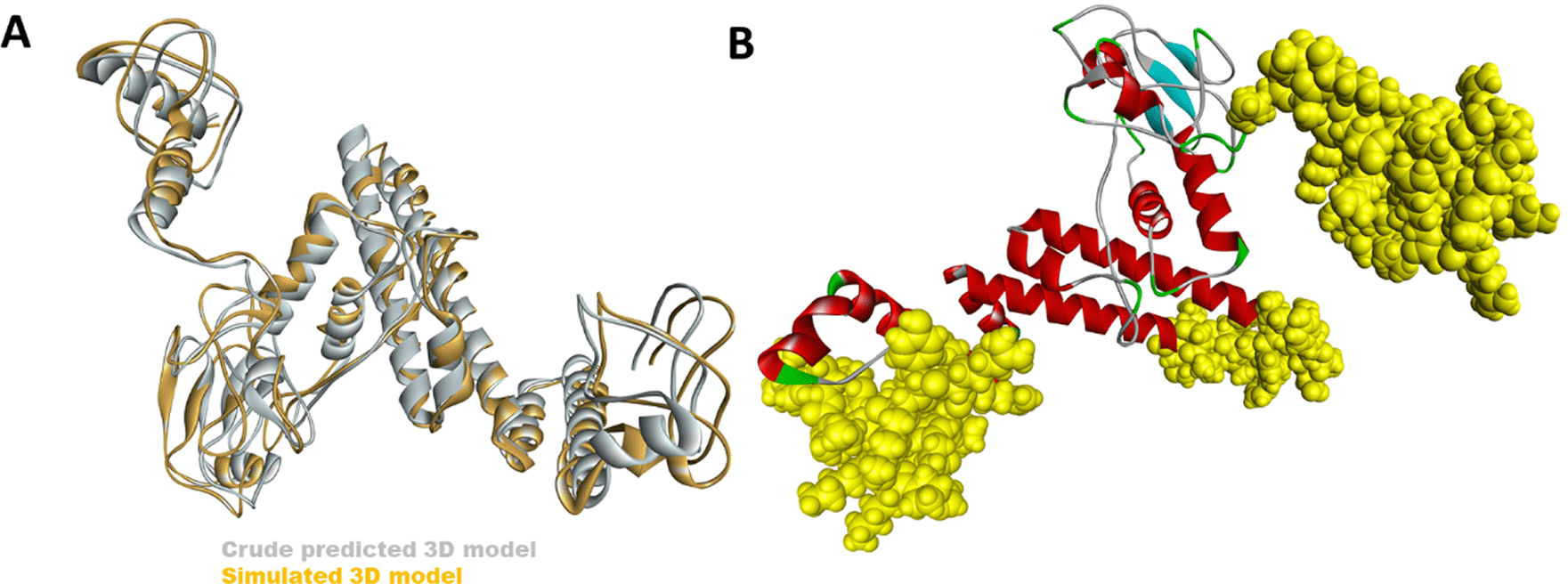

(A) The crude 3D modelled structure of the vaccine (grey) has been superimposed with the simulated model (yellow). (B) The top 3 conformational B cell epitopes predicted in the vaccine has been shown with yellow spheres.

Figure 3. Ramachandran plot of the 3D modelled vaccine construct.

Conformational B cell epitope analysis from modelled vaccine

Elipro predicts the antibody epitopes taking protein 3D structure as input. Linear B, as well as discontinuous conformational epitopes, were identified in the vaccine construct using ElliPro, an online server. A total of 8 linear epitopes were predicted, and the sequence of the top 3 epitopes have been reported in Table 4 and has been shown structurally in Figure 2B. Various discontinuous epitope residues were predicted from vaccine sequence length 232-253 (21 epitope residues), between 299-357 (55 epitope residues), between 1-54 (52 epitope residues), between 69-128 (33 epitope residues) and between 168-176 (9 epitope residues) were predicted. The individual score of each of the discontinuous epitopes has been shown in Figure 4.

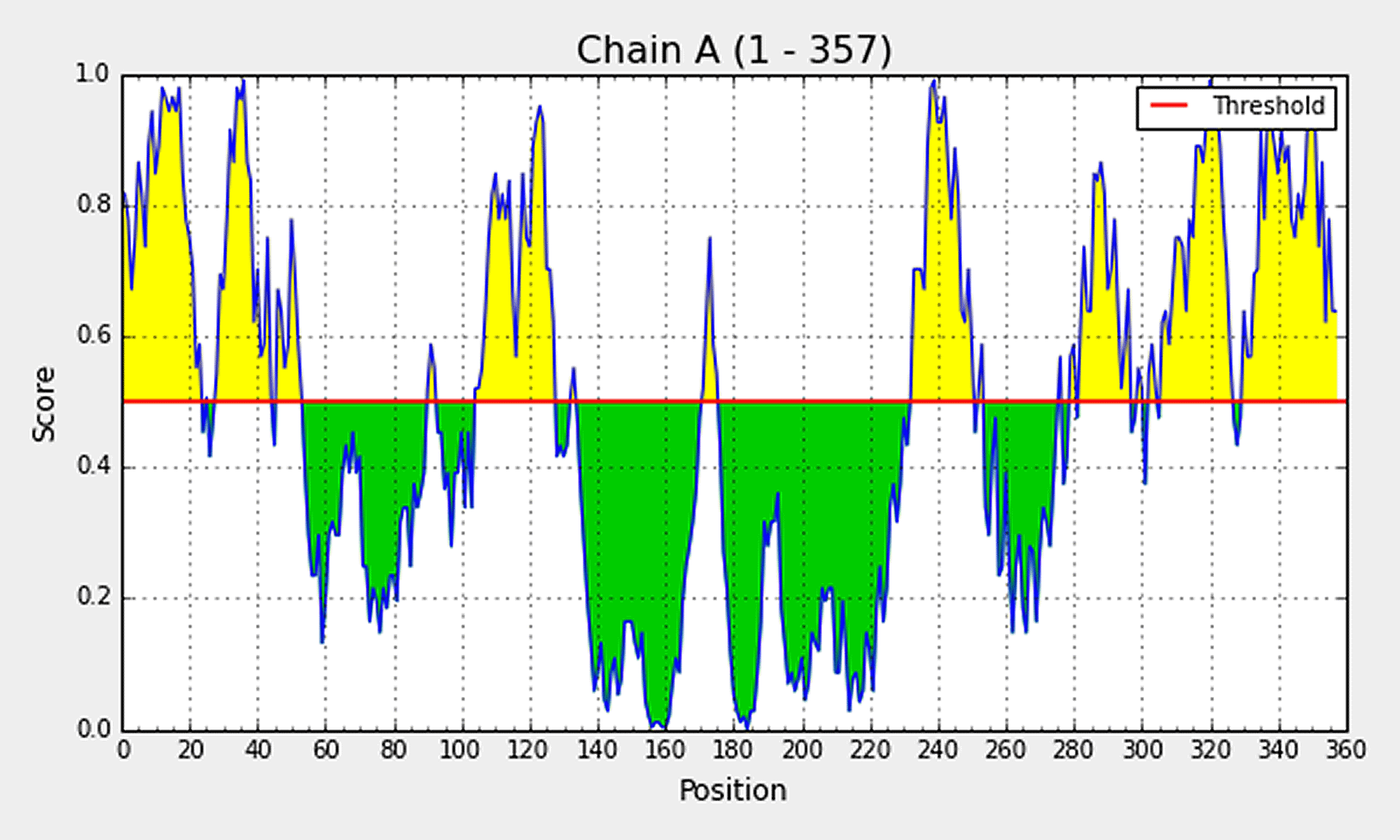

Figure 4. The individual score of discontinuous B cell epitopes predicted in the modelled vaccine

Docking of vaccine with TLR-3 receptor

The modelled structure of the vaccine was taken through energy minimization, equilibration, and MD simulations before docking. The last frame from the simulated trajectory was taken further for docking. The simulated structure has been compared with the crude modelled structure, as shown in Figure 2A. The TLR-3 structure was retrieved from PDB (ID 1ZIW). The downloaded structure was prepared and processed for docking using the dock prep tool UCSF Chimera software⁵⁰. The simulation was done using the PatchDock server and further refined using FireDock. The best-docked complex had global energy of -14.91 Kcal/mol, and attractive Van der Waal’s energy was -18.1 Kcal/mol, which shows a decent binding affinity of the vaccine towards TLR-3. Further, the best binding pose was investigated for polar interactions using discovery studio visualizer⁵¹ between TLR-3 and vaccine, and it was found that GLN352, SER428, ILE370 of TLR-3 was making the hydrogen bond with TYR260, ARG321, and LYS166 of vaccine respectively (Figure 5).

Figure 5. The docked structure of TLR-3 (green)-modelled vaccine (orange) complex illustrating critical residues involved in the interactions.

Reverse translation and codon optimization

Jcat was used for the optimization of the codon for the proper expression of the protein. E. coli strain K12 was chosen as a host, with additional options such as avoid rho-independent transcription terminators, avoid prokaryotic ribosome binding sites, and avoid Cleavage Sites of Restriction Enzymes. The CAI gives the information of codon usage, generally score between 1 and 0.8, while GC contents should be between 40 % to 70%, values lie outside the given margin is suggested to be inefficient. CAI of the optimized nucleotide sequence of the vaccine was found to be 0.92, with a GC content of 55.6%, which indicates the effective expression of the protein in the E. coli.
