Brief Report

DNA barcoding for the discrimination of Uncaria gambir and its closely related species using internal transcribed spacer genes

[version 1; peer review: 1 approved with reservations, 1 not approved]
PUBLISHED 27 Jan 2022
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

This article is included in the Cell & Molecular Biology gateway.

Abstract

Background: Uncaria gambir is one Uncaria species that exclusively grows in Indonesia. The phytochemical constituents of this species have been widely explored and its extracts are used as traditional medicine. However, the relationship between Uncaria gambir and other Uncaria species is still unknown. DNA barcoding was used in this study to reveal this relationship.
Methods: Genomic DNA was isolated from four main cultivated variants of Uncaria gambir species in Indonesia. ITS primer was used to amplify the specific gene region. Genetic distance analysis was carried out on Uncaria gambir and 12 other Uncaria species. A phylogenetic tree was created to determine the relationship among Uncaria species using the maximum likelihood method.
Results: The ITS primer successfully amplified the ITS region in Uncaria gambir. Genetic distance and phylogenetic tree analyses showed that Uncaria gambir has a close relationship with Uncaria scandens, Uncaria yunnanensis, and Uncaria macrophylla which is also indicated by Interspecific distance analysis.
Conclusions: Although the DNA barcoding gap is absent in genetic distance analysis, the phylogenetic tree analysis from the ITS region can differentiate Uncaria gambir from other Uncaria species.

Keywords

Uncaria Gambir, ITS, Phylogenetic analysis, Genetic distance

Introduction

Gambier, extracted from the twigs and leaves of Uncaria gambir, is traditionally used to treat various diseases in Indonesia, such as diarrhea, gastrointestinal diseases, burns, acne, and cancer (Musdja et al., 2018). Uncaria gambir is commonly distributed in southeast Asia tropical regions, mostly in Indonesia and Malaysia (Taniguchi et al., 2007). The Sumatera Barat region has become the biggest contributor of gambier with Udang, Cubadak, Riau, and Mancik being the main cultivated variants in Indonesia.

The identification of Uncaria gambir is still based on morphological characteristics and phytochemical constituents. These identifications are mainly affected by environmental conditions and conditions of the sample, thus resulting in a biased interpretation (Zhu et al., 2011). To address this problem, DNA barcoding can be a solution to discriminate the species by using short and standardized DNA fragments (Li et al., 2021). The Consortium for the Barcode of Life (CBOL) has approved chloroplast genes sequences, such as psbA–trnH, trnL–trnF, ycf1, and rpoC1, as potential DNA barcodes and suggests a combination of matK and rbcL genes as an alternative barcode for Embryophyta (Hollingsworth et al., 2009). In addition, internal transcribed spacer (ITS) genes (ribosomal region) have been proposed as supplemental barcodes for matK and rbcL (Hollingsworth et al., 2009).

The ITS gene is located between 18S and 28S genes in the nrDNA repeat unit and covers the ITS1 and ITS2 regions, connected by the 5.8S rRNA gene (Bellemain et al., 2010). Previous studies have used restriction fragment length polymorphism (RFLP) and random amplified polymorphic DNA (RAPD) to investigate catechin molecular markers in Uncaria gambir (Istino et al., 2013).

Molecular identification using matK and rbcL genes gives a low amplification success rate and was inaccurate to discriminate among Uncaria gambir variants (Wardi et al., 2020). In a recent study, utilization of the ITS-2 gene only gives one species-specific site among Uncaria gambir variants and no genetic distance analysis was studied (Wardi et al., 2021b).

In this study, we investigated the utilization of the ITS gene to discriminate Uncaria gambir within the other 12 Uncaria species. Genetic distance analysis was carried out to provide relationship data between Uncaria gambir and the other 12 Uncaria species. This study is the first to provide an ITS gene sequence from Uncaria gambir.

Methods

DNA extraction, PCR amplification and sequencing

Six fresh leaves of four Uncaria gambir variants were collected from Siguntur, West Sumatera Province, Indonesia (1°05'36.8"S 100°28'27.0"E -1.093562, 100.474153). Morphology identification was conducted in the Herbarium of Andalas University. Harvested fresh leaves were frozen immediately in liquid nitrogen and was stored at -80°C for 24 hours prior to DNA isolation.

DNA isolation was performed using the CTAB method (Allen et al., 2006). In total 300 mg of frozen leaf sample was ground and put into a 2 ml Eppendorf tube. 1 ml of 2x CTAB buffer and merchaptoethanol was added and vortexed until homogenized. The solution was incubated at 65°C for 30 minutes and inverted every 10 minutes. 500 µL of phenol: chloroform: isoamylalcohol mixture (25:24:1) was added and vortexed for 1 minute then centrifuged at 12,000 rpm for 10 minutes. The supernatant was transferred to a new 2 ml Eppendorf tube. 500 µL of chloroform mixture: isoamylalcohol (24:1) was added and vortexed for 10 minutes then centrifuged at 12,000 rpm for 10 minutes. The supernatant was transferred to a new 1.5 mL Eppendorf tube. Sodium acetate was added as much as 1/10 times the volume of the supernatant, then 1 ml of cold ethanol 99% was added and swirled for 1 minute. The solution was centrifuged at 12,000 rpm for 5 minutes, supernatant was removed and 500 µL of 70% ethanol was added. The solution was centrifuged at 12,000 rpm for 5 minutes, the supernatant was discarded and the DNA was dried in the oven. Finally 100 µL of 1xTE buffer was added to dried DNA and stored at -20°C.

DNA amplification was performed using MyTaqTM HS Red Mix Bioline kit. The final concentrations for a typical 25 μl reaction were as follows: 12.5 µL MyTaqTM HS Red Mix Bioline, 1 µL reverse primer ITS-u4 (RGTTTCTTTTCCTCCGCTTA), 1 µL forward primer ITS-u1 (GGAAGKARAAGTCGTAACAAGG), 1 µL DNA template, 9.5 µL Nuclease-Free Water to obtain a 25 µL final volume. The thermal cycling conditions (BIO-RAD C1000TM Thermal Cycler) were as follows: (a) Denaturation 96°C for 60 s, (b) Denaturation 96°C for 15 s, (c) Annealing 70°C for 45 s (-1°C decrement each cycle), (d) Extension 72°C for 60 s; (e) repeat step (b-d) for 25 cycles and followed by a final extension at 72 °C for 5 min.

The isolation and amplification results were visualized using electrophoresis with 1.5% agarose gel. The expected amplification product was sequenced by 1st BASE DNA Sequencing Service (Apical Scientific Sdn Bhd) bidirectionally using the specific primer.

Sequence and distance analysis

A total of 132 Uncaria ITS sequences were downloaded from National Center for Biotechnology Information (NCBI) and were aligned with Uncaria gambir using MEGA X software version 10.2.6 (Tamura et al., 2013). The intraspecific and interspecific distances were computed with Kimura 2-Parameter (K2P) using MEGA X software (Kimura, 1980)(Meier et al., 2006).

Phylogenetic analysis

The sequences were analyzed by the maximum likelihood method for phylogenetic tree construction. The maximum likelihood analyses, including 1000 nonparametric bootstrap replicates, was performed using MEGA X software under the Kimura 2-parameter (K2P)+G model. Nauclea orientalis and Nauclea diderrichi sequences that are relative to the Uncaria genus were downloaded from NCBI and used as an outgroup species.

Results

Sequences and distance analysis

The primer ITS-u1 and ITS-u4 showed 100% amplification efficiency to Uncaria gambir. Sequences were deposited in the NCBI GenBank database under the accession numbers MZ927014, MZ927015, MZ927016, and MZ926993 (Table 1). The region's length was obtained from 644 to 646 bp.

Table 1. Detailed information about ITS sequences from species Uncaria gambir.

Sample nameTissueLengthGC%Accession
number
Uncaria gambir (Cubadak var)Leaf645 bp62.6MZ926993
Uncaria gambir (Mancik var)Leaf644 bp62.7MZ927015
Uncaria gambir (Riau var)Leaf645 bp62.8MZ927016
Uncaria gambir (Udang var)Leaf646 bp62.8MZ927014

The dataset used in this study includes 4 species of Uncaria gambir and 132 Uncaria sequences of the ITS region downloaded from the NCBI GenBank database (Extended data). This dataset contained 655 conserve sites, 68 variable sites, and 54 parsimony informative sites.

The mean of intraspecific distance (Table 2) and interspecific distance (Table 3) is 0.001% and 0.022%, respectively. The BLAST showed the Uncaria gambir Riau, Mancik, Udang, and Cubadak variant had 99.22%, 99.23%, and 99.07% similarity with U. macrophylla MF033304, respectively. In addition, the Uncaria gambir Cubadak variant had 99.22% similarity with U. macrophylla MF033303.

Table 2. Intraspecific distance of 13 Uncaria species.

SpeciesIntraspecific distance
U. rhynchophylla0.001
U. rhynchophylloides0.001
U. sinensis0.001
U. homomalla0.002
U. hirsuta0.000
U. sessilifructus0.001
U. macrophylla0.001
U. laevigata0.003
U. lancifolia0.003
U. scandensn/c
U. lanosa0.000
U. yunnanensis0.000
U. gambir0.001

Table 3. Interspecific distance of 13 Uncaria species.

12345678910111213
1U. rhynchophylla
2U. rhynchophylloides0.022
3U. sinensis0.0080.023
4U. homomalla0.0140.0200.015
5U. hirsuta0.0150.0210.0170.010
6U. sessilifructus0.0360.0260.0370.0350.035
7U. macrophylla0.0310.0210.0320.0260.0270.031
8U. laevigata0.0260.0170.0280.0240.0250.0170.024
9U. lancifolia0.0190.0050.0200.0170.0170.0230.0170.014
10U. scandens0.0310.0210.0330.0270.0270.0300.0110.0240.018
11U. lanosa0.0130.0190.0150.0070.0090.0300.0240.0230.0150.025
12U. yunnanensis0.0320.0220.0330.0270.0280.0310.0120.0240.0180.0000.025
13U. gambir0.0310.0210.0320.0260.0270.0300.0080.0240.0170.0030.0250.004

Phylogenetic analysis

The phylogenetic tree was constructed using 13 Uncaria species. Uncaria gambir were clustered from other species (Figure 1). The four variants of Uncaria gambir had a close relationship with Uncaria macrophylla MF033303.

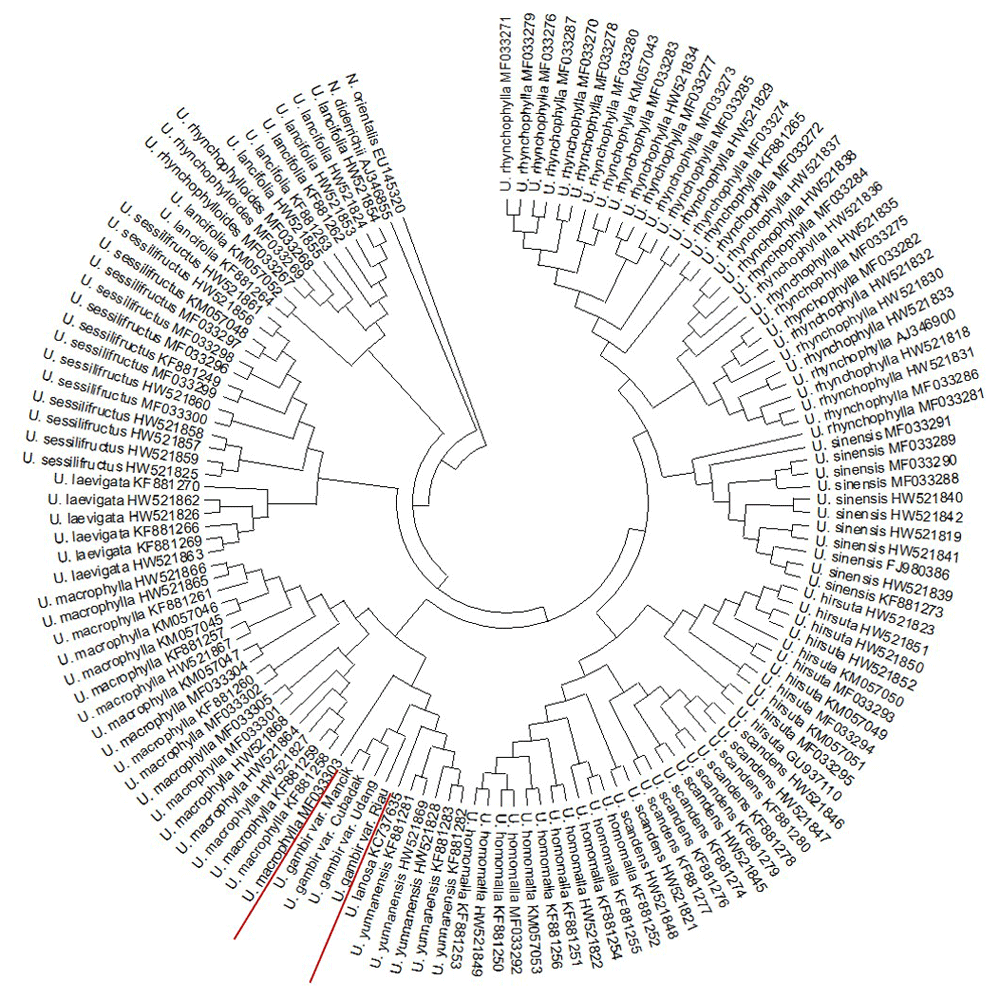

Figure 1. Phylogenetic tree analysis of Uncaria gambir to another Uncaria species was computed using maximum likelihood method.

The phylogenetic tree showed Uncaria gambir has a close relationship with Uncaria yunnanensis but not Uncaria scandens. In contrast, the interspecific distance value showed Uncaria gambir had a close relationship with Uncaria yunnanensis and Uncaria scandens.

Discussion

Uncaria is a member of the Rubiaceae family and consists of 34 species (Ridsdale, 1978) that are well known as medicinal plants (Heitzman et al., 2005). The method to identify Uncaria gambir is currently limited to morphological identification. This study compares the ITS gene sequence of the four main cultivated variants of Uncaria gambir from Indonesia with 132 other Uncaria sequences (12 species) downloaded from NCBI.

The interspecific distance analysis showed that Uncaria gambir is significantly different from the other 12 Uncaria species. Uncaria scandens and Uncaria sinensis species had the lowest and highest interspecific distance value, respectively. The intraspecific distance analysis showed Uncaria rhynchophylla, Uncaria rhynchophylloides, Uncaria sessilifructus, and Uncaria macrophylla had a value of 0.001. The intraspecific and interspecific values showed a partial overlap value, thus no gap between the species. Tang et al. (2016) showed similar results when comparing Uncaria rhynchophylla (Miq.) Jacks with 28 other Uncaria species sequences.

It is important in DNA barcoding to have a gap, as it can differentiate unknown from known sequences, as no DNA barcoding gaps may give inaccurate results in differentiating the species (Liu et al., 2014; Rach et al., 2008). The phylogenetic tree was created with the maximum likelihood method. The advantage of this method is that it includes evolutionary models to account for the variation in the sequences compared with maximum parsimony and distance methods (Mount, 2008).

The phylogenetic tree showed all of Uncaria gambir species were clustered as monophyletic. All Uncaria gambir variants were nested with Uncaria macrophylla (MF033303), Uncaria lanosa, and Uncaria yunnanensis.

Conclusion

In conclusion, the phylogenetic tree ITS sequence can differentiate Uncaria gambir from other Uncaria species. In contrast, genetic distance analysis showed different results as the absence of a DNA barcoding gap means it is not reliable to differentiate between species.

Data availability

Underlying data

The ITS sequences from this research are available from NCBI:

GenBank: Uncaria gambir isolate Udang, Accession number MZ927014: https://www.ncbi.nlm.nih.gov/nuccore/MZ927014

GenBank: Uncaria gambir isolate Mancik, Accession number MZ927015: https://www.ncbi.nlm.nih.gov/nuccore/MZ927015

GenBank: Uncaria gambir isolate Riau, Accession number MZ927016: https://www.ncbi.nlm.nih.gov/nuccore/MZ927016

GenBank: Uncaria gambir isolate Cubadak, Accession number MZ926993: https://www.ncbi.nlm.nih.gov/nuccore/MZ926993

Extended data

Dryad: GenBank accession numbers of downloaded sequences used in this study https://doi.org/10.5061/dryad.dfn2z352w (Wardi et al., 2021a)

This project contains the following extended data:

  • Table_E1_GeneBank_Accession_Numbers.docx (This data contains accession numbers from 132 sequence of Uncaria species, and two accession numbers from Nauclea).

Data are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).
