Case Report: Pathological fracture in a Li-Fraumeni osteosarcoma patient: "Capasquelet'' femoral reconstruction and tumor vascular analysis with endomucin immunofluorescence multiplexing

Capasquelet surgical technique

First stage

The patient underwent initial wide margin (R0) oncologic resection, with a 20 cm diaphysis resection, at this time the femoral fracture has healed during neo-adjuvant CT (Table 2). The femur was prepared with a clean cut transversally. A cement spacer using high-viscosity Heraeus Palacos^® R + G cement (Hanau, Germany) was modelled; it fills the bone loss as fully as possible. Due to pathological fracture and limb length discrepancy, the spacer was made 2 cm longer than the resection (22 cm). We also preferred to oversize it somewhat in width as the soft tissue coverage was not an issue, as it increases reconstruction space and facilitate induced membrane closure for the second stage. The spacer was covering the bone–host interfaces as recommended in the Masquelet technique.⁶ It was enhanced on a locked intramedullary nailing, positioned back and forth (Figure 2). Patient was considered good responder in pathology analysis with 1.5% residual viable cells (Table 3).

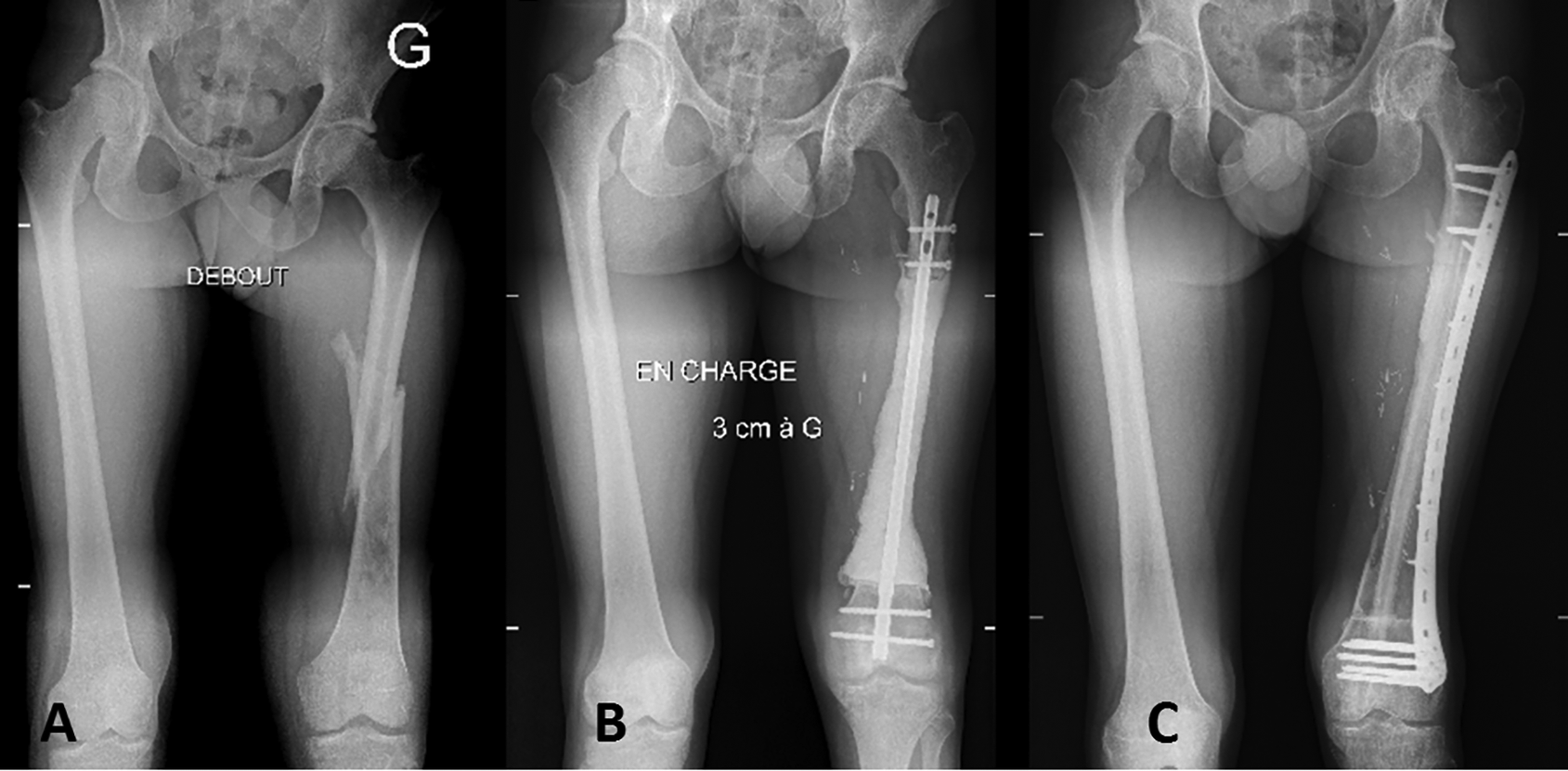

Figure 2. Capasquelet technique reconstruction, using a femoral radiograph view: (A) preoperative radiograph, pathological fracture of the high-grade osteosarcoma with a limb length discrepancy of 80 mm; (B) postoperative radiograph of the first stage after carcinologic resection and the spacer placement on an intramedullary nail with limb length discrepancy of 60 mm (post-T1 delay: 1 month); (C) postoperative radiograph at 1 year, residual limb length discrepancy of 40 mm.

Interstage planification

The femoral allograft dimension was determined to be as close as possible of the patient femur; the diaphyseal shaft width must allow the fibula to slide into it. We used a cryopreserved allograft, in compliance with the criteria of the French Agency of Biomedicine, from the Nantes Multi-Tissue Bank. The delay between the two stages was of 22 weeks due to adjuvant chemotherapy.

Second stage

The length aimed (24 cm) and the rotational axes were determined before the spacer was removed. The vascularized fibula graft required microsurgical technique for harvesting and vascular anastomoses. The fibula graft was 28 cm in our case, and it was four centimeters longer than the planned bone allograft length. Graft harvesting was done from the contralateral limb by a second surgical team with microsurgical expertise in order to decrease the surgery duration. The harvesting was performed under a tourniquet, ensuring at least 8 cm¹⁴ of the distal fibula was spare in order to limit malleolar instability risk. A lateral surgical approach was used to raise the osseous graft. The bone was vascularized by an artery from the peroneal artery that entered the middle-third of the fibula. The section must include this area. After identification of the artery and its origin from the tibio-fibular trunk, the vessel was dissected.¹⁵

The allograft was warmed for one hour in a hot physiological serum bath and then cut with an oscillating saw with transverse cut similar to the bone defect aimed. One specific team was devoted to set the hybrid graft: the allograft was filled with the fibula after a progressive reaming, care was taken to not hurt the vessels of the fibula, a bone window was performed on the allograft for allowing its mobilization and sliding in the allograft. 2 cm of fibula were planned for overlapping the bone interfaces. Then, the hybrid graft was stabilized and compressed with a 4.5mm locking compression plate, taking care to orientate the fibula vessels towards anastomosis area. Lastly, the microsurgical anastomosis was performed at the terminal branches of the profunda femoris artery (Figure 2).

Postoperative management

Early mobilization and progressive weight-bearing were allowed postoperatively. Strictly limited weight-bearing was prescribed for the first six weeks, with progressive full weight-bearing depending on the patient’s pain and condition (Table 3). Full weight bearing was obtained at twelve weeks, with a functional quality of life of 75% on the EQ 5D score. Adjuvant chemotherapy was then performed with two doxorubicin-ifosfamide and two cisplatin-ifosfamide courses.

Long term follow up

At last follow-up (38 months following tumor resection), no local complication nor local recurrence occurred, with full weight bearing on his lower limb, allowing walking without cane. Nonetheless, despite beeing a good responder with R0 resection, the patient relapsed with pulmonary metastasis at 13 months follow up, needing surgical excision. Early pulmonary recurrence make us introduce a complementary targeted therapy with cabozantinib and chemotherapy ifosfamide and VP16.

Vascular analysis

On bone biopsy we first suspected a bone undifferentiated pleomorphic sarcoma (UPS), due to the low level of osteoïd matrix on the sample; the diagnosis of Li-Fraumeni Syndrom was also made due to oncological family anteriorities. Nonetheless, an osteosarcoma chemotherapy protocol was performed with an API-AI protocol. On bone tumor resection piece, osteosarcoma pathology diagnosis was made due to visualization of many osteoïd matrix on various places among the tumor. The unusual pejorative oncological evolution, despite an initial good pathology response and good margins was unusual in this case, thus, we performed a complementary histologic analysis.

Our aim was to assess the vascularization of patient osteosarcoma on biopsy prior to any chemotherapy treatment, and also to assess technical feasibility of our previous methodology (described on preclinical mouse model) on multiplexing analysis.¹² Indeed, on a preclinical osteosarcoma MOS-J syngenic mouse model we identified two different kinds of vessels on confocal multiplexing analysis: CD31+/α-SMA+ elements and CD31+/Endomucin+elements. The CD31+/α-SMA+ elements exhibited a structured and straight architecture, with a sizeable diameter, and they resembled mature vessels. On the other hand, the CD31+/Endomucin+ elements were much more sinusoidal, with a more serpiginous and unorganized structure. They also had a smaller diameter and they look like immature sinusoidal vessels, which might be linked to tumor neo-angiogenesis (Figure 3).

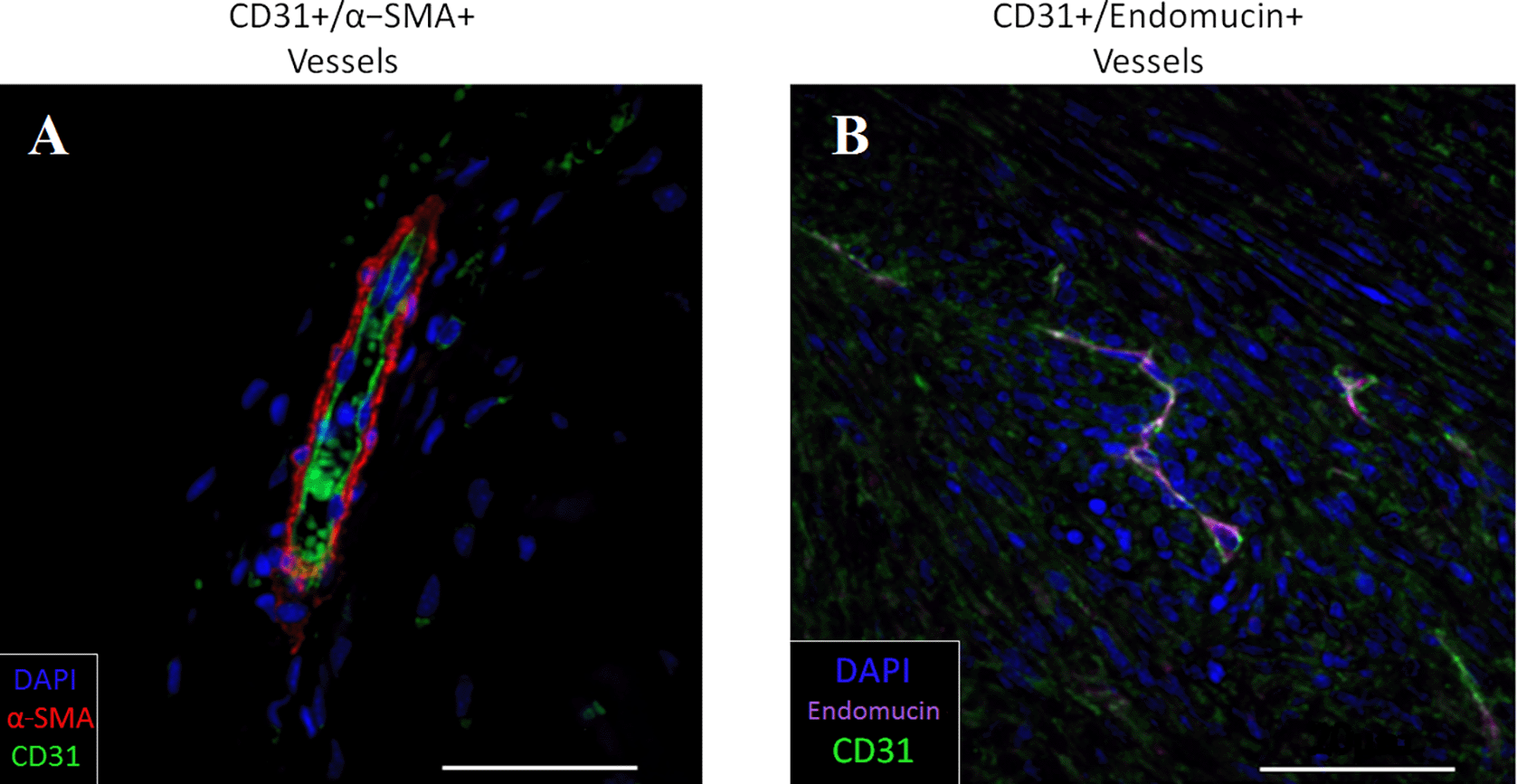

Figure 3. Confocal analysis of CD31+/α-SMA+ and CD31+/Endomucin+ costaining in a control center lesion.

A: CD31+/α-SMA+ elements. B: CD31+/Endomucin+ elements. The images are Z-stack projections at 63× magnification, the scale bars =20 μm. DAPI: nuclear staining (from Crenn et al.¹²).

Immunohistochemestry tissue processing

The patient biopsy was collected surgically under complete anesthesia through a direct open approach, as soon as the pathological fracture was suspected. Samples were immediately fixed in 4% buffered formalin for 24 hours. The sample was then decalcified in 4.13% EDTA, 0.2% paraformaldehyde, in 1× pH 7,4 PBS buffer for 10 to 15 days at 50°C in the KOS microwave tissue processor (Milestone, Michigan, USA). It was finaly dehydrated through graded ethanol baths, cleared in 2-butanol and embedded in paraffin. Serial 5-μm-thick sections were cut from each sample and stained for H&E and Masson trichrome. Other sections were immunostained for α-SMA, Endomucin, and CD31 markers.

Three-color immunofluorescence histochemistry

Sections were deparaffinized, subjected to 20 h antigen retrieval in Tris-EDTA buffer (1 mM Tris, 0.5 mM EDTA, pH 9.0) at 60°C, and blocked with 2% normal donkey serum and 1% BSA in 1× Tris-buffered saline with 0.05% Tween 20 pH 7.4 to reduce unspecific binding. Sections were first immunostained with rabbit to CD31 (1:40, Abcam, ab28364) antibody for an hour at room temperature. After three washes in 1×TBS Tween 0.05% pH 7.4, sections were then incubated for an hour with biotinylated donkey anti-rabbit (1:200; Jackson ImmunoResearch 711-065-152), followed with Alexa Fluor 488-conjugated streptavidin (1:200; Jackson ImmunoResearch 016-540-084) another hour. To avoid non specific binding of both second primary rabbit antibody and secondary donkey anti-rabbit antibody, sections were then blocked with 5% normal rabbit serum in 1× TBS Tween 0.05% pH 7.4 for 30 min at room temperature followed by a blocking step with donkey anti-rabbit Fab fragments (1:10; Jackson ImmunoResearch 711-007-003) in 1× TBS Tween 0.05% pH 7.4 overnight at 4°C.

The next day, after three washes in 1× TBS Tween 0.05% pH 7.4, sections were then incubated with rabbit to Endomucin (1:100; Thermo Fisher PA5-21395), and mouse to α-SMA (1:1000; R&D Biotechne, MAB1420) antibodies for an hour at room temperature. After three washes in 1× TBS Tween 0.05% pH 7.4, the following secondary antibodies were applied for another hour: Alexa Fluor 594-conjugated donkey anti-rabbit (1:200; Jackson ImmunoResearch 711-585-152), and Alexa Fluor 647-conjugated donkey anti-mouse (1:200; Jackson ImmunoResearch 715-605-150). Finally, nuclei were counterstained with DAPI (1:1000; ThermoFisher Scientific, D1306) and coverslipped with Prolong Gold Antifade reagent (ThermoFisher Scientific, P36930).

Acquisition and histomorphometry

Confocal images were obtained by using a Nikon AI N-SIM confocal microscope and subsequently treated by smoothing and noise reduction of each channels, following by a Z-projection treatment on ImageJ software.¹⁶

All histomorphometric analysis were conducted on scans of the immunostained sections. Acquisitions of sections 4-7 were made with a NanoZoomer Slide Scanner (Hamamatsu, Japan), then pictures were saved using the NDP viewer software (Hamamatsu, version 2.2.6) at ×5 and export at ×10 using tiff format and analysed with ImageJ software. Each of the chromogenics immunostained sections were individually analyzed on 3 specific region of interest (ROI): one was defined by a representative 0.5-mm thick ROI which contained the tumors tissue along the bone; the other was a full representative picture of the core of the tumor; the last one was defined by a representative 0.5-mm thick ROI, that was contained the tumoral growth front. All analysis was carried out on each of the four levels of all samples. Briefly, pictures were subjected to color deconvolution using [H DAB] vector, thresholded, and unspecific noise was reduced. The results were shown as the mean value for each compartment of the number of positive elements per square millimeter.

For the triple-immunostaining sections (section 3), analysis was achieved using two levels that was considered, according results of ones that had been obtained on the chromogenics immunostained sections, as enough to give consistent values. Quantification of CD31+/α-SMA+ (mature vessels), and CD31+/Endomucin+ (sinusoid vessels) were realized using the virtual microscope (NDP viewer) at a selected magnification of ×20 on a representative field of 0.366 mm². Double-positive vessels were counted in the same manner as up described in the different compartment by selecting the two fluorochromes channels corresponding of the two markers of interest. Results were shown as the mean value of each level of each sample of double positive elements per square millimeter.

HE and Masson trichrome staining in the patient biopsy lesion

Immunohistochemistry analysis was performed on the biopsy lesion with Masson’s trichrome staining (Figure 4), and showed a highly cellular malignant tumoral tissue, with a lack of osteoid matrix. We also observed some vessel-like structures.

Figure 4. HE and Masson’s trichrome staining of the biopsy lesion at 10× and 20× magnification showing a low level of osteoïd matrix.

Confocal analysis of CD31+, α-SMA+ and Endomucin+ and costaining in the patient biopsy lesion

Immunohistochemistry analysis on the biopsy lesion (Figure 5) showed CD31+ elements and α-SMA+ elements which looked like vascular mature structures. On the other hand, tumor cells seem to express endomucin with a diffuse staining along a rare expression of endothelial endomucin.

Figure 5. Confocal analysis of CD31+, α-SMA+ and Endomucin+ and costaining in the patient biopsy lesion.

At 40× magnification, and two areas in Z-stack projections at 63× magnification. DAPI: nuclear staining.

Co-staining of CD31+/endomucin vessels seemed to show smaller vascular structures diameter-wise, unfortunately we could not distinguish any elements of architecture other than size and neither localization part of the tumor site as the biopsy was realized without targeting any specific areas of the tumor.

Capasquelet surgical technique

The Capasquelet technique result on this patient are promising, with bone healing being achieved within a short delay (12 weeks after the second stage), therefore allowing an early weight-bearing. We obtained a short delay for radiological bone healing with radiological follow up. The bone healing delay in our case (7 months) and in previous publication⁴ seems to be in the low range of an isolated Capanna technique with a 6-12 months delay or a Masquelet technique, which obtains complete bone union in 4–18 months, usually on less massive tibia defects.^6,17 Despite the oncological disease evolution of the patient, the capasquelet surgery outcome was satisfactory, with early full weight-bearing, good function, and neither revisions nor complications.

A larger cohort, and a longer follow-up is needed to confirm these interesting results, especially in a limb length discrepancy case, for sequential restoration of femur length in pathological fractures. With our method, the osteoinductive action played by the induced membrane may exert a positive impact on the graft bone healing, with fast fibula union and allograft, early full weight-bearing, and a satisfactory functional score.

However, this two-stage technique got some drawbacks, the fibula harvest might results in morbidity,¹⁸ and it requires microsurgical expertise and access to a bone bank facility. The operating times involved in the two stages must also be noted, compared to a simpler technique.

Vascular analysis, Endomucin expression and patient Survival

The pejorative oncological evolution of the patient, despite an initial good pathology response (1.5% residual viable cells) and R0 margins was unusual, despite the controversial potential pejorative roles of the pathological fracture^19,20 and the Li-Fraumeni Syndrome.²¹ In this context, it seems relevant to find new prognostic markers, to better adapt adjuvant chemotherapy in osteosarcoma patients, especially focusing on tumor microenvironment.¹¹ The complementary histologic analysis on bone biopsy in this patient was performed aiming to explore vascularization with original stainings. Previous preclinical report investigated the implication of Endomucin expression in endothelial cells in a mouse model.¹² We have shown that low expression in endothelial cells associated with both CD31 and α-SMA high expression could be associated as a better response to doxorubicin chemotherapy.

We obtained interpretable multiplexing analysis focusing on the human bone biopsy of our patient, validating the IHC methodological process. We identified CD31+ and α-SMA+ elements which looked like vascular mature structures, as well as thinner endomucin+ and CD31+, as in our preclinical mouse model.¹²

Concerning endomucin, cells seem to express endomucin with a diffuse staining along a rare expression of endothelial endomucin. Interestingly, endomucin seems to be also expressed in tumoral cells when it comes to human tumors, opposite to our previous mouse model. Other reports show endomucin expressed in HUVECs cells and related a role of endomucin in the vascular function.²² A recent report on digestives carcinomas²³ highlight a link between survival in stomach adenocarinoma and EMCN gene, with high expression on gene datasets correlated with poorer overall survival and disease-free survival. However, our case report focused on vascular expression of Endomucin and α-SMA in a mesenchymal bone cancer and did not explore precisely the expression of endomucin in osteosarcoma tumor cells themselves. Further investigation with quantitative analysis including mass spectrometry to segregate endothelial cells and tumor cells might be needed.²⁴

To our knowledge, it is the first description of endomucin expression via immunofluorescence staining in human osteosarcoma tumor, its high expression might be a pejorative prognosis factor as suggested in other oncological disease.²³ Nonetheless, further works are needed to understand its relevance in an osteosarcoma prognosis context, as literature shown that endomucin could be highly expressed among cancerous cells, as well as in other human tissues (proteinatlas.org) with various expressions. Other experiments focusing on endomucin expression after decalcification process are also mandatory as it is well known that decalcification, and method of decalcification have an impact on antigen retrieving.^25,26

In our pre-clinical model of long bone osteosarcoma, endomucin expression seems not to be affected by administration of doxorubicin.¹² We could not find any clear evidence of differentiated expression of endomucin after the treatment, but model of good response seems to show a different ratio of immature/mature vessels with maturity of the vasculature associated with good response to chemotherapy.¹² In this patient case, moderate to high intensity staining of endomucin among cancerous cell cause us to hypothesize whether its expression is related to the patient’s early metastatic relapse despite histologic good response.

Checking on RNA-seq of EMCN and ACTA1 publicly available on TCGA (https://portal.gdc.cancer.gov/) did not seem to show significant difference in survival related to the expression of endomucin and α-SMA in OS cells (supp Figures 1 and 2). Nevertheless, the latter lacks qualitative analysis on the vessel counts in the mesenchymal bone cancer and this type of analysis may be not suited to analyze the tumor and its microenvironment as we hypothesize the vessel maturity and architecture may have an influence on the chemotherapy response in OS. This hypothesis needs further exploration with simple techniques, such as tissue micro array, and survival cohort studies.
