A flexible open-source processing workflow for multiplexed fluorescence imaging based on cycles

Implementation

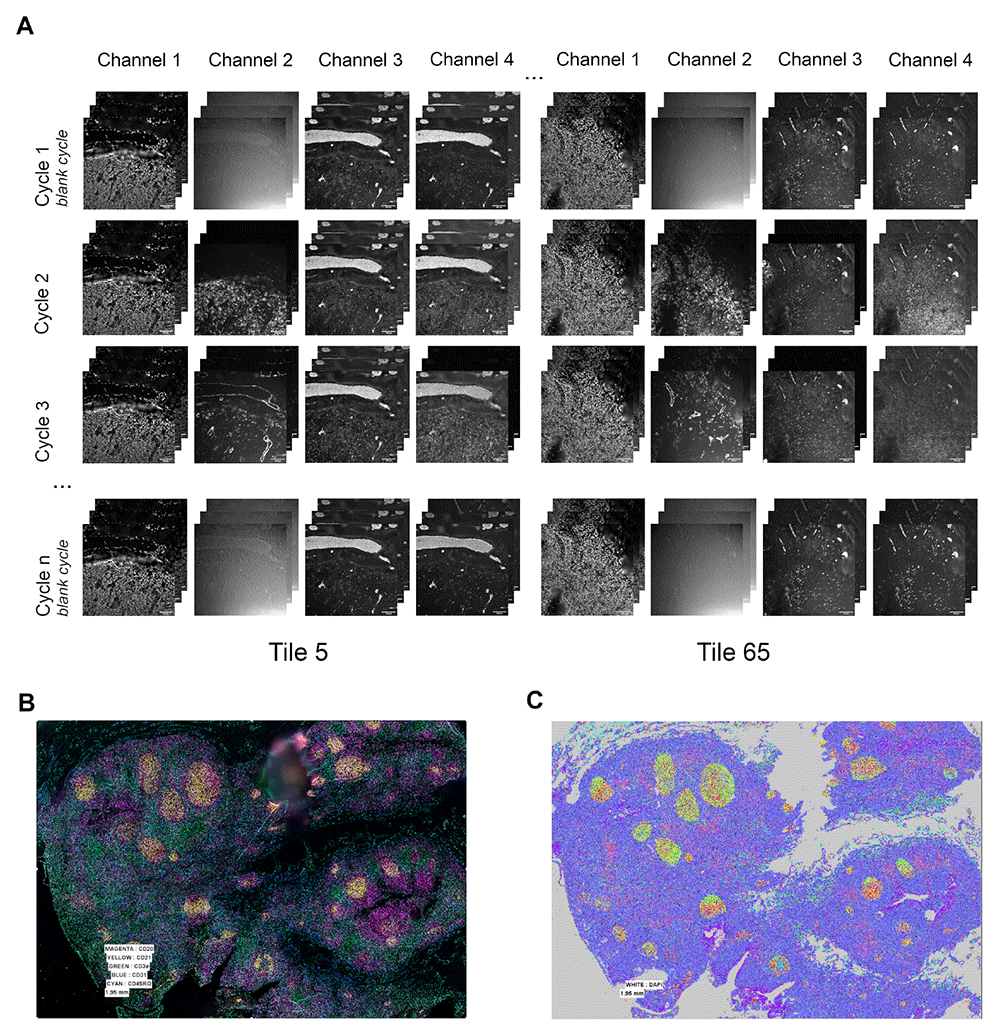

We have developed a new implementation of the processor, in particular adapted to the PhenoCycler^TM, but that could be used for any other system relying on cycles of acquisition. In particular our goal was to solve some problems encountered by the original software provided with the PhenoCycler as demonstrated in Figure 2 (C) and Figure 3 (B).

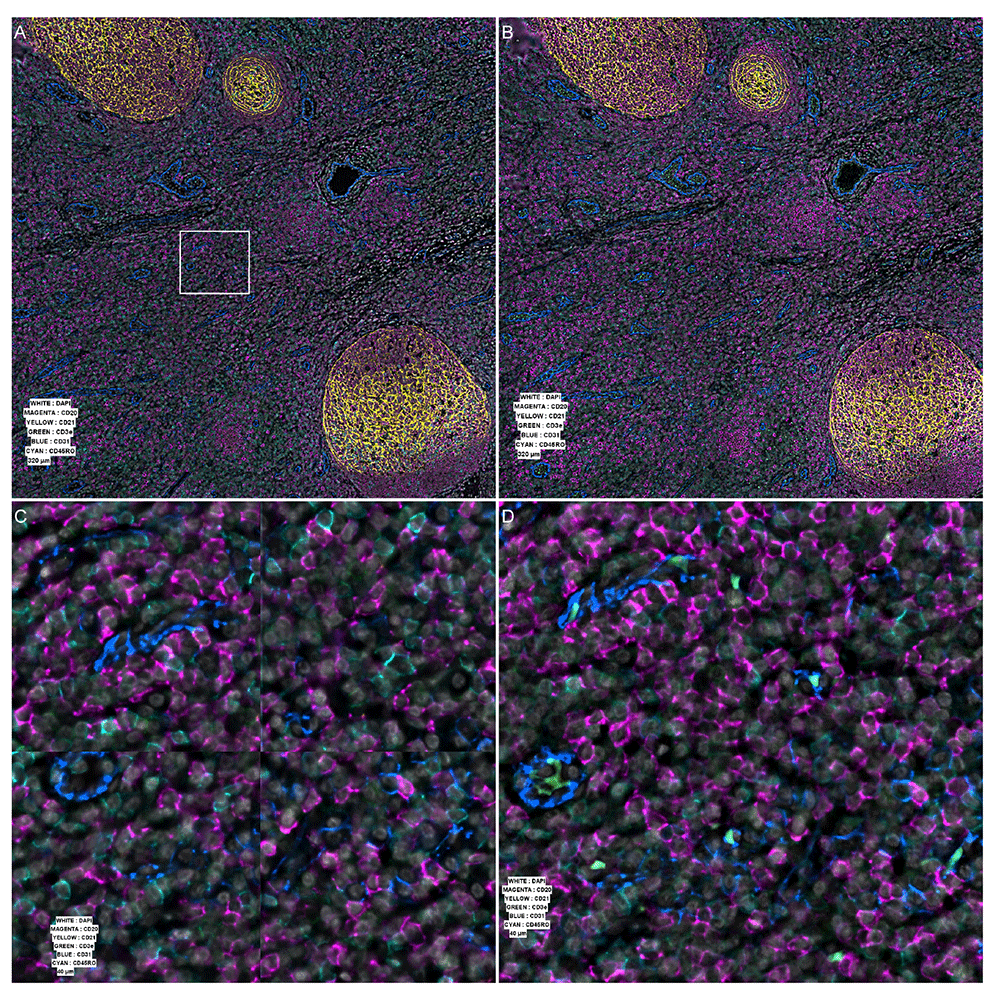

Figure 2. Comparison with Codex Processor from Akoya Biosciences v1.8.2.

(A) Processed data as generated by the original vendor software v1.8.2. White square shows the position of the insets shown in panels (C) and (D), at the intersection of four tiles. (B) The same area processed by our software. (C) Zoomed area on the intersection showing defect in stitching. (D) The same area after our processing.

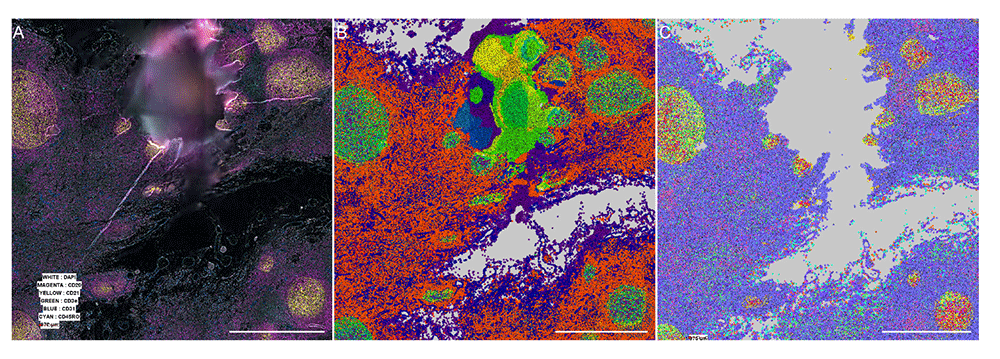

Figure 3. Comparison of populations generated by the vendor processor and our processor on an area with visible effect.

Scale bar is 5 millimeters. (A) Stitched intensity image generated by our processor. (B) Color-coded x-shift generated populations generated by the MAV based on the segmentation and intensity measured by the vendor processed pipeline. (C) Color-coded x-shift generated populations generated by the MAV based on the segmentation and intensity measured by our pipeline. Grey means no cells detected.

Our pipeline is written using the JAVA programming language. Our code is organised around a core library providing main functionalities and consumed by a command line interface (CLI) as well as a GUI (Graphical User Interface). The CLI application exposes each processing step independently whereas the GUI provides an easy interface to start the entire pipeline, with the option to select a subpart of the workflow to be run. The different dependencies and required packages are listed in https://gitlab.in2p3.fr/micropicell/multiplexprocessor/-/blob/master/README.md. Maven is used for software dependencies. A binary version compiled for Windows is provided with instructions for reader convenience, at https://gitlab.in2p3.fr/micropicell/multiplexprocessor/-/wikis/Install-from-binary (Figure 2).

Operation

The workflow was run on a laptop with Intel® Core^TM i7-7Y75, CPU @ 1.30 GHz, 16 Gb of RAM, with Windows 10 64-bit. Image processing performed includes deconvolution, extended depth of field, shading correction, background subtraction, cycle registration, stitching and segmentation (Figure 4).

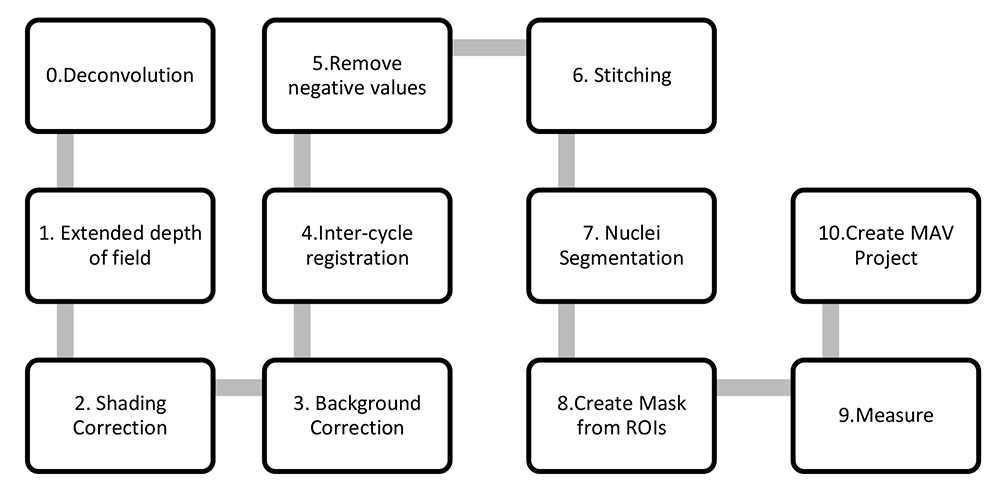

Figure 4. Complete workflow of the pipeline.

Deconvolution is included using DeconvolutionLab2¹³ and PSFGenerator¹⁴ from EPFL BIG. However this step can be performed using any deconvolution software, and an example implementation with the commercial licensed software Microvolution®¹⁵ is provided as a branch in the code repository. Extended depth of field is provided using EPFL BIG implementation¹⁶. Shading correction is performed by dividing a profile image computed using median intensities. Background correction is performed by subtracting signal from the blank cycles. Cycle registration is performed using TurboReg¹⁷ from EPFL BIG. Position-wise tiles from reference channel are registered against tiles from reference cycle. Computed translations are then applied to all the remaining channels. Finally, registered tiles are cropped by the greatest computed translation. Stitching is performed using MIST¹⁸ from NIST. Stitched positions are computed using reference channel of the reference cycle and then applied to all remaining channels and cycles. Segmentation of nuclei is performed using Stardist^19,20. The output directory structure is compatible with the original analysis software provided with the device CODEX® multiplex analysis viewer (MAV). Furthermore FCS files are generated using Flow Cytometry Data Standards²¹ and can be analyzed using any other tool.

Tissue material

FFPE tonsil human sample was obtained from the tissue bank of the Nantes university hospital. FFPE tonsil human was sectioned at a thickness of 5 µm and directly adhered onto poly-L-lysine (Sigma Aldrich) coated coverslips (Akoya Biosciences). Tissue coverslips were stored at 4°C until staining.

Sample staining and imaging

Staining and imaging with PhenoCycler^TM were performed using the Akoya Biosciences protocol available in https://www.akoyabio.com/wp-content/uploads/2021/01/CODEX-User-Manual.pdf

The sample cover slip was placed on a 55°C hot plate for 20 minutes. Tissue section was cooled down before deparaffinization and hydration steps. Tissue was immersed in the following solvent series for 5 minutes by step: twice in Xylene, twice in 100% Ethanol, once in 90%, 70%, 50%, 30% Ethanol and twice in ddH2O. Antigen retrieval was performed in a hot water bath at 94°C in a 1X Citrate Buffer (Sigma Aldrich) for 20 minutes.

After cooling at room temperature, tissue was briefly washed twice in ddH2O for 2 minutes, twice in Hydration buffer (Akoya Biosciences), then was incubated in Staining buffer (Akoya Biosciences) at room temperature for 20 minutes. The antibody cocktail (10 antibodies and DAPI nuclear stain - Table 1) was prepared in a blocking solution according to the Akoya Biosciences instructions and tissue section was incubated with 190 µL of this solution at room temperature for 3 hours in humidity chamber. Stained tissue was washed twice in Staining buffer (Akoya Biosciences) for 2 minutes, then was post-fixed with 1.6% PFA in Storage Buffer (Akoya Biosciences) for 10 minutes. After an incubation in a cold methanol solution for 5 minutes, tissue section was successively washed three times in PBS 1X and fixed with a PhenoCycler^TM fixative solution at room temperature in humidity chamber for 20 minutes. Finally, tissue cover slip was washed three times in PBS 1X and stored in Storage Buffer (Akoya Biosciences) at 4°C before PhenoCycler^TM multi-cycle imaging.

Sample and reagents were equilibrated at room temperature before the PhenoCycler^TM run. According with Akoya Biosciences recommendations, a 96-well plate of PhenoCycler^TM reporters complementary to the bar-codes used in the antibody panel with a nuclear stain was prepared.

Solutions (PhenoCycler^TM 1X buffer, dimethyl sulfoxide, water) required for the PhenoCycler^TM fluidic instrument automate were loaded into the PhenoCycler^TM and the tissue coverslip was installed onto the stage insert. Multi-imaging was performed using a Zeiss Axio Observer inverted microscope with Colibri 7 light source, coupled with the ORCA Flash 4.0 LT camera (Hamamatsu) and associated at the Filter Set 112 HE LED from Zeiss. The multiplex imaging run was executed with the PhenoCycler^TM Instrument Manager (CIM) software. Nuclear DAPI staining was used to design tiled regions of the human tonsil section of interest at the 5x magnification (N-Achroplan 5x/0.15 M27, Zeiss). The focus of tissue was performed using a Plan-Apochromat 20x/0.8 M27 objective (Zeiss), with every image being 2048x2048 pixels, and a x-y pixel size of 0.325 micrometers. Led intensity and light exposure times were for each channel respectively: 50% and 500 milliseconds for AlexaFluor^TM750 and Cy5 dyes, 50% and 400 milliseconds for ATTO550 dye, and 30% and 5 milliseconds for the DAPI dye. For each antibody, images were acquired per tile for each of 4 channels with an 11 plane Z-stack and an acquisition step in Z of 1.5 micrometers.

A total of 117 (13x9) tiles were acquired in snake order, but the example data set is a sub-sampling of 4 tiles (Figure 5) created by renaming image files and creating new experiment files.

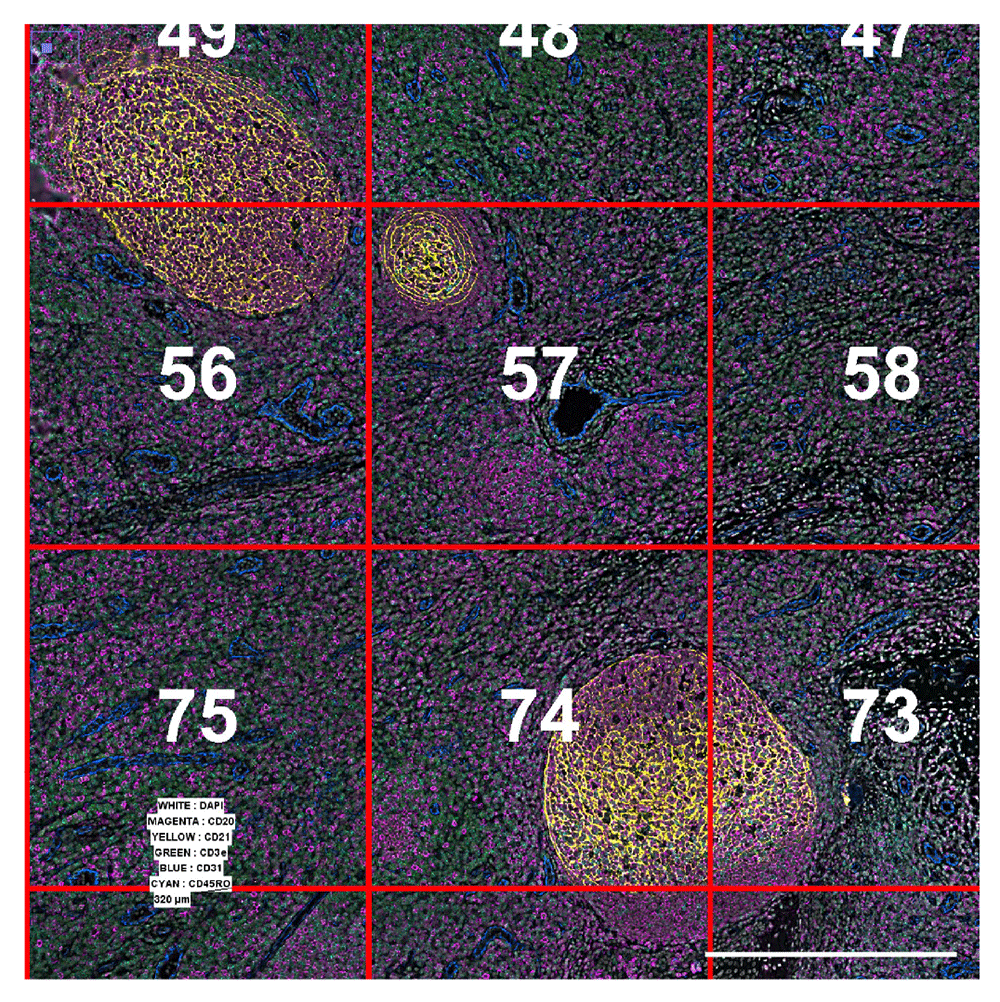

Figure 5. Tiles 56, 57, 75 and 74 from the original full acquisition were combined to create a small example data set.

Scale bar is 2 millimeters.

Processing

Here we describe the use of the Multiplex Processor graphical user interface, exemplified on the data set provided (Figure 6). The GUI has no parameters exposed, since metadata related to the acquisition are read from the file generated by the PhenoCycler CIM and other parameters have been optimized on different types of tissue. They can be modified if needed in a special java class for every step for parameters, but in our case are kept the same for all experimentation by the PhenoCycler^TM users. Note that the workflow can be started and ended at any step, assuming that data are organised as expected in the input description in the wiki https://gitlab.in2p3.fr/micropicell/multiplexprocessor/-/wikis/MultiplexProcessor-Usage-documentation. Error and log files are generated and can be used to monitor the processing.

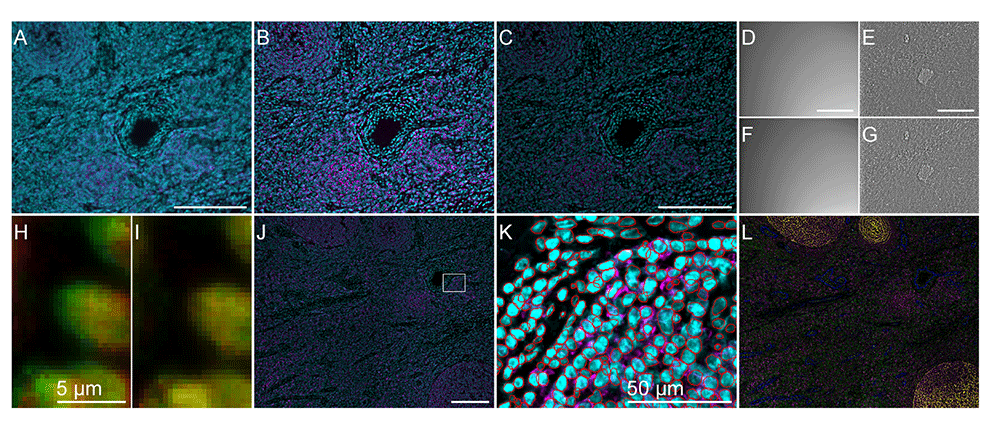

Figure 6. Some steps output from our workflow.

All scale bars are 200 micrometers if not specified on the figure. (A) One example of tile slice before deconvolution (slice 8 position 2, CD20 in magenta and DAPI in cyan). (B) The same position and channels after deconvolution by Microvolution and extended field of view (from these steps all data are 2D). (C) The same view after shading and background correction. (D, F) The shading profile from cycle 1 (D) and the last cycle 6 (F) for the same position. (E, G) Contrast-adjusted blank cycles 1 (E) and 6 (G) used to correct the autofluorescence in each wavelength of the tissue, here for channel 2, after shading correction. (H, I) Cycle registration uses DAPI staining to correct the drift that can occur between cycles: (H) shows the discrepancy between cycle 1 in red and 2 in green, (I) is the same field of view after drift correction. (J) Stitching result of the 4 tiles examples used with only CD20 in magenta and DAPI in cyan. The white rectangle shows the area corresponding to panel (K). (K) Regions of interest obtained by Stardist superimposed on DAPI (cyan) and CD20 (magenta). (L) Color-merged image from stitching with CD20 in magenta, CD21 in yellow, CD3e in green, CD31 in blue and CD45RO in cyan.

Step 0: Deconvolution

The data having been acquired with a wide-field microscope as 3D stack (an example of one slice is shown in Figure 6 (A)), the deconvolution step is a classical step to ameliorate the quality and resolution of data. Two options are offered in the Multiplex Processor as two different branches of the software. The compiled version relies on DeconvolutionLab2¹³. The point spread function for each wavelength is generated based on the parameters contained in the experiment json file (wavelengths, voxel size, aperture). By default when using DeconvolutionLab2 in our workflow, Richardson Lucy algorithm is used with 10 iterations. The option can be changed in our DeconvolutionProcessor class.

This step is very long using Deconvolutionlab2 (96 stacks of 11 slices each, 2048x2048, take 8 hours to be processed, at 5.10 minutes per 3D stack on a laptop). A processed deconvolved data set using Microvolution commercial software is provided as a companion data set. To use it, unzip bu_deconvolution.zip and rename the extracted directory to "out".

Step 1: Extended depth of field (EDF)

The purpose of this step is to create a 2D image from the 3D stack to get the in-focus information (the resulting processed slice from one stack using Microvolution followed by EDF is shown in Figure 6 (B)). We rely on the BIG EPFL plugin¹⁶ for this step, with quality HIGH and topology NO_MEDIUM in the GUI implementation used here, where the full list of associated parameters are defined in the ParametersFactory class from our processor. This step should take about 1.22 minutes per stack on a laptop.

Step 2: Shading correction

A shading profile for the first and the last cycle of each channel is computed (Figure 6 (D-E)) by dividing the median of all positions by its convolution with a Gaussian blur (sigma 64 pixels) kernel. For each cycle and each channel, a specific shading profile is computed by linear interpolation of the shading profile of the first cycle and the last cycle. Each tile is then corrected by dividing the EDF image by this normalised interpolated profile. This step should take about 1 second per stack.

Step 3: Background correction

The first and the last cycle of acquisition are acquired without marker, to create blank cycles images (Figure 6 (F-G)). After a Gaussian blur of sigma 10 pixels, we assume these images represent the autofluorescence intensity. This autofluorescence is then linearly interpolated between the first and last cycle and subtracted for each cycle and channel to be processed. This step should take about 0.74 seconds per stack.

Step 4: Cycle registration

Because the acquisition is done by cycles, coming back to the same position but moving the microscope stage, a mechanical drift due to the accuracy of stage repositioning is likely to occur, as exemplified in Figure 6 (H). For these reasons, all cycles have a nuclei marker acquisition, that will then serve as a reference channel for inter-cycle registration. We used the automatic mode of Turboreg¹⁷, constraining the transformation to be a translation. This step took 168 seconds in total on a non-CUDA-enabled desktop.

Step 5: Remove negative values

After the registration step, we have added a "Remove negative values" step. All negative intensity values in the images are replaced by 0 and the minimal intensity value of every image is subtracted to the non-zeros values.

Step 6: Stitching

Stitching is performed using the MIST software¹⁸ based on the information contained in the experiment json file. This file contains the percentage of overlap during acquisitions between tiles and the number of rows and columns of tiles, as well as the reading order (by default in snake row order). We have made here the controversial choice to generate one mosaic per channel and cycle, instead of tiles (regions in MAV) due to the usage of the MAV software provided by Akoya Biosciences, free but not open source, afterwards (Figure 6 (J)), which was re-correcting the regions’ positions.

Step 7: Segmentation

Nuclei are segmented from the nuclei stained channel of the first cycle stitched image, on which all other cycles have been registered during step 4. We used Stardist pre-trained model "2D_versatile_fluo" with image normalisation^19,20 to segment the nuclei as exemplified in Figure 6 (K)). An imageJ²² set of ROIs is then generated and saved as zip.

Step 8: Create Mask from ROI

This optional step allows the creation of an RGB image corresponding to the segmented nuclei perimeter with a correct naming for visualisation only.

Step 9: Measure

Every cell is analyzed as an ImageJ ROI using the ImageJ analyzer plugin to measure their spatial location and intensity values, but also other parameters that we did not use in the analysis, but which could be of interest for other analysis such as nuclei shape descriptors, orientation, intensity statistics in every channel. These measurements are then stored in both a csv file compatible with the MAV software, and in standard FCS format using the CSVtoFCS functionalities offered by the Flow Cytometry Data standard project²¹.

Step 10: Create MAV Project

This last optional step allows the use of the MAV software afterwards, as in our lab routine workflow usage of the PhenoCycler^TM. This simply reorganised our output to make it compatible with the expected input experiment and file organisation for MAV.

Post-processing analysis

For the clustering analysis in this paper, we used the freely available CODEX MAV, provided by Akoya Biosciences as a Fiji plugin. All files are prepared in MAV compatible format by the last step of our workflow. The directory selected as output directory can then be used directly in the "open experiment" field from MAV. Note that any other analysis tools could be used, including histocat²³, qupath²⁴ or other tools, as well as any population analysis based tools usually used in cytometry thanks to the FCS output.
