Rice straw decomposition in paddy surface water potentially reduces soil methane (CH₄) emission

[version 1; peer review: 1 approved with reservations, 1 not approved]

Huynh Van Thao¹, Masato Oda², Nguyen Huu Chiem¹

PUBLISHED 10 Mar 2022

Author details Author details

¹ College of Environment and Natural Resources, Can Tho University, Can Tho city, 900000, Vietnam
² Japan International Research Center for Agricultural Sciences, Tsukuba city, 305-8686, Japan

Huynh Van Thao
Roles: Conceptualization, Data Curation, Formal Analysis, Methodology, Writing – Original Draft Preparation

Masato Oda
Roles: Conceptualization, Methodology, Supervision, Validation, Writing – Review & Editing

Nguyen Huu Chiem
Roles: Conceptualization, Methodology, Supervision, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Agriculture, Food and Nutrition gateway.

Abstract

Background: Rice cultivation is a significant methane (CH₄) emission source. Rice straw (RS) incorporation into the soil is a key factor that produces higher CH₄ emission. The RS waterlogging approach on the soil surface possibly reduces CH₄ emission due to not being buried into the soil. However, evaluation of CH₄ emission by this approach has not been determined. The objective of this study was to examine CH₄ emission under RS waterlogging on surface water compared with RS incorporation into the soil.
Methods: We carried out a microcosm experiment in a screen-house with two treatments, including (i) RS incorporation into the soil and (ii) RS waterlogging on the soil surface in triplicates. We compared the CH₄ emissions and CH₄accumulation for the rice-growing and off-sowing periods. Yield-scaled CH₄ emission was assessed based on total methane emission and rice yield.
Results: The results demonstrated that RS waterlogging reduced CH₄ emission by 16.9% compared to RS incorporation into the soil. During the rice-growing period, total CH₄emission from RS waterlogging accounted for 36% of the incorporation treatment. However, RS waterlogging is caused by high emissions during the off-sowing stage. The difference between yield-scaled CH₄ emissions was insignificant.
Conclusions: This study demonstrated that the treatment of RS by waterlogging is an appropriate alternative to conventional RS practices known as incorporation, which increases greenhouse CH₄ emission. However, high CH₄ emission during the off-sowing period, and RS accumulation in the field are key drivers that possibly contribute to greenhouse gas emissions. Therefore, further evaluation is needed to determine the long-term effects of this approach.

Keywords

greenhouse gas emission, rice straw incorporation, methane emission, organic rice, water management, the Vietnamese Mekong Delta

Corresponding author: Nguyen Huu Chiem

Competing interests: No competing interests were disclosed.

Grant information: The author(s) declared that no grants were involved in supporting this work.

Copyright: © 2022 Van Thao H et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Van Thao H, Oda M and Chiem NH. Rice straw decomposition in paddy surface water potentially reduces soil methane (CH₄) emission [version 1; peer review: 1 approved with reservations, 1 not approved]. F1000Research 2022, 11:298 (https://doi.org/10.12688/f1000research.110326.1) First published: 10 Mar 2022, 11:298 (https://doi.org/10.12688/f1000research.110326.1) Latest published: 11 Jul 2022, 11:298 (https://doi.org/10.12688/f1000research.110326.2)

Introduction

The agricultural sector contributes approximately 10–12% of global anthropogenic emissions. Of these emissions, 47% of methane (CH₄) emission has been attributed to agriculture production (Smith et al., 2007). Rice fields have been considered an important source of atmospheric CH₄, accounting for 15–20% of the global total anthropogenic CH₄ emission (Sass & Fisher, 1997). Rice straw (RS) plays a vital role in contributing to CH₄ emission from paddy fields. Several field experiments have shown that RS incorporation significantly increases CH₄ emissions in rice fields (Hoa et al., 2019; Jiang et al., 2019; Liu et al., 2015; Wang et al., 2019). In the Mekong Delta of Vietnam, the intensification of rice cultivation is a great contributor to CH₄ emission (Oda & Chiem, 2019). Several studies have explored decomposing RS in paddy surface water as an effective pathway to reduce CH₄ emission (Boateng et al., 2017; Oda & Chiem, 2019; Tariq et al., 2017). For example, Thao et al. (2019) demonstrated a field experiment on RS decomposing in field surface water 20 days before sowing as a suitable possibility for developing a double-cropping pattern in the Mekong Delta. However, the research did not determine how much this process reduced CH₄ emissions. In addition, Oda & Chiem (2019) suggested that the strategy of decomposing RS on surface water effectively reduces CH₄ emission from the paddies. To the best of our knowledge, CH₄ emission from the RS decomposition process in water has not been thoroughly studied. Therefore, we conducted a microcosms experiment to clarify whether RS waterlogging reduces CH₄ emission, and the results found that this approach did decrease the CH₄ emission from the paddy field.

Methods

Study setting and materials

This study was conducted in an experimental screen house at Can Tho University (Cantho City, Vietnam) from April to August 2019. The screen-house consisted of a translucent white roof and rat-proof wire screens. The inner humidity in the experimental house is relatively similar compared with outdoors. We used plastic containers (38 cm × 58 cm × 30 cm high) filled to 20 cm with paddy field soil (10°18′N, 105°54′E). The soil was classified as Thionic Glycesol (International Union of Soil Sciences (IUSS) working group World Reference Base (WRB), 2015) (Dong et al., 2012).

Rice cultivation

Effects of RS waterlogging and RS incorporation into the soil on methane emission were evaluated following a conventional rice cultivation experiment (first crop). The first experiment set essential conditions (rice straw, soil) for implementing the second experiment. In the first crop, a short-duration variety of rice was used (IR50404 cultivar, 85–90 days) which is a typical rice variety of Vietnam, provided by Cuu Long Delta Rice Research Center (CLRRI). Pre-germinated seeds were sown at an equivalent rate of 250 kg ha^-1 on wet-leveled soil. Water irrigation was managed as alternative wetting and drying (AWD) technology which reflood 5 cm when the surface water level naturally declined to 10 cm below the soil surface. The technology is known as multiple aerations developed by International Rice Research Institute (IRRI) to reduce water consumption for rice cultivation (Hoa et al., 2018). In the second crop, we used RS and soil from containers in the first crop to examine the effects of rice straw incorporation and waterlogging on methane emission. Fresh RS (above-surface biomass) in the first crop was collected and cut into 5 cm in length. Then it was immediately scattered onto the soil surface as well as incorporated into the soil, correspondingly. The IR50404 variety was also sown at a rate of equivalent to 250 kg ha^-1. Water irrigation was managed as a continuously flooding management method during the rice-growing period. Fertilizers were not applied for either experiment.

Experimental design

There were two treatments, comprising (i) RS waterlogging on the soil surface and (ii) RS incorporation into the soil. Each treatment was set up in triplicate. A total of six microcosms were laid out closely in an array of two columns and three rows. Both treatments were performed one day after harvesting the first crop.

In the waterlogging treatment, RS was scattered on the soil surface and irrigated to 10 cm in-depth for the waterlogging treatment. Then, the RS was gently pressed into water. It was left for a 20-day stage without disturbing (off-sowing period). This timing was followed by a field demonstration recommended by Thao et al. (2019) that RS was well-fermented in water within 20 days, and the rice field has suitable conditions for broadcasting rice seeds. In the RS incorporation treatment, RS was incorporated into the soil by a shovel and immediately irrigated to 2 cm in-depth for a 5-day period (off-sowing period), a typical treatment pattern for a triple-cropping rice production system in the Vietnamese Mekong Delta.

On the sowing day, we drained the field and leveled it by hand. The soil was not reincorporated. We started irrigation on day 7 with 3–5 cm of water and maintained the water level during the rice-growing period. The water level was drained seven days before harvesting.

Measurements

The closed chamber method was used to measure CH₄ following the guidelines recommended by Minamikawa et al. (2015). The chamber (58 cm in length × 38 cm in wide and 90 cm in height) was equipped with a vent to allow equilibration of the pressure, a thermometer, a sampling port, and a fan to ensure well-mixed air inside the chamber while taking the gas sample. Gas sampling was flushed five times with chamber air before collecting. Gas samples were collected with a propylene syringe 50mL at 3, and 23 min after the chamber placement, and each gas sample was immediately injected to 15 mL in vacuumed vials. During the off-sowing period (rice straw treated before harvesting), gas sampling was taken on days 3, 6, and 13 for the rice straw waterlogging treatment, while RS incorporation treatment was sampled on day 3. After sowing, sampling frequently intensified every three days during the first 21 days when the high fluxes were characteristically observed. Then, the process was carried out once a week until the day of harvest. All gas samples were taken between 07:00, and 10:00 am. The CH₄ concentration was analyzed by gas chromatography (Shimadzu GC2014, Japan) equipped with a flame ionization detector, using 60/80 Carboxen® 1000 column at temperature 180 °C. Nitrogen (99.99%) as a carrier gas at a flow rate of 30 ml min⁻¹.

Tap water was directly irrigated for rice containers. Water levels were checked by a 50-cm ruler (1-mm scale). Grain yield was detected by harvesting all rice in each pot and removing all unfilled grains using tap water. Grains were sundried at ambient temperature. The presented grain yield was adjusted to 14% of moisture by a grain moisture tester (Riceter f2, Kett Electric Laboratory, Tokyo, Japan).

Data processing

The cumulative CH₄ emissions were calculated using a trapezoidal integration method with linear interpolation and numerical integration between sampling times. The calculation was done as follows: (i) calculate the daily gas flux by multiplying the daily mean hourly gas flux by 24, (ii) calculate the emission between every two consecutive measurements using the trapezoidal rule, and (iii) sum up the areas of all the trapezoids. Yield-scale CH₄ emission was calculated by dividing total methane emission by grain yield. Detailed guidance can be found at Minamikawa et al. (2015). All measurements were carried out with three repetitions. Data processes were performed using Microsoft Excel 2019.

Analysis

Data analysis was performed using IBM SPSS Statistics 22.0 (RRID:SCR_016479). The independent sample t-test comparison was used to compare the CH₄ emission in rice-growing and off-sowing periods as well as yield-scaled CH₄ emission. The statistical significance was done with a confident level of 95%.

Results

Accumulative emission

We assessed the effects of rice straw management via waterlogging and incorporation on CH₄ emission using a container experiment. The results showed that the CH₄ emission from waterlogging accounted for 36% of the incorporation treatment during the rice-growing period (Figure 1a) (Oda et al., 2020). However, high emissions were found in the off-sowing stage (Figure 1b). The total CH₄ emissions from the waterlogging and incorporation treatments were 502 ± 111.4 kgCH₄.ha^-1.crop^-1 and 604 ± 41.9 kgCH₄.ha^-1.crop^-1, respectively. In general, the magnitude of seasonal CH₄ emission that was observed in our study was lower than what was found in previous studies on triple-cropping in the central Mekong Delta of Vietnam, which ranged between 710 and 1,789 kgCH₄.ha^-1.crop^-1 (Oda & Chiem, 2019; Vo et al., 2018). The CH₄ emission for the decomposing RS subject to waterlogging was 16.9% lower than that of the straw in the incorporation approach, even though the total timing of the off-sowing and rice-growing period was 30% longer. For the yield-scaled CH₄ emission from straw, the waterlogging and incorporation models were 0.21 ± 0.02 kg CH₄.kg grain^-1 and 0.3 ± 0.08 kg CH₄. kg grain^-1, respectively. The difference between yield-scaled CH₄ emissions was insignificant (P>0.05) (Figure 2).

Figure 1.

CH₄ emission accumulation of rice strawy (RS) waterlogging and RS incorporation in the periods of rice-growing (a), and off-sowing (b).

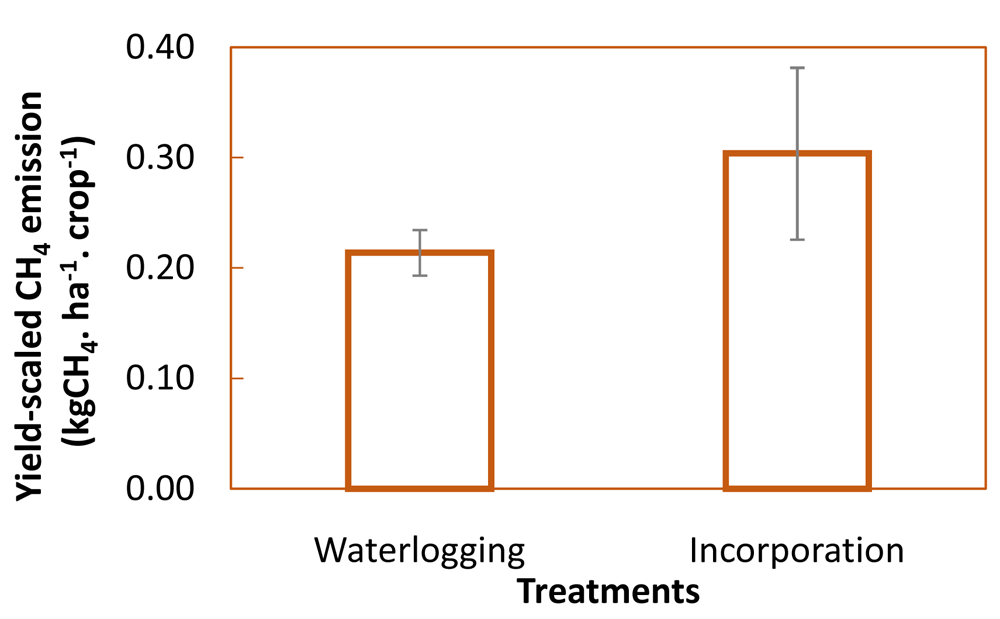

Figure 2. Yield-scaled CH₄ emission of rice straw (RS) waterlogging and RS incorporation.

Emission pattern

CH₄ emission peaked one week after the prior crop's harvest. The peak of waterlogging was 3.82 times higher than the peak of the incorporation approach (Figure 3). After sowing, the CH₄ emission of the incorporation approach was always higher when compared with the waterlogging method. The first peak was in line with a previous study (Oda & Chiem, 2019).

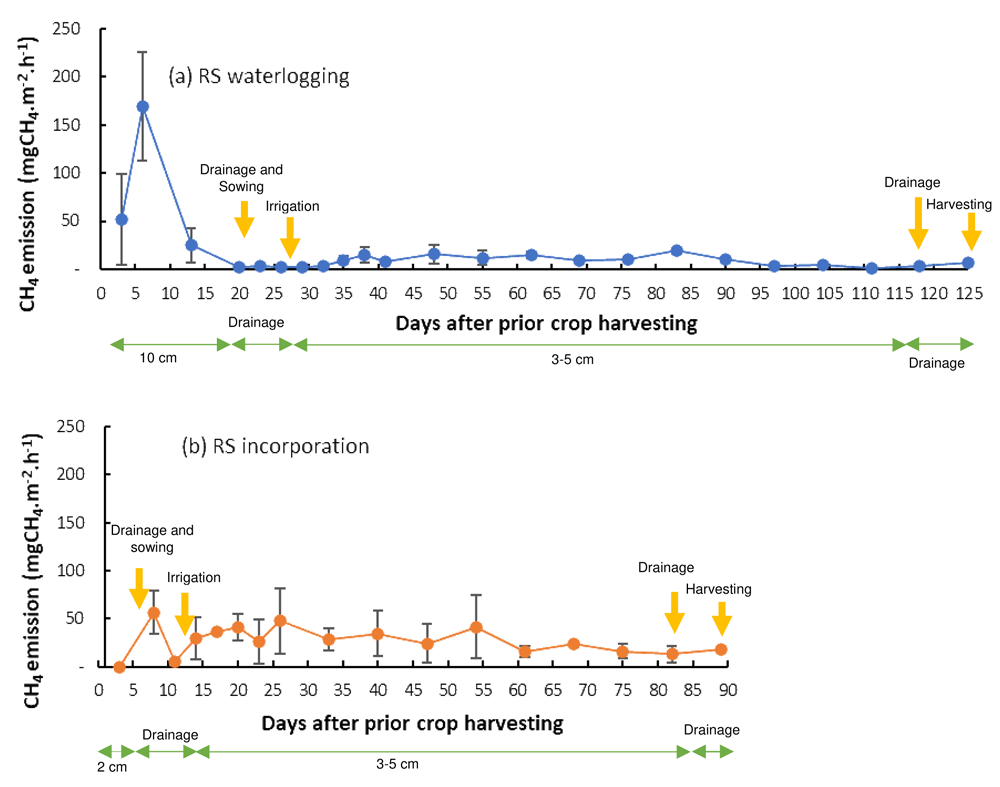

Figure 3. CH₄ emission rate of rice straw (RS) waterlogging and RS incorporation.

Discussion

Conventional rice cultivation based on rice straw incorporation of paddy fields is a substantial source of CH₄ emissions. Modification of rice straw practices is undoubtedly necessary to reduce CH₄ flux when the rice straw incorporated into the soil. In other words, rice straw incorporation will be the most detectable substrate source to contribute to higher CH₄ emission from rice paddy fields. Although rice straw amendment enriches soil organic carbon and improves soil fertility (Bjoern et al., 2014; Liu et al., 2014), it increases the availability of organic carbon and simultaneously intensifies strict anaerobic conditions to stimulate CH₄ formation on the rice paddy field (Sass et al., 1991). Waterlogging rice straw management strategy instead of incorporation demonstrates less methane emission 12%, even though rice straw applied during the fallow period decreased CH₄ emission by 11% compared to the same amount rice straw applied during rice filed preparation (Lu et al., 2000). In this study, we reached similar results in mitigation of emission from the rice straw practice with regards to non-incorporation reduced 16.9% for the whole period. The efficiency of CH₄ emission from rice straw waterlogging on the field surface promotes aerobic decomposition, resulting in reducing CH₄ emission.

This study showed the effects of rice straw management on CH₄ emission in the rice-growing period. Total CH₄ emission of rice straw after waterlogging was lower than that of the incorporation approach. These findings suggest that when rice straw was decomposed in water generated less CH₄ emission than when it was buried in the soil. This can be explained by decomposition via soil-flooding management, which blocks oxygen penetration into the soil and creates a stable anaerobic condition, allowing bacteria capable of producing CH₄ to thrive (Conrad, 2007). In the decomposition of rice straw in water, which is generally affected by dissolved oxygen, methanogenesis fermentation can be limited by high O₂ concentrations (Jiang et al., 2019). In addition, the low yield-scaled CH4 emission from waterlogging demonstrates that this method effectively increases agricultural production and improves environmental protection.

As observed in this study, when waterlogging is used during the off-sowing period, CH₄ emission is more concentrated than incorporation because the rice straw decomposition period is longer than that of rice straw incorporation treatment. Specifically, the off-sowing period was conducted for 20 days, while the rice straw incorporation treatment was performed for five days only. Subsequently, the total CH₄ emission during the RS waterlogging is more significant than rice straw incorporation. Rice straw CH₄ emission sources generate from rice straw decomposing. During off-sowing, rice straw waterlogging decomposes faster than incorporation and produces much more readily available carbon. The decomposing process consumes dissolved oxygen in the water, creating an anaerobic condition, contributing to the CH₄ generation.

The development of agricultural technologies to reduce CH₄ emission during off-sowing should be performed in future research. For instance, alternative wetting and drying (AWD) or intermittent irrigation could be a suitable option for reducing CH₄ emission during the waterlogging period because it transmits the surface condition of the paddy field from reduction condition to oxidation condition by frequent contact with the air. Furthermore, the effects on the proportion of rice straw returning and seasonal carbon accumulation have not been deduced. Thus, future works should continuously examine their effects on CH₄ emission in the long-term run.

Conclusions

We evaluated effects of RS treatment measures on CH₄ emissions under waterlogging and incorporation. Our results indicated that RS decomposition under the waterlogging approach reduces CH₄ emission compared to the incorporation approach, confirming the feasibility of rice straw waterlogging as a mitigation option for paddy CH₄ emission in the Vietnamese Mekong Delta. However, waterlogging significantly contribute to CH₄ emission during the off-sowing period. Thus, we recommend that reducing CH₄ emission using RS decomposition during off-showing should be examined for further studies.

Data availability

Underlying data

Figshare: Methane emission in waterlogging double cropping. https://doi.org/10.6084/m9.figshare.11987628.v1 (Oda et al., 2020).

This project contains the following underlying data:

- Methane concentration and GHG_12 March 2020_17h25.xlsx (This file provides raw data that collected during experimental operation used for calculating CH₄ emission (mgCH₄.m^-2.h^-1) and cumulative methane emission (kgCH₄.ha^-1.crop^-1), and yield-scaled CH₄ emission (kg CH₄ grain^-1)).

Data are available under the terms of the Creative Commons Zero "No rights reserved" data waiver (CC0 1.0 Public domain dedication).

Acknowledgments

We would like to thank Ms. Nguyen Ngoc Ngan, Mr. Ta Quang Khoi, and Mr. Nguyen Thien Thanh, students in Can Tho University, for their support of the study. We also thank Dr. Nigel Downes for proofreading the manuscript.

Faculty Opinions recommended

References

Bjoern OS, Marianne S, Roland JB: Methane and nitrous oxide emissions from flooded rice fields as affected by water and straw management between rice crops. Geoderma. 2014; 235–236: 355–362. Publisher Full Text
Boateng KK, Obeng GY, Mensah E, et al.: Rice Cultivation and Greenhouse Gas Emissions: A Review and Conceptual Framework with Reference to Ghana. Agriculture. 2017; 7(1): 7. Publisher Full Text
Conrad R: Microbial ecology of methanogens and methanotrophs. Adv Agron. 2007; 96: 1–63. Publisher Full Text
Dong NM, Brandt KK, Sørensen J, et al.: Effects of alternating wetting and drying versus continuous flooding on fertilizer nitrogen fate in rice fields in the Mekong Delta, Vietnam. Soil Biol Biochem. 2012; 47: 166–174. Publisher Full Text
Hoa DT, Nghia TH, Tokida T, et al.: Impacts of alternate wetting and drying on greenhouse gas emission from paddy field in Central Vietnam. Soil Science and Plant Nutrition. 2018; 64(1): 14–22. Publisher Full Text
Hoa HTT, Do DT, Giang TTT, et al.: Incorporation of rice straw mitigates CH₄ and N₂O emissions in water saving paddy fields of Central Vietnam. Archives of Agronomy and Soil Science. 2019; 65(1): 113–124. Publisher Full Text
Jiang Y, Qian H, Huang S, et al.: Acclimation of methane emissions from rice paddy fields to straw addition. Sci Adv. 2019; 5(1): eaau9038. PubMed Abstract | Publisher Full Text | Free Full Text
Liu C, Lu M, Cui J, et al.: Effects of straw carbon input on carbon dynamics in agricultural soils: A meta-analysis. Glob Chang Biol. 2014; 20(5): 1366–1381. PubMed Abstract | Publisher Full Text
Liu G, Yu H, Ma J, et al.: Effects of straw incorporation along with microbial inoculant on methane and nitrous oxide emissions from rice fields. Sci Total Environ. 2015; 518–519: 209–216. PubMed Abstract | Publisher Full Text
Lu WF, Chen W, Duan BW, et al.: Methane emission and mitigation options in irrigated rice field in southeast China. Nutr Cycl Agroecosys. 2000; 58: 65–73. Publisher Full Text
Minamikawa K, Tokida T, Sudo S, et al.: Guidelines for measuring CH₄ and N₂O emissions from rice paddies by a manually operated closed chamber method. National Institute for Agro-Environmental Sciences, Tsukuba Japan. Version 1 August. 2015. Reference Source
Oda M, Chiem Nguyen H: Methane emissions in triple rice cropping: patterns and a method for reduction [version 3; peer review: 1 approved, 2 approved with reservations]. F1000Res. 2019; 8: 1675. PubMed Abstract | Publisher Full Text | Free Full Text
Oda M, Huynh VT, Chiem Nguyen H: Methane emission in waterlogging double cropping. figshare. Dataset. 2020. http://www.doi.org/10.6084/m9.figshare.11987628.v1
Sass RL, Fisher FM, Harcombe PA, et al.: Mitigation of methane emissions from rice fields: Possible adverse effects of incorporated rice straw. Glob Biogeochem Cycles. 1991; 5(3): 275–287. Publisher Full Text
Sass RL, Fisher FM: Methane emissions from rice paddies: a process study summary. Nutr Cycl Agroecosyst. 1997; 49: 119–127. Publisher Full Text
Smith P, Martino D, Cai Z, et al.: Greenhouse gas mitigation in agriculture. Philos Trans R Soc Lond B Biol Sci. 2007; 363(1492): 789–813. PubMed Abstract | Publisher Full Text | Free Full Text
Tariq A, Vu QD, Jensen LS, et al.: Mitigating CH₄ and N₂O Emissions from Intensive Rice Production Systems in Northern Vietnam: Efficiency of Drainage Patterns in Combination with Rice Residue Incorporation. Agriculture Ecosystems & Environment. 2017; 249: 101–11. Publisher Full Text
Thao HV, Oda M, Chiem Nguyen H, et al.: Effects of herbicide application (Sofix 300 EC) and waterlogged rice straw degradation on organic rice yield in the double-cropping pattern. J Viet Env Spec Iss. APE2019, 2019; 68–74. Reference Source
Vo TBT, Wassmann R, Tirol-Padre A, et al.: Methane emission from rice cultivation in different agro-ecological zones of the Mekong river delta: seasonal patterns and emission factors for baseline water management. SSPN. 2018; 64(1): 47–58. Publisher Full Text
Wang H, Shen M, Huic D, et al.: Straw incorporation influences soil organic carbon sequestration, greenhouse gas emission, and crop yields in a Chinese rice (Oryza sativa L.) wheat (Triticum aestivum L.) cropping system. Soil and Tillage Research. 2019; 195: 104377. Publisher Full Text
