Preliminary assessment of adjuvant activities of Glycine Max (L.) Merr saponin extract in BALB/c mice immunized with hepatitis B virus vaccine

Ethical considerations

Approval to carry out this study and ethical clearance was obtained from KEMRI Scientific Ethics Review Unit (SERU), protocol No. KEMRI/CBRD/SERU/005/500/4641, on the 2^nd of February, 2023. All animal work was carried out per the relevant national and international standards as approved by KEMRI-Animal Care and Use Committee and as specified in the above protocol number. The commercial HBV vaccine, Revac B™ (Bharat Biotech International, India) was used in this study solely for research and not for modification or commercialization.

Study design and sample size determination

This experimental laboratory-based research study was conducted at the Innovation & Technology Transfer Division (ITTD) of Kenya Medical Research Institute. The sample size (N=51) was determined using the ‘Resource Equation (E)’.¹⁹ Treatments (in triplicate) for the various experimental groups are shown in Table 1.

Animal model

Female BALB/c mice (20 ± 2 g, 7–8 weeks old) were used in this study. They were procured from the Institute of Primate Research (IPR) Kenya and acclimatized for 7 days at the temperature of 21 ± 3 °C, a humidity of 40–70%, 12-hour light/dark cycle, and ad-lib access to appropriate mice chow and water. All efforts were made to ensure minimal harm and suffering to the mice by treating them according to the obligations enlisted in the 3Rs; replacement, reduction, and refinement.²⁰

Saponin extraction

The organic extraction of saponins was done by soaking three portions of 500 g of soybean meal in one litre of 80% methanol (Sigma-Aldrich, Switzerland) for one hour and then filtered with Whatman filter paper (Merck, Darmstadt, Germany). The final volume of the combined filtrate was transferred into a round-bottomed flask and concentrated using a rotary evaporator (Goel Scientific Glass Works, India) at 65 °C. The solvent was partitioned sequentially using diethyl ether, distilled water, n-butanol, and acetone as described by Kim & Park.²¹ Briefly, 150 mL of diethyl ether (Merck, Darmstadt, Germany) and 50 mL of distilled water were mixed with the extract, and the resulting slurry was transferred into a separatory funnel (Duran^®, New Jersey, USA). Diethyl ether was discarded after the water layer was washed. This process was repeated twice. The water layer was combined with 100 μL of n-butanol (Merck, Darmstadt, Germany) in the separatory funnel (Duran^®, New Jersey, USA), and the mixture was vigorously shaken. After setting still, the resulting n-butanol was collected. The process was repeated once more and the combined n-butanol fraction was concentrated at 82 °C. Acetone (Merck, Darmstadt, Germany) was added to the n-butanol fraction and the resulting slurry was shaken vigorously and centrifuged (Beckman Coulter, USA) at 1,250 rpm for 15 minutes. The resulting supernatant was concentrated in vacuo at 56 °C.

Qualitative analysis of saponins

A standard foam test was carried out on the extract of Glycine max (L.) Merr. as described by Harbone.²² Using 300 mL of hot distilled water in a beaker, three grams of the extract were weighed and extracted. After filtration, 5 mL of the filtrate was placed in a test tube and diluted with 5 mL of distilled water. This mixture was shaken vigorously for two minutes and observed for the appearance of persistent foam. Three drops of olive oil were added to the mixture and shaken to examine the formation of an emulsion.

A Fourier transform infrared (FTIR) analysis was also done on the extract as described by Wangia et al.²³ by mixing 2 mg of the extract with 300 mg of spectroscopic grade KBr in a crucible and compressing it into a disk. The disk was subjected to FTIR spectroscopy, and the infrared spectra were recorded using an FTIR spectrophotometer (Shimadzu, Japan) in the range of 4500 cm^-1 to 500 cm^-1.

Immunization of BALB/c mice

On day 0, the mice were intramuscularly injected with either 50 μL of vaccine alone, or 50 μL of vaccine + 50 μL of saponin extract, 50 μL HBsAg + 50 μL of saponin extract or 50 μL of 1X phosphate buffered saline (PBS) (Bioneer, Korea). On day 14, blood samples were collected through the tail vein. The blood was centrifuged at 5000 rpm for 10 minutes to obtain clear sera, which was stored at -20 °C, awaiting the ELISA test. On day 15, the mice were euthanized by the method of cervical dislocation, by a trained researcher, ensuring a painless animal sacrifice. Spleens were harvested and placed in sterile 1.5 mL centrifuge tubes and stored at -80 °C before they were used for total RNA extraction. Through a cardiac puncture, 500 μL of whole blood for haematological analysis was collected using a 1 mL syringe (BD Luer-Lok™, Canada) and a 22 gauge needle and collected in 1.5 mL EDTA-containing blood collection tubes (BD Vacutainer^®, Canada) and stored at 8 °C awaiting analysis.

Assessment of the humoral immune response

The total murine HBsAg antibodies (HBsAb) were evaluated using an adapted ELISA method as described by Wolters et al.²⁴ Briefly, 100 μL of HBsAg (a working standard donated by a KEMRI Scientist, Dr James Kimotho) was diluted 2-fold serially with 100 μL murine generated HBsAb (also donated by Dr James Kimotho). The experimental samples were tested with the HBsAg ELISA test kit (Creative Biolabs, NY, US) to develop a calibration graph. From the serum obtained, 50 μL were mixed with 50 μL of the working standard HBsAg and tested using the ELISA kit following the manufacturer’s instructions. The reciprocal optical densities (ODs) were then computed.

Assessment of the cellular immune response

The total RNA from the murine splenocytes was extracted using the Direct-zol™ RNA Miniprep (Zymo Research, CA USA) according to the manufacturer’s instructions. Briefly, 1 μL of proteinase K was added to 100 μL of the sample and incubated at room temperature for 15 mins. Then, 300 μL of the TRI Reagent was added to the mixture and mixed thoroughly. To the lysed sample, 400 μL of molecular grade ethanol (Merck, Darmstadt, Germany) was added and mixed thoroughly. The mixture was then transferred into a Zymo-spin column in a collection tube and centrifuged at 16000 × g for 1 min. The column was transferred to a new collection tube. To the column, 400 μL of RNA wash buffer was added and centrifuged at 16000 × g for 1 min. A mixture of 5 μL DNases and 75 μL DNA digestion buffer was added to the column matrix and incubated at room temperature for 15 mins. This was followed by the addition of 400 μL of Direct-zol RNA pre-wash to the column and centrifuging at 16000 × g for 1 min. This step was carried out twice. RNA wash buffer, 700 μL, was added to the column and centrifuged at 16000 × g for 1 min. This step was also carried out twice to ensure the complete removal of the wash buffer. The column was transferred into an RNase-free tube and 50 μL of DNase/RNase-free water was added directly to the column matrix for elution. The tube was centrifuged at 16000 × g for 1 min. The RNA purity and concentration were assessed using the NanoDrop™ 2000/2000c spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) at absorbance 260/280. The samples were stored at -80 °C awaiting analysis.

cDNA for each of the samples was synthesized and subsequently amplified in a single tube using the Accuris™ One-Step RT-PCR Kit (Accuris, NJ, USA) according to the manufacturer’s instructions. Briefly, the following quantities of qPCR reaction components; Accuris 2X One-Step Mix 10 μL, forward primer (10 μM) 0.8 μL, reverse primer (10 μM) 0.8 μL, 20X RTase Blend 1 μL, and, PCR grade water 4.4 μL, were mixed with 3 μL of template RNA to a total reaction volume of 20 μL.

The reaction was performed using the Applied Biosystems Quant Studio 5 qPCR machine (PE Applied Biosystems, USA). The thermocycling conditions used in the experiment were as follows; reverse transcription at 55 °C for 10 mins, pre-denaturation at 95 °C for 2 mins, then 40 cycles of denaturation and annealing at 95 °C for 5 seconds and 60 °C for 30 seconds, respectively.

Relative quantification analysis to determine the expression of IL-6 and TNF-α mRNA levels was performed with QuantStudio™ 5 Real-Time PCR system (Applied Biosystems) using cDNA synthesized from the RNA from the spleen. All levels of expression quantities were expressed in fold-changes, comparing the animal groups using the 2-ΔΔCt method, formula ΔCt=Ct (gene of interest) - Ct (housekeeping gene).²⁵ The TATA binding protein (TBP) gene was used as the housekeeping for the normalization of the genes of interest. The sequences of the primers used in the experiment are shown in Table 2.

Assessment of haematological parameters

Whole blood count analysis was performed using the HumaCount 30^TS (Human Diagnostics Worldwide, Wiesbaden, Germany) haematology analyzer machine following the manufacturer’s instructions. Briefly, 100 μL of the anti-coagulated whole blood sample was aliquoted into sterile micro-centrifuge tube. Then, 25 μL of the blood was automatically aspirated by the machine for analysis. The results were recorded and expressed as mean of experiments using Microsoft Excel (2016).

Data analysis

The optical densities from the ELISA analysis were expressed as the mean of experiments using Microsoft excel (2016). The p-value was calculated using Pearson correlation coefficient (r) for immune response values. Relative quantification of gene expression was calculated using the delta-delta threshold cycle (ΔΔCt) formula. Cytokine expression levels were expressed in fold-changes, and a fold change <0.5 or >2 was considered as differentially expressed. Microsoft excel (2016) was used to create the bar charts to display the fold change in expression levels from the experimental groups. The data obtained for the haematological parameters were expressed as mean values using Microsoft excel (2016) and displayed in bar charts. A p-value of <0.05 was taken as significant for all statistical analyses.

Evidence of the presence of saponins in the methanol extract of Glycine max (L.) Merr.

The methanol extract of Glycine max (L.) Merr. demonstrated the presence of saponins by producing characteristic saponin foam and FTIR spectra with the hydroxyl group (-OH) at 3382 cm^-1, C-H bond at 2928 cm^-1, C=C absorbance at 1635 cm^-1, and C-O-C bond at 1055 cm^-1, which correlated well with the spectra for soya-saponin that were obtained by El-Keiy²⁹ (Figure 1).³⁰

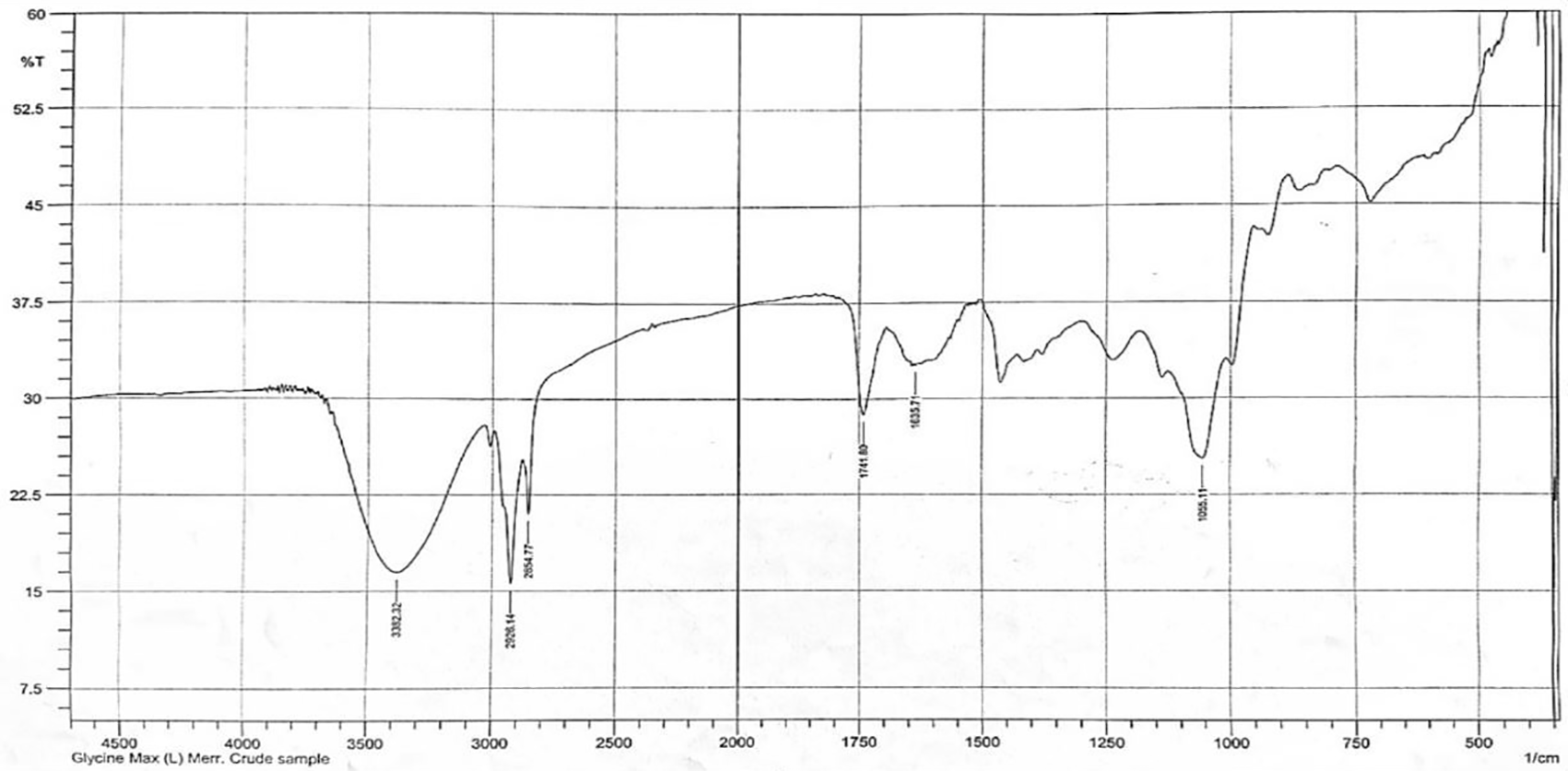

Figure 1. Characteristic Fourier transform infrared spectra for saponins of methanolic extract of Glycine max (L.) Merr.

Humoral immune response of BALB/c mice immunized with HBV vaccine (Revac B™) and HBsAg supplemented with Glycine max (L.) Merr. saponin extract

Comparison of the humoral immune response of the BALB/c mice that were immunized with HBsAg showed a higher immune response (mean reciprocal OD = 0.788 ± 0.007) than those treated with Revac B™ vaccine (mean reciprocal OD = 0.747 ± 0.007). However, the difference was not statistically significant (P-Value < 0.3704). When the two immunogens (HBsAg and Revac B™ vaccine) were co-administered with Glycine max (L.) Merr. extract, the immune responses were slightly higher (0.799 ± 0.013 for HB and 0.758 ± 0.012) than with the two immunogens when used alone. However, the difference in immune response between these concentrations was not statistically significant (p-value < 0.467 and 0.416 respectively) (Figure 2).

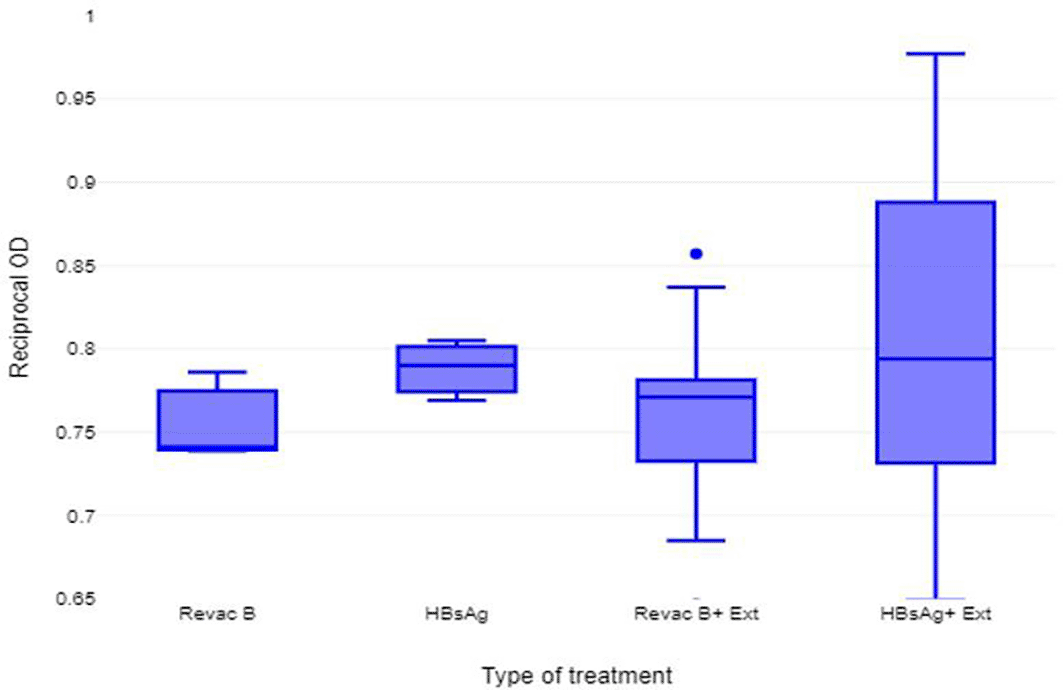

Figure 2. Comparison of immune responses in BALB/c mice immunized with Revac B^TM vaccine alone, and the two immunogens with Glycine max (L.) Merr. extract.

From this experiment the saponin extract of Glycine max (L.) Merr. did not demonstrate significant adjuvant effect in the humoral immune response in BALB/c mice immunized with HBV vaccine (Revac B™ vaccine) 14 days post-immunization.

Cellular immune response of BALB/c mice immunized with Revac-B™ vaccine, HBsAg and Glycine max (L.) Merr. saponin extract

The BALB/c mice immunized with the vaccine only expressed less IL-6 (fold change in transcription (FCT) = 0.603) than the untreated mice (FCT = 1.468). Addition of saponin extract of Glycine max (L.) Merr. to Revac-B™ vaccine increased the levels of IL-6 suppressed by the vaccine with the addition of a 50% concentration of extract increasing the FCT values from 0.603 in the vaccine-only immunization to a fold change value of 1.00 (an increase of 150% increase). Administration of 50% Revac-B™ vaccine and 50% extract almost restored the expression levels of IL-6 to the untreated levels (FCT 1.423 and 1.469 respectively) (Figure 3A).

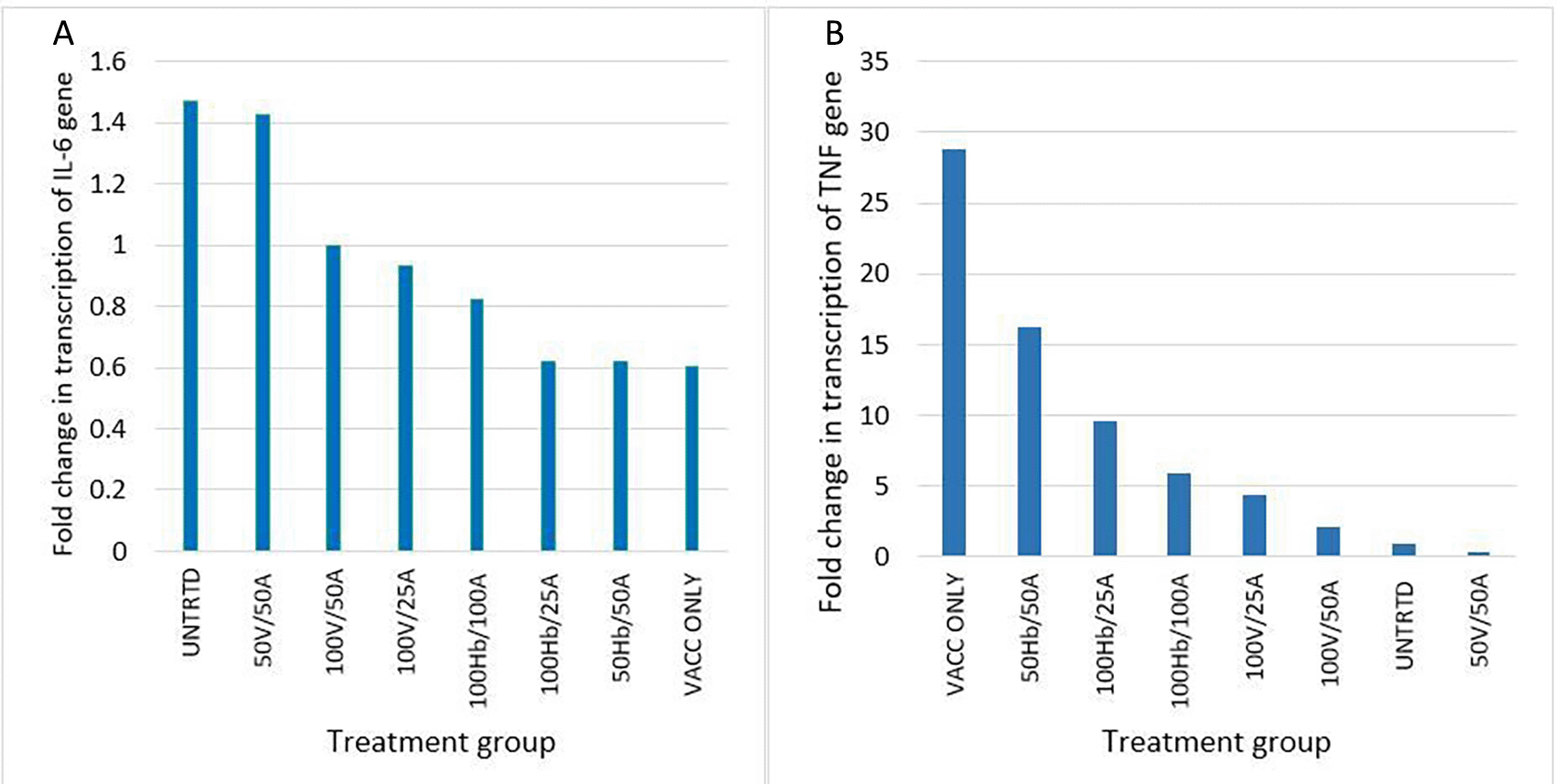

Figure 3. Relative expression of IL-6 (A) and TNF-α (B) 14 days days after administration of Revac-B™ vaccine, HBsAg and Glycine max (L.) Merr. extract in BALB/c mice.

Key: UNTRTD = Untreated, Vacc - Revac-B™ vaccine, HB - HbsAg, and A - Glycine max (L.) Merr. extract. Figure A: IL-6 gene expression, Figure B: TNF-α gene expression.

BALB/c mice treated with vaccine alone, HBsAg/extract at 50%/50%, and 100%/25% proportions presented high expression levels of the TNF-α gene (FCT 28, 16.2 and 9.7 respectively) in comparison to all the other treatment groups (Figure 3B). The mice treated with the vaccine and extract at 50%/50% proportions had the least expression of the TNF-α gene (FCT=0.370). The group treated with the vaccine alone showed the highest expression levels (FCT 28) of TNF-α than any other group. In both animal groups that were treated with HBsAg and vaccine the addition of the extract significantly reduced the expression of TNF-α (p < 0.063).

The relationship between the expression of the IL-6 gene and the TNF-α gene was a moderately negative correlation (R = -0.7444, P = 0.0343, at p < 0.05).

Toxicity profile of blood samples from BALB/c mice immunized with Revac-B™ vaccine, HBsAg and Glycine max (L.) Merr. extract

Administration of Revac-B™ vaccine, HBsAg and Glycine max (L.) Merr. extract to BALB/c mice did not affect haematological parameters apart from white blood cell (WBC), neutrophil and platelet counts (Figure 4). The WBC counts increased by 33.3% in mice immunized with Revac-B™ vaccine alone and even increased (by 94.4%) in mice immunized with the Revac-B ™ vaccine that was mixed with 50% Glycine max (L.) Merr. extracts immediately before injection. There was no significant change in WBC count in mice immunized with HBsAg. However, immunization with HBsAg combined with 50% Glycine max (L.) Merr. extracts reduced WBC count by 73.6% though not statistically significant (p-value = 0.333). The neutrophils count increased by 33.3% in mice immunized with Revac-B™ vaccine alone and by 8.33% in mice immunized with the Revac-B™ vaccine that was mixed with 50% Glycine max (L.) Merr. extract immediately before injection. There was a 62.5% decrease in neutrophil count in mice immunized with HBsAg. Moreover, immunization with Revac-B™ vaccine combined with 50% of the Glycine max (L.) Merr. extract significantly reduced neutrophil count by 66.7% (p < 0.026).

Figure 4. Results of haematological analysis of BALB/C mice blood 14 days after administration of mixtures Revac-B™ vaccine/Glycine max (L.) Merr. extract and HBsAg/Glycine max (L.) Merr. extract (Platelets results are not included as the values are too high).

Key: WBC - White blood cells, RBC - Red Blood cells, HB - Hemoglobin, HCT - hematocrit, MCV - mean corpuscular volume, MCH - mean corpuscular hemoglobin, MCHC - mean corpuscular hemoglobin concentration.

The main contributor to the reduced WBC and neutrophils count was the immunization with 50% Revac-B™ vaccine/50% Glycine max (L.) Merr. extract and 100% HBsAg/50% Glycine max (L.) Merr. extract. The Pearson’s correlation coefficient between WBC and neutrophil counts was moderate but there was a significant correlation (R = 0.724, P-Value = 0.027 at p < 0.05).

The platelet count increased by 18.3% in mice immunized with the Revac-B™ vaccine alone and increased by 116.0% in mice immunized with the Revac-B™ vaccine that was mixed with 50% Glycine max (L.) Merr. extract immediately before injection and 155.3% in mice immunized with HBsAg only (Figure 5). The study demonstrated a weak relationship between the variation of neutrophils and platelet counts (R = 0.1213, P-Value = 0.756, at significance level of 0.05).

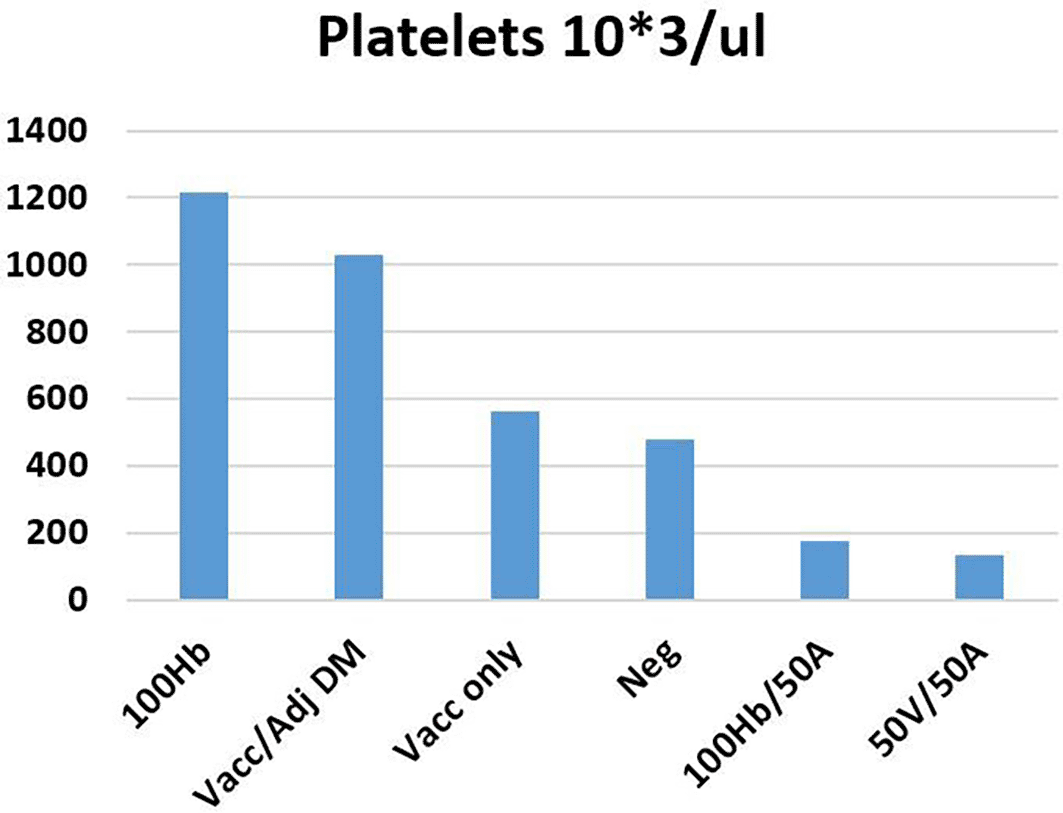

Figure 5. Variations of platelet count with 14-day post-administration of Revac-B™ vaccine, HBsAg and Glycine max (L.) Merr. extract in BALB/c mice.

Key: WBC - White Blood Cells, Mean Neg - Mean of negative control (2), Vacc - Revac-B™ vaccine, Vacc/adj DM - Revac-B™ vaccine mixed with Glycine max (L.) Merr. extract 50%, HB- HbsAg, and A - Glycine max (L.) Merr. extract.
