Prospective effect of linkers type on the anticancer activity of pemetrexed-monoclonal antibody (atezolizumab) conjugates

Materials

Atezolizumab (Tecentriq®, F. Hoffmann-La Roche Ltd), pemetrexed diacid (purity 98%) with MW 427.41 g/mol, Hydroxy -2, 5-dioxopyrrolidine -3-sulfonicacid sodium salt (Sulfo-NHS), EDC (1- ethyl-3- (3-dimethylaminopropyl) carbodiimide hydrochloride), all purchased from Baoji Guokang Bio-Technology Co., Limited. Amine-PEG₄-COOH (α-amine-ω-propionic acid tetraethylene glycol) MW 265 g/mol, gamma-Aminobutyric acid (GABA) MW 103.12 g/mol purchased from Tunchem Pharm (Shanghai) Tech Co., Ltd. N, N-Dimethylformamide (<0.1% H2O) purchased from Sinopharm Chemical Reagent Co., Ltd. Thermo Scientific Slide -A- Lyzer Dialysis Cassettes 10K MWCOs., Thermo Scientific Zeba Spin Desalting Columns 40K MWCOs.

Purification and lyophilization of the received marketed monoclonal antibody (Atezolizumab)

Dialysis was done to remove all the excipients included in the marketed AtZ mAb. The dialysis done according to Thermo Fischer scientific protocol for protein dialysis,¹⁸ using Slide-A-Lyzer® Dialysis Cassettes, 10K MWCO (Thermo scientific, Prod # 66810, Lot # 10001172, U.S.A.). A total of 20 ml from the supplied AtZ solution were withdrawn under sterile aseptic laminar flow cabinet and divided into two dialysis cassettes, each cassette immersed in 1 L of sterile phosphate buffer saline (PBS) pH 7.6 and left stirring using magnetic stirrer (Misung scientific, MS-300HS, Korea) at 50 rpm and 2-8°C for 4 hr, the buffer was replaced twice in each 2 hr with fresh 1L PBS pH 7.6 medium. After 4 hr of stirring, the medium was replaced with 1 L fresh one and left overnight in 2-8°C.¹⁸ The dialyzed antibody was transferred into an empty vial containing 4% (W/V) mannitol and 1% (W/V) sucrose then lyophilized.¹⁹ The lyophilization process was done for 8 hr (-55°C and 0.07 mbar) using a CHRIST lyophilizer (ALPHA 1-2 LD plus, Germany) and the obtained lyophilized powder stored at 2 to 8°C for later use.

Synthesis of pemetrexed-atezolizumab (PMX-AtZ) conjugate

The conjugation of PMX with AtZ mAb was done using two types of linkers (each one separately), the α-amine-ω-propionic acid tetraethylene glycol, which is NH₂-PEG₄-COOH and gamma-Aminobutyric acid (GABA). The procedure involved two steps: first; chemical conjugation of PMX with each linker to obtain PMX-linker conjugate and second; reacting the developed PMX-linker conjugate with the monoclonal antibody (AtZ), as shown in Figure 1.

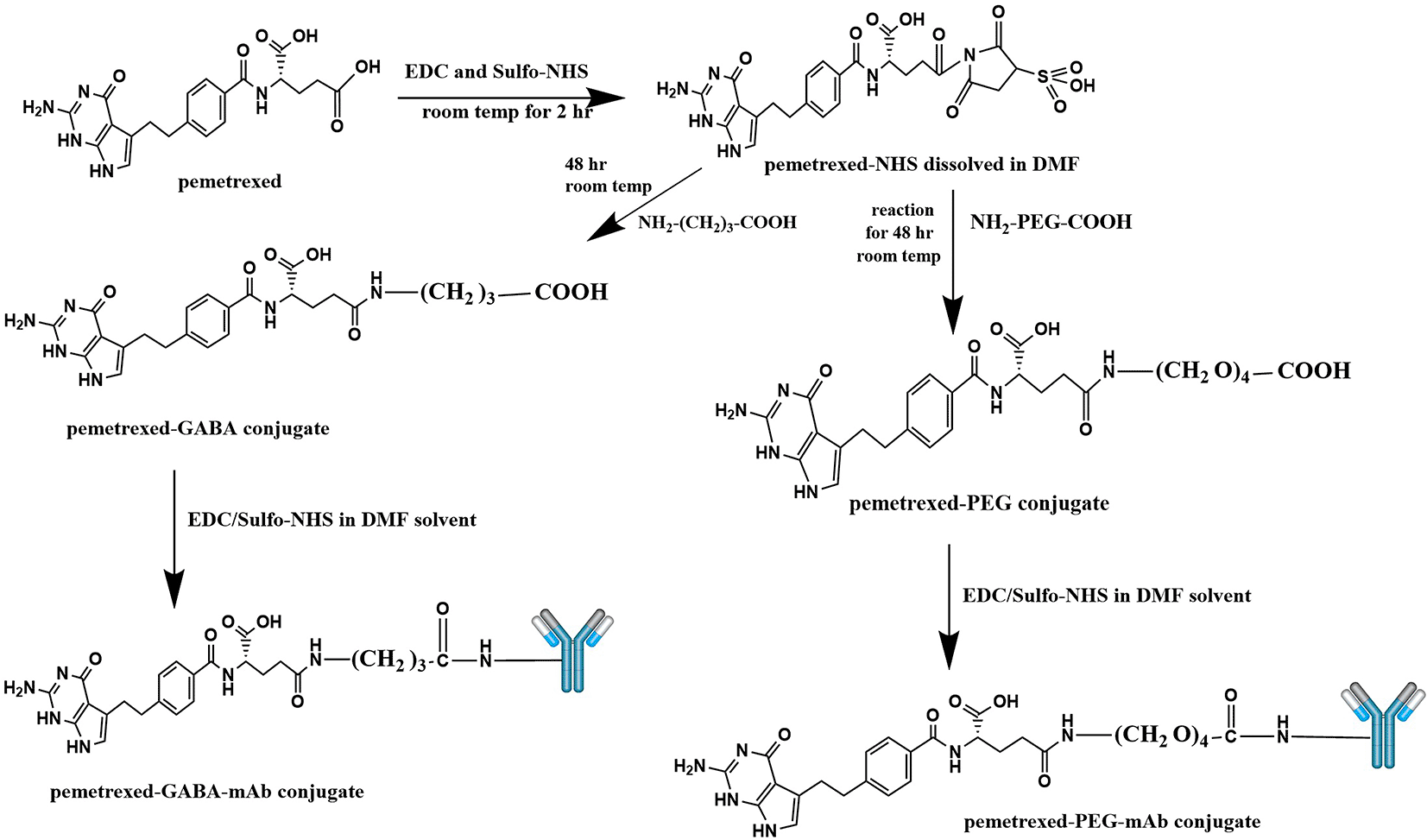

Figure 1. Suggested schematic illustration for the synthesis of pemetrexed linker conjugates and pemetrexed-linker-mAb conjugates.

This figure is an original figure produced by the authors for this article.

Synthesis of PMX-linker conjugate (PMX linkage), the procedure involved activation of the carboxylic acid (carboxylic acids in general are not reactive enough to undergo nucleophilic addition directly) moiety in PMX using 1-ethyl-3-(3-dimethylaminopropyl) carbodiimide hydrochloride (EDC) and Hydroxy -2, 5-dioxopyrrolidine-3-sulfonicacid sodium salt (Sulfo-NHS) through the NHS ester formation, followed by reaction with a primary amine (in the linker molecule) to form an amide product.

For synthesis of PMX linkage with NH₂-PEG₄-COOH linker, PMX (0.04 mmol, 0.017 gm) was dissolved in 5 mL of dimethyl formamide (DMF) solvent, then EDC (0.06 mmol, 11 μl) and Sulfo-NHS (0.06 mmol, 0.013 gm) were added to pemetrexed solution in DMF. The solution was stirred by magnetic stirrer (Misung scientific, MS-300HS, Korea) at room temperature for 2 hr. Then NH₂-PEG₄-COOH (0.04 mmol, 0.010 gm) was added, and the mixture was stirred at room temperature for 2 days. The resultant solution was dialyzed in a dialysis bag (MWCO 3.5 kDa) against deionized water for 24 hrs with replacing the deionized water every 2 hr. Then, the obtained solution was freeze dried at (-55°C and 0.07 mbar) using a CHRIST lyophilizer (ALPHA 1-2 LD plus, Germany) to obtain the powder form of the PMX-NH₂-PEG₄-COOH linkage (symbol as PMX-PEG).^16,20 This procedure was repeated to link PMX with other linker (gamma amino butyric acid; GABA) using (0.04 mmol, 0.00412 gm) of GABA, to get PMX-GABA linkage as a powder.

For conjugation of PMX linkage with AtZ mAb, synthesis done by taking 17 mg of each of the obtained product separately (dried PMX-PEG and PMX-GABA linkages) and placed in 5 ml DMF solution containing mixture of 9 μl EDC/0.01 gm Sulfo-NHS and stirred by magnetic stirrer at room temperature for 2 hr, then 17 mg of AtZ mAb was added and stirring continued gently at 6°C for 48 hr using magnetic stirrer. The resultant mixture purified by desalting column (Zeba ^TM Spin Desalting Columns, 40K MWCOs, 10 ml, Thermo scientific, REF 87772, LOT XG361556, U.S.A.)²¹ and the obtained products was freeze dried after adding 5% (W/V) mannitol: sucrose mixture (4:1), using a CHRIST lyophilizer.

Characterization of AtZ-PMX conjugate

The characterization of the entire conjugate (AtZ-PMX) was carried out step by step. First step is characterization of PMX with linkers and this include:

The second step is characterization of (PMX-linker-AtZ) which symbolled (AtZ-PMX) and this include:

Characterization of conjugation of PMX with linkers

The characterization of linkage of PMX with NH₂-PEG-COOH and PMX with GABA linker involved the following:

Fourier transform infra-red (FTIR) analysis

The FTIR (Shimadzu 8400 S, Japan) was done using potassium bromide disc, wavelength (4000–500 cm^-1) was used for PMX-PEG linkage, PMX-GABA linkage, pure PMX, pure PEG, pure GABA, physical mixture of PMX and PEG, and the physical mixture of PMX with GABA.²²

Differential scanning calorimetric (DSC) analysis

The DSC analysis (DSC 131EVO, France) was done for pure PMX, PEG, GABA, PMX-PEG linkage, and PMX-GABA linkage, using aluminum containers containing 2 mg of each sample, under nitrogen atmosphere 50 mL per minute, and a heat rate of 5°C in minute in temperature of 25-300°C.²³

Mass spectroscopy (MS) analysis

Compounds screening was done using Bruker Daltonik (Bremen, Germany) Impact II ESI-Q-TOF System by direct injection. Stock Solution for each sample (pure PMX, pure GABA, pure PEG, PMX-PEG linkage, and PMX-GABA linkage) was prepared by dissolving 1 mg of each compound in 700 μl MeOH and 300 μl water, 1 μL were injected to get appropriate signal in mass spectrometer,²⁴ separation was done by UHPLC column (100 mm x 2.1 mm x 2.0 μm) Bruker solo2.0-C-18, flow rate of 0.51 mL in minute and temperature of 40°C.

Proton nuclear magnetic resonance (¹HNMR) analysis

The ¹HNMR was done for PMX, PEG, GABA, PMX-PEG linkage, and PMX-GABA linkage using Bruker (BioSpin GmbH 500 MHz, Germany). ¹H-NMR analysis performed using DMSO solvent and chemical shifts (δ) stated in parts per million.²⁵

Characterization of PMX-linker-AtZ mAb conjugation

The prepared PMX-AtZ conjugate using either PEG or GABA as a linker were characterized by:

Gel electrophoresis

The SDS PAGE is a characterization tool for pure mAb, and the two PMX-AtZ mAb conjugates. SDS-PAGE gel assay kit (Elabscience®, U.S.A., Cat No. E-IR-R305) was used for gel preparation. The vertical electrophoresis system (Bio-rad, PowerPac^TM Basic, Singapore) was used for gel electrophoresis.

The separating gel concentration used was 6% (for protein with MW 50-150 KDa), the constituents illustrated in Table 1. The separating gel was prepared as follows: water, 30% Acrylamide/Bis-acrylamide solution, and Separating Gel Mix, were mixed in a clean dry beaker. Then 10% Ammonium Persulfate, and Tetramethylethylenediamine were added, mixed gently to avoid bubbles, the prepared mixture poured immediately into a clean assembled gel mold and kept until solidified for approximately 30-60 minutes then ethanol (1-2 ml) was added to flatten the gel surface. Ethanol was removed after gel solidified and any residual liquid in the assembled gel mold was removed gently by using absorbent paper.

The 5% stacking gel was prepared (constituents illustrated in Table 1) by gently mixing in dry, and clean beaker the following components: water, 30% Acrylamide/Bis-acrylamide solution, and Stacking Gel Mix. Then 10% Ammonium Persulfate and Tetramethylethylenediamine were added and poured immediately into the previously prepared solidified separating gel. Comb teeth were inserted, and gel kept until solidified for 30-40 minutes.^26,27 The solidified gel cassette fixed inside the electrophoresis tank; comb removed carefully. The electrophoresis tank filled with 1X Tris-Glycine buffer (Elabscience®, U.S.A.).

Samples for gel electrophoresis (AtZ mAb, PMX-PEG-AtZ conjugate, and PMX-GABA-AtZ conjugate) were prepared by mixing 20 μl of each sample (concentration 0.5mg/ml) with 5 μl loading buffer (5X SDS Loading Buffer, Elabscience®, U.S.A. Cat No. E-BC-R288), samples mixed with (vortex mixer, Faithfull, model MX-S). The prepared samples were heated (dry block heater, jSR, model JSBL-01T, korea) at 95°C for 5 minutes (heating speed up protein denaturation by increasing sample molecular motion), then samples were cooled to room temperature before loading.

A total of 10 μL of each sample loaded into the gel well (lane), 5 μL marker (pre-stained protein marker 10-180 KDa, Elabscience®, U.S.A. Cat No. E-BC-R273) was loaded into gel lane. In another gel mold, samples without heating (keeping the temperature 20-25°C to avoid denaturation) were loaded into the gel lane.

The electrophoresis system was run at voltage 120V for about 2-3 hours. At the end of experiment the gel was removed from the tank and transferred directly into 20 mL staining solution (mixture of 2 g Coomassie Brilliant Blue R-250, 300 ml methanol, 100 ml glacial acetic acid, and 600 ml distilled water) and gel left gently shaking (Human, HumaRock, Germany) for approximately 1 hr. After 1 hr the gel transferred into the de-staining solution (mixture of 300 ml methanol, 100 ml glacial acetic acid, and 600 ml distilled water) and left shaking gently overnight. The gel washed with distilled water and band visualized by using Bio-Rad Chemidoc XRS Gel Imaging System (RRID:SCR_019690), model No. Universal Hood II, U.S.A.

Mass spectroscopy

A UHPLC Bruker (Bremen, Germany) was used for screening conjugates compounds. Stock Solution for each sample (unconjugated atezolizumab mAb, pemetrexed-PEG-mAb conjugate, and pemetrexed-GABA-mAb conjugate) was prepared by dissolving 7.25 mg in 50 ml ACN: water (1:1) and 0.1 formic acid, 125 ppm of sample injected (sample concentration) to get appropriate signal in mass spectrometer. The separation was performed using Bruker solo2.0-C18 UHPLC column (100 mm x 2.1 mm), flow rate 0.3 mL/min, column temp of 60°C, and dry gas temp 300°C.²⁸

Cytotoxic activity study for the prepared pemetrexed-atezolizumab conjugates

Cytotoxic activity of PMX-AtZ conjugates using two types of linkers PEG and GABA (each one separately) were studied using lung cancer cells (A549) in comparison to pure PMX, pure AtZ, PMX-PEG linkage, and PMX-GABA linkage. Lung cancer cell line (A549) was purchased from American Type Culture Collection ATCC (Middlesex, UK) and stored in the Cell Bank of the Biomedical Research Centre at Mustansiriyah university.

Viability and inhibitory concentration (IC₅₀) of cells by MTT assay

The viability of A549 cancer cells after exposure to various samples, including pure PMX, PMX-PEG linkage, PMX-GABA linkage, pure mAb, PMX-PEG-AtZ conjugate, and PMX-GABA-AtZ conjugate was determined by MTT assay.

The A549 cell suspensions were dispensed into 96-well flat plates in a concentration of 5 x 10³ cells per well, incubated for 1 day under standard conditions; 4 x 10³ cells per well, incubated for 2 days; and 3 x 10³ cells per well, incubated for 3 days under standard conditions.^29,30 Cells were treated with same concentration range 0.05-100 μM of each sample, control group with only growth medium included within plate and plate incubated. After a 24 h, 48 h, and 72 h incubation, the cell culture medium was removed (after each recovery period) and incubated with MTT solution (3-(4,5-Dimethyl thiazol-2-yl)-2,5 Diphenyl tetrazolium Bromide), the medium was removed and DMSO was added to plates (remained at room temperature in the dark for fifteen minutes). The absorbance was measured at 540 nm with background absorbance correction at a wavelength of 650 nm, optical density of the control wells was used to determine the cells viability.^31,32 The dose response plotted over log concentrations and IC₅₀ values calculated using Graph Pad Prism version 8.4.3 (RRID:SCR_002798), results represented standard error of the mean for triplicate data.³³ R is an open source alternative software which could be used for this.

FTIR characterization

The FTIR spectrum (Figure 2) of pure PMX displaced the characteristic stretching band O-H of COOH near 3400 cm^-1, stretching NH₂ at 3309.85 cm^-1, stretching NH at 2970.38 cm^-1, stretching C-H aliphatic at 2877.79 cm^-1, C=O of COOH at 1689 cm^-1, C=C aromatic at 1527.62 cm^-1, and all these peaks similar to that reported.²⁹

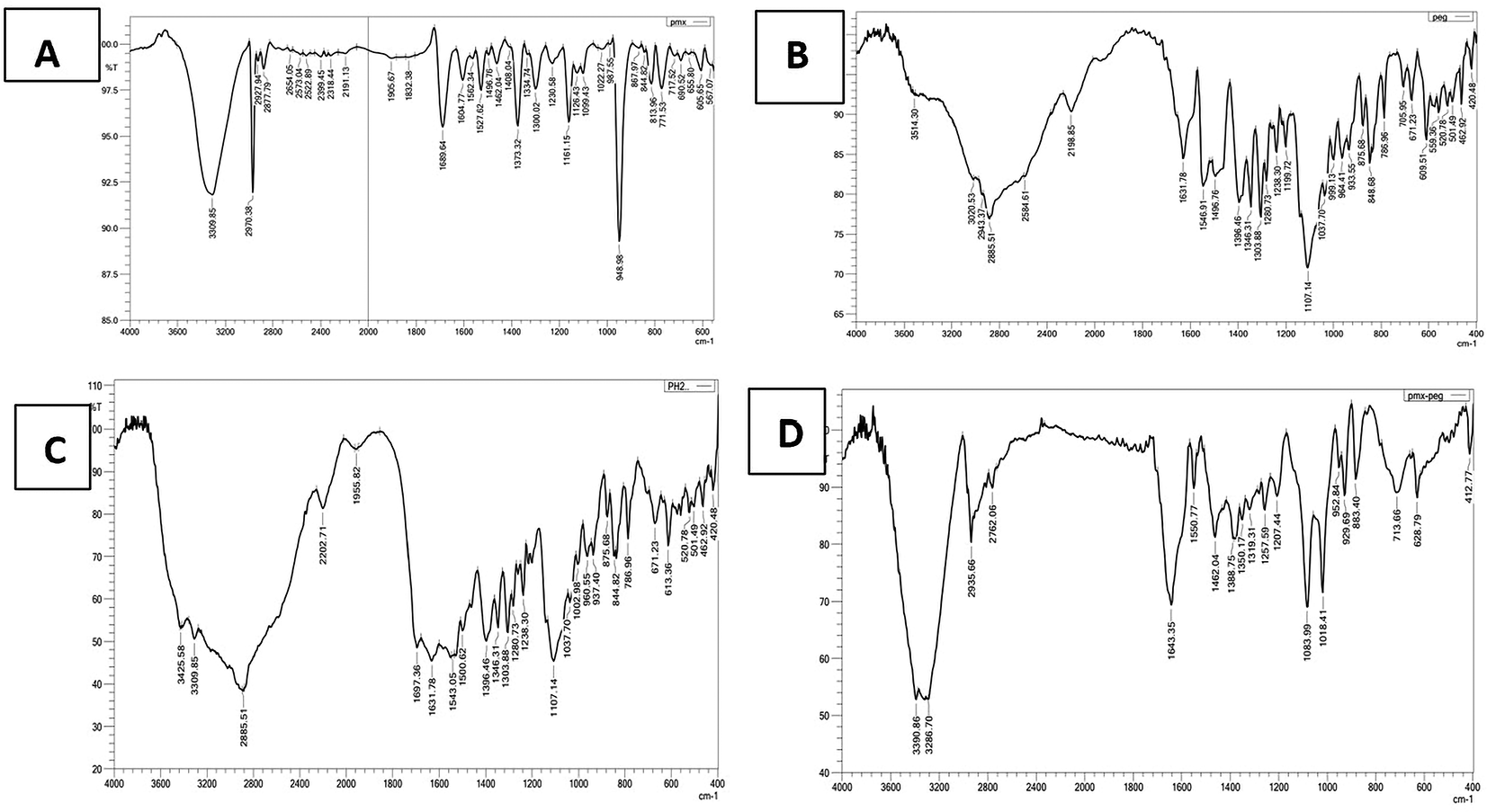

Figure 2. FTIR for (A) pure PMX, (B) PEG, (C) physical mixture (PMX and PEG), and (D) PMX-PEG linkage.

The α-amine-ω-propionic acid tetra ethylene glycol (NH₂-PEG₄-COOH) displaced characteristics stretching C=O of COOH at 1631.78 cm^-1, stretching band O-H of COOH at 3514.30 cm^-1.34 The mixture of PMX and PEG showed the same characteristics peaks observed in each ingredient separately with observable broadening in C=O of COOH at 1631.78 and 1697.36 cm^-1, which are for C=O of COOH of the PEG and PMX, respectively. The spectrum of the chemically linked PMX-PEG displaced a new sharp peak at 1643.35 cm^-1 and this not found neither in the physical mixture, nor in each molecule separately indicating chemical linkage and related to C=O of intended amide.

GABA (Figure 3) showed aliphatic -CH peaks at 2951.09 cm^-1, 3008.96 cm^-1 and 2846.93 cm^-1. There were also bands corresponding to asymmetrical and symmetrical stretching vibration of carboxylate group at 1573.92 cm^-1 and 1396.47 cm^-1, respectively, stretching band O-H of COOH 3402.43 cm^-1 and 3506.59 cm^-1. The GABA FTIR is in accordance with reported data.³⁵ The physical mix of PMX and GABA showed the same characteristics peaks observed in GABA at 1338.6 and 783.1 cm^-1 and others related to PMX at 3309.85 cm^-1 and this appeared as a broad band with aliphatic -CH peaks of GABA. The chemically linked PMX-GABA displayed amide -NH stretching at 3360 cm^-1, sharp intense peak at 1639.49 cm^-1 related to C=O stretching of conjugated amide. The underlying data are available in a data repository.³⁶

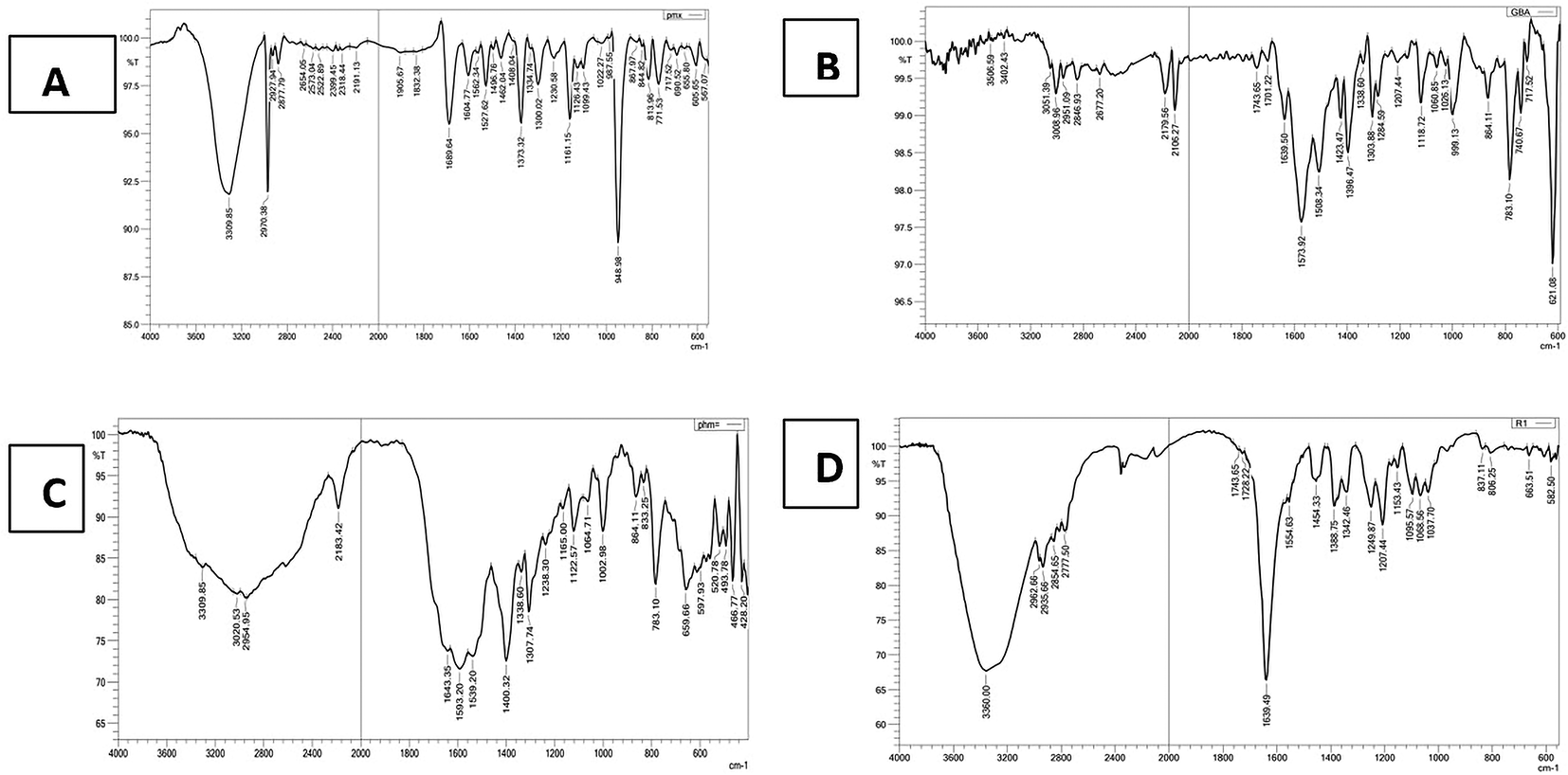

Figure 3. FTIR for (A) pure PMX, (B) GABA, (C) physical mixture (PMX and GABA), and (D) PMX-GABA linkage.

Characterization by DSC

Characterization by DSC done for PMX, PEG, GABA, physical mix in equal amount of PMX and PEG, physical mix in equal amount of PMX and GABA, PMX-PEG linkage, and PMX-GABA linkage. The DSC results (Figure 4A) showed that PMX had a sharp narrow, intense endothermic peak at 252°C that represents melting point of the drug.¹⁵ PEG spectrum displayed a strong endothermic peak at 88°C.³⁷ The physical mix of PMX and PEG displayed the two characteristics endothermic peaks of them, while the chemically linked one (PMX-PEG) displayed one new sharp intense endothermic peak at 164°C. GABA spectrum (Figure 4B) showed an intense endothermic peak at 205°C in accordance with the melting point of GABA.³⁸ The physical mix of PMX and GABA displayed the two characteristics endothermic peaks, while PMX-GABA linkage spectrum had a new peak at 180°C, which is neither related to PMX nor to GABA, suggesting chemical linkage between drug and GABA linker. The underlying data are available in a data repository.³⁹

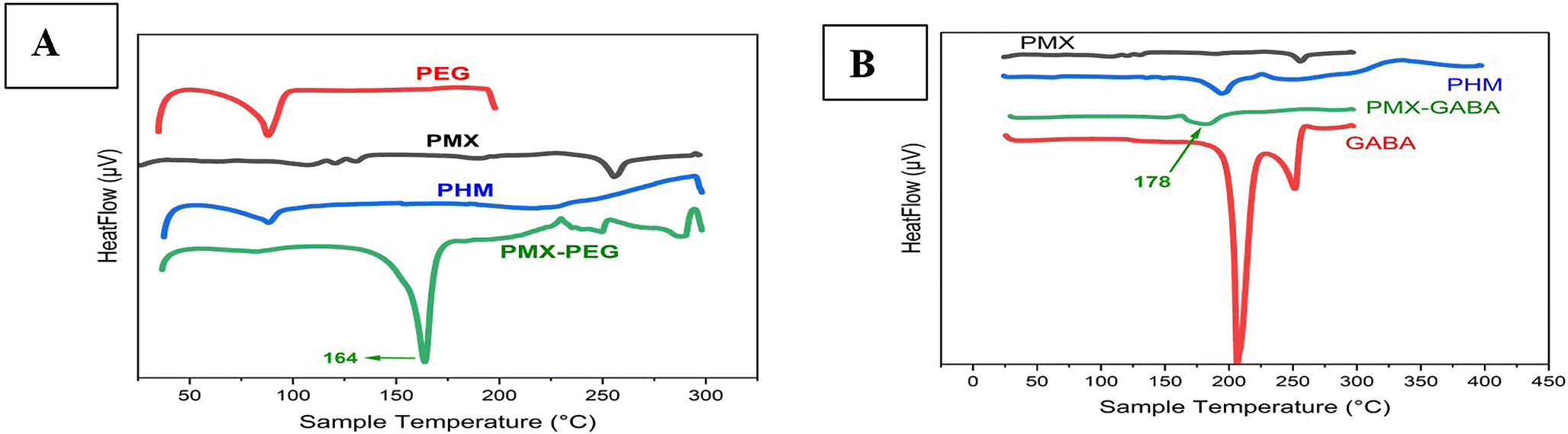

Figure 4. (A) DSC for PEG, PMX, PHM (physical mixture of PMX and PEG), PMX-PEG (pemetrexed-PEG linkage).

(B) DSC for GABA, PMX, PHM (physical mixture of PMX and GABA), PMX-GABA (pemetrexed-GABA linkage).

Characterization by LC-MS

LC-MS chromatograms of PMX, GABA, PEG, PMX-PEG linkage, PMX-GABA linkage is demonstrated in Figure 5, where the retention time for PMX at 4.7 min, GABA 0.55 min, PEG 1.4 min, PMX-PEG linkage 7 min, PMX-GABA linkage 5.2 and 6.2 min. It was obvious that the newly conjugated molecule (PMX-PEG and PMX-GABA) displayed different retention time of their pure molecules alone.

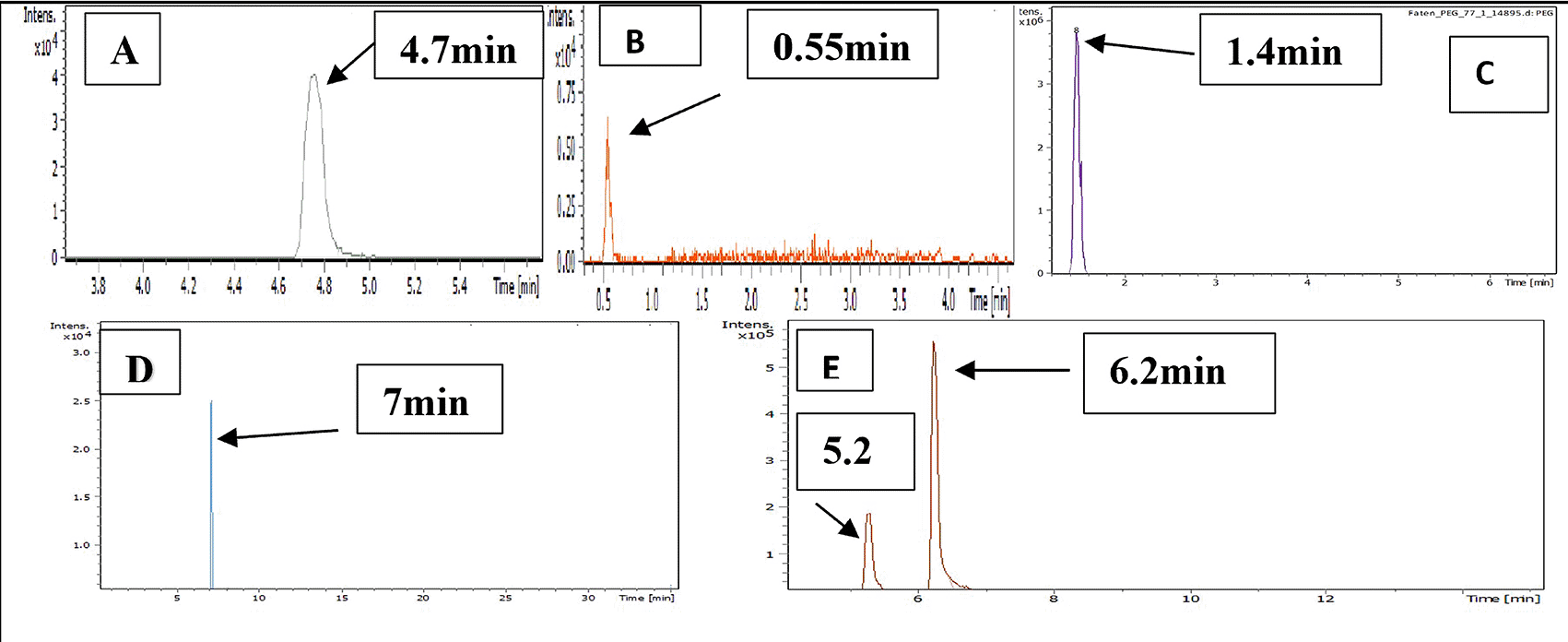

Figure 5. LC-MS chromatogram revealed the retention time of (A) pure PMX, (B) pure GABA, (C) pure PEG, (D) PMX-PEG linkage, and (E) PMX-GABA linkage.

Mass divided by charge number (M/Z) represents the dividing mass number of ion by its charge, since the charge is almost equal to one, so the M/Z represents the molecular mass of the compound in the horizontal axis of chromatogram.⁴⁰ The (M/Z) for pure PMX 428.159, (M/Z) pure GABA 104.0713, (M/Z) pure PEG 266.16, the PMX-PEG linkage displayed different and multiple (M/Z) due to possibility of side reaction or unreacted materials. Among these multiple (M/Z) is 674, which may represent the intended molecular weight of our target molecule PMX-PEG linkage (Figure 6). The final (M/Z) for PMX-GABA linkage displayed two main peaks 513.32 and 598.41, and it was concluded that the newly conjugated molecule may involve one GABA molecule conjugated by the α-COOH group of PMX to give the new entity with molecular weight 512 g/mol, while the second M/Z (598.4) may involve two molecules of GABA conjugated with the two α and γ COOH groups of PMX. Similar changes in M/Z in the LC-MS were observed in pegylated pemetrexed prodrug conjugated with amino acid linker.⁴¹ The underlying data are available in a data repository.⁴²

Figure 6. The molecular mass (M/Z) of: (A) pure PMX, (B) pure GABA, (C) pure PEG, (D) PMX-PEG linkage and (E) PMX-GABA linkage.

Characterization by ¹HNMR

The PMX-PEG linkage and PMX-GABA linkage were confirmed by ¹HNMR spectra using DMSO as the solvent and all the results analyzed by MesterNova NMR analysis software and presented in Figure 7.

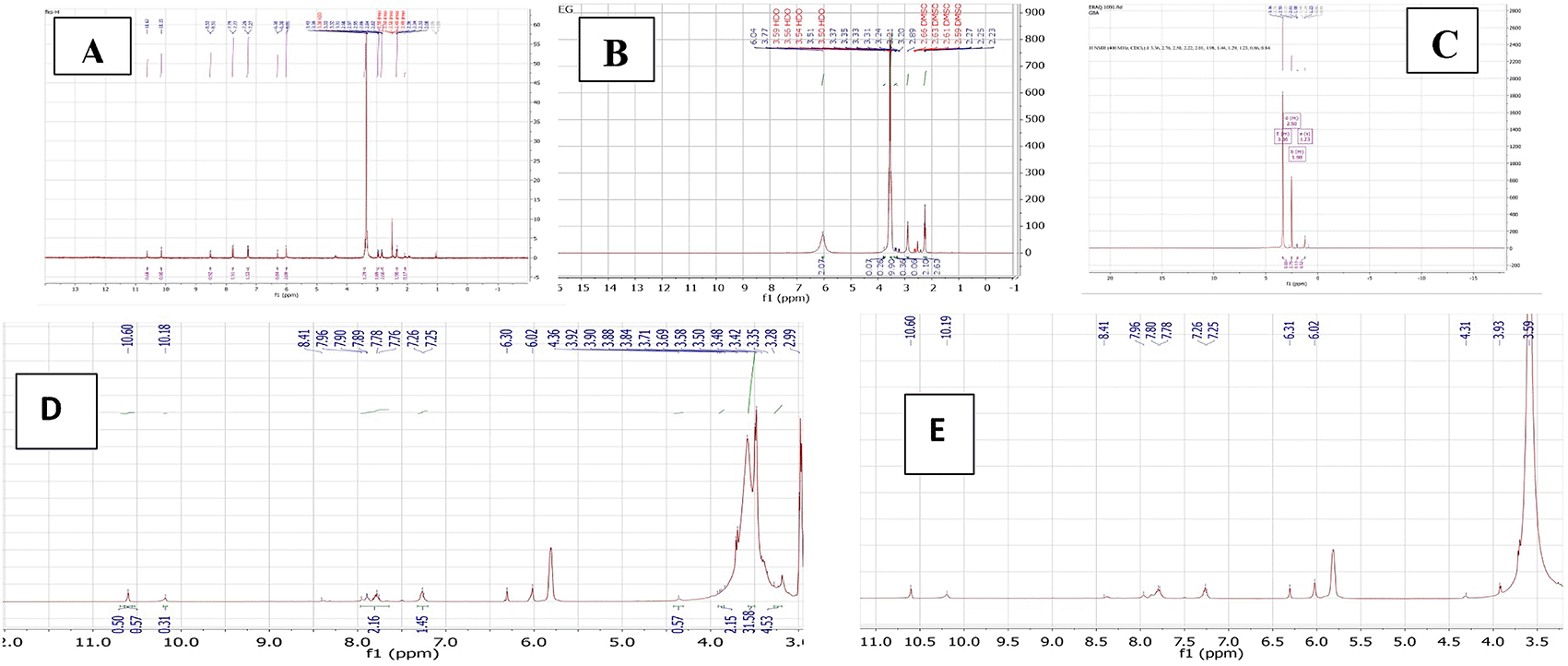

Figure 7. The ¹HNMR spectrum of (A) PMX, (B) PEG, (C) GABA, (D) PMX-PEG linkage, and (E) PMX-GABA linkage.

The ¹HNMR spectrum of pure PMX gives a signal at 2.08–2.98, 3.31–3.41 ppm (−CH₂−), 6.3 ppm (pyrrole −CH−), 7.2 and 7.7 ppm (aryl–CH), signal 10.15 ppm pteridine proton, 6.01 ppm aniline proton, and 10.62 ppm (-NH of pyrrole) and all agreed with reported values.⁴³

The typical ¹HNMR spectrum of PEG gives signal 3.3–3.7 ppm for the protons of PEG chain, other signals in good agreement with reported data.⁴⁴

The ¹HNMR spectrum of PMX-PEG linkage showed all the main characteristics peaks of pure PMX and showed all peaks presented with PEG linker with a slight shift in protons peaks that specifically involved in the linkage and amide bond formation. The ¹HNMR spectrum for PMX-PEG linkage displaced the characteristics peaks for PEG after linkage at 2.86–3.9 ppm for the protons PEG chain, peaks spectrum of PMX after linkage showed all original PMX signal at 6.3 ppm (−CH− of pyrrole), 6.02 ppm for aniline protons of PMX,¹⁶ 7.25 with 7.76 ppm (−CH aryl), 10.18 ppm for pteridine PMX proton, and 10.6 ppm (-NH of pyrrole).⁴³ The -CH₂ of PMX neighboring to the α -COOH shifted from 2.33–2.36 to 2.26 ppm after linkage, also its neighboring -CH₂ shifted from 2.08 to 1.7 ppm. The ¹HNMR spectrum of PMX-PEG linkage displaced a peak at 3.35 ppm corresponding to -CH₂ of PEG neighboring to terminal -NH₂ after linkage and this was at 2.89 ppm for pure unreacted PEG, disappearance of the broad -NH₂ PEG peak at 6.04 ppm and the appearance of a peak at 7.89 ppm in the PMX-PEG linkage ¹HNMR spectrum, which corresponds to (-NH) proton of amide is further confirmed the intended linkage.⁴⁵

The ¹HNMR spectrum of GABA displaced the characteristics GABA proton peaks at 1.23, 1.98, and 3.36 ppm (for −CH₂−) as well as other peaks and all in good agreement with reported data.⁴⁶ The ¹HNMR spectrum for PMX-GABA linkage showed all main peaks of PMX and GABA. The -CH₂ proton peak of PMX adjacent to the α-COOH of PMX appeared as one peak range with the -CH₂ proton peak neighboring to terminal -COOH of GABA in the PMX-GABA linkage, also the -CH₂ proton peak of GABA neighboring to -NH shifted to 3.5 ppm (it was at 3.36 ppm in pure GABA) after linkage affected by adjacent amide bond, in addition to the appearance of new peak between 7.78–7.80 ppm in the ¹HNMR spectrum of PMX-GABA linkage indicating the success of linkage and formation of amide bond.⁴⁷ Broadening of the -CH₂ group of PMX in the ¹HNMR spectrum, which is neighboring to the α- carboxyl group of PMX and appeared as broad peak at 3.93 ppm indicated reaction also occurred on the neighboring carbonyl group (conjugation of GABA with α-COOH of PMX). All other peaks appeared are correlated to PMX. These results of ¹HNMR agreed with our results obtained with FTIR, DSC, and mass spectroscopy, which suggested two molecules of GABA linked by two amide bonds with two -COOH of PMX. The data of ¹HNMR spectrum are available in a data repository.⁴⁸

Characterization of pemetrexed-mAb conjugates

The successful linkage between PMX and each of PEG and GABA, proceeded by introducing the mAb (atezolizumab) to the prepared linkage to get two types of conjugates: PMX-PEG-AtZ mAb and PMX-GABA-AtZ mAb. Both conjugates were characterized.

SDS-PAGE gel electrophoresis

Results of gel electrophoresis for samples without heating the samples (AtZ mAb, PMX-PEG-AtZ conjugate, and PMX-GABA-AtZ conjugate) showed in Figure 8 (A) in which mAb showed band near 130 KDa and the two conjugates (PMX-PEG-AtZ and PMX-GABA-AtZ) showed band at 180 KDa and this confirmed the conjugation and the mAb was not affected by the experimental condition during conjugation. The same samples (unconjugated mAb and the two conjugates), which were heated 95°C for 5 minutes before being introduced into the wells of assembled gel (which is the common method applied for many proteins in PAGE⁴⁹) showed no bands indicating unfolding of mAb by heating (Figure 8B), as atezolizumab had limited stability for only few hours at 20-25°C.⁵⁰ These results were in agreement with other study in which antibody conjugated with maytansinoid and auristatin demonstrated that both unconjugated and conjugated antibody were unfolded properly by heating to 95°C.⁵¹ The data are available in a data repository.⁵²

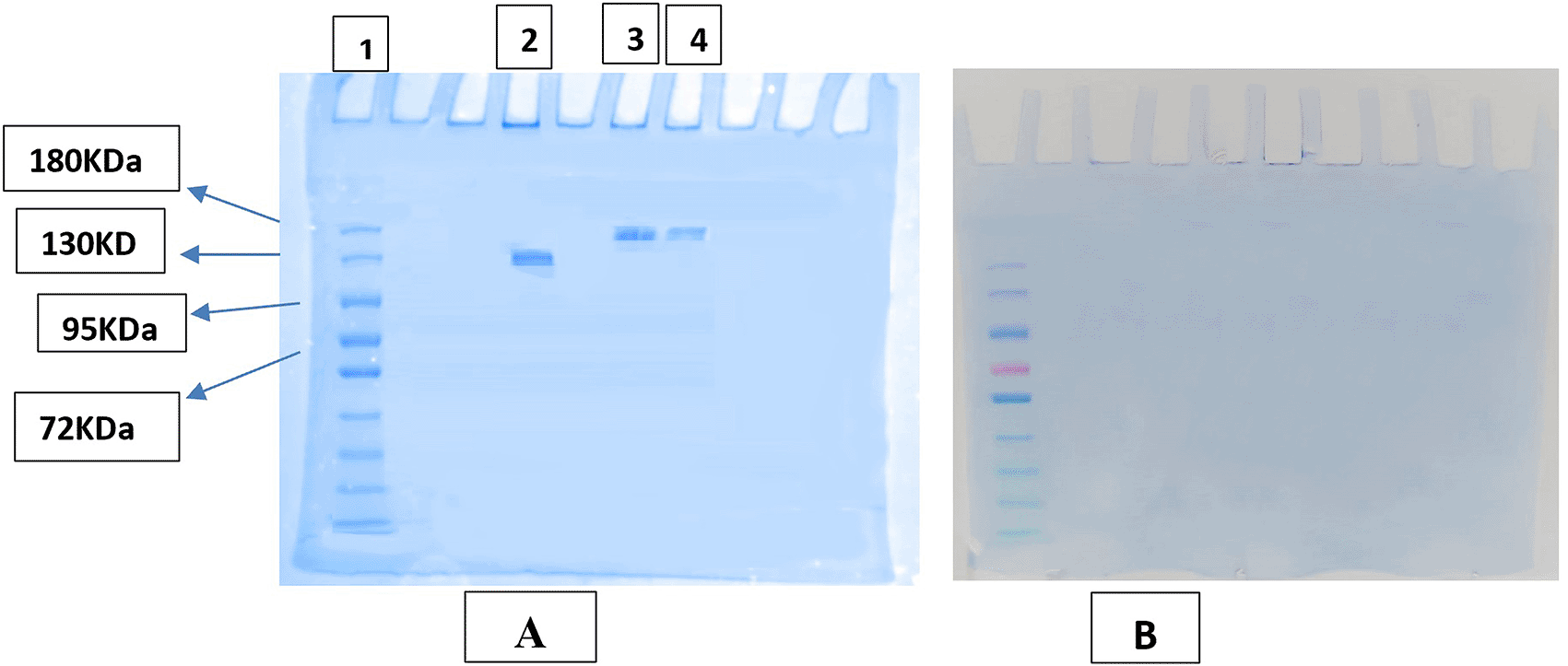

Figure 8. SDS-PAGE image of AtZ, PMX-AtZ conjugate.

(A) samples without heating where (1): pre-stained protein marker, (2) AtZ mAb, (3) PMX-PEG-AtZ conjugate, and (4) PMX-GABA-AtZ conjugate. (B): heated samples of conjugate and unconjugated mAb.

LC-MS

The LC-MS is beneficial tool for characterization of antibody and identification of antibody conjugate by detection of antibody mass.⁵³ The total ion chromatogram (TIC) results of characterization of AtZ mAb, PMX-PEG-AtZ conjugate, and PMX-GABA-AtZ conjugate are shown in Figure 9 and revealed a change in chromatograms of conjugate in comparison to unconjugated pure antibody and represented the major conjugated molecules eluted after 15 minutes. These results are in accordance with another study in which trastuzumab conjugated to microtubule disrupting agent.⁵⁴ The mass profile of AtZ-PMX conjugate were simplified (Figure 10) with only m/z values (results showed up to eight molecules of the PMX-PEG linkage and PMX-GABA linkage were conjugated to AtZ with increase in molecular mass of antibody), these results in accordance with Trastuzumab deruxtecan conjugate in which mAb conjugated 8 deruxtecan molecules through a maleimide based linker and gain approval for breast cancer.⁵⁵ The drug: antibody ratio calculated as the average PMX linkage conjugated based on the sum of all intensities.⁵⁶ The calculated drug: antibody ratio of PMX-AtZ conjugate using two types of linker PEG and GABA was 4 and 3.74, respectively. The obtained PMX-AtZ conjugation ratio agreed with that Ado-trastuzumab emtansine (first ADC approved) for malignancy in which emtansine conjugation with trastuzumab in average of 3 to 4 (emtansine molecules): 1 (mAb molecule) using stable thioether linker.⁵⁷ The data are available in a data repository.⁵⁸

Figure 9. Total ion chromatogram (TIC) for (A) pure AtZ mAb, (B) PMX-PEG-AtZ conjugate, and (C) PMX-GABA-AtZ conjugate.

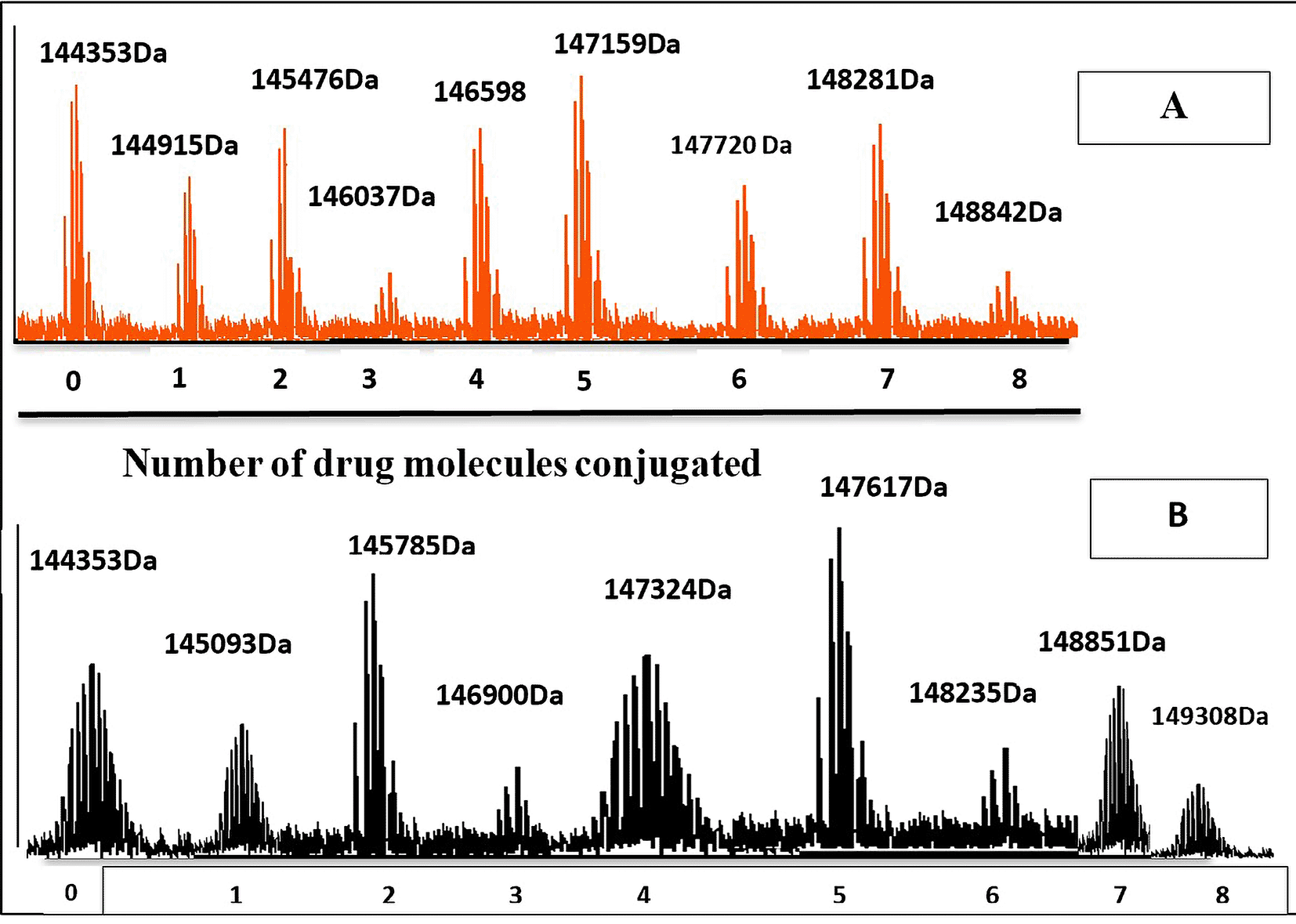

Figure 10. The molecular mass of: (A) PMX-GABA-AtZ conjugate, and (B) PMX-PEG-AtZ conjugate.

In accordance with data obtained from the applied characterizations, the expected structure for 1:1 PMX-AtZ mAb conjugation is suggested in Figure 11, where in PMX-PEG-AtZ mAb conjugate one molecule of PMX linked to one molecule of PEG, which in turn linked with one molecule of mAb. While 1:1 of PMX-GABA-AtZ mAb conjugation, where one molecule of PMX linked to two molecules of GABA, which in turn conjugate with one molecule of mAb.

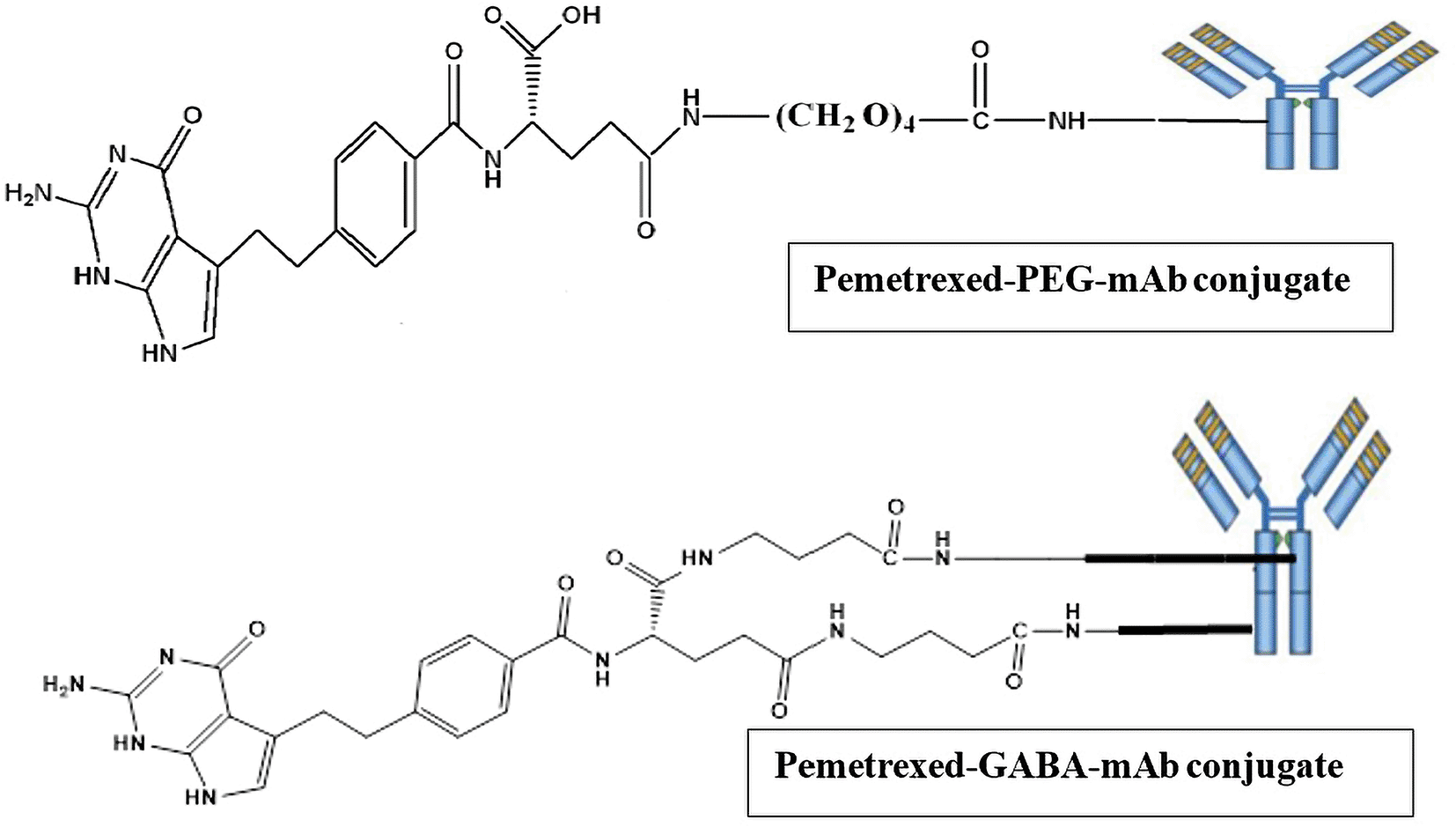

Figure 11. Expected structures of the PMX-AtZ mAb conjugate using PEG and GABA each one separately as linker.

This figure is an original figure produced by the authors for this article.

Cytotoxic activity study for the prepared conjugates

Cells treated with increasing concentrations of AtZ mAb, pure PMX, PMX-PEG linkage, PMX-GABA linkage, PMX-PEG-AtZ mAb conjugate, and PMX-GABA-AtZ mAb conjugate.

The PMX-PEG linkage and PMX-GABA linkage showed lower IC₅₀ (2.54, 1.814 μM, respectively) than that of pure PMX (2.67 μM) on cancer cell at different time (24, 48 and 72 h) (Figure 12). These results indicated that PMX-PEG linkage could potentiate drug cytotoxic activity due to enhancement of solubility and therefore enhances cell uptake and penetration, and this in agreement with other study demonstrated that the incorporation of PEG altered paclitaxel delivery mechanism and enhanced cytotoxic efficacy.⁵⁹ The IC₅₀ (1.814 μM) obtained with PMX-GABA linkage was significantly (P≤ 0.05) lower than pure PMX and PMX-PEG linkage due to the synergistic effect of conjugation, where a previous reported data assumed that GABA had a strong inhibitory effect on cell proliferation.⁶⁰ In addition, the gene expression of GABA receptor is high in lung cancer and the proliferation index for such cancer is inversely correlated with GABA concentration when given exogenously, therefore GABA inhibits proliferation of the lung cancer in time and dose manner.⁶¹

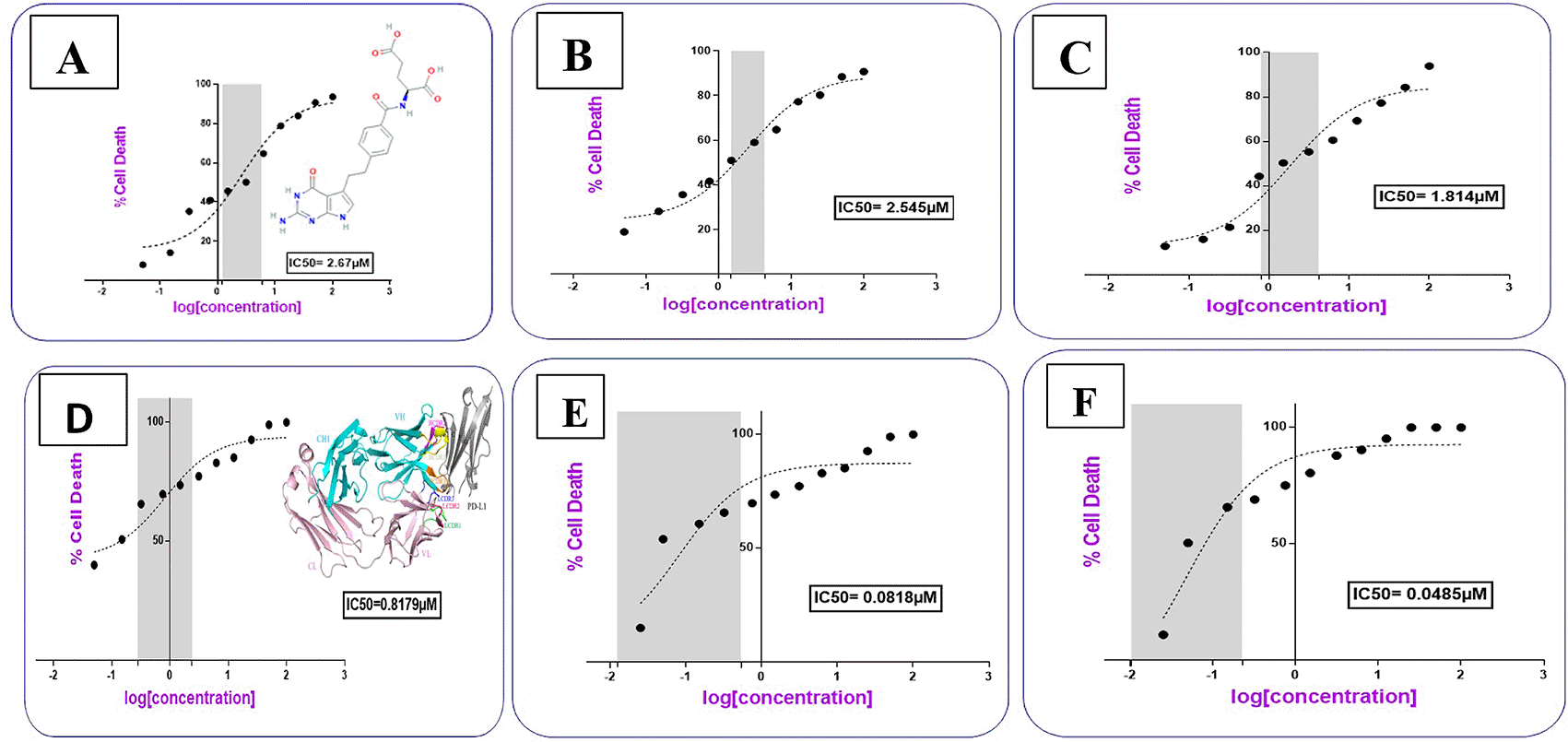

Figure 12. IC₅₀ of (A) pure PMX, (B) PMX-PEG linkage, and (C) PMX-GABA linkage, (D) pure AtZ mAb, (E) PMX-PEG-AtZ mAb conjugate, and (F) PMX-GABA-AtZ mAb conjugate.

AtZ mAb gave IC₅₀ 0.817 μM (Table 2), which is similar to reported data,²¹ indicating that the lyophilized mAb kept its anticancer activity. The complete conjugation (PMX-PEG-AtZ mAb) and (PMX-GABA-AtZ mAb) showed potent cytotoxic effect where the IC₅₀ was 0.0818 and 0.0485 μM for each, respectively (Figure 12). The two types of conjugation were significantly (P≤ 0.05) more cytotoxic activity than PMX alone and antibody alone, which demonstrated that hybrid effect of the final conjugates significantly enhanced cytotoxicity due to synergistic effect. The data are available in a data repository.⁶² Original data by Graph Pad Prism are available in a data repository in a pzfx and JPG format.⁶³

It was noted that using GABA (as a linker) for PMX-AtZ mAb conjugation gave higher cytotoxic effect than using PEG as a linker, which could be attributed to the involvement of two molecules of GABA in the PMX-AtZ mAb conjugation that may cause further enhancement (≈ 2 folds) in cytotoxic effect of the final conjugate. According to our knowledge no previous work was reported on using GABA as a linker for drug-monoclonal antibody conjugation.

The dose-response curve showed that the cytotoxic activity of the two types of the prepared conjugates was dose and time dependent. Figure 13 shows that as the concentrations of the conjugates increased; their cytotoxic activity increased significantly (P≤ 0.05), where at concentration 12.5 μM; PMX-GABA-AtZ mAb and PMX-PEG-AtZ mAb conjugates gave 71.168% and 55.167% cell death, respectively, after 24 h in comparison to pure PMX, which gave 39.58% cell death and the cell death continued to reach 88.987% and 80% for the two conjugates as well as 69.43% for pure PMX at 100 μM concentration after 24 h and similar increase in response upon increasing concentration was observed after 48 and 72 h. This suggests that the higher percentage of cell death achieved by the two PMX-AtZ mAb conjugates attributed to the collaborative effect of PMX and AtZ mAb upon conjugation. The enhancement of cytotoxic activity of drug-mAb conjugation observed in this study agreed with reported enhancement observed upon conjugation of auristatin with trastuzumab and attributed to the synergistic effect of both the drug and antibody.⁶⁴

Figure 13. The dose response curve for different concentrations in lung cancer cell of (A) PMX, (B) PMX-PEG-AtZ mAb conjugate, (C) PMX-GABA-AtZ mAb conjugate, and (D) AtZ mAb.

In this study, it was observed that in all the working concentrations; the PMX-GABA-AtZ mAb conjugate showed a significantly (P≤ 0.05) higher anticancer effect against the lung cancer cells indicating the contribution of the inhibitory effect of GABA on these cancer cells.⁶⁵ The data are available in a data repository in a pzfx and PDF format.⁶⁶

The time response curve (Figure 14) shows that with 12.5 μM of pure PMX at 24 h gave (39.58% cell death), at 48 h (48.39% cell death) and 72 h (78.70% cell death) indicating the drug activity is time dependent, which agreed with reported data for PMX.^29,67

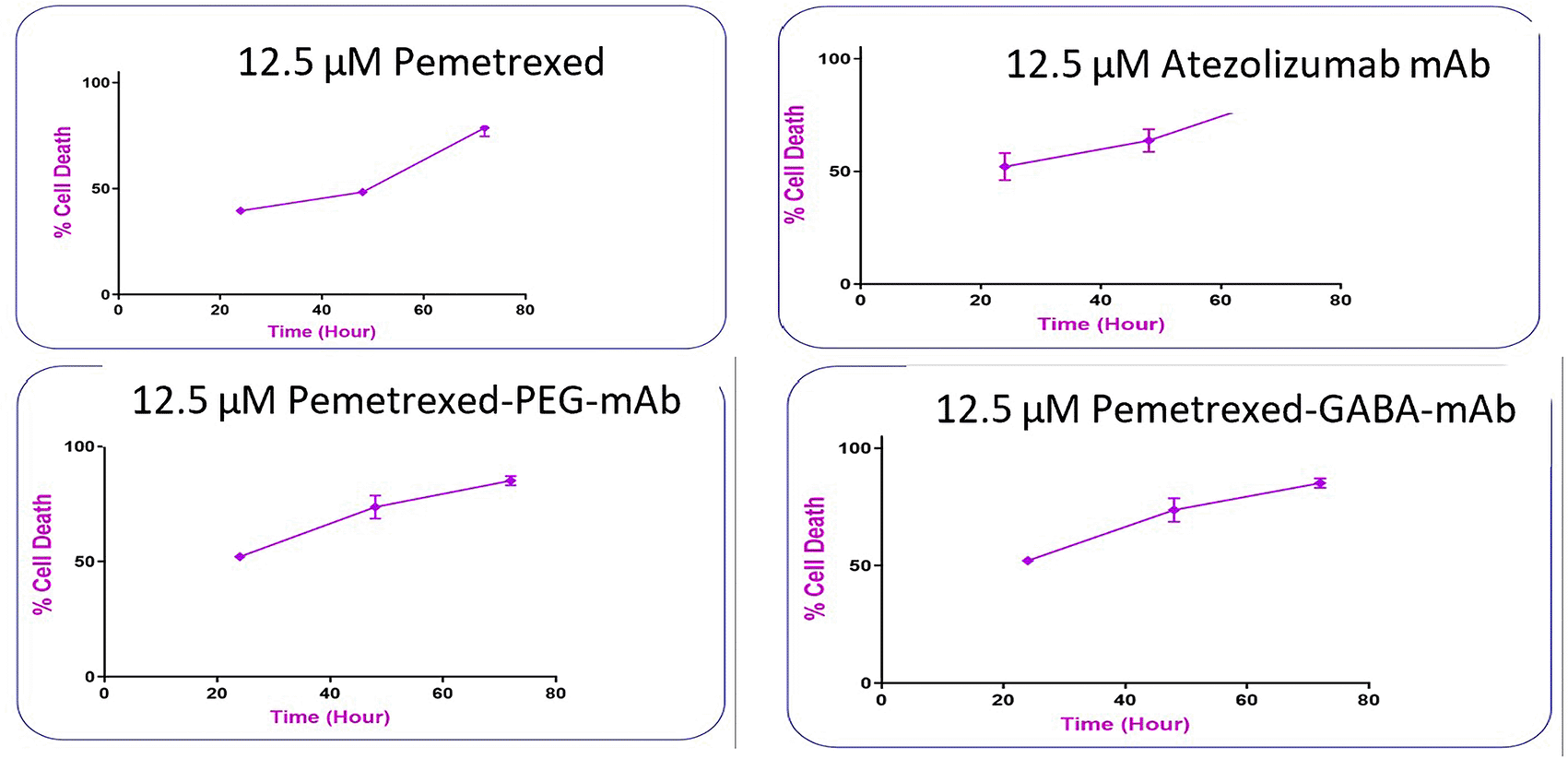

Figure 14. The time response curve at different times in lung cancer cells.

AtZ mAb with 12.5 μM concentration at 24 h lead to (52% cell death), at 48 h (63% cell death) and 72 h (85.14% cell death). which was also time dependent and agreed with reported data for AtZ,⁶⁸ but it was significantly (P≤ 0.05) higher than PMX confirming the potency (as well as selectivity) of the mAb as anticancer agent.⁶⁹

The PMX-PEG-AtZ mAb conjugate showed also time response and higher cytotoxic effect than PMX where it gave (with concentration 12.5 μM) cell death 52.16% at 24 h, 73.69% at 48 h, and 85.14% at 72 h, but it was not significantly higher than pure mAb.

The PMX-GABA-AtZ mAb conjugate (12.5 μM concentration) showed significant superior high percent of cell death with time than pure drug and PMX-PEG-AtZ mAb conjugate where it gave 71.16% cell death after 24 h, 83.69% after 48 h, and 95.17% cell death after 72 h. This confirms the contribution of GABA in enhancing the anticancer activity of both PMX and AtZ mAb in dose and time dependent manner. The data are available in a data repository in a pzfx and PDF format.⁷⁰
