Systematic Review
Revised

Reporting of angiographic studies in patients diagnosed with a cerebral arteriovenous malformation: a systematic review

[version 2; peer review: 3 approved with reservations]
Suparna Das
https://orcid.org/0000-0002-2152-2719
1, Paul Kasher
https://orcid.org/0000-0002-9213-502X
1, Mueez Waqar1, Adrian Parry-Jones1, Hiren Patel1
Suparna Das
https://orcid.org/0000-0002-2152-2719
1, Paul Kasher
https://orcid.org/0000-0002-9213-502X
1, [...] Mueez Waqar1, Adrian Parry-Jones1, Hiren Patel1
PUBLISHED 07 Oct 2024
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

Abstract

A cerebral arteriovenous malformation (cAVM) is an abnormal tangle of cerebral blood vessels. The consensus document by the Joint Writing Group (JWG) highlighted which cAVM features should be recorded. Subsequent publications have reported cAVM angioarchitecture, but it is unknown if all followed the JWG recommendations.

The aim of this systematic review was to describe use of the JWG guidelines.

A database search, using the PRISMA checklist, was performed. We describe the proportion of publications that used JWG reporting standards, which standards were used, whether the definitions used differed from the JWG, or if any additional angiographic features were reported.

Out of 4306 articles identified, 105 were selected, and a further 114 from other sources.

Thirty-three studies (33/219; 15%) specifically referred to using JWG standards.

Since the JWG publication, few studies have used their standards to report cAVMs. This implies that the angioarchitecture of cAVMs are not routinely fully described.

Keywords

cerebral arteriovenous malformation, angioarchitecture, reporting, consensus

Corresponding author: Suparna Das
Competing interests: No competing interests were disclosed.
Grant information: The authors would like to thank the Natalie Kate Moss Trust for their generous support. PK and AP-J are supported by the Stroke Association (TSA LECT 2017/02; SA L-RC 19\100000).
The funders had no role in study design, data collection and analysis, decision to publish, or preparation of the manuscript.
Copyright:  © 2024 Das S et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
How to cite: Das S, Kasher P, Waqar M et al. Reporting of angiographic studies in patients diagnosed with a cerebral arteriovenous malformation: a systematic review [version 2; peer review: 3 approved with reservations]. F1000Research 2024, 12:1252 (https://doi.org/10.12688/f1000research.139256.2) First published: 29 Sep 2023, 12:1252 (https://doi.org/10.12688/f1000research.139256.1) Latest published: 25 Nov 2024, 12:1252 (https://doi.org/10.12688/f1000research.139256.3)

Revised Amendments from Version 1

The introduction was expanded to explain the clinical implications of inconsistent reporting standards, and how it impacts on patient outcomes and treatment efficacy. Also expanded to include why the JWG is significantand  the premise was clearly defined that there is unstandardised reporting and the JWG standardises the process.

The results and discussion were expanded to reflect the premise and to include the compliance with JWG guidance in 'Western' papers.

Limitations were grouped under a separate section within the discussion chapter.

Discussion was also expanded to explain why there might be variation in JWG compliance.

See the authors' detailed response to the review by Nitin Mukerji
See the authors' detailed response to the review by Johan Wikström and Maria Correia de Verdier
See the authors' detailed response to the review by Mustafa Ismail

Introduction

Cerebral arteriovenous malformations (cAVMs) cause death and disability mostly in the young.1 A cAVM anatomically consists of a nidus, that shunts blood directly from the arterial feeders to the draining veins, in the absence of capillaries.2–4 It is best described radiologically using digital subtraction angiography (DSA), with the pathognomonic features being a nidus and early venous drainage.5 The angioarchitecture of a cAVM refers to the vascular elements of a cAVM that are demonstrated on angiogram. It encompasses feeding arteries, nidus, draining veins, vascular changes resulting from high blood flow, and any accompanying abnormal vascular appearances.5

The commonest presenting feature is haemorrhage (occurring in 38-71% of cAVMs), and this contributes the most to cAVM morbidity and mortality.4 The annual rate of cAVM rupture, and consequent intracerebral haematoma (ICH), is 2-4% with the highest risk within the first five years of diagnosis.5 There are multiple ICH risk factors, including young age, prior cAVM rupture, deep and infratentorial location, large cAVM size, and deep venous drainage.4,6 Mortality rates are linked to haemorrhage from ruptured cAVMs in a high proportion of cases (10-40%).5,6

Seizures are the second most common presentation (17-30% of cAVMs) with risk factors including absence of aneurysms, temporal, frontal or cortical locations, varices, middle cerebral artery and cortical feeders, previous cAVM haemorrhage, and male gender.4,7–9

Focal neurological deficits (occurring in 5-15%) may be explained by a vascular steal phenomenon, where high shunting through the cAVM causes a reduced vascular supply in the surrounding parenchyma.4,5 It could also be due to mass effect on vulnerable white matter pathways from compressive venous dilatation.5 Risk factors for focal neurological deficits include older age, female gender, deep location, and ectasia.10

The fact that cAVM treatment is associated with significant morbidity and mortality poses additional challenges. Treatment is currently aimed at shrinking or excising the lesion, usually after it has ruptured or caused symptoms. Management decisions require a case-by-case multidisciplinary discussion balancing risks and benefits: there is no definitive algorithm for management. This is because there is little understanding of the pathophysiology underpinning cAVMs, but also there is a lack of consistency in reporting. This inconsistency poses a significant challenge to the progress of cAVM treatment.

Typically, DSA is used to classify cAVMs. cAVM presentation is believed to rely on its angioarchitecture. The latter may also be used to guide treatment. Since cAVMs have a complex morphology with each malformation being unique, reliably classifying cAVMs is challenging for clinicians managing them.

cAVMs are graded using several methods, including Spetzler-Martin (most widely used), Spetzler-Ponce, Lawton-Young or Flickinger-Pollock. They either classify using anatomical grades, or based on the likelihood of success and treatment risks. Though these grading systems incorporate certain essential information required to aid in management decisions, none of them are very detailed or sufficiently extensive. Particularly, in those cases where the grading score does not provide a definitive answer regarding best management, further detail is important. An in-depth description of cAVM angioarchitecture is also vital for cAVM clinical research, which will contribute to improved patient treatment. Furthermore, although reliability studies have shown good intra-observer agreement on the characterisation of cAVM angioarchitecture, inter-observer agreement was poor.11

In an attempt to address this, a consensus document was published by the Joint Working Group (JWG) of the Technology Assessment Committee: this provides elementary and clear definitions of terms and recommends which clinical and radiological cAVM features should be described and recorded (Table 1).12 The JWG has been very comprehensive in compiling its list of angioarchitecture definitions. This group, consisting of neuroradiologists, neurosurgeons, stroke and interventional neurologists practising in the United States of America, was created to produce guidelines for cAVM research.12 The work done by the JWG has been very significant in establishing a uniform framework for reporting. Complying with their guidance improves clarity and comparability when reporting cAVMs, and when publishing research results.

Standardising the terminology used would not only facilitate clinical trials, but also day-to-day patient management. A detailed understanding of, for instance, venous drainage would facilitate decision-making by better being able to quantify the risks and benefits of operative vs endovascular vs stereotactic radiosurgery management.

Aims

The aim of this study was to systematically review the cAVM angioarchitecture literature to describe whether and how the JWG criteria were used.

Methods

The review protocol was sent for registration to PROSPERO but not accepted due to “a perceived lack of direct impact on patient outcomes”. Reporting was in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses (PRISMA) statement and checklist.13

Eligibility criteria

Peer-reviewed publications were searched from 1 Jan 2001 (when JWG standards were published) and limited to human subjects and the English language. There was no restriction on age or sex. Studies were excluded if they were reviews and/or exclusively discussed cavernous malformations, dural arteriovenous fistula, angioma, capillary telangiectasia, Vein of Galen Malformations or other angiographically occult vascular malformations.

Information sources

A database search was performed using EMBASE and Medline, on 15/07/19 by one reviewing author (SD). It was repeated on 10/9/20 to update the search by a second author (MW). There was independent assessment by a librarian and another reviewing author (HP). In addition to the electronic searches, we conducted citation tracking, checked the reference lists, and reviewed the list of similar articles.

Search strategy

To conduct searches of the Medline electronic bibliographic database, combinations of the following search terms were used.

Medical Subheadings: (Arteriovenous Malformations OR Arteriovenous Malformations, Intracranial) AND (Brain OR Intracranial)) AND (angioarchitecture OR angiogram OR angiographic OR aneurysm OR venous OR ectasia OR nidus OR angiogenesis OR varix).

Text Words: (Arteriovenous Malformations OR Arteriovenous Malformations, Intracranial) AND (Brain OR Intracranial)) AND (angioarchitecture OR angiogram OR angiographic OR aneurysm OR venous OR ectasia OR nidus).

Study selection

Studies were selected if they included any of the search strategy’s features: titles and abstracts were reviewed. Figure 1 demonstrates how articles were excluded.

Data collection process

Data extraction was performed by two independent reviewers (SD and HP) using the studies’ full text versions and by reviewing inclusion and exclusion criteria. Any disagreements were discussed between the two reviewers and an agreement reached. Pre-designed and piloted proforma were used.

Data items

All the individual data items collected from each paper are listed in Table 1.

Table 1. The cAVM angioarchitecture fields suggested by the JWG.12

Definition/categorisation (if present)
Proposed fields

  • • Location

  • • n/a

  • • Size

  • • recorded from MRI and angiography, measured in 3 dimensions (including cAVM’s largest diameter), volume calculated with ABC/2 formula

  • • Eloquence

  • • as per SMG score

  • • Border

  • • islands of normal cerebral parenchyma within cAVM nidus vs clearly outlined border with neighbouring parenchyma

Venous drainage

  • • superficial vs deep

  • • Superficial: all cAVM drainage through cortical venous system.

  • • Deep: if any/all drainage is through deep veins.

  • • periventricular

  • • drainage distinct from other deep venous drainage

  • • number of draining veins

  • • number of discrete venous channels leaving the nidus

  • • number of veins reaching sinus

  • • number of draining veins reaching any of these sinuses: superior sagittal, straight, transverse, sigmoid, cavernous, superior or inferior petrosal

  • • venous stenosis

  • • narrowing of any draining vein outflow pathway in two angiographic views

  • • venous ectasia

  • • more than double the calibre in any draining venous channel

  • • venous reflux

  • • flow reversal in any venous outflow pathway in a direction different than that to the nearest venous sinus

  • • sinus thrombosis

  • • dural venous sinus filling defect

Arterial supply

  • • feeding arteries

  • • arterial structure which displays a flow contribution to the AV shunt on DSA

  • • arterial aneurysms

  • • parent feeding vessel’s saccular dilatations

  • • Moyamoya-type changes

  • • pattern of angiographic changes indicating feeding artery occlusion

  • • Pial-to-pial collateralisation

  • • recruiting of side-by-side pial-to-pial collaterals not part of the nidus

  • • Intravascular pressure measurements

  • • n/a

Risk of bias in individual studies

Risk of bias was determined by two independent reviewers (SD and HP) using a version of a score devised to determine the methodological quality of case series and case reports,14 modified to expand its application to other study types. For each study, the quality assessment questions used were:

  • • Diagnosis: Are diagnostic criteria (as defined) for cAVM clearly identified and met?

  • • Is the method of cerebral angiography described, including the arterial injections, views taken, and what structures are included in a standard view?

  • • Is the method of calibration described?

  • • Are the cerebral angiograms reported on by two blinded neuroradiologist(s)?

  • • Were the patients reported collected over a short period of time in sufficient numbers?

  • • Is intra-rater reliability reported for each publication?

Summary measures

The principal summary measures were the number of studies following the JWG terminology and the angioarchitectural fields described.

Synthesis of results

This review aimed to assess if the description of cAVM angioarchitecture is standardised according to the JWG criteria and to explore if there are additional features that could be used to describe cAVMs and added to the JWG reporting standards. Additional features could be required to describe cAVMs as shown by some studies. Our objectives were to describe:

  • 1. which of the JWG reporting standards were used,

  • 2. adherence to definitions used in the JWG document,

  • 3. novel angiographic features not mentioned by the JWG, and

  • 4. the profession and experience of those reporting cAVMs.

We also compared the inter-observer agreement of different studies for the common criteria studied.

Risk of bias across studies

Publication and selective reporting biases were assessed.

Results

Study search

We identified 4306 publications (Figure 1) and 219 articles were selected for full-text review, reporting the angiogram findings potentially for 54, 148 individuals in total.


Figure 1. PRISMA flowchart demonstrates screening process for article selection.

Study designs

Most studies were retrospective (63%), with the remainder being prospective (27.9%), case reports (2.7%), studies that were both prospective and retrospective (2.7%), and educational (3.7%).

Publication trends

The studies spanned from 2001 to 2020 (the JWG report was published in 2001). The number of patients in each study ranged from 1 to 3923. The median was 120 (interquartile range: 30 to 278). The countries individually publishing the highest number of studies were China (15.5%) and the United States of America (15.1%). Studies from Western Europe, North America and Asia made up 26.5% of studies, with other countries (publishing fewer studies, i.e. one to four studies each) making up 69.9%.

Beijing Tiantan Hospital published more papers than any other centre, with data from this single centre contributing to 26 (74.3%) of the studies from China and 11.9% overall. Several studies used the same study populations, occasionally with a few more cases added due to an extension of study duration by a few years (Table 2). Out of Beijing Tiantan’s 26 studies, the commonest author groups were Lv et al and Tong et al (five studies for each author group) with the same sample population used three times for each of these two author groups (Table 2). The University of California (San Francisco) (18; 8.2%), University of Virginia (Charlottesville) (7; 3.2%), and Columbia University (New York) (6; 2.7%) were the most frequently publishing American institutions.

Table 2. Author groups with same or overlapping study populations, with the number of studies each, and the mean sample size for each group.

Author group with overlapping study populationsNumber of studies (%)Mean sample size
Beijing Tiantan Hospital
Lv, Wu, Jiang, Yang, Li, Sun, Zhang67,182,1843 (1.4)302
Ma, Kim, Chen, Wu, Ma, Su, Zhao65,662 (0.9)108
Tong, Wu, Lin, Cao, Zhao, Wang, Zhang, Zhao64,185, 773 (1.4)225
The First Affiliated Hospital of Guangzhou Medical University
Pan, Feng, Vinuela, He, Wu, Zhan69,1112 (0.9)152
University of California, San Francisco
Du, Dowd, Johnston, Young, Lawton99,1872 (0.9)304
John Hopkins University, Baltimore
Yang, Liu, Hung, Braileanu, Wang, Caplan, Colby, Coon, Huang76,902 (0.9)123
University of Virginia, Charlottesville
Ding, Starke, Quigg, Yen, Xu, Przybylowski, Dodson, Sheehan78,188–1904 (1.8)1400
University of Illinois, Urbana-Champaign
Shakur, Valyi-Nagy, Amin-Hanjani, Ya qoub, Aletich, Charbel, Alaraj71,72,152,1793 (1.4)80
Columbia University, New York
Stapf, Mohr, Pile-Spellman, Sciacca, Hartmann, Schumacher, Mast71,72,152,1794 (1.8)542
Hospital Lariboisiere, Paris
Choi, Mast, Hartmann, Marshall, Stapf177,1782 (0.9) same study population as Stapf et al735

Topics reported

Given the clinical importance of predicting haemorrhage, the aim of 65 papers (29.7%) was to test for associations between angioarchitecture and risk of bleeding (including location).1,15–78 Twelve studies tested for an association between angioarchitecture and risk of seizure.79–90

Standard imaging was compared against novel imaging techniques in four studies, and pre-operative imaging was investigated in two studies.91–96 Three studies assessed haemodynamics.37,97,98

Eleven papers studied various grading scores.91,99–108 The Spetzler-Martin Grade was the most commonly analysed, but others included the Spetzler-Ponce, Lawton-Young, and Pollock-Flickinger. Out of these 11 studies, seven assessed and proposed different grading systems.101–105,107,108

Four papers assessed the reliability of different cAVM grading scales, and two studies assessed the reliability in describing cAVM angioarchitecture.11,91,99,100,106,109 Agreement ranged from fair to excellent for both inter- and intra-rater comparisons.

Angioarchitectural characteristics were reported in association with treatments: embolisation,26,52,55,101,103,109–138 surgery,15,95,110,119,120,122,123,126,139–154 and stereotactic radiosurgery.53,83,97,60,113,119,122,123,126,129,140,145,155–161

In those studies that assessed inter-observer agreement, the commonest criteria investigated were size, SMG, venous drainage, and arterial feeders. The lowest scores were 0.62,91 0.46,91 0.56,92 and 0.695 respectively. The highest scores were 0.98,162 0.96,163 0.89,164 and 0.91164 respectively.

Quality of studies

Overall, the quality of the reporting studies was poor, with several of the study quality criteria not fulfilled (Table 3). Only 48 out of 219 studies (21.9%) used the definitions recommended by the JWG for some of the features reported (Table 3),16,19,20,23,24,26,28–30,33,35,38,47,49,55–57,61,64,66,67,71,72,75,77,90,152,156,159,165–181 with only 33 publications (15.1%) reporting and specifically mentioning using the JWG standards. Out of the ‘Western’ papers that provide a detailed angioarchitecture description, 21 publications (18.8%) used the JWG standards.

Table 3. Publications listed by authors in alphabetic order, associated with criteria assessing study quality.

The list excludes studies which do not describe angioarchitecture in detail e.g. only report location. White boxes indicate criteria fulfilled; dark grey boxes indicate criteria absent. a = JWG standard used; b = cAVM diagnostic criteria; c = DSA method: arterial injections; d = DSA method: views; e = Calibration method; f = Inter-rater reliability assessed; g = Statistics performed.

Study authorabcdefg
Abla 201474
Abecassis194
Al-Shahi11
Al-Tamimi195
Alen196
Alexander16
Anderson197
Benson88
Bharatha198
Blanc137
Braileanu199
Brunozzi 2017200
Brunozzi 2019166
Burkhardt176
Chang201
Chen202
Choi 2006177
Choi 2009178
Chowdhury168
Cuong93
D'Aliberti45
De Blasi203
de Castro-Afonso204
Guo46
Halim 200439
Halim 200247
Hernesniemi211
Hetts212
Hofmeister173
Huang32
Hung 201949
Iancu-Gontard109
Illies25
Imbesi213
Iryo214
Jayaraman 2012115
Jiang215
Jiao102
Jin24
Kakizawa216
Kandai19
Kellner17
Khaw29
Kim 200433
Kim 200750
Kim 201430
Kouznetsov217
Dinc 201942
Dinc 2018205
Ding 201736
Ding 201589
Dos Santos170
Du 2005206
Du 2016207
Ellis20
Fierstra87
Fleetwood208
Fok23
Frisoli106
Fukuda 2016209
Fukuda 2017171
Fullerton56
Galletti85
Garcin172
Gauvrit92
Geibprasert210
Griessenauer100
Kubalek63
Kurita218
Lee219
Liew220
Lin221
Liu 201582
Luo 2012183
Lv 2013182
Lv 2011a184
Lv 2011b67
Lv 2015222
Ma 2017a65
Ma 2017b66
Ma 201573
Majumdar57
Miyasaka40
Morgan 2016140
Motebejane223
Neidert104
Nishino224
Nisson 2020105
Niu22
Ognard91
Orning44
Oulasvirta225
Ozyurt162
Pan 201369
Patel226
Pawlikowska35
Pekmezci227
Reitz21
Riordan54
Robert 2014228
Robert 2017103
Robert 2015136
Sahlein61
Schmidt48
Schwartz229
Shakur 2016a41
Shakur 2016b98
Shakur 2018230
Shakur 2015231
Shankar79
Sheng232
Shotar108
Singh94
Stapf 2003179
Stapf 2002b180
Stapf 200672
Stefani 200168
Stefani 200270
Stein 2016b123
Stein 2015181
Sturiale58
Suzuki96
Tanaka144
Taschner164
Tasic59
Todaka27
Togao 2019233
Togao 2020163
Tong 2016a185
Tong 2016b64
Tong 2016c77
Tritt234
Tsuchiya95
Unlu235
Wrede236
Yamada1
Yang 2016b38
Yang 201743
Yang 2016a76
Yang 2015b90
Yang 2015a175
Ye237
Yi167
Yu31
Zwanzger238

Risk of bias within studies

Biases in the studies were because there was a small population size (less than 100 cases) in 100 studies, a second professional did not independently review angiograms in any of the studies, and there was often a re-analysis of datasets.

Number of studies reporting individual angioarchitectural features

The common angioarchitectural features are listed with the associated number of studies (Figure 2). Most studies described nidus size (175 studies; 78%), location (153; 68%), border (29; 12.9%), venous drainage (173; 76.9%), feeding arteries (88; 39.1%), and the presence of aneurysms (121; 53.8%). No studies described the angiographic features of pial to pial collaterals or Moya-Moya type changes as recommended by the JWG.

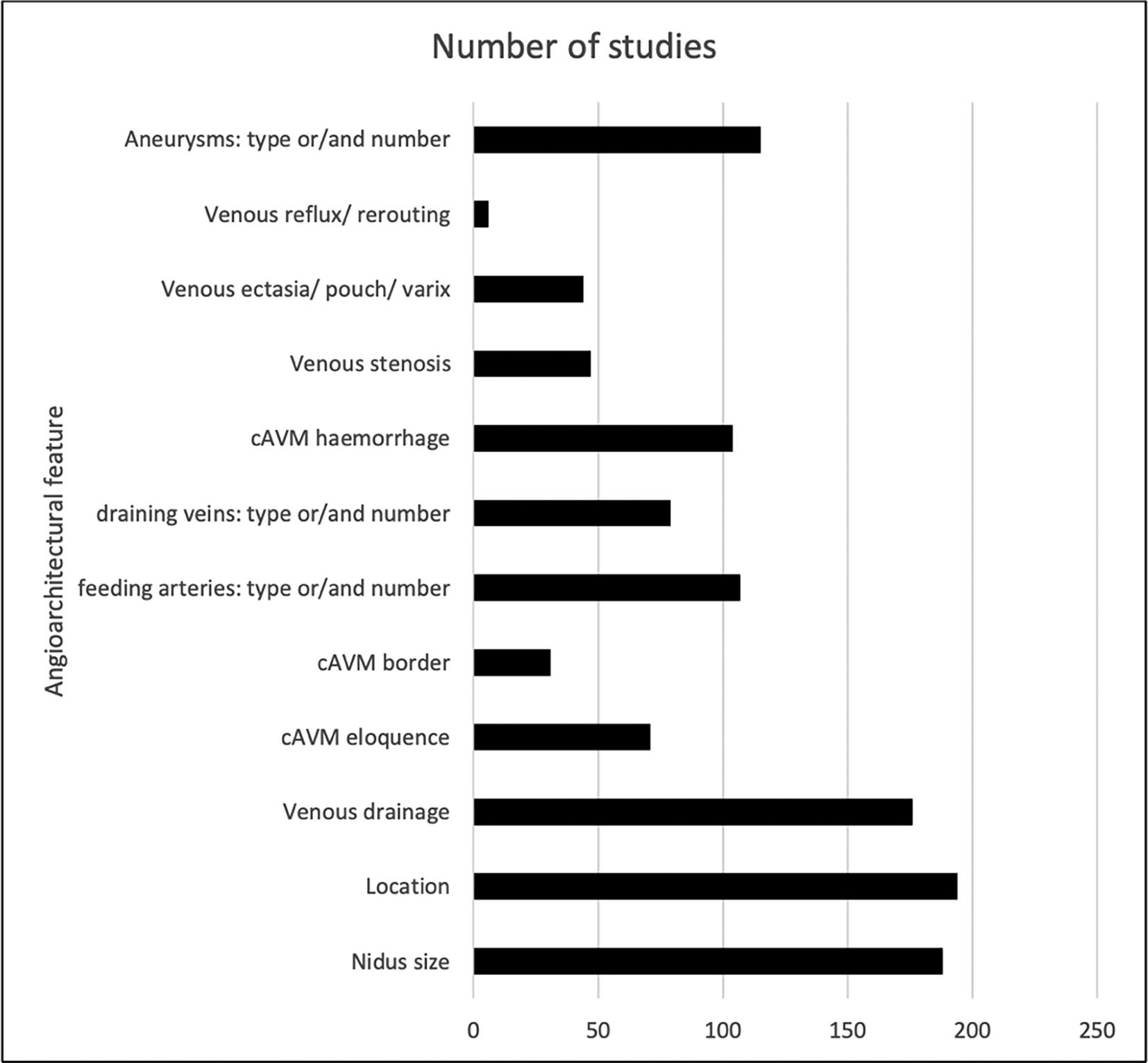

Figure 2. Key angiographic features listed in the Joint Writing Group’s recommendations, and the frequency with which they were reported on and defined in the studies identified.

Many studies used a variety of the recommended angiographic features, though not necessarily defining these features in the same way as the JWG (Table 4).

Table 4. Angiographic features recommended for reporting cAVMs by the JWG associated with the number of studies that record each feature.

They may have different definitions for these features compared to that stipulated by the JWG.

Angiographic feature described by the JWGNumber of studies (%)
AVM size175 (78)
AVM location153 (68)
Eloquence72 (32)
AVM border29 (12.9)
Venous drainage173 (76.9)
Number of draining veins71 (31.6)
Venous stenosis47 (20.9)
Venous ectasia42 (18.7)
Feeding artery88 (39.1)
Aneurysm121 (53.8)
Moyamoya-type changes0
Pial-to-pial collateralisation0
Intravascular pressure measurements0

Almost all the features described using the JWG guidelines were given different definitions, including, type of feeders, arterial feeders, and haemorrhagic presentation.

cAVM location was not described by the JWG, and this feature had the largest range of definitions. Some specified what constitutes deep, cortical, and/or infratentorial1,24,32,67,182,183 or dichotomised location into supratentorial and infratentorial.29,147,184,185 There were further categorisations into posterior fossa and periventricular by Ma et al.174

Venous ectasia was the feature with the second-most variations of definition. Whereas the JWG defines it as double the calibre change in any draining venous channel, others have described it as 1.5 times larger than the contralateral vessel,186 and two papers are broader in their definitions, describing venous ectasia as a markedly ectatic vein,107 or an abnormal dilatation.68,70

Aneurysms were defined as a saccular luminal dilatation of parent feeding vessels by the JWG. Most papers have essentially stated the aneurysm should be double the width of the artery, with only one definition stating the diameter is at least the same as that of the parent vessel.28

Numerous studies described angioarchitectural features which were not mentioned in the JWG report and these are described in Table 5. These features included perinidal angiogenesis, AVM nidus, deep location, and venous varix/pouch.

Table 5. The most commonly described additional angiographic features (with their associated definitions) that are not listed in the JWG standards.

Angiographic featureDefinitionNumber of studies
AVM nidus

  • • the vascular mass included in the AVM size measurement (Stapf 2003, Stapf 2006, Khaw)

  • • the junction between the feeding arteries and draining veins, without a capillary bed (Mohr)

4
Perinidal angiogenesis

  • • Vascular network within brain parenchyma between the nidus and feeding artery terminal segment, without visible arteriovenous shunts (Valavanis)

  • • Indirect supply to the AVM periphery from arterial branches other than the main arterial feeders (Shankar)

  • • The formation of a new network of arteriocapillaries in the white matter around an AVM in reaction to hypoxia. This is caused by the steal effect from a high flow nidus in the perinidal brain (Taeshineetanakul, Hu)

4
Deep location

  • • Includes basal ganglia, internal capsule, thalamus, and corpus callosum (Lin)

  • • The larger portion of the nidus is localised in deep white matter tracts, basal ganglia and thalamus, peri-ventricular regions, or posterior fossa (da Costa 2009)

  • • Includes the cerebellum, thalamus, basal ganglia, internal capsule, corpus callosum, and brainstem (Hu)

3
Venous varix/pouch/ectasia

  • • Markedly ectatic vein (Lv 2013, Luo)

  • • Focal dilatations at least twice as large as the vein diameter (Pan 2013)

  • • Focal aneurysmal dilation in the draining venous system (Daou)

  • • Proximal draining vein’s focal aneurysmal dilation (Chen 2017)

  • • Bleb that originates on the nidus venules with no defined relationship with a draining vein (D’Aliberti)

  • • Change of greater than 200% in the focal venous diameter of any drainage vein (Hu)

7

Professions conducting studies

The most common profession conducting these studies were neuroradiologists/neuro-interventionalists (101 studies) and neurosurgeons (60 studies). A neuropathologist was involved in one study.

Discussion

We have shown that only 33 studies of 219 (15.1%) included in our systematic review explicitly followed the JWG standards since their publication 20 years ago.12 Out of the ‘Western’ papers that describe angioarchitecture in detail, 21 publications (18.8%) used the JWG standards. Additionally, most studies reported venous drainage (76.9%), cAVM size (78%), and cAVM location (68%), suggesting these features are frequently considered as cAVM angioarchitecture. These parameters were the most widely used, likely due to their relation to the SMG system.

Since 219 publications were reviewed as providing data on angioarchitecture, it appears that this topic is considered important. Most commonly angioarchitectural features were used to test for associations with outcomes relevant to cAVM such as haemorrhage.

In those studies that assessed inter-observer agreement, the criteria most frequently used for comparison were size, SMG, venous drainage, and arterial feeders. It is possible that the other criteria were less used as they were more difficult to analyse on imaging.

Often, certain cAVM features are not reported as they are not present e.g. absence of venous stenosis. However, we argue that important negative findings should be mentioned in all cAVM reports. Adherence to the JWG guidelines will permit more comprehensive cAVM reporting, which will facilitate improved decision-making.

Twenty years have passed since the publication of the JWG definitions and, not unsurprisingly, several papers have reported on additional aspects of angioarchitecture which the JWG had not considered. These additional features may be helpful in understanding cAVMs and consideration should be given for their inclusion in any future update. These features are perinidal angiogenesis, deep location, venous and arterial dilatation. Angiogenesis is important for the formation and development of a cAVM and its presence may be useful in surgical planning.135 The precise location of a cAVM is crucial with well accepted definitions key for a shared understanding when discussing patient management. Venous dilatation is helpful to describe as it indicates if there may be high or low-pressure flow in the cAVM, with a larger vein reducing the pressure in a cAVM.45,69,161,174,182,183,206 This would be relevant to decide on the management approach. Equally, arterial dilatation29,86,160,186 may imply high-pressure flow in a cAVM, particularly if combined with a single vein of regular dimensions and may have clinical implications.

In this review, we also observed that pial-pial collaterals and Moya-moya changes were not recorded. This may reflect the difficulty in identifying these features, but also may suggest that they occur infrequently.

Including the JWG criteria in studies on cAVM angioarchitecture enhances the academic rigour and credibility of research publications. Few studies specifically mentioned adhering to the JWG guidelines, and in those that did not, no reasons were given for omitting them. A possible practical reason was the lack of technical equipment. Facilities will vary in different countries, including the type of biplane machine for angiograms. The widespread use of the JWG standards will have good implications for multi-centre studies and longitudinal research. It was not possible to include perspectives from various stakeholders like clinicians, researchers, and healthcare policymakers, as the few studies that made reference to the JWG, do not make any comments or provide any feedback regarding the JWG.

Limitations

Given that overall, the technical quality of publications was low, that most studies were retrospective and from small single centre series, the validity of results from these series could be questioned. Data reported from larger series also lacked the full consideration of angioarchitecture and often the same dataset was used for association studies again compromising the associations reported. In addition, as a large proportion of studies were published by single institutions, the results may not be generalisable to other cAVM populations. A similar problem was that a high proportion of publications were based on Chinese populations, particularly conducted by a specific hospital (Beijing Tiantan hospital), making results less generalisable. There was therefore potential publication bias. It may be too harsh to expect reporting by two independent neuroradiologists. There would certainly be variations in the access to technology across different health systems around the world, which would pose additional practical challenges to the universal application of the JWG standards.

Conclusion

The JWG publication did clarify that the definitions were parameters to be used in research studies.19 They have also discussed that there were no minimal criteria that should be used, emphasising that the angioarchitectural criteria were based on reasoned speculation. However, given that many of the criteria are likely to be interdependent, and studies are increasingly used to show associations with clinical presentation, this review would support the need to establish another working group to incorporate additional angiographic features and to include more specific and precise definitions for some of the features that were left open to interpretation. We would argue that these recommendations should then be widely publicised and uniformly incorporated into national and local reporting guidelines to help guide research and to ensure that clinicians can appropriately interpret this research with the understanding of the common language.

Registration and protocol

This review was not registered as described above. The review protocol can be accessed on BioStudies. The link is https://www.ebi.ac.uk/biostudies/studies/S-BSST1168. The accession number is S-BSST1168.

Data availability

BioStudies. Review of angioarchitecture literature SD. DOI: https://www.ebi.ac.uk/biostudies/studies/S-BSST1168BioStudies.

The raw data is in two files titled:

  • - ‘Review of angioarchitecture literature SD’ and

  • - ‘Review of angioarchitecture literature quality SD’.

The content is raw data from the papers used in the systematic review. The accession number is S-BSST1168.

Reporting guidelines

Biostudies. PRISMA checklist. DOI: https://www.ebi.ac.uk/biostudies/studies/S-BSST1168. The flow diagram is in Figure 1.

Acknowledgements

The authors would like to thank the Natalie Kate Moss Trust for their generous support. PK and AP-J are supported by the Stroke Association (TSA LECT 2017/02; SA L-RC 19\100000).

References

  • 1.  Yamada S, Takagi Y, Nozaki K, et al.: Risk factors for subsequent hemorrhage in patients with cerebral arteriovenous malformations. J. Neurosurg. 2007; 107(5): 965–972. Publisher Full Text
  • 2.  Kim H, Su H, Weinsheimer S, et al.: Brain arteriovenous malformation pathogenesis: A response-to-injury paradigm. Acta Neurochir. Suppl.2011; 111: 83–92. PubMed Abstract | Publisher Full Text | Free Full Text
  • 3.  Valavanis A, Pangalu A, Tanaka M: Endovascular treatment of cerebral arteriovenous malformations with emphasis on the curative role of eembolisation. Swiss Arch. Neurol. Psychiatry. 2004; 155(7): 341–347. Publisher Full Text
  • 4.  Can A, Gross BA, Du R: The natural history of cerebral arteriovenous malformations. Handb. Clin. Neurol. Arter. Cavernous Malformations. 2017; 143(Chapter 2): 15–24. Publisher Full Text
  • 5.  Kim EJ, Vermeulen S, Li FJ, et al.: A review of cerebral arteriovenous malformations and treatment with stereotactic radiosurgery. Transl. Cancer Res. 2014; 3(4): 399–410. Publisher Full Text
  • 6.  Yasargil M: A Legacy of Microneurosurgery: Memoirs, Lessons, and Axioms. Neurosurgery. 1999; 45(5): 1025–1092. PubMed Abstract | Publisher Full Text
  • 7.  Vasudevan A, Bhide P: Monitoring endothelial cell development and migration in the embryonic CNS. PROTOCOL. 2008: 1–4. Publisher Full Text
  • 8.  Kim H, Marchuk DA, Pawlikowska L, et al.: Genetic considerations relevant to intracranial hemorrhage and brain arteriovenous malformations. Acta Neurochir. Suppl. 2008; 105: 199–206. PubMed Abstract | Publisher Full Text | Free Full Text
  • 9.  Hashimoto N, Nozaki K. Do cerebral arteriovenous malformations recur after angiographically confirmed total extirpation? Crit. Rev. Neurosurg.1999; 9(3): 141–146. Publisher Full Text
  • 10.  Bederson J, Wiestler O, Brüstle O, et al.: Intracranial venous hypertension and the effects of venous outflow obstruction in a rat model of arteriovenous fistula. Neurosurgery. 1991; 29(3): 341–350. PubMed Abstract | Publisher Full Text
  • 11.  Al-Shahi R, Pal N, Lewis SC, et al.: Observer agreement in the angiographic assessment of arteriovenous malformations of the brain. Stroke. 2002; 33(6): 1501–1508. PubMed Abstract | Publisher Full Text
  • 12.  Committee JWG of the TA, Neuroradiology AS of I and T, Neurosurgery JS on C, Surgeons a S of the AA of N: Reporting Terminology for Brain Arteriovenous Malformation Clinical and Radiographic Features for Use in Clinical Trials. Stroke. 2001; 32(6): 1430–1442. PubMed Abstract | Publisher Full Text
  • 13.  Moher D, Liberati A, Tetzlaff J, et al.: Preferred reporting items for systematic reviews and meta-analyses: The PRISMA statement. BMJ. 2009; 339(7716): 332–336. PubMed Abstract | Publisher Full Text | Free Full Text
  • 14.  Murad MH, Sultan S, Haffar S, et al.: Methodological quality and synthesis of case series and case reports. Evid. Based Med. 2018; 23(2): 60–63. PubMed Abstract | Publisher Full Text | Free Full Text
  • 15.  Tong X, Wu J, Lin F, et al.: Brain arteriovenous malformations in elderly patients: clinical features and treatment outcome. Acta Neurochir. 2015; 157(10): 1645–1654. Publisher Full Text
  • 16.  Alexander M, Cooke D, Nelson J, et al.: Association between Venous Angioarchitectural Features of Sporadic Brain Arteriovenous Malformations and Intracranial Hemorrhage. AJNR Am. J. Neuroradiol. 2015; 36(5): 949–952. PubMed Abstract | Publisher Full Text | Free Full Text
  • 17.  Kellner C, McDowell M, Phan M, et al.: Number and location of draining veins in pediatric arteriovenous malformations: Association with hemorrhage. J. Neurosurg. Pediatr. 2014; 14(5): 538–545. PubMed Abstract | Publisher Full Text | Free Full Text
  • 18.  Du X, Li X, Wang S, et al.: Risk factors for hemorrhage in patients with cerebral arteriovenous malformations. Int. J. Clin. Exp. Med. 2016; 9(3): 6649–6655. Reference Source
  • 19.  Kandai S, Abdullah MS, Naing NN: Angioarchitecture of brain arteriovenous malformations and the risk of bleeding: An analysis of patients in Northeastern Malaysia. Malaysian J. Med. Sci. 2010; 17(1): 44–48.
  • 20.  Ellis M, Armstrong D, Vachhrajani S, et al.: Angioarchitectural features associated with hemorrhagic presentation in pediatric cerebral arteriovenous malformations. J. Neurointerv. Surg. 2013; 5(3): 191–195. PubMed Abstract | Publisher Full Text
  • 21.  Reitz M, von Spreckelsen N , Vettorazzi E, et al.: Angioarchitectural Risk Factors for Hemorrhage and Clinical Long-Term Outcome in Pediatric Patients with Cerebral Arteriovenous Malformations. World Neurosurg. 2016; 89: 540–551. PubMed Abstract | Publisher Full Text
  • 22.  Niu H, Cao Y, Wang X, et al.: Relationships between hemorrhage, angioarchitectural factors and collagen of arteriovenous malformations. Neurosci. Bull. 2012; 28(5): 595–605. PubMed Abstract | Publisher Full Text | Free Full Text
  • 23.  Fok EWS, Poon WL, Tse KS, et al.: Angiographic factors associated with haemorrhagic presentation of brain arteriovenous malformation in a Chinese paediatric population. Hong Kong Med. J = Xianggang yi xue za zhi. 2015; 21(5): 401–406. Publisher Full Text
  • 24.  Jin H, Lenck S, Krings T, et al.: Interval angioarchitectural evolution of brain arteriovenous malformations following rupture. J. Neurosurg. 2019; 131(1): 96–103. PubMed Abstract | Publisher Full Text
  • 25.  Illies T, Forkert N, Saering D, et al.: Persistent hemodynamic changes in ruptured brain arteriovenous malformations. Stroke. 2012; 43(11): 2910–2915. PubMed Abstract | Publisher Full Text
  • 26.  Lai L-F, Chen J-X, Zheng K, et al.: Posterior fossa brain arteriovenous malformations: Clinical features and outcomes of endovascular embolization, adjuvant microsurgery and radiosurgery. Clin. Neuroradiol. 2018; 28(1): 17–24. Publisher Full Text
  • 27.  Todaka T, Hamada J, Kai Y, et al.: Analysis of Mean Transit Time of Contrast Medium in Ruptured and Unruptured Arteriovenous Malformations: A Digital Subtraction Angiographic Study.2003; 34: 2410–2414. PubMed Abstract | Publisher Full Text
  • 28.  Da Costa L, Wallace M, Ter Brugge K, et al.: The natural history and predictive features of hemorrhage from brain arteriovenous malformations. Stroke. 2009; 40(1): 100–105. PubMed Abstract | Publisher Full Text
  • 29.  Khaw A, Mohr J, Sciacca RR, et al.: Association of Infratentorial Brain Arteriovenous Malformations with Hemorrhage at Initial Presentation. Stroke. 2004; 35(3): 660–663. PubMed Abstract | Publisher Full Text
  • 30.  Kim H, Al-Shahi Salman R, McCulloch C, et al.: Untreated brain arteriovenous malformation: Patient-level meta-analysis of hemorrhage predictors. Neurology. 2014; 83(7): 590–597. PubMed Abstract | Publisher Full Text | Free Full Text
  • 31.  Yu J, Nicholson A, Nelson J, et al.: Predictors of intracranial hemorrhage volume and distribution in brain arteriovenous malformation. Interv. Neuroradiol. 2018; 24(2): 183–188. PubMed Abstract | Publisher Full Text | Free Full Text
  • 32.  Huang Z, Peng K, Chen C, et al.: A Reanalysis of Predictors for the Risk of Hemorrhage in Brain Arteriovenous Malformation. J. Stroke Cerebrovasc. Dis. 2018; 27(8): 2082–2087. PubMed Abstract | Publisher Full Text
  • 33.  Kim E, Halim A, Dowd C, et al.: The relationship of coexisting extranidal aneurysms to intracranial hemorrhage in patients harboring brain arteriovenous malformations. Neurosurgery. 2004; 54(6): 1349–1358. PubMed Abstract | Publisher Full Text
  • 34.  Ai X, Ye Z, Xu J, et al.: The factors associated with hemorrhagic presentation in children with untreated brain arteriovenous malformation: A meta-analysis. J. Neurosurg. Pediatr. 2019; 23(3): 343–354. PubMed Abstract | Publisher Full Text
  • 35.  Pawlikowska L, Tran M, Achrol A, et al.: Polymorphisms in genes involved in 53 inflammatory and angiogenic pathways and the risk of hemorrhagic presentation of brain arteriovenous malformations. Stroke. 2004; 35(10): 2294–2300. PubMed Abstract | Publisher Full Text
  • 36.  Ding D, Starke RM, Kano H, et al.: International multicenter cohort study of pediatric brain arteriovenous malformations. Part 1: Predictors of hemorrhagic presentation. J. Neurosurg. Pediatr. 2017; 19(2): 127–135. PubMed Abstract | Publisher Full Text
  • 37.  Lin T, Yang H, Lee CC, et al.: Stasis index from hemodynamic analysis using quantitative DSA correlates with hemorrhage of supratentorial arteriovenous malformation: a cross-sectional study. J. Neurosurg. 2020; 132: 1574–1582. PubMed Abstract | Publisher Full Text
  • 38.  Yang W, Liu A, Hung AL, et al.: Lower Risk of Intracranial Arteriovenous Malformation Hemorrhage in Patients With Hereditary Hemorrhagic Telangiectasia. Neurosurgery. 2016; 78(5): 684–693. PubMed Abstract | Publisher Full Text
  • 39.  Halim A, Johnston S, Singh V, et al.: Longitudinal risk of intracranial hemorrhage in patients with arteriovenous malformation of the brain within a defined population. Stroke. 2004; 35(7): 1697–1702. PubMed Abstract | Publisher Full Text
  • 40.  Miyasaka Y, Kurata A, Irikura K, et al.: The influence of vascular pressure and angiographic characteristics on haemorrhage from arteriovenous malformations. Acta Neurochir. 2000; 142(1): 39–43. Publisher Full Text
  • 41.  Shakur S, Liesse K, Amin-Hanjani S, et al.: Relationship of cerebral arteriovenous malformation hemodynamics to clinical presentation, angioarchitectural features, and hemorrhage. Neurosurgery. 2016; 63(Supplement1): 136–140. PubMed Abstract | Publisher Full Text Reference Source
  • 42.  Dinc N, Won SY, Quick-Weller J, et al.: Prognostic variables and outcome in relation to different bleeding patterns in arteriovenous malformations. Neurosurg. Rev. 2019; 42(3): 731–736. PubMed Abstract | Publisher Full Text
  • 43.  Yang W, Caplan J, Ye X, et al.: Racial Associations with Hemorrhagic Presentation in Cerebral Arteriovenous Malformations. World Neurosurg. 2015; 84(2): 461–469. PubMed Abstract | Publisher Full Text
  • 44.  Orning J, Amin-Hanjani S, Hamade Y, et al.: Increased prevalence and rupture status of feeder vessel aneurysms in posterior fossa arteriovenous malformations. J. Neurointerv. Surg. 2016; 8(10): 1021–1024. PubMed Abstract | Publisher Full Text
  • 45.  D’Aliberti G, Talamonti G, Cenzato M, et al.: Arterial and venous aneurysms associated with arteriovenous malformations. World Neurosurg. 2015; 83(2): 188–196. Publisher Full Text
  • 46.  Guo Y, Saunders T, Su H, et al.: Silent intralesional microhemorrhage as a risk factor for brain arteriovenous malformation rupture. Stroke. 2012; 43(5): 1240–1246. PubMed Abstract | Publisher Full Text | Free Full Text
  • 47.  Halim A, Singh V, Johnston S, et al.: Characteristics of brain arteriovenous malformations with coexisting aneurysms: A comparison of two referral centers. Stroke. 2002; 33(3): 675–679. PubMed Abstract | Publisher Full Text
  • 48.  Schmidt N, Reitz M, Raimund F, et al.: Clinical relevance of associated aneurysms with arteriovenous malformations of the posterior fossa. Trends Neurovascular Surg. 2011; 112: 131–135. PubMed Abstract | Publisher Full Text
  • 49.  Hung AL, Yang W, Jiang B, et al.: The Effect of Flow-Related Aneurysms on Hemorrhagic Risk of Intracranial Arteriovenous Malformations. Clin. Neurosurg. 2019; 85(4): 466–475. Publisher Full Text
  • 50.  Kim H, Sidney S, McCulloch CE, et al.: Racial/ethnic differences in longitudinal risk of intracranial hemorrhage in brain arteriovenous malformation patients. Stroke. 2007; 38(9): 2430–2437. PubMed Abstract | Publisher Full Text
  • 51.  Huo X, Jiang Y, Lv X, et al.: Gamma Knife surgical treatment for partially embolized cerebral arteriovenous malformations. J. Neurosurg. 2016; 124(3): 767–776. PubMed Abstract | Publisher Full Text
  • 52.  Lockwood J, Scullen T, Mathkour M, et al.: Endovascular Management of a Ruptured Basilar Perforator Artery Aneurysm Associated with a Pontine Arteriovenous Malformation: Case Report and Review of the Literature. World Neurosurg. 2018; 116: 159–162. PubMed Abstract | Publisher Full Text
  • 53.  Zipfel G, Bradshaw P, Bova F: Do the morphological characteristics of arteriovenous malformations affect the results of radiosurgery? J. Neurosurg. 2004; 101(3): 393–401. PubMed Abstract | Publisher Full Text
  • 54.  Riordan CP, Orbach DB, Smith ER, et al.: Acute fatal hemorrhage from previously undiagnosed cerebral arteriovenous malformations in children: A single-center experience. J. Neurosurg. Pediatr. 2018; 22(3): 244–250. PubMed Abstract | Publisher Full Text
  • 55.  Lv X, Wu Z, Jiang C, et al.: Endovascular treatment accounts for a change in brain arteriovenous malformation natural history risk. Interv. Neuroradiol. 2010; 16(2): 127–132. PubMed Abstract | Publisher Full Text | Free Full Text
  • 56.  Fullerton HJ, Achrol AS, Johnston SC, et al.: Long-term hemorrhage risk in children versus adults with brain arteriovenous malformations. Stroke. 2005; 36(10): 2099–2104. PubMed Abstract | Publisher Full Text
  • 57.  Majumdar M, Tan LA, Chen M: Critical assessment of the morbidity associated with ruptured cerebral arteriovenous malformations. J. Neurointerv. Surg. 2016; 8(2): 163–167. PubMed Abstract | Publisher Full Text
  • 58.  Sturiale CL, Puca A, Calandrelli R, et al.: Relevance of bleeding pattern on clinical appearance and outcome in patients with hemorrhagic brain arteriovenous malformations. J. Neurol. Sci. 2013; 324(1-2): 118–123. PubMed Abstract | Publisher Full Text
  • 59.  Tasic G, Jovanovic V, Djurovic B, et al.: Natural course of the arteriovenous malformations of the brain initially presented by hemorrhage: analysis of a clinical series of 39 patients. Turk. Neurosurg. 2011; 21(3): 280–289. PubMed Abstract | Publisher Full Text Reference Source
  • 60.  Yen C-P, Schlesinger D: Natural history of cerebral arteriovenous malformations and the risk of hemorrhage after radiosurgery. Prog. Neurol. Surg. 2013; 27: 5–21. PubMed Abstract | Publisher Full Text
  • 61.  Sahlein D, Mora P, Becske T, et al.: Features predictive of brain arteriovenous malformation hemorrhage: Extrapolation to a physiologic model. Stroke. 2014; 45(7): 1964–1970. Publisher Full Text
  • 62.  Yi HJ, Hwang HS, Kim K, et al.: Angioarchitectural characteristics associated with the risk of hemorrhage in intracranial arteriovenous malformations. Neurosurg. Q. 2016; 26(4): 329–335. Publisher Full Text
  • 63.  Kubalek R, Moghtaderi A, Klisch J, et al.: Cerebral arteriovenous malformations: Influence of angioarchitecture on bleeding risk. Acta Neurochir. 2003; 145(12): 1045–1052. PubMed Abstract | Publisher Full Text
  • 64.  Tong X, Wu J, Lin F, et al.: Risk Factors for Subsequent Hemorrhage in Patients with Cerebellar Arteriovenous Malformations. World Neurosurg. 2016; 92: 47–57. PubMed Abstract | Publisher Full Text
  • 65.  Ma L, Chen XL, Chen Y, et al.: Subsequent haemorrhage in children with untreated brain arteriovenous malformation: Higher risk with unbalanced inflow and outflow angioarchitecture. Eur. Radiol. 2017; 27(7): 2868–2876. PubMed Abstract | Publisher Full Text
  • 66.  Ma L, Kim H, Chen X-L, et al.: Morbidity after Hemorrhage in Children with Untreated Brain Arteriovenous Malformation. Cerebrovasc. Dis. 2017; 43(5-6): 231–241. PubMed Abstract | Publisher Full Text | Free Full Text
  • 67.  Lv X, Wu Z, Jiang C, et al.: Angioarchitectural characteristics of brain arteriovenous malformations with and without hemorrhage. World Neurosurg. 2011; 76(1-2): 95–99. Publisher Full Text
  • 68.  Stefani M, Porter P, terBrugge KG, et al.: Angioarchitectural factors present in brain arteriovenous malformations associated with hemorrhagic presentation. Stroke. 2002; 33(4): 920–924. PubMed Abstract | Publisher Full Text
  • 69.  Pan J, Feng L, Vinuela F, et al.: Angioarchitectural characteristics associated with initial hemorrhagic presentation in supratentorial brain arteriovenous malformations. Eur. J. Radiol. 2013; 82(11): 1959–1963. PubMed Abstract | Publisher Full Text
  • 70.  Stefani M, Porter P, Terbrugge KG, et al.: Large and deep brain arteriovenous malformations are associated with risk of future hemorrhage. Stroke. 2002; 33(5): 1220–1224. PubMed Abstract | Publisher Full Text
  • 71.  Stapf C, Mohr J, Pile-Spellman J, et al.: Concurrent arterial aneurysms in brain arteriovenous malformations with haemorrhagic presentation. J. Neurol. Neurosurg. Psychiatry. 2002; 73(3): 294–298. PubMed Abstract | Publisher Full Text | Free Full Text
  • 72.  Stapf C, Mast H, Sciacca R, et al.: Predictors of hemorrhage in patients with untreated brain arteriovenous malformation. Neurology. 2006; 66(9): 1350–1355. PubMed Abstract | Publisher Full Text
  • 73.  Ma L, Huang Z, Chen X-L, et al.: Periventricular Location as a Risk Factor for Hemorrhage and Severe Clinical Presentation in Pediatric Patients with Untreated Brain Arteriovenous Malformations. Am. J. Neuroradiol. 2015; 36(8): 1550–1557. PubMed Abstract | Publisher Full Text | Free Full Text
  • 74.  Abla A, Nelson J, Rutledge W, et al.: The natural history of AVM hemorrhage in the posterior fossa: comparison of hematoma volumes and neurological outcomes in patients with ruptured infra- and supratentorial AVMs. Neurosurg. Focus. 2014; 37(3): 1–13.
  • 75.  Abla A, Nelson J, Kim H, et al.: Silent Arteriovenous Malformation Hemorrhage and the Recognition of “Unruptured” Arteriovenous Malformation Patients Who Benefit From Surgical Intervention. Neurosurgery. 2015; 76(5): 592–600. PubMed Abstract | Publisher Full Text | Free Full Text
  • 76.  Yang W, Anderson-Keightly H, Westbroek E, et al.: Long-term hemorrhagic risk in pediatric patients with arteriovenous malformations. J. Neurosurg. Pediatr. 2016; 18: 329–338. PubMed Abstract | Publisher Full Text
  • 77.  Tong X, Wu J, Lin F, et al.: Cerebellar Arteriovenous Malformations: Clinical Feature, Risk of Hemorrhage and Predictors of Posthemorrhage Outcome. World Neurosurg. 2016; 92: 206–217. PubMed Abstract | Publisher Full Text
  • 78.  Ding D, Chen C, Starke R, et al.: Risk of Brain Arteriovenous Malformation Hemorrhage Before and After Stereotactic Radiosurgery. Stroke. 2019; 50(6): 1384–1391. Publisher Full Text
  • 79.  Shankar J, Menezes R, Pohlmann-Eden B, et al.: Angioarchitecture of Brain AVM Determines the Presentation with Seizures: Proposed Scoring System. Am. J. Neuroradiol. 2013; 34(5): 1028–1034. PubMed Abstract | Publisher Full Text | Free Full Text
  • 80.  Jiang P, Lv X, Wu Z, et al.: Characteristics of brain arteriovenous malformations presenting with seizures without acute or remote hemorrhage. Neuroradiol. J. 2011; 24(6): 886–888. Publisher Full Text
  • 81.  Motebejane M, Royston D, Kabera G, et al.: Demographic 13 and angioarchitectural features associated with seizures presentation in patients with brain arteriovenous malformations in Durban, KwaZulu-Natal, South Africa. Interdiscip. Neurosurg. Adv. Tech. Case Manag. 2018; 11: 14–18. Publisher Full Text
  • 82.  Liu S, Chen HX, Mao Q, et al.: Factors associated with seizure occurrence and long-term seizure control in pediatric brain arteriovenous malformation: A retrospective analysis of 89 patients. BMC Neurol. 2015; 15(1): 1–8. PubMed Abstract | Publisher Full Text | Free Full Text
  • 83.  Cordero-Tous N, Jorques-Infante AM, Santos-Martin L, et al.: Angiographic characteristics of epileptogenic arteriovenous malformations and effectiveness in the seizure control after treatment with radiosurgery. J. Radiosurg. SBRT. 2014; 3(2): 103–110. Reference Source
  • 84.  Hoh B, Chapman P, Loeffler J, et al.: Results of multimodality treatment for 141 patients with brain arteriovenous malformations and seizures: factors associated with seizure incidence and seizure outcomes. Neurosurgery. 2002; 51(2): 303–311. Publisher Full Text
  • 85.  Galletti F, Costa C, Cupini LM, et al.: Brain arteriovenous malformations and seizures: An Italian study. J. Neurol. Neurosurg. Psychiatry. 2014; 85(3): 284–288. PubMed Abstract | Publisher Full Text
  • 86.  Wu C-C, Guo W-Y, Chung W-Y, et al.: Angioarchitecture and Posttreatment Magnetic Resonance Imaging Characteristics of Brain Arteriovenous Malformations and Long-Term Seizure Control After Radiosurgery. World Neurosurg. 2016; 87: 277–282. PubMed Abstract | Publisher Full Text
  • 87.  Fierstra J, Conklin J, Krings T, et al.: Impaired peri-nidal cerebrovascular reserve in seizure patients with brain arteriovenous malformations. Brain. 2011; 134(1): 100–109. PubMed Abstract | Publisher Full Text
  • 88.  Benson JC, Chiu S, Flemming K, et al.: MR characteristics of unruptured intracranial arteriovenous malformations associated with seizure as initial clinical presentation. J. Neurointerv. Surg. 2020; 12(2): 186–191. PubMed Abstract | Publisher Full Text
  • 89.  Ding D, Starke R, Quigg M, et al.: Cerebral Arteriovenous Malformations and Epilepsy, Part 1: Predictors of Seizure Presentation. World Neurosurg. 2015; 84(3): 645–652. PubMed Abstract | Publisher Full Text
  • 90.  Yang W, Westbroek E, Anderson-Keightly H, et al.: Male gender associated with posttreatment seizure risk of pediatric arteriovenous malformation patients. Neurosurgery. 2017; 80(6): 899–907. PubMed Abstract | Publisher Full Text
  • 91.  Ognard J, Magro E, Caroff J, et al.: A new timeresolved 3D angiographic technique (4D DSA): Description, and assessment of its reliability in Spetzler-Martin grading of cerebral arteriovenous malformations. J. Neuroradiol. 2018; 45(3): 177–185. PubMed Abstract | Publisher Full Text
  • 92.  Gauvrit J, Leclerc X, Oppenheim C, et al.: Three-dimensional dynamic MR digital subtraction angiography using sensitivity encoding for the evaluation of intracranial arteriovenous malformations: A preliminary study. Am. J. Neuroradiol. 2005; 26(6): 1525–1531. PubMed Abstract Reference Source
  • 93.  Cuong N, Luu V, Tuan T, et al.: Conventional digital subtractional vs non-invasive MR angiography in the assessment of brain arteriovenous malformation. Clin. Neurol. Neurosurg. 2018; 169: 29–33. PubMed Abstract | Publisher Full Text
  • 94.  Singh R, Gupta V, Ahuja C, et al.: Role of time-resolved-CTA in intracranial arteriovenous malformation evaluation at 128-slice CT in comparison with digital subtraction angiography. Neuroradiol. J. 2018; 31(3): 235–243. PubMed Abstract | Publisher Full Text | Free Full Text
  • 95.  Tsuchiya K, Katase S, Yoshino A, et al.: MR-angiogram-added surface anatomy scanning of superficial cerebral arteriovenous malformations. Eur. Radiol. 2002; 12(9): 2330–2334. PubMed Abstract | Publisher Full Text Reference Source
  • 96.  Suzuki H, Maki H: Evaluation of cerebral arteriovenous malformations using image fusion combining three-dimensional digital subtraction angiography with magnetic resonance imaging. Turk. Neurosurg. 2012; 22(3): 341–345. PubMed Abstract | Publisher Full Text
  • 97.  Paul L, Casasco A, Kusak M, et al.: Results for a series of 697 Arteriovenous malformations treated by gamma knife: Influence of angiographic features on the obliteration rate. Neurosurgery. 2014; 75(5): 568–583. PubMed Abstract | Publisher Full Text
  • 98.  Shakur S, Amin-Hanjani S, Abouelleil M, et al.: Changes in pulsatility and resistance indices of cerebral arteriovenous malformation feeder arteries after embolization and surgery. Stroke. 2016; 39(1): 7–12. PubMed Abstract | Publisher Full Text
  • 99.  Du R, Dowd C, Johnston S, et al.: Interobserver variability in grading of brain arteriovenous malformations using the Spetzler-Martin system. Neurosurgery. 2005; 57(4): 668–675. Publisher Full Text
  • 100.  Griessenauer CJ, Miller JH, Agee BS, et al.: Observer reliability of arteriovenous malformations grading scales using current imaging modalities: Clinical article. J. Neurosurg. 2014; 120(5): 1179–1187. PubMed Abstract | Publisher Full Text
  • 101.  Willinsky RA, Goyal M, TerBrugge K, et al.: Embolisation of small (< 3 cm) brain arteriovenous malformations: Correlation of angiographic results to a proposed angioarchitecture grading system. Interv. Neuroradiol. 2001; 7(1): 19–27. PubMed Abstract | Publisher Full Text | Free Full Text
  • 102.  Jiao LF, Wu J, et al.: A supplementary grading scale combining lesion-to-eloquence distance for predicting surgical outcomes of patients with brain arteriovenous malformations. J. Neurosurg. 2018; 128(2): 530–540. PubMed Abstract | Publisher Full Text
  • 103.  Robert T, Blanc R, Sylvestre P, et al.: A proposed grading system to evaluate the endovascular curability of deep-seated arteriovenous malformations. J. Neurol. Sci. 2017; 377: 212–218. PubMed Abstract | Publisher Full Text
  • 104.  Neidert M, Lawton M, Mader M, et al.: The AVICH Score: A Novel Grading System to Predict Clinical Outcome in Arteriovenous Malformation-Related Intracerebral Hemorrhage. World Neurosurg. 2016; 92: 292–297. PubMed Abstract | Publisher Full Text
  • 105.  Nisson PL, Fard SA, Walter CM, et al.: A novel proposed grading system for cerebellar arteriovenous malformations. J. Neurosurg. 2020; 132(4): 1105–1115. PubMed Abstract | Publisher Full Text | Free Full Text
  • 106.  Frisoli F, Lang S, Vossough A, et al.: Intrarater and interrater reliability of the pediatric arteriovenous malformation compactness score in children: Clinical article. J. Neurosurg. Pediatr. 2013; 11(5): 547–551. PubMed Abstract | Publisher Full Text | Free Full Text
  • 107.  Shankar JJS, Menezes RJ, Pohlmann-Eden B, et al.: Angioarchitecture of brain AVM determines the presentation with seizures: Proposed scoring system. Am. J. Neuroradiol. 2013; 34(5): 1028–1034. PubMed Abstract | Publisher Full Text | Free Full Text
  • 108.  Shotar E, Debarre M, Sourour NA, et al.: Retrospective study of long-term outcome after brain arteriovenous malformation rupture: The RAP score. J. Neurosurg. 2018; 128(1): 78–85. PubMed Abstract | Publisher Full Text
  • 109.  Iancu-Gontard D, Weill A, Guilbert F, et al.: Inter- and intraobserver variability in the assessment of brain arteriovenous malformation angioarchitecture and endovascular treatment results. Am. J. Neuroradiol. 2007; 28(3): 524–527. PubMed Abstract Reference Source
  • 110.  Hartmann A, Mast H, Mohr J, et al.: Determinants of staged endovascular and surgical treatment outcome of brain arteriovenous malformations. Stroke. 2005; 36(11): 2431–2435. PubMed Abstract | Publisher Full Text
  • 111.  Pan J, He H, Feng L, et al.: Angioarchitectural characteristics associated with complications of embolization in supratentorial brain arteriovenous malformation. Am. J. Neuroradiol. 2014; 35(2): 354–359. PubMed Abstract | Publisher Full Text | Free Full Text
  • 112.  Haw C, Terbrugge K, Willinsky R: Complications of embolization of arteriovenous malformations of the brain. J. Neurosurg. 2006; 104(2): 226–232. Publisher Full Text
  • 113.  Luo C, Guo W, Teng M, et al.: Fistula components of brain arteriovenous malformations: Angioarchitecture analysis and embolization prior to gamma-knife surgery. J. Chin. Med. Assoc. 2014; 76(1): 277–281. PubMed Abstract | Publisher Full Text
  • 114.  Downer J, Cellerini M, Corkill R, et al.: Decision-making in the scheduling of endovascular treatment after brain arteriovenous malformation haemorrhage: A retrospective single centre study. Neuroradiol. J. 2011; 24(6): 879–885. PubMed Abstract | Publisher Full Text
  • 115.  Jayaraman M, Meyers P, Derdeyn CP, et al.: Reporting standards for angiographic evaluation and endovascular treatment of cerebral arteriovenous malformations. J. Neurointerv. Surg. 2012; 4(5): 325–330. PubMed Abstract | Publisher Full Text
  • 116.  Kocur D, Przybylko N, Hofman M, et al.: Endovascular treatment of small cerebral arteriovenous malformations as a primary therapy. Pol. J. Radiol. 2018; 83: 143–149. PubMed Abstract | Publisher Full Text | Free Full Text
  • 117.  Ledezma C, Hoh B, Carter B, et al.: Complications of cerebral arteriovenous malformation embolization: Multivariate analysis of predictive factors. Neurosurgery. 2006; 58(4): 602–611. PubMed Abstract | Publisher Full Text
  • 118.  Liu J, Lv M, Lv X, et al.: Curative Glubran 2 embolization of cerebral arteriovenous malformations patient selection and initial results. Interv. Neuroradiol. 2014; 20(6): 722–728. PubMed Abstract | Publisher Full Text | Free Full Text
  • 119.  Robert T, Blanc R, Ciccio G, et al.: Endovascular treatment of posterior fossa arteriovenous malformations. J. Clin. Neurosci. 2016; 25: 65–68. Publisher Full Text
  • 120.  Sandalcioglu I, Asgari S, Wende D, et al.: Proliferation activity is significantly elevated in partially embolized cerebral arteriovenous malformations. Cerebrovasc. Dis. 2010; 30(4): 396–401. PubMed Abstract | Publisher Full Text
  • 121.  Soltanolkotabi M, Schoeneman S, Alden T, et al.: Onyx embolization of intracranial arteriovenous malformations in pediatric patients: Clinical article. J. Neurosurg. Pediatr. 2011; 11(4): 431–437. PubMed Abstract | Publisher Full Text
  • 122.  Sorenson T, Lanzino G, Flemming K, et al.: Clinical outcome of brainstem arteriovenous malformations after incomplete nidus obliteration. J. Clin. Neurosci. 2019; 65: 66–70. PubMed Abstract | Publisher Full Text
  • 123.  Stein K-P, Wanke I, Oezkan N, et al.: Multiple cerebral arterio-venous malformations: impact of multiplicity and hemodynamics on treatment strategies. Acta Neurochir. 2016; 158(12): 2399–2407. PubMed Abstract | Publisher Full Text
  • 124.  Mangiafico S, Cellerini M, Villa G, et al.: Disappearance of a cerebral arteriovenous malformation after partial endovascular embolisation. Interv. Neuroradiol. 2001; 7(1): 41–46. PubMed Abstract | Publisher Full Text | Free Full Text Reference Source
  • 125.  Viana D, De Castro-Afonso L, Nakiri G, et al.: Extending the indications for transvenous approach embolization for superficial brain arteriovenous malformations. J. Neurointerv. Surg. 2017; 9(11): 1053–1059. PubMed Abstract | Publisher Full Text
  • 126.  Weber W, Kis B, Siekmann R, et al.: Endovascular treatment of intracranial arteriovenous malformations with onyx: Technical aspect. Am. J. Neuroradiol. 2007; 28(2): 371–377. PubMed Abstract Reference Source
  • 127.  Zheng T, Wang Q, Liu Y-Q, et al.: Clinical features and endovascular treatment of intracranial arteriovenous malformations in pediatric patients. Childs Nerv. Syst. 2014; 30(4): 647–653. PubMed Abstract | Publisher Full Text
  • 128.  Zhu G, Li G, He X, et al.: Endovascular treatment of cerebellar arteriovenous malformations: management of associated aneurysms first or later. Neurol. Sci. 2016; 37(1): 67–72. Publisher Full Text
  • 129.  Hung Y, Mohammed N, Jose T, et al.: The impact of preradiosurgery embolization on intracranial arteriovenous malformations: a matched cohort analysis based on de novo lesion volume. J. Neurosurg. 2020; 133(October): 1156–1167. PubMed Abstract | Publisher Full Text
  • 130.  Iosif C, De Lucena A, Abreu-Mattos L, et al.: Curative endovascular treatment for lowgrade Spetzler-Martin brain arteriovenous malformations: A single-center prospective study. J. Neurointerv. Surg. 2019; 11(7): 699–705. PubMed Abstract | Publisher Full Text
  • 131.  Jayaraman M, Marcellus ML, Hamilton S, et al.: Neurologic complications of arteriovenous malformation embolization using liquid embolic agents. Am. J. Neuroradiol. 2008; 29(2): 242–246. PubMed Abstract | Publisher Full Text | Free Full Text
  • 132.  Stiefel M, Al-Okaili R, Weigele J, et al.: De novo aneurysm formation and regression after brain arteriovenous malformation embolization: case report. Surg. Neurol. 2007; 67(1): 99–101. PubMed Abstract | Publisher Full Text
  • 133.  Van Rooij W, Jacobs S, Sluzewski M, et al.: Curative embolization of brain arteriovenous malformations with onyx: Patient selection, embolization technique, and results. Am. J. Neuroradiol. 2012; 33(7): 1299–1304. PubMed Abstract | Publisher Full Text | Free Full Text
  • 134.  Iosif C, Mendes GAC, Saleme S, et al.: Endovascular transvenous cure for ruptured brain arteriovenous malformations in complex cases with high Spetzler-Martin grades. J. Neurosurg. 2015; 122(5): 1229–1238. PubMed Abstract | Publisher Full Text
  • 135.  Valavanis A, Pangalu A, Tanaka M: Endovascular treatment of cerebral arteriovenous malformations with emphasis on the curative role of eembolisation. Swiss Arch. Neurol. Psychiatry. 2004; 155(7): 341–347. Publisher Full Text
  • 136.  Robert T, Blanc R, Ciccio G, et al.: Angiographic factors influencing the success of endovascular treatment of arteriovenous malformations involving the corpus callosum. J. Neurointerv. Surg. 2015; 7(10): 715–720. PubMed Abstract | Publisher Full Text
  • 137.  Blanc R, Seiler A, Robert T, et al.: Multimodal angiographic assessment of cerebral arteriovenous malformations: a pilot study. J. Neurointerv. Surg. 2015; 7(11): 841–847. PubMed Abstract | Publisher Full Text | Free Full Text
  • 138.  Ahmed A: Endovascular venous approach in the treatment of ruptured intra-cerebral arterio-venous malformation. Egypt. J. Radiol. Nucl. Med. 2014; 45(2): 439–441. Publisher Full Text
  • 139.  Morgan M, Patel N, Simons M, et al.: Influence of the combination of patient age and deep venous drainage on brain arteriovenous malformation recurrence after surgery. J. Neurosurg. 2012; 117(5): 934–941. PubMed Abstract | Publisher Full Text
  • 140.  Morgan M, Hermann Wiedmann M, Stoodley MA: Microsurgery for Spetzler-Ponce Class A and B arteriovenous malformations utilizing an outcome score adopted from Gamma Knife radiosurgery: A prospective cohort study. J. Neurosurg. 2017; 127(5): 1105–1116. PubMed Abstract | Publisher Full Text
  • 141.  Nisson P, Fard SA, Meybodi AT, et al.: The Unique Features and Outcomes of Microsurgically Resected Cerebellar Arteriovenous Malformations. World Neurosurg. 2018; 120: e940–e949. PubMed Abstract | Publisher Full Text
  • 142.  Pai B, Nagaraj N: Is Temporary Proximal Artery Clipping in Arteriovenous Malformation Surgery Safe? Turk. Neurosurg. 2019; 29(2): 164–170. PubMed Abstract | Publisher Full Text
  • 143.  Potts M, Young WL: Deep arteriovenous malformations in the basal ganglia, thalamus, and insula: Microsurgical management, techniques, and results. Neurosurgery. 2013; 73(3): 417–429. PubMed Abstract | Publisher Full Text | Free Full Text
  • 144.  Tanaka K, Matsumoto S, Yamada T, et al.: Elevated end-diastolic ratio of the common carotid artery due to cerebral arteriovenous malformation: Two case reports. Radiol. Case Reports. 2018; 13(4): 917–920. PubMed Abstract | Publisher Full Text | Free Full Text
  • 145.  Donzelli G, Nelson J, McCoy D, et al.: The effect of preoperative embolization and flow dynamics on resection of brain arteriovenous malformations. J. Neurosurg. 2019; 132: 1836–1844. PubMed Abstract | Publisher Full Text | Free Full Text
  • 146.  Zhao J, Wang S, Li J, et al.: Clinical characteristics and surgical results of patients with cerebral arteriovenous malformations. Surg. Neurol. 2005; 63(2): 156–161. Publisher Full Text
  • 147.  Pohjola A, Lehto H, Hafez A, et al.: Arteriovenous Malformations of the Posterior Fossa: Focus on Surgically Treated Patients Presenting with Hemorrhage. World Neurosurg. 2018; 116: e934–e943. PubMed Abstract | Publisher Full Text
  • 148.  Han SJ, Englot DJ, Kim H, et al.: Brainstem arteriovenous malformations: anatomical subtypes, assessment of “occlusion in situ” technique, and microsurgical results. J. Neurosurg. 2015; 122(1): 107–117. PubMed Abstract | Publisher Full Text | Free Full Text
  • 149.  Liu L, Li H, Zheng J, et al.: Sylvian fissure arteriovenous malformations: Long term prognosis and risk factors. Neurosurg. Rev. 2013; 36(4): 541–549. PubMed Abstract | Publisher Full Text
  • 150.  Maher CO, Scott RM: Linear vein-based arteriovenous malformations in children: Clinical article. J. Neurosurg. Pediatr. 2009; 4(1): 12–16. PubMed Abstract | Publisher Full Text
  • 151.  Lang S-S, Beslow L, Bailey R, et al.: Follow-up imaging to detect recurrence of surgically treated pediatric arteriovenous malformations: Clinical article. J. Neurosurg. Pediatr. 2012; 9(5): 497–504. PubMed Abstract | Publisher Full Text | Free Full Text
  • 152.  Stapf C, Connolly E, Schumacher H, et al.: Dysplastic vessels after surgery for brain arteriovenous malformations. Stroke. 2002; 33(4): 1053–1056. PubMed Abstract | Publisher Full Text
  • 153.  Tong X, Wu J, Cao Y, et al.: Microsurgical Outcome of Unruptured Brain Arteriovenous Malformations: A Single-Center Experience. World Neurosurg. 2017; 99: 644–655. PubMed Abstract | Publisher Full Text
  • 154.  Ravindra V, Bollo R, Eli I, et al.: A study of pediatric cerebral arteriovenous malformations: Clinical presentation, radiological features, and long-term functional and educational outcomes with predictors of sustained neurological deficits. J. Neurosurg. Pediatr. 2019; 24(1): 1–8. PubMed Abstract | Publisher Full Text
  • 155.  Taeshineetanakul P, Krings T, Geibprasert S, et al.: Angioarchitecture determines obliteration rate after radiosurgery in brain arteriovenous malformations. Neurosurgery. 2012; 71(6): 1071–1079. Publisher Full Text
  • 156.  Kasliwal M, Kale S, Gupta A, et al.: Outcome after hemorrhage following Gamma Knife surgery for cerebral arteriovenous malformations: Clinical article. J. Neurosurg. 2009; 110(5): 1003–1009. Publisher Full Text
  • 157.  Machnowska M, Taeshineetanakul P, Geibprasert S, et al.: Factors determining the clinical complications of radiosurgery for AVM. Can. J. Neurol. Sci. 2013; 40(6): 807–813. Publisher Full Text
  • 158.  Nagaraja S, Lee K, Coley S, et al.: Stereotactic radiosurgery for brain arteriovenous malformations: Quantitative MR assessment of nidal response at 1 year and angiographic factors predicting early obliteration. Neuroradiology. 2006; 48(11): 821–829. Publisher Full Text
  • 159.  Parkhutik V, Lago A, Tembl J, et al.: Postradiosurgery hemorrhage rates of arteriovenous malformations of the brain: Influencing factors and evolution with time. Stroke. 2012; 43(5): 1247–1252. Publisher Full Text
  • 160.  Hu YS, Lee CC, Wu HM, et al.: Stagnant venous outflow predicts brain arteriovenous malformation obliteration after gamma knife radiosurgery without prior intervention. Neurosurgery. 2020; 87(2): 338–347. Publisher Full Text
  • 161.  Daou BJ, Palmateer G, Thompson BG, et al.: Stereotactic Radiosurgery for Brain Arteriovenous Malformations: Evaluation of Obliteration and Review of Associated Predictors. J. Stroke Cerebrovasc. Dis. 2020; 29(8): 104863–104869. PubMed Abstract | Publisher Full Text
  • 162.  Ozyurt O, Dincer A, Erdem Yildiz M, et al.: Integration of arterial spin labeling into stereotactic radiosurgery planning of cerebral arteriovenous malformations. J. Magn. Reson. Imaging. 2017; 46(6): 1718–1727. PubMed Abstract | Publisher Full Text
  • 163.  Togao O, Obara M, Helle M, et al.: Vessel-selective 4D-MR angiography using superselective pseudo-continuous arterial spin labeling may be a useful tool for assessing brain AVM hemodynamics. Eur. Radiol. 2020; 30(12): 6452–6463. PubMed Abstract | Publisher Full Text
  • 164.  Taschner C, Gieseke J, Thuc Le V, et al.: Intracranial arteriovenous malformation: Time-resolved contrast-enhanced MR angiography with combination of parallel imaging, keyhole acquisition, and k-space sampling techniques at 1.5 T. Radiology. 2008; 246(3): 871–879. PubMed Abstract | Publisher Full Text
  • 165.  Anderson R, McDowell KC, et al.: Arteriovenous malformation-associated aneurysms in the pediatric population: Clinical article. J. Neurosurg. Pediatr. 2012; 9(1): 11–16. PubMed Abstract | Publisher Full Text
  • 166.  Brunozzi D, Amin-Hanjani S, Charbel FT, et al.: Ratio of arteriovenous malformation draining vein to adjacent venous sinus diameter is associated with increased risks of vein stenosis. Stroke. 2019; 50(Supplement 1). Publisher Full Text
  • 167.  Yi HJ, Hwang HS, Kim KS, et al.: Angioarchitectural characteristics associated with the risk of hemorrhage in intracranial arteriovenous malformations. Neurosurg. Q. 2016; 26(4): 329–335. Publisher Full Text
  • 168.  Chowdhury AH, Khan SU, Rahman KM, et al.: Clinical and morphological pattern of brain arteriovenous malformations (BAVMs) in a Tertiary Care Hospital in Bangladesh Neurology. BMC. Res. Notes. 2015; 8(1): 1–7. PubMed Abstract | Publisher Full Text | Free Full Text
  • 169.  Da Costa LD, Thines L, Dehdashti AR, et al.: Management and clinical outcome of Posterior fossa arteriovenous malformations: Report on a singlecentre 15-year experience. J. Neurol. Neurosurg. Psychiatry. 2009; 80(4): 376–379. PubMed Abstract | Publisher Full Text
  • 170.  Dos Santos M, Demartini Z Jr, Matos L, et al.: Angioarchitecture and clinical presentation of brain arteriovenous malformations. Arq. Neuropsiquiatr. 2009; 67(2 A): 316–321. Publisher Full Text
  • 171.  Fukuda K, Majumdar M, Masoud H, et al.: Multicenter assessment of morbidity associated with cerebral arteriovenous malformation hemorrhages. J. Neurointerv. Surg. 2017; 9(7): 664–668. PubMed Abstract | Publisher Full Text
  • 172.  Garcin B, Houdart E, Porcher R, et al.: Epileptic seizures at initial presentation in patients with brain arteriovenous malformation. Neurology. 2012; 78(9): 626–631. Publisher Full Text
  • 173.  Hofmeister C, Stapf C, Hartmann A, et al.: Demographic, Morphological, and Clinical Characteristics of 1289 Patients With Brain Arteriovenous Malformation. Stroke. 2000; 31: 1307–1310. PubMed Abstract | Publisher Full Text
  • 174.  Ma L, Huang Z, Chen X-L, et al.: Periventricular Location as a Risk Factor for Hemorrhage and Severe Clinical Presentation in Pediatric Patients with Untreated Brain Arteriovenous Malformations. AJNR Am. J. Neuroradiol. 2015; 36(8): 1550–1557. PubMed Abstract | Publisher Full Text | Free Full Text
  • 175.  Yang W, Caplan JM, Ye X, et al.: Racial Associations with Hemorrhagic Presentation in Cerebral Arteriovenous Malformations. World Neurosurg. 2015; 84(2): 461–469. PubMed Abstract | Publisher Full Text
  • 176.  Burkhardt J, Chen X, Winkler EA, et al.: Delayed Venous Drainage in Ruptured Arteriovenous Malformations Based on Quantitative Color-Coded Digital Subtraction Angiography. World Neurosurg. 2017; 104: 619–627. PubMed Abstract | Publisher Full Text
  • 177.  Choi JH, Mast H, Sciacca RR, et al.: Clinical outcome after first and recurrent hemorrhage in patients with untreated brain arteriovenous malformation. Stroke. 2006; 37(5): 1243–1247. PubMed Abstract | Publisher Full Text
  • 178.  Choi J, Mast H, Hartmann A, et al.: Clinical and morphological determinants of focal neurological deficits in patients with unruptured brain arteriovenous malformation. J. Neurol. Sci. 2009; 287(1-2): 126–130. PubMed Abstract | Publisher Full Text | Free Full Text
  • 179.  Stapf C, Khaw A, Sciacca R, et al.: Effect of Age on Clinical and Morphological Characteristics in Patients With Brain Arteriovenous Malformation. Stroke. 2003; 34(11): 2664–2669. Publisher Full Text
  • 180.  Stapf C, Labovitz DL, Sciacca RR, et al.: Incidence of adult brain arteriovenous malformation hemorrhage in a prospective population-based stroke survey. Cerebrovasc. Dis. 2002; 13(1): 43–46. PubMed Abstract | Publisher Full Text
  • 181.  Stein K-P, Wanke I, Forsting M, et al.: Associated aneurysms in supratentorial arteriovenous malformations: Impact of aneurysm size on haemorrhage. Cerebrovasc. Dis. 2015; 39(2): 122–129. PubMed Abstract | Publisher Full Text
  • 182.  Lv X, Li Y, Yang X, et al.: Characteristics of brain arteriovenous malformations in patients presenting with nonhemorrhagic neurologic deficits. World Neurosurg. 2013; 79(3-4): 484–488. PubMed Abstract | Publisher Full Text
  • 183.  Luo J, Lv X, Jiang C, et al.: Brain AVM characteristics and age. Eur. J. Radiol. 2012; 81(4): 780–783. Publisher Full Text
  • 184.  Lv X, Li Y, Yang X, et al.: Characteristics of arteriovenous malformations associated with cerebral aneurysms. World Neurosurg. 2011; 76(3-4): 288–291. Publisher Full Text
  • 185.  Tong X, Wu J, Lin F, et al.: The Effect of Age, Sex, and Lesion Location on Initial Presentation in Patients with Brain Arteriovenous Malformations. World Neurosurg. 2016; 87: 598–606. PubMed Abstract | Publisher Full Text
  • 186.  Panni P, Gallotti AL, Gigliotti CR, et al.: Impact of flow and angioarchitecture on brain arteriovenous malformation outcome after gamma knife radiosurgery: the role of hemodynamics and morphology in obliteration. Acta Neurochir. 2020; 162(7): 1749–1757. PubMed Abstract | Publisher Full Text
  • 187.  Du R, Keyoung H, Dowd C, et al.: The effects of diffuseness and deep perforating artery supply on outcomes after microsurgical resection of brain arteriovenous malformations.Neurosurgery.2007; 60(4): 638–648. PubMed Abstract | Publisher Full Text
  • 188.  Ding D, Yen C-P, Xu Z, et al.: Radiosurgery for low-grade intracranial arteriovenous malformations. J. Neurosurg. 2014; 121: 457–467. Publisher Full Text
  • 189.  Ding D, Yen C-P, Starke RM, et al.: Radiosurgery for ruptured intracranial arteriovenous malformations. J. Neurosurg. 2014; 121: 470–481. Publisher Full Text
  • 190.  Ding D, Starke R, Quigg M, et al.: Cerebral Arteriovenous Malformations and Epilepsy, Part 1: Predictors of Seizure Presentation.World Neurosurg.2015; 84(3): 645–652. PubMed Abstract | Publisher Full Text
  • 191.  Shakur SF, Amin-Hanjani S, Mostafa H, et al.: Hemodynamic Characteristics of Cerebral Arteriovenous Malformation Feeder Vessels with and Without Aneurysms. Stroke. 2015; 46(7): 1997–1999. PubMed Abstract | Publisher Full Text
  • 192.  Shakur S, Valyi-Nagy T, Amin-Hanjani S, et al.: Effects of nidus microarchitecture on cerebral arteriovenous malformation hemodynamics. J. Clin. Neurosci. 2016; 26: 70–74. PubMed Abstract | Publisher Full Text
  • 193.  Shakur S, Amin-Hanjani S, Mostafa H, et al.: Relationship of pulsatility and resistance indices to cerebral arteriovenous malformation angioarchitectural features and hemorrhage.J. Clin. Neurosci.2016; 33: 119–123. PubMed Abstract | Publisher Full Text
  • 194.  Abecassis IJ, Nerva JD, Barber J, et al.: Toward a comprehensive assessment of functional outcomes in pediatric patients with brain arteriovenous malformations: the Pediatric Quality of Life Inventory.J. Neurosurg. Pediatr.2016 Nov; 18(5): 611–622. PubMed Abstract | Publisher Full Text
  • 195.  Al-Tamimi YZ, Sinha P, Johnson E, et al.: Case series of atypical high flow arterio-venous malformations in children.Childs Nerv. Syst.2011 Sep; 27(9): 1493–1498. PubMed Abstract | Publisher Full Text
  • 196.  Alén JF, Lagares A, Paredes I, et al.: Cerebral microarteriovenous malformations: a series of 28 cases: Clinical article.J. Neurosurg.2013; 119(3): 594–602. PubMed Abstract | Publisher Full Text
  • 197.  Anderson RCE, McDowell MM, Kellner CP, et al.: Arteriovenous malformation–associated aneurysms in the pediatric population: Clinical article. J. Neurosurg. Pediatr. 2012; 9(1): 11–16.
  • 198.  Bharatha A, Faughnan ME, Kim H, et al.: Brain arteriovenous malformation multiplicity predicts the diagnosis of hereditary hemorrhagic telangiectasia: quantitative assessment. Stroke. 2012 Jan; 43(1): 72–78. PubMed Abstract | Publisher Full Text | Free Full Text
  • 199.  Braileanu M, Yang W, Caplan J, et al.: Interobserver Agreement on Arteriovenous Malformation Diffuseness Using Digital Subtraction Angiography. Interobserver Agreement on Arteriovenous Malformation Diffuseness Using Digital Subtraction Angiography. 2016; 95: 535–541.e3. Publisher Full Text
  • 200.  Brunozzi D, Hussein AE, Shakur S, et al.: Contrast time-density time on digital subtraction angiography correlates with cerebral arteriovenous malformation flow measured by quantitative magnetic resonance angiography, angioarchitecture, and hemorrhage.Clin. Neurosurg.2018; 83(2): 210–216. Publisher Full Text
  • 201.  Chang W, Wu Y, Johnson K, et al.: Fast Contrast-Enhanced 4D MRA and 4D Flow MRI Using Constrained Reconstruction (HYPRFlow): Potential Applications for Brain Arteriovenous Malformations. Am. J. Neuroradiol.Jun 2015; 36(6): 1049–1055. PubMed Abstract | Publisher Full Text | Free Full Text
  • 202.  Chen X, Cooke DL, Saloner D, et al.: Higher Flow Is Present in Unruptured Arteriovenous Malformations With Silent Intralesional Microhemorrhages.Stroke.2017; 48: 2881–2884. PubMed Abstract | Publisher Full Text | Free Full Text
  • 203.  De Blasi R, Salvati A, Medicamento N, Chiumarulo L: Clinical Features and Classification of Brain AVMs and Cranial DAVFs.Neuroradiol J.2009 Dec 14; 22(5): 568–80. PubMed Abstract | Publisher Full Text
  • 204.  de Castro-Afonso L , Nakiri G, Oliveira R, Santos M, A.C.D. S, H.R. M.: Curative embolization of pediatric intracranial arteriovenous malformations using Onyx: the role of new embolization techniques on patient outcomes.Neuroradiology.2016; 58(6): 585–594. PubMed Abstract | Publisher Full Text
  • 205.  Dinc N, Platz J, Tritt S, et al.: Posterior fossa AVMs: Increased risk of bleeding and worse outcome compared to supratentorial AVMs.Journal of Clinical Neuroscience.2018; 53: 171–176, PubMed Abstract | Publisher Full Text
  • 206.  Du R, Dowd CF, Johnston SC, Young WL, Lawton MT: Interobserver Variability in Grading of Brain Arteriovenous Malformations Using the Spetzler-Martin System.Neurosurgery.October 2005; 57(4): 668–675. Publisher Full Text
  • 207.  Du X, Li X, Wang S, et al.: Risk factors for hemorrhage in patients with cerebral arteriovenous malformations. Int. J. Clin. Exp. Med.2016; 9(3): 6649–6655.
  • 208.  Fleetwood IG, Marcellus ML, Levy RP, et al.: Deep arteriovenous malformations of the basal ganglia and thalamus: natural history. J. Neurosurg.2003; 98: 747–750. PubMed Abstract | Publisher Full Text
  • 209.  Fukuda K, Higashi T, Okawa M, et al.: Fusion Technique Using Three-Dimensional Digital Subtraction Angiography in the Evaluation of Complex Cerebral and Spinal Vascular Malformations.World Neurosurg.2016; 85: 353–358. PubMed Abstract | Publisher Full Text
  • 210.  Geibprasert S, Pongpech S, Jiarakongmun P, et al.: Radiologic assessment of brain arteriovenous malformations: What clinicians need to know.Radiographics.2010; 30(2): 483–501. PubMed Abstract | Publisher Full Text
  • 211.  Hernesniemi J, Dashti R, Juvela S, et al.: Natural history of brain arteriovenous malformations: A long-term follow-up study of risk of hemorrhage in 238 patients.Neurosurgery.2008; 63(5): 823–831. Publisher Full Text
  • 212.  Hetts SW, Cooke DL, Nelson J, et al.: Influence of Patient Age on Angioarchitecture of Brain Arteriovenous Malformations.Am. J. Neuroradiol.Jul 2014; 35 (7): 1376–1380. PubMed Abstract | Publisher Full Text | Free Full Text
  • 213.  Imbesi SG, Knox K, Kerber CW: Reproducibility Analysis of a New Objective Method for Measuring Arteriovenous Malformation Nidus Size at Angiography. Am. J. Neuroradiol. 2002; 23(March): 412–415.
  • 214.  Iryo Y, Hirai T, Nakamura M, et al.: Evaluation of Intracranial Arteriovenous Malformations With Four-Dimensional Arterial-Spin Labeling-Based 3-T Magnetic Resonance Angiography. J. Comput. Assist. Tomogr. 2016 Mar-Apr; 40(2): 290–296. PubMed Abstract | Publisher Full Text
  • 215.  Jiang P, Lv X, Wu Z, et al.: Characteristics of brain arteriovenous malformations presenting with seizures without acute or remote hemorrhage. Neuroradiol. J. 2011; 24(6): 886–888. Publisher Full Text
  • 216.  Kakizawa Y, Nagashima H, Oya F, et al.: Compartments in arteriovenous malformation nidi demonstrated with rotational three-dimensional digital subtraction angiography by using selective microcatheterization. J. Neurosurg.2002; 96: 770–774. PubMed Abstract | Publisher Full Text
  • 217.  Kouznetsov E, Weill A, Ghostine JS, et al.: Association between posterior fossa arteriovenous malformations and prenidal aneurysm rupture: Potential impact on management. Neurosurg. Focus. 2014; 37(3): 37–40. PubMed Abstract | Publisher Full Text
  • 218.  Kurita H, Shin M, Ueki K: Congestive Brain Oedema Associated with a Pial Arteriovenous Malformation with Impaired Venous Drainage. Acta Neurochir (Win).2001; 143: 339–342. PubMed Abstract | Publisher Full Text
  • 219.  Lee SK, Vilela P, Willinsky R, et al.: Spontaneous regression of cerebral arteriovenous malformation: clinical and angiographic analysis with review of literature. Neuroradiology.2002; 44: 11–16. PubMed Abstract | Publisher Full Text
  • 220.  Liew JA, Yang W, Mashouf LA, et al.: Incidence of Spontaneous Obliteration in Untreated Brain Arteriovenous Malformations. Neurosurgery. 2020 Jan 1; 86(1): 139–149. PubMed Abstract | Publisher Full Text
  • 221.  Lin TM, Yang HC, Lee CC, et al.: Stasis index from hemodynamic analysis using quantitative DSA correlates with hemorrhage of supratentorial arteriovenous malformation: a cross-sectional study. J. Neurosurg.2020; 132: 1574–1582. PubMed Abstract | Publisher Full Text
  • 222.  Lv X, Liu J, Hu X, et al.: Patient Age, Hemorrhage Patterns, and Outcomes of Arteriovenous Malformation. World Neurosurg. 2015; 84(4): 1039–1044. Publisher Full Text
  • 223.  Motebejane M, Royston D, Kabera G, et al.: Demographic and angioarchitectural features associated with seizures presentation in patients with brain arteriovenous malformations in Durban, KwaZulu-Natal, South Africa.Interdiscip. Neurosurg. Adv. Tech. Case Manag.2018; 11: 14–18. Publisher Full Text
  • 224.  Nishino K, Hasegawa H, Morita K, Fukuda M, Ito Y, Y. F.: Clinical characteristics of arteriovenous malformations in the cerebellopontine angle cistern.J. Neurosurg.2017; 126(1): 60–68. PubMed Abstract | Publisher Full Text
  • 225.  Oulasvirta E, Koroknay-Pál P, Hafez A, et al.: Characteristics and Long-Term Outcome of 127 Children With Cerebral Arteriovenous Malformations. Neurosurgery. 2019 Jan 1; 84(1): 151–159. PubMed Abstract | Publisher Full Text
  • 226.  Patel MC, Hodgson TJ, Kemeny AA, et al.: Spontaneous Obliteration of Pial Arteriovenous Malformations: A Review of 27 Cases. AJNR Am. J. Neuroradiol.2001; 22: 531–536. PubMed Abstract
  • 227.  Pekmezci M, Nelson J, Su H, et al.: Morphometric characterization of brain arteriovenous malformations for clinical and radiological studies to identify silent intralesional microhemorrhages. Clin. Neuropathol. 2016 May-Jun; 35(3): 114–121. PubMed Abstract | Publisher Full Text | Free Full Text
  • 228.  Robert T, Blanc R, Ciccio G, et al. E-053 Multi-Modality Management of Posterior Fossa Arteriovenous Malformations: Clinical and Angiographic Outcomes. J. Neurointerv. Surg. 2014; 6:A63.1, A6A63. Publisher Full Text
  • 229.  Schwartz ED, Hurst RW, Sinson G, et al.: Complete regression of intracranial arteriovenous malformations. Surg. Neurol.2002; 58: 139–147.
  • 230.  Shakur SF, Brunozzi D, Ismail R, et al.: Effect of Age on Cerebral Arteriovenous Malformation Draining Vein Stenosis.World Neurosurg.2018; 113: e654–e658. Publisher Full Text
  • 231.  Shakur SF, Valyi-Nagy T, Amin-Hanjani S, et al.: Effects of nidus microarchitecture on cerebral arteriovenous malformation hemodynamics.J. Clin. Neurosci.2016; 26: 70–74. Publisher Full Text
  • 232.  Sheng L, Li J, Li H, et al.: Evaluation of cerebral arteriovenous malformation using ‘dual vessel fusion’ technology. J. NeuroIntervent. Surg.2014; 6: 667–671. PubMed Abstract | Publisher Full Text
  • 233.  Togao O, Hiwatashi A, Yamashita K, et al.: Acceleration-selective arterial spin labeling MR angiography for visualization of brain arteriovenous malformations.Neuroradiology.2019; 61: 979–989. Publisher Full Text
  • 234.  Tritt S, Ommer B, Gehrisch S, et al.: Optimization of the Surgical Approach in AVMs Using MRI and 4D DSA Fusion Technique. Clin. Neuroradiol. 2017; 27(4): 443–450. PubMed Abstract | Publisher Full Text
  • 235.  Unlu E, Temizoz O, Albayram S, et al.: Contrast-enhanced MR 3D angiography in the assessment of brain AVMs.Eur. J. Radiol.2006 Dec; 60(3): 367–378. PubMed Abstract | Publisher Full Text
  • 236.  Wrede KH, Dammann P, Johst S, et al.: Non-Enhanced MR Imaging of Cerebral Arteriovenous Malformations at 7 Tesla. Eur. Radiol. 2016; 26(3): 829–839. PubMed Abstract | Publisher Full Text
  • 237.  Ye Z, Ai X, Hu X, et al.: Clinical features and prognostic factors in patients with intraventricular hemorrhage caused by ruptured arteriovenous malformations.Medicine.2017; 96(45): e8544. Publisher Full Text
  • 238.  Zwanzger C, López-Rueda A, Campodónico D, et al.: Usefulness of CT angiography for characterizing cerebral arteriovenous malformations presenting as hemorrhage: comparison with digital subtraction angiography. Radiologia (Engl Ed). 2020 Sep-Oct; 62(5): 392–399. PubMed Abstract | Publisher Full Text

Comments on this article Comments (0)

Version 3
VERSION 3 PUBLISHED 29 Sep 2023
Comment
Author details Author details
Competing interests
Grant information
Article Versions (3)
Copyright
Download

Export To
metrics
Views Downloads
F1000Research - -
PubMed Central
Data from PMC are received and updated monthly.
 - -
Citations
SEE MORE DETAILS
CITE
how to cite this article
Das S, Kasher P, Waqar M et al. Reporting of angiographic studies in patients diagnosed with a cerebral arteriovenous malformation: a systematic review [version 2; peer review: 3 approved with reservations]. F1000Research 2024, 12:1252 (https://doi.org/10.12688/f1000research.139256.2)
NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.
track
receive updates on this article
Track an article to receive email alerts on any updates to this article.

Open Peer Review

Current Reviewer Status: ?
Key to Reviewer Statuses VIEW
ApprovedThe paper is scientifically sound in its current form and only minor, if any, improvements are suggested
Approved with reservations A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
Not approvedFundamental flaws in the paper seriously undermine the findings and conclusions
Version 2
VERSION 2
PUBLISHED 07 Oct 2024
Revised
Views
19
Cite
Reviewer Report 15 Nov 2024
Johan Wikström, Uppsala University, Uppsala, Sweden
Maria Correia de Verdier, Department of Radiology, Uppsala University, Uppsala, Sweden
Approved with Reservations
VIEWS 19
https://doi.org/10.5256/f1000research.169457.r335899
This article aims to assess the adherence to the Joint Writing Group guidelines regarding description of features in brain arteriovenous anomalies. The authors have responded to previous reviewers´ comments. I have a few additional remarks;

Why use ... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Wikström J and Correia de Verdier M. Reviewer Report For: Reporting of angiographic studies in patients diagnosed with a cerebral arteriovenous malformation: a systematic review [version 2; peer review: 3 approved with reservations]. F1000Research 2024, 12:1252 (https://doi.org/10.5256/f1000research.169457.r335899)
The direct URL for this report is:
https://f1000research.com/articles/12-1252/v2#referee-response-335899
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
Report a concern
  • Author Response 25 Nov 2024
    Suparna Das, The University of Manchester, Manchester, UK
    25 Nov 2024
    Author Response
    Why use "cAVM" and not "BAVM" as proposed by the JWG guidelines?
    cAVM was the term used for my doctorate thesis, which this systematic review was part of.

    In ... Continue reading
    Report a concern
  • Respond or Comment
COMMENTS ON THIS REPORT
  • Author Response 25 Nov 2024
    Suparna Das, The University of Manchester, Manchester, UK
    25 Nov 2024
    Author Response
    Why use "cAVM" and not "BAVM" as proposed by the JWG guidelines?
    cAVM was the term used for my doctorate thesis, which this systematic review was part of.

    In ... Continue reading
    Report a concern
Version 1
VERSION 1
PUBLISHED 29 Sep 2023
Views
40
Cite
Reviewer Report 08 May 2024
Mustafa Ismail, Univeristy of Baghdad, Baghdad, Iraq
Approved with Reservations
VIEWS 40
https://doi.org/10.5256/f1000research.152519.r264835
The authors reported a systematic review about "Reporting of angiographic studies in patients diagnosed with a cerebral arteriovenous malformation: a systematic review" and I congratulate them for this work. There are a few points to consider in this review:
... Continue reading
CITE
CITE
HOW TO CITE THIS REPORT
Ismail M. Reviewer Report For: Reporting of angiographic studies in patients diagnosed with a cerebral arteriovenous malformation: a systematic review [version 2; peer review: 3 approved with reservations]. F1000Research 2024, 12:1252 (https://doi.org/10.5256/f1000research.152519.r264835)
The direct URL for this report is:
https://f1000research.com/articles/12-1252/v1#referee-response-264835
NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
Report a concern
  • Author Response 07 Oct 2024
    Suparna Das, The University of Manchester, Manchester, UK
    07 Oct 2024
    Author Response
    We have addressed all the comments and we have modified mainly the introduction and discussion, but also some of the results.
    Competing Interests: No competing interests were disclosed.
    Report a concern
  • Respond or Comment
COMMENTS ON THIS REPORT
  • Author Response 07 Oct 2024
    Suparna Das, The University of Manchester, Manchester, UK
    07 Oct 2024
    Author Response
    We have addressed all the comments and we have modified mainly the introduction and discussion, but also some of the results.
    Competing Interests: No competing interests were disclosed.
    Report a concern
Views
42
Cite
Reviewer Report 02 Nov 2023
Nitin Mukerji, Department of Neurosurgery, South Tees Hospitals NHS Foundation Trust, Middlesbrough, England, UK
Approved with Reservations
VIEWS 42
https://doi.org/10.5256/f1000research.152519.r211337
The authors have picked out a standard method of reporting/describing AVMs in literature and attempted to establish compliance via a retrospective review. While the work done is commendable, well researched and drafted appropriately; there are a few criticisms:
    ... Continue reading
    CITE
    CITE
    HOW TO CITE THIS REPORT
    Mukerji N. Reviewer Report For: Reporting of angiographic studies in patients diagnosed with a cerebral arteriovenous malformation: a systematic review [version 2; peer review: 3 approved with reservations]. F1000Research 2024, 12:1252 (https://doi.org/10.5256/f1000research.152519.r211337)
    The direct URL for this report is:
    https://f1000research.com/articles/12-1252/v1#referee-response-211337
    NOTE: it is important to ensure the information in square brackets after the title is included in all citations of this article.
    Report a concern
    • Author Response 07 Oct 2024
      Suparna Das, The University of Manchester, Manchester, UK
      07 Oct 2024
      Author Response
      We have addressed all the comments and we have modified mainly the introduction and discussion, but also some of the results.
      Competing Interests: No competing interests were disclosed.
      Report a concern
    • Respond or Comment
    COMMENTS ON THIS REPORT
    • Author Response 07 Oct 2024
      Suparna Das, The University of Manchester, Manchester, UK
      07 Oct 2024
      Author Response
      We have addressed all the comments and we have modified mainly the introduction and discussion, but also some of the results.
      Competing Interests: No competing interests were disclosed.
      Report a concern

    Comments on this article Comments (0)

    Version 3
    VERSION 3 PUBLISHED 29 Sep 2023
    Comment

    Open Peer Review

    Reviewer Status

    Alongside their report, reviewers assign a status to the article:

    Approved
    The paper is scientifically sound in its current form and only minor, if any, improvements are suggested
    Approved with reservations
    A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
    Not approved
    Fundamental flaws in the paper seriously undermine the findings and conclusions

    Reviewer Reports

    Invited Reviewers
    1 2 3
    Version 3
    (revision)
     25 Nov 24     		read read
    Version 2
    (revision)
     07 Oct 24     		read
    Version 1
    29 Sep 23     		read read
    1. Nitin Mukerji, South Tees Hospitals NHS Foundation Trust, Middlesbrough, UK
    2. Mustafa Ismail, Univeristy of Baghdad, Baghdad, Iraq
    3. Johan Wikström, Uppsala University, Uppsala, Sweden
      Maria Correia de Verdier, Uppsala University, Uppsala, Sweden

    Comments on this article

    All Comments(0)

    Add a comment
    Sign up for content alerts

    Browse by related subjects

      keyboard_arrow_left Back to all reports
      keyboard_arrow_left Back to all reports
      keyboard_arrow_left Back to all reports
      keyboard_arrow_left Back to all reports
      keyboard_arrow_left Back to all reports
      Alongside their report, reviewers assign a status to the article:
      Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested
      Approved with reservations - A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.
      Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions
      Sign In
      If you've forgotten your password, please enter your email address below and we'll send you instructions on how to reset your password.

      The email address should be the one you originally registered with F1000.
      Email address not valid, please try again

      You registered with F1000 via Google, so we cannot reset your password.

      To sign in, please click here.

      If you still need help with your Google account password, please click here.

      You registered with F1000 via Facebook, so we cannot reset your password.

      To sign in, please click here.

      If you still need help with your Facebook account password, please click here.

      Code not correct, please try again
      Email us for further assistance.
      Server error, please try again.
