Ex vivo precision-cut liver slices model disease phenotype and monitor therapeutic response for liver monogenic diseases

Ethics statement

All animal work was approved following local ethical review by the University College London Animal Welfare and Ethical Review Board and performed under Home Office project license PP9223137 and in accordance with the Home Office (Animals) Scientific Procedures Act (1986). Individual Researchers were performing procedure under personal licences I3906A5FA and I42365670.

All efforts were made to limit harm to animals in accordance to standard practice at the Biological Services Unit at University College London. Animal procedures were performed under the UK Home Office licence PP9223137. Animal procedures were compliant with ARRIVE guidelines and The ARRIVE checklist is available on Open Science Framework, DOI: https://osf.io/vz4jp/.¹⁶

Animals

The transgenic mouse strains were purchased from Jackson Laboratory (Bar Harbor, ME): Asl^Neo/Neo (B6.129S7-Asltm1Brle/J) and Ass1^fold (B6EiP-Ass1^fold/GrsrJ). The model for citrullinemia type 1, Ass^fold/fold, contains a single base pair mutation within the ASS gene, and the model recapitulating Argininosuccinic aciduria (ASA), Asl^Neo/Neo, contains a neomycin (Neo) cassette inserted into the ASL gene and disrupting its transcription. Mice were mated as heterozygous and a total of six mice per strain were used as parents to generate wild-type and homozygous littermate controls. A total of 15 littermates were used to generate the PCLS. Some of the remaining littermates were used as new breeders. Livers were harvested between the ages of day 12 and 19. All animal work was carried at the Biological Services Unit of University College London. Mice had free access to food and water, housed up to five per cages, in Individually ventilated cages with controlled temperature and humidity conditions and with a 12h light cycle.

Collection of liver and preparation

The mouse had been euthanised by raising CO₂ concentration and according to local procedures. The liver was immediately excised from the mouse and in conditions as sterile as possible and stored directly in ice cold Krebs Buffer. All further steps were performed on ice at 4°C. Each lobe was isolated from the whole liver and all edges further trimmed to obtain a smaller more manageable lobe with straight edges. This helped remove some of the fibrous Glisson’s capsule to further facilitate sectioning. This was performed while keeping the liver surfaces wet into ice cold Krebs buffer (Figure 1A). One litre of Krebs (Merck, Cat. no K3753) buffer was prepared by dissolving one vial of Krebs powder into 1 L of ultrapure water and kept at 4°C before and during use. Each lobe section was embedded into 4% low melting agarose (ThermoFisher, Cat no 16520050).

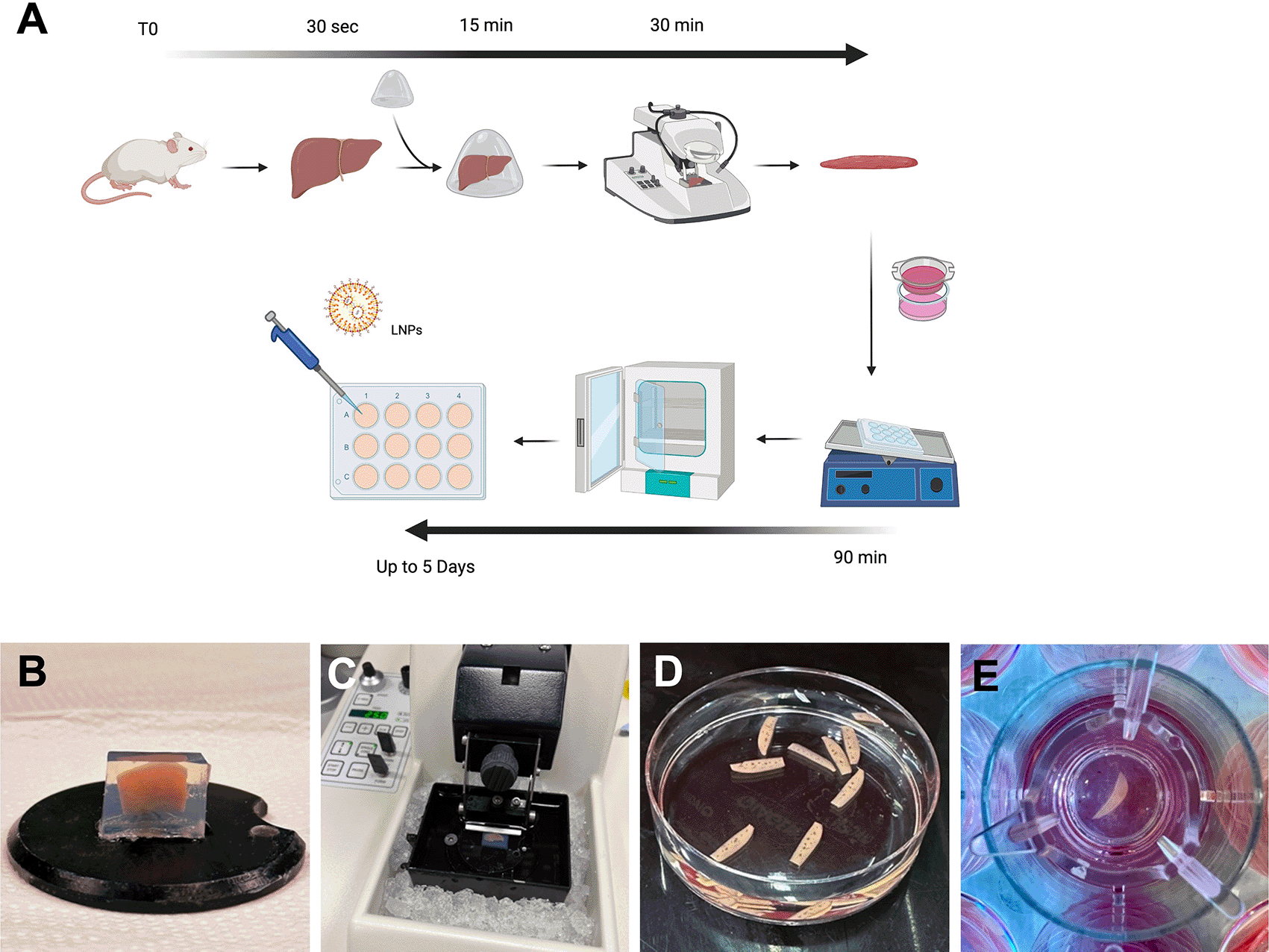

Figure 1. Optimised protocol for cutting and culture of PCLS.

(A) Schematic summarising the protocol for generating PCLS. (B) Pre-cut liver lobe embedded in a low-melting agarose block. (C) Agarose block containing the mouse lobe ready for cutting onto vibratome filled with ice and ice-cold Krebs buffer. (D) PCLS following cutting and ready for culture. (E) A PCLS inside a transwell within a 12 well plate containing culture media.

Liver slices preparation

Following harvest, the liver should be processed for cutting as quickly as possible and the time between harvest and culture shouldn’t exceed 3 hours but the shorter this time is, the better with regards to survival. Slicing was performed using a vibratome (Leica, VT1000 S). The agarose blocks were glued, using standard cyanoacrylate glue, directly onto the platform (Figure 1B) and the tray filled with ice cold Krebs buffer to completely cover the agarose block. The blades (Agar Scientific, Cat no T569T) were placed onto the vibratome at an angle of 10 degree downwards and below horizontal (Figure 1C). The vibratome was set for cutting at a thickness of 250 μm and speed was set at 5 and frequency at 7. The cutting tray was cooled into the freezer before use and preserved cold with ice around it (Figure 1C). A spatula was used to collect the liver slices instead of forceps or brushes to avoid damaging the slices.

Incubation of liver slices

William’s Medium E with GlutaMAX^TM (WME) slice incubation medium was prepared by adding 2 mM L-glutamine supplement (Gibco, Cat no 32551-020), 10% of dialysed FBS (ThermoFisher, Cat no 26400044), 100 U/mL penicillin and 100 μg/mL streptomycin (Gibco, Cat no 15750045), 10 μg/mL Gentamycin (Gibco, Cat no 15750045), 25 mM D-Glucose solution (Gibco, Cat no 15384895), 15 mM HEPES solution (Gibco, Cat no 15630), stored at 4°C. Slices were also cultured using porous 8 μm inserts to allow access to both faces of the slice (Strastedt, Cat no 83.3932.800). Media was also added to the well, enough to slightly cover the slices to create a liquid-air interface while shaking. Plates with slices were transferred into a humidified incubator set to 37°C, 5% carbon dioxide and 20% oxygen level while continuously shaking using an orbital shaker with a speed set at 130 rpm. Thereafter the media was changed every 48 h.

MTS Assay

The slices were transferred into a 48 well plate containing 400 μl of prewarmed complete WME media and 80 μl of MTS (4,5-dimethylthiazol-2-yl)-5-(3-carboxymethoxyphenyl)-2-(4-sulfophenyl)-2H-tetrazolium) reagent (Abcam, Cat no ab197010) was added. Following incubation for 1 h at 37°C, 5% CO₂ onto a shaker, 200 μl of media was transferred into a 96 well plate and absorbance was measured at 490 nm. OD raw values were normalised to the fresh weight of individual slices. Slices were weighted at the end of the assay. Individual weights varied from 4.6 mg to 19.1 mg with an average of 10.6 mg.

Nanoparticle transfection

Codon optimized hASL encoding mRNA encapsulated in lipid nanoparticles (LNP-hASL mRNA) were provided by Moderna Therapeutics using their proprietary technology. A total of 2 μg of LNP-hASL in a 10 μL volume were added to the upper side of the slice. This is comparable to an average of 0.19 mg of nanoparticles per gram of liver.

Citrulline and argininosuccinic acid analysis

Liquid chromatography-Mass spectrometry (LC-MS/MS) was used from dried bloodspots using the hydrophilic interaction liquid chromatography (HILIC) separation of metabolites, method. Briefly, 40 μl of whole blood was spotted on Guthrie blood spot card, dried at room temperature for 24 h and stored in -20°C in a foil bag with desiccant. 3 mm blood spot punch was extracted in 100 μl methanol containing stable isotopes (2 nmol/l, L-citrulline-d7, CDN isotopes, Pomite-Claire, Quebec), used as internal standards, for 15 min in sonicating waterbath at room temperature. The supernatant was collected and dried using Eppendorf^® Concentrator Plus and resuspended in 80 μl of 0.05 M HCl, topped with 280 μl of Solvent A (10 mM ammonium formiate+85% Acetonitrile (ACN)+0.15%Formic acid (FA)), centrifuged at 16,000 rpm for 5 min and supernatant taken for analysis.

Acquity UltraPure Liquid Chromatography (UPLC)-system (Waters, Manchester, UK) using Acquity UPLC BEH Amide column (2.1×100 mm, 1.7 μm particle size) and Van Guard^TM UPLC BEH Amide pre-column (2.1×5 mm, 1.7 μm particle size) (Waters Limited, UK) was used for amino acid chromatography. The mobile phases were (A) 10 mM ammonium formiate in 85% ACN and 0.15% FA and (B) 15 mM ammonium formiate containing 0.15% formic acid, pH 3.0. Detection was performed using a tandem mass spectrometer Xevo TQ-S (Waters, Manchester, UK) using multiple reaction monitoring in positive ion mode. The dwell time was set automatically with MRM-transition of 291.2>70.2, 273.2>70.2 and 176.1>159 respectively for ASA, ASA-anhydrides and L-citrulline. L-Citrulline-d7 (183.15>166.05) was used as internal standard control. Argininosuccinate data were analysed using Masslynx 4.2 software (Micromass UK Ltd, Cheshire, UK).

ASL enzymatic activity

20-30 mg of liver was homogenised in 400 μl of cold homogenising buffer (50 mM phosphate buffer pH 7.5 and 1x Roche EDTA-free protease inhibitor (Roche, Switzerland)) using Precellys homogeniser tube (VWR, UK) and Precellys 24 tissue homogeniser (Bertin Instruments, France), centrifuged at 10000 g for 20 min at 4°C and protein levels measured from the supernatant using BCA kit (Thermo Fisher Scientific, UK). 60 μg of protein lysate was incubated with 3.6 mM ASA in final volume of 50 μl, incubated at 37°C for 1h followed by reaction termination at 80°C for 20 min. The mixture was centrifuged at 10000 g for 5 min and 5 μl of the supernatant was used to measure fumarate levels per instruction from the commercial fumarate kit (Abcam, Cambridge, UK).

Statistical analyses

GraphPad Prism 9.0 software (San Diego, CA, USA) was used for performing data analysis and generating graphs. The statistics for this research could be reproduced using the open-source graphical program for statistical analysis JASP.

Key aspects of PCLS culture to allow viability over five days

Protocols for PCLS preparation and culture vary significantly in the literature with a lack of standardisation, especially for slicing equipment, culture media, and engineering system. Optimisation is always key and varies noticeably depending on the tissue of interest. Here, we recapitulate a rapid and optimised protocol to generate PCLS (Figure 1). We observed that a minimal volume of culture medium was essential to sustain viability. A reduced volume in 24-well plate showed a significant reduction of viability (p=0.02) compared to 12-well and six-well plates (Figure 2A, Underlying data¹⁶). In agreement with others,¹⁷ the use of 12-well plates appears as the best option for optimal survival providing more nutrients and diluting toxic bile acid products. Approximately fifty percent reduction of PCLS viability was also observed without continuous shaking (Figure 2B, Underlying data¹⁶). Shaking creates a critical air-liquid interface, a constant flow, and combined with the use of transwells, increases access to nutrients and oxygen.

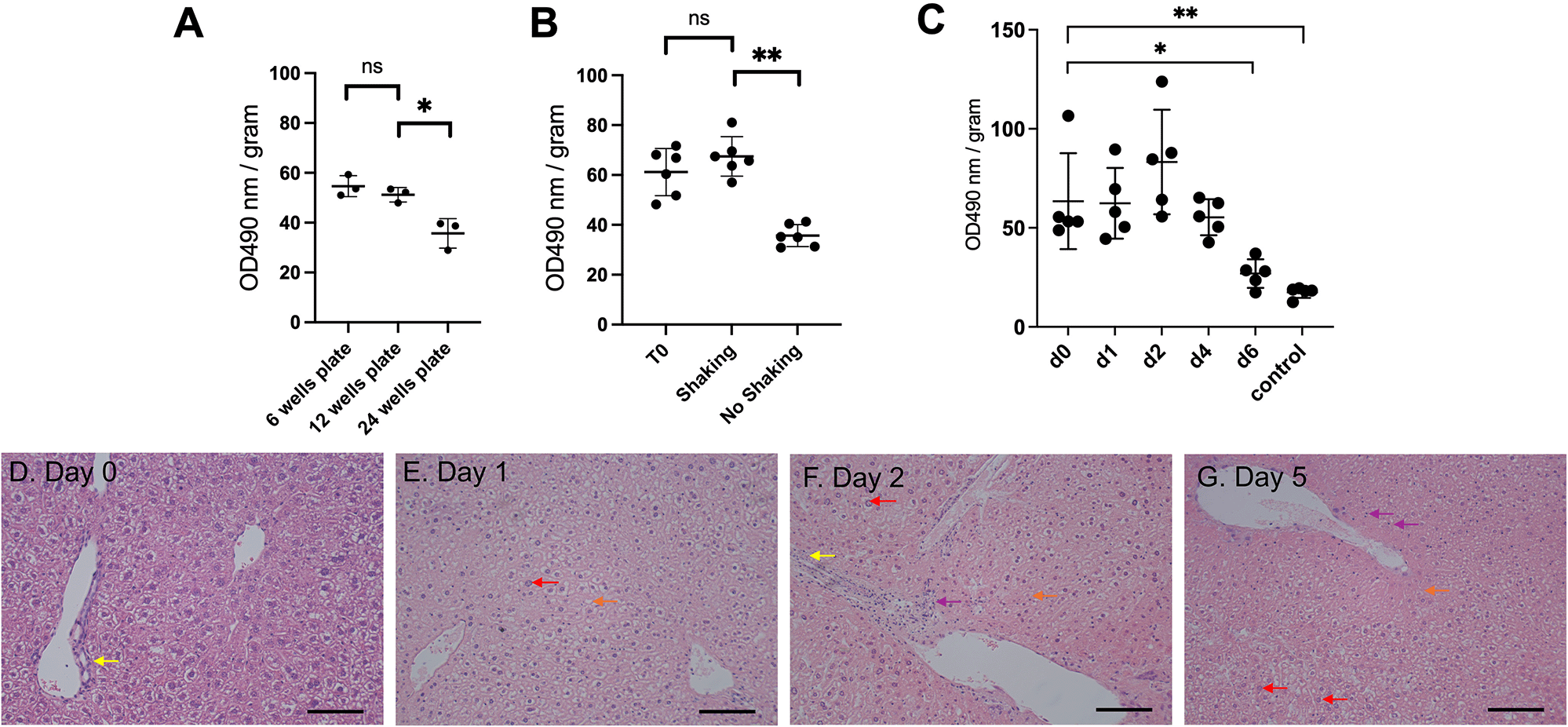

Figure 2. An optimised protocol of PCLS culture shows satisfactory viability for 5 days.

(A) Effect of well size on cell viability (n=3). (B) Effect of shaking on cell viability (n=6 per condition). (C) MTS cell viability assay from liver sections from baseline until 6 days of incubation (n=5 per timepoint). OD: arbitrary unit of optical density, normalised to slice fresh weight. Graphs show mean$\pm$SD. Unpaired 2-tailed Student’s t test, ns=not significant, *p<0.05, **p<0.01. (D-G) Representative images of histology of liver PCTS following H&E staining (n=3). Scale bar=100 μM.

With these modifications, viability was assessed and remained constant before observing a significant decrease (p=0.05) at day six (Figure 2C, Underlying data¹⁶). A survival of 5 days refers to an experimental design from day 0 (day of animal harvest, organ slicing and first day of incubation) up to day 4 (5th day of incubation). The PCLS morphology showed no change of bile ducts and architecture up to five days post-incubation (Figures 2D–G). Only nuclear hyperchromasia, mild inflammatory infiltrates and vacuolisation were observed at day five (Figure 2G). Taken together, we showed that our optimised PCLS culture protocol enabled viability for five days.

PCLS recapitulate the disease phenotype of argininosuccinic synthase (ASS) and ASL deficiencies and show proof of concept of mRNA replacement therapy ex vivo

Citrullinemia type 1 and ASA are caused by deficiency of the hepatic urea cycle enzymes argininosuccinic synthetase (ASS1) and ASL, respectively (Figure 3A, Underlying data¹⁶). Patients suffering from these urea cycle disorders develop recurrent hyperammonaemia and subsequent neurological symptoms such as developmental delay, coma and death. Despite best-accepted standard of care combining ammonia scavenger drugs and protein-restricted diet, patients present with high rates of mortality and poor quality of life,¹⁸ highlighting high unmet needs. The ex vivo models rely on induced pluripotent stem cells (iPSC)-derived hepatocytes with a relative inaccuracy in modelling the disease phenotype partially due to sub-optimal differentiation.³ We therefore established a PCLS model using two hypomorphic mouse models: Ass^fold/fold, for citrullinemia type I and Asl^Neo/Neo for ASA. Both models reproduce the clinical phenotype, characterised by impaired growth, abnormal fur, hyperammonaemia and abnormal plasma amino acid profiles.^19,20

Figure 3. PCLS recapitulate key aspects of the disease phenotype of ASS1 and ASL deficiencies and shows proof of concept of mRNA therapy ex vivo.

(A) ASL and ASS1 enzymes enable ammonia detoxification in the liver-based urea cycle. (B) Citrulline levels in media after 48 h of incubation in WT and ASS1-deficient PCLS. (C) Arginosuccininic acid levels in media after 48h of incubation in WT and ASS-deficient PCLS. (D) ASL western blot at 48 hours (cropped). (E) Quantification of ASL immunoblot normalised to GAPDH. (F) Liver ASL activity from WT, untreated ASL^Neo/Neo and hASL mRNA. (G) Arginosuccininic acid levels in media after 48h of incubation in WT and ASS-deficient PCLS. (B-C) n=2 per group; (D-G) n=3 per group. Graphs show mean$\pm$SD. Unpaired 2-tailed Student’s t test, *p<0.05, **p<0.01, ***p<0.005.

As key biomarker for ASS deficiency, citrulline levels showed a significant eight-fold increase in the media of Ass^fold/fold PCLS compared to that of wild-type littermates (p = 0.01) (Figure 3B, Underlying data¹⁶). No significant difference was observed in argininosuccinate levels (Figure 3C, Underlying data¹⁶). Arginosuccinate levels remain low compare to levels observed in patients, we believe this is due to the high level of dilution using a liver slice with a small superficie and a thickness of only 250 μm within a relatively high volume of culture.

mRNA encapsulated in lipid nanoparticles is an emerging therapeutic strategy for rare liver inherited metabolic diseases^21,22 and PCLS present themselves as an attractive model to assess such therapies. PCLS generated from Asl^Neo/Neo mice were therefore treated with either hASL mRNA or phosphate buffer saline (PBS). We assessed efficacy by testing argininosuccinate levels in PCLS culture media, ASL protein expression and enzymatic function at 48h post-transfection. An eight-fold increase in ASL protein levels was observed in hASL mRNA-treated PCLS compared to untreated (Figures 3D, 3E, Underlying data¹⁶). ASL activity, assessed by fumarate production, was also restored in hASL mRNA versus PBS-treated PCLS to supraphysiological levels (Figure 3F, Underlying data¹⁶). Argininosuccinate levels were more than two-fold higher in the media of Asl^Neo/Neo PCLS that of WT controls and were corrected to that of WT levels after hASL mRNA incubation (Figure 3G, Underlying data¹⁶). Taken together, these results demonstrate that PCLS culture can replicate the disease phenotype and subsequently be used to assess therapeutic response to gene therapy.
