Keywords
Entomophagy; energy bar; Atta sexdens; protein; ant; edible insect.
This article is included in the Agriculture, Food and Nutrition gateway.
In Peru, insect consumption, as a nutritional complement or as the main source in the diet, is limited to the regions of our the central jungle where Atta sexdens ants are consumed. An energy bar based on Andean grains with Atta sexdens ant flour was formulated. The ants were obtained from the department of San Martin, district of Rioja, province of Rioja. Four different formulations were prepared with different Atta sexdens ant flour concentrations: 15%, 20%, 25%, and 30%. Moisture, total fat, ash, proteins, fiber, carbohydrates, instrumental texture, and organoleptic analysis (taste, texture, and color) were performed. The developed cereal energy bar presented a 10 g protein content in 100 g of the final product. Acceptability was evaluated in adolescents and young adult populations. The developed cereal bars presented a high protein content, adequate organoleptic properties and high acceptability. However, this must be considered in the context of the rising cost of protein-rich foods.
Entomophagy; energy bar; Atta sexdens; protein; ant; edible insect.
Innumerable changes have been made, starting with the title, new quotes have been included, paragraphs have been improved, and changes have been made throughout the document.
See the authors' detailed response to the review by Zabentungwa Hlongwane
See the authors' detailed response to the review by Samuel Adelani Babarinde
See the authors' detailed response to the review by Victor Benno Meyer-Rochow
The Food and Agriculture Organization of the United Nations (FAO) recommended the consumption of edible insects because they are sustainable, economical, rich in nutrients and can be used to combat malnutrition.1 In Latin America, Asia,2 and Africa,3 the insects are commonly consumed.2 In Mexico alone, 549 species of ants have been reported to be consumed by diverse ethnic groups of this country.4
It has been reported that in Thailand their diet has been diversified with the consumption of sago worms5 and Acheta domesticus grasshoppers.6 Similarly, ants and bees have been reported to be consumed in sub-Saharan Africa3,7 in Peru, the consumption of Suri, a species of Rhynchophorus palmarum worm, and ants known as Mamako or Siqui Sapa (Atta sp.) has been reported to be widely consumed because of their pleasant taste.8
Insects have high nutritional value because of their high content of fats, proteins, vitamins, fiber and minerals, which is a great opportunity for the development of healthy foods.9 Mealworm has a high content of unsaturated omega-3 fatty acids and healthy fats in similar quantities than fish, and their content of protein, vitamin and micronutrients is similar to fish and meat.10 In addition, protein from insects has been reported to produce a lower impact in the environment than obtaining protein from cattle or poultry.2
Many insect species are consumed alone or have been included in other preparations. In the Netherlands, pasta has been made with durum wheat with the addition of cricket powder.11 Cereal bars are in this study, an accessible and an easily consumed product by adolescents and children. Consuming them in the morning and mid-morning can be beneficial to humor and memory behavioral aspects. According to the Codex Alimentarius, a cereal bar is mainly prepared with one or more ground cereals.12 Sales of nutrition bars increased almost tenfold in the last decade, and may be a way to utilize processed insect flour,13 because of the easiness of consumption. To the best of our knowledge there are no studies that have included ant flour in cereal bars. Therefore, the objective of this study was to develop a cereal bar with andean cereals and the addition of ant flour, evaluate its nutritional value, fracturability, and compression. A microbiological analysis was performed on the cereal bar to ensure product safety, and a sensory evaluation was conducted to determine whether the product was acceptable to consumers. The acceptability study was carried out with a population of adolescents and young people.
Atta sexdens ants have been taxonomically assessed based on their morphological characteristics.14 These ants are brown or dark brown in color and the adult ants present three pairs of spines of approximately 6 to 14 mm, build their nests in underground tunnels of up to eight meters deep and can cover an area of 50 to 100 m2, and cut pieces of leaves, which they transport to their nest following visible paths.15
The siqui sapa ants were brought from the department of San Martín, province and district of Rioja, and were obtained through a distributor. The ants were transported to Lima and delivered in vacuum packaging to maximize the conservation of the product.
For the preparation of ant flour, the ants were placed in an oven at 65°C for 220 minutes. Of a sample of 100 g, we obtained 72.1 g of our final product. This was taken to an electric grinder until the flour was obtained. To avoid lumps and large particles, the flour passed through a stainless-steel sieve to obtain a homogeneous product.
The ingredients used were expanded kiwicha (100 g: 24.6 g protein, 7 g carbohydrates) and quinoa (100 g, 8 g protein, 85 g carbohydrates), also called expanded cereals. The dried fruits used were pecans (100 g: 9.1 g protein, 73.8 g fat, 11.7 g carbohydrate), peanuts (100 g: 27.1 g protein, 51 g fat, 16 g carbohydrate), almonds (100 g: 23.4 g protein, 54.1 g fat, 14.3 g carbohydrate), raisins (100 g: 2.4 g protein, 63.8 g carbohydrates), and coconut (100 g: 12 g de protein, 23 g total fat, 26 g carbohydrates). Shredded coconut and unflavored gelatin were purchased from a supermarket in the city of Lima. The process began with the preparation of inverted sugar syrup at 60° Brix, H2O/Sugar (50%-50%), which was used to compact the energy bars.

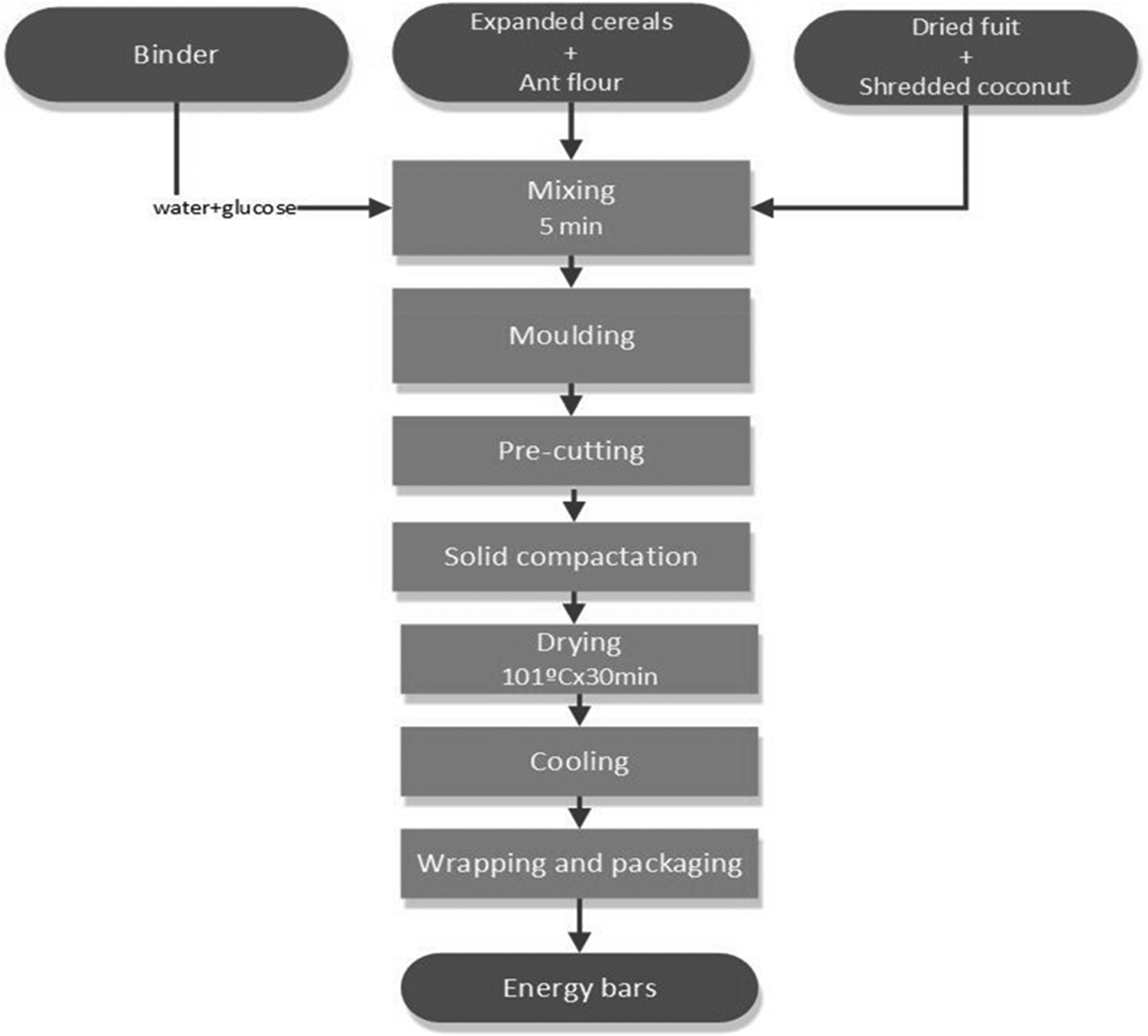

The expanded quinoa, kiwicha, dried fruits and ant flour were mixed together with the inverted syrup and glucose. The product was compacted with the help of molds to obtain cylindrical shapes. Figure 1 shows the procedure for the cereal bar formulation.
We measured the nutritional composition (fat, moisture, protein, carbohydrates, ash) in the four types of energy bars with ant flour at concentrations of 15%, 20%, 25% and 30%, and in the control bar, determined by AOAC standard methods. Moisture was determined according to AOAC 922.06,16 fat according to AOAC 925.09 and extraction was performed using Soxhlet.17 Ash according to AOAC 923.03.18 Protein according to AOAC 984.1319 using 6.25 as the nitrogen to protein conversion factor for all samples, this determination was based on Kjeldhal methodology using conventional analysis. Carbohydrates were calculated by subtracting the percentages of fat, moisture, protein, carbohydrates and ash from 100%. Analyses were performed in triplicate.20
Two sensory quality attributes of the energy bars were evaluated. The analysis was performed using the TVT 6700 texture analyzer - Perten Instruments and TexCalc software. Fracturability is defined as the force required to fracture the sample significantly.21 The three-point bending method was used with the following parameters: initial speed of 1 mm/s, speed of 0.5 mm/s during the test, 0.1961 N tensile strength, 40 mm distance between support points.22 For the initial speed of compression test we used 2 mm/s; speed during the test, 2 mm/s; recoil speed, 10 mm/s; tensile strength, 0.049 N. The values of the strength required (N) to compress the specimen to 20% of its original thickness were recorded.23
The detection method for Salmonella was ICMSF (International Commission Microbiological Specifications for Foods). For Escherichia coli the ICMSF for the determination of fecal coliform organisms was used.24 For yeast25 and mold26 count the ICMSF method was used through seeding plates. Mesophilic aerobic microorganisms were counted using the ICMSF methods.27
The study was conducted by two nutritionists. A total of 100 participants were recruited, including adolescents and young people from two secondary schools, who were chosen as a population that frequently consumes bars. They received an invitation via whatsApp to participate in this study. Few participants (n=13) were contacted by calling them on their cell phones by the nutritionist in charge of administering the taste test, defined as a preference test. The inclusion criteria were adolescents and young adults who agreed to try the energy bars.
The recruitment for the analysis took place in August 2020, in a school environment, and the participants were organized in groups of 10 students who entered according to their arrival at the venue. The study was conducted in a ventilated area, with folders set up containing the samples. The samples were served at room temperature in disposable containers, and each participant was provided with a personal bottle of water. The distance between chairs was one meter, and the labels had three-digit codes assigned to each sample. The percentage of women was 46%.
The acceptability was determined using a hedonic test, in which the recruited population was not trained. We use 5-point scale,28 suggesting that simpler scales could be more effective in certain contexts. Therefore, we decided to use the 5-point scale, as it may be more effective due to its simplicity.
The samples had different three-digit random codes for each type of bar, a bottle of water was previously given to each participant in order to drink after each test, and strict cleanliness conditions were maintained at all times.
The report of the hedonic test results was recorded in an Excel table, which was subsequently analyzed using the IBM SPSS statistical version 25 package. The results of the physical organoleptic analysis, the proximate analysis, and the microbiological analysis were shown in tables, indicating frequencies and percentages. The data was expressed in percentages and the experimental data was analyzed using the Kruskal-Wallis test. Normality was previously measured with Kolmogorov-Smirnov.
The composition of the four types of energy bars and the amount of ant flour are shown in Table 1. The data are expressed in 100 g of product.
The proximate analysis showed the increase in fat and proteins as the percentage of ant flour increases in the four different concentrations ( Table 2).

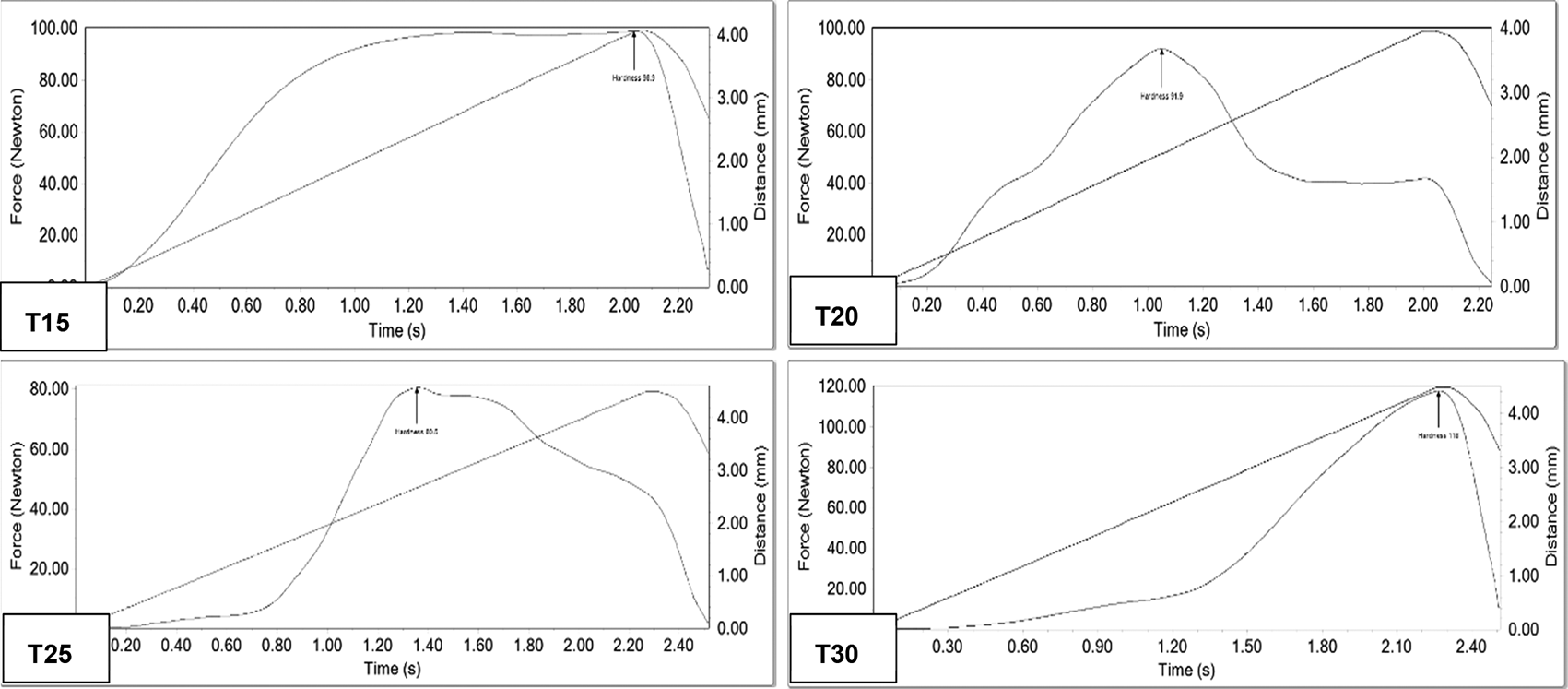

The analysis of compressibility assessed hardness. The method fitted the consistency of the sample due to the fact that, in order to delimit the assays’ parameters, the greatest force exerted was within 20% of compression, and values between 80.5 N and 117.6 N were obtained ( Table 3, Figure 2).
Treatment | Fracturability (N) | Compressibility (N) |
---|---|---|
T1 | 8.48 | 98.9 |
T2 | 9.33 | 91.9 |
T3 | 12.33 | 80.5 |
T4 | 12.33 | 117.6 |
T1: treatment with 15% ant flour; T2: treatment with 20% ant flour; T3: treatment with 25% ant flour; T4: treatment with 30% ant flour.
Figure 2 shows the fracture curves of the treatments with 15%, 20%, 25% and 30% of ant meal T15, T20, T25 and T30 respectively. In general we can observe 3 axes that are force (N), time (s) and distance (mm). The arrow of the indicated point (Hardness) expresses the maximum force exerted to fracture the samples, for example in graph T15, the maximum force exerted to fracture the sample is observed 98.9 N, with a time of 2.9 s and a distance of 1.41 mm. Figure 3 shows the compressibility curves in the same way we can observe 3 axes that are force (N), time (s) and distance (mm), an arrow of the indicated point (Hardness) expresses the maximum force exerted to compress by 20% each of the bars, from which the parameters of distance and time used are obtained, all of these under the same initial conditions mentioned in the methodology of both tests. For example, in the T30 graph, it is observed that to compress the sample by 20%, a force of 118 N is required with a distance of 4 mm in 2.3 s.
The median age of the tasters was 20.5, with a range of 15 to 25 years old. The four types of bars with different concentrations of ant flour were evaluated. Taste, texture, and color were assessed, and they were expresses through a hedonic scale. The four types showed high acceptability, the percentage of the acceptability index was also high ( Table 4).
Taste* | Texture* | Color* | ||||
---|---|---|---|---|---|---|
Mean ± SD | AI (%) | Mean ± SD | AI (%) | Mean ± SD | AI (%) | |
T15 | 4.03 ± 0.18 | 95.7 | 3.84 ± 0.19 | 95.3 | 4.07 ± 0.17 | 95.8 |
T20 | 3.66 ± 0.23 | 94.1 | 3.74 ± 0.21 | 94.5 | 4.10 ± 0.17 | 96.1 |
T25 | 3.69 ± 0.24 | 93.7 | 3.84 ± 0.22 | 94.5 | 4.08 ± 0.19 | 95.5 |
T30 | 4.04 ± 0.18 | 95.6 | 3.84 ± 0.19 | 95.3 | 4.09 ± 0.18 | 95.8 |
Total | 3.86 ± 0.13 | 97.3 | 3.81 ± 0.12 | 97.4 | 3.81 ± 0.12 | 97.9 |
The analyzed sample was T30 for being the one with the highest amount of protein. The obtained values were within the limits allowed according to 071-MINSA-DIGESA-V01 (the sanitary technical norm in Peru) ( Table 5).29
Microorganism | Permisible count* | Count | Unit |
---|---|---|---|
Mold | 105 × gr | 1.0 × 101 | CFU/g |
Salmonella | Absence | Absence | A-P/25g |
Aerobic mesophilic microorganisms | 1.0 × 104 CFU/g | 4.0 × 101 | CFU/g |
Escherichia coli | 10 MPN/g | <3 | MPN/g |
Yeast | 10 CFU/g | 1.0 × 101 | CFU/g |
* Based on 071-MINSA-DIGESA-V01.29
The four types of bars with different percentages of ant flour were assessed (T15: 15%; T20: 20%; T25: 25%; T30: 30%). We used cereal such as quinoa and kiwicha, dried fruit (chestnuts, nuts, peanuts, almonds, and raisins). The proximate analysis showed that fat and proteins increased as the amount of ant flour increased as well, in comparison with the control bar made without ant flour (T0). Compressibility values ranged from 80.5 N to 117.6 N, and fracturability ranged from 8.48 to 12.33. We did not find any differences among the cereal formulations. All of them showed an acceptability index higher than 95%.
The fat and proteins increase with the addition of the ant flour is noticeable. A study with ant meal from the Rioja area in Peru analyzed the protein, fat, and mineral content of ant, showing 35.40% fat, 35.5% protein, and a pepsin digestibility of 99.30 For authors such as Guan et al., and Kowlaski et al., the preparation of breads and cakes to which they added flours from insects, crickets, and mealworms showed an increase in proteins, minerals and healthy fatty acids31,32 and this result is similar to our cereal bars, the extra amount of proteins allows greater moisture making it soft.
Considering the nutritional qualities that insects possess,33 a protein value similar to that of vertebrates.33 Cephalotes ants have 42.59% protein, chicken 23%, and beef 20%. In addition, insects are high in sodium, potassium, zinc, magnesium, iron, copper, and calcium.14,34 Other cereal bars made with similar products provide a lower amount of protein per serving.
Regarding moisture content, no significant difference was found between the formulations. Moisture levels ranged from 17.6 g in formulation F0 to 19.39 g in F2. Regarding the values obtained for carbohydrate content, these varied from 60.65 g in formulation F4 to 66.28 g in F0 without finding a significant difference. Although variations in moisture and carbohydrate content were observed in both, these were not statistically significant, suggesting that the variation in ant flour content does not impact on both values.
The ash analysis revealed significant differences between the formulations. Ash levels ranged from 1.23 g in formulation F4 to 1.86 g in F0. This variability suggests that the mineral composition of the different formulations decreases as the % of ant flour increases, this could be associated with the reduction of inputs such as quinoa and kiwicha.
In our study we obtained compressibility values ranging from 98.9 N to 117.6 N, which were obtained in the sample with the highest amount of protein (10.5 g). Alvarez obtained values from 130 N to 167 N in his cricket flour bars’ formulation, which was higher compared to our results. Alvarez attributed the difference to the protein content of the flour studied. However, it was concluded that the trend does not show significant differences due to the variability of the bars’ pieces, in addition to the structure of the bar because of the random distribution of dried fruit fragments.35 A study with cereal bars with quinoa flakes reported values between 112 N and 216 N,18 in which the sample with the highest hardness (216 N) that did not have quinoa in its composition was rated in the sensory analysis with “I slightly dislike it” and was associated with the hardness of the product as one of its characteristics. Some products with high fiber content are denser and harder; this does not imply a lower acceptance of the product.22 but a bar easy to crumble and with excessively firmness would not be attractive to the consumer. At sensory level, this analysis correlates with the maximum force exerted between the molars of each panelist.36
The fracturability test imitate chewing with the incisors. A study compared the instrumental sensory texture of cereal bars with the maximum shear force required during a bite. The research concluded that a bar with higher breaking force may be more crumbly; however, a bar that crumbles easily does not necessarily require greater breaking force. This indicates that the relationship between texture and force is not linear, as a product's ease of crumbling can vary independently of its breaking strength.36 In our study, we observed a higher force required by the 25% and 30% treatments, and a lower force by the 15% and 20% treatments. The values obtained varied between 8.48 N to 12.33 N of compression. Márquez-Villacorta L and Pretell-Vásquez C obtained data ranging from 23.9 to 33.8 N, which shows the wide range of firmness in these products when comparing these results with previous research.22 According to a study on the addition of chontacuro (Rhynchophorus palmarum) flour to cereal bars,37 it is expected to observe different resistance characteristics given by the addition of different concentrations of the ingredients during the elaboration of the bars. Texture properties are linked to the composition of each ingredient in the product such as flour granulometry, structure, and nutritional value, which are manifested in the results obtained by the shear or compressive strength of the sample, which give a particular attribute to the product. Incorporating ant flour into breads can contribute to a softer texture due to its protein content, which can improve moisture retention and enhance the overall mouthfeel of the product.31
The four types of bars with different concentrations of ant flour were evaluated by 100 students. Taste, texture and color were evaluated and expressed by a hedonic scale. The acceptability index had values above 95 %. Although no other bars with Atta sexdens flour addition have been found to compare with, information has been collected from several cereal bars with different cereals in their composition. A study by Bchir et al. (2018) revealed that appearance is the main limiting factor for consumer acceptability, especially in cereal bars that include dried fruits as ingredients.38 The autor Gutkoski found higher acceptability when the bars had medium sugar concentration and high dietary fiber and β-glucan content.39 In a cereal bar made with textured soy protein, wheat germ, and oats, enriched with ascorbic acid and α-tocopherol acetate. While the formulation de Freitas evaluated was high in protein (15.31%), vitamin E (118.0 mg/100 g). The formulation with 1.1 g/100 g of ascorbic acid added obtained a higher significant sensory preference.40
In a study by Gumul, nut bars with the addition of edible insect flours were evaluated, and this addition reduced the perception of most of the sensory attributes of the bars, compared to the bar without insect flour.41
The results of this study indicated the absence of Salmonella, while the mold and yeast count was 1.0 × 101 CFU/g, and the aerobic mesophiles count was 4.0 × 101 CFU/g. For Escherichia coli, the result was <3 NMP/g. Overall, these findings are favorable and fall within the permissible safety limits, indicating that the cereal bars meet microbiological safety standards. The low water activity of the bars helps prevent microbial growth, ensuring their compliance with sanitary specifications and allowing them to be stored safely for up to 60 days. The microbiological validation of yeasts, Bacillus cereus, and fecal coliforms conducted by Gutkoski was also within acceptable limits according to Brazilian standards. These results suggest that the product is microbiologically safe for consumption and has an extended shelf life, making it a stable and reliable option for consumers.39 For some authors such as Marzoli, it is urgent to monitor pathogens and the presence of Salmonella in insects given the growth of the market.42
It was possible to formulate cereal bars with Atta sexdens ant flour and Andean cereals (quinoa and kiwicha), obtaining a product with high protein content and good sensory acceptance in terms of flavor, texture and color. The cereal bars developed presented a significant content of proteins (up to 10.5 g/100 g) and fats, increasing as the concentration of ant flour increases. These characteristics make the product a good source of nutrients for consumers.
The sensory evaluation carried out with adolescents and young adults showed high levels of acceptance in all formulations, reaching an acceptability index greater than 95% in flavor, texture and color attributes. This suggests that the product is well received by the target audience.
Microbiological analyzes indicated the absence of Salmonella and safe levels of other microorganisms, such as molds and yeasts, Escherichia coli, and aerobic mesophilic microorganisms. These results comply with established health standards and guarantee the safety of the product during storage for a period of up to 60 days.
Among the formulations evaluated, the one containing 30% ant flour was the one with the highest protein content and potential to be industrially scaled. This product can be a viable and sustainable nutritional alternative for the market.
Given the high nutritional value of ant flour, it is recommended to explore its incorporation into other food products such as cookies, baked goods and nutritional drinks. This would help diversify the offer of functional and sustainable foods.
Although it was determined that cereal bars can be safely stored for up to 60 days, it is recommended to investigate packaging and preservation methods that extend their shelf life even further, especially for markets that require long storage periods. Likewise, it is suggested to expand sensory acceptance studies to other age and demographic groups, such as older adults, people with special nutritional needs and consumers looking for alternative and sustainable products.
Figshare: Risk perception. DOI: 10.6084/m9.figshare.23153540.v143
Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).
Views | Downloads | |
---|---|---|
F1000Research | - | - |
PubMed Central
Data from PMC are received and updated monthly.
|
- | - |
Is the work clearly and accurately presented and does it cite the current literature?
No
Is the study design appropriate and is the work technically sound?
Partly
Are sufficient details of methods and analysis provided to allow replication by others?
No
If applicable, is the statistical analysis and its interpretation appropriate?
Yes
Are all the source data underlying the results available to ensure full reproducibility?
Yes
Are the conclusions drawn adequately supported by the results?
Partly
References
1. Meyer-Rochow V.B: Can insects help to ease the problem of world food shortage?. 1975; 6 (1): 261-262 Reference SourceCompeting Interests: No competing interests were disclosed.
Reviewer Expertise: Entomophagy; food research, entomology
Is the work clearly and accurately presented and does it cite the current literature?
Partly
Is the study design appropriate and is the work technically sound?
Partly
Are sufficient details of methods and analysis provided to allow replication by others?
No
If applicable, is the statistical analysis and its interpretation appropriate?
Partly
Are all the source data underlying the results available to ensure full reproducibility?
Partly
Are the conclusions drawn adequately supported by the results?
No
Competing Interests: No competing interests were disclosed.
Reviewer Expertise: entomophagy, and entomology.
Is the work clearly and accurately presented and does it cite the current literature?
Partly
Is the study design appropriate and is the work technically sound?
Partly
Are sufficient details of methods and analysis provided to allow replication by others?
Yes
If applicable, is the statistical analysis and its interpretation appropriate?
Yes
Are all the source data underlying the results available to ensure full reproducibility?
Yes
Are the conclusions drawn adequately supported by the results?
Partly
References
1. Babarinde S, Mvumi B, Babarinde G, Manditsera F, et al.: Insects in food and feed systems in sub-Saharan Africa: the untapped potentials. International Journal of Tropical Insect Science. 2021; 41 (3): 1923-1951 Publisher Full TextCompeting Interests: No competing interests were disclosed.
Reviewer Expertise: Entomology and entomophagy
