Container buildings used for residential and business purposes in Johannesburg, South Africa and potential heat-related health risks

[version 1; peer review: 2 approved with reservations]

Tanganedzeni Mfamadi¹, Kimberley Chivimbo¹, Philistase Mogadime¹, [...] Shalin Bidassey-Manilal¹, Thandi Kapwata^2,3, Natasha Naidoo⁴, Caradee Y Wright ^5,6

Tanganedzeni Mfamadi¹, Kimberley Chivimbo¹, [...] Philistase Mogadime¹, Shalin Bidassey-Manilal¹, Thandi Kapwata^2,3, Natasha Naidoo⁴, Caradee Y Wright ^5,6

PUBLISHED 03 Aug 2023

Author details Author details

¹ Department of Environmental Health, Faculty of Health Sciences, University of Johannesburg, Johannesburg, South Africa
² Department of Environmental Health, University of Johannesburg, Johannesburg, South Africa
³ Environment and Health Research Council, South African Medical Research Council, Johannesburg, South Africa
⁴ Environment and Health Research Council, South African Medical Research Council, Durban, South Africa
⁵ Department of Geography, Geoinformatics and Meteorology, University of Pretoria, Pretoria, South Africa
⁶ Environment and Health Research Council, South African Medical Research Council, Pretoria, South Africa

Tanganedzeni Mfamadi
Roles: Conceptualization, Data Curation, Formal Analysis, Investigation, Writing – Original Draft Preparation

Kimberley Chivimbo
Roles: Conceptualization, Data Curation, Formal Analysis, Investigation, Writing – Original Draft Preparation

Philistase Mogadime
Roles: Conceptualization, Data Curation, Formal Analysis, Investigation, Methodology, Writing – Original Draft Preparation

Shalin Bidassey-Manilal
Roles: Conceptualization, Investigation, Methodology, Project Administration, Supervision, Writing – Original Draft Preparation

Thandi Kapwata
Roles: Formal Analysis, Writing – Review & Editing

Natasha Naidoo
Roles: Writing – Original Draft Preparation, Writing – Review & Editing

Caradee Y Wright
Roles: Formal Analysis, Writing – Original Draft Preparation, Writing – Review & Editing

OPEN PEER REVIEW

REVIEWER STATUS

This article is included in the Climate gateway.

Abstract

Background: Outdoor and indoor air temperature affects human health and wellbeing. Climate change projections suggest that global temperatures will continue to increase and this poses a threat to health. Housing that can protect humans from the adverse effects of temperature is essential, especially in the context of climate change.

Method: In this cross-sectional study, we measured indoor temperature inside shipping containers comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa. We assessed indoor temperature and relative humidity; evaluated measured temperatures in relation to thresholds known to be associated with adverse health risks; and sought to understand heat-health perceptions and symptoms of people living and working in shipping container units.

Results: Median indoor apparent temperature (AT) (a combination of temperature and relative humidity) was 16 °C with values ranging from 6 °C (observed at 8:00) to 42 °C (observed at 17:00). Insulated units had temperatures between 2°C and 9°C cooler than uninsulated units. Heat-health risks from AT exposure were likely in all units, although there was variation in the number of occurrences that AT measurements exceeded the four symptom bands of caution, extreme caution, danger and extreme danger. Some participants believed that their units were hot during hot weather and most people opened windows or did nothing during hot weather. Few participants reported experiencing adverse heat-health impacts, except for experiencing headaches (n=62, 58%) and feeling tired or weak (40%).

Conclusion: Container units should be insulated and have adequate windows for ventilation when used for residential and commercial purposes, especially in hot climates. Awareness regarding heat-health risks of living and working in hot spaces needs to be done, especially in the context of repurposed container units.

Keywords

Climate change, Environmental health, Temperature; Thermal comfort; Urban area

Corresponding author: Caradee Y Wright

Competing interests: No competing interests were disclosed.

Grant information: CYW and TK received research funding from the South African Medical Research Council. CYW receives funding from the National Research Foundation.

Copyright: © 2023 Mfamadi T et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

How to cite: Mfamadi T, Chivimbo K, Mogadime P et al. Container buildings used for residential and business purposes in Johannesburg, South Africa and potential heat-related health risks [version 1; peer review: 2 approved with reservations]. F1000Research 2023, 12:929 (https://doi.org/10.12688/f1000research.138968.1) First published: 03 Aug 2023, 12:929 (https://doi.org/10.12688/f1000research.138968.1) Latest published: 14 Oct 2024, 12:929 (https://doi.org/10.12688/f1000research.138968.3)

Introduction

Improved housing conditions can prevent disease, reduce poverty, and increase quality of life.¹ Adequate, safe housing is essential in the current global context of urbanisation, ageing populations, and climate change. In South Africa, around 80% of the population (of around ~60 million people) live in formal dwellings, 11% live in informal dwellings such as shacks and 4% live in traditional dwellings (the remaining 5% remains unknown.² Among the formal dwellings are the government-provided, low-cost housing or Reconstruction and Development Programme (RDP) housing that attempts to give every South African a home. In recent years, initiatives by developers have seen an increase in the use of shipping containers to provide low-cost dwellings for South Africans who earn little to afford other types of formal dwellings, beside government housing. The shipping containers have been combined as a single storey or stacked to make a multi-storey block of apartments. In wealthier countries, shipping containers have been used as a sustainable housing option, sometimes called an ‘eco-pod’.³ This form of housing has also been used during emergency relief after extreme weather events displace people from their homes, as was the case in the Philippines.⁴ Similarly, following Hurricane Katrina in 2005, the Christchurch earthquake in 2011 and the Victoria (Australia) Black Saturday bushfires in 2009, shipping container dwellings were used to temporarily house displaced populations.⁵

Of importance when making use of shipping containers as places to live or work is ensuring that the temperature inside the container is kept stable, thermally appropriate, and suitable for human habitation. Temperature measurements made inside shipping containers while they are on ships have shown that temperatures may exceed 60°C.⁶ Therefore, indoor temperatures in shipping containers may pose a challenge for their use as dwellings, especially in hot climates. Elrayies⁷ assessed thermal performance of shipping container architecture in hot and humid Port Said, Egypt and found indoor temperatures exceeded 44°C in some units, depending on the type of insulation applied (foam performed better than rock wool, wool, or straw). In the Philippines, different types of insulation such as foam and fibreglass batting did not improve the indoor thermal conditions of the shipping containers in a tropical (hot and humid) climate.⁴

No measurements have been made of temperature inside shipping containers converted into residences or business in South Africa, although, temperatures have been measured inside shipping container classrooms in Johannesburg, South Africa and were found to exceed 40°C during summer months.⁸ Therefore, we aimed to measure indoor temperatures inside shipping containers comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa. There were three study objectives: 1) to assess temperature inside shipping container units used as dwellings and places of business; 2) to evaluate measured temperatures in relation to thresholds known to be associated with adverse health risks; and 3) to understand heat-health perceptions and symptoms of people living and working in shipping container units. These findings are important to inform policymaking and health awareness campaigns related to living and working in shipping containers in hot climates.

Methods

Study design

We applied the STROBE reporting guideline to plan and execute this study which was a cross-sectional study conducted in the suburb of Maboneng located in the City of Johannesburg, South Africa. Maboneng is a mixed-use neighbourhood within the central business district of the city. Here, there is a building made of 140 shipping containers (Figure 1) repurposed into 107 units that are either residential apartments (n=103) or businesses (n=4). We aimed to install temperature loggers in ten units from the 12 September to 25 September 2021 after obtaining permission from the owner of the building and the tenants/owners of the units. We also administered a short survey questionnaire to occupants of the units after obtaining their informed consent.

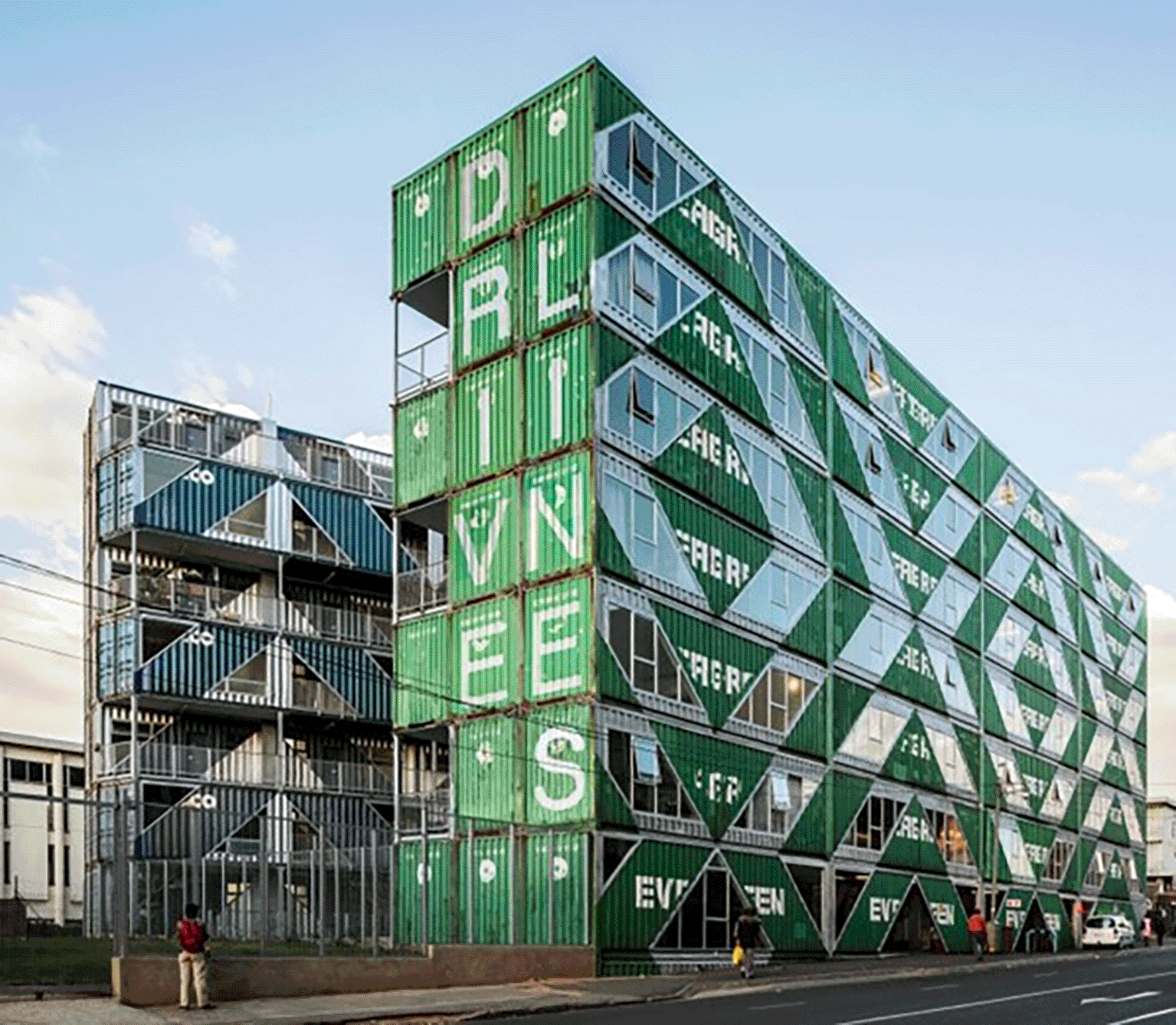

Figure 1. Street view of the container building comprising businesses and residences.

(Photo credit: Driveline Studios).

Ethical approval

Research ethics clearance was obtained from the University of Johannesburg Faculty of Health Sciences Research Ethics Committee (REC-1055-2021, 4 June 2021).

Informed consent

Written informed consent was obtained from all participants for participation in the study as well as publication of their self-reported data.

Temperature measurements

Temperature loggers called iButtons were installed in the container units to measure indoor temperature. iButtons are small, portable sensors that record temperature and relative humidity onboard for download after monitoring. iButtons were installed against a piece of furniture like a cupboard away from the walls in each of the ten containers from the 12 September to 25 September 2021. This approach was made instead of suspending the iButton from the ceiling to minimise intrusion of the instrument to the inhabitant and has been done successfully before.⁹ Data were downloaded as.txt files and imported into R software¹⁰ for analysis.

Ambient temperature and relative humidity data for the meteorological station closest to the container building were obtained from the South African Weather Service (SAWS). Wind data were also available. Meteorological data were provided at 10-minute intervals which were converted to hourly interval calculations.

Apparent temperature calculations and heat-health risks

Indoor and ambient temperature and relative humidity data were used to calculate indoor and outdoor apparent temperature (AT), respectively. AT is a calculation that considers ‘real-feel’ temperature and is an indicator of thermal comfort as well as gives an indication of potential heat-health impacts based on defined thresholds.¹¹ AT was calculated as follows:

(1)

AT = Ta + 0.33 x e - 0.70 x ws - 4.00

Where:

Ta = dry bulb temperature (°C)

e = water vapour pressure (hPa)

ws = wind speed (set to 0 for indoor conditions, and using the SAWS wind speed data for outdoors)

Water vapour was calculated using Equation 2:

(2)

E = RH / 100 \times 6.105 \times exp (17.27 \times Ta / (237.7 + Ta)

AT is given in degrees Celsius (°C) and was calculated for hourly intervals.

AT measurements made inside the shipping container units were considered in relation to thresholds known to be associated with adverse health impacts (Table 1).

Table 1. Apparent temperature (AT) thresholds and potential health impacts.¹¹

Symptom band	Classification	AT range (°C)	Classified “Effect on Body”
I	Caution	27–32	Fatigue possible with prolonged exposure and/or physical activity
II	Extreme caution	33–39	Heat stroke, heat cramps, or heat exhaustion possible with prolonged exposure and/or physical activity
III	Danger	40–51	Heat cramps or heat exhaustion likely, and heat stroke possible with prolonged exposure and/or physical activity
IV	Extreme Danger	>51	Heat stroke highly likely

Survey questionnaire

The questionnaire was used to gather information from randomly selected participants (simple random sampling with equal chance of selection) about demographic and socio-economic characteristics, heat-related symptoms ever experienced while occupying the container units, perceptions around heat, and container characteristics. Participants were eligible for the study when they lived in an apartment in the container building or worked in one of the businesses in the container building; they were 18 years old or older; and they consented to participate using an informed consent process.

Sample size was determined by the number of fieldworkers (n=3) and the number of fieldwork days available for the study (n=14) together with the required time to conduct the survey (~20 minutes). Some of the participants were not conversant in English so the researchers communicated in other languages such as Zulu, Sotho and Tshwane during data collection. All participants were considered exposed. Responses were anonymised and coded prior to analysis in STATA (version 16) (StataCorp, 2019).¹²

Statistical analyses

Descriptive statistics were used to summarize participant characteristics, diurnal and daily patterns of indoor AT and outdoor AT in the shipping containers. Missing data were left as is and no data were inferred. Paired t-tests were used to assess differences between indoor and outdoor AT. A 0.05 level of significance was used for all statistical analysis and data were analysed using R, a language and environment for statistical computing.¹⁰ No sensitivity analyses were done.

Results

We were able to analyse temperature and relative humidity data from seven container units and a total of 62 participants (58%) answered the survey.²⁰ Other residents and business owners (n=45) in the building were not available to participate during the study period.

Apparent temperature findings

The study took place during the austral spring (i.e., September) when average ambient temperatures in Johannesburg are ~8°C (minimum) and ~24°C (maximum).¹³ We successfully measured temperature and relatively humidity in seven container units (three of the iButtons failed during the study campaign). Indoor AT measurements made in the container units displayed similar diurnal patterns with the warmest temperatures occurring in the mid-afternoon (Figure 2). Median indoor AT was 22°C with values ranging from 12°C (observed at 6:00 in unit 9) to 33°C (observed at 15:00 in unit 10). For ambient conditions, median AT was 14°C with values ranging between 6°C to 23°C.

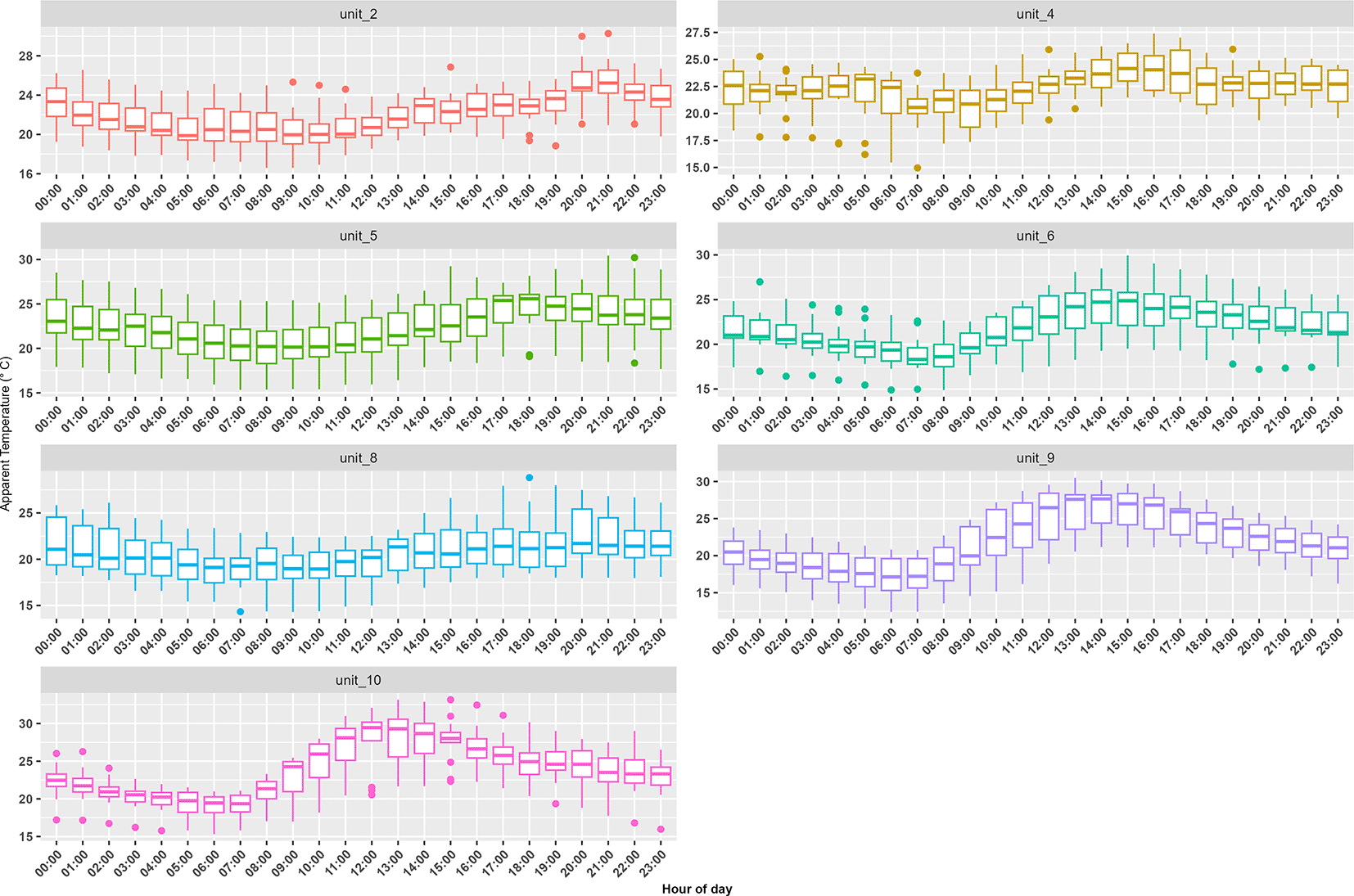

Figure 2. Trends in hourly apparent temperature (°C) indoor measurements made inside a random selection of the container building’s apartments and businesses during the study period from 12 September to 25 September 2021.

The whiskers indicate the 95^th and 5^th percentile, the box indicates the interquartile range, and the middle line is the median.

A comparison of indoor and outdoor AT showed that indoor AT was ~ 7°C higher on average compared to the ambient AT during the study campaign (Figure 3). However, indoor and outdoor conditions were very similar in the afternoon between 13:00 and 17:00 with an AT difference of ~ 1°C. Also, indoor AT fluctuated more than outdoor AT with steep increases observed in the morning and steep decreases recorded in the afternoon.

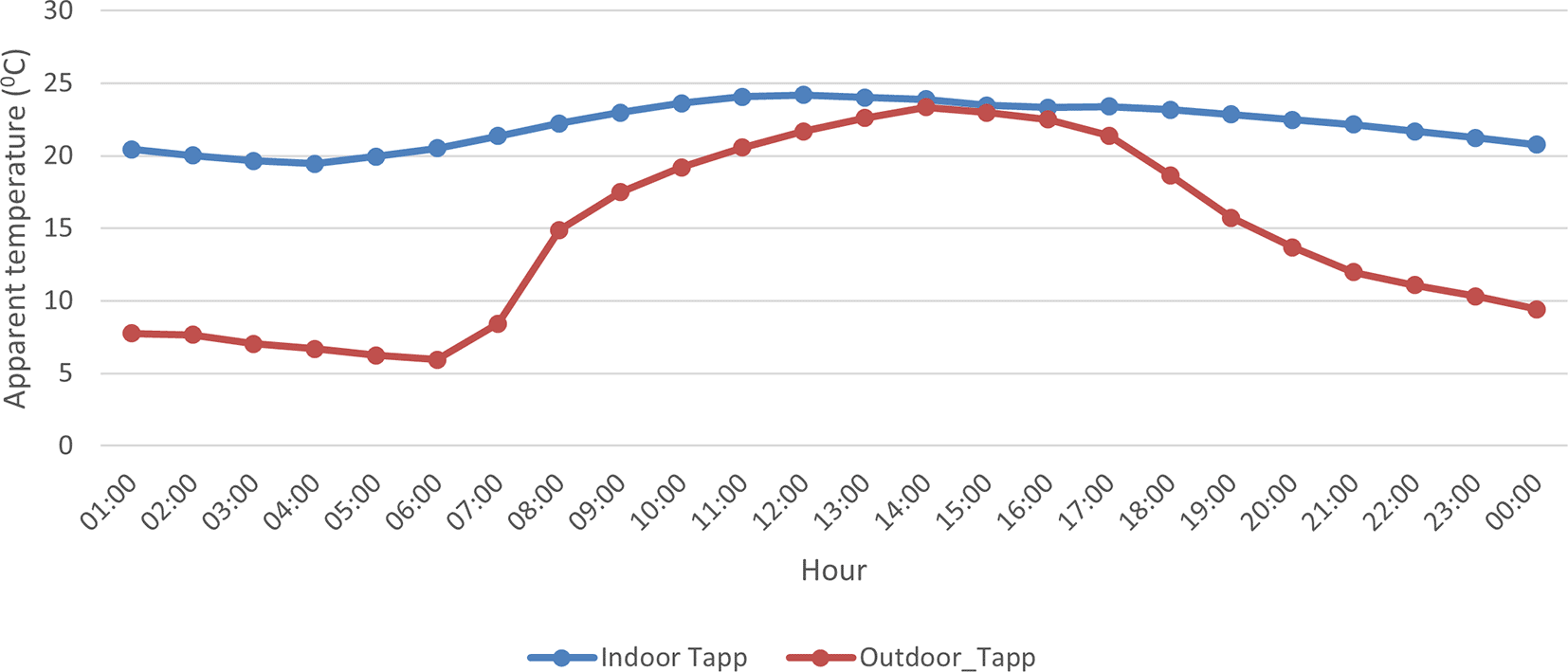

Figure 3. Trends in hourly indoor (blue line) and outdoor (red line) during the study period from 12 September to 25 September 2021.

Units 2 (residential), 4 (residential), 5 (residential), 6 (residential), 8 (residential), and 10 (business) had insulation installed in the container walls and roof in an attempt to moderate the impacts of ambient temperature on indoor temperature. Unit 9 (business) did not have insulation. Figure 4 illustrates the difference that insulation makes in relation to AT recorded inside the container units with and without insulation. The amplitude of the AT measurements made inside insulated units was smaller than that seen for the non-insulated units for both minimum and maximum indoor AT. The difference in AT for insulated versus non-insulated units ranged between ~2–9°C.

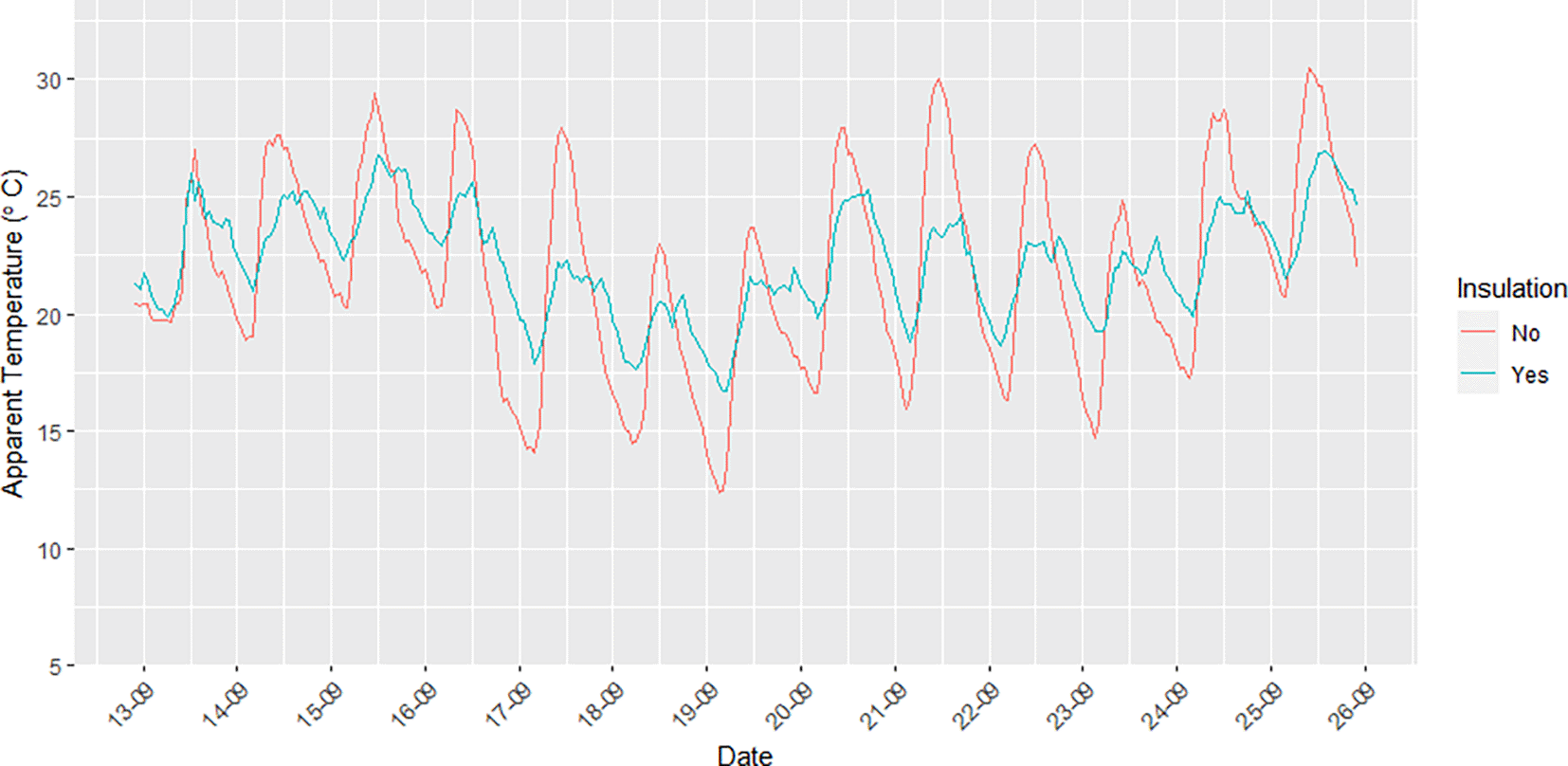

Figure 4. Diurnal trends in indoor AT (°C) in a container apartment without insulation (red line) and with insulation (blue line) during the study period from 12 September to 25 September 2021.

Heat-health risks from AT exposure occurred in all units although there was variation in the number of occurrences that AT measurements exceeded the four symptom bands (Table 2). AT in unit 5 reached the ‘danger’ threshold of between 40 to 51°C once during the study period. In unit 10 there were 13 hourly exceedances of the ‘extreme caution’ threshold of 33–39°C. All units in which AT was measured experienced some exceedances of the ‘caution’ threshold with the greatest occurrences taking place in units 9 (uninsulated) and 10 (insulated).

Table 2. Mean (hourly range) AT measurements made in each of the seven units and the number of occurrences (hourly) when AT levels exceeded the four heat-health symptom bands.

Unit number in study (type, storey)	AT mean (hourly range)	Frequency of hourly occurrences n (%)
Unit number in study (type, storey)	AT mean (hourly range)	Caution 27–32°C	Extreme caution 33–39°C	Danger 40–51°C	Extreme danger >51°C
2 (residential, 2^nd)	6–30°C	22 (100)	-	-	-
4 (residential, 4^th)	6–28°C	8 (100)	-	-	-
5 (residential, 4^th)	6–42°C	28 (90)	2 (6)	1 (3)
6 (residential, 5^th)	6–30°C	22 (100)	-	-	-
8 (residential, 6^th)	6–28°C	7 (100)	-	-	-
9 (business, ground)	6–32°C	62 (98)	1 (1)	-	-
10 (business, ground)	6–34°C	80 (86)	13 (13)	-	-

Questionnaire findings

The majority of the participants were older than 26 years of age, were male and had completed high school (Table 3). At the time of the survey, the building was 5 years old (built in 2017) and was units were available to rent (and buy) hence most renting occupants had lived in the building for less than 6 months. All surveyed occupants reported that their units had windows and were occupied by one or more people.

Table 3. Descriptive characteristics of the study participants who lived in the residential apartments (N=62).

Variable	Frequency (n)	Frequency (%)
Age (years):
Younger than 18	0	0
18 – 25	25	40
26 – 35	33	53
36 – 45	4	6
*Missing*	0	0
Gender:
Male	41	66
Female	21	33
*Missing*	0	0
Highest level of education:
No formal education	0	0
Primary school completed	0	0
Attended high school	2	3
Completed high school	11	17
Attended university	19	30
Completed university	30	48
*Missing*	0	0
Duration living/working in container:
Less than a month	3	4
1 month	1	1
3 months	11	17
6 months	14	22
More than 6 months	33	53
*Missing*	0	0
Number of occupants in unit:
1	37	59
2-3	21	33
3-5	4	6
>5	0	0
*Missing*	0	0

All participants reported that their container units had windows and two-thirds said that these windows, when opened, helped to cool down their units (Table 4). Findings were ambivalent regarding whether participants believed that their units were hot during hot weather and most people opened windows or did nothing during hot weather. Few participants reported experiencing adverse heat-health impacts, except for experiencing headaches (58%) and feeling tired or weak (40%) (Table 5).

Table 4. Participants’ perceptions related to heat and heat-behaviours (N=62).

Variables	Frequency (n)	Frequency (%)
Are there windows in the unit?
Yes	62	100
No	0	0
*Missing*	0	0
Do the windows help to cool down the unit?
Yes	59	95
No	3	5
*Missing*	0	0
Do you think the temperatures inside the containers are comfortable during hot weather conditions?
Yes	33	54
No	29	46
*Missing*	0	0
What do you use to keep your unit cool on hot days?*
An air conditioner	2	3
An electric fan	11	17
Open windows	20	32
Nothing	29	46

* Participants could select multiple responses.

Table 5. Heat-related symptoms were reported by the study participants (N=62).

Self-reported heat-related symptoms	Frequency (n)	Frequency (%)
Headache
Yes	36	58
No	26	42
*Missing*	0	0
Dizziness
Yes	6	9
No	56	91
*Missing*	0	0
Nausea or vomiting
Yes	9	15
No	53	85
*Missing*	0	0
Heat cramps
Yes	4	6
No	58	94
*Missing*	0	0
Heat stroke
Yes	1	2
No	61	98
*Missing*	0	0
Heat rash
Yes	10	16
No	52	84
*Missing*	0	0
Losing consciousness (fainting)
Yes	1	2
No	61	98
*Missing*	0	0
Tiredness or weakness
Yes	25	40
No	37	60
*Missing*	0	0
Excessive sweating
Yes	14	23
No	48	77
*Missing*	0	0
Confusion
Yes	4	6
No	58	94
*Missing*	0	0
Low concentration
Yes	10	16
No	52	84
*Missing*	0	0

Discussion

This study has shown the significant variation in indoor temperatures in shipping container units used for living and business purposes in the metropolitan city of Johannesburg. Indoor and outdoor temperatures followed a similar diurnal pattern with far less variation for indoor conditions compared to outdoors. On average, indoor temperatures were consistently warmer than outdoor temperatures and with some non-optimal high temperature exceedances presenting a reason for concern regarding people’s heat-health risks. Laksitoadi and As Syarif¹⁴ measured temperatures inside shipping containers repurposed into offices in Badung, Indonesia which has a hot, wet climate. They found that indoor temperatures were on average cooler than outdoor temperatures – differing from our findings here – and that the location of the offices in the building by floor did not influence indoor temperatures. The latter is true for our study findings; there was no consistent pattern in indoor temperatures by storey/level.

All units in which measurements were made had exceedances of the heat-health risk threshold values related to ‘caution’, ‘extreme caution’, ‘danger’ and ‘extreme danger’. Two container units had the highest frequency of occurrences of temperatures reaching the ‘caution’ (27–32°C) threshold – one unit was insulated and the other was not – that are associated with fatigue possible with prolonged exposure and/or physical activity. This suggests that insulation might not be the sole solution for maintaining consistent temperatures in shipping container units. Alternative means to ensure thermal comfort inside shipping container residential and business units include green/vegetated roofs and outside walls and double-glazing on windows.¹⁵ Solar-powered air-conditioning may also be an alternative energy source for indoor cooling, especially in energy-constrained environments such as South Africa. Window shading with awnings or blinds may also help maintain cool indoor temperatures.

Several factors influence indoor temperature in dwellings such as the size of the dwelling, number of doors and windows, shading and human behaviour in relation to ventilation and heating/cooling. Shipping containers are a standard size (~14 m² to 30 m²) – in this apartment block, the open plan studio units were made from containers varying between 28–56 m² and each had an open landing outdoor space on the ‘inside-facing’ sides of the building. These spaces were less likely to receive natural wind-driven ventilation due to the nature of the balcony location between the two ‘wings’ of the building above the central courtyard (see Figure 1). It will be important for future buildings to consider ventilation and through breezes in their design and construction to ensure indoor temperatures may be reduced, especially in hot climates.

Study participants were ambivalent regarding whether their units were hot during hot weather; this may be since they had only lived in the unit for around 6 months and had yet to experience the heat of summer between December to February. Few people reported adverse heat-health impacts except for experiencing headaches and feeling tired/weak. Several symptoms and health effects are associated with exposure to non-optimally high indoor temperatures. High indoor temperature exposure has been associated with respiratory, cardiovascular, and mental health effects.¹⁶ While our study participants were relatively young, they are also vulnerable to the health impacts of extreme heat. A recent study found stronger associations between days of extreme heat and a higher risk of emergency department visits for any cause, heat-related illness, renal disease, and mental disorders among young and middle aged compared to older adults.¹⁶

While shipping containers are perceived to be a good alternative for building dwellings, businesses, school classrooms, relief shelters etc. due to their relative low cost, ease of availability, speed to completion during the build, low maintenance, weather-resistant, supposedly relatively low environmental impact (low carbon footprint since at end-of-life at sea/on the road, it is repurposed/upscaled), they may release toxic substances if they had a history of carrying chemicals and they need insulation since the metal frames do not possess insulating properties. The latter is particularly important, especially in light of global warming. South Africa is projected to experience an increase in average ambient temperature between 4–6°C by 2100.¹⁷ Furthermore, a heat stress assessment study found that the CBD of the city of Johannesburg, which is where the containers were located, exhibited urban heat island characteristics due to high building densities and sparse vegetation. Thus, residents are at increased risk of heat stress because of exposure to high night and daytime temperatures. Simulations of future local climates estimated increases of up to 5°C, therefore efficient means of maintaining indoor thermal comfort are necessary.¹⁸^,¹⁹ When indoor temperatures inside shipping container units used for living and working mimic outdoor temperatures, and outdoor temperatures are likely to increase, there is reason for concern regarding the health and wellbeing of the occupants. Housing is a constitutional right in South Africa; however, the thermal comfort of the housing requires attention given future climate risks.

There were several study limitations. We only had ten iButtons available to us which limited our sample size and some of the iButtons failed so data were lost. In future, two iButtons should be placed side-by-side to have a back-up device in the event that one logger fails to prevent data loss. Most of the participants mentioned that they would be out of the city for the holidays so that limited our sample period and sample size. The study period was relatively short (i.e., 14 days) and took place in spring; additional measurements should be made in summer when ambient temperatures are likely higher compared to temperatures in spring. We should have asked business owners working in the business units about the nature of their business to understand whether indoor temperatures were affected by business activities, e.g., the use of hair dryers in a hair salon. We should have also recorded whether the units were north- or south-facing. It would be useful in future studies to conduct physiological measurements of inhabitants of container homes to assess possible heat-health related impacts during hot weather. One may also consider having the participants wear temperature-logging wearables to estimate personal exposure while living and/or working in container-made buildings.

Conclusion

Housing characteristics influence indoor temperature, and this has an impact on human health and wellbeing. Shipping containers upscaled into living and working units in a modular apartment block is a viable alternative to low-cost housing, however, it is important to consider and factor into the building design indoor temperature stability and by inference, thermal comfort. Given the potential health symptoms and threats associated with non-optimal indoor temperatures, interventions and solutions for thermal comfort must be considered when building residential and business spaces with shipping containers in Africa and elsewhere around the world.

Data availability

Underlying data

Zenodo: iButton and Questionnaire data for container building in Johannesburg, https://doi.org/10.5281/zenodo.8085438.²⁰

This project contains the following underlying data:

• Questionnaire data.xlsx (Questionnaire data)
• Temperatures.csv (Temperature data from measurements made in the container rooms)

Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).

Reporting guidelines

Zenodo: STROBE checklist for ‘Container buildings used for residential and business purposes in Johannesburg, South Africa and potential heat-related health risks’, https://doi.org/10.5281/zenodo.8143086.²¹

Data are available under the terms of the Creative Commons Attribution 4.0 International license (CC-BY 4.0).

Acknowledgements

We thank the owner of the building and the occupants for permitting us to conduct this research. We acknowledge the South African Medical Research Council for the loan of the iButtons.

References

1. World Health Organization: WHO Housing and Health Guidelines.23 November 2018. Accessed 26 June 2023. Reference Source
2. Statistics South Africa: General Household Survey.2021. 23 June 2022. Accessed 26 June 2023. Reference Source
3. Lakot Alemdag E, Aydin O: A study of shipping containers as a living space in context of sustainability. ARTiUM. 2015; 3(1): 17–29. Reference Source
4. Zafra RG, Mayo JRM, Villareal PJM, et al.: Structural and thermal performance assessment of shipping container as post-disaster housing in tropical climates. Civil Engineer J. 2021; 7(8): 1437–1458. Publisher Full Text
5. Zhang G, Setunge S, van Elmpt S : Using shipping containers to provide temporary housing in post-disaster recovery: social case studies. Procedia Economic Fin. 2014; 18: 618–625. Publisher Full Text
6. TheShipsAI: How hot do shipping containers get? Accessed 26 June 2023. Reference Source
7. Elrayies GM: Thermal performance assessment of shipping container architecture in hot and human climates. Int J Advanced Sci Engin Inform Tech. 2017; 7: 1114–1126. Publisher Full Text Reference Source
8. Bidassey-Manilal S, Wright CY, Engelbrecht JC, et al.: Students’ Perceived Heat-Health Symptoms Increased with Warmer Classroom Temperatures. Int J Environ Res Public Health. 2016; 13(6): 566. PubMed Abstract | Publisher Full Text | Free Full Text
9. Naicker N, Teare J, Balakrishna Y, et al.: Indoor Temperatures in Low Cost Housing in Johannesburg, South Africa. Int J Environ Res Public Health. 2017; 14(11): 1410. PubMed Abstract | Publisher Full Text | Free Full Text
10. R Core Team: R: A language and environment for statistical computing. Vienna, Austria: R Foundation for Statistical Computing; 2022. Accessed 24 June 2023. Reference Source
11. Steadman RG: Norms of apparent temperature in Australia. Accessed 23 June 2023. Reference Source
12. StataCorp: Stata Statistical Software: release 16. College Station, TX: StataCorp LLC.; 2019. Accessed 25 June 2023. Reference Source
13. Climate Data: Johannesburg Climate (South Africa).2023. Accessed 23 June 2023. Reference Source
14. Latsitoadi B, As Syarif MH: Refurbished shipping containers as architectural module in Bandung. Advances in Social Science, Education and Humanities Research, Proceedings of the 3^rd International Conference on Dwelling Form (IDWELL 2020). 2020; 475: 1–9. Publisher Full Text
15. Taleb H, Elsebaei M, El-Attar M: Enhancing the sustainability of shipping container homes in a hot arid region: A case study of Aswan in Egypt. Architect Engineer Design Manage. 2019; 15: 459–474. Publisher Full Text
16. Tham S, Thompson R, Landeg O, et al.: Indoor temperature and health: a global systematic review. Public Health. 2020 Feb; 179: 9–17. PubMed Abstract | Publisher Full Text
17. Sun S, Weinberger KR, Nori-Sarma A, et al.: Ambient heat and risks of emergency department visits among adults in the United States: time stratified case crossover study. BMJ. 2021; 375: e065653. PubMed Abstract | Publisher Full Text | Free Full Text
18. Engelbrecht F, Adegoke J, Bopape M-J, et al.: Projects of rapidly rising surface temperatures over Africa under low mitigation. Environ. Res. Lett. 2015; 10: 085004. Publisher Full Text
19. Souverijins N, De Ridder K, Veldeman N, et al.: Urban heat in Johannesburg and Ekurhuleni, South Africa: A meter-scale assessment and vulnerability analysis. Urban Clim. 2022; 46: 101331. PubMed Abstract | Publisher Full Text | Free Full Text
20. Wright C: IButton and Questionnaire data for container building in Johannesburg. [Dataset]. Zenodo. 2023. Publisher Full Text
21. Wright C: STROBE checklist for ‘Container buildings used for residential and business purposes in Johannesburg, South Africa and potential heat-related health risks’. Zenodo. 2023. Publisher Full Text

Comments on this article Comments (0)

Version 3

VERSION 3 PUBLISHED 03 Aug 2023

Author details Author details

Tanganedzeni Mfamadi
Roles: Conceptualization, Data Curation, Formal Analysis, Investigation, Writing – Original Draft Preparation

Kimberley Chivimbo
Roles: Conceptualization, Data Curation, Formal Analysis, Investigation, Writing – Original Draft Preparation

Philistase Mogadime
Roles: Conceptualization, Data Curation, Formal Analysis, Investigation, Methodology, Writing – Original Draft Preparation

Shalin Bidassey-Manilal
Roles: Conceptualization, Investigation, Methodology, Project Administration, Supervision, Writing – Original Draft Preparation

Thandi Kapwata
Roles: Formal Analysis, Writing – Review & Editing

Natasha Naidoo
Roles: Writing – Original Draft Preparation, Writing – Review & Editing

Caradee Y Wright
Roles: Formal Analysis, Writing – Original Draft Preparation, Writing – Review & Editing

Competing interests

No competing interests were disclosed.

Grant information

CYW and TK received research funding from the South African Medical Research Council. CYW receives funding from the National Research Foundation.

Article Versions (3)

version 3

Revised

Published: 14 Oct 2024, 12:929

https://doi.org/10.12688/f1000research.138968.3

version 2

Revised

Published: 20 Mar 2024, 12:929

https://doi.org/10.12688/f1000research.138968.2

version 1

Published: 03 Aug 2023, 12:929

https://doi.org/10.12688/f1000research.138968.1

© 2023 Mfamadi T et al. This is an open access article distributed under the terms of the Creative Commons Attribution License, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

Download

Export To

metrics

	Views	Downloads
F1000Research	-	-
PubMed Central Data from PMC are received and updated monthly.	-	-

Citations

SEE MORE DETAILS

CITE

how to cite this article

Mfamadi T, Chivimbo K, Mogadime P et al. Container buildings used for residential and business purposes in Johannesburg, South Africa and potential heat-related health risks [version 1; peer review: 2 approved with reservations]. F1000Research 2023, 12:929 (https://doi.org/10.12688/f1000research.138968.1)

NOTE: If applicable, it is important to ensure the information in square brackets after the title is included in all citations of this article.

track

receive updates on this article

Track an article to receive email alerts on any updates to this article.

Open Peer Review

Version 1

VERSION 1

PUBLISHED 03 Aug 2023

Views

Reviewer Report 06 Oct 2023

Sarah Roffe, Agricultural Research Council, Pretoria, South Africa

Approved with Reservations

https://doi.org/10.5256/f1000research.152205.r206272

This article, assessing indoor (and outdoor) thermal comfort in container buildings, is very relevant in the context of South Africa's housing crisis and the need to explore alternative, cheaper housing options while bearing in mind thermal health-related risks associated with housing options. Academically this article provides a good contribution to the limited literature regarding thermal comfort (stress) in a South African context, and it is important to inform South African developers (housing and non-housing developers). Thus, there is merit in its publication. However, before publication I have minor (perhaps even major in some instances) suggestions that I believe can significantly improve the article content and presentation:

Check the author affiliations - I think no 1 & 2 should be the same.
Abstract, background - The title refers to container buildings for housing and business yet the background is more focused on housing. Perhaps you could adjust the wording to 'Buildings (for housing and business purposes) that can protect humans...'
Abstract, method - To contextualise the results and their repetitiveness, add in the sampling period duration.
Abstract, results - When noting the AT range it will be valuable to provide the AT classification as well so that a reader can contextualise the classified body effect.
Abstract, results - In your sample, there was only one non-insulated unit. Compared to the insulated units, there was certainly a difference, but care must be taken to highlight this caveat.
Abstract, results - n = ? for the feeling tired or weak statistic.
Abstract, conclusion - Although Figure 4 shows that on average insulated units have lower variation in AT (compared to the one non-insulated unit), Table 2 results suggest that the recommendation of insulated units should be assessed further (compare results for units 5, 9 [NI] and 10). This certainly suggests that above insulation, there may be other factors influencing the AT values, thus I would rather note that tentatively, the results suggest that units should be insulated. And in the conclusion I would make a note that further research on this topic is very much needed. You could also note that air conditioning is needed - of course as you highlighted, solar air conditioning would be most viable given the current electricity crisis in South Africa.
Abstract, conclusion - Perhaps this is an addition for the conclusion in the article... The value of your study in educating those building these container buildings should also be highlighted as it is largely their building specifications that will determine whether the building will be suitable in light of thermal health related risks.
Introduction - This section only focuses on the consideration of housing, yet many people spend a large proportion of their time in a business context in buildings. Provide some consideration thereof in the introduction.
Introduction - First word improved is perhaps misleading. Improved compared to? Perhaps use good as an alternative word.
Introduction - Add bracket after '...(the remaining 5% remains unknown
Introduction - First sentence of second paragraph needs a reference. Consider checking whether references are included where needed throughout the manuscript.
Methods, Study design - Provide further detail of the STROBE reporting guideline for a reader who does not know about it.
Methods, Study design - Consider adding in a study site map to show the location of the container units, especially in relation to the SAWS weather station used.
Methods, Study design - Why was the period of 12-25 Sep 2021 used for sampling? I would provide justification in text.
Methods, Temperature measurements - The heading of this section is misleading as you did not only record temperatures. Instead title the section Meteorological measurements?
Methods, Temperature measurements - More information is required for the iButtons loggers. How often do they provide measurements?
Methods, Temperature measurements - More information is required for the SAWS weather station. Which weather station was this? How far is it from the container building? etc. This is why I suggested a study site map - perhaps consider adding landuse/cover and elevation to give the reader context on how representative this station is.
Methods, Apparent temperature calculations and heat-health risks - Why have you considered the apparent temperature method? Provide some justification, especially because the metric used to assess thermal comfort can strongly influence results (see: Simpson, C.H., Brousse, O., Ebi, K.L. and Heaviside, C., 2023. Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science, 6(1), p.78.). I am not suggesting to change the method, but I am suggesting you acknowledge this consideration of metrics and their potential influence on results, especially in your final discussion paragraph.
Methods, Survey questionnaire - All participants were considered exposed. Exposed to what? Be more specific.
Methods, Statistical analysis - Provide detail on how much data were missing. A supplementary table should suffice.
Methods, Statistical analysis - You report on using the paired t-test, but in the results you do not show any results thereof. Either add these results or omit noting that you used the paired t-test.
Results - The first paragraph provides information more suited to the methods. I would incorporate this information in the methods.
Results, Apparent temperature findings - Avoid referral to ambient temperature in the context of your work. Rather refer to indoor or outdoor temperature as ambient temperature refers to the temperature of the immediate surroundings which can be indoor or outdoor.
Results, Apparent temperature findings - Over what period (i.e. years) and at what resolution (i.e. daily or monthly) are the September temperatures you refer to, and is this from the SAWS station you used? Take care not to omit such important information.
Results, Apparent temperature findings - 'Indoor AT measurements made in the container units displayed similar diurnal patterns with the warmest temperatures occurring in the mid-afternoon (Figure 2).' Your figure does not show this?
Results, Apparent temperature findings - Your figure captions are slightly incorrect. You cannot refer to a trend with only 14 days of data. A trend in a climatological context is a measurement of 'change' over at least a 30 year period. You are only showing average diurnal variation in AT for figure 2-4.
Results, Apparent temperature findings - Provide more reference to the figures in your results as it not always clear as to which figure you are referring to.
Results, Apparent temperature findings - At the end of the second paragraph, you say that indoor AT fluctuated more than outdoor AT. This is not true according to Figure 3.
Results, Apparent temperature findings - Figure 2 could be be improved on. I would ideally indicate which units were insulated and which unit was not insulated, and for better comparability of AT, it is necessary to use the same y-axis range. Also, consider providing a straight lines from the y-axis to indicate the different AT thresholds for Table 1. This will provide more context to your results. This last suggestion also applies for figure 3.
Results, Apparent temperature findings - You note that AT for insulated vs non-insulated differed by ~2-9 degrees C. Were the values statistically different (i.e. what are the t-test results)?
Results, Apparent temperature findings - You could add an indication of whether the unit was insulated or not for table 2 to help interpret the results of this table. Also, as previously mentioned, it does not provide compelling evidence that insulated units are better, especially since your sample size is small with only one unit that is not insulated.
Results, Questionnaire findings - The second sentence should be reworded.
Results overall - No t-test results are reported despite mention in the methods.
Results overall - consider adding more reporting on the results to strengthen this section.
Discussion - 'This study has shown the significant variation in indoor temperatures in shipping container units used for living and business purposes in the metropolitan city of Johannesburg.' This sentence is misleading. You have used significant in an incorrect manner. This is a statistical term and should only be used if there is statistical backing for which there is not in this paper. Consider rewording this sentence to more appropriately align with what you have truly shown in your study.
Discussion - 'On average, indoor temperatures were consistently warmer than outdoor temperatures...' How much warmer? A sentence like this should always be backed up by numerical estimates.
Discussion - 'All units in which measurements were made had exceedances of the heat-health risk threshold values related to ‘caution’, ‘extreme caution’, ‘danger’ and ‘extreme danger’.' According to Table 2 and Figure 2, this sentence is misleading and perhaps even incorrect. If I am interpreting the results correctly, all units recorded caution levels, but only 3 recorded levels above this?
Discussion - 'Two container units had the highest frequency of occurrences of temperatures reaching the ‘caution’ (27–32°C) threshold – one unit was insulated and the other was not – that are associated with fatigue possible with prolonged exposure and/or physical activity'. This sentence also seems to be misleading and perhaps incorrect.
Discussion - 'This suggests that insulation might not be the sole solution for maintaining consistent temperatures in shipping container units.' But you suggest insulation in the abstract? Some of your statements are contradictory.
Discussion - When referring to results in the discussion, it is good practice to refer to the Table or Figure showing the results.
Discussion - Third paragraph first sentence needs a reference. In fact, I recommend more actively referencing in your work.
Discussion - 'South Africa is projected to experience an increase in average ambient temperature between 4–6°C by 2100.¹⁷ ' This should be reference 18.
Discussion - 'Furthermore, a heat stress assessment study found that the CBD of the city of Johannesburg, which is where the containers were located, exhibited urban heat island characteristics due to high building densities and sparse vegetation. ' This sentence needs a reference.
Discussion - You suggest two iButtons in case one fails. This could also be useful for comparability to determine accuracy of the readings.
Conclusion - You study opens doors for much more research to be undertaken. I think it is important that you highlight this so that a reader can better contextualise your results and also so they can consider how representative your results are. Important for this is assessing seasonality and also taking readings over multiple years to account for variability.

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Yes
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Partly
Are all the source data underlying the results available to ensure full reproducibility?

Yes
Are the conclusions drawn adequately supported by the results?

Partly

References

1. Simpson C, Brousse O, Ebi K, Heaviside C: Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science. 2023; 6 (1). Publisher Full Text

Competing Interests: No competing interests were disclosed.

Reviewer Expertise: I am a climatologist. Within this field, and relevant to this study, I focus on outdoor thermal comfort (stress) as one aspect of my research.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.

CITE

Report a concern

Author Response 13 Apr 2024

Caradee Wright, Environment and Health Research Council, South African Medical Research Council, Pretoria, South Africa

13 Apr 2024

Author Response
Reviewer 2

APPROVED WITH RESERVATIONS
This article, assessing indoor (and outdoor) thermal comfort in container buildings, is very relevant in the context of South Africa's housing crisis and the ... Continue reading
Reviewer 2

APPROVED WITH RESERVATIONS
This article, assessing indoor (and outdoor) thermal comfort in container buildings, is very relevant in the context of South Africa's housing crisis and the need to explore alternative, cheaper housing options while bearing in mind thermal health-related risks associated with housing options. Academically this article provides a good contribution to the limited literature regarding thermal comfort (stress) in a South African context, and it is important to inform South African developers (housing and non-housing developers). Thus, there is merit in its publication. However, before publication I have minor (perhaps even major in some instances) suggestions that I believe can significantly improve the article content and presentation:

Check the author affiliations - I think no 1 & 2 should be the same.

Response: The author’s affiliations are accurately reported and comprise of two different government departments that the author has affiliations with.

Abstract, background - The title refers to container buildings for housing and business yet the background is more focused on housing. Perhaps you could adjust the wording to 'Buildings (for housing and business purposes) that can protect humans...'

Response: We have adjusted the introduction to better reflect the focus on both housing and business aspects of container buildings as follows:

“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,6”

Abstract, method - To contextualise the results and their repetitiveness, add in the sampling period duration.

Response: We have added the sampling period to the abstract:
“…comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa for 14 days.”

Abstract, results - When noting the AT range it will be valuable to provide the AT classification as well so that a reader can contextualise the classified body effect.

Response: We thank the reviewer for their comment. The definition of AT is already present in the abstract in a manner concise enough to adhere to the abstract word count as follows:
“Median indoor apparent temperature (AT) (a combination of temperature and relative humidity)”

Abstract, results - In your sample, there was only one non-insulated unit. Compared to the insulated units, there was certainly a difference, but care must be taken to highlight this caveat.

Response: We changed the wording to reflect that there was one uninsulated unit as follows: “than the uninsulated unit”

Abstract, results - n = ? for the feeling tired or weak statistic.

Response: The “n= 62” has been removed from “experiencing headaches,” thus ensuring uniformity in the reporting of results in the abstract.

Abstract, conclusion - Although Figure 4 shows that on average insulated units have lower variation in AT (compared to the one non-insulated unit), Table 2 results suggest that the recommendation of insulated units should be assessed further (compare results for units 5, 9 and 10). This certainly suggests that above insulation, there may be other factors influencing the AT values, thus I would rather note that tentatively, the results suggest that units should be insulated. And in the conclusion I would make a note that further research on this topic is very much needed. You could also note that air conditioning is needed - of course as you highlighted, solar air conditioning would be most viable given the current electricity crisis in South Africa.

Response: The conclusion within the abstract has been edited as follows:
“Residents, tenants, or business owners using shipping containers should consider insulation installation and adequate windows/air conditioning for ventilation, especially in hot climates. Further research and awareness regarding heat-health risks of living or working in these spaces is needed.”

Abstract, conclusion - Perhaps this is an addition for the conclusion in the article... The value of your study in educating those building these container buildings should also be highlighted as it is largely their building specifications that will determine whether the building will be suitable in light of thermal health related risks.

Response: We thank the reviewer for their comment. We have addressed this concern in the conclusion as follows:
“The findings of future studies that analyse optimisation of thermal comfort in shipping containers should be used to advocate for and educate people who oversee the adaptation of shipping containers for either residential or business uses.”

Introduction - This section only focuses on the consideration of housing, yet many people spend a large proportion of their time in a business context in buildings. Provide some consideration thereof in the introduction.

Response: The introduction has been edited to reflect this concern as follows:
“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,⁶.”

Introduction - First word improved is perhaps misleading. Improved compared to? Perhaps use good as an alternative word.

Response: The wording of the first sentence of the introduction has been changed as follows:
“Improved housing conditions” was changed to “Properly designed and constructed residential, business and public service spaces”

Introduction - Add bracket after '.(the remaining 5% remains unknown

Response: We thank for reviewer for spotting this error. This error has been corrected in the document.

Introduction - First sentence of second paragraph needs a reference. Consider checking whether references are included where needed throughout the manuscript.

Response: We thank the reviewer for their insight. We have added a suitable reference to the sentence.

Methods, Study design - Provide further detail of the STROBE reporting guideline for a reader who does not know about it.

Response: Further clarity has been added on the value of the using STROBE guidelines to enhance the quality of observational study data:

“Strengthening the Reporting of Observational studies in Epidemiology (STROBE) guidelines were used to plan and execute this study. The STROBE guidelines ensure the highest quality of observational study data and consists of 22 checklist items that should be addressed in a study.¹⁶”

Methods, Study design - Consider adding in a study site map to show the location of the container units, especially in relation to the SAWS weather station used.

Response: Thank you for your insightful feedback and suggestion to include a study site map showcasing the container units' location in relation to the SAWS weather station.

We have included a study site map and it is now Figure 1 in the revised manuscript.

Methods, Study design - Why was the period of 12-25 Sep 2021 used for sampling? I would provide justification in text.

Response: A sentence has been added to justify the sampling period:

“The sampling took place in September because it is spring time in South Africa, and high temperatures were recorded in previous years during this month.”

Methods, Temperature measurements - The heading of this section is misleading as you did not only record temperatures. Instead title the section Meteorological measurements?

Response: The heading has been changed to “Meteorological measurements”

Methods, Temperature measurements - More information is required for the iButtons loggers. How often do they provide measurements?

Response: The frequency of measurements from the iButtons has been added to the description:
“iButtons are small, portable sensors that record hourly temperature and relative humidity”

Methods, Temperature measurements - More information is required for the SAWS weather station. Which weather station was this? How far is it from the container building? etc. This is why I suggested a study site map - perhaps consider adding landuse/cover and elevation to give the reader context on how representative this station is.

Response: We thank the reviewer for this comment. The location of the weather station is now given in Figure 1 of the revised manuscript.

Methods, Apparent temperature calculations and heat-health risks - Why have you considered the apparent temperature method? Provide some justification, especially because the metric used to assess thermal comfort can strongly influence results (see: Simpson, C.H., Brousse, O., Ebi, K.L. and Heaviside, C., 2023. Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science, 6(1), p.78.). I am not suggesting to change the method, but I am suggesting you acknowledge this consideration of metrics and their potential influence on results, especially in your final discussion paragraph.

Response: We would like to clarify that the paper by Simpson et al. (2023) raises important considerations about the potential influence of radiation and wind on the calculation of real feel temperature using different metrics on heat stress assessment. The paper emphasizes that when calculating indoor ambient temperature, wind and radiation do not need to be considered. Thus, we used a suitable equation to calculate indoor and outdoor real feel temperature.

Nevertheless, we acknowledge the significance of addressing the potential impact of the chosen metric on our results.
Here are some quotes from other articles that used AT to calculate real feel temperatures in indoor environments:
First citation: Naicker, N., Teare, J., Balakrishna, Y., Wright, C. Y., & Mathee, A. (2017). Indoor Temperatures in Low Cost Housing in Johannesburg, South Africa. International Journal of Environmental Research and Public Health, 14(11). https://doi.org/10.3390/ijerph14111410
“Apparent temperature is an indicator of thermal sensation, can be used in indoor settings [28] and has been used before when considering the relationship between heat and thermal comfort [29,30].”
28. Nguyen, J.L.; Schwartz, J.; Dockery, D.W. The relationship between indoor and outdoor temperature, relative humidity, and absolute humidity. Indoor Air 2014, 24, 103–112.
29. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’Ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.
30. Bell, M.L.; O’Neill, M.S.; Ranjit, N.; Borja-Aburto, V.H.; Cifuentes, L.A.; Gouveia, N.C. Vulnerability to heat-related mortality in Latin America: A case-crossover study in Sao Paulo, Brazil, Santiago, Chile and Mexico City, Mexico. Int. J. Epidemiol. 2008, 37, 796–804.

Second citation: Kapwata, T., Gebreslasie, M. T., Mathee, A., & Wright, C. Y. (2018). Current and Potential Future Seasonal Trends of Indoor Dwelling Temperature and Likely Health Risks in Rural Southern Africa. International Journal of Environmental Research and Public Health, 15(5). https://doi.org/10.3390/ijerph15050952

“AT is an adjustment to the ambient temperature based on the level of relative humidity and it is
deemed a measure of how humans actually perceive or feel temperature. AT is the most frequently used indicator of probable human physical reaction to weather conditions and several studies have used AT to examine the association between health and high temperature [46–49].”

46. Garland, R.M.; Matooane, M.; Engelbrecht, F.A.; Bopape, M.J.M.; Landman, W.A.; Naidoo, M.; Merwe, J.V.D.; Wright, C.Y. Regional projections of extreme apparent temperature days in Africa and the related potential risk to human health. Int. J. Environ. Res. Public Health 2015, 12, 12577–12604.
47. Harlan, S.L.; Brazel, A.J.; Prashad, L.; Stefanov, W.L.; Larsen, L. Neighborhood microclimates and vulnerability to heat stress. Soc. Sci. Med. 2006, 63, 2847–2863.
48. Watts, J.D.; Kalkstein, L.S. The development of a warm-weather relative stress index for environmental applications. J. Appl. Meteorol. 2004, 43, 503–513. [CrossRef]
49. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.

Methods, Survey questionnaire - All participants were considered exposed. Exposed to what? Be more specific.

Response: We apologize for the ambiguity in the statement and have removed the sentence.

Methods, Statistical analysis - Provide detail on how much data were missing. A supplementary table should suffice.

Response: We thank the reviewer for addressing this concern. By acknowledging and appropriately handling missing data, we aim to uphold the integrity of our study and contribute to the broader scientific discourse with accurate and reliable results.

To address the issue of missing data we have mentioned that 50% of the data were missing.

Methods, Statistical analysis - You report on using the paired t-test, but in the results you do not show any results thereof. Either add these results or omit noting that you used the paired t-test.

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods.

Results - The first paragraph provides information more suited to the methods. I would incorporate this information in the methods.

Response: This paragraph was rephrased and added to the methods section under the subheading “Survey questionnaire”:
“We administered a short survey questionnaire to occupants of the units after obtaining their informed consent.”

“A total of 62 participants (58%) answered the survey. Other residents and business owners (n=45) in the building were not available to participate during the study period.”

Results, Apparent temperature findings - Avoid referral to ambient temperature in the context of your work. Rather refer to indoor or outdoor temperature as ambient temperature refers to the temperature of the immediate surroundings which can be indoor or outdoor.

Response: We apologize for the ambiguity in the use of the word “ambient” and we have corrected this throughout the manuscript.

Results, Apparent temperature findings - Over what period (i.e. years) and at what resolution (i.e. daily or monthly) are the September temperatures you refer to, and is this from the SAWS station you used? Take care not to omit such important information.

Response: We thank the reviewer for this query and we would like to clarify that the SAWS data was within the same time frame as the iButtons measurements comparing the outdoor and indoor temperature during the month of September. Thus, the information was not omitted, and the period of the study was given in the methods section. We have clarified this within the manuscript in the methods section as follows under “Meteorological measurements”:

“Meteorological data within the study period (12 September to 25 September 2021) were provided at 10-minute intervals which were converted to hourly interval calculations.”

Results, Apparent temperature findings - Indoor AT measurements made in the container units displayed similar diurnal patterns with the warmest temperatures occurring in the mid-afternoon (Figure 2). Your figure does not show this?

Response: Upon careful re-evaluation of Figure 2, the figure illustrates the diurnal patterns of indoor apparent temperature measurements, with the warmest temperatures observed in the mid-afternoon.

Results, Apparent temperature findings - Your figure captions are slightly incorrect. You cannot refer to a trend with only 14 days of data. A trend in a climatological context is a measurement of 'change' over at least a 30 year period. You are only showing average diurnal variation in AT for figure 2-4.

Response: To address your concern and ensure clarity, we modified the captions to use the term "changes," which better aligns with the temporal scope of our study.

Results, Apparent temperature findings - Provide more reference to the figures in your results as it not always clear as to which figure you are referring to.

Response: We have carefully considered your suggestion and upon re-evaluation of the results section we have noted the following:

We have explicit references to the relevant figures in the text.

We have detailed figure citations, ensuring that readers can easily identify and cross-reference the information presented in the text with the corresponding figures.

We have figure captions to provide clear descriptions of the key findings presented in each figure.

We believe that these elements significantly provide an alignment between the narrative in the Results section and the corresponding figures, thereby facilitating a seamless understanding of our findings. We hope that these characteristics of our results section effectively address your concerns so that you are assured that we have provided an overall seamless reading experience for our audience.

Results, Apparent temperature findings - At the end of the second paragraph, you say that indoor AT fluctuated more than outdoor AT. This is not true according to Figure 3.

Response: We apologise for the incorrect use of the term “fluctuated” and we have edited the statement to be more accurate as follows:
"Indoor AT showed greater variability compared to outdoor AT, with steep increases observed in the morning and sharp declines in the afternoon."

Results, Apparent temperature findings - Figure 2 could be improved on. I would ideally indicate which units were insulated and which unit was not insulated, and for better comparability of AT, it is necessary to use the same y-axis range. Also, consider providing a straight lines from the y-axis to indicate the different AT thresholds for Table 1. This will provide more context to your results. This last suggestion also applies for figure 3.

Response: We have revised figure 2 so that all plots have the same y-axis, however, we prefer not to add threshold lines as the graphs will become very cluttered.

Results, Apparent temperature findings - You note that AT for insulated vs non-insulated differed by ~2-9 degrees C. Were the values statistically different (i.e. what are the t-test results)?

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods. Statistical significance could not be elaborated.

Results, Apparent temperature findings - You could add an indication of whether the unit was insulated or not for table 2 to help interpret the results of this table. Also, as previously mentioned, it does not provide compelling evidence that insulated units are better, especially since your sample size is small with only one unit that is not insulated.

Response: An indication of which units were insulated and which were uninsulated were added as a footnote to Table 2.

Regarding the comment on whether insulation was better or not, this study did not aim to elucidate the affect of insulation on shipping containers and the uninsulated container was not a control that was measured against the insulated shipping containers. We may have confused the reviewer by adding a paragraph addressing insulation of shipping containers in the introduction. Therefore, we have moved this paragraph addressing the effects on insulation on thermal comfort to the discussion.

Results, Questionnaire findings - The second sentence should be reworded.

Response: We thank the reviewer for this suggestion. The sentence has been edited as follows:
“At the time of the survey, the shipping container structure was 5 years old, having been assembled in 2017, when units were available to rent or purchase. All participants of this study were utilizing the containers for less than 6 months. All surveyed participants reported that their units had windows and were occupied by one or more people.”

Results overall - No t-test results are reported despite mention in the methods.

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods.

Results overall - consider adding more reporting on the results to strengthen this section.

Response: We sincerely appreciate the thoughtful feedback, and we have diligently incorporated these valuable suggestions into the results section. In response to the specific comment regarding the need for additional reporting, we have enhanced the comprehensiveness of our results presentation by meticulously addressing each and every comment and incorporating pertinent adjustments.

Discussion - 'This study has shown the significant variation in indoor temperatures in shipping container units used for living and business purposes in the metropolitan city of Johannesburg.' This sentence is misleading. You have used significant in an incorrect manner. This is a statistical term and should only be used if there is statistical backing for which there is not in this paper. Consider rewording this sentence to more appropriately align with what you have truly shown in your study.

Response: We apologize for the incorrect use of the word “significant” and we have rephrased the sentence as follows:
“This study has successfully clarified the low indoor thermal comfort characteristics of shipping container units used for living and business purposes in a hot and humid environment in the metropolitan city of Johannesburg.”

Discussion - 'On average, indoor temperatures were consistently warmer than outdoor temperatures...' How much warmer? A sentence like this should always be backed up by numerical estimates.

Response: The numerical reference was added to the sentence:

“Indoor temperatures were consistently warmer than outdoor temperatures (~ 7°C higher on average) and with some non-optimal high temperature exceedances presenting a reason for concern regarding people’s heat-health risks.”

Discussion - 'All units in which measurements were made had exceedances of the heat-health risk threshold values related to ‘caution’, ‘extreme caution’, ‘danger’ and ‘extreme danger’.' According to Table 2 and Figure 2, this sentence is misleading and perhaps even incorrect. If I am interpreting the results correctly, all units recorded caution levels, but only 3 recorded levels above this?

Response: We thank the reviewer for this comment. We have edited the sentences as follows:
“All units in which measurements were made exceeded heat-health risk threshold values related to ‘caution’. Three units exceeded the threshold values related to ‘extreme caution’ of 33-39 ℃. One unit exceeded the threshold values related to ‘danger’ of 40-51 ℃.”

Discussion - 'Two container units had the highest frequency of occurrences of temperatures reaching the ‘caution’ (27–32°C) threshold – one unit was insulated and the other was not – that are associated with fatigue possible with prolonged exposure and/or physical activity'. This sentence also seems to be misleading and perhaps incorrect.

Response: We thank the reviewer for their comments and we have edited the statement as follows:
“Two container units, one insulated and the other not had the highest frequency of temperature occurrences surpassing the ‘caution’ (27 – 32°C) threshold. These temperatures are associated with fatigue that is equivalent to prolonged heat exposure and / or physical activity.”

Discussion - 'This suggests that insulation might not be the sole solution for maintaining consistent temperatures in shipping container units.' But you suggest insulation in the abstract? Some of your statements are contradictory.

Response: We apologize for the confusion caused by discussing insulation of shipping containers in the introduction. We have moved this paragraph to the discussion.

Discussion - When referring to results in the discussion, it is good practice to refer to the Table or Figure showing the results.

Response: We thank the reviewer for their comment. After careful consideration, we would like to provide our rationale for not explicitly referring to specific tables and figures in the discussion section.

While we understand the common practice of referencing tables and figures to enhance clarity, we have opted for a more narrative approach in our discussion to maintain a cohesive and flowing narrative. We aimed to present our findings in a manner that allows readers to follow the logical progression of our arguments without constant references to specific data visuals, that has already been done in the results section.

However, to address your concern, we have ensured that key results are appropriately highlighted in the text, providing a clear link between our discussion points and the corresponding data in tables and figures. We believe this approach maintains readability while still allowing for a comprehensive understanding of our results.

We hope this explanation aligns with the standards of the journal, and we are open to further suggestions or modifications if needed.

Discussion - Third paragraph first sentence needs a reference. In fact, I recommend more actively referencing in your work.

Response: We thank the reviewer for their comment on referencing. We acknowledge the importance of providing proper citations to support our statements and have addressed this concern by incorporating additional references throughout our work.

Discussion - 'South Africa is projected to experience an increase in average ambient temperature between 4–6°C by 2100.¹⁷ ' This should be reference 18.

Response: We thank the reviewer for pointing out this error. We have redone all references in light of the extensive changes to the manuscript and have taken precautions to ensure that all referencing is accurate.

Discussion - 'Furthermore, a heat stress assessment study found that the CBD of the city of Johannesburg, which is where the containers were located, exhibited urban heat island characteristics due to high building densities and sparse vegetation.' This sentence needs a reference.

Response: We thank the reviewer for their comment. We have added the following reference: Hardy C, Nel A. Data and techniques for studying the urban heat island effect in Johannesburg. ISPRS - International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences. XL-7/W3. 203-206. 10.5194/isprsarchives-XL-7-W3-203-2015. 2015.

Discussion - You suggest two iButtons in case one fails. This could also be useful for comparability to determine accuracy of the readings.

Response: We thank the reviewer for their insight. We have added this to the conclusions:
“In future, two iButtons should be placed side-by-side to have a back-up device in the event that one logger fails to prevent data loss and to increase the accuracy and variation between the readings.”

Conclusion - You study opens doors for much more research to be undertaken. I think it is important that you highlight this so that a reader can better contextualise your results and also so they can consider how representative your results are. Important for this is assessing seasonality and also taking readings over multiple years to account for variability.

Response: We thank the reviewer for their insight. We have added a paragraph on future studies to the conclusions.
“Given the projected extreme outdoor temperatures (both heat and cold) due to climate change, it is imperative to devise strategies to enhance indoor thermal comfort. This is particularly important for low- and middle-income countries, ensuring the well-being of those forced to consider cheaper building options. The information gleaned from this study can be used to conceptualise future research to solve the thermal comfort limitations of shipping containers. Characterising measures to ensure thermal comfort inside shipping container residential and business units is warranted. Solutions such as green or vegetated roofs, exterior wall insulation options, double-glazing on windows,²¹ and solar-powered air-conditioning could be further explored and optimized. Building on insights from similar studies in different climates, researchers can delve deeper into the performance of various insulation materials, considering factors such as cost-effectiveness and sustainability. The influence of building design is especially interesting, particularly ventilation through breezes and the direction of buildings. Indoor temperatures should be a focal point for architects and urban planners aiming to create climate-resilient structures. Future research could also extend beyond temperature measurements to include physiological assessments of inhabitants for personalized exposure estimates, providing a more holistic understanding of heat-health impacts. Finally, addressing study limitations by increasing sample size, incorporating backup devices, and extending data collection periods to both summer and winter would strengthen the reliability and applicability of future research in this domain.”

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Yes

Are the conclusions drawn adequately supported by the results?

Partly

References
1. Simpson C, Brousse O, Ebi K, Heaviside C: Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science. 2023; 6 (1). Publisher Full Text

Competing Interests
No competing interests were disclosed.

Reviewer Expertise
I am a climatologist. Within this field, and relevant to this study, I focus on outdoor thermal comfort (stress) as one aspect of my research.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.
Reviewer 2

APPROVED WITH RESERVATIONS
This article, assessing indoor (and outdoor) thermal comfort in container buildings, is very relevant in the context of South Africa's housing crisis and the need to explore alternative, cheaper housing options while bearing in mind thermal health-related risks associated with housing options. Academically this article provides a good contribution to the limited literature regarding thermal comfort (stress) in a South African context, and it is important to inform South African developers (housing and non-housing developers). Thus, there is merit in its publication. However, before publication I have minor (perhaps even major in some instances) suggestions that I believe can significantly improve the article content and presentation:

Check the author affiliations - I think no 1 & 2 should be the same.

Response: The author’s affiliations are accurately reported and comprise of two different government departments that the author has affiliations with.

Abstract, background - The title refers to container buildings for housing and business yet the background is more focused on housing. Perhaps you could adjust the wording to 'Buildings (for housing and business purposes) that can protect humans...'

Response: We have adjusted the introduction to better reflect the focus on both housing and business aspects of container buildings as follows:

“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,6”

Abstract, method - To contextualise the results and their repetitiveness, add in the sampling period duration.

Response: We have added the sampling period to the abstract:
“…comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa for 14 days.”

Abstract, results - When noting the AT range it will be valuable to provide the AT classification as well so that a reader can contextualise the classified body effect.

Response: We thank the reviewer for their comment. The definition of AT is already present in the abstract in a manner concise enough to adhere to the abstract word count as follows:
“Median indoor apparent temperature (AT) (a combination of temperature and relative humidity)”

Abstract, results - In your sample, there was only one non-insulated unit. Compared to the insulated units, there was certainly a difference, but care must be taken to highlight this caveat.

Response: We changed the wording to reflect that there was one uninsulated unit as follows: “than the uninsulated unit”

Abstract, results - n = ? for the feeling tired or weak statistic.

Response: The “n= 62” has been removed from “experiencing headaches,” thus ensuring uniformity in the reporting of results in the abstract.

Abstract, conclusion - Although Figure 4 shows that on average insulated units have lower variation in AT (compared to the one non-insulated unit), Table 2 results suggest that the recommendation of insulated units should be assessed further (compare results for units 5, 9 and 10). This certainly suggests that above insulation, there may be other factors influencing the AT values, thus I would rather note that tentatively, the results suggest that units should be insulated. And in the conclusion I would make a note that further research on this topic is very much needed. You could also note that air conditioning is needed - of course as you highlighted, solar air conditioning would be most viable given the current electricity crisis in South Africa.

Response: The conclusion within the abstract has been edited as follows:
“Residents, tenants, or business owners using shipping containers should consider insulation installation and adequate windows/air conditioning for ventilation, especially in hot climates. Further research and awareness regarding heat-health risks of living or working in these spaces is needed.”

Abstract, conclusion - Perhaps this is an addition for the conclusion in the article... The value of your study in educating those building these container buildings should also be highlighted as it is largely their building specifications that will determine whether the building will be suitable in light of thermal health related risks.

Response: We thank the reviewer for their comment. We have addressed this concern in the conclusion as follows:
“The findings of future studies that analyse optimisation of thermal comfort in shipping containers should be used to advocate for and educate people who oversee the adaptation of shipping containers for either residential or business uses.”

Introduction - This section only focuses on the consideration of housing, yet many people spend a large proportion of their time in a business context in buildings. Provide some consideration thereof in the introduction.

Response: The introduction has been edited to reflect this concern as follows:
“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,⁶.”

Introduction - First word improved is perhaps misleading. Improved compared to? Perhaps use good as an alternative word.

Response: The wording of the first sentence of the introduction has been changed as follows:
“Improved housing conditions” was changed to “Properly designed and constructed residential, business and public service spaces”

Introduction - Add bracket after '.(the remaining 5% remains unknown

Response: We thank for reviewer for spotting this error. This error has been corrected in the document.

Introduction - First sentence of second paragraph needs a reference. Consider checking whether references are included where needed throughout the manuscript.

Response: We thank the reviewer for their insight. We have added a suitable reference to the sentence.

Methods, Study design - Provide further detail of the STROBE reporting guideline for a reader who does not know about it.

Response: Further clarity has been added on the value of the using STROBE guidelines to enhance the quality of observational study data:

“Strengthening the Reporting of Observational studies in Epidemiology (STROBE) guidelines were used to plan and execute this study. The STROBE guidelines ensure the highest quality of observational study data and consists of 22 checklist items that should be addressed in a study.¹⁶”

Methods, Study design - Consider adding in a study site map to show the location of the container units, especially in relation to the SAWS weather station used.

Response: Thank you for your insightful feedback and suggestion to include a study site map showcasing the container units' location in relation to the SAWS weather station.

We have included a study site map and it is now Figure 1 in the revised manuscript.

Methods, Study design - Why was the period of 12-25 Sep 2021 used for sampling? I would provide justification in text.

Response: A sentence has been added to justify the sampling period:

“The sampling took place in September because it is spring time in South Africa, and high temperatures were recorded in previous years during this month.”

Methods, Temperature measurements - The heading of this section is misleading as you did not only record temperatures. Instead title the section Meteorological measurements?

Response: The heading has been changed to “Meteorological measurements”

Methods, Temperature measurements - More information is required for the iButtons loggers. How often do they provide measurements?

Response: The frequency of measurements from the iButtons has been added to the description:
“iButtons are small, portable sensors that record hourly temperature and relative humidity”

Methods, Temperature measurements - More information is required for the SAWS weather station. Which weather station was this? How far is it from the container building? etc. This is why I suggested a study site map - perhaps consider adding landuse/cover and elevation to give the reader context on how representative this station is.

Response: We thank the reviewer for this comment. The location of the weather station is now given in Figure 1 of the revised manuscript.

Methods, Apparent temperature calculations and heat-health risks - Why have you considered the apparent temperature method? Provide some justification, especially because the metric used to assess thermal comfort can strongly influence results (see: Simpson, C.H., Brousse, O., Ebi, K.L. and Heaviside, C., 2023. Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science, 6(1), p.78.). I am not suggesting to change the method, but I am suggesting you acknowledge this consideration of metrics and their potential influence on results, especially in your final discussion paragraph.

Response: We would like to clarify that the paper by Simpson et al. (2023) raises important considerations about the potential influence of radiation and wind on the calculation of real feel temperature using different metrics on heat stress assessment. The paper emphasizes that when calculating indoor ambient temperature, wind and radiation do not need to be considered. Thus, we used a suitable equation to calculate indoor and outdoor real feel temperature.

Nevertheless, we acknowledge the significance of addressing the potential impact of the chosen metric on our results.
Here are some quotes from other articles that used AT to calculate real feel temperatures in indoor environments:
First citation: Naicker, N., Teare, J., Balakrishna, Y., Wright, C. Y., & Mathee, A. (2017). Indoor Temperatures in Low Cost Housing in Johannesburg, South Africa. International Journal of Environmental Research and Public Health, 14(11). https://doi.org/10.3390/ijerph14111410
“Apparent temperature is an indicator of thermal sensation, can be used in indoor settings [28] and has been used before when considering the relationship between heat and thermal comfort [29,30].”
28. Nguyen, J.L.; Schwartz, J.; Dockery, D.W. The relationship between indoor and outdoor temperature, relative humidity, and absolute humidity. Indoor Air 2014, 24, 103–112.
29. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’Ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.
30. Bell, M.L.; O’Neill, M.S.; Ranjit, N.; Borja-Aburto, V.H.; Cifuentes, L.A.; Gouveia, N.C. Vulnerability to heat-related mortality in Latin America: A case-crossover study in Sao Paulo, Brazil, Santiago, Chile and Mexico City, Mexico. Int. J. Epidemiol. 2008, 37, 796–804.

Second citation: Kapwata, T., Gebreslasie, M. T., Mathee, A., & Wright, C. Y. (2018). Current and Potential Future Seasonal Trends of Indoor Dwelling Temperature and Likely Health Risks in Rural Southern Africa. International Journal of Environmental Research and Public Health, 15(5). https://doi.org/10.3390/ijerph15050952

“AT is an adjustment to the ambient temperature based on the level of relative humidity and it is
deemed a measure of how humans actually perceive or feel temperature. AT is the most frequently used indicator of probable human physical reaction to weather conditions and several studies have used AT to examine the association between health and high temperature [46–49].”

46. Garland, R.M.; Matooane, M.; Engelbrecht, F.A.; Bopape, M.J.M.; Landman, W.A.; Naidoo, M.; Merwe, J.V.D.; Wright, C.Y. Regional projections of extreme apparent temperature days in Africa and the related potential risk to human health. Int. J. Environ. Res. Public Health 2015, 12, 12577–12604.
47. Harlan, S.L.; Brazel, A.J.; Prashad, L.; Stefanov, W.L.; Larsen, L. Neighborhood microclimates and vulnerability to heat stress. Soc. Sci. Med. 2006, 63, 2847–2863.
48. Watts, J.D.; Kalkstein, L.S. The development of a warm-weather relative stress index for environmental applications. J. Appl. Meteorol. 2004, 43, 503–513. [CrossRef]
49. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.

Methods, Survey questionnaire - All participants were considered exposed. Exposed to what? Be more specific.

Response: We apologize for the ambiguity in the statement and have removed the sentence.

Methods, Statistical analysis - Provide detail on how much data were missing. A supplementary table should suffice.

Response: We thank the reviewer for addressing this concern. By acknowledging and appropriately handling missing data, we aim to uphold the integrity of our study and contribute to the broader scientific discourse with accurate and reliable results.

To address the issue of missing data we have mentioned that 50% of the data were missing.

Methods, Statistical analysis - You report on using the paired t-test, but in the results you do not show any results thereof. Either add these results or omit noting that you used the paired t-test.

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods.

Results - The first paragraph provides information more suited to the methods. I would incorporate this information in the methods.

Response: This paragraph was rephrased and added to the methods section under the subheading “Survey questionnaire”:
“We administered a short survey questionnaire to occupants of the units after obtaining their informed consent.”

“A total of 62 participants (58%) answered the survey. Other residents and business owners (n=45) in the building were not available to participate during the study period.”

Results, Apparent temperature findings - Avoid referral to ambient temperature in the context of your work. Rather refer to indoor or outdoor temperature as ambient temperature refers to the temperature of the immediate surroundings which can be indoor or outdoor.

Response: We apologize for the ambiguity in the use of the word “ambient” and we have corrected this throughout the manuscript.

Results, Apparent temperature findings - Over what period (i.e. years) and at what resolution (i.e. daily or monthly) are the September temperatures you refer to, and is this from the SAWS station you used? Take care not to omit such important information.

Response: We thank the reviewer for this query and we would like to clarify that the SAWS data was within the same time frame as the iButtons measurements comparing the outdoor and indoor temperature during the month of September. Thus, the information was not omitted, and the period of the study was given in the methods section. We have clarified this within the manuscript in the methods section as follows under “Meteorological measurements”:

“Meteorological data within the study period (12 September to 25 September 2021) were provided at 10-minute intervals which were converted to hourly interval calculations.”

Results, Apparent temperature findings - Indoor AT measurements made in the container units displayed similar diurnal patterns with the warmest temperatures occurring in the mid-afternoon (Figure 2). Your figure does not show this?

Response: Upon careful re-evaluation of Figure 2, the figure illustrates the diurnal patterns of indoor apparent temperature measurements, with the warmest temperatures observed in the mid-afternoon.

Results, Apparent temperature findings - Your figure captions are slightly incorrect. You cannot refer to a trend with only 14 days of data. A trend in a climatological context is a measurement of 'change' over at least a 30 year period. You are only showing average diurnal variation in AT for figure 2-4.

Response: To address your concern and ensure clarity, we modified the captions to use the term "changes," which better aligns with the temporal scope of our study.

Results, Apparent temperature findings - Provide more reference to the figures in your results as it not always clear as to which figure you are referring to.

Response: We have carefully considered your suggestion and upon re-evaluation of the results section we have noted the following:

We have explicit references to the relevant figures in the text.

We have detailed figure citations, ensuring that readers can easily identify and cross-reference the information presented in the text with the corresponding figures.

We have figure captions to provide clear descriptions of the key findings presented in each figure.

We believe that these elements significantly provide an alignment between the narrative in the Results section and the corresponding figures, thereby facilitating a seamless understanding of our findings. We hope that these characteristics of our results section effectively address your concerns so that you are assured that we have provided an overall seamless reading experience for our audience.

Results, Apparent temperature findings - At the end of the second paragraph, you say that indoor AT fluctuated more than outdoor AT. This is not true according to Figure 3.

Response: We apologise for the incorrect use of the term “fluctuated” and we have edited the statement to be more accurate as follows:
"Indoor AT showed greater variability compared to outdoor AT, with steep increases observed in the morning and sharp declines in the afternoon."

Results, Apparent temperature findings - Figure 2 could be improved on. I would ideally indicate which units were insulated and which unit was not insulated, and for better comparability of AT, it is necessary to use the same y-axis range. Also, consider providing a straight lines from the y-axis to indicate the different AT thresholds for Table 1. This will provide more context to your results. This last suggestion also applies for figure 3.

Response: We have revised figure 2 so that all plots have the same y-axis, however, we prefer not to add threshold lines as the graphs will become very cluttered.

Results, Apparent temperature findings - You note that AT for insulated vs non-insulated differed by ~2-9 degrees C. Were the values statistically different (i.e. what are the t-test results)?

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods. Statistical significance could not be elaborated.

Results, Apparent temperature findings - You could add an indication of whether the unit was insulated or not for table 2 to help interpret the results of this table. Also, as previously mentioned, it does not provide compelling evidence that insulated units are better, especially since your sample size is small with only one unit that is not insulated.

Response: An indication of which units were insulated and which were uninsulated were added as a footnote to Table 2.

Regarding the comment on whether insulation was better or not, this study did not aim to elucidate the affect of insulation on shipping containers and the uninsulated container was not a control that was measured against the insulated shipping containers. We may have confused the reviewer by adding a paragraph addressing insulation of shipping containers in the introduction. Therefore, we have moved this paragraph addressing the effects on insulation on thermal comfort to the discussion.

Results, Questionnaire findings - The second sentence should be reworded.

Response: We thank the reviewer for this suggestion. The sentence has been edited as follows:
“At the time of the survey, the shipping container structure was 5 years old, having been assembled in 2017, when units were available to rent or purchase. All participants of this study were utilizing the containers for less than 6 months. All surveyed participants reported that their units had windows and were occupied by one or more people.”

Results overall - No t-test results are reported despite mention in the methods.

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods.

Results overall - consider adding more reporting on the results to strengthen this section.

Response: We sincerely appreciate the thoughtful feedback, and we have diligently incorporated these valuable suggestions into the results section. In response to the specific comment regarding the need for additional reporting, we have enhanced the comprehensiveness of our results presentation by meticulously addressing each and every comment and incorporating pertinent adjustments.

Discussion - 'This study has shown the significant variation in indoor temperatures in shipping container units used for living and business purposes in the metropolitan city of Johannesburg.' This sentence is misleading. You have used significant in an incorrect manner. This is a statistical term and should only be used if there is statistical backing for which there is not in this paper. Consider rewording this sentence to more appropriately align with what you have truly shown in your study.

Response: We apologize for the incorrect use of the word “significant” and we have rephrased the sentence as follows:
“This study has successfully clarified the low indoor thermal comfort characteristics of shipping container units used for living and business purposes in a hot and humid environment in the metropolitan city of Johannesburg.”

Discussion - 'On average, indoor temperatures were consistently warmer than outdoor temperatures...' How much warmer? A sentence like this should always be backed up by numerical estimates.

Response: The numerical reference was added to the sentence:

“Indoor temperatures were consistently warmer than outdoor temperatures (~ 7°C higher on average) and with some non-optimal high temperature exceedances presenting a reason for concern regarding people’s heat-health risks.”

Discussion - 'All units in which measurements were made had exceedances of the heat-health risk threshold values related to ‘caution’, ‘extreme caution’, ‘danger’ and ‘extreme danger’.' According to Table 2 and Figure 2, this sentence is misleading and perhaps even incorrect. If I am interpreting the results correctly, all units recorded caution levels, but only 3 recorded levels above this?

Response: We thank the reviewer for this comment. We have edited the sentences as follows:
“All units in which measurements were made exceeded heat-health risk threshold values related to ‘caution’. Three units exceeded the threshold values related to ‘extreme caution’ of 33-39 ℃. One unit exceeded the threshold values related to ‘danger’ of 40-51 ℃.”

Discussion - 'Two container units had the highest frequency of occurrences of temperatures reaching the ‘caution’ (27–32°C) threshold – one unit was insulated and the other was not – that are associated with fatigue possible with prolonged exposure and/or physical activity'. This sentence also seems to be misleading and perhaps incorrect.

Response: We thank the reviewer for their comments and we have edited the statement as follows:
“Two container units, one insulated and the other not had the highest frequency of temperature occurrences surpassing the ‘caution’ (27 – 32°C) threshold. These temperatures are associated with fatigue that is equivalent to prolonged heat exposure and / or physical activity.”

Discussion - 'This suggests that insulation might not be the sole solution for maintaining consistent temperatures in shipping container units.' But you suggest insulation in the abstract? Some of your statements are contradictory.

Response: We apologize for the confusion caused by discussing insulation of shipping containers in the introduction. We have moved this paragraph to the discussion.

Discussion - When referring to results in the discussion, it is good practice to refer to the Table or Figure showing the results.

Response: We thank the reviewer for their comment. After careful consideration, we would like to provide our rationale for not explicitly referring to specific tables and figures in the discussion section.

While we understand the common practice of referencing tables and figures to enhance clarity, we have opted for a more narrative approach in our discussion to maintain a cohesive and flowing narrative. We aimed to present our findings in a manner that allows readers to follow the logical progression of our arguments without constant references to specific data visuals, that has already been done in the results section.

However, to address your concern, we have ensured that key results are appropriately highlighted in the text, providing a clear link between our discussion points and the corresponding data in tables and figures. We believe this approach maintains readability while still allowing for a comprehensive understanding of our results.

We hope this explanation aligns with the standards of the journal, and we are open to further suggestions or modifications if needed.

Discussion - Third paragraph first sentence needs a reference. In fact, I recommend more actively referencing in your work.

Response: We thank the reviewer for their comment on referencing. We acknowledge the importance of providing proper citations to support our statements and have addressed this concern by incorporating additional references throughout our work.

Discussion - 'South Africa is projected to experience an increase in average ambient temperature between 4–6°C by 2100.¹⁷ ' This should be reference 18.

Response: We thank the reviewer for pointing out this error. We have redone all references in light of the extensive changes to the manuscript and have taken precautions to ensure that all referencing is accurate.

Discussion - 'Furthermore, a heat stress assessment study found that the CBD of the city of Johannesburg, which is where the containers were located, exhibited urban heat island characteristics due to high building densities and sparse vegetation.' This sentence needs a reference.

Response: We thank the reviewer for their comment. We have added the following reference: Hardy C, Nel A. Data and techniques for studying the urban heat island effect in Johannesburg. ISPRS - International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences. XL-7/W3. 203-206. 10.5194/isprsarchives-XL-7-W3-203-2015. 2015.

Discussion - You suggest two iButtons in case one fails. This could also be useful for comparability to determine accuracy of the readings.

Response: We thank the reviewer for their insight. We have added this to the conclusions:
“In future, two iButtons should be placed side-by-side to have a back-up device in the event that one logger fails to prevent data loss and to increase the accuracy and variation between the readings.”

Conclusion - You study opens doors for much more research to be undertaken. I think it is important that you highlight this so that a reader can better contextualise your results and also so they can consider how representative your results are. Important for this is assessing seasonality and also taking readings over multiple years to account for variability.

Response: We thank the reviewer for their insight. We have added a paragraph on future studies to the conclusions.
“Given the projected extreme outdoor temperatures (both heat and cold) due to climate change, it is imperative to devise strategies to enhance indoor thermal comfort. This is particularly important for low- and middle-income countries, ensuring the well-being of those forced to consider cheaper building options. The information gleaned from this study can be used to conceptualise future research to solve the thermal comfort limitations of shipping containers. Characterising measures to ensure thermal comfort inside shipping container residential and business units is warranted. Solutions such as green or vegetated roofs, exterior wall insulation options, double-glazing on windows,²¹ and solar-powered air-conditioning could be further explored and optimized. Building on insights from similar studies in different climates, researchers can delve deeper into the performance of various insulation materials, considering factors such as cost-effectiveness and sustainability. The influence of building design is especially interesting, particularly ventilation through breezes and the direction of buildings. Indoor temperatures should be a focal point for architects and urban planners aiming to create climate-resilient structures. Future research could also extend beyond temperature measurements to include physiological assessments of inhabitants for personalized exposure estimates, providing a more holistic understanding of heat-health impacts. Finally, addressing study limitations by increasing sample size, incorporating backup devices, and extending data collection periods to both summer and winter would strengthen the reliability and applicability of future research in this domain.”

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Yes

Are the conclusions drawn adequately supported by the results?

Partly

References
1. Simpson C, Brousse O, Ebi K, Heaviside C: Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science. 2023; 6 (1). Publisher Full Text

Competing Interests
No competing interests were disclosed.

Reviewer Expertise
I am a climatologist. Within this field, and relevant to this study, I focus on outdoor thermal comfort (stress) as one aspect of my research.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 13 Apr 2024

Caradee Wright, Environment and Health Research Council, South African Medical Research Council, Pretoria, South Africa

13 Apr 2024

Author Response
Reviewer 2

APPROVED WITH RESERVATIONS
This article, assessing indoor (and outdoor) thermal comfort in container buildings, is very relevant in the context of South Africa's housing crisis and the ... Continue reading
Reviewer 2

APPROVED WITH RESERVATIONS
This article, assessing indoor (and outdoor) thermal comfort in container buildings, is very relevant in the context of South Africa's housing crisis and the need to explore alternative, cheaper housing options while bearing in mind thermal health-related risks associated with housing options. Academically this article provides a good contribution to the limited literature regarding thermal comfort (stress) in a South African context, and it is important to inform South African developers (housing and non-housing developers). Thus, there is merit in its publication. However, before publication I have minor (perhaps even major in some instances) suggestions that I believe can significantly improve the article content and presentation:

Check the author affiliations - I think no 1 & 2 should be the same.

Response: The author’s affiliations are accurately reported and comprise of two different government departments that the author has affiliations with.

Abstract, background - The title refers to container buildings for housing and business yet the background is more focused on housing. Perhaps you could adjust the wording to 'Buildings (for housing and business purposes) that can protect humans...'

Response: We have adjusted the introduction to better reflect the focus on both housing and business aspects of container buildings as follows:

“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,6”

Abstract, method - To contextualise the results and their repetitiveness, add in the sampling period duration.

Response: We have added the sampling period to the abstract:
“…comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa for 14 days.”

Abstract, results - When noting the AT range it will be valuable to provide the AT classification as well so that a reader can contextualise the classified body effect.

Response: We thank the reviewer for their comment. The definition of AT is already present in the abstract in a manner concise enough to adhere to the abstract word count as follows:
“Median indoor apparent temperature (AT) (a combination of temperature and relative humidity)”

Abstract, results - In your sample, there was only one non-insulated unit. Compared to the insulated units, there was certainly a difference, but care must be taken to highlight this caveat.

Response: We changed the wording to reflect that there was one uninsulated unit as follows: “than the uninsulated unit”

Abstract, results - n = ? for the feeling tired or weak statistic.

Response: The “n= 62” has been removed from “experiencing headaches,” thus ensuring uniformity in the reporting of results in the abstract.

Abstract, conclusion - Although Figure 4 shows that on average insulated units have lower variation in AT (compared to the one non-insulated unit), Table 2 results suggest that the recommendation of insulated units should be assessed further (compare results for units 5, 9 and 10). This certainly suggests that above insulation, there may be other factors influencing the AT values, thus I would rather note that tentatively, the results suggest that units should be insulated. And in the conclusion I would make a note that further research on this topic is very much needed. You could also note that air conditioning is needed - of course as you highlighted, solar air conditioning would be most viable given the current electricity crisis in South Africa.

Response: The conclusion within the abstract has been edited as follows:
“Residents, tenants, or business owners using shipping containers should consider insulation installation and adequate windows/air conditioning for ventilation, especially in hot climates. Further research and awareness regarding heat-health risks of living or working in these spaces is needed.”

Abstract, conclusion - Perhaps this is an addition for the conclusion in the article... The value of your study in educating those building these container buildings should also be highlighted as it is largely their building specifications that will determine whether the building will be suitable in light of thermal health related risks.

Response: We thank the reviewer for their comment. We have addressed this concern in the conclusion as follows:
“The findings of future studies that analyse optimisation of thermal comfort in shipping containers should be used to advocate for and educate people who oversee the adaptation of shipping containers for either residential or business uses.”

Introduction - This section only focuses on the consideration of housing, yet many people spend a large proportion of their time in a business context in buildings. Provide some consideration thereof in the introduction.

Response: The introduction has been edited to reflect this concern as follows:
“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,⁶.”

Introduction - First word improved is perhaps misleading. Improved compared to? Perhaps use good as an alternative word.

Response: The wording of the first sentence of the introduction has been changed as follows:
“Improved housing conditions” was changed to “Properly designed and constructed residential, business and public service spaces”

Introduction - Add bracket after '.(the remaining 5% remains unknown

Response: We thank for reviewer for spotting this error. This error has been corrected in the document.

Introduction - First sentence of second paragraph needs a reference. Consider checking whether references are included where needed throughout the manuscript.

Response: We thank the reviewer for their insight. We have added a suitable reference to the sentence.

Methods, Study design - Provide further detail of the STROBE reporting guideline for a reader who does not know about it.

Response: Further clarity has been added on the value of the using STROBE guidelines to enhance the quality of observational study data:

“Strengthening the Reporting of Observational studies in Epidemiology (STROBE) guidelines were used to plan and execute this study. The STROBE guidelines ensure the highest quality of observational study data and consists of 22 checklist items that should be addressed in a study.¹⁶”

Methods, Study design - Consider adding in a study site map to show the location of the container units, especially in relation to the SAWS weather station used.

Response: Thank you for your insightful feedback and suggestion to include a study site map showcasing the container units' location in relation to the SAWS weather station.

We have included a study site map and it is now Figure 1 in the revised manuscript.

Methods, Study design - Why was the period of 12-25 Sep 2021 used for sampling? I would provide justification in text.

Response: A sentence has been added to justify the sampling period:

“The sampling took place in September because it is spring time in South Africa, and high temperatures were recorded in previous years during this month.”

Methods, Temperature measurements - The heading of this section is misleading as you did not only record temperatures. Instead title the section Meteorological measurements?

Response: The heading has been changed to “Meteorological measurements”

Methods, Temperature measurements - More information is required for the iButtons loggers. How often do they provide measurements?

Response: The frequency of measurements from the iButtons has been added to the description:
“iButtons are small, portable sensors that record hourly temperature and relative humidity”

Methods, Temperature measurements - More information is required for the SAWS weather station. Which weather station was this? How far is it from the container building? etc. This is why I suggested a study site map - perhaps consider adding landuse/cover and elevation to give the reader context on how representative this station is.

Response: We thank the reviewer for this comment. The location of the weather station is now given in Figure 1 of the revised manuscript.

Methods, Apparent temperature calculations and heat-health risks - Why have you considered the apparent temperature method? Provide some justification, especially because the metric used to assess thermal comfort can strongly influence results (see: Simpson, C.H., Brousse, O., Ebi, K.L. and Heaviside, C., 2023. Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science, 6(1), p.78.). I am not suggesting to change the method, but I am suggesting you acknowledge this consideration of metrics and their potential influence on results, especially in your final discussion paragraph.

Response: We would like to clarify that the paper by Simpson et al. (2023) raises important considerations about the potential influence of radiation and wind on the calculation of real feel temperature using different metrics on heat stress assessment. The paper emphasizes that when calculating indoor ambient temperature, wind and radiation do not need to be considered. Thus, we used a suitable equation to calculate indoor and outdoor real feel temperature.

Nevertheless, we acknowledge the significance of addressing the potential impact of the chosen metric on our results.
Here are some quotes from other articles that used AT to calculate real feel temperatures in indoor environments:
First citation: Naicker, N., Teare, J., Balakrishna, Y., Wright, C. Y., & Mathee, A. (2017). Indoor Temperatures in Low Cost Housing in Johannesburg, South Africa. International Journal of Environmental Research and Public Health, 14(11). https://doi.org/10.3390/ijerph14111410
“Apparent temperature is an indicator of thermal sensation, can be used in indoor settings [28] and has been used before when considering the relationship between heat and thermal comfort [29,30].”
28. Nguyen, J.L.; Schwartz, J.; Dockery, D.W. The relationship between indoor and outdoor temperature, relative humidity, and absolute humidity. Indoor Air 2014, 24, 103–112.
29. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’Ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.
30. Bell, M.L.; O’Neill, M.S.; Ranjit, N.; Borja-Aburto, V.H.; Cifuentes, L.A.; Gouveia, N.C. Vulnerability to heat-related mortality in Latin America: A case-crossover study in Sao Paulo, Brazil, Santiago, Chile and Mexico City, Mexico. Int. J. Epidemiol. 2008, 37, 796–804.

Second citation: Kapwata, T., Gebreslasie, M. T., Mathee, A., & Wright, C. Y. (2018). Current and Potential Future Seasonal Trends of Indoor Dwelling Temperature and Likely Health Risks in Rural Southern Africa. International Journal of Environmental Research and Public Health, 15(5). https://doi.org/10.3390/ijerph15050952

“AT is an adjustment to the ambient temperature based on the level of relative humidity and it is
deemed a measure of how humans actually perceive or feel temperature. AT is the most frequently used indicator of probable human physical reaction to weather conditions and several studies have used AT to examine the association between health and high temperature [46–49].”

46. Garland, R.M.; Matooane, M.; Engelbrecht, F.A.; Bopape, M.J.M.; Landman, W.A.; Naidoo, M.; Merwe, J.V.D.; Wright, C.Y. Regional projections of extreme apparent temperature days in Africa and the related potential risk to human health. Int. J. Environ. Res. Public Health 2015, 12, 12577–12604.
47. Harlan, S.L.; Brazel, A.J.; Prashad, L.; Stefanov, W.L.; Larsen, L. Neighborhood microclimates and vulnerability to heat stress. Soc. Sci. Med. 2006, 63, 2847–2863.
48. Watts, J.D.; Kalkstein, L.S. The development of a warm-weather relative stress index for environmental applications. J. Appl. Meteorol. 2004, 43, 503–513. [CrossRef]
49. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.

Methods, Survey questionnaire - All participants were considered exposed. Exposed to what? Be more specific.

Response: We apologize for the ambiguity in the statement and have removed the sentence.

Methods, Statistical analysis - Provide detail on how much data were missing. A supplementary table should suffice.

Response: We thank the reviewer for addressing this concern. By acknowledging and appropriately handling missing data, we aim to uphold the integrity of our study and contribute to the broader scientific discourse with accurate and reliable results.

To address the issue of missing data we have mentioned that 50% of the data were missing.

Methods, Statistical analysis - You report on using the paired t-test, but in the results you do not show any results thereof. Either add these results or omit noting that you used the paired t-test.

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods.

Results - The first paragraph provides information more suited to the methods. I would incorporate this information in the methods.

Response: This paragraph was rephrased and added to the methods section under the subheading “Survey questionnaire”:
“We administered a short survey questionnaire to occupants of the units after obtaining their informed consent.”

“A total of 62 participants (58%) answered the survey. Other residents and business owners (n=45) in the building were not available to participate during the study period.”

Results, Apparent temperature findings - Avoid referral to ambient temperature in the context of your work. Rather refer to indoor or outdoor temperature as ambient temperature refers to the temperature of the immediate surroundings which can be indoor or outdoor.

Response: We apologize for the ambiguity in the use of the word “ambient” and we have corrected this throughout the manuscript.

Results, Apparent temperature findings - Over what period (i.e. years) and at what resolution (i.e. daily or monthly) are the September temperatures you refer to, and is this from the SAWS station you used? Take care not to omit such important information.

Response: We thank the reviewer for this query and we would like to clarify that the SAWS data was within the same time frame as the iButtons measurements comparing the outdoor and indoor temperature during the month of September. Thus, the information was not omitted, and the period of the study was given in the methods section. We have clarified this within the manuscript in the methods section as follows under “Meteorological measurements”:

“Meteorological data within the study period (12 September to 25 September 2021) were provided at 10-minute intervals which were converted to hourly interval calculations.”

Results, Apparent temperature findings - Indoor AT measurements made in the container units displayed similar diurnal patterns with the warmest temperatures occurring in the mid-afternoon (Figure 2). Your figure does not show this?

Response: Upon careful re-evaluation of Figure 2, the figure illustrates the diurnal patterns of indoor apparent temperature measurements, with the warmest temperatures observed in the mid-afternoon.

Results, Apparent temperature findings - Your figure captions are slightly incorrect. You cannot refer to a trend with only 14 days of data. A trend in a climatological context is a measurement of 'change' over at least a 30 year period. You are only showing average diurnal variation in AT for figure 2-4.

Response: To address your concern and ensure clarity, we modified the captions to use the term "changes," which better aligns with the temporal scope of our study.

Results, Apparent temperature findings - Provide more reference to the figures in your results as it not always clear as to which figure you are referring to.

Response: We have carefully considered your suggestion and upon re-evaluation of the results section we have noted the following:

We have explicit references to the relevant figures in the text.

We have detailed figure citations, ensuring that readers can easily identify and cross-reference the information presented in the text with the corresponding figures.

We have figure captions to provide clear descriptions of the key findings presented in each figure.

We believe that these elements significantly provide an alignment between the narrative in the Results section and the corresponding figures, thereby facilitating a seamless understanding of our findings. We hope that these characteristics of our results section effectively address your concerns so that you are assured that we have provided an overall seamless reading experience for our audience.

Results, Apparent temperature findings - At the end of the second paragraph, you say that indoor AT fluctuated more than outdoor AT. This is not true according to Figure 3.

Response: We apologise for the incorrect use of the term “fluctuated” and we have edited the statement to be more accurate as follows:
"Indoor AT showed greater variability compared to outdoor AT, with steep increases observed in the morning and sharp declines in the afternoon."

Results, Apparent temperature findings - Figure 2 could be improved on. I would ideally indicate which units were insulated and which unit was not insulated, and for better comparability of AT, it is necessary to use the same y-axis range. Also, consider providing a straight lines from the y-axis to indicate the different AT thresholds for Table 1. This will provide more context to your results. This last suggestion also applies for figure 3.

Response: We have revised figure 2 so that all plots have the same y-axis, however, we prefer not to add threshold lines as the graphs will become very cluttered.

Results, Apparent temperature findings - You note that AT for insulated vs non-insulated differed by ~2-9 degrees C. Were the values statistically different (i.e. what are the t-test results)?

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods. Statistical significance could not be elaborated.

Results, Apparent temperature findings - You could add an indication of whether the unit was insulated or not for table 2 to help interpret the results of this table. Also, as previously mentioned, it does not provide compelling evidence that insulated units are better, especially since your sample size is small with only one unit that is not insulated.

Response: An indication of which units were insulated and which were uninsulated were added as a footnote to Table 2.

Regarding the comment on whether insulation was better or not, this study did not aim to elucidate the affect of insulation on shipping containers and the uninsulated container was not a control that was measured against the insulated shipping containers. We may have confused the reviewer by adding a paragraph addressing insulation of shipping containers in the introduction. Therefore, we have moved this paragraph addressing the effects on insulation on thermal comfort to the discussion.

Results, Questionnaire findings - The second sentence should be reworded.

Response: We thank the reviewer for this suggestion. The sentence has been edited as follows:
“At the time of the survey, the shipping container structure was 5 years old, having been assembled in 2017, when units were available to rent or purchase. All participants of this study were utilizing the containers for less than 6 months. All surveyed participants reported that their units had windows and were occupied by one or more people.”

Results overall - No t-test results are reported despite mention in the methods.

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods.

Results overall - consider adding more reporting on the results to strengthen this section.

Response: We sincerely appreciate the thoughtful feedback, and we have diligently incorporated these valuable suggestions into the results section. In response to the specific comment regarding the need for additional reporting, we have enhanced the comprehensiveness of our results presentation by meticulously addressing each and every comment and incorporating pertinent adjustments.

Discussion - 'This study has shown the significant variation in indoor temperatures in shipping container units used for living and business purposes in the metropolitan city of Johannesburg.' This sentence is misleading. You have used significant in an incorrect manner. This is a statistical term and should only be used if there is statistical backing for which there is not in this paper. Consider rewording this sentence to more appropriately align with what you have truly shown in your study.

Response: We apologize for the incorrect use of the word “significant” and we have rephrased the sentence as follows:
“This study has successfully clarified the low indoor thermal comfort characteristics of shipping container units used for living and business purposes in a hot and humid environment in the metropolitan city of Johannesburg.”

Discussion - 'On average, indoor temperatures were consistently warmer than outdoor temperatures...' How much warmer? A sentence like this should always be backed up by numerical estimates.

Response: The numerical reference was added to the sentence:

“Indoor temperatures were consistently warmer than outdoor temperatures (~ 7°C higher on average) and with some non-optimal high temperature exceedances presenting a reason for concern regarding people’s heat-health risks.”

Discussion - 'All units in which measurements were made had exceedances of the heat-health risk threshold values related to ‘caution’, ‘extreme caution’, ‘danger’ and ‘extreme danger’.' According to Table 2 and Figure 2, this sentence is misleading and perhaps even incorrect. If I am interpreting the results correctly, all units recorded caution levels, but only 3 recorded levels above this?

Response: We thank the reviewer for this comment. We have edited the sentences as follows:
“All units in which measurements were made exceeded heat-health risk threshold values related to ‘caution’. Three units exceeded the threshold values related to ‘extreme caution’ of 33-39 ℃. One unit exceeded the threshold values related to ‘danger’ of 40-51 ℃.”

Discussion - 'Two container units had the highest frequency of occurrences of temperatures reaching the ‘caution’ (27–32°C) threshold – one unit was insulated and the other was not – that are associated with fatigue possible with prolonged exposure and/or physical activity'. This sentence also seems to be misleading and perhaps incorrect.

Response: We thank the reviewer for their comments and we have edited the statement as follows:
“Two container units, one insulated and the other not had the highest frequency of temperature occurrences surpassing the ‘caution’ (27 – 32°C) threshold. These temperatures are associated with fatigue that is equivalent to prolonged heat exposure and / or physical activity.”

Discussion - 'This suggests that insulation might not be the sole solution for maintaining consistent temperatures in shipping container units.' But you suggest insulation in the abstract? Some of your statements are contradictory.

Response: We apologize for the confusion caused by discussing insulation of shipping containers in the introduction. We have moved this paragraph to the discussion.

Discussion - When referring to results in the discussion, it is good practice to refer to the Table or Figure showing the results.

Response: We thank the reviewer for their comment. After careful consideration, we would like to provide our rationale for not explicitly referring to specific tables and figures in the discussion section.

While we understand the common practice of referencing tables and figures to enhance clarity, we have opted for a more narrative approach in our discussion to maintain a cohesive and flowing narrative. We aimed to present our findings in a manner that allows readers to follow the logical progression of our arguments without constant references to specific data visuals, that has already been done in the results section.

However, to address your concern, we have ensured that key results are appropriately highlighted in the text, providing a clear link between our discussion points and the corresponding data in tables and figures. We believe this approach maintains readability while still allowing for a comprehensive understanding of our results.

We hope this explanation aligns with the standards of the journal, and we are open to further suggestions or modifications if needed.

Discussion - Third paragraph first sentence needs a reference. In fact, I recommend more actively referencing in your work.

Response: We thank the reviewer for their comment on referencing. We acknowledge the importance of providing proper citations to support our statements and have addressed this concern by incorporating additional references throughout our work.

Discussion - 'South Africa is projected to experience an increase in average ambient temperature between 4–6°C by 2100.¹⁷ ' This should be reference 18.

Response: We thank the reviewer for pointing out this error. We have redone all references in light of the extensive changes to the manuscript and have taken precautions to ensure that all referencing is accurate.

Discussion - 'Furthermore, a heat stress assessment study found that the CBD of the city of Johannesburg, which is where the containers were located, exhibited urban heat island characteristics due to high building densities and sparse vegetation.' This sentence needs a reference.

Response: We thank the reviewer for their comment. We have added the following reference: Hardy C, Nel A. Data and techniques for studying the urban heat island effect in Johannesburg. ISPRS - International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences. XL-7/W3. 203-206. 10.5194/isprsarchives-XL-7-W3-203-2015. 2015.

Discussion - You suggest two iButtons in case one fails. This could also be useful for comparability to determine accuracy of the readings.

Response: We thank the reviewer for their insight. We have added this to the conclusions:
“In future, two iButtons should be placed side-by-side to have a back-up device in the event that one logger fails to prevent data loss and to increase the accuracy and variation between the readings.”

Conclusion - You study opens doors for much more research to be undertaken. I think it is important that you highlight this so that a reader can better contextualise your results and also so they can consider how representative your results are. Important for this is assessing seasonality and also taking readings over multiple years to account for variability.

Response: We thank the reviewer for their insight. We have added a paragraph on future studies to the conclusions.
“Given the projected extreme outdoor temperatures (both heat and cold) due to climate change, it is imperative to devise strategies to enhance indoor thermal comfort. This is particularly important for low- and middle-income countries, ensuring the well-being of those forced to consider cheaper building options. The information gleaned from this study can be used to conceptualise future research to solve the thermal comfort limitations of shipping containers. Characterising measures to ensure thermal comfort inside shipping container residential and business units is warranted. Solutions such as green or vegetated roofs, exterior wall insulation options, double-glazing on windows,²¹ and solar-powered air-conditioning could be further explored and optimized. Building on insights from similar studies in different climates, researchers can delve deeper into the performance of various insulation materials, considering factors such as cost-effectiveness and sustainability. The influence of building design is especially interesting, particularly ventilation through breezes and the direction of buildings. Indoor temperatures should be a focal point for architects and urban planners aiming to create climate-resilient structures. Future research could also extend beyond temperature measurements to include physiological assessments of inhabitants for personalized exposure estimates, providing a more holistic understanding of heat-health impacts. Finally, addressing study limitations by increasing sample size, incorporating backup devices, and extending data collection periods to both summer and winter would strengthen the reliability and applicability of future research in this domain.”

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Yes

Are the conclusions drawn adequately supported by the results?

Partly

References
1. Simpson C, Brousse O, Ebi K, Heaviside C: Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science. 2023; 6 (1). Publisher Full Text

Competing Interests
No competing interests were disclosed.

Reviewer Expertise
I am a climatologist. Within this field, and relevant to this study, I focus on outdoor thermal comfort (stress) as one aspect of my research.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.
Reviewer 2

APPROVED WITH RESERVATIONS
This article, assessing indoor (and outdoor) thermal comfort in container buildings, is very relevant in the context of South Africa's housing crisis and the need to explore alternative, cheaper housing options while bearing in mind thermal health-related risks associated with housing options. Academically this article provides a good contribution to the limited literature regarding thermal comfort (stress) in a South African context, and it is important to inform South African developers (housing and non-housing developers). Thus, there is merit in its publication. However, before publication I have minor (perhaps even major in some instances) suggestions that I believe can significantly improve the article content and presentation:

Check the author affiliations - I think no 1 & 2 should be the same.

Response: The author’s affiliations are accurately reported and comprise of two different government departments that the author has affiliations with.

Abstract, background - The title refers to container buildings for housing and business yet the background is more focused on housing. Perhaps you could adjust the wording to 'Buildings (for housing and business purposes) that can protect humans...'

Response: We have adjusted the introduction to better reflect the focus on both housing and business aspects of container buildings as follows:

“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,6”

Abstract, method - To contextualise the results and their repetitiveness, add in the sampling period duration.

Response: We have added the sampling period to the abstract:
“…comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa for 14 days.”

Abstract, results - When noting the AT range it will be valuable to provide the AT classification as well so that a reader can contextualise the classified body effect.

Response: We thank the reviewer for their comment. The definition of AT is already present in the abstract in a manner concise enough to adhere to the abstract word count as follows:
“Median indoor apparent temperature (AT) (a combination of temperature and relative humidity)”

Abstract, results - In your sample, there was only one non-insulated unit. Compared to the insulated units, there was certainly a difference, but care must be taken to highlight this caveat.

Response: We changed the wording to reflect that there was one uninsulated unit as follows: “than the uninsulated unit”

Abstract, results - n = ? for the feeling tired or weak statistic.

Response: The “n= 62” has been removed from “experiencing headaches,” thus ensuring uniformity in the reporting of results in the abstract.

Abstract, conclusion - Although Figure 4 shows that on average insulated units have lower variation in AT (compared to the one non-insulated unit), Table 2 results suggest that the recommendation of insulated units should be assessed further (compare results for units 5, 9 and 10). This certainly suggests that above insulation, there may be other factors influencing the AT values, thus I would rather note that tentatively, the results suggest that units should be insulated. And in the conclusion I would make a note that further research on this topic is very much needed. You could also note that air conditioning is needed - of course as you highlighted, solar air conditioning would be most viable given the current electricity crisis in South Africa.

Response: The conclusion within the abstract has been edited as follows:
“Residents, tenants, or business owners using shipping containers should consider insulation installation and adequate windows/air conditioning for ventilation, especially in hot climates. Further research and awareness regarding heat-health risks of living or working in these spaces is needed.”

Abstract, conclusion - Perhaps this is an addition for the conclusion in the article... The value of your study in educating those building these container buildings should also be highlighted as it is largely their building specifications that will determine whether the building will be suitable in light of thermal health related risks.

Response: We thank the reviewer for their comment. We have addressed this concern in the conclusion as follows:
“The findings of future studies that analyse optimisation of thermal comfort in shipping containers should be used to advocate for and educate people who oversee the adaptation of shipping containers for either residential or business uses.”

Introduction - This section only focuses on the consideration of housing, yet many people spend a large proportion of their time in a business context in buildings. Provide some consideration thereof in the introduction.

Response: The introduction has been edited to reflect this concern as follows:
“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,⁶.”

Introduction - First word improved is perhaps misleading. Improved compared to? Perhaps use good as an alternative word.

Response: The wording of the first sentence of the introduction has been changed as follows:
“Improved housing conditions” was changed to “Properly designed and constructed residential, business and public service spaces”

Introduction - Add bracket after '.(the remaining 5% remains unknown

Response: We thank for reviewer for spotting this error. This error has been corrected in the document.

Introduction - First sentence of second paragraph needs a reference. Consider checking whether references are included where needed throughout the manuscript.

Response: We thank the reviewer for their insight. We have added a suitable reference to the sentence.

Methods, Study design - Provide further detail of the STROBE reporting guideline for a reader who does not know about it.

Response: Further clarity has been added on the value of the using STROBE guidelines to enhance the quality of observational study data:

“Strengthening the Reporting of Observational studies in Epidemiology (STROBE) guidelines were used to plan and execute this study. The STROBE guidelines ensure the highest quality of observational study data and consists of 22 checklist items that should be addressed in a study.¹⁶”

Methods, Study design - Consider adding in a study site map to show the location of the container units, especially in relation to the SAWS weather station used.

Response: Thank you for your insightful feedback and suggestion to include a study site map showcasing the container units' location in relation to the SAWS weather station.

We have included a study site map and it is now Figure 1 in the revised manuscript.

Methods, Study design - Why was the period of 12-25 Sep 2021 used for sampling? I would provide justification in text.

Response: A sentence has been added to justify the sampling period:

“The sampling took place in September because it is spring time in South Africa, and high temperatures were recorded in previous years during this month.”

Methods, Temperature measurements - The heading of this section is misleading as you did not only record temperatures. Instead title the section Meteorological measurements?

Response: The heading has been changed to “Meteorological measurements”

Methods, Temperature measurements - More information is required for the iButtons loggers. How often do they provide measurements?

Response: The frequency of measurements from the iButtons has been added to the description:
“iButtons are small, portable sensors that record hourly temperature and relative humidity”

Methods, Temperature measurements - More information is required for the SAWS weather station. Which weather station was this? How far is it from the container building? etc. This is why I suggested a study site map - perhaps consider adding landuse/cover and elevation to give the reader context on how representative this station is.

Response: We thank the reviewer for this comment. The location of the weather station is now given in Figure 1 of the revised manuscript.

Methods, Apparent temperature calculations and heat-health risks - Why have you considered the apparent temperature method? Provide some justification, especially because the metric used to assess thermal comfort can strongly influence results (see: Simpson, C.H., Brousse, O., Ebi, K.L. and Heaviside, C., 2023. Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science, 6(1), p.78.). I am not suggesting to change the method, but I am suggesting you acknowledge this consideration of metrics and their potential influence on results, especially in your final discussion paragraph.

Response: We would like to clarify that the paper by Simpson et al. (2023) raises important considerations about the potential influence of radiation and wind on the calculation of real feel temperature using different metrics on heat stress assessment. The paper emphasizes that when calculating indoor ambient temperature, wind and radiation do not need to be considered. Thus, we used a suitable equation to calculate indoor and outdoor real feel temperature.

Nevertheless, we acknowledge the significance of addressing the potential impact of the chosen metric on our results.
Here are some quotes from other articles that used AT to calculate real feel temperatures in indoor environments:
First citation: Naicker, N., Teare, J., Balakrishna, Y., Wright, C. Y., & Mathee, A. (2017). Indoor Temperatures in Low Cost Housing in Johannesburg, South Africa. International Journal of Environmental Research and Public Health, 14(11). https://doi.org/10.3390/ijerph14111410
“Apparent temperature is an indicator of thermal sensation, can be used in indoor settings [28] and has been used before when considering the relationship between heat and thermal comfort [29,30].”
28. Nguyen, J.L.; Schwartz, J.; Dockery, D.W. The relationship between indoor and outdoor temperature, relative humidity, and absolute humidity. Indoor Air 2014, 24, 103–112.
29. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’Ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.
30. Bell, M.L.; O’Neill, M.S.; Ranjit, N.; Borja-Aburto, V.H.; Cifuentes, L.A.; Gouveia, N.C. Vulnerability to heat-related mortality in Latin America: A case-crossover study in Sao Paulo, Brazil, Santiago, Chile and Mexico City, Mexico. Int. J. Epidemiol. 2008, 37, 796–804.

Second citation: Kapwata, T., Gebreslasie, M. T., Mathee, A., & Wright, C. Y. (2018). Current and Potential Future Seasonal Trends of Indoor Dwelling Temperature and Likely Health Risks in Rural Southern Africa. International Journal of Environmental Research and Public Health, 15(5). https://doi.org/10.3390/ijerph15050952

“AT is an adjustment to the ambient temperature based on the level of relative humidity and it is
deemed a measure of how humans actually perceive or feel temperature. AT is the most frequently used indicator of probable human physical reaction to weather conditions and several studies have used AT to examine the association between health and high temperature [46–49].”

46. Garland, R.M.; Matooane, M.; Engelbrecht, F.A.; Bopape, M.J.M.; Landman, W.A.; Naidoo, M.; Merwe, J.V.D.; Wright, C.Y. Regional projections of extreme apparent temperature days in Africa and the related potential risk to human health. Int. J. Environ. Res. Public Health 2015, 12, 12577–12604.
47. Harlan, S.L.; Brazel, A.J.; Prashad, L.; Stefanov, W.L.; Larsen, L. Neighborhood microclimates and vulnerability to heat stress. Soc. Sci. Med. 2006, 63, 2847–2863.
48. Watts, J.D.; Kalkstein, L.S. The development of a warm-weather relative stress index for environmental applications. J. Appl. Meteorol. 2004, 43, 503–513. [CrossRef]
49. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.

Methods, Survey questionnaire - All participants were considered exposed. Exposed to what? Be more specific.

Response: We apologize for the ambiguity in the statement and have removed the sentence.

Methods, Statistical analysis - Provide detail on how much data were missing. A supplementary table should suffice.

Response: We thank the reviewer for addressing this concern. By acknowledging and appropriately handling missing data, we aim to uphold the integrity of our study and contribute to the broader scientific discourse with accurate and reliable results.

To address the issue of missing data we have mentioned that 50% of the data were missing.

Methods, Statistical analysis - You report on using the paired t-test, but in the results you do not show any results thereof. Either add these results or omit noting that you used the paired t-test.

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods.

Results - The first paragraph provides information more suited to the methods. I would incorporate this information in the methods.

Response: This paragraph was rephrased and added to the methods section under the subheading “Survey questionnaire”:
“We administered a short survey questionnaire to occupants of the units after obtaining their informed consent.”

“A total of 62 participants (58%) answered the survey. Other residents and business owners (n=45) in the building were not available to participate during the study period.”

Results, Apparent temperature findings - Avoid referral to ambient temperature in the context of your work. Rather refer to indoor or outdoor temperature as ambient temperature refers to the temperature of the immediate surroundings which can be indoor or outdoor.

Response: We apologize for the ambiguity in the use of the word “ambient” and we have corrected this throughout the manuscript.

Results, Apparent temperature findings - Over what period (i.e. years) and at what resolution (i.e. daily or monthly) are the September temperatures you refer to, and is this from the SAWS station you used? Take care not to omit such important information.

Response: We thank the reviewer for this query and we would like to clarify that the SAWS data was within the same time frame as the iButtons measurements comparing the outdoor and indoor temperature during the month of September. Thus, the information was not omitted, and the period of the study was given in the methods section. We have clarified this within the manuscript in the methods section as follows under “Meteorological measurements”:

“Meteorological data within the study period (12 September to 25 September 2021) were provided at 10-minute intervals which were converted to hourly interval calculations.”

Results, Apparent temperature findings - Indoor AT measurements made in the container units displayed similar diurnal patterns with the warmest temperatures occurring in the mid-afternoon (Figure 2). Your figure does not show this?

Response: Upon careful re-evaluation of Figure 2, the figure illustrates the diurnal patterns of indoor apparent temperature measurements, with the warmest temperatures observed in the mid-afternoon.

Results, Apparent temperature findings - Your figure captions are slightly incorrect. You cannot refer to a trend with only 14 days of data. A trend in a climatological context is a measurement of 'change' over at least a 30 year period. You are only showing average diurnal variation in AT for figure 2-4.

Response: To address your concern and ensure clarity, we modified the captions to use the term "changes," which better aligns with the temporal scope of our study.

Results, Apparent temperature findings - Provide more reference to the figures in your results as it not always clear as to which figure you are referring to.

Response: We have carefully considered your suggestion and upon re-evaluation of the results section we have noted the following:

We have explicit references to the relevant figures in the text.

We have detailed figure citations, ensuring that readers can easily identify and cross-reference the information presented in the text with the corresponding figures.

We have figure captions to provide clear descriptions of the key findings presented in each figure.

We believe that these elements significantly provide an alignment between the narrative in the Results section and the corresponding figures, thereby facilitating a seamless understanding of our findings. We hope that these characteristics of our results section effectively address your concerns so that you are assured that we have provided an overall seamless reading experience for our audience.

Results, Apparent temperature findings - At the end of the second paragraph, you say that indoor AT fluctuated more than outdoor AT. This is not true according to Figure 3.

Response: We apologise for the incorrect use of the term “fluctuated” and we have edited the statement to be more accurate as follows:
"Indoor AT showed greater variability compared to outdoor AT, with steep increases observed in the morning and sharp declines in the afternoon."

Results, Apparent temperature findings - Figure 2 could be improved on. I would ideally indicate which units were insulated and which unit was not insulated, and for better comparability of AT, it is necessary to use the same y-axis range. Also, consider providing a straight lines from the y-axis to indicate the different AT thresholds for Table 1. This will provide more context to your results. This last suggestion also applies for figure 3.

Response: We have revised figure 2 so that all plots have the same y-axis, however, we prefer not to add threshold lines as the graphs will become very cluttered.

Results, Apparent temperature findings - You note that AT for insulated vs non-insulated differed by ~2-9 degrees C. Were the values statistically different (i.e. what are the t-test results)?

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods. Statistical significance could not be elaborated.

Results, Apparent temperature findings - You could add an indication of whether the unit was insulated or not for table 2 to help interpret the results of this table. Also, as previously mentioned, it does not provide compelling evidence that insulated units are better, especially since your sample size is small with only one unit that is not insulated.

Response: An indication of which units were insulated and which were uninsulated were added as a footnote to Table 2.

Regarding the comment on whether insulation was better or not, this study did not aim to elucidate the affect of insulation on shipping containers and the uninsulated container was not a control that was measured against the insulated shipping containers. We may have confused the reviewer by adding a paragraph addressing insulation of shipping containers in the introduction. Therefore, we have moved this paragraph addressing the effects on insulation on thermal comfort to the discussion.

Results, Questionnaire findings - The second sentence should be reworded.

Response: We thank the reviewer for this suggestion. The sentence has been edited as follows:
“At the time of the survey, the shipping container structure was 5 years old, having been assembled in 2017, when units were available to rent or purchase. All participants of this study were utilizing the containers for less than 6 months. All surveyed participants reported that their units had windows and were occupied by one or more people.”

Results overall - No t-test results are reported despite mention in the methods.

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods.

Results overall - consider adding more reporting on the results to strengthen this section.

Response: We sincerely appreciate the thoughtful feedback, and we have diligently incorporated these valuable suggestions into the results section. In response to the specific comment regarding the need for additional reporting, we have enhanced the comprehensiveness of our results presentation by meticulously addressing each and every comment and incorporating pertinent adjustments.

Discussion - 'This study has shown the significant variation in indoor temperatures in shipping container units used for living and business purposes in the metropolitan city of Johannesburg.' This sentence is misleading. You have used significant in an incorrect manner. This is a statistical term and should only be used if there is statistical backing for which there is not in this paper. Consider rewording this sentence to more appropriately align with what you have truly shown in your study.

Response: We apologize for the incorrect use of the word “significant” and we have rephrased the sentence as follows:
“This study has successfully clarified the low indoor thermal comfort characteristics of shipping container units used for living and business purposes in a hot and humid environment in the metropolitan city of Johannesburg.”

Discussion - 'On average, indoor temperatures were consistently warmer than outdoor temperatures...' How much warmer? A sentence like this should always be backed up by numerical estimates.

Response: The numerical reference was added to the sentence:

“Indoor temperatures were consistently warmer than outdoor temperatures (~ 7°C higher on average) and with some non-optimal high temperature exceedances presenting a reason for concern regarding people’s heat-health risks.”

Discussion - 'All units in which measurements were made had exceedances of the heat-health risk threshold values related to ‘caution’, ‘extreme caution’, ‘danger’ and ‘extreme danger’.' According to Table 2 and Figure 2, this sentence is misleading and perhaps even incorrect. If I am interpreting the results correctly, all units recorded caution levels, but only 3 recorded levels above this?

Response: We thank the reviewer for this comment. We have edited the sentences as follows:
“All units in which measurements were made exceeded heat-health risk threshold values related to ‘caution’. Three units exceeded the threshold values related to ‘extreme caution’ of 33-39 ℃. One unit exceeded the threshold values related to ‘danger’ of 40-51 ℃.”

Discussion - 'Two container units had the highest frequency of occurrences of temperatures reaching the ‘caution’ (27–32°C) threshold – one unit was insulated and the other was not – that are associated with fatigue possible with prolonged exposure and/or physical activity'. This sentence also seems to be misleading and perhaps incorrect.

Response: We thank the reviewer for their comments and we have edited the statement as follows:
“Two container units, one insulated and the other not had the highest frequency of temperature occurrences surpassing the ‘caution’ (27 – 32°C) threshold. These temperatures are associated with fatigue that is equivalent to prolonged heat exposure and / or physical activity.”

Discussion - 'This suggests that insulation might not be the sole solution for maintaining consistent temperatures in shipping container units.' But you suggest insulation in the abstract? Some of your statements are contradictory.

Response: We apologize for the confusion caused by discussing insulation of shipping containers in the introduction. We have moved this paragraph to the discussion.

Discussion - When referring to results in the discussion, it is good practice to refer to the Table or Figure showing the results.

Response: We thank the reviewer for their comment. After careful consideration, we would like to provide our rationale for not explicitly referring to specific tables and figures in the discussion section.

While we understand the common practice of referencing tables and figures to enhance clarity, we have opted for a more narrative approach in our discussion to maintain a cohesive and flowing narrative. We aimed to present our findings in a manner that allows readers to follow the logical progression of our arguments without constant references to specific data visuals, that has already been done in the results section.

However, to address your concern, we have ensured that key results are appropriately highlighted in the text, providing a clear link between our discussion points and the corresponding data in tables and figures. We believe this approach maintains readability while still allowing for a comprehensive understanding of our results.

We hope this explanation aligns with the standards of the journal, and we are open to further suggestions or modifications if needed.

Discussion - Third paragraph first sentence needs a reference. In fact, I recommend more actively referencing in your work.

Response: We thank the reviewer for their comment on referencing. We acknowledge the importance of providing proper citations to support our statements and have addressed this concern by incorporating additional references throughout our work.

Discussion - 'South Africa is projected to experience an increase in average ambient temperature between 4–6°C by 2100.¹⁷ ' This should be reference 18.

Response: We thank the reviewer for pointing out this error. We have redone all references in light of the extensive changes to the manuscript and have taken precautions to ensure that all referencing is accurate.

Discussion - 'Furthermore, a heat stress assessment study found that the CBD of the city of Johannesburg, which is where the containers were located, exhibited urban heat island characteristics due to high building densities and sparse vegetation.' This sentence needs a reference.

Response: We thank the reviewer for their comment. We have added the following reference: Hardy C, Nel A. Data and techniques for studying the urban heat island effect in Johannesburg. ISPRS - International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences. XL-7/W3. 203-206. 10.5194/isprsarchives-XL-7-W3-203-2015. 2015.

Discussion - You suggest two iButtons in case one fails. This could also be useful for comparability to determine accuracy of the readings.

Response: We thank the reviewer for their insight. We have added this to the conclusions:
“In future, two iButtons should be placed side-by-side to have a back-up device in the event that one logger fails to prevent data loss and to increase the accuracy and variation between the readings.”

Conclusion - You study opens doors for much more research to be undertaken. I think it is important that you highlight this so that a reader can better contextualise your results and also so they can consider how representative your results are. Important for this is assessing seasonality and also taking readings over multiple years to account for variability.

Response: We thank the reviewer for their insight. We have added a paragraph on future studies to the conclusions.
“Given the projected extreme outdoor temperatures (both heat and cold) due to climate change, it is imperative to devise strategies to enhance indoor thermal comfort. This is particularly important for low- and middle-income countries, ensuring the well-being of those forced to consider cheaper building options. The information gleaned from this study can be used to conceptualise future research to solve the thermal comfort limitations of shipping containers. Characterising measures to ensure thermal comfort inside shipping container residential and business units is warranted. Solutions such as green or vegetated roofs, exterior wall insulation options, double-glazing on windows,²¹ and solar-powered air-conditioning could be further explored and optimized. Building on insights from similar studies in different climates, researchers can delve deeper into the performance of various insulation materials, considering factors such as cost-effectiveness and sustainability. The influence of building design is especially interesting, particularly ventilation through breezes and the direction of buildings. Indoor temperatures should be a focal point for architects and urban planners aiming to create climate-resilient structures. Future research could also extend beyond temperature measurements to include physiological assessments of inhabitants for personalized exposure estimates, providing a more holistic understanding of heat-health impacts. Finally, addressing study limitations by increasing sample size, incorporating backup devices, and extending data collection periods to both summer and winter would strengthen the reliability and applicability of future research in this domain.”

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Yes

Are the conclusions drawn adequately supported by the results?

Partly

References
1. Simpson C, Brousse O, Ebi K, Heaviside C: Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science. 2023; 6 (1). Publisher Full Text

Competing Interests
No competing interests were disclosed.

Reviewer Expertise
I am a climatologist. Within this field, and relevant to this study, I focus on outdoor thermal comfort (stress) as one aspect of my research.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.
Competing Interests: No competing interests were disclosed. Close
Report a concern

Views

Reviewer Report 03 Oct 2023

Lee Yee Yong, Department of Civil Engineering, Faculty of Engineering, Universiti Malaysia Sarawak, Kota Samarahan, Sarawak, Malaysia

Approved with Reservations

https://doi.org/10.5256/f1000research.152205.r206274

This article measured the indoor temperature inside shipping containers comprising a seven-story block of apartments and businesses in Johannesburg, South Africa. This study is good as it could potentially give an important insight into another type of sustainable housing by using containers. However, the effects of temperature are essential due to its material properties on heat transfer, especially in the context of climate change.

In the overview of the article, the authors suggest improving the introduction by highlighting the thermal behavior of the material used for the container, as it is also part of the factor contributing to indoor heat storage due to heat transfer. It is also suggested that the author include some thermal properties of the material to support your justification for the impact of heat on temperature. It is important to emphasize the needs and novelty of your contribution towards knowledge as well as promoting the usage of container buildings by overcoming the effects of temperature, especially climate change.

In terms of methodology, the authors are advised to include the locality of the instruments within the space of the measurement. The location of the instrument is essential to validating the method of data collection. There are 10 units of containers that have been chosen. Suppose it is believed that there are 10 different surrounding environments for each of the units. The author is suggested to describe the different characteristics of the 10 units to show the temperature variation and fit to the data reporting in the results section. It will have more meaning to reflect the different environmental conditions affecting heat impacts. Besides that, this study incorporated a questionnaire survey and physical measurements. It would be nice if the author could associate the survey findings with the results from the physical measurement, where there is no discussion about it.

Under the results section, apparent temperature findings mostly presented the data and lacked critical discussion, which reflected the significant AT difference between the units, e.g., paragraphs 3 and 4 in the results section. More references to support the judgment and the input for different environmental conditions may be helpful in this case.

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Yes
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Partly
Are all the source data underlying the results available to ensure full reproducibility?

Partly
Are the conclusions drawn adequately supported by the results?

Yes

Competing Interests: No competing interests were disclosed.

Reviewer Expertise: Thermal behaviour in building material, thermal comfort study.

CITE

Report a concern

Author Response 13 Apr 2024

Caradee Wright, Environment and Health Research Council, South African Medical Research Council, Pretoria, South Africa

13 Apr 2024

Author Response
Reviewer 1

1. This article measured the indoor temperature inside shipping containers comprising a seven-story block of apartments and businesses in Johannesburg, South Africa. This study is good as ... Continue reading
Reviewer 1

1. This article measured the indoor temperature inside shipping containers comprising a seven-story block of apartments and businesses in Johannesburg, South Africa. This study is good as it could potentially give an important insight into another type of sustainable housing by using containers. However, the effects of temperature are essential due to its material properties on heat transfer, especially in the context of climate change.

Response: We thank the reviewer for their comments.

2. In the overview of the article, the authors suggest improving the introduction by highlighting the thermal behavior of the material used for the container, as it is also part of the factor contributing to indoor heat storage due to heat transfer. It is also suggested that the author include some thermal properties of the material to support your justification for the impact of heat on temperature.

Response: We have revised the introduction to emphasize the thermal behavior of the container material and its contribution to indoor heat storage. Additionally, we have included relevant thermal properties of the material to support our justification for the impact of heat on temperature.
“Shipping containers are made of Corten steel, which possesses the physical properties that make it weldable and rust-resistant.¹¹ Although Corten steel can withstand different weather elements, it also absorbs heat, which can make the interior extremely hot and uncomfortable for humans.¹⁰”

3. It is important to emphasize the needs and novelty of your contribution towards knowledge as well as promoting the usage of container buildings by overcoming the effects of temperature, especially climate change.

Response: We thank the reviewer for pointing out that we need to emphasize the importance of our study. We have made the following adjustments to the introduction:
“The only study analysing temperatures inside shipping containers was of classrooms in Johannesburg, South Africa, which showed temperatures in excess of 40 °C during the summer.¹⁵ There have been no studies to characterise thermal comfort conditions by measuring both temperature and humidity inside shipping containers converted into residences or businesses in South Africa. Therefore, we aimed to measure indoor temperature and humidity inside shipping containers comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa.”

“The study data may form a foundation for the development of guidelines and regulations required to improve the habitability of converted containers. In addition, these findings are important to inform policy making and health awareness campaigns related to living and working in shipping containers in hot climates.”

4. In terms of methodology, the authors are advised to include the locality of the instruments within the space of the measurement. The location of the instrument is essential to validating the method of data collection. There are 10 units of containers that have been chosen. Suppose it is believed that there are 10 different surrounding environments for each of the units. The author is suggested to describe the different characteristics of the 10 units to show the temperature variation and fit to the data reporting in the results section. It will have more meaning to reflect the different environmental conditions affecting heat impacts.

Response: We have rephrased the information on the locality of the instruments within the container space to clarify the suggestion given by the reviewer, thereby specifying the iButton locations for accurate validation of the data collection method.

“iButtons were uniformly installed against a cupboard, away from the walls, in all ten containers from September 12 to September 25, 2021.”

The characteristics of the 10 selected units have been described in the methodology section, illustrating the variation in environmental conditions affecting heat impacts.

“Units 1 to 8 had a similar interior characteristics. The units contain a built-in cupboard and closet, a stove, a fridge, TV stand, couch/chairs and a bed. Unit 9, which was the salon had a wall-to-wall table with 7 chairs, a cabinet where they store their tools, and some tools were, displayed on the table. The office contained a table, four chairs and a small free-standing cabinet.”

4. Besides that, this study incorporated a questionnaire survey and physical measurements. It would be nice if the author could associate the survey findings with the results from the physical measurement, where there is no discussion about it.

Response: We thank the reviewer for their insightful feedback and suggestion to link physical measurements to survey findings. We appreciate their thoroughness in reviewing our work. Unfortunately, the request cannot be fulfilled due to logistical constraints as this data cannot be linked.

5. Under the results section, apparent temperature findings mostly presented the data and lacked critical discussion, which reflected the significant AT difference between the units, e.g., paragraphs 3 and 4 in the results section. More references to support the judgment and the input for different environmental conditions may be helpful in this case.

Response: You rightly pointed out that paragraphs 3 and 4 in the results section primarily present the data without critical discussion. However, It is a common practice to maintain a clear distinction between the results and discussion sections to enhance the clarity and organization of the manuscript. The results section is intended to present the findings without interpretation, allowing readers to objectively evaluate the data. On the other hand, the discussion section serves the purpose of interpreting the results, comparing them with existing literature, and providing a broader context for the study.

By adhering to this separation, we aim to ensure a logical flow and readability of the manuscript. Therefore, we propose that the critical discussion of the apparent temperature findings, along with additional references to support the judgment and insights on different environmental conditions, be appropriately addressed in the dedicated discussion section. We are committed to enhancing the manuscript based on your valuable suggestions and we have added additional insights in the discussion section.

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Partly

Are the conclusions drawn adequately supported by the results?

Yes
Reviewer 1

1. This article measured the indoor temperature inside shipping containers comprising a seven-story block of apartments and businesses in Johannesburg, South Africa. This study is good as it could potentially give an important insight into another type of sustainable housing by using containers. However, the effects of temperature are essential due to its material properties on heat transfer, especially in the context of climate change.

Response: We thank the reviewer for their comments.

2. In the overview of the article, the authors suggest improving the introduction by highlighting the thermal behavior of the material used for the container, as it is also part of the factor contributing to indoor heat storage due to heat transfer. It is also suggested that the author include some thermal properties of the material to support your justification for the impact of heat on temperature.

Response: We have revised the introduction to emphasize the thermal behavior of the container material and its contribution to indoor heat storage. Additionally, we have included relevant thermal properties of the material to support our justification for the impact of heat on temperature.
“Shipping containers are made of Corten steel, which possesses the physical properties that make it weldable and rust-resistant.¹¹ Although Corten steel can withstand different weather elements, it also absorbs heat, which can make the interior extremely hot and uncomfortable for humans.¹⁰”

3. It is important to emphasize the needs and novelty of your contribution towards knowledge as well as promoting the usage of container buildings by overcoming the effects of temperature, especially climate change.

Response: We thank the reviewer for pointing out that we need to emphasize the importance of our study. We have made the following adjustments to the introduction:
“The only study analysing temperatures inside shipping containers was of classrooms in Johannesburg, South Africa, which showed temperatures in excess of 40 °C during the summer.¹⁵ There have been no studies to characterise thermal comfort conditions by measuring both temperature and humidity inside shipping containers converted into residences or businesses in South Africa. Therefore, we aimed to measure indoor temperature and humidity inside shipping containers comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa.”

“The study data may form a foundation for the development of guidelines and regulations required to improve the habitability of converted containers. In addition, these findings are important to inform policy making and health awareness campaigns related to living and working in shipping containers in hot climates.”

4. In terms of methodology, the authors are advised to include the locality of the instruments within the space of the measurement. The location of the instrument is essential to validating the method of data collection. There are 10 units of containers that have been chosen. Suppose it is believed that there are 10 different surrounding environments for each of the units. The author is suggested to describe the different characteristics of the 10 units to show the temperature variation and fit to the data reporting in the results section. It will have more meaning to reflect the different environmental conditions affecting heat impacts.

Response: We have rephrased the information on the locality of the instruments within the container space to clarify the suggestion given by the reviewer, thereby specifying the iButton locations for accurate validation of the data collection method.

“iButtons were uniformly installed against a cupboard, away from the walls, in all ten containers from September 12 to September 25, 2021.”

The characteristics of the 10 selected units have been described in the methodology section, illustrating the variation in environmental conditions affecting heat impacts.

“Units 1 to 8 had a similar interior characteristics. The units contain a built-in cupboard and closet, a stove, a fridge, TV stand, couch/chairs and a bed. Unit 9, which was the salon had a wall-to-wall table with 7 chairs, a cabinet where they store their tools, and some tools were, displayed on the table. The office contained a table, four chairs and a small free-standing cabinet.”

4. Besides that, this study incorporated a questionnaire survey and physical measurements. It would be nice if the author could associate the survey findings with the results from the physical measurement, where there is no discussion about it.

Response: We thank the reviewer for their insightful feedback and suggestion to link physical measurements to survey findings. We appreciate their thoroughness in reviewing our work. Unfortunately, the request cannot be fulfilled due to logistical constraints as this data cannot be linked.

5. Under the results section, apparent temperature findings mostly presented the data and lacked critical discussion, which reflected the significant AT difference between the units, e.g., paragraphs 3 and 4 in the results section. More references to support the judgment and the input for different environmental conditions may be helpful in this case.

Response: You rightly pointed out that paragraphs 3 and 4 in the results section primarily present the data without critical discussion. However, It is a common practice to maintain a clear distinction between the results and discussion sections to enhance the clarity and organization of the manuscript. The results section is intended to present the findings without interpretation, allowing readers to objectively evaluate the data. On the other hand, the discussion section serves the purpose of interpreting the results, comparing them with existing literature, and providing a broader context for the study.

By adhering to this separation, we aim to ensure a logical flow and readability of the manuscript. Therefore, we propose that the critical discussion of the apparent temperature findings, along with additional references to support the judgment and insights on different environmental conditions, be appropriately addressed in the dedicated discussion section. We are committed to enhancing the manuscript based on your valuable suggestions and we have added additional insights in the discussion section.

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Partly

Are the conclusions drawn adequately supported by the results?

Yes
Competing Interests: No competing interests were disclosed. Close
Report a concern
Respond or Comment

COMMENTS ON THIS REPORT

Author Response 13 Apr 2024

Caradee Wright, Environment and Health Research Council, South African Medical Research Council, Pretoria, South Africa

13 Apr 2024

Author Response
Reviewer 1

1. This article measured the indoor temperature inside shipping containers comprising a seven-story block of apartments and businesses in Johannesburg, South Africa. This study is good as ... Continue reading
Reviewer 1

1. This article measured the indoor temperature inside shipping containers comprising a seven-story block of apartments and businesses in Johannesburg, South Africa. This study is good as it could potentially give an important insight into another type of sustainable housing by using containers. However, the effects of temperature are essential due to its material properties on heat transfer, especially in the context of climate change.

Response: We thank the reviewer for their comments.

2. In the overview of the article, the authors suggest improving the introduction by highlighting the thermal behavior of the material used for the container, as it is also part of the factor contributing to indoor heat storage due to heat transfer. It is also suggested that the author include some thermal properties of the material to support your justification for the impact of heat on temperature.

Response: We have revised the introduction to emphasize the thermal behavior of the container material and its contribution to indoor heat storage. Additionally, we have included relevant thermal properties of the material to support our justification for the impact of heat on temperature.
“Shipping containers are made of Corten steel, which possesses the physical properties that make it weldable and rust-resistant.¹¹ Although Corten steel can withstand different weather elements, it also absorbs heat, which can make the interior extremely hot and uncomfortable for humans.¹⁰”

3. It is important to emphasize the needs and novelty of your contribution towards knowledge as well as promoting the usage of container buildings by overcoming the effects of temperature, especially climate change.

Response: We thank the reviewer for pointing out that we need to emphasize the importance of our study. We have made the following adjustments to the introduction:
“The only study analysing temperatures inside shipping containers was of classrooms in Johannesburg, South Africa, which showed temperatures in excess of 40 °C during the summer.¹⁵ There have been no studies to characterise thermal comfort conditions by measuring both temperature and humidity inside shipping containers converted into residences or businesses in South Africa. Therefore, we aimed to measure indoor temperature and humidity inside shipping containers comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa.”

“The study data may form a foundation for the development of guidelines and regulations required to improve the habitability of converted containers. In addition, these findings are important to inform policy making and health awareness campaigns related to living and working in shipping containers in hot climates.”

4. In terms of methodology, the authors are advised to include the locality of the instruments within the space of the measurement. The location of the instrument is essential to validating the method of data collection. There are 10 units of containers that have been chosen. Suppose it is believed that there are 10 different surrounding environments for each of the units. The author is suggested to describe the different characteristics of the 10 units to show the temperature variation and fit to the data reporting in the results section. It will have more meaning to reflect the different environmental conditions affecting heat impacts.

Response: We have rephrased the information on the locality of the instruments within the container space to clarify the suggestion given by the reviewer, thereby specifying the iButton locations for accurate validation of the data collection method.

“iButtons were uniformly installed against a cupboard, away from the walls, in all ten containers from September 12 to September 25, 2021.”

The characteristics of the 10 selected units have been described in the methodology section, illustrating the variation in environmental conditions affecting heat impacts.

“Units 1 to 8 had a similar interior characteristics. The units contain a built-in cupboard and closet, a stove, a fridge, TV stand, couch/chairs and a bed. Unit 9, which was the salon had a wall-to-wall table with 7 chairs, a cabinet where they store their tools, and some tools were, displayed on the table. The office contained a table, four chairs and a small free-standing cabinet.”

4. Besides that, this study incorporated a questionnaire survey and physical measurements. It would be nice if the author could associate the survey findings with the results from the physical measurement, where there is no discussion about it.

Response: We thank the reviewer for their insightful feedback and suggestion to link physical measurements to survey findings. We appreciate their thoroughness in reviewing our work. Unfortunately, the request cannot be fulfilled due to logistical constraints as this data cannot be linked.

5. Under the results section, apparent temperature findings mostly presented the data and lacked critical discussion, which reflected the significant AT difference between the units, e.g., paragraphs 3 and 4 in the results section. More references to support the judgment and the input for different environmental conditions may be helpful in this case.

Response: You rightly pointed out that paragraphs 3 and 4 in the results section primarily present the data without critical discussion. However, It is a common practice to maintain a clear distinction between the results and discussion sections to enhance the clarity and organization of the manuscript. The results section is intended to present the findings without interpretation, allowing readers to objectively evaluate the data. On the other hand, the discussion section serves the purpose of interpreting the results, comparing them with existing literature, and providing a broader context for the study.

By adhering to this separation, we aim to ensure a logical flow and readability of the manuscript. Therefore, we propose that the critical discussion of the apparent temperature findings, along with additional references to support the judgment and insights on different environmental conditions, be appropriately addressed in the dedicated discussion section. We are committed to enhancing the manuscript based on your valuable suggestions and we have added additional insights in the discussion section.

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Partly

Are the conclusions drawn adequately supported by the results?

Yes
Reviewer 1

1. This article measured the indoor temperature inside shipping containers comprising a seven-story block of apartments and businesses in Johannesburg, South Africa. This study is good as it could potentially give an important insight into another type of sustainable housing by using containers. However, the effects of temperature are essential due to its material properties on heat transfer, especially in the context of climate change.

Response: We thank the reviewer for their comments.

2. In the overview of the article, the authors suggest improving the introduction by highlighting the thermal behavior of the material used for the container, as it is also part of the factor contributing to indoor heat storage due to heat transfer. It is also suggested that the author include some thermal properties of the material to support your justification for the impact of heat on temperature.

Response: We have revised the introduction to emphasize the thermal behavior of the container material and its contribution to indoor heat storage. Additionally, we have included relevant thermal properties of the material to support our justification for the impact of heat on temperature.
“Shipping containers are made of Corten steel, which possesses the physical properties that make it weldable and rust-resistant.¹¹ Although Corten steel can withstand different weather elements, it also absorbs heat, which can make the interior extremely hot and uncomfortable for humans.¹⁰”

3. It is important to emphasize the needs and novelty of your contribution towards knowledge as well as promoting the usage of container buildings by overcoming the effects of temperature, especially climate change.

Response: We thank the reviewer for pointing out that we need to emphasize the importance of our study. We have made the following adjustments to the introduction:
“The only study analysing temperatures inside shipping containers was of classrooms in Johannesburg, South Africa, which showed temperatures in excess of 40 °C during the summer.¹⁵ There have been no studies to characterise thermal comfort conditions by measuring both temperature and humidity inside shipping containers converted into residences or businesses in South Africa. Therefore, we aimed to measure indoor temperature and humidity inside shipping containers comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa.”

“The study data may form a foundation for the development of guidelines and regulations required to improve the habitability of converted containers. In addition, these findings are important to inform policy making and health awareness campaigns related to living and working in shipping containers in hot climates.”

4. In terms of methodology, the authors are advised to include the locality of the instruments within the space of the measurement. The location of the instrument is essential to validating the method of data collection. There are 10 units of containers that have been chosen. Suppose it is believed that there are 10 different surrounding environments for each of the units. The author is suggested to describe the different characteristics of the 10 units to show the temperature variation and fit to the data reporting in the results section. It will have more meaning to reflect the different environmental conditions affecting heat impacts.

Response: We have rephrased the information on the locality of the instruments within the container space to clarify the suggestion given by the reviewer, thereby specifying the iButton locations for accurate validation of the data collection method.

“iButtons were uniformly installed against a cupboard, away from the walls, in all ten containers from September 12 to September 25, 2021.”

The characteristics of the 10 selected units have been described in the methodology section, illustrating the variation in environmental conditions affecting heat impacts.

“Units 1 to 8 had a similar interior characteristics. The units contain a built-in cupboard and closet, a stove, a fridge, TV stand, couch/chairs and a bed. Unit 9, which was the salon had a wall-to-wall table with 7 chairs, a cabinet where they store their tools, and some tools were, displayed on the table. The office contained a table, four chairs and a small free-standing cabinet.”

4. Besides that, this study incorporated a questionnaire survey and physical measurements. It would be nice if the author could associate the survey findings with the results from the physical measurement, where there is no discussion about it.

Response: We thank the reviewer for their insightful feedback and suggestion to link physical measurements to survey findings. We appreciate their thoroughness in reviewing our work. Unfortunately, the request cannot be fulfilled due to logistical constraints as this data cannot be linked.

5. Under the results section, apparent temperature findings mostly presented the data and lacked critical discussion, which reflected the significant AT difference between the units, e.g., paragraphs 3 and 4 in the results section. More references to support the judgment and the input for different environmental conditions may be helpful in this case.

Response: You rightly pointed out that paragraphs 3 and 4 in the results section primarily present the data without critical discussion. However, It is a common practice to maintain a clear distinction between the results and discussion sections to enhance the clarity and organization of the manuscript. The results section is intended to present the findings without interpretation, allowing readers to objectively evaluate the data. On the other hand, the discussion section serves the purpose of interpreting the results, comparing them with existing literature, and providing a broader context for the study.

By adhering to this separation, we aim to ensure a logical flow and readability of the manuscript. Therefore, we propose that the critical discussion of the apparent temperature findings, along with additional references to support the judgment and insights on different environmental conditions, be appropriately addressed in the dedicated discussion section. We are committed to enhancing the manuscript based on your valuable suggestions and we have added additional insights in the discussion section.

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Partly

Are the conclusions drawn adequately supported by the results?

Yes
Competing Interests: No competing interests were disclosed. Close
Report a concern

Comments on this article Comments (0)

Version 3

VERSION 3 PUBLISHED 03 Aug 2023

Open Peer Review

Reviewer Status

Reviewer Reports

	Invited Reviewers
	1	2	3
Version 3 (revision) 14 Oct 24		read	read
Version 2 (revision) 20 Mar 24	read		read
Version 1 03 Aug 23	read	read

Lee Yee Yong, Universiti Malaysia Sarawak, Kota Samarahan, Malaysia
Sarah Roffe, Agricultural Research Council, Pretoria, South Africa
Brian Vant-Hull, The City College of New York, New York, USA

Comments on this article

All Comments(0)

Add a comment

Browse by related subjects

Back to all reports

Reviewer Report

1 Views

23 Oct 2024 | for Version 3

Sarah Roffe, Agricultural Research Council, Pretoria, South Africa

1 Views Cite this report Responses(0)

Approved

This article looks really good and I have no new comments. I recommend indexing.

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

I am a climatologist. Within this field, and relevant to this study, I focus on outdoor thermal comfort (stress) as one aspect of my research.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

Respond to this report

Responses (0)

Back to all reports

Reviewer Report

1 Views

22 Oct 2024 | for Version 3

Brian Vant-Hull, The City College of New York, New York, New York, USA

1 Views Cite this report Responses(0)

Approved

I feel the submission has been greatly improved, and nothing sets off alarms as I read it. There's also a number of nice details that have been added making it an enjoyable read.

Whether the authors mention the statistical software is up to them, I merely point out that a standard deviation is the same whether calculated by R or Python, so there is no need for the extra information.

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Urban heat island, Indoor environments

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

Respond to this report

Responses (0)

Back to all reports

Reviewer Report

12 Views

12 Jun 2024 | for Version 2

Brian Vant-Hull, The City College of New York, New York, New York, USA

12 Views Cite this report Responses(1)

Approved With Reservations

Overall: This could use a few additions to data analysis as well as some changes to the text as noted below. Acceptable after some revisions.

Abstract
- refer to indoor temperatures relative to outdoor. Right now the abstract only compares insulated to non insulated.

Introduction
The statement that metal "absorbs heat" is extremely unphysical and not even present in the cited reference. A more physically correct statement is that metal conducts heat very efficiently, so when the surface absorbs sunlight the surface heat is rapidly conducted to the interior. This is why not only insulation but light exterior paint is required to reduce interior temperatures. I'm disappointed that paint is not even mentioned throughout the article as it affects the main mode of energy transfer affecting interior temperature. From the diagram it appears that all containers had the same paint, so though it wasn't a factor in this study, the fact that they all had the same external properties should at least be mentioned.

Methods

- though I approve of the use of apparent temperature for evaluating human comfort, it should be noted that windspeed is highly variable in urban environments due to wind shadowing, so should not be taken too seriously. For this reason a comparison of indoor versus outdoor temperatures should also be included (this was referred to in the discussion but not shown in the results). Since the water vapor pressure changes very little between indoor and outdoors it's actually not a vital part of the comparison between indoor and outdoor environments.

- There's no reason to mention that statistical analysis was done using R. Math is math. It's like stating the brand of hammer used to build a house. Irrelevant.

Results

- Figure 3: if you measured 10 containers, why are only 7 included here? It's stated that this is a random selection, but if you can do 7 you should definitely do 10. This suggests that there's a reason 3 were eliminated, and it wasn't random at all. The results make clear that this was an ibutton issue. Just state this fact in the caption.

- Figure 4: it should be stated that these are the average interior apparent temperatures, with the average applied both over all containers and over all days.

- The statement that "indoor AT showed greater variability compared to outdoor AT with steep increases observed in the morning and sharp declines in the afternoon" is wrong. It's outdoor AT that shows the greater variability. This is typical for indoor temperatures due to the heat capacity of structures. Since your conclusion got this right this must be simple one word error.

- It should be pointed out in figure 5 that the daily average AT for insulated versus non insulated is nearly the same; the benefit of insulation is it reduces the peaks. I think points showing the daily averages of the two data sets would be a nice addition to this graph.

- A large effect on indoor temperatures is sun exposure. This will vary depending on urban geometry, but higher floors typically have more sun exposure and so are hotter. Is this a trend you can report on with your data set?

Discussion

- the 7 degree difference in temperature between indoor and outdoor appears here but not in the results. There should be a separate graph of indoor versus outdoor T (not just AT).

- I suspect the Badung results used dark painted containers, possibly with less window area. The link doesn't work so I haven't checked this.

- The third and fith paragraphs do not refer to the current work so probably belongs to the introduction rather than discussion.

Conclusion

- This section should be where readers who are pressed for time can jump to for a quick summary of your actual numerical and qualitative results, NOT a set of platitudes. WHAT DID YOU DISCOVER?

References

I know reference 19 link doesn't work, the others should be checked as well.

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Partly
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Yes
Are all the source data underlying the results available to ensure full reproducibility?

Yes
Are the conclusions drawn adequately supported by the results?

Partly

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Urban heat island, Indoor environments

Respond to this report

Responses (1)

Author Response

14 Oct 2024

Caradee Wright, Environment and Health Research Council, South African Medical Research Council, Pretoria, South Africa

Response

Overall: This could use a few additions to data analysis as well as some changes to the text as noted below. Acceptable after some revisions.

Abstract
- refer to indoor temperatures relative to outdoor. Right now the abstract only compares insulated to non insulated.

Thank you, this suggestion has now been incorporated in the abstract – “Indoor AT was found to be 7°C higher on average when compared to outdoor AT.”

Introduction
The statement that metal "absorbs heat" is extremely unphysical and not even present in the cited reference. A more physically correct statement is that metal conducts heat very efficiently, so when the surface absorbs sunlight the surface heat is rapidly conducted to the interior. This is why not only insulation but light exterior paint is required to reduce interior temperatures. I'm disappointed that paint is not even mentioned throughout the article as it affects the main mode of energy transfer affecting interior temperature. From the diagram it appears that all containers had the same paint, so though it wasn't a factor in this study, the fact that they all had the same external properties should at least be mentioned.

Response: This is a valid comment, it has been instituted in the introduction as suggested – “Although Corten steel can withstand different weather elements, it produces high thermal conductivity which enables it to absorb heat more efficiently transmitting it from the exterior of the building to the interior, which can make the interior extremely hot and uncomfortable for humans.”

Yes, all containers had the same external dark paint color. In the method section of the study where the building is described, the paint details have been incorporated as per the reviewer's suggestion - All shipping containers were painted in dark colours that are either dark blue or dark green. Paint plays a factor in the heating and cooling of container buildings and to incorporate this important highlight in the article, this has been included in the discussion part of the article as a suggestion – “Window shading with awnings or blinds may also help maintain cool indoor temperatures and the application of light-colored exterior paint can reduce interior temperatures.”

Methods

- though I approve of the use of apparent temperature for evaluating human comfort, it should be noted that windspeed is highly variable in urban environments due to wind shadowing, so should not be taken too seriously. For this reason a comparison of indoor versus outdoor temperatures should also be included (this was referred to in the discussion but not shown in the results). Since the water vapor pressure changes very little between indoor and outdoors it's actually not a vital part of the comparison between indoor and outdoor environments.

Response: A comparison of indoor and outdoor AT has been conducted and mentioned in the results section and under the “Apparent temperature findings section.” Figure 4 also shows trends in hourly indoor (blue line) and outdoor (red line) during the study period from 12 September to 25 September 2021.

- There's no reason to mention that statistical analysis was done using R. Math is math. It's like stating the brand of hammer used to build a house. Irrelevant.
Response: Mentioning the statistical software in the methods section of this study is important as it allows another researcher to replicate our study, and it helps the reader better understand the study results.

Results

- Figure 3: if you measured 10 containers, why are only 7 included here? It's stated that this is a random selection, but if you can do 7 you should definitely do 10. This suggests that there's a reason 3 were eliminated, and it wasn't random at all. The results make clear that this was an ibutton issue. Just state this fact in the caption.

Response: The word random has been removed from the caption, thank you for highlighting this.

- Figure 4: it should be stated that these are the average interior apparent temperatures, with the average applied both over all containers and over all days.

Response: The caption for Figure 4 has been amended – “Average trends in hourly interior apparent temperatures (blue line) with the average applied both overall containers and over all days and outdoor (red line) during the study period from 12 September to 25 September 2021.

- The statement that "indoor AT showed greater variability compared to outdoor AT with steep increases observed in the morning and sharp declines in the afternoon" is wrong. It's outdoor AT that shows the greater variability. This is typical for indoor temperatures due to the heat capacity of structures. Since your conclusion got this right this must be simple one word error.

Response: Thank you for pointing out this error, this sentence has now been amended – “Also, outdoor AT showed greater variability compared to fluctuated more than indoor AT with steep increases observed in the morning and sharp declines steep decreases recorded in the afternoon.”

- It should be pointed out in figure 5 that the daily average AT for insulated versus non insulated is nearly the same; the benefit of insulation is it reduces the peaks. I think points showing the daily averages of the two data sets would be a nice addition to this graph.

Response: Thank you for your comment. We have amended the text but we have not changed the plot.

- A large effect on indoor temperatures is sun exposure. This will vary depending on urban geometry, but higher floors typically have more sun exposure and so are hotter. Is this a trend you can report on with your data set?

Response: Unfortunately, it is not a trend we can report on here.

Discussion

- the 7 degree difference in temperature between indoor and outdoor appears here but not in the results. There should be a separate graph of indoor versus outdoor T (not just AT).

Response: We thank the reviewer for their comment but we would prefer to not confuse the reader by adding an additional temperature-only plot.

- I suspect the Badung results used dark painted containers, possibly with less window area. The link doesn't work so I haven't checked this.

Response: The link to this study has been corrected: Doi: 10.2991/assehr.k.201009.001
There is no mention of the fewer window area and dark painted containers in the article only the use of air conditioning

- The third and fith paragraphs do not refer to the current work so probably belongs to the introduction rather than discussion.

Response: The third paragraph was moved to the introduction, however, the fifth paragraph links to the findings of this study

Conclusion

- This section should be where readers who are pressed for time can jump to for a quick summary of your actual numerical and qualitative results, NOT a set of platitudes. WHAT DID YOU DISCOVER?

Response: The conclusion has been amended to incorporate the study findings – “Based on the results obtained from this study, it can be concluded that occupants of Drivelines studios are at risk of experiencing adverse heat-related symptoms as the apparent temperature calculations exceeded the four symptoms band of caution, extreme caution, danger and extreme danger. These symptoms are associated with fatigue, heat cramps, heat exhaustion and the possibility of a heat stroke. If the container-based buildings are adequately insulated, then temperatures inside these buildings can be controlled.”

References

I know reference 19 link doesn't work, the others should be checked as well.

Response: The reference link for (19) has been corrected.

View more View less

Competing Interests

No competing interests were disclosed.

Back to all reports

Reviewer Report

3 Views

29 Mar 2024 | for Version 2

Lee Yee Yong, Department of Civil Engineering, Faculty of Engineering, Universiti Malaysia Sarawak, Kota Samarahan, Sarawak, Malaysia

3 Views Cite this report Responses(0)

Approved

Good improvemant from the authors and they did address well all the comments. I would suggest to approve this version of the manuscript.

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Thermal behaviour in building material, thermal comfort study.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard.

Respond to this report

Responses (0)

Back to all reports

Reviewer Report

20 Views

06 Oct 2023 | for Version 1

Sarah Roffe, Agricultural Research Council, Pretoria, South Africa

20 Views Cite this report Responses(1)

Approved With Reservations

Check the author affiliations - I think no 1 & 2 should be the same.
Abstract, background - The title refers to container buildings for housing and business yet the background is more focused on housing. Perhaps you could adjust the wording to 'Buildings (for housing and business purposes) that can protect humans...'
Abstract, method - To contextualise the results and their repetitiveness, add in the sampling period duration.
Abstract, results - When noting the AT range it will be valuable to provide the AT classification as well so that a reader can contextualise the classified body effect.
Abstract, results - In your sample, there was only one non-insulated unit. Compared to the insulated units, there was certainly a difference, but care must be taken to highlight this caveat.
Abstract, results - n = ? for the feeling tired or weak statistic.
Abstract, conclusion - Although Figure 4 shows that on average insulated units have lower variation in AT (compared to the one non-insulated unit), Table 2 results suggest that the recommendation of insulated units should be assessed further (compare results for units 5, 9 [NI] and 10). This certainly suggests that above insulation, there may be other factors influencing the AT values, thus I would rather note that tentatively, the results suggest that units should be insulated. And in the conclusion I would make a note that further research on this topic is very much needed. You could also note that air conditioning is needed - of course as you highlighted, solar air conditioning would be most viable given the current electricity crisis in South Africa.
Abstract, conclusion - Perhaps this is an addition for the conclusion in the article... The value of your study in educating those building these container buildings should also be highlighted as it is largely their building specifications that will determine whether the building will be suitable in light of thermal health related risks.
Introduction - This section only focuses on the consideration of housing, yet many people spend a large proportion of their time in a business context in buildings. Provide some consideration thereof in the introduction.
Introduction - First word improved is perhaps misleading. Improved compared to? Perhaps use good as an alternative word.
Introduction - Add bracket after '...(the remaining 5% remains unknown
Introduction - First sentence of second paragraph needs a reference. Consider checking whether references are included where needed throughout the manuscript.
Methods, Study design - Provide further detail of the STROBE reporting guideline for a reader who does not know about it.
Methods, Study design - Consider adding in a study site map to show the location of the container units, especially in relation to the SAWS weather station used.
Methods, Study design - Why was the period of 12-25 Sep 2021 used for sampling? I would provide justification in text.
Methods, Temperature measurements - The heading of this section is misleading as you did not only record temperatures. Instead title the section Meteorological measurements?
Methods, Temperature measurements - More information is required for the iButtons loggers. How often do they provide measurements?
Methods, Temperature measurements - More information is required for the SAWS weather station. Which weather station was this? How far is it from the container building? etc. This is why I suggested a study site map - perhaps consider adding landuse/cover and elevation to give the reader context on how representative this station is.
Methods, Apparent temperature calculations and heat-health risks - Why have you considered the apparent temperature method? Provide some justification, especially because the metric used to assess thermal comfort can strongly influence results (see: Simpson, C.H., Brousse, O., Ebi, K.L. and Heaviside, C., 2023. Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science, 6(1), p.78.). I am not suggesting to change the method, but I am suggesting you acknowledge this consideration of metrics and their potential influence on results, especially in your final discussion paragraph.
Methods, Survey questionnaire - All participants were considered exposed. Exposed to what? Be more specific.
Methods, Statistical analysis - Provide detail on how much data were missing. A supplementary table should suffice.
Methods, Statistical analysis - You report on using the paired t-test, but in the results you do not show any results thereof. Either add these results or omit noting that you used the paired t-test.
Results - The first paragraph provides information more suited to the methods. I would incorporate this information in the methods.
Results, Apparent temperature findings - Avoid referral to ambient temperature in the context of your work. Rather refer to indoor or outdoor temperature as ambient temperature refers to the temperature of the immediate surroundings which can be indoor or outdoor.
Results, Apparent temperature findings - Over what period (i.e. years) and at what resolution (i.e. daily or monthly) are the September temperatures you refer to, and is this from the SAWS station you used? Take care not to omit such important information.
Results, Apparent temperature findings - 'Indoor AT measurements made in the container units displayed similar diurnal patterns with the warmest temperatures occurring in the mid-afternoon (Figure 2).' Your figure does not show this?
Results, Apparent temperature findings - Your figure captions are slightly incorrect. You cannot refer to a trend with only 14 days of data. A trend in a climatological context is a measurement of 'change' over at least a 30 year period. You are only showing average diurnal variation in AT for figure 2-4.
Results, Apparent temperature findings - Provide more reference to the figures in your results as it not always clear as to which figure you are referring to.
Results, Apparent temperature findings - At the end of the second paragraph, you say that indoor AT fluctuated more than outdoor AT. This is not true according to Figure 3.
Results, Apparent temperature findings - Figure 2 could be be improved on. I would ideally indicate which units were insulated and which unit was not insulated, and for better comparability of AT, it is necessary to use the same y-axis range. Also, consider providing a straight lines from the y-axis to indicate the different AT thresholds for Table 1. This will provide more context to your results. This last suggestion also applies for figure 3.
Results, Apparent temperature findings - You note that AT for insulated vs non-insulated differed by ~2-9 degrees C. Were the values statistically different (i.e. what are the t-test results)?
Results, Apparent temperature findings - You could add an indication of whether the unit was insulated or not for table 2 to help interpret the results of this table. Also, as previously mentioned, it does not provide compelling evidence that insulated units are better, especially since your sample size is small with only one unit that is not insulated.
Results, Questionnaire findings - The second sentence should be reworded.
Results overall - No t-test results are reported despite mention in the methods.
Results overall - consider adding more reporting on the results to strengthen this section.
Discussion - 'This study has shown the significant variation in indoor temperatures in shipping container units used for living and business purposes in the metropolitan city of Johannesburg.' This sentence is misleading. You have used significant in an incorrect manner. This is a statistical term and should only be used if there is statistical backing for which there is not in this paper. Consider rewording this sentence to more appropriately align with what you have truly shown in your study.
Discussion - 'On average, indoor temperatures were consistently warmer than outdoor temperatures...' How much warmer? A sentence like this should always be backed up by numerical estimates.
Discussion - 'All units in which measurements were made had exceedances of the heat-health risk threshold values related to ‘caution’, ‘extreme caution’, ‘danger’ and ‘extreme danger’.' According to Table 2 and Figure 2, this sentence is misleading and perhaps even incorrect. If I am interpreting the results correctly, all units recorded caution levels, but only 3 recorded levels above this?
Discussion - 'Two container units had the highest frequency of occurrences of temperatures reaching the ‘caution’ (27–32°C) threshold – one unit was insulated and the other was not – that are associated with fatigue possible with prolonged exposure and/or physical activity'. This sentence also seems to be misleading and perhaps incorrect.
Discussion - 'This suggests that insulation might not be the sole solution for maintaining consistent temperatures in shipping container units.' But you suggest insulation in the abstract? Some of your statements are contradictory.
Discussion - When referring to results in the discussion, it is good practice to refer to the Table or Figure showing the results.
Discussion - Third paragraph first sentence needs a reference. In fact, I recommend more actively referencing in your work.
Discussion - 'South Africa is projected to experience an increase in average ambient temperature between 4–6°C by 2100.¹⁷ ' This should be reference 18.
Discussion - 'Furthermore, a heat stress assessment study found that the CBD of the city of Johannesburg, which is where the containers were located, exhibited urban heat island characteristics due to high building densities and sparse vegetation. ' This sentence needs a reference.
Discussion - You suggest two iButtons in case one fails. This could also be useful for comparability to determine accuracy of the readings.
Conclusion - You study opens doors for much more research to be undertaken. I think it is important that you highlight this so that a reader can better contextualise your results and also so they can consider how representative your results are. Important for this is assessing seasonality and also taking readings over multiple years to account for variability.

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Yes
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Partly
Are all the source data underlying the results available to ensure full reproducibility?

Yes
Are the conclusions drawn adequately supported by the results?

Partly

References

1. Simpson C, Brousse O, Ebi K, Heaviside C: Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science. 2023; 6 (1). Publisher Full Text

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

I am a climatologist. Within this field, and relevant to this study, I focus on outdoor thermal comfort (stress) as one aspect of my research.

Respond to this report

Responses (1)

Author Response

13 Apr 2024

Caradee Wright, Environment and Health Research Council, South African Medical Research Council, Pretoria, South Africa

Reviewer 2

APPROVED WITH RESERVATIONS
This article, assessing indoor (and outdoor) thermal comfort in container buildings, is very relevant in the context of South Africa's housing crisis and the need to explore alternative, cheaper housing options while bearing in mind thermal health-related risks associated with housing options. Academically this article provides a good contribution to the limited literature regarding thermal comfort (stress) in a South African context, and it is important to inform South African developers (housing and non-housing developers). Thus, there is merit in its publication. However, before publication I have minor (perhaps even major in some instances) suggestions that I believe can significantly improve the article content and presentation:

Check the author affiliations - I think no 1 & 2 should be the same.

Response: The author’s affiliations are accurately reported and comprise of two different government departments that the author has affiliations with.

Abstract, background - The title refers to container buildings for housing and business yet the background is more focused on housing. Perhaps you could adjust the wording to 'Buildings (for housing and business purposes) that can protect humans...'

Response: We have adjusted the introduction to better reflect the focus on both housing and business aspects of container buildings as follows:

“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,6”

Abstract, method - To contextualise the results and their repetitiveness, add in the sampling period duration.

Response: We have added the sampling period to the abstract:
“…comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa for 14 days.”

Abstract, results - When noting the AT range it will be valuable to provide the AT classification as well so that a reader can contextualise the classified body effect.

Response: We thank the reviewer for their comment. The definition of AT is already present in the abstract in a manner concise enough to adhere to the abstract word count as follows:
“Median indoor apparent temperature (AT) (a combination of temperature and relative humidity)”

Abstract, results - In your sample, there was only one non-insulated unit. Compared to the insulated units, there was certainly a difference, but care must be taken to highlight this caveat.

Response: We changed the wording to reflect that there was one uninsulated unit as follows: “than the uninsulated unit”

Abstract, results - n = ? for the feeling tired or weak statistic.

Response: The “n= 62” has been removed from “experiencing headaches,” thus ensuring uniformity in the reporting of results in the abstract.

Abstract, conclusion - Although Figure 4 shows that on average insulated units have lower variation in AT (compared to the one non-insulated unit), Table 2 results suggest that the recommendation of insulated units should be assessed further (compare results for units 5, 9 and 10). This certainly suggests that above insulation, there may be other factors influencing the AT values, thus I would rather note that tentatively, the results suggest that units should be insulated. And in the conclusion I would make a note that further research on this topic is very much needed. You could also note that air conditioning is needed - of course as you highlighted, solar air conditioning would be most viable given the current electricity crisis in South Africa.

Response: The conclusion within the abstract has been edited as follows:
“Residents, tenants, or business owners using shipping containers should consider insulation installation and adequate windows/air conditioning for ventilation, especially in hot climates. Further research and awareness regarding heat-health risks of living or working in these spaces is needed.”

Abstract, conclusion - Perhaps this is an addition for the conclusion in the article... The value of your study in educating those building these container buildings should also be highlighted as it is largely their building specifications that will determine whether the building will be suitable in light of thermal health related risks.

Response: We thank the reviewer for their comment. We have addressed this concern in the conclusion as follows:
“The findings of future studies that analyse optimisation of thermal comfort in shipping containers should be used to advocate for and educate people who oversee the adaptation of shipping containers for either residential or business uses.”

Introduction - This section only focuses on the consideration of housing, yet many people spend a large proportion of their time in a business context in buildings. Provide some consideration thereof in the introduction.

Response: The introduction has been edited to reflect this concern as follows:
“Properly designed and constructed residential, business and public service spaces can help prevent disease, reduce poverty, and increase quality of life.^1,2 Adequate, safe housing and working environments are essential in the current global context of urbanisation, ageing populations, and climate change.¹ In South Africa, around 80% of the population of around ~60 million people live in formal dwellings, 11% live in informal dwellings such as shacks, 4% live in traditional dwellings and the other 5% is unknown.³ Government-provided, formal low-cost housing has failed to address the growing informal housing problem in South Africa.⁴ Recently, initiatives by developers have increased the use of shipping containers to provide for South Africans who earn very little. As low-cost housing solutions, several shipping containers have been combined into a single storey or stacked to make a multi-storey block of apartments. To serve poorer communities, shipping containers have been used as clinics as well as “spaza shops” to sell essential items in townships.^5,⁶.”

Introduction - First word improved is perhaps misleading. Improved compared to? Perhaps use good as an alternative word.

Response: The wording of the first sentence of the introduction has been changed as follows:
“Improved housing conditions” was changed to “Properly designed and constructed residential, business and public service spaces”

Introduction - Add bracket after '.(the remaining 5% remains unknown

Response: We thank for reviewer for spotting this error. This error has been corrected in the document.

Introduction - First sentence of second paragraph needs a reference. Consider checking whether references are included where needed throughout the manuscript.

Response: We thank the reviewer for their insight. We have added a suitable reference to the sentence.

Methods, Study design - Provide further detail of the STROBE reporting guideline for a reader who does not know about it.

Response: Further clarity has been added on the value of the using STROBE guidelines to enhance the quality of observational study data:

“Strengthening the Reporting of Observational studies in Epidemiology (STROBE) guidelines were used to plan and execute this study. The STROBE guidelines ensure the highest quality of observational study data and consists of 22 checklist items that should be addressed in a study.¹⁶”

Methods, Study design - Consider adding in a study site map to show the location of the container units, especially in relation to the SAWS weather station used.

Response: Thank you for your insightful feedback and suggestion to include a study site map showcasing the container units' location in relation to the SAWS weather station.

We have included a study site map and it is now Figure 1 in the revised manuscript.

Methods, Study design - Why was the period of 12-25 Sep 2021 used for sampling? I would provide justification in text.

Response: A sentence has been added to justify the sampling period:

“The sampling took place in September because it is spring time in South Africa, and high temperatures were recorded in previous years during this month.”

Methods, Temperature measurements - The heading of this section is misleading as you did not only record temperatures. Instead title the section Meteorological measurements?

Response: The heading has been changed to “Meteorological measurements”

Methods, Temperature measurements - More information is required for the iButtons loggers. How often do they provide measurements?

Response: The frequency of measurements from the iButtons has been added to the description:
“iButtons are small, portable sensors that record hourly temperature and relative humidity”

Methods, Temperature measurements - More information is required for the SAWS weather station. Which weather station was this? How far is it from the container building? etc. This is why I suggested a study site map - perhaps consider adding landuse/cover and elevation to give the reader context on how representative this station is.

Response: We thank the reviewer for this comment. The location of the weather station is now given in Figure 1 of the revised manuscript.

Methods, Apparent temperature calculations and heat-health risks - Why have you considered the apparent temperature method? Provide some justification, especially because the metric used to assess thermal comfort can strongly influence results (see: Simpson, C.H., Brousse, O., Ebi, K.L. and Heaviside, C., 2023. Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science, 6(1), p.78.). I am not suggesting to change the method, but I am suggesting you acknowledge this consideration of metrics and their potential influence on results, especially in your final discussion paragraph.

Response: We would like to clarify that the paper by Simpson et al. (2023) raises important considerations about the potential influence of radiation and wind on the calculation of real feel temperature using different metrics on heat stress assessment. The paper emphasizes that when calculating indoor ambient temperature, wind and radiation do not need to be considered. Thus, we used a suitable equation to calculate indoor and outdoor real feel temperature.

Nevertheless, we acknowledge the significance of addressing the potential impact of the chosen metric on our results.
Here are some quotes from other articles that used AT to calculate real feel temperatures in indoor environments:
First citation: Naicker, N., Teare, J., Balakrishna, Y., Wright, C. Y., & Mathee, A. (2017). Indoor Temperatures in Low Cost Housing in Johannesburg, South Africa. International Journal of Environmental Research and Public Health, 14(11). https://doi.org/10.3390/ijerph14111410
“Apparent temperature is an indicator of thermal sensation, can be used in indoor settings [28] and has been used before when considering the relationship between heat and thermal comfort [29,30].”
28. Nguyen, J.L.; Schwartz, J.; Dockery, D.W. The relationship between indoor and outdoor temperature, relative humidity, and absolute humidity. Indoor Air 2014, 24, 103–112.
29. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’Ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.
30. Bell, M.L.; O’Neill, M.S.; Ranjit, N.; Borja-Aburto, V.H.; Cifuentes, L.A.; Gouveia, N.C. Vulnerability to heat-related mortality in Latin America: A case-crossover study in Sao Paulo, Brazil, Santiago, Chile and Mexico City, Mexico. Int. J. Epidemiol. 2008, 37, 796–804.

Second citation: Kapwata, T., Gebreslasie, M. T., Mathee, A., & Wright, C. Y. (2018). Current and Potential Future Seasonal Trends of Indoor Dwelling Temperature and Likely Health Risks in Rural Southern Africa. International Journal of Environmental Research and Public Health, 15(5). https://doi.org/10.3390/ijerph15050952

“AT is an adjustment to the ambient temperature based on the level of relative humidity and it is
deemed a measure of how humans actually perceive or feel temperature. AT is the most frequently used indicator of probable human physical reaction to weather conditions and several studies have used AT to examine the association between health and high temperature [46–49].”

46. Garland, R.M.; Matooane, M.; Engelbrecht, F.A.; Bopape, M.J.M.; Landman, W.A.; Naidoo, M.; Merwe, J.V.D.; Wright, C.Y. Regional projections of extreme apparent temperature days in Africa and the related potential risk to human health. Int. J. Environ. Res. Public Health 2015, 12, 12577–12604.
47. Harlan, S.L.; Brazel, A.J.; Prashad, L.; Stefanov, W.L.; Larsen, L. Neighborhood microclimates and vulnerability to heat stress. Soc. Sci. Med. 2006, 63, 2847–2863.
48. Watts, J.D.; Kalkstein, L.S. The development of a warm-weather relative stress index for environmental applications. J. Appl. Meteorol. 2004, 43, 503–513. [CrossRef]
49. Baccini, M.; Biggeri, A.; Accetta, G.; Kosatsky, T.; Katsouyanni, K.; Analitis, A.; Anderson, H.R.; Bisanti, L.; D’ippoliti, D.; Danova, J.; et al. Heat effects on mortality in 15 European cities. Epidemiology 2008, 19, 711–719.

Methods, Survey questionnaire - All participants were considered exposed. Exposed to what? Be more specific.

Response: We apologize for the ambiguity in the statement and have removed the sentence.

Methods, Statistical analysis - Provide detail on how much data were missing. A supplementary table should suffice.

Response: We thank the reviewer for addressing this concern. By acknowledging and appropriately handling missing data, we aim to uphold the integrity of our study and contribute to the broader scientific discourse with accurate and reliable results.

To address the issue of missing data we have mentioned that 50% of the data were missing.

Methods, Statistical analysis - You report on using the paired t-test, but in the results you do not show any results thereof. Either add these results or omit noting that you used the paired t-test.

Response: We thank the reviewer for this comment and after deliberations, we realised that the t-test was not performed due to small sample size and was not removed from the original draft of the manuscript. We apologize for this oversight, and we have now removed the mention of a t-test from the methods.

Results - The first paragraph provides information more suited to the methods. I would incorporate this information in the methods.

Response: This paragraph was rephrased and added to the methods section under the subheading “Survey questionnaire”:
“We administered a short survey questionnaire to occupants of the units after obtaining their informed consent.”

“A total of 62 participants (58%) answered the survey. Other residents and business owners (n=45) in the building were not available to participate during the study period.”

Results, Apparent temperature findings - Avoid referral to ambient temperature in the context of your work. Rather refer to indoor or outdoor temperature as ambient temperature refers to the temperature of the immediate surroundings which can be indoor or outdoor.

Response: We apologize for the ambiguity in the use of the word “ambient” and we have corrected this throughout the manuscript.

Results, Apparent temperature findings - Over what period (i.e. years) and at what resolution (i.e. daily or monthly) are the September temperatures you refer to, and is this from the SAWS station you used? Take care not to omit such important information.

Response: We thank the reviewer for this query and we would like to clarify that the SAWS data was within the same time frame as the iButtons measurements comparing the outdoor and indoor temperature during the month of September. Thus, the information was not omitted, and the period of the study was given in the methods section. We have clarified this within the manuscript in the methods section as follows under “Meteorological measurements”:

“Meteorological data within the study period (12 September to 25 September 2021) were provided at 10-minute intervals which were converted to hourly interval calculations.”

Results, Apparent temperature findings - Indoor AT measurements made in the container units displayed similar diurnal patterns with the warmest temperatures occurring in the mid-afternoon (Figure 2). Your figure does not show this?

Response: Upon careful re-evaluation of Figure 2, the figure illustrates the diurnal patterns of indoor apparent temperature measurements, with the warmest temperatures observed in the mid-afternoon.

Results, Apparent temperature findings - Your figure captions are slightly incorrect. You cannot refer to a trend with only 14 days of data. A trend in a climatological context is a measurement of 'change' over at least a 30 year period. You are only showing average diurnal variation in AT for figure 2-4.

Response: To address your concern and ensure clarity, we modified the captions to use the term "changes," which better aligns with the temporal scope of our study.

Results, Apparent temperature findings - Provide more reference to the figures in your results as it not always clear as to which figure you are referring to.

Response: We have carefully considered your suggestion and upon re-evaluation of the results section we have noted the following:

We have explicit references to the relevant figures in the text.
We have detailed figure citations, ensuring that readers can easily identify and cross-reference the information presented in the text with the corresponding figures.
We have figure captions to provide clear descriptions of the key findings presented in each figure.

We believe that these elements significantly provide an alignment between the narrative in the Results section and the corresponding figures, thereby facilitating a seamless understanding of our findings. We hope that these characteristics of our results section effectively address your concerns so that you are assured that we have provided an overall seamless reading experience for our audience.

Results, Apparent temperature findings - At the end of the second paragraph, you say that indoor AT fluctuated more than outdoor AT. This is not true according to Figure 3.

Response: We apologise for the incorrect use of the term “fluctuated” and we have edited the statement to be more accurate as follows:
"Indoor AT showed greater variability compared to outdoor AT, with steep increases observed in the morning and sharp declines in the afternoon."

Results, Apparent temperature findings - Figure 2 could be improved on. I would ideally indicate which units were insulated and which unit was not insulated, and for better comparability of AT, it is necessary to use the same y-axis range. Also, consider providing a straight lines from the y-axis to indicate the different AT thresholds for Table 1. This will provide more context to your results. This last suggestion also applies for figure 3.

Response: We have revised figure 2 so that all plots have the same y-axis, however, we prefer not to add threshold lines as the graphs will become very cluttered.

Results, Apparent temperature findings - You note that AT for insulated vs non-insulated differed by ~2-9 degrees C. Were the values statistically different (i.e. what are the t-test results)?

Results, Apparent temperature findings - You could add an indication of whether the unit was insulated or not for table 2 to help interpret the results of this table. Also, as previously mentioned, it does not provide compelling evidence that insulated units are better, especially since your sample size is small with only one unit that is not insulated.

Response: An indication of which units were insulated and which were uninsulated were added as a footnote to Table 2.

Regarding the comment on whether insulation was better or not, this study did not aim to elucidate the affect of insulation on shipping containers and the uninsulated container was not a control that was measured against the insulated shipping containers. We may have confused the reviewer by adding a paragraph addressing insulation of shipping containers in the introduction. Therefore, we have moved this paragraph addressing the effects on insulation on thermal comfort to the discussion.

Results, Questionnaire findings - The second sentence should be reworded.

Response: We thank the reviewer for this suggestion. The sentence has been edited as follows:
“At the time of the survey, the shipping container structure was 5 years old, having been assembled in 2017, when units were available to rent or purchase. All participants of this study were utilizing the containers for less than 6 months. All surveyed participants reported that their units had windows and were occupied by one or more people.”

Results overall - No t-test results are reported despite mention in the methods.

Results overall - consider adding more reporting on the results to strengthen this section.

Response: We sincerely appreciate the thoughtful feedback, and we have diligently incorporated these valuable suggestions into the results section. In response to the specific comment regarding the need for additional reporting, we have enhanced the comprehensiveness of our results presentation by meticulously addressing each and every comment and incorporating pertinent adjustments.

Discussion - 'This study has shown the significant variation in indoor temperatures in shipping container units used for living and business purposes in the metropolitan city of Johannesburg.' This sentence is misleading. You have used significant in an incorrect manner. This is a statistical term and should only be used if there is statistical backing for which there is not in this paper. Consider rewording this sentence to more appropriately align with what you have truly shown in your study.

Response: We apologize for the incorrect use of the word “significant” and we have rephrased the sentence as follows:
“This study has successfully clarified the low indoor thermal comfort characteristics of shipping container units used for living and business purposes in a hot and humid environment in the metropolitan city of Johannesburg.”

Discussion - 'On average, indoor temperatures were consistently warmer than outdoor temperatures...' How much warmer? A sentence like this should always be backed up by numerical estimates.

Response: The numerical reference was added to the sentence:

“Indoor temperatures were consistently warmer than outdoor temperatures (~ 7°C higher on average) and with some non-optimal high temperature exceedances presenting a reason for concern regarding people’s heat-health risks.”

Discussion - 'All units in which measurements were made had exceedances of the heat-health risk threshold values related to ‘caution’, ‘extreme caution’, ‘danger’ and ‘extreme danger’.' According to Table 2 and Figure 2, this sentence is misleading and perhaps even incorrect. If I am interpreting the results correctly, all units recorded caution levels, but only 3 recorded levels above this?

Response: We thank the reviewer for this comment. We have edited the sentences as follows:
“All units in which measurements were made exceeded heat-health risk threshold values related to ‘caution’. Three units exceeded the threshold values related to ‘extreme caution’ of 33-39 ℃. One unit exceeded the threshold values related to ‘danger’ of 40-51 ℃.”

Discussion - 'Two container units had the highest frequency of occurrences of temperatures reaching the ‘caution’ (27–32°C) threshold – one unit was insulated and the other was not – that are associated with fatigue possible with prolonged exposure and/or physical activity'. This sentence also seems to be misleading and perhaps incorrect.

Response: We thank the reviewer for their comments and we have edited the statement as follows:
“Two container units, one insulated and the other not had the highest frequency of temperature occurrences surpassing the ‘caution’ (27 – 32°C) threshold. These temperatures are associated with fatigue that is equivalent to prolonged heat exposure and / or physical activity.”

Discussion - 'This suggests that insulation might not be the sole solution for maintaining consistent temperatures in shipping container units.' But you suggest insulation in the abstract? Some of your statements are contradictory.

Response: We apologize for the confusion caused by discussing insulation of shipping containers in the introduction. We have moved this paragraph to the discussion.

Discussion - When referring to results in the discussion, it is good practice to refer to the Table or Figure showing the results.

Response: We thank the reviewer for their comment. After careful consideration, we would like to provide our rationale for not explicitly referring to specific tables and figures in the discussion section.

While we understand the common practice of referencing tables and figures to enhance clarity, we have opted for a more narrative approach in our discussion to maintain a cohesive and flowing narrative. We aimed to present our findings in a manner that allows readers to follow the logical progression of our arguments without constant references to specific data visuals, that has already been done in the results section.

However, to address your concern, we have ensured that key results are appropriately highlighted in the text, providing a clear link between our discussion points and the corresponding data in tables and figures. We believe this approach maintains readability while still allowing for a comprehensive understanding of our results.

We hope this explanation aligns with the standards of the journal, and we are open to further suggestions or modifications if needed.

Discussion - Third paragraph first sentence needs a reference. In fact, I recommend more actively referencing in your work.

Response: We thank the reviewer for their comment on referencing. We acknowledge the importance of providing proper citations to support our statements and have addressed this concern by incorporating additional references throughout our work.

Discussion - 'South Africa is projected to experience an increase in average ambient temperature between 4–6°C by 2100.¹⁷ ' This should be reference 18.

Response: We thank the reviewer for pointing out this error. We have redone all references in light of the extensive changes to the manuscript and have taken precautions to ensure that all referencing is accurate.

Discussion - 'Furthermore, a heat stress assessment study found that the CBD of the city of Johannesburg, which is where the containers were located, exhibited urban heat island characteristics due to high building densities and sparse vegetation.' This sentence needs a reference.

Response: We thank the reviewer for their comment. We have added the following reference: Hardy C, Nel A. Data and techniques for studying the urban heat island effect in Johannesburg. ISPRS - International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences. XL-7/W3. 203-206. 10.5194/isprsarchives-XL-7-W3-203-2015. 2015.

Discussion - You suggest two iButtons in case one fails. This could also be useful for comparability to determine accuracy of the readings.

Response: We thank the reviewer for their insight. We have added this to the conclusions:
“In future, two iButtons should be placed side-by-side to have a back-up device in the event that one logger fails to prevent data loss and to increase the accuracy and variation between the readings.”

Conclusion - You study opens doors for much more research to be undertaken. I think it is important that you highlight this so that a reader can better contextualise your results and also so they can consider how representative your results are. Important for this is assessing seasonality and also taking readings over multiple years to account for variability.

Response: We thank the reviewer for their insight. We have added a paragraph on future studies to the conclusions.
“Given the projected extreme outdoor temperatures (both heat and cold) due to climate change, it is imperative to devise strategies to enhance indoor thermal comfort. This is particularly important for low- and middle-income countries, ensuring the well-being of those forced to consider cheaper building options. The information gleaned from this study can be used to conceptualise future research to solve the thermal comfort limitations of shipping containers. Characterising measures to ensure thermal comfort inside shipping container residential and business units is warranted. Solutions such as green or vegetated roofs, exterior wall insulation options, double-glazing on windows,²¹ and solar-powered air-conditioning could be further explored and optimized. Building on insights from similar studies in different climates, researchers can delve deeper into the performance of various insulation materials, considering factors such as cost-effectiveness and sustainability. The influence of building design is especially interesting, particularly ventilation through breezes and the direction of buildings. Indoor temperatures should be a focal point for architects and urban planners aiming to create climate-resilient structures. Future research could also extend beyond temperature measurements to include physiological assessments of inhabitants for personalized exposure estimates, providing a more holistic understanding of heat-health impacts. Finally, addressing study limitations by increasing sample size, incorporating backup devices, and extending data collection periods to both summer and winter would strengthen the reliability and applicability of future research in this domain.”

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Yes

Are the conclusions drawn adequately supported by the results?

Partly

References
1. Simpson C, Brousse O, Ebi K, Heaviside C: Commonly used indices disagree about the effect of moisture on heat stress. npj Climate and Atmospheric Science. 2023; 6 (1). Publisher Full Text

Competing Interests
No competing interests were disclosed.

Reviewer Expertise
I am a climatologist. Within this field, and relevant to this study, I focus on outdoor thermal comfort (stress) as one aspect of my research.

I confirm that I have read this submission and believe that I have an appropriate level of expertise to confirm that it is of an acceptable scientific standard, however I have significant reservations, as outlined above.

View more View less

Competing Interests

No competing interests were disclosed.

Back to all reports

Reviewer Report

17 Views

03 Oct 2023 | for Version 1

Lee Yee Yong, Department of Civil Engineering, Faculty of Engineering, Universiti Malaysia Sarawak, Kota Samarahan, Sarawak, Malaysia

17 Views Cite this report Responses(1)

Approved With Reservations

Is the work clearly and accurately presented and does it cite the current literature?

Yes
Is the study design appropriate and is the work technically sound?

Yes
Are sufficient details of methods and analysis provided to allow replication by others?

Yes
If applicable, is the statistical analysis and its interpretation appropriate?

Partly
Are all the source data underlying the results available to ensure full reproducibility?

Partly
Are the conclusions drawn adequately supported by the results?

Yes

Competing Interests

No competing interests were disclosed.

Reviewer Expertise

Thermal behaviour in building material, thermal comfort study.

Respond to this report

Responses (1)

Author Response

13 Apr 2024

Caradee Wright, Environment and Health Research Council, South African Medical Research Council, Pretoria, South Africa

Reviewer 1

1. This article measured the indoor temperature inside shipping containers comprising a seven-story block of apartments and businesses in Johannesburg, South Africa. This study is good as it could potentially give an important insight into another type of sustainable housing by using containers. However, the effects of temperature are essential due to its material properties on heat transfer, especially in the context of climate change.

Response: We thank the reviewer for their comments.

2. In the overview of the article, the authors suggest improving the introduction by highlighting the thermal behavior of the material used for the container, as it is also part of the factor contributing to indoor heat storage due to heat transfer. It is also suggested that the author include some thermal properties of the material to support your justification for the impact of heat on temperature.

Response: We have revised the introduction to emphasize the thermal behavior of the container material and its contribution to indoor heat storage. Additionally, we have included relevant thermal properties of the material to support our justification for the impact of heat on temperature.
“Shipping containers are made of Corten steel, which possesses the physical properties that make it weldable and rust-resistant.¹¹ Although Corten steel can withstand different weather elements, it also absorbs heat, which can make the interior extremely hot and uncomfortable for humans.¹⁰”

3. It is important to emphasize the needs and novelty of your contribution towards knowledge as well as promoting the usage of container buildings by overcoming the effects of temperature, especially climate change.

Response: We thank the reviewer for pointing out that we need to emphasize the importance of our study. We have made the following adjustments to the introduction:
“The only study analysing temperatures inside shipping containers was of classrooms in Johannesburg, South Africa, which showed temperatures in excess of 40 °C during the summer.¹⁵ There have been no studies to characterise thermal comfort conditions by measuring both temperature and humidity inside shipping containers converted into residences or businesses in South Africa. Therefore, we aimed to measure indoor temperature and humidity inside shipping containers comprising a seven-storey block of apartments and businesses in Johannesburg, South Africa.”

“The study data may form a foundation for the development of guidelines and regulations required to improve the habitability of converted containers. In addition, these findings are important to inform policy making and health awareness campaigns related to living and working in shipping containers in hot climates.”

4. In terms of methodology, the authors are advised to include the locality of the instruments within the space of the measurement. The location of the instrument is essential to validating the method of data collection. There are 10 units of containers that have been chosen. Suppose it is believed that there are 10 different surrounding environments for each of the units. The author is suggested to describe the different characteristics of the 10 units to show the temperature variation and fit to the data reporting in the results section. It will have more meaning to reflect the different environmental conditions affecting heat impacts.

Response: We have rephrased the information on the locality of the instruments within the container space to clarify the suggestion given by the reviewer, thereby specifying the iButton locations for accurate validation of the data collection method.

“iButtons were uniformly installed against a cupboard, away from the walls, in all ten containers from September 12 to September 25, 2021.”

The characteristics of the 10 selected units have been described in the methodology section, illustrating the variation in environmental conditions affecting heat impacts.

“Units 1 to 8 had a similar interior characteristics. The units contain a built-in cupboard and closet, a stove, a fridge, TV stand, couch/chairs and a bed. Unit 9, which was the salon had a wall-to-wall table with 7 chairs, a cabinet where they store their tools, and some tools were, displayed on the table. The office contained a table, four chairs and a small free-standing cabinet.”

4. Besides that, this study incorporated a questionnaire survey and physical measurements. It would be nice if the author could associate the survey findings with the results from the physical measurement, where there is no discussion about it.

Response: We thank the reviewer for their insightful feedback and suggestion to link physical measurements to survey findings. We appreciate their thoroughness in reviewing our work. Unfortunately, the request cannot be fulfilled due to logistical constraints as this data cannot be linked.

5. Under the results section, apparent temperature findings mostly presented the data and lacked critical discussion, which reflected the significant AT difference between the units, e.g., paragraphs 3 and 4 in the results section. More references to support the judgment and the input for different environmental conditions may be helpful in this case.

Response: You rightly pointed out that paragraphs 3 and 4 in the results section primarily present the data without critical discussion. However, It is a common practice to maintain a clear distinction between the results and discussion sections to enhance the clarity and organization of the manuscript. The results section is intended to present the findings without interpretation, allowing readers to objectively evaluate the data. On the other hand, the discussion section serves the purpose of interpreting the results, comparing them with existing literature, and providing a broader context for the study.

By adhering to this separation, we aim to ensure a logical flow and readability of the manuscript. Therefore, we propose that the critical discussion of the apparent temperature findings, along with additional references to support the judgment and insights on different environmental conditions, be appropriately addressed in the dedicated discussion section. We are committed to enhancing the manuscript based on your valuable suggestions and we have added additional insights in the discussion section.

Is the work clearly and accurately presented and does it cite the current literature?

Yes

Is the study design appropriate and is the work technically sound?

Yes

Are sufficient details of methods and analysis provided to allow replication by others?

Yes

If applicable, is the statistical analysis and its interpretation appropriate?

Partly

Are all the source data underlying the results available to ensure full reproducibility?

Partly

Are the conclusions drawn adequately supported by the results?

Yes

View more View less

Competing Interests

No competing interests were disclosed.

Alongside their report, reviewers assign a status to the article:

Approved - the paper is scientifically sound in its current form and only minor, if any, improvements are suggested

Approved with reservations - A number of small changes, sometimes more significant revisions are required to address specific details and improve the papers academic merit.

Not approved - fundamental flaws in the paper seriously undermine the findings and conclusions

[1] 1. World Health Organization: WHO Housing and Health Guidelines.23 November 2018. Accessed 26 June 2023. Reference Source

[2] 2. Statistics South Africa: General Household Survey.2021. 23 June 2022. Accessed 26 June 2023. Reference Source

[3] 3. Lakot Alemdag E, Aydin O: A study of shipping containers as a living space in context of sustainability. ARTiUM. 2015; 3(1): 17–29. Reference Source

[4] 4. Zafra RG, Mayo JRM, Villareal PJM, et al.: Structural and thermal performance assessment of shipping container as post-disaster housing in tropical climates. Civil Engineer J. 2021; 7(8): 1437–1458. Publisher Full Text

[5] 5. Zhang G, Setunge S, van Elmpt S : Using shipping containers to provide temporary housing in post-disaster recovery: social case studies. Procedia Economic Fin. 2014; 18: 618–625. Publisher Full Text

[6] 6. TheShipsAI: How hot do shipping containers get? Accessed 26 June 2023. Reference Source

[7] 7. Elrayies GM: Thermal performance assessment of shipping container architecture in hot and human climates. Int J Advanced Sci Engin Inform Tech. 2017; 7: 1114–1126. Publisher Full Text Reference Source

[8] 8. Bidassey-Manilal S, Wright CY, Engelbrecht JC, et al.: Students’ Perceived Heat-Health Symptoms Increased with Warmer Classroom Temperatures. Int J Environ Res Public Health. 2016; 13(6): 566. PubMed Abstract | Publisher Full Text | Free Full Text

[9] 9. Naicker N, Teare J, Balakrishna Y, et al.: Indoor Temperatures in Low Cost Housing in Johannesburg, South Africa. Int J Environ Res Public Health. 2017; 14(11): 1410. PubMed Abstract | Publisher Full Text | Free Full Text

[10] 10. R Core Team: R: A language and environment for statistical computing. Vienna, Austria: R Foundation for Statistical Computing; 2022. Accessed 24 June 2023. Reference Source

[11] 11. Steadman RG: Norms of apparent temperature in Australia. Accessed 23 June 2023. Reference Source

[12] 12. StataCorp: Stata Statistical Software: release 16. College Station, TX: StataCorp LLC.; 2019. Accessed 25 June 2023. Reference Source

[13] 13. Climate Data: Johannesburg Climate (South Africa).2023. Accessed 23 June 2023. Reference Source

[14] 14. Latsitoadi B, As Syarif MH: Refurbished shipping containers as architectural module in Bandung. Advances in Social Science, Education and Humanities Research, Proceedings of the 3^rd International Conference on Dwelling Form (IDWELL 2020). 2020; 475: 1–9. Publisher Full Text

[15] 15. Taleb H, Elsebaei M, El-Attar M: Enhancing the sustainability of shipping container homes in a hot arid region: A case study of Aswan in Egypt. Architect Engineer Design Manage. 2019; 15: 459–474. Publisher Full Text

[16] 16. Tham S, Thompson R, Landeg O, et al.: Indoor temperature and health: a global systematic review. Public Health. 2020 Feb; 179: 9–17. PubMed Abstract | Publisher Full Text

[17] 17. Sun S, Weinberger KR, Nori-Sarma A, et al.: Ambient heat and risks of emergency department visits among adults in the United States: time stratified case crossover study. BMJ. 2021; 375: e065653. PubMed Abstract | Publisher Full Text | Free Full Text

[18] 18. Engelbrecht F, Adegoke J, Bopape M-J, et al.: Projects of rapidly rising surface temperatures over Africa under low mitigation. Environ. Res. Lett. 2015; 10: 085004. Publisher Full Text

[19] 19. Souverijins N, De Ridder K, Veldeman N, et al.: Urban heat in Johannesburg and Ekurhuleni, South Africa: A meter-scale assessment and vulnerability analysis. Urban Clim. 2022; 46: 101331. PubMed Abstract | Publisher Full Text | Free Full Text

[20] 20. Wright C: IButton and Questionnaire data for container building in Johannesburg. [Dataset]. Zenodo. 2023. Publisher Full Text

[21] 21. Wright C: STROBE checklist for ‘Container buildings used for residential and business purposes in Johannesburg, South Africa and potential heat-related health risks’. Zenodo. 2023. Publisher Full Text

Container buildings used for residential and business purposes in Johannesburg, South Africa and potential heat-related health risks

Abstract

Keywords

Introduction

Methods

Study design

Figure 1. Street view of the container building comprising businesses and residences.

Ethical approval

Informed consent

Temperature measurements

Apparent temperature calculations and heat-health risks

(1)

(2)

Table 1. Apparent temperature (AT) thresholds and potential health impacts.11

Survey questionnaire

Statistical analyses

Results

Apparent temperature findings

Figure 2. Trends in hourly apparent temperature (°C) indoor measurements made inside a random selection of the container building’s apartments and businesses during the study period from 12 September to 25 September 2021.

Figure 3. Trends in hourly indoor (blue line) and outdoor (red line) during the study period from 12 September to 25 September 2021.

Figure 4. Diurnal trends in indoor AT (°C) in a container apartment without insulation (red line) and with insulation (blue line) during the study period from 12 September to 25 September 2021.

Table 2. Mean (hourly range) AT measurements made in each of the seven units and the number of occurrences (hourly) when AT levels exceeded the four heat-health symptom bands.

Questionnaire findings

Table 3. Descriptive characteristics of the study participants who lived in the residential apartments (N=62).

Table 4. Participants’ perceptions related to heat and heat-behaviours (N=62).

Table 5. Heat-related symptoms were reported by the study participants (N=62).

Discussion

Conclusion

Data availability

Underlying data

Reporting guidelines

Acknowledgements

References

Comments on this article Comments (0)

Open Peer Review

Comments on this article Comments (0)

Open Peer Review

Reviewer Status

Reviewer Reports

Comments on this article

Browse by related subjects

Competing Interests Policy

Stay Updated

Table 1. Apparent temperature (AT) thresholds and potential health impacts.¹¹
