Factors influencing osteoradionecrosis progression during hyperbaric oxygen therapy: A case study

Introduction

Head and neck cancers rank seventh in the world, with an incidence of 890,000 new cases.¹

Their management typically involves surgery, radiotherapy (RT), and chemotherapy. Despite advancements in techniques, external RT often leads to complications, including osteoradionecrosis (ORN).

ORN is defined as progressive bone destruction, occurring spontaneously or following trauma, with mucosal ulceration exposing irradiated bone, persisting for 3 to 6 months without healing, excluding tumor recurrence.²

Although relatively uncommon, ORN remains a serious complication, significantly affecting patients’ quality of life often leading to chronic pain, infections, and functional impairments in the affected areas.³

The pathophysiology of ORN remains poorly understood, despite extensive research. It is believed to result from the interplay between radiation-induced damage to the vasculature, impaired healing, and an inflammatory response. However, there is still no clear consensus on the exact mechanisms behind its development.⁴

Various therapeutic approaches are utilized in the treatment of ORN. They include antibiotics, hyperbaric oxygen therapy (HBOT), the PENTOCLO protocol, and conservative surgery. Among these, HBOT has garnered significant attention due to its potential to enhance tissue healing and reduce bone damage by improving oxygen supply to irradiated tissues.⁵

Several studies have evaluated the role of HBOT in managing ORN, with varying results. However, the optimal treatment protocol, including the duration and frequency of HBOT sessions, remains a topic of debate. Moreover, there is limited research identifying predictive factors that influence the outcomes of ORN treatment, particularly concerning the progression of the condition following HBOT. While some studies have shown promising results, the role of HBOT in combination with other treatments and its impact on long-term outcomes remains underexplored.

Our study aims to evaluate the role of HBOT in ORN management and describe predictive factors influencing post-therapeutic evolution of head and neck ORN.

By addressing the current gaps in knowledge, we hope to provide insights that could lead to more effective and personalized treatment strategies for ORN patients.

Methods

Statistical analysis

Statistical analyses were performed using SPSS version 22.0. Categorical variables were reported as percentages, and their significance was assessed using Fisher’s exact test or chi-square tests. Quantitative variables were presented as mean (standard deviation) or median ± interquartile range (IQR25%, 75%). Normality was tested using the Kolmogorov-Smirnov test. An unpaired t-test was used to compare two groups when continuous variables were normally distributed. For continuous variables that were not normally distributed, a two-tailed unpaired Mann-Whitney U test was applied. Both univariate and multivariate analyses were conducted to evaluate the effectiveness of HBOT on ORN patients. The cases were divided into two groups: Group 1 (n=36) included patients with regression or stabilization, and Group 2 (n=10) included patients with worsening signs of injury after HBOT (Figure 1). Differences were considered significant if p ≤ 0.05.

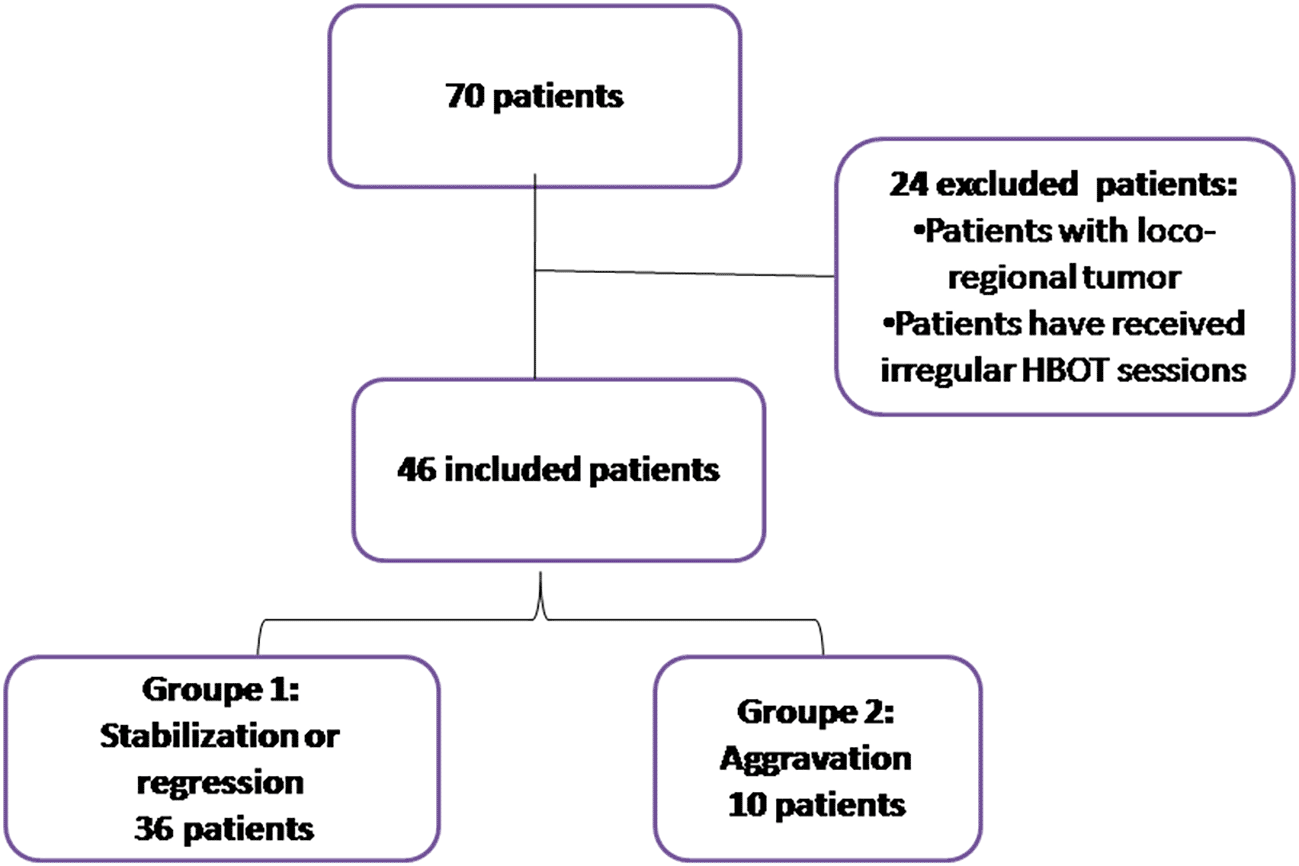

Figure 1. Diagram of patient recruitment, exclusions, and study groups.

Results

Osteoradionecrosis diagnosis

ORN typically occurred due to dental extractions (83% of cases) or surgical procedures (15%). The median time from RT to ORN onset was 6 years, while from dental care to ORN onset was 36 months.

Common clinical symptoms included pain (100% of patients) and mastication difficulties (98%). Trismus was present in all patients, with varying degrees of severity. Dental mobility was observed in 33% of cases.

We also noted the presence of bone exposure ( Figure 2) in 6 cases, bone sequestration in 15 cases, or bone fracture in 9 cases. The presence of a cutaneous fistula ( Figure 3) was noted in 39% of cases. In four cases, there was pus discharge through the fistula.

Figure 2. Exposure of the mandibular bone.

Figure 3. Cutaneous fistula in osteoradionecrosis.

We performed panoramic radiograph (76%), cone beam imaging (11%), computed tomography (CT scan) (80%), and magnetic resonance imaging (MRI) (28%).

Imaging revealed the following grades of ORN according to the LENT/SOMA classification: Grade 2 (43% of cases), Grade 3 (37%), and Grade 4 (20%).

ORN was predominantly mandibular (40 patients), affecting various regions such as the horizontal branch (27 patients) ( Figure 4), mandibular angle (10 patients), and ascending branch (3 patients). Other locations included the maxilla (2 cases) and the skull base (4 cases) ( Figure 5).

Figure 4. Osteoradionecrosis of the left mandible.

CT scan showing osteoradionecrosis of the horizontal branch of the left mandible complicated by sequestra (star) and mandibulo-cutaneous fistula (yellow arrow).

A: Sagittal section.

B: Frontal section.

C: 3D reconstruction.

Figure 5. Osteoradionecrosis of the temporal bone.

A and B: Coronal section showing of a CT-scan showing bilateral lytic erosion of the tympanic bone (star) and thickening of the walls of the external auditory canal.

The anatomopathological examination was performed in one case due to delayed alveolar consolidation and diagnostic doubt for differential diagnosis. It concluded with fibro-inflammatory chronic scarring remodeling, displaying features of ORN without specific granuloma or signs of malignancy.

A bacteriological examination with culture was performed in four cases, yielding negative results in three cases and identifying polymicrobial flora in one case.

Treatment of osteoradionecrosis

The therapeutic management of ORN included topical antibacterial mouthwash prescribed to all patients. All patients received analgesic treatment based on their pain intensity. Antibiotic therapy was initiated in 89% of cases. In all cases, it was empirical. In about 70% of cases, the treatment was primarily based on amoxicillin and clavulanic acid (89%). The average duration of the treatment was 6 weeks.

Surgical treatment was performed in 36 patients, predominantly involving sequestrectomy (94% of cases). Mandibulectomy with mandibular reconstruction using flaps was conducted in 6% of cases.

HBOT was provided to all patients, with a mean of 44.65 sessions. HBOT sessions preceded ORN surgery in 17% of cases and were indicated after surgery in 42% of cases.

Complications of HBOT were observed in two patients, including middle ear barotrauma, necessitating transient discontinuation of therapy.

Evolution of ORN lesions was evaluated clinically after 20 HBOT sessions and radiologically after 40 sessions. Results showed regression in 33% of cases, stabilization in 45%, and progression or aggravation in 22% (Figure 6).

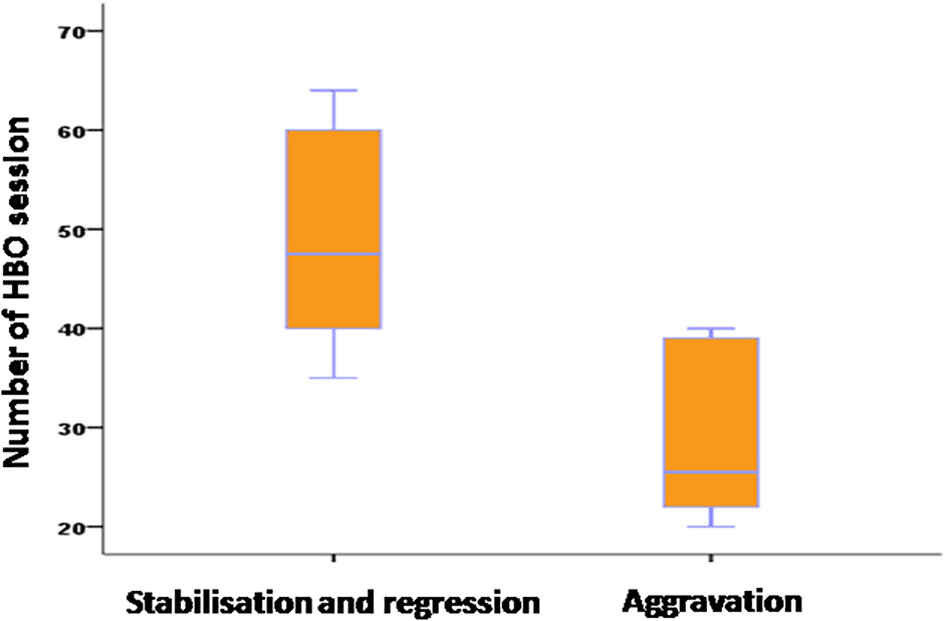

Figure 6. Evolution of osteoradionecrosis based on the number of hyperbaric oxygen therapy sessions.

Discussion

In 1973, Mainous et al.⁷ first proposed HBOT as a treatment for ORN. Subsequent studies have highlighted the significant benefits of HBOT in managing ORN, primarily due to its ability to deliver hyper-concentrated oxygen levels, up to 20 times higher than normal conditions. HBOT facilitates increased oxygen diffusion in hypoxic tissues, stimulates osteogenesis and mucosal tissue epithelialization, promotes collagen synthesis and osteoblast proliferation in irradiated tissues, enhances the expression of Vascular Endothelial Growth Factor (VEGF) leading to angiogenesis, improves tissue oxygen perfusion, and exerts a bactericidal and bacteriostatic effect against various pathogens. These mechanisms collectively underscore the therapeutic potential of HBOT in the management of ORN.⁸

Several studies have reported healing rates ranging from zero to 100%.^9–14 However, comparing these results is challenging due to the variability of protocols applied and the variability in case indications (varying severity of ORN cases).

Many authors have demonstrated improvement in ORN with HBOT.^15–17

Besides its therapeutic effect on ORN lesions, HBOT can help improve patients’ quality of life by reducing pain, promoting wound healing, and lowering the risk of infectious complications.¹⁸

However, Annane et al.¹⁹ halted their trial due to a significantly better healing rate in the placebo group (32%) compared to the HBOT group (19%). The main criticisms of this trial were the monomodal use of HBOT in treating his patients and the lack of strict and clear criteria for defining ORN and its severity.

According to recommendations established by medical organizations such as the Undersea and Hyperbaric Medical Society (UHMS)¹⁸ and the Tenth European Consensus Conference on Hyperbaric Medicine,²⁰ HBOT is recommended for treating symptomatic ORN cases or as an adjunct treatment to surgical intervention in order to enhance wound healing, reduce infection risk, and promote tissue healing after reconstructive or debridement surgery.

According to the UHMS, to achieve these effects, the recommended pressure should be equal to or greater than 1.4 atmospheres (atm). However, all current indications approved by the UHMS require patients to breathe nearly 100% oxygen in a pressurized chamber at a minimum pressure of 2 ATA.¹⁸ However, results appear controversial and inconclusive. Thus, at the limit of our literature search, only one randomized clinical trial has been published, with other studies mainly consisting of cohort studies of varying quality.

A study by Annane et al.¹⁹ examined the efficacy of HBOT in the treatment of ORN and found that patients who received a higher number of HBOT sessions had higher healing rates.

A meta-analysis by Bennett et al. (2016)²¹ also examined the results of several studies on HBOT in the treatment of ORN. They found that healing rates were higher in patients who received a higher number of HBOT sessions, although the results varied depending on the healing criteria used in the different studies.

Marx et al.²² reported healing rates of up to 85% in patients who received more than 20 HBOT sessions. This was applicable to our study where a minimum of 20 sessions was indicated for our patients, although.patient compliance during this extended treatment plays a critical role in achieving optimal outcomes.

The combination of HBOT and surgical treatment has been addressed in the literature. Several authors have reported ORN healing rates of 15% to 45% with HBOT alone and 20% to 90% when HBOT was combined with surgery.^23–25 However, these studies lack precision with somewhat heterogeneous groups.

In a recently published multicenter randomized trial in 2021, Forner et al.²⁶ reported a significantly better healing rate in the HBOT-surgery group (surgical treatment preceded by 30 HBOT sessions and followed by 10 HBOT sessions) at 70% (21/30) compared to 51% (18/35) in the surgery-only group. HBOT was associated with improved healing rates, regardless of ORN severity. It also reduced the severity of xerostomia and dysphagia and improved total unstimulated salivary flow. However, despite the most supported multimodal approach to ORN management being the combination of HBOT and surgery, due to the divergent conclusions of the literature, establishing standardized protocols for HBOT use in parallel with surgery seems compromised.

Broad-spectrum antibiotics such as penicillins, metronidazole, and clindamycin are commonly used in ORN due to their effectiveness against anaerobic bacteria often involved.²⁷ Aas et al.²⁸ used culture-independent molecular techniques to identify 59 bacterial species in ORN specimens, with anaerobes predominating and 27% of the bacteria being uncultivable, highlighting the complexity of microbial involvement in ORN and the need for comprehensive clinical management. There is no consensus on the duration of antibiotic treatment for ORN.²⁷

HBOT demonstrates a synergistic effect when combined with various antibiotics. It exerts bactericidal and bacteriostatic effects on anaerobic bacteria by promoting the generation of free oxygen radicals. It also enhances the bacterial-killing efficacy of leukocytes in hypoxic wounds by elevating tissue oxygen levels.²⁹

The evolution of ORN under treatment can be influenced by several factors.

Oh et al.,¹⁴ studied factors influencing ORN evolution, collecting 114 patients treated for ORN over a 16-year period. They were divided into two groups: group 1 of 47 patients treated with conservative treatment (sequestrectomy, debridement, and/or HBOT) and group 2 of 67 patients treated with immediate intervention or after failure of conservative treatment.

Patients whose ORN was associated with an early-stage tumor or extraction before irradiation responded favorably to conservative treatment. However, patients with advanced primary tumors, who continued to smoke and drink after RT, who received palliative RT or a radiation dose exceeding 60Gy, and who had oro-cutaneous fistulas, pathological fractures, swelling, or trismus responded poorly to conservative treatment. In these latter cases, radical resection of the affected tissue proved useful.

Smoking induces vasoconstriction and oxidative damage, reducing oxygen supply to irradiated tissues and impairing healing.³⁰ Similarly, alcohol contributes to systemic inflammation and immune suppression.³¹

Hypertension can exacerbate ORN due to its association with vascular dysfunction, which reduces microvascular density and perfusion in irradiated tissues. This condition worsens hypoxia, delaying healing and promoting fibrosis. Hypertension-induced chronic inflammation and oxidative stress further compromise tissue repair mechanisms.³²

Larger tumors and advanced staging necessitate higher doses of RT, leading to greater damage to surrounding healthy tissues.

Mandibular bone, in particular, is vulnerable to radiation-induced hypoxia and fibrosis due to dense cortical bone and limited vascular supply; which are primary drivers of ORN progression.³³

The onset time of ORN relative to RT is a factor influencing the evolution of ORN lesions. This notion was supported by Oh et al.,¹⁴ who reported that patients whose ORN occurred within 12 months after RT had a higher resolution rate with conservative treatment than patients whose ORN occurred after 12 months.

Beumer et al.³⁴ reported that ORN occurring after a dose of 70 Gy did not systematically respond to conservative treatment measures, thus requiring non-conservative treatment. At these levels, there is significant cytotoxicity to osteoblasts and endothelial cells, leading to impaired bone remodeling and microvascular obliteration.³⁵ Also, the overall dose and the distribution of that dose across the mandible are key factors. While IMRT can reduce the maximum dose to the mandible, the risk of ORN is still significantly influenced by the total dose delivered to specific mandibular regions. Doses in the range of 35–73 Gy, rather than a single point dose, are crucial in determining the likelihood of ORN development.³⁶

In the same study, the authors reported that ORN occurring due to irritation from dental prostheses or extraction before irradiation respond more effectively to conservative treatment than ORN occurring due to dental disease, either spontaneously or in association with post-irradiation extraction. The latter often requires a radical approach; this result was refuted by Oh et al.¹⁴

Tooth extractions should be performed based on pre-radiotherapy dental assessments to remove infected, non-restorable, or periodontally compromised teeth, as these are at higher risk for infection and subsequent ORN.³⁷ A tooth extraction should ideally occur at least two weeks before radiotherapy.³³

In a retrospective study conducted by De Felice³⁸ published in 2016, comparing resolved ORN and unresolved ORN, no factor was identified as influencing the resolution or progression of ORN during logistic regression.

In our study, the evolution of ORN lesions was influenced by the presence of hypertension, tumor size, T and N stages, RT dose, dental care delays relative to RT, ORN location within the mandible, and HBOT sessions. During logistic regression, only delays in dental care relative to RT would influence the evolution of ORN lesions.

Despite being the only study conducted in Tunisia on this topic, this research has several limitations that should be acknowledged. First, as a retrospective study, it has missing clinical data. Second, evaluating the efficacy of HBOT ideally requires a control group, which could potentially be addressed with a matched sample from another center. Third, the limited number of cases and the heterogeneity among patients in terms of therapeutic modalities prevent definitive conclusions. Additionally, the variability in radiation doses received by different parts of the jaw, depending on tumor histology and location, may also influence the outcomes. For these reasons, further research is needed to gain a deeper understanding of the therapeutic strategies for ORN tailored to individual patient profiles.

Despite these limitations, our study offers valuable insights into the management of ORN within the Tunisian context and provides a foundation for future, more comprehensive investigations.

Conclusion

In conclusion, our study yields crucial insights into the management of ORN by identifying significant predictors influencing post-therapeutic evolution of head and neck ORN. These findings underscore the multifactorial nature of ORN progression, implicating patient characteristics, tumor attributes, and treatment modalities.

Notably, advanced T stage, higher RT doses, and shorter delays between dental care and RT initiation were associated with worsened ORN evolution. Conversely, longer delays between dental care and RT initiation, mandibular horizontal branch localization and increased number of HBOT sessions were associated with improved lesion evolution. Logistic regression identified delay between dental care and RT initiation and number of HBOT sessions as independent factors influencing lesion evolution.

These findings highlight the importance of timely intervention and comprehensive treatment strategies in reducing ORN progression and improving patient outcomes. Moreover, our study underscores the potential of HBOT as a valuable adjunctive treatment option in ORN management. However, the long-term effects of HBOT, including potential complications such as barotrauma, oxygen toxicity, and claustrophobia, must be carefully considered in treatment planning. Further research is warranted to validate these findings and develop targeted therapeutic approaches tailored to individual patient profiles.
