Software Tool Article

BEpipeR: a user-friendly, flexible, and scalable data synthesis pipeline for the Biodiversity Exploratories and other research consortia

[version 1; peer review: 1 approved with reservations, 1 not approved]
PUBLISHED 24 Oct 2024
Author details Author details
OPEN PEER REVIEW
REVIEWER STATUS

This article is included in the Bioinformatics gateway.

Abstract

Background

Large research consortia can generate tremendous amounts of biological information, including high-resolution soil, vegetation, and climate data. While this knowledge stock holds invaluable potential for answering evolutionary and ecological questions, making these data exploitable for modelling remains a daunting task due to the many processing steps required for synthesis. This might result in many researchers to fall back to a handful of ready-to-use data sets, potentially at the expense of statistical power and scientific rigour. In a push for a more stringent approach, we introduce BEpipeR, an R pipeline that allows for the streamlined synthesis of plot-based Biodiversity Exploratories data.

Methods

BEpipeR was designed with flexibility and ease of use in mind. For instance, users simply choose between aggregating forest or grassland data, or a combination thereof, effectively allowing them to process any experimental plot data of this research consortium. Additionally, instead of coding, they parse most processing information in a user-friendly way through parameter sheets. Processing includes, among others, the creation of a spatially explicit plot-ID template, data wrangling, quality control, plot-wise aggregations, the calculation of derived metrics, data joining to a large composite data set, and metadata compilation.

Results

With BEpipeR, we provide a feature-rich pipeline that allows users to process Biodiversity Exploratories data in a flexible and reproducible way. This pipeline might serve as a starting point for aggregating the numerous data sets of this and potentially similar research consortia. In this way, it might be a primer for the construction of consortia-wide composite data sets that take full advantage of the consortia’s rich information stocks, ultimately boosting the visibility and participation of individual research projects.

Conclusions

The BEpipeR pipeline permits the user-friendly processing and plot-wise aggregation of Biodiversity Exploratories data. With modifications, this framework may be easily adopted by other research consortia.

Keywords

Research consortia, large-scale long-term environmental research, environmental data, data democratization and utilization, reproducibility, R programming language, Biodiversity Exploratories, BExIS

Introduction

Large-scale long-term environmental research frameworks such as LTER (Hobbie et al. 2003), TEAM (Rovero and Ahumada 2017), ForestGEO (Anderson-Teixeira et al. 2015, Davies et al. 2021), and the Biodiversity Exploratories (Fischer et al. 2010a, 2010b) are at the forefront of functional biodiversity research. These frameworks are fuelled by well-orchestrated infrastructure projects, unmatched standing scientific expertise, and high-resolution time-series data. This combination of factors allows them to answer some of the most intricate and pressing ecological questions of our time with high statistical power. For instance, they shed light on how land-use shapes biodiversity and ecosystem processes (Allan et al. 2015, Felipe-Lucia et al. 2020, Le Provost et al. 2023), how this gives rise to profound changes in community composition and network interactions (Weiner et al. 2014, Vályi et al. 2015, Blüthgen et al. 2016, Chavarria et al. 2021), and the importance of temporal and spatial heterogeneity in shaping these patterns (Kloss et al. 2011, Allan et al. 2014, Seibold et al. 2019, van Breugel et al. 2019).

Due to their size and the presence of dedicated infrastructure projects, these frameworks continue to benefit from an ever-increasing stock of biological data. For instance, as of 19/03/2024, the Biodiversity Exploratories Information System (BExIS, Chamanara et al. 2021) featured more than 1500 data sets for their experimental forest and grassland plots (EPs). Arguably, while this wealth of information holds great promise for answering even highly intricate research questions, considerable effort is needed to combine these data in a way that allows for their straightforward use. While for a limited number of data sets and at the expense of reproducibility, such processing might be performed in spreadsheet editors such as LibreOffice Calc or Microsoft Excel, this approach becomes increasingly infeasible when more data are incorporated, ultimately asking for a more efficient way of processing. While this often means using programming languages such as R, Python, and Julia, not all ecologists might be used to these languages and learning one can be perceived as daunting (Baker 2017, Custer et al. 2021).

Unsurprisingly, to circumvent these challenges, many research projects within these consortia might rely on a handful of data sets that allow for a straightforward and less time-consuming incorporation into their workflows. By doing so, they might leave out potential data that would have been instrumental in answering their complex scientific questions, ultimately causing a loss in statistical power. Instead, a more compelling approach would be a tool that allows for a user-friendly processing of data sets, rendering the decision between progressing fast or incorporating many data obsolete. To this end, we introduce BEpipeR, an R pipeline that allows for the synthesis of EP-level (a)biotic Biodiversity Exploratories data. To maximise its usability and ease of implementation, we purposely limited the amount of coding required. For instance, we allow users to parse most aggregation information through csv files and toggle easily between three aggregation modes (forest, grassland, or combined) that allow for the straightforward processing of data provided by this research framework.

Regardless of the mode selected, BEpipeR performs the following processing: creation of a spatially explicit plot-ID template, data substitution through exact and pattern-based approaches, subsettings, resolving species aggregates issues through fallbacks, data reshaping, variables standardization, mean and median-based outlier detection, data aggregation both within and across data sets, processing and aggregation of climate data generated and extensively pre-processed by TubeDB (Wöllauer et al. 2021); in the following referred to as “BExIS’ climate tool”, normalization by repeated rarefaction, calculating alpha diversity indices, data joining to template, quality control, variables selection by variance inflation factor analyses, and the compilation of metadata from JSON metadata files. Arguably, BEpipeR has the potential to generate large composite data sets in a highly reproducible fashion (Baker 2016). As this might aid the democratization and utilization of available research data, we hope for this pipeline to become a focal point for compiling the vast amount of environmental information generated by the Biodiversity Exploratories and, potentially, similar research consortia.

Methods

Implementation

BEpipeR is written in R v.4.1.1 (R Core Team 2021) and harnesses renv v.1.0.3 (Ushey and Wickham 2023) to establish an R project-based reproducible environment. This means that in setting-up the pipeline, all packages that were used to create the pipeline in the first place are automatically installed to a per-project library. These packages include here v.1.0.1 (Müller 2020) for a streamlined file and directory referencing, terra v.1.7-18 (Hijmans et al. 2022) for spatial processing, data.table v.1.14.8 (Barrett et al. 2023), plyr v.1.8.8 (Wickham 2011), Hmisc v.5.1-1 (Harrell 2023), tidyverse v.2.0.0 (Wickham et al. 2019), and doSNOW v.1.0.20 (Microsoft Corporation and Weston 2022) for general processing, respectively, rtk v.0.2.6.1 (Saary et al. 2017) for rarefaction, vegan v.2.6-4 (Dixon 2003) for calculating diversity indices, usdm v.2.1-6 (Naimi et al. 2014) for variables selection, and jsonlite v.1.8.4 (Ooms 2014) for metadata extraction.

For set-up, we assume the use of RStudio integrated development environment (IDE) (Racine 2012) and a connection to the internet. First, upon downloading the desired release from GitHub, the user unzips the compressed pipeline file. Second, the user obtains information on the R version required for running the pipeline by inspecting the top lines of the renv.lock file, placed at the root of BEpipeR’s directory structure. If the required version is not available on their system, they obtain it from the Comprehensive R Archive Network and install it. Additionally, on Windows, they ensure that a compatible version of RTools is installed. Third, the user sets the required R version as the default version in RStudio and exits the IDE. Last, BEpipeR’s reproducible environment can be unfolded by opening the BEpipeR.Rproj file using RStudio, upon which the renv package is bootstrapped and all required packages can be installed to the per-project library by typing ‘renv::restore()’ and confirming the prompted dialog with ‘y’. Subsequently, users may want to increase the number of lines retained in RStudio’s console to ensure that all messages generated in running the pipeline are available for post-run inspection. Noteworthy, for visualizing plot locations, the border of Germany must be obtained manually from GADM and stored for its use by the pipeline as ‘Germany_borders.gpkg’ in the pipeline’s ‘Helpers’ directory. For up-to-date set-up instructions, users are referred to the pipeline’s GitHub presence.

Operation

Parsing information

With few exceptions (see below), BEpipeR’s flow of operations (Figure 1) is controlled through three csv files (paramMAIN, paramDW, and paramSUB) that are used to parse processing information in a user-friendly fashion. Of these three, paramMAIN is the most instrumental and holds the majority of the aggregation information, whereas paramDW and paramSUB are helper files that coordinate the data wrangling (DW) and subsetting (SUB) steps, respectively. As the Excel versions of these files support users in providing processing information through conditional formatting and functions, we suggest that users provide processing information to these versions first, followed by exporting them to csv file format. While we purposely minimized user interventions to the pipeline’s code, they could not be avoided completely. Currently, user actions might be required at five points (Table 1) marked with the comment string “ACTION POTENTIALLY REQUIRED” in the R script. Users are advised to familiarize themselves with these interventions before executing the pipeline productively.

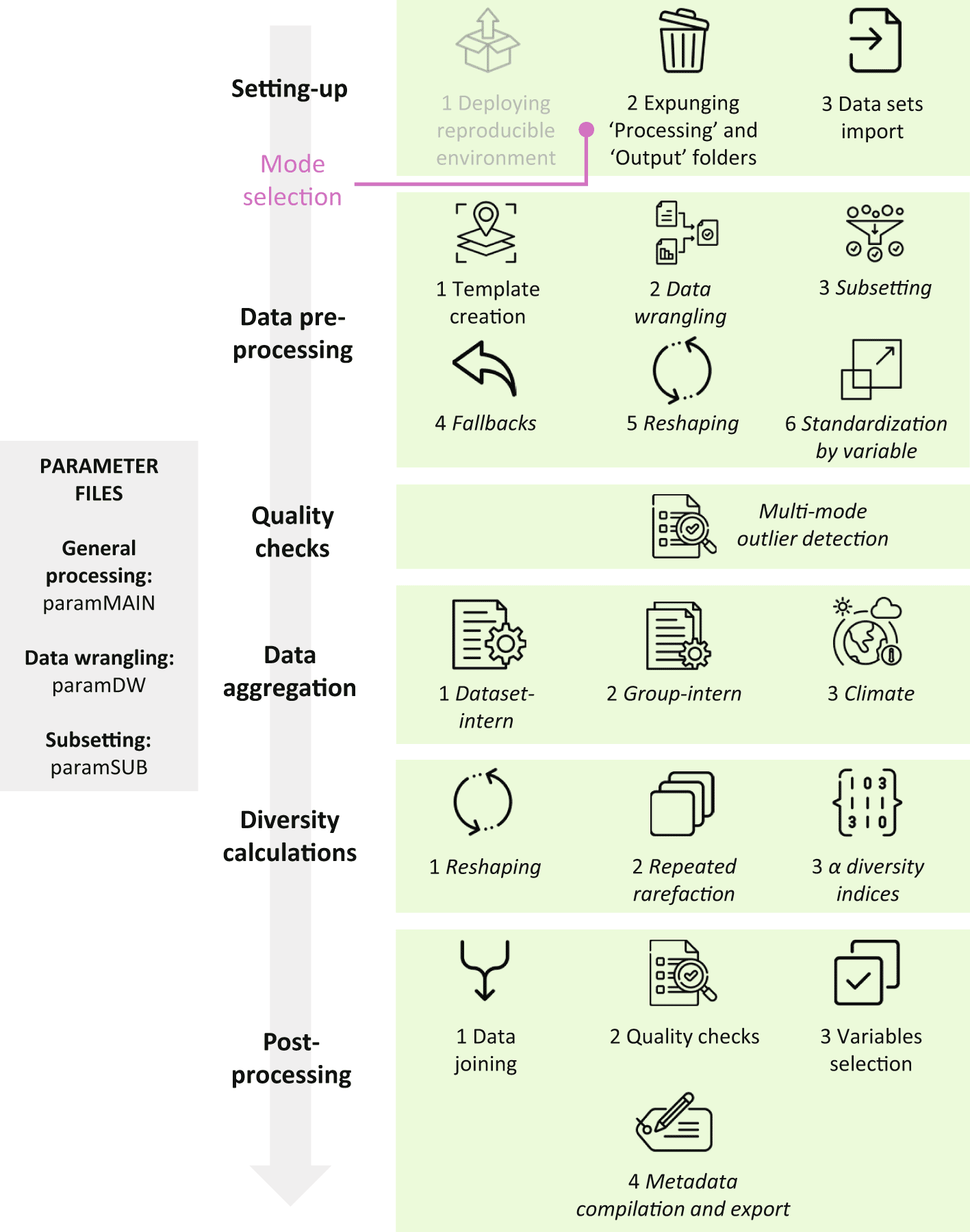

Figure 1. Overview of the BEpipeR pipeline.

Included are the parameter files used in its operation (left-hand side), its major processing steps (centre), and their sub-steps (right-hand side; italic: optional). Deploying the reproducible environment in setting-up the pipeline is only performed once, and hence greyed out.

Table 1. Information on running parameters to be parsed directly to BEpipeR.

The following parameters cannot be parsed through BEpipeR's parameter files. Instead, they must be provided directly to the pipeline's source code at locations marked with the string “ACTION POTENTIALLY REQUIRED”.

Variable nameExpected inputInput classDefault valueFunction
BEpipeR_modeEither “forest”, “grassland”, or “combined" for aggregating forest or grassland data, or a combination thereof, respectively.string“combined”Specifies the mode for processing input data.
CLIM_min_yearsAn integer without leading zeros.integer4The minimal number of years a variable must have data for to be retained in the climate data set (ID: 19007).
DI_reshape_whitelistQuoted data set IDs without version information (i.e., base IDs); separated by commas.stringemptyPrevents the reshaping from long to wide format for the data sets specified.
FQC_plots_to_removeQuoted EP plot designations with leading zeros; separated by commas.stringemptyAllows for the exclusion of plots whose inclusion would result in the discarding of many or all variables in excluding variables with any NA (Not Available) values.
VS_protected_variablesQuoted full variable names as provided in the FQC (i.e., quality-controlled) composite data set; separated by commas.stringemptyAllows for the protection of variables from being excluded through stepwise variance inflation factor analysis.

To demonstrate BEpipeR’s flow of operations and guide users in interpreting the pipeline’s output, we distribute BEpipeR in a ‘just-ran’ state. This means that the pipeline comes with both exemplary input data and the results produced by processing these files (see Use Cases). As indicated (Table 2), exemplary input files must be replaced with real-world Biodiversity Exploratories data when using the pipeline productively to ensure the correctness of results.

Table 2. BEpipeR’s core directories, their expected/generated main content, and processing-related information.

‘Provisioning’ describes whether the content is generated automatically or must be provided by the user. Placeholders are surrounded by square brackets. BExIS: Biodiversity Exploratories Information System.

Directory(Expected) content and processing informationProvisioning
HelpersThe main parameter files (paramMAIN), data wrangling (paramDW) and subsetting (paramSUB) helpers; the data set used for constructing the spatially explicit plot IDs template (currently data set 20826_7, dummy data provided must be replaced with real Biodiversity Exploratories data); a GeoPackage file with the border of Germany for visualizing plot locations (see Implementation section for more information).Manual
MetadataMetadata files to all data sets flagged as included in paramMAIN. For data not obtained through BExIS’ climate tool, this is the corresponding ‘[baseID]_[version]_datastructure.txt’ file. For climate data obtained through BExIS’ climate tool, this equates to its sensor description csv file renamed to match the scheme ‘[baseID]_[version]_sensor_description.csv’.Manual
OutputFiles generated by BEpipeR throughout its execution (see Table 3). This directory is expunged at the start of each pipeline run.Automatic
ProcessingFiles copied here from ‘Source’ for processing through BEpipeR. This directory is expunged at the start of each pipeline run.Automatic
R_scriptsThe R programming language script of the BEpipeR pipeline.Automatic
renvFiles required for setting-up and maintaining the pipeline’s reproducible environment.Automatic
SourceAll data sets in csv file format to be processed by BEpipeR following their automatic transfer to the ‘Processing’ directory. Naming scheme: ‘[baseID]_[version]_data.csv’.Manual
TempTemporary files written by the rtk R package in performing repeated rarefaction. This directory is created by BEpipeR.Automatic

We support users in providing the processing information required with dictionaries to all three param files that can be found as additional sheets in their respective Excel files. We recommend that users consult this information before starting to work with the pipeline. For exhaustive information on data processing, users are referred to the R script itself, which features comments on the reasoning for each step performed as well as further background information throughout. Additionally, in the following, we provide an in-depth description of the workflow, including details on how to encode the information required, the processing performed, and the output generated, to guide users in familiarizing themselves with the pipeline. Potential abbreviations provided in parentheses after the names of processing steps refer to the prefixes of variable names used in the BEpipeR R script.

Data retrieval, exploration, and curation

Data retrieval from BExIS database, as well as their exploration and curation are not performed by BEpipeR. Instead, they are performed best by the user on a dataset-to-dataset basis. This approach acknowledges that the decisions on incorporation and processing depend on the user’s aims as well as the unique combination of data and metadata. It further allows users to harness existing workflows for inspecting tabular data. Upon examining both data and metadata, the user decides whether the data set at hand should be processed by BEpipeR, and if yes, provides all the information required for its processing to paramMAIN and, if applicable, paramDW and paramSUB (see below). Subsequently, they copy the respective data set in csv file format (named ‘[baseID]_[version]_data.csv’; square brackets denote placeholders) to BEpipeR’s ‘Source’, as well as its ‘[baseID]_[version]_datastructure.txt’ file to the ‘Metadata’ directory.

Setting-up

Following the successful deployment of the reproducible environment through renv and before executing the pipeline, the user decides on one of three possible processing modes: i) forest, for aggregating the Biodiversity Exploratories’ forest data, ii) grassland, for grassland data, or iii) combined, for aggregating both forest and grassland data at the same time. They then provide the corresponding string to the BEpipeR_mode variable in the pipeline’s source code (Table 1). Noteworthy, both ‘Processing’ and ‘Output’ directories are expunged immediately after the start of each pipeline run to avoid potentially outdated files from being mistaken as up-to-date ones. Subsequently, the ‘Processing’ directory is populated by copying all csv data sets from the ‘Source’ directory to this folder. Please note, as data sets are retrieved by their base IDs, BEpipeR does not allow multiple data sets with the same base ID to be present in the ‘Processing’ directory. If this issue is detected, the user is informed and asked to solve the issue.

Data pre-processing

  • 1 Template creation: Combining Biodiversity Exploratories data is complicated by two factors. First, most data sets are not spatially explicit per se, meaning they do not feature location information that allows for a straightforward calculation of inter-plot distances. Second, plot information is not provided in a harmonized fashion. This means that the column holding plot designations might be arbitrarily named (e.g., EP, EpPlotID, EP_plot_ID, Useful_EP_PlotID, Plot, PlotID, Plot ID, Plot_ID, or plotid_withzero) and located within the data set. This is further complicated by the presence or absence of leading zeros in plot numbers (e.g., AEW1 vs. AEW01), and two alternative plot encoding schemes (e.g., AEW01 in EP is A18422 in grid plot (GP) encoding). To allow for joining the data regardless of encoding and to maximise its downstream usability, the plot IDs template constructed by BEpipeR holds EP as well as GP designations with and without leading zeros, respectively.

    To allow users to seamlessly use the data generated by BEpipeR in downstream spatially explicit statistical frameworks, the pipeline enriches the template with plot location information harmonized to the World Geodetic System 1984 (WGS84, EPSG: 4326) and informs the user about the spatial imprecision introduced by reprojecting location data from DHDN (Deutsches Hauptdreiecksnetz) to this unified coordinate reference system. Subsequently, the csv version of paramMAIN is imported to the R session as ‘datasets_table’ and filtered for instrumental columns and data sets flagged for inclusion. This table outlines the processing to be performed on each data set and is updated after each major processing step to reflect the progress of the pipeline. Template creation is concluded by various quality checks, including warnings if ‘datasets_table’ features data sets not found in the ‘Processing’ directory, or the system-wide memory available might not be sufficient for executing the pipeline (see Minimal system requirements).

  • 2 Data wrangling (DW): Removing or replacing factually incorrect values is essential in pre-processing data. BEpipeR supports users therein by allowing them to replace or remove these values through exact and pattern-based approaches. To enable this option, the user sets rDW in paramMAIN for the respective data set to ‘yes’. Subsequently, they provide additional information to paramDW, the helper file for this operation. This information includes the data set’s base ID (Dataset_ID), whether the replacement is value- (Class = value) or pattern- (Class = pattern) based, the value to replace (Value_old), and the value to replace with (Value_new). Noteworthy, the pattern-based approach even allows for the deletion of matching rows by specifying Value_new as NULL. In contrast, value-based row deletions are best performed by subsetting (see next step). Generally, modifications are applied in the order of listing (i.e., from top to bottom). This means that multiple modifications can be applied to the same data set by listing the same base ID in multiple rows of paramDW, each time with a different modification.

  • 3 Subsetting (SUB): BEpipeR’s data wrangling capabilities are enriched by its subsetting function, which allows for the filtering of rows using exact matches. To achieve this, upon setting rSUB for the respective data set in paramMAIN to ‘yes’, users provide the following information to this operation’s helper file, paramSUB: the data set’s base ID (Dataset_ID), the name of the column to perform the subsetting on (Subset_variable), the comparison operator to use (Operator), and the entry to retain or remove (Subset_level). As for DW, multiple modifications that are applied consecutively from top to bottom can be requested for the same data set.

  • 4 Fallbacks (FB): Data sets that establish relationships between taxonomic entities and their abundances often feature taxonomic levels not resolved to completion. For instance, a tree species data set might feature aggregated species, such as Quercus spec., alongside species that were fully resolved. To remedy this issue, BEpipeR allows users to perform fallbacks to more basal (taxonomic) levels. To invoke this operation, users set rFB in paramMAIN to ‘yes’ in addition to providing the following information: the name of the column to perform the fallback on (FBcol), the separator used to delineate the different levels of information in FBcol (FBsep), and FBsub, the index of the substring of interest. BEpipeR uses this information to string-split the information in FBcol at the separator specified, upon which the substring of interest is retained by its index. Subsequently, BEpipeR sums abundances per plot at the newly generated factor level, effectively collapsing abundances at a more basal (taxonomic) level. Abundance scores harmonized in this way may seamlessly be used in downstream processing steps.

  • 5 Reshaping (RES): Usually, plot data are most easily processed in wide format, with rows denoting plots and columns representing the respective variables. In this step, BEpipeR allows users to cast data to this format while coding absent combinations as Not Available (NA). To flag a data set for reshaping, the user sets rRES in paramMAIN to ‘yes’, upon which they supply the factors column that will be used in constructing new column names to RESvar. Please note: i) Factors not used in reshaping are collapsed by calculating plot-wise means. Hence, the resulting data set features unique plots in the first column, followed by column-wise environmental data. ii) Due to NA as missing combination value, RES is mutually exclusive with calculating alpha diversity indices (DI, see below). Hence, if you would like to calculate these indices, keep the data in long format. Do not reshape climate data obtained through BExIS’ climate tool to be processed in CLIM (see below) either.

  • 6 Standardization by variable (STD): Abundance scores often rely on sampling effort, with differential effort potentially giving rise to differential abundance, preventing meaningful plot-based comparisons. While various data-dependent normalization/standardization approaches exist (e.g., Weiss et al. 2017, Lin and Peddada 2020, Xia 2023), data sets that feature information on sampling effort are best normalized using this information. To achieve this, BEpipeR allows all numeric variables of a data set to be normalized by information provided in a user-specified column of that data set. To do so, users set rSTD for the respective data set to ‘yes’ and provide the variable’s name to be used for data set-wide standardization (STDvar) to paramMAIN. The result is standardized variables that permit a meaningful and straightforward integration in downstream processing steps.

Quality checks

Multi-mode outlier detection (QC): To support users in their data exploration and to spot potential invalid values, such as un-disclosed numeric NA values or species aggregates that result in artificially high or low abundance scores, BEpipeR performs column-wise outlier detection. This is done upon setting QC in paramMAIN to ‘yes’. To avoid false alarms in non-combined mode (i.e., forest or grassland), plots not conforming to the desired ecosystem are excluded in the detection procedure. In combined mode, outlier detection is performed separately for each ecosystem. Currently, BEpipeR features two outlier detection approaches that are based on constructing confidence intervals as multiples of standard deviation (sd, default: 18) around column means and medians. Noteworthy, lower confidence interval bounds are adjusted according to their column means/medians. More specifically, for a given column, if the lower confidence interval bound is negative but the corresponding column mean/median is positive, the respective lower bound is adjusted to zero. This approach acknowledges that many environmental data might be positive and increases the detection sensitivity of BEpipeR at the lower end of the data distribution. Flagged data sets, filtered for columns with potential outliers, are exported to the global R environment for inspection with the naming scheme ‘QC_[baseID]_flagged_[MEAN|MEDIAN]_[forest|grassland]’. If justified, outliers may be removed by the user through DW, SUB, or a combination thereof. Note that, by default, BEpipeR will not perform QC on climate data obtained through BExIS’ climate tool (base ID: 19007), regardless of what users set QC for this data set to. This is because these data have already been extensively quality-checked; hence, any outliers found are most likely false positives. Future releases of BEpipeR will enhance the outlined detection approaches by utilizing data structure information exclusively obtained through BExIS’ API.

Data aggregation

  • 1 Dataset-intern aggregation (DIA): The aim of this step is to construct data-set and plot-level-wise aggregation metrics, regardless of whether data is provided in long or wide format. To accommodate both data structures, BEpipeR provides two aggregation approaches of which one must be provided to the DIAappr column in paramMAIN upon setting DIA for the respective data set to ‘yes’. For either aggregation approach and the grouping variables provided, BEpipeR computes mean, median, sd, and median absolute deviation (mad) values.

    DIAappr = 2 allows users to aggregate data in long format. Currently, up to three grouping variables (plot IDs + two non-plot variables) are supported and might be provided to paramMAIN’s DIAcol1, DIAcol2, and DIAcol3 columns.

    DIAappr = 3 permits the plot-wise aggregation of data in wide format, meaning only plot IDs as grouping variable are currently supported (i.e., both DIAcol2 and DIAcol3 must be kept empty).

  • 2 Group-intern aggregation (GIA): This step allows users to combine multi-measurement (e.g., multi-year) data split across multiple data sets with the subsequent calculation of summary statistics (mean, median, sd, and mad), while maintaining up to three grouping variables (plot IDs + two non-plot variables). This processing is invoked by setting GIA in paramMAIN to ‘yes’, followed by providing grouping variables to the GIAcol1, GIAcol2, and GIAcol3 columns. Noteworthy, to reduce file sizes, amplicon sequencing data sets might have been shrunk by i) omitting plot × taxonomic unit combinations with zero abundance, and/or ii) deleting all-zero abundance taxonomic units, resulting in deliberately not covering all taxonomic units across all years. The first issue can be corrected for by enabling abundance correction (GIAabcorr = ‘yes’), which effectively rebuilds the plot × taxonomic unit matrix with missing combinations coded as zeros. The second issue is resolved by BEpipeR upon setting taxonomic units correction (GIAtaxcorr) to ‘yes’, which ensures that all taxonomic units are present across all years (absent units are introduced with all-zero abundance). Critical, in paramMAIN’s Group column, users must assign a unique number to the data sets to be combined. In addition, for all focal variables, it is the user’s responsibility to ensure that they are shared between the group’s data sets and that their order of listing in paramMAIN is identical. Future releases of this pipeline will automatize these steps by falling back to the group’s shared variables, followed by their re-organization and processing.

  • 3 Climate (CLIM): BEpipeR’s ability to process environmental data is enriched by its ability to process yearly climate aggregates obtained through BExIS’ climate tool (Wöllauer et al. 2021). To obtain data processable by BEpipeR, users choose the following parameters in the web tool’s graphical user interface for generating their data: Spatial aggregation: separate plots; Aggregation of time: year; options: ‘write all plots in one CSV-File’, ‘one plot timeseries after another’, ‘write header in CSV-Files’, ‘include column “plotID”’, Calendar columns: year. Additionally, they request the parameter description file to be included in the zip archive to be generated. We recommend users to set ‘quality check of measured values’ to ‘3: physical range + step + empirical check’ to obtain climate data that fulfils the highest quality standards. Users are free to choose whether they enable the interpolation of missing values. If they opt to do so, we advise that they request the inclusion of the ‘qualitycounter’ column in their aggregated climate data, which provides information on the total and interpolated number of data points underlying each of the yearly climate aggregates. The presence of this column in the climate data is used as indicator for BEpipeR to remove weakly supported data points (percentage interpolated > 60%), a step that is skipped if this column is not found in the data. If interpolated information is provided by BExIS’ climate tool, users are advised to not re-arrange the data column-wise, as this will break the association between the ‘qualitycounter’ and data columns. However, row-wise operations, such as the exclusion of undesired years through SUB, are permitted.

    To calculate reliable multi-year summary statistics (mean, median, sd, mad, min, and max), BEpipeR allows users to exclude variables not based on a minimal number of data points (i.e., years). By default, this filter is set to four but may be adjusted by users interested in retaining variables that satisfy a more stringent filtering approach (CLIM_min_years, Table 1). These users should keep in mind that, depending on the years they want to obtain temporal coverage over, the replacement of plot HEW02 with HEW51 in 2016 might complicate or even negate the acquisition of long-term time-series climate data. To assist users in this filtering, BEpipeR issues a warning if their strategy is too stringent and results in retaining only few or no climate variables at all.

Diversity calculations

To go beyond a simple description of abundances, we allow users to calculate alpha diversity indices. To do so, they set DI for the respective data set in paramMAIN to ‘yes’. First, this triggers the reshaping of the respective data set to wide format with zero as value for combinations not present. This step may be skipped for data sets already in this format by providing their base ID to the DI_reshape_whitelist variable (Table 1). Second, users might opt to normalize the data provided through rarefaction by setting RF in paramMAIN to ‘yes’ and providing the number of repetitions to perform (as multiple of ten) to RFnrep. We are well aware of the ongoing debate on proper normalization and the alleged shortcomings of rarefaction (McMurdie and Holmes 2014, Schloss 2024). We acknowledged this by purposely deciding on repeated rarefaction, as an extension of normal rarefaction, for the following reasons: i) rarefaction is a highly tractable and easy-to-grasp concept, ii) data normalized through rarefaction might seamlessly be used in calculating alpha diversity indices (e.g., Walters and Martiny 2020, Schloss 2024), iii) rarefaction might still be the most frequently used normalization technique for amplicon data, and implemented in many processing pipelines such as QIIME (Caporaso et al. 2010) and mothur (Schloss et al. 2009), and iv) rarefaction noticeably decreases the discrepancy between OTU and ASV data (Walters and Martiny 2020, Chiarello et al. 2022), allowing for a higher degree of comparability regardless of the type of clustering applied. Most importantly, repeated rarefaction addresses the often-criticised data loss by random subsampling through performing these subsamplings repeatedly, effectively reducing the impact of single stochastic processes in normalizing data (Cameron et al. 2021). Noteworthy, before repeated rarefaction, potential decimal values in the abundance table that resulted from upstream multi-year aggregations are rounded up to the next integer, an approach that prevents positive values smaller than 0.5 from falsely being set to zero (i.e., absence). Users might gauge the success of the normalization by inspecting rarefaction curves and/or slopes exported to the ‘Output’ directory (Table 3). Following repeated rarefaction and the rounding of potentially produced decimal abundance scores to their nearest integer, BEpipeR computes alpha diversity indices, including species richness, Menhinick (Menhinick 1964), Margalef (Margalef 1973), Shannon-Wiener (Shannon and Weaver 1949), Simpson (Simpson 1949), and the inverse Simpson index. Because most alpha diversity indices are meaningless for empty sampling units, only plots with non-zero richness are retained for later joining.

Importantly, some data sets may be incorporated into BEpipeR’s workflow as they are (i.e., without the need for DIA, GIA, CLIM, RF, or DI). This must be signalled to BEpipeR by setting AsIt in paramMAIN to ‘yes’, upon which no aggregation is performed on these data sets. This functionality allows BEpipeR to incorporate highly sophisticated ready-to-use data sets in a straightforward fashion.

Post-processing

  • 1 Data joining (MRG): Upon ensuring that all data have been processed fully by inspecting the relevant datasets_table columns, BEpipeR left-joins all available data to the plot IDs template constructed upstream. For data sets with leftover grouping variables (apparent by the data set having more rows than the plot IDs template), BEpipeR attempts to accommodate these by repeated reshaping to wide format until the data set’s number of rows conforms to the expectation, or no more potential grouping variables are found. In the latter case, the user is warned. In joining data, BEpipeR appends complete data set IDs to column headers to allow for a straightforward back-tracing of information to their origin.

  • 2 Quality checks (FQC): The aim of this processing step is two-fold. First, BEpipeR performs several quality checks to ensure data consistency and the successful execution of upstream processing steps. For instance, it warns if additional rows were introduced in left-joining, plot designations are found in the values matrix, or if duplicated column headers or headers without data set ID are found, and it maximises the data’s downstream usability by replacing potential spaces in column names with underscores. Second, it removes undesired information from the composite data set constructed in MRG to prepare the data for variables selection (see below) or direct use. This is achieved by replacing NaN (Not a Number) and Inf (infinite) values with NA and excluding non-numeric columns. The resulting intermediate composite data set (FQC_env_var_composite_intermediate.csv, Table 3) might still contain NA cells and mono-value columns. However, it may already be of interest to users who apply statistical frameworks capable of tolerating such input data. This composite data set is processed further by excluding mono-value columns and plots not conforming to the BEpipeR mode specified. Additionally, as some plots might render obtaining a large complete-cases data set difficult by breaking up otherwise continuous long-term time-series data (e.g., HEW51, established in 2016), we allow users to exclude these plots (FQC_plots_to_remove, Table 1) before removing any columns with NA values. The resulting complete-cases composite data set is subsequently exported (FQC_env_var_composite_complete.csv, Table 3). For users applying statistical frameworks capable of processing multi-colinear data, this file may already be used as input for their analyses.

  • 3 Variables selection (VS): Understanding the correlation structure underlying explanatory data is pivotal for the thought- and meaningful interpretation of statistical models. In this processing step, we support users in two ways: i) through BEpipeR, we provide information on correlations underlying the complete composite data set produced in FQC, and ii) condense the data to a set of less correlated variables. Insights into the correlation structure are gained by calculating Pearson correlation coefficients (r) and associated false discovery rate-corrected (Benjamini and Hochberg 1995) P values between all variable pairs in FQC_env_var_composite_complete.csv (Table 3). This information is further used to warn users if significant (P < 0.05) pairwise comparisons with unusually high goodness of fit (r ~ 1) are observed, upon which the user decides whether these comparisons are justifiable or instead indicative of issues in upstream data processing.

    Reducing the data set to a suite of less correlated variables is achieved by variables selection through variance inflation factor (VIF) analyses. Noteworthy, users might often have justified a priori assumptions about focal variables, and hence would like to retain these in their data set for easier model interpretation. We acknowledge this and provide users with the ability to protect their focal variables from removal by supplying their names to the VS_protected_variables variable in the script (Table 1). To maximise the downstream usability of the data generated, BEpipeR performs variables selection for a range of VIF thresholds from two to ten, with smaller values denoting a more stringent exclusion approach. For each VIF threshold, multiple files are exported to the ‘Output’ directory (Table 3).

  • 4 Metadata compilation and export (COMD): To allow for a straightforward data re-usage, the provisioning of metadata is a cumbersome yet necessary duty to all data scientists. The Biodiversity Exploratories provides these metadata in JSON ‘datastructure’ files for normal data sets and in a csv file for data generated through BExIS’ climate tool. BEpipeR utilizes this information to generate metadata for variables featured in the complete composite data set. To do so, BEpipeR strips away data set IDs and aggregation suffixes from headers. Subsequently, for variable names isolated this way, their metadata (such as variable description and unit information) are extracted, enriched with information on the processing performed through BEpipeR, and exported as tabular data to the ‘Output’ directory (Table 3). Note that, as for data sets, metadata files are retrieved by their base ID, and hence, multiple metadata files with the same base ID are not supported in the ‘Metadata’ directory.

Table 3. Information on the files generated by the BEpipeR pipeline and exported to the 'Output' directory.

Placeholders are in square brackets.

Processing stepFile nameDescription
Rarefaction (RF)RF_[baseID]_rarefaction_curves_subsample_[subsampleSize].pngRarefaction curves depicting the relationship between subsample size on the x and richness on the y axis. The vertical line marks the subsample size used for rarefaction that is also provided in the file's name. Horizontal lines visualize plot-based richnesses following a single rarefaction. Generated with vegan's rarecurve() function.
Rarefaction (RF)RF_[baseID]_rarefaction_slopes_subsample_[subsampleSize].csvThe slopes of rarefaction curves constructed with vegan's rarecurve() function at the subsample size specified in the file's name. Generated with vegan's rareslope() function.
Final quality control (FQC)FQC_env_var_composite_intermediate.csvThe composite data set constructed by left-joining all data to the spatially explicit plot IDs template with the subsequent replacement of NaN (Not a Number) and Inf (infinite) values with NA (Not Available), as well as the exclusion of non-numeric columns. Metadata columns provide experimental (EP) and grid plot (GP) designations with (Plotid0) and without (Plotid) leading zeros, as well as location information in World Geodetic System 1984 (WGS84). This information is followed by the variables produced, with their headers carrying processing information and the full data set IDs they originate from.
Final quality control (FQC)FQC_env_var_composite_complete.csvFQC_env_var_composite_intermediate.csv after excluding plots not in concordance with the BEpipeR mode specified, in addition to user-defined ones (Table 1). Mono-value columns and those with NAs have been excluded as well, making this data set a complete-cases one.
Variables selection (VS)VS_pearson_corrMat.csvThe Pearson's r matrix as produced by Hmisc's rcorr() function for all non-metadata variables in FQC_env_var_composite_complete.csv.
Variables selection (VS)VS_pearson_numbObs.csvThe number-of-observations matrix underlying the values in VS_pearson_corrMat.csv.
Variables selection (VS)VS_pearson_pVals.csvThe P values matrix to the r values stored in VS_pearson_corrMat.csv.
Variables selection (VS)VS_corr_flat_complete.csvA flattened representation of VS_pearson_corrMat.csv and VS_pearson_pVals.csv. Diagonal values as well as false discovery rate (FDR)-corrected P values are provided.
Variables selection (VS)VS_VIF[VIFthreshold]_VS_analysed_vars.csvThe names of the variables that underwent variables selection by variance inflation factor (VIF) analysis with the VIF threshold specified. Typically, this is all non-metadata variables from FQC_env_var_composite_complete.csv.
Variables selection (VS)VS_VIF[VIFthreshold]_VS_excluded_vars.csvThe variables excluded by usdm's vifstep() function at the VIF threshold specified.
Variables selection (VS)VS_VIF[VIFthreshold]_VS_corr_matrix.csvA Pearson's r matrix for the variables retained by vifstep() at the VIF threshold specified.
Variables selection (VS)VS_VIF[VIFthreshold]_VS_retained_vars_scores.csvThe VIF scores of variables retained at the VIF threshold specified.
Variables selection (VS)VS_VIF[VIFthreshold]_VS_composite.csvFQC_env_var_composite_complete.csv after excluding variables listed in VS_VIF[VIFthreshold]_VS_excluded_vars.csv.
Compiling metadata (COMD)COMD_metadata_compiled.csvThe compiled metadata of non-metadata variables in FQC_env_var_composite_complete.csv. For each variable, the following information is provided:

  • - The data set the variable originates from (with (FullID) and without (BaseID) version suffix).

  • - Its name as extracted from FQC_env_var_composite_complete.csv (Composite_var).

  • - Its name after removing processing suffixes (Composite_var_trimmed), as well as the processing information extracted (Aggr_string_1, Aggr_string_2).

  • - Its metadata as extracted from Biodiversity Exploratories JSON 'datastructure' files (Variables.Id, Variables.Label, Variables.Description, Variables.unit.Name, Variables.unit.Description, and Variables.dataType.Name).

  • - The processing performed by BEpipeR (in separate columns: rSUB, rDW, rSTD, rRES, rFB, DIA, GIA, RF, and DI; in concatenated fashion: Proc_info). See paramMAIN's dictionary for more information.

Minimal system requirements

To facilitate the adoption of the pipeline, we designed BEpipeR to be executable even on entry-level consumer hardware. CPU-wise, BEpipeR should execute fine on machines with ≥ 2 physical cores. RAM-wise, its minimal requirements are primarily dictated by the size of the input data sets users opt to process, as well as the type of processing requested. For instance, input files < 100 KB might consume negligible amounts of working memory, while large amplicon sequencing data sets (> 200 MB) might require significantly more, in particular if they are rarefactioned with an excessively high number of repetitions. Still, to prevent working memory from becoming a limiting factor on typical consumer-level hardware, repeated rarefaction is performed in chunks of ten, temporary files might be written to disk (‘Temp’ directory, Table 2), and large elements are cleared from the pipeline’s workspace immediately after they have become obsolete. With respect to processing times, BEpipeR might spend most of its time on the repeated rarefaction of large amplicon data sets, as well as performing variables selection on large composite data sets (> 150 rows, > 1000 columns). However, since these steps harness parallel processing, they can be sped up considerably by switching to more capable hardware.

Use cases

To demonstrate BEpipeR’s rich functionalities with minimal effort to the user, we ship the pipeline with exemplary data, including ten input data sets, corresponding metadata, and filled-out parameter files (Table 2). Both input and metadata files mimic real Biodiversity Exploratories information, which cannot be included for various reasons. In addition, the pipeline includes all files produced by processing the provided input data with default settings (Table 1) to allow users to familiarize themselves with the output produced (Table 3). In the following, we provide a concise summary of the BEpipeR workflow using the provided input data; for brevity, data sets are referred to by their base ID, and only steps required for understanding the provided example are listed. i) Plot designations and location information in data set 20826 are used to construct the spatially explicit plot IDs template. ii) Species abundance data in 19848 contain a non-valid numerical NA value (-88888888), which is replaced with NA in DW. iii) With the entry ‘None’, the abundance data set 19849 contains a non-valid factor level in its plot ID column. This information is excluded through SUB. iv) Species in data set 18269 could not be completely resolved (Genus3_spec), complicating meaningful comparisons between the taxonomic entities in this data set. This is solved by collapsing abundance information at the genus level through FB, followed by reshaping this data to wide format in RES. v) Abundance data in 18526 are not standardized/normalized for sampling effort. Instead, this information is provided in the ‘nobs’ column of this data set, which is subsequently used to normalize abundance scores and restore the inter-plot comparability of the data. vi) After all data sets have passed QC, the two pH measurements per plot provided in 14447 are summarized plot-wise through DIA. vii) Multi-year abundance data split over the data sets 19848, 19849, and 19850 are summarized at plot and species level through GIA. viii) Multi-year climate data (19007) obtained through BExIS’ climate tool is processed by CLIM. Note that, because no ‘qualitycounter’ column is provided, the removal of weakly supported data points is skipped. ix) Amplicon sequencing data in 25067 are first reshaped to wide format, followed by their repeated rarefaction with 150 repetitions, and the calculation of alpha diversity indices. Subsequently, all data are left-joined to the plot IDs template (MRG). Noteworthy, because data set 14567 did not require any processing, it is incorporated as is. The resulting composite data set is quality-controlled and filtered (FQC), and variables selection (VS) is performed. Processing is concluded by the compilation and export of metadata (COMD) to the variables in the complete composite data set constructed in FQC.

Discussion

With BEpipeR, we provide a feature-rich pipeline for processing and synthesizing Biodiversity Exploratories data. To our knowledge, this is the first framework of this consortium to do so in a user-friendly and highly reproducible fashion. We acknowledge that embedding it in the Biodiversity Exploratories with its many projects comes with both challenges and benefits. We recognise that providing a comprehensive framework for the processing of the consortium’s many data sets is a daunting task, as many, potentially conflicting, interests need to be satisfied. Hence, for the near-time development of this pipeline, we see the following three focal points for improvement: i) Streamlining the user experience by the improved handling of errors, increasing the pipeline’s verbosity, and providing the ability to parse even more aggregation information through the existing parameter files. ii) The extension of existing features, such as data normalization through transformation (e.g., McKnight et al. 2019, Boshuizen and Te Beest 2023). iii) Increasing rigour in ensuring data integrity by implementing access to BExIS’ API and, thereby, information obtainable solely through this channel.

Noteworthy, many re-usability issues BEpipeR corrects for would have been prevented in the first place by adopting more stringent standard operational procedures that ensure data re-usage with minimal user effort. Briefly, we restrict ourselves to the issues encountered most often while working on a subset (~ 150 data sets from 2009 onwards) of the Biodiversity Exploratories’ information stock: i) Non-harmonized plot information: Data re-usage might be drastically improved by encoding plot information in a unified way. This includes, among others, making the plot ID column the first column of data sets, using unified column names for this type of information, and enforcing the experimental plot scheme with leading zeros throughout. ii) Non-harmonized NA and NODATA values: Consortium-wide non-numerical NA and NODATA values would prevent the (mis)use of numerical values for encoding this information. This issue is exacerbated by the fact that information on these values can only reliably be obtained through BExIS’ API, a resource most scientists might not be aware of or familiar with. iii) Non-harmonized encoding of factors: Factors should be encoded as character strings to facilitate their detection and prevent aggregation over these values. These and other potential improvements should be accompanied by more stringent quality control and data curation through the Biodiversity Exploratories’ data management team to prevent mal-formatted, incomplete, or erroneous data sets from being listed as ready-to-use in BExIS database. We also highlight the need to revise any data sets that may not adhere to these standards. While most of these suggestions mean minimal effort for data owners who upload new data sets, and a reasonable yet essential one for this consortium’s data management team, they might drastically reduce hands-on time for scientists that re-use these data, and ultimately pave the way to making these data exploitable through large inter-framework databases (Finkel et al. 2020).

In constructing BEpipeR, we aimed to balance its specificity to the Biodiversity Exploratories with general applicability. This means that while this pipeline was written to solve numerous Biodiversity Exploratories-specific data issues, it might nevertheless be adapted to the needs of other large research consortia. This might be achieved most easily by, among others, implementing a step that recodes other consortia’s plot designations to the Biodiversity Exploratories’ experimental plot designation scheme, preventing them from having to adjust most regular expression-based pattern matching in BEpipeR. These consortia may also benefit from the modularity of BEpipeR, where each major loop is a well-defined processing step, allowing for straightforward modifications to the workflow. Additionally, parsing-wise, users may tailor paramMAIN to their needs by deleting or replacing all columns not strictly required for BEpipeR’s operation (as indicated in the file’s dictionary). Finally, changes to BEpipeR’s source code are aided by a consistent and traceable naming scheme for variables, as well as detailed comments on the code and the underlying reasoning.

To conclude, even though this project might be facing substantial challenges, it is the Exploratories’ large base of researchers and scientific staff that has the potential to render this endeavour a success. People interested can contribute both conceptually, by providing suggestions for future implementations, and preferably, by coding. In the best case, their participation is fuelled by having understood the nature of this framework, that is, its capability to boost each project’s data visibility and impact by providing it in a composite data set for the most straightforward re-use possible. As we will demonstrate elsewhere, BEpipeR can be used to generate expansive composite data sets with the potential to further insights into complex evolutionary and ecological matters.

Ethics and consent

Ethical approval and consent were not required.
